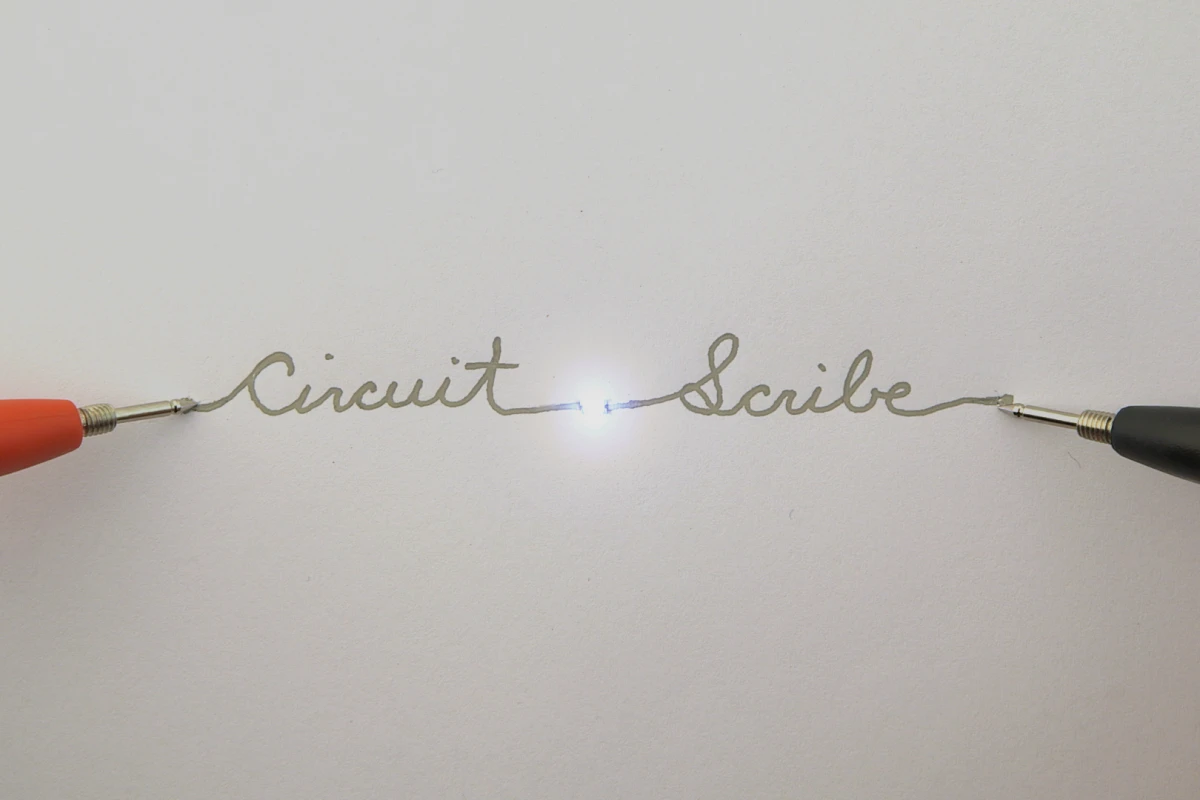

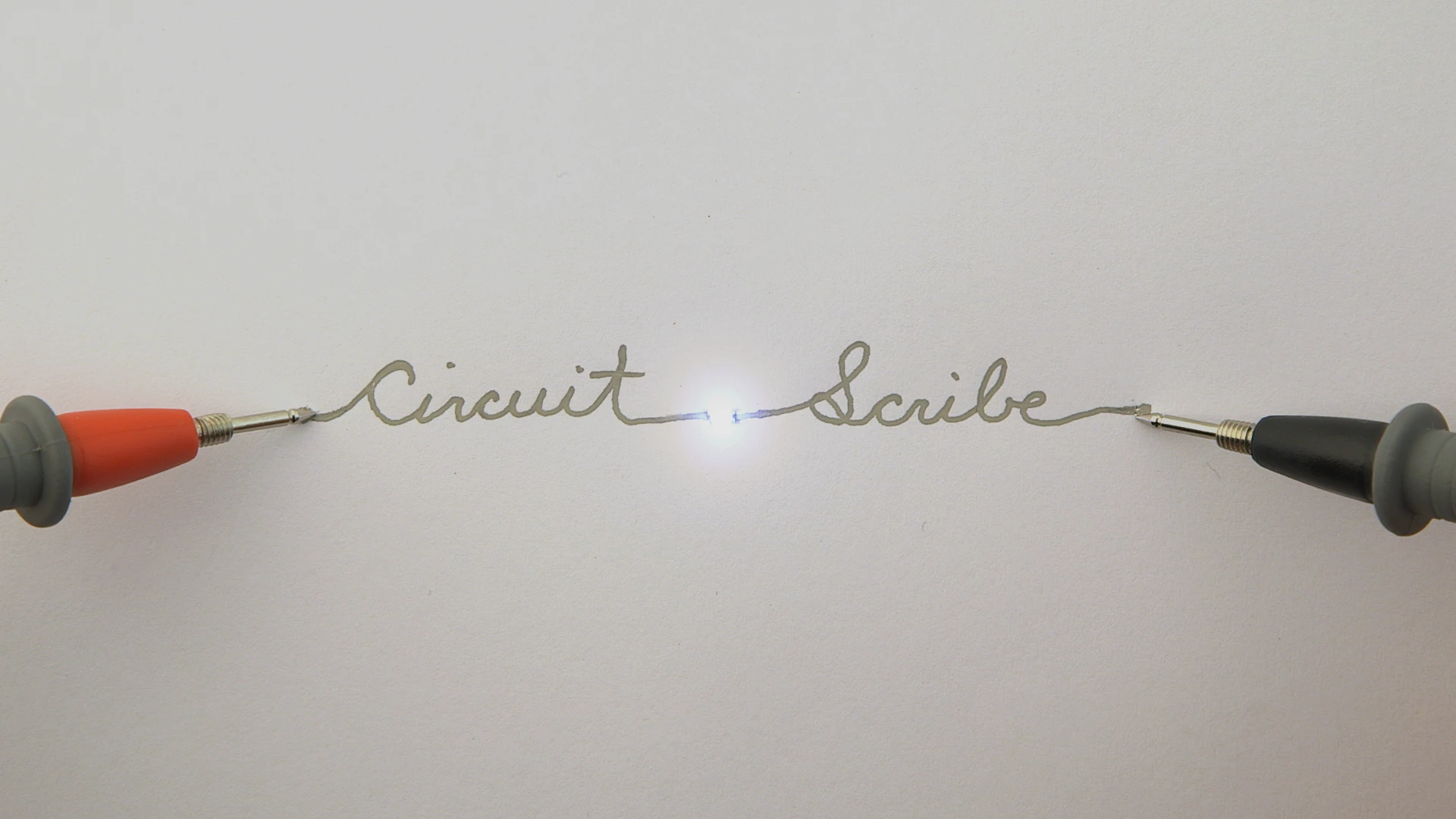

A new company called Electroninks is seeking to make DIY electronics child’s play ... literally. Circuit Scribe is a roller-ball pen filled with conductive silver ink that enables the creation of circuits by simply drawing them.

The circuit-drawing pen first caught our attention back in 2011 during its research phase at the University of Illinois’ research lab of Professor Jennifer Lewis. Now Lewis, along with reactive silver ink wizard Brett Walker, has co-founded a company called Electroninks to produce and market the Circuit Scribe.

The pair wants to offer a simpler, less messy and more fun alternative to breadboards used to build circuits. All that is required is a coin battery, paper clip, and LED. By using the pen to draw lines with the silver ink, anyone can create functioning circuits. The more technically-minded can resort to a larger number of components to make more complex circuits. Electroninks says Circuit Scribe is compatible with several electronic platforms such as the open source Arduino and the invention kit Makey Makey.

Circuit Scribe is designed as a neater, more flexible replacement for breadboards
Circuit Scribe is designed as a neater, more flexible replacement for breadboards

Lewis and Walker are raising funds for Circuit Scribe via Kickstarter. To that end, they have developed a series of electronic components for backers to have fun with. The project has already surpassed its funding goal by a long margin and a US manufacturer has been drafted in to help bring the pen to market. Funding options range from a $20 pledge for a pen and a LED component (plus $10 for shipping to Canada and $15 elsewhere) and $500 for a custom designed unit.

The video below shows how Circuit Scribe works.
