Micro wind turbine for home rooftops receives milestone certification

Micro wind turbine for home rooftops receives milestone certification

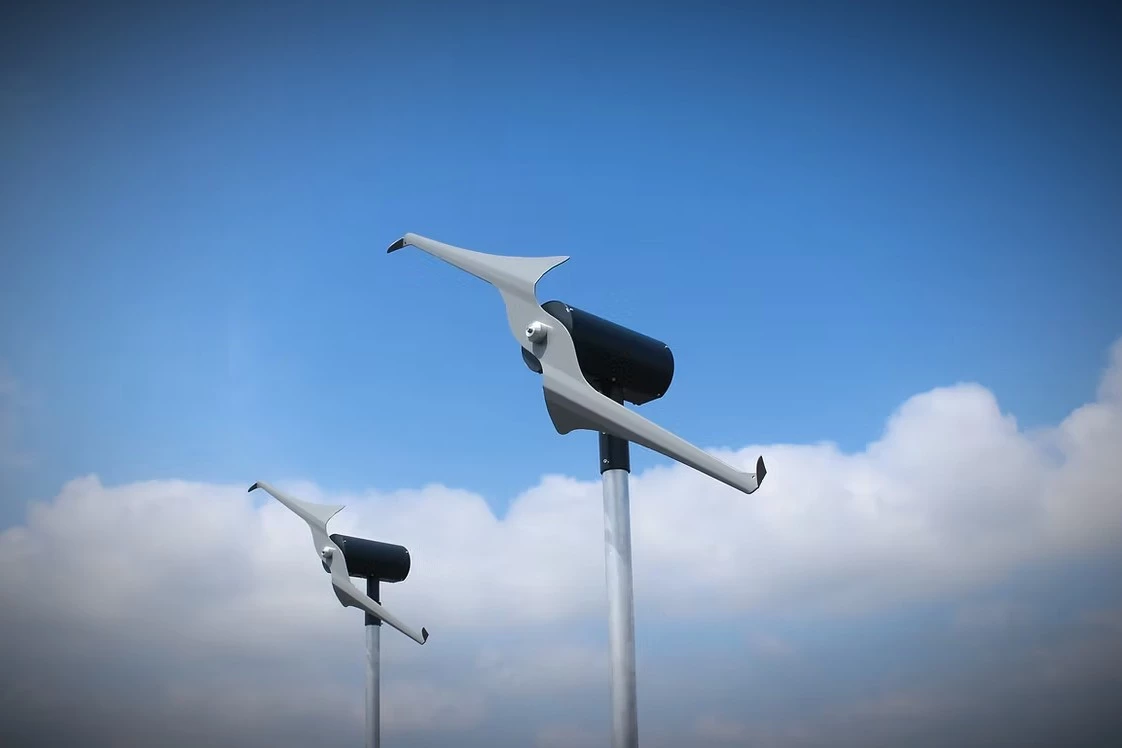

The NG micro turbines are suitable for multiple installations on home rooftops
The NG micro turbines are suitable for multiple installations on home rooftops
View 2 Images
The NG micro turbines are suitable for multiple installations on home rooftops
1/2
The NG micro turbines are suitable for multiple installations on home rooftops
The NG's single rotor measures only 1.5 m (4.92 ft) in diameter, making it about the size of a satellite dish
2/2
The NG's single rotor measures only 1.5 m (4.92 ft) in diameter, making it about the size of a satellite dish

German manufacturer SkyWind has just become the first company to receive full certification for its compact wind turbine, the NG. The small but mighty wind spinners are easy to install atop home rooftops to supplement grid power with clean energy.

When it comes to harvesting energy from air currents, the big wind turbines usually get all the attention. For example, in 2023, the world's largest wind turbine, with a 260-meter (853-ft) diameter began operating in China, only to be outdone the following year by another monster windmill with a blade diameter of 310 m (1,107 ft). While these gargantuan commercial-grade wind turbines can supply an impressive amount of power to a large collection of homes, German company SkyWind has taken a different, and user-friendly, approach to harnessing wind energy.

Its NG micro turbine was first revealed in 2009 when company founder Fritz Unger showed off his patented single-blade micro turbine at a young researchers competition. Since that time, SkyWind has sold over 10,000 of the devices and they're now in use in everthiing from homes to ski lodges.

Now, SkyWind has reached another important milestone in its evolution. It has become the first company in the world to receive full certification from the ICC Small Wind Certification Council for the micro turbine. The certification tests were conducted in the US state of Utah and included two years of testing to verify the turbine's power output, safety and function claims, and its long-term durability.

The NG's single rotor measures only 1.5 m (4.92 ft) in diameter, making it about the size of a satellite dish
The NG's single rotor measures only 1.5 m (4.92 ft) in diameter, making it about the size of a satellite dish

The micro turbines were each certified to have a power output 615 kWh/year. While it's true that that's only about 6% of the average American home's yearly usage of 10,791 kWh, multiple turbines could be installed to increase the amount of green energy harvested. Alternatively, one turbine could be applied to a specific function, such as providing lights to an outbuilding or a garage. SkyWind also points out that its turbines tend to function best during stormy conditions when solar panels fare worse, so a combination of both technologies could be a good approach for someone looking to supplement grid power with green alternatives.

Each turbine is about the size of a rooftop satellite dish, measuring just 1.5 m (4.92 ft) in diameter, which makes installation of multiple units possible. The NGs operate extremely quietly and feature onboard computers to evaluate conditions as well as automatic braking and storm shutdown systems. They currently retail for €2,949 each (about US$3,450).

“Achieving SWCC certification is a significant step for SkyWind,” said Unger, now SkyWind's CEO. “It reinforces our commitment to rigorous testing and international quality standards, and ensures our customers can trust in the performance and longevity of our turbines.”

Sources: SkyWind, ICC-SWCC

12 comments
12 comments
Techutante
According to my napkin math, at my current electrical rates, that would pay itself off in 44 years. How durable did it say these are?
WONKY KLERKY
At random to the limited info above: 1: Poles/masts: a) Appear to rack of eye too thin v/v the thrust from rotor. b) Staying by cable thought to good. c) Q: Just where in the house structure is the base of mast to be secured? >TOP TIPS: DON'T USE THE BL**DY CHIMNEY!< + 2: Close neighbours v/v rotor noise ? ? ? !
paul314
I do wonder what they would do to local bird populations.
TechGazer
"Small but mighty" is a self-contradiction. Power generated (mightiness) is determined by swept area. 1.5m isn't "mighty". It used to be popular to advertise small turbines as "working in the lightest breeze!", except that there's very little energy to collect from lightest breezes.
Unless the roof is designed to handle the loading from those skinny masts, expect expensive trouble. Noise too.
Uncle Anonymous
Cool product, and kudos to German start-up SkyWind Energy for bringing this to market. While not perfect, it is a step in the right direction, and I'm sure that along with solar panels these will help with energy production.
Spud Murphy
TechGazer is spot on, these are pointless. We have looked at small wind turbines in domestic situations and found they are all but useless in urban situations. Search for "The Viability of Domestic Wind Turbines" or "The Viability of Domestic Wind Turbines for Urban Melbourne" for the actual PDF.
OO2free
As another commentator has observed, this solution is financially crippling as attempting to be grid independent with solar. I was curious about how integrating wind would effect the equation. The only way is with the assistance of visionaries whether government or philanthropy. Put bids out to competing companies on how much assistance is needed to provide turbine at an affordable price to be bundled with solar panels, batteries, chargers, and inverters all at a near zero interest long term loan.
S Redford
To achieve a 3 year simple payback, even at the UK's silly electricity costs, would require the turbine to be purchased and installed for less than £500. With the issues of finding a suitable mounting place, noise, vibrations, visual intrusion and the ability to survive storms, I doubt any micro-wind product will ever be viable for grid connected homes. Perhaps better for off-grid, low-power applications with suitable mounting.
martinwinlow
I hope the occs of the featured house are stone deaf - or they will be in for a noisily unpleasant surprise when it gets breezy! Attaching any sort of turbine to the roof structure will permit vibration etc from the rotating turbine blades to propagate very easily through the roof structure... and thus is a patently *daft* idea! Also, paying €3k for a turbine that generates 100W at 8m/s wind speed is equally dotty.
SteveMc
Looks like Skywind are making a killing from this next to useless product. You would think that after selling over 10,000 of these units, the price would now be well below €3K. With solar panels now able to produce an average of 400W PER PANEL, I fail to see how these turbines could possibly achieve comparable payback, ever. Not even close. If the weather people predict a 30 year storm that render solar panels useless, I may consider it
