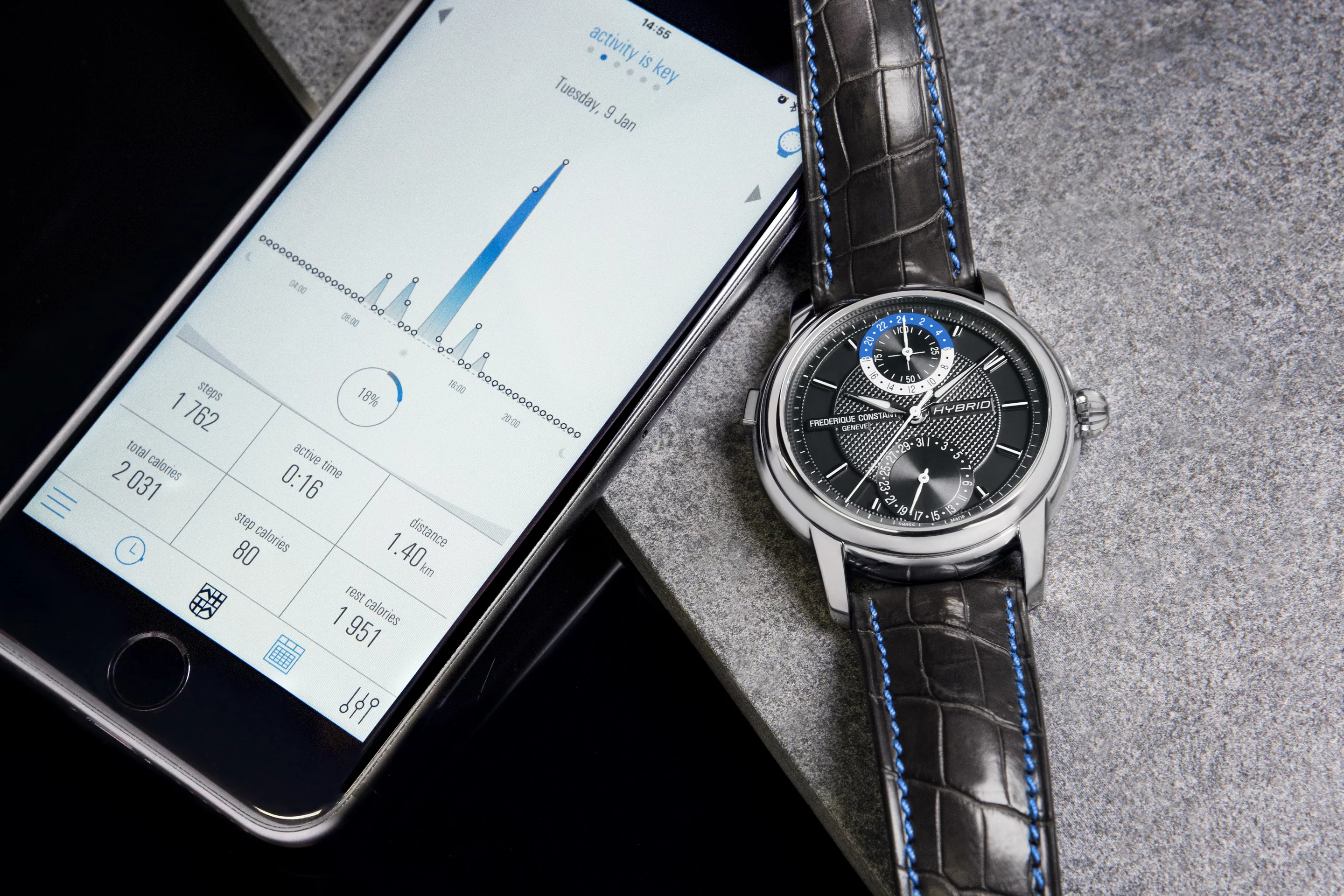

The Hybrid Manufacture and app
The Hybrid Manufacture and app
View 32 Images

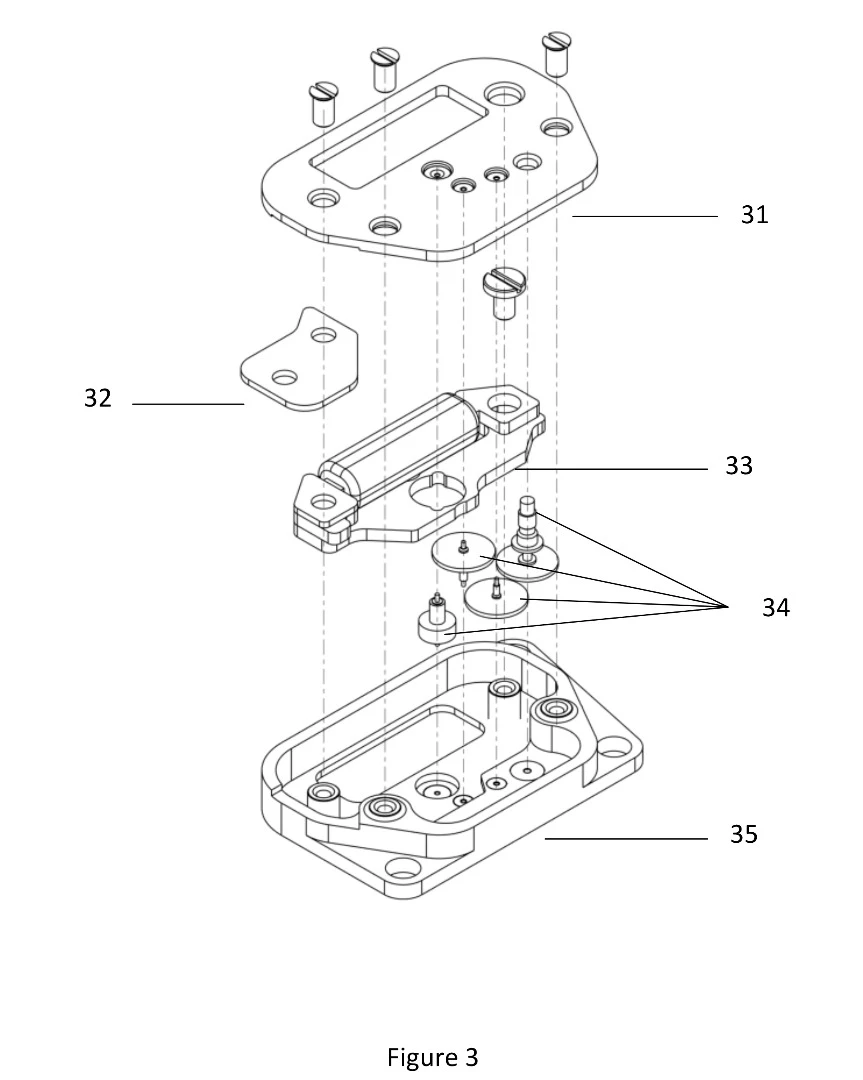

The Hybrid Manufacture electronic module in exploded view
1/32
The Hybrid Manufacture electronic module in exploded view

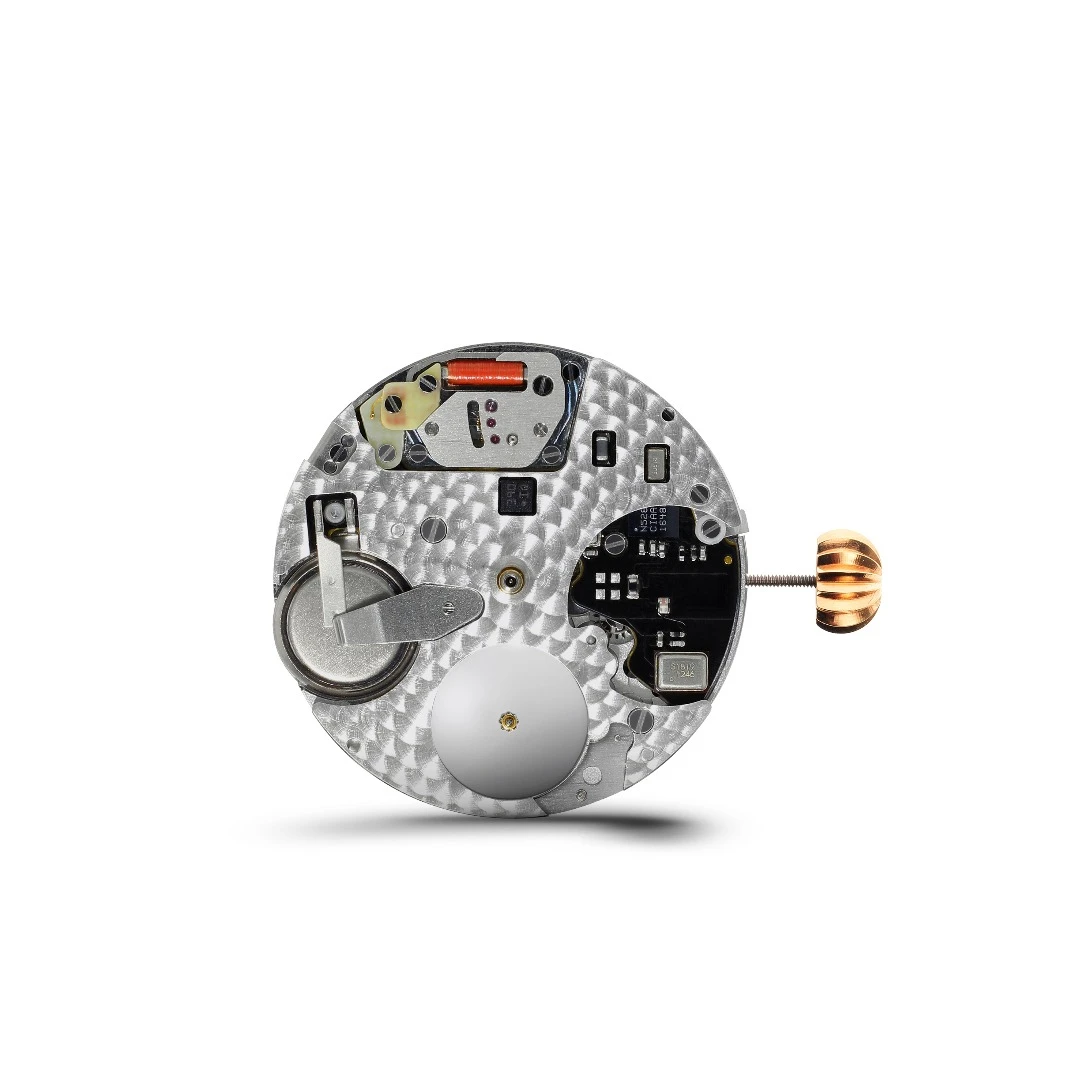

Movement showing the electronics module
2/32
Movement showing the electronics module

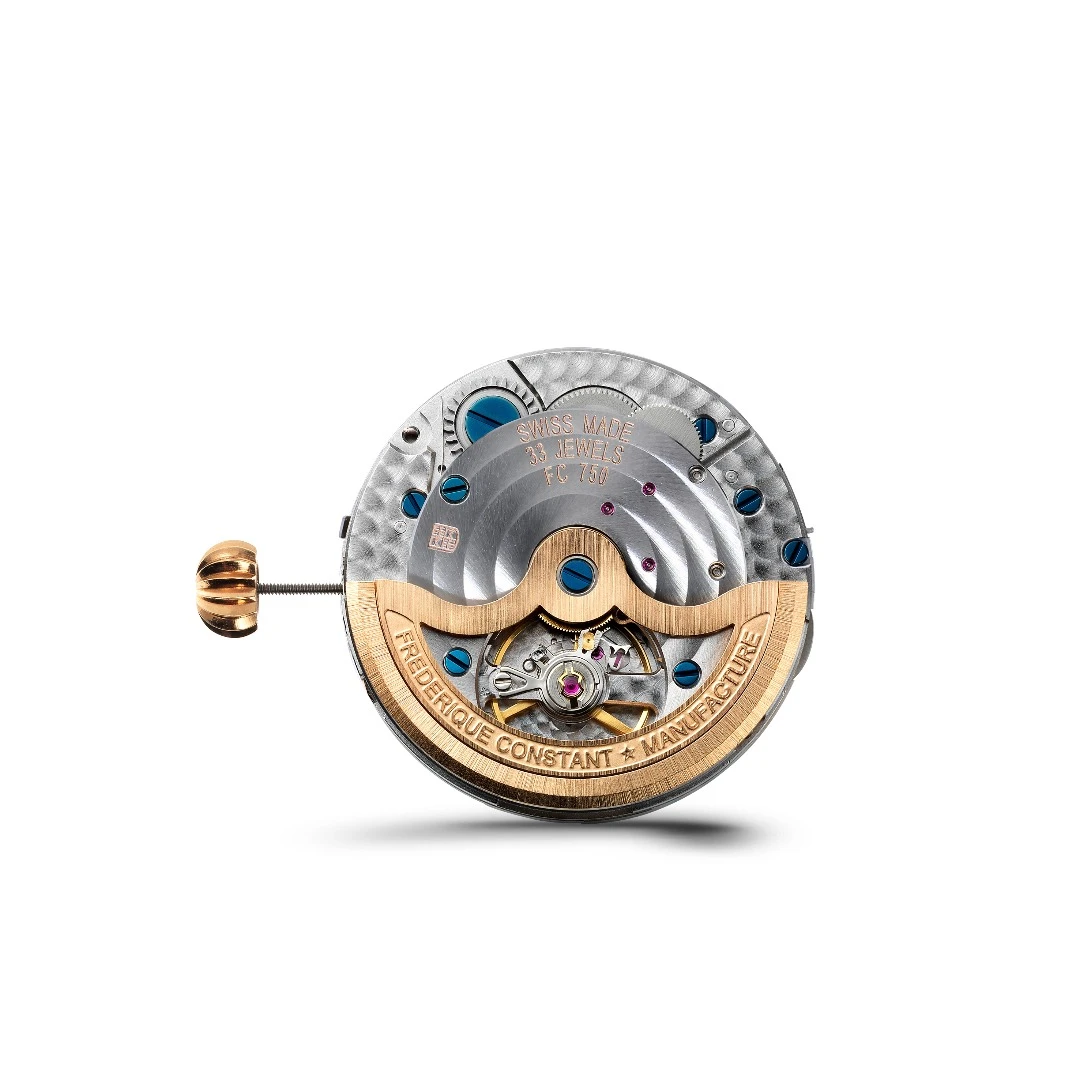

Movement showing the rotor
3/32
Movement showing the rotor
The Hybrid Manufacture combines mechanical and digital electronic components
4/32
The Hybrid Manufacture combines mechanical and digital electronic components

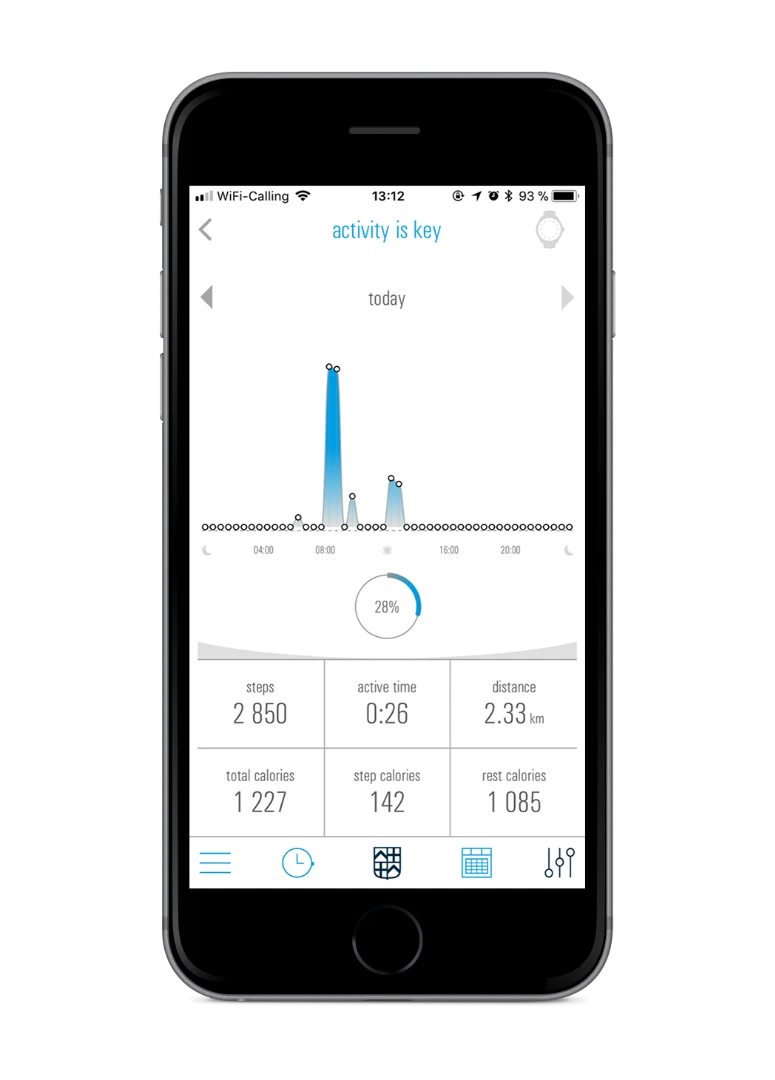

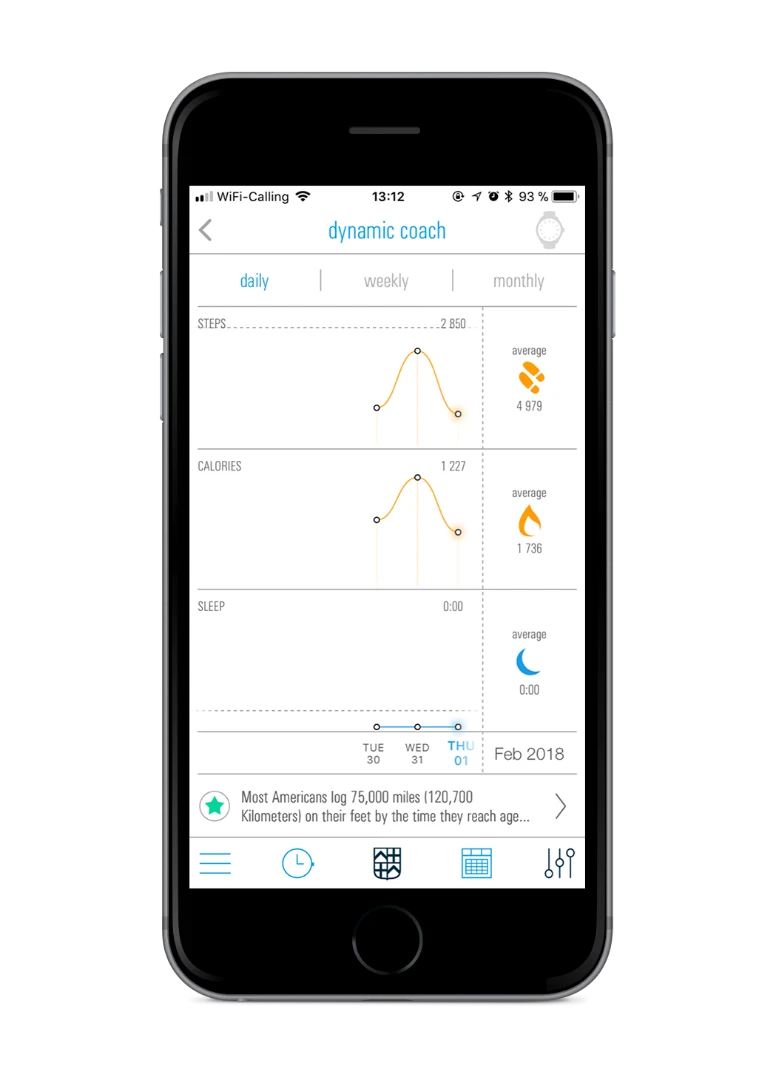

Hybrid app activity monitor
5/32
Hybrid app activity monitor
Hybrid app watch analytics
6/32
Hybrid app watch analytics

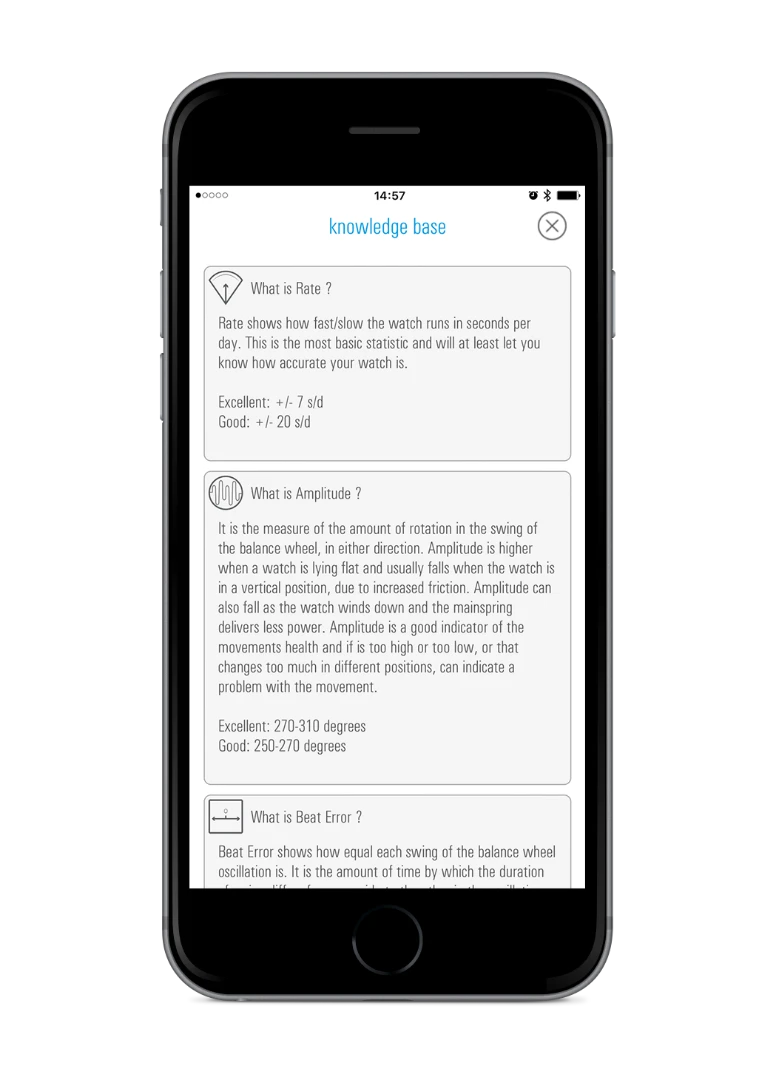

Hybrid app knowledge base
7/32
Hybrid app knowledge base

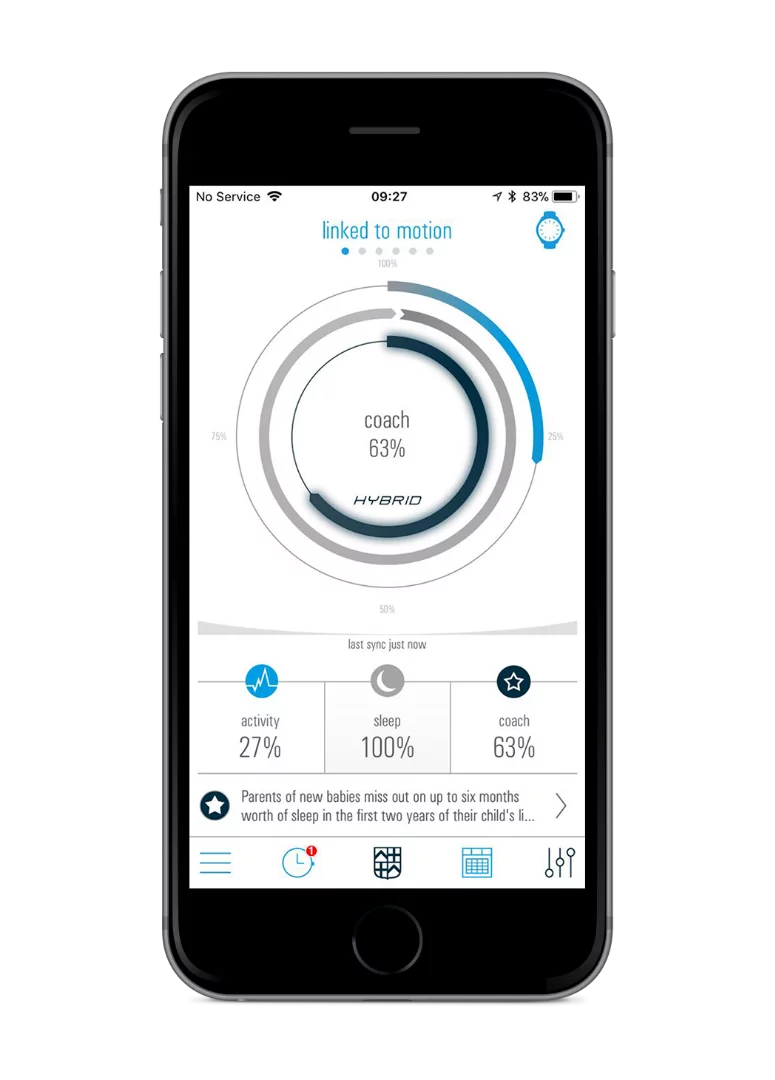

Hybrid app coach graph
8/32
Hybrid app coach graph

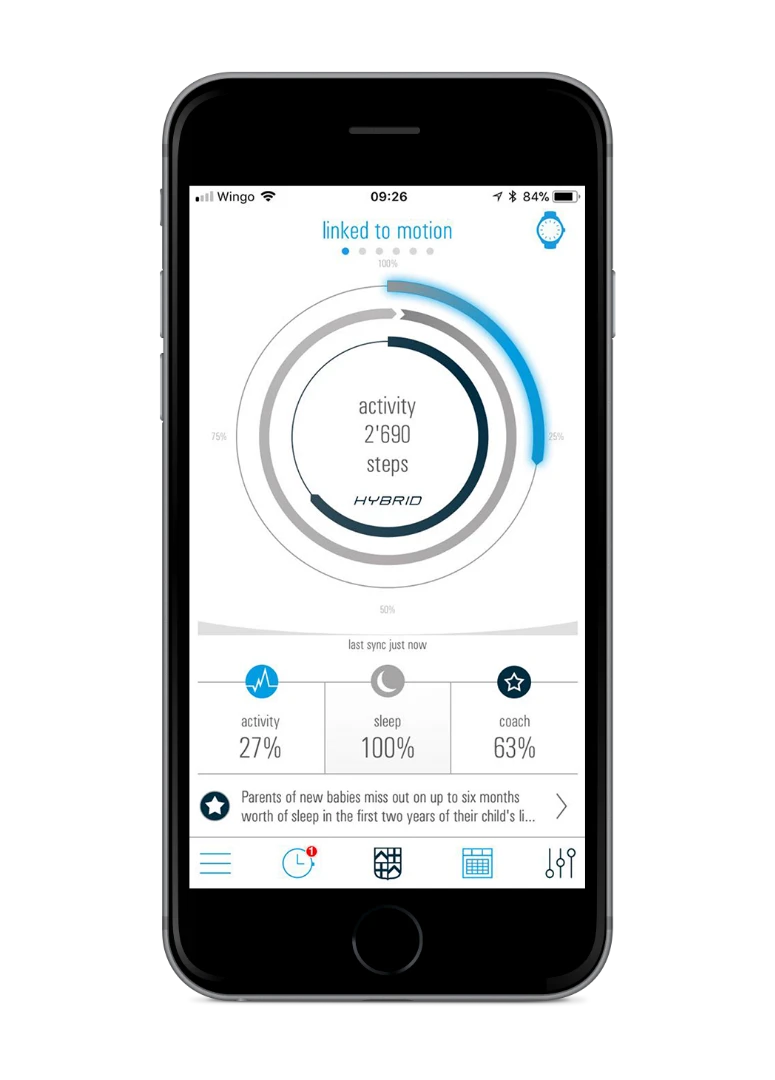

Hybrid app activity graph
9/32
Hybrid app activity graph

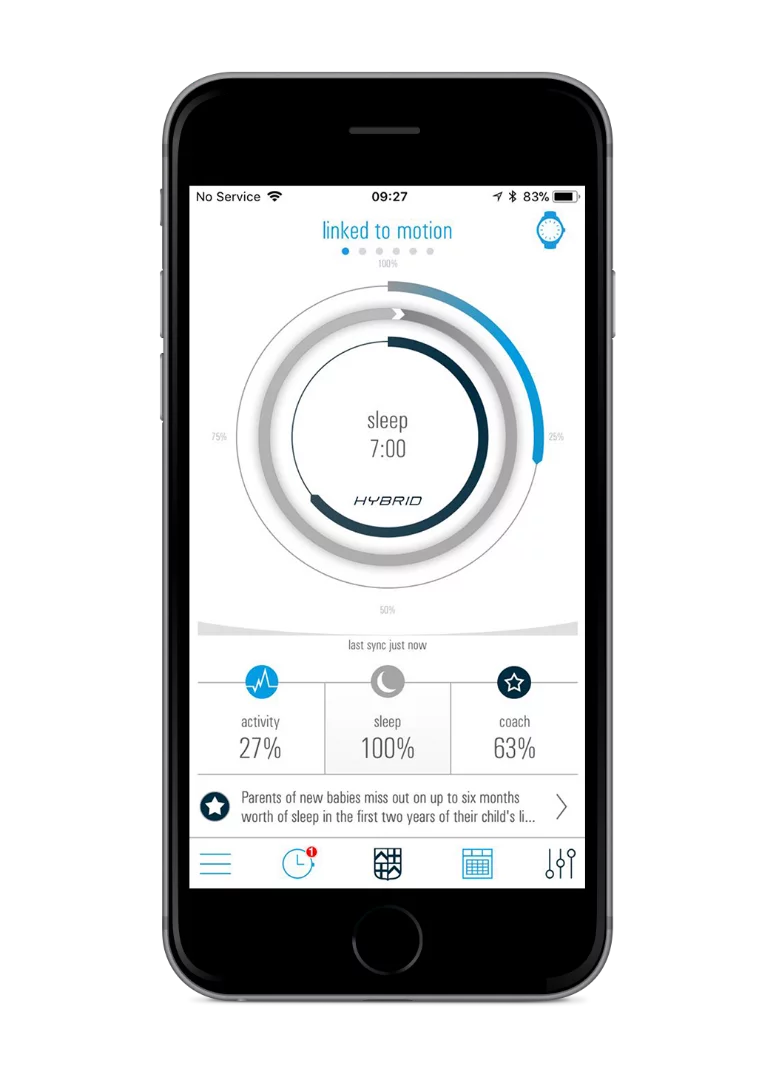

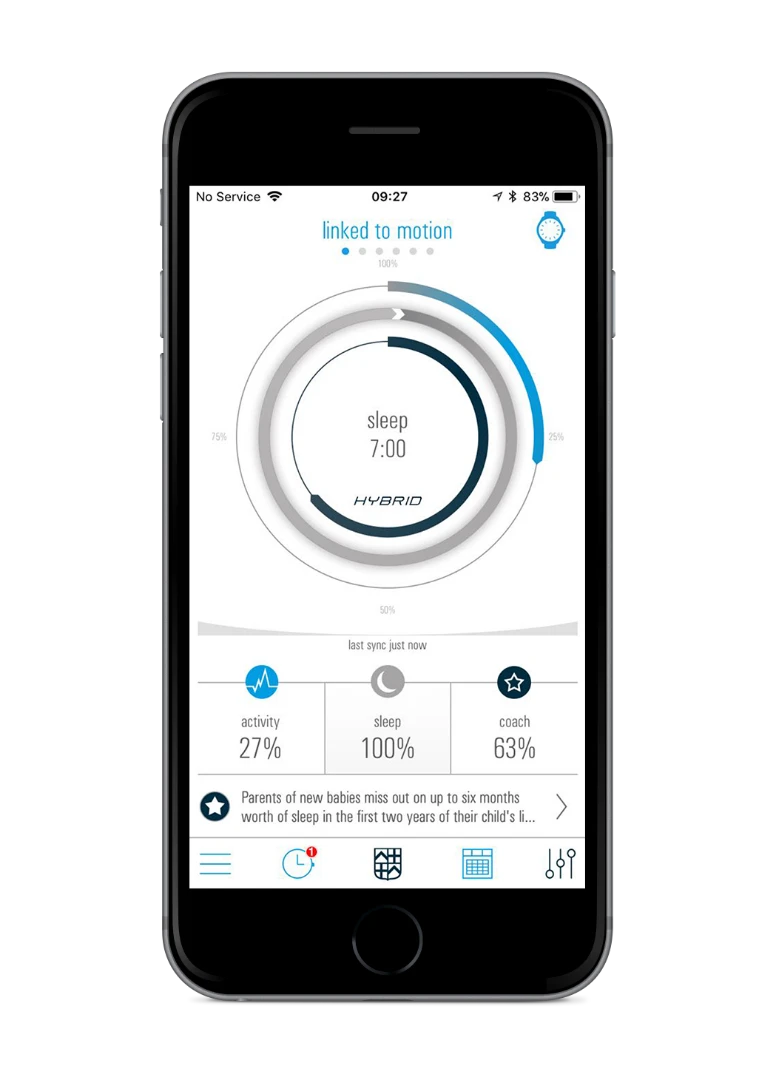

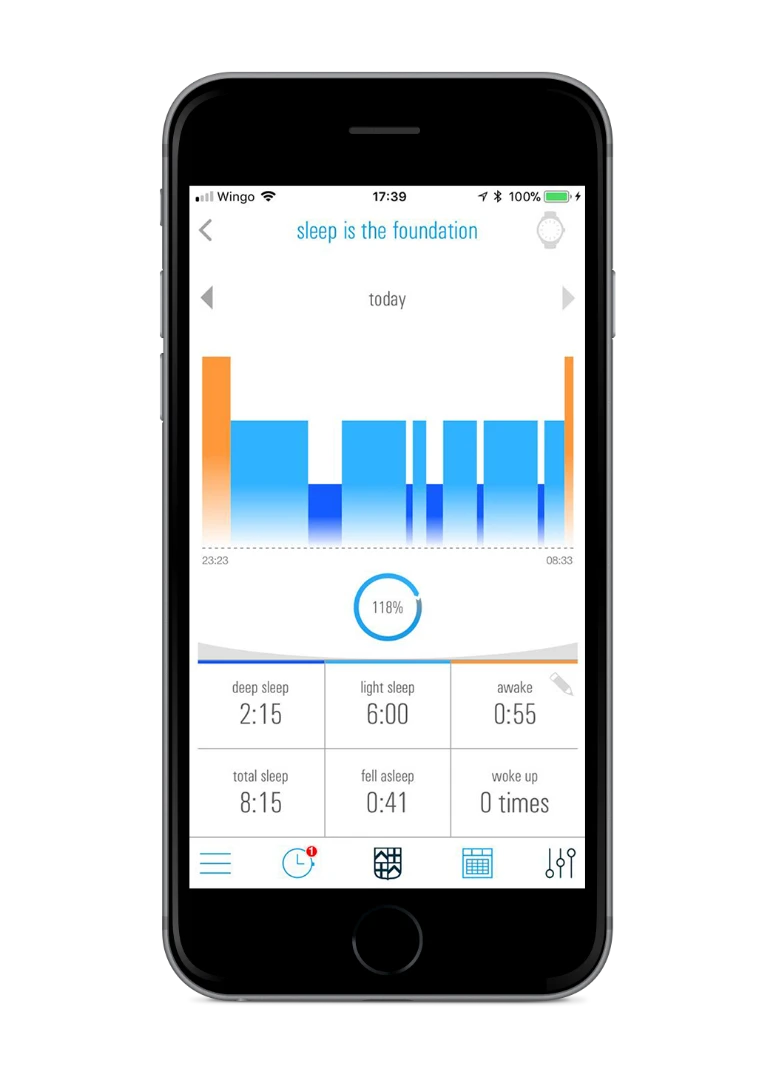

Hybrid app sleep graph
10/32
Hybrid app sleep graph
Hybrid app settings page
11/32
Hybrid app settings page
Hybrid app activity monitor
12/32
Hybrid app activity monitor

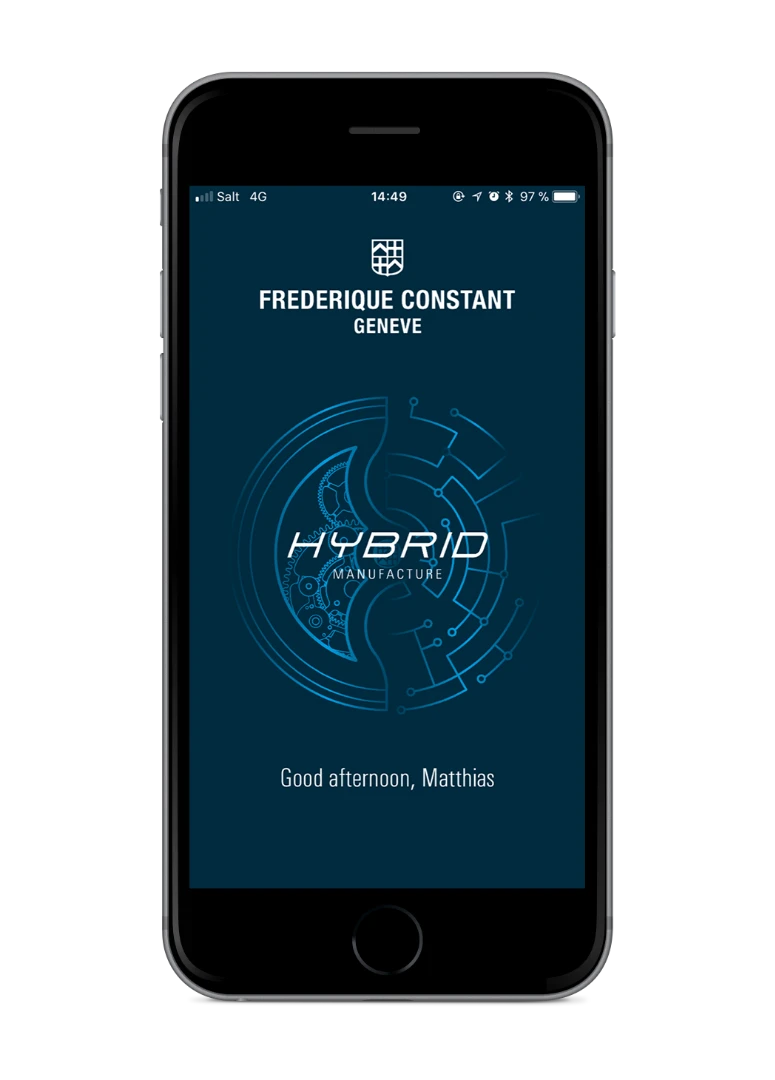

The Hybrid app
13/32
The Hybrid app
14/32

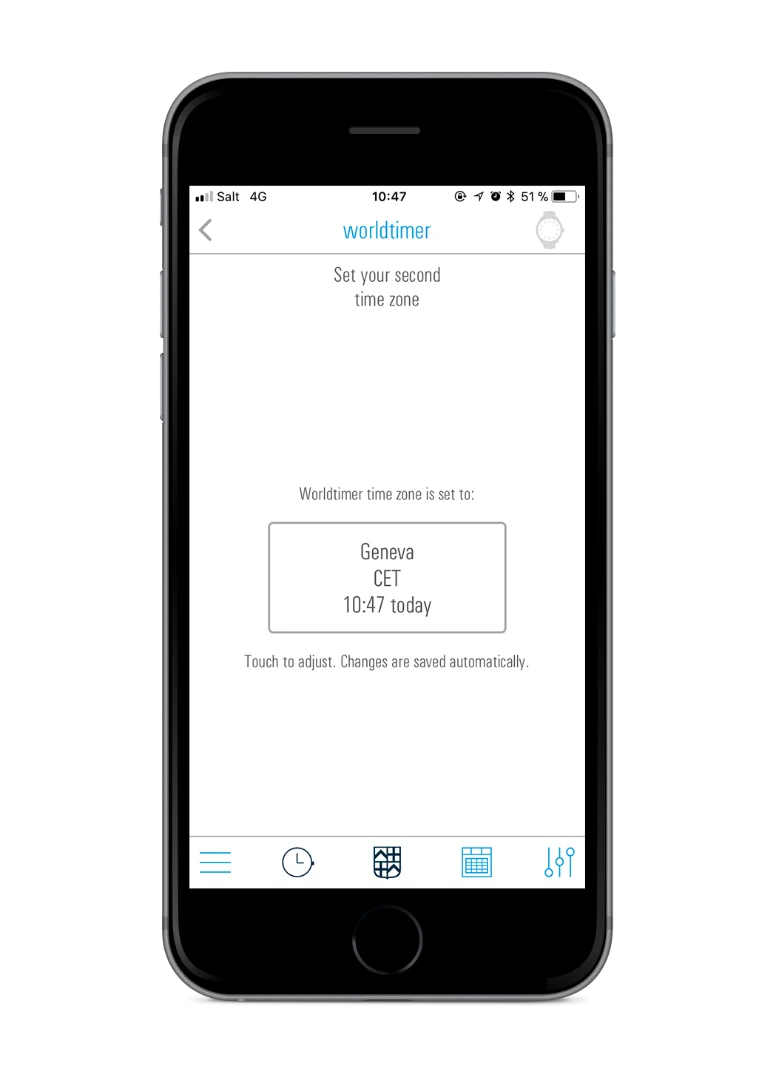

Hybrid app world time
15/32
Hybrid app world time

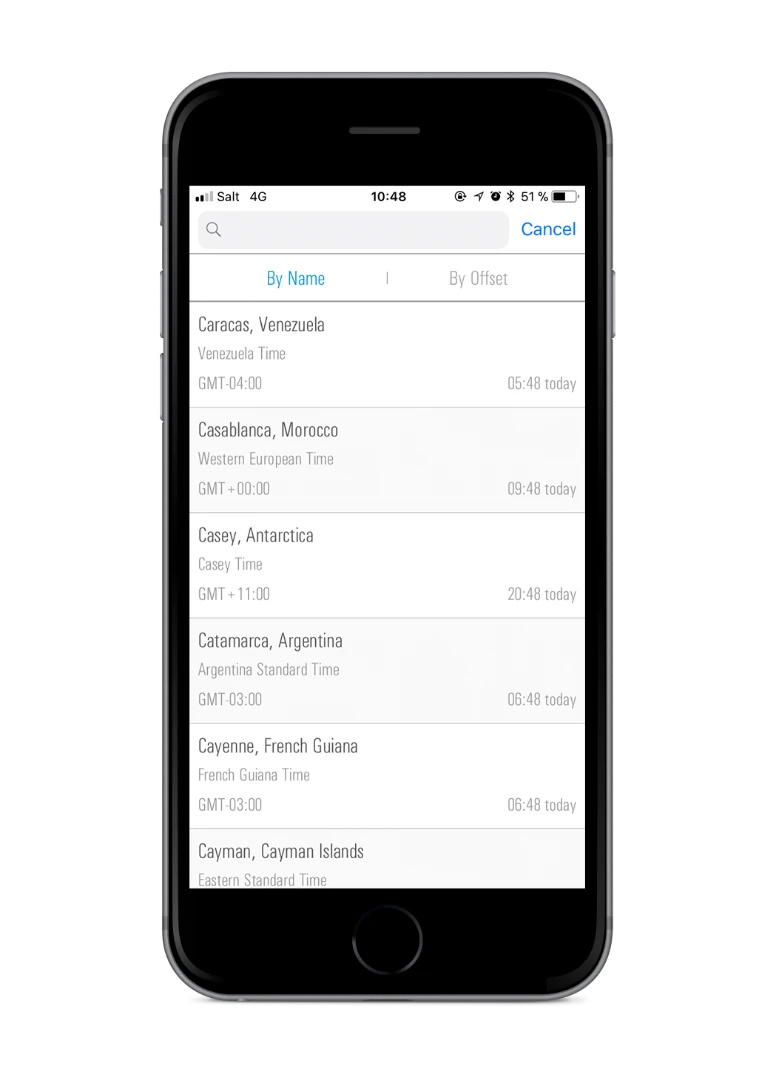

Hybrid app world time selection
16/32
Hybrid app world time selection

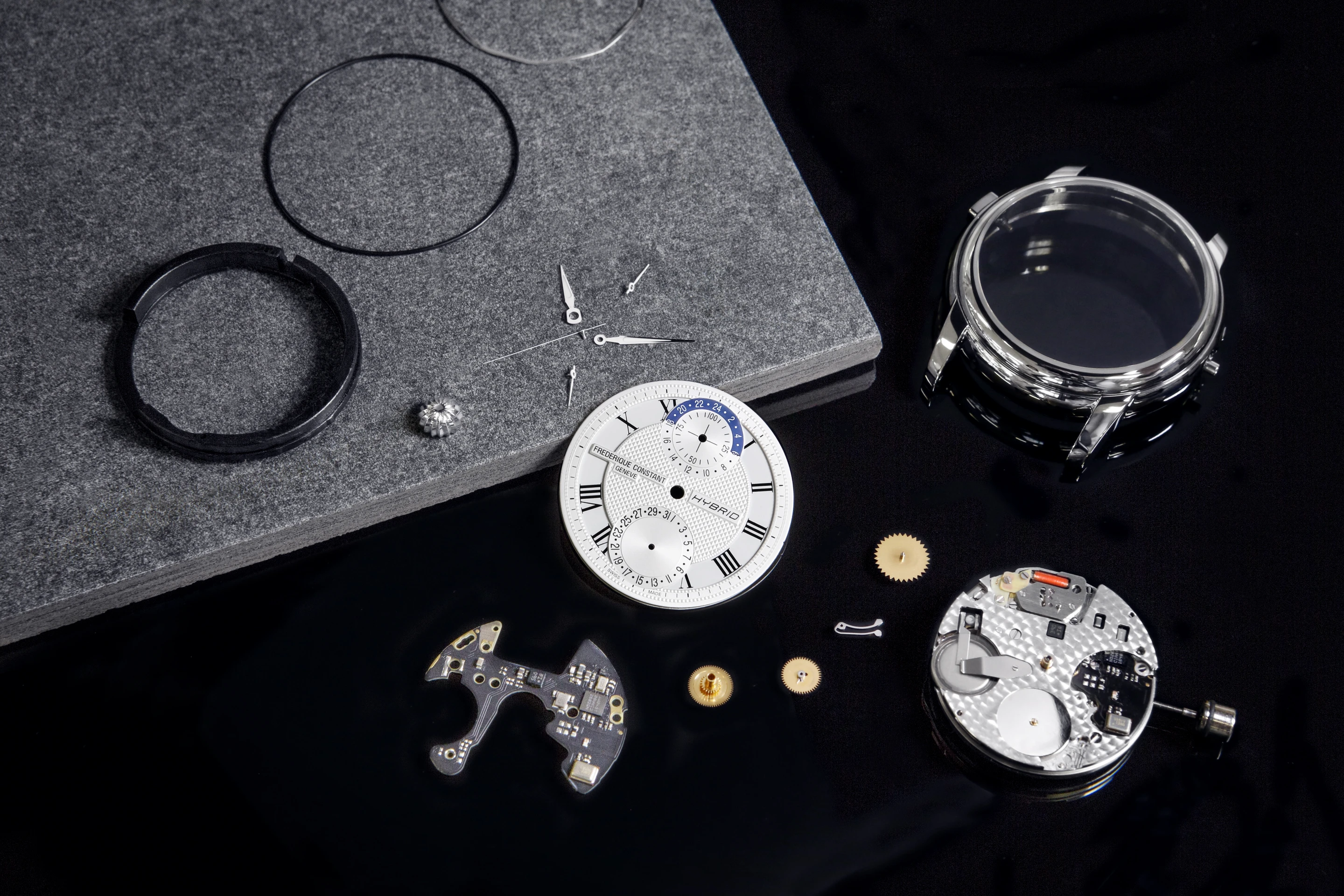

The Hybrid Manufacture disassembled
17/32
The Hybrid Manufacture disassembled
The Hybrid Manufacture and app
18/32
The Hybrid Manufacture and app

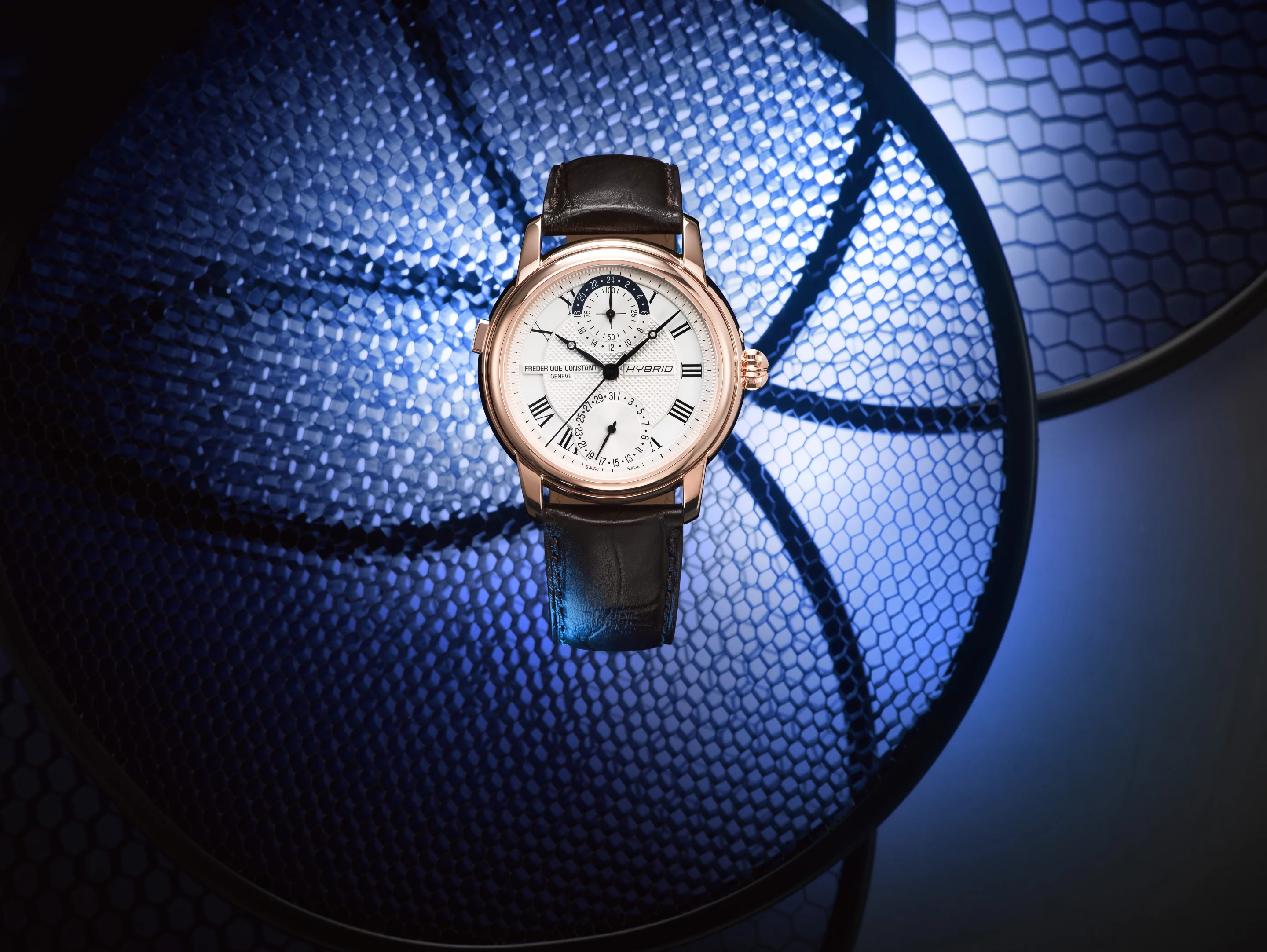

The Hybrid Manufacture
19/32
The Hybrid Manufacture

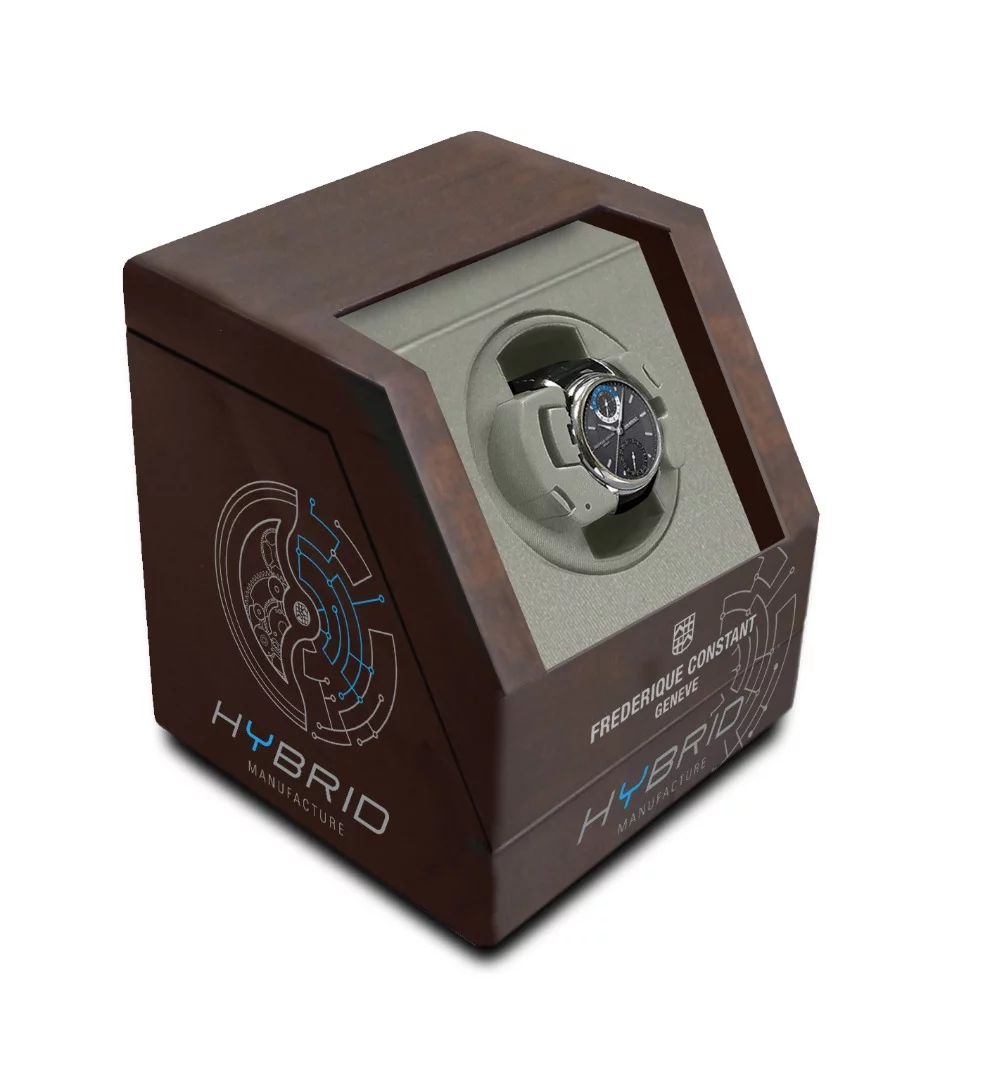

The Hybrid Manufacture rotor box
20/32
The Hybrid Manufacture rotor box
The Hybrid Manufacture FC-750DG4H6
21/32
The Hybrid Manufacture FC-750DG4H6
The Hybrid Manufacture FC-750MC4H4
22/32
The Hybrid Manufacture FC-750MC4H4

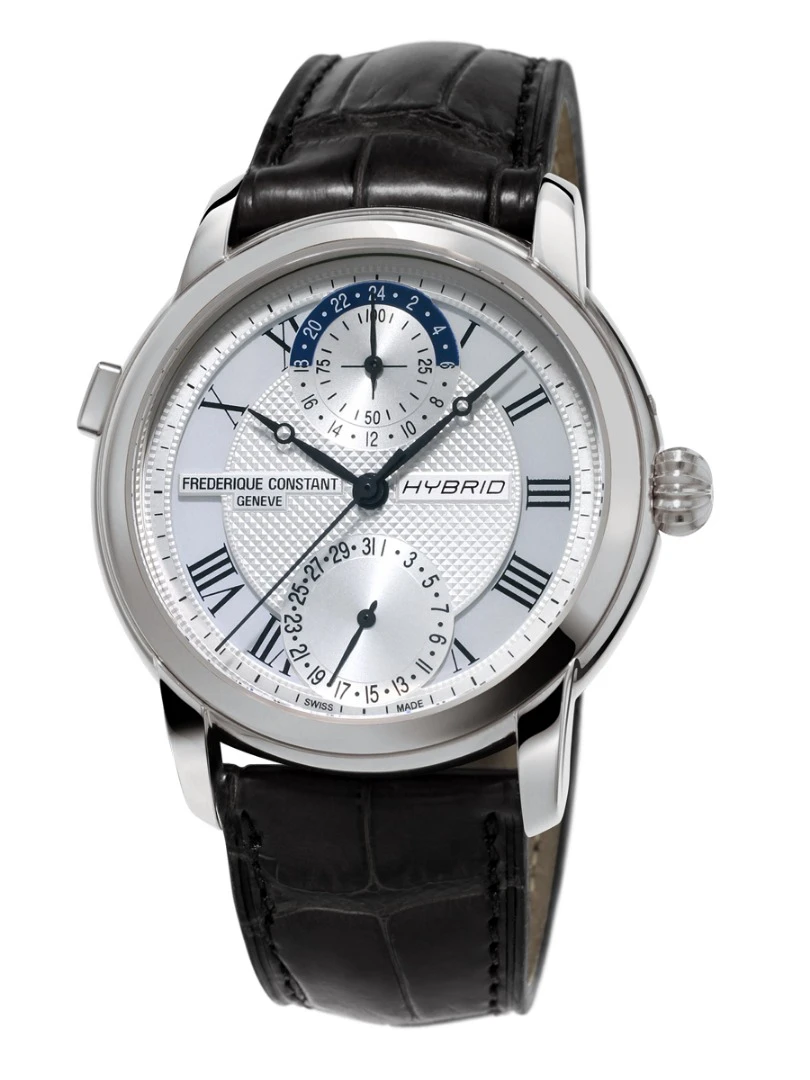

The Hybrid Manufacture FC-750MC4H6
23/32
The Hybrid Manufacture FC-750MC4H6

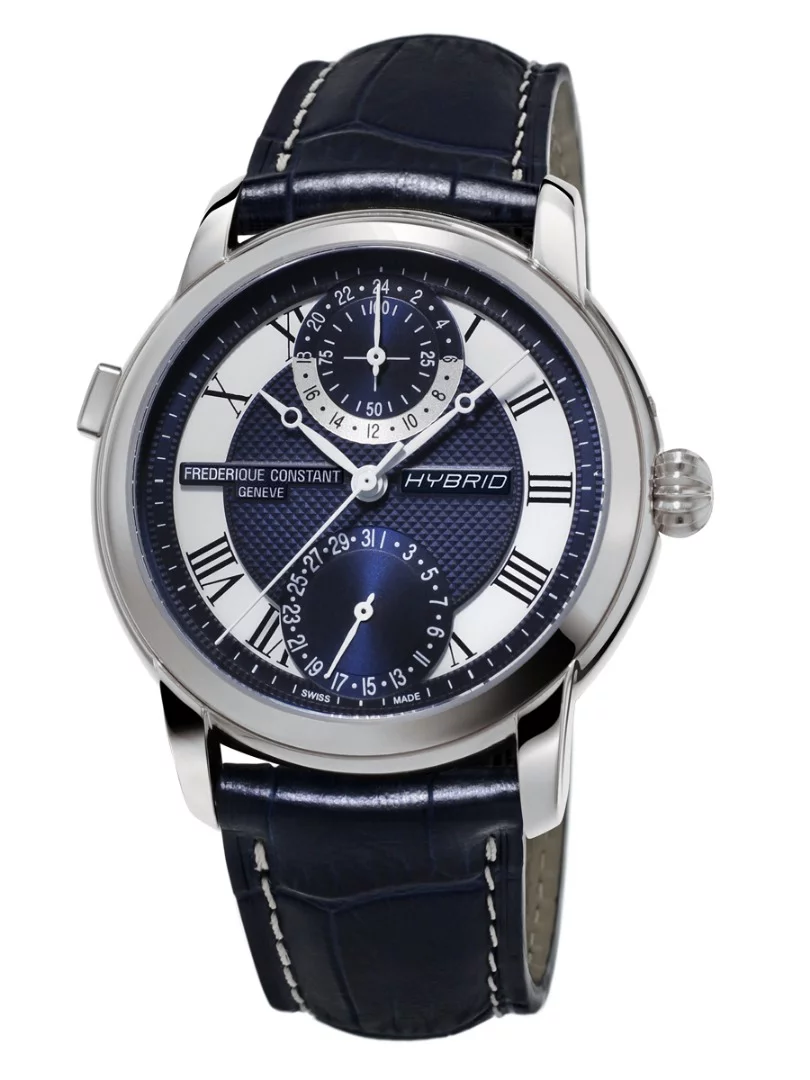

The Hybrid Manufacture FC-750MCN4H6
24/32
The Hybrid Manufacture FC-750MCN4H6

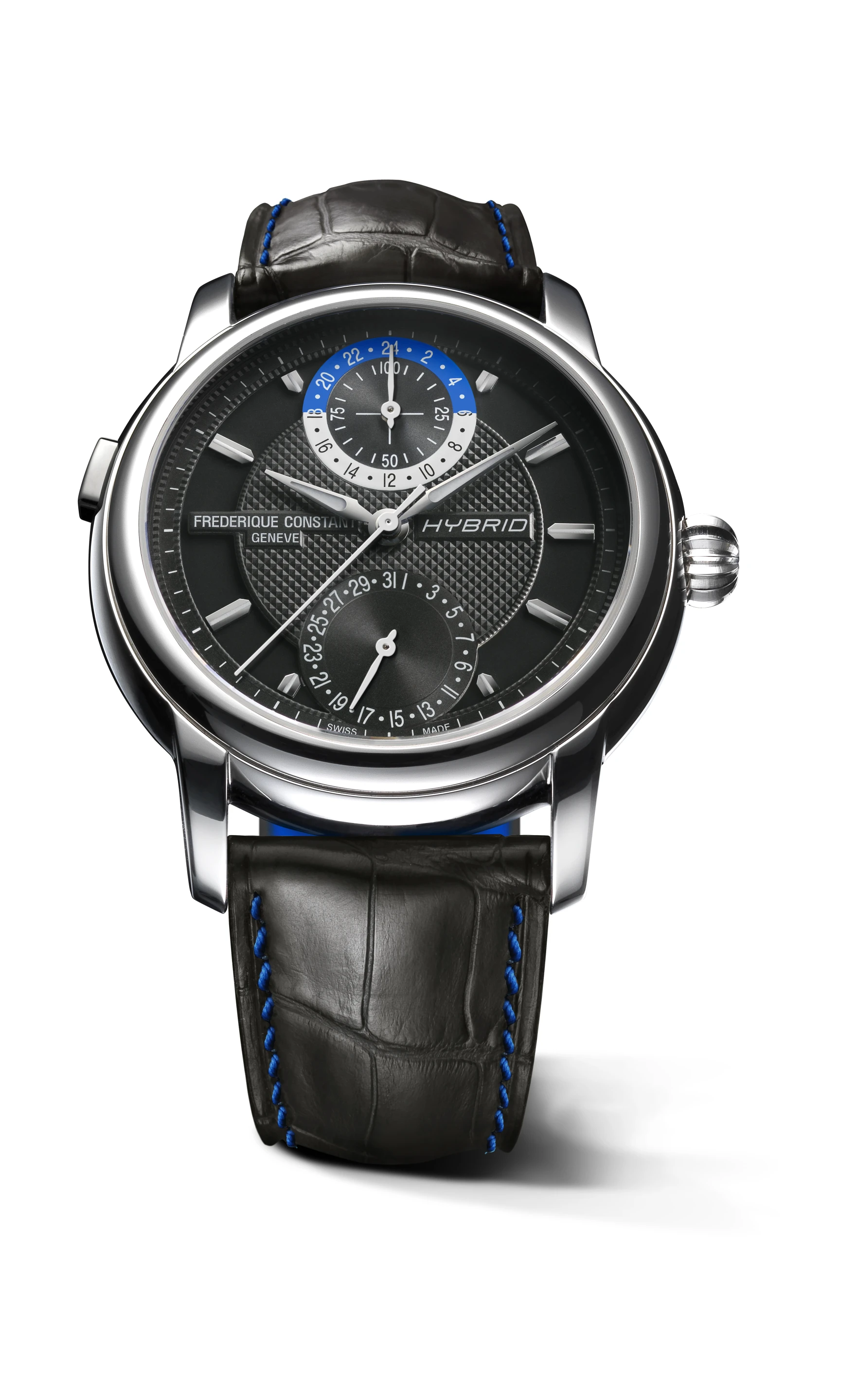

The Hybrid Manufacture combines conventional and smartwatch features
25/32
The Hybrid Manufacture combines conventional and smartwatch features

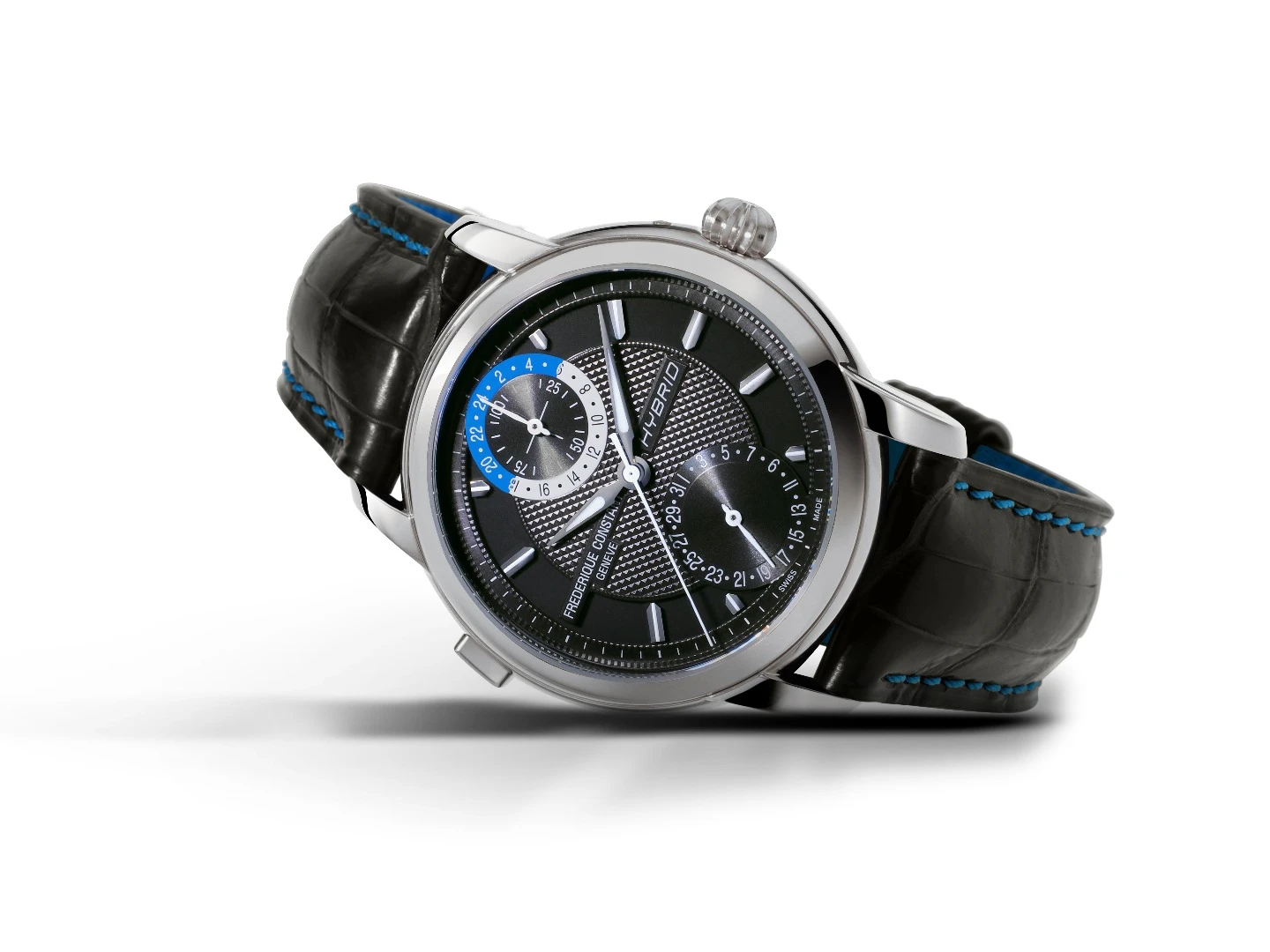

The Hybrid Manufacture has an automatic movement
26/32
The Hybrid Manufacture has an automatic movement

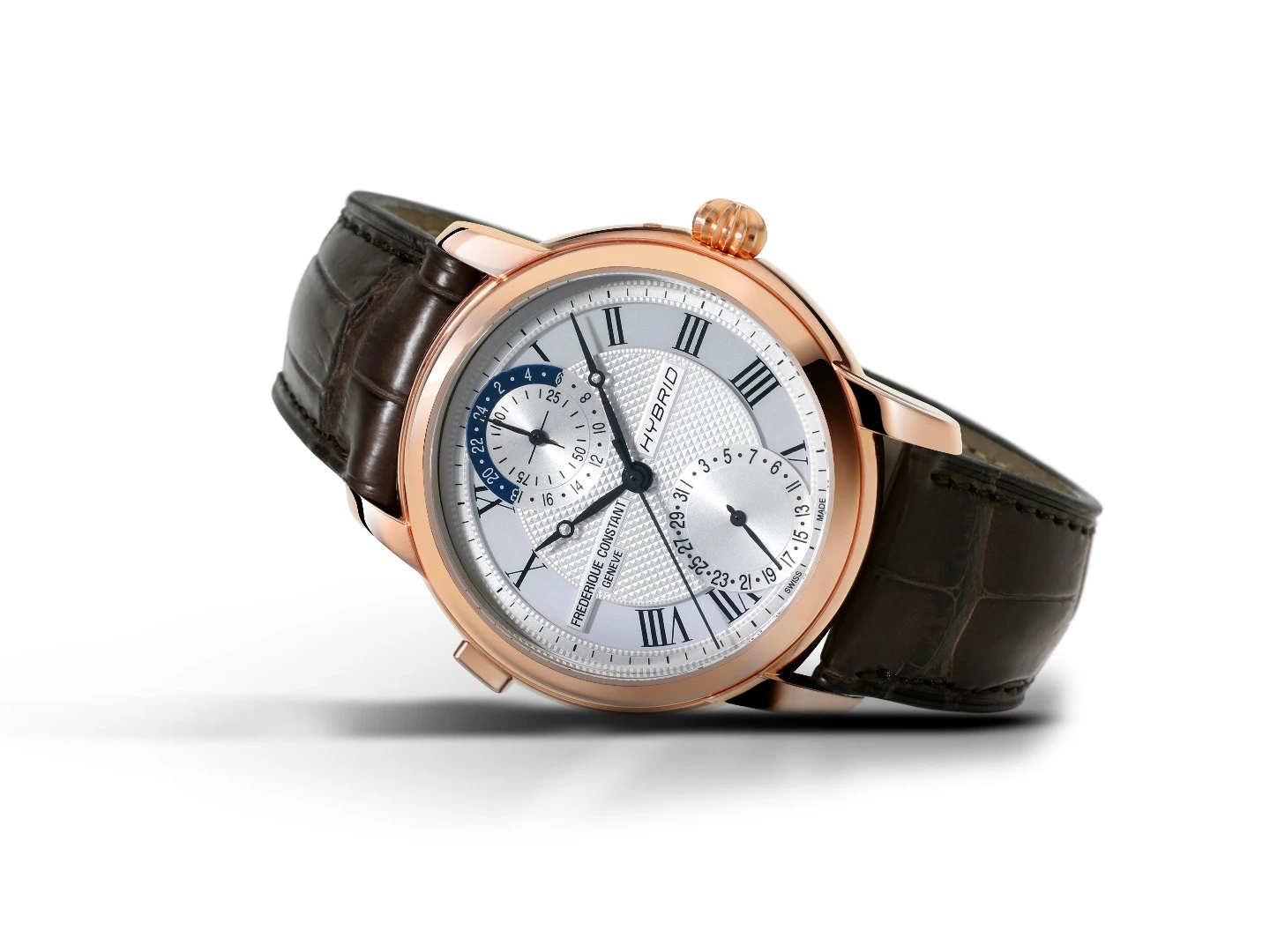

The Hybrid Manufacture in rose gold
27/32
The Hybrid Manufacture in rose gold

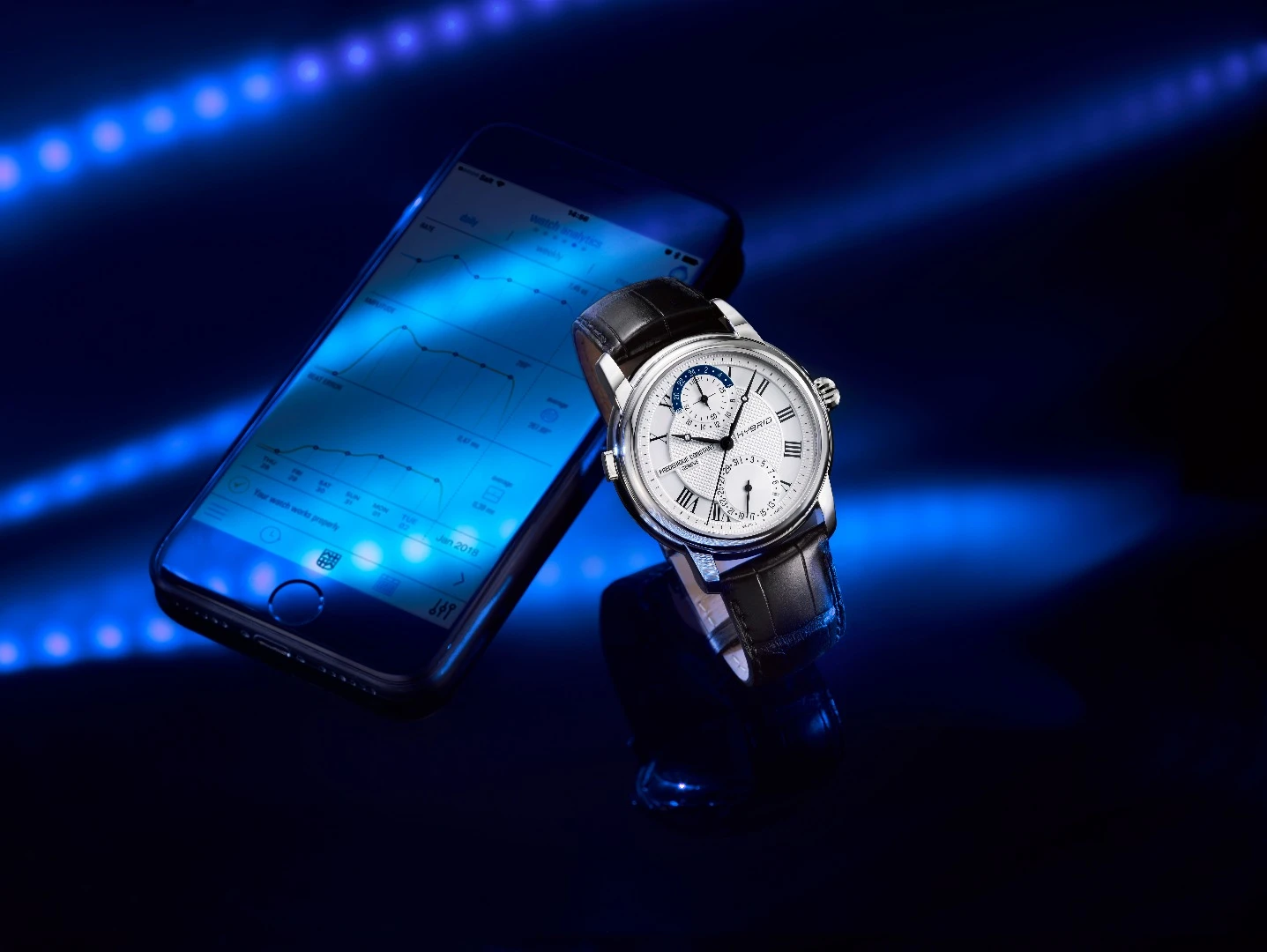

The Hybrid Manufacture is available in a number of variants
28/32
The Hybrid Manufacture is available in a number of variants

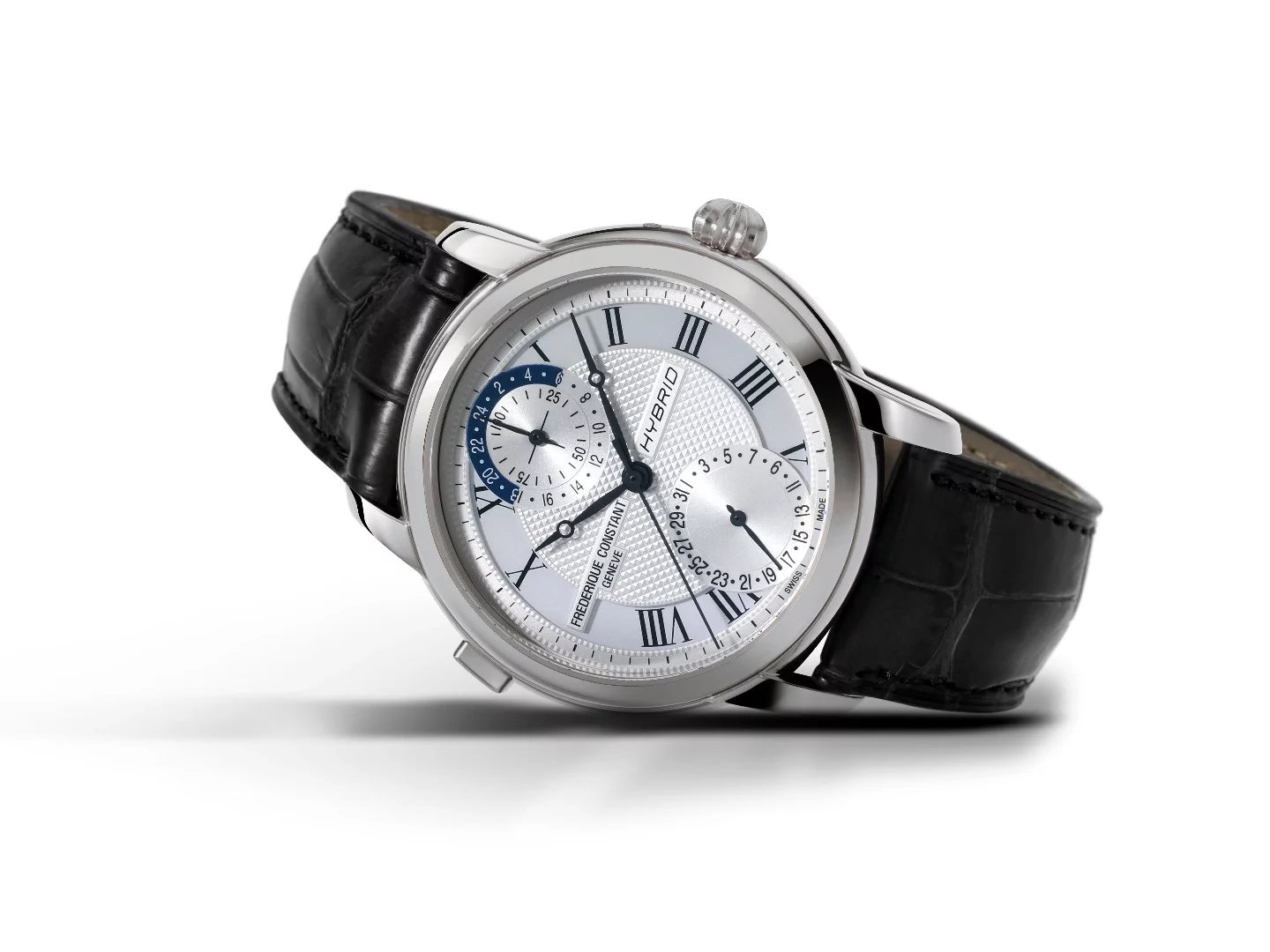

The Hybrid Manufacture in stainless steel
29/32
The Hybrid Manufacture in stainless steel

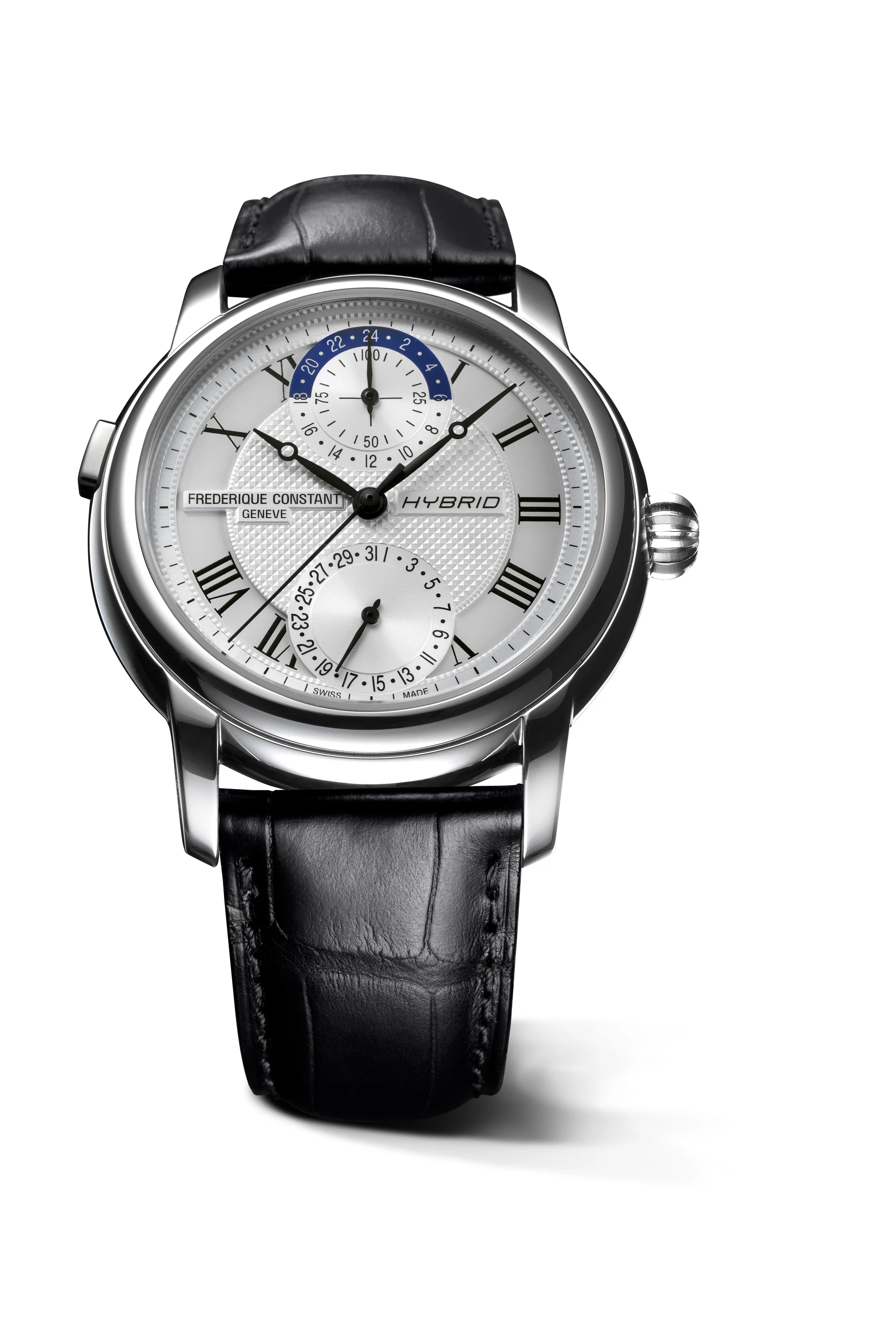

The Hybrid Manufacture has a basic analog dial
30/32
The Hybrid Manufacture has a basic analog dial

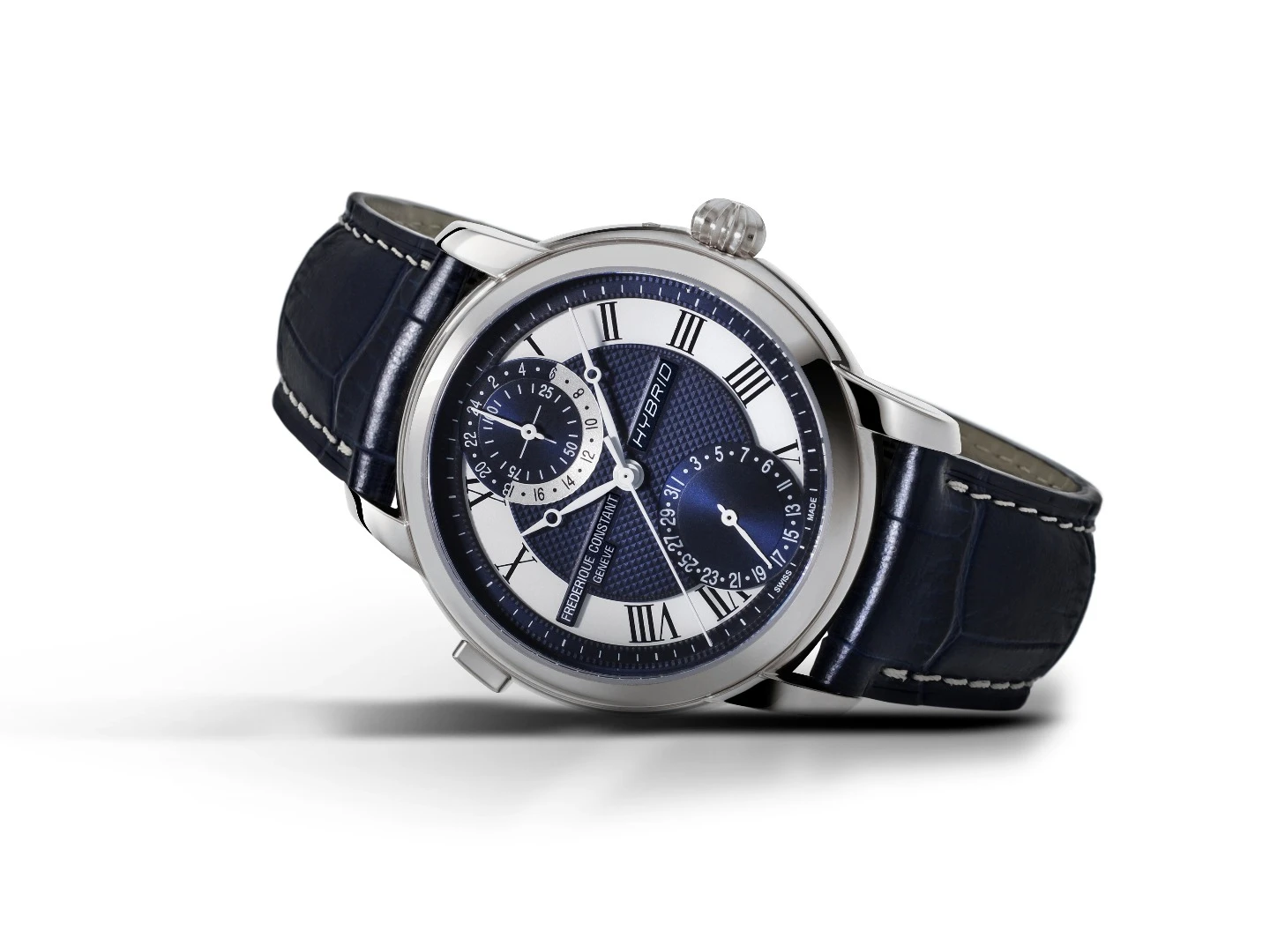

The Hybrid Manufacture with blue dial
31/32
The Hybrid Manufacture with blue dial

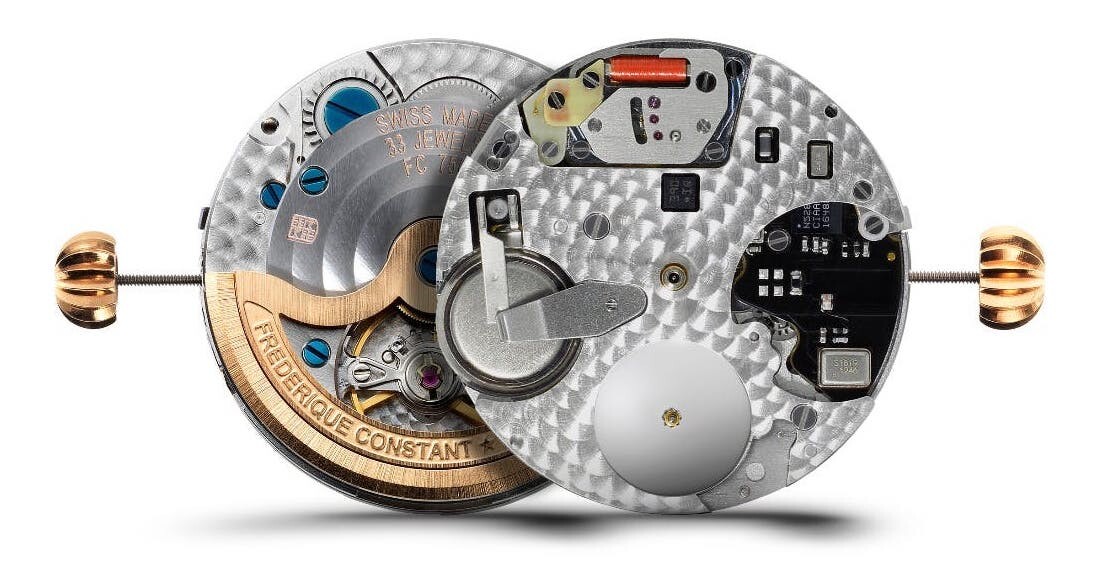

The front and back of the caliber
32/32
The front and back of the caliber
View gallery - 32 images

If you can't decide between an upmarket luxury watch and a smartwatch, Swiss watchmaker Frederique Constant is splitting the difference with its new Hybrid Manufacture. Unlike previous attempts to combine the digital and conventional in a wristwatch, the Hybrid Manufacture places an emphasis on classical watchmaking principles by integrating digital circuitry directly with the mechanical movement.

When the first quartz wristwatches were marketed in 1969, Switzerland was the dominant watch manufacturer holding solidly to 50 percent of the world market in all price ranges. Though a Swiss consortium and Seiko were behind the development of the quartz watch technology so familiar today, only a handful of Swiss firms took more than a mild interest in making and selling the new timepieces.

The sad result of this was that the watch market was flooded with increasingly sophisticated, accurate, and (above all) dirt cheap quartz watches from the United States, Hong Kong, and Japan, which precipitated what was called the "quartz crisis." By 1983, the Swiss watch industry had imploded with companies closing and consolidating at an alarming rate, and the survivors only holding on thanks to massive government subsidies.

Eventually, the Swiss managed to pull through by inventing the inexpensive fashion watch market and investing hard in very high-end luxury watches costing well into six figures. Now, smartwatches are on the scene and though the jury is still out as to whether they'll really catch on, some watchmakers are keen to avoid making the same mistake of underestimating a new potential threat.

The front and back of the caliber
The front and back of the caliber

There have been a number of attempts to blend the mechanical and smartwatch, but these have been more like smartwatches with some mechanics thrown in or clumsy add-ons. The Hybrid Manufacture takes a new tack. Outside, it looks like a fairly conventional watch with the basic functions of recording hours, minutes, seconds, and date, but inside Frederique Constant's FC-750 caliber includes an electronic module specially shielded to prevent magnetic interference between the electronic and the mechanical.

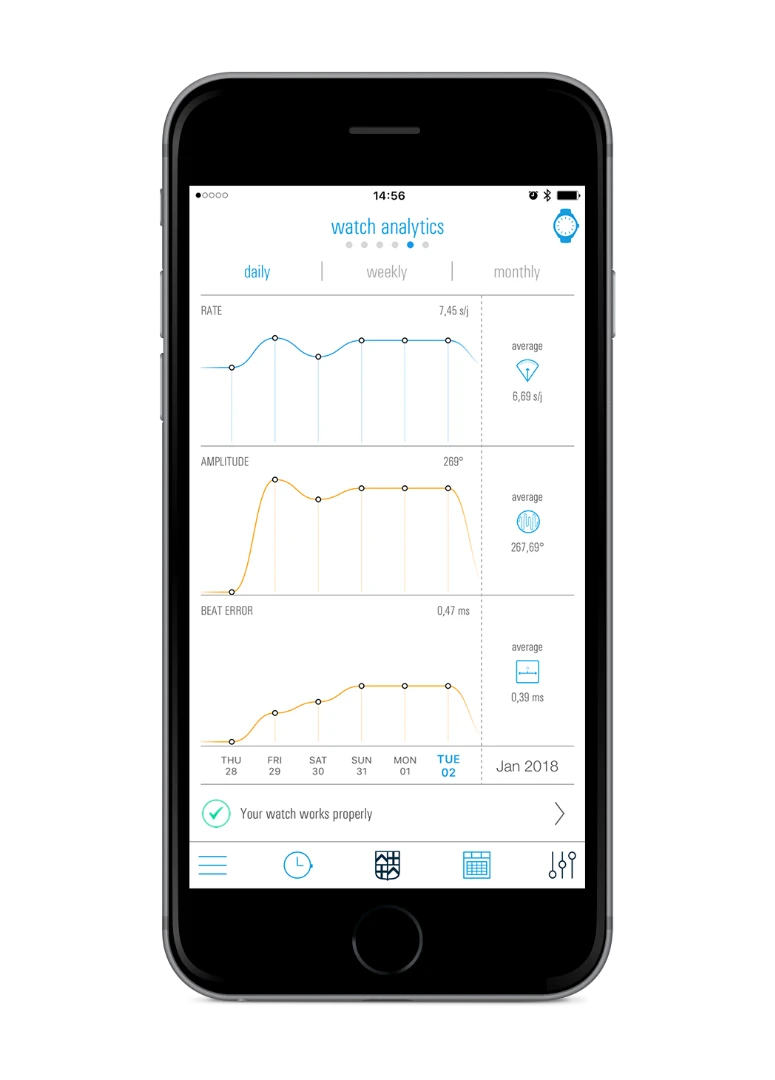

The electronics are connected to the Hybrid app via a Bluetooth transceiver activated by the watch's pusher. This acts as the control and readout for they watch's smart functions that include activity tracking, sleep monitoring, analytics to keep the mechanical movement accurate, a world time function, dynamic coach, and battery monitor. The analytics function is automatic and at 4:00 am each day it analyzes the watch's oscillations to measure its rate, amplitude, and beat error, which are displayed as graphs on the app or as an alert if it detects a fault.

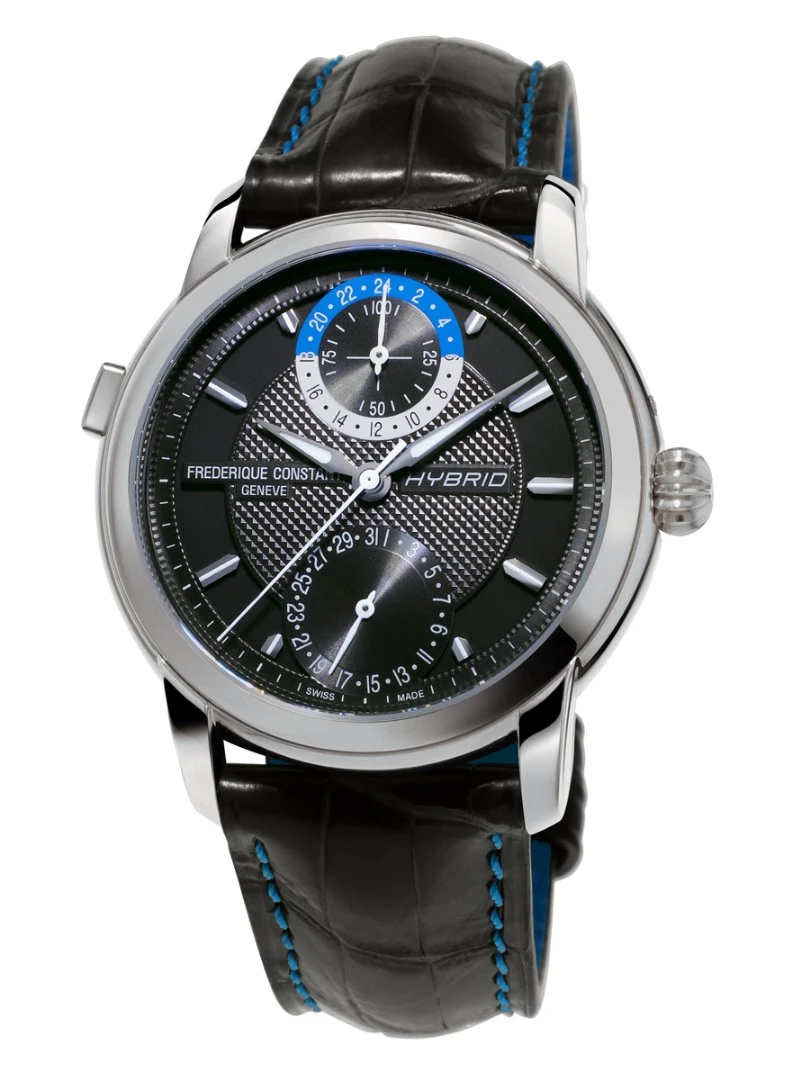

The Hybrid Manufacture FC-750DG4H6
The Hybrid Manufacture FC-750DG4H6

The Frederique Constant Hybrid Manufacture FC-750 automatic.28,800 vph caliber has Perlage & Circular Côtes de Genève decoration on the movement, 33 jewels, and a 42-hour power reserve. The rechargeable electronics module has a seven-day battery life. It's packed in a 42-mm case available in polished two- or three-part stainless steel or three-part rose gold with a convex sapphire case and see-through back water resistant to 5 ATM (50 m, 164 ft). The silver, navy, or dark grey dial with guilloché decorations and black printed indexes has black, white, or silver hands. It's all topped off with a black, dark brown, blue, or dark grey alligator strap.

To keep everything running, the Hybrid Manufacture comes with a wooden winder box with a built-in removable charger for the electronics.

The Frederique Constant Hybrid Manufacture is available in reference FC-750MC4H6, FC-750MC4H4, FC-750MCN4H6, and FC-750DG4H6, with the latter in a limited edition of 888 units. The price is between US$3,495 to US$3,795, depending on the option chosen.
