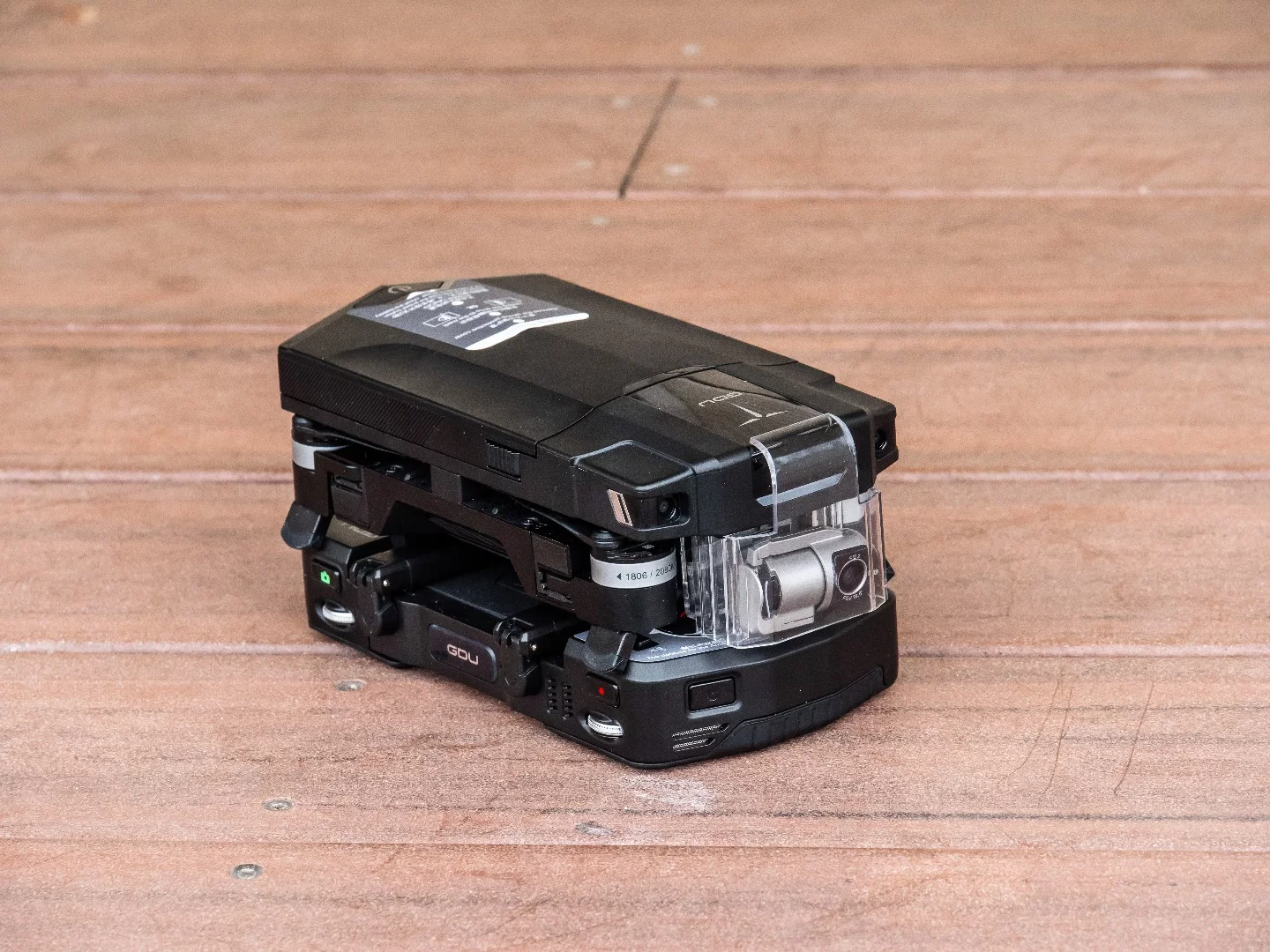

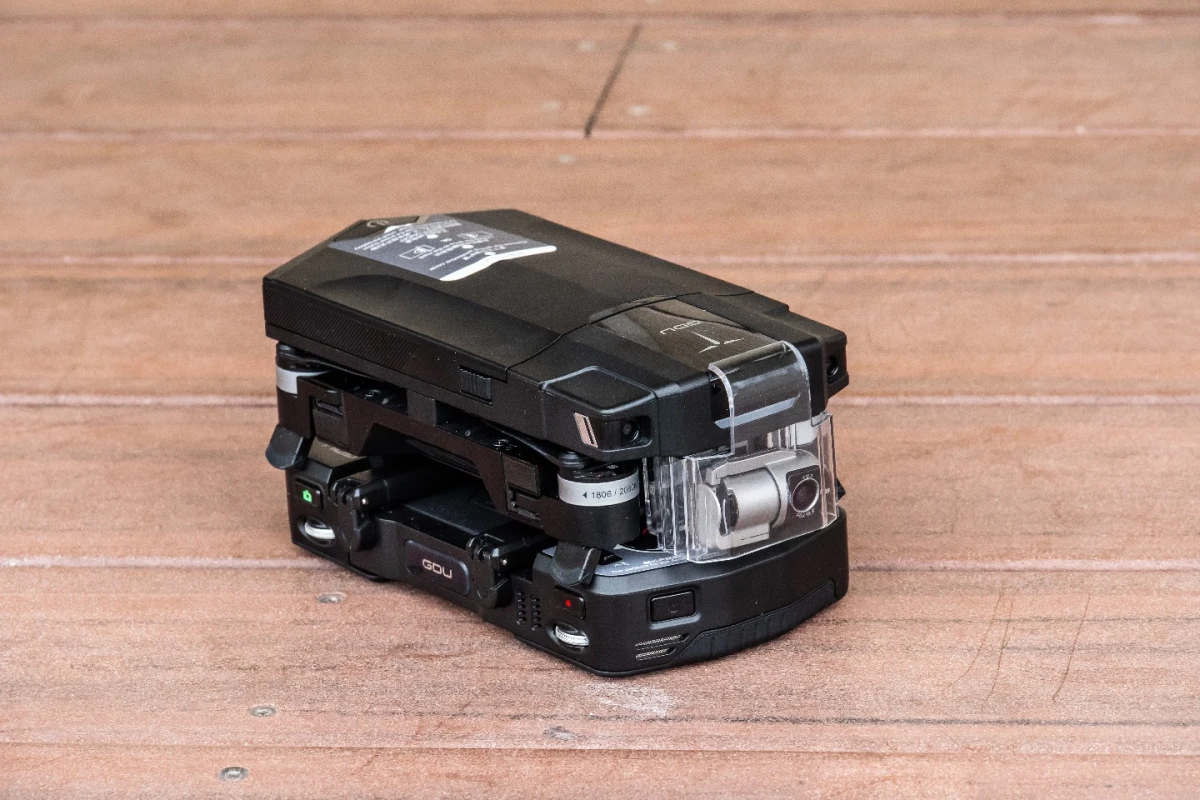

The GDU 02 drone clips together with its controller so you can throw it in a backpack without worrying about the camera gimbal or thumbsticks
The GDU 02 drone clips together with its controller so you can throw it in a backpack without worrying about the camera gimbal or thumbsticks
View 17 Images
GDU 02 Sample photo, edited in Lightroom
1/17
GDU 02 Sample photo, edited in Lightroom
GDU 02 Sample photo, edited in Lightroom
2/17
GDU 02 Sample photo, edited in Lightroom
GDU 02 Sample photo, edited in Lightroom
3/17
GDU 02 Sample photo, edited in Lightroom
GDU 02 Sample photo, edited in Lightroom
4/17
GDU 02 Sample photo, edited in Lightroom
GDU 02 controller with Pixel XL
5/17
GDU 02 controller with Pixel XL

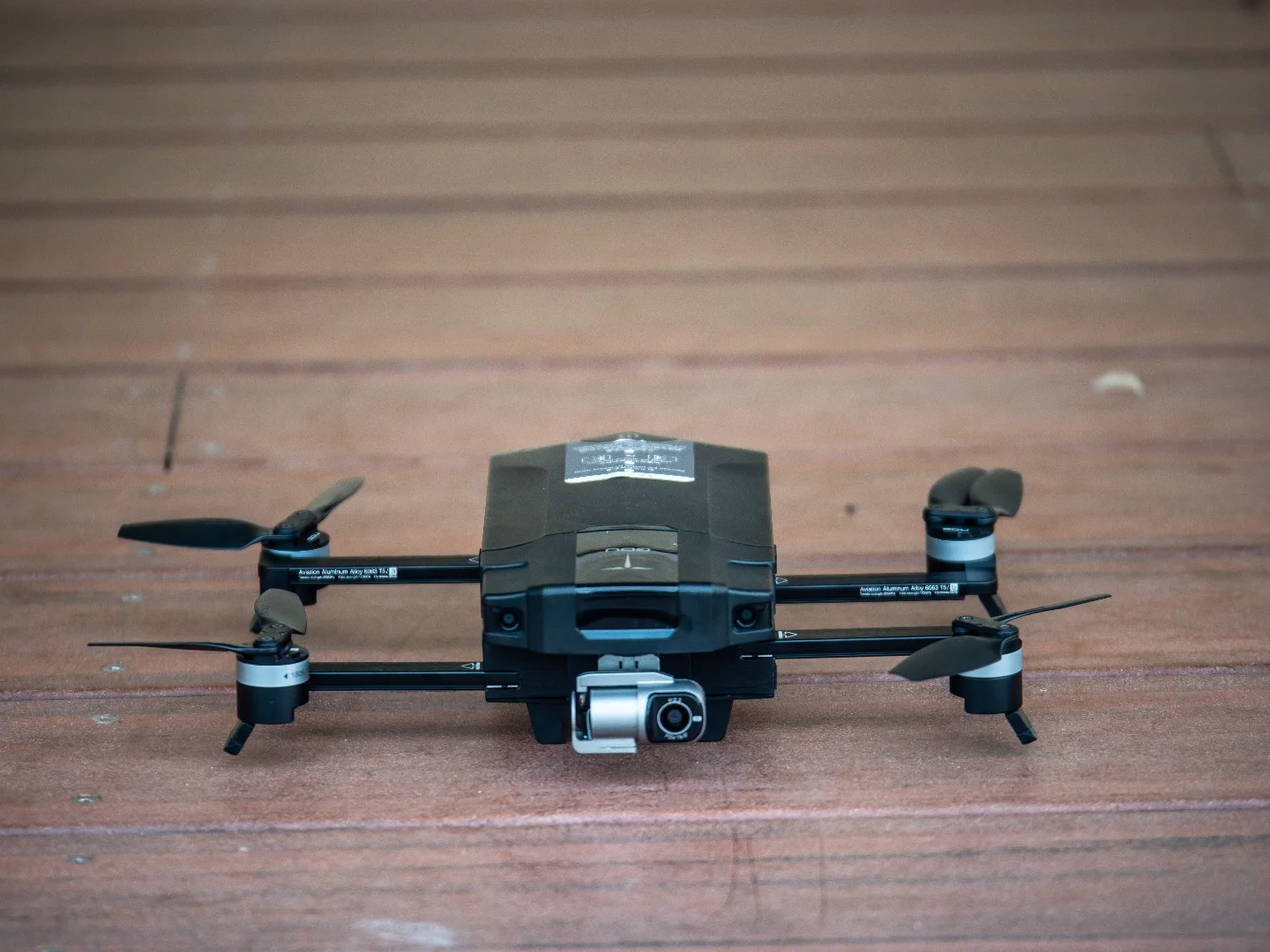

The GDU 02's tiny camera and gimbal
6/17
The GDU 02's tiny camera and gimbal

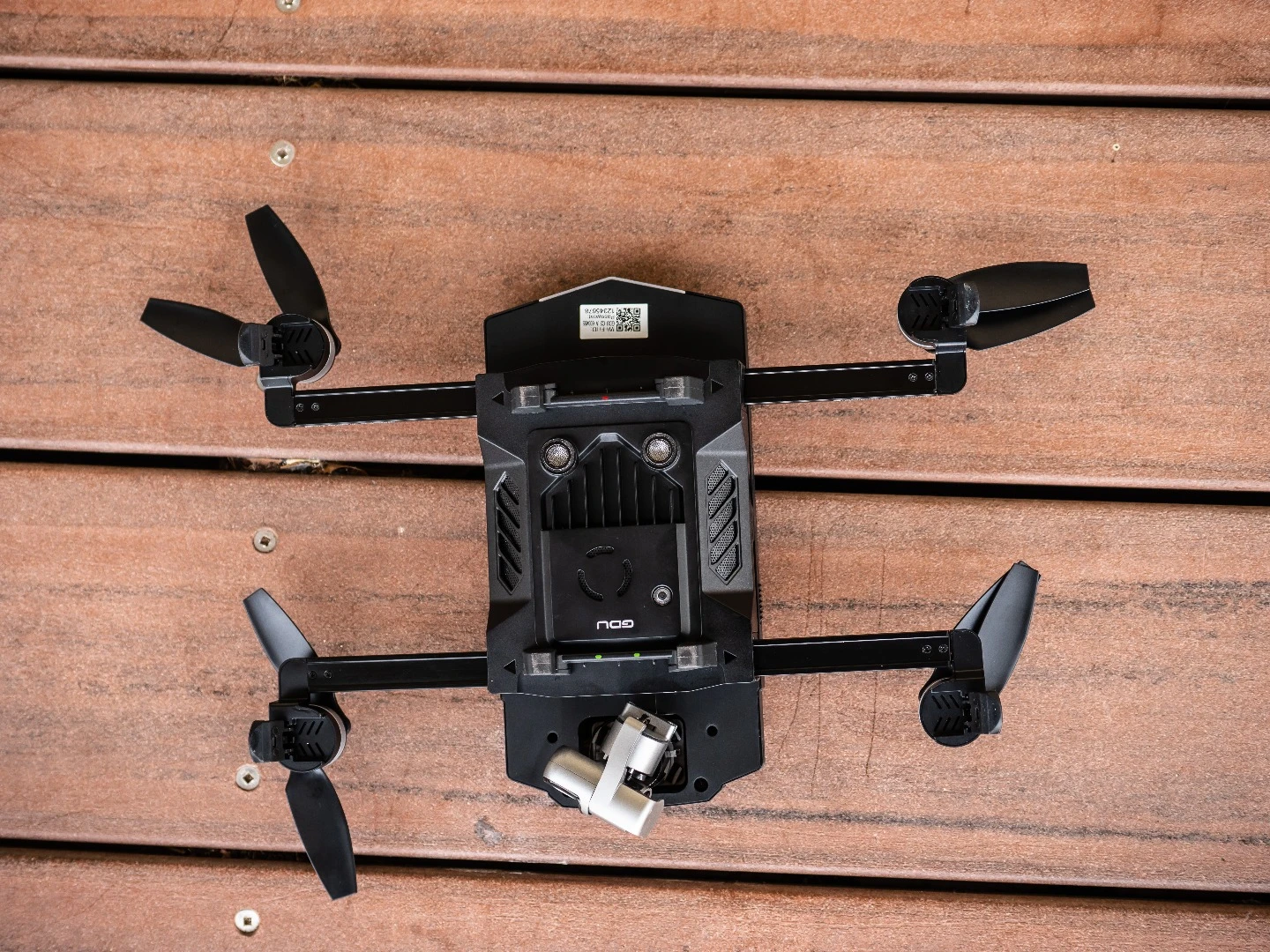

Underneath the GDU 02: ultrasonic ground sensors and a downward facing camera for the vision positioning system
7/17
Underneath the GDU 02: ultrasonic ground sensors and a downward facing camera for the vision positioning system

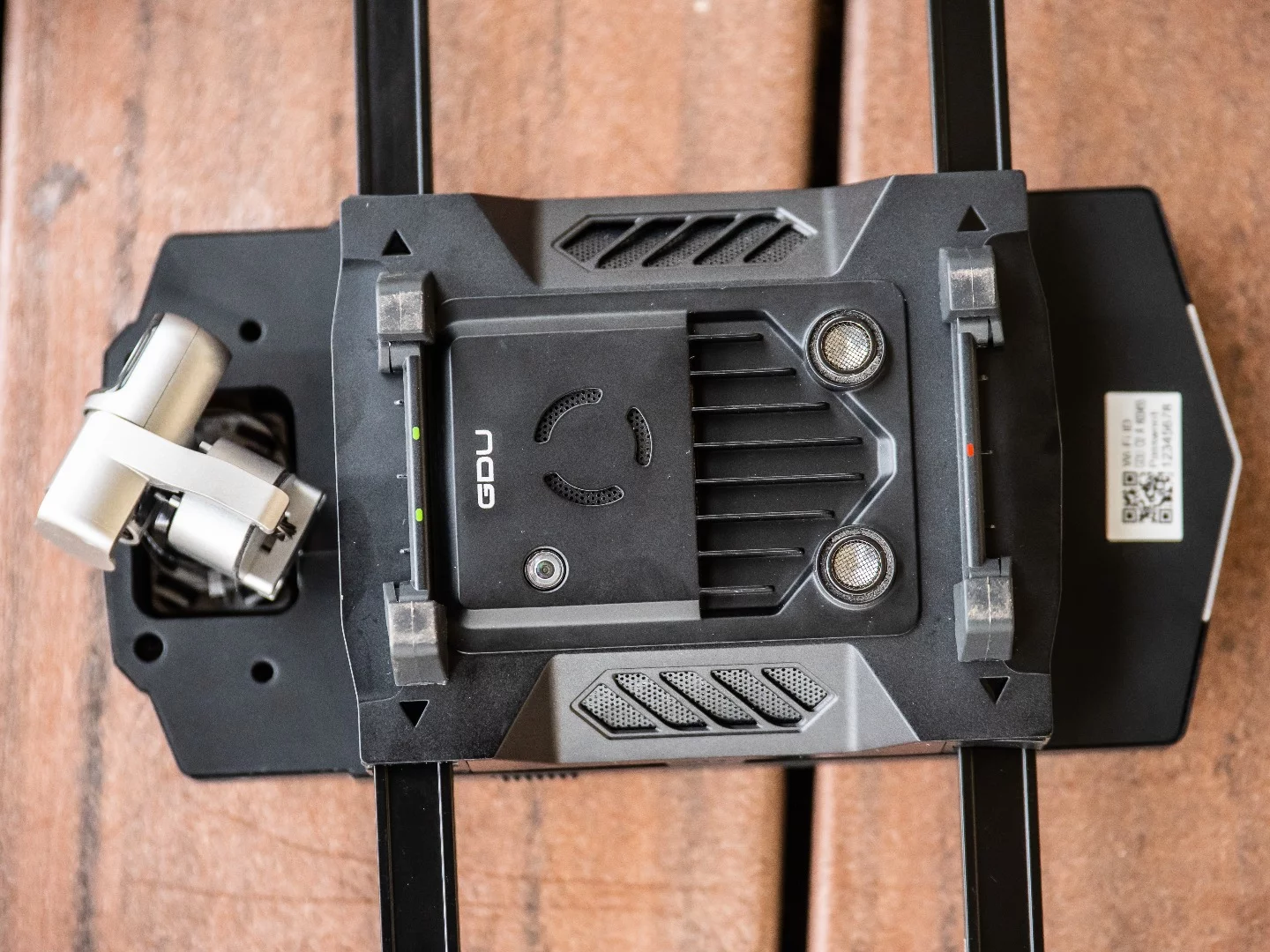

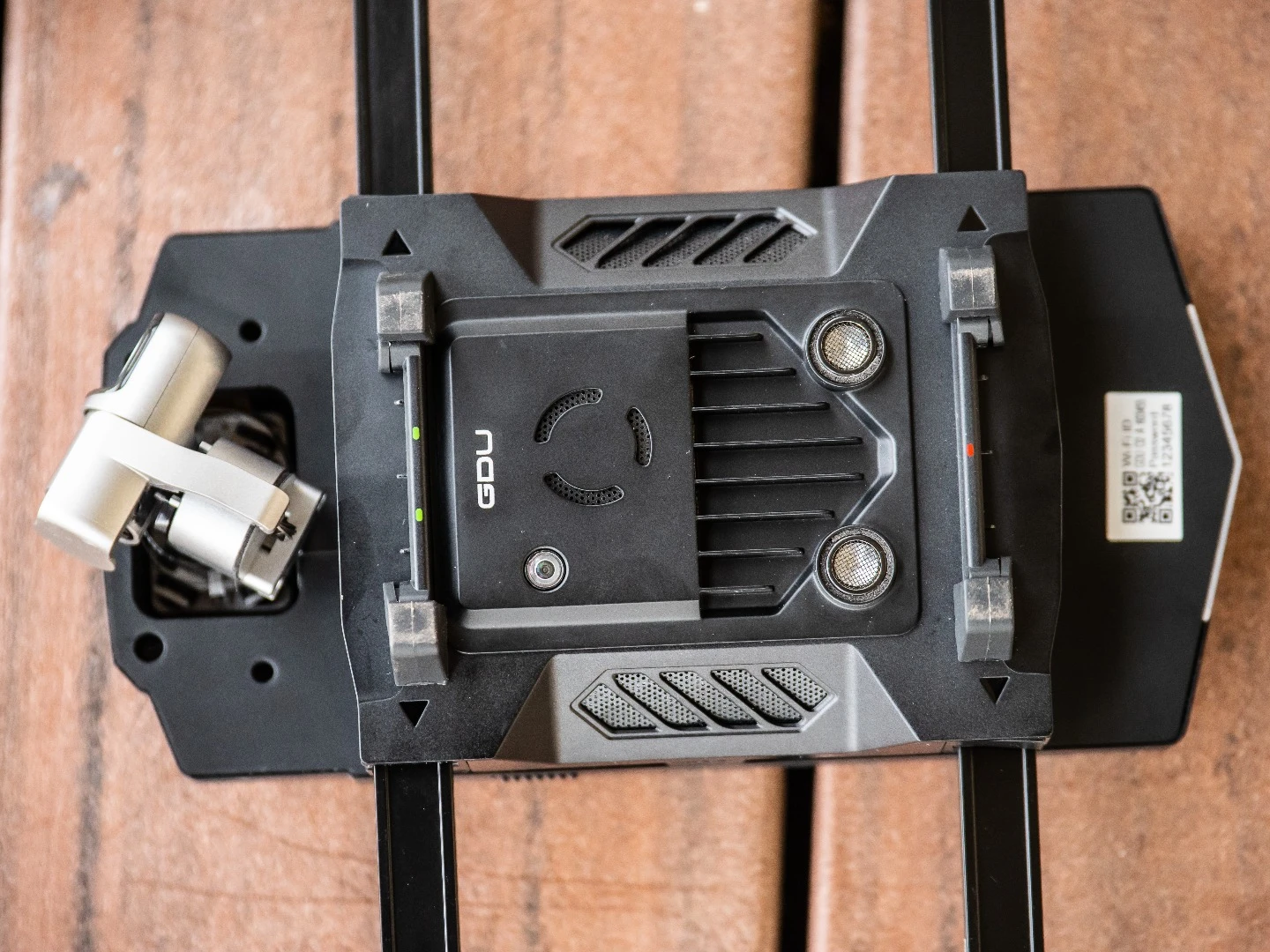

Underside of the GDU 02 - don't go looking for a Micro SD card slot, it's not there
8/17
Underside of the GDU 02 - don't go looking for a Micro SD card slot, it's not there

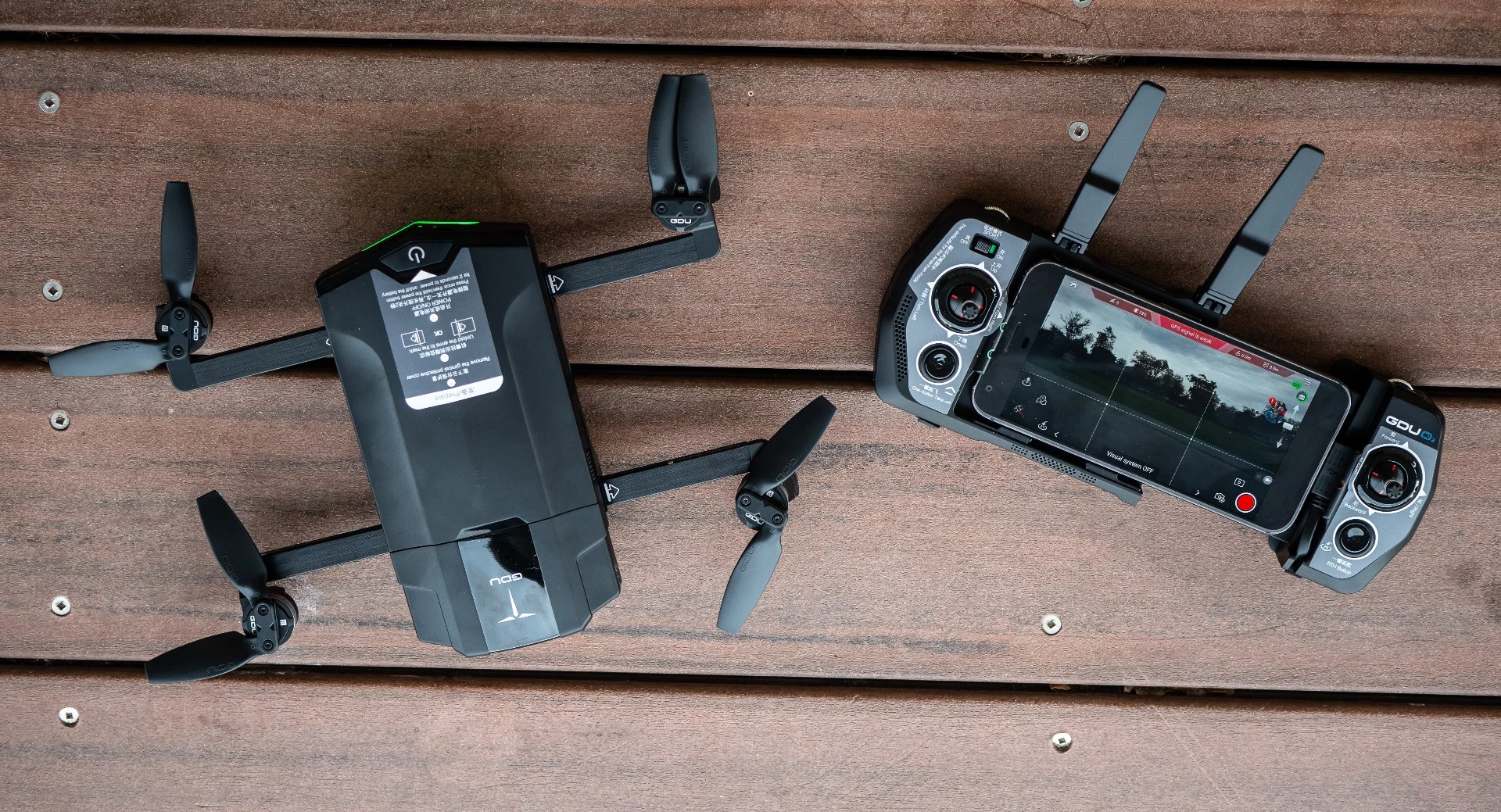

GDU 02: compact 4K aerial camera system
9/17
GDU 02: compact 4K aerial camera system
GDU 02: dual camera obstacle avoidance system
10/17
GDU 02: dual camera obstacle avoidance system
GDU 02: folding props help keep this thing very compact for travel, and fling out by themselves when the motors start up
11/17
GDU 02: folding props help keep this thing very compact for travel, and fling out by themselves when the motors start up

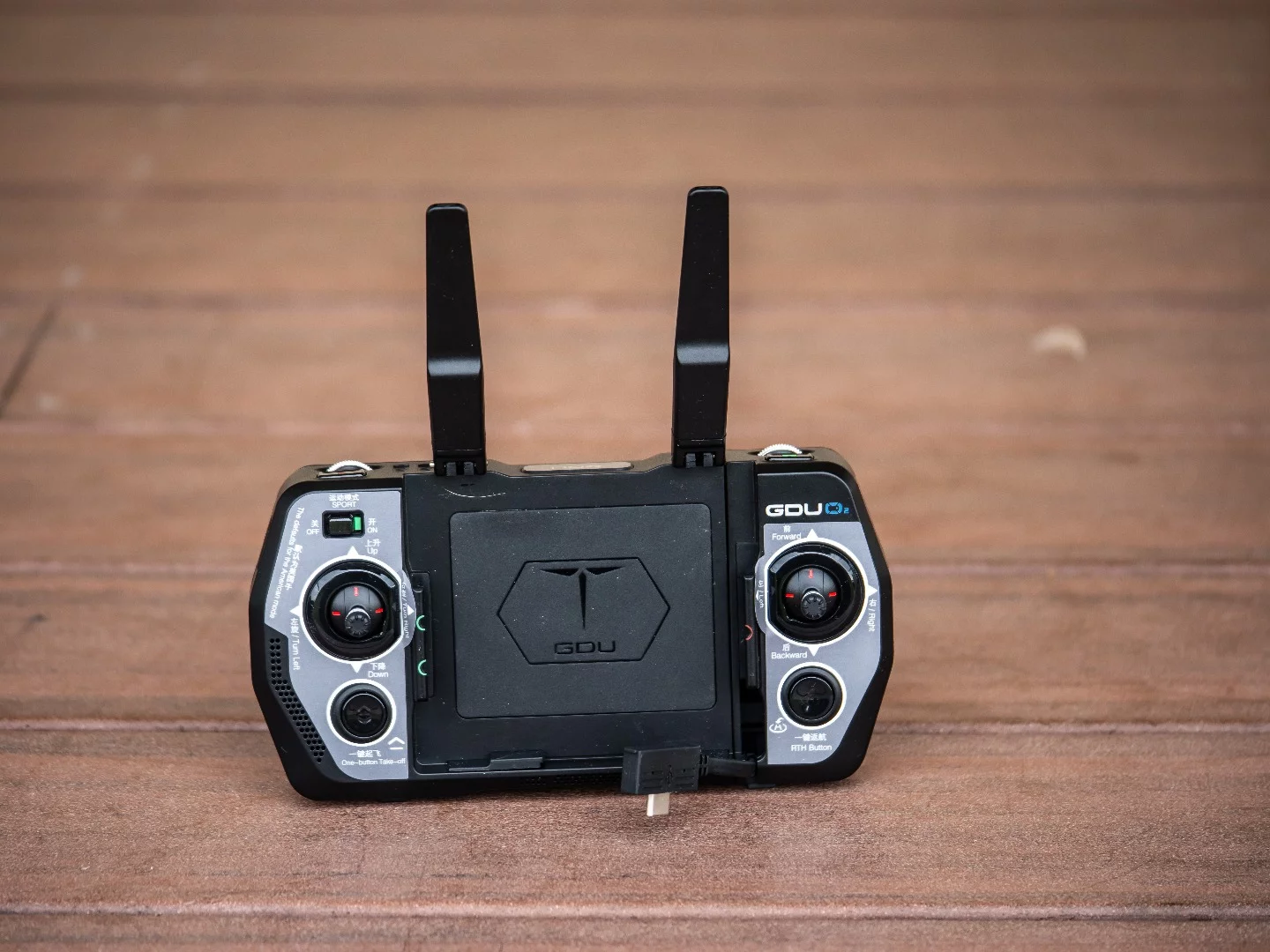

GDU 02 controller
12/17
GDU 02 controller

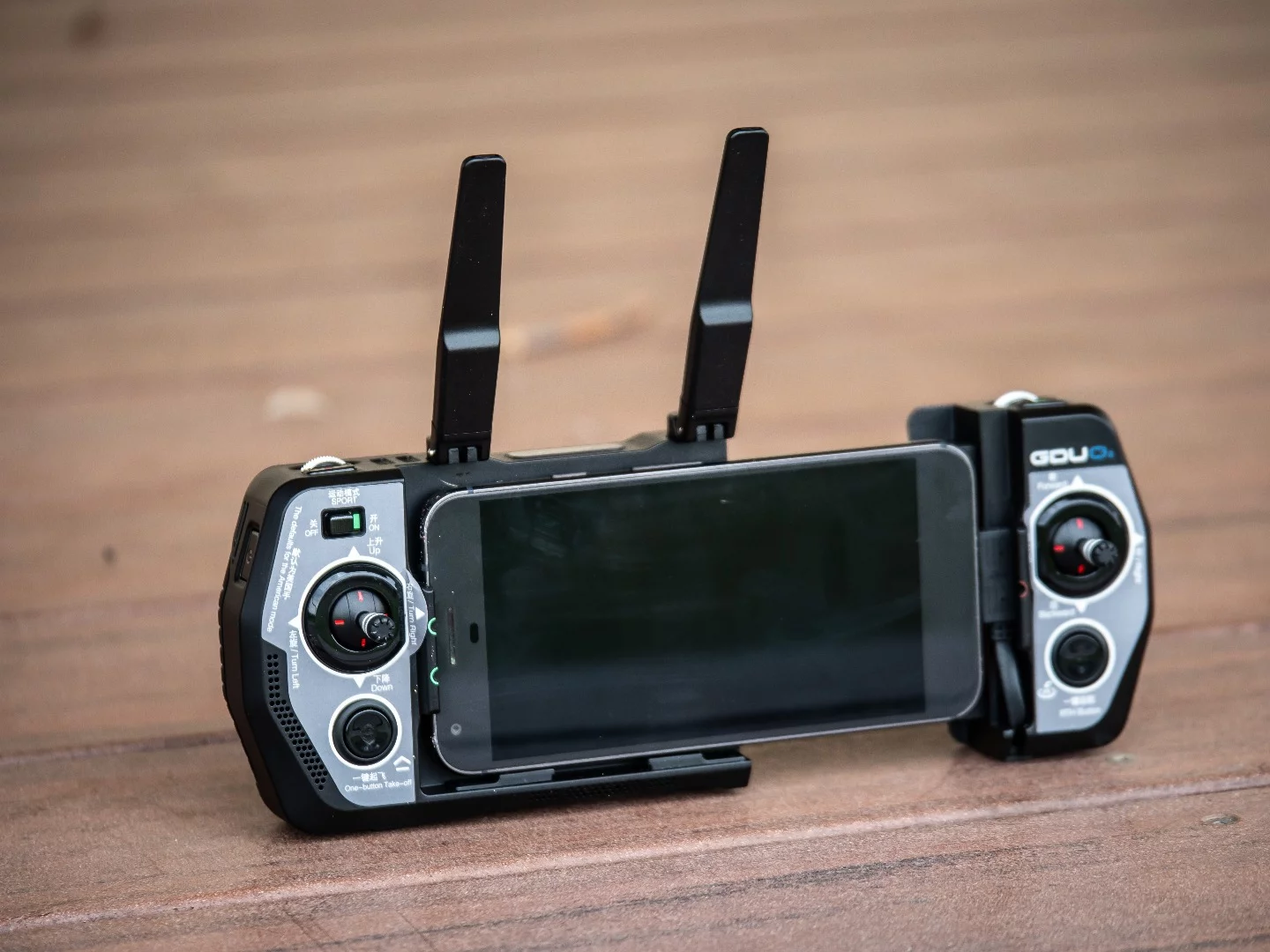

GDU controller with Pixel XL phablet connected
13/17
GDU controller with Pixel XL phablet connected
The GDU 02 drone clips together with its controller so you can throw it in a backpack without worrying about the camera gimbal or thumbsticks
14/17
The GDU 02 drone clips together with its controller so you can throw it in a backpack without worrying about the camera gimbal or thumbsticks

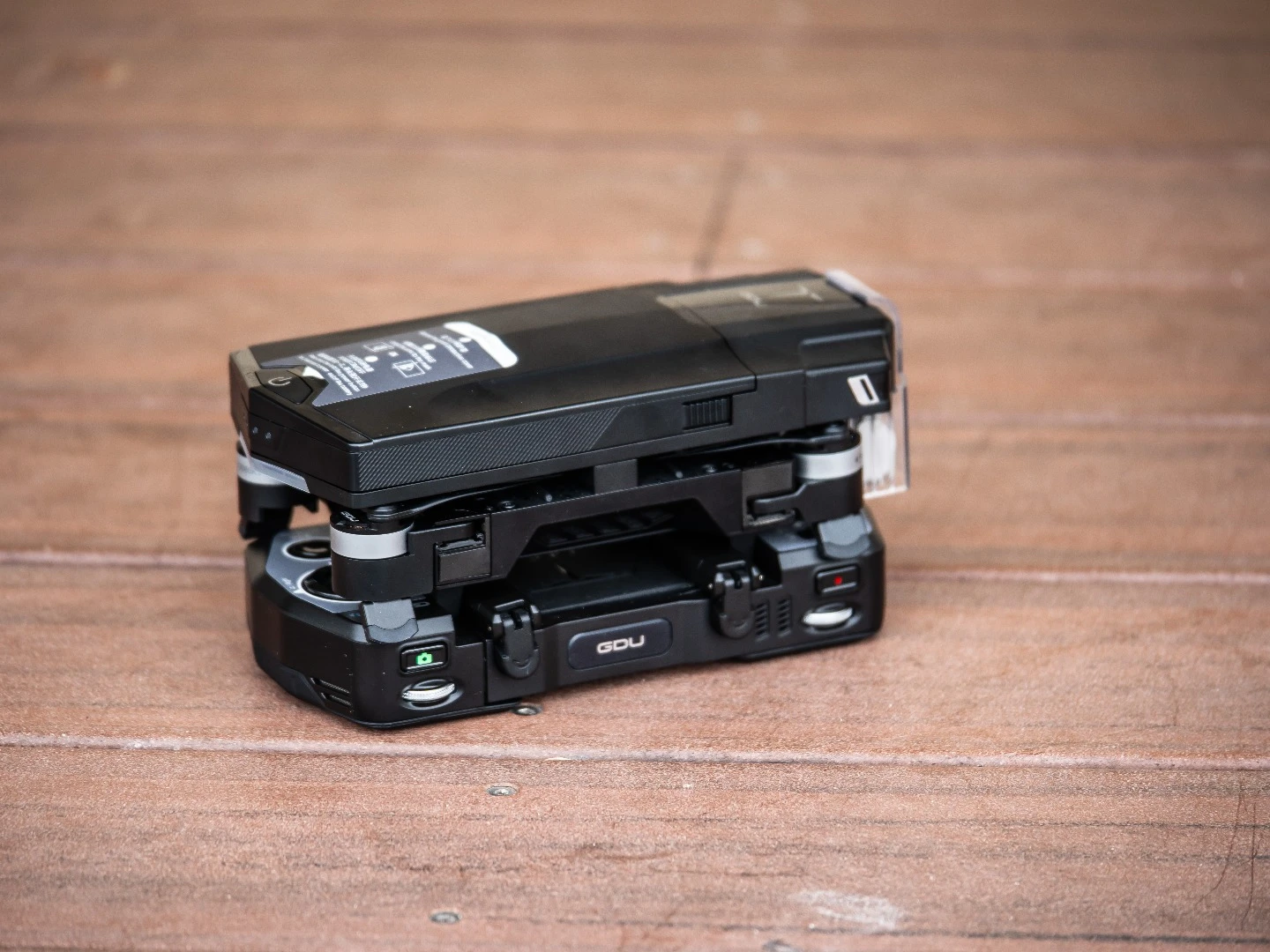

The GDU 02's clip-together capabilities make it super-portable
15/17
The GDU 02's clip-together capabilities make it super-portable

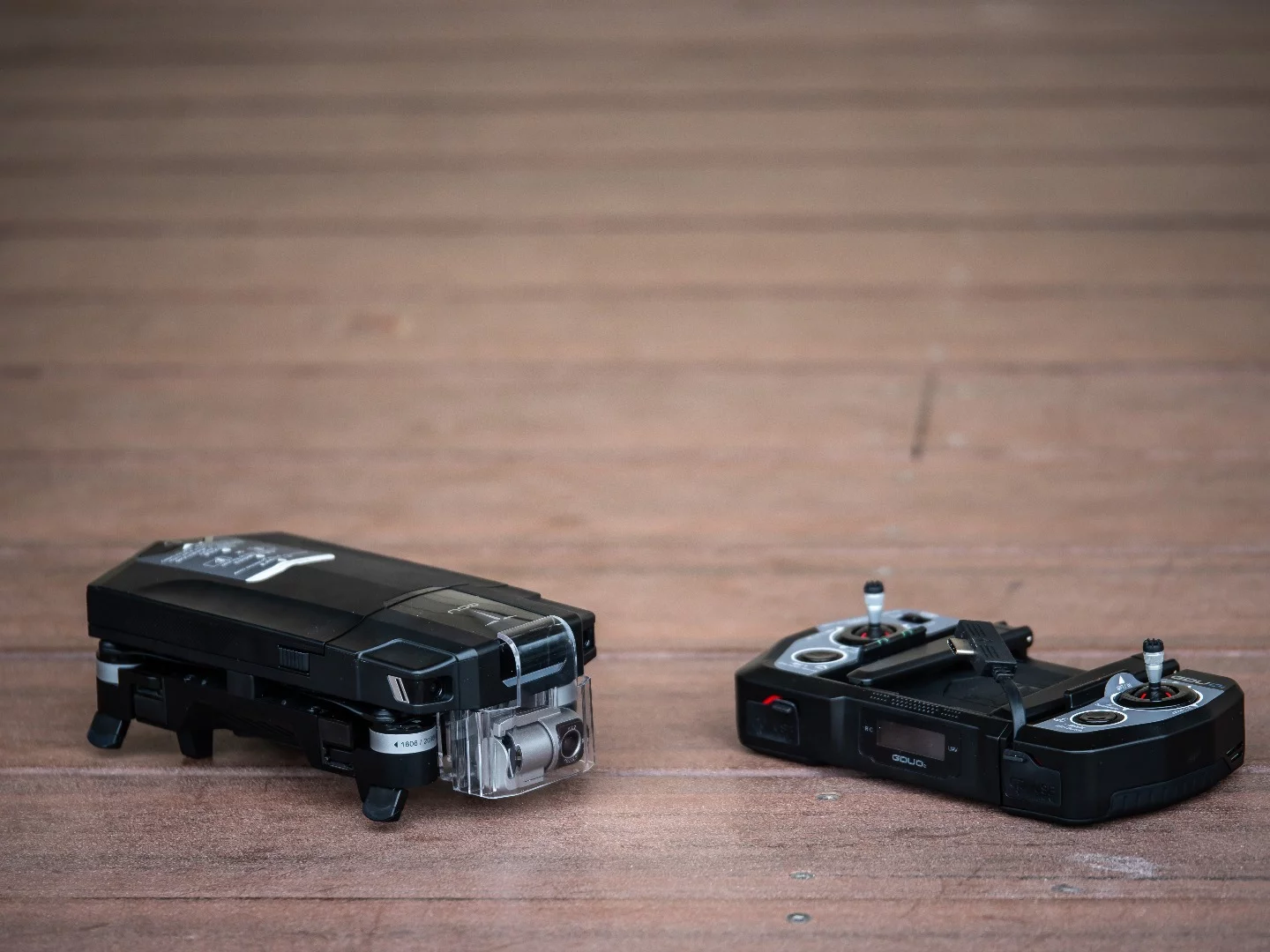

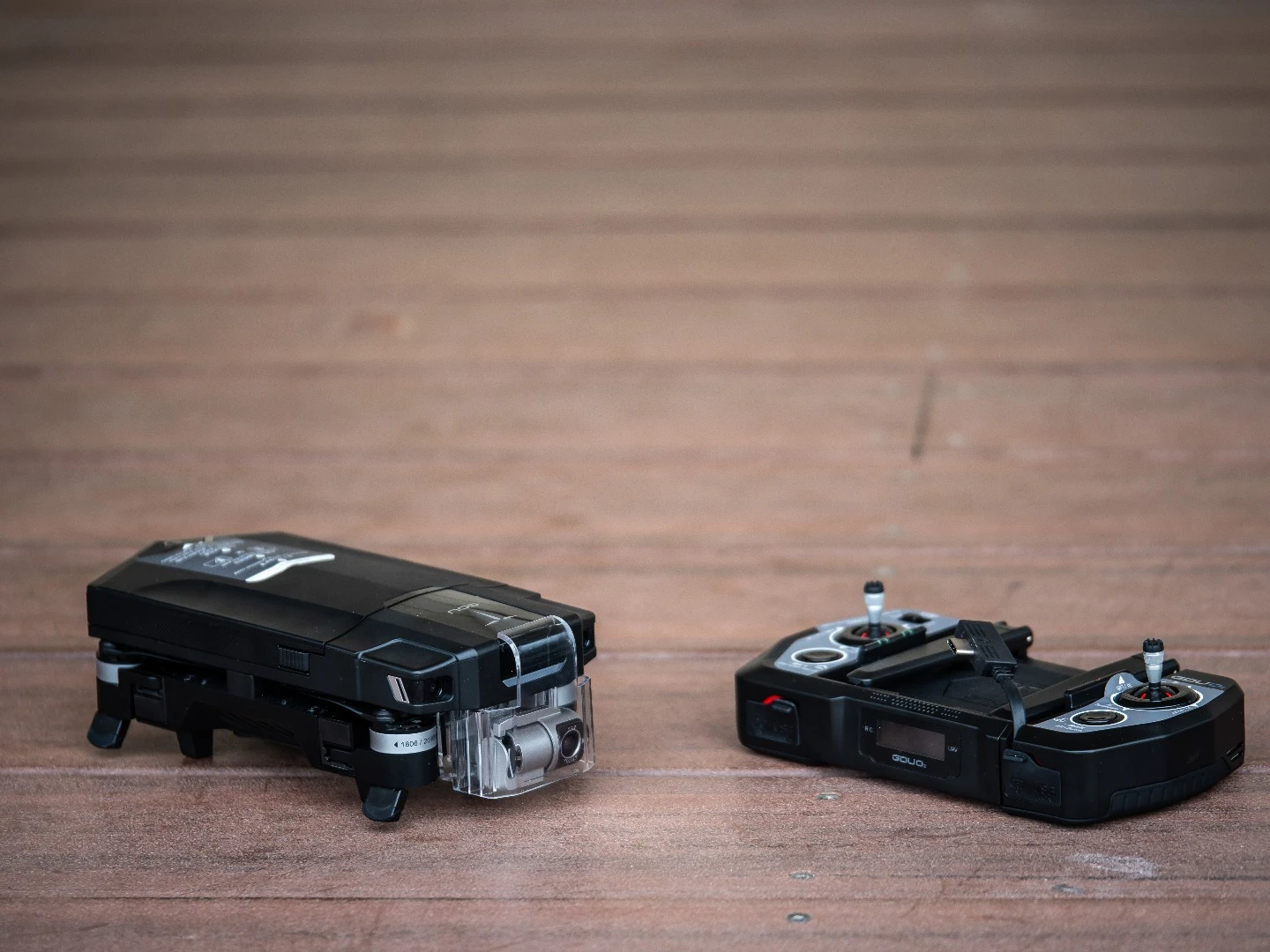

GDU 02 drone and controller, folded up but separate
16/17
GDU 02 drone and controller, folded up but separate

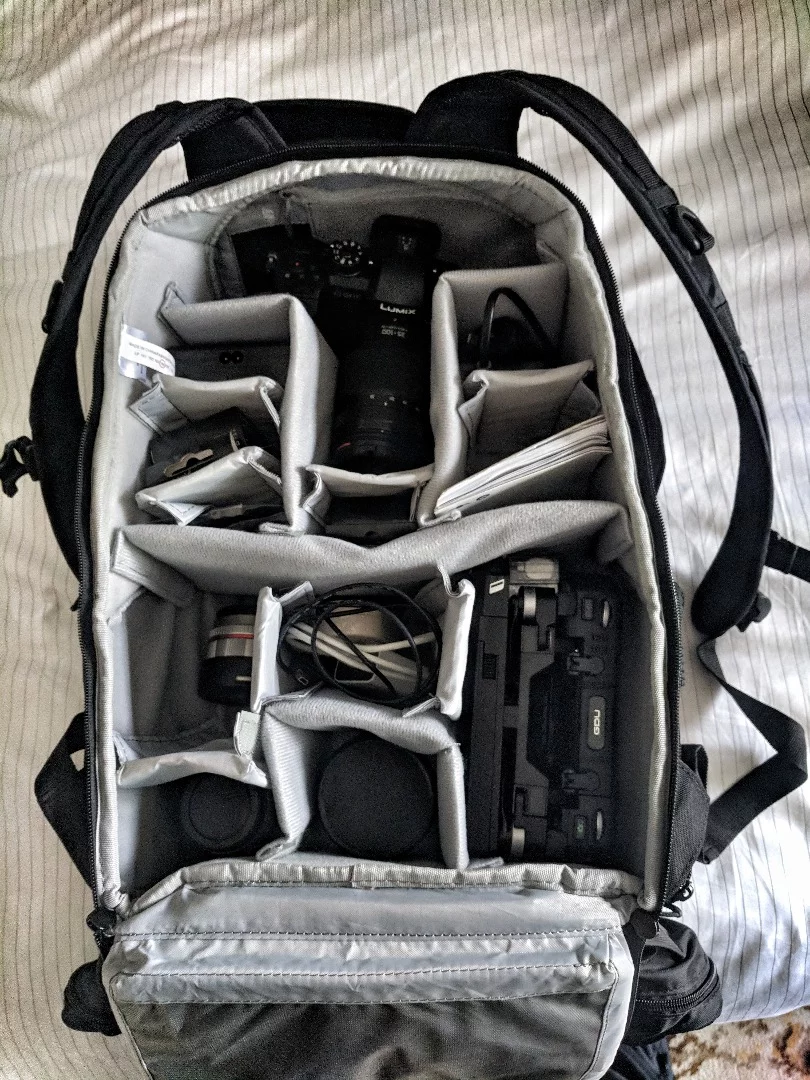

The GDU 02 and controller fit very handily into a camera backpack.
17/17
The GDU 02 and controller fit very handily into a camera backpack.
View gallery - 17 images

This brick pictured above is actually a bit of a drone sandwich. It's the GDU 02, a compact camera drone with a 4K camera, retractable legs and a controller that sandwiches underneath it so you can transport both while protecting the camera gimbal and the thumbsticks. With vision positioning, obstacle avoidance and smart shooting modes, it's a low-cost competitor for the DJI Mavic.

For something that is around US$65 cheaper than the Mavic Air, the GDU 02 packs plenty of goodies. Comparable in size to a Mavic Pro, it features forward-facing obstacle avoidance to help you not crash it, and can transmit high-def video back to a smartphone about one-kilometer (0.6 mi) away. Like the Mavic drones, it fits easily in a backpack with your camera gear, and unfolds and flies within minutes. The only fiddly bit is sticking your smartphone, in my case a Pixel XL, in the stretchy controller clamp – and that's a 10 second job.

The controller won't let you fit larger 8- or 10-inch tablets in it – the Mavic drones don't either – but then portability is the name of the game here.

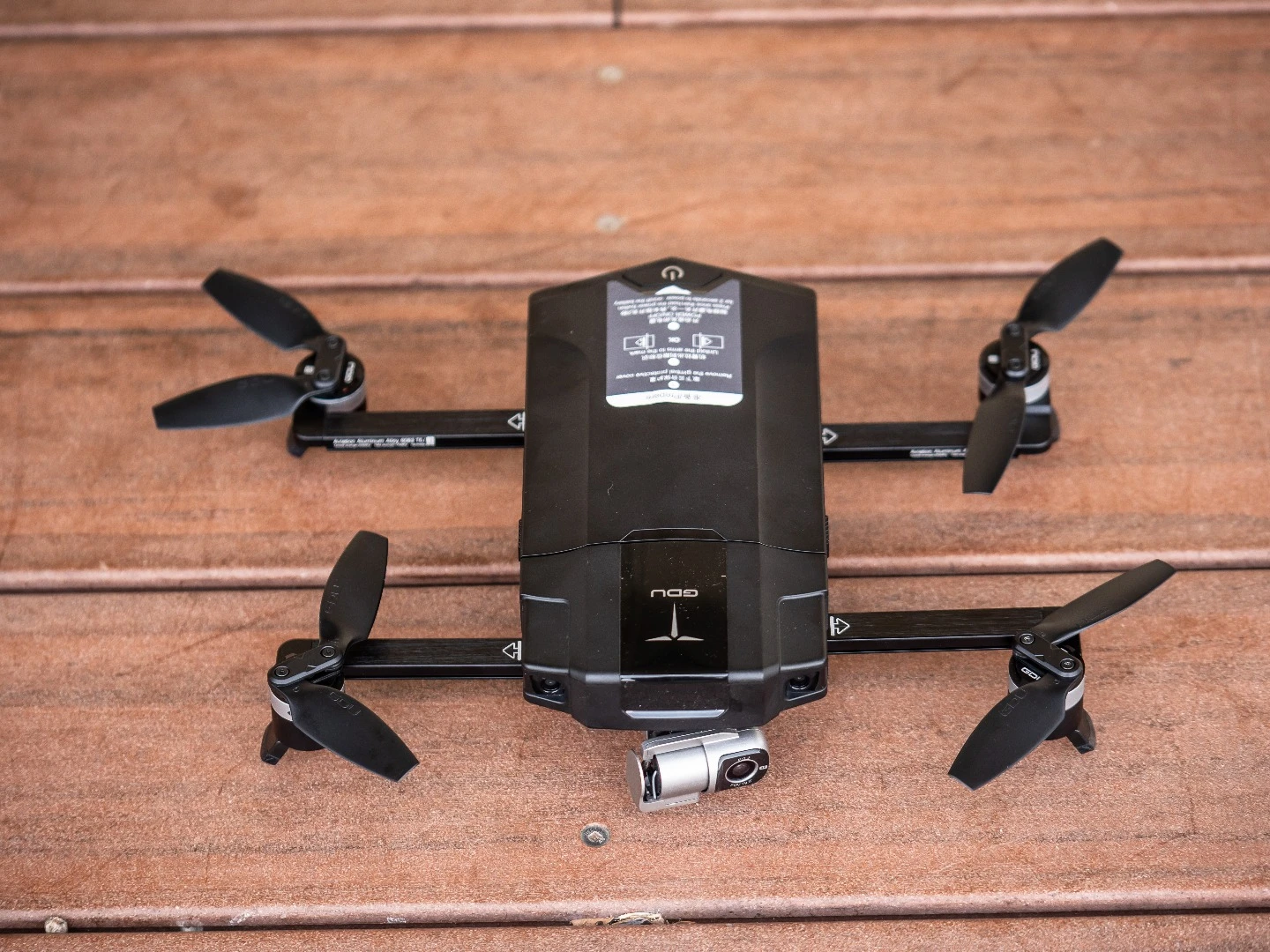

GDU 02: folding props help keep this thing very compact for travel, and fling out by themselves when the motors start up
GDU 02: folding props help keep this thing very compact for travel, and fling out by themselves when the motors start up

Flying the GDU 02

Takeoff is a one-button affair and landing is nice and easy compared with a Phantom-class drone. Regular mode gives you smooth, slow movement to help you capture the smoothest motion you can, and Sport mode peps things up and makes it much more responsive. That makes it more fun to fly, but your footage gets pretty jerky if you're not super smooth on the sticks.

Like the Mavic, the 02 struggles to compensate for high winds due to its low weight. But the GPS/GLONASS and vision positioning systems help it hover reasonably steady within a radius of a few feet. I'd consider this a fairly friendly and easy drone to fly, with a minimal learning curve.

You can pilot it manually, or use a bunch of smart shooting modes. There's Circle (points of interest) mode, which frankly is a bit wonky. It seems moving sideways and rotating smoothly to keep a subject in frame is as tough for a computer as it is for a human operator. There's Selfie mode, in which the camera nicks off backwards to reveal your magnificent surroundings, and it works well.

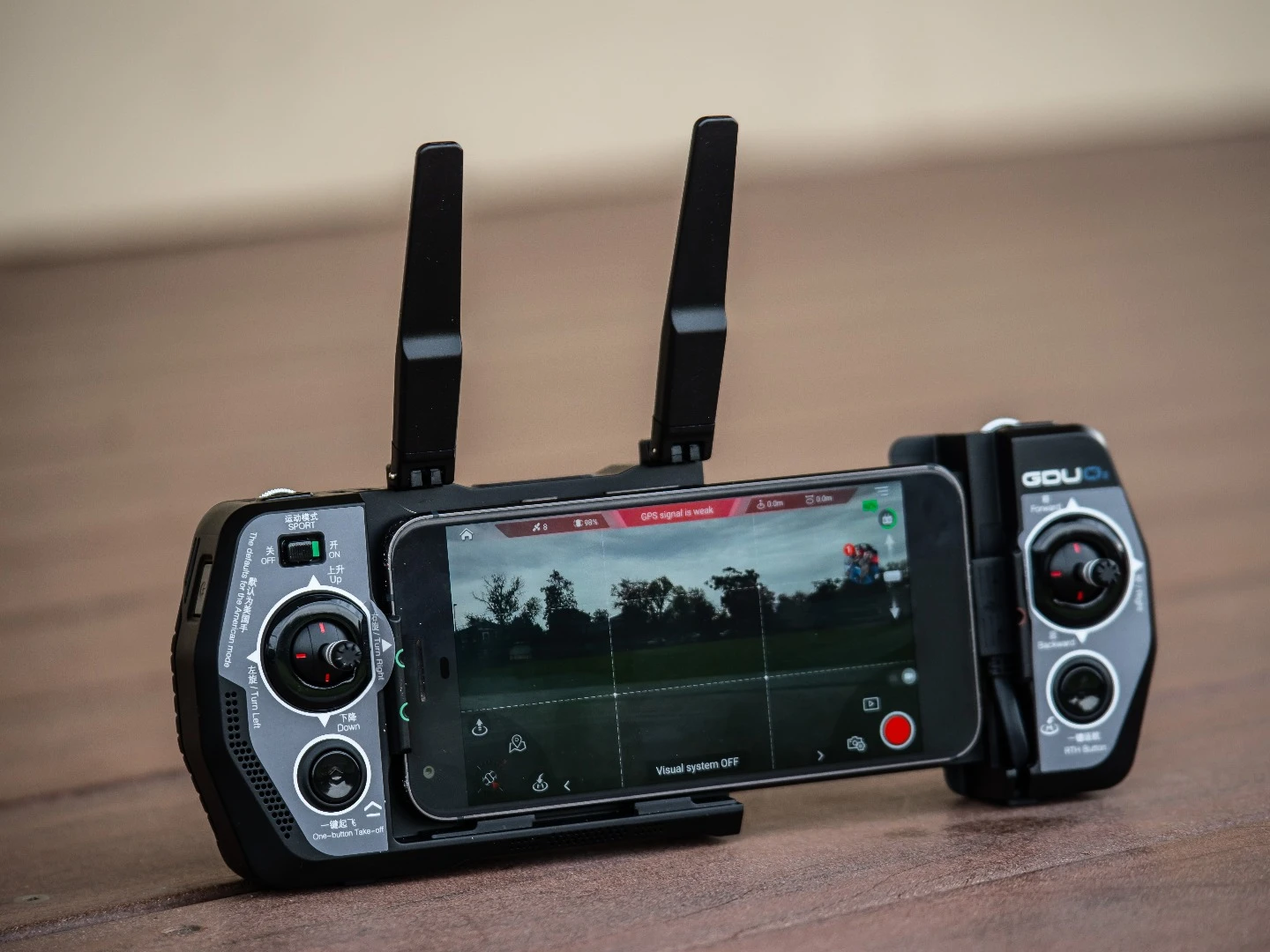

GDU 02 controller with Pixel XL
GDU 02 controller with Pixel XL

Gesture recognition mode lets you hold up two fingers to trigger a three-second delay on a still shot, or hold your whole hand up to start and stop video. It's a little hit and miss but mostly fine. Rocket mode is handy if you don't trust yourself to literally hold the throttle upward. And there's a point and drag, visual tracking Follow-me mode that seems to do a great job – at least at slow speeds – of keeping you in frame and following you as you run around the place.

The 02's dual-camera obstacle avoidance definitely helps give you peace of mind in autonomous flight, such as return to home mode, and when you're on the sticks it does a good job warning you when you're getting close to something, and stopping you when you do get too close.

Battery life is rated at 20 minutes of flight time, and that may be true. But the drone won't take off with 20 percent battery or less, and if it's in the air when it hits the 20-percent mark, it'll start trying to return home and land. So, realistically, you get about 16 minutes of usable time. That's well down on the Mavic's 30-minute rated flight time, and a key area for improvement as GDU continues to develop this series.

Video and photography

Video quality out of this tiny 4K camera is pretty good. It doesn't handle transitions in exposure very smoothly, and like many drones it struggles to stabilize yaw movements, so turning the drone while you shoot often ends up giving you footage that's difficult to watch. Perhaps the footage feels a little too sharp in full 4K resolution. And there is a certain uneasy jitter to it sometimes, for which I'm not sure whether to blame the gimbal, the camera or the video compression. But that's looking with a critical eye; for the most part it's a good camera. Detail is great and colors look nice when you get the right light.

Here's a quick bit of sample video. Full-screen it and select the maximum quality to see it at full resolution, but be aware there's some YouTube compression going on and the original footage looks a little better:

GDU 02 sample footage

Photos are surprisingly good, too, coming out nice and sharp at 13-odd-megapixel resolution with very little distortion or chromatic aberration that I've noticed. But you can't shoot RAW, so if you're a Lightroom junkie there's less latitude to play around with, and dynamic range is limited, so again, you want to make sure you're shooting in the right light for best results.

GDU 02 Sample photo, edited in Lightroom
GDU 02 Sample photo, edited in Lightroom

In all, the camera looks to us like a solid step forward from the last GDU drone we tested, the Premium Byrd. But there's room for improvement, particularly in the dynamic range, jitter and ISO transition departments. And while it might not make much difference to most users, we'd love the facility to shoot RAW.

Everything you shoot gets relayed to your phone in 720p for quick editing and sharing in the GDU Mini app.

On the negative side, for some reason GDU has chosen to fit this thing with 16 GB of built-in memory instead of an SD card slot. That's can be a pain as you need to have the battery in and turn the drone on to get the footage off, meaning you can't recharge while you're transferring data.

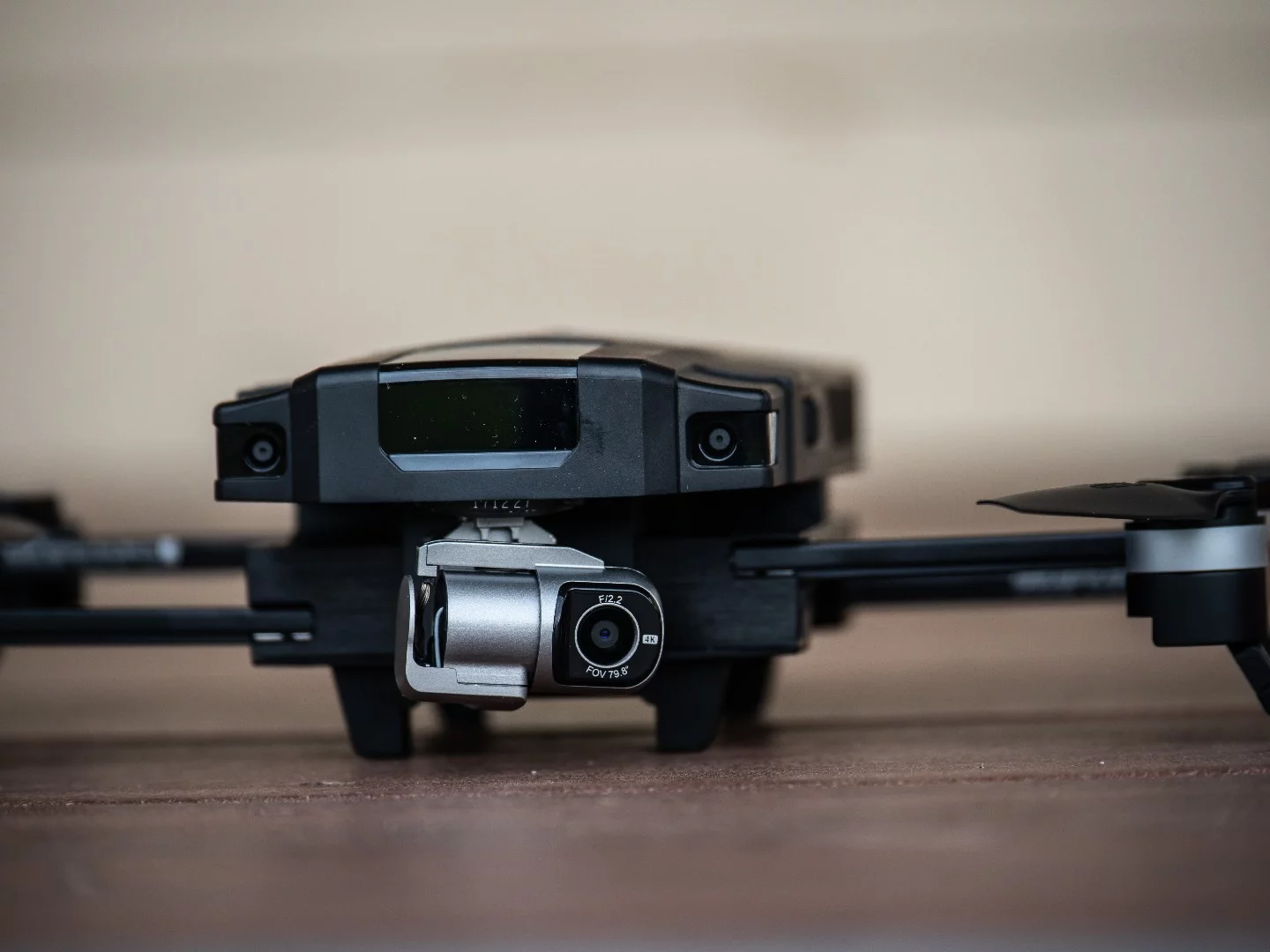

GDU 02: dual camera obstacle avoidance system
GDU 02: dual camera obstacle avoidance system

Conclusions

General levels of fit and finish and user experience are just a notch below the DJI gear that has become the standard in the segment. Where DJI's gear feels more like a premium experience, the GDU has just the faintest touch of hobby grade about it. For example; you need to give the arms a good yank when you're extending them, or else they don't come all the way out; the cover under the battery is slightly flappy; and the phone clamp wobbles a bit when it's extended. We're being very picky here, but it's these tiny little things that GDU needs to get right to take it to the next level.

Functionally, though, it's close. And leaving aside the layer of sheen, I suspect the majority of users will get a very similar quality of results and fun out of the US$732 GDU 02 as they would out of the US$999 Mavic Pro.

The elephant in the room might be the US$799, smaller Mavic Air – but until we give that one a run we can't comment on which we'd recommend. But on its own, the GDU 02 is a terrific tool that would've taken the industry by storm 12 months ago. Every bit as portable as the Mavic Pro, perhaps even safer in transit thanks to its sandwich-stacking controller, it's a very positive move from GDU and we look forward to seeing what other innovations this company can bring to the segment.

Product page: GDU
