GloW glider/microlight hybrid combines the best of both aircraft

GloW glider/microlight hybrid combines the best of both aircraft
The GloW microlight/glider hybrid
The GloW microlight/glider hybrid
View 7 Images

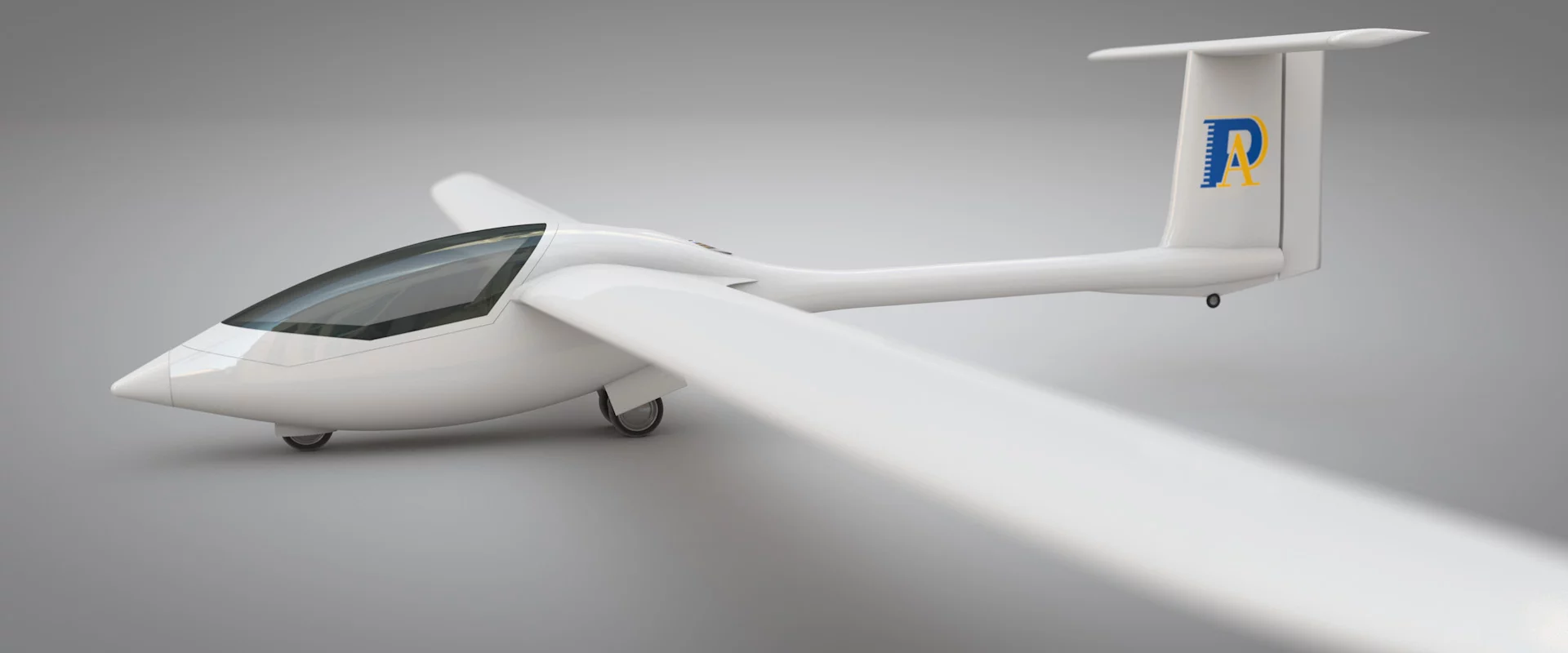

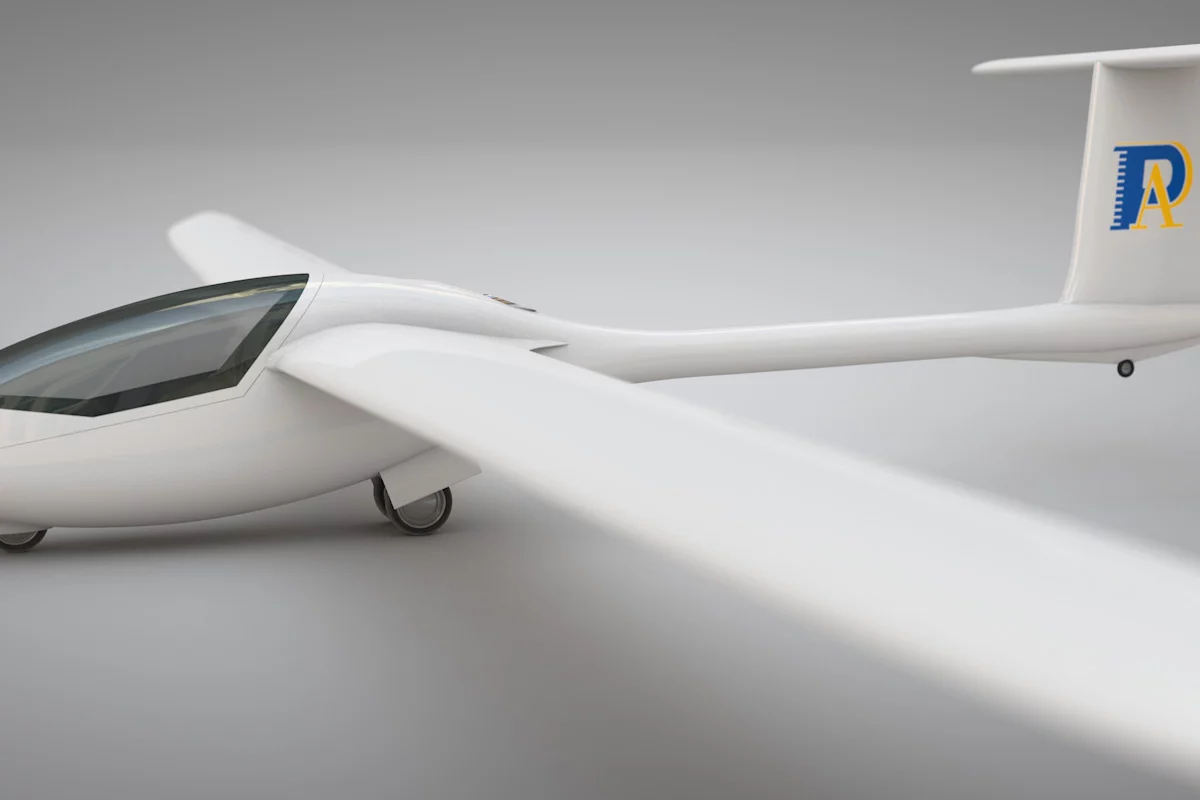

The GloW microlight/glider hybrid
1/7
The GloW microlight/glider hybrid
The GloW microlight/glider hybrid currently under development by UK-based ProAirsport
2/7
The GloW microlight/glider hybrid currently under development by UK-based ProAirsport

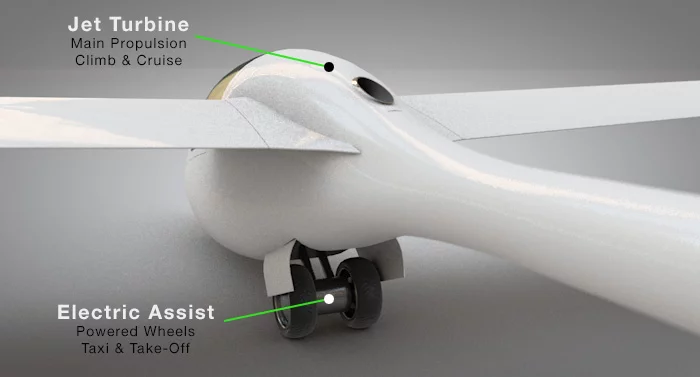

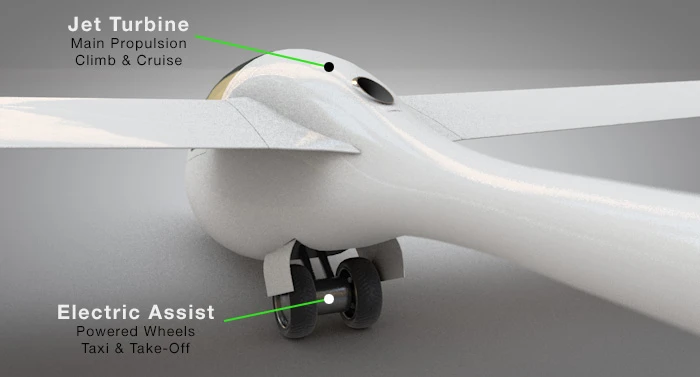

The GloW microlight/glider hybrid is launched via electric powered wheels and propulsed by jet turbine
3/7
The GloW microlight/glider hybrid is launched via electric powered wheels and propulsed by jet turbine
The GloW jet turbine for climb and cruise
4/7
The GloW jet turbine for climb and cruise

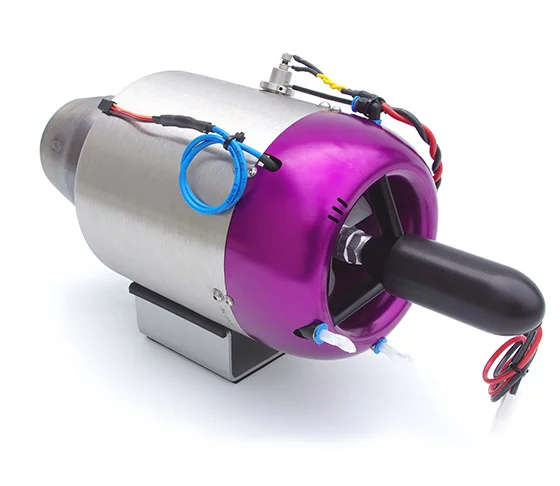

The GloW jet turbine for climb and cruise during flight
5/7
The GloW jet turbine for climb and cruise during flight

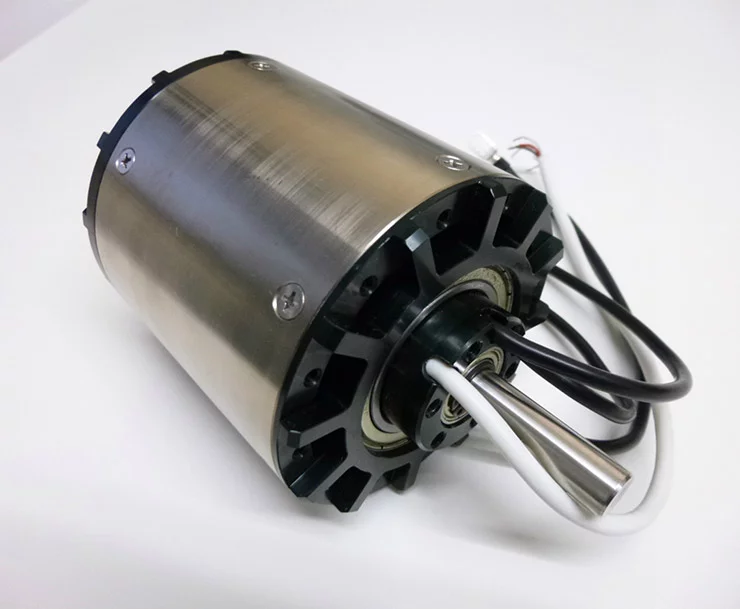

The GloW's electric motor for powering the wheels during takeoff
6/7
The GloW's electric motor for powering the wheels during takeoff
7/7
View gallery - 7 images

UK-based ProAirsport has developed a hybrid microlight/glider with electrically powered wheels used for taxiing and takeoff, and a jet turbine for climbing and cruising. During flight, the engine can be turned on and off with the flip of a switch, allowing the aircraft to be flown as either a microlight or glider. Unlike typical microlights and self-launching gliders, ProAirsport's GloW is propeller-free.

For the weekend enthusiast – a big segment of the microlight and glider flying crowd – a clear advantage of GloW is its ease of use: simple to rig and ready to fly in 15 minutes. Another advantage claimed by company owner, veteran glider pilot Roger Hurley, will be the GloW’s revolutionary price, though exactly what that price is has yet to be determined.

"GloW is a recreational aircraft designed as a crossover between the microlight or ultralight, and self-launching sailplane [glider] traditions," says Hurley. "It’s also a hybrid that takes advantage of developments in small powerful electric motors and the light weight and small size of micro-jet turbines. The key drivers are independence in operation and lower cost, which together make it possible for owner pilots to 'fly more, fly for less.'"

Hurley’s aircraft design comes on the heels of deregulation (for airworthiness purposes) of a particular class of microlights by the UK’s Civil Aviation Authority. Specifically, any single-seat aircraft with a max takeoff mass of less than 300 kg (660 lbs) and a stalling speed of 35 knots or less. Since GloW falls below both levels, no initial airworthiness certification or mandatory annual inspection is required. Basically, any pilot holding a Self Launching Motor Glider (SLMG) license can fly the machine. The company has set its sights on the US market with similar aircraft designations.

The legal changes allow a company such as ProAirsport greater flexibility and leeway in production. "Markets that are lightly regulated for this kind of aircraft mean that the concept can be innovative, development can be quick, and the high costs associated with mandatory technical certification by an authority avoided," says Hurley. "We see markets world-wide amongst pilots seeking simpler, innovative and less hassle-some products."

Instead of more expensive carbon fiber material, the GloW airframe is made of a glass/epoxy composite – basic materials that contribute to its light weight and low production cost.

While speed is generally not a feature prized by glider pilots, range and duration are. As a glider/microlight combo, the GloW will be able to soar with engine off, potentially greatly extending both time in the air and distance traveled. Typical gliders can soar hundreds of miles for as long as eight to ten hours with the right conditions, which should only be enhanced with the addition of GloW’s engine.

Another potential use for the GloW may come as a remotely piloted aircraft, especially with no noise footprint during soar mode. And by removing the pilot and an estimated 120 kg (265 lbs) of payload weight, there’s extra space for additional fuel or instrument packs. "The key parts, including the electric drive and turbine, are relatively inexpensive and tried and tested components with reliable track records," says Hurley.

ProAirsport is currently building two demonstration aircraft (one each for the UK and US markets) with inaugural flights expected in September/October of 2015. The company has plans to ramp up production by the end of the year.

Source: ProAirsport

View gallery - 7 images
11 comments
11 comments
Bob
How about some operating parameters?
Jack Olantern
Okay , I see this melting its own tail off. The turbine is pointed right at the tail and with a composite construction you wouldn't even see the problem till it failed , some one tell me I am wrong .
Skyler Thomas
It's electric. There is no heating element other than pressure, which would diffuse significantly by the time the exhaust reached the tail.
Pat Pending
@Jack Olantern; Happily you would appear to be wrong :-)
This one seams to fly well with the same configuration of jet engine; https://www.youtube.com/watch?v=ocEWmyjWOUM
The Skud
Brilliant thinking! Losing that whole "folding away" propeller / motor mechanism, both simplifies propulsion and saves weight for more useful payload. Small turbines have been pretty well bug-free for years, giving flexibility and enabling pilots to hunt thermals to increase duration - win / win!
EH
The engine is about 10000 euros all in, 390N thrust = 45lbf, The electric taxi/takeoff can operate without the jet running.
"Various fuels may be used including domestic kerosene, diesel (incl agricultural, recycled and bio-diesel types) paraffin, JetA1 and JP4.
Take-off and climb to 2500’ should consume about 6.5 litres of fuel (e.g. domestic kerosene at 45p/litre – Dec 2014) – a low launch cost. At cruise or cruise/climb the turbine thrust is reduced to about 20% and fuel consumption is less than 500cc/minute.
Planned fuel capacity is currently 34 litres (may change) and again, to reduce complexity, the wings are dry with all fuel in one fuselage centre section tank." - ProAirsport
Grunchy
They had a very similar story in the April 1966 issue of Popular Mechanics. It's even on the internet! https://books.google.ca/books?id=J9QDAAAAMBAJ&pg=PA105#v=onepage&q&f=false
Bob
Where is the air intake for the turbine? What is the glide ratio? What is the speed envelope? What G stresses is it designed for? What is the takeoff distance? What is the climb rate? Are there retracing wheels on the wing tips?
christopher
Small jets are thirsty. This one drinks 2.5 liters per minute, so you get about 13 minutes of thrust from a full tank.
Ryan Gibbons
@True! Have they made any significant performance or efficiency gains in micro-turbine jet engines recently?
@Bob I guess we are gonna have to wait for that info. I hope they have a one and two person model for these. this would be a nice recreational aircraft for when I'm rich, in the future, hopefully. ;)
