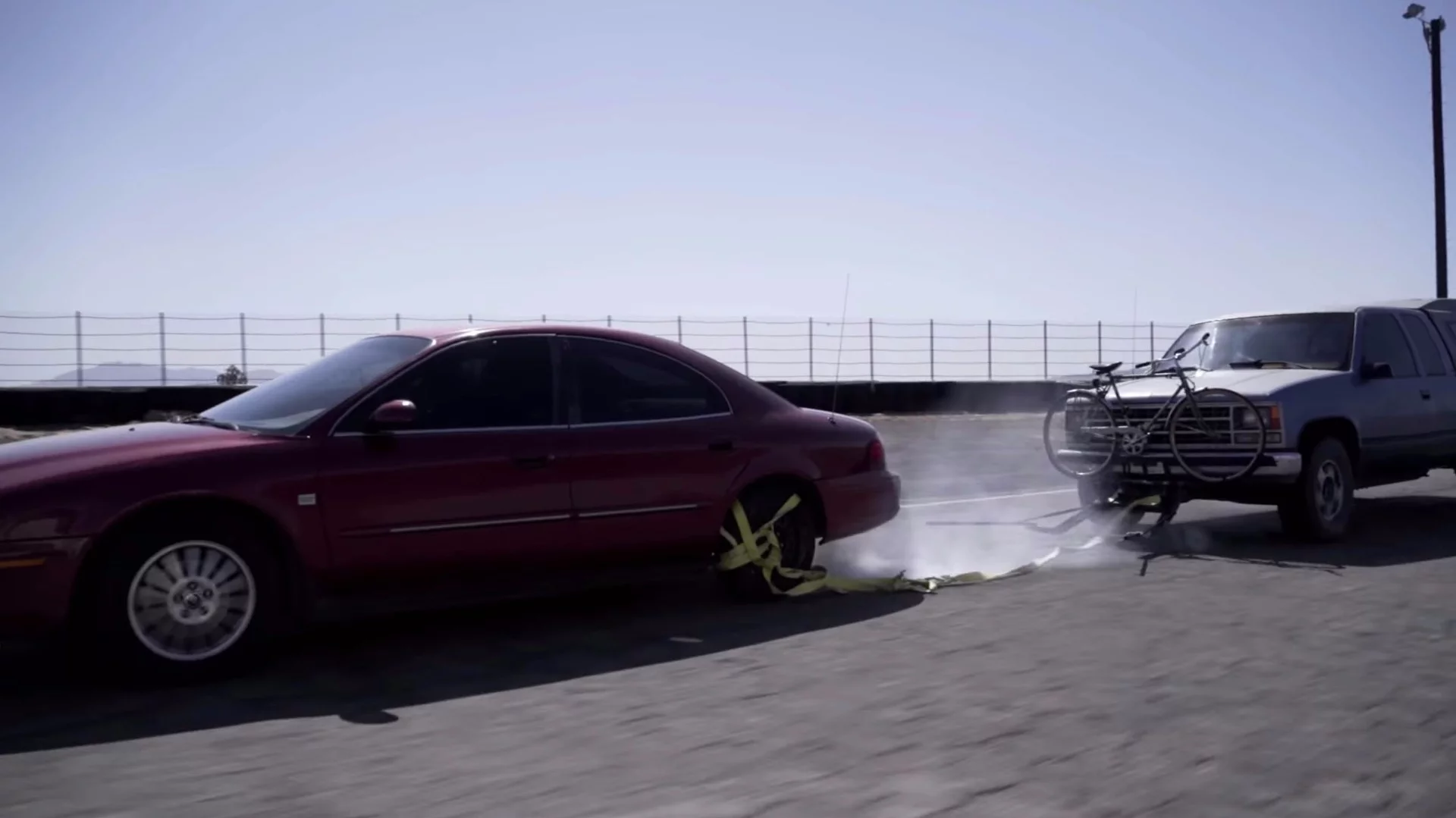

The Grappler causes instant rear tire trauma
1/9
The Grappler causes instant rear tire trauma
The Grappler: unfurls on the go to grab the bad guys
2/9
The Grappler: unfurls on the go to grab the bad guys
The Grappler: tethered stops completely disable front wheel drive cars
3/9
The Grappler: tethered stops completely disable front wheel drive cars
The Grappler: running up and over the rear tire, the net quickly wraps tightly around the wheel and grabs
4/9
The Grappler: running up and over the rear tire, the net quickly wraps tightly around the wheel and grabs
The Grappler: the police pursuit vehicle needs to get very close to deploy the grappler - but not quite as close as for a PIT manoeuver
5/9
The Grappler: the police pursuit vehicle needs to get very close to deploy the grappler - but not quite as close as for a PIT manoeuver
The Grappler: looks like a jumbo bull bar when not deployed
6/9
The Grappler: looks like a jumbo bull bar when not deployed
The Grappler: can be disguised as a bike rack
7/9
The Grappler: can be disguised as a bike rack
The Grappler: grabs hard
8/9
The Grappler: grabs hard
The Grappler ruins tires and brings bad guys to a complete stop
9/9
The Grappler ruins tires and brings bad guys to a complete stop

Police Bumper's Grappler is a nasty little device that mounts to the front of police pursuit cars and stops a car chase right in its tracks, safely and securely. It shoots out a net that grabs onto the target's rear wheel, wraps around it and completely drags the axle to a stop while destroying the tire.

Earlier this year, I went to my first rodeo in Nevada. We got there late, and it was just kids having sack and boot races. Later that day, I went to my second rodeo, where we watched teams of two riders on horseback roping cows on the move. One would lasso the horns, which seemed to be the easy part, then the second would try to get a lasso around one or both rear legs, which would totally bring the beast to a halt.

And that second part is exactly what the Grappler does, but to a car. Mounting to the front of a standard police truck such as a Tahoe, it's specifically designed to disable the rear wheel of a vehicle in a police chase, bringing them to a quick and safe stop without the use of the PIT manoeuvre that involves nudging the fleeing car so it spins around.

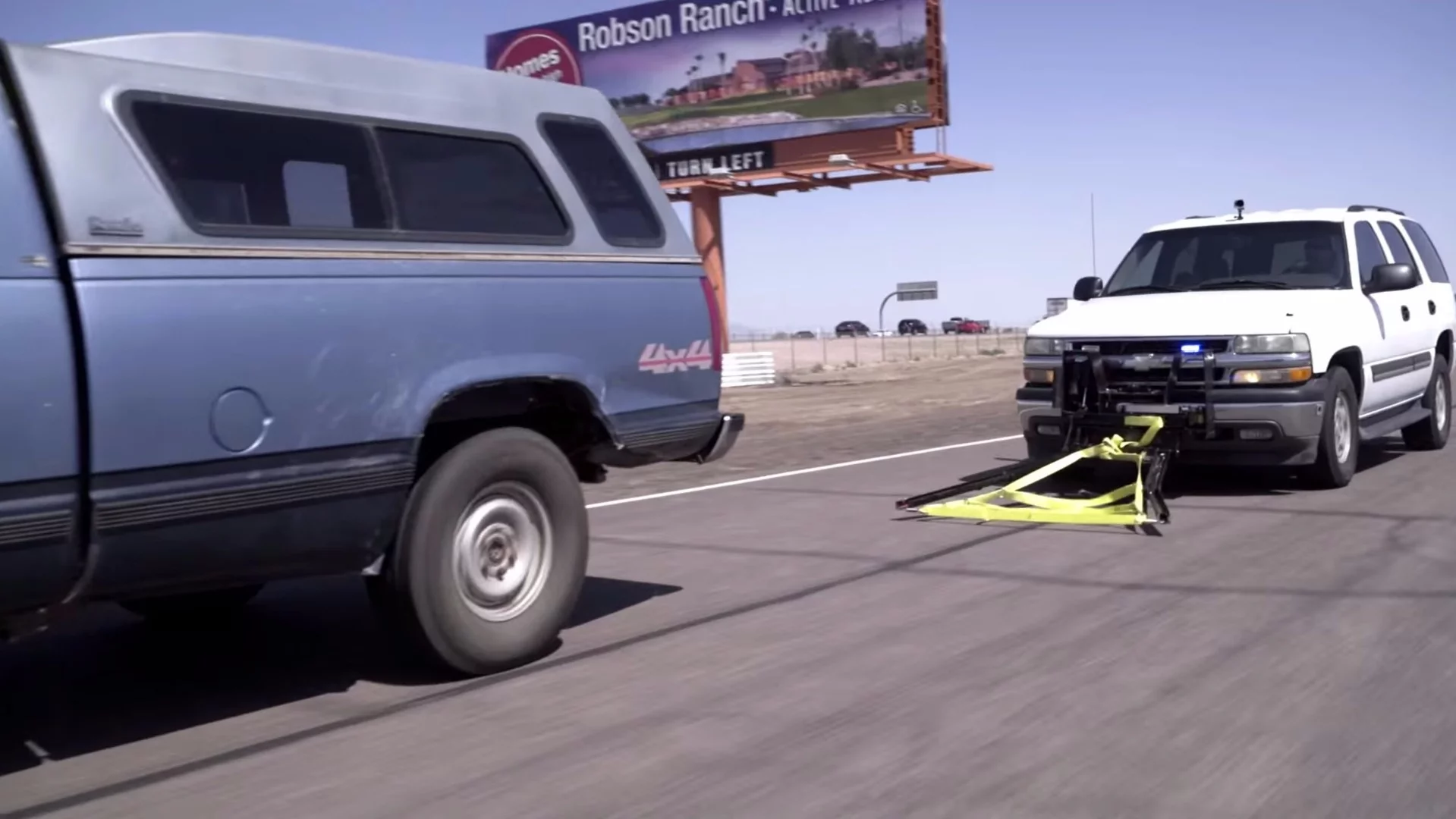

When you're coming up behind the bad guy, you hit a button to deploy the Grappler, then more or less run into the back of his car with the center of your car in line with one of the fleeing car's rear wheels.

The Grappler: the police pursuit vehicle needs to get very close to deploy the grappler - but not quite as close as for a PIT manoeuver
The Grappler: the police pursuit vehicle needs to get very close to deploy the grappler - but not quite as close as for a PIT manoeuver

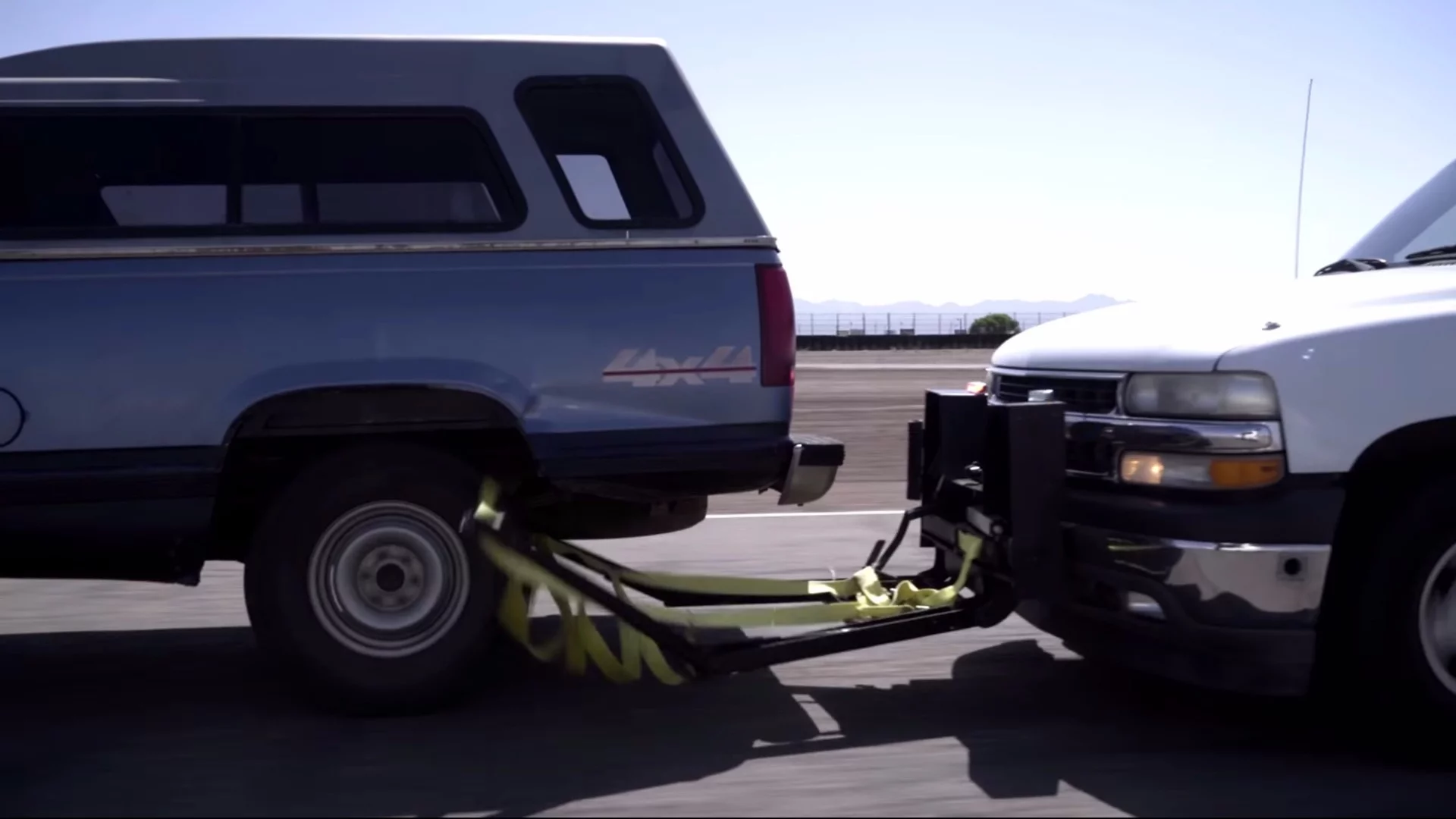

A large yellow net is hung between two extending posts, and it quickly gets grabbed by the tire and hauled up and over, where it wraps itself around the axle, brings the wheel to an abrupt stop (and the other rear wheel too, if it's got certain types of rear differential). It often grabs with such force that it rips the tire right off the rim.

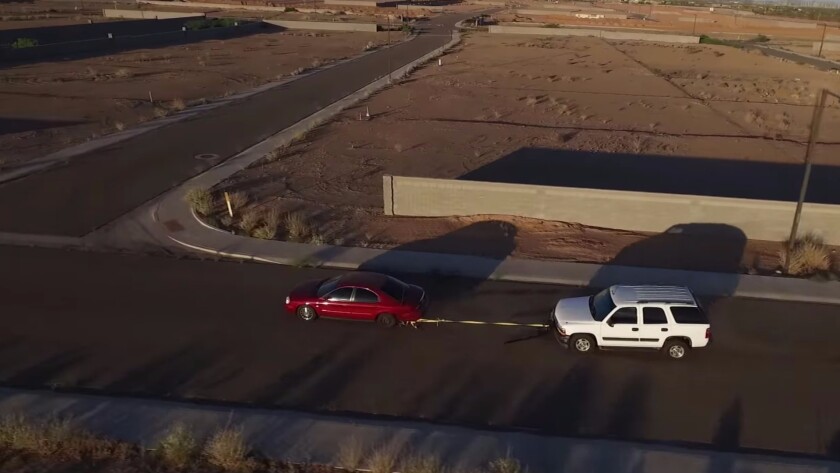

On a rear wheel drive vehicle, that's often enough to drag the car to a stop by itself, but with front wheel drive cars, once the rear wheel is locked up, the police driver can keep a tether connected to the wheel, create some separation between the two vehicles, and then drag it to a halt using the tether line and his own brakes. It's very effective, and stops the car in a straight line so it can be used even in heavy traffic.

The Grappler: tethered stops completely disable front wheel drive cars
The Grappler: tethered stops completely disable front wheel drive cars

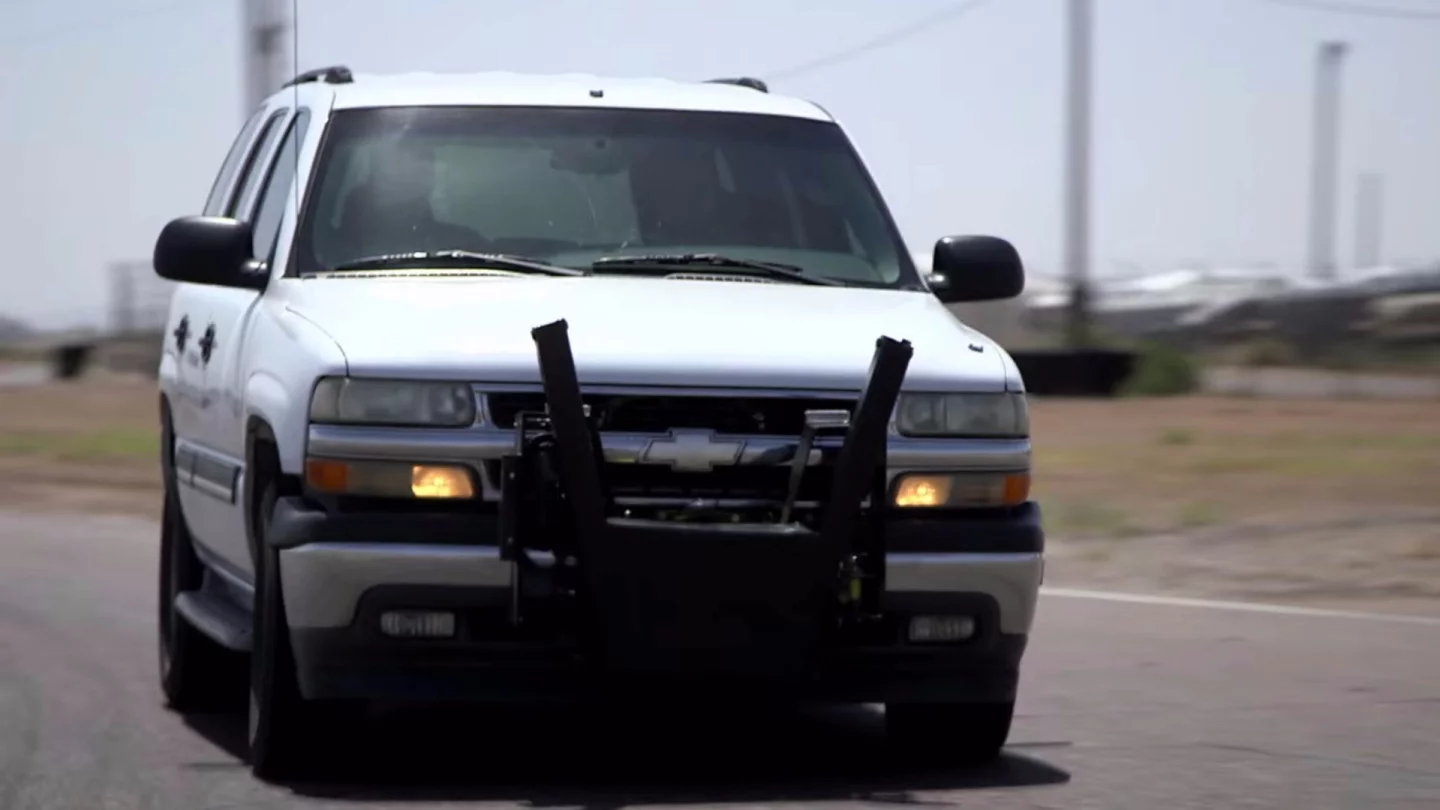

The Grappler can be disguised as a bicycle rack for unmarked vehicles or tactical operations, but otherwise looks like a pair of horns on the front of the car.

The Grappler: looks like a jumbo bull bar when not deployed
The Grappler: looks like a jumbo bull bar when not deployed

Police Bumper is hoping to get the Grappler out in the field with police operations around the US, touting the fact that it brings cars to a much safer and more controlled stop than spinning them around with the PIT technique – and it keeps the officer at a safer distance from a potentially dangerous crook when the vehicles come to rest.

On the other hand, it's also a pretty bulky system that may not work on all police vehicles, and it's questionable how valuable they'd be if they were only on a few select vehicles in a given jurisdiction. I'm not sure how many police chases there are per day in the United States, but you'd want a lot to justify the as-yet-undisclosed cost of fitting one of these things.

So we'll wait and see if it takes off, but it sure makes for some cool video, as you can see below.

Source: Police Bumper
