hubs makes building your own geodesic dome childsplay

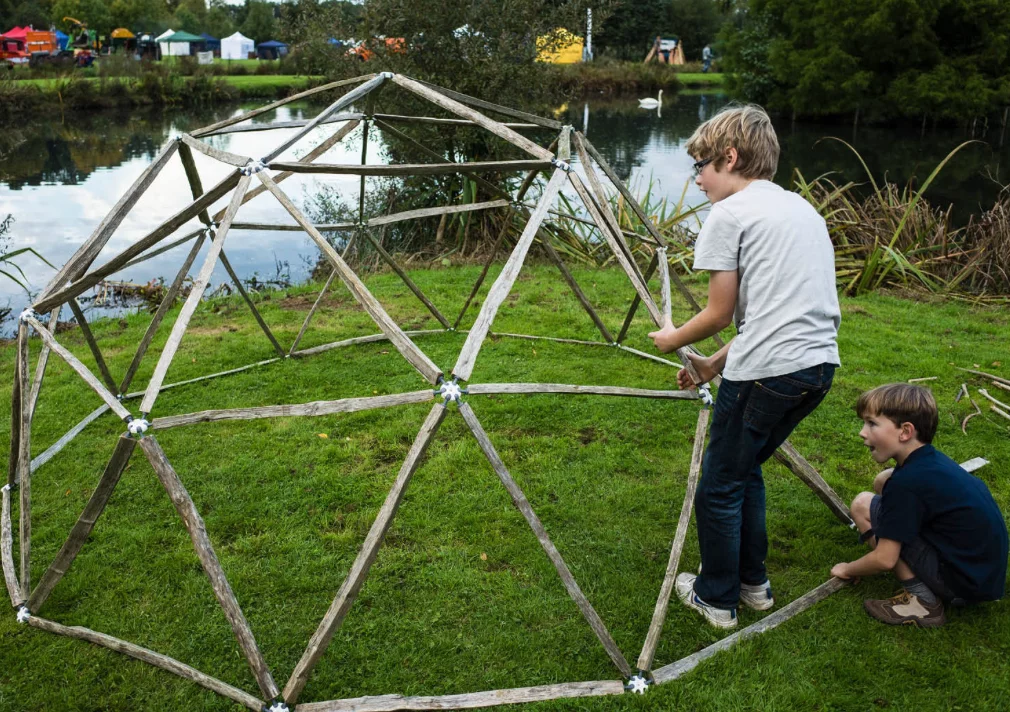

hubs promises to make building an open geodesic dome quick and easy
hubs promises to make building an open geodesic dome quick and easy
View 7 Images
hubs is pretty similar to K'Nex, and comprises a central hub and lots of ball joints
1/7
hubs is pretty similar to K'Nex, and comprises a central hub and lots of ball joints
hubs was recently the subject of a successful Kickstarter campaign
2/7
hubs was recently the subject of a successful Kickstarter campaign
The expected price for a full kit is expected to retail at £450 (roughly US$700)
3/7
The expected price for a full kit is expected to retail at £450 (roughly US$700)
hubs promises to make building an open geodesic dome quick and easy
4/7
hubs promises to make building an open geodesic dome quick and easy
hubs mini follows the same principle but on a smaller scale using straws instead of wood
5/7
hubs mini follows the same principle but on a smaller scale using straws instead of wood
hubs is suitable for use as a garden room, aviary, chicken run, kid's den, and the like
6/7
hubs is suitable for use as a garden room, aviary, chicken run, kid's den, and the like

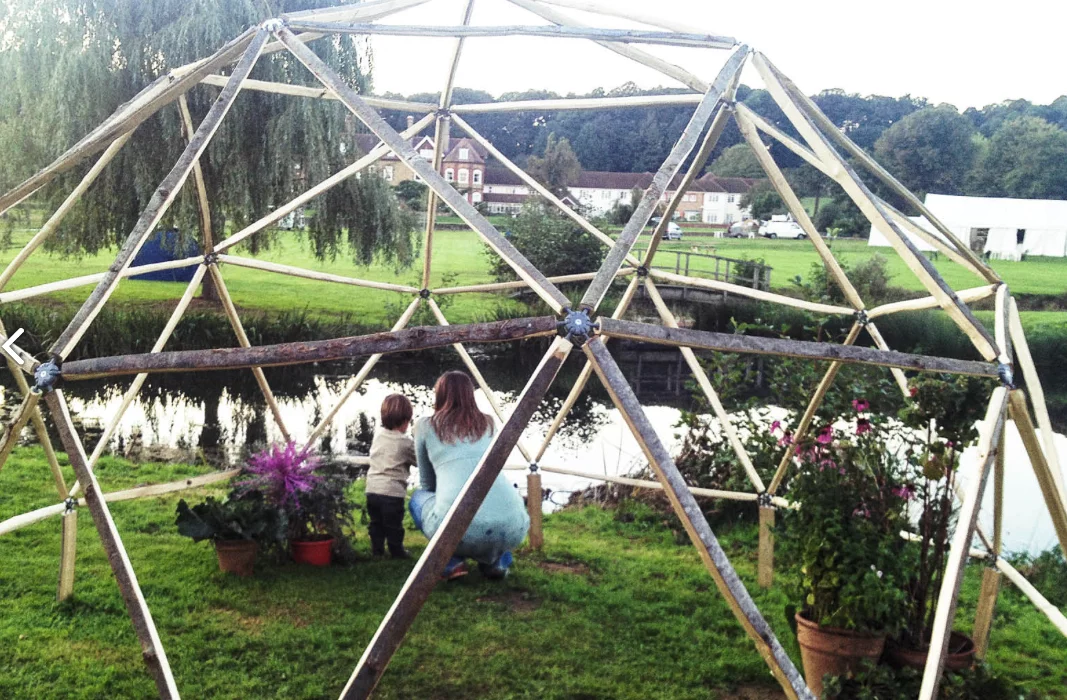

hubs' creators reckon you can build a geodesic dome within an hour, or even under 20 minutes following some practice
7/7
hubs' creators reckon you can build a geodesic dome within an hour, or even under 20 minutes following some practice

If you've ever wanted to channel your inner Buckminster Fuller and construct a geodesic dome but didn't know how, you may well be in luck. hubs promises to make building an open geodesic dome quick and easy, with construction time rated as under an hour. Its creators cite possible uses for the dome as a garden room, aviary, chicken run, children's den, and more.

The idea for the rather niche product came about when Chris Jordan built his own geodesic dome on his allotment using discarded fence posts, string, and a large jig. The process was something of a slog, and he decided there was a place on the market for an easier method. Four years later, Jordan and business partners Mike Paisley and David Brickwood are nearing the end of development on hubs.

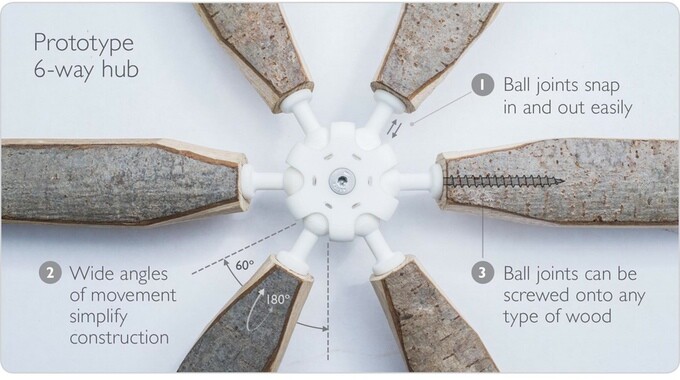

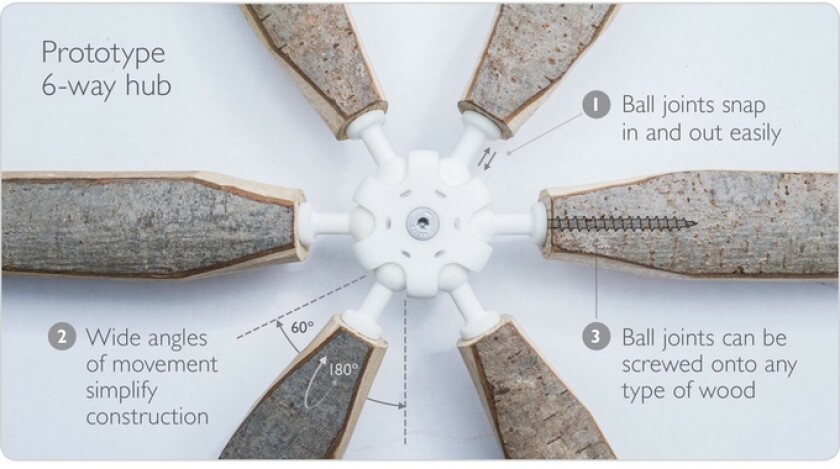

Reminiscent of the children's toy K'Nex, hubs is actually pretty simple and comprises a central plastic hub and ball joints. You screw the ball joints into some suitable sticks and they snap into the hub, six at a time. Using this system, the creators reckon you can build a geodesic dome within an hour, or even in 20 minutes following some practice – no tools required. You can get creative too, and an igloo-like entrance can also be added to the dome.

hubs was recently the subject of a successful Kickstarter campaign
hubs was recently the subject of a successful Kickstarter campaign

"With hubs you simply snap it together from the inside out (you can also build from the outside in) and the dome grows up out of the ground," explains the team. "To raise the basic structure takes 10-15 minutes, when you know what you’re doing, and under a bit of direction from us two children built their dome in 25-30 mins. Once the dome is up you can lock the hubs tight to fix the position. "

Jordan and his partners also designed hubs mini, which follows the same principle as its larger counterpart but uses straws instead of wood. This smaller model seems more suited to kids or for mocking up ideas. Both large and small hubs are in the prototype stage, and the creators aim to bring them to production.

On this note, hubs was recently the subject of a successful Kickstarter campaign. Assuming all goes well, it should be heading into production early next year. A full kit, which will include enough hand-split chestnut sticks to create a 4-m (13-ft)-diameter open dome, is expected to retail at £450 (roughly US$700). Pre-orders will soon be open on the website below.
