iRig MIX compact mobile mixer for the mobile DJ

iRig MIX compact mobile mixer for the mobile DJ
IK Multimedia's iRig MIX is a compact mobile mixer that can be used with the included DJ Rig app to mix tracks between two iOS devices
IK Multimedia's iRig MIX is a compact mobile mixer that can be used with the included DJ Rig app to mix tracks between two iOS devices
View 21 Images

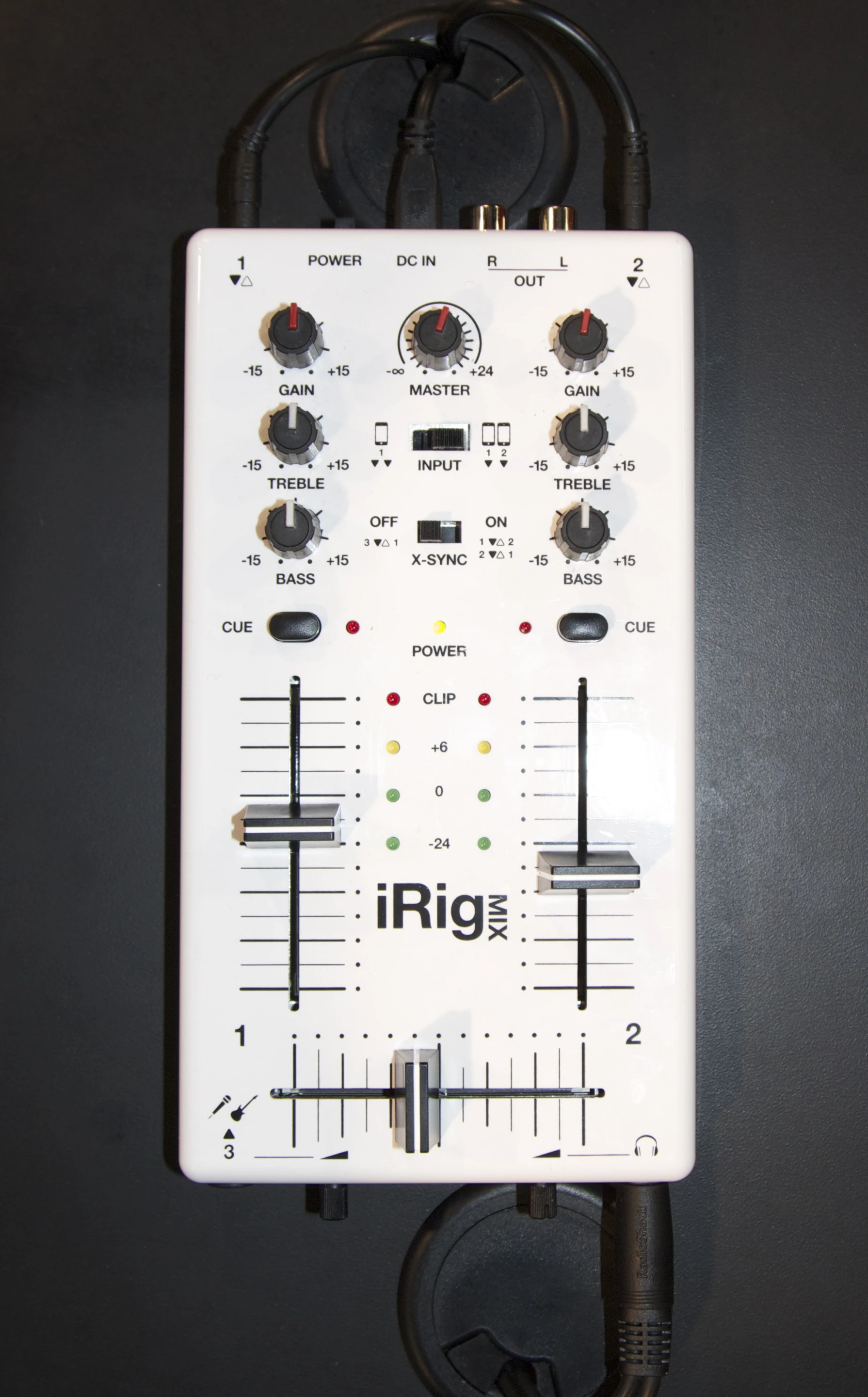

The iRig MIX on show at NAMM recently
1/21
The iRig MIX on show at NAMM recently
When used with a single iOS device via Input 1, the iRig MIX divides the audio into two mono signals for mixing
2/21
When used with a single iOS device via Input 1, the iRig MIX divides the audio into two mono signals for mixing

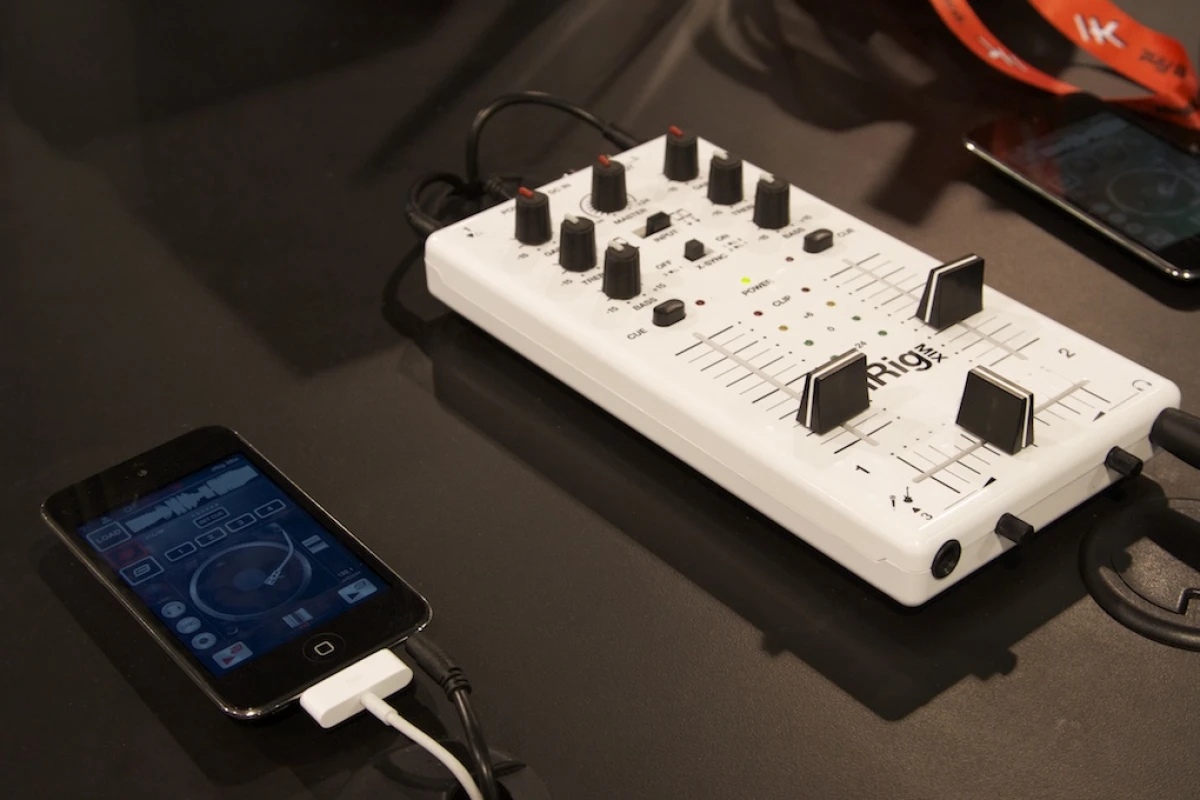

IK Multimedia's iRig MIX is a compact mobile mixer that can be used with the included DJ Rig app to mix tracks between two iOS devices
3/21
IK Multimedia's iRig MIX is a compact mobile mixer that can be used with the included DJ Rig app to mix tracks between two iOS devices
The iRig MIX features two stereo 3.5mm inputs with gain, bass, treble and volume controls, independent cue on each channel with LED indication and channel crossfader
4/21
The iRig MIX features two stereo 3.5mm inputs with gain, bass, treble and volume controls, independent cue on each channel with LED indication and channel crossfader

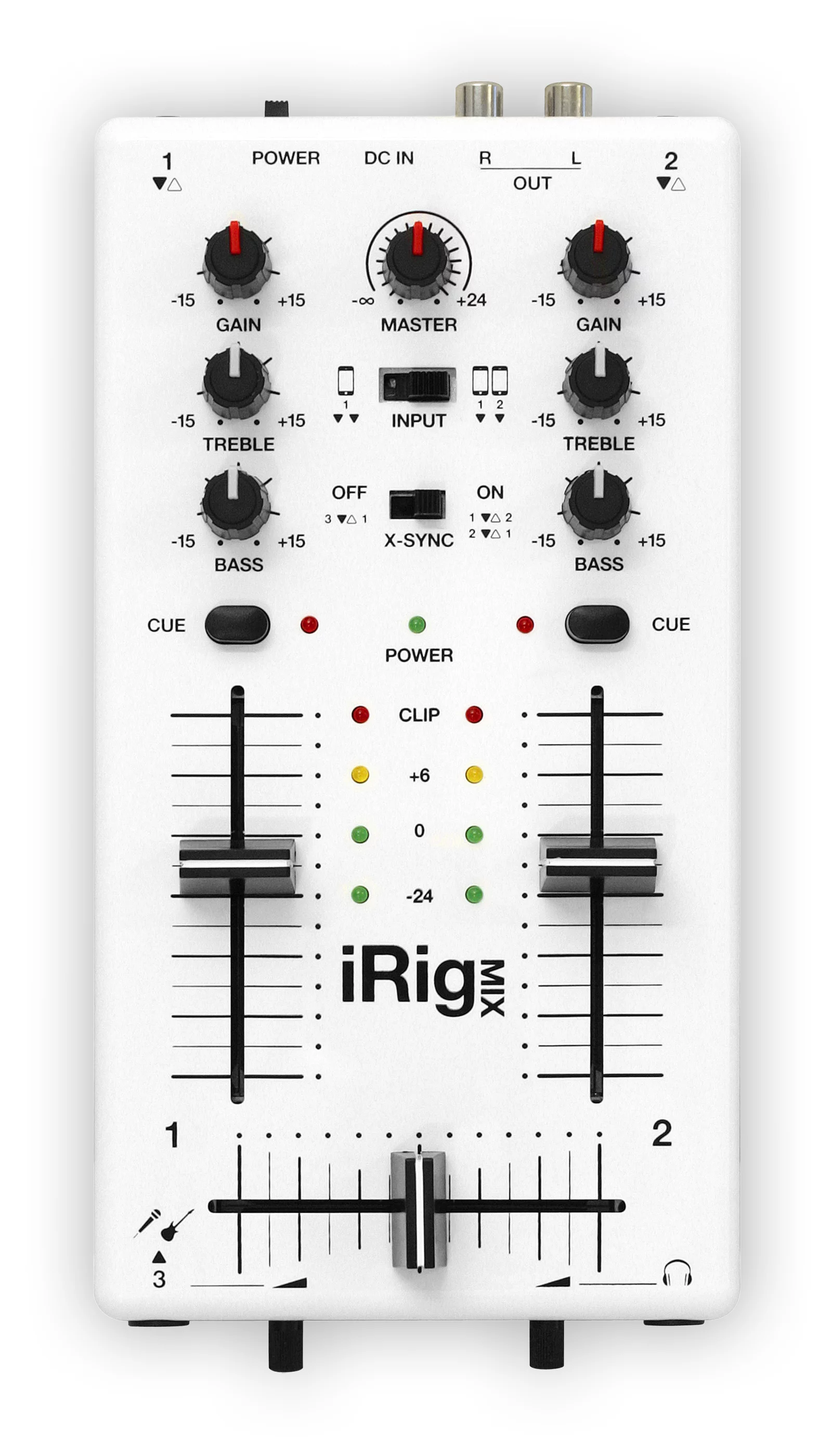

Detail of the iRig MIX from IK Multimedia
5/21
Detail of the iRig MIX from IK Multimedia
When used with the included DJ Rig app, the connected iOS devices become a virtual DJ system with physical mixer controlling the action
6/21
When used with the included DJ Rig app, the connected iOS devices become a virtual DJ system with physical mixer controlling the action
The iRig MIX connected to two iPhones running the free DJ Rig app
7/21
The iRig MIX connected to two iPhones running the free DJ Rig app

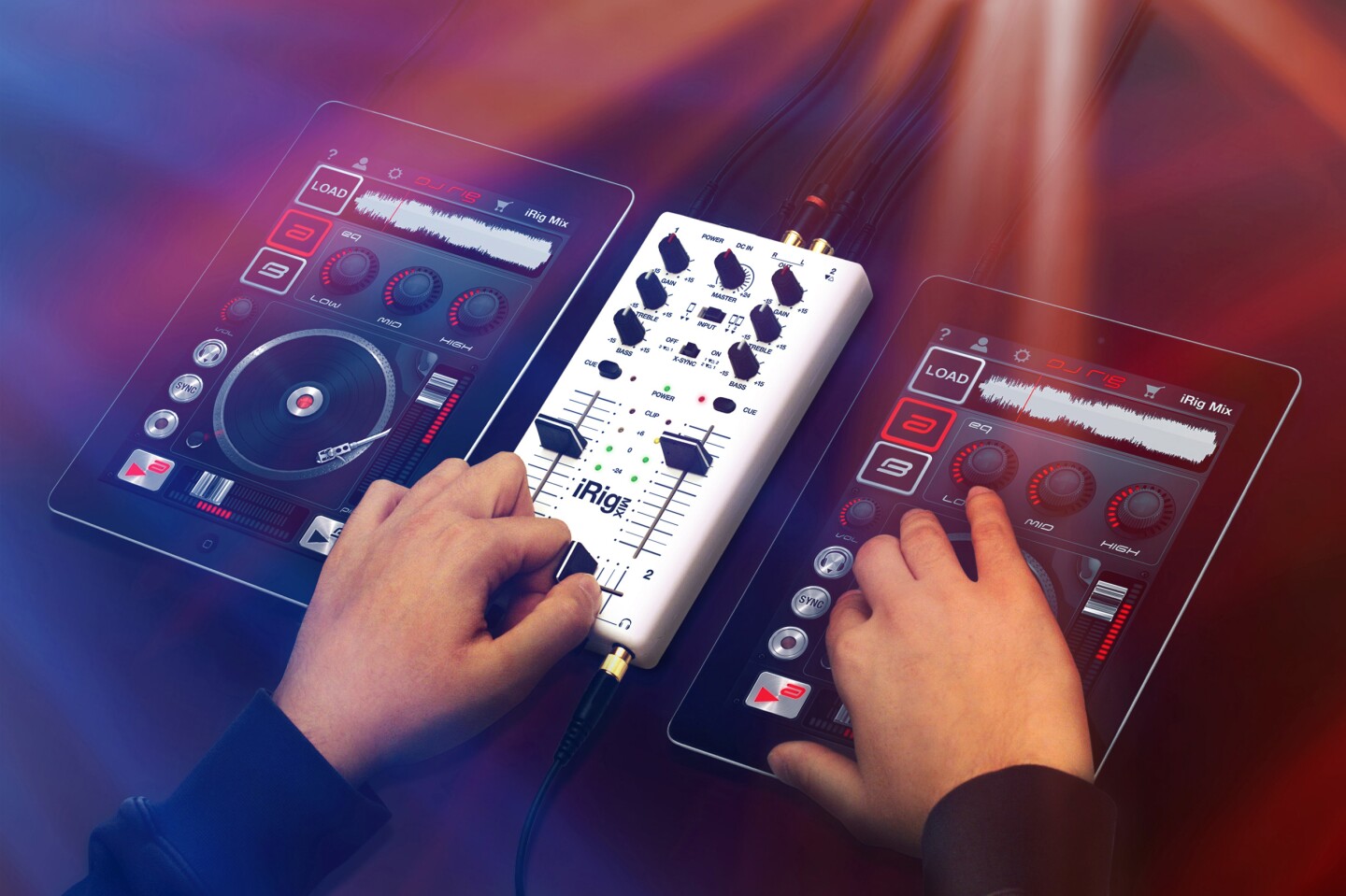

Two iPads become digital media DJ decks, with the iRig MIX in the middle
8/21
Two iPads become digital media DJ decks, with the iRig MIX in the middle
The iRig MIX connected to an iPhone and an iPad, both running the included free DJ Rig app
9/21
The iRig MIX connected to an iPhone and an iPad, both running the included free DJ Rig app

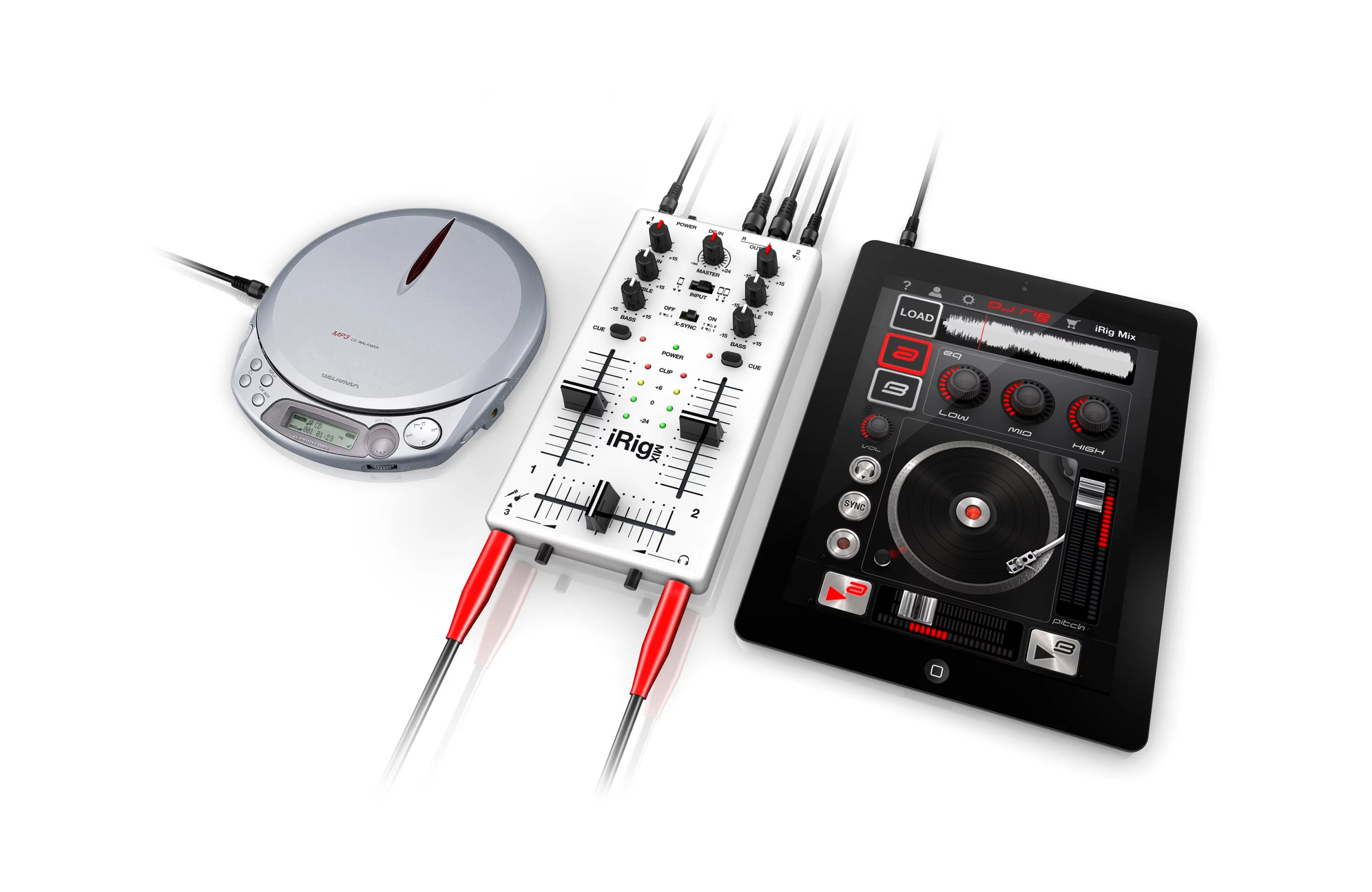

The DJ Rig app has something called X-Sync that will detect the BPM from any audio source and auto-sync the tempo of the decks to match
10/21
The DJ Rig app has something called X-Sync that will detect the BPM from any audio source and auto-sync the tempo of the decks to match
The volume for each song is automatically adjusted for a constant output level
11/21
The volume for each song is automatically adjusted for a constant output level

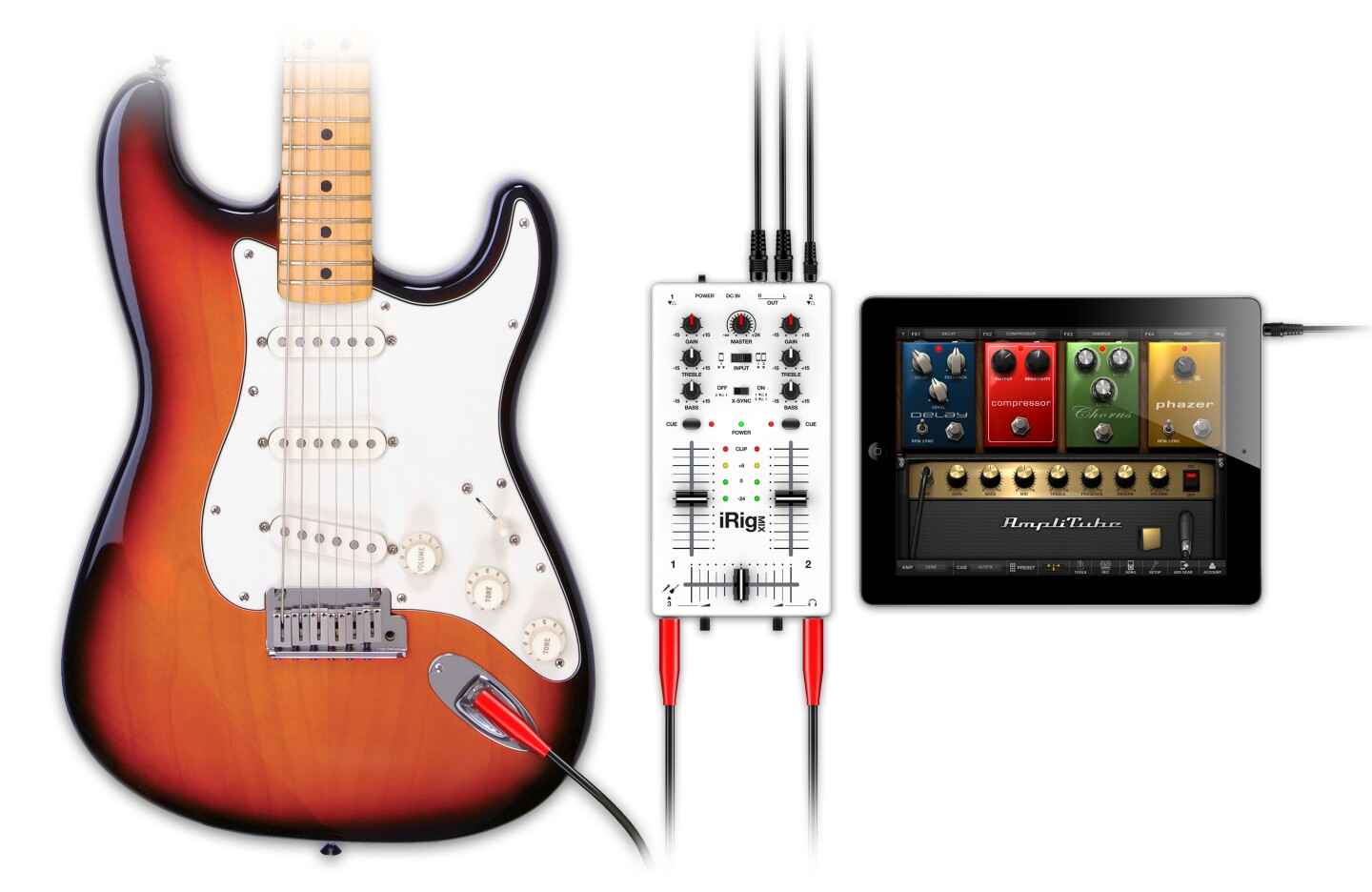

The iRig MIX also comes with the AmpliTube app, and can connect to a guitar via a 6.3 mm input jack with its own volume level control
12/21
The iRig MIX also comes with the AmpliTube app, and can connect to a guitar via a 6.3 mm input jack with its own volume level control

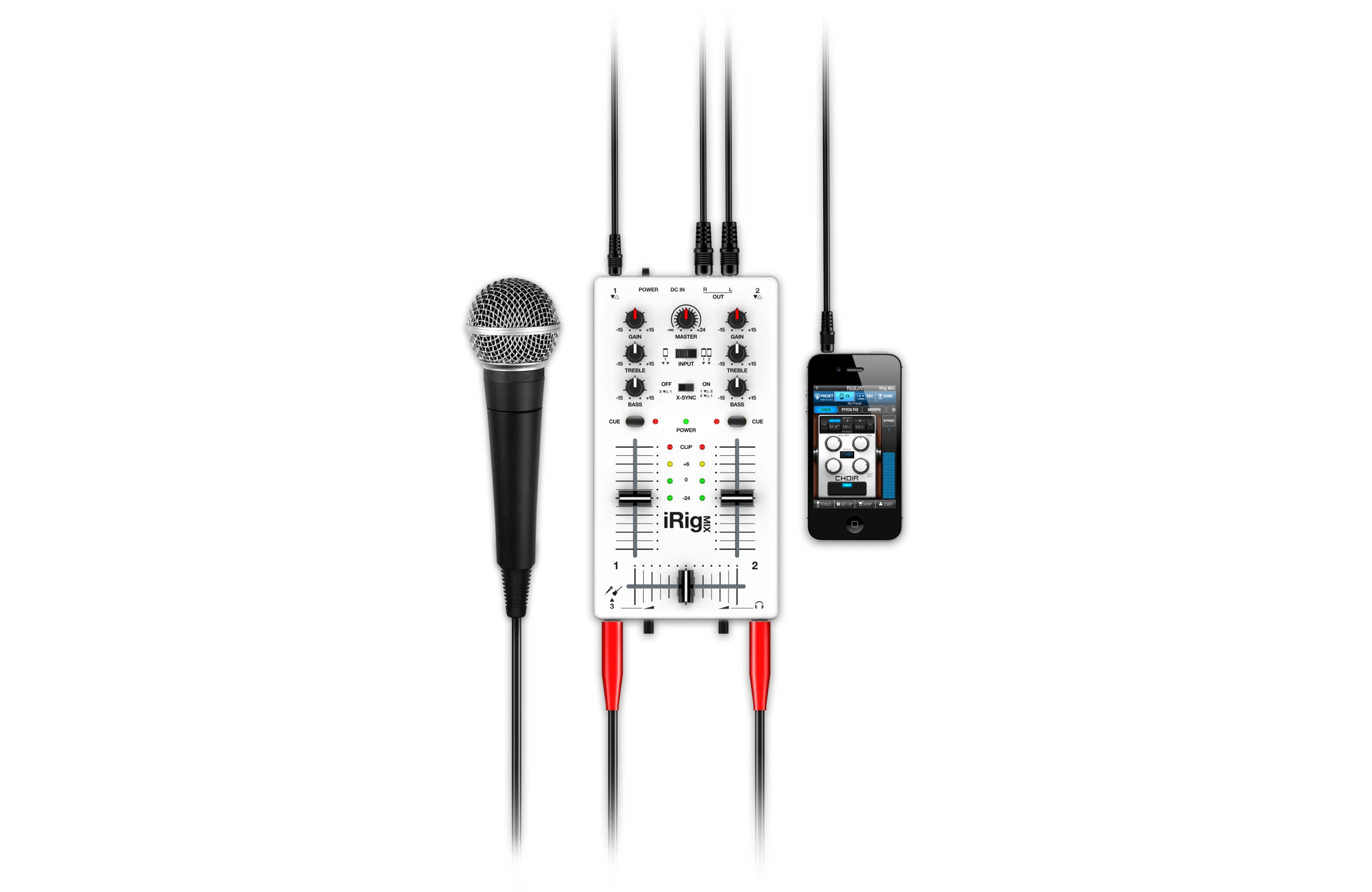

IK Multimedia's VocaLive app comes free with the iRig MIX, for real-time processing of a mic input
13/21
IK Multimedia's VocaLive app comes free with the iRig MIX, for real-time processing of a mic input

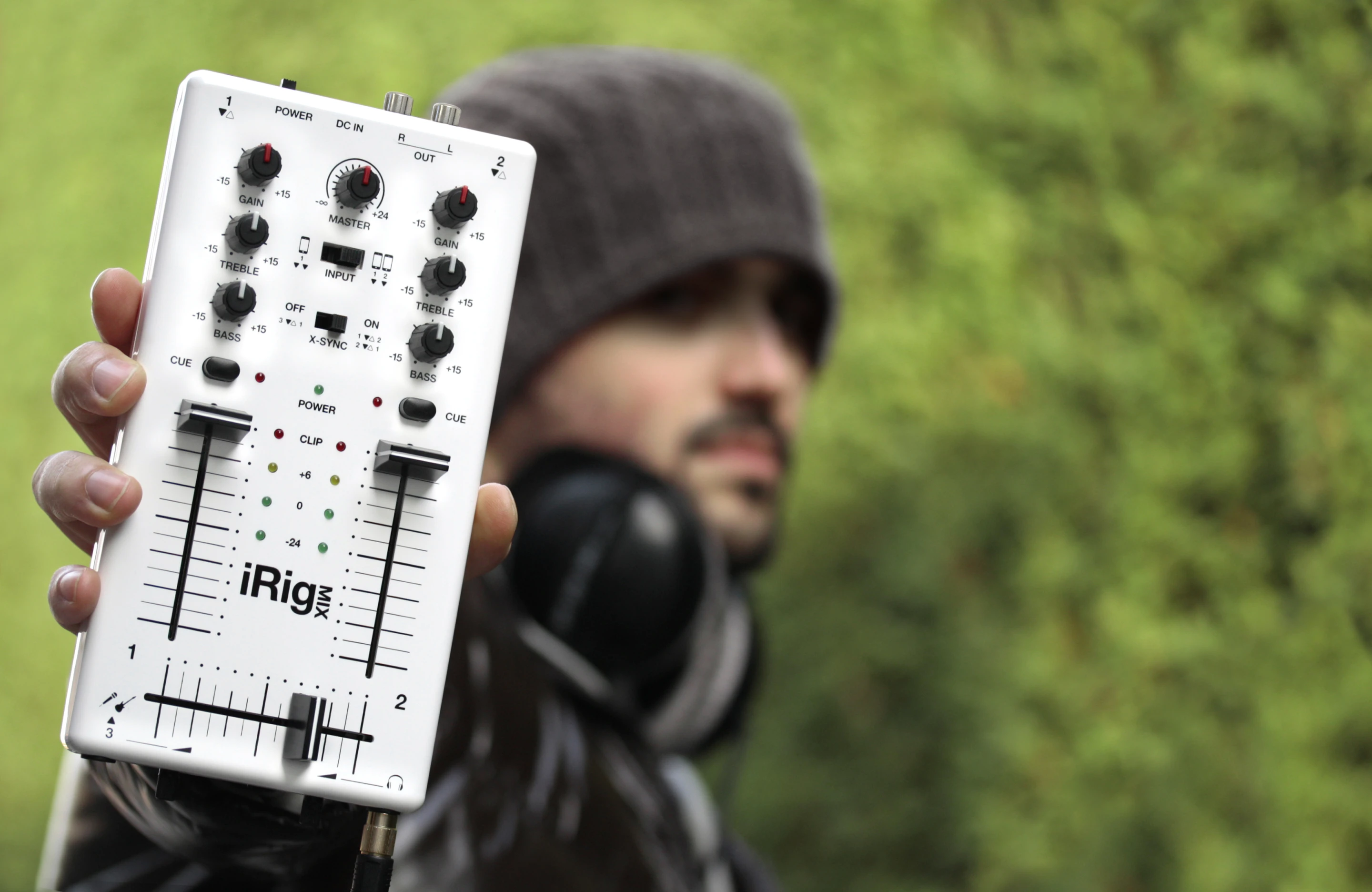

For digital DJs on the move, the iRig MIX compact mixer
14/21
For digital DJs on the move, the iRig MIX compact mixer

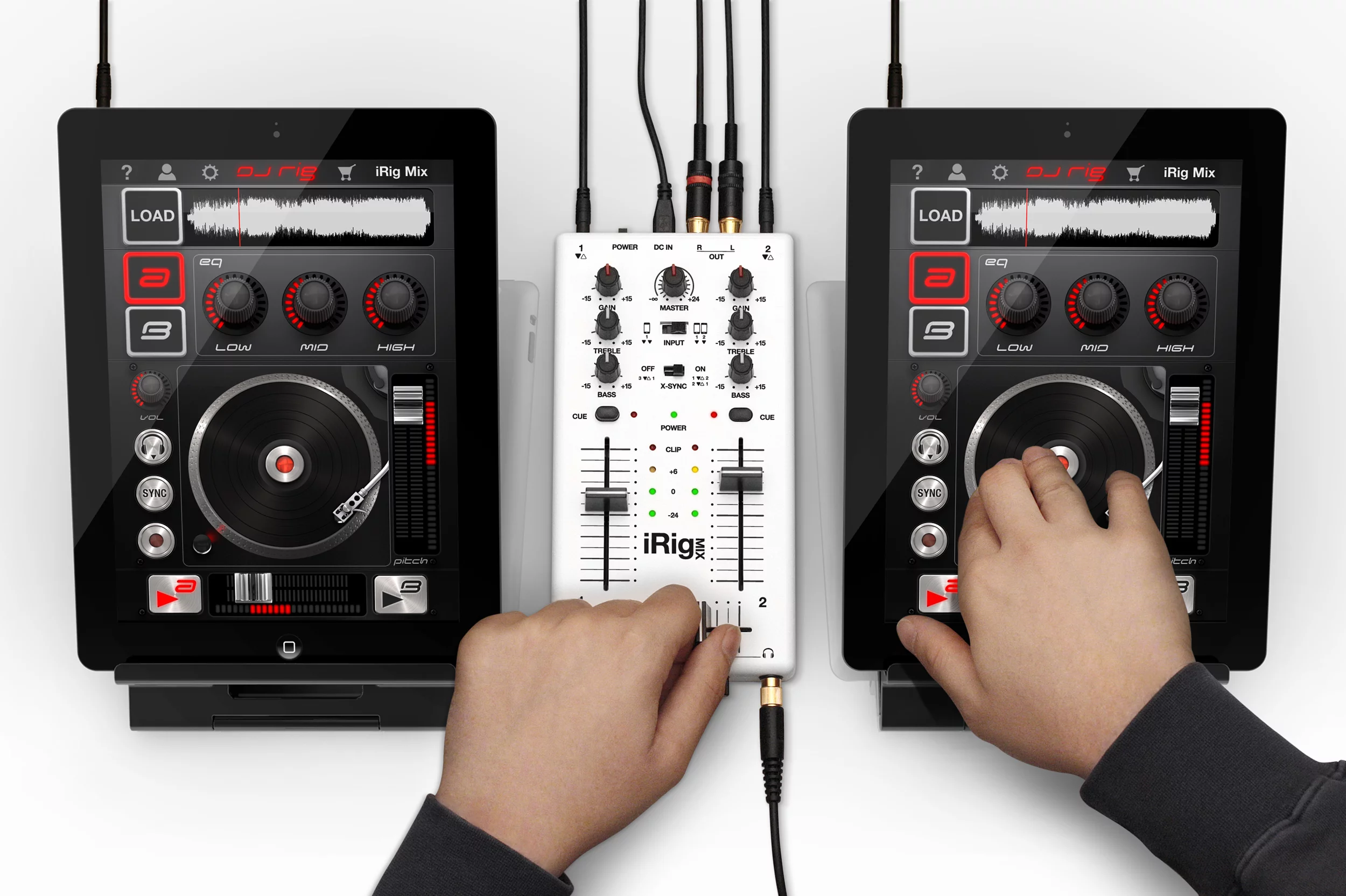

IK Multimedia says that a realistic scratching engine is included that's been modeled on actual real-world deck behavior
15/21
IK Multimedia says that a realistic scratching engine is included that's been modeled on actual real-world deck behavior
The DJ Rig app offers user configurable virtual decks with controls such as volume, pitch, 3-band kill EQ, and cross fader, and instant song play from the device's music library
16/21
The DJ Rig app offers user configurable virtual decks with controls such as volume, pitch, 3-band kill EQ, and cross fader, and instant song play from the device's music library

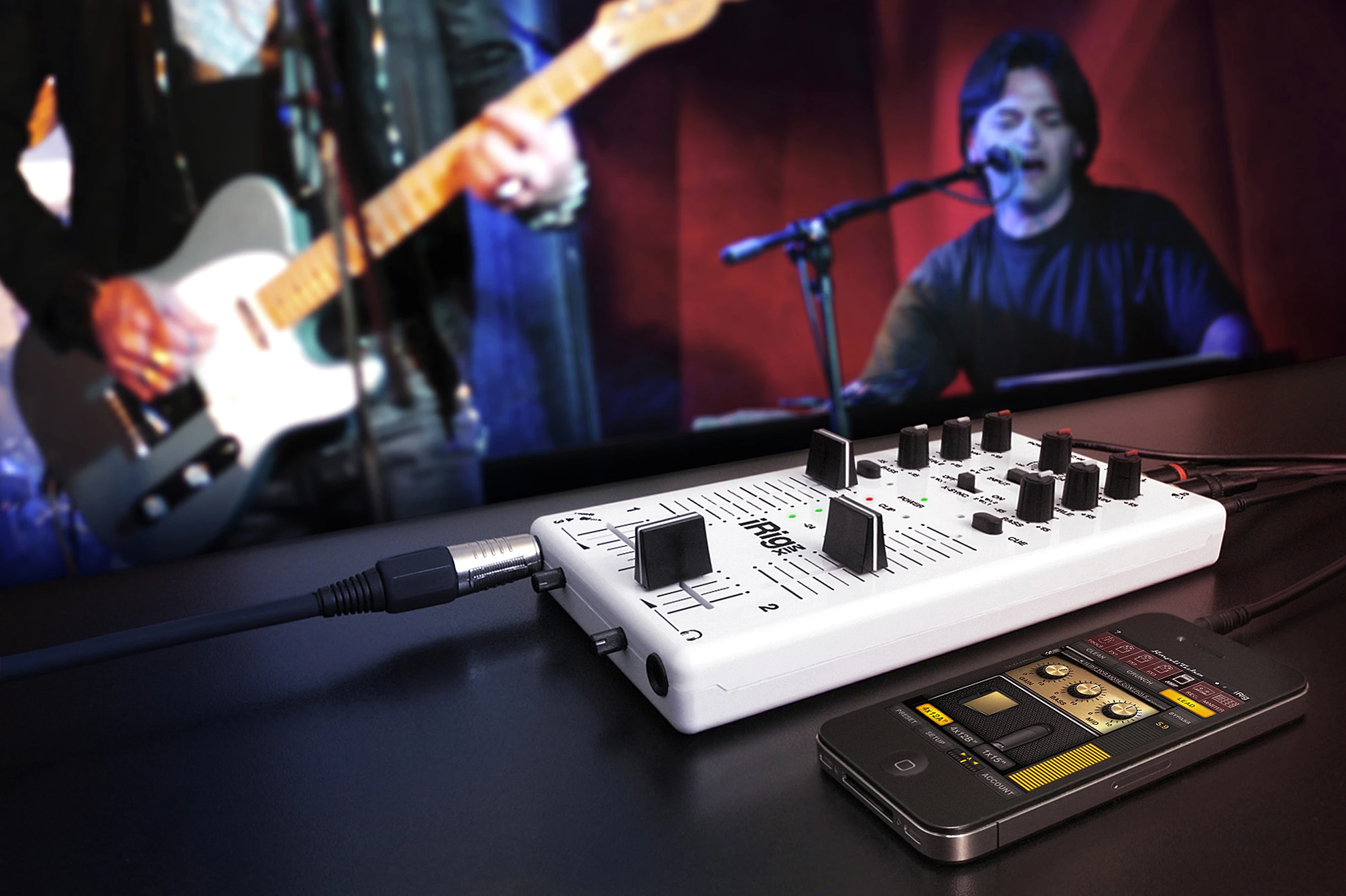

Musicians can take the iRig MIX to rehearsals or the studio
17/21
Musicians can take the iRig MIX to rehearsals or the studio

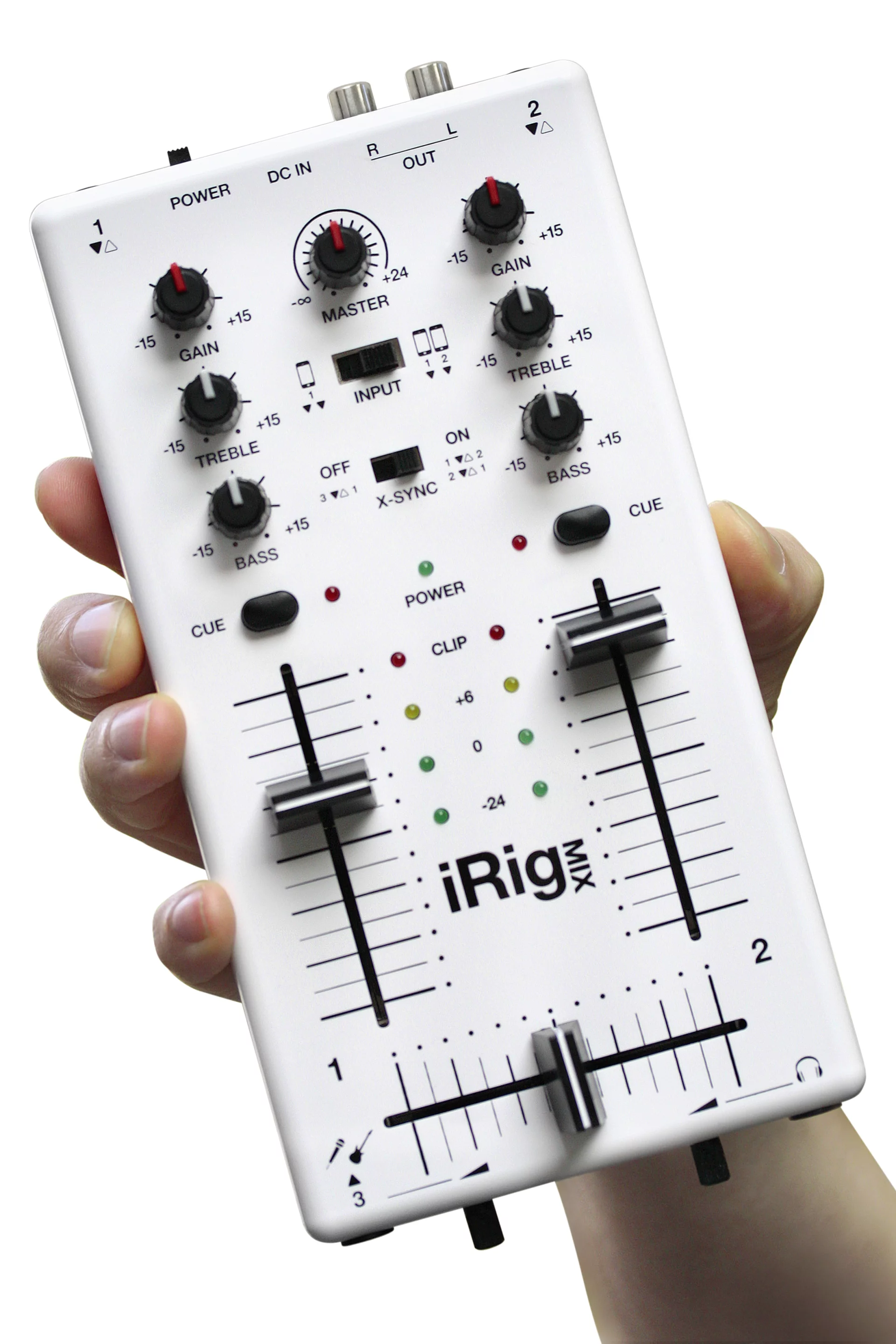

The device is flexible enough for real-time mixing using a single connected iOS device (where Input 1 is divided into two mono signals), or two Apple gadgets (such as an iPhone and iPad)
18/21
The device is flexible enough for real-time mixing using a single connected iOS device (where Input 1 is divided into two mono signals), or two Apple gadgets (such as an iPhone and iPad)
The included DJ Rig app is a double-deck DJ mixing app for iPhone, iPod Touch and iPad
19/21
The included DJ Rig app is a double-deck DJ mixing app for iPhone, iPod Touch and iPad
The DJ Rig app features 12 DJ effects with XY touch interface (including delay, flanger, high pass and low pass filters, fuzz and reverb), drag and zoom waveform display
20/21
The DJ Rig app features 12 DJ effects with XY touch interface (including delay, flanger, high pass and low pass filters, fuzz and reverb), drag and zoom waveform display
The DJ Rig app comes with four banks of nine sample-based pads
21/21
The DJ Rig app comes with four banks of nine sample-based pads
View gallery - 21 images

Apps that transform an iOS device into a portable DJ system (such as Algoriddim's djay app) have been around for a good while now, but the restricted screen space on small devices can lead to somewhat limited mixing functionality. Budding party disc jockeys can get more control from physical deck emulators like Numark's iDJ Live, but those with an appetite for real-time mixing of music stored on more than one device have now been catered for with the upcoming release of the iRig MIX from IK Multimedia. This compact mobile mixer can auto match the tempo from any type of audio source with the tunes on a connected iOS device, features an extra input for an instrument or microphone, and comes with four free music apps.

The iRig MIX features two stereo 3.5mm inputs with gain, bass, treble and volume controls, independent cue on each channel with LED indication, and channel crossfader. The device is flexible enough for real-time mixing using a single connected iOS device (where Input 1 is divided into two mono signals), or two Apple gadgets (such as an iPhone and iPad), or can even juggle between an iDevice and any 3.5mm audio source (like an MP3 or CD player) - with the volume for each song being automatically adjusted for a constant output level. The included free version of the DJ Rig app has something called X-Sync, that will detect the BPM from any audio source and auto-sync the tempo of the decks to match.

The DJ Rig app offers user configurable virtual decks with controls such as volume, pitch, 3-band kill EQ, and cross fader, and instant song play from the device's music library
The DJ Rig app offers user configurable virtual decks with controls such as volume, pitch, 3-band kill EQ, and cross fader, and instant song play from the device's music library

The new DJ Rig app, as the name indicates, is a double-deck DJ mixing app for iPhone, iPod touch and iPad. It features 12 DJ effects with XY touch interface (including delay, flanger, high pass and low pass filters, fuzz and reverb), drag and zoom waveform display, auto looping, user configurable virtual decks with controls such as volume, pitch, three-band kill EQ, cross fader, and instant song play from the iOS device's music library.

It also comes with four banks of nine sample-based pads, is able to record full mixing gigs, and supports multiple audio formats. IK Multimedia says that a realistic scratching engine is also included, that's been modeled on actual real-world deck behavior. The free version has six effects and one pad sound bank, while the regular DJ Rig app with full functionality is available for US$9.99.

The USB-powered iRig MIX has a 6.3mm headphone output for master or cue monitoring with its own volume control (with a typical consumption of 5 watts, or 10 watts with full headphone output) and can also be powered with battery packs and mobile chargers. There's another 6.3mm input, again with its own volume level control, this time for plugging in a microphone or instrument for use with an iOS app - such as the included AmpliTube or VocaLive apps - for processing the signal in real-time. The device can also function as a PA mixer.

The iRig MIX also comes with the AmpliTube app, and can connect to a guitar via a 6.3 mm input jack with its own volume level control
The iRig MIX also comes with the AmpliTube app, and can connect to a guitar via a 6.3 mm input jack with its own volume level control

The iRig MIX has input and output frequency responses of 20Hz to 20kHz, a signal-to-noise ratio of -80dB, line input total harmonic distortion of 0.01 percent and stereo RCA line out of 0.05 percent.

The iRig MIX will cost US$99.99 when released next month, and will be supplied with two input 3.5mm stereo input cables and an external 5V power supply charger.
