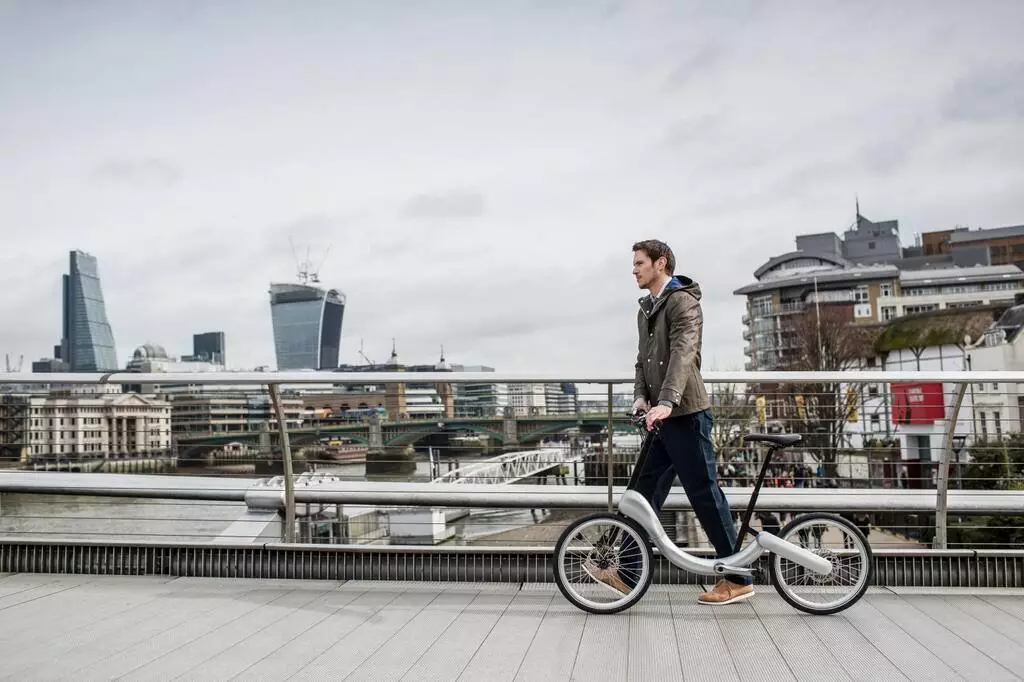

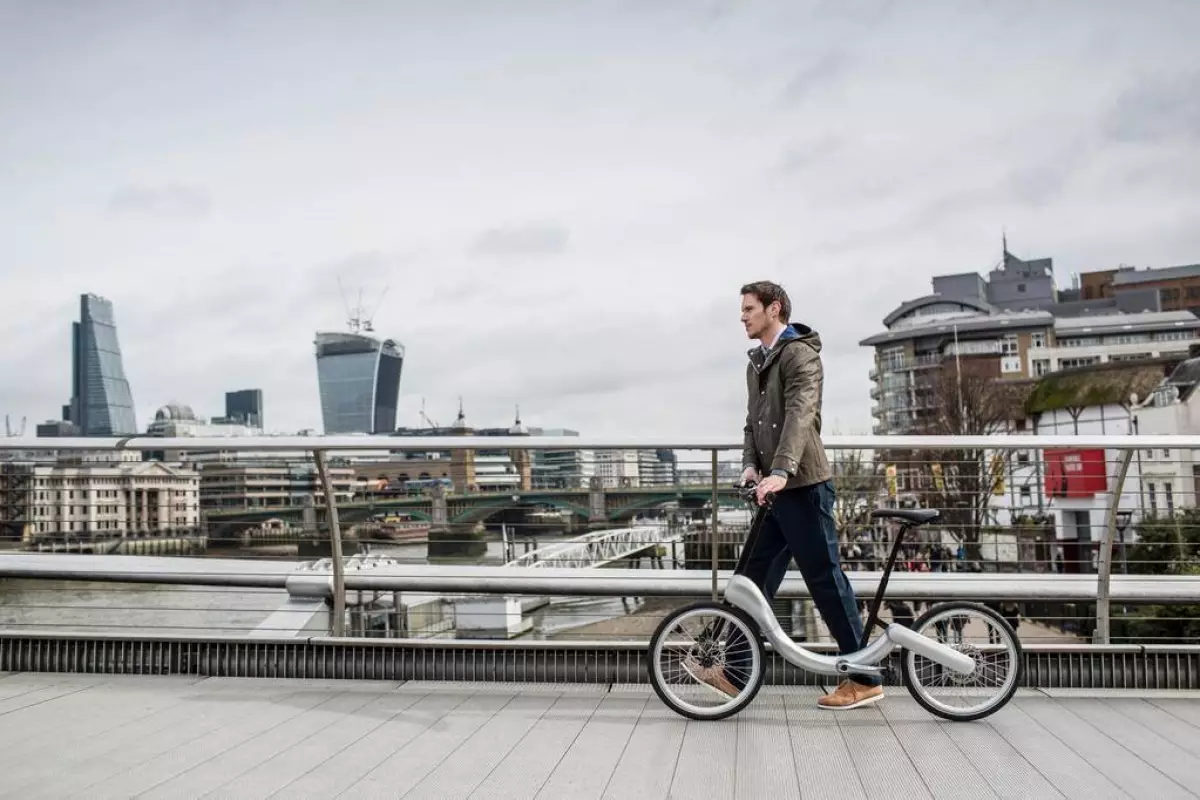

The JIVR Bike has a proprietary sealed drivetrain
The JIVR Bike has a proprietary sealed drivetrain
View 7 Images
The JIVR Bike has a proprietary sealed drivetrain
1/7
The JIVR Bike has a proprietary sealed drivetrain

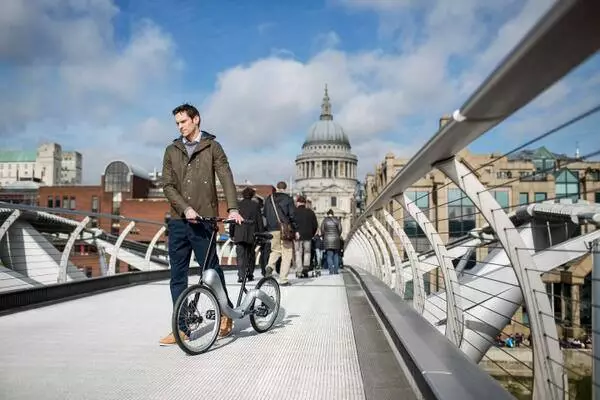

Power is supplied by a 36-volt 9-Ah lithium-ion battery pack, one 90-minute charge of which should be good for a distance of about 20 miles (32 km)
2/7
Power is supplied by a 36-volt 9-Ah lithium-ion battery pack, one 90-minute charge of which should be good for a distance of about 20 miles (32 km)

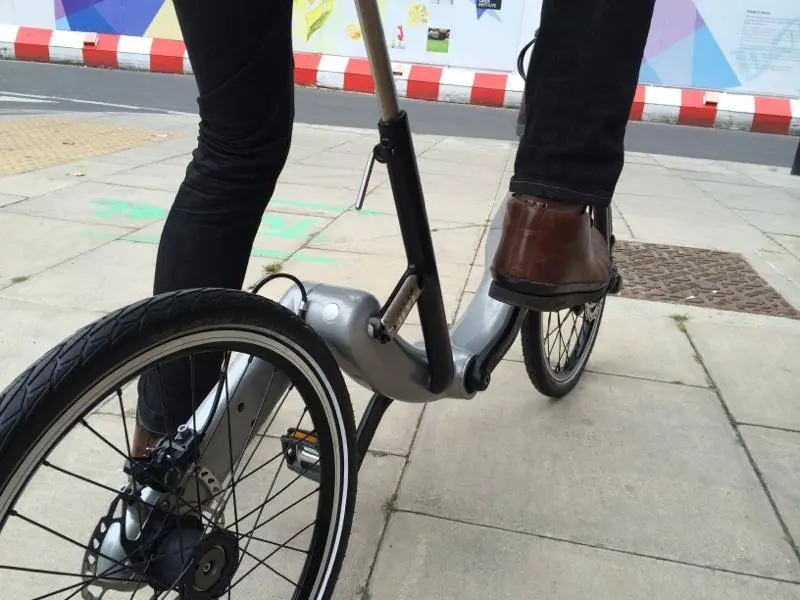

The drivetrain is a purely mechanical direct-drive system that has been in development for the past three years
3/7
The drivetrain is a purely mechanical direct-drive system that has been in development for the past three years

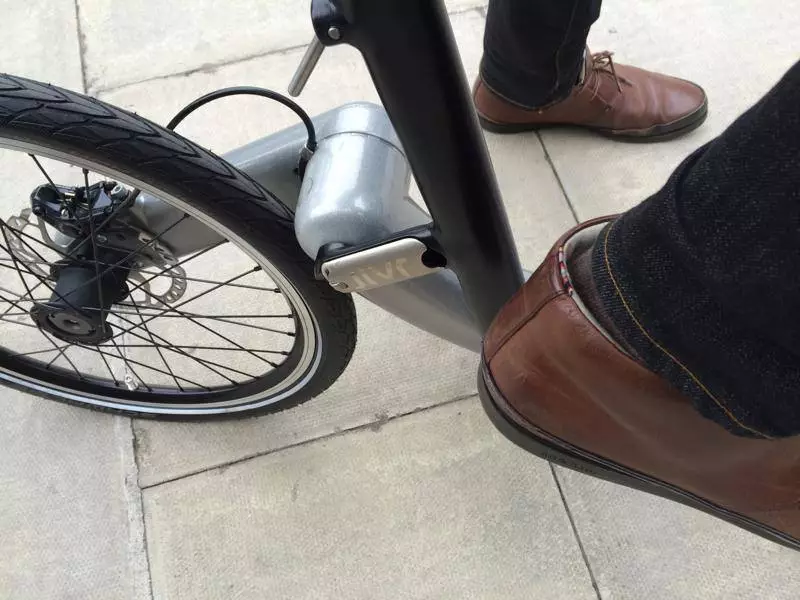

Users can choose between applying their own pedal power to the rear wheel, or using a throttle to goose the 350-watt hub motor in the front wheel
4/7
Users can choose between applying their own pedal power to the rear wheel, or using a throttle to goose the 350-watt hub motor in the front wheel

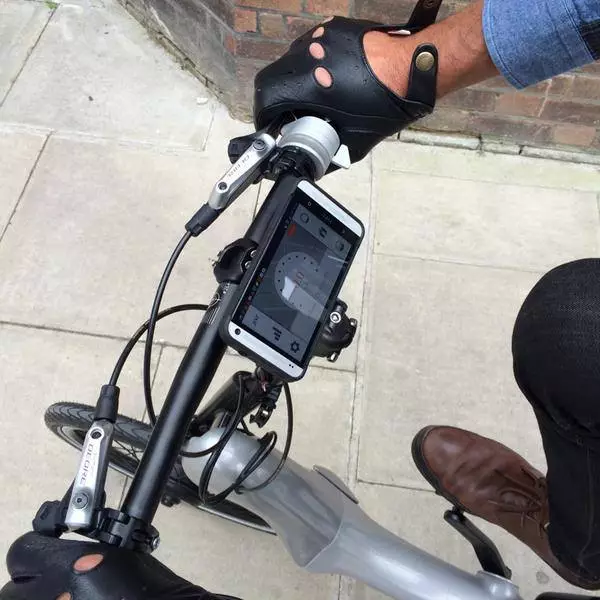

Because the bike is Bluetooth 4.0-equipped, it can communicate with the rider's smartphone, allowing the device to be used as a handlebar-mounted control console
5/7
Because the bike is Bluetooth 4.0-equipped, it can communicate with the rider's smartphone, allowing the device to be used as a handlebar-mounted control console

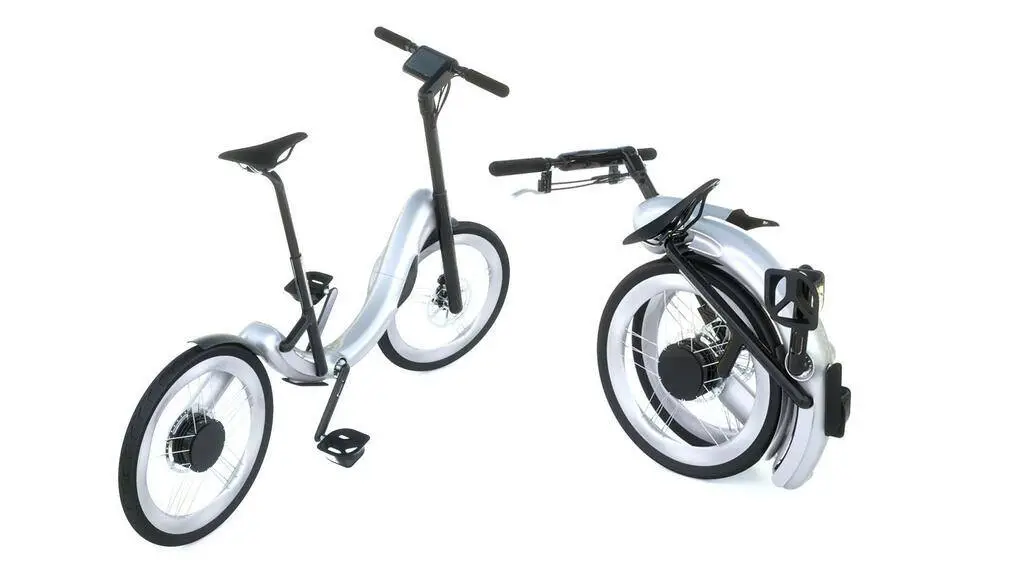

The whole thing weighs 33 lb (15 kg)
6/7
The whole thing weighs 33 lb (15 kg)

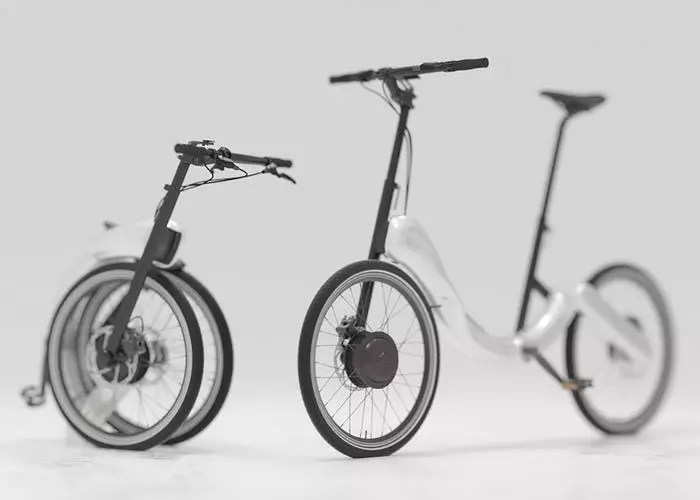

It can be folded up in four steps, and carted along on its two 20-inch wheels once folded
7/7
It can be folded up in four steps, and carted along on its two 20-inch wheels once folded
View gallery - 7 images

Folding electric bicycles are becoming increasingly popular, although the presence of a chain (or an external belt drive) can complicate the folding procedure. Additionally, chains can transfer grime onto users' pants. That's why British start-up JAM Vehicles created the JIVR Bike. It has a chainless sealed drivetrain, along with some other interesting features.

Although JAM founder Marcin Piatkowski isn't of liberty to divulge how the drivetrain works, he did tell us that it's a purely mechanical direct-drive system that has been in development for the past three years.

"The drivetrain is entirely encapsulated inside the frame, which creates a perfect environment for mechanics – no sand, dust or water can get in," he said. "This makes the drivetrain extremely durable and maintenance free. It's also as efficient as a regular chain drive, however its efficiency doesn't decrease over time as in chain drive (chains usually get rusty, muddy, etc)."

Piatkowski is also quick to point out that it is not the same as the chainless drive system in e-bikes like the Mando Footloose, where an alternator connected to the crank is used to generate electricity that in turn powers the motor. "We explored [that] solution in the very beginning of our design process and realized it's not viable," he said. "It's the easy way of designing a chainless bike."

It can be folded up in four steps, and carted along on its two 20-inch wheels once folded
It can be folded up in four steps, and carted along on its two 20-inch wheels once folded

With the JIVR, users can choose between applying their own pedal power to the rear wheel, or using a throttle to goose the 350-watt hub motor in the front wheel. That motor can take riders to a maximum regulated speed of 32 km/h (20 mph). Power is supplied by a 36-volt 9-Ah lithium-ion battery pack, one 90-minute charge of which should be good for a distance of about 20 miles (32 km).

Because the bike is Bluetooth 4.0-equipped, it can communicate with the rider's smartphone, allowing the device to be used as a handlebar-mounted control console. The JIVR is also equipped with iBeacon technology, allowing it to interact with businesses or Apple smart devices that are within range.

The whole thing weighs 33 lb (15 kg), can be folded up in four steps, and carted along on its two 20-inch wheels once folded.

If the JIVR seems like your cup of tea, JAM is now raising production funds on Kickstarter. A pledge of £1,199 (about US$1,768) will currently get you one, when and if they're ready to go. The planned retail price is £1,999 (about $2,948). It can also be had for lower pledge amounts, if you live in one of a number of select cities and are willing to promote the bike in your community.

The JIVR can be seen in use, in the following video.

Sources: Kickstarter, JIVR Bike
