Lamborghini introduces pushrod suspension to series production

Lamborghini introduces pushrod suspension to series production
View 4 Images
View gallery - 4 images

One of the highlights of the upcoming Geneva Motor Show will be the unveiling of Lamborghini’s Murciélago successor – a V12 range-topper bristling with the technological candy demanded by the marque’s aficionados. Earlier today, Lamborghini released further details of the new vehicle and true to form, some of the componentry is very special: the electrically powered parking brake; the 400mm carbon ceramic discs with six cylinder calipers ; and the separation of wheel control and damper via an aluminum double wishbone pushrod suspension. The F1-inspired suspension offers race-car precision yet long distance comfort and further strengthens the bleeding-edge brand values of the Volkswagen-owned super sports manufacturer.

The new 515 kW / 700 hp lightweight Lamborghini V12 which will debut at the upcoming Geneva motorshow will feature an innovative and highly sophisticated suspension concept. The pushrod spring and damper concept was inspired by Formula 1 and is tuned to offer a razor-sharp, driving feel. This includes a steering system that can “think its way through a bend adhering to the perfect line, a suspension that masters the ideal balance between race-car feel for the road and plenty of comfort for ramping up the miles, and lateral stability that ensures absolute safety even at the very highest speeds” according to Lamborghini.

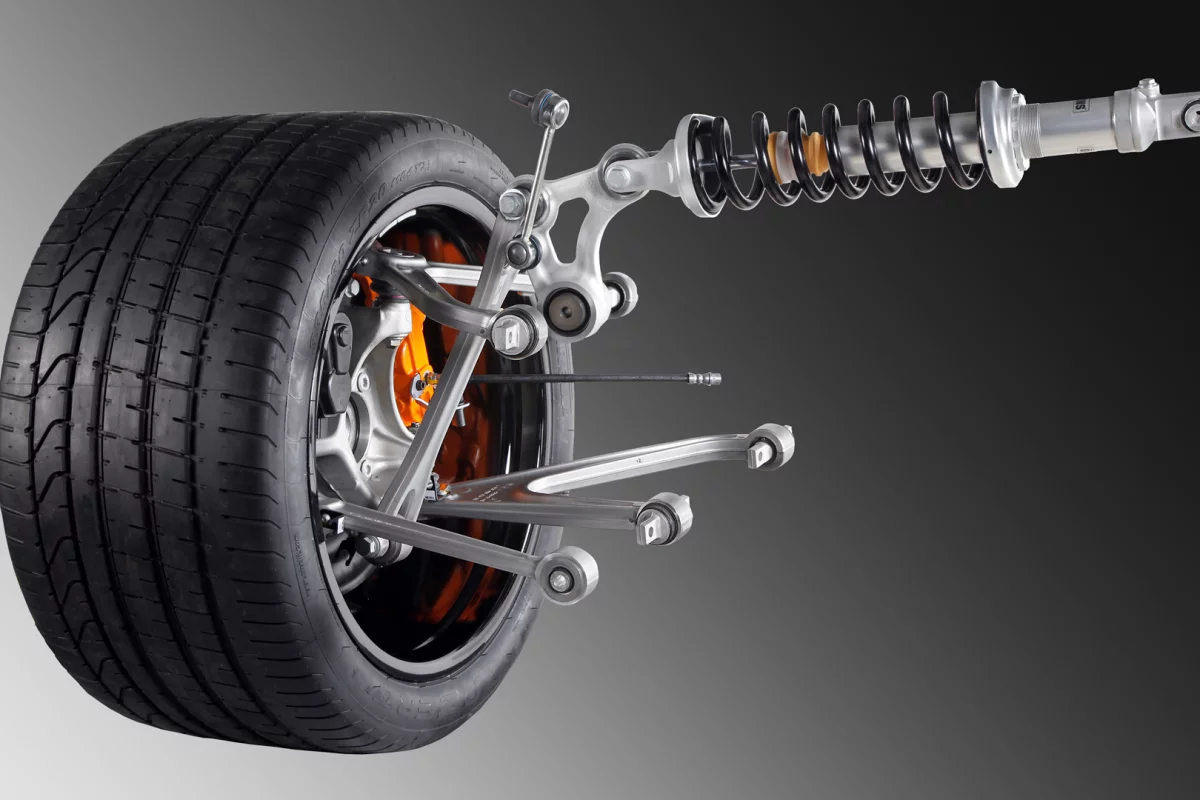

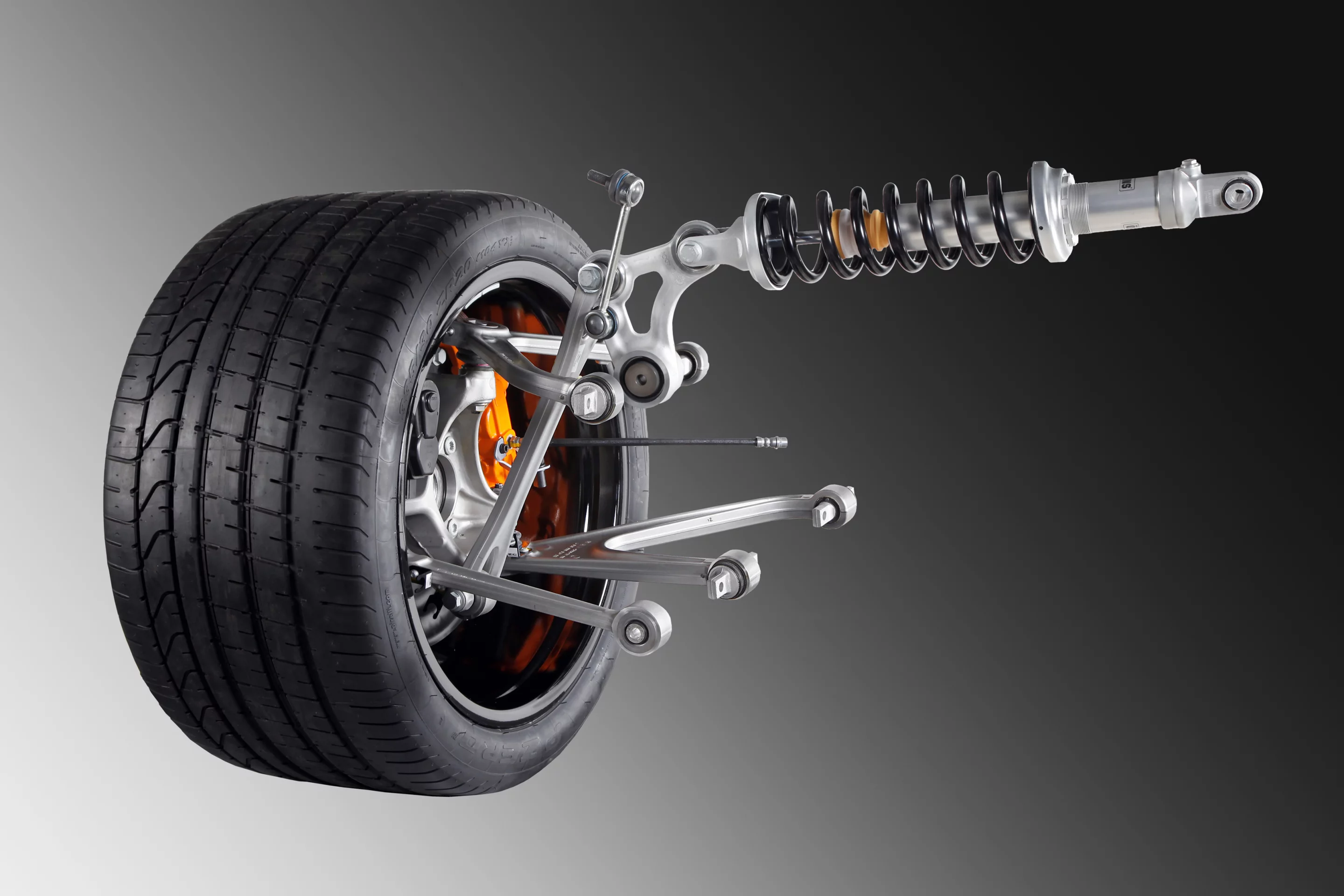

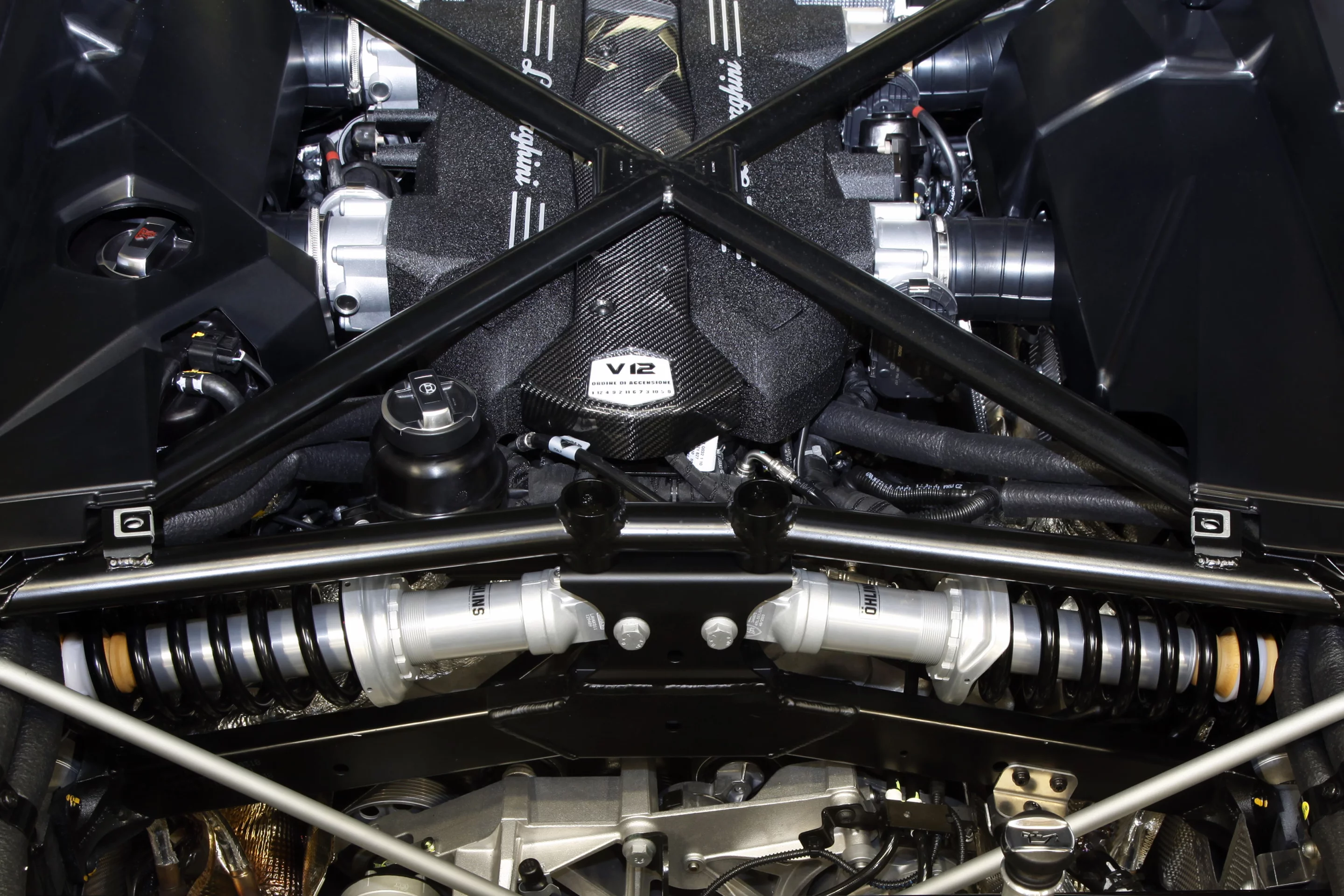

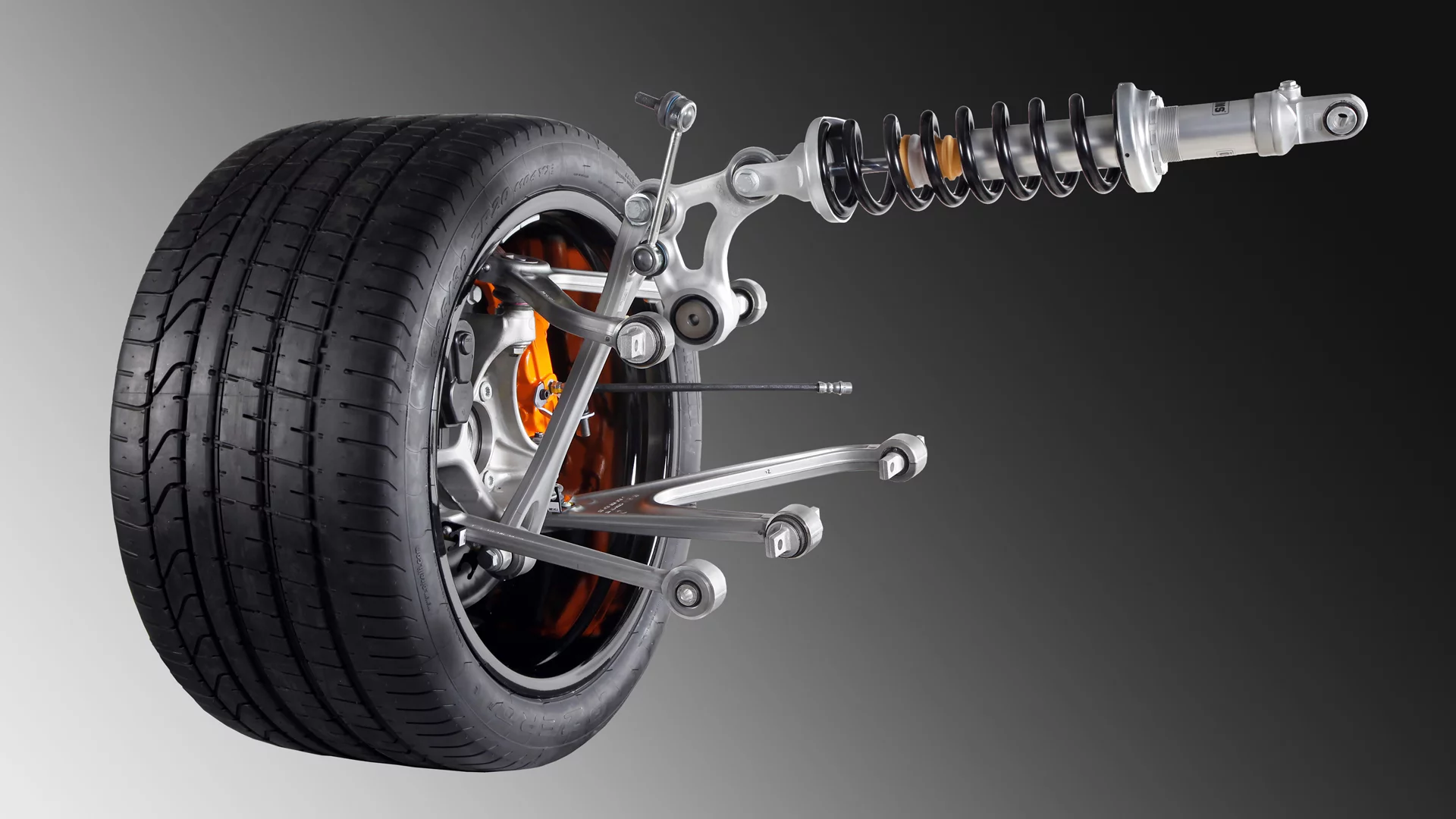

The spring/damper elements are not located on the wheel mounts, but connected inboard to the bodyshell structure. They are transversely positioned: under the windscreen in the front and close to the engine in the rear. Pushrods and relay levers / rockers transmit the forces from the wheel mounts to the spring/damper elements.

This solution offers a whole series of impressive benefits: due to the combination of the double wishbone and pushrod arrangement, wheel control and damper remain separate from each other. As a result, handling is more responsive and easier to manage at all speeds, while rigid connection to the chassis also improves the precise and spontaneous reaction of the springs and dampers.

As a result, spring stiffness can be notched back a little – comfort increases, while precision remains. On the front axle, the shock absorbers are equipped with a hydraulic lifting system, which enables the front end of the super sports car to be lifted by 40 millimeters at the touch of a button, simplifying its ability to negotiate minor obstacles.

Aluminum and carbon fiber are also the most important lightweight engineering materials on the chassis. The entire suspension system, including upper and lower control arms, wheel mounts and relay levers are made from forged aluminum alloy.

The large-diameter discs on the high-performance brake system, on the other hand, are made from lightweight and extremely hard-wearing carbon ceramic composite material. On the front axle, the ventilated discs measure no less than 400 millimeters in diameter, with braking force delivered via six cylinder calipers. On the rear axle, 380 millimeter diameter discs are used in combination with four cylinder calipers. The parking brake on the new Lamborghini top model is electrically powered.

The hydraulic steering on the Lamborghini V12 forms the highly sensitive connection between the driver and the super sports car, which runs on 19-inch wheels clad on 255/35 tires at the front and 20-inch rims on 335/30 tires at the rear. Steering Gear foresees 3 different servotronic characteristics managed by drive select mode. After all, not every day is the same and the “corsa” (race track) setting can sometimes be a little too demanding.

View gallery - 4 images
You\'re missing part of the point with the damper arrangement. It\'s not that it separates damper movement (a non-pushrod arrange does to), it\'s that the kinematics will result in a somewhat progressive springrate that is attained by geometry, not the spring design itself. This is significant because this way the damper is progressive too.
The problem of unsprung weight is still there. Torsion and rubber air bags are still the best method to lighten not the load but the wheel weight. A real advancement would be in the tires. At low speeds and turns you need a lot of tire to grip the road. But at high speeds, more is only drag. Automated tire pressure and shape could do more for performance than just move the position of the shock absorber.
Donwine, less rubber contact is better at high speed? Hrmmm, not sure I follow you there. Lambos are all about putting the power down and going round corners like they\'re on rails which is the reason why they have the fat low-profile tyres, they also obviously help with braking. If you take the Thrust or Bloodhound SSC\'s however, they\'re obviously just going to run extremely fast in a straight line, with no actual acceleration or braking work being done by the wheel, which is why they can get away with running on low-drag aluminum dinner plates.
The primary advantage of the pushrod suspension is deletion of the suspension turret that\'s required for a vertical shock damper, makes for a more compact set up with increased torsional stiffness, there\'s a reason why F1 cars are designed like this. - Because it works..?
Agree, a new tire and pressure system that lowered pressure at speed, causing a slight retraction of the outer edges might reduce drag. Increased rotational forces would compensate for reduced pressure. Constant monitoring for G-forces, and required pressure variations, would provide optimal handling - tire wear notwithstanding. You would have to determine if tire profile would make this improvement a moot point since the tires are also part of the drag coefficient (not just rolling resistance).
This is counter to current design where increased tire pressure causes the tire to expand at the center-line (running high).
