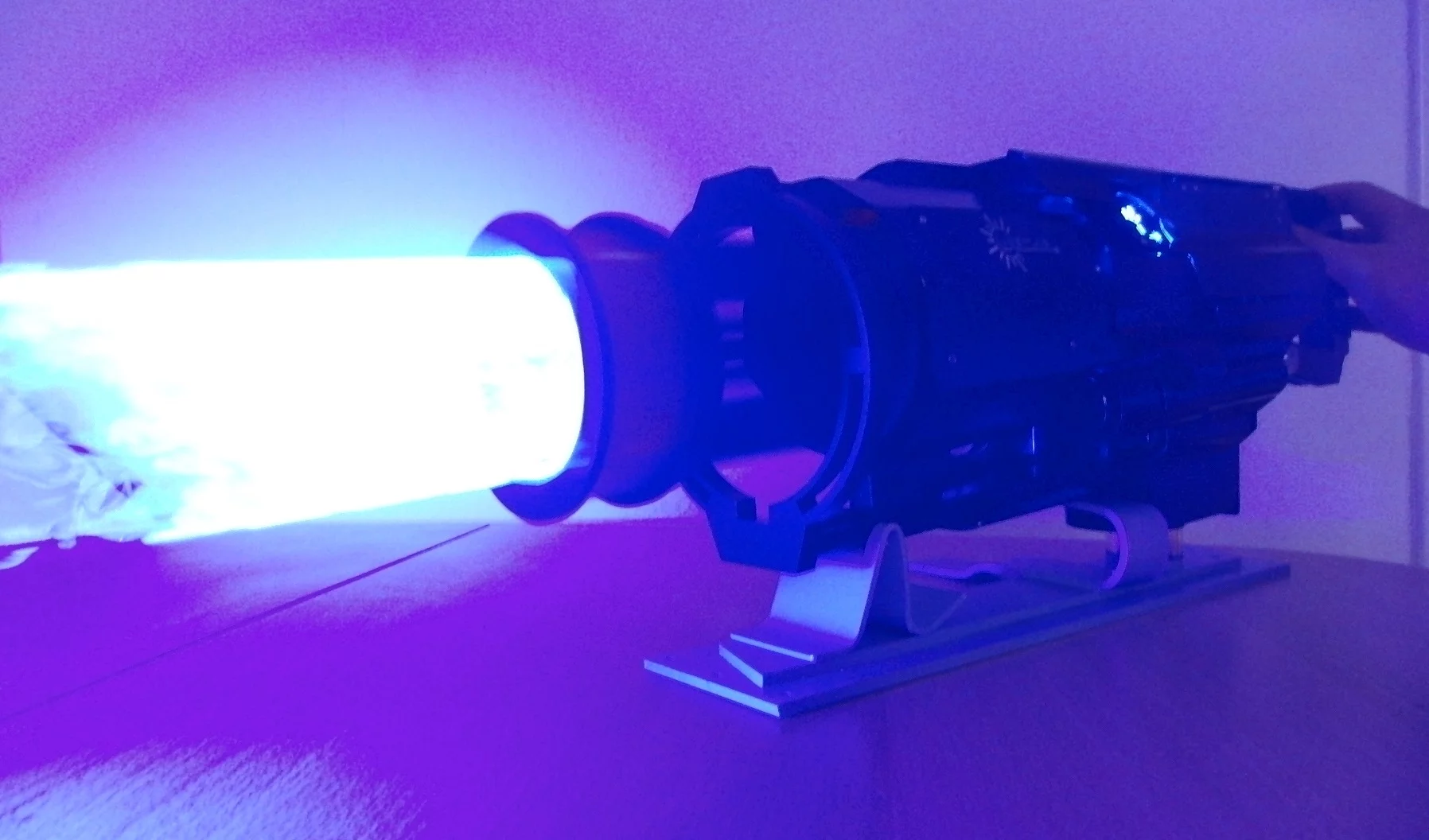

The Laser Gatling Gun shoots a ring of laser light
1/4
The Laser Gatling Gun shoots a ring of laser light

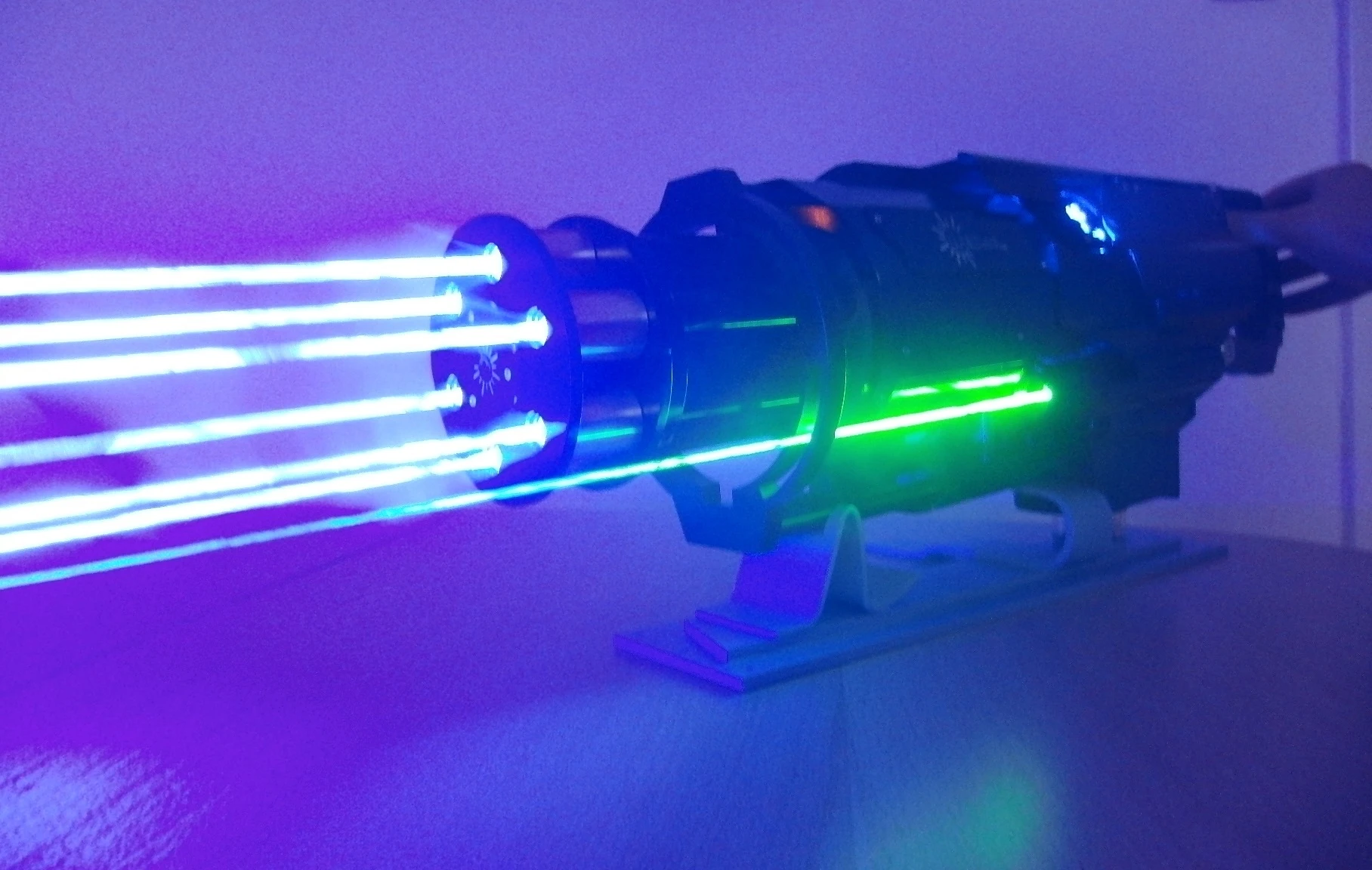

The Laser Gatling Gun features six burning lasers, and one aiming beam
2/4
The Laser Gatling Gun features six burning lasers, and one aiming beam

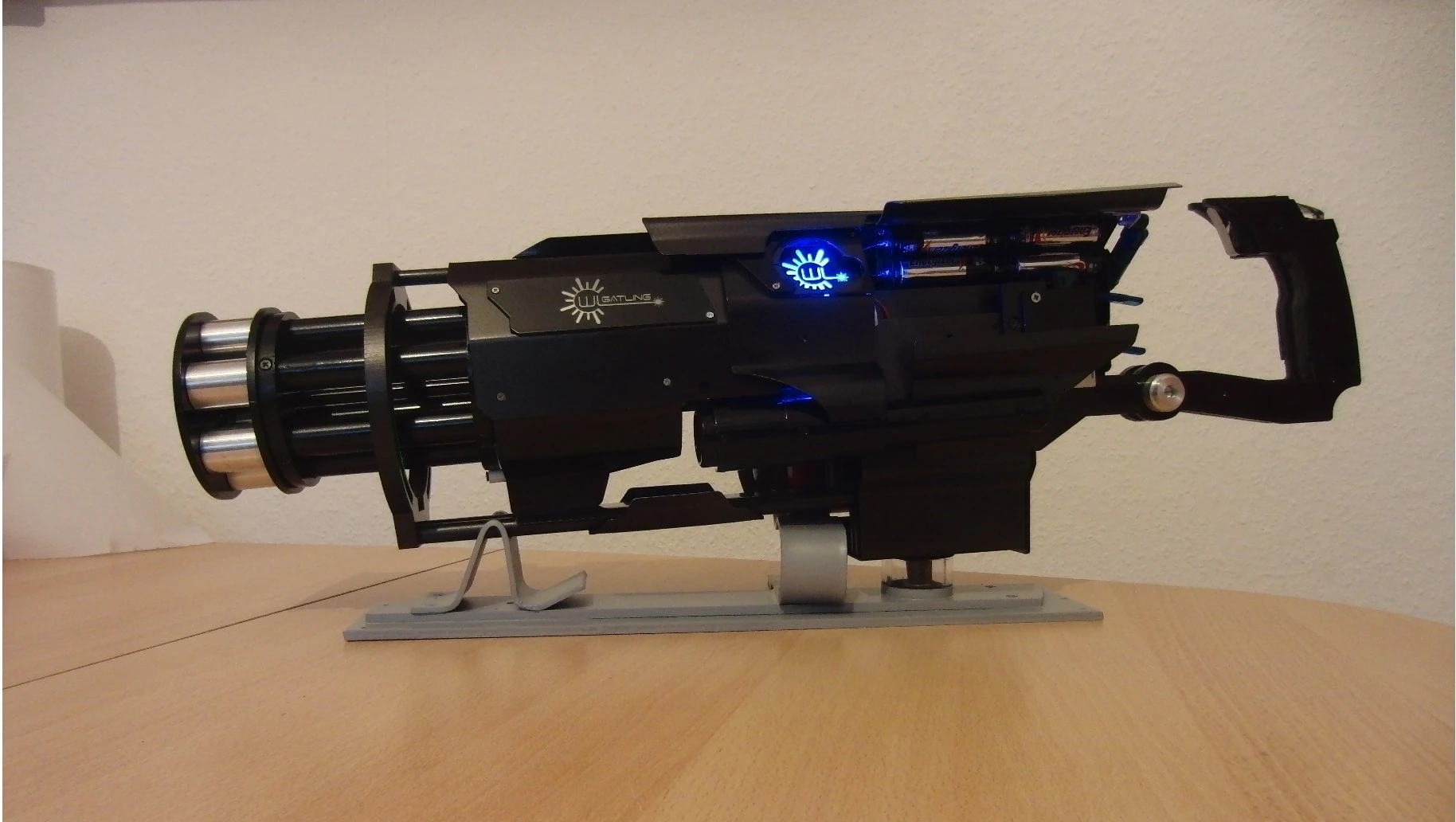

The turret speed can be controlled using a knob on the underside of the gun, while four ball bearings keep that turret spinning relatively smoothly
3/4
The turret speed can be controlled using a knob on the underside of the gun, while four ball bearings keep that turret spinning relatively smoothly

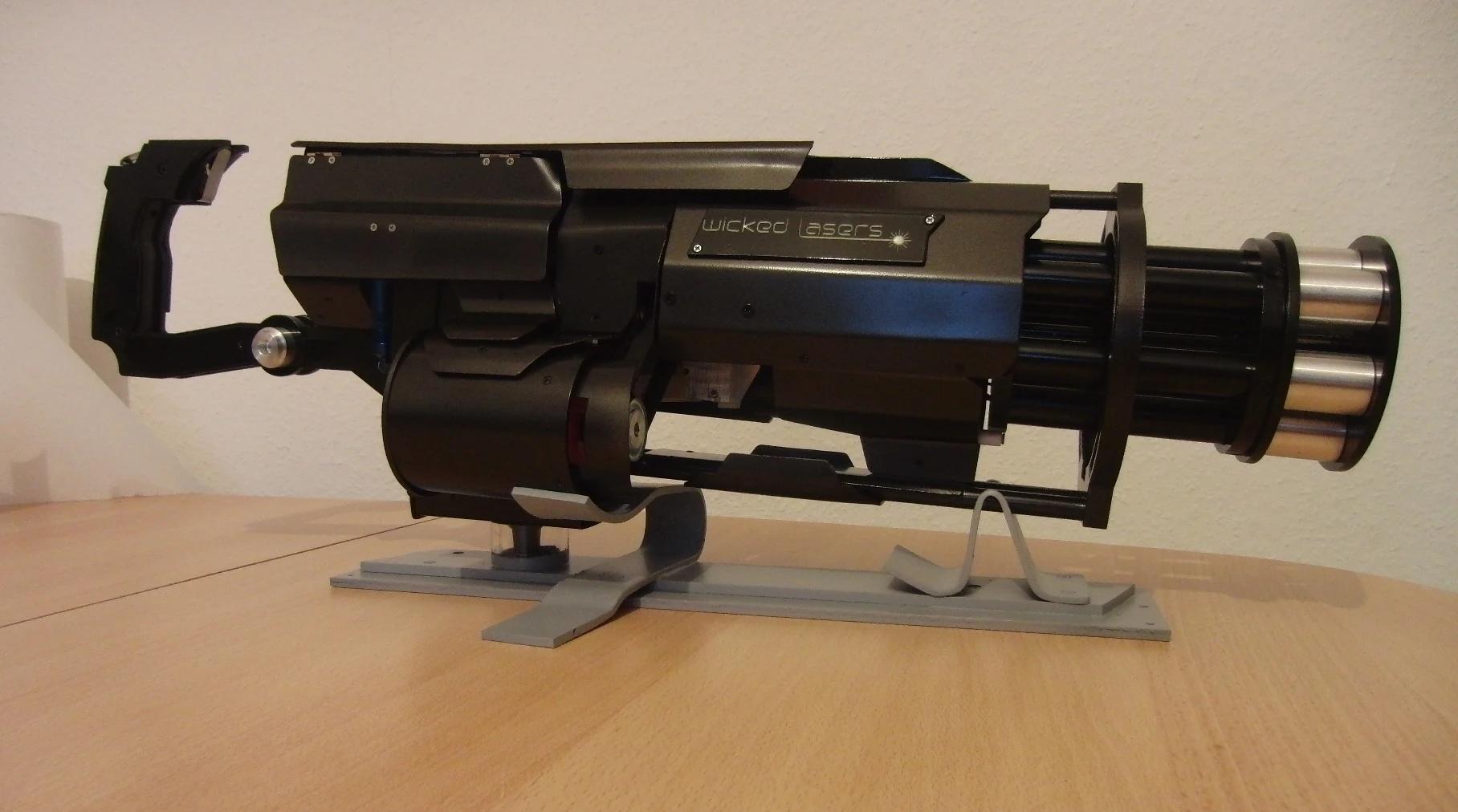

The motor and aiming laser are powered by eight AA batteries, and the six blue lasers run off four parallel 18650 lithium-ions
4/4
The motor and aiming laser are powered by eight AA batteries, and the six blue lasers run off four parallel 18650 lithium-ions
View gallery - 4 images

Patrick Priebe, the German laser weapons hobbyist who previously brought us such creations as the Iron Man Gauntlet and the Plasma Cutter, has gone and made something else. This time around, he’s built a proof-of-concept Laser Gatling Gun.

The aluminum-bodied gun’s spinning turret features six blue 1.4-watt Class 4 lasers, supplied by Wicked Lasers. While these won’t stop a marauding robot, they will at least pop a balloon ... as long as the turret isn’t turning too fast. A 100-mW green laser is mounted to one side, to assist in aiming.

The turret speed can be controlled using a knob on the underside of the gun, while four ball bearings keep that turret spinning relatively smoothly. The motor and aiming laser are powered by eight AA batteries, and the six blue lasers run off four parallel 18650 lithium-ions.

The turret speed can be controlled using a knob on the underside of the gun, while four ball bearings keep that turret spinning relatively smoothly
The turret speed can be controlled using a knob on the underside of the gun, while four ball bearings keep that turret spinning relatively smoothly

Since running electrical wiring to a spinning turret could prove rather difficult, the blue lasers are instead triggered by radio remote control – a transmitter is in the main body of the gun, while a receiver is in the turret.

Fortunately for pretty much everyone, the Laser Gatling Gun isn’t for sale, and Priebe won’t share the plans. It can, however, be seen in use in the video below.
