Video: High energy laser takes out rocket from 1.5 km

By James Holloway
May 10, 2013
Video: High energy laser takes out rocket from 1.5 km
Lockheed Martin's ADAM laser system destroys a rocket mid-flight
Lockheed Martin's ADAM laser system destroys a rocket mid-flight
View 5 Images
Lockheed Martin's ADAM laser system destroys a rocket mid-flight
1/5
Lockheed Martin's ADAM laser system destroys a rocket mid-flight

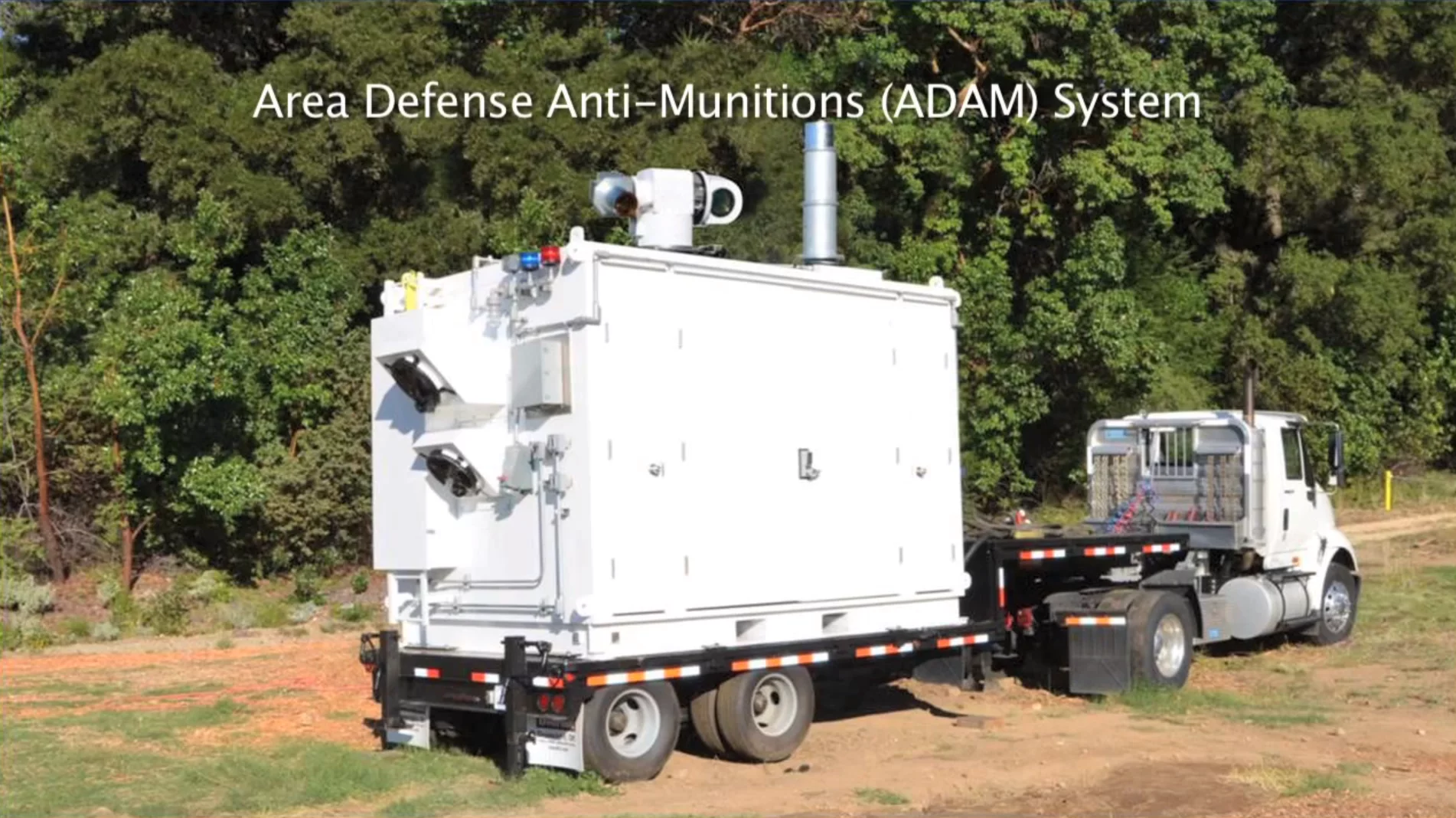

Lockheed Martin's self contained ADAM laser system
2/5
Lockheed Martin's self contained ADAM laser system
The laser visible on the rocket's surface
3/5
The laser visible on the rocket's surface
ADAM's point of view
4/5
ADAM's point of view
The laser's point of contact visible through ADAM's passive tracker
5/5
The laser's point of contact visible through ADAM's passive tracker
View gallery - 5 images

Lockheed Martin has released a video of ADAM, its high energy laser (HEL) system, taking out a rocket from a range of 1.5 km (0.9 miles). Slowed down, the 300-fps video clearly shows the laser beam striking and tracking a point towards the front of the rocket, before destroying it mid-flight.

ADAM, which stands for Area Defense Anti-Munitions is a self-contained unit designed to nullify attacks from unmanned aerial vehicles, or improvised rocket attacks from the ground. The intention is that the system will be used to protect vulnerable assets such as military bases near the frontline, acquiring and tracking short-range targets from a distance of 5 km (3.1 miles), and destroying from a range of up to 2 km (1.2 miles).

In the test, which took place April 22, an ADAM prototype takes out a "Qassam-like" rocket. Qassam rockets are artillery munitions used by the military wing of Hamas in attacks against Israel.

Lockheed Martin's video of the prototype test can be seen below.

Source: Lockheed Martin, via Geek.com

ADAM High Energy Laser Destroys Qassam-like Rocket Target

View gallery - 5 images
