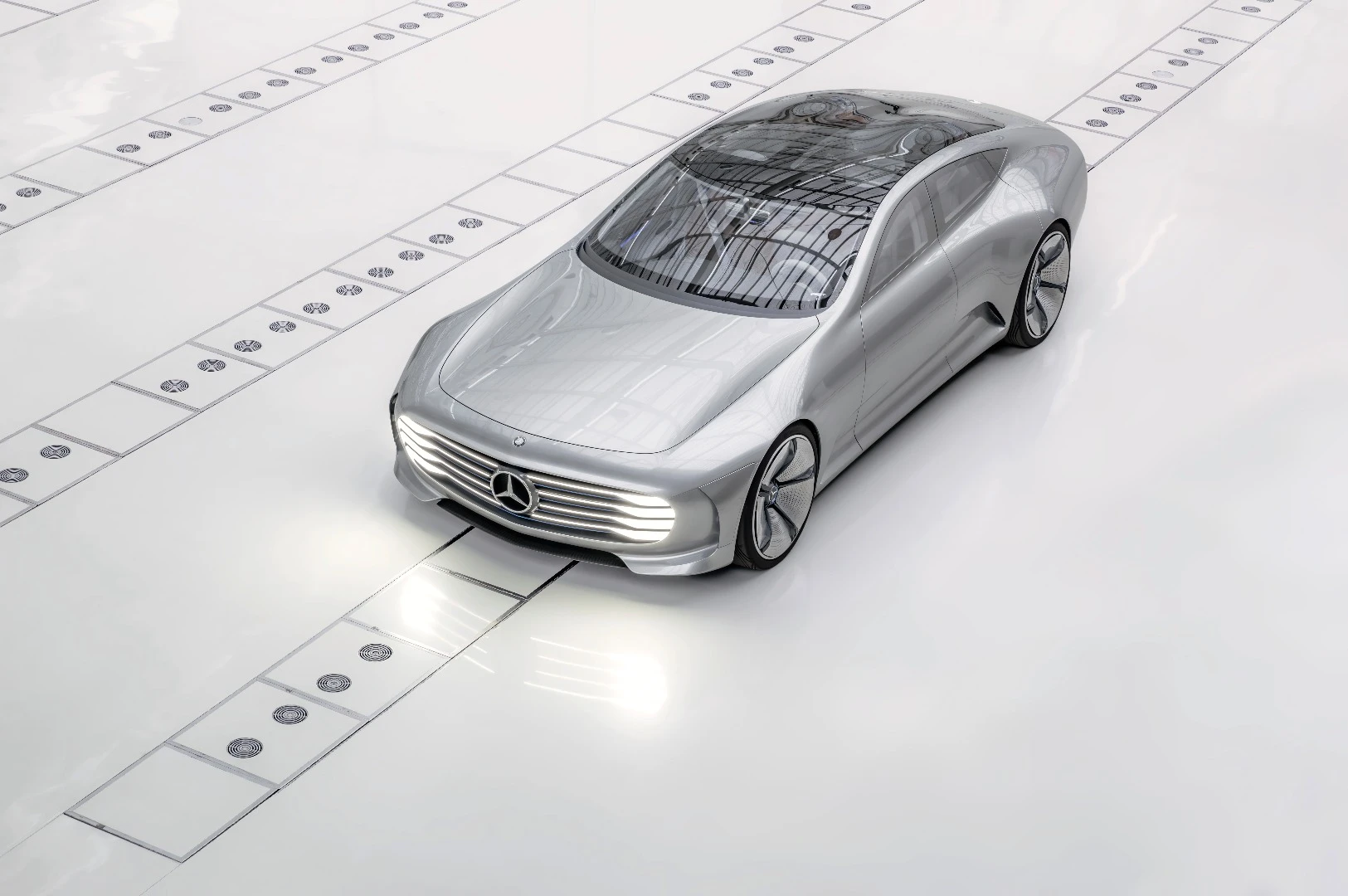

The Mercedes Concept IAA changes its shape depending on how fast the car is moving
1/39
The Mercedes Concept IAA changes its shape depending on how fast the car is moving

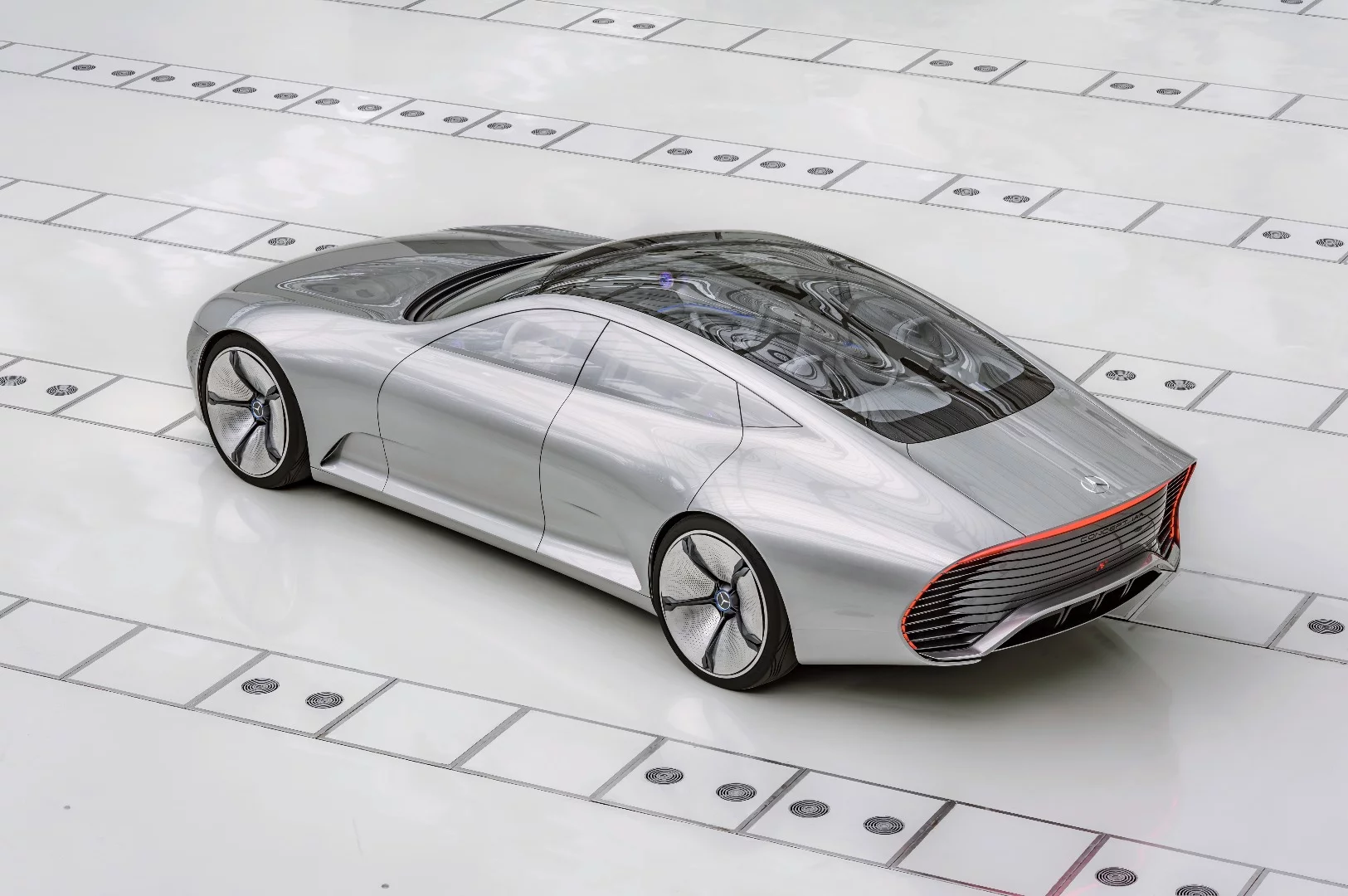

In Design mode, the Concept IAA looks like a fancy four-seat coupe
2/39
In Design mode, the Concept IAA looks like a fancy four-seat coupe

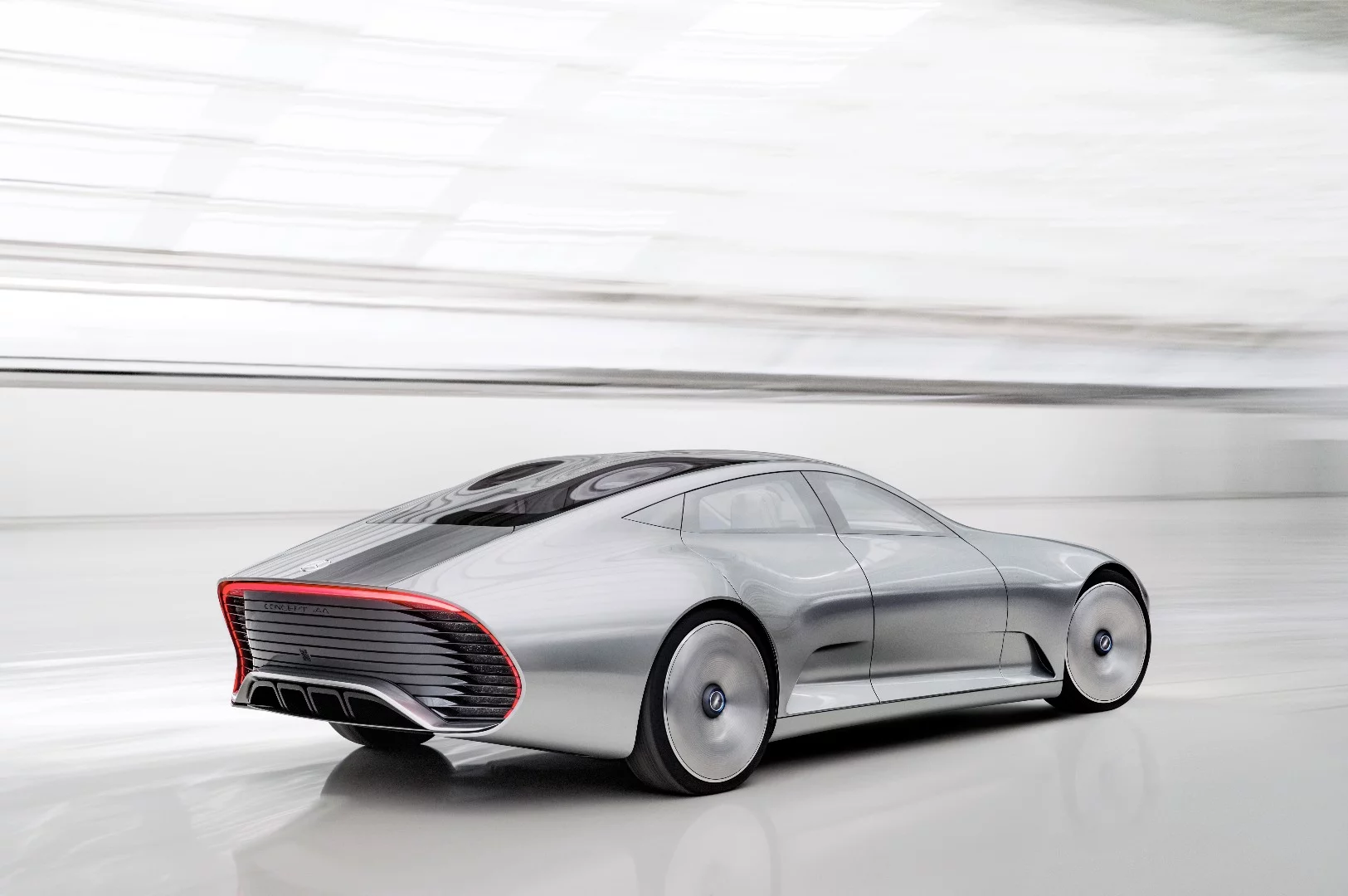

Without its tail section extended, the Concept IAA emits just 31 g/km of CO2
3/39
Without its tail section extended, the Concept IAA emits just 31 g/km of CO2

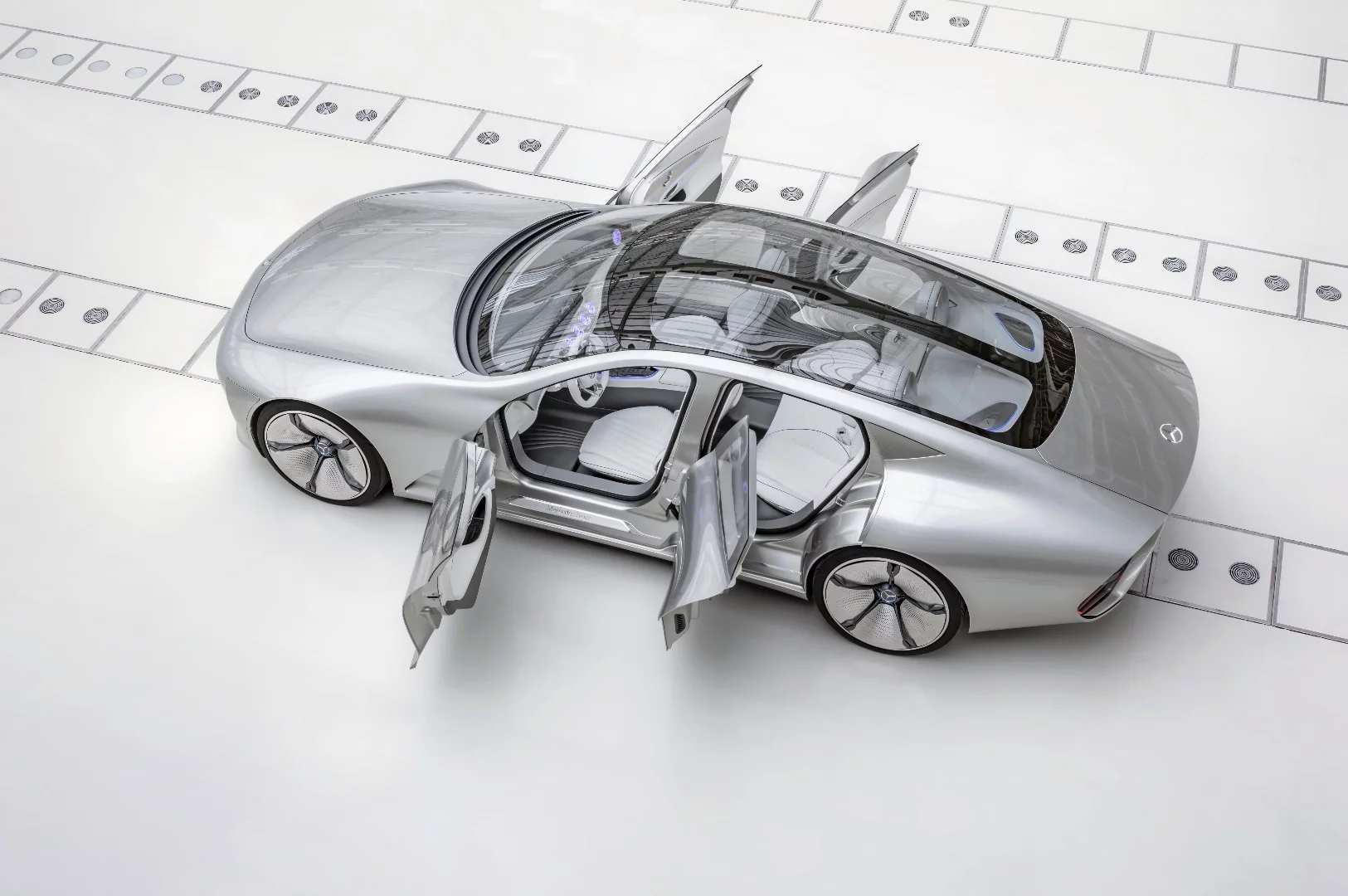

The car's cabin is full of the usual concept car ideas
4/39
The car's cabin is full of the usual concept car ideas

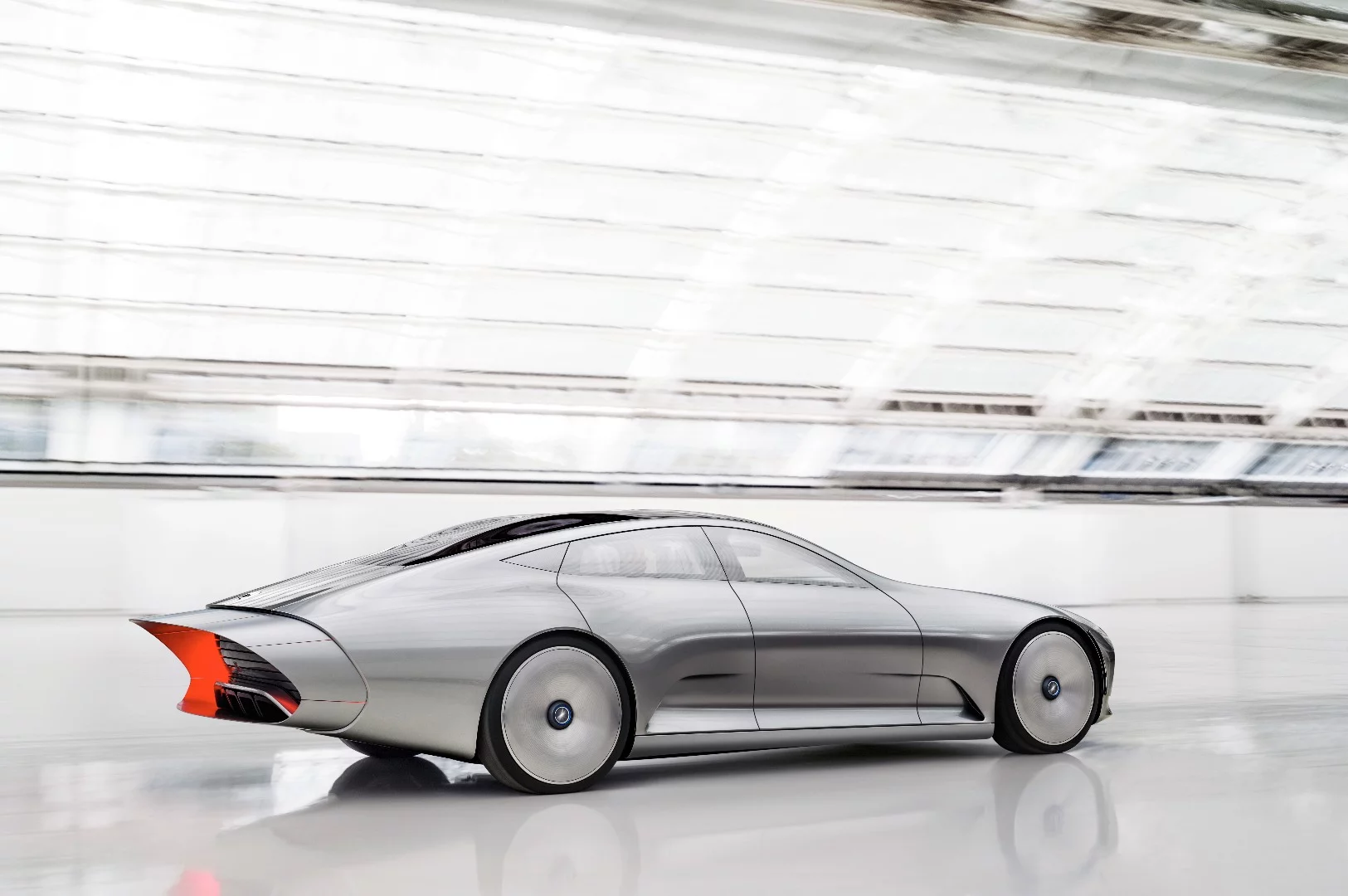

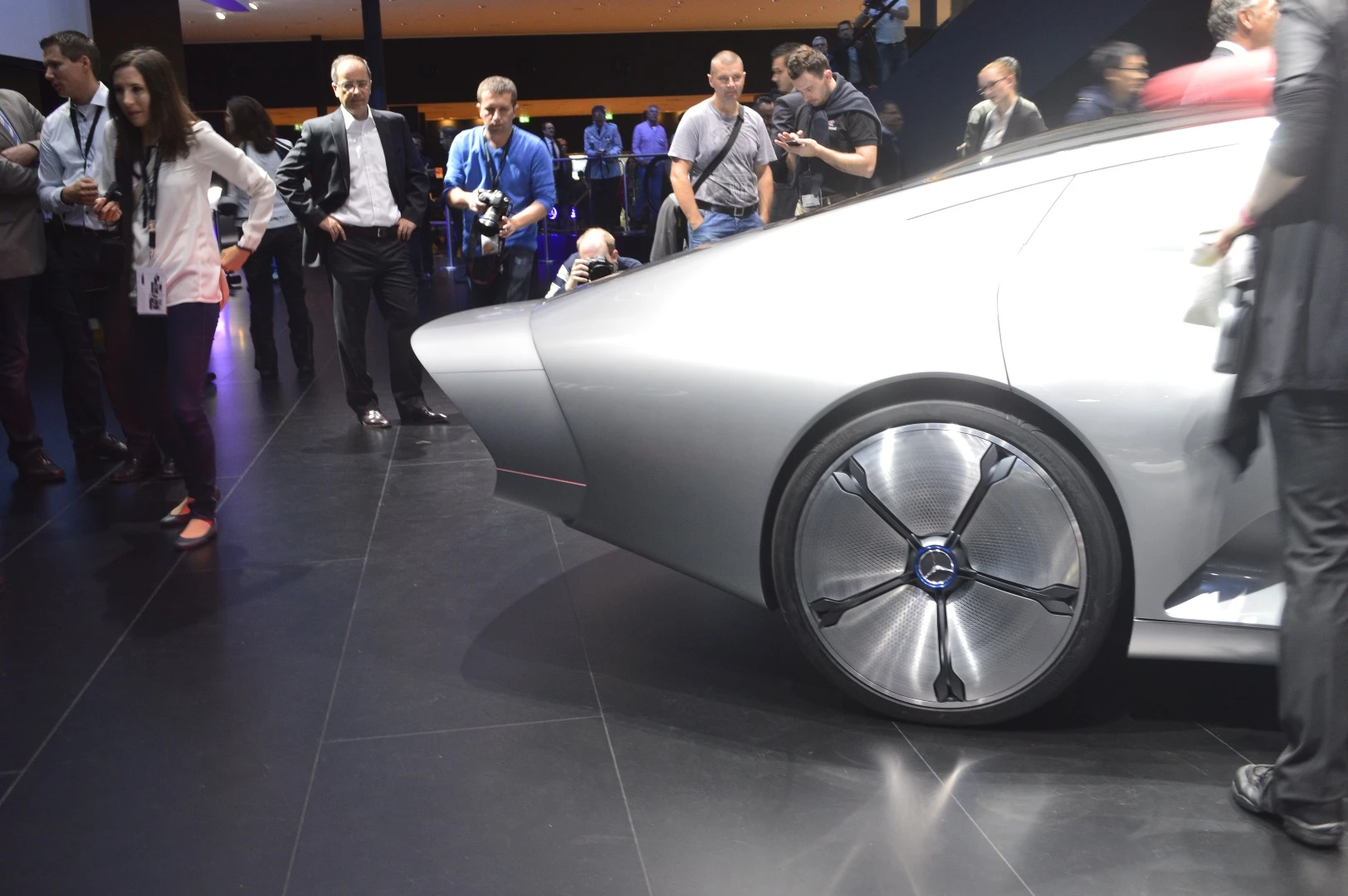

With its tail section extended, the Concept IAA is 390 mm longer
5/39
With its tail section extended, the Concept IAA is 390 mm longer

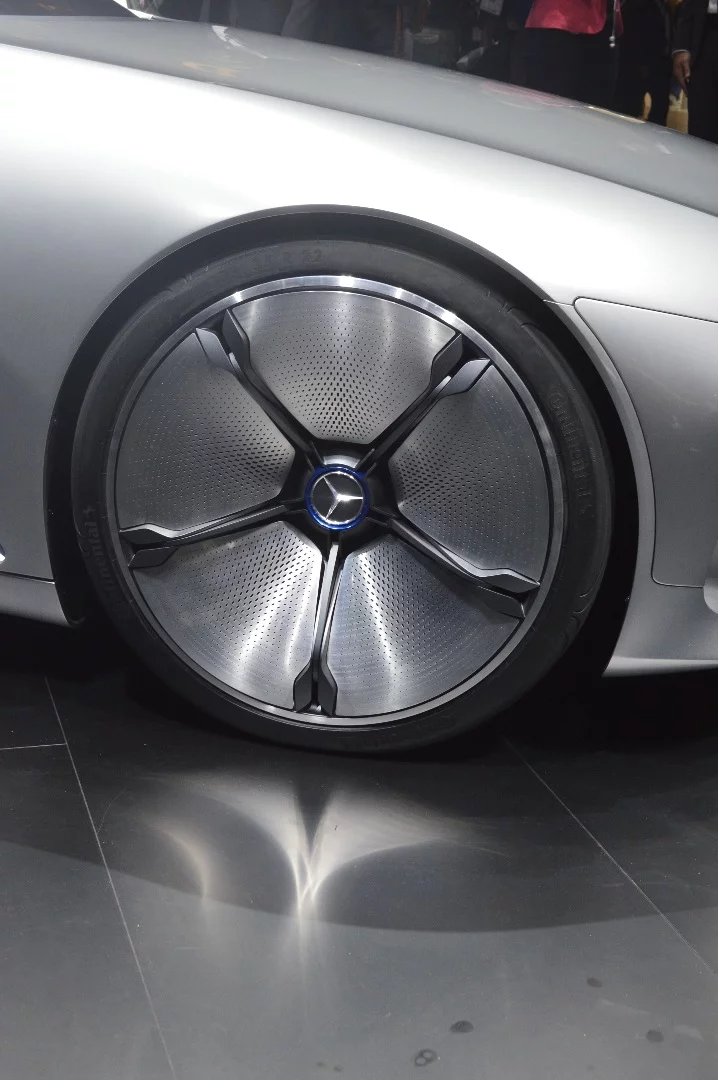

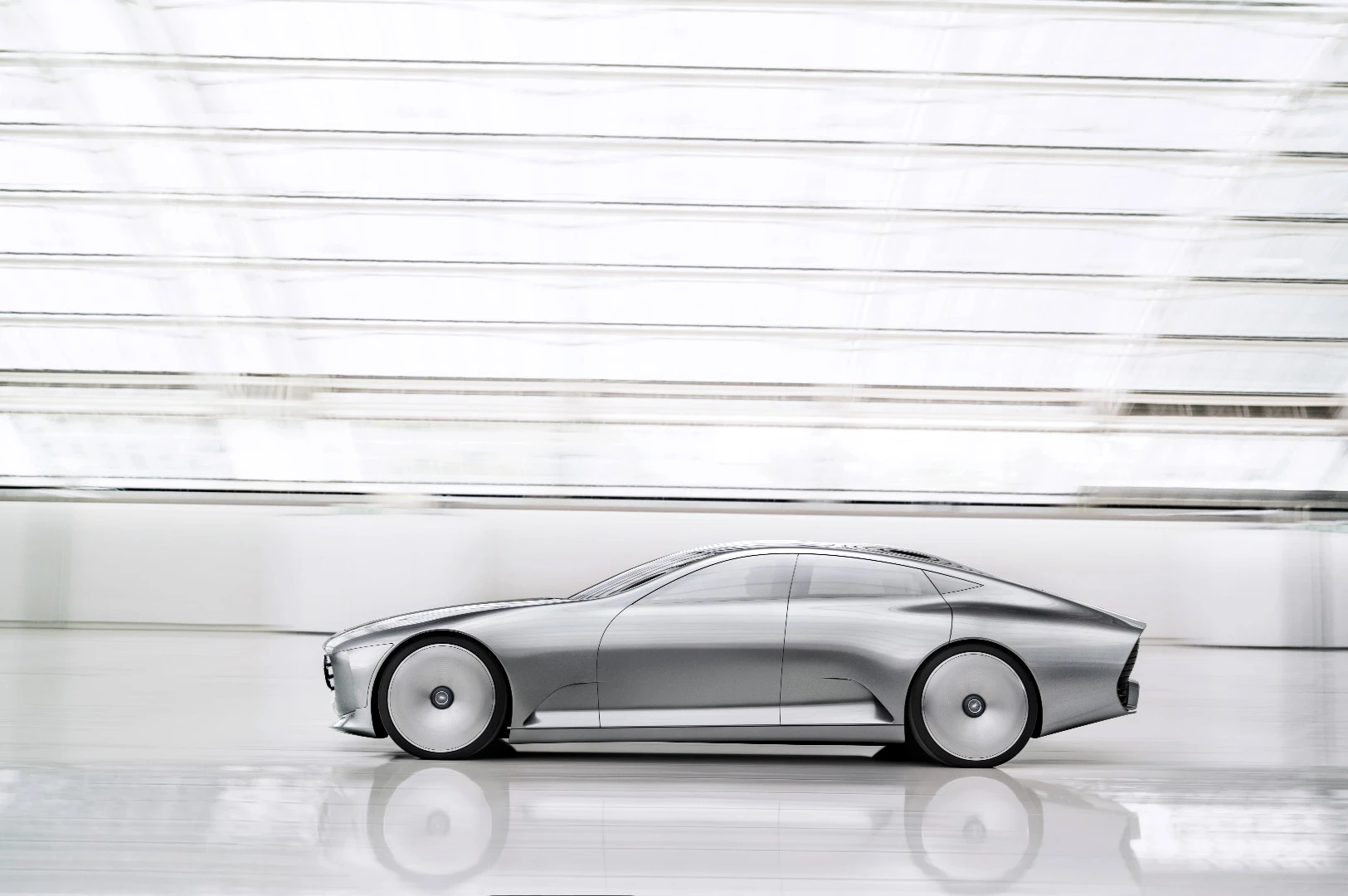

On the move, the wheels flatten out for better aerodynamics
6/39
On the move, the wheels flatten out for better aerodynamics

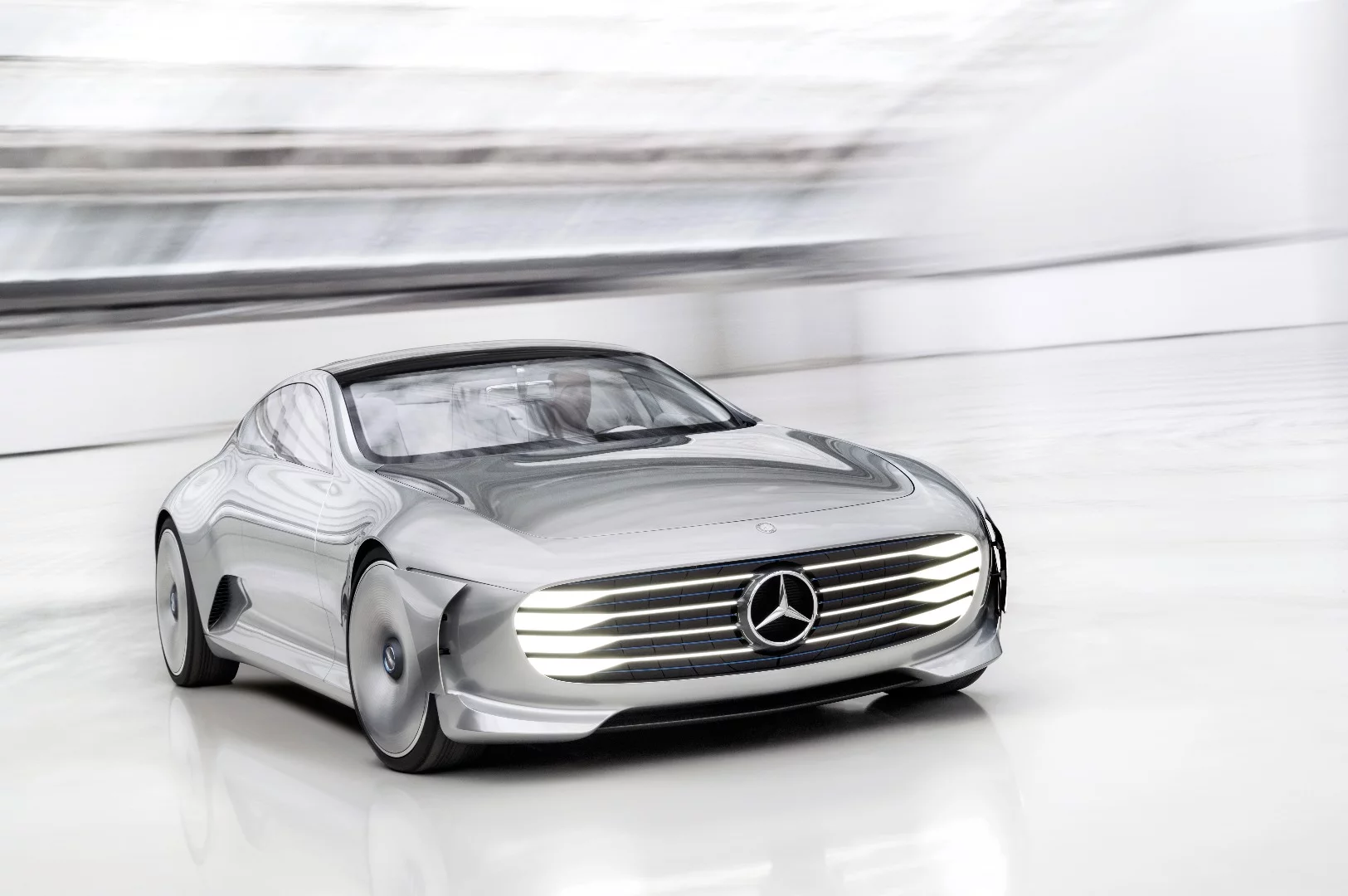

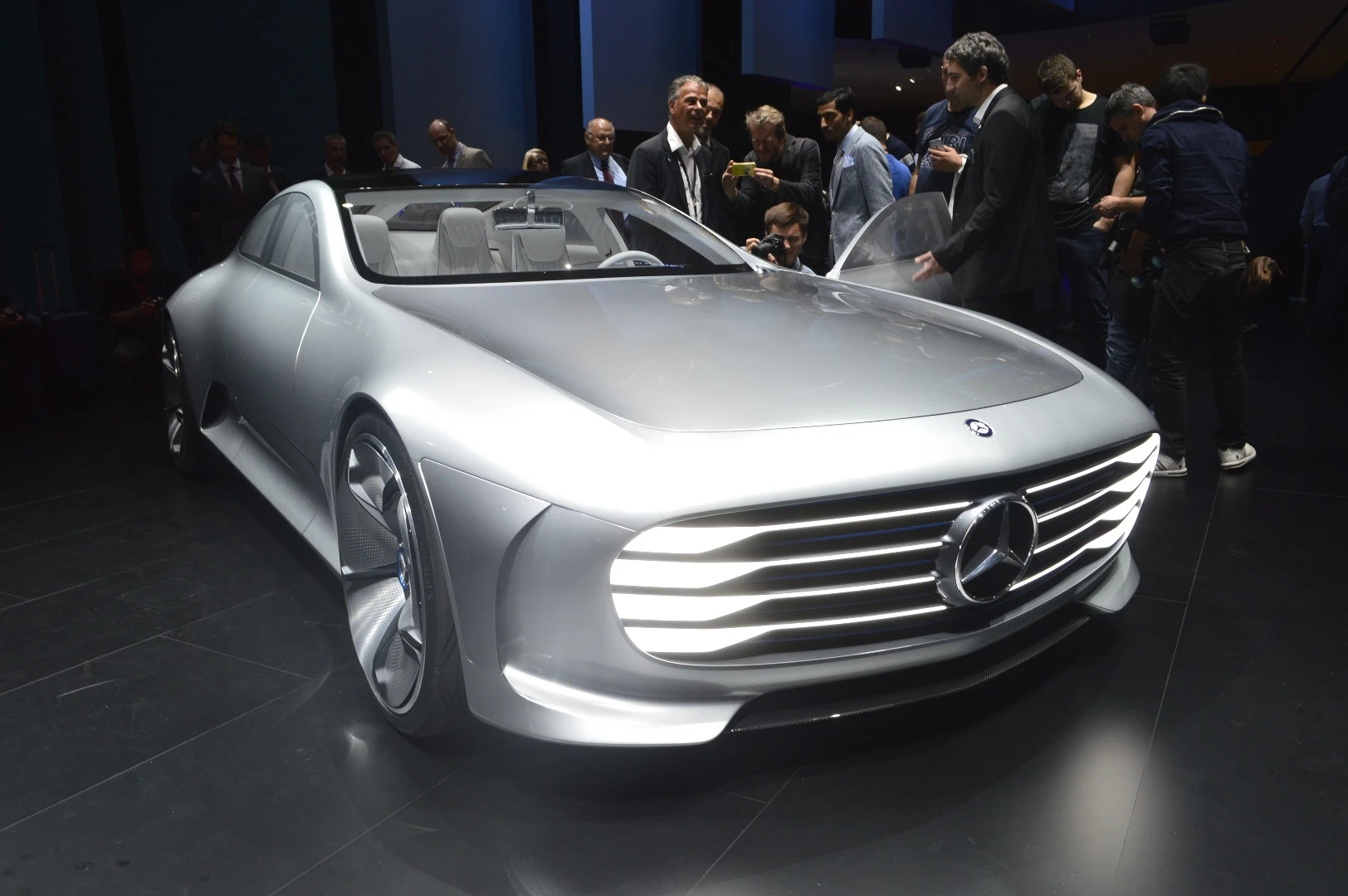

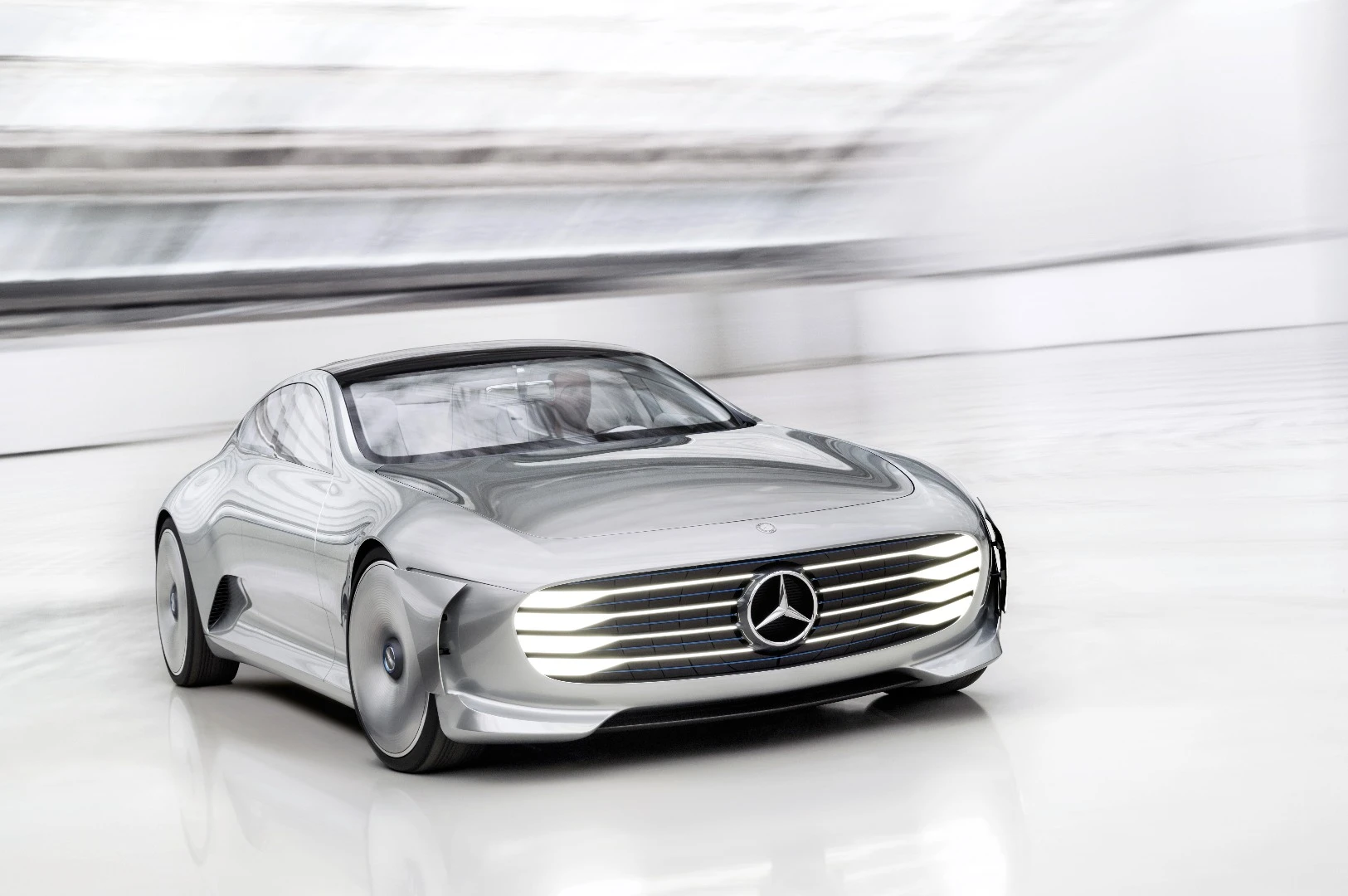

Up front, there's more than just a hint of the F 015 concept
7/39
Up front, there's more than just a hint of the F 015 concept

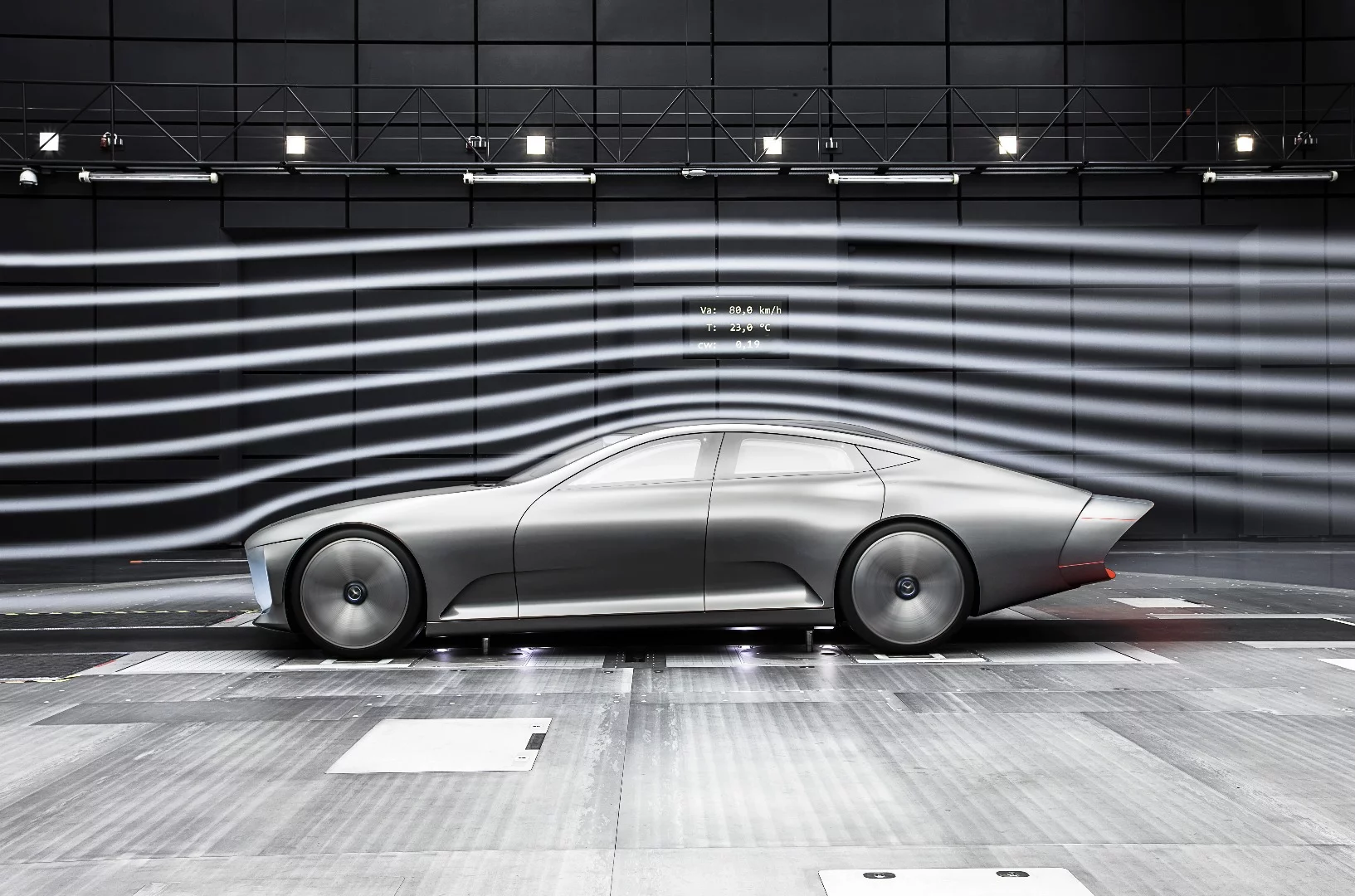

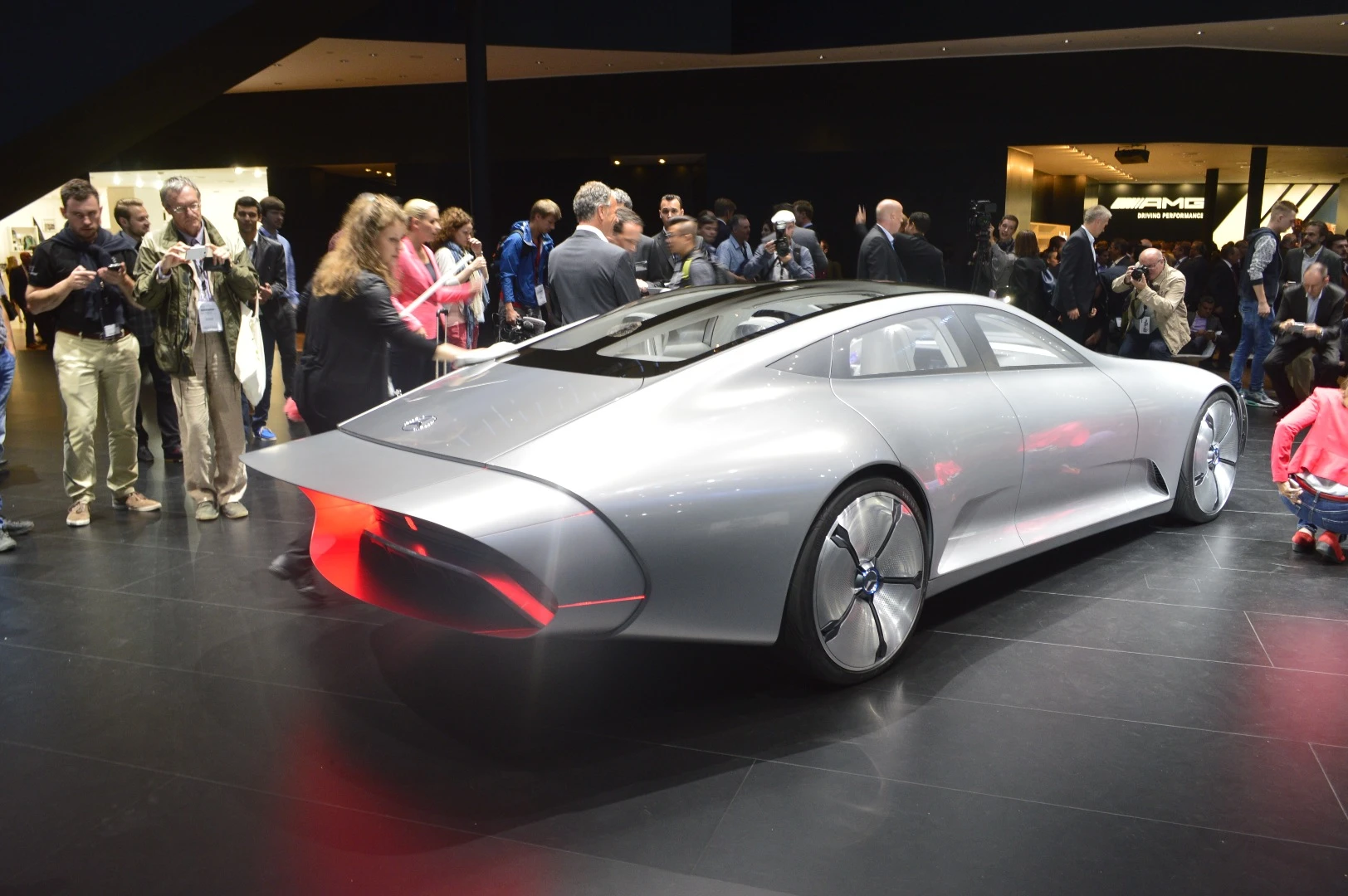

The Concept IAA morphs when in motion to achieve a Cd of 0.19
8/39
The Concept IAA morphs when in motion to achieve a Cd of 0.19

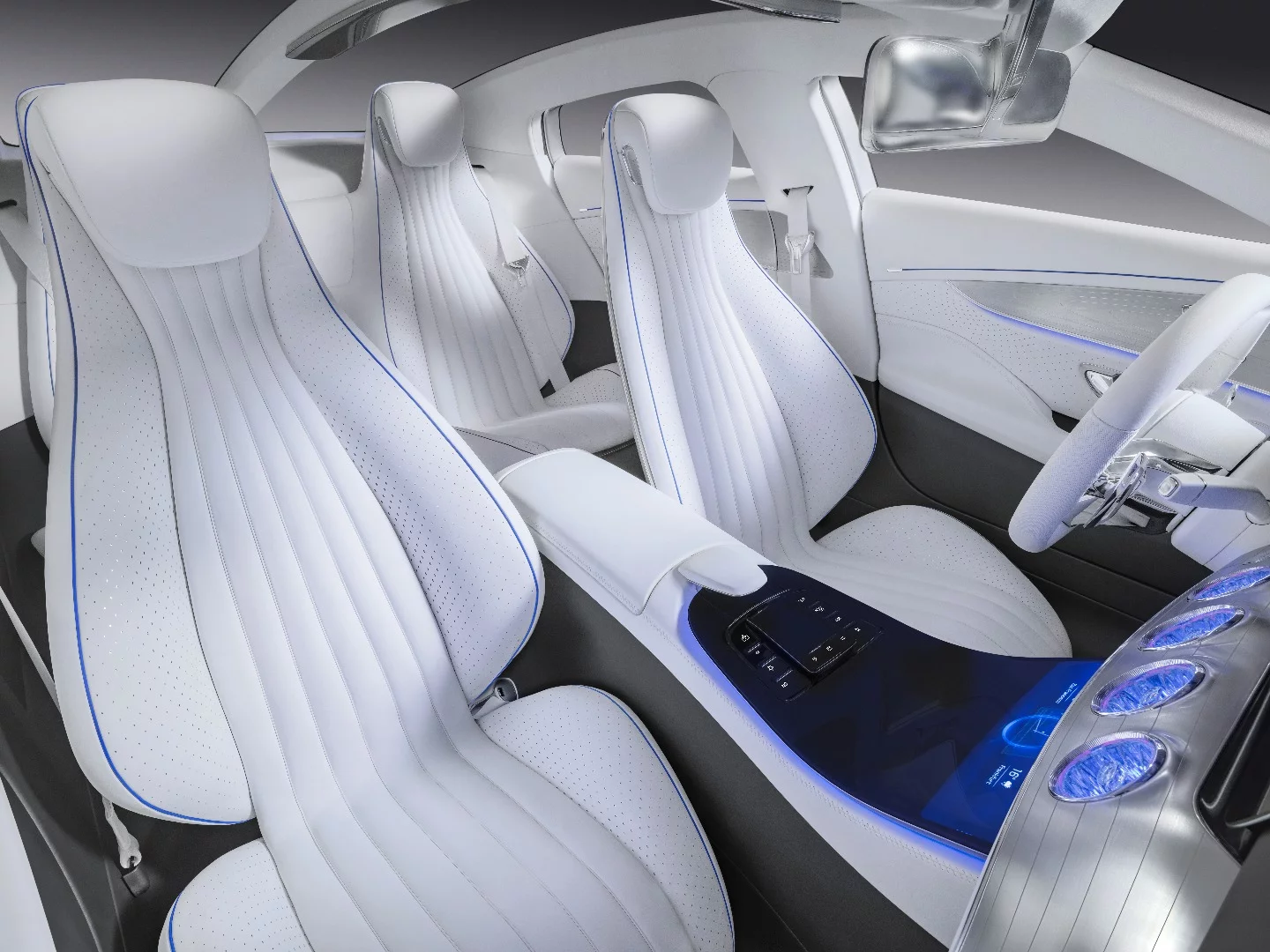

The interior of the Concept IAA
9/39
The interior of the Concept IAA

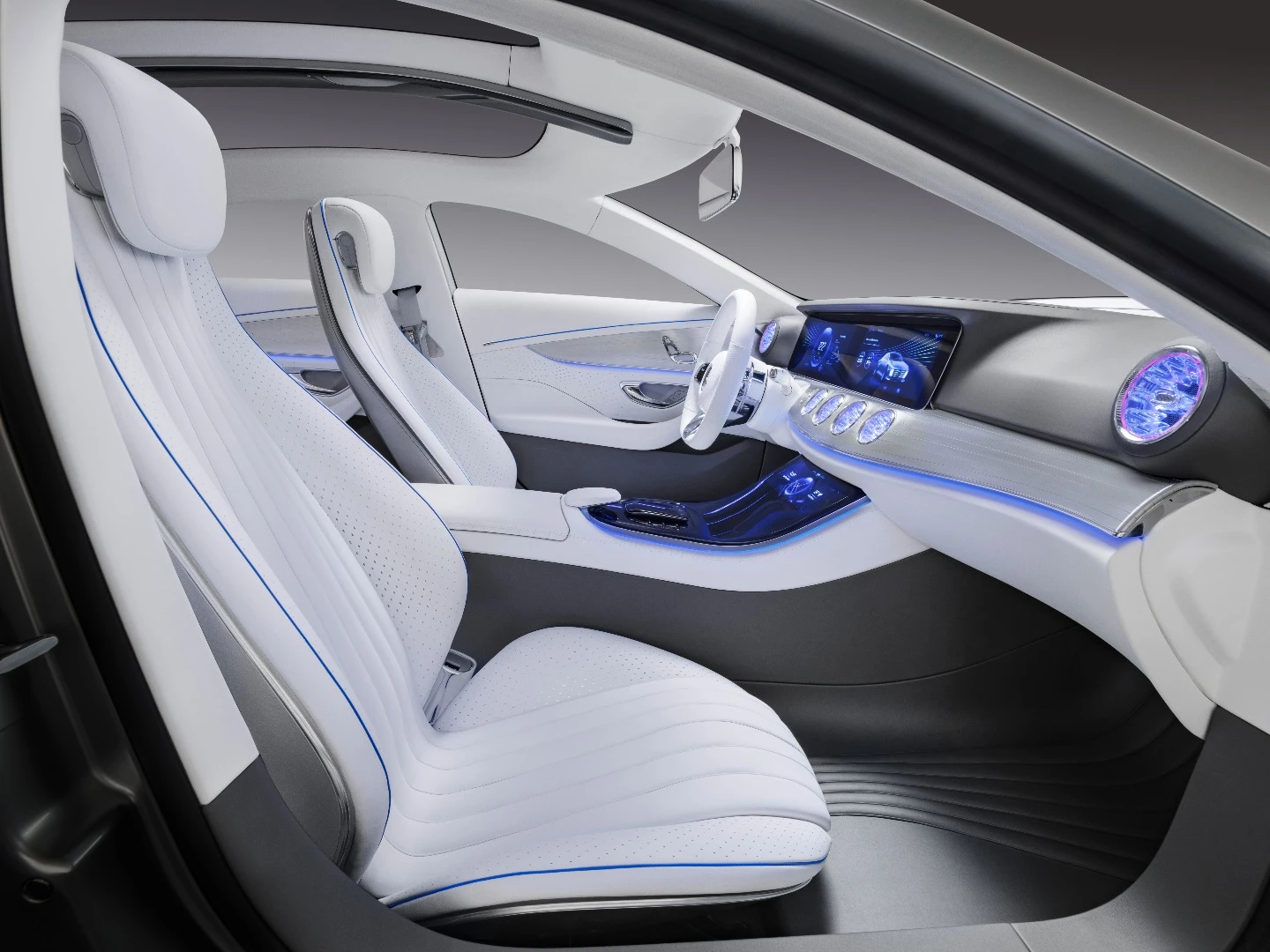

Driver controls have been designed to keep your hands on the wheel and eyes on the road
10/39
Driver controls have been designed to keep your hands on the wheel and eyes on the road

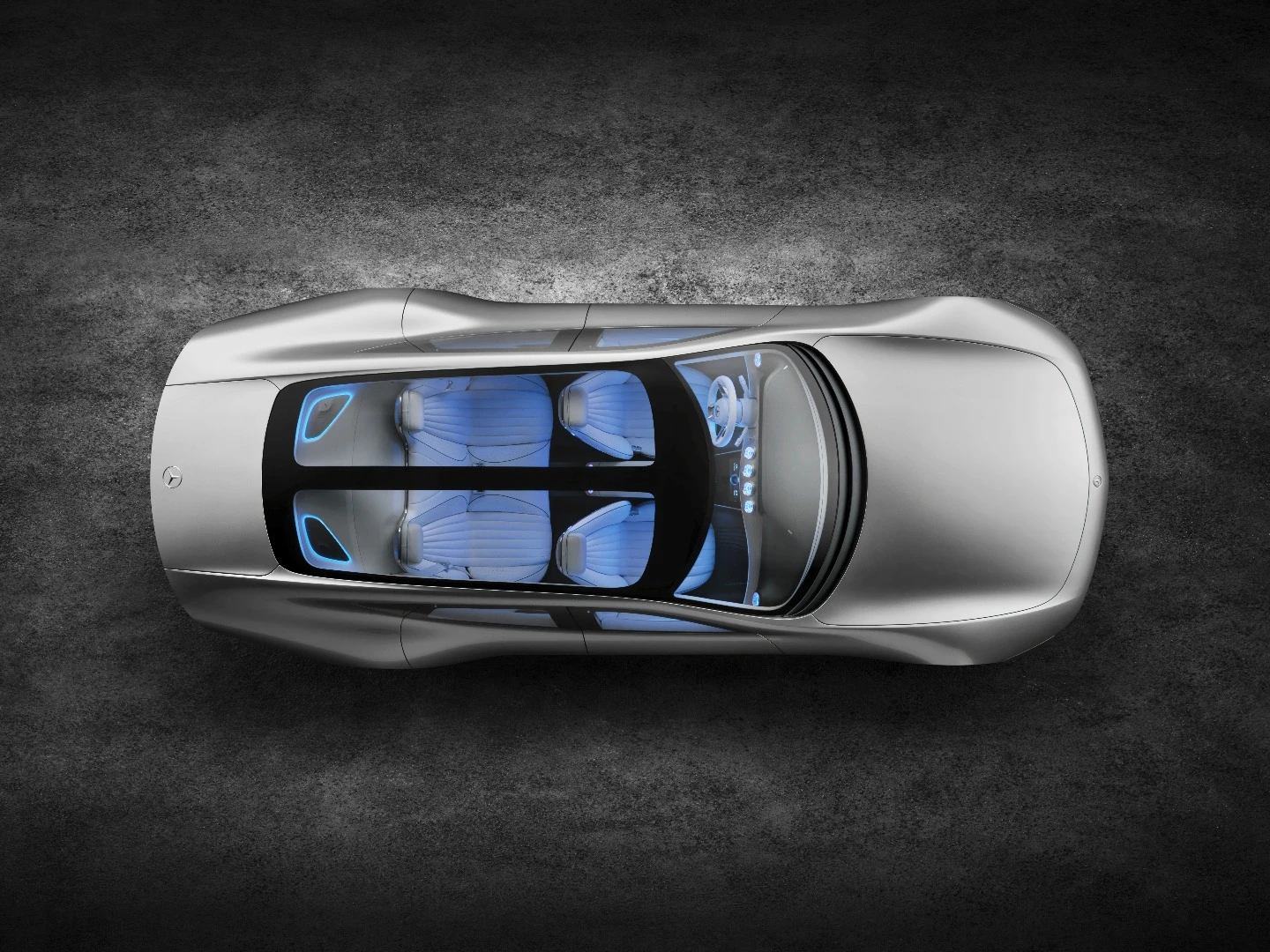

It might be functional, but the Concept IAA's aerodynamics also make it very pretty
11/39
It might be functional, but the Concept IAA's aerodynamics also make it very pretty

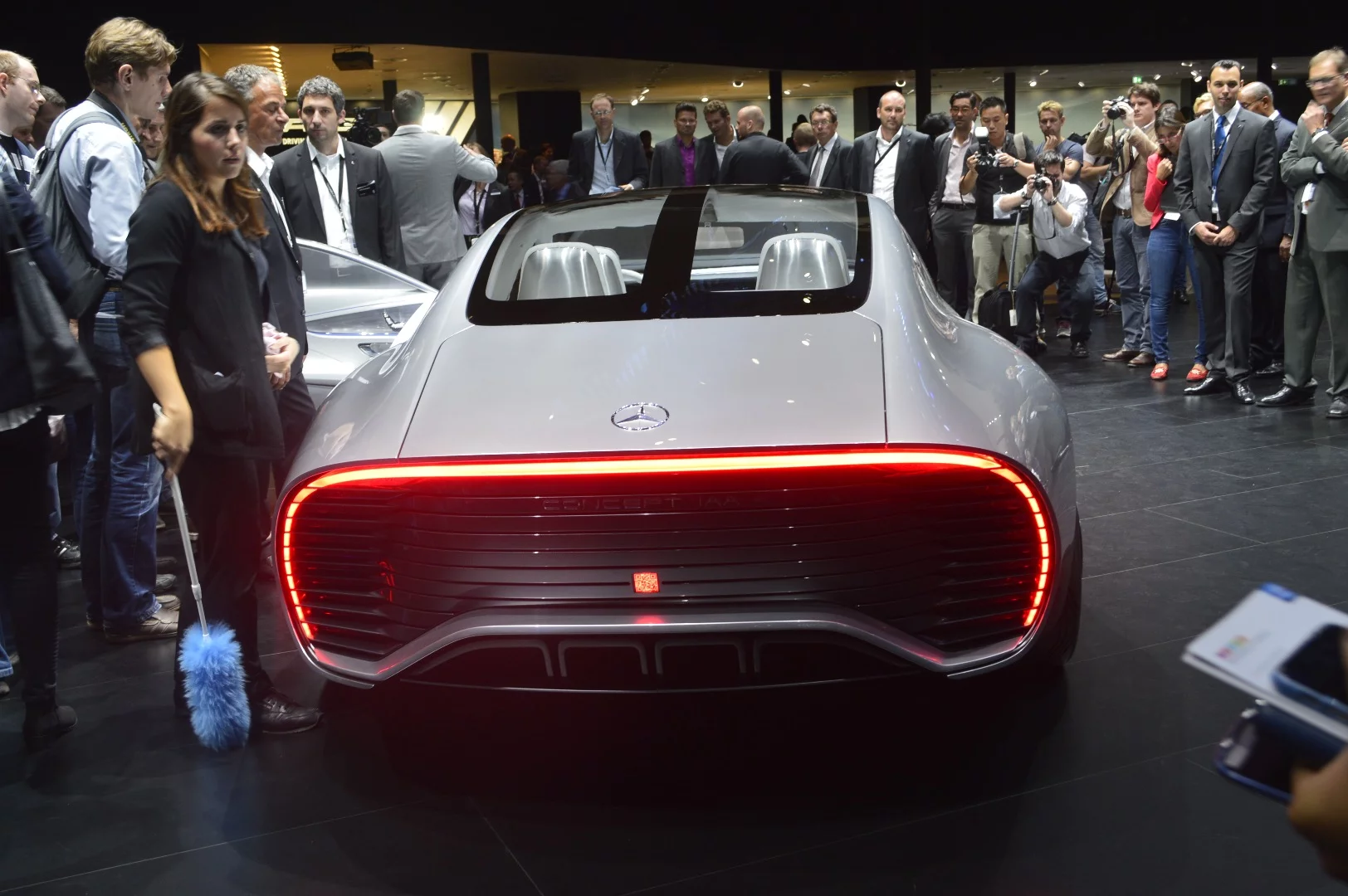

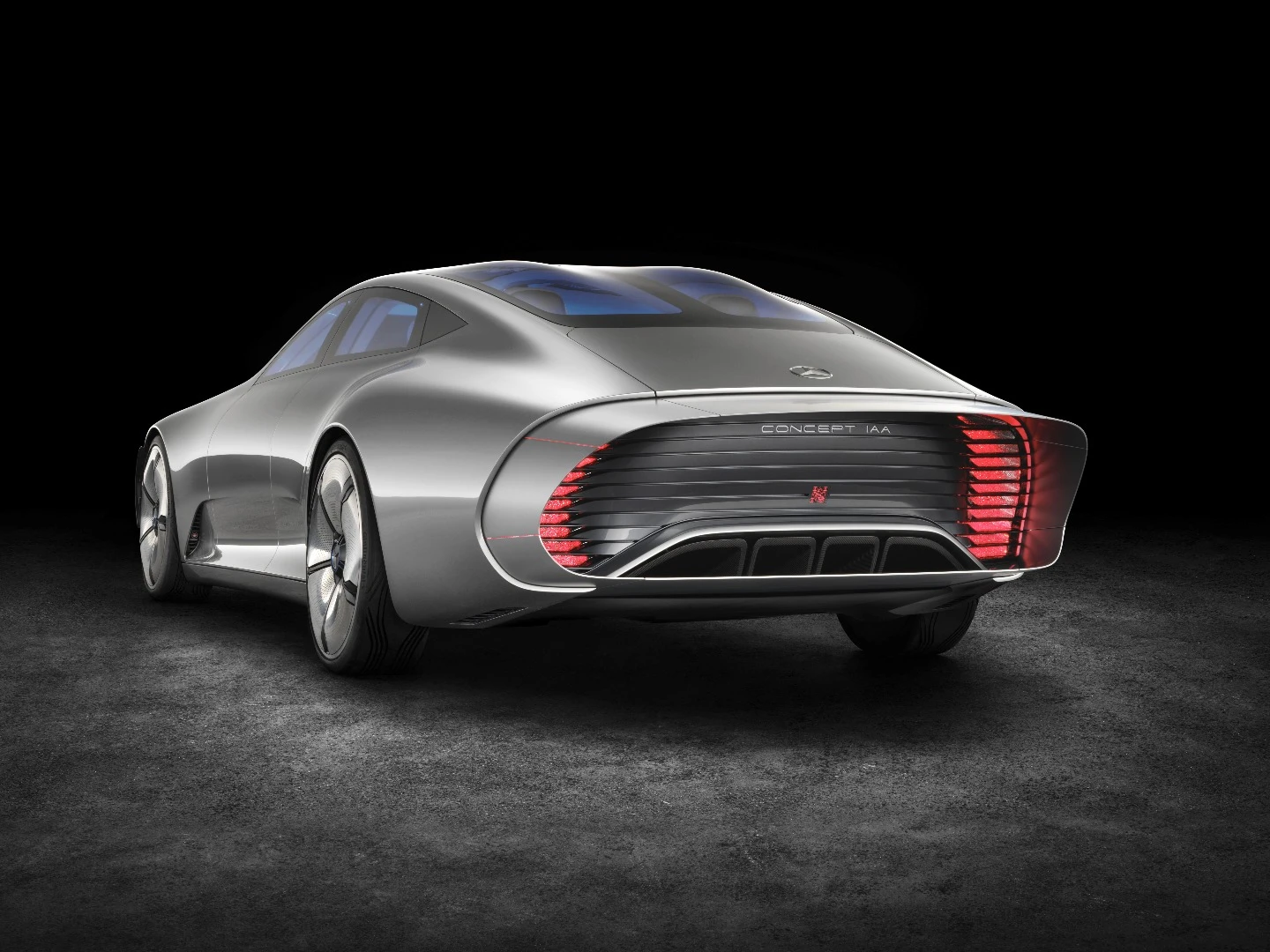

As well as the extending tail section, the Concept IAA's wheels and front bumper alter at speed
12/39
As well as the extending tail section, the Concept IAA's wheels and front bumper alter at speed

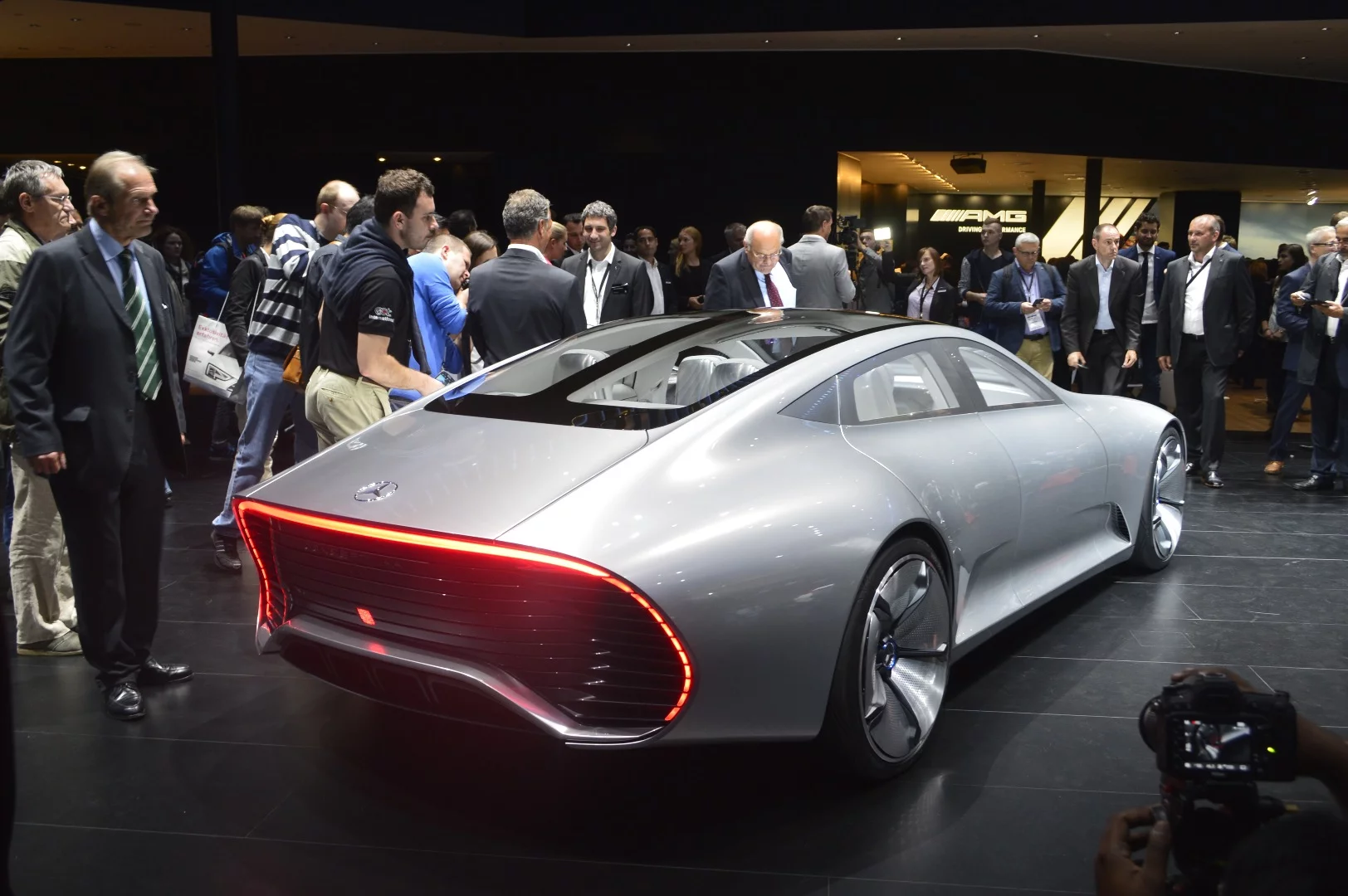

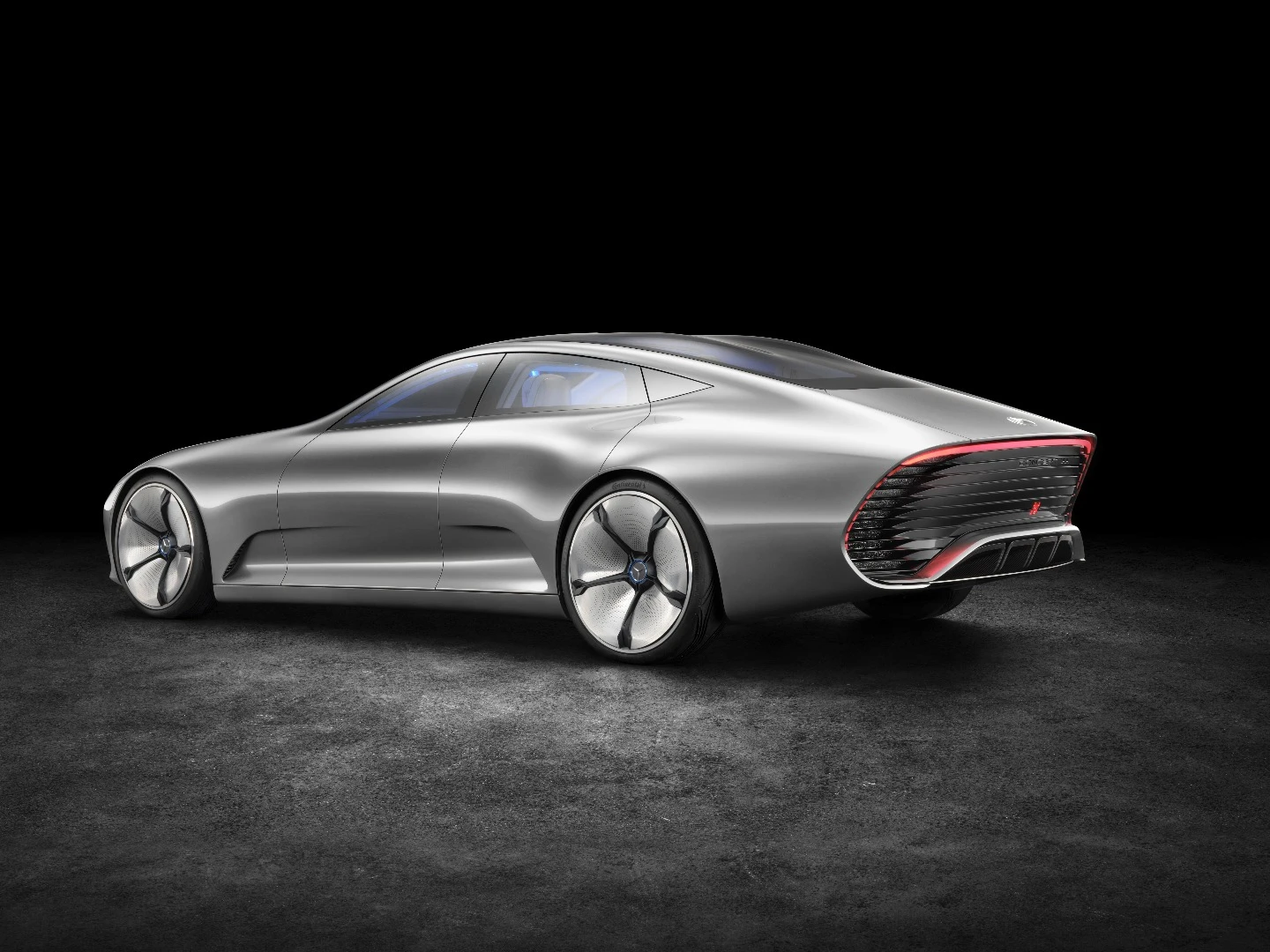

The car's sloping rear end is reminiscent of the tail on the CLA or CLS Coupe
13/39
The car's sloping rear end is reminiscent of the tail on the CLA or CLS Coupe

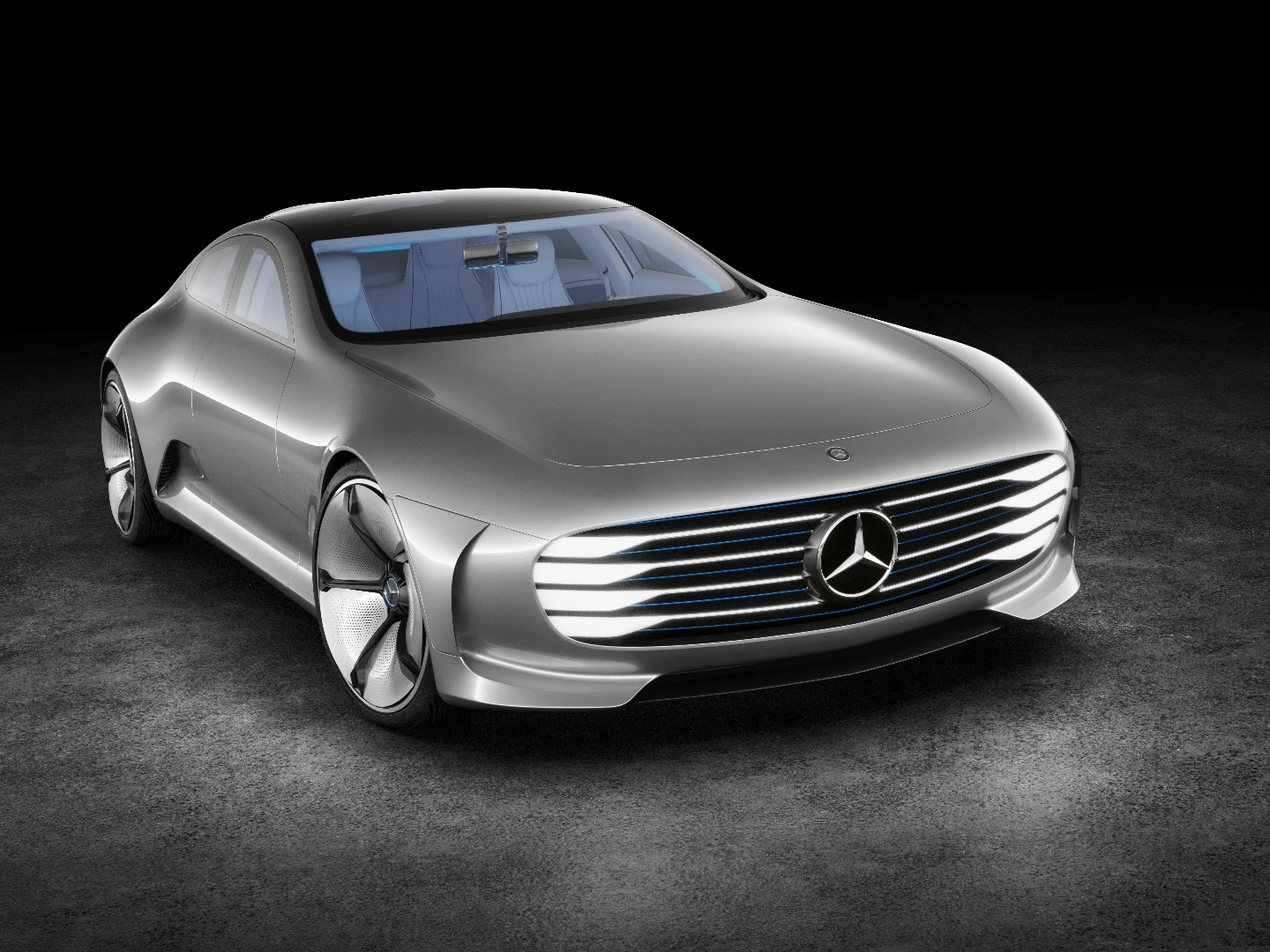

As well as offering up high-tech aerodynamics, the IAA previews car-to-car networking ahead of next year's E-Class
14/39
As well as offering up high-tech aerodynamics, the IAA previews car-to-car networking ahead of next year's E-Class

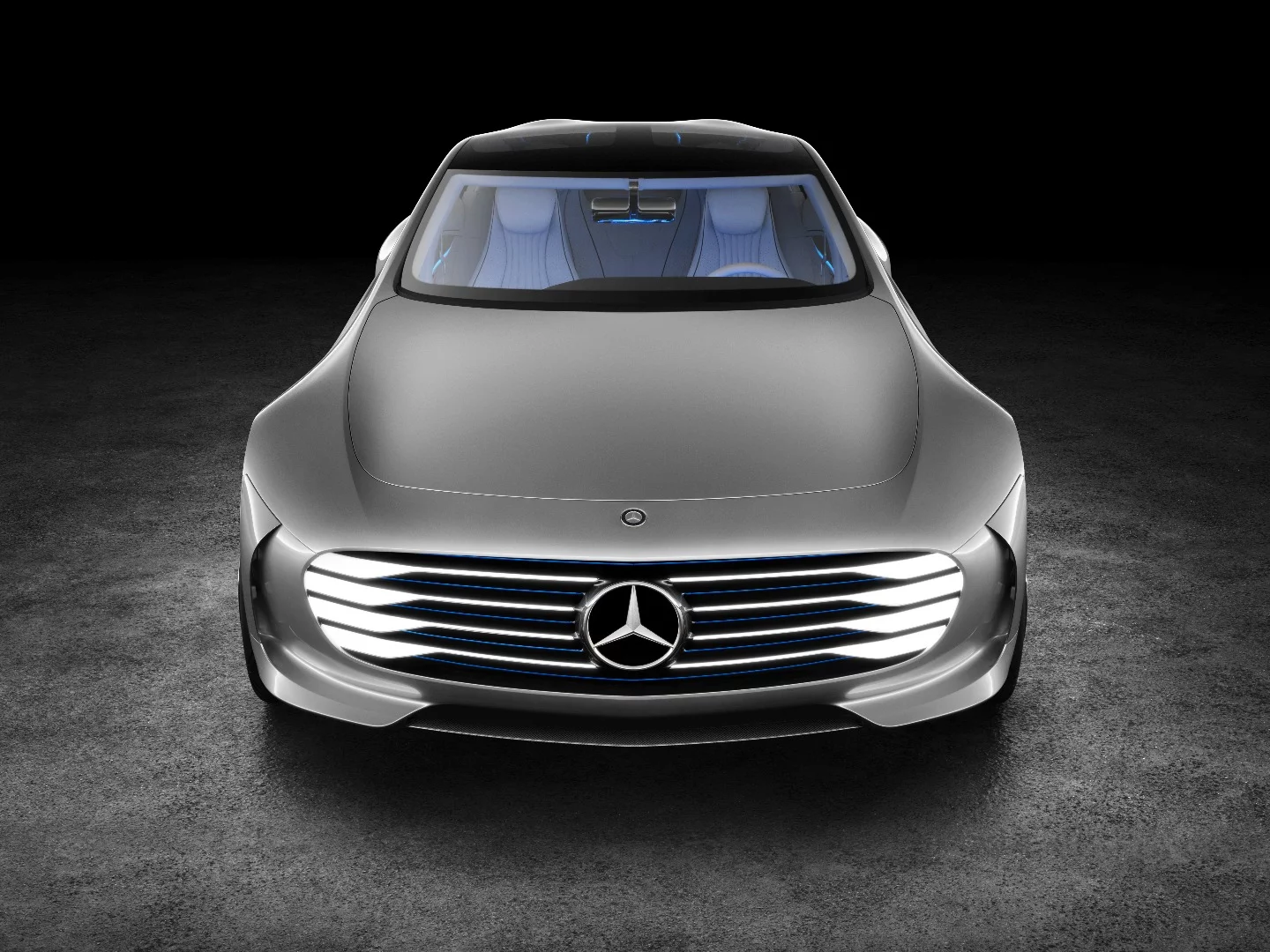

The front bumper extends forwards and backwards at speed
15/39
The front bumper extends forwards and backwards at speed

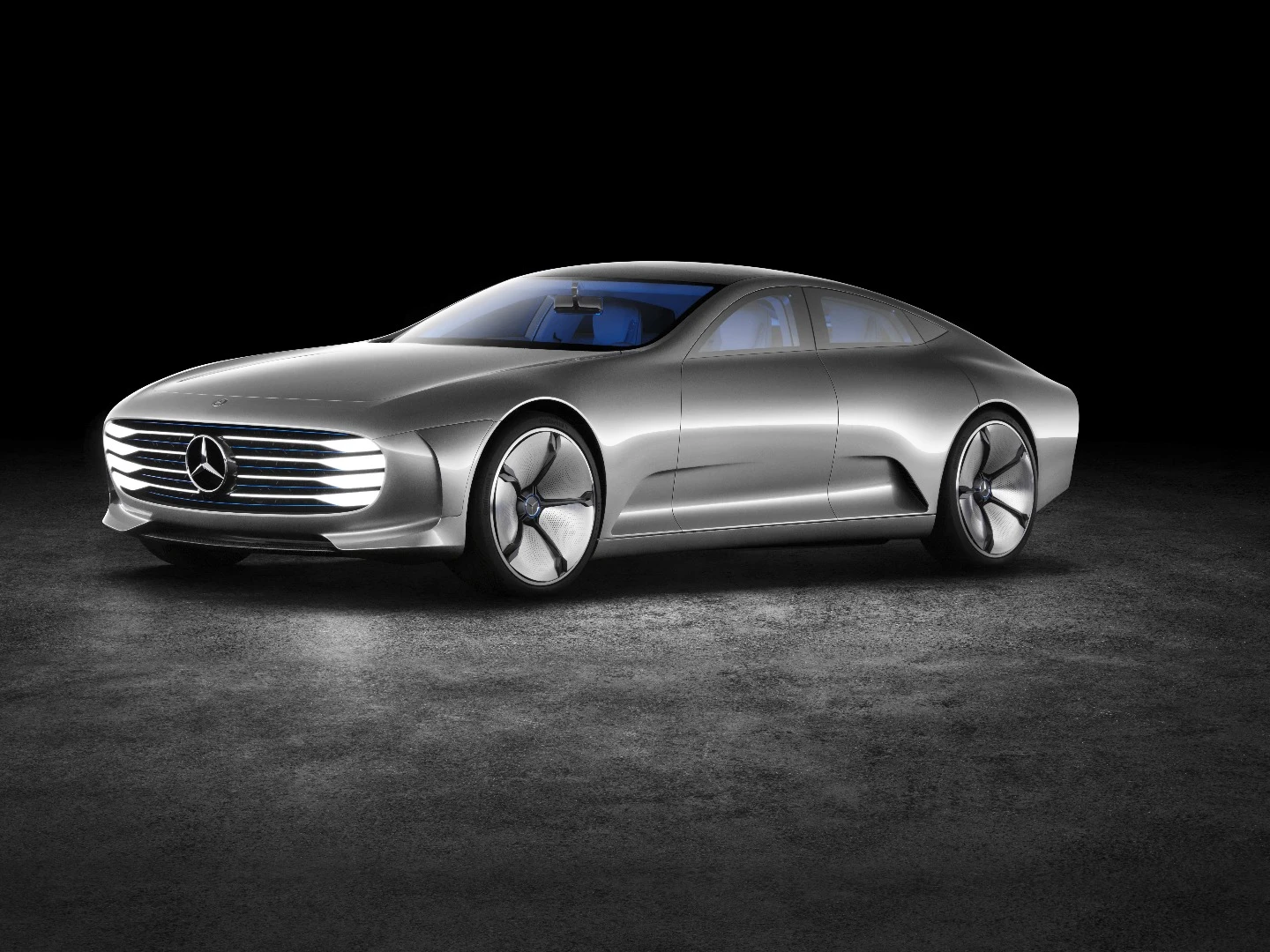

The Concept IAA's fuel economy figures are good, but would be better if the car had been tested at higher speeds
16/39
The Concept IAA's fuel economy figures are good, but would be better if the car had been tested at higher speeds

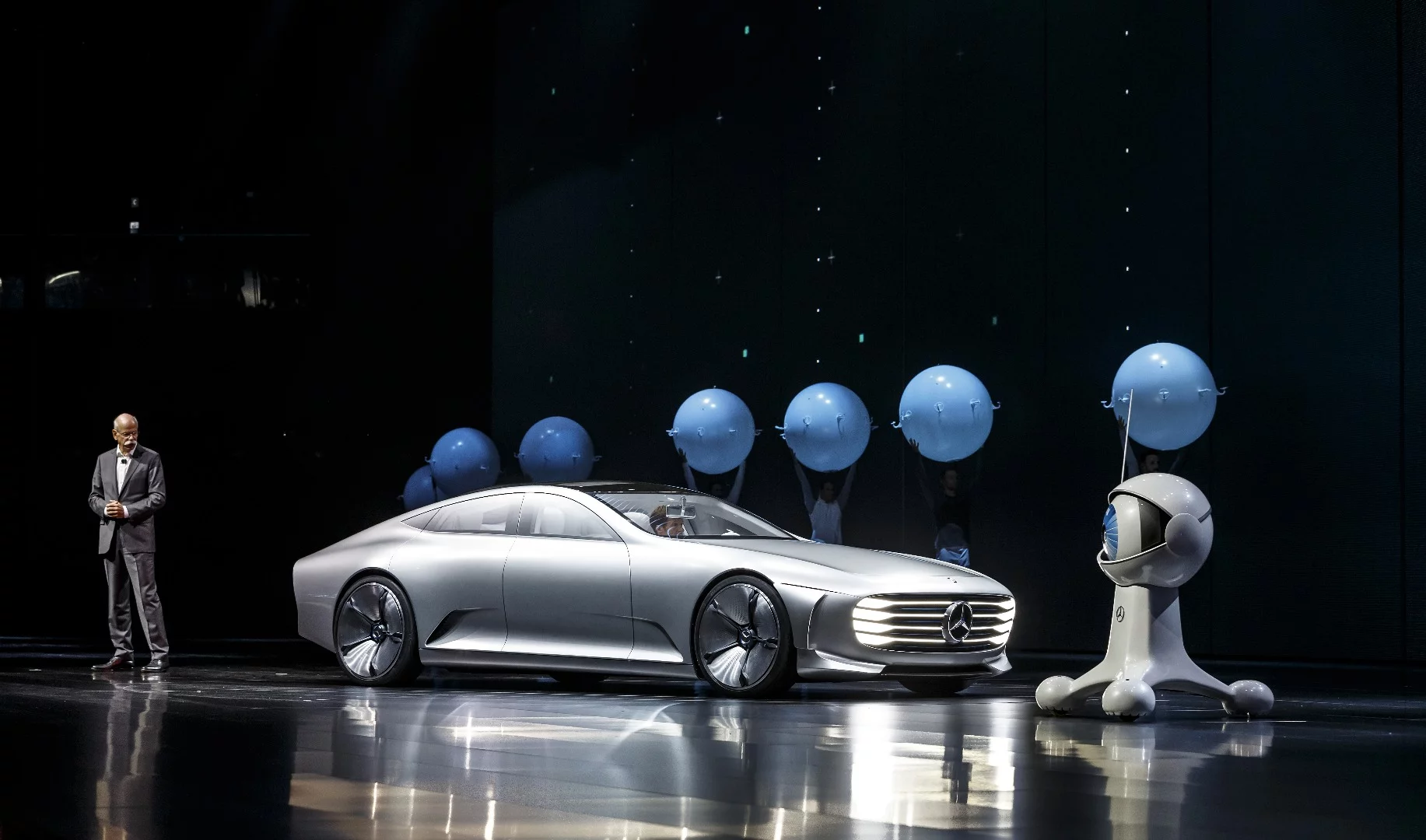

The Concept IAA on display at its launch in Frankfurt
17/39
The Concept IAA on display at its launch in Frankfurt

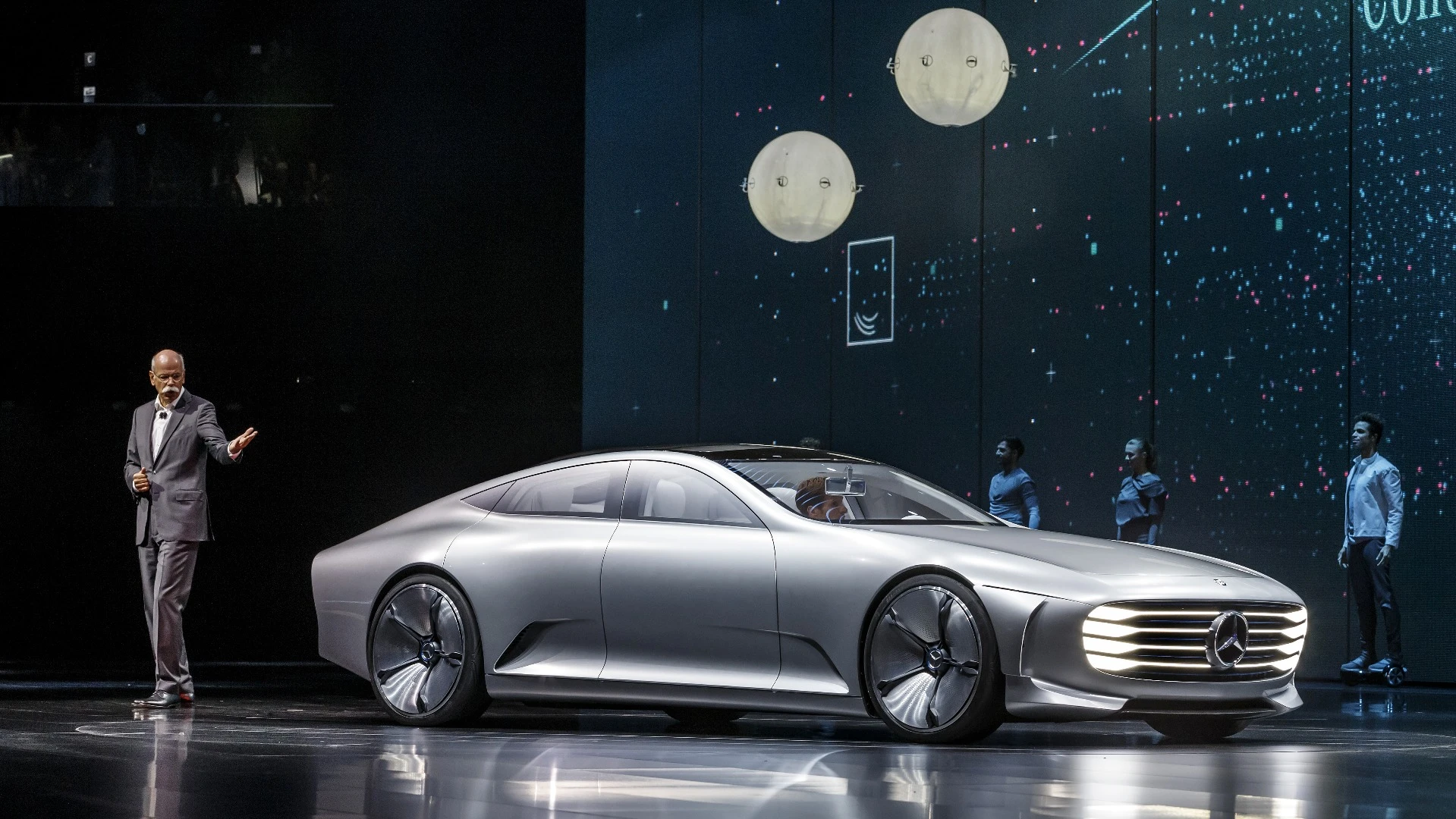

It's long and low like a classic luxury car, but the Concept IAA is hiding a high-tech set of aero tweaks
18/39
It's long and low like a classic luxury car, but the Concept IAA is hiding a high-tech set of aero tweaks

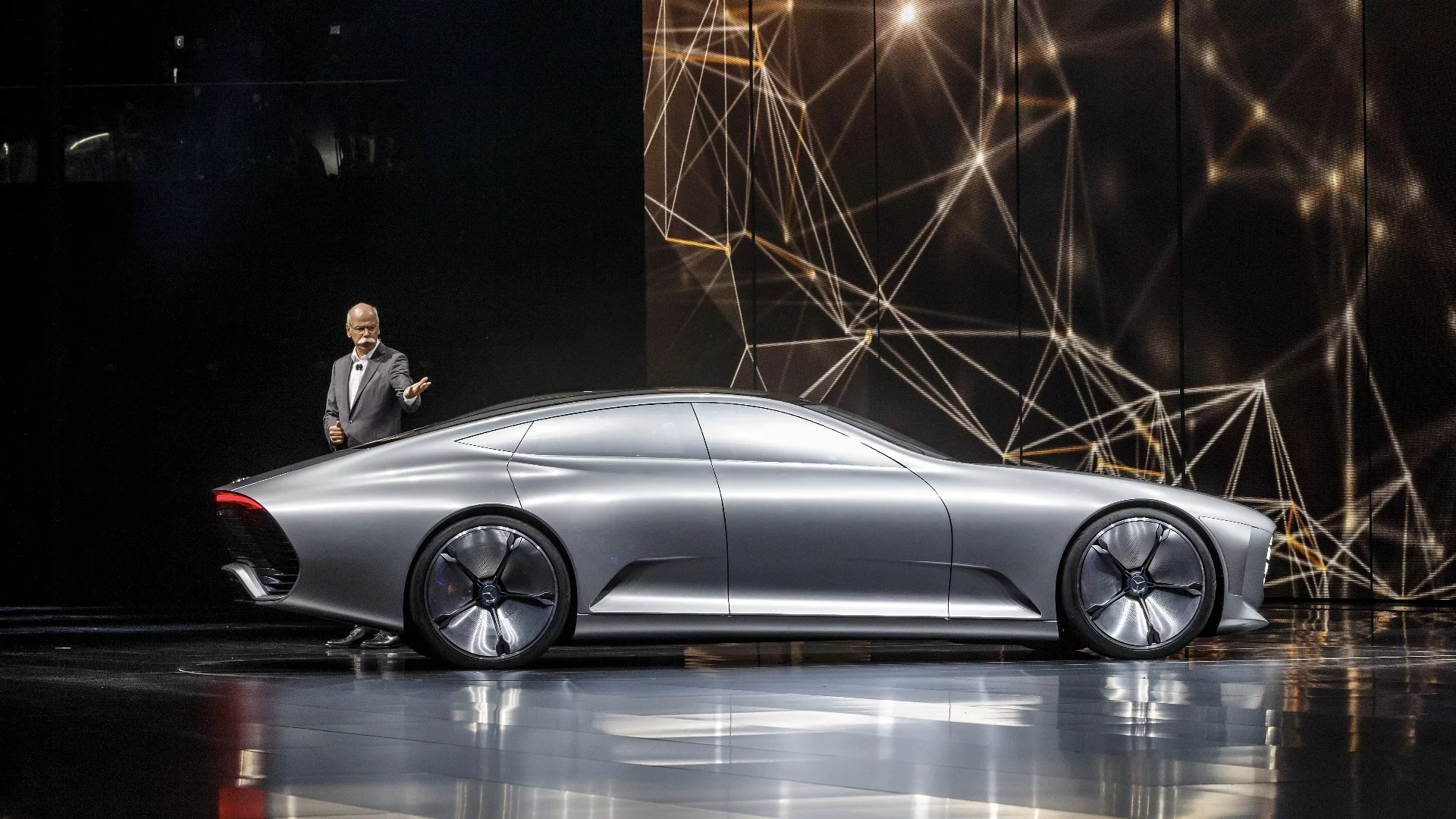

The body-color tint on the windows comes from the F015
19/39
The body-color tint on the windows comes from the F015

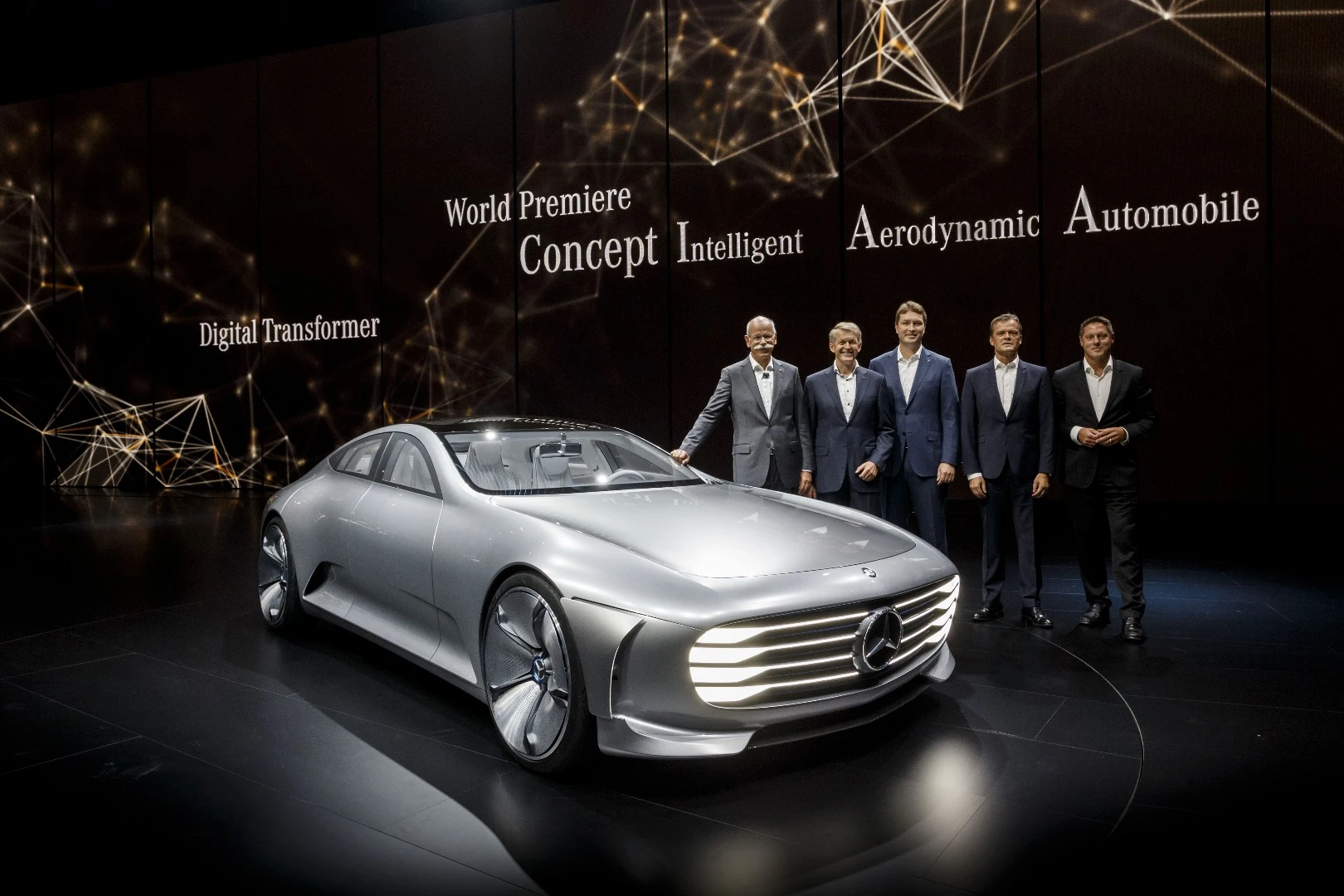

Mercedes hasn't identified where the tech from the IAA will debut, but expect to see more active aerodynamic elements on its cars in future
20/39
Mercedes hasn't identified where the tech from the IAA will debut, but expect to see more active aerodynamic elements on its cars in future

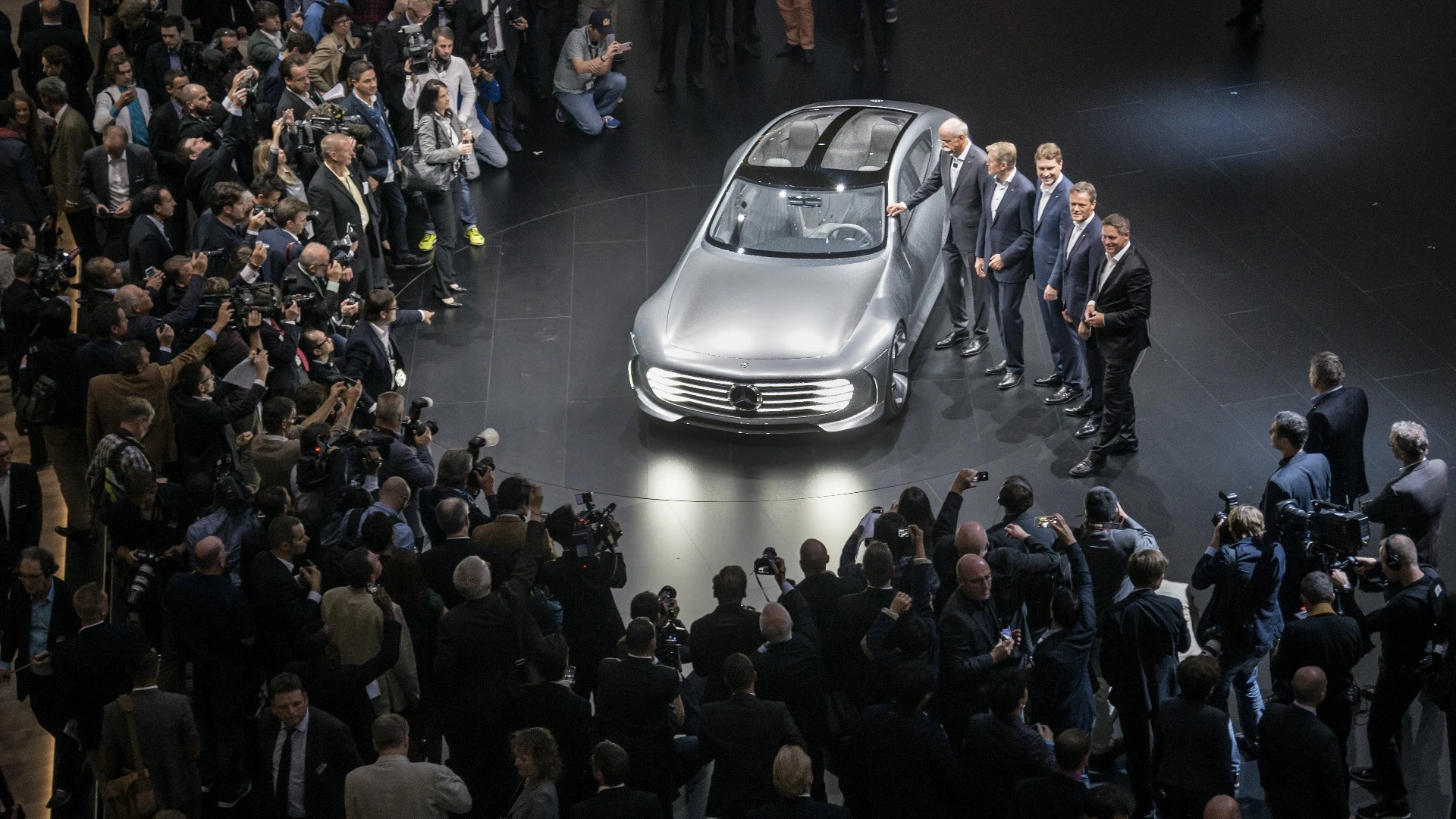

The IAA is finished in the same silver as the F015 from earlier this year
21/39
The IAA is finished in the same silver as the F015 from earlier this year

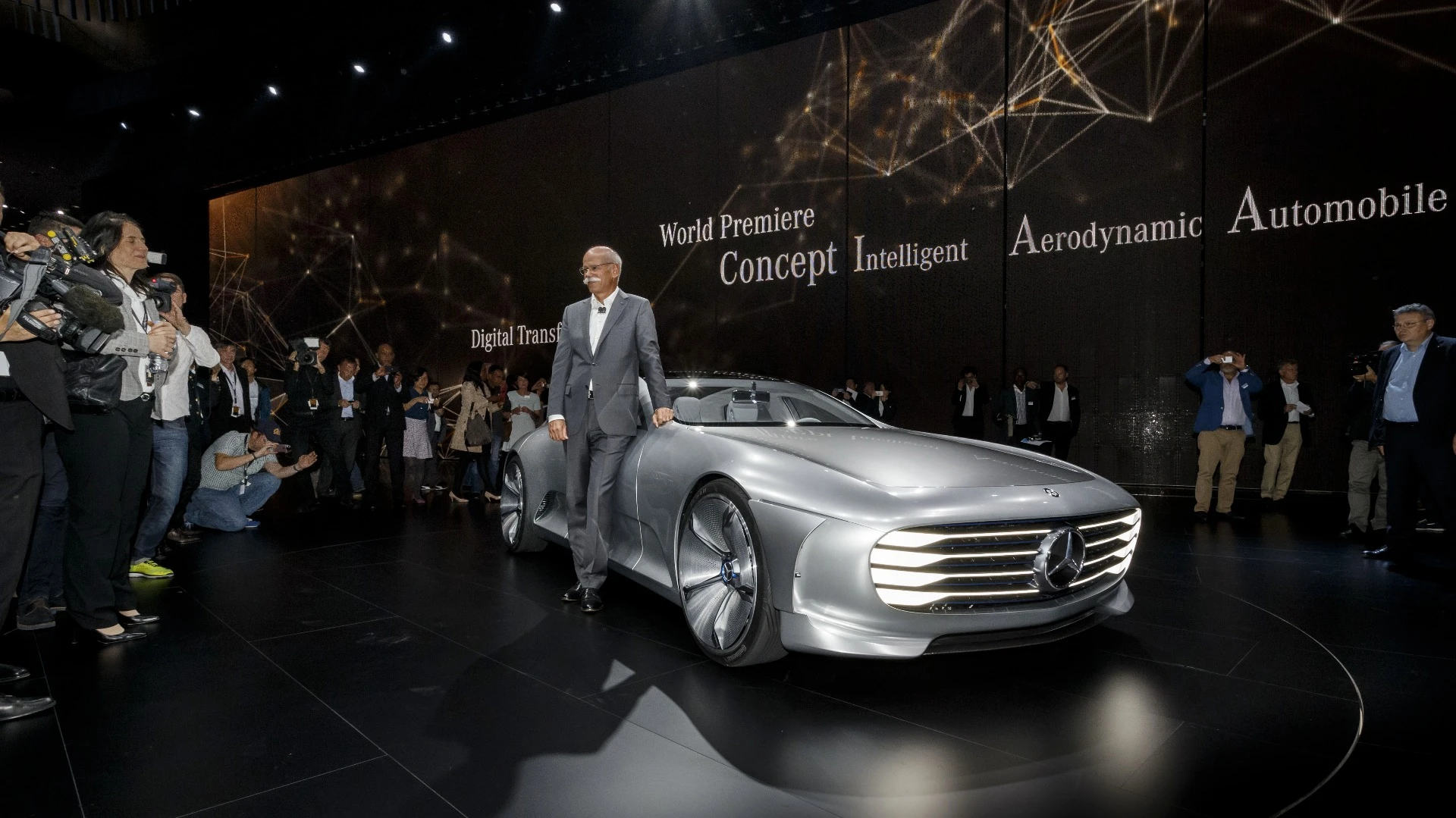

The low, wide grille and neat headlamps give hints as to the styling direction Mercedes will take in the future
22/39
The low, wide grille and neat headlamps give hints as to the styling direction Mercedes will take in the future

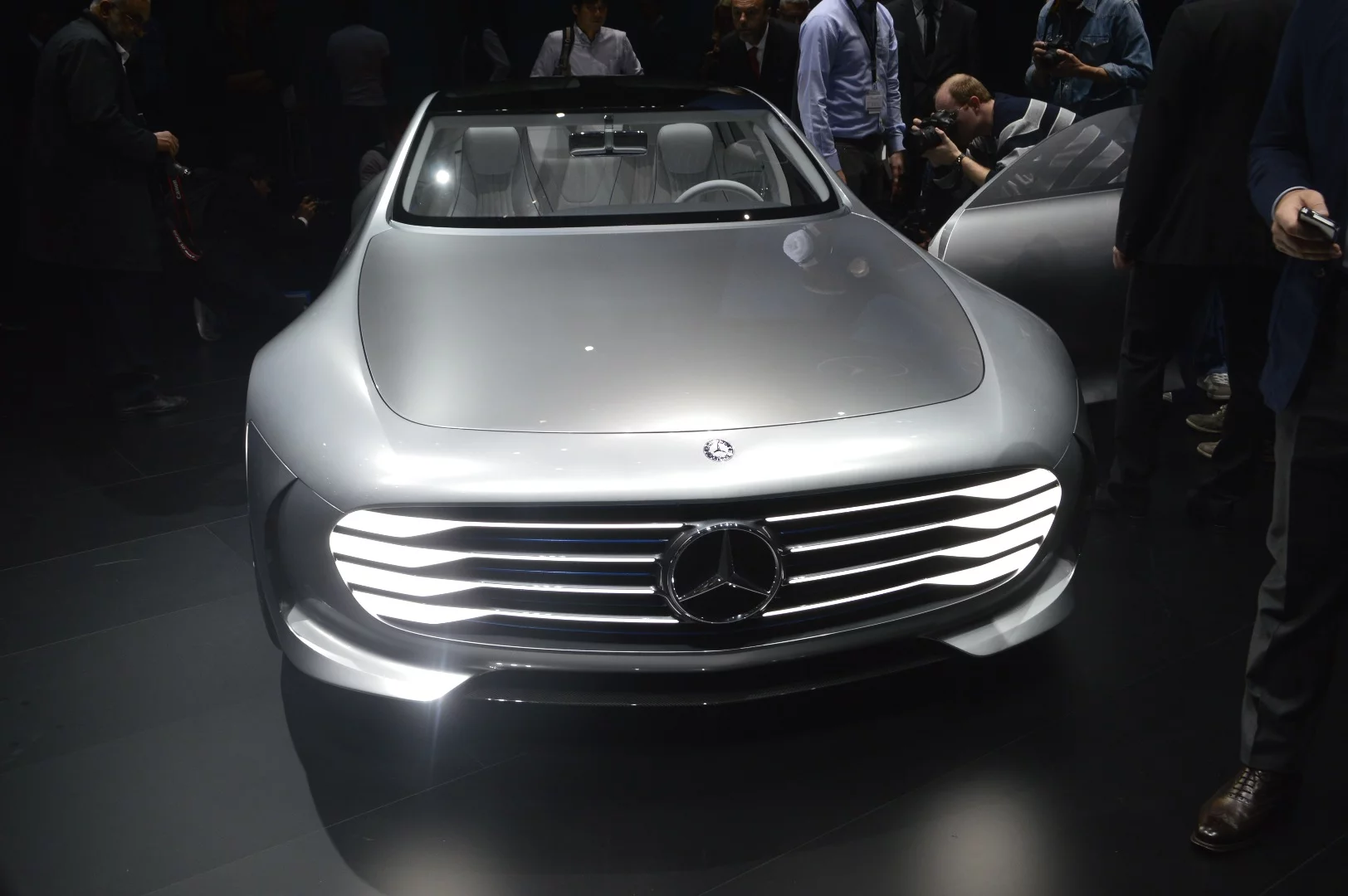

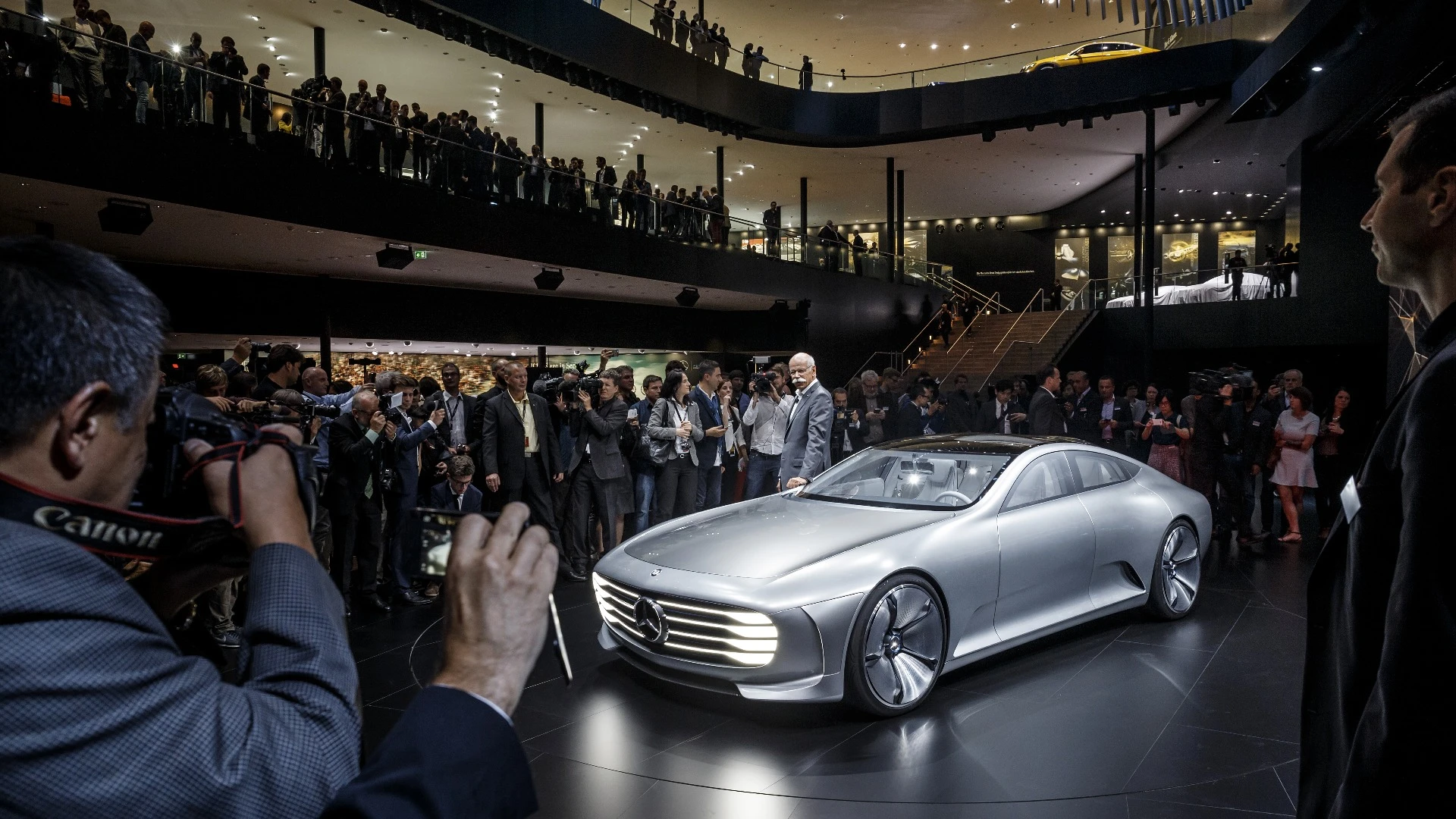

The dish on the car's wheels is style-oriented, and closes up when the rest of the active aerodynamics kick in
23/39
The dish on the car's wheels is style-oriented, and closes up when the rest of the active aerodynamics kick in

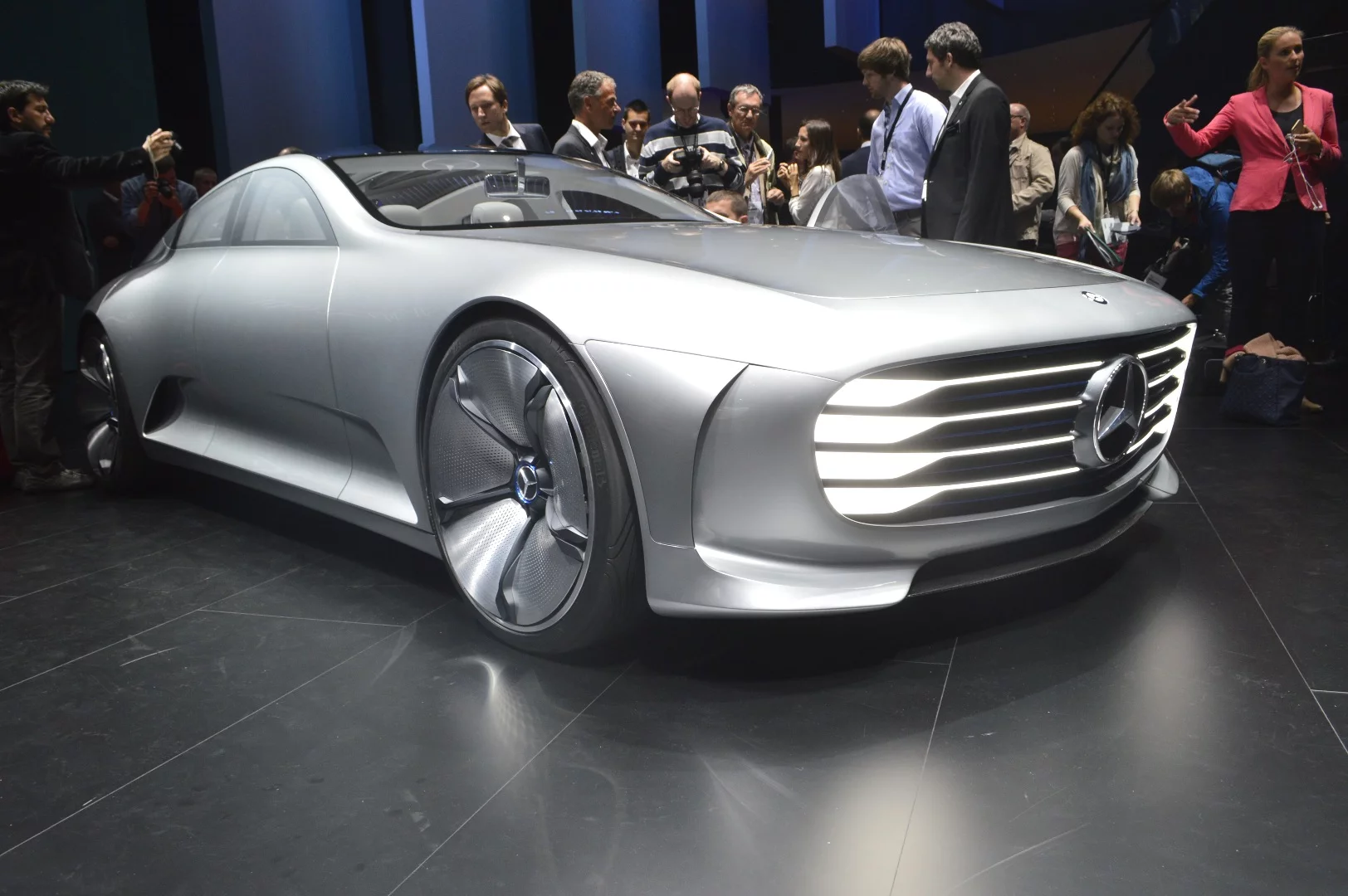

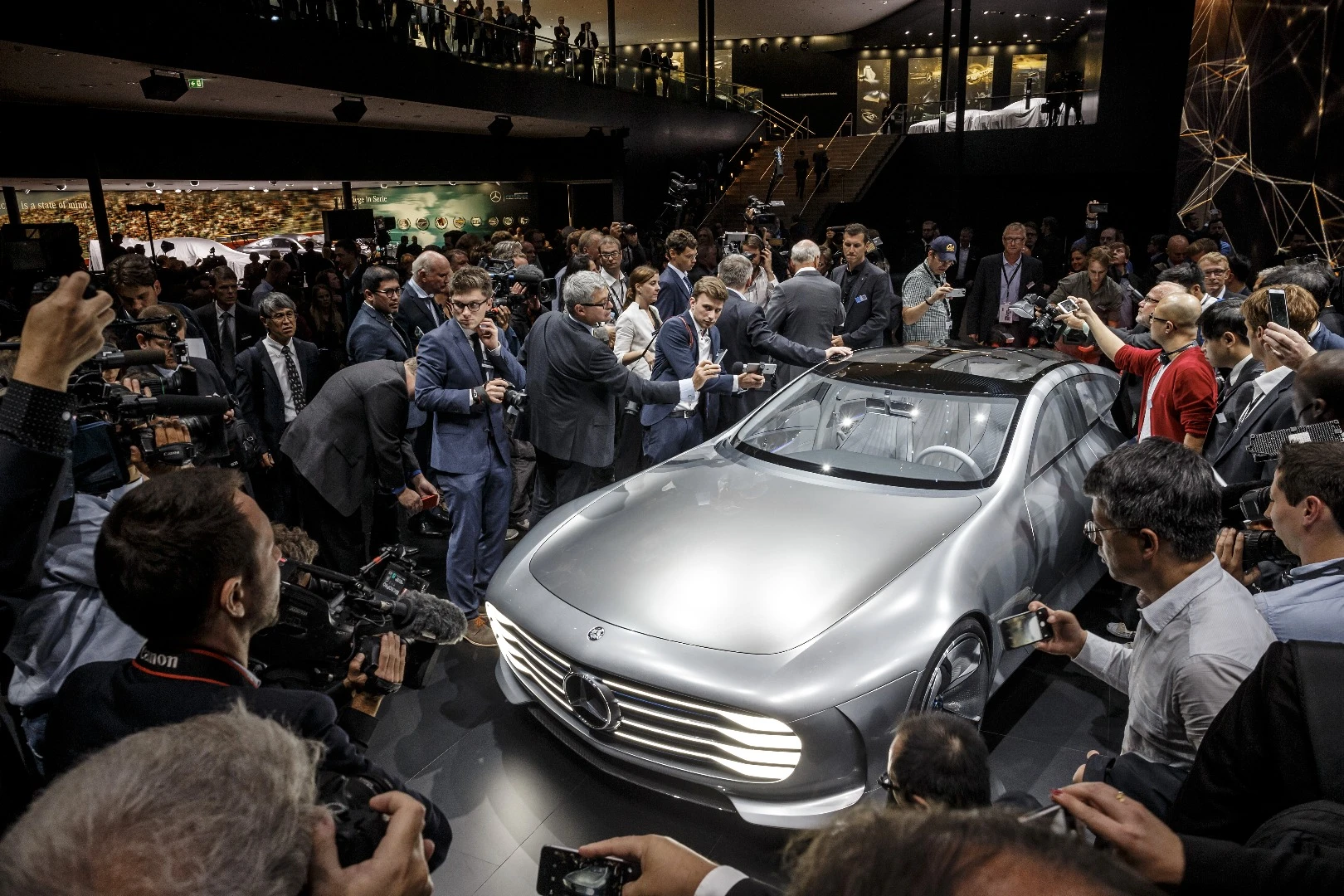

The pointed wheel arches feature front and back
24/39
The pointed wheel arches feature front and back

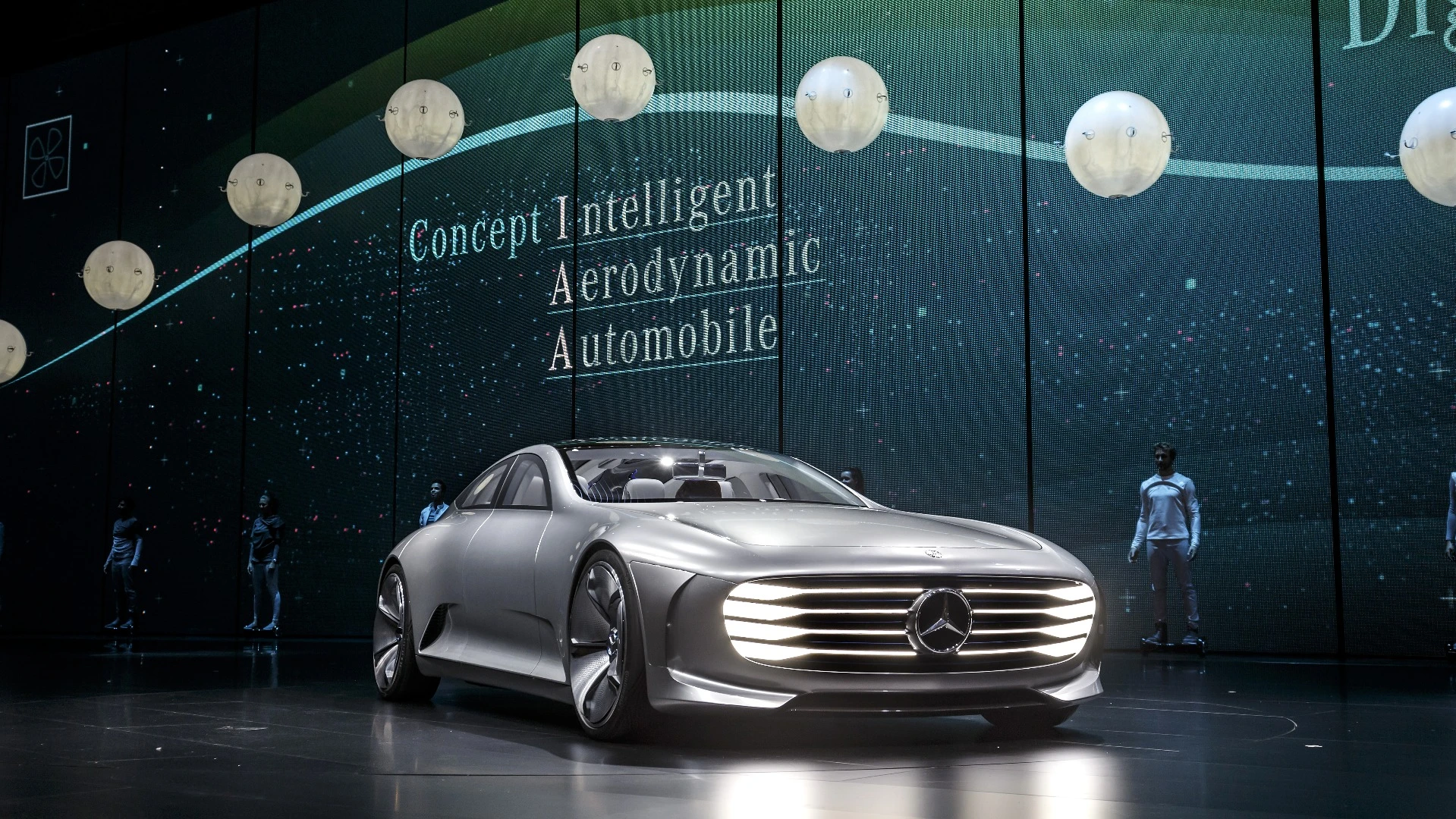

The Concept IAA stands for Intelligent Aerodynamic Automobile
25/39
The Concept IAA stands for Intelligent Aerodynamic Automobile

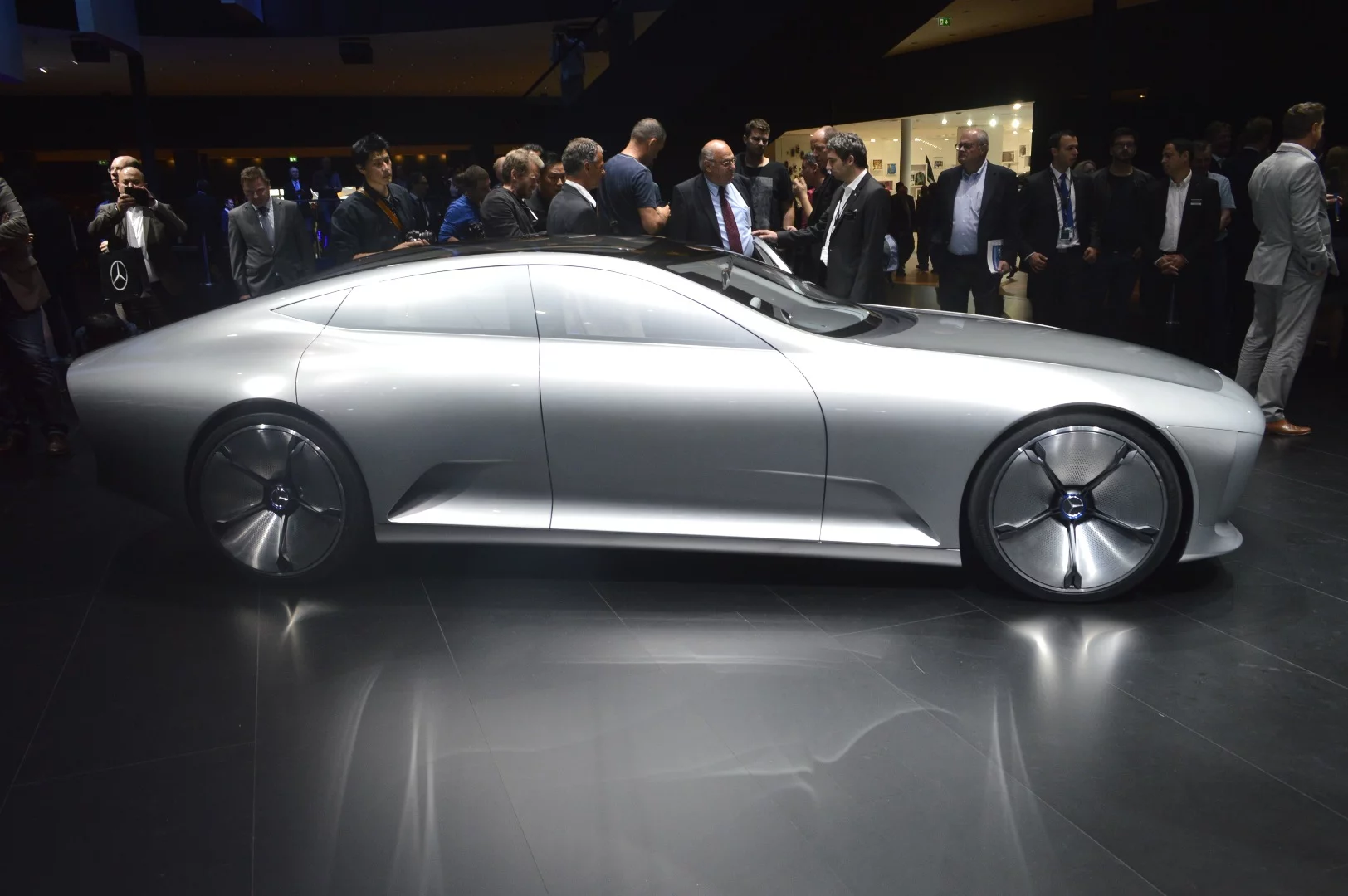

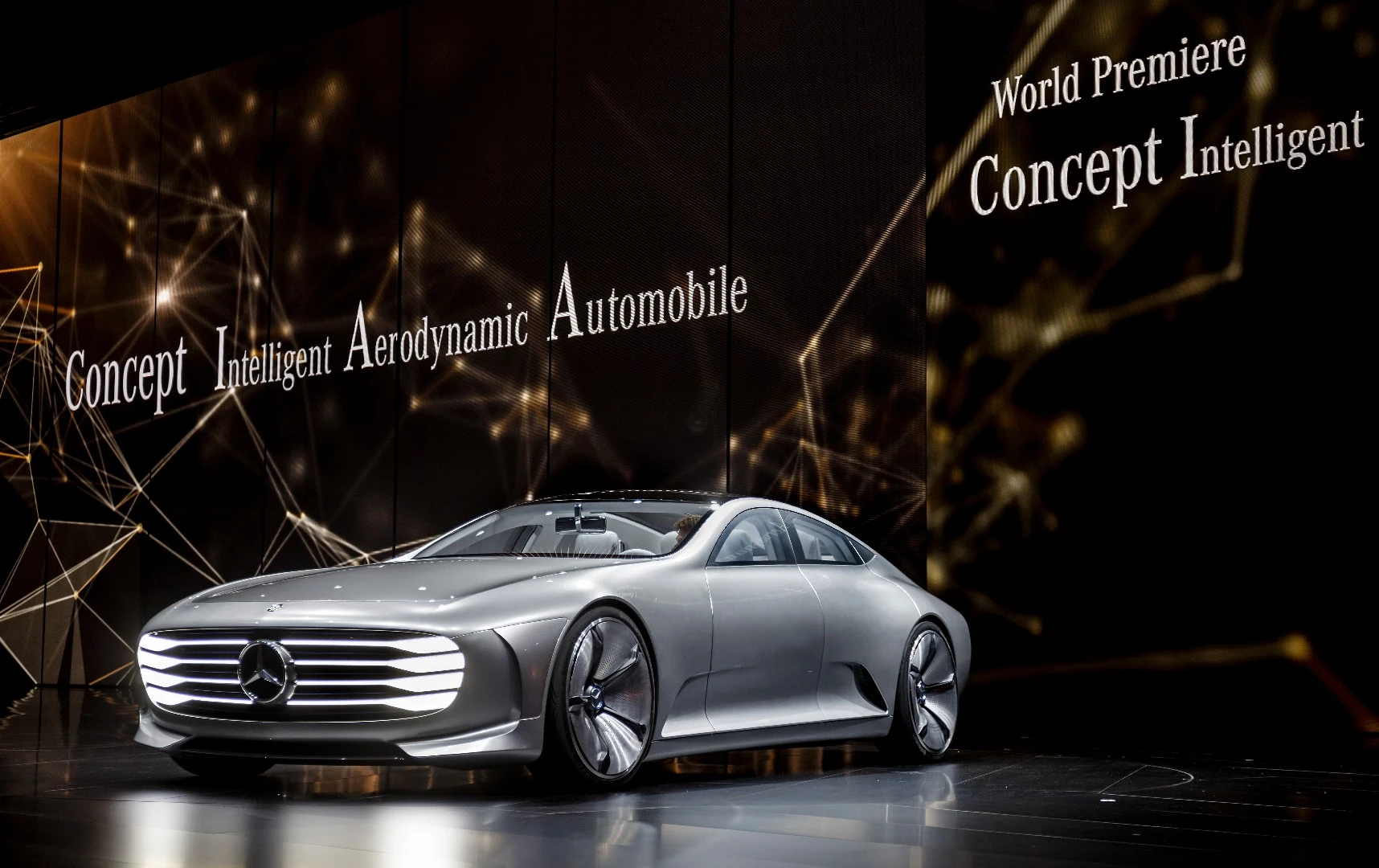

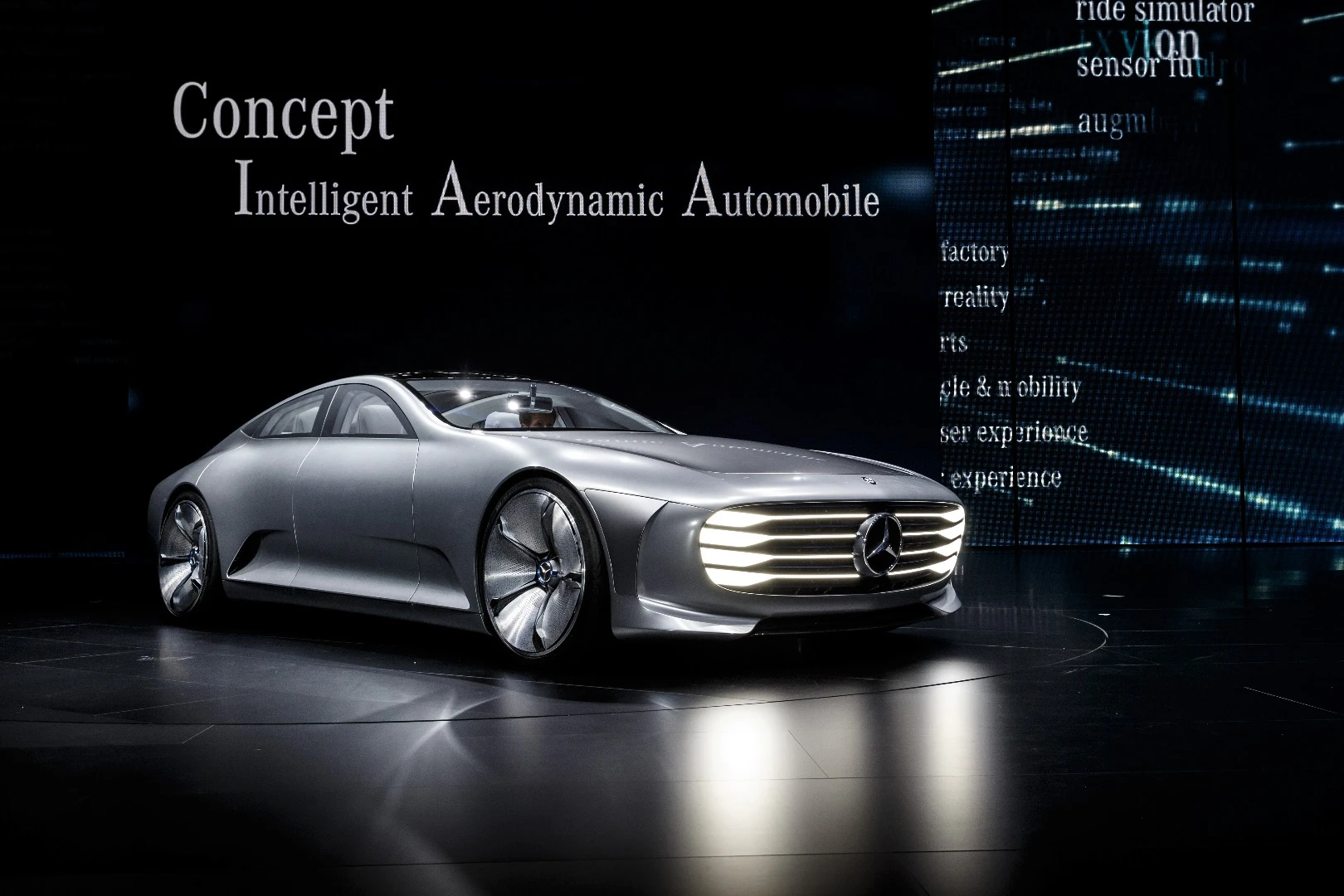

The Concept IAA debuts in Frankfurt
26/39
The Concept IAA debuts in Frankfurt
The Concept IAA debuts in Frankfurt
27/39
The Concept IAA debuts in Frankfurt
As well as the extending tail section, the Concept IAA's wheels and front bumper alter at speed
28/39
As well as the extending tail section, the Concept IAA's wheels and front bumper alter at speed
The dish on the car's wheels is style-oriented, and closes up when the rest of the active aerodynamics kick in
29/39
The dish on the car's wheels is style-oriented, and closes up when the rest of the active aerodynamics kick in
Up front, there's more than just a hint of the F 015 concept
30/39
Up front, there's more than just a hint of the F 015 concept
The Concept IAA debuts in Frankfurt
31/39
The Concept IAA debuts in Frankfurt
The car's sloping rear end is reminiscent of the tail on the CLA or CLS Coupe
32/39
The car's sloping rear end is reminiscent of the tail on the CLA or CLS Coupe
On the move, the wheels flatten out for better aerodynamics
33/39
On the move, the wheels flatten out for better aerodynamics
Pointed wheel arches feature front and back
34/39
Pointed wheel arches feature front and back
With its tail section extended, the Concept IAA is 390 mm longer
35/39
With its tail section extended, the Concept IAA is 390 mm longer
The Concept IAA morphs when in motion to achieve a Cd of 0.19
36/39
The Concept IAA morphs when in motion to achieve a Cd of 0.19
The Mercedes Concept IAA changes its shape depending on how fast the car is moving
37/39
The Mercedes Concept IAA changes its shape depending on how fast the car is moving
Driver controls have been designed to keep your hands on the wheel and eyes on the road
38/39
Driver controls have been designed to keep your hands on the wheel and eyes on the road

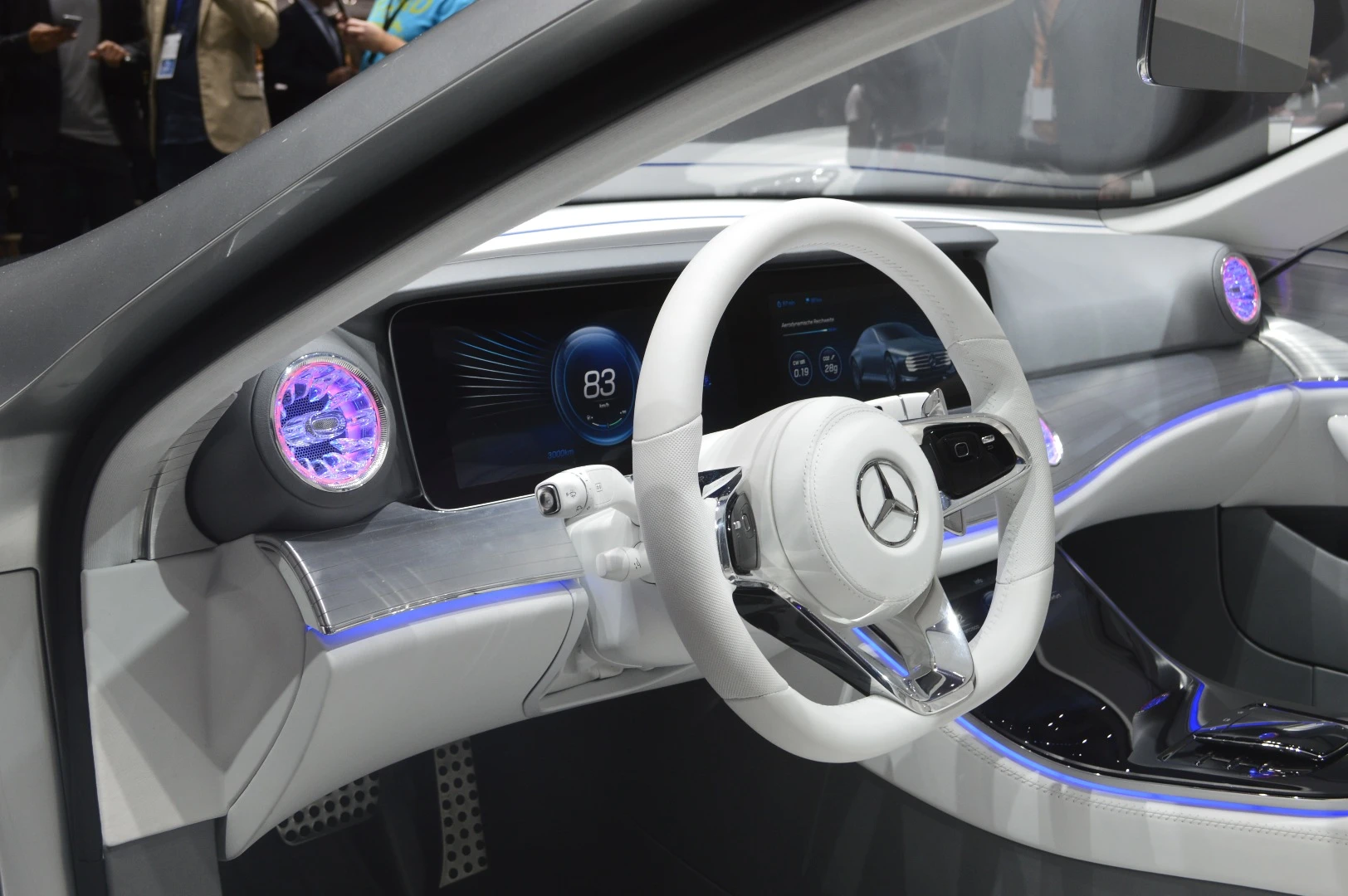

A look inside the Concept IAA
39/39
A look inside the Concept IAA

As emissions standards get tougher, manufacturers are being forced to think outside the box in the quest for better fuel economy. One of the obvious areas to focus on is aerodynamics, where small tweaks can lead to big fuel savings. Shape-shifting designs represent one of the more radical approaches in this area, and Mercedes has taken this to another level with its Concept IAA (Intelligent Aerodynamic Automobile), which changes shape at higher speeds to cut through the air more efficiently.

With its teardrop shape and sleek styling, the Concept IAA – which, appropriately enough, debuted at IAA in Frankfurt – doesn't look all that different to the autonomous F 015 concept unveiled earlier this year – it's only once the car gets going that Mercedes' latest concept sets itself apart.

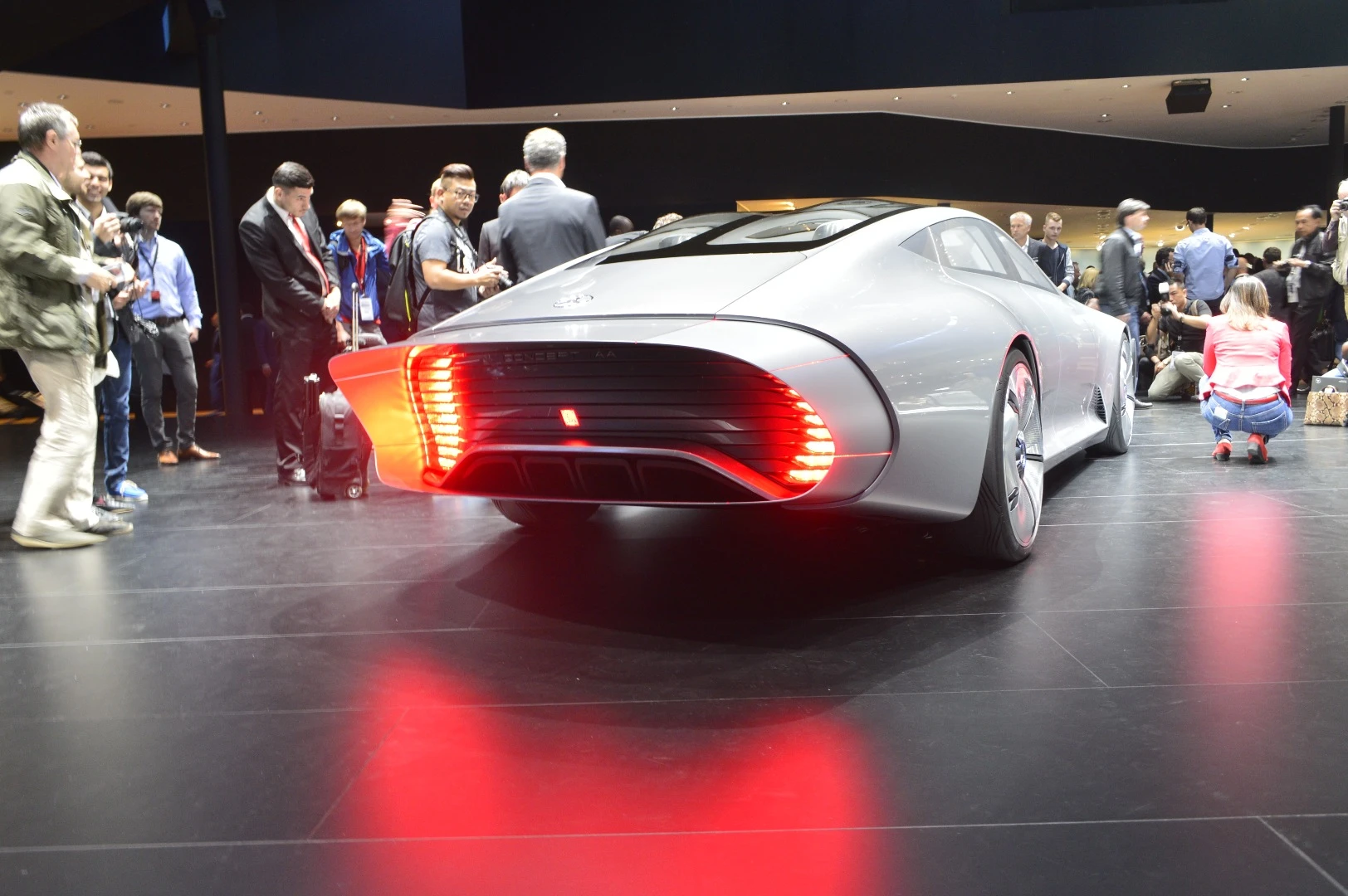

The Mercedes Concept IAA changes its shape depending on how fast the car is moving
The Mercedes Concept IAA changes its shape depending on how fast the car is moving

When the car hits 80 km/h (50 mph), a series of shape-changing alterations take place; eight segments built into the rear of the car extend the tail section by up to 390 mm (15 inches) for a more streamlined profile, while flaps in the front bumper extend by 25 mm (0.98 inches) forwards and 20 mm (0.79 inches) towards the rear of the car, improving airflow around the front wheel arches.

Beyond the front and rear bumpers, the rims go from having a 55 mm (2.17 inch) dish to completely flat, and the louver built into the front bumper moves backwards by 60 mm (2.37 in). So, what does that all mean? Basically, by moving these different parts, Mercedes is able to bring the drag coefficient down from 0.25 to just 0.19. To put that in perspective, Mercedes' own CLA Coupe only manages a drag coefficient of 0.23, as does the bigger Audi A4 with its flat underbody and carefully shaped suspension components.

The Mercedes Concept IAA changes its shape depending on how fast the car is moving
The Mercedes Concept IAA changes its shape depending on how fast the car is moving

Mercedes hasn't quoted fuel economy numbers for the Concept IAA, but with its aero add-ons extended the company says the car emits 3 g/km less CO2 and is able to eke an extra 4 km (2.49 mi) of all-electric range out of its hybrid powertrain.

It's also worth keeping in mind that the benefits of the vehicle's shape-shifting aerodynamics are more dramatic at highway speeds than they are in the low-speed, urban areas that receive a two-thirds weighting in the New European Driving Cycle (NEDC) emissions testing.

As well as offering up a high-tech take on aerodynamics, the Concept IAA previews some of the tech that will feature on next year's E-Class, including a Car-to-X networking system that allows cars to wirelessly warn each other about accidents or potential hazards further along the road.

A look inside the Concept IAA
A look inside the Concept IAA

From the front, the Concept IAA's nose looks like an elongated version of the face on the F015, with horizontal louvers and integrated headlights, while the elongated profile and sharp rear end are exaggerated with the rear-aero section extended. Inside, the concept follows the design line of the S-Class and S-Class Coupé, with the addition of Optical Finger Navigation touchpads on the steering wheel to allow drivers to scroll through menus on the instrument binnacle.

Source: Daimler
