MIT researchers clarify things with new transparent display technology

MIT researchers clarify things...

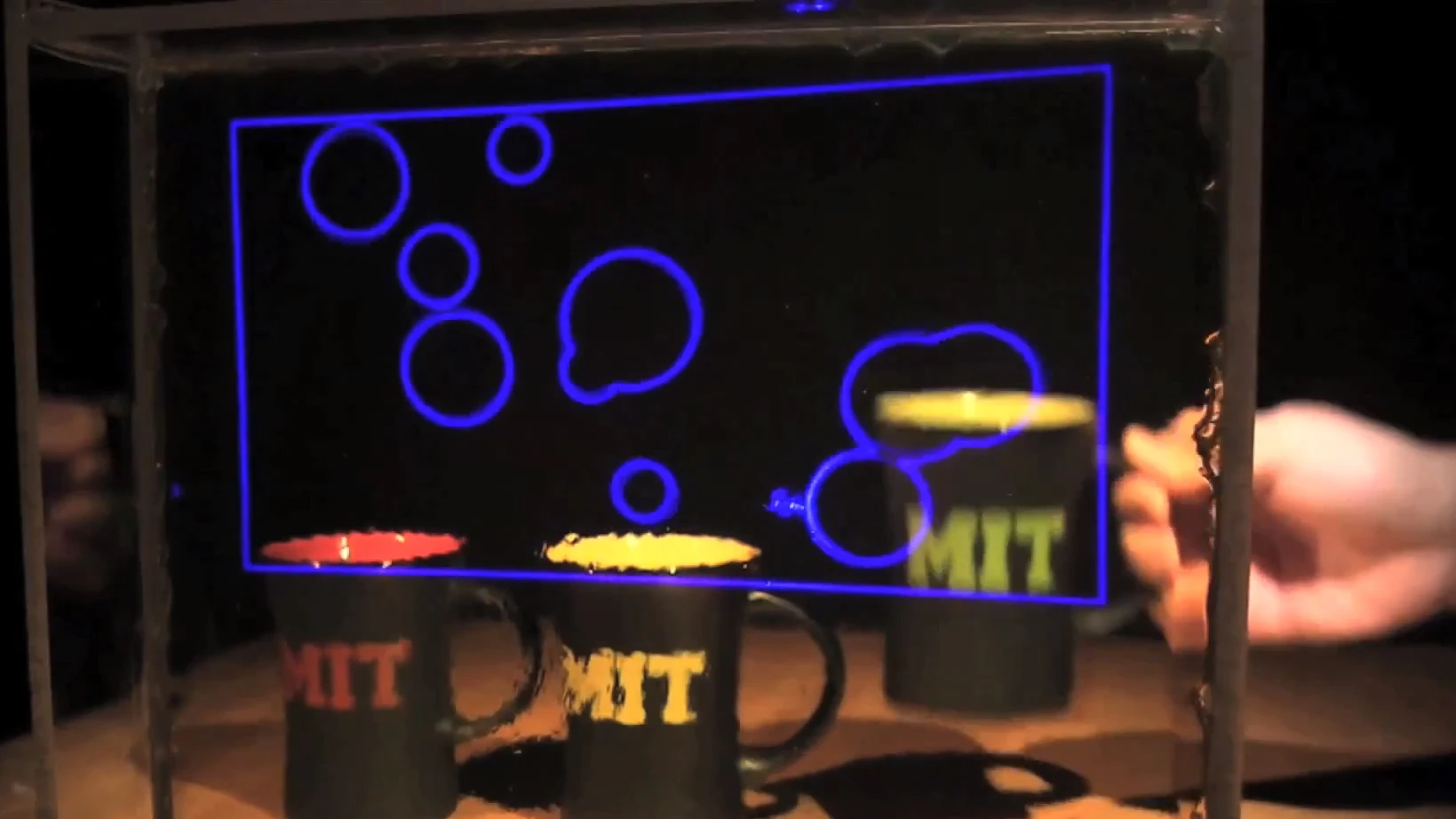

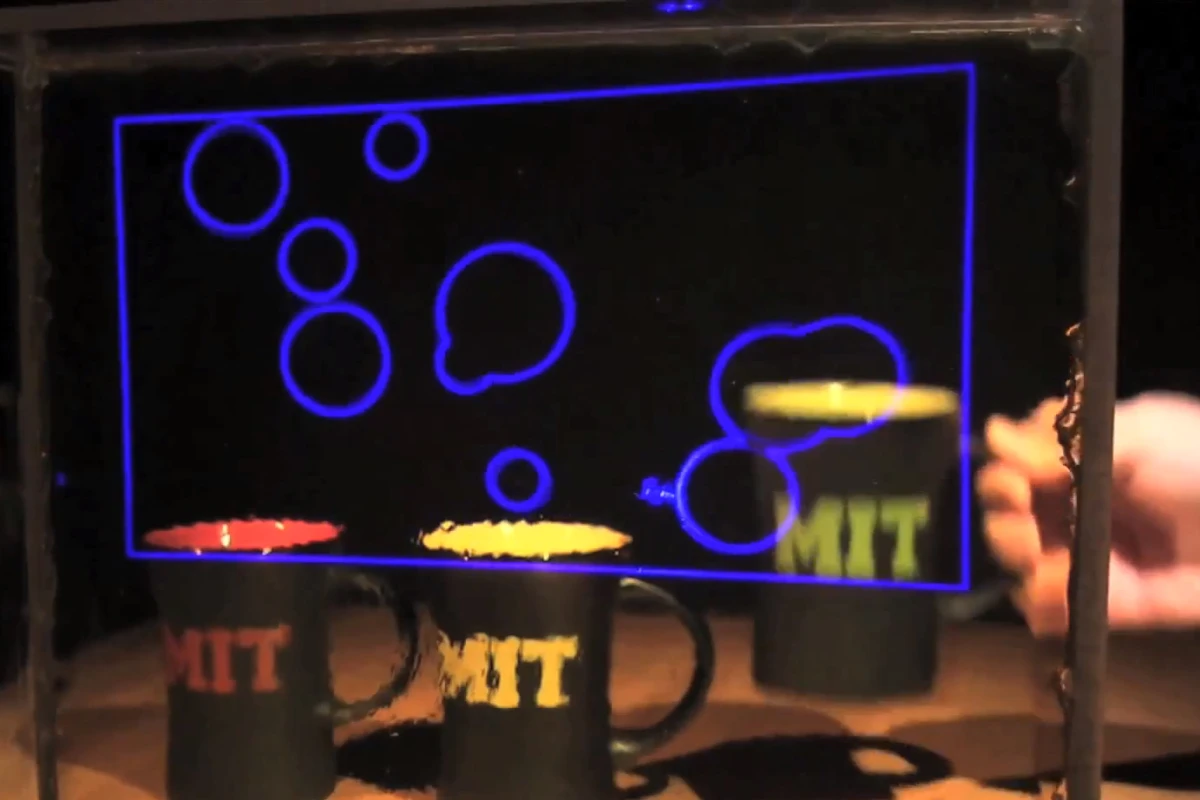

The new transparent display developed at MIT offers a wide viewing angle
The new transparent display developed at MIT offers a wide viewing angle
View 3 Images
The new transparent display developed at MIT offers a wide viewing angle
1/3
The new transparent display developed at MIT offers a wide viewing angle

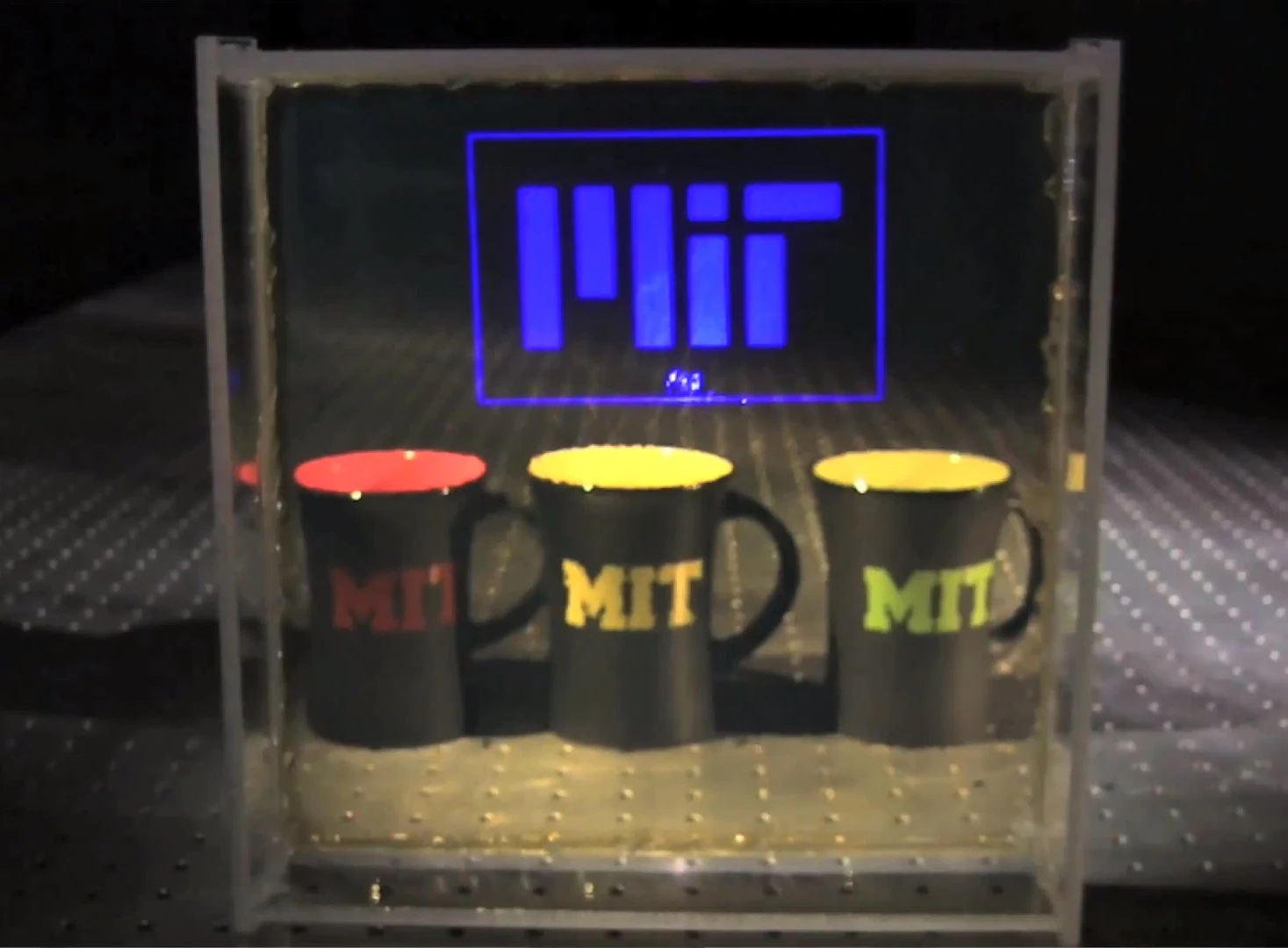

The new transparent display relies on nanoparticles embedded in the transparent material
2/3
The new transparent display relies on nanoparticles embedded in the transparent material

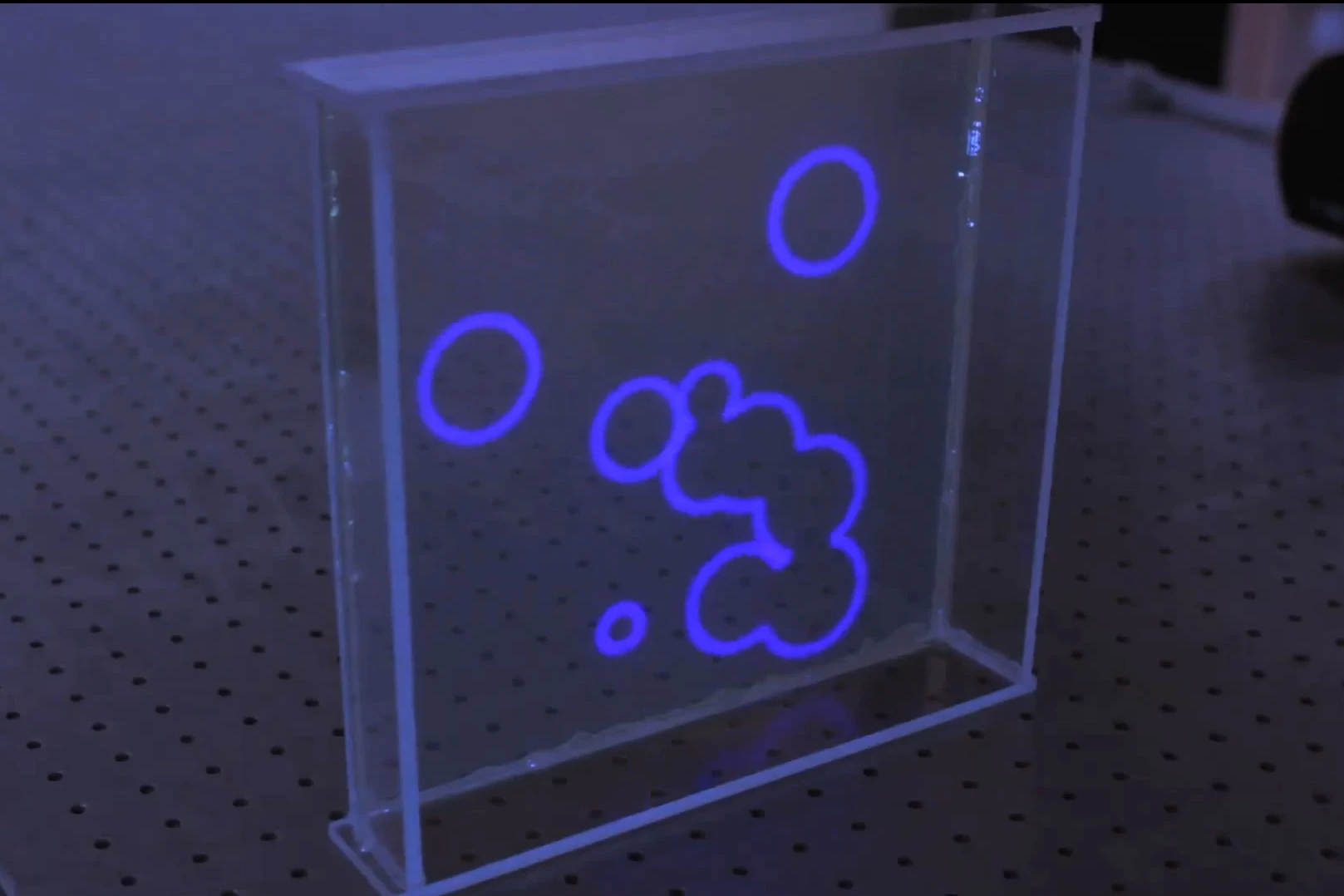

MIT researchers say it should be possible to produce a full color display using nanoparticles tuned to scatter red, green and blue light
3/3
MIT researchers say it should be possible to produce a full color display using nanoparticles tuned to scatter red, green and blue light
View gallery - 3 images

There are a number of approaches currently used to create transparent displays, such as transparent OLED and LCD displays or simple reflection, however, most are limited in terms of viewing angle. Researchers at MIT have come up with a new system that is low-cost and offers a wide angle of view with the projected image appearing on the transparent material itself.

The fact that OLED and LCD transparent displays integrate the necessary electronics directly into the transparent material limits their transparency and makes them complex and expensive. In comparison, the new system developed at MIT embeds only nanoparticles in the transparent material. These nanoparticles are tuned to scatter light of very specific wavelengths, or colors. When this particular wavelength of light is projected onto the display, it is scattered rather than passing through like all other wavelengths.

MIT researchers say it should be possible to produce a full color display using nanoparticles tuned to scatter red, green and blue light
MIT researchers say it should be possible to produce a full color display using nanoparticles tuned to scatter red, green and blue light

The MIT team has demonstrated a proof-of-concept system using commercially-available silver nanoparticles. These measure about 60 nanometers across and scatter blue light, resulting in a display capable of producing a blue image. However, the researchers say it should be possible to produce a full color display using nanoparticles tuned to scatter red, green and blue light. Because the nanoparticles are tuned to very specific wavelengths, most light would still pass through freely, including the red, green and blue hues not of the precise wavelength targeted by the nanoparticles.

Advertising on store windows or subway cars and HUDs on car windshields are just some of the potential applications envisaged by the team for the technology. Because the display material holds no electronics itself, the system has the potential to be cheap to produce. The team says existing windows or windshields would not even have to be replaced as the nanoparticles could be incorporated into a thin, inexpensive plastic coating that could be applied to a transparent surface, much like window tinting.

The transparent display technology is detailed in a paper published in the journal Nature Communications. It can be seen in action in the video below.

Source: MIT
