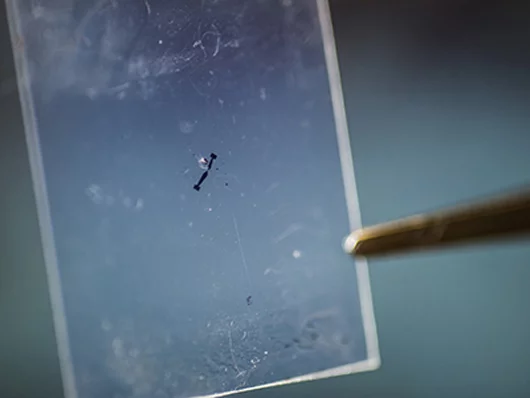

A sample of the MoS2 material that could be the basis for piezoelectric devices that are optically transparent, very light, and extremely bendable and stretchable (Photo: Rob Felt)
5/5
A sample of the MoS2 material that could be the basis for piezoelectric devices that are optically transparent, very light, and extremely bendable and stretchable (Photo: Rob Felt)

Researchers from Columbia University and the Georgia Institute of Technology are laying claim to having observed piezoelectricity in an atomically thin material for the first time. The effect was demonstrated in the world's thinnest electric generator made from a two-dimensional molybdenum disulfide (MoS2) material, which had previously been predicted to exhibit such properties.

Co-leader of the research, Zhong Lin Wang, has previously been involved in developing the world's first practical piezoelectric nanogenerator, followed by the first self-powered nanodevice with wireless data transmission, and a low-cost, large-scale nanogenerator. Now, with colleagues including fellow co-leader James Hone, Wang has been involved in developing the world's thinnest electric generator.

The device was created by placing thin layers of MoS2, a material made up of a single layer of atoms, on flexible plastic substrates and using optical techniques to determine how the material's crystal lattices were oriented. This process is required because MoS2's crystalline structure makes the material piezoelectric only in certain orientations. It is also highly polar, meaning that an odd number of atomic layers are needed to ensure the piezoelectric effect isn't canceled out.

Metal electrodes were then patterned onto the flakes and the current flows as the samples were mechanically deformed were measured. Confirming theoretical predictions published last year, the team found that the output voltage reversed sign when the direction of applied strain was changed, with the voltage disappearing entirely in samples with an even number of layers.

"What’s really interesting is we’ve now found that a material like MoS2, which is not piezoelectric in bulk form, can become piezoelectric when it is thinned down to a single atomic layer," says Lei Wang, a postdoctoral fellow in Hone’s group. This is because bulk MoS2 is made up of successive layers that are oriented in opposite directions, thereby generating positive and negative voltages that cancel each other out.

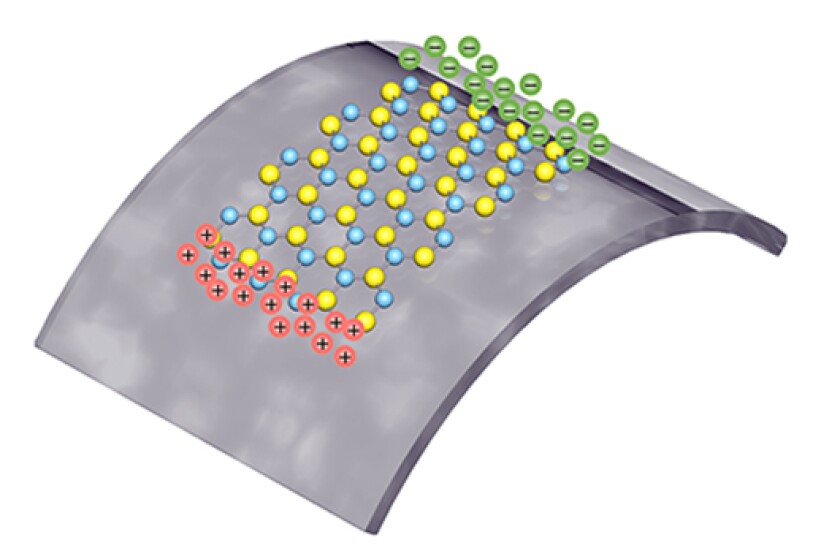

Positive and negative polarized charges are squeezed from a single layer of atoms, as it is being stretched (Photo: Lei Wang/Columbia Engineering)
Positive and negative polarized charges are squeezed from a single layer of atoms, as it is being stretched (Photo: Lei Wang/Columbia Engineering)

According to team's study, a single monolayer flake of MoS2 strained by 0.53 percent generates a peak output of 15 mV and 20 pA, corresponding to a power density of 2 mW m-2 and a mechanical-to-electrical energy conversion efficiency of 5.08 percent.

"This material – just a single layer of atoms – could be made as a wearable device, perhaps integrated into clothing, to convert energy from your body movement to electricity and power wearable sensors or medical devices, or perhaps supply enough energy to charge your cell phone in your pocket,” says Hone or the material, which is also transparent, extremely light and bendable and stretchable.

And because the piezoelectric effect is a two way street, with stretching or compressing piezoelectric materials generating an electrical voltage or, conversely, applying a voltage causing the material to expand or contract, the technology could also be used in new types of mechanically controlled electronic devices. Wang says the research could ultimately lead to complete atomic-thick nanosystems that harvest mechanical energy from the environment to fulfill all their power requirements.

The team's study appears in the journal Nature.

Sources: Columbia Engineering, Georgia Tech
