In pictures: The 2014 North American Handmade Bicycle Show

In pictures: The 2014 North American Handmade Bicycle Show
NAHBS 2014 featured over 150 exhibitors from around the world
NAHBS 2014 featured over 150 exhibitors from around the world
View 80 Images
A wide view of the trade show floor – or some of it, at least
1/80
A wide view of the trade show floor – or some of it, at least

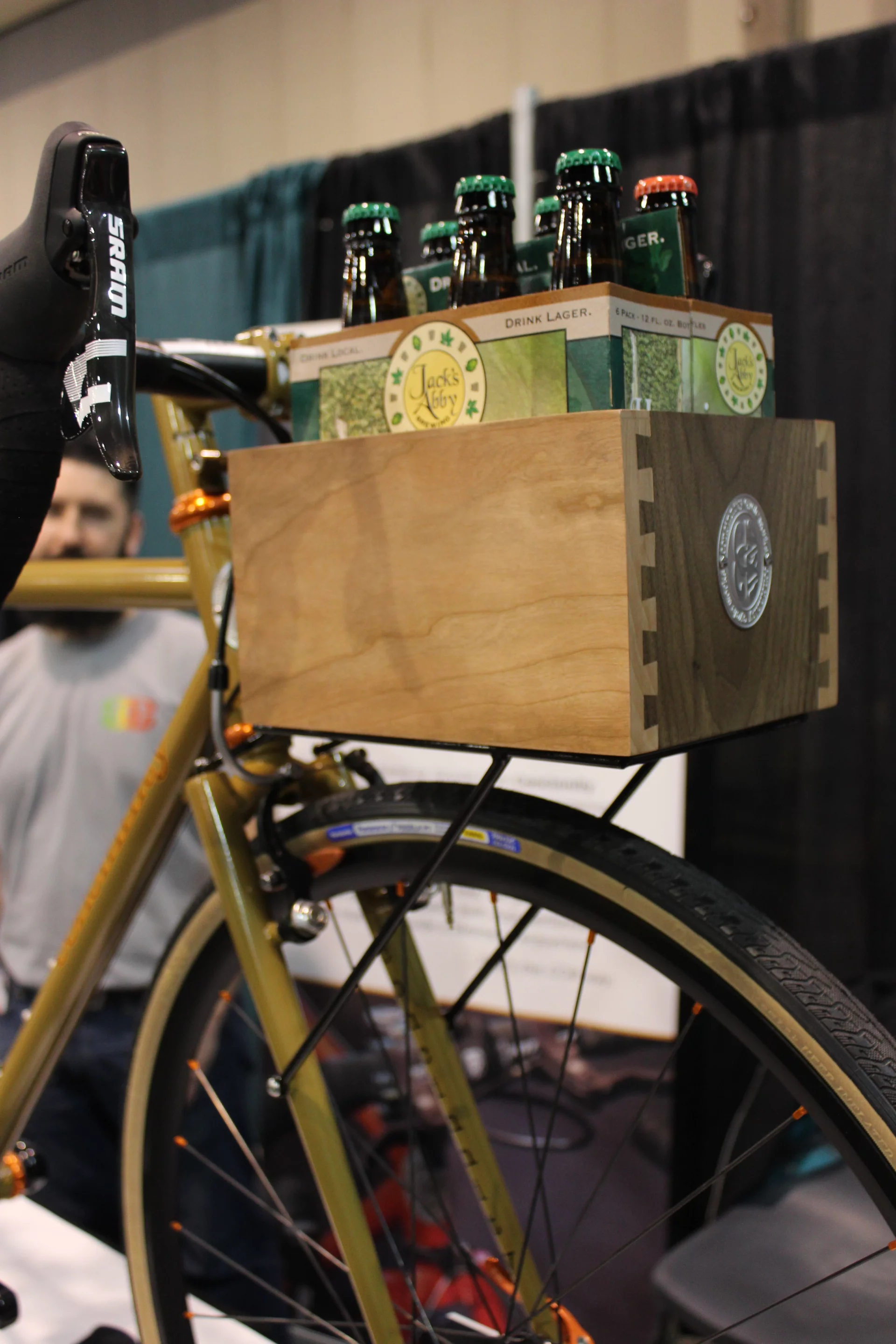

This Rymer cyclocross bike from Concinnity Cycleworks features a dovetailed six-pack-carrying box, made from reclaimed walnut and cherry wood
2/80
This Rymer cyclocross bike from Concinnity Cycleworks features a dovetailed six-pack-carrying box, made from reclaimed walnut and cherry wood

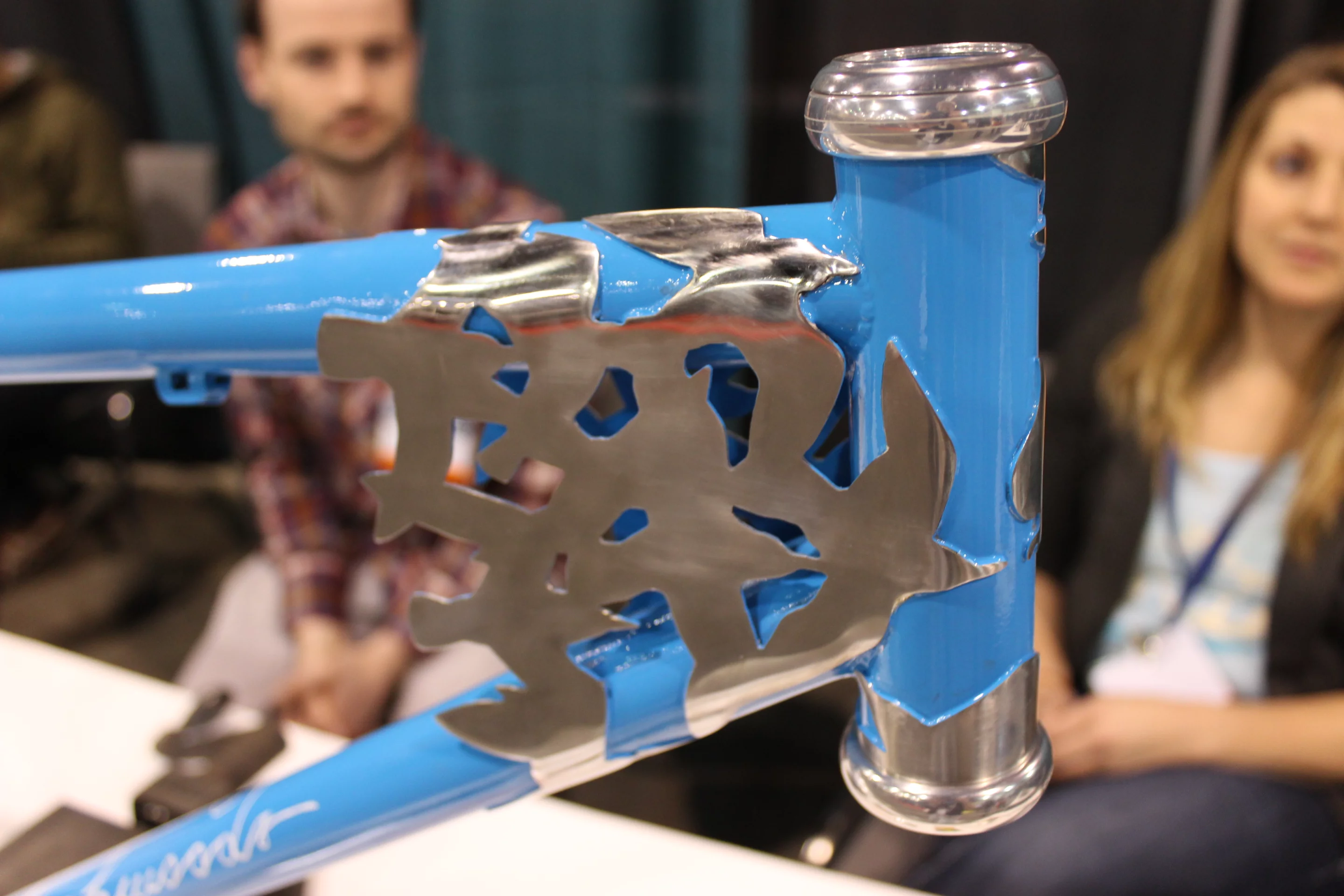

This frame from Backwoods Engineering sports stainless steel seagulls at the front, which look pretty but also add strength
3/80
This frame from Backwoods Engineering sports stainless steel seagulls at the front, which look pretty but also add strength

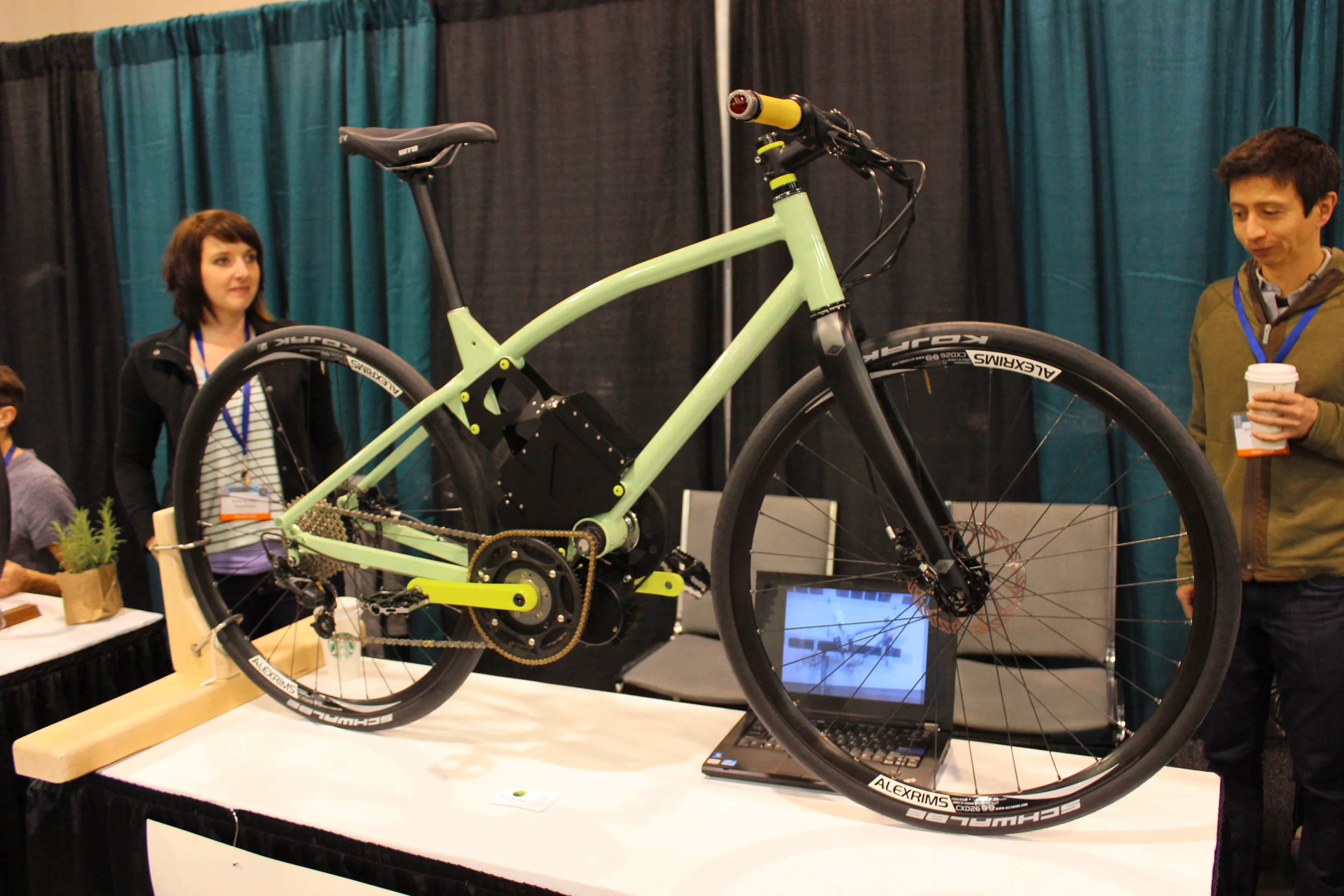

Green Pea Bikes was showcasing this prototype electric-assist bike, that can reportedly travel around 25-30 miles (40-48 km) per charge at about 25 mph
4/80
Green Pea Bikes was showcasing this prototype electric-assist bike, that can reportedly travel around 25-30 miles (40-48 km) per charge at about 25 mph
A closer look at the Green Pea e-bike's two-stage reduction drive train
5/80
A closer look at the Green Pea e-bike's two-stage reduction drive train
The Mobius criterium racing bike from Airtight Cycles features offset seat stays, which are said to keep the frame rigid by minimizing rear-end flexing
6/80
The Mobius criterium racing bike from Airtight Cycles features offset seat stays, which are said to keep the frame rigid by minimizing rear-end flexing
The vent in the bottom bracket of this Zukas Cycles bike lets water drain out of the frame, but a screen keeps road debris from getting inside
7/80
The vent in the bottom bracket of this Zukas Cycles bike lets water drain out of the frame, but a screen keeps road debris from getting inside
Peacock Groove was showcasing this awesomely-painted cargo bike
8/80
Peacock Groove was showcasing this awesomely-painted cargo bike

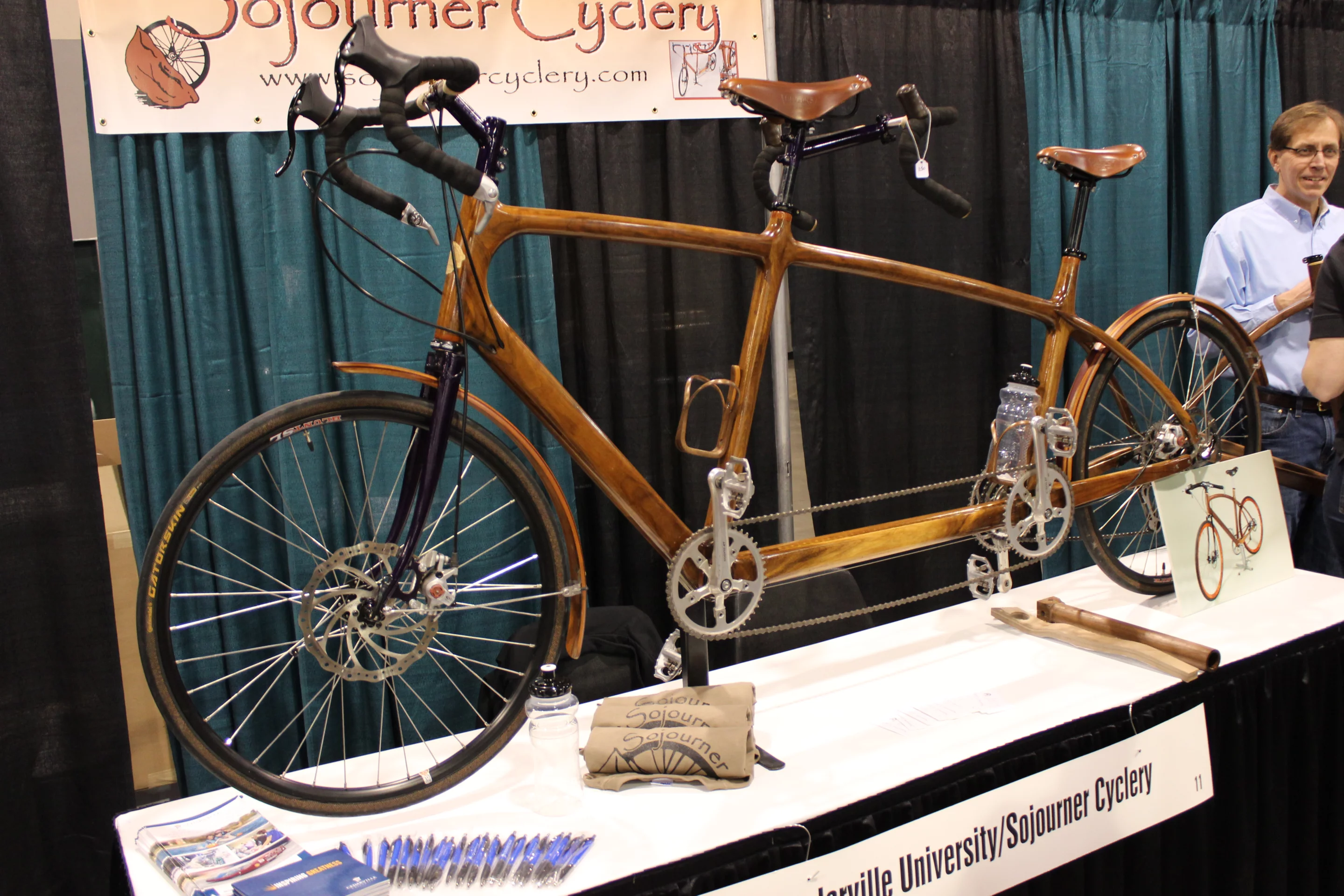

This black walnut beauty, made by Sojourner Cyclery, is one of the world's few wooden tandems
9/80
This black walnut beauty, made by Sojourner Cyclery, is one of the world's few wooden tandems
Due to its hollow construction, the whole bike weighs just 39 lb (17.7 kg)
10/80
Due to its hollow construction, the whole bike weighs just 39 lb (17.7 kg)

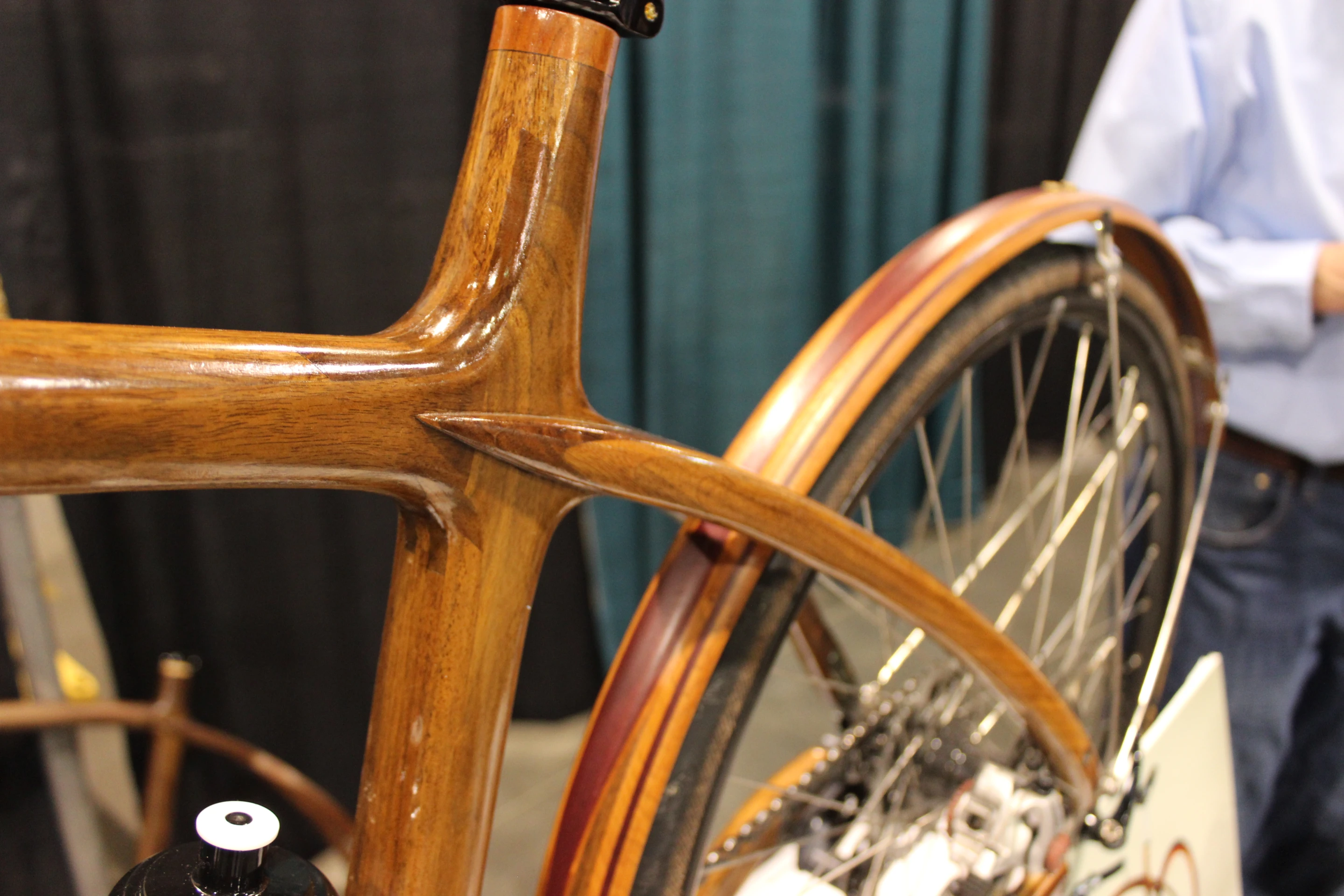

The wood is treated with gun stock oil, so scratches can be covered by just applying more oil – although that also means the whole frame must be periodically re-oiled
11/80
The wood is treated with gun stock oil, so scratches can be covered by just applying more oil – although that also means the whole frame must be periodically re-oiled
This wooden cruiser from Renaissance Bicycles is made from a mix of maple (lighter wood) and padauk
12/80
This wooden cruiser from Renaissance Bicycles is made from a mix of maple (lighter wood) and padauk
It's the second wooden bike that builder Paul Huddleston has ever made
13/80
It's the second wooden bike that builder Paul Huddleston has ever made
The Renaissance bike has a hollow monocoque frame, like this one
14/80
The Renaissance bike has a hollow monocoque frame, like this one

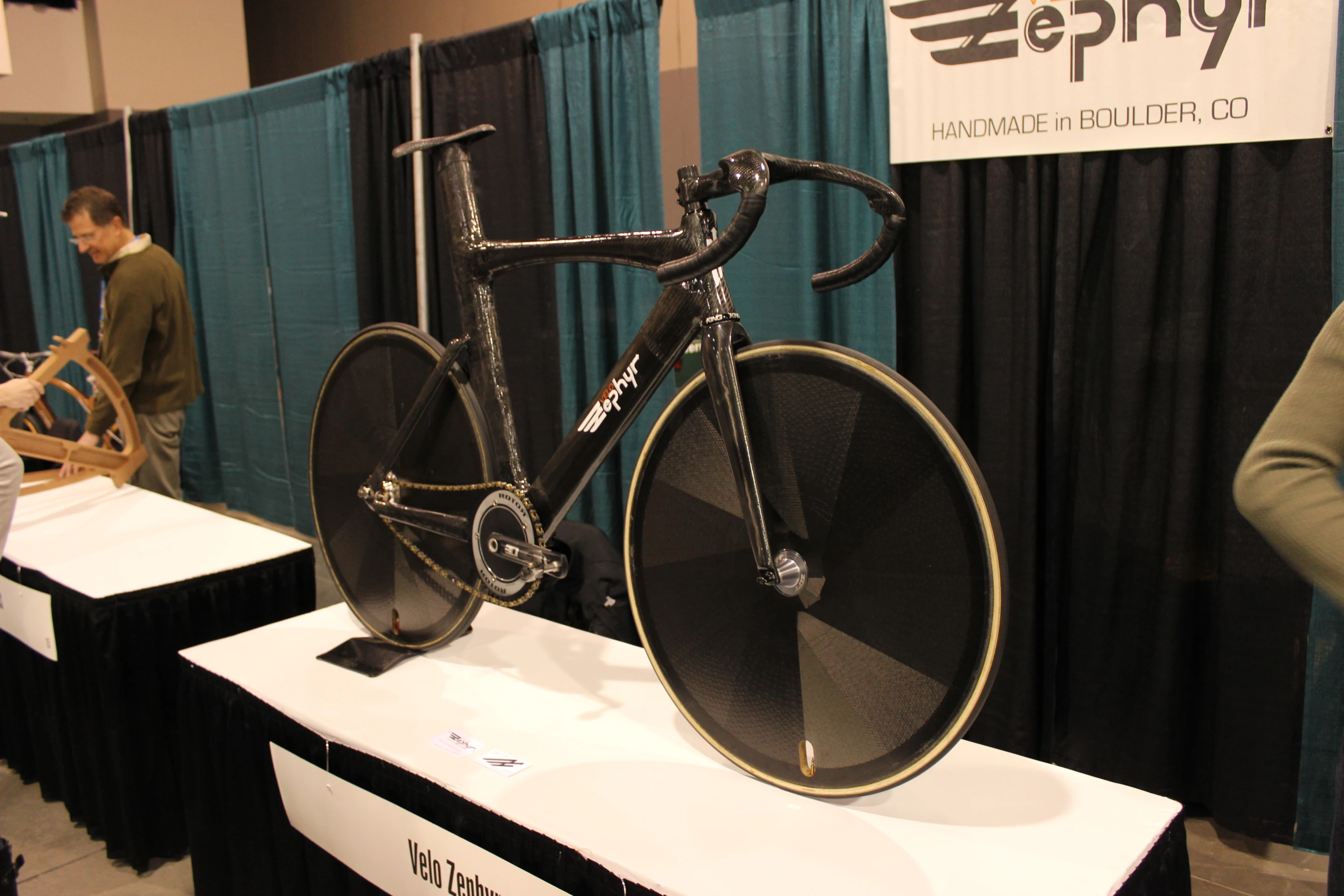

This carbon fiber track bike from Velo Zephyr was made using a combination of 3D-printed molds, and 3D-printed positives that were used to create fiberglass molds
15/80
This carbon fiber track bike from Velo Zephyr was made using a combination of 3D-printed molds, and 3D-printed positives that were used to create fiberglass molds

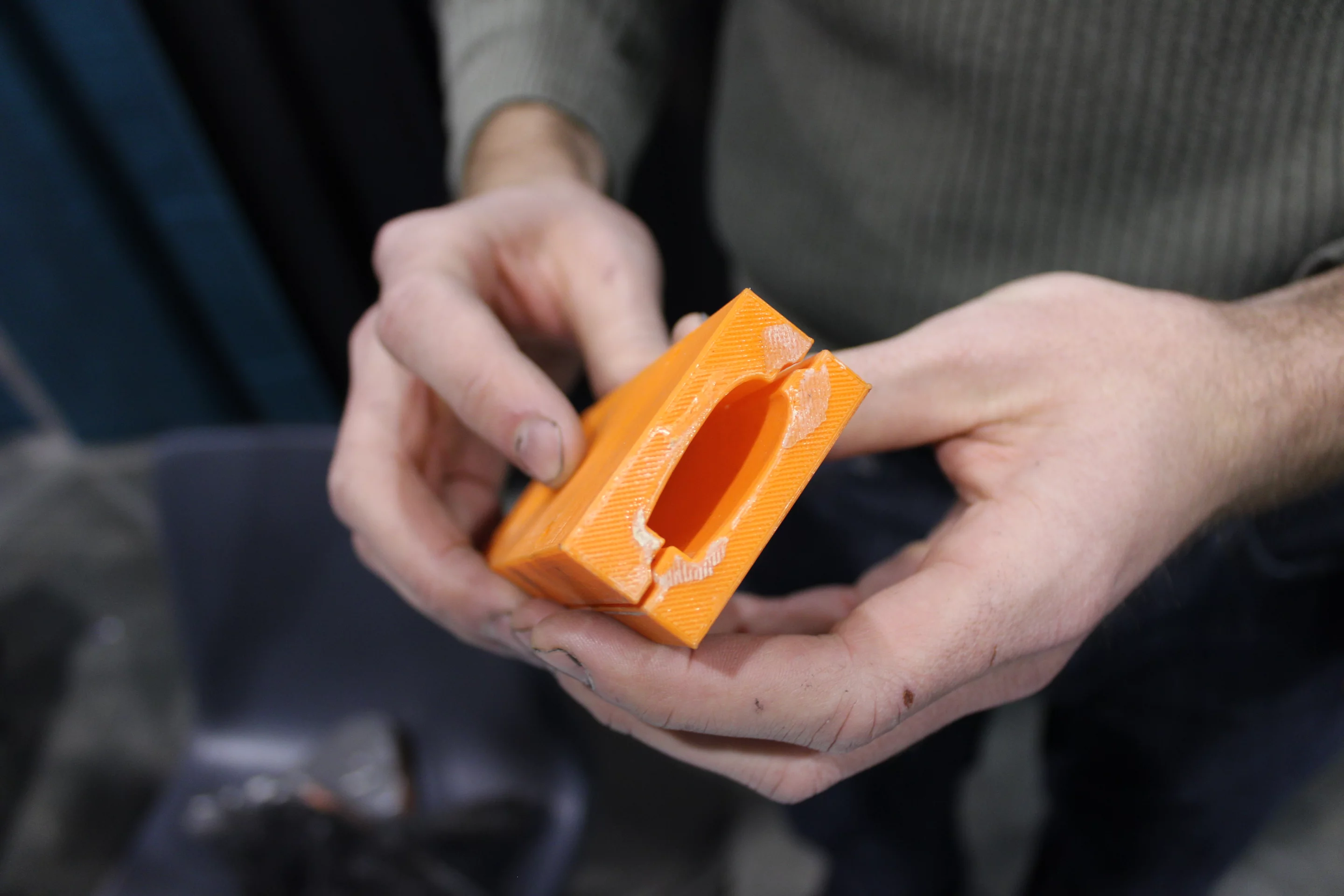

One of Velo Zephyr's 3D-printed molds
16/80
One of Velo Zephyr's 3D-printed molds

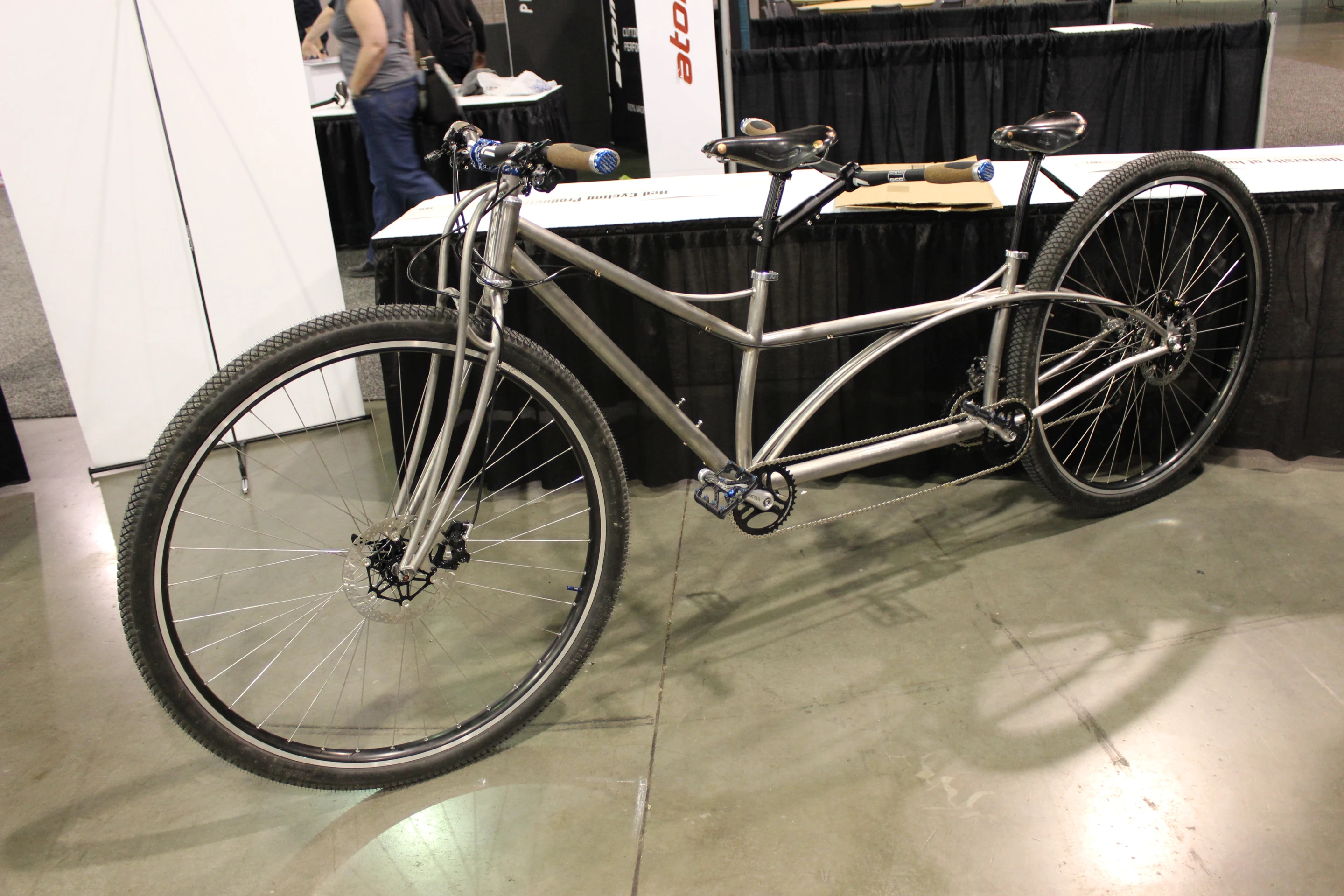

It might look normal at first, but this University of Iowa tandem has crazy-huge 36-inch unicycle wheels
17/80
It might look normal at first, but this University of Iowa tandem has crazy-huge 36-inch unicycle wheels
BME Design is now taking pre-orders for the stealthy-looking carbon-composite B-9 Nighthawk, which is priced at €4,800 (US$6,600)
18/80
BME Design is now taking pre-orders for the stealthy-looking carbon-composite B-9 Nighthawk, which is priced at €4,800 (US$6,600)

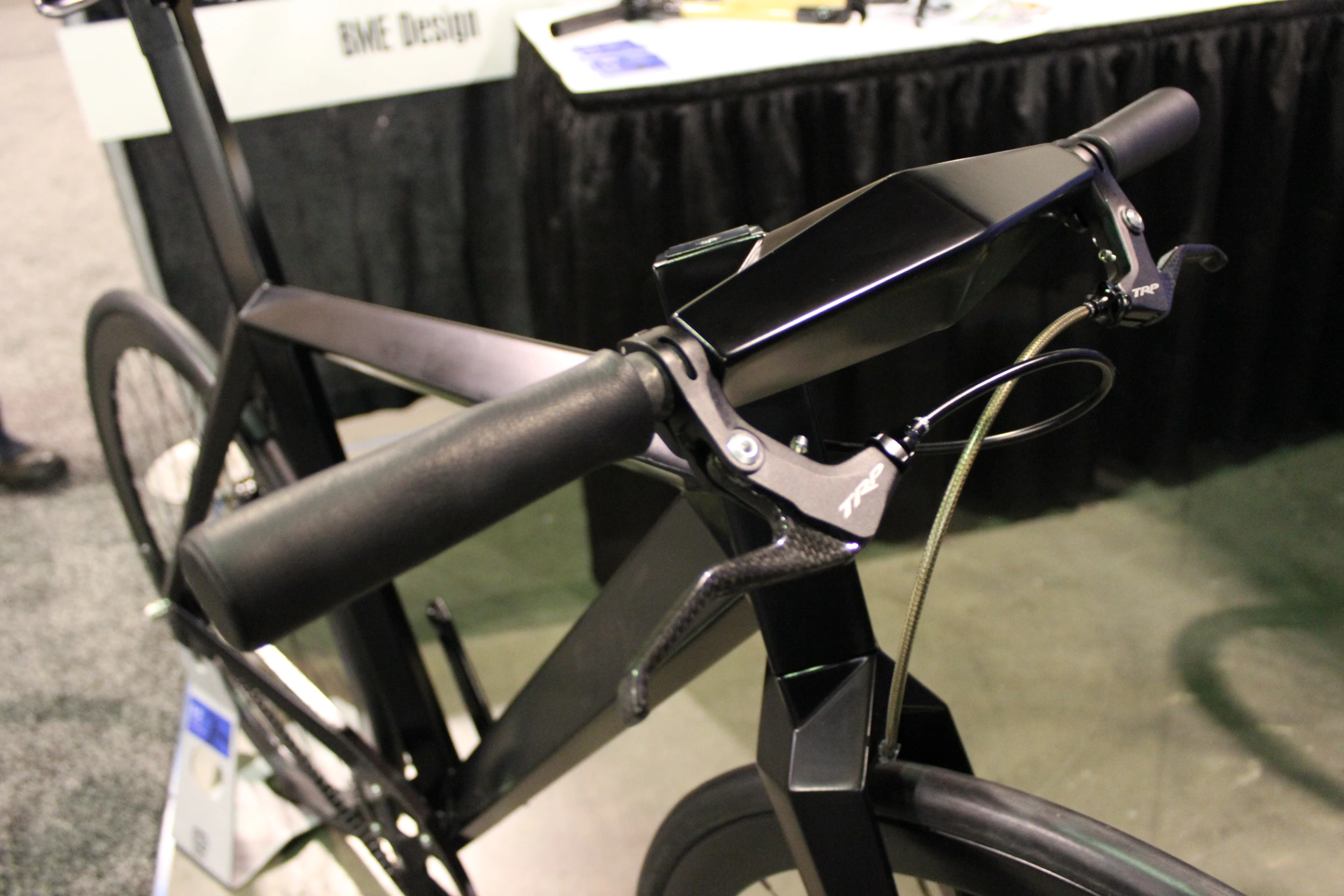

We previously covered the prototype version of this bike, the frame of which featured an aramid honeycomb core covered with a carbon fiber skin
19/80
We previously covered the prototype version of this bike, the frame of which featured an aramid honeycomb core covered with a carbon fiber skin

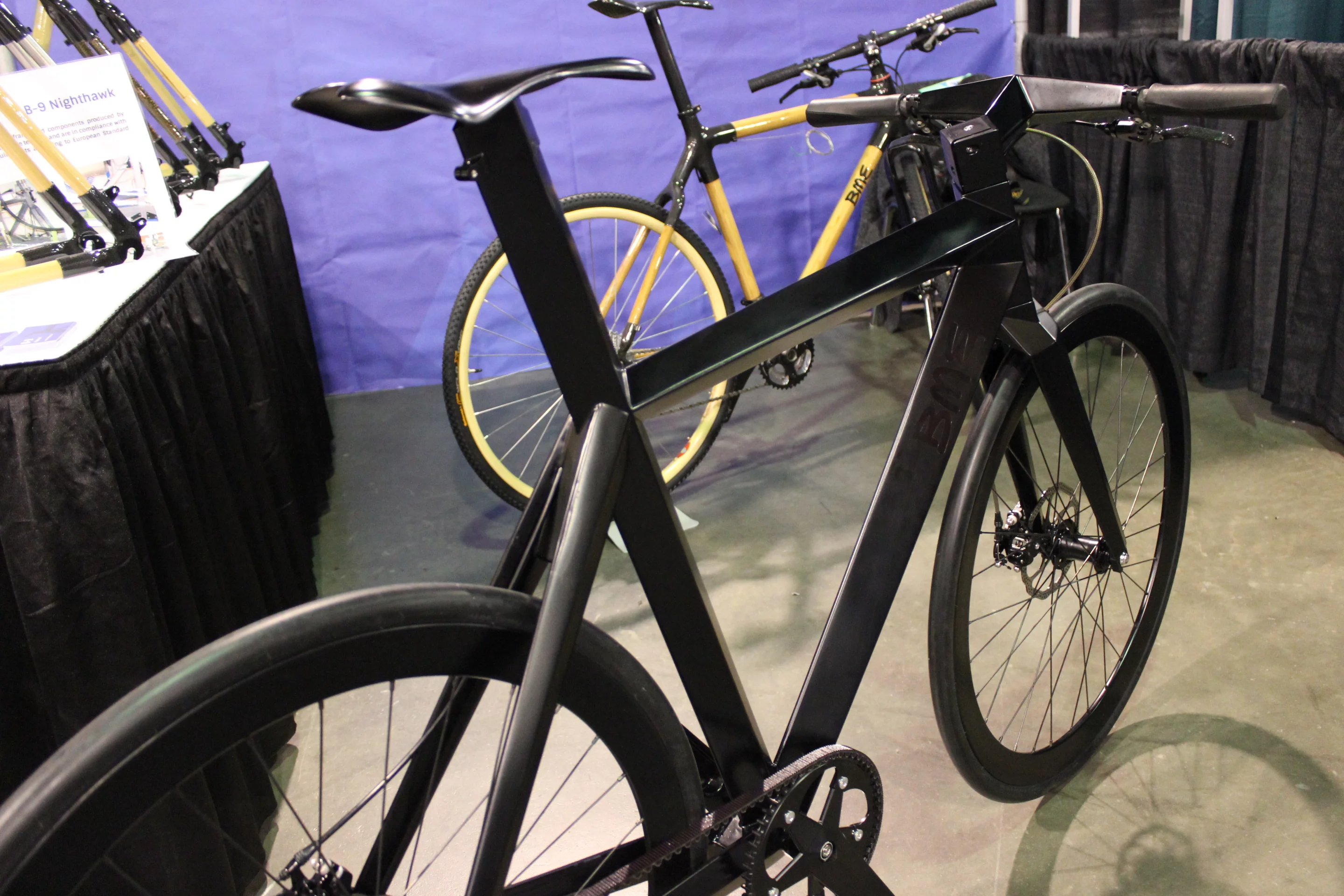

Designer Braňo Mereš decided that the aramid construction didn't offer enough advantages to make it into the production version
20/80
Designer Braňo Mereš decided that the aramid construction didn't offer enough advantages to make it into the production version
Although it's designed to be a commuter, mounting a light (or anything else) on the bars might be difficult
21/80
Although it's designed to be a commuter, mounting a light (or anything else) on the bars might be difficult

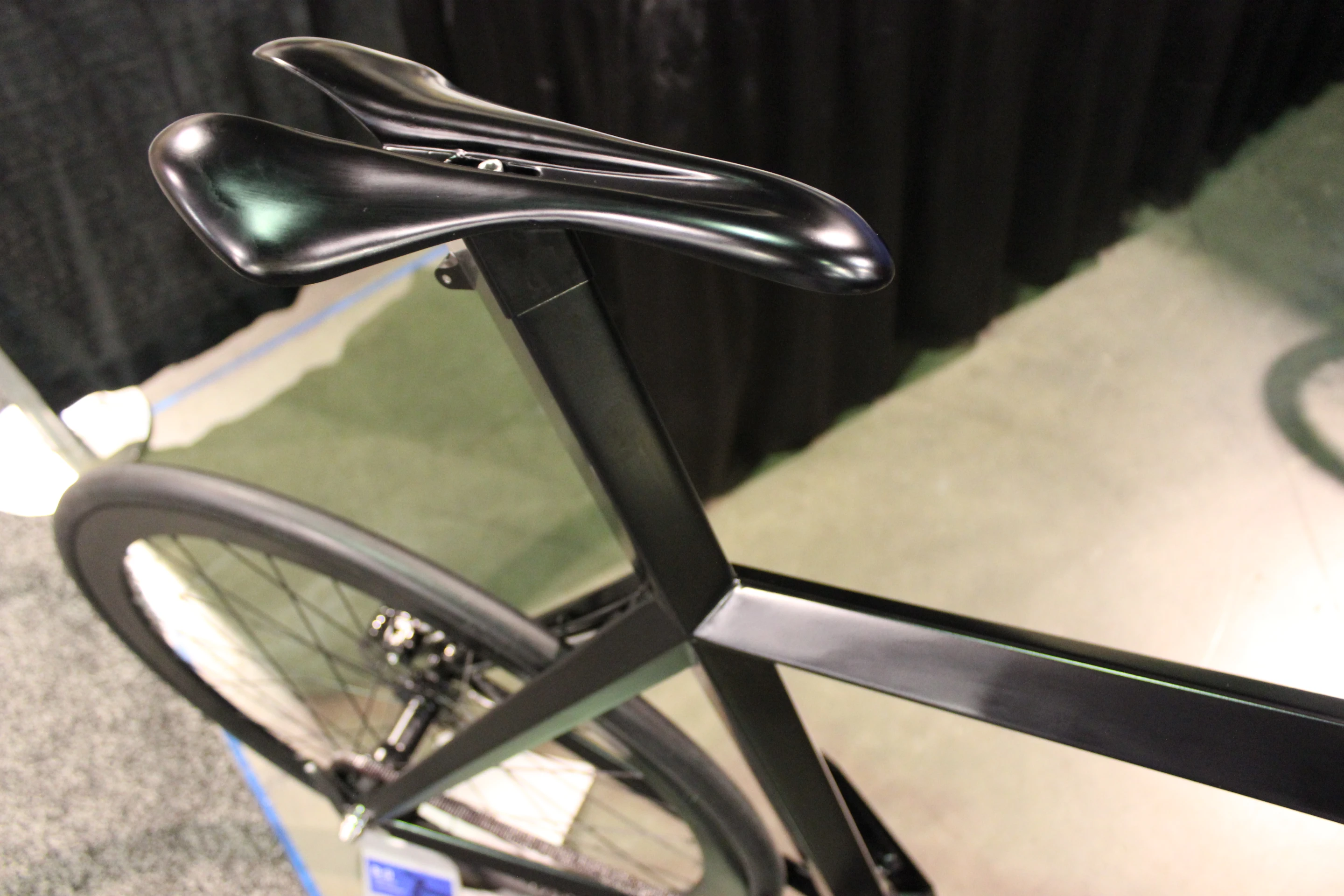

Mereš even designed its custom saddle
22/80
Mereš even designed its custom saddle

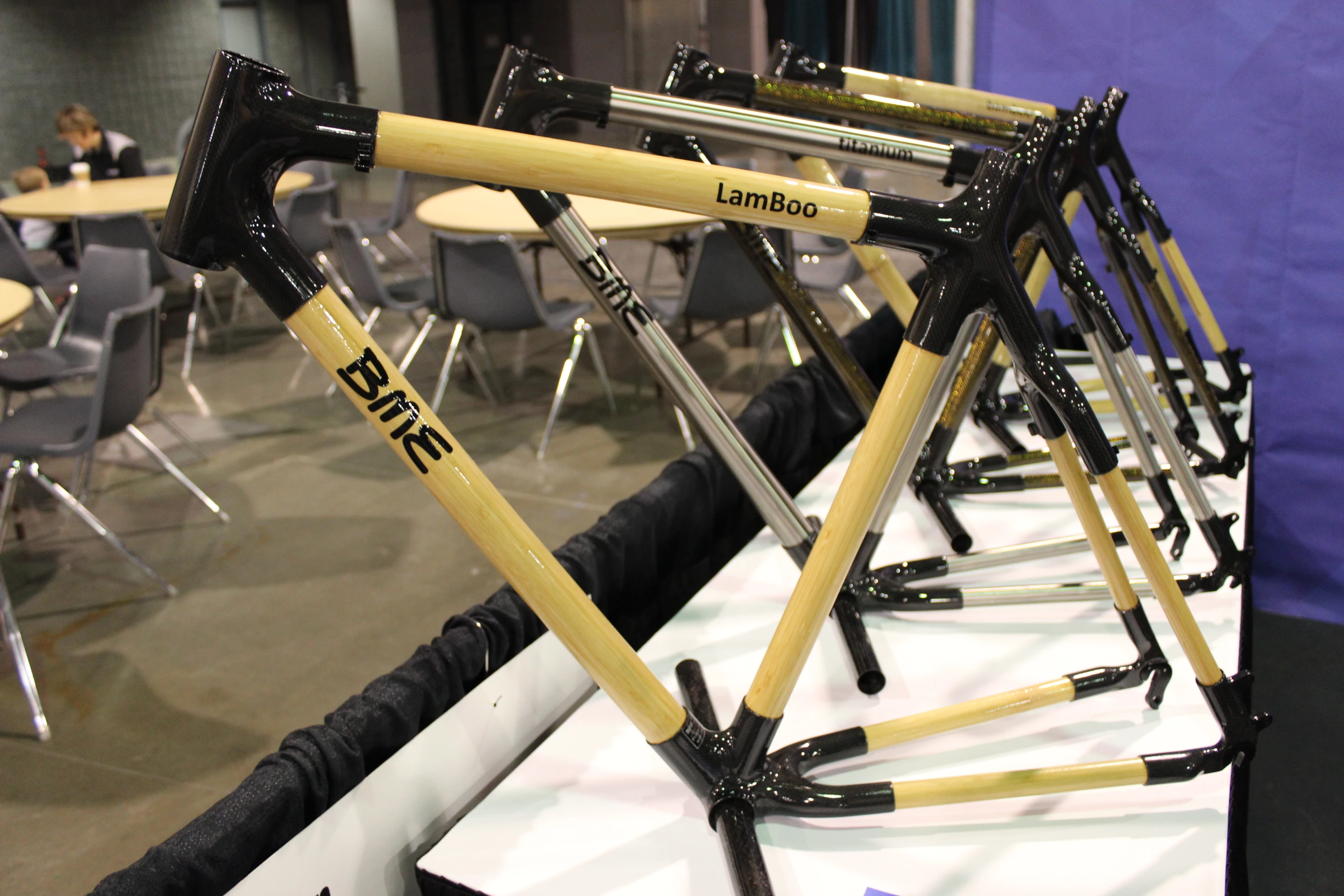

Mereš also makes frames from LamBoo, which consists of thin layers of bamboo that have been laminated together
23/80
Mereš also makes frames from LamBoo, which consists of thin layers of bamboo that have been laminated together

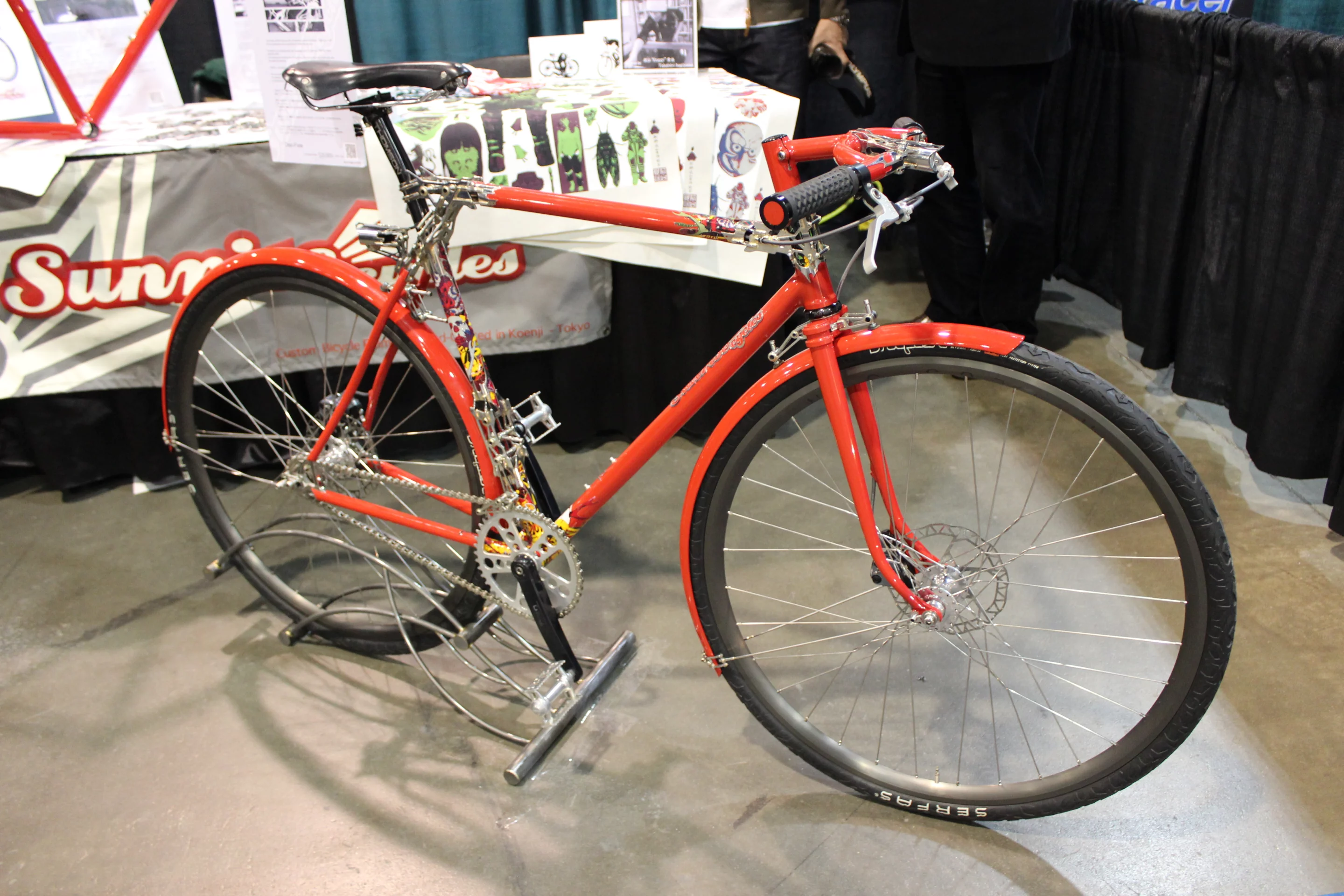

This gorgeous $20,000(!) fixie commuter from Japan's Sunrise Cycles was definitely one of the crowd favorites
24/80
This gorgeous $20,000(!) fixie commuter from Japan's Sunrise Cycles was definitely one of the crowd favorites

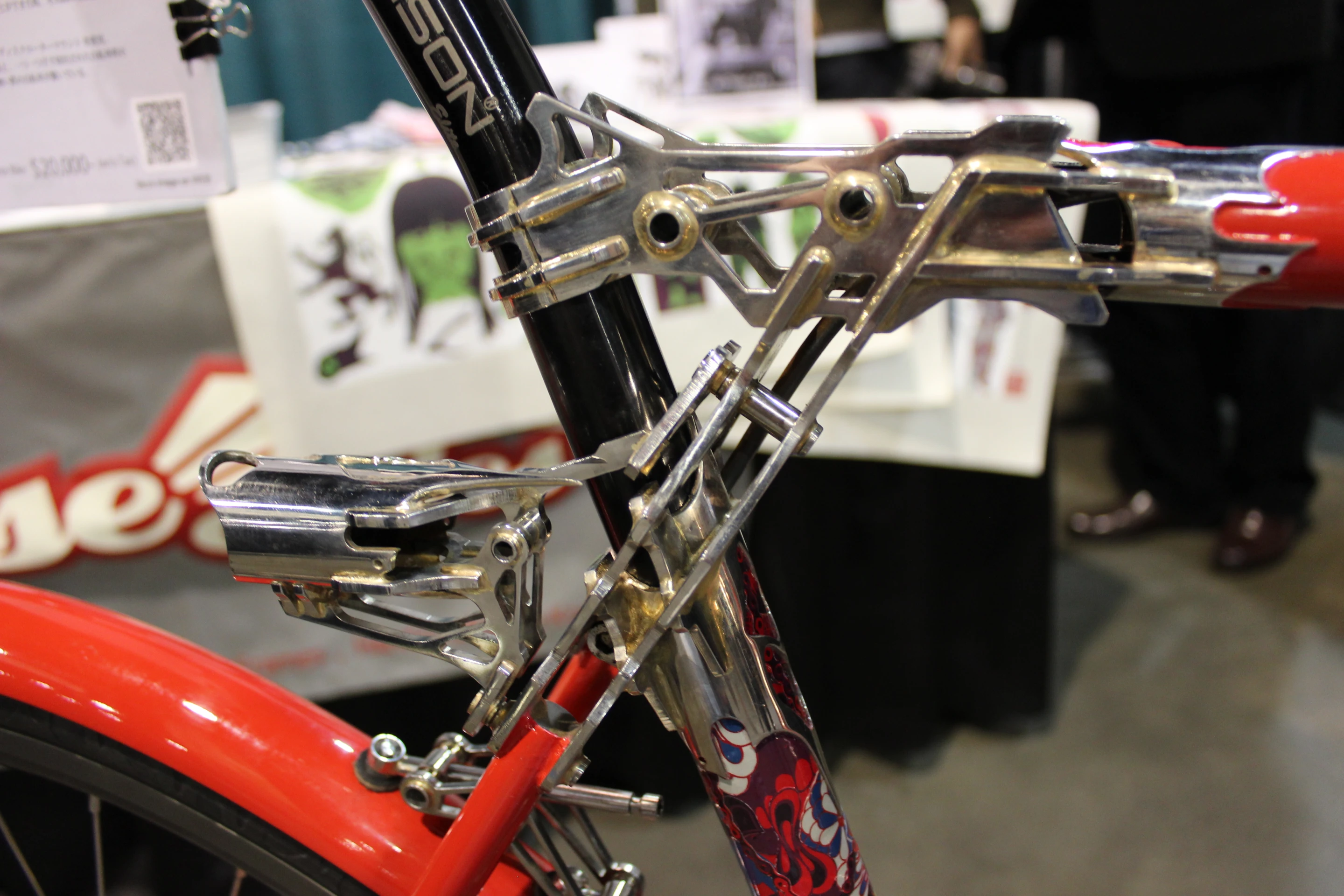

The chromoly tubes on the Sunrise Cycles commuter bike are connected by custom-cut stainless steel plates (and no, it doesn't fold or come apart)
25/80
The chromoly tubes on the Sunrise Cycles commuter bike are connected by custom-cut stainless steel plates (and no, it doesn't fold or come apart)
More of the intricate craftsmanship on the Sunrise Cycles commuter bike
26/80
More of the intricate craftsmanship on the Sunrise Cycles commuter bike

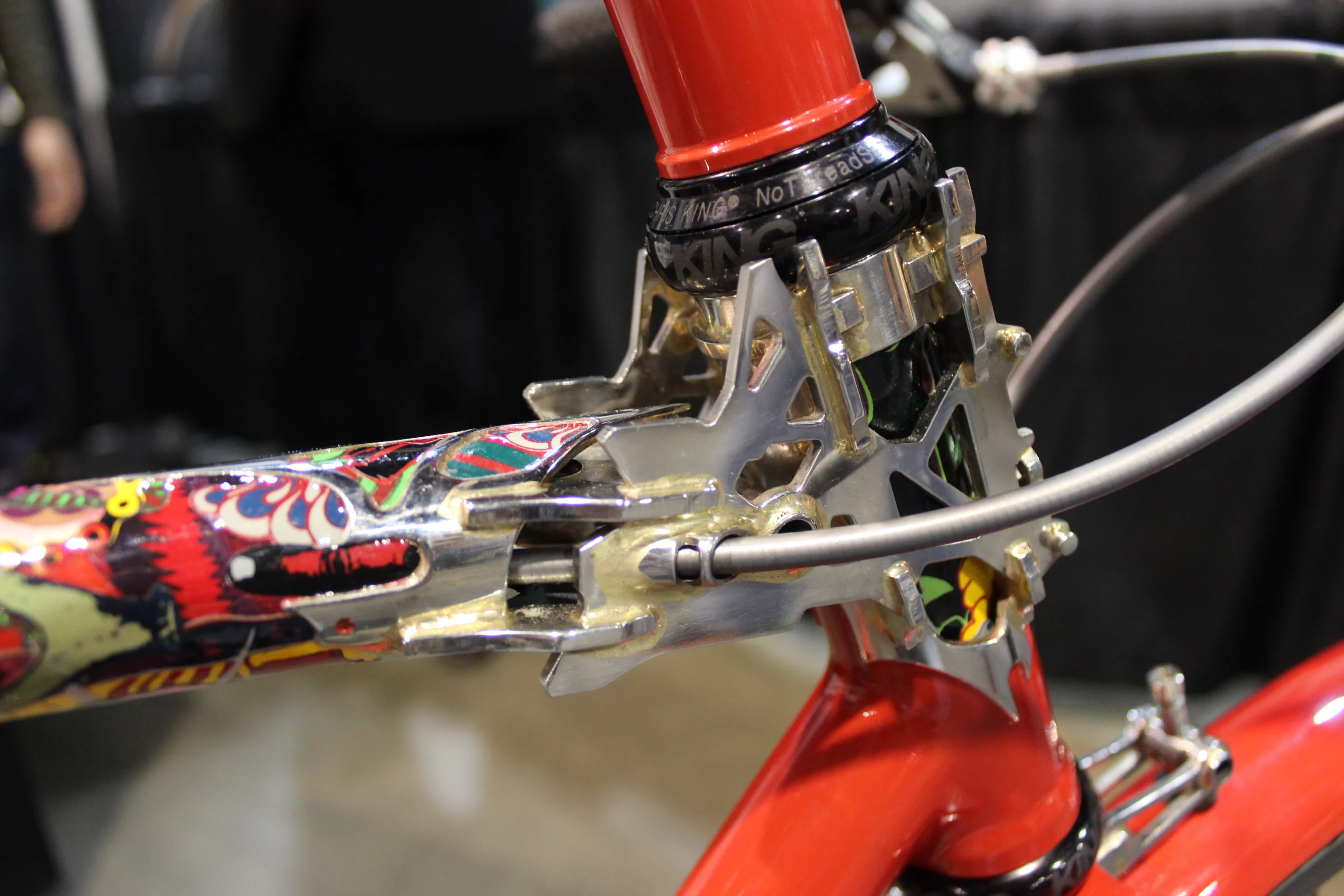

The Sunrise Cycles commuter bike features elaborate cable routing guides
27/80
The Sunrise Cycles commuter bike features elaborate cable routing guides

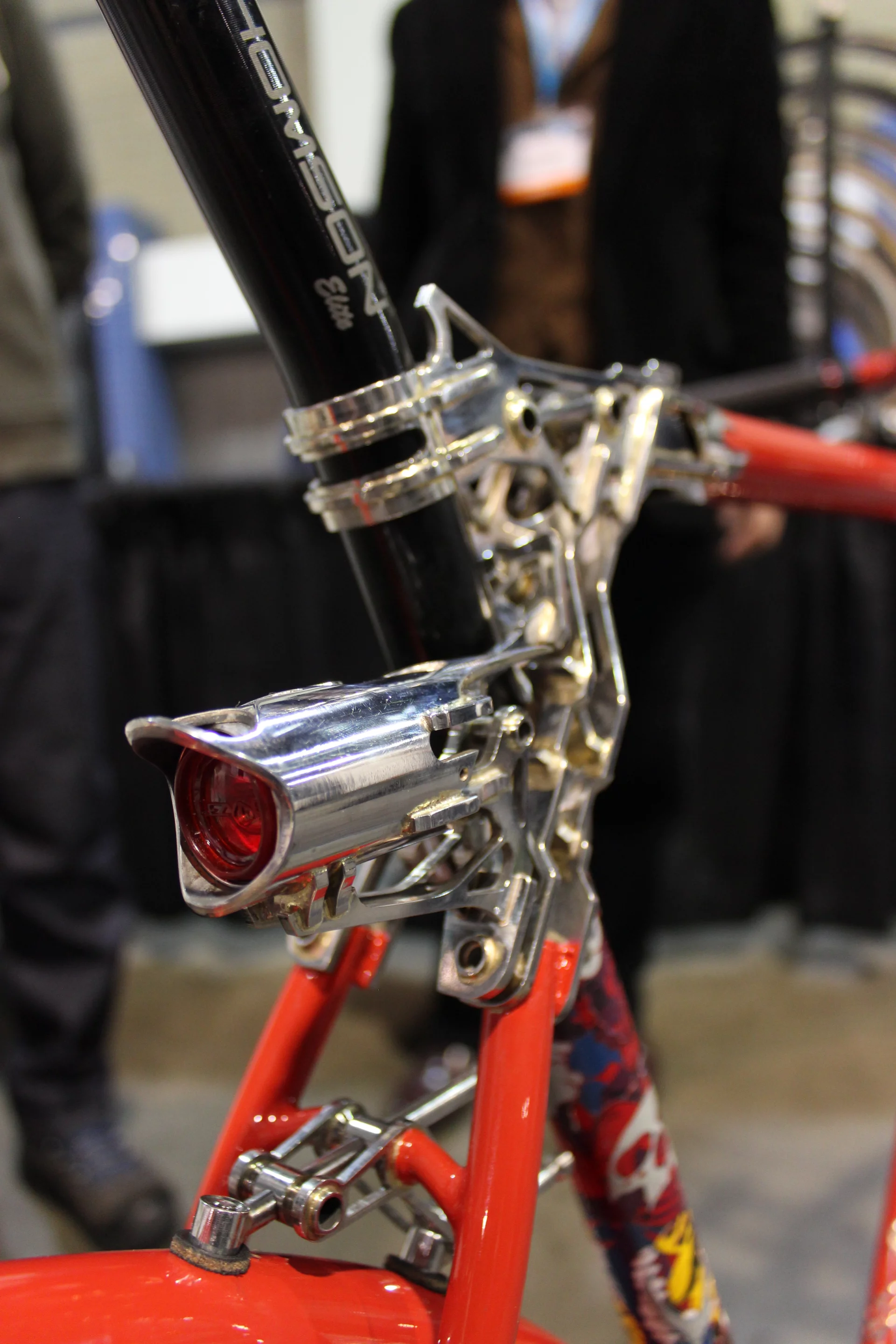

The Sunrise Cycles commuter bike also has a custom built-in tail light
28/80
The Sunrise Cycles commuter bike also has a custom built-in tail light

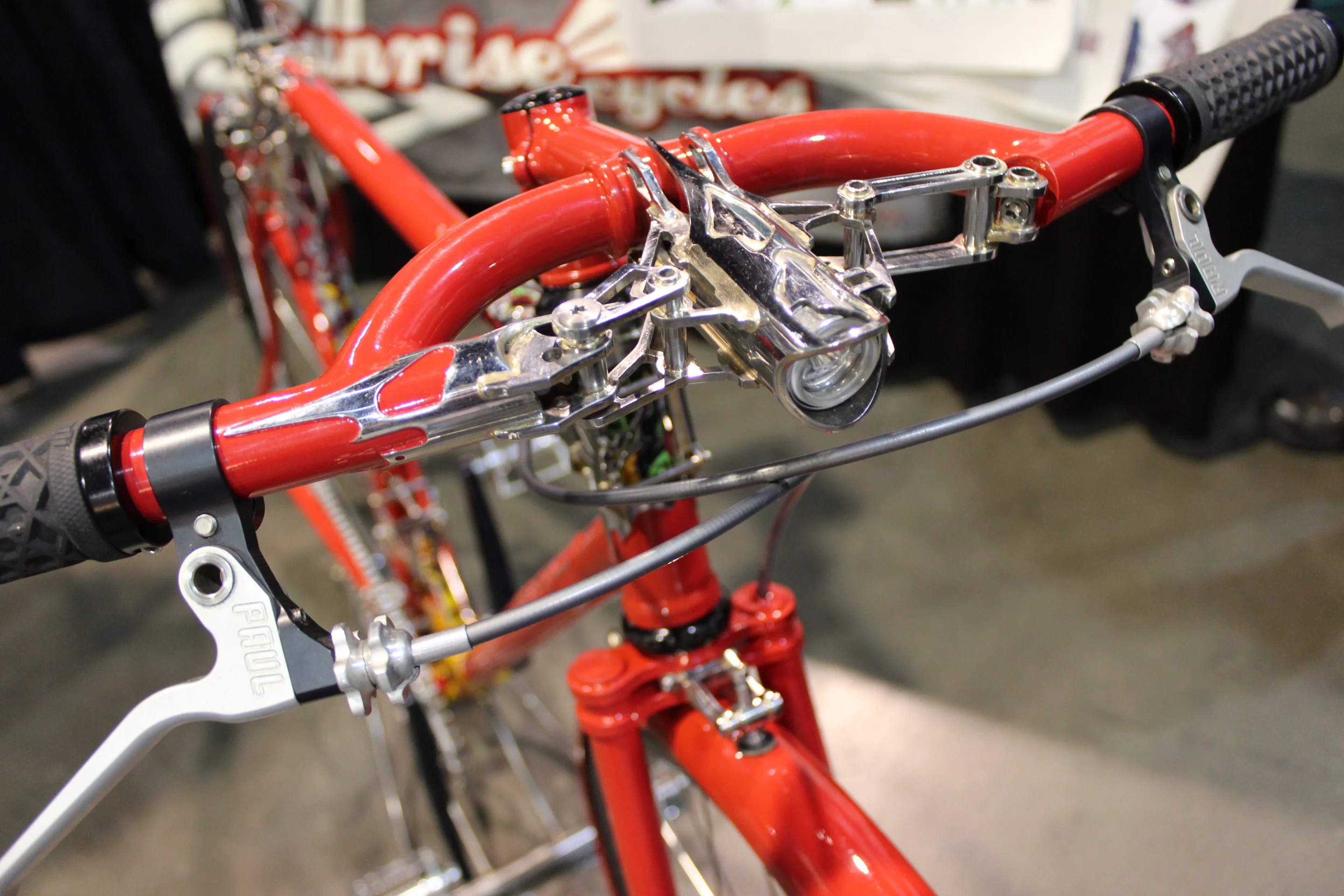

Stainless steel headlight detailing on Sunrise Cycles' commuter bike
29/80
Stainless steel headlight detailing on Sunrise Cycles' commuter bike

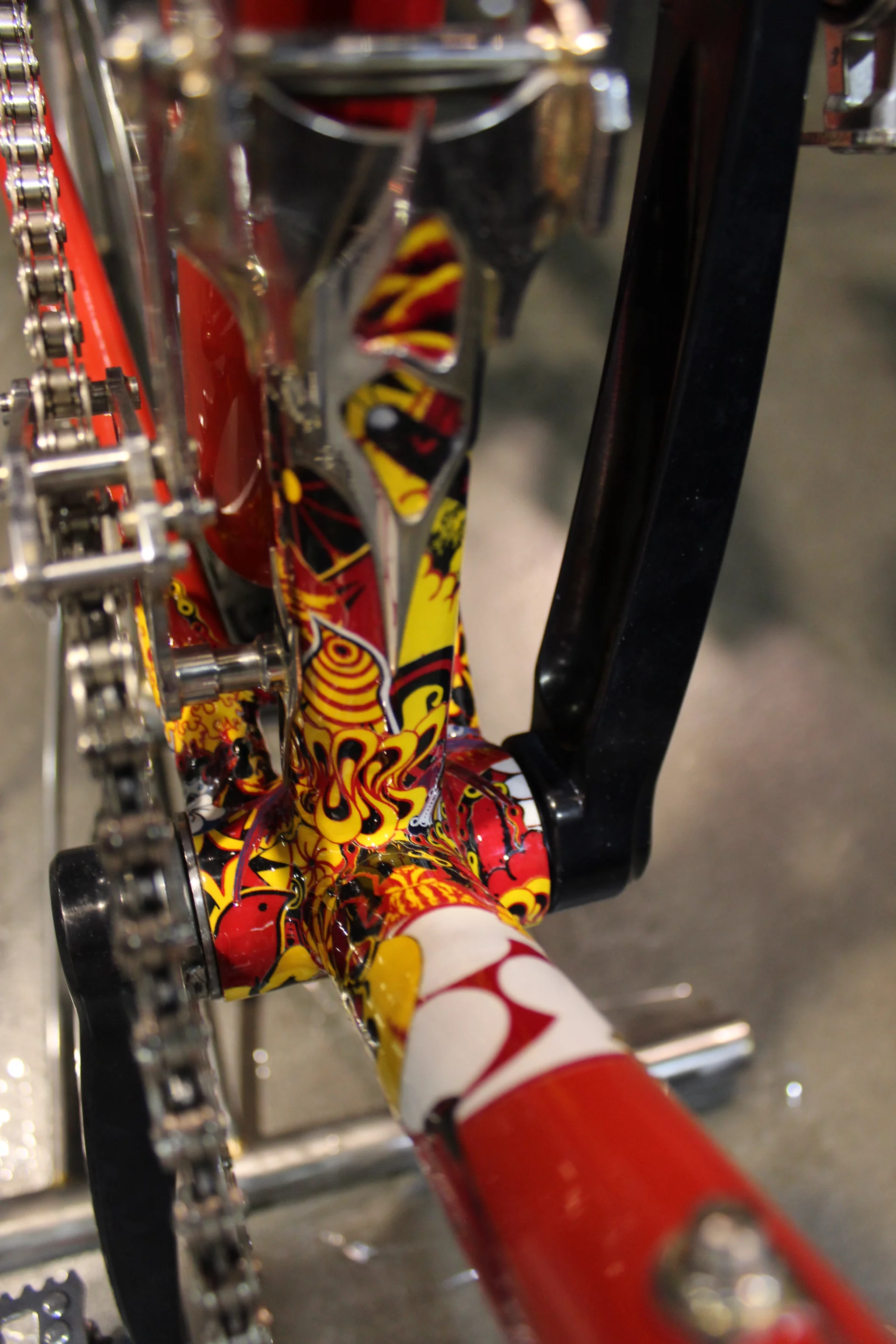

Amazing paint work around the bottom bracket on Sunrise Cycles' commuter bike
30/80
Amazing paint work around the bottom bracket on Sunrise Cycles' commuter bike

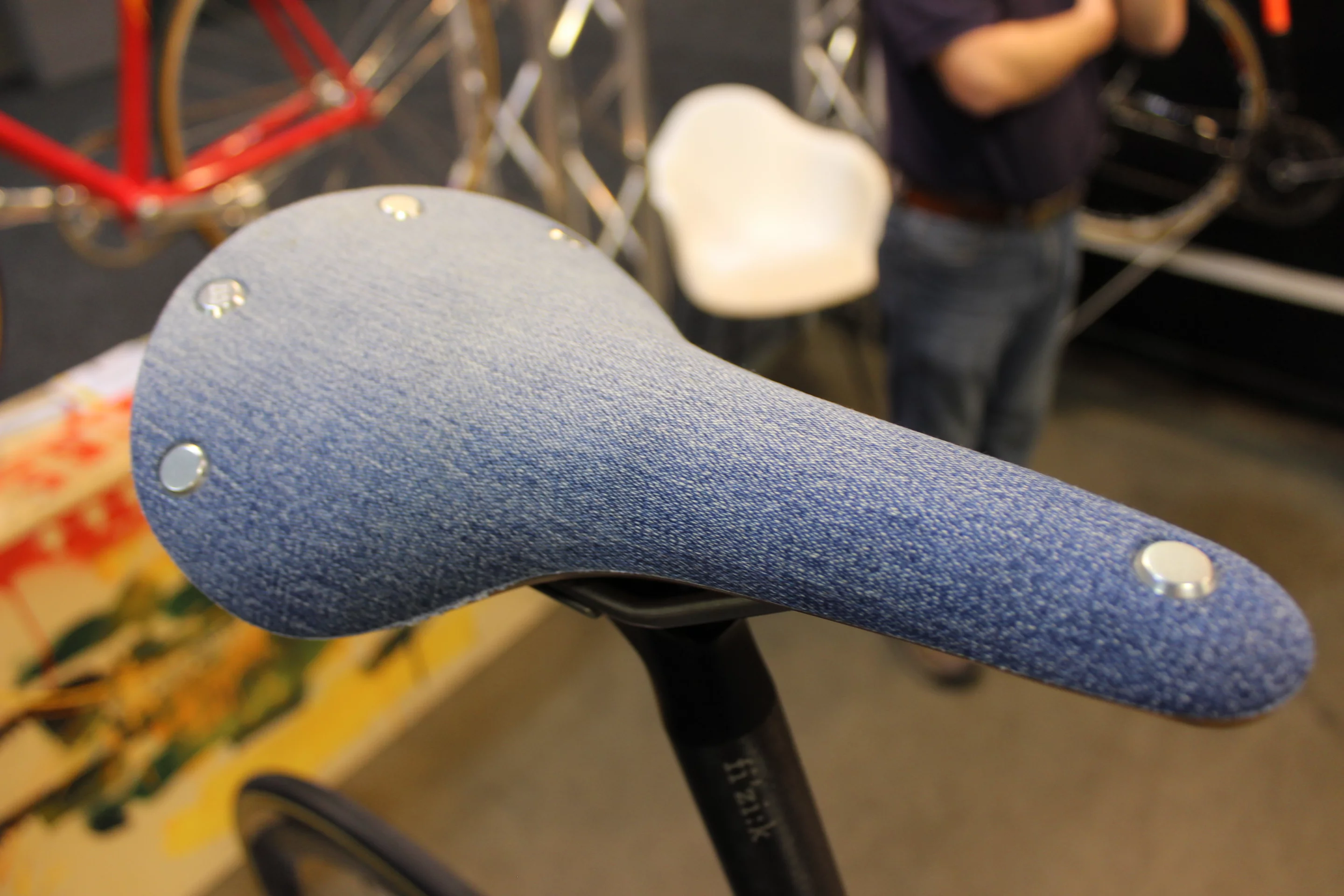

Some of the Dario Pegoretti bikes featured Fizik saddles upholstered in denim ...
31/80
Some of the Dario Pegoretti bikes featured Fizik saddles upholstered in denim ...
... what might or might not have been dyed cow hide ...
32/80
... what might or might not have been dyed cow hide ...

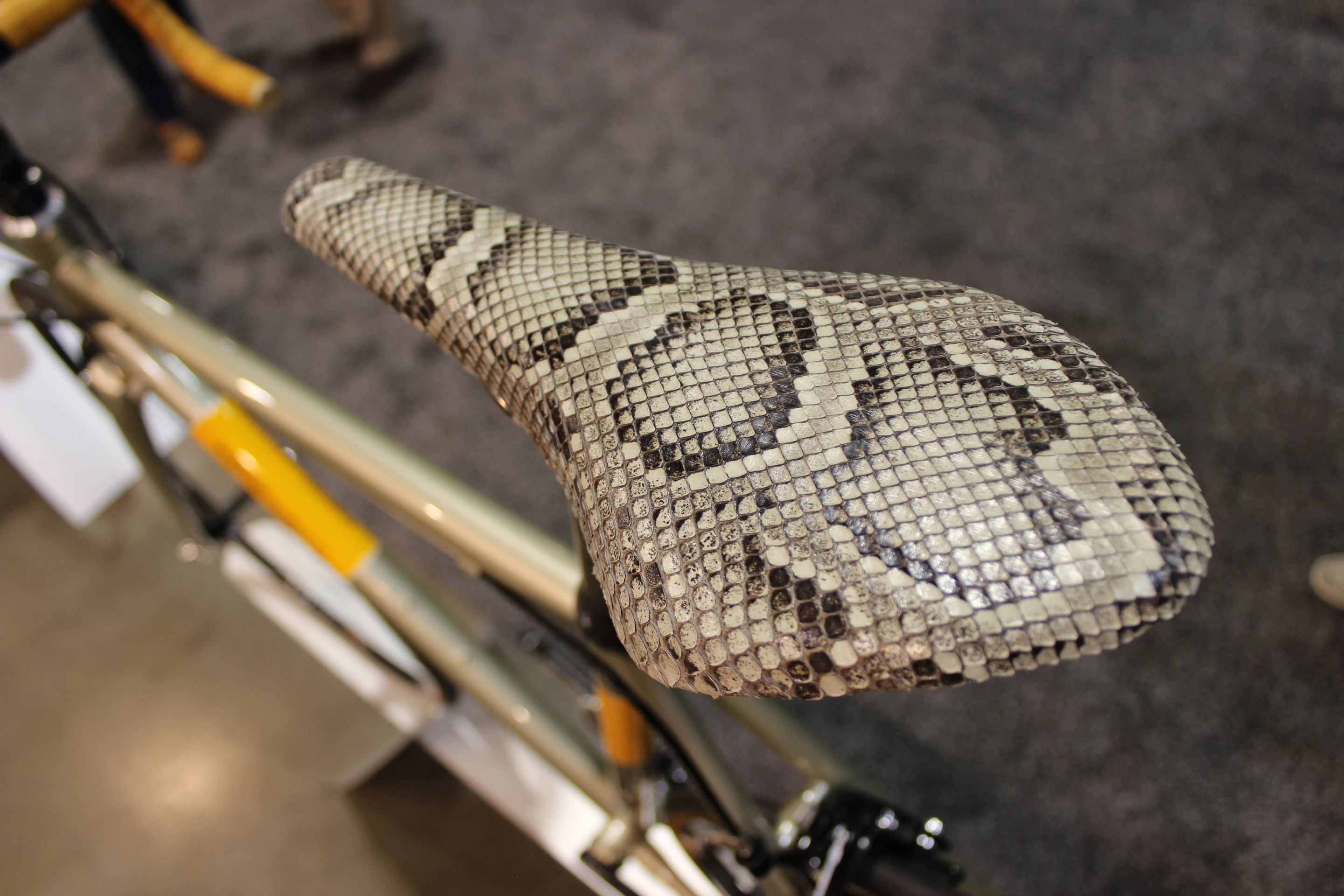

... and snake skin
33/80
... and snake skin

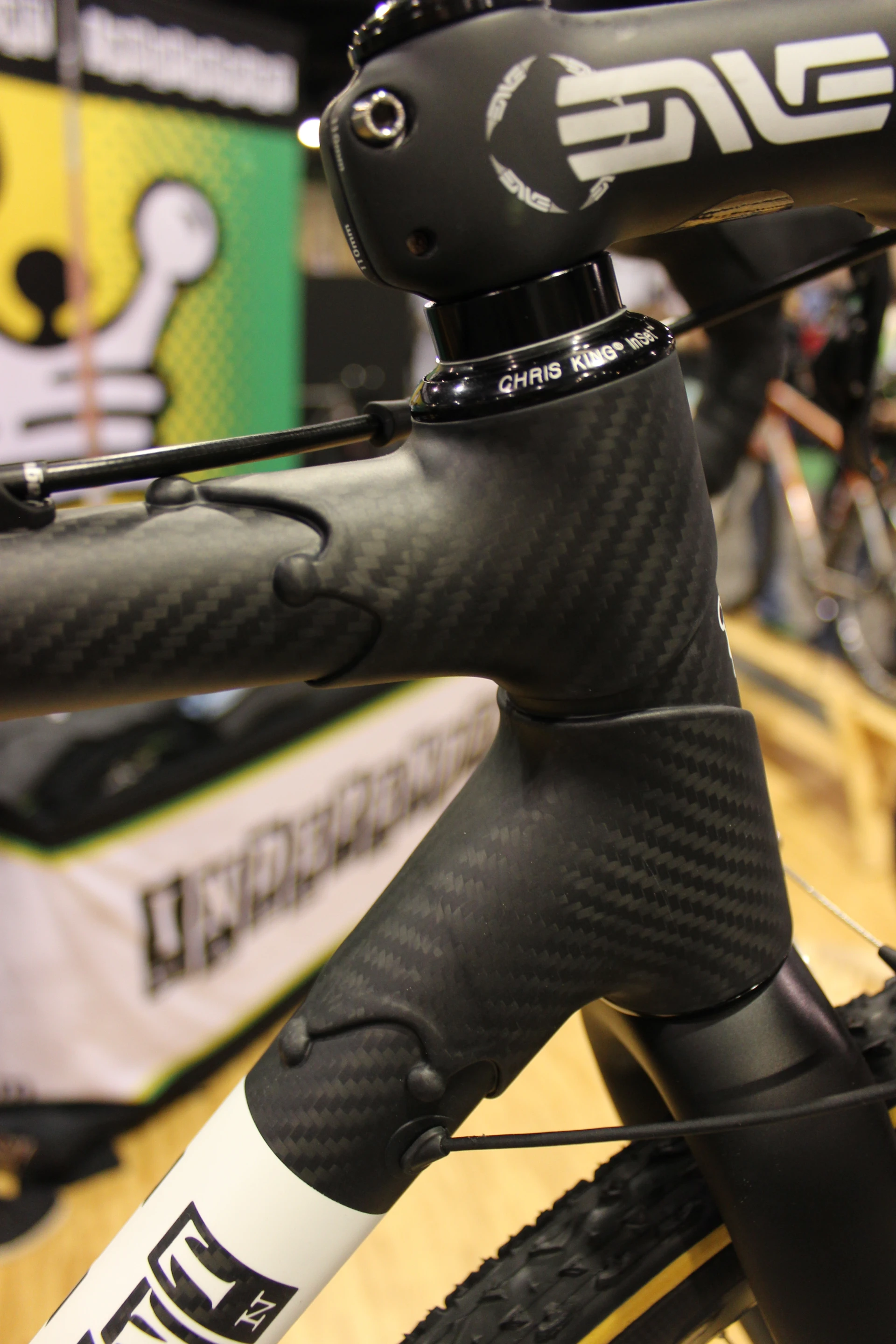

Snazzy carbon fiber lugs on a cyclocross bike made by Independent Fabrication
34/80
Snazzy carbon fiber lugs on a cyclocross bike made by Independent Fabrication

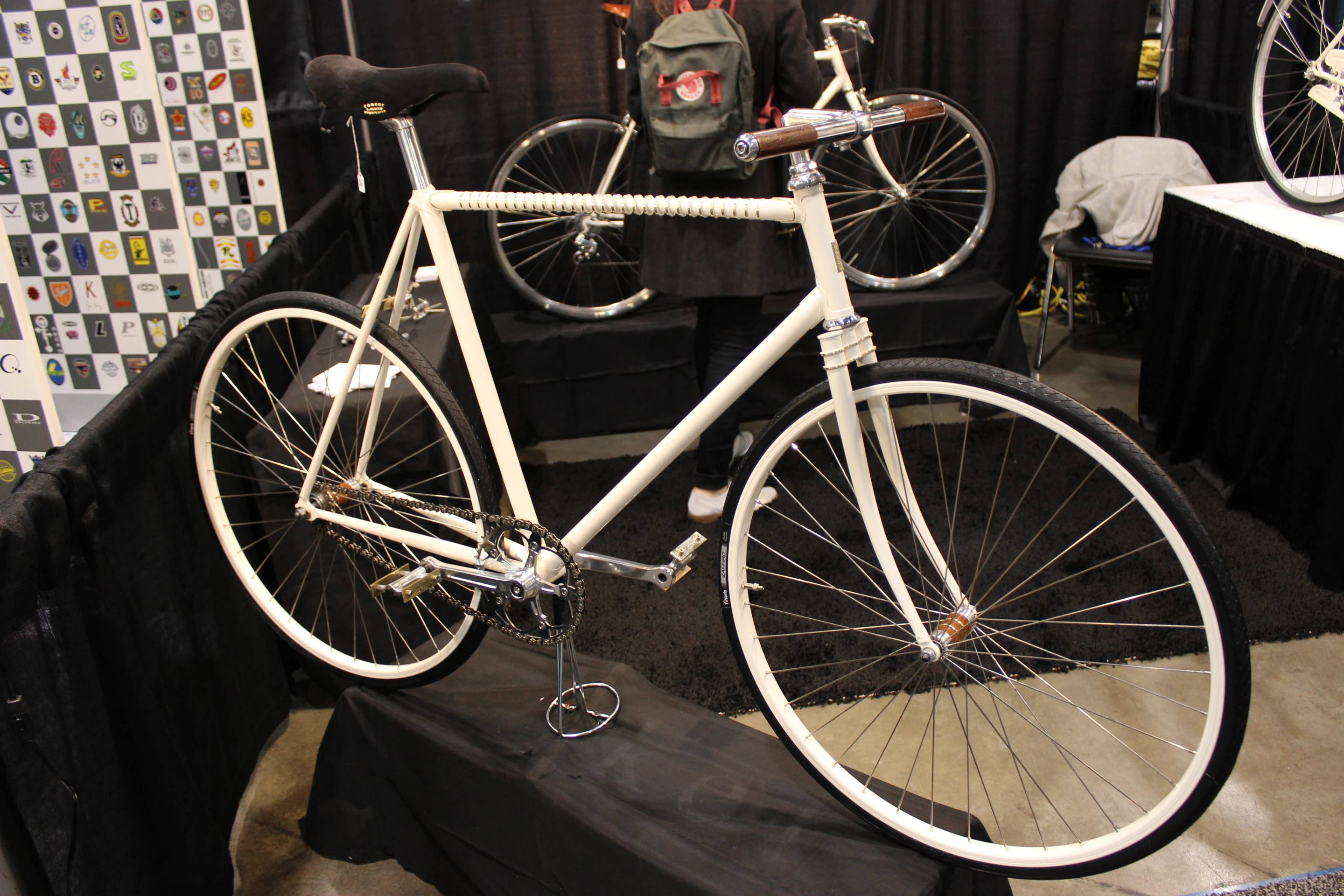

This one-off from Denmark's Cykelmageren has an unusual top tube ...
35/80
This one-off from Denmark's Cykelmageren has an unusual top tube ...

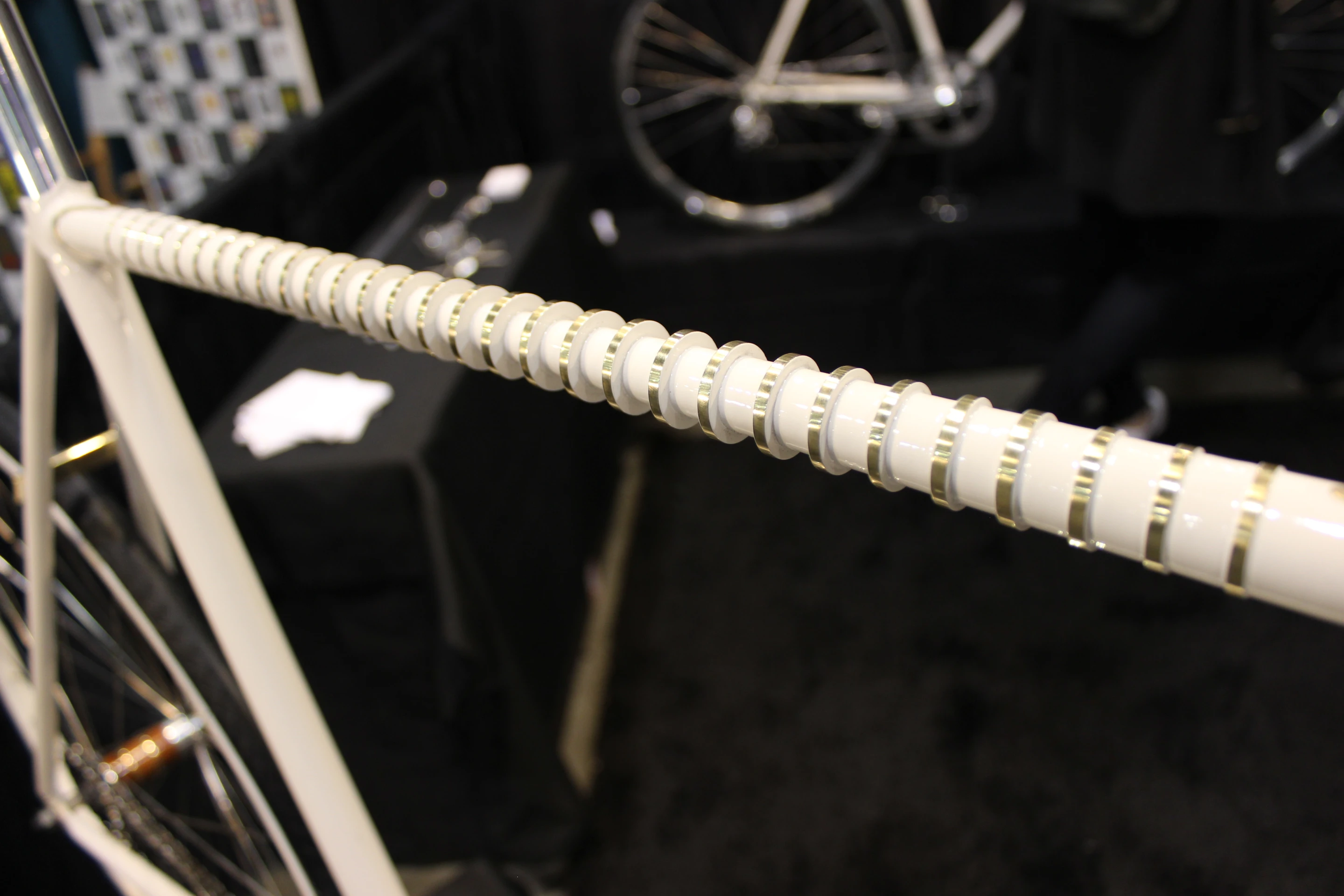

... it's made from two steel tubes joined end-to-end, that have been passed through a series of brass rings
36/80
... it's made from two steel tubes joined end-to-end, that have been passed through a series of brass rings

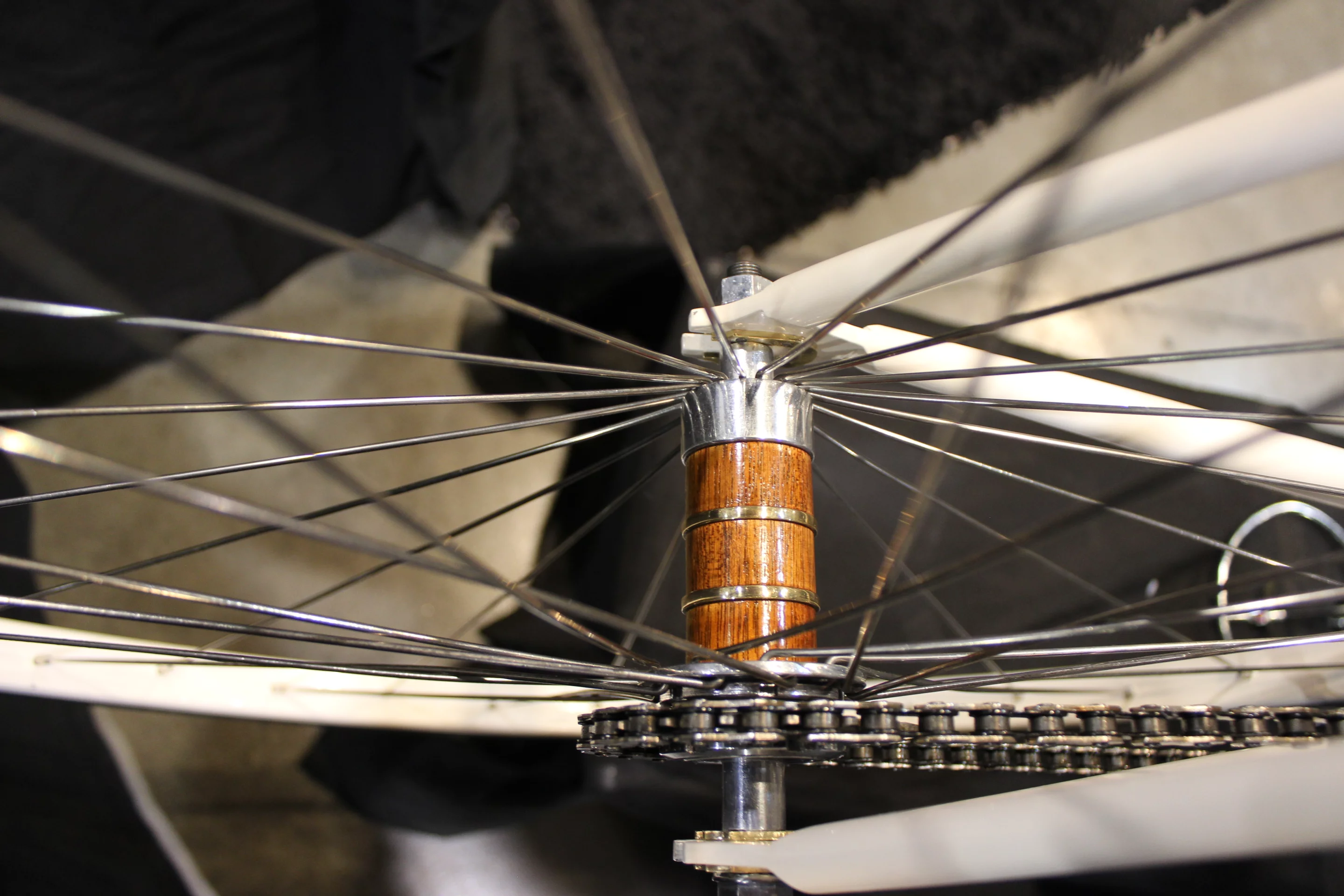

The Cykelmageren bike also features this wood-bodied rear hub
37/80
The Cykelmageren bike also features this wood-bodied rear hub
The Sinewave Reactor is a USB power port that sits inside the steerer tube, and gets connected to a hub or bottle dynamo
38/80
The Sinewave Reactor is a USB power port that sits inside the steerer tube, and gets connected to a hub or bottle dynamo
This bamboo/carbon fiber rear rack is part of a bike made by Boo Bicycles
39/80
This bamboo/carbon fiber rear rack is part of a bike made by Boo Bicycles

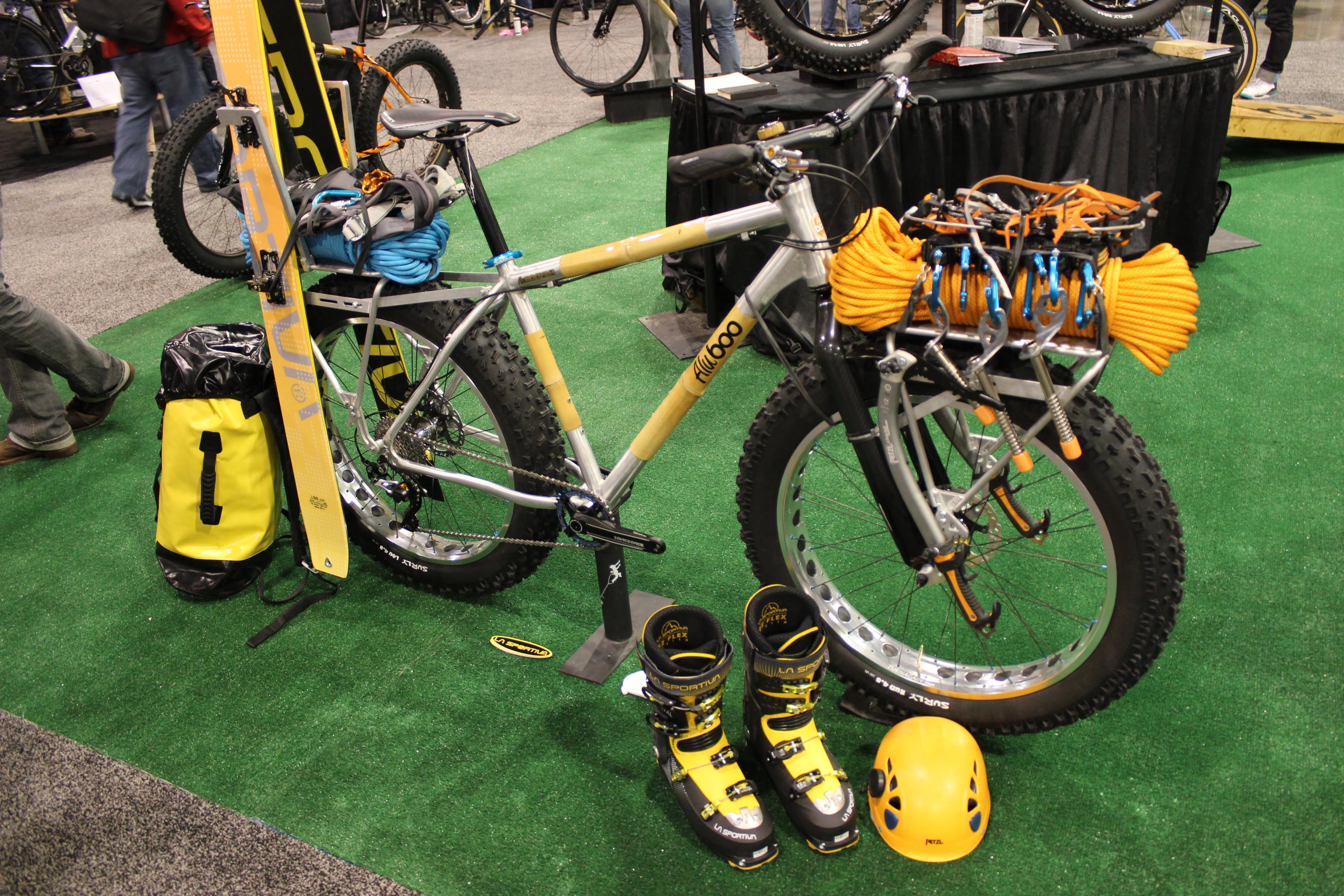

Here's one of Boo's aluminum/bamboo Aluboo fatbikes, specially outfitted as a ski/mountaineering bike
40/80
Here's one of Boo's aluminum/bamboo Aluboo fatbikes, specially outfitted as a ski/mountaineering bike

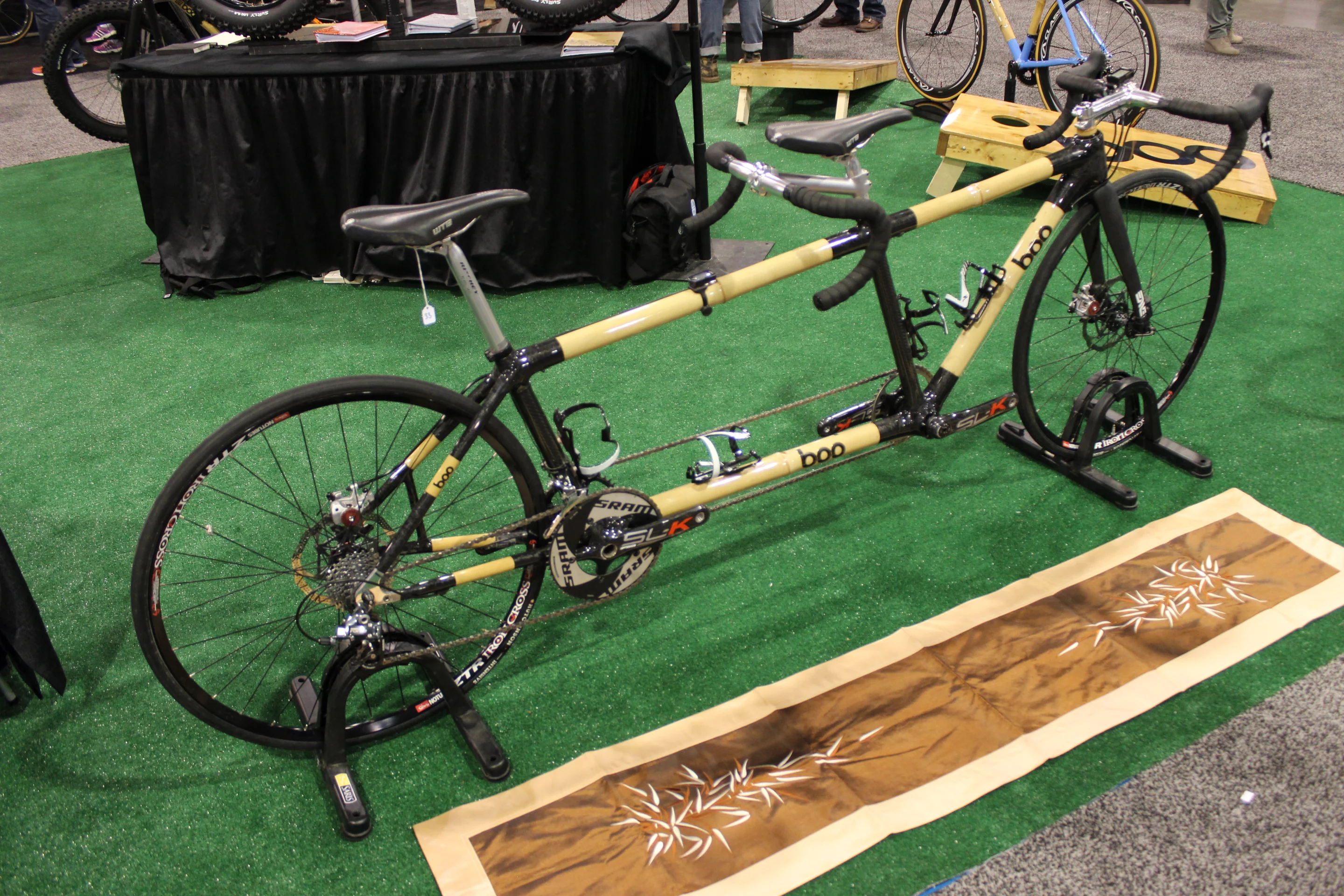

Boo also had this beautiful carbon/bamboo tandem at the show
41/80
Boo also had this beautiful carbon/bamboo tandem at the show

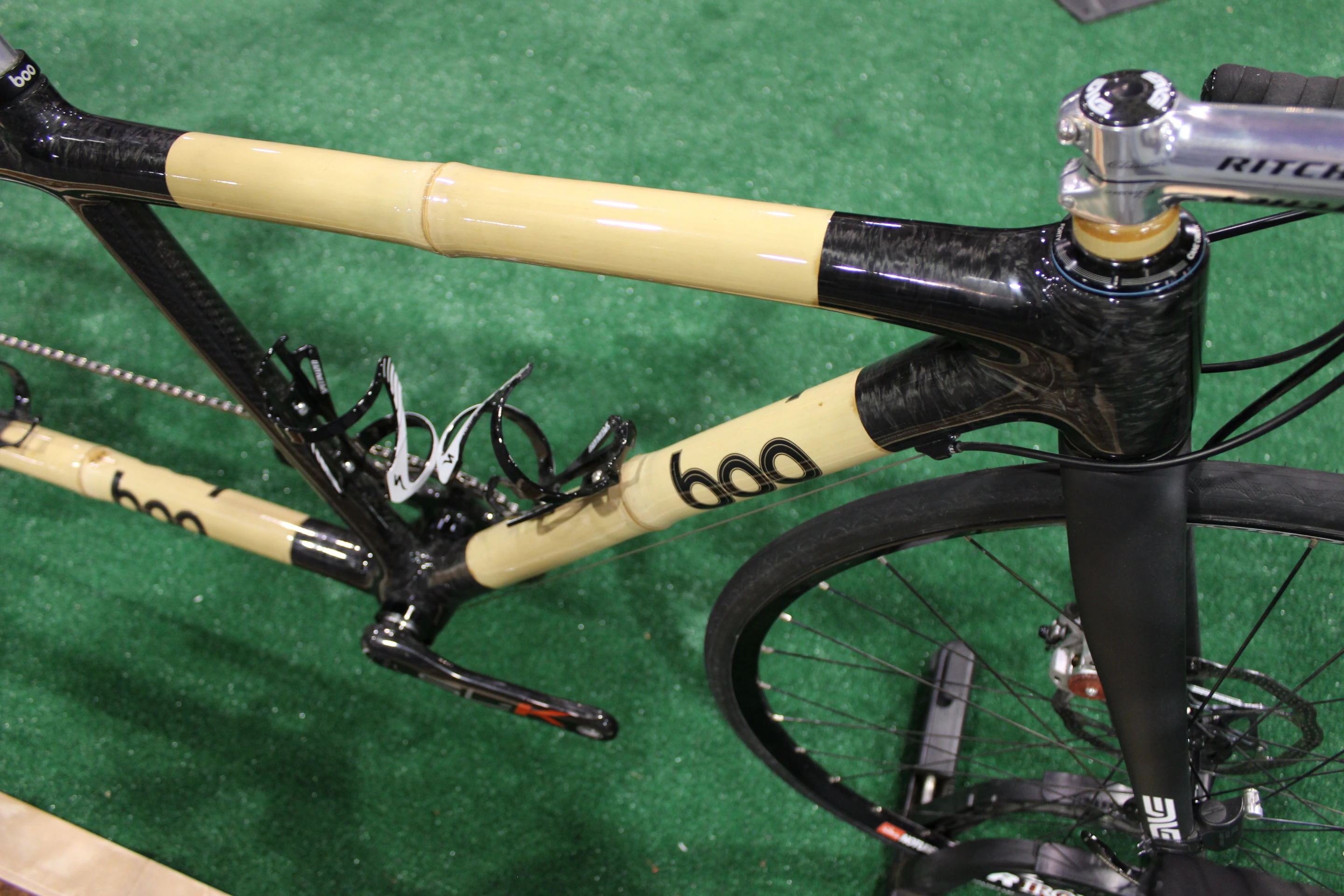

A closer look at the carbon/bamboo tandem
42/80
A closer look at the carbon/bamboo tandem
This stayer racing bike was made by NAHBS founder Don Walker, of Don Walker Cycles – it's only a couple of years old, but was made to resemble a 1950s bike
43/80
This stayer racing bike was made by NAHBS founder Don Walker, of Don Walker Cycles – it's only a couple of years old, but was made to resemble a 1950s bike

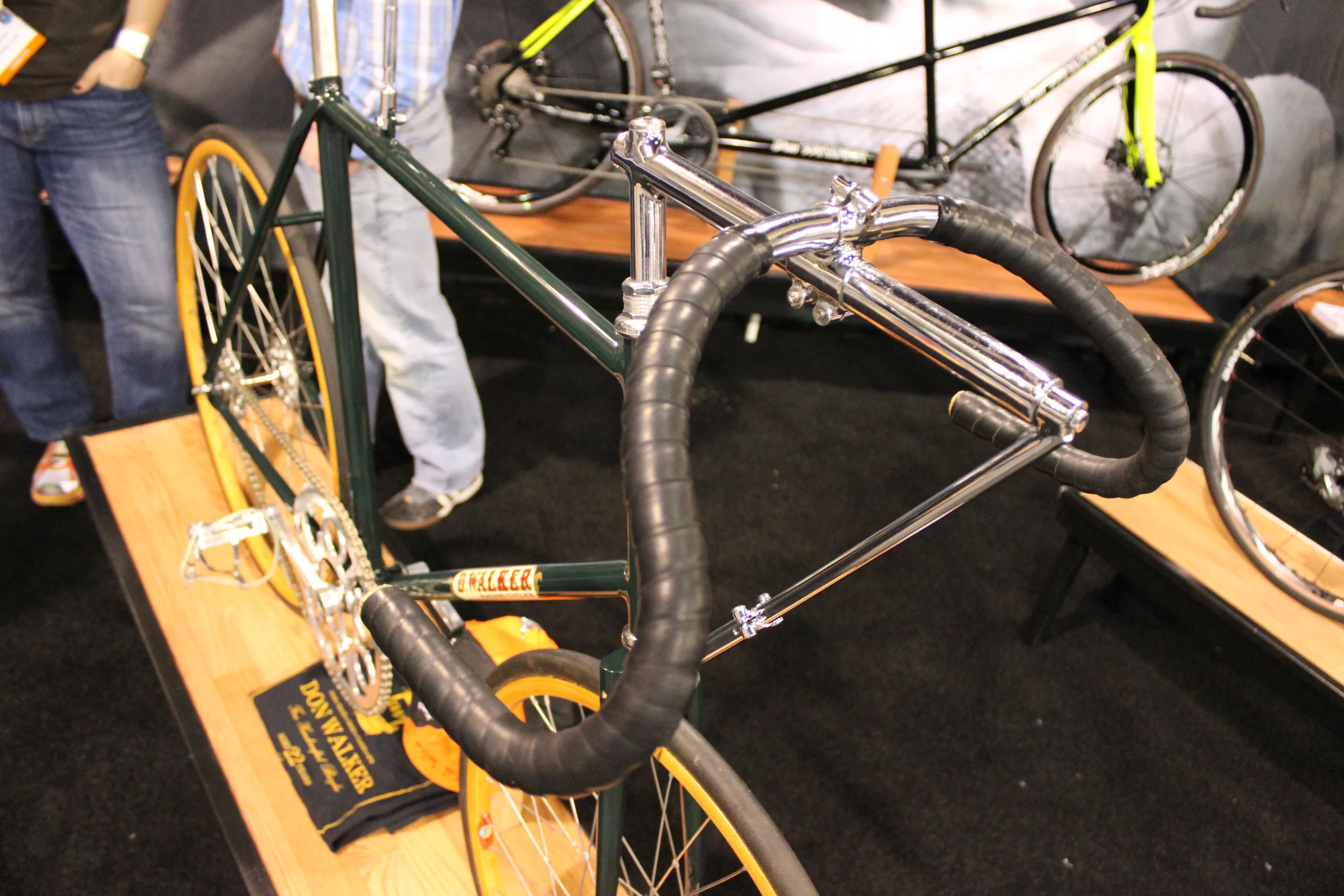

Stayer racing is performed on a velodrome track, with riders tucked in behind motorcycles to reach otherwise-unattainable speeds
44/80
Stayer racing is performed on a velodrome track, with riders tucked in behind motorcycles to reach otherwise-unattainable speeds
The bike's 66-tooth chain ring
45/80
The bike's 66-tooth chain ring

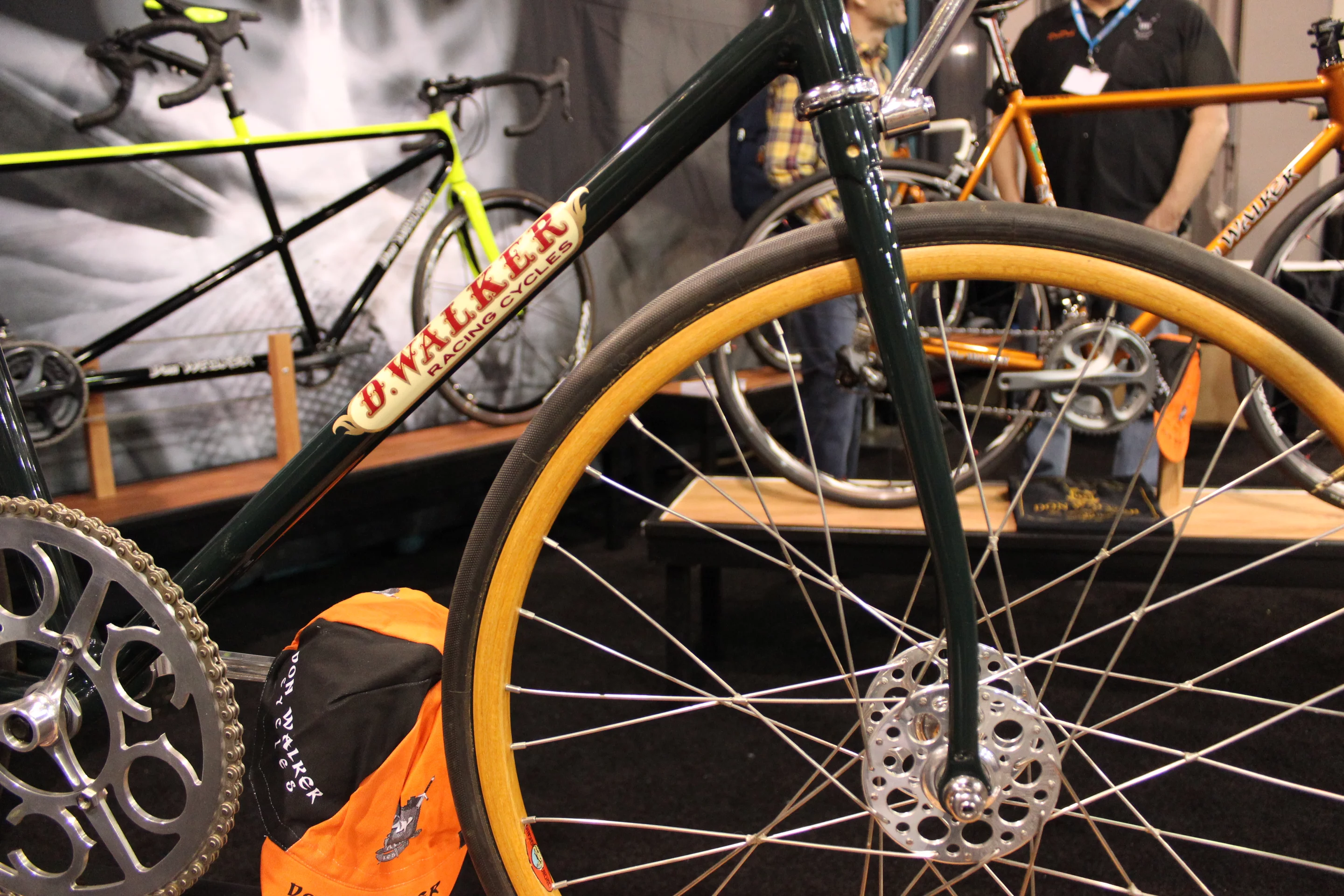

The 24-inch front wheel, and backwards-facing fork
46/80
The 24-inch front wheel, and backwards-facing fork
Because stayer racers spend a lot of time out on the nose of the saddle, a support is added to hold it secure
47/80
Because stayer racers spend a lot of time out on the nose of the saddle, a support is added to hold it secure

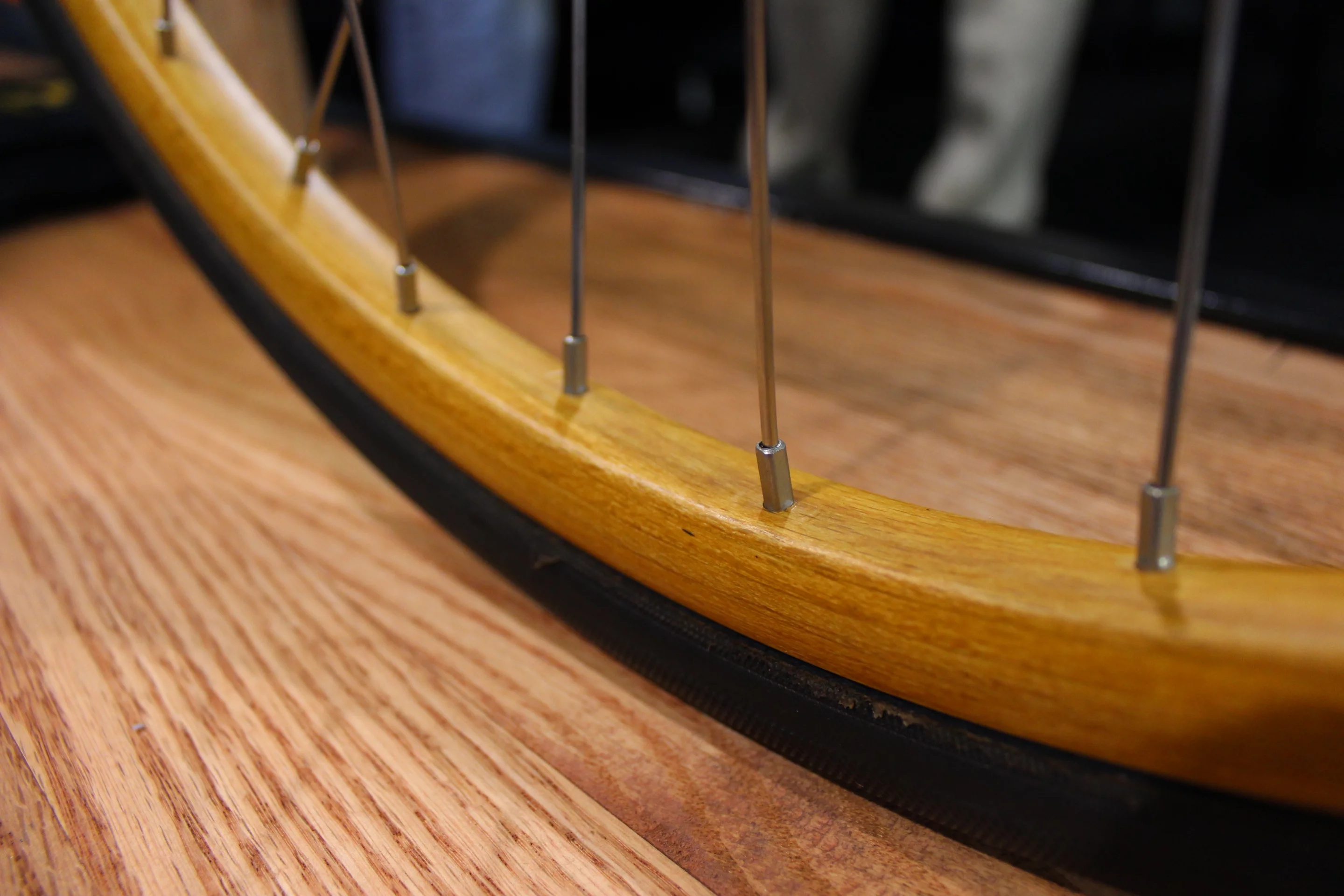

The stayer racer's wooden rims
48/80
The stayer racer's wooden rims
This road bike from Razik uses the same IsoTruss frame technology first developed by Delta 7
49/80
This road bike from Razik uses the same IsoTruss frame technology first developed by Delta 7

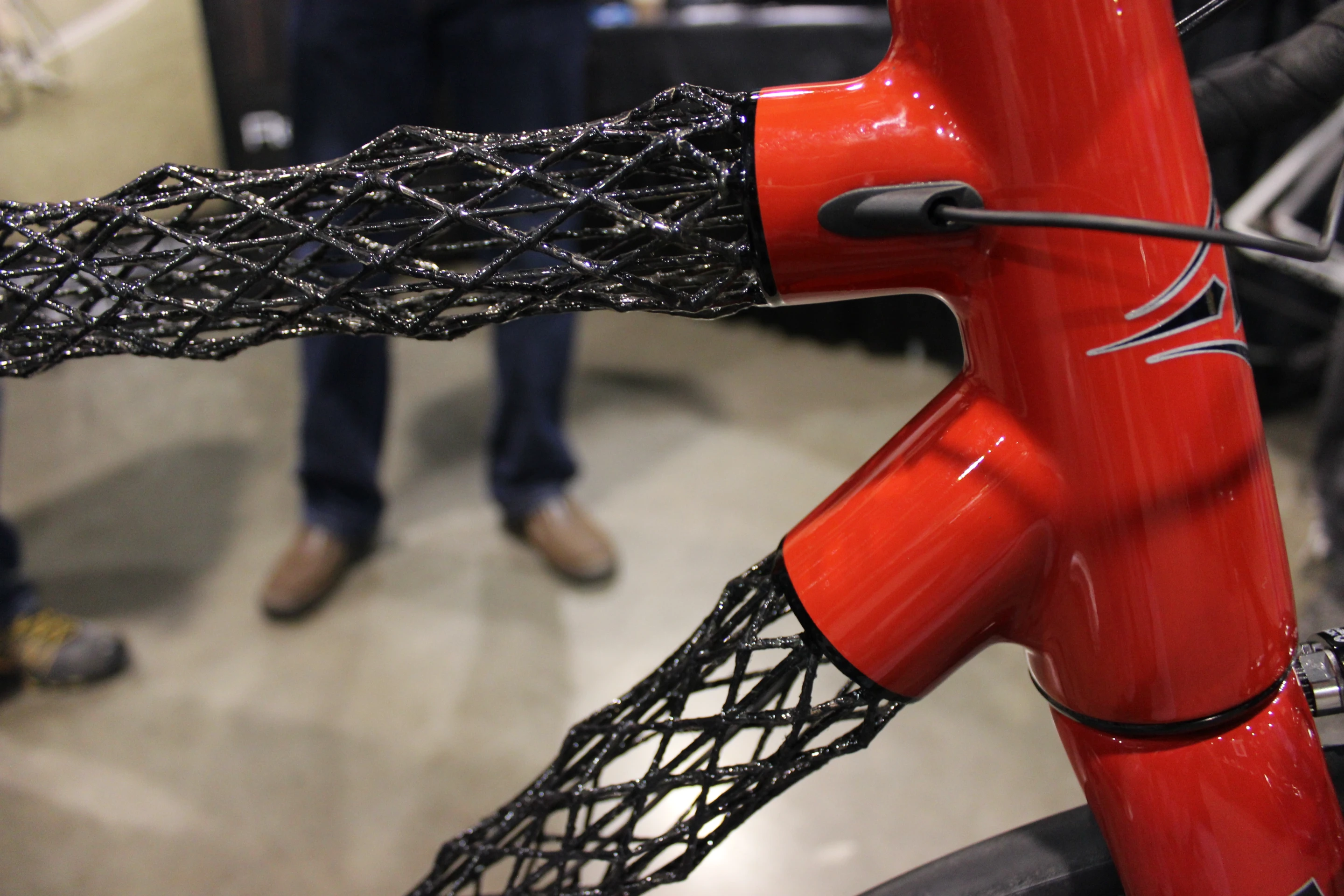

IsoTruss is claimed to have a very high strength-to-weight ratio
50/80
IsoTruss is claimed to have a very high strength-to-weight ratio
The dual-chain drive train on this Oxide Battleaxe mountain bike is designed to minimize chain slap
51/80
The dual-chain drive train on this Oxide Battleaxe mountain bike is designed to minimize chain slap
The girder fork on this offering from Ti Cycles allows for fine-tuning of ride characteristics, by using different diameters or wall thicknesses in each of the two tubes
52/80
The girder fork on this offering from Ti Cycles allows for fine-tuning of ride characteristics, by using different diameters or wall thicknesses in each of the two tubes
This Calfee Design road bike can have an extra section added to its rear end, converting it into a tandem
53/80
This Calfee Design road bike can have an extra section added to its rear end, converting it into a tandem
Moots had this one-of-a-kind titanium Trail Maintenance Bike on display
54/80
Moots had this one-of-a-kind titanium Trail Maintenance Bike on display

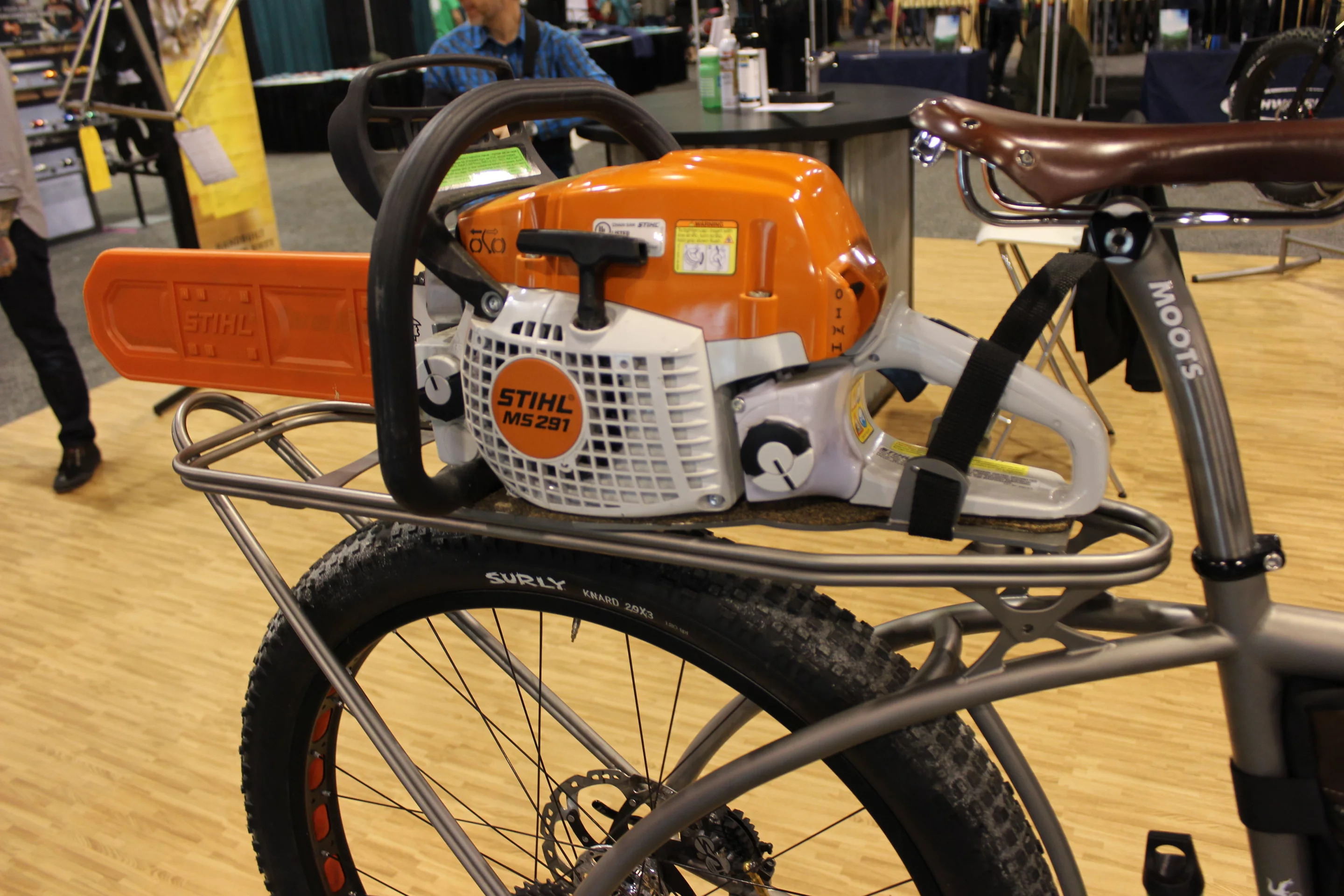

The Trail Maintenance Bike can carry a chainsaw, fuel, oil ...
55/80
The Trail Maintenance Bike can carry a chainsaw, fuel, oil ...

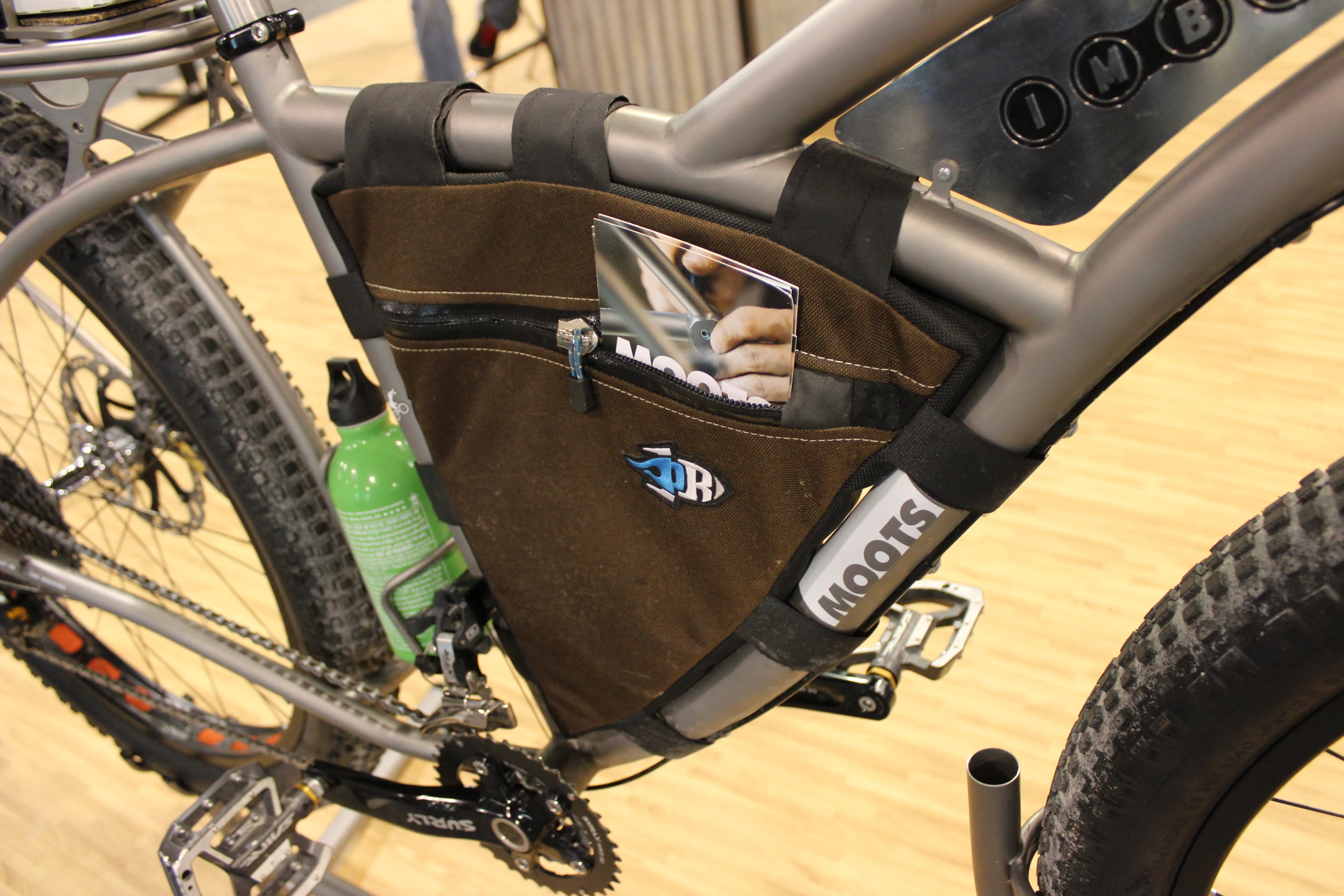

... a flask, pruning shears, folding saw, gloves ...
56/80
... a flask, pruning shears, folding saw, gloves ...

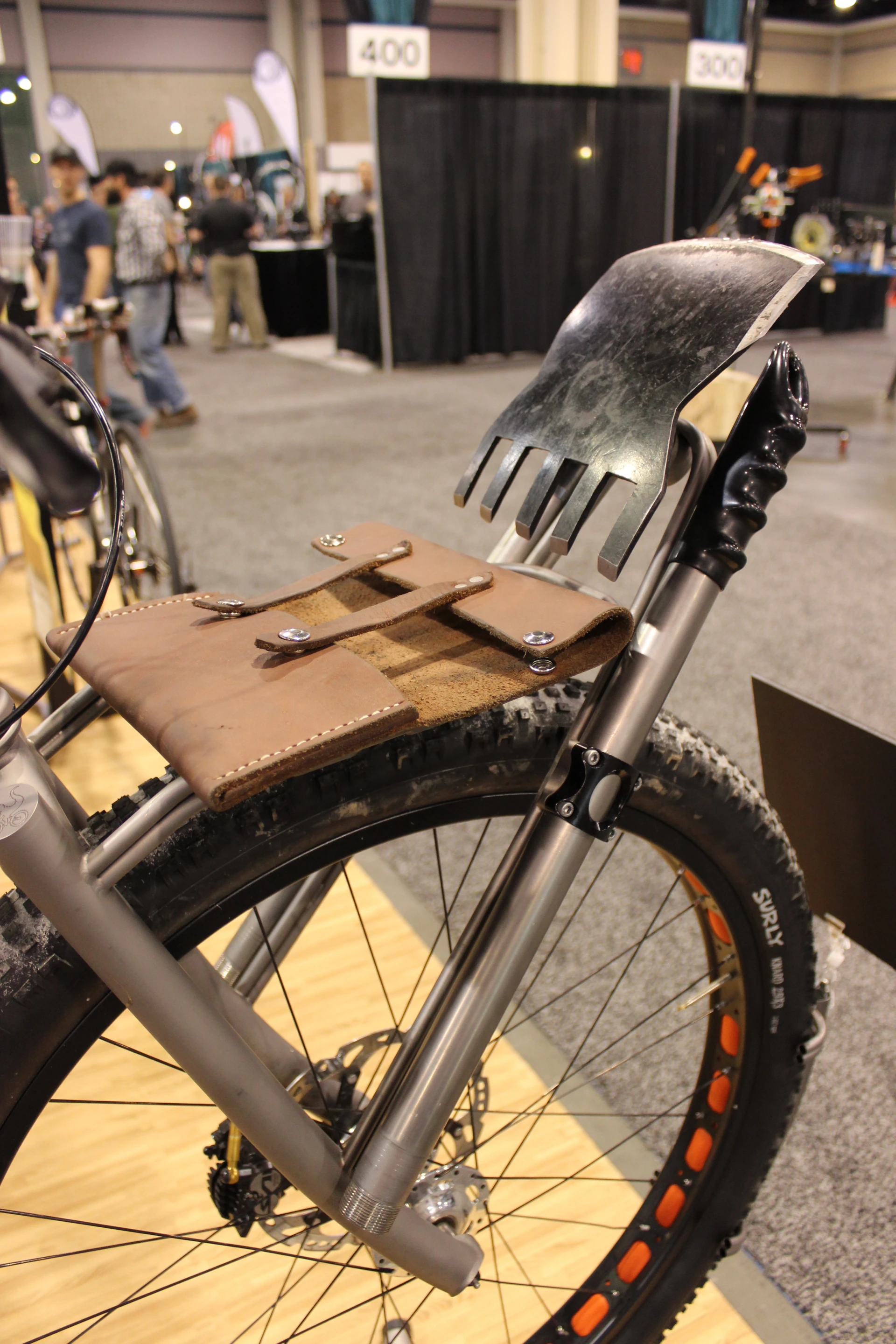

... and a rogue hoe with a telescoping handle
57/80
... and a rogue hoe with a telescoping handle

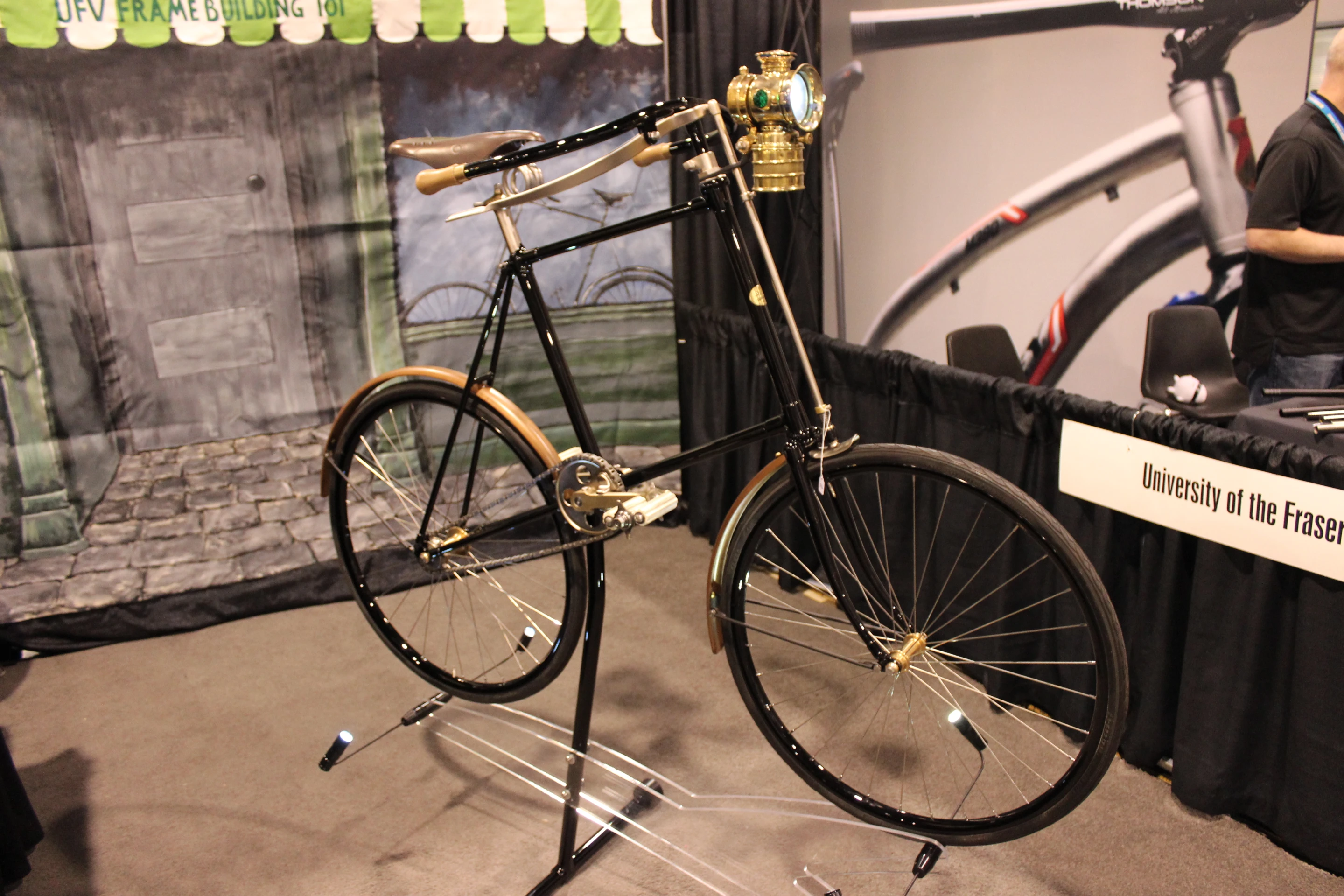

This is a reproduction of a 1894 giraffe bike, made by Paul Brodie of the frame-building course at Canada's University of the Fraser Valley
58/80
This is a reproduction of a 1894 giraffe bike, made by Paul Brodie of the frame-building course at Canada's University of the Fraser Valley
Giraffe bikes were made to be tall, so their riders could look over their neighbor's hedges
59/80
Giraffe bikes were made to be tall, so their riders could look over their neighbor's hedges
The bike's block chain, which had to be special-ordered from England
60/80
The bike's block chain, which had to be special-ordered from England

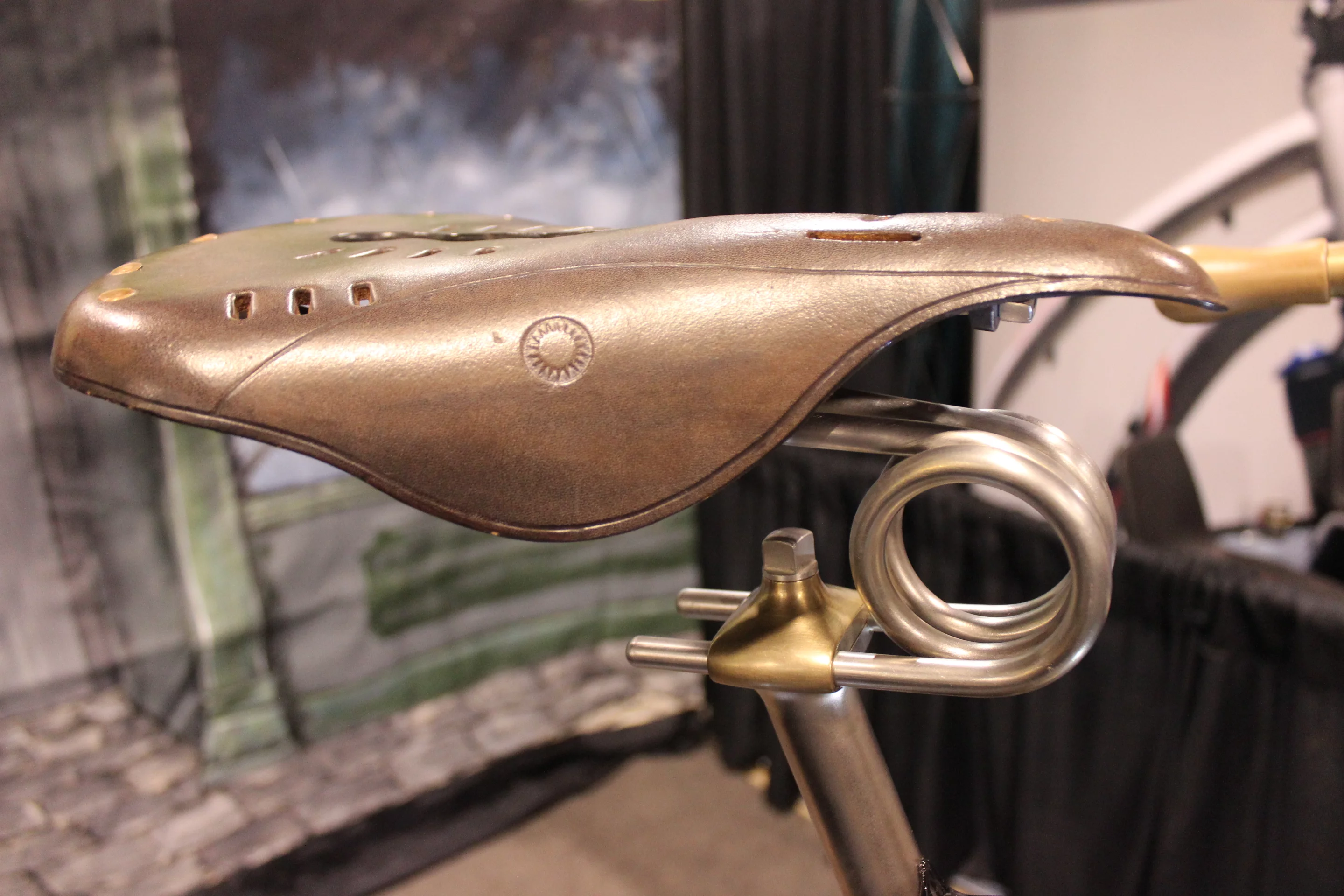

The giraffe bike's spring-suspended saddle
61/80
The giraffe bike's spring-suspended saddle
Calfee Design created this truck-like e-bike for Gates Carbon Drive, to demonstrate its belt drive system
62/80
Calfee Design created this truck-like e-bike for Gates Carbon Drive, to demonstrate its belt drive system
The bike utilizes a Bosch motor
63/80
The bike utilizes a Bosch motor

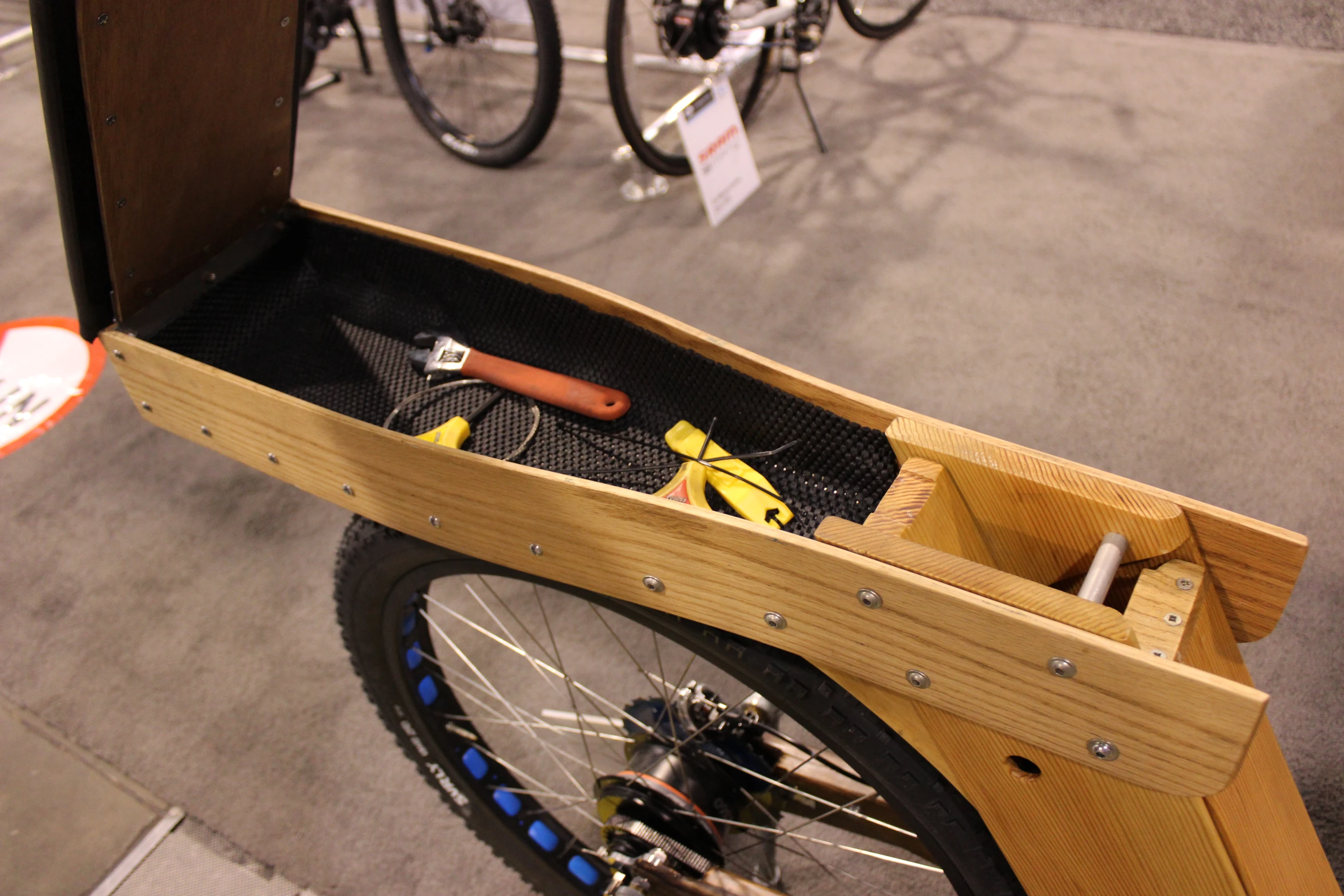

The seat opens up to reveal a tool box
64/80
The seat opens up to reveal a tool box

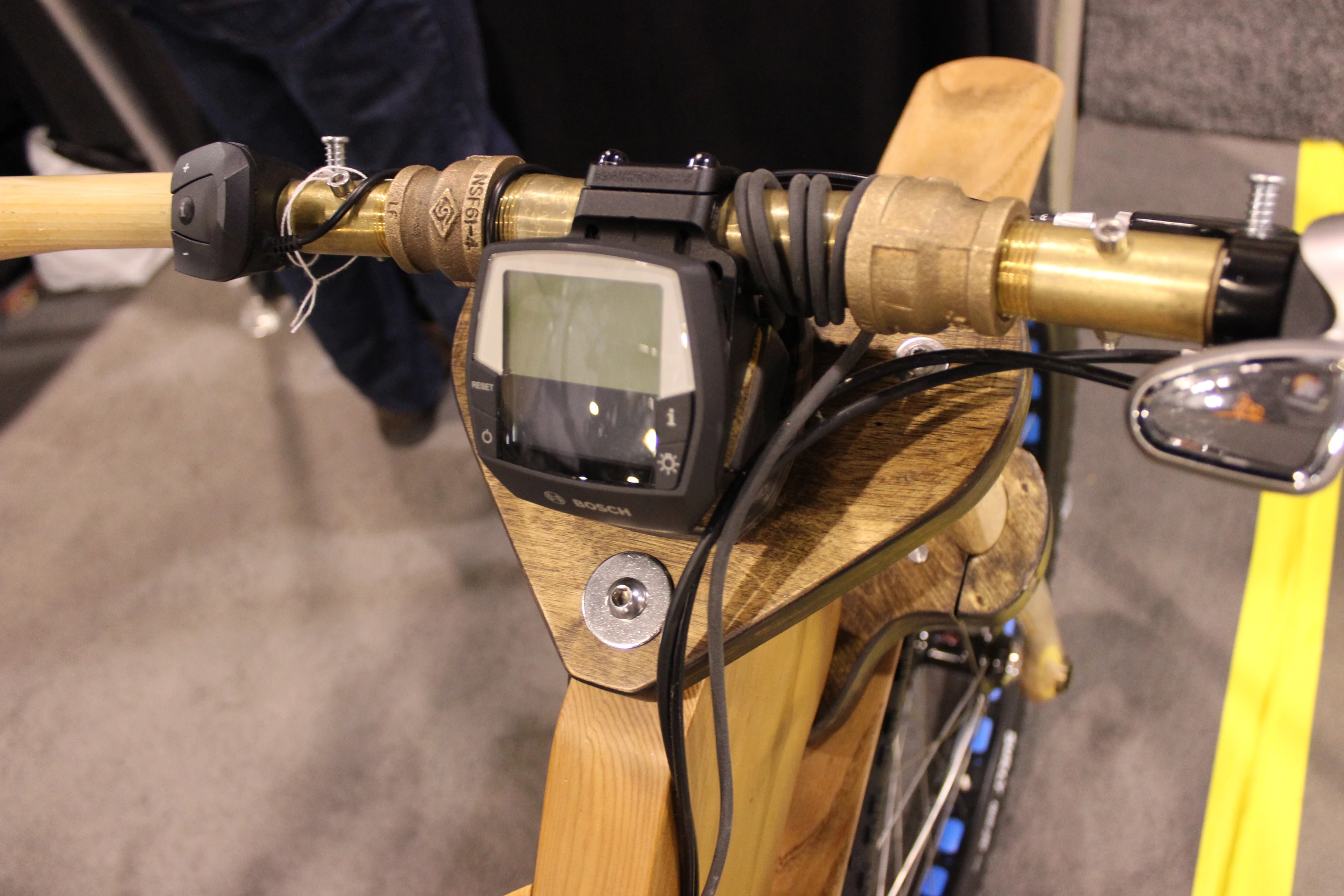

The handlebars are made from steel pipe – just to show how burly the bike is
65/80
The handlebars are made from steel pipe – just to show how burly the bike is

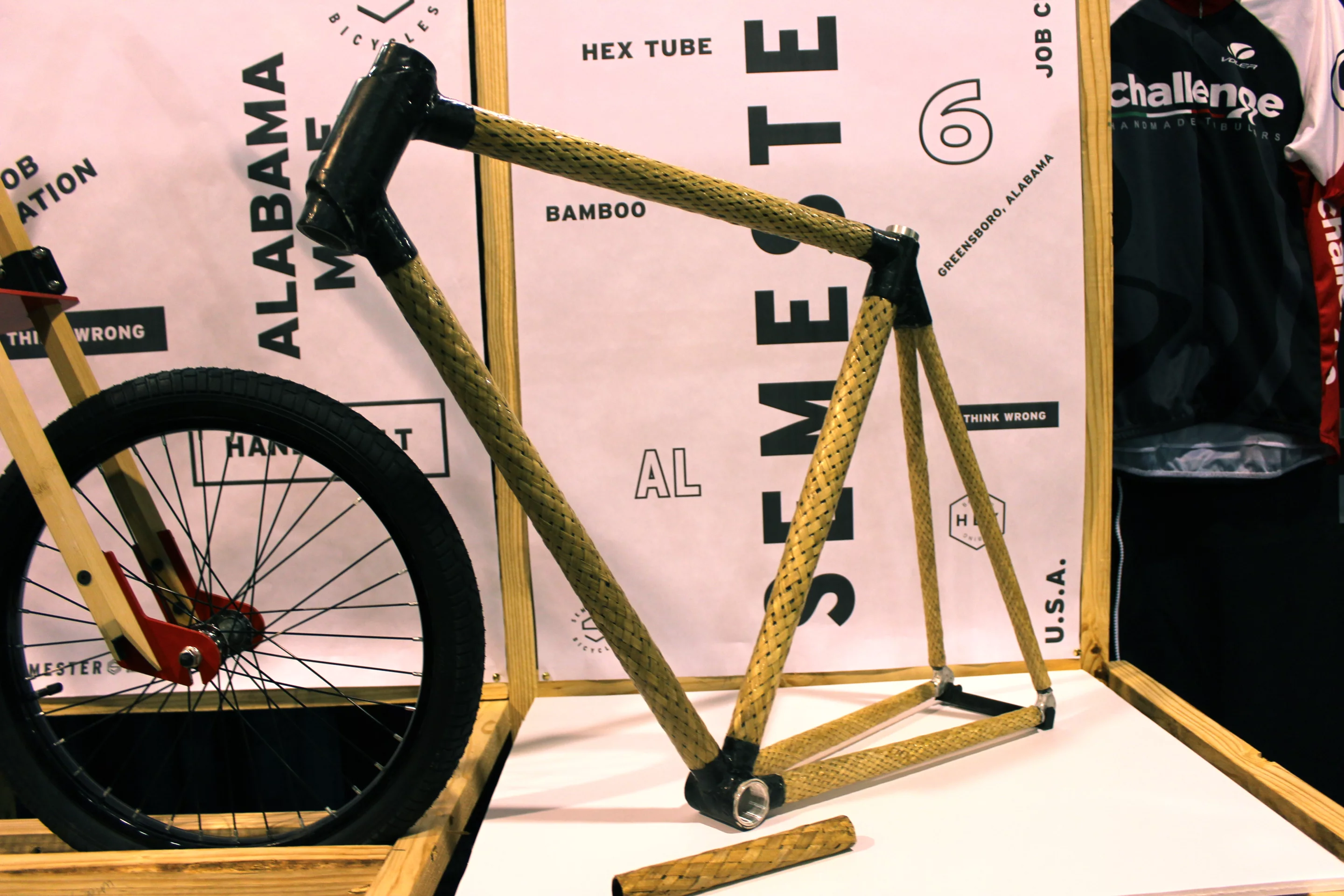

This frame from HERObike is made from woven bamboo bonded to an inner carbon fiber sleeve
66/80
This frame from HERObike is made from woven bamboo bonded to an inner carbon fiber sleeve

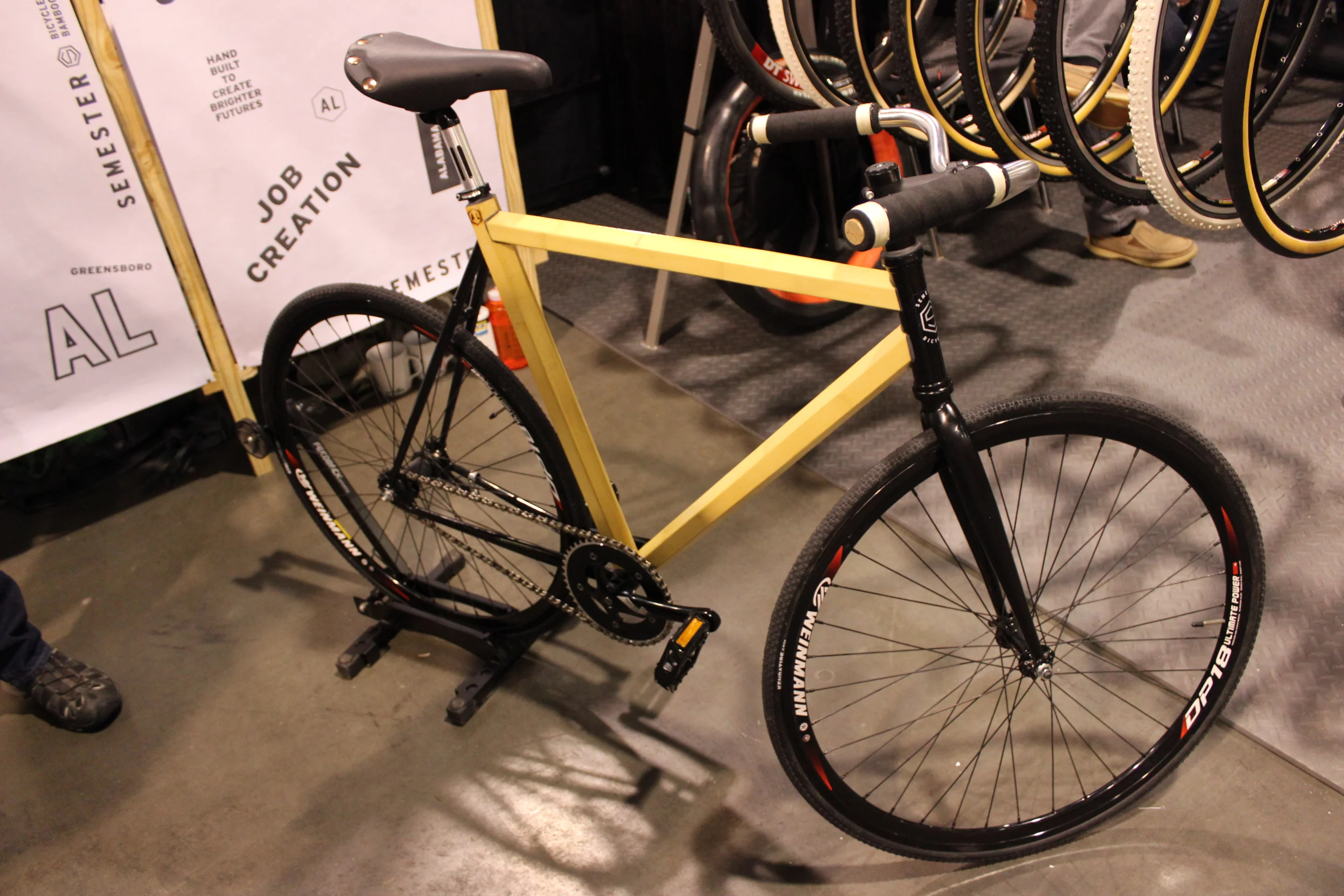

HERObike also brought along this Semester model, with a frame made from bamboo slats bonded to carbon fiber
67/80
HERObike also brought along this Semester model, with a frame made from bamboo slats bonded to carbon fiber

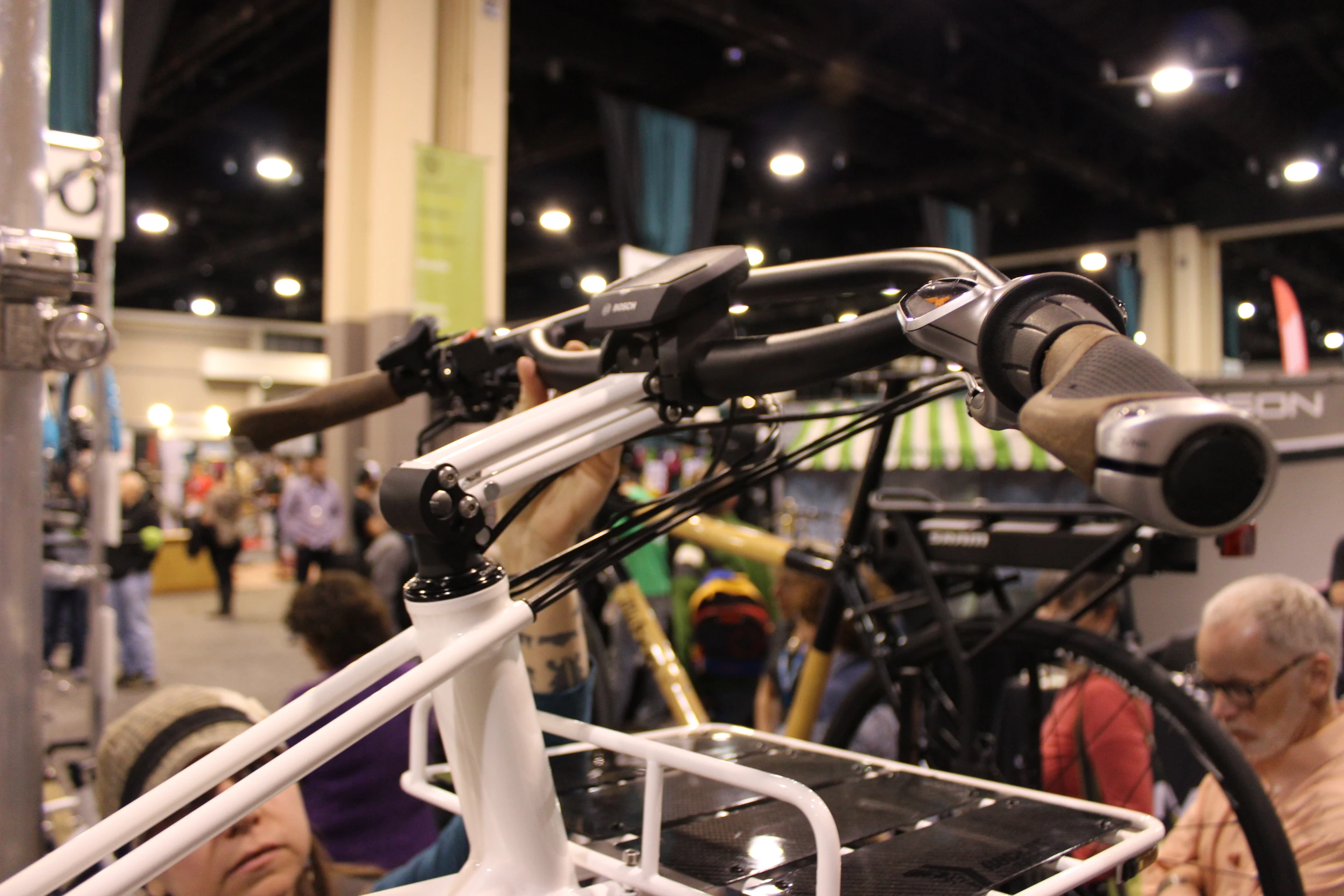

English Cycles made this hinged parallelogram stem, that can be raised and lowered to accommodate different sizes of riders
68/80
English Cycles made this hinged parallelogram stem, that can be raised and lowered to accommodate different sizes of riders
Legendary Italian motorcycle manufacturer Bimota might start offering bicycles – this prototype was made by Palladio Bikes, and incorporates the same carbon fiber technology used by Bimota
69/80
Legendary Italian motorcycle manufacturer Bimota might start offering bicycles – this prototype was made by Palladio Bikes, and incorporates the same carbon fiber technology used by Bimota
We couldn't resist getting a shot of these colorful carbon fiber wheels, also made by Palladio
70/80
We couldn't resist getting a shot of these colorful carbon fiber wheels, also made by Palladio

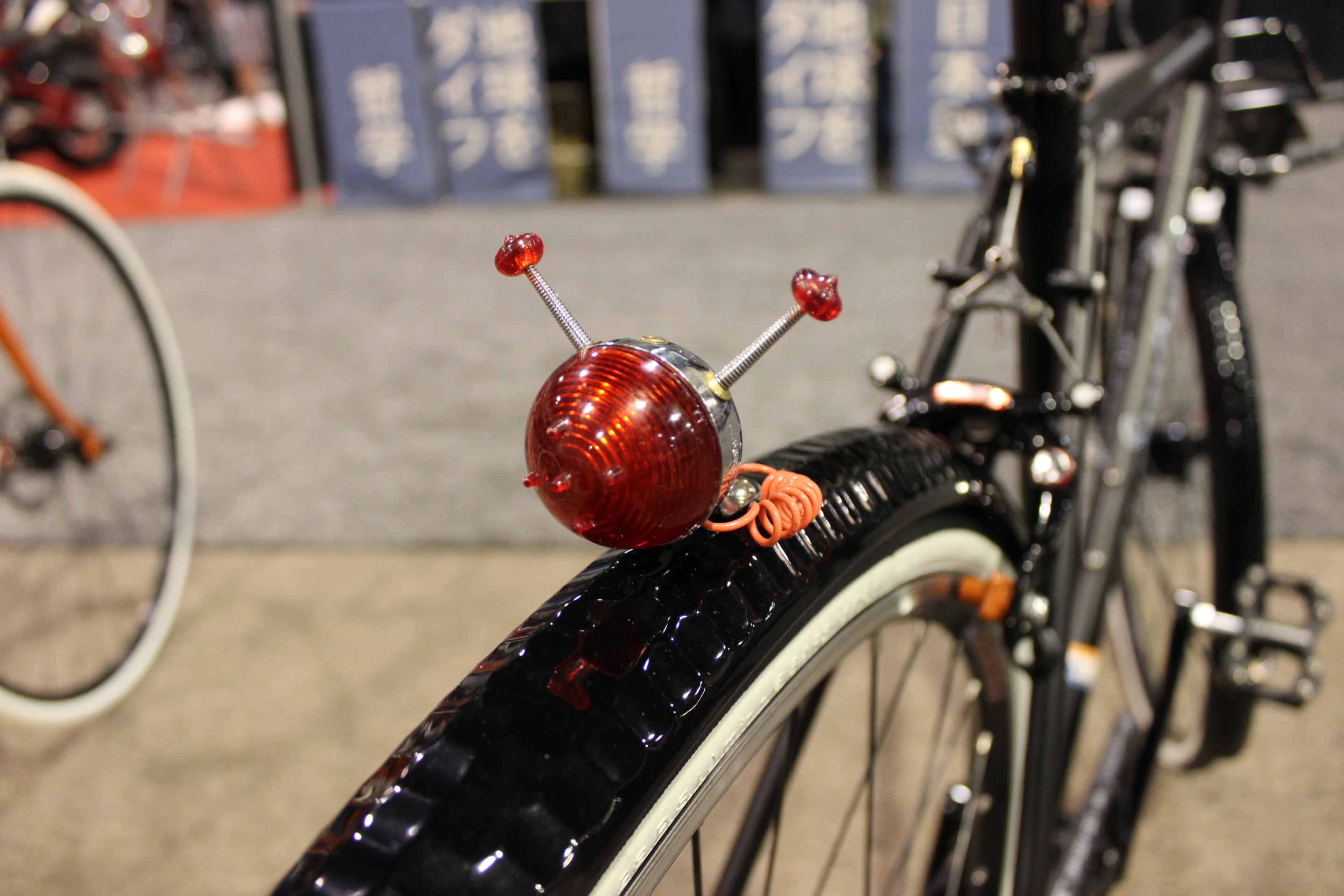

This wacky tail light from Speedhound actually works – although the use of an extra, brighter blinky is also advised
71/80
This wacky tail light from Speedhound actually works – although the use of an extra, brighter blinky is also advised

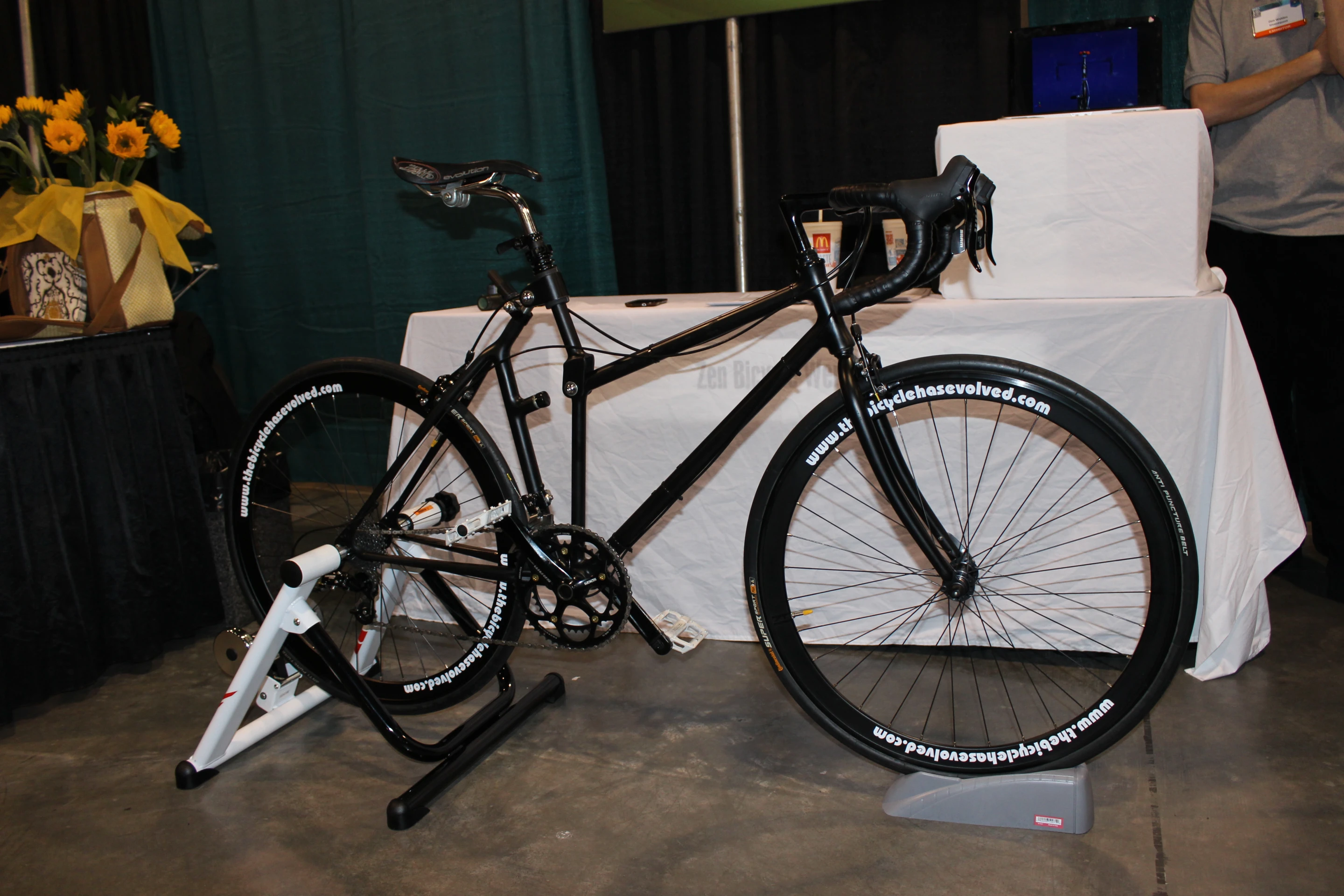

The Darwin Bicycle has a frame that folds forward with the rider, reportedly boosting their performance by allowing them to remain seated while sprinting and climbing
72/80
The Darwin Bicycle has a frame that folds forward with the rider, reportedly boosting their performance by allowing them to remain seated while sprinting and climbing

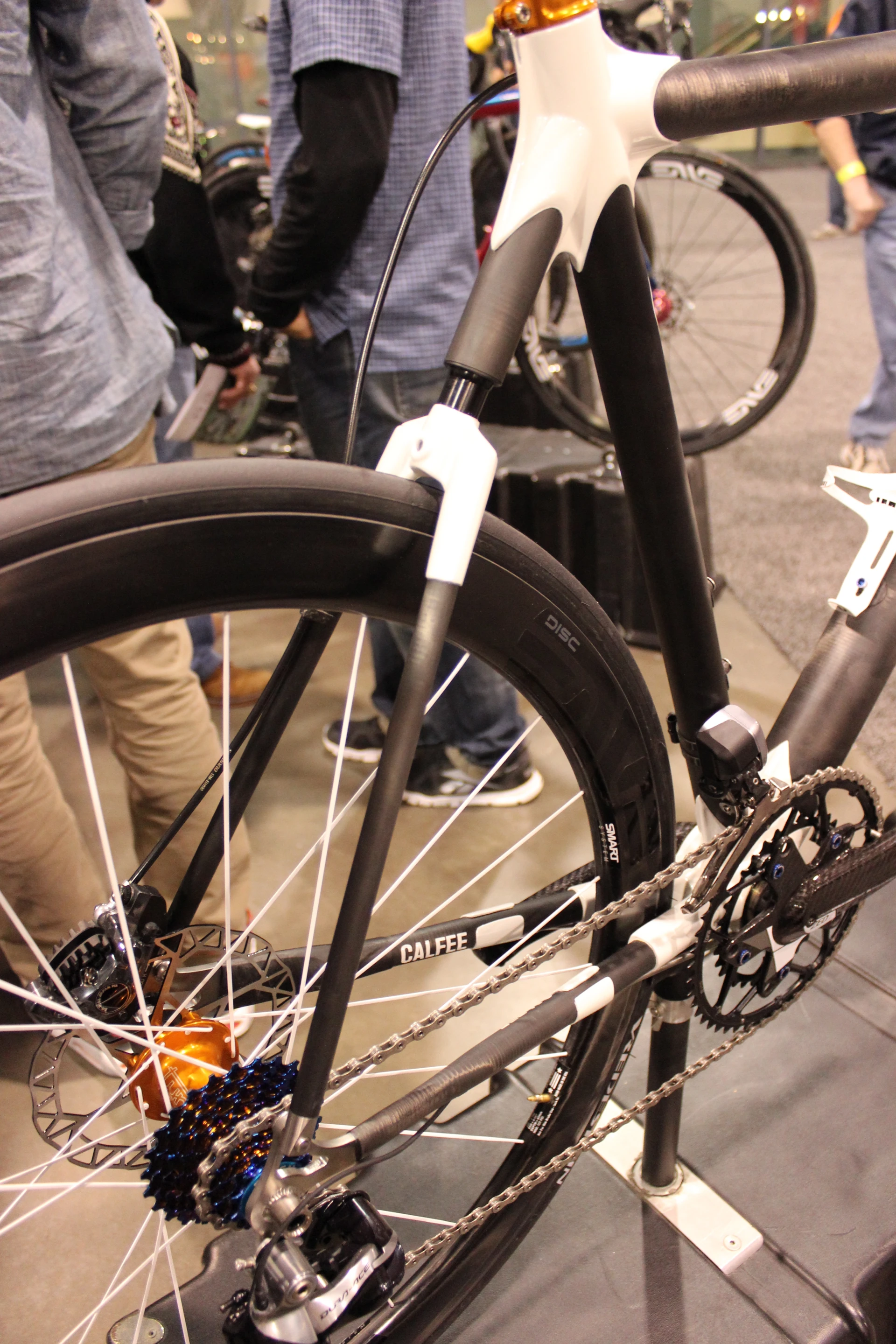

This Calfee Design road bike features a rear end where the seat stays merge into a single shaft that meets up with a steel spring housed within the frame, offering 12 mm of suspension
73/80
This Calfee Design road bike features a rear end where the seat stays merge into a single shaft that meets up with a steel spring housed within the frame, offering 12 mm of suspension
These steel struts give the Calfee's chainstays some added rigidity in front, while allowing their back ends to still have the flex needed for the suspension
74/80
These steel struts give the Calfee's chainstays some added rigidity in front, while allowing their back ends to still have the flex needed for the suspension

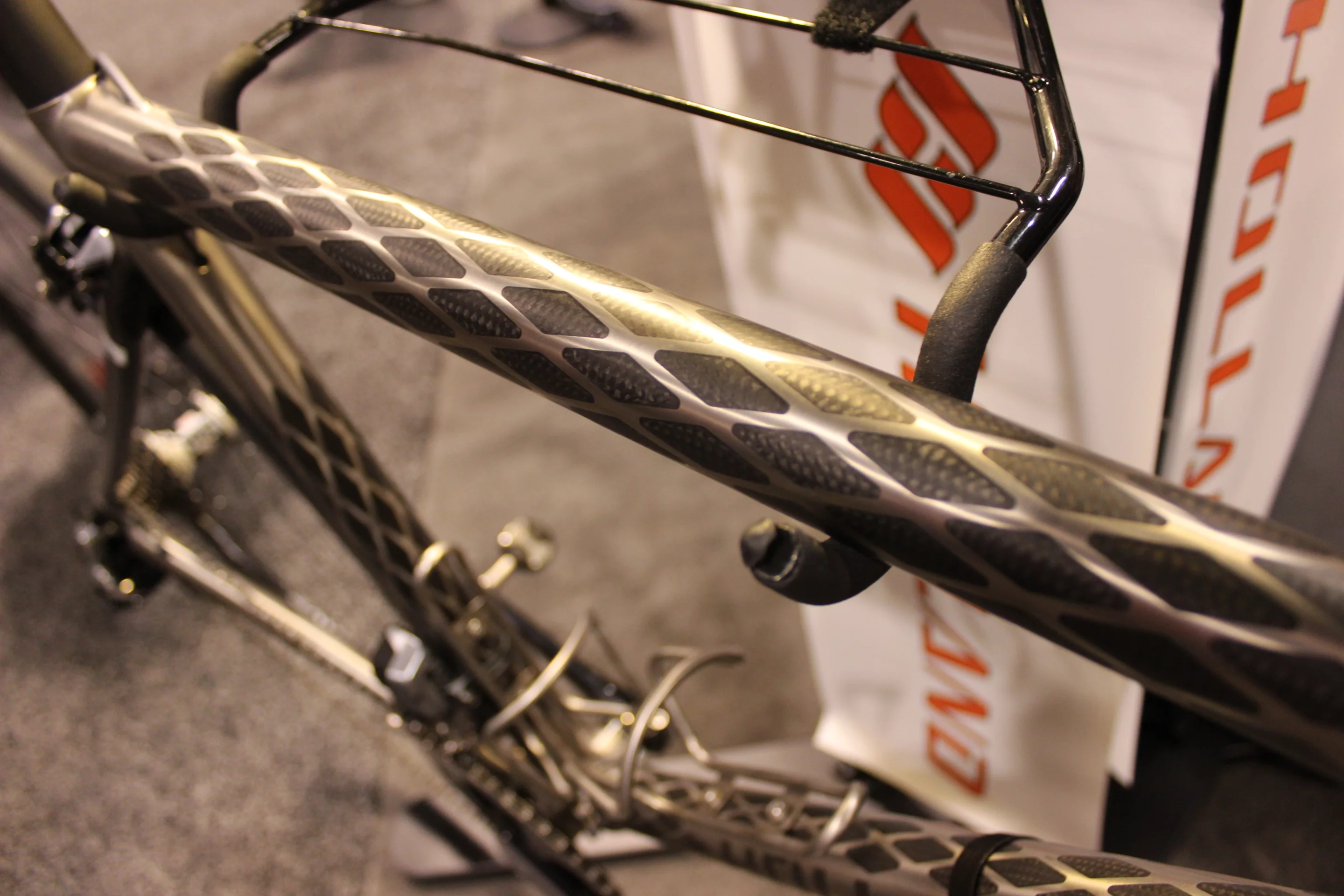

Holland Cycles' ExoGrid system combines titanium and carbon fiber within a single tube
75/80
Holland Cycles' ExoGrid system combines titanium and carbon fiber within a single tube
A cut-away view of the ExoGrid tubing
76/80
A cut-away view of the ExoGrid tubing

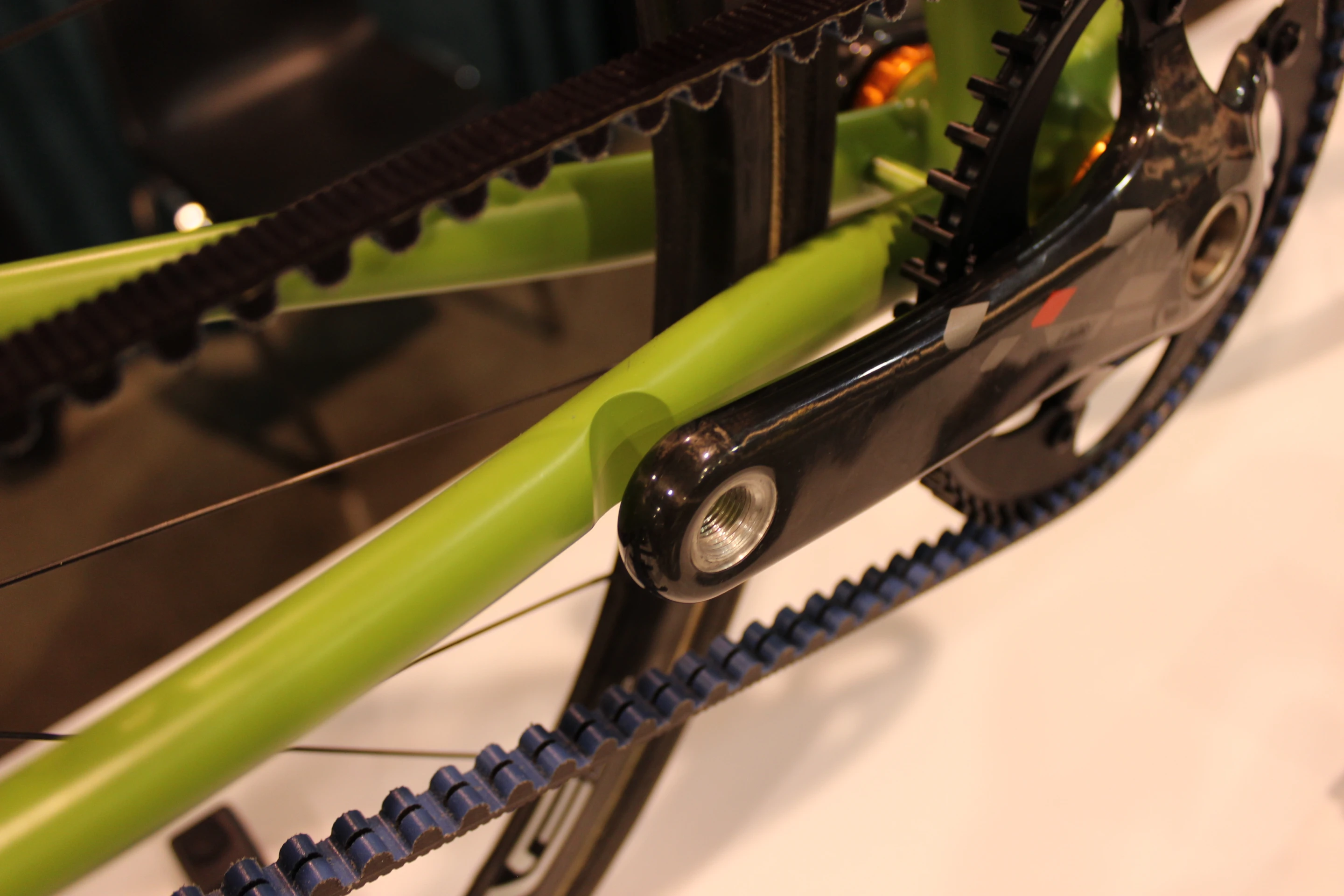

The belt-drive Hudsaruso from Syndrome Cycles has wider-than-normal chainstays due to its sliding rear drop-outs, hence this nifty crank-clearance cut-out
77/80
The belt-drive Hudsaruso from Syndrome Cycles has wider-than-normal chainstays due to its sliding rear drop-outs, hence this nifty crank-clearance cut-out

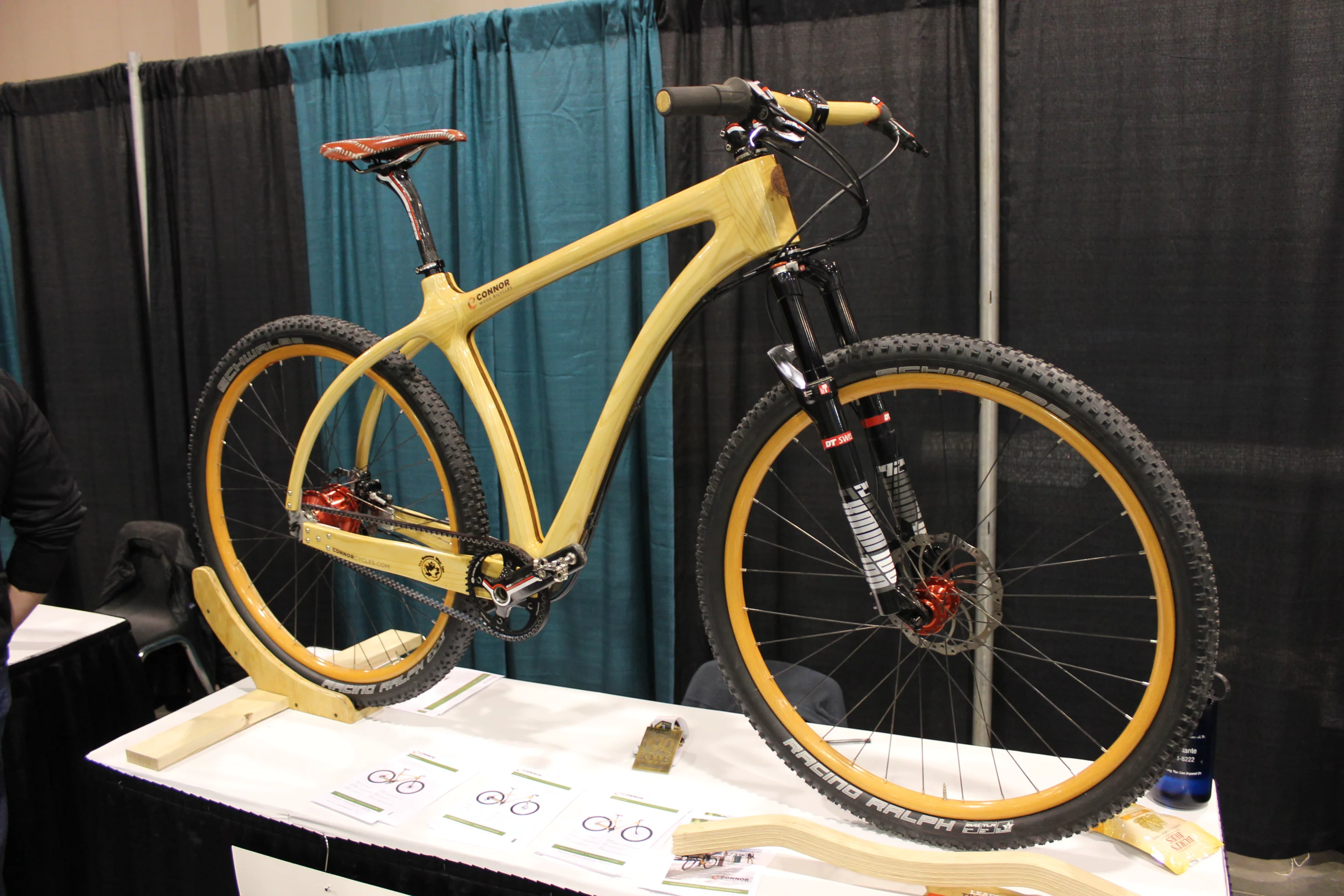

The rear triangle of this DURT mountain bike by Connor Wood Bicycles has layers of Kevlar sandwiched between layers of wood, for added strength
78/80
The rear triangle of this DURT mountain bike by Connor Wood Bicycles has layers of Kevlar sandwiched between layers of wood, for added strength

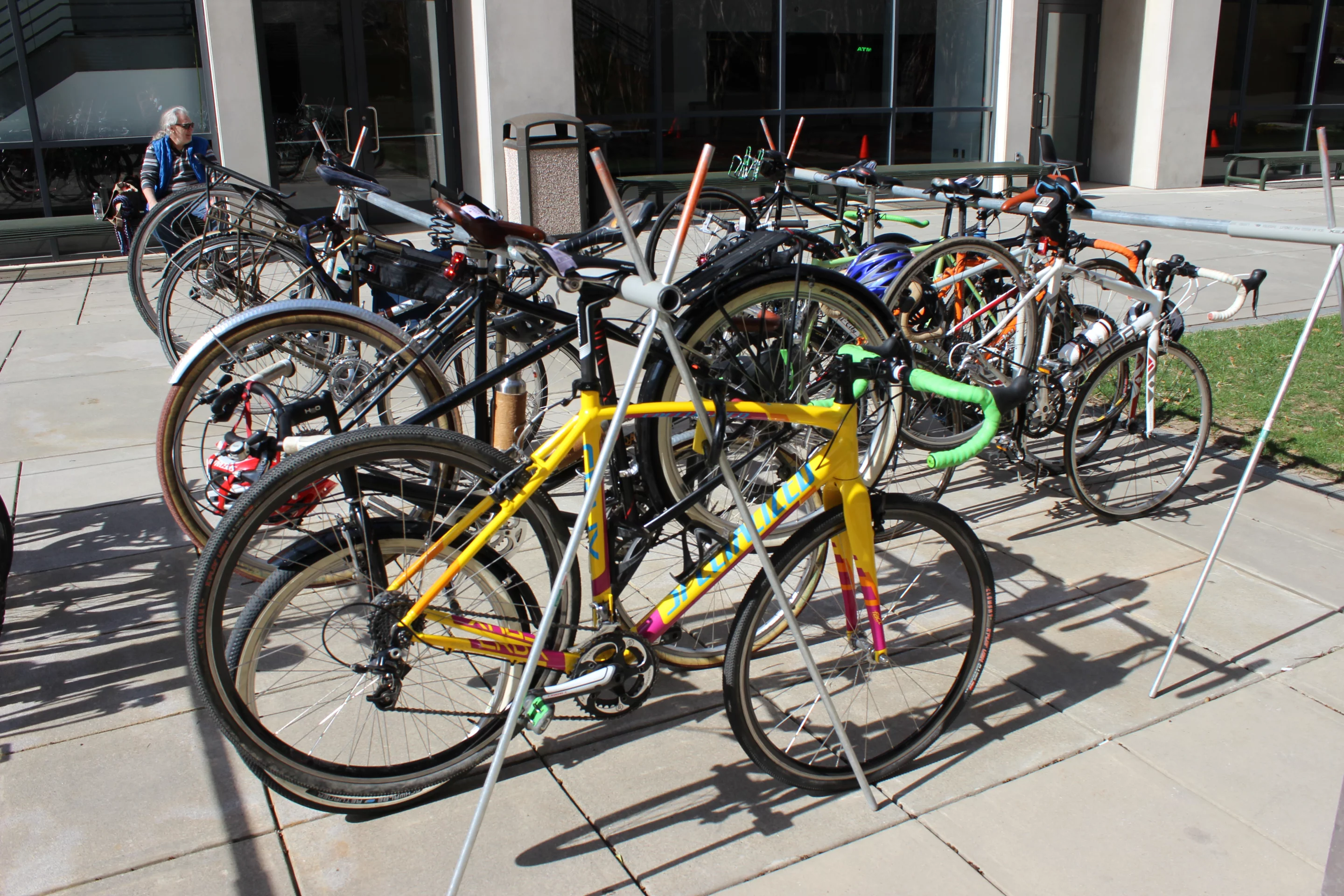

Although they weren't all handmade, some of the bikes in the parking area also looked pretty nice
79/80
Although they weren't all handmade, some of the bikes in the parking area also looked pretty nice

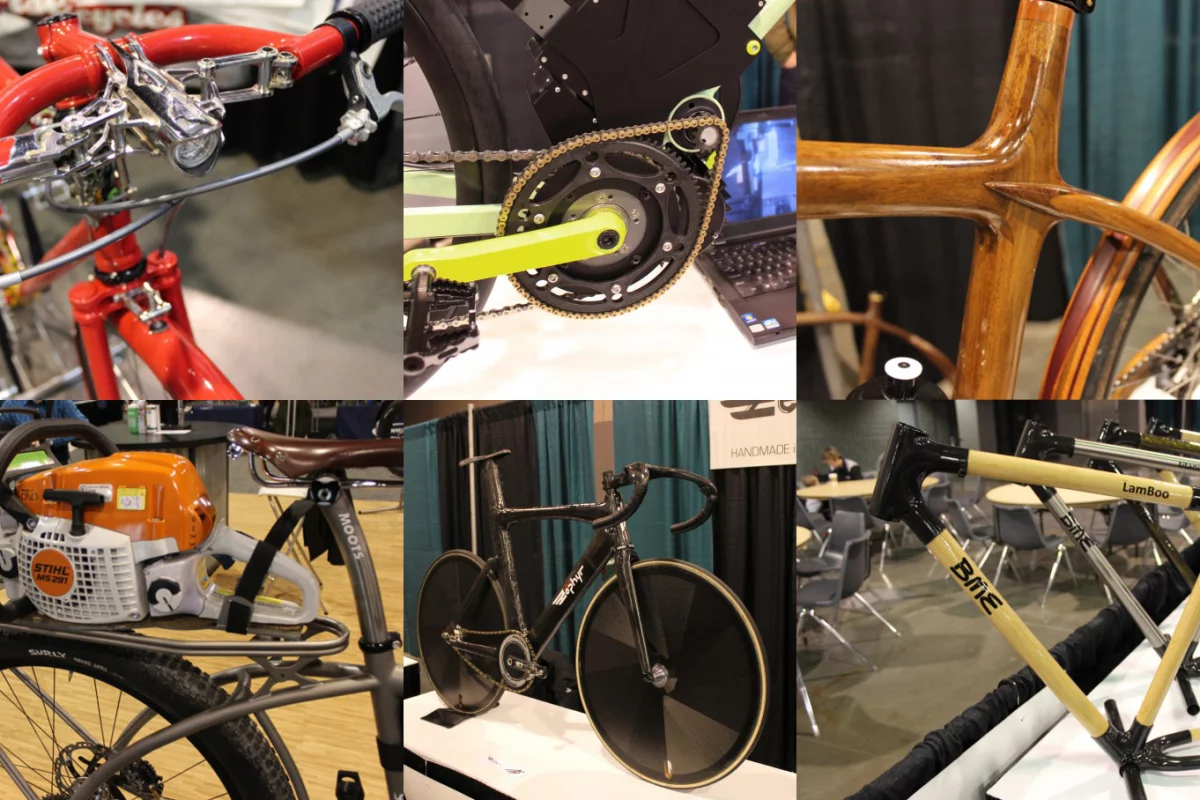

NAHBS 2014 featured over 150 exhibitors from around the world
80/80
NAHBS 2014 featured over 150 exhibitors from around the world
View gallery - 80 images

Ask someone to list off the world's most innovative bicycles, and chances are that they'll mention some mass-produced bikes made by big-name manufacturers. The fact is, though, it's more often the smaller, independent builders that are doing the real innovating. For the past 10 years, many of them have been showing off their latest builds at the North American Handmade Bicycle Show (NAHBS). We attended this year's event, which took place last weekend in Charlotte, North Carolina. Here's a look at some of the things that really caught our eye.

NAHBS 2014 featured over 150 exhibitors from around the world – although most of them were from North America.

Given our mandate here at Gizmag, we were particularly interested in finding examples of out-of-the-box thinking – bikes that might be a little too "alternative" to sell in huge numbers, but that demonstrate a willingness to experiment with things like new frame materials, geometries, or drive trains.

There were plenty.

We've already covered some of the standout cycling innovations over the past week, but you can take a peek at the rest in this article's photo gallery. Just be warned that doing so may cause extreme bicycle lust.

View gallery - 80 images
4 comments
4 comments
mgb
Lots of interesting bikes but ...not a single recumbent? Or were they banned?
overbyte
The recumbent manufacturers have their own trade show called Recumbent Cycle-Con. http://recumbentcyclecon.blogspot.com/.
Walt Stawicki
thanks for the recumbent link. I am shocked at the overabundance of design, but I guess conspicuous consumption is not foreign to cycling circles. As for engineering, a few highlights kept me plodding thru the pictures. I have more smiles looking thru low rider coverage of the bikes in so cal!
still a diamond flat frame...except those excludable "recumbenteers!
Jeff Potter
Bikes are one. (NAHBS includes dozens of bike (and trike) types. Zero reason to exclude one.)
