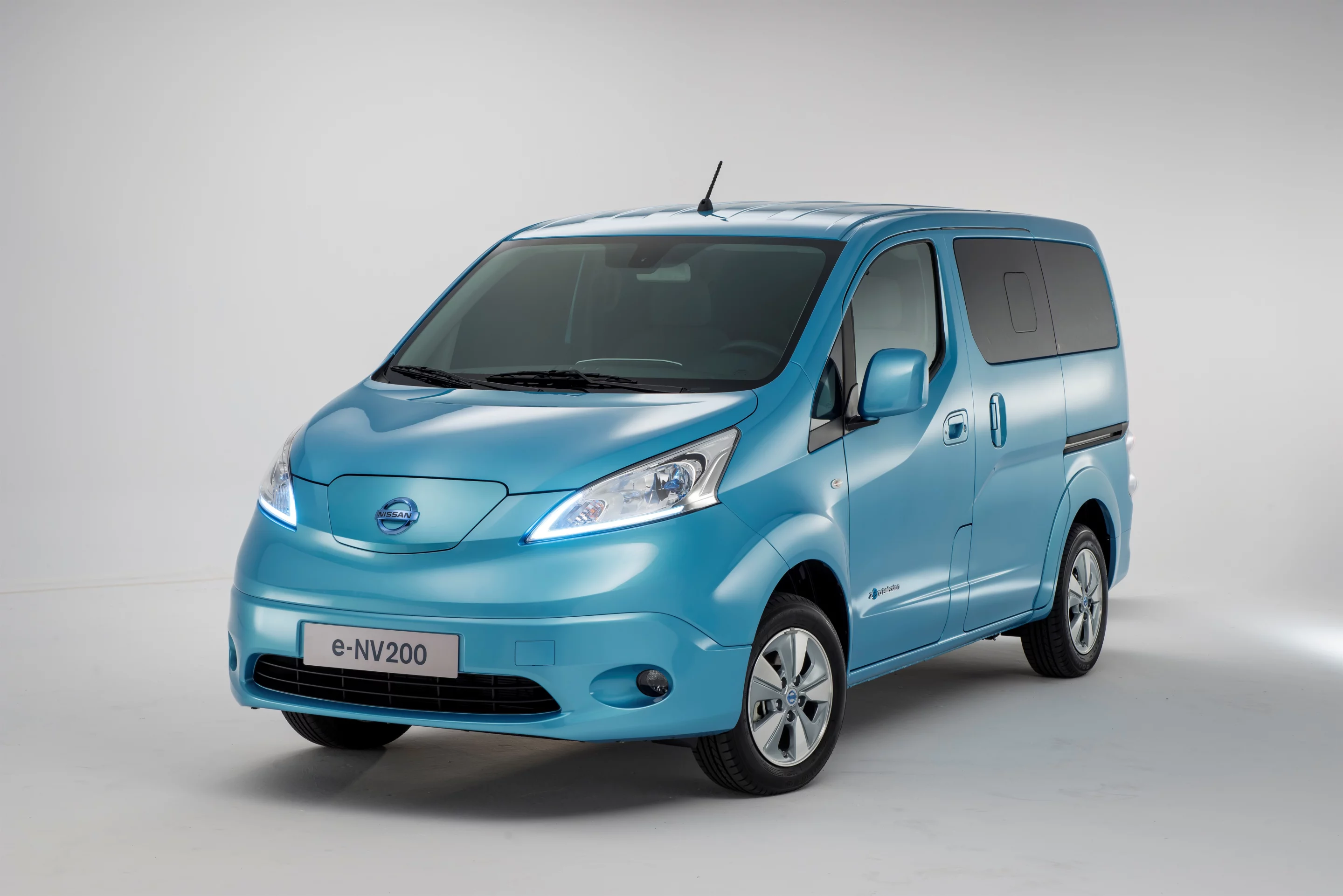

Nissan's e-NV200 borrow heavily from the Nissan LEAF
Nissan's e-NV200 borrow heavily from the Nissan LEAF
View 55 Images
1/55
2/55

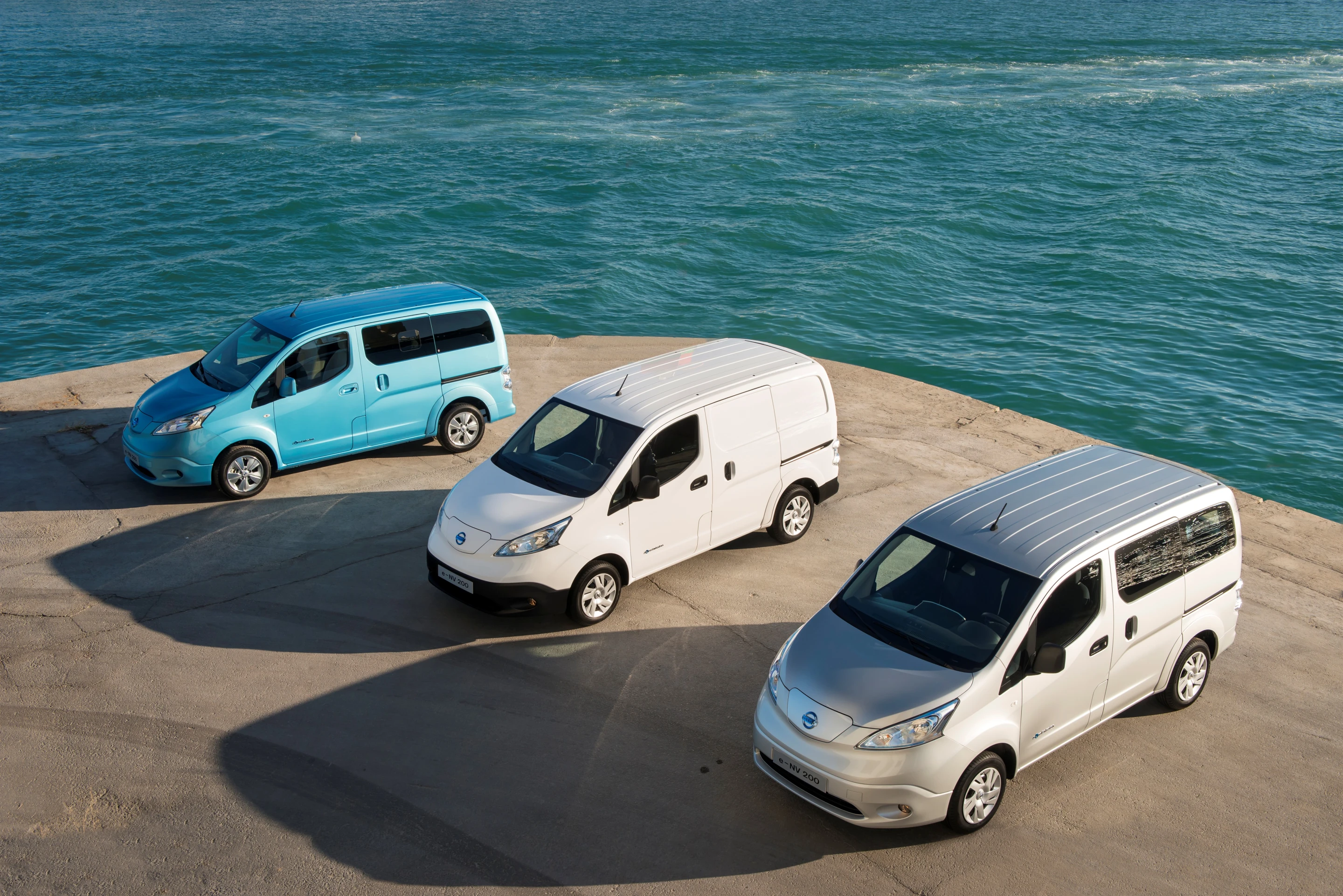

Nissan's e-NV200 will go on sale in June
3/55
Nissan's e-NV200 will go on sale in June
Nissan's e-NV200
4/55
Nissan's e-NV200
Nissan's e-NV200 can be charged to 80 percent capacity in under 30 minutes
5/55
Nissan's e-NV200 can be charged to 80 percent capacity in under 30 minutes
Nissan's e-NV200
6/55
Nissan's e-NV200
Nissan's e-NV200 has the same electric drivetrain as the LEAF
7/55
Nissan's e-NV200 has the same electric drivetrain as the LEAF
Nissan's e-NV200
8/55
Nissan's e-NV200
Nissan's e-NV200
9/55
Nissan's e-NV200
Nissan's e-NV200
10/55
Nissan's e-NV200
Nissan's e-NV200 boasts an homologated NEDC range of 170 km (106 miles)
11/55
Nissan's e-NV200 boasts an homologated NEDC range of 170 km (106 miles)
Nissan's e-NV200
12/55
Nissan's e-NV200
Nissan's e-NV200
13/55
Nissan's e-NV200
Nissan's e-NV200
14/55
Nissan's e-NV200
Nissan's e-NV200
15/55
Nissan's e-NV200
Nissan's e-NV200
16/55
Nissan's e-NV200
Nissan's e-NV200
17/55
Nissan's e-NV200

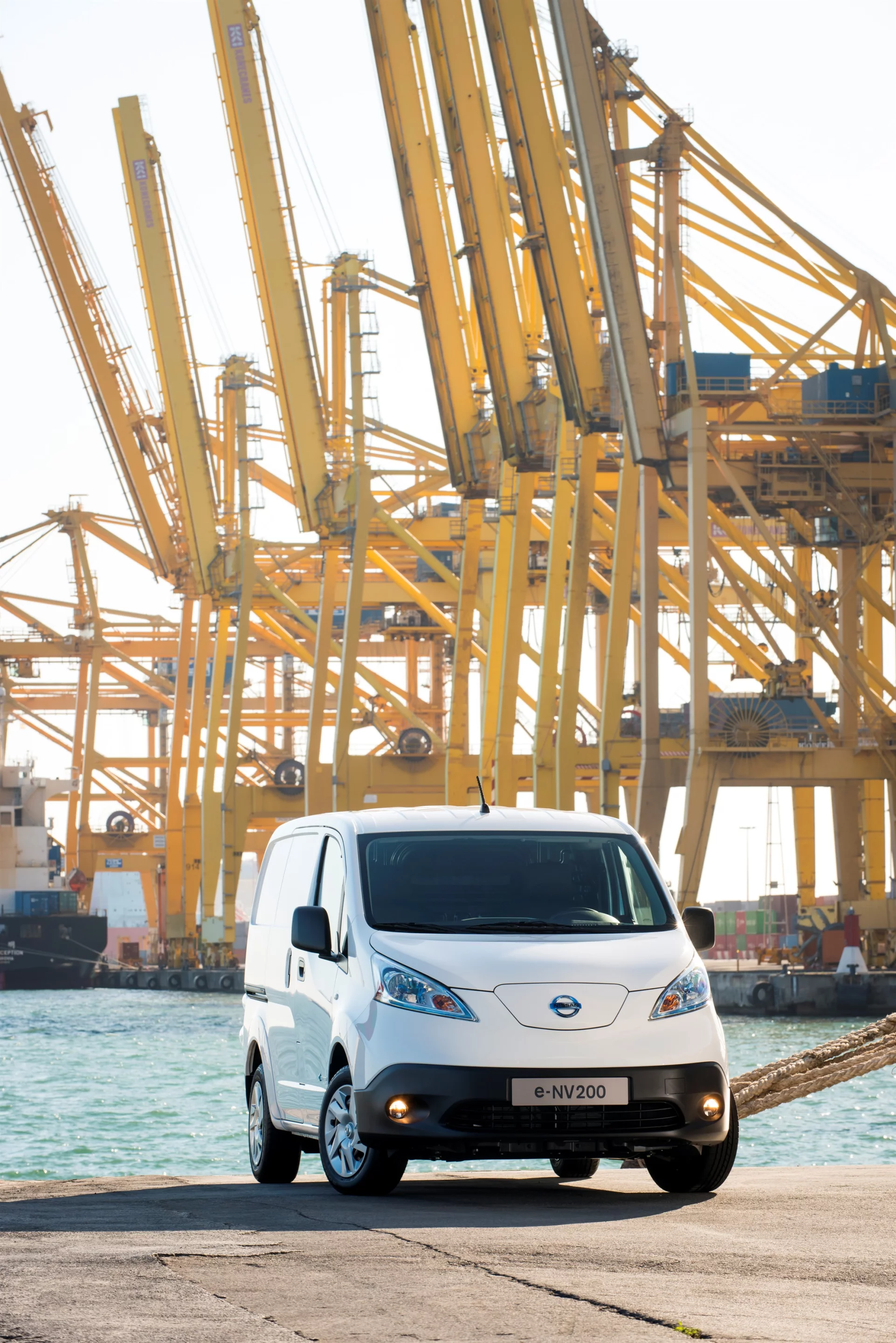

Nissan's e-NV200 has a maximum speed of 120 km/h (75 mph)
18/55
Nissan's e-NV200 has a maximum speed of 120 km/h (75 mph)

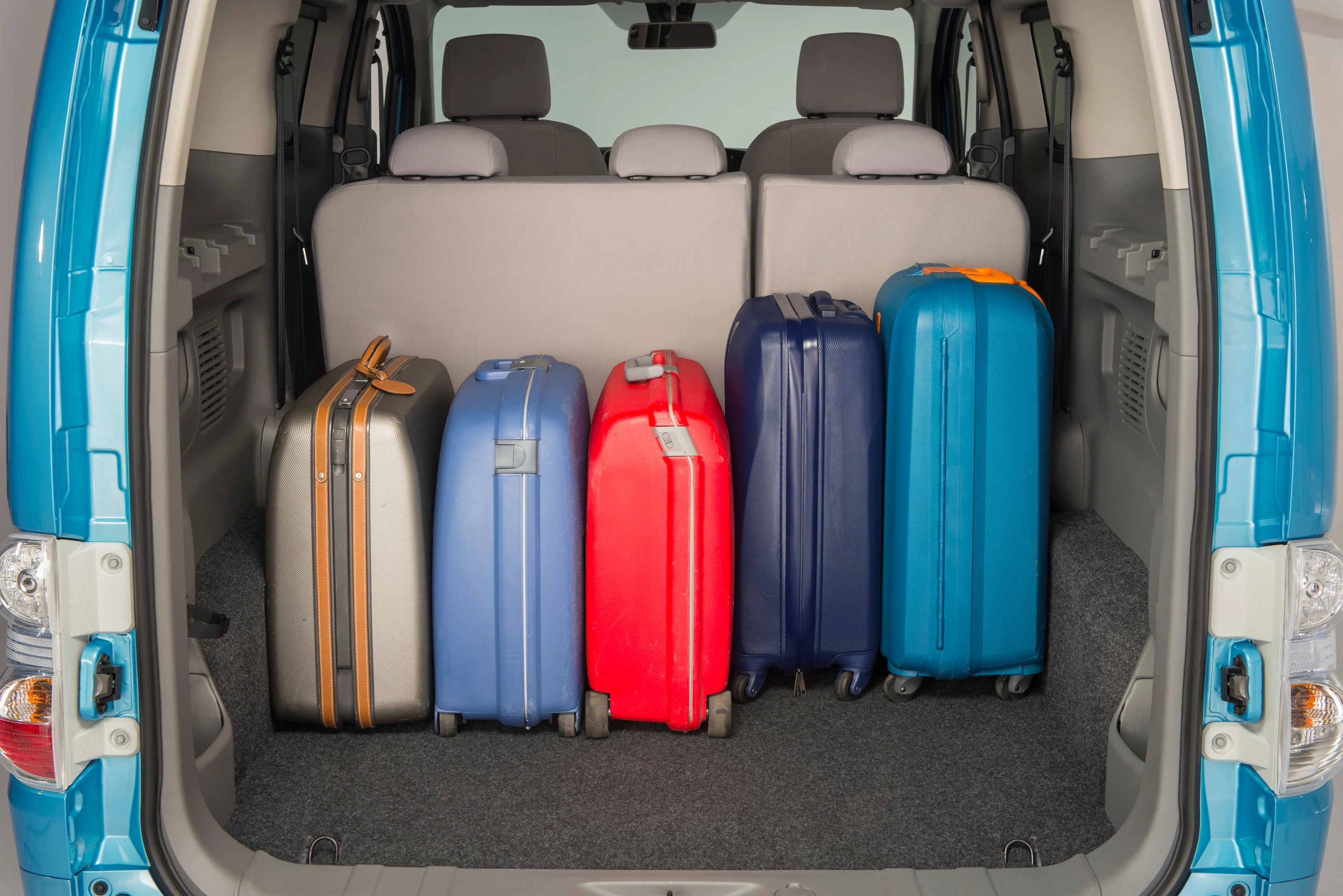

Nissan's e-NV200 is being targeted at taxi fleets
19/55
Nissan's e-NV200 is being targeted at taxi fleets
Nissan's e-NV200
20/55
Nissan's e-NV200
Nissan's e-NV200
21/55
Nissan's e-NV200
Nissan's e-NV200
22/55
Nissan's e-NV200
Nissan's e-NV200
23/55
Nissan's e-NV200
Nissan's e-NV200
24/55
Nissan's e-NV200
25/55
26/55
Nissan's e-NV200
27/55
Nissan's e-NV200
Nissan's e-NV200
28/55
Nissan's e-NV200
Nissan's e-NV200
29/55
Nissan's e-NV200

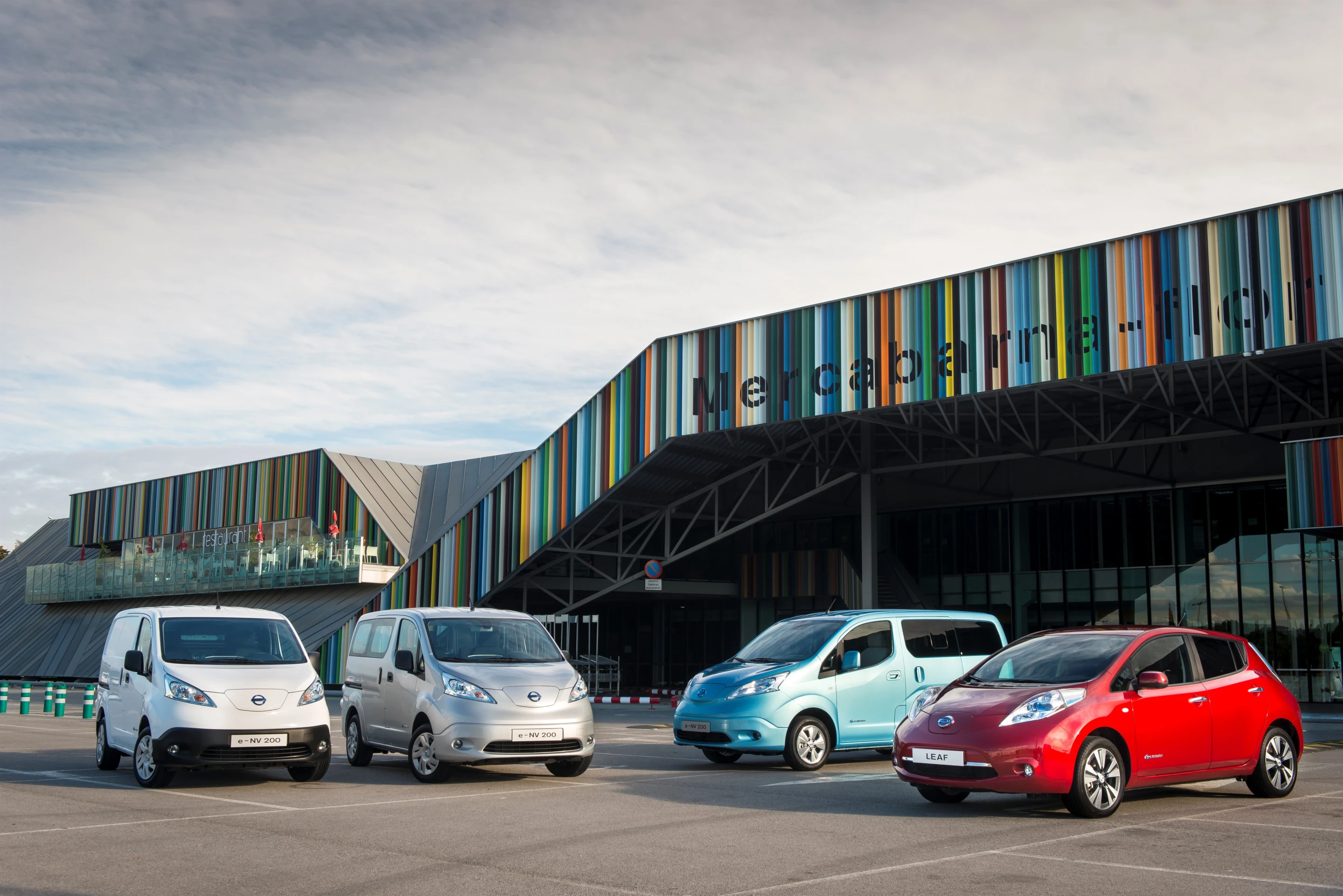

Nissan's e-NV200 joins the LEAF in Nissan's all-electric range
30/55
Nissan's e-NV200 joins the LEAF in Nissan's all-electric range

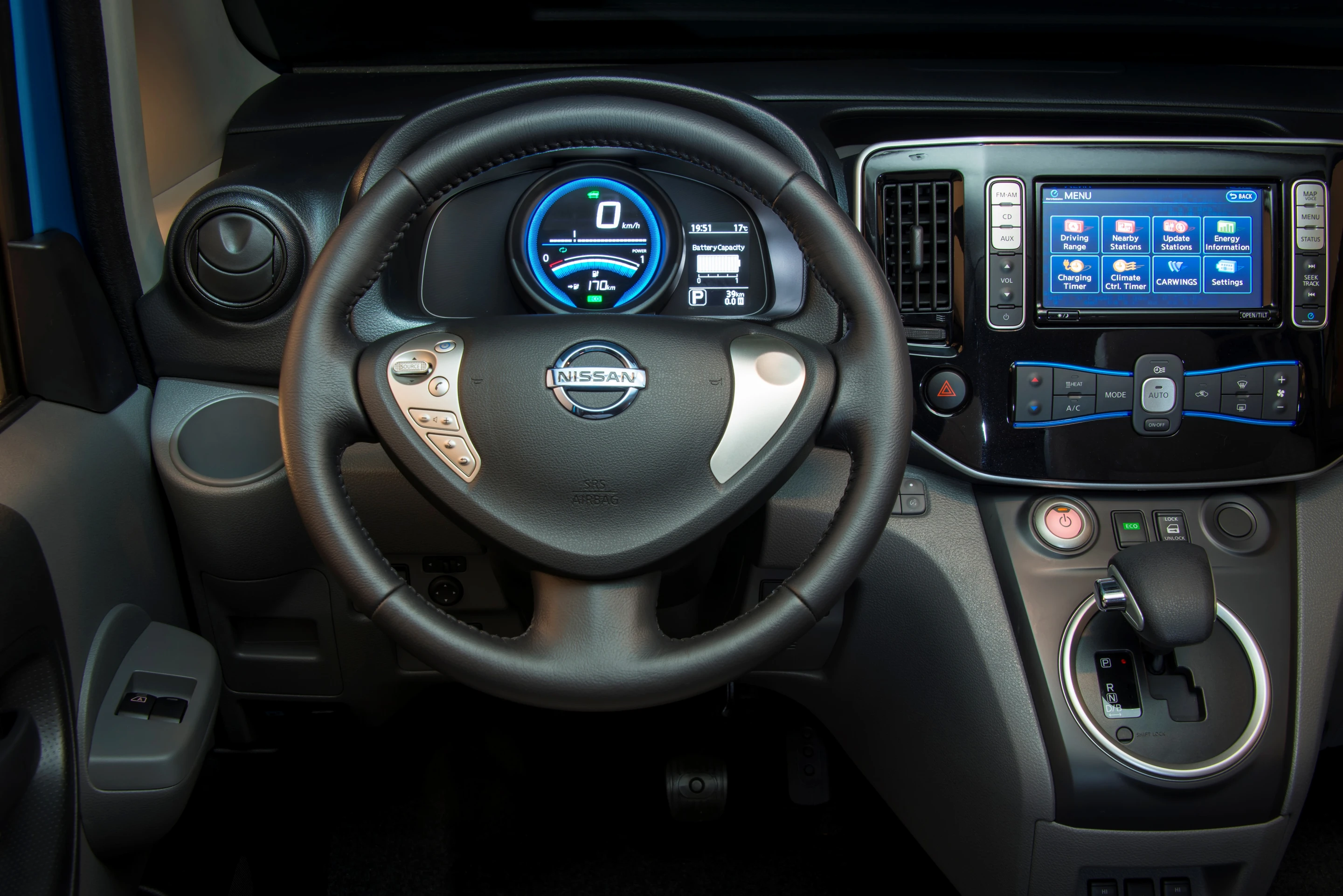

The instrument panel of Nissan's e-NV200
31/55
The instrument panel of Nissan's e-NV200
The instrument panel of Nissan's e-NV200
32/55
The instrument panel of Nissan's e-NV200
Nissan's e-NV200
33/55
Nissan's e-NV200

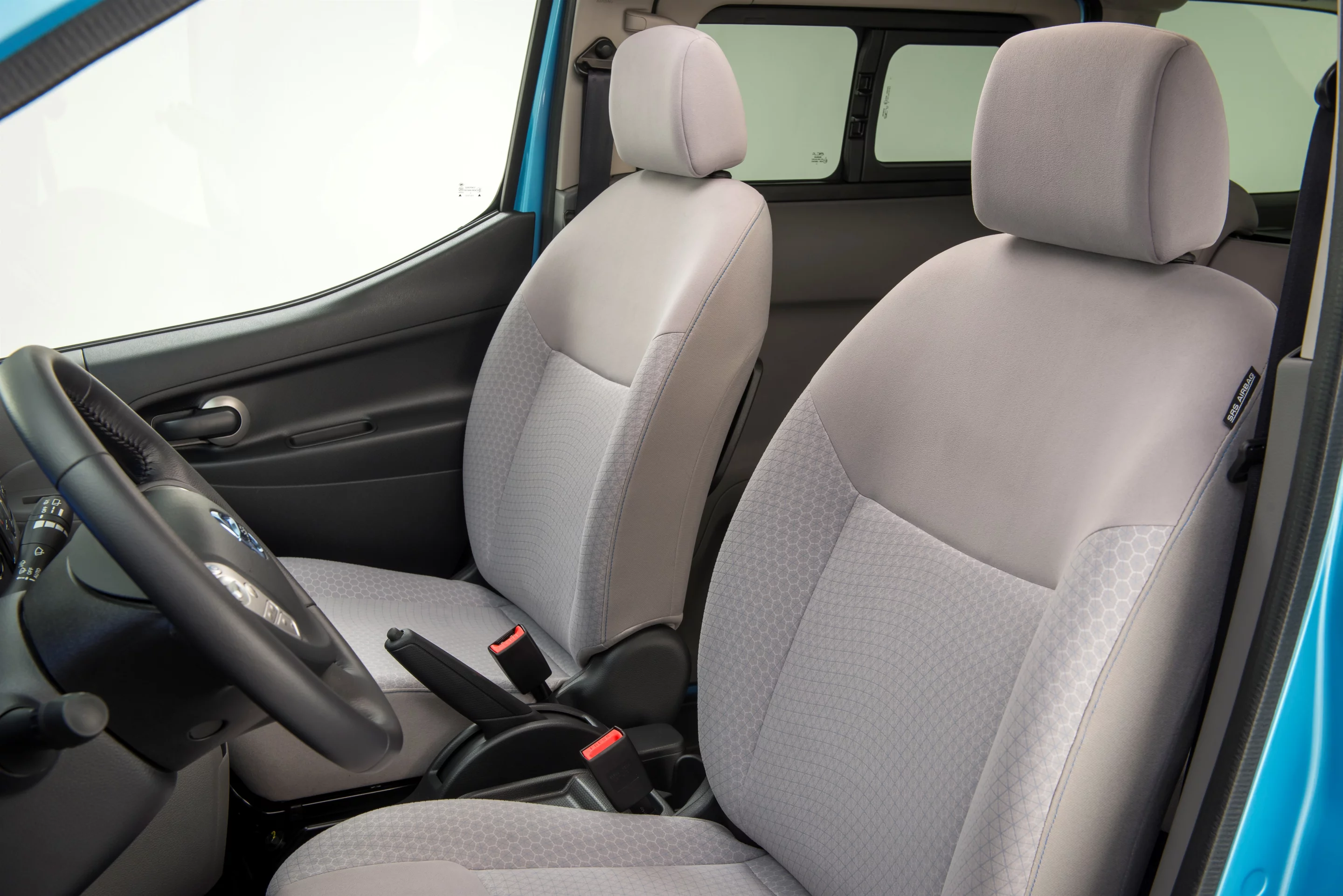

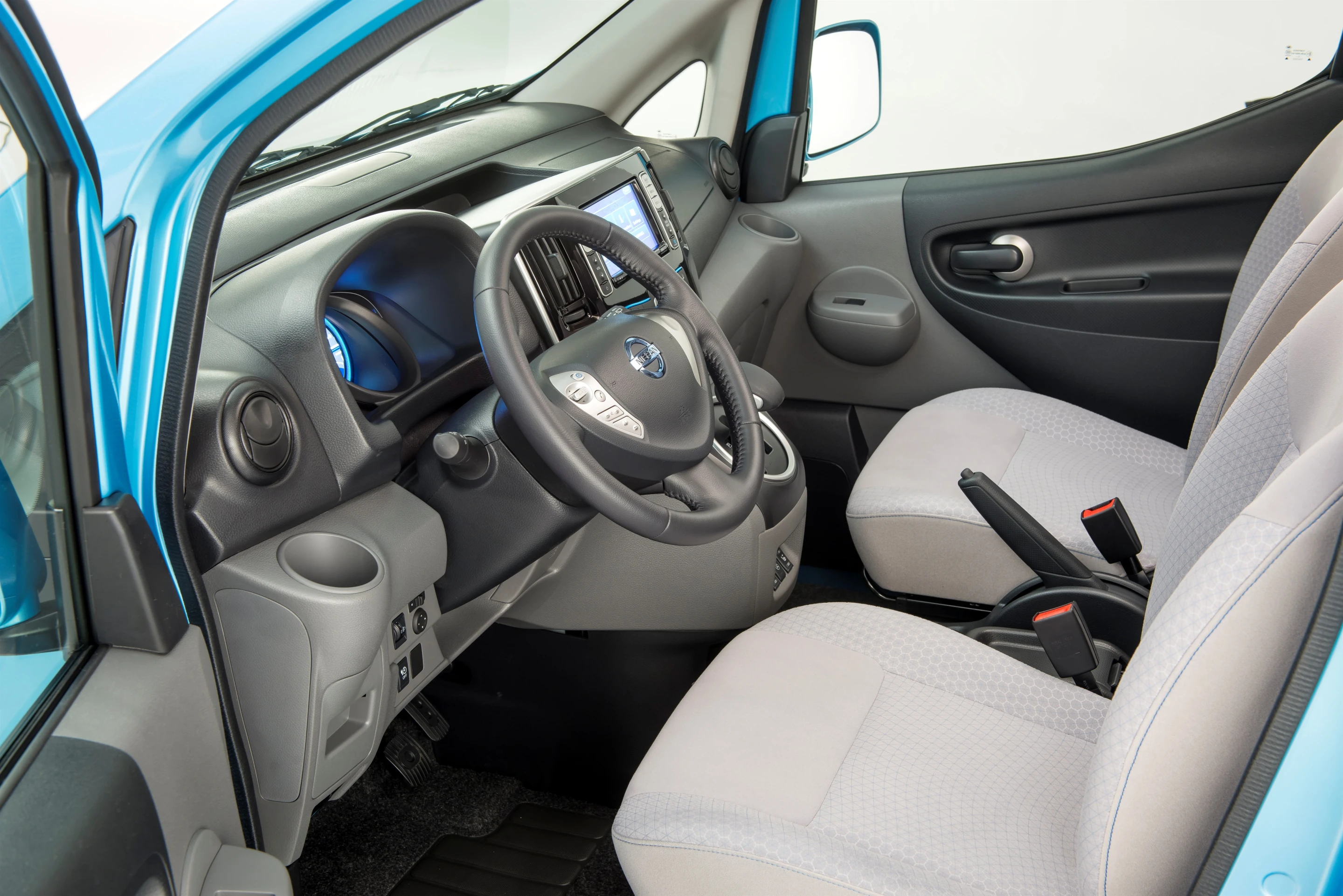

Nissan's e-NV200 interior
34/55
Nissan's e-NV200 interior
Nissan's e-NV200 interior
35/55
Nissan's e-NV200 interior

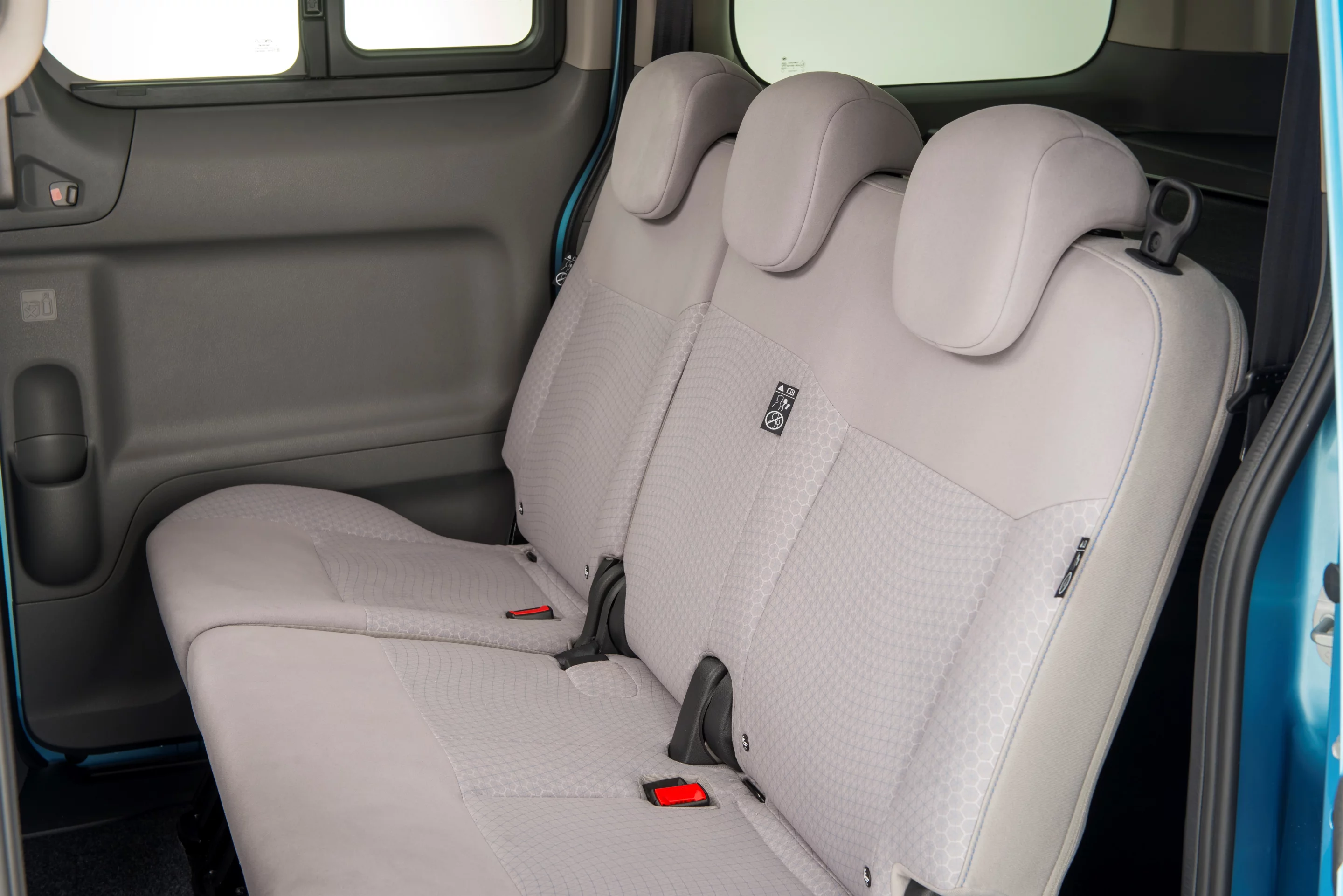

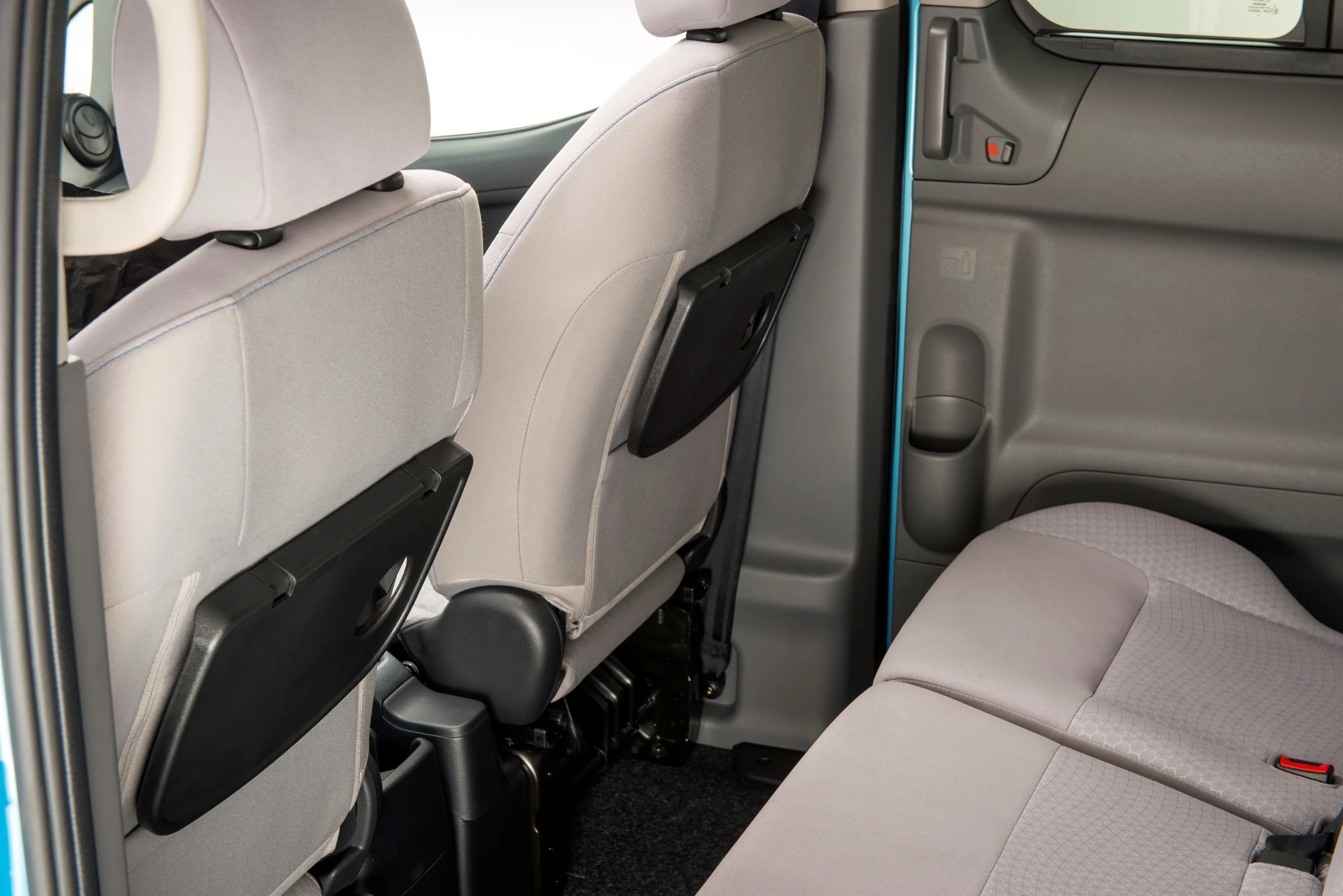

Nissan's e-NV200 will come in van or people mover configurations
36/55
Nissan's e-NV200 will come in van or people mover configurations
Nissan's e-NV200 will come in van or people mover configurations
37/55
Nissan's e-NV200 will come in van or people mover configurations
Nissan's e-NV200
38/55
Nissan's e-NV200

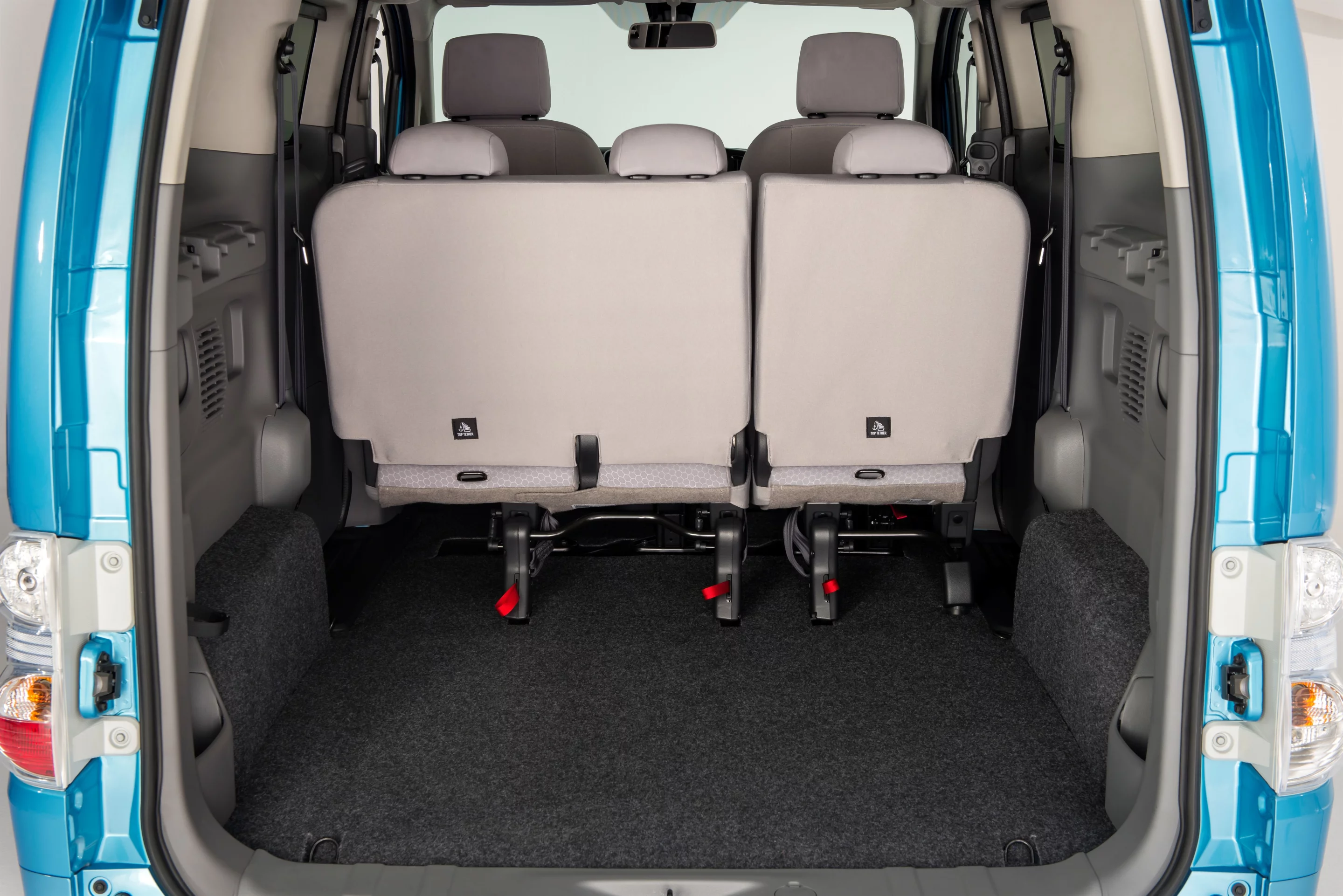

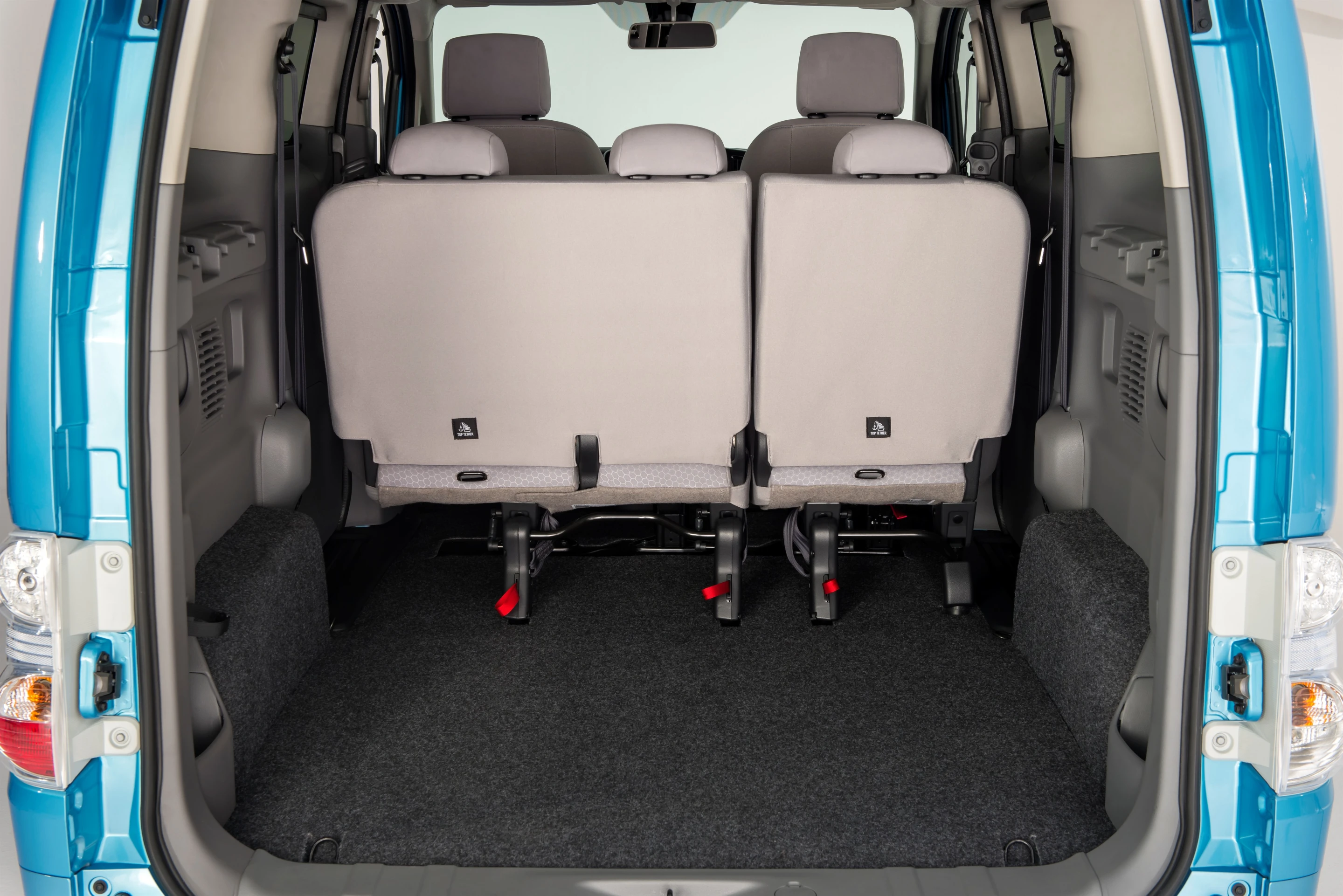

Nissan's e-NV200 boasts 4300 L of cargo space
39/55
Nissan's e-NV200 boasts 4300 L of cargo space
40/55
41/55
42/55
43/55
44/55
45/55
46/55
Nissan's e-NV200
47/55
Nissan's e-NV200
Nissan's e-NV200 borrow heavily from the Nissan LEAF
48/55
Nissan's e-NV200 borrow heavily from the Nissan LEAF
Nissan's e-NV200
49/55
Nissan's e-NV200

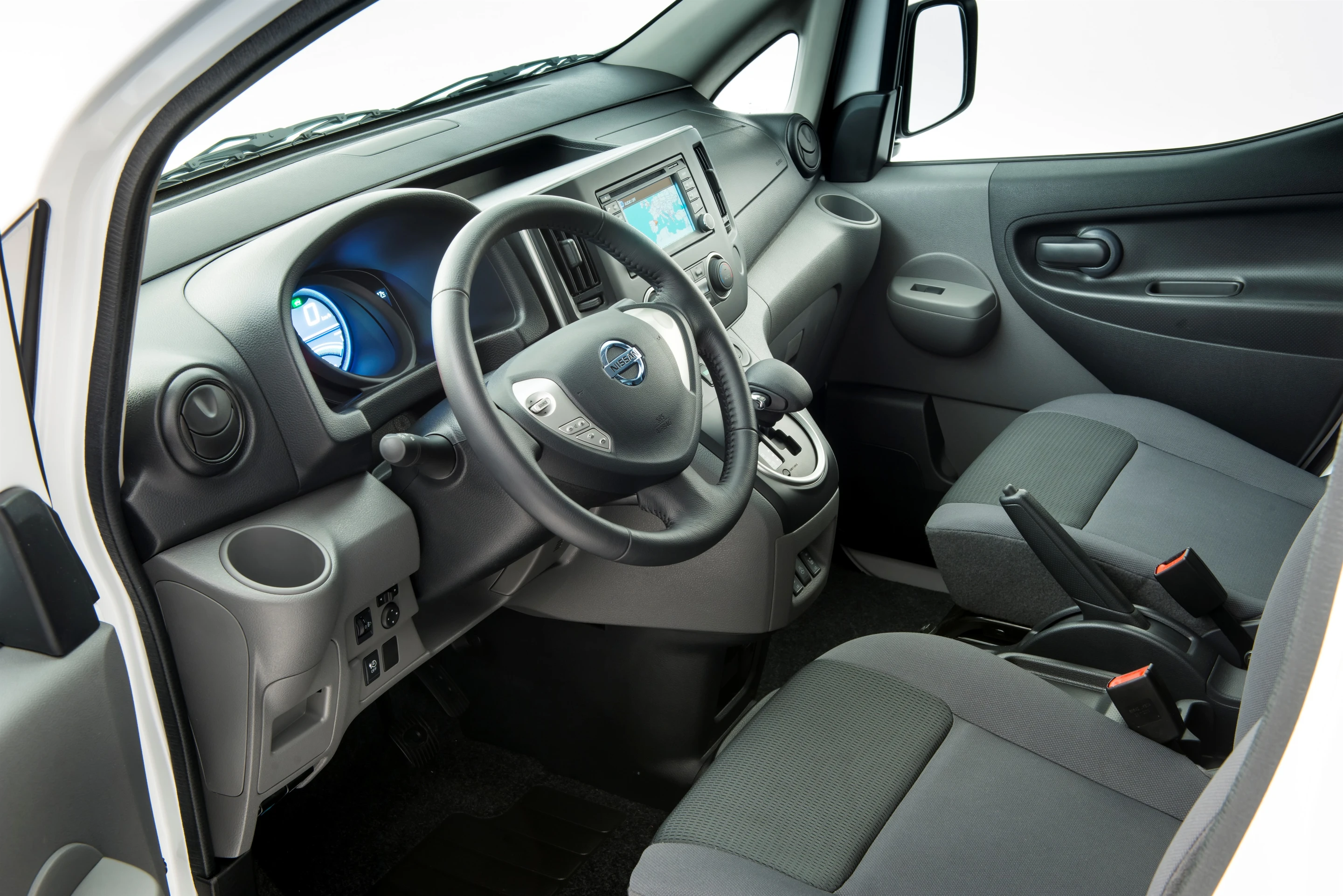

Nissan's e-NV200 instrument panel
50/55
Nissan's e-NV200 instrument panel

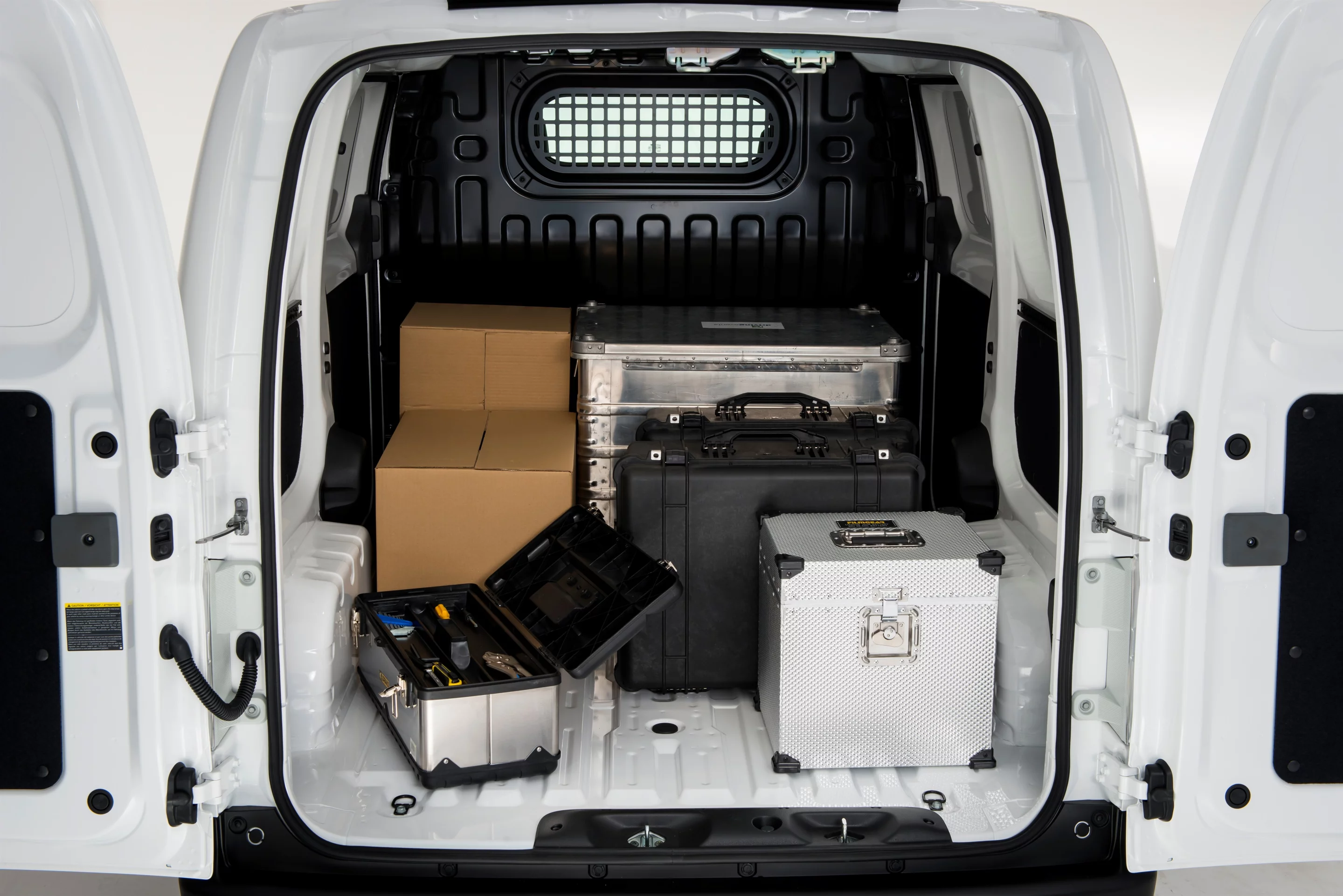

Nissan's e-NV200 boasts 4,200 L of rear cargo space
51/55
Nissan's e-NV200 boasts 4,200 L of rear cargo space
Nissan's e-NV200 boasts 4,200 L of rear cargo space
52/55
Nissan's e-NV200 boasts 4,200 L of rear cargo space
53/55

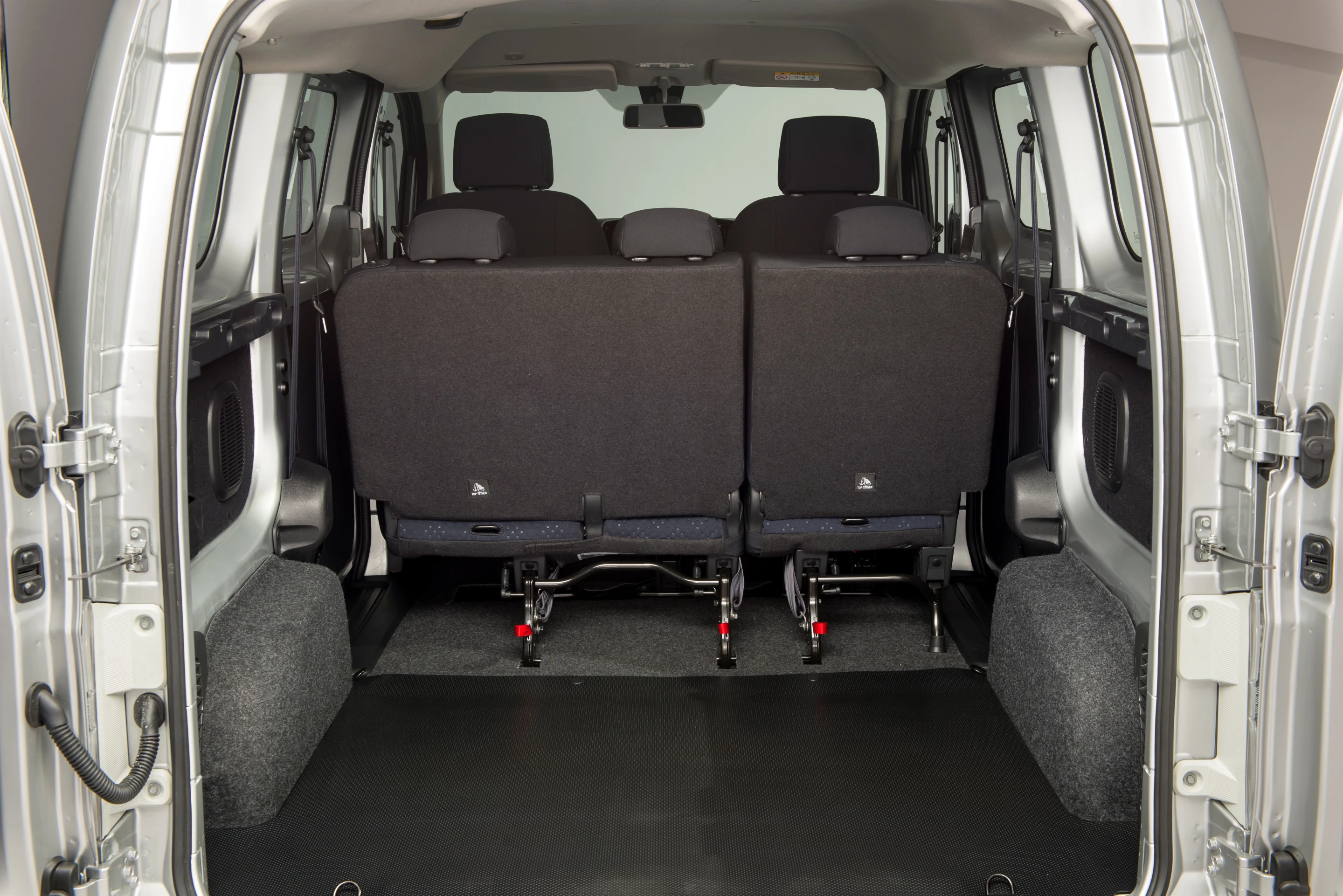

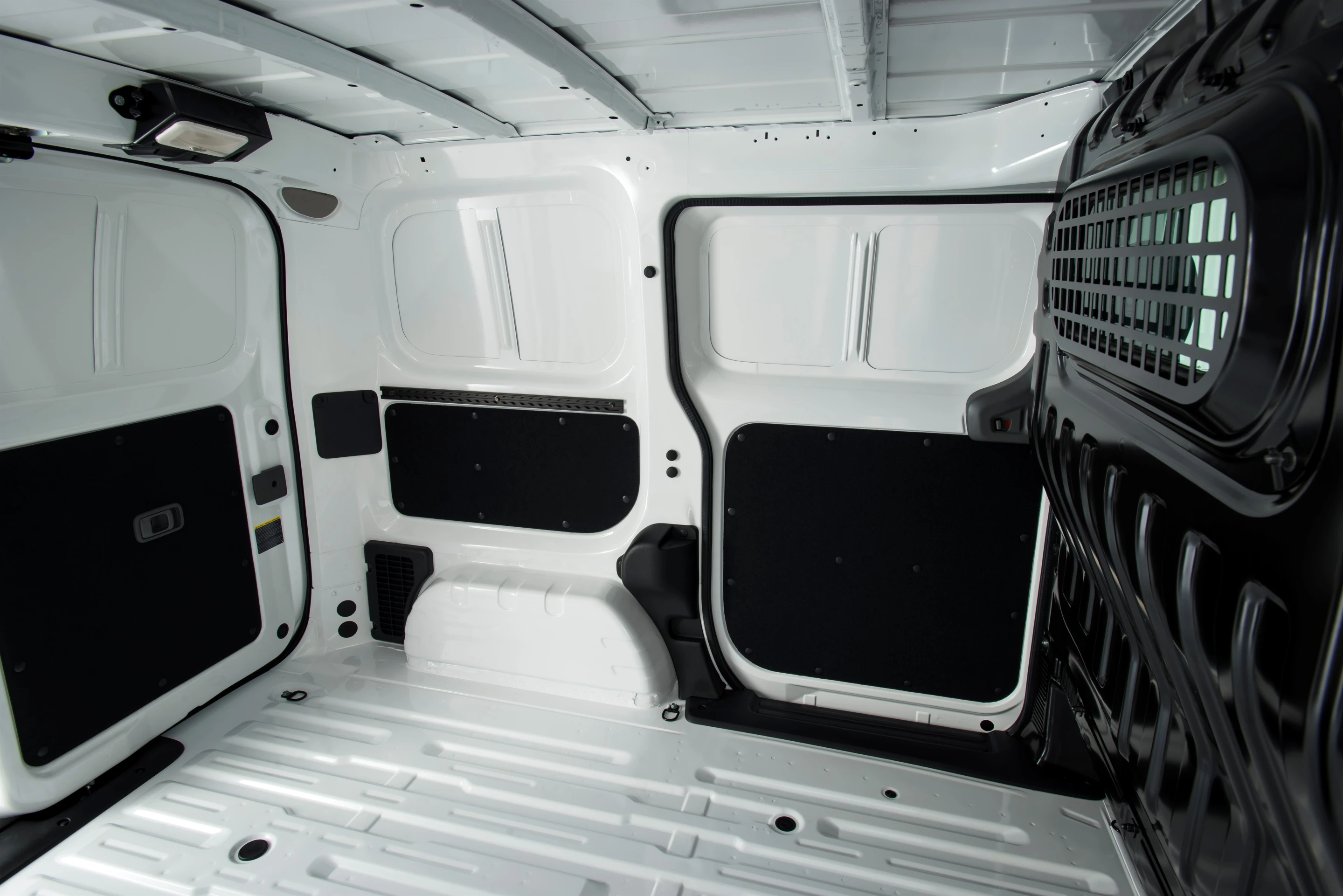

Cargo area of Nissan's e-NV200
54/55
Cargo area of Nissan's e-NV200

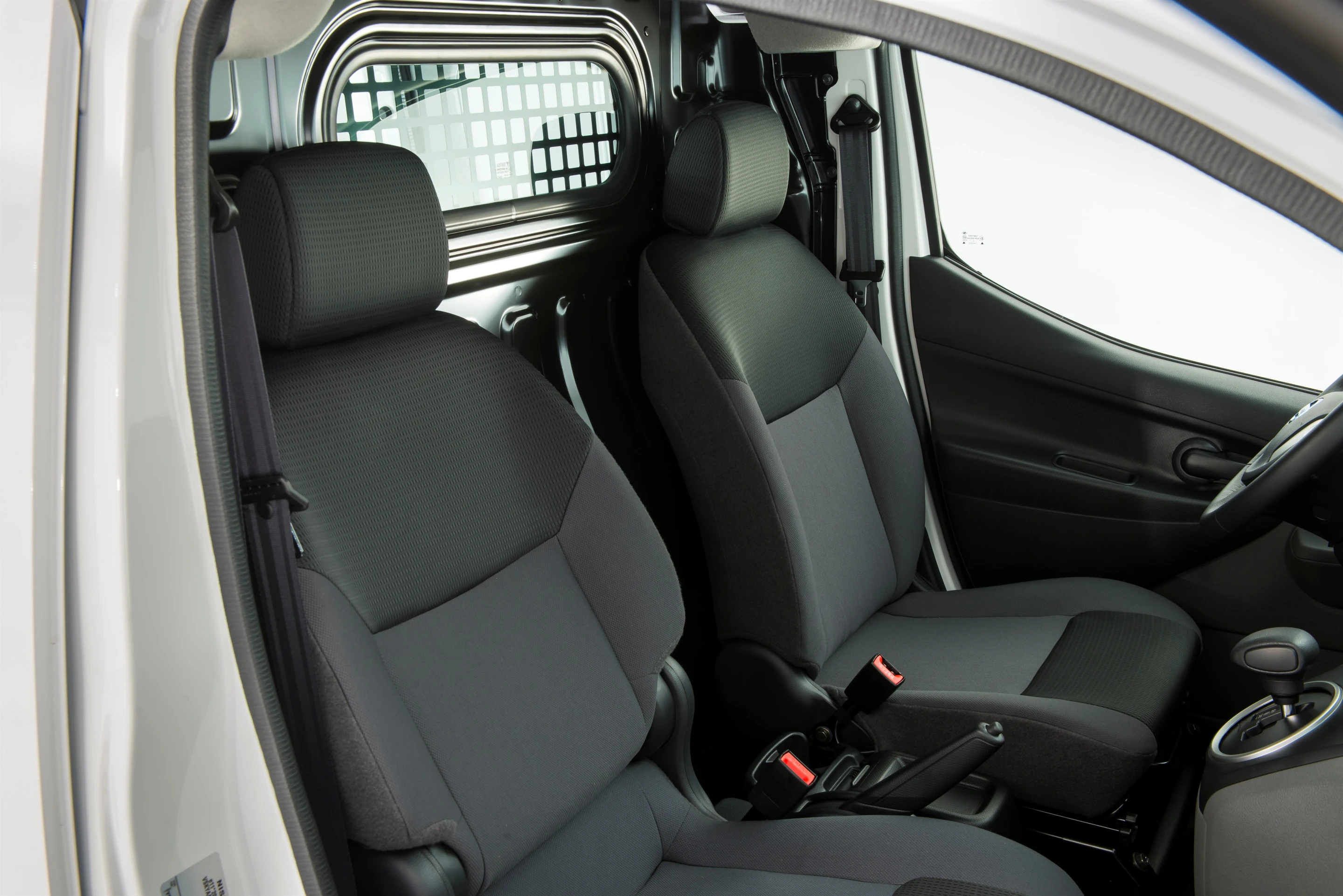

Nissan's e-NV200 interior
55/55
Nissan's e-NV200 interior

Nissan originally began testing of an all-electric version of its NV200 light commercial van back in mid-2010 before showcasing the e-NV200 concept at the North American International Auto Show in 2012. Now the automaker has unveiled the production version of the LEAF's bigger brother in Geneva, touting the vehicle as a practical and sustainable city delivery vehicle or people mover.

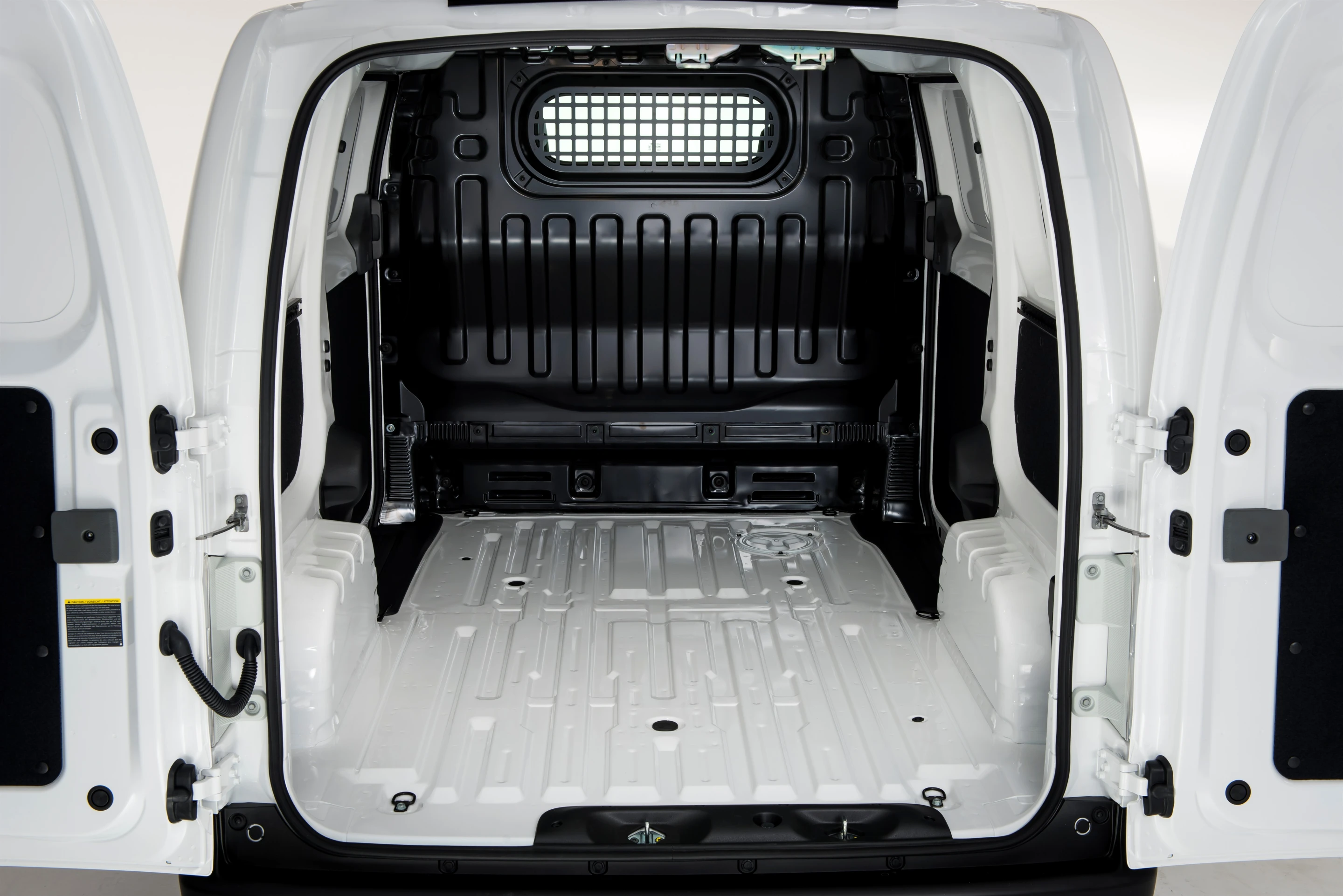

Taking a leaf out of the LEAF's book, the e-NV200 features the same independent front suspension and electric drivetrain found in its smaller brother. However, the 24 kWh battery powering the 80 kW electric motor is packaged differently to enable it to be positioned under the vehicle's floor and retain the same 4,200 L (1,136 US gal) cargo volume as the standard NV200. This required a mounting assembly that Nissan says also improves torsional stiffness of the vehicle by 20 percent and lateral stiffness by 35 percent compared to the NV200.

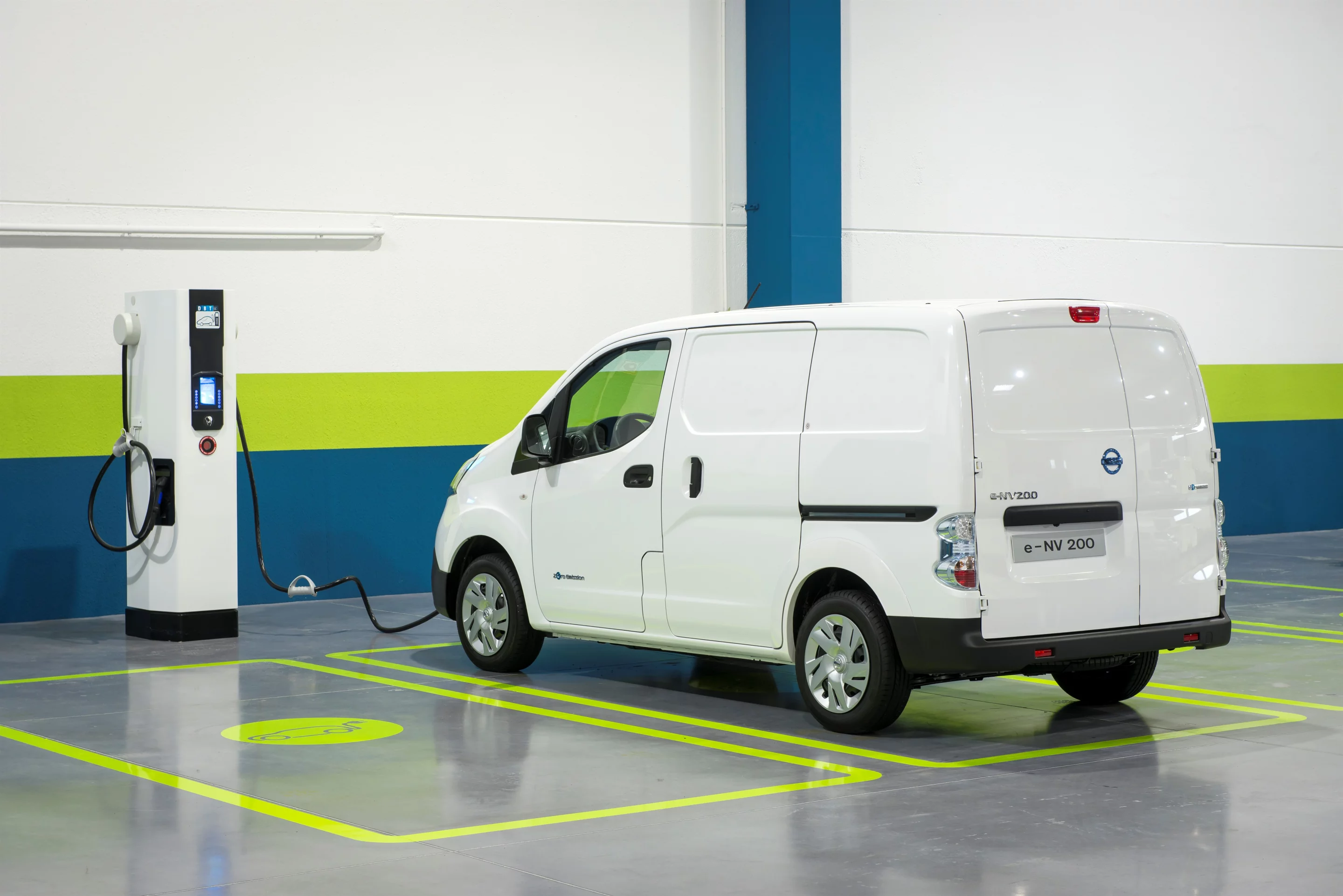

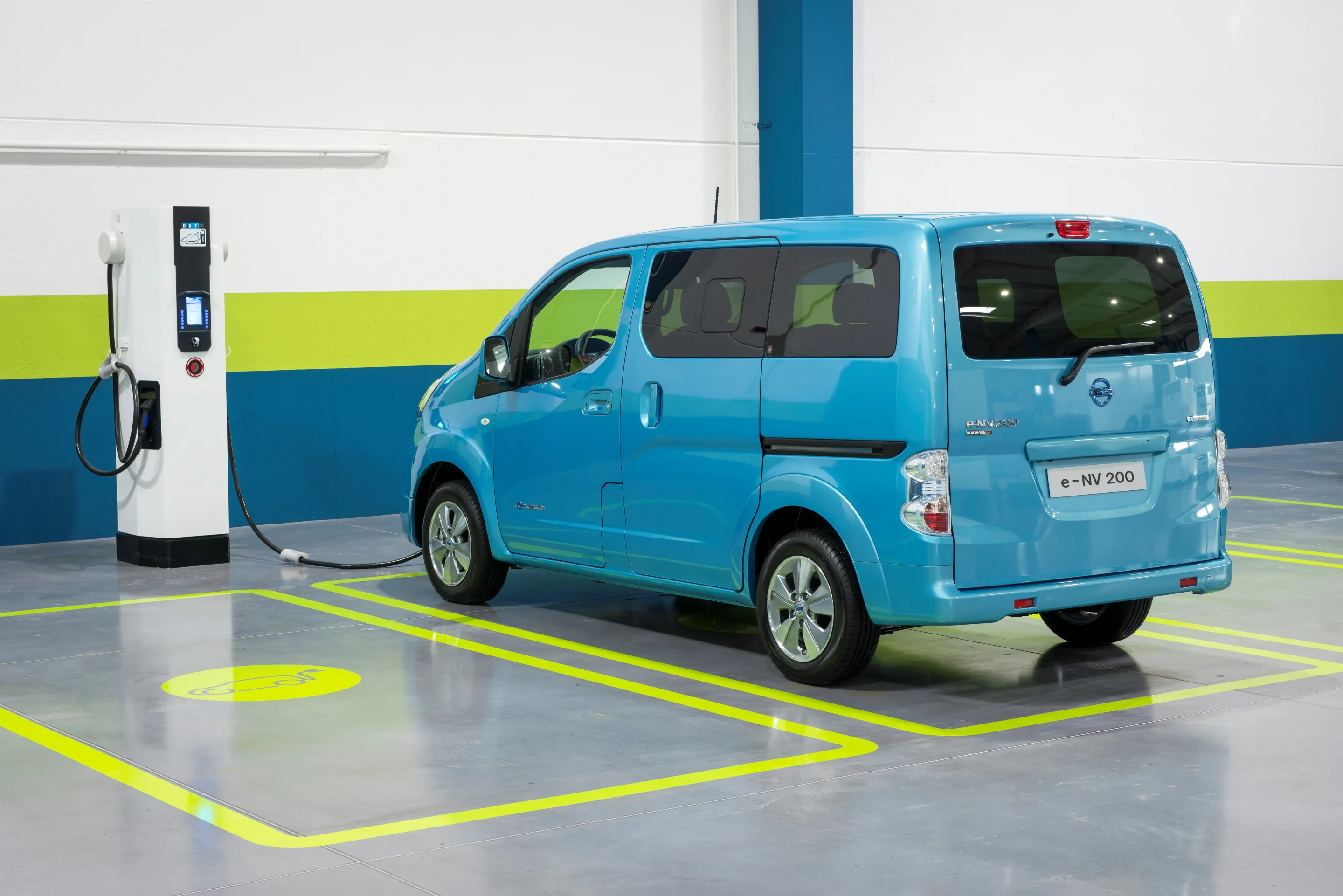

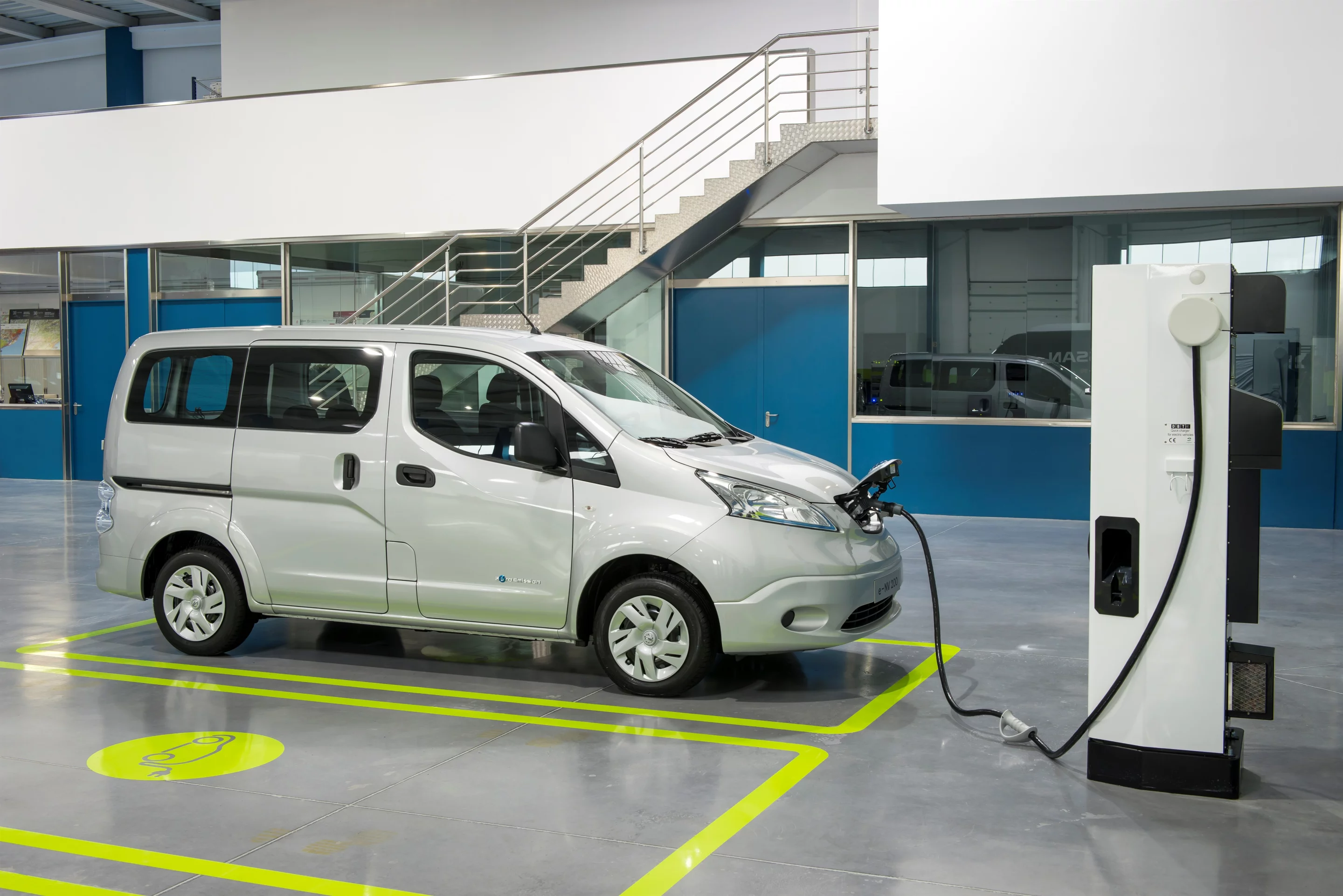

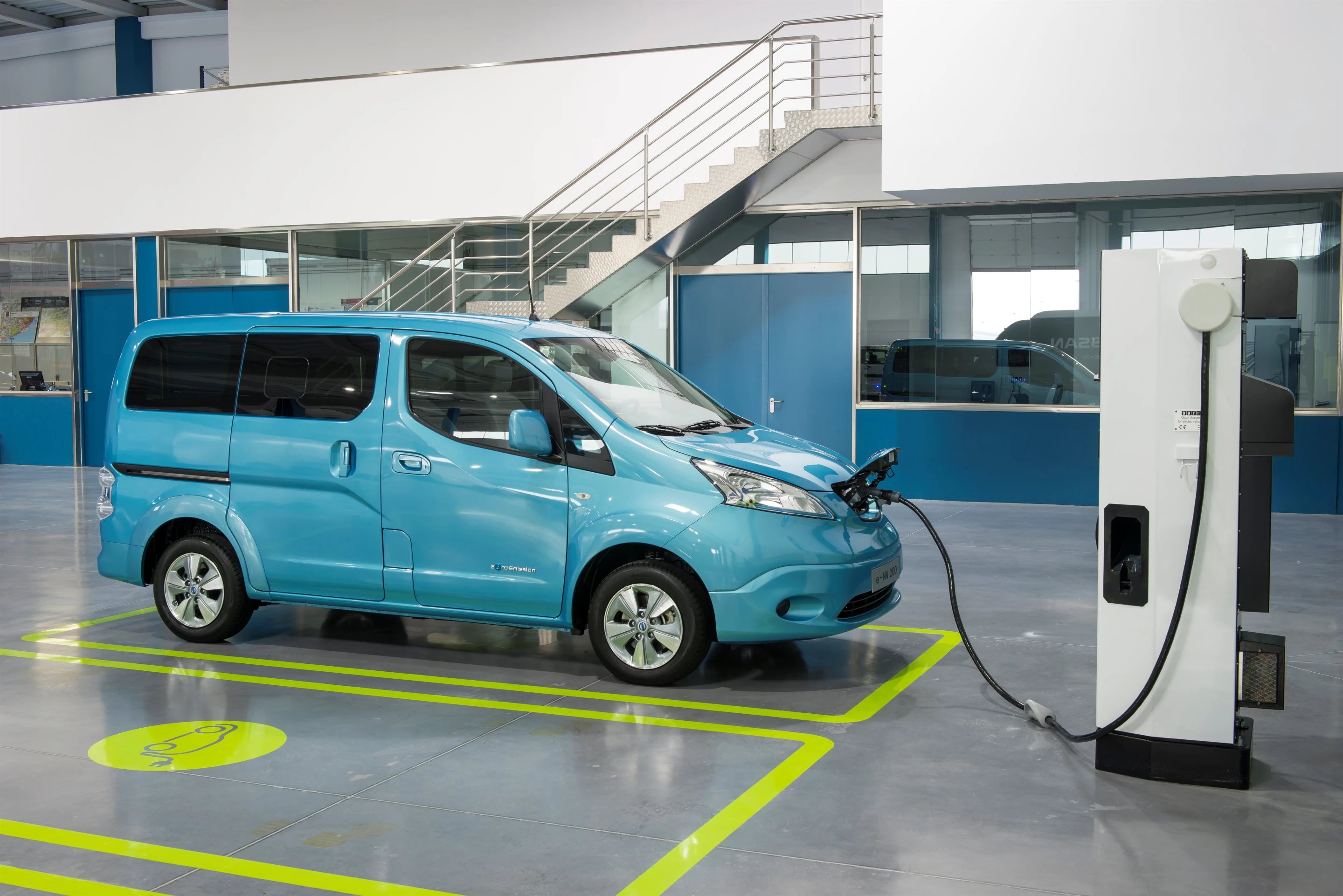

The vehicle's battery pack can be charged overnight via a domestic 16-amp single-phase 3.3 kW outlet, or in four hours via a 6.6 kW/32-amp supply. Using one of the more than 1,000 CHAdeMO DC 50 kW quick chargers already installed across Europe will charge the battery to 80 percent capacity in under 30 minutes.

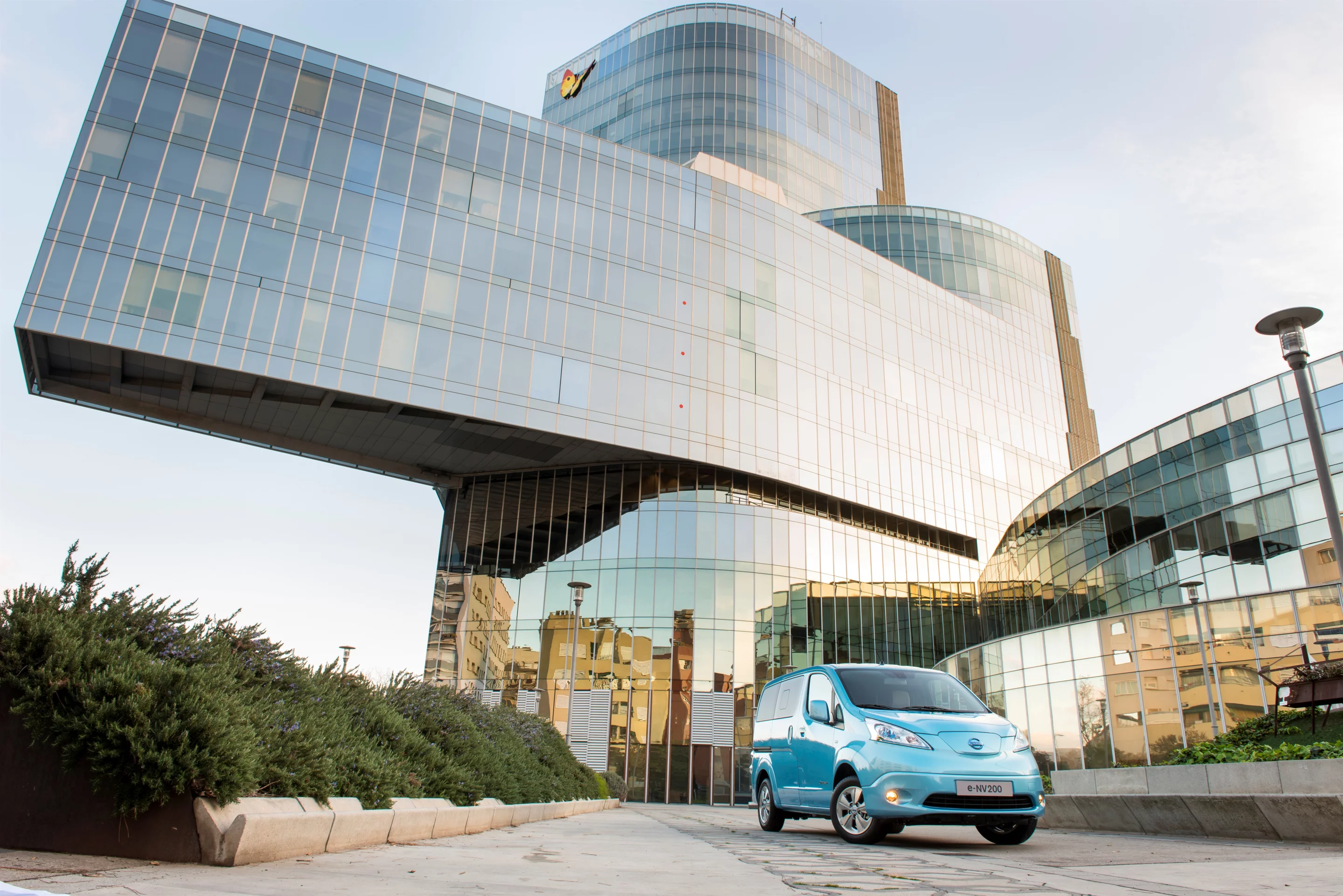

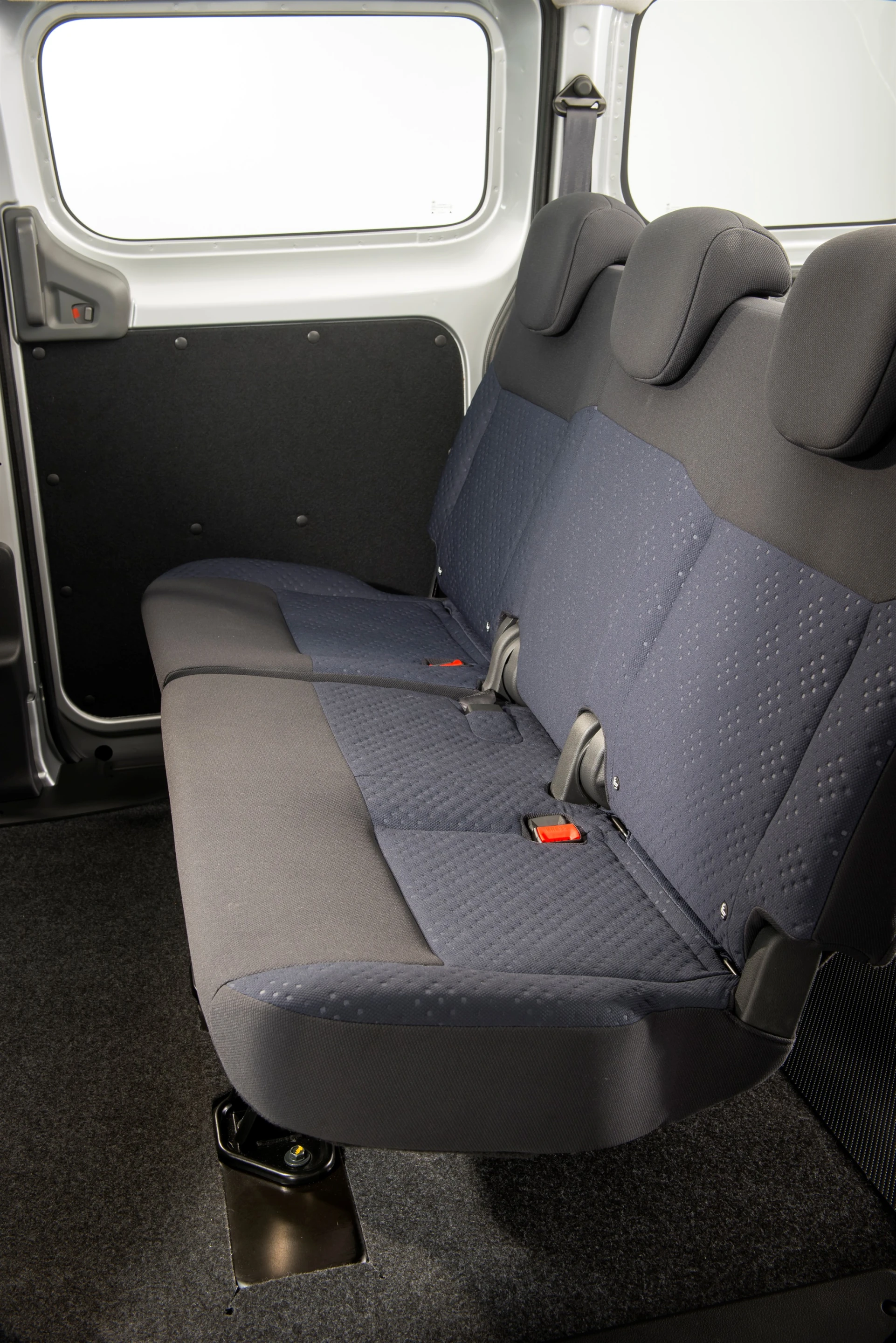

With an homologated NEDC range of 170 km (106 miles) and a maximum speed of 120 km/h (75 mph), the e-NV200 is primarily aimed at businesses, with its standard van configuration that can carry two standard Euro pallets. However, Nissan will also target families and taxi fleets with the availability of the e-NV200 as a five-seat people carrier.

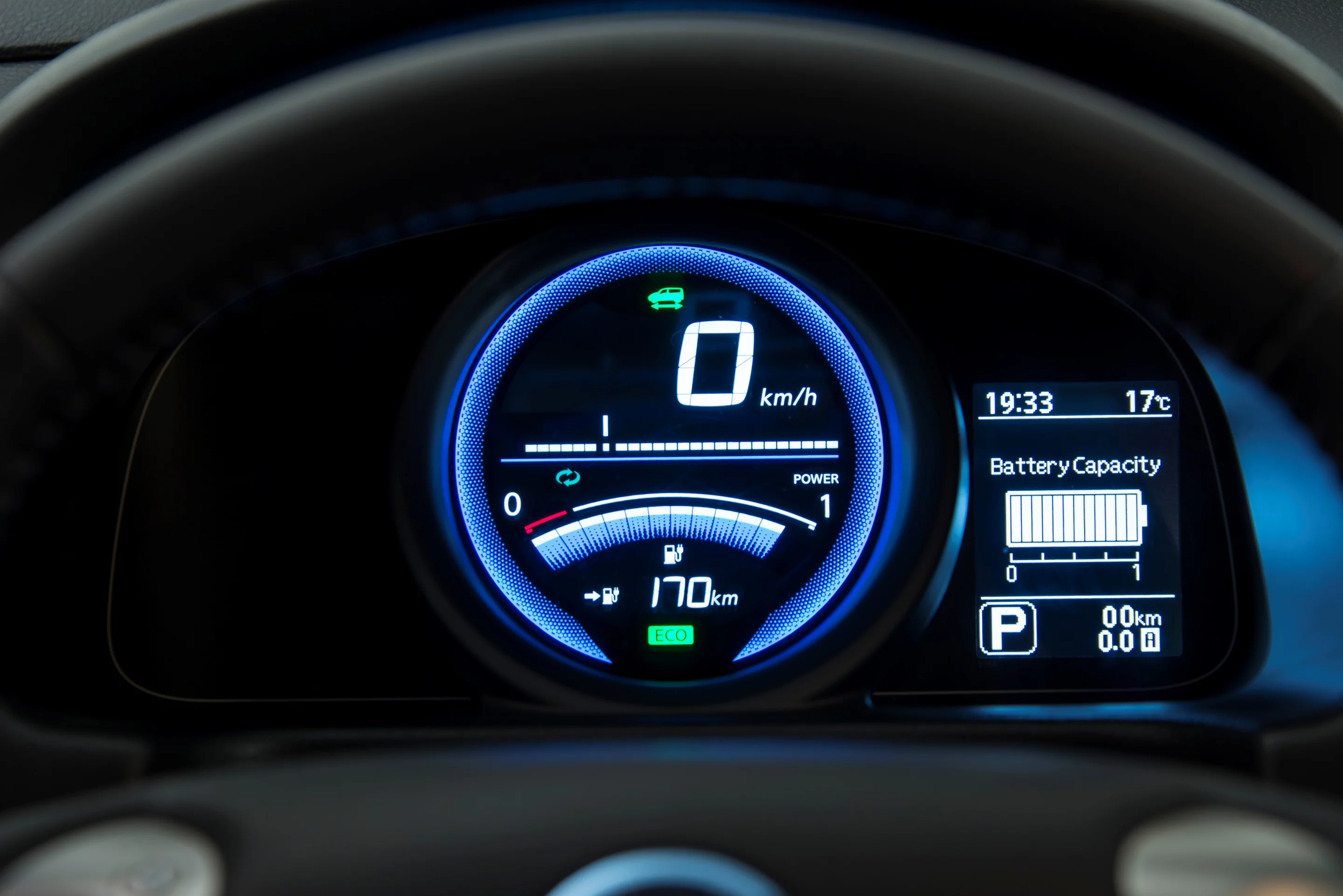

Visually differentiating the e-NV200 from the ICE version are a new "face", again borrowed from the LEAF, blue-tinted LED headlights, and a new instrument panel with digital readout that displays vehicle speed, charge state and vehicle range.

Pricing details are yet to be revealed, but the e-NV200 is set to hit showrooms in June.
