Nissan's prototype solid-oxide fuel cell prototype goes the distance in Brazil

Nissan's prototype solid-oxide...
Nissan has bet big on electric driving, and the SOFC is one way it's trying to make the tech more usable for regular commuters
Nissan has bet big on electric driving, and the SOFC is one way it's trying to make the tech more usable for regular commuters
View 15 Images
Nissan claims this e-NV200 can cover 600 km on a single tank
1/15
Nissan claims this e-NV200 can cover 600 km on a single tank
The car was developed in Yokohama
2/15
The car was developed in Yokohama

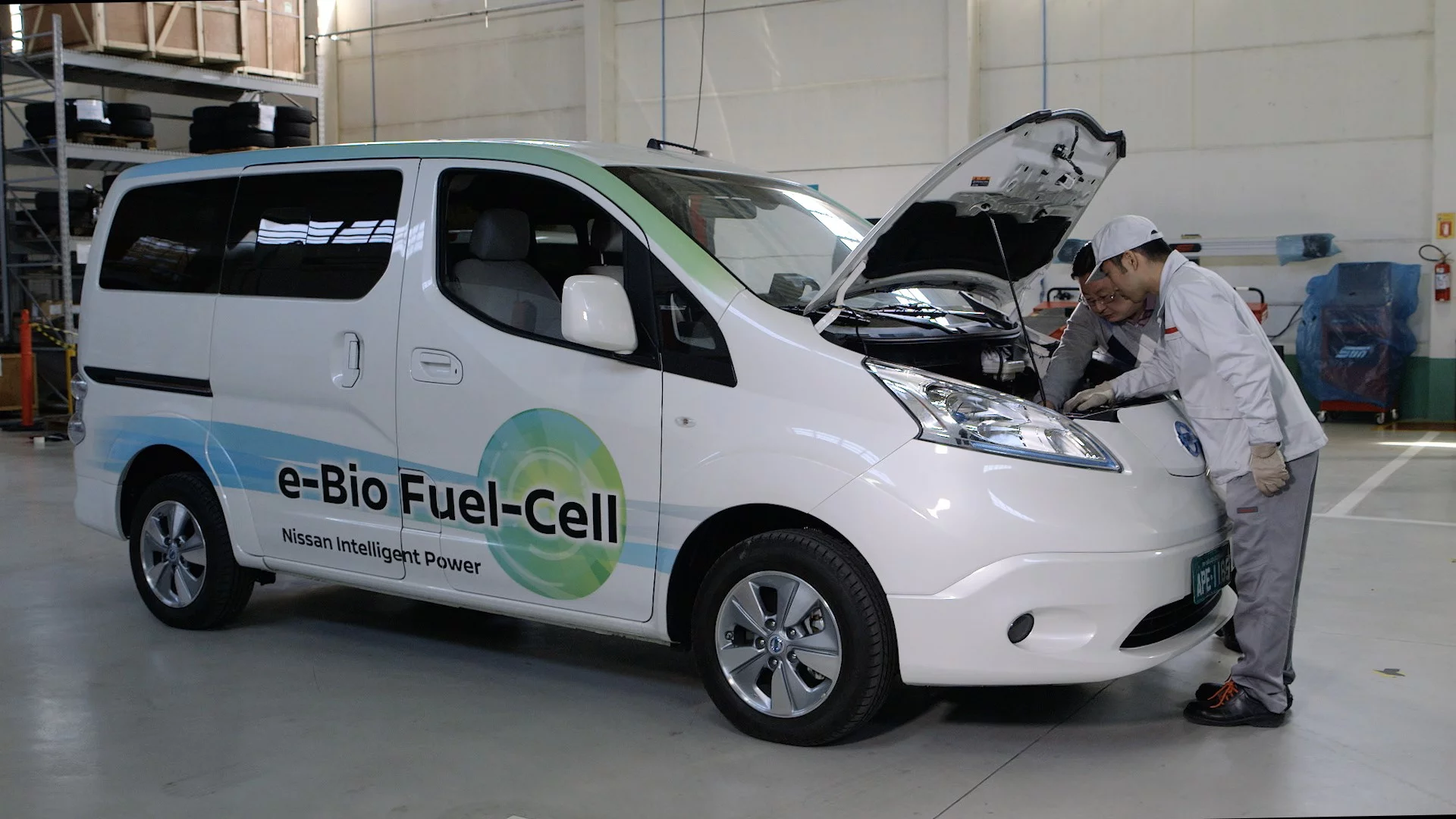

Nissan claims the system allows the benefits of electric driving, with the range of a gasoline car
3/15
Nissan claims the system allows the benefits of electric driving, with the range of a gasoline car
Nissan will demonstrate the technology on Brazilian roads
4/15
Nissan will demonstrate the technology on Brazilian roads
Nissan has bet big on electric driving, and the SOFC is one way it's trying to make the tech more usable for regular commuters
5/15
Nissan has bet big on electric driving, and the SOFC is one way it's trying to make the tech more usable for regular commuters
The SOFC is slotted into the middle of an e-NV200
6/15
The SOFC is slotted into the middle of an e-NV200
The SOFC converts bio-ethanol into hydrogen, and then hydrogen into electricity
7/15
The SOFC converts bio-ethanol into hydrogen, and then hydrogen into electricity
The e-NV200 isn't pretty, but it's the test bed for a fascinating new powertrain
8/15
The e-NV200 isn't pretty, but it's the test bed for a fascinating new powertrain

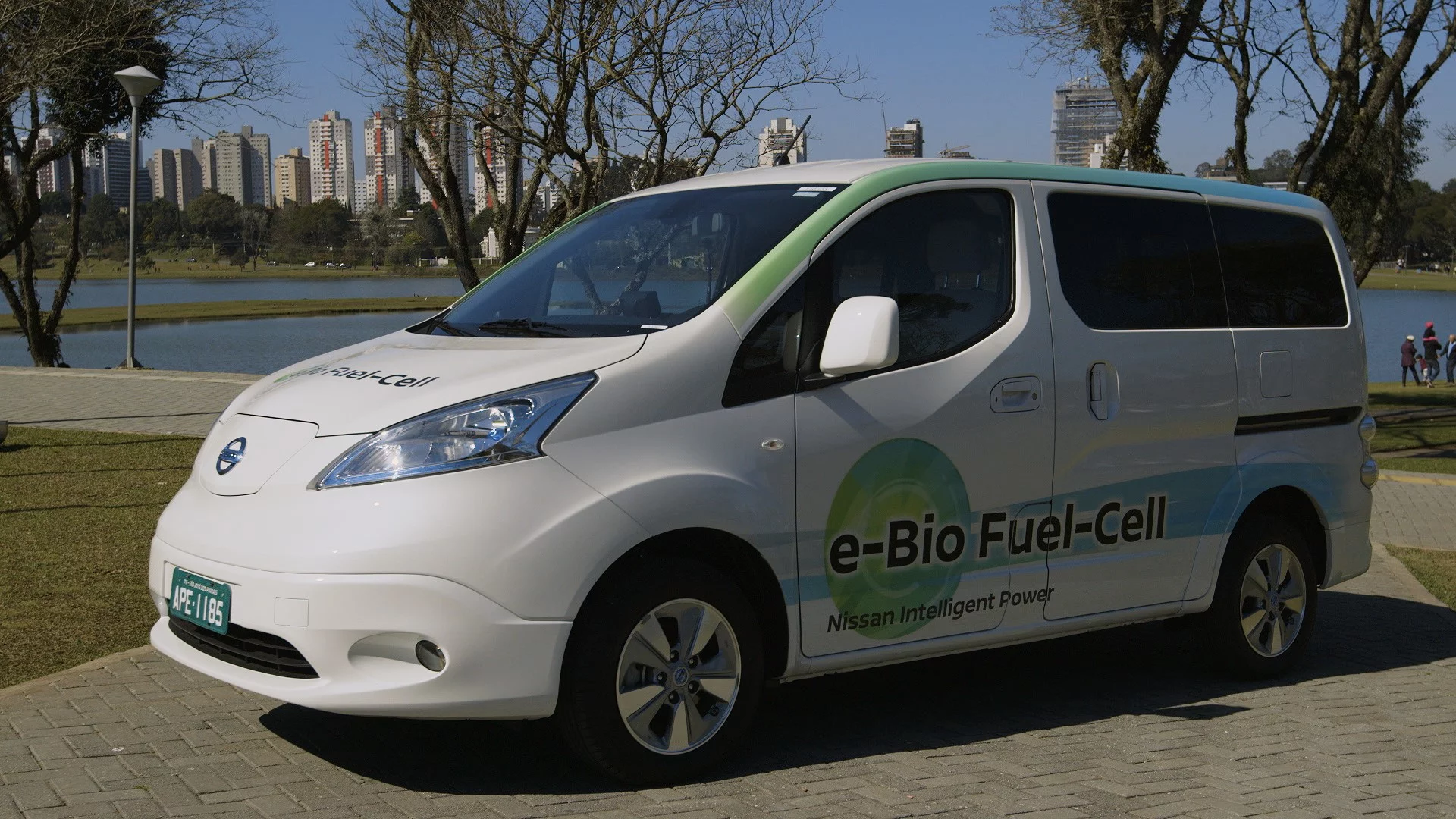

The car's fuel cell draws on a 30-l tank of bioethanol
9/15
The car's fuel cell draws on a 30-l tank of bioethanol
The e-NV200 has a 24 kWh battery already, but the fuel cell is used to charge it
10/15
The e-NV200 has a 24 kWh battery already, but the fuel cell is used to charge it
Fueling is handled by existing infrastructure
11/15
Fueling is handled by existing infrastructure
No pressurized tanks are required to fuel the SOFC
12/15
No pressurized tanks are required to fuel the SOFC

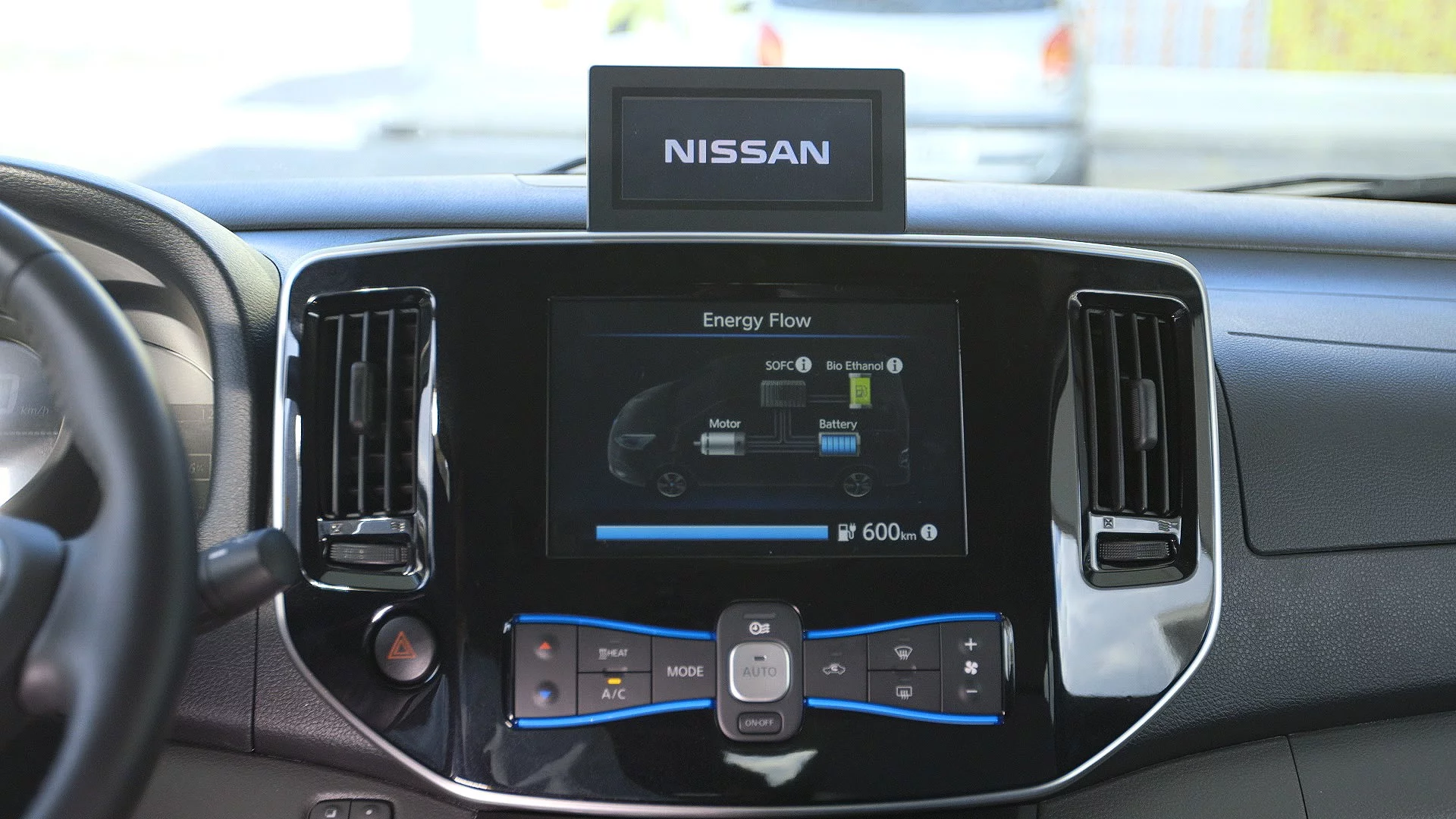

The cabin is standard Nissan
13/15
The cabin is standard Nissan
A look at how the SOFC works
14/15
A look at how the SOFC works
Solid oxide fuel-cell chemistry is a class we missed at school, but Nissan clearly was listening.
15/15
Solid oxide fuel-cell chemistry is a class we missed at school, but Nissan clearly was listening.

Nissan has gone all-in on electric power in recent years, both when it comes to cars and the infrastructure needed to keep them going. Unfortunately, range anxiety and charge times mean EVs still have some way to go before they're a viable alternative to internal combustion, which is where fuel cells could hold an advantage. The latest car to test the waters with fuel-cell electric power is the e-NV200, which promises a range of 600 km from its new solid oxide fuel-cell.

Having announced this solid-oxide fuel cell (SOFC) in early June, Nissan is now demonstrating a prototype vehicle powered by the new system in Brazil alongside it's BladeGlider prototype as part of its Intelligent Mobility strategy. Properly realized, it opens the door to electric vehicles with ranges of more than 600 km (373 mi). By way of comparison, the current cap on pure EVs is around 500 km (311 mi) in ideal conditions.

Slotted into the floorpan of an e-NV200 van, the 5-kW solid oxide fuel-cell draws on a 30-liter (8 gal) tank of ethanol-blended water. Using a reformer, it converts this blend into hydrogen, which is mixed with atmospheric air and converted into electricity that is used to charge the car's 24-kWh battery, making for gasoline-aping range with silken electric acceleration.

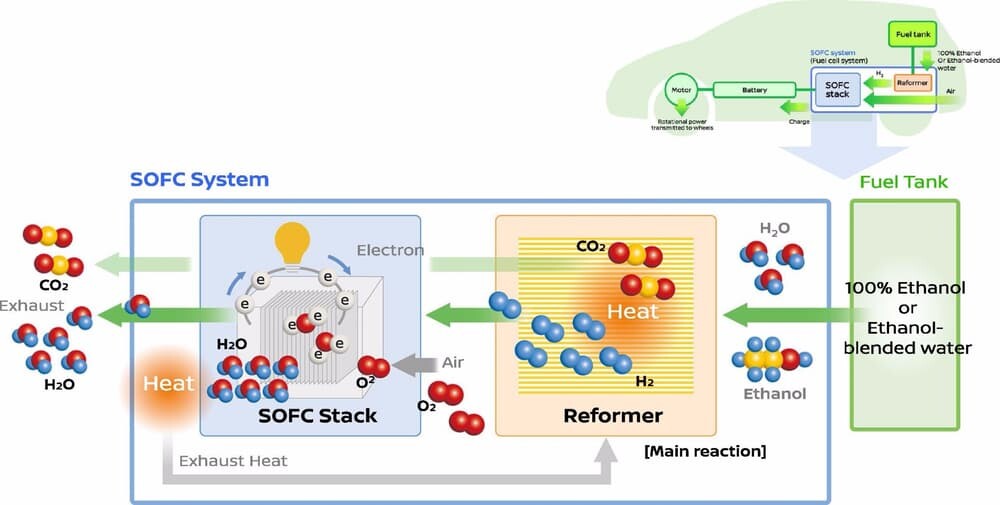

A look at how the SOFC works
A look at how the SOFC works

According to Nissan, doing things this way has a few benefits. Fueling a pure hydrogen car involves pressurized tanks and a locking nozzle, whereas the solid oxide fuel-cell can be fueled using existing infrastructure. Compared to a pure EV, a system like Nissan's also means drivers are able to maintain their existing fueling habits, rather than having to wait long periods of time for the battery to charge.

Nissan also claims that using bioethanol is completely carbon neutral in terms of the carbon cycle because any emissions are neutralized by the growing process of sugarcane and corn from which the bioethanol is mainly sourced. That might be a slightly optimistic way of looking at things, as it ignores any fuel burned when the bioethanol is processed and transported. It also doesn't address the numerous other issues associated with crop-based biofuels.

"The e-Bio Fuel-Cell offers eco-friendly transportation and creates opportunities for regional energy production… all the while supporting the existing infrastructure," says Nissan CEO Carlos Ghosn. "In the future, the e-Bio Fuel-Cell will become even more user-friendly. Ethanol-blended water is easier and safer to handle than most other fuels. Without the need to create new infrastructure, it has great potential to drive market growth."

Nissan will test the fuel cell prototype on Brazilian roads in the coming months and it can be seen in action in the video below.

Source: Nissan UK
