Aero engine-inspired pocket piston combusts fire out of thin air

Aero engine-inspired pocket piston combusts fire out of thin air
Depress the piston, and the superheated compressed air lights the tinder
Depress the piston, and the superheated compressed air lights the tinder
View 7 Images
Depress the piston, and the superheated compressed air lights the tinder
1/7
Depress the piston, and the superheated compressed air lights the tinder

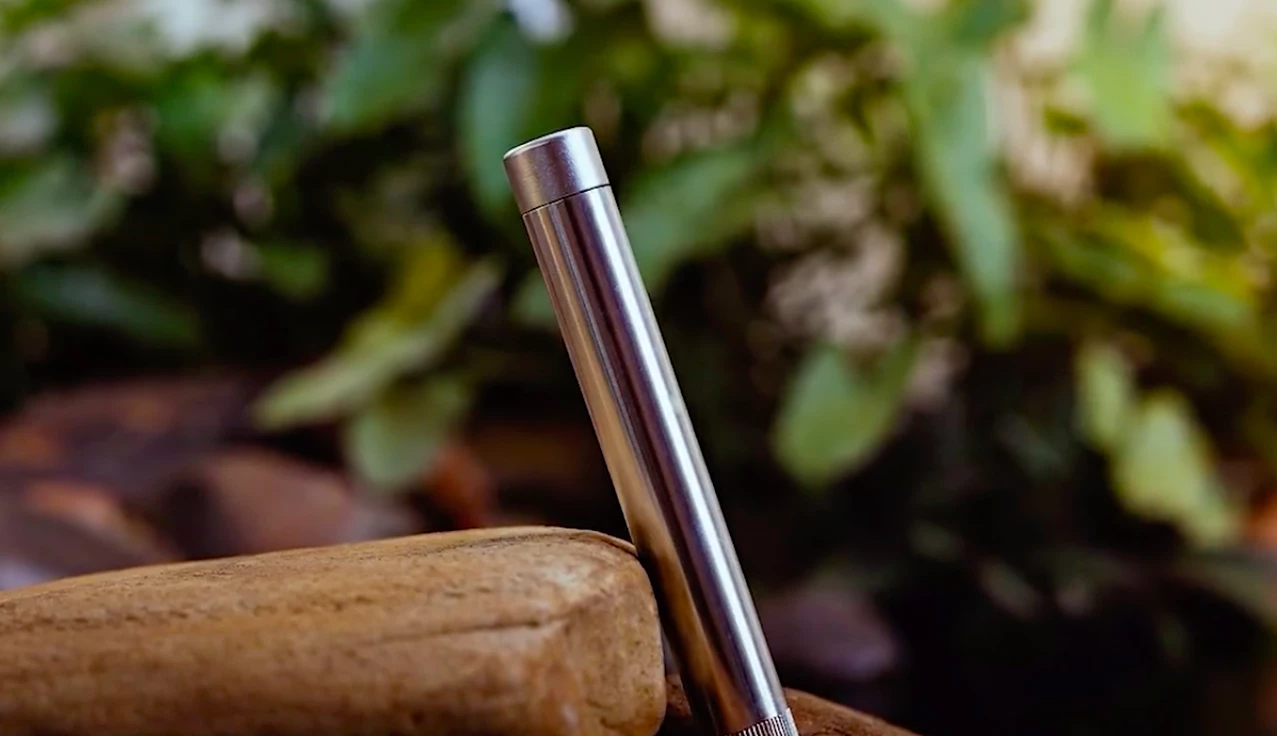

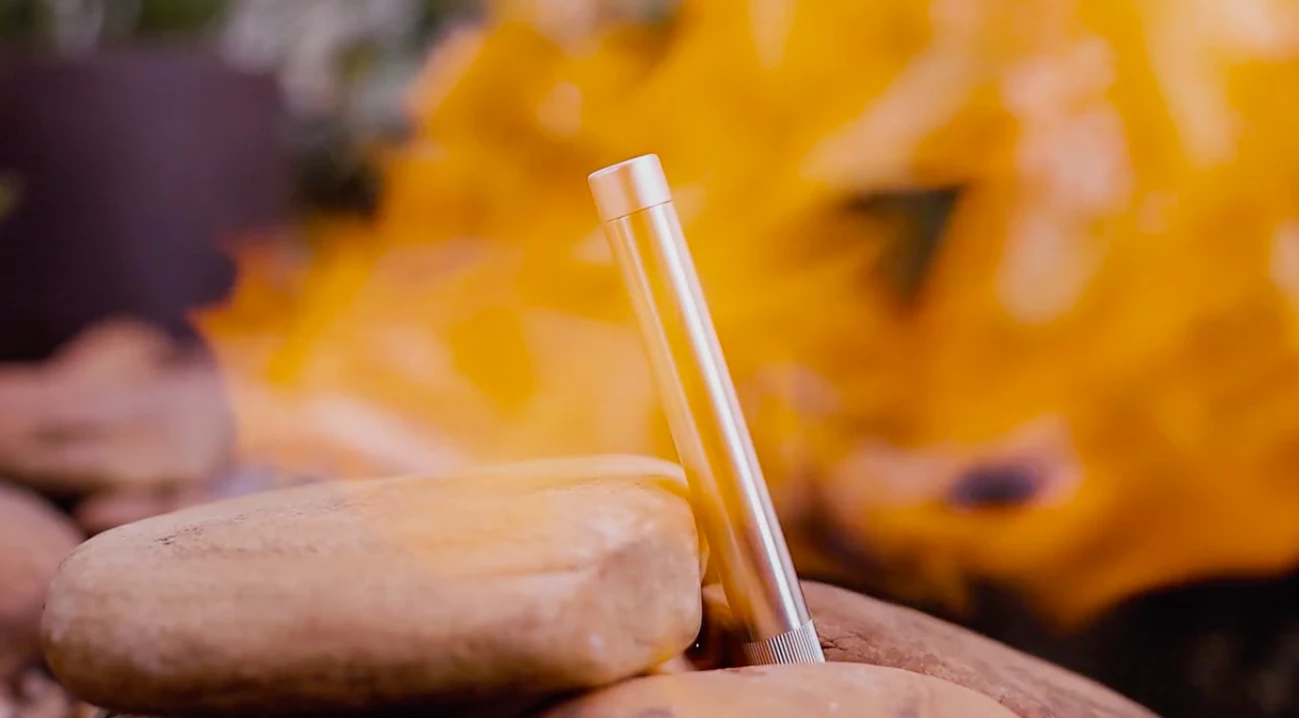

The Aviator's Ember is a sleek fire starter with a targeted weight under 3 oz
2/7
The Aviator's Ember is a sleek fire starter with a targeted weight under 3 oz
With little more than a push of the piston, the Aviator's Ember creates fiery tinder ready to light a blaze
3/7
With little more than a push of the piston, the Aviator's Ember creates fiery tinder ready to light a blaze
The Aviator's Ember is on Kickstarter now
4/7
The Aviator's Ember is on Kickstarter now

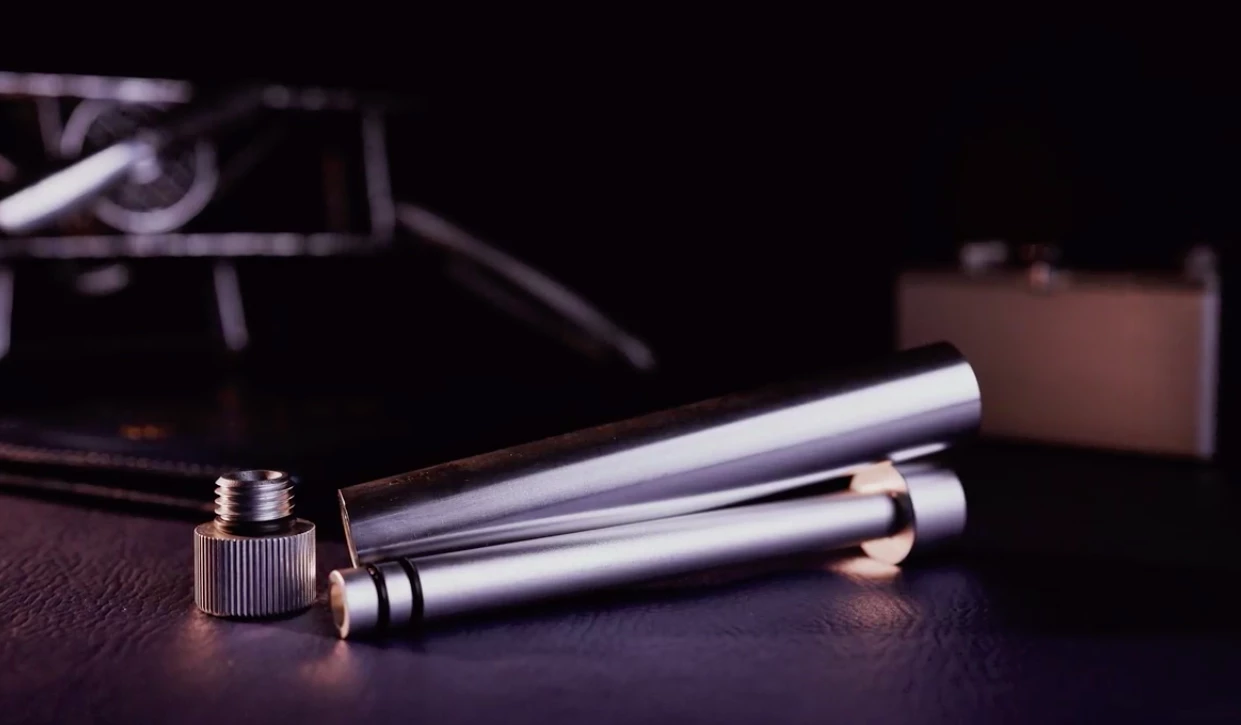

The Aviator's Ember employs a simple, lightweight three-piece construction with knurled cap, piston and cylinder body
5/7
The Aviator's Ember employs a simple, lightweight three-piece construction with knurled cap, piston and cylinder body

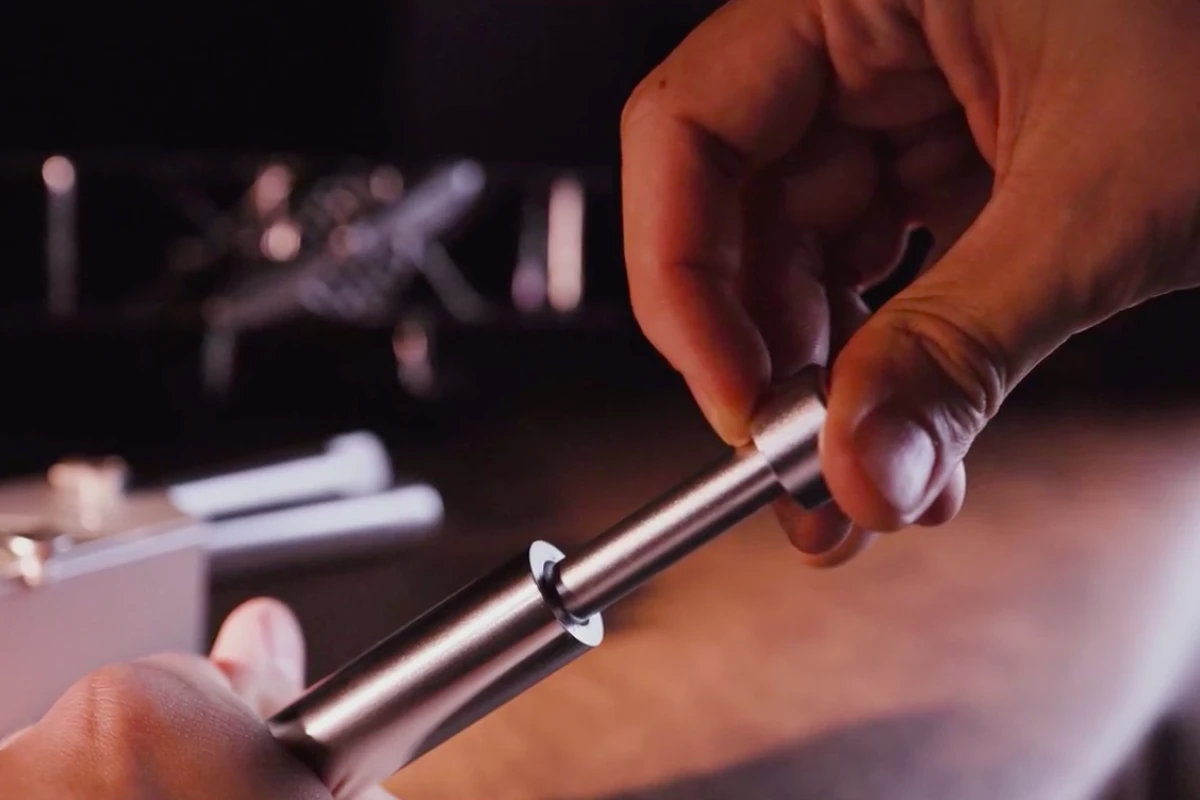

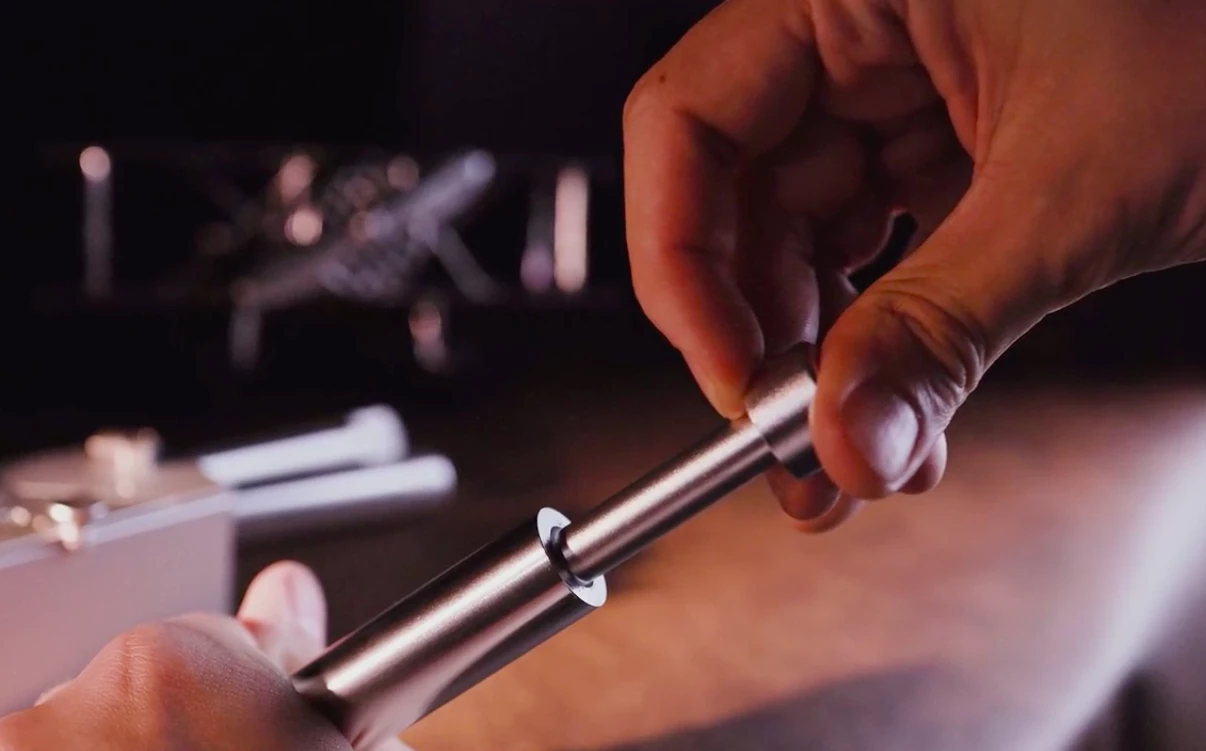

The o-rings on the piston ensure the fully sealed cylinder chamber that prevents air from escaping and instead compressing and heating rapidly
6/7
The o-rings on the piston ensure the fully sealed cylinder chamber that prevents air from escaping and instead compressing and heating rapidly

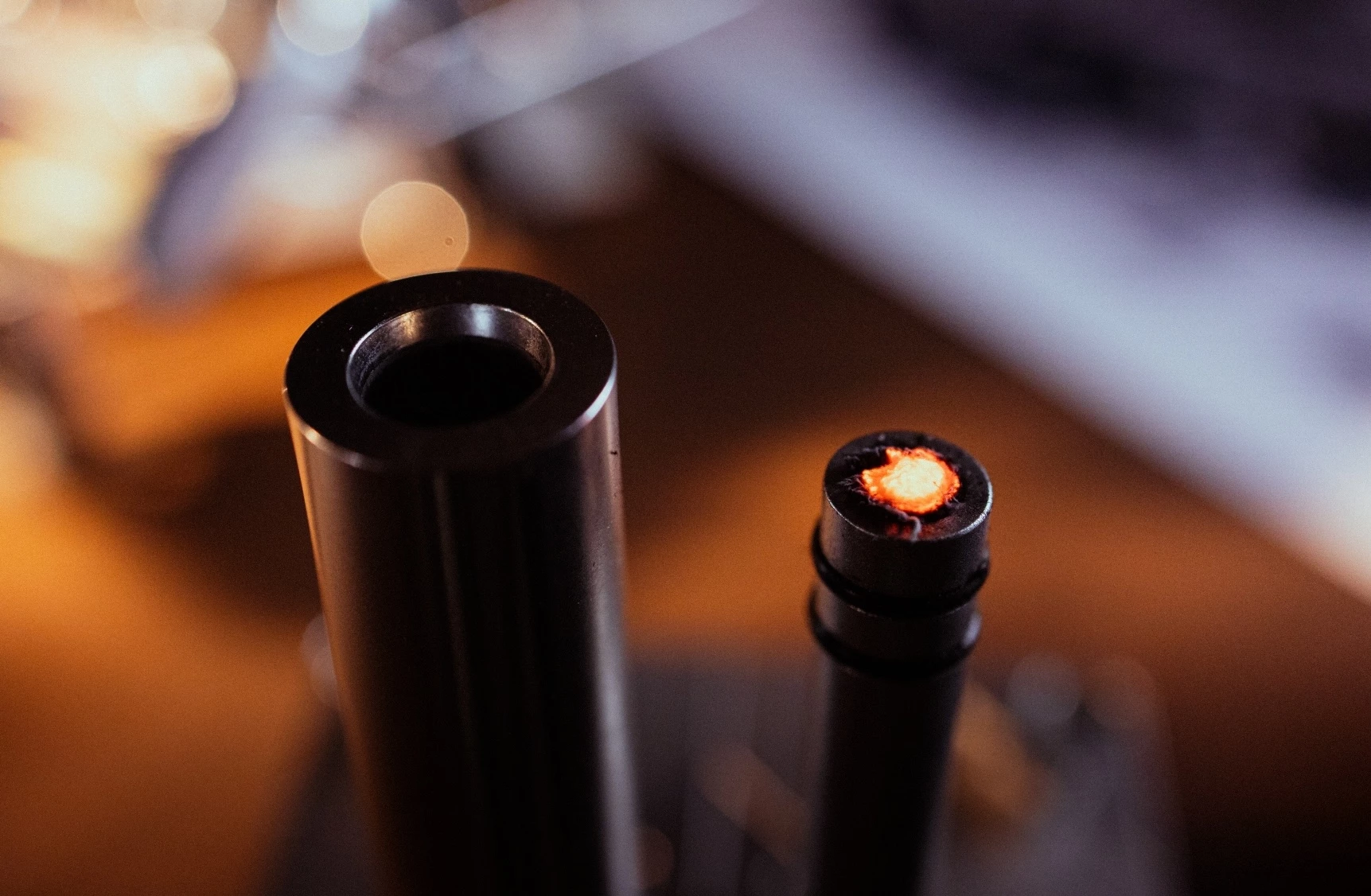

The glowing ember ready to be placed in a greater tinder nest to ignite the full fire
7/7
The glowing ember ready to be placed in a greater tinder nest to ignite the full fire
View gallery - 7 images

More an ancient tool than a groundbreaking gadget, the fire piston relies on basic chemistry to ignite a campfire with the simple pump of a hand. The new Aviator's Ember from Aerohart applies aerospace-grade materials to the age-old design, providing powerful, weather-ready fire-starting performance that carries lightly in a pack or pocket. Like an actual engine piston, it compresses air to initiate fast, furious combustion.

Aerohart is a small, niche Boston company that weaves aeronautical inspiration into its lineup of everyday tools and gear. In the case of the Aviator's Ember, it's not merely the anodized 6061 aerospace-grade aluminum that ties into the great machines of the sky – the company uses the entire concept of a fire piston as an homage to the radial diesel engines of vintage aircraft design.

Truth be told, the Aviator's Ember is a functional ode to the diesel engine in general, which relies on the same form of compression ignition as the ancient fire piston itself, albeit in a much more juiced-up formulation that's able to power up massive vehicles as opposed to simply lighting a tiny piece of tinder. As some tell the story, Rudolf Diesel was inspired by a fire piston-based cigarette lighter in developing the compression-ignition-fired engine that bears his name.

So we suppose you could say the Aviator's Ember is a fire piston inspired by an engine itself inspired by the fire piston. Full circle.

The Aviator's Ember is a sleek fire starter with a targeted weight under 3 oz
The Aviator's Ember is a sleek fire starter with a targeted weight under 3 oz

Unlike gasoline internal combustion engines that use spark plugs to ignite the compressed air and fuel mixture in the combustion chamber of each cylinder, diesel engines operate without an external spark. Instead, they rely solely on the compression of air to ignite the fuel. The rapid air compression in the chamber superheats it to the point that the injected diesel fuel ignites on contact. The engine's cylinder set repeats the process continuously to create the mechanical energy powering the propeller or driveshaft.

Centuries before Rudolf Diesel created his engine, ancient peoples of Southeast Asia used the same basic principle in creating the first fire piston. The device uses a much simpler version of compression ignition, relying on a single standalone piston cylinder and a small piece of solid tinder.

As Aerohart explains of its own device, the user simply puts the tinder – char cloth seems to be the most recommended – inside the cavity at the tip of the removable piston rod, reinstalls the piston back into the cylinder, then firmly and rapidly depresses it. The heat of the fast-compressed air in the cylinder will light the tinder and provide a smoldering ember that can then be placed into a tinder bundle to ignite a full fire.

The glowing ember ready to be placed in a greater tinder nest to ignite the full fire
The glowing ember ready to be placed in a greater tinder nest to ignite the full fire

Beyond being an impressive way of pulling (okay, pushing) fire out of literal thin air, fire pistons are designed to be a simple, failsafe piece of kit that good for use as an emergency backup. There's no fuel to fill, and the piston is less susceptible to rain/moisture than alternatives like a pack of matches. And if you aren't carrying your own tinder, you can collect tinder like tinder fungus.

Aerohart is still finalizing its design but expects the Aviator's Ember to measure just over 4 in (105 mm) long, with an 11/16-in (1.7-cm) diameter and 2.8-oz (78-g) weight. Not bad at all, but we'd be inclined to stick with something even smaller and lighter, like a ferro rod, for ultralight backcountry trips. But for car camping and trips that don't demand shedding every gram possible, the Aviator's Ember is a very sleek, packable tool sure to impress any fellow adventurers not familiar with fire pistons. And how often do you get to make anything out of literal air?

The o-rings on the piston ensure the fully sealed cylinder chamber that prevents air from escaping and instead compressing and heating rapidly
The o-rings on the piston ensure the fully sealed cylinder chamber that prevents air from escaping and instead compressing and heating rapidly

Aerohart is running a Kickstarter campaign to get the Aviator's Ember out of the prototype stage and into backers' hands. So far, it seems the crowd is pretty enamored with the idea – the campaign is up to over US$60K on a $250 (no K) goal and has flown past all of Aerohart's stretch goals. The Aviator's Ember is available at an early bird pledge level of $45, and deliveries will begin as early as next month, if everything goes smoothly.

Source: Aerohart

View gallery - 7 images
5 comments
5 comments
paul314
Or you could have gotten one slightly less fancy from the usual suspects for a quarter the price. (Note that for a fire piston increased metal mass reduces the amount of heat delivered to the tinder.)
UltimaRex
I assume engineering, reliability and longevity is the objective. Otherwise, every corner shop sells matches...
rgbatduke
SOOO cool. Or hot. As the article notes, old idea (I've actually mentioned it in my physics classes over the years) but never actually bought or made one. The one mentioned above is pricey compared to the ones readily available via e.g. Amazon, though, AND as an ex-Boy Scout I always just carry a good old Bic lighter in my pocket along with my Kershaw one-finger flick knife. Drop me in the wilderness with the clothes on my back and I'll have at least a fighting chance at survival, unless the Bic gets wet or runs out of gas or the "wilderness" is a desert, arctic tundra, or anyplace else where being able to build a fire and whittle aren't enough...:-)
Nobody
I've made dozens of these from clear plexiglass which is much cooler to watch. Tinder fungus is a little rare. Some charred cotton cloth works quite well. Just wrap the cotton in tin foil and heat it until only the black charred cotton remains. If you get a partial ignition using the fire piston, the air in the tube needs to be replenished. I carry a little wooden dowel rod with my fire piston for that purpose. Pushing the dowel in and out of the tube flushes out the partially combusted air. Otherwise you have to wait a few minutes for it to clear on its own. I gave clear fire pistons to my son's engineer groomsmen at his wedding.
sk8dad
For those who've used fire pistons in the field, how well does it perform when dirt/water gets in the chamber? Also what are your usage experiences during wet and windy conditions where fire starting is critical? Still, wouldn't waterproof matches plus starter nuggets be a lighter and more reliable system?
