Water good idea: Solar-powered home stores energy as hydrogen

The Phi Suea House development is said to be the first in the world to run on solar-powered hydrogen energy storage
The Phi Suea House development is said to be the first in the world to run on solar-powered hydrogen energy storage
View 10 Images

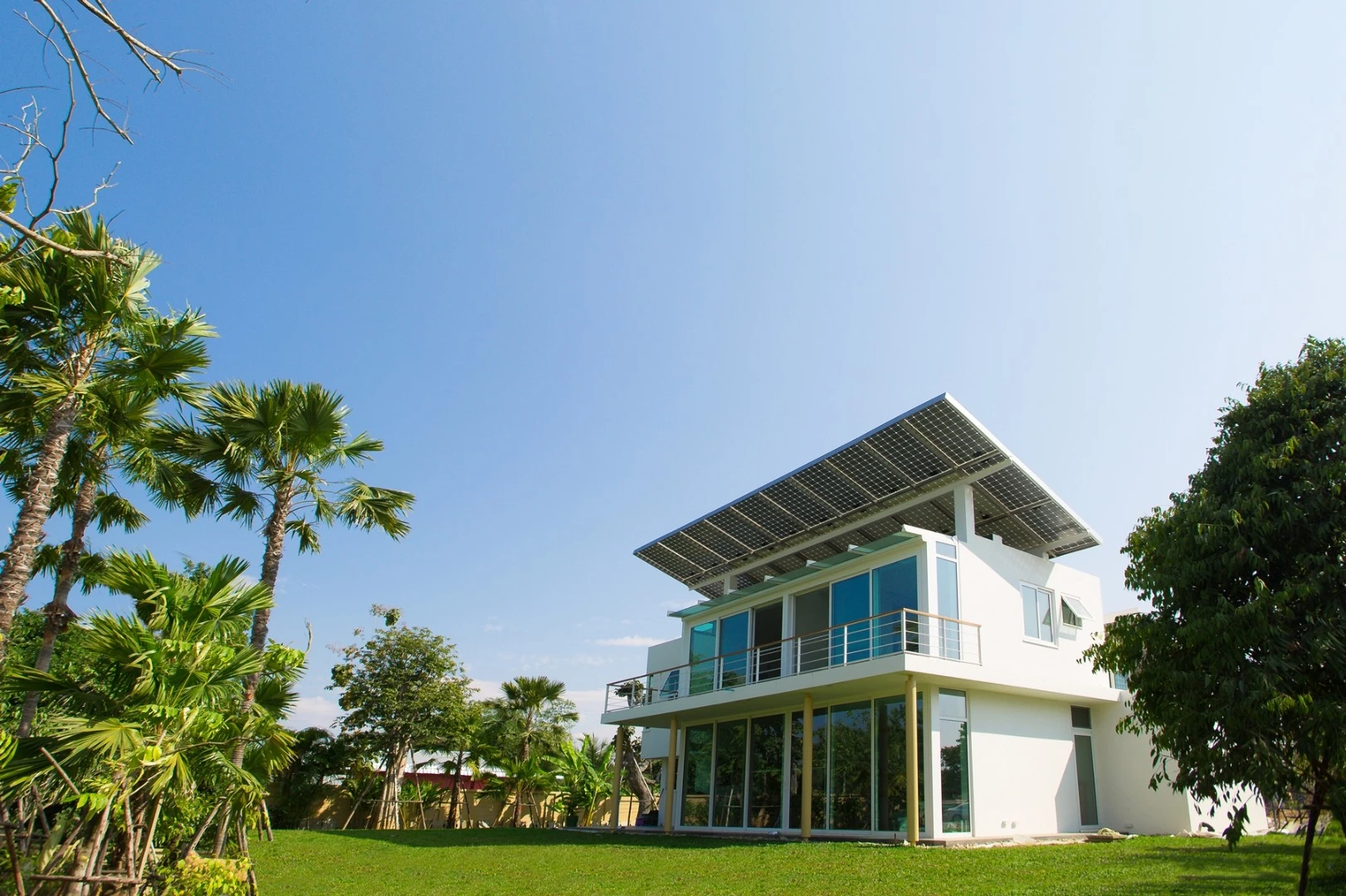

The Phi Suea House development is said to be the first in the world to run on solar-powered hydrogen energy storage
1/10
The Phi Suea House development is said to be the first in the world to run on solar-powered hydrogen energy storage

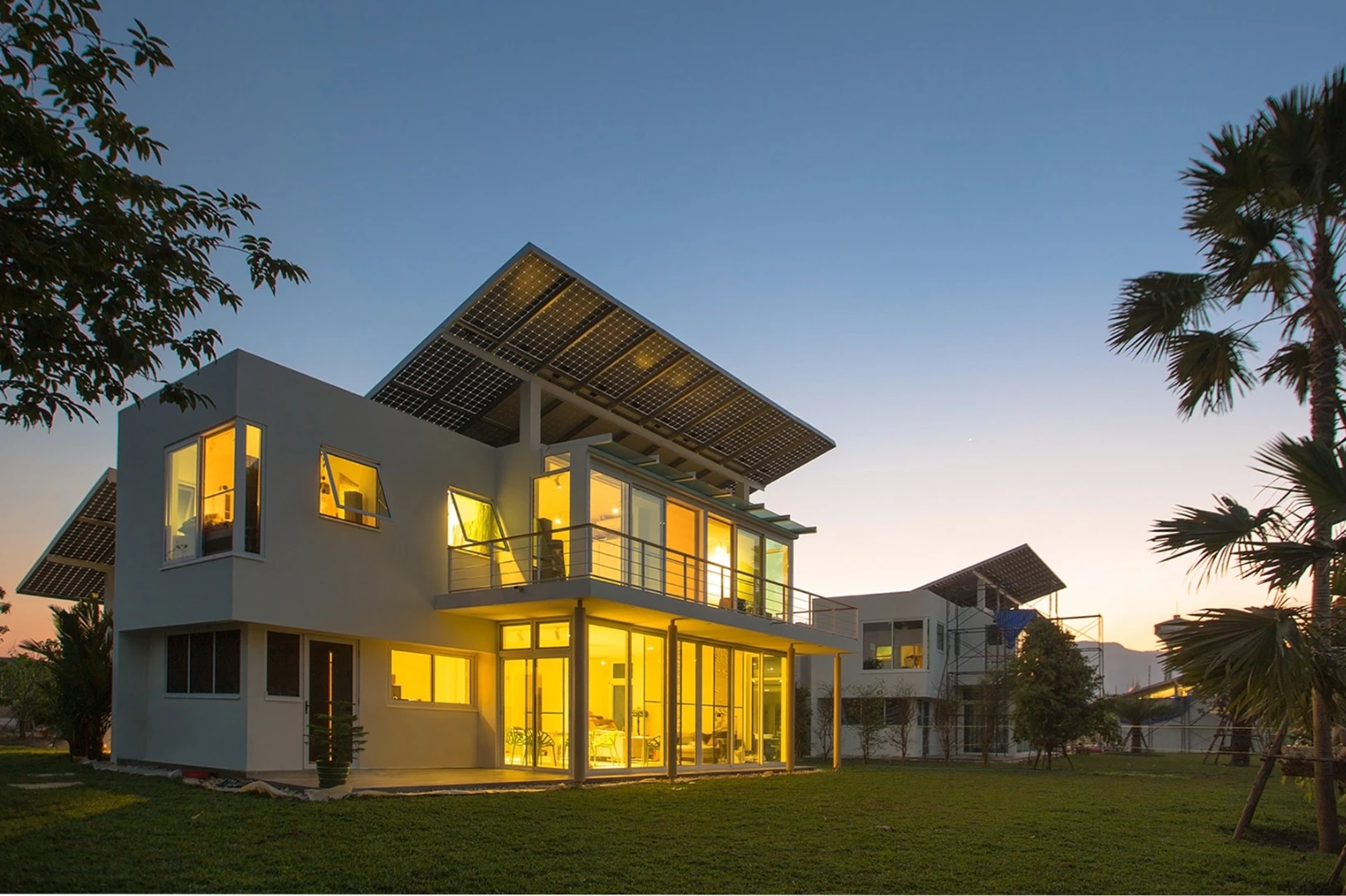

The Phi Suea House development will eventually have 114 kW of photovoltaic panels generating around 247 kWh of electricity a month
2/10
The Phi Suea House development will eventually have 114 kW of photovoltaic panels generating around 247 kWh of electricity a month
The Phi Suea House development is located in Chiang Mai, Thailand
3/10
The Phi Suea House development is located in Chiang Mai, Thailand

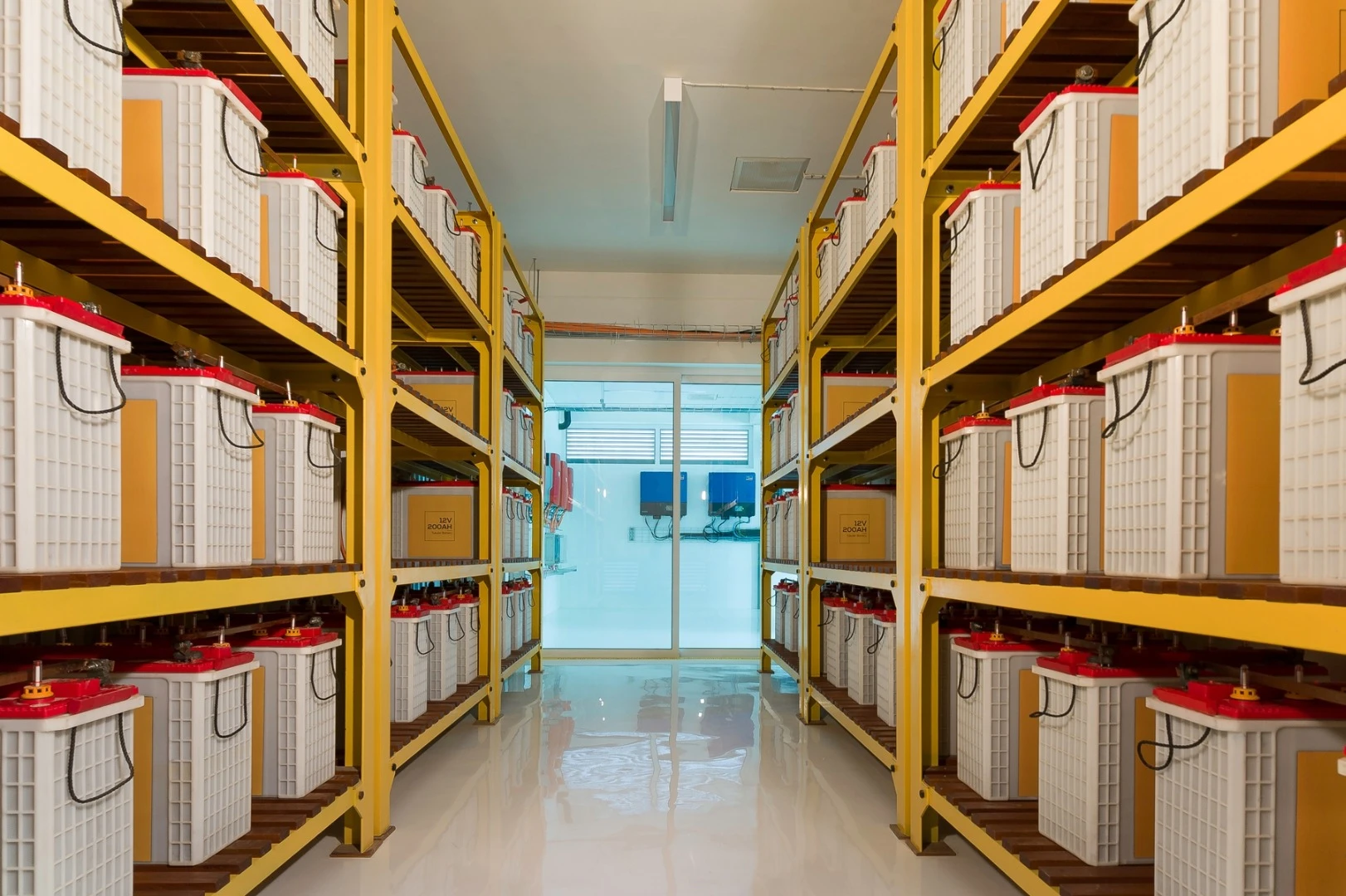

The Phi Suea House development will store some of its excess energy in two 2,000-Ah lead-acid battery banks
4/10
The Phi Suea House development will store some of its excess energy in two 2,000-Ah lead-acid battery banks

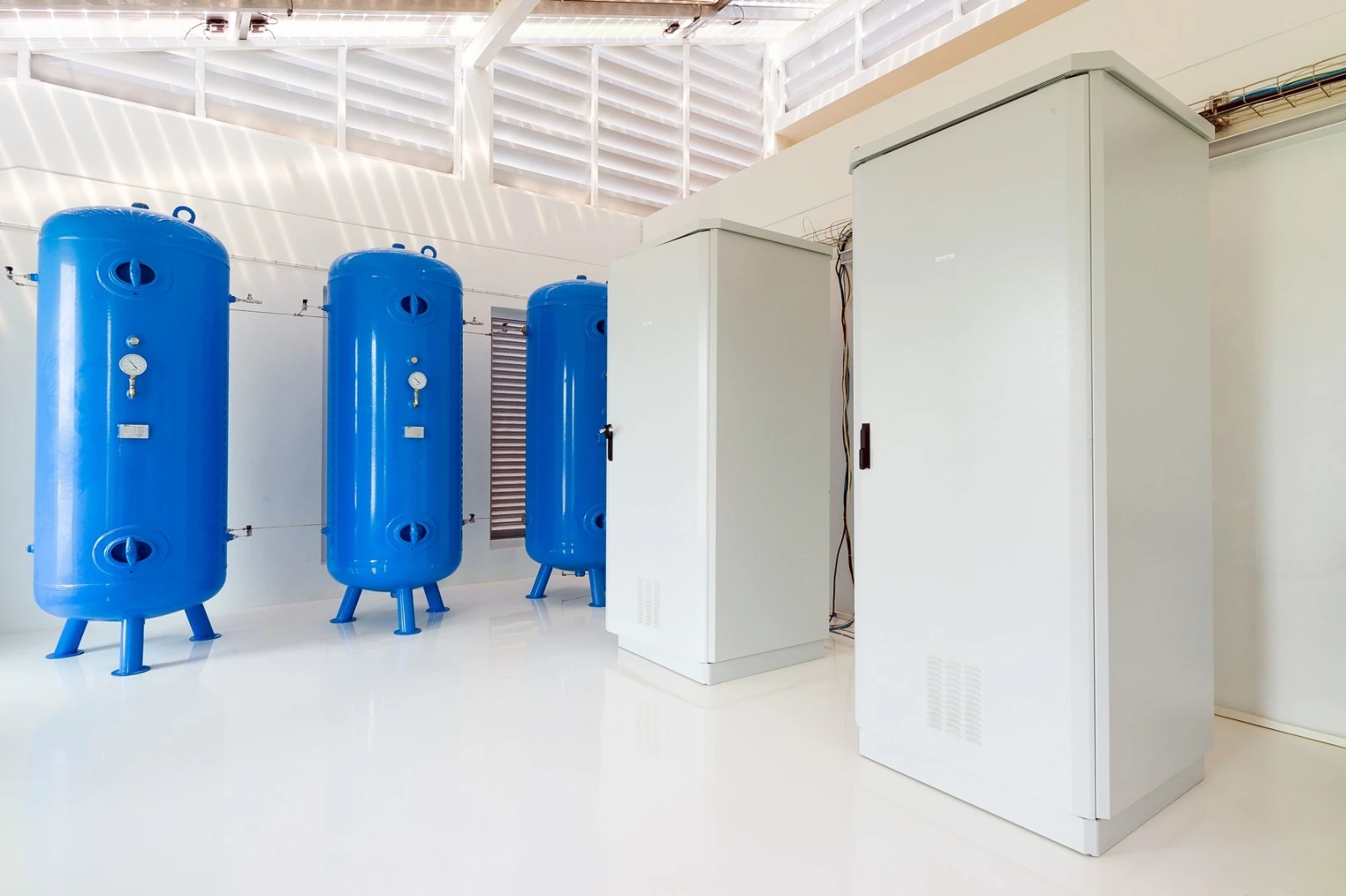

The Phi Suea House development will be able to produce hydrogen at a maximum rate of 2,000 l (440 gal) every hour
5/10
The Phi Suea House development will be able to produce hydrogen at a maximum rate of 2,000 l (440 gal) every hour

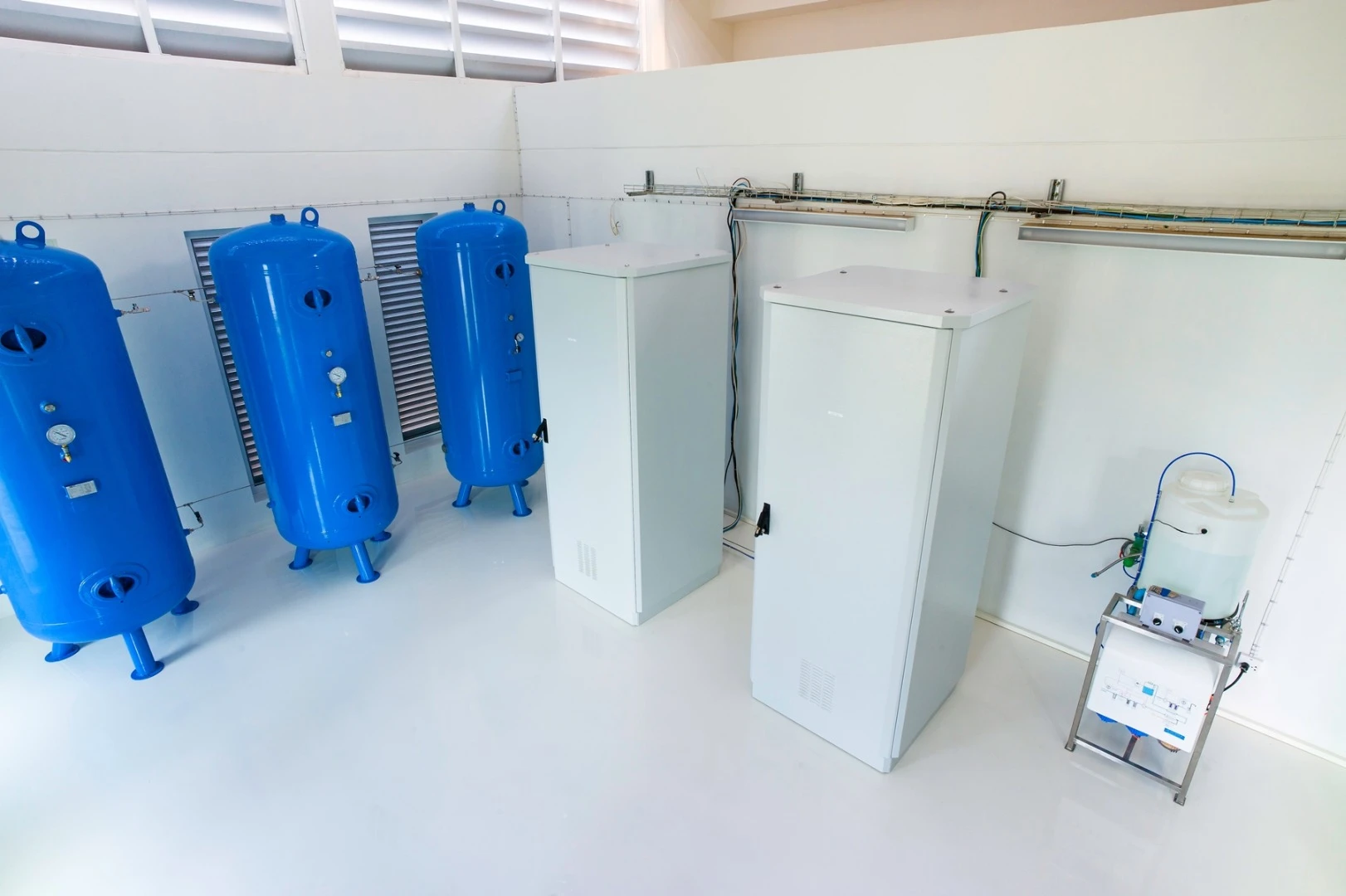

The Phi Suea House development will be able to store up to 90,000 l (19,800 gal) of hydrogen
6/10
The Phi Suea House development will be able to store up to 90,000 l (19,800 gal) of hydrogen
The Phi Suea House development has several purpose-built buildings to contain the required infrastructure
7/10
The Phi Suea House development has several purpose-built buildings to contain the required infrastructure

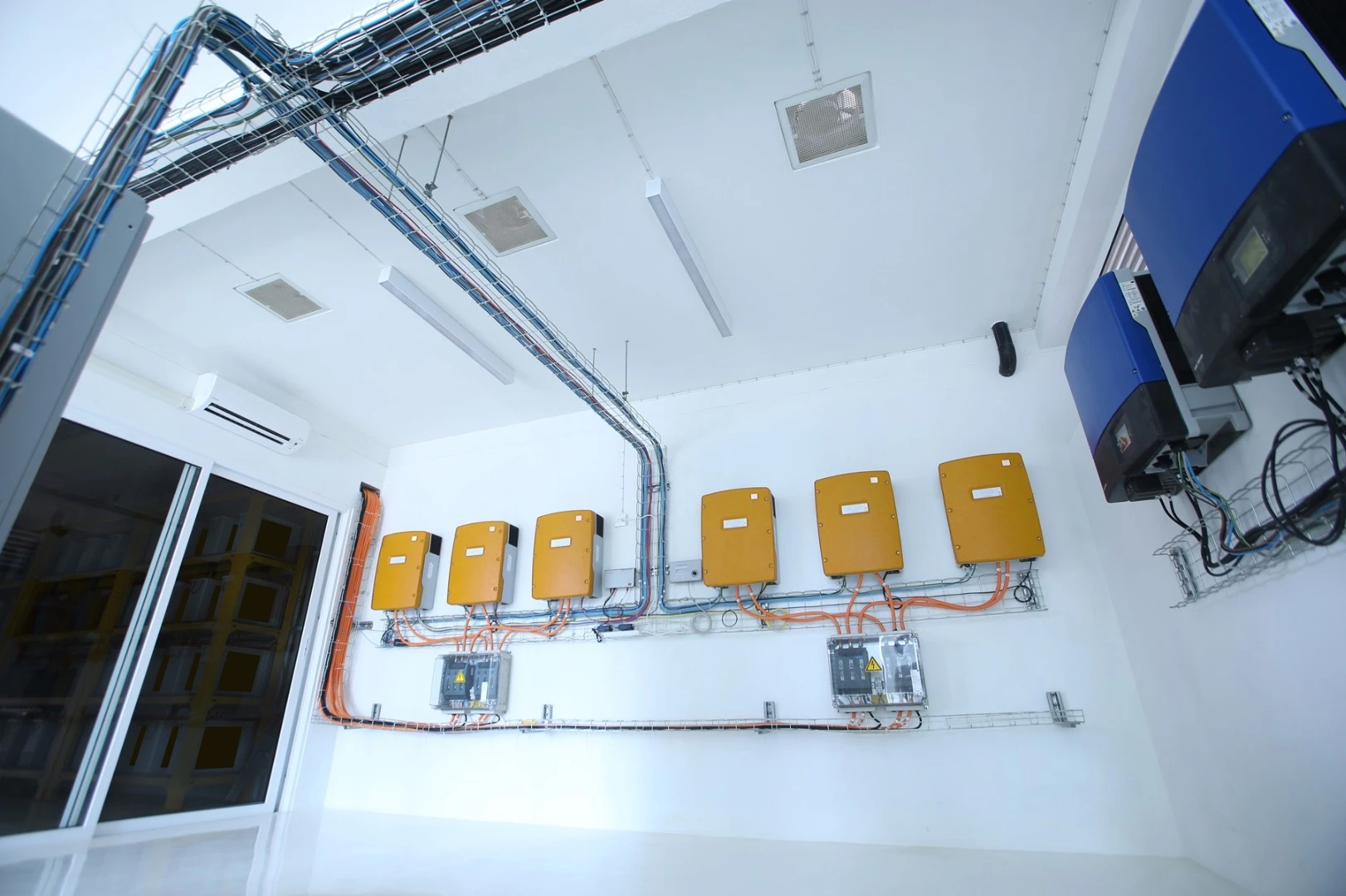

Each building at the Phi Suea House development has its own inverter to change direct current to alternating current
8/10
Each building at the Phi Suea House development has its own inverter to change direct current to alternating current

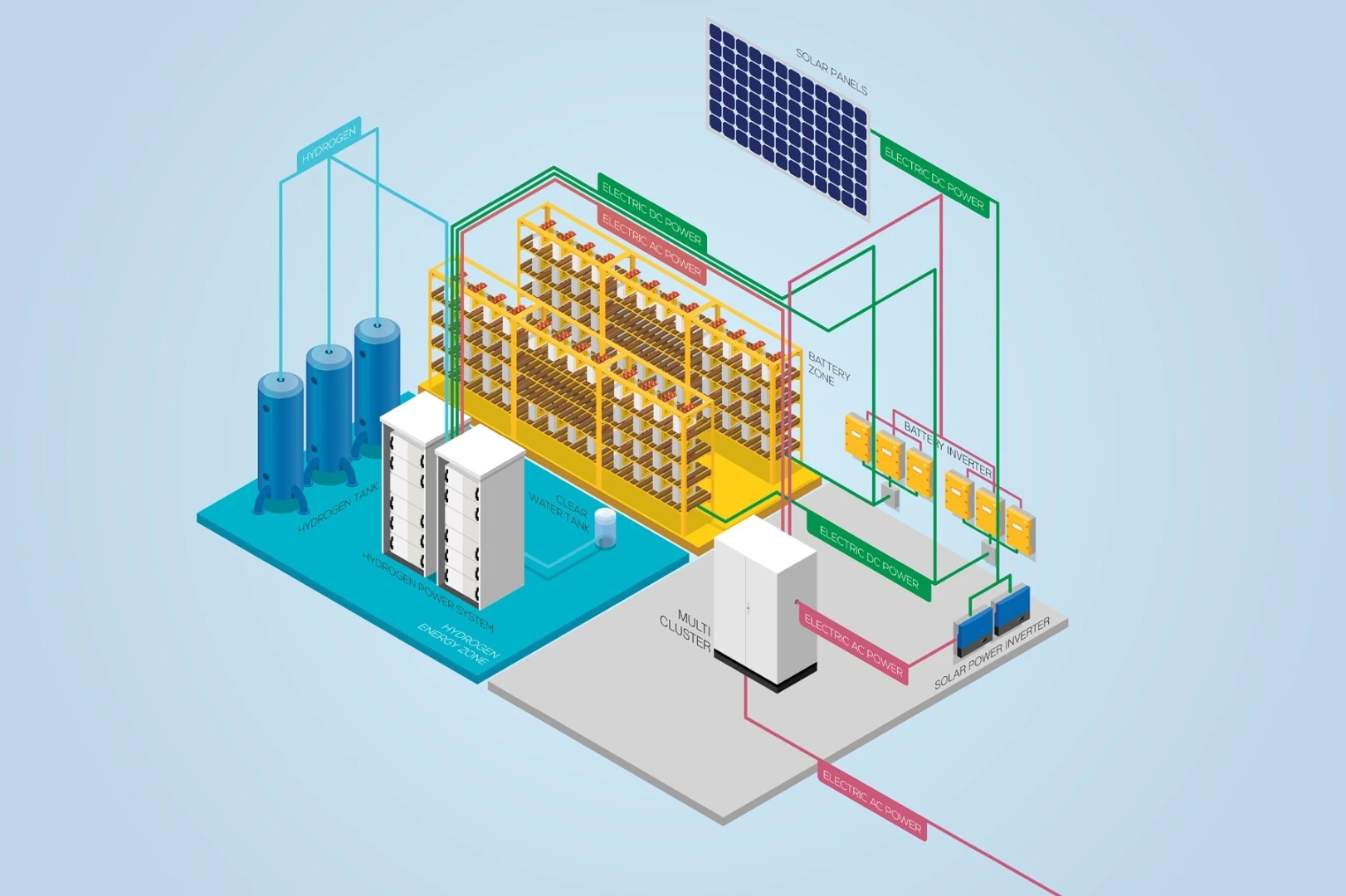

A diagram of the Phi Suea House development energy system
9/10
A diagram of the Phi Suea House development energy system

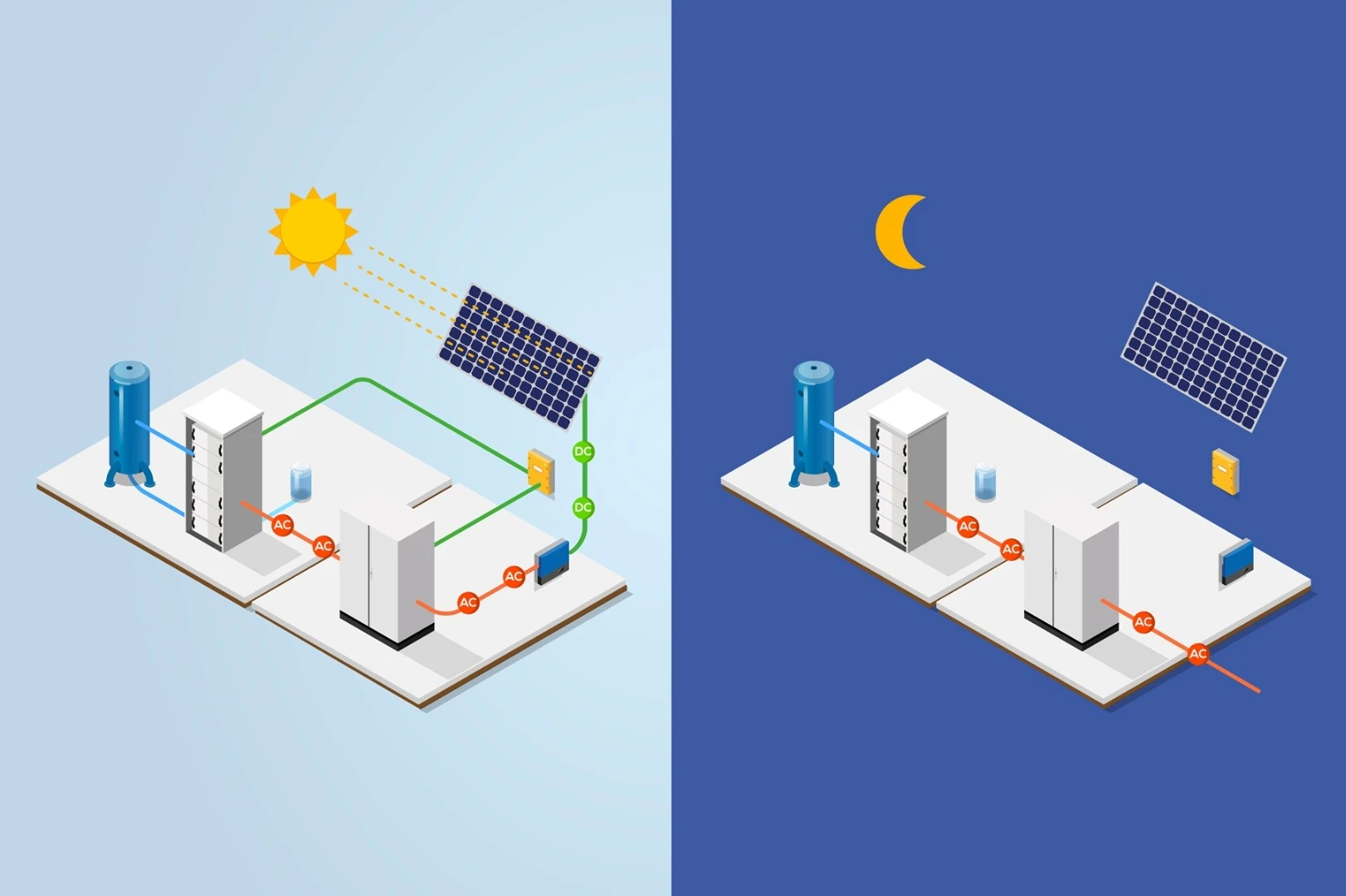

The Phi Suea House development energy system differs in how it is employed at day and at night
10/10
The Phi Suea House development energy system differs in how it is employed at day and at night

Although solar panels can be used to power a home with clean energy, demand for power fluctuates during the day and excess power is often also produced. A new development in Chiang Mai, Thailand, reportedly solves these problems. It converts excess power to hydrogen and stores it for use later.

There are four family homes in the Phi Suea House development, as well as several other purpose-built buildings. According to project developer CNX Construction, the homes will be the first in the world to run on solar-powered hydrogen storage.

To achieve this, there will eventually be 114 kW of photovoltaic panels generating around 441 kWh of electricity a day, a partial excess of which will be stored in two 2,000-Ah lead-acid battery banks. Electrolyzers will then convert additional excess power into hydrogen gas by applying an electrical current to water. The hydrogen will then be stored until it is needed, typically at night, at which point it will be changed back into electricity via fuel cells.

CNX says the system is the most effective and ecologically-friendly way to store the energy produced. In addition, the process is entirely clean, with oxygen and water being its only by-products.

When fully up and running, the system will reportedly be able to produce hydrogen at a maximum rate of 2,000 l (440 gal) every hour and will be able to store up to 90,000 l (19,800 gal). The daily demand for electricity will be in the region of 200 kWh and the fuel cells will be able to produce 120 kWh at full storage, easily covering the estimated 80 kWh that will be required overnight.

The Phi Suea House development will be able to produce hydrogen at a maximum rate of 2,000 l (440 gal) every hour
The Phi Suea House development will be able to produce hydrogen at a maximum rate of 2,000 l (440 gal) every hour

To ensure the efficiency of the houses, they will have solar hot water panels installed, meaning that no electricity will be be required for heating water. In addition, the houses will have double glazing, thick walls, natural ventilation, efficient fans to reduce air conditioning use, plus large windows and lower-power LED lamps to minimize the energy required for lighting.

The development has been being tested with a reduced load since March. CNX tells Gizmag it will be fully operational by the end of January.

The video below explains the energy system employed by the Phi Suea House.

Sources: Phi Suea House, CNX Construction
