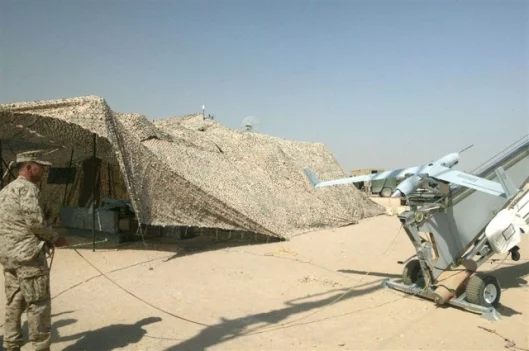

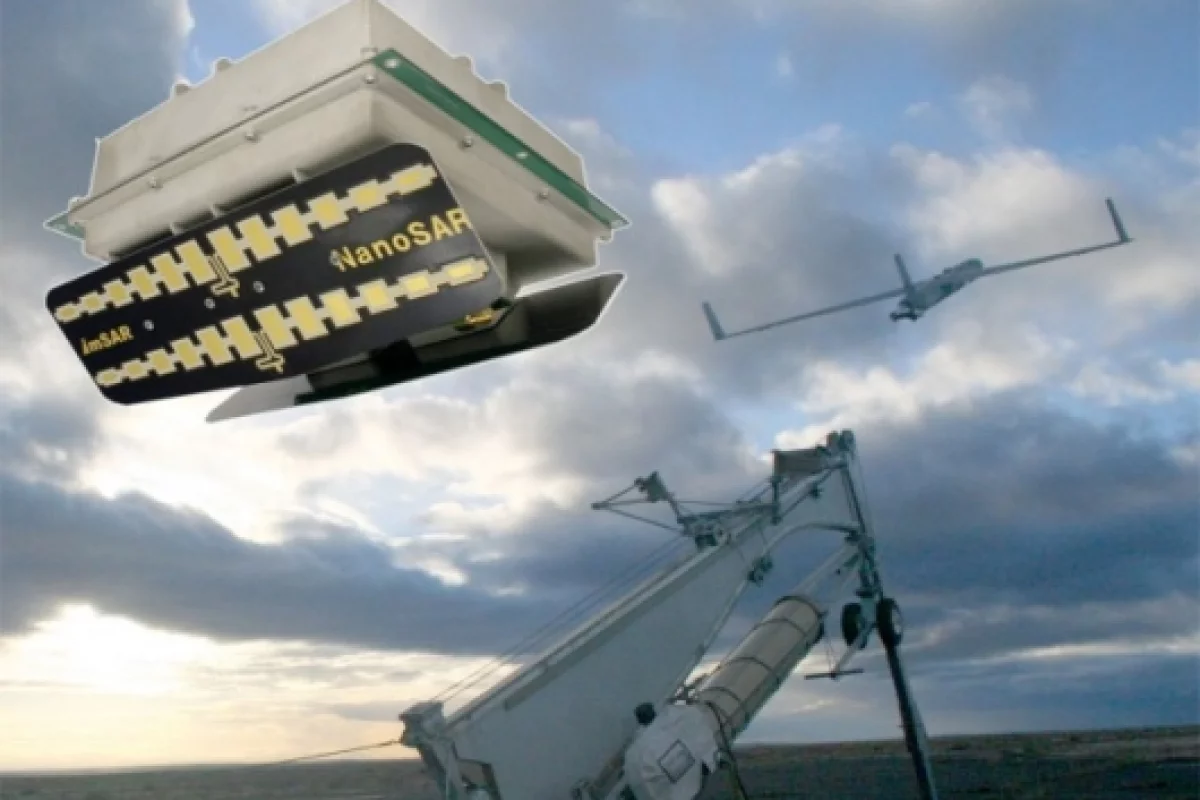

The catapult launcher and Scan Eagle prepare to go into battle
The catapult launcher and Scan Eagle prepare to go into battle

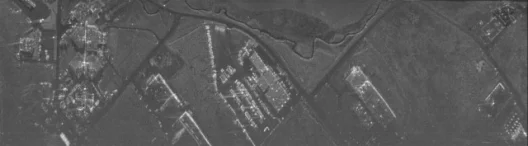

The view via SAR - man-made objects clearly stand out
The view via SAR - man-made objects clearly stand out

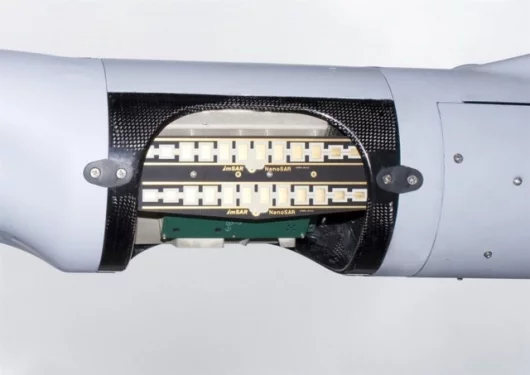

That spec in the sky 16,000 ft away can now tell a lot about you
That spec in the sky 16,000 ft away can now tell a lot about you
View gallery - 8 images

March 18, 2008 The ScanEagle UAV has proven a revelation in Iraq and Afghanistan, offering another key informational input on the battlefield to help soldiers under fire make better decisions. The bad news for enemies of the United States is that the miniature UAV can now carry Synthetic Aperture Radar (SAR) which can pick out man made objects not readily visible to IR or EO cameras.

Metallic objects ‘light up’ when hit with the RF waves of SAR, and show up brighter than nature’s backgrounds of grass, brush, trees, water, and sand. It can “see” through dust, fog, rain and sandstorms, making it particularly useful for military surveillance and reconnaissance in desert regions.

Beyond its military role, SAR significantly extends the capabilities of a UAV, enabling it to be more effectively used for such diverse applications as search and rescue in adverse conditions, fire line location and tracking through smoke, iceberg detection, ice pack analysis and the detection of debris or oils spills on the ocean or other bodies of water.

The testing to date has seen the ScanEagle collect data on an onboard 32 GB solid state drive with the imagery later created on the ground.

During the 1.5-hour flight, the ScanEagle with NanoSAR payload, completed several passes over the target area at various altitudes and ranges. The targets included vehicles, structures and corner reflectors.

The next step in flight testing will be to create imagery aboard the UAV in real time.

NanoSAR scans large areas in a short period of time. The oft spoke of “needle in the haystack” shows up like a shooting star crossing the milky way.

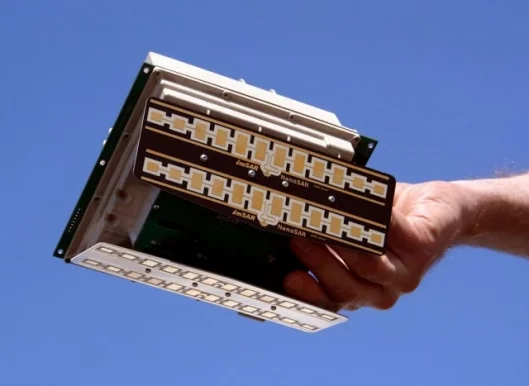

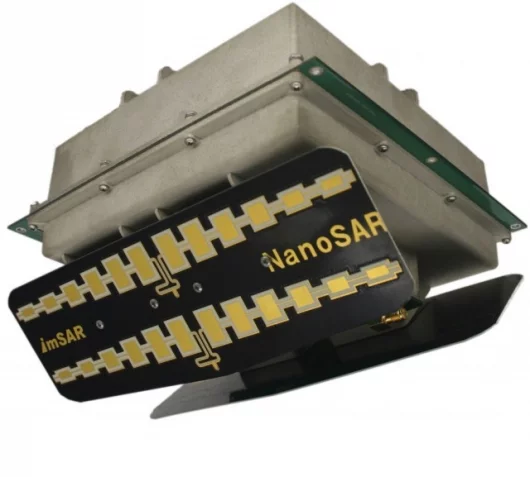

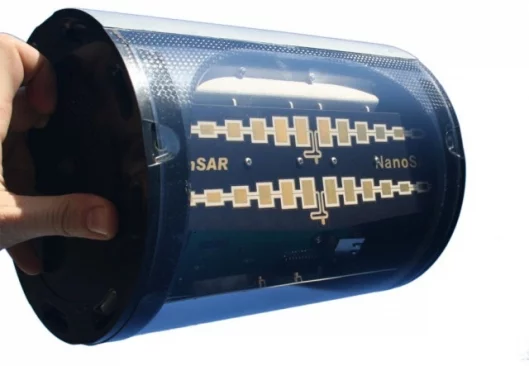

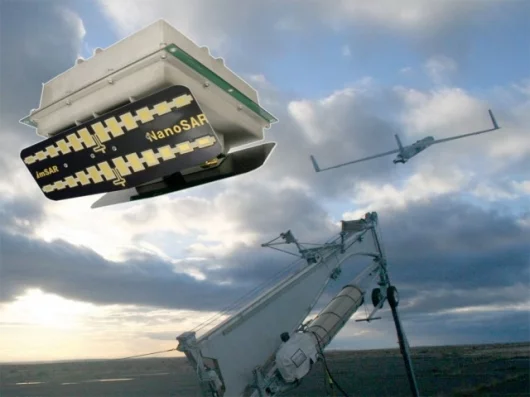

The fitting of SAR to the Boeing ScanEagle was done in partnership with ImSAR and Insitu and was no mean feat - the NanoSAR is a 2-pound system approximately the size of a shoebox. Standard SARs which are used in much bigger aircraft range in weight from 50 to 200 pounds.

"In the past, the advantages of SARs' all-weather imaging capabilities have been the exclusive domain of only larger unmanned aircraft. Now, even the 40-pound ScanEagle can carry both an electro-optical or infrared camera and a SAR payload at the same time," said Carol Wilke, ScanEagle chief engineer for Boeing. "SAR is now at the lower end of payload weight budgets instead of at the top.

"The NanoSAR technology's ability to see in hazy, cloudy, rainy or foggy conditions is ideally suited for the maritime environment," Wilke added. "Combined with ScanEagle's long-endurance capability, NanoSAR offers a cost-effective solution for customers' surveillance requirements."

Logan Harris, chief technology officer for ImSAR, said, "SAR is the best tool to get certain jobs done, such as finding small vessels on the ocean. But because of the size, weight, power and cost of SAR systems, it just hasn't been possible to get this capability to the warfighter on a broader scale. NanoSAR has changed that. The NanoSAR is built on Printed Circuit Board technology that is rugged and can be rapidly and cost-effectively manufactured."

Since 2004, the ScanEagle system has proven on a daily basis that it is the best-value solution to support warfighters in the field around the world. It has logged more than 70,000 combat flight hours with the U.S Marines Expeditionary Force, the U.S. Navy and the Australia Defense Force in Iraq and Afghanistan. The Navy has logged more than 900 shipboard recoveries using ScanEagle.

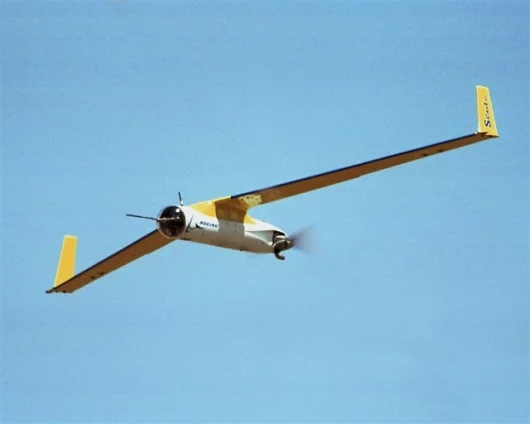

ScanEagle, a joint effort of Boeing Advanced Systems' Advanced Precision Engagement and Mobility Systems and Insitu, was developed as a low-cost, long-endurance autonomous unmanned aircraft to provide persistent intelligence, surveillance and reconnaissance as well as flexible, rapid deployment for a variety of government and civilian applications.

A ScanEagle UAV carries inertially stabilized electro-optical and infrared cameras. The gimbaled cameras allow the operator to easily track both stationary and moving targets. Capable of flying above 16,000 feet and loitering over the battlefield for more than 24 hours, the platform provides persistent low-altitude reconnaissance.

ScanEagle is launched autonomously via a pneumatic SuperWedge catapult launcher and flies pre-programmed or operator-initiated missions. An Insitu-patented SkyHook system is used for retrieval -- the aircraft catches a rope suspended from a 50-foot-high tower. The patented system makes the ScanEagle system runway-independent, with a small footprint similar to that needed for vertical takeoff and landing vehicles.
