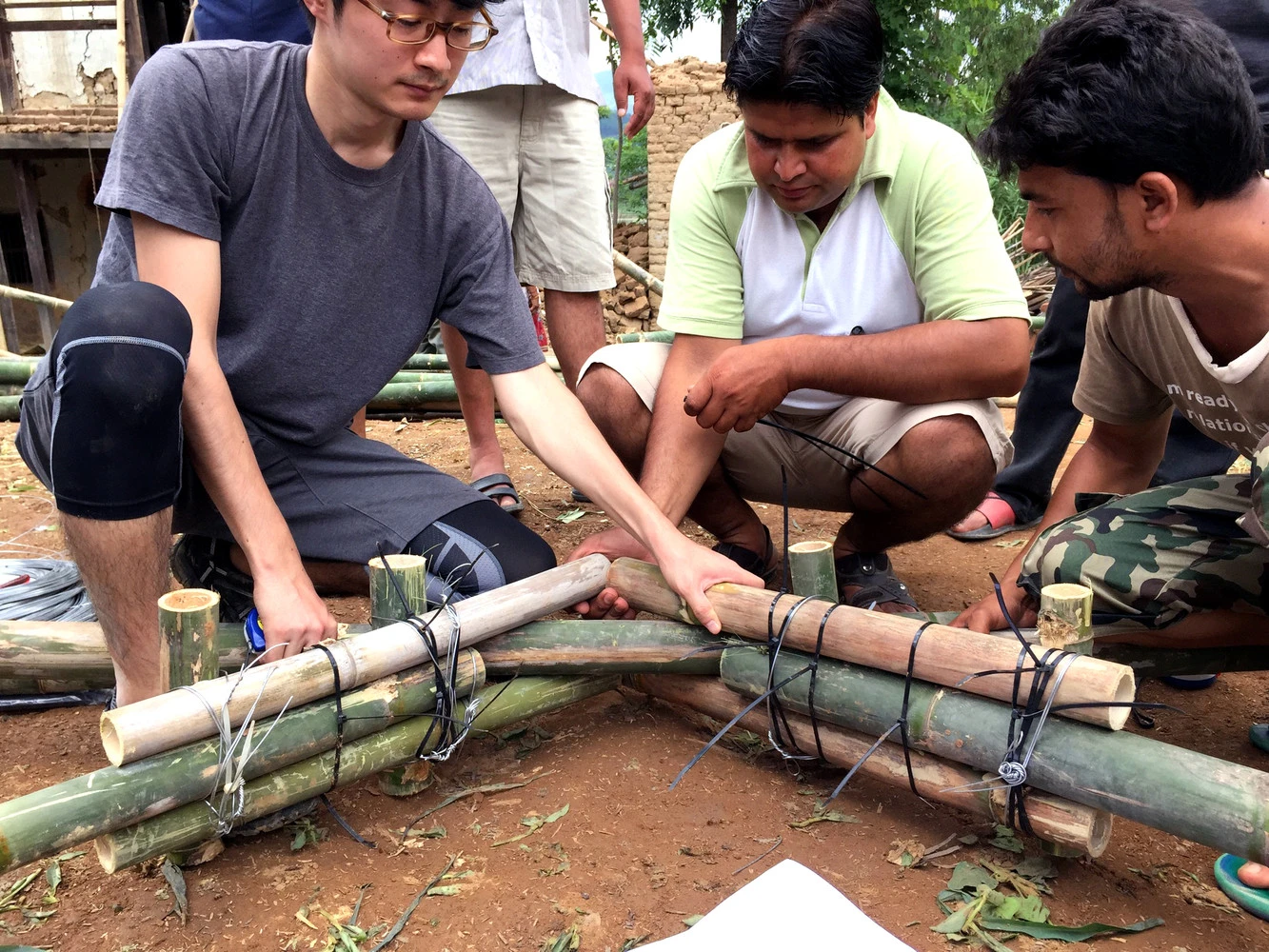

Following the quake, architects Charles Lai and Takehiko Suzuki created the architectural relief organization Architecture for the Mass
2/14
Following the quake, architects Charles Lai and Takehiko Suzuki created the architectural relief organization Architecture for the Mass
The architects designed a simple bamboo-based framework that could be erected efficiently with materials local to the villages of Nepal
3/14
The architects designed a simple bamboo-based framework that could be erected efficiently with materials local to the villages of Nepal

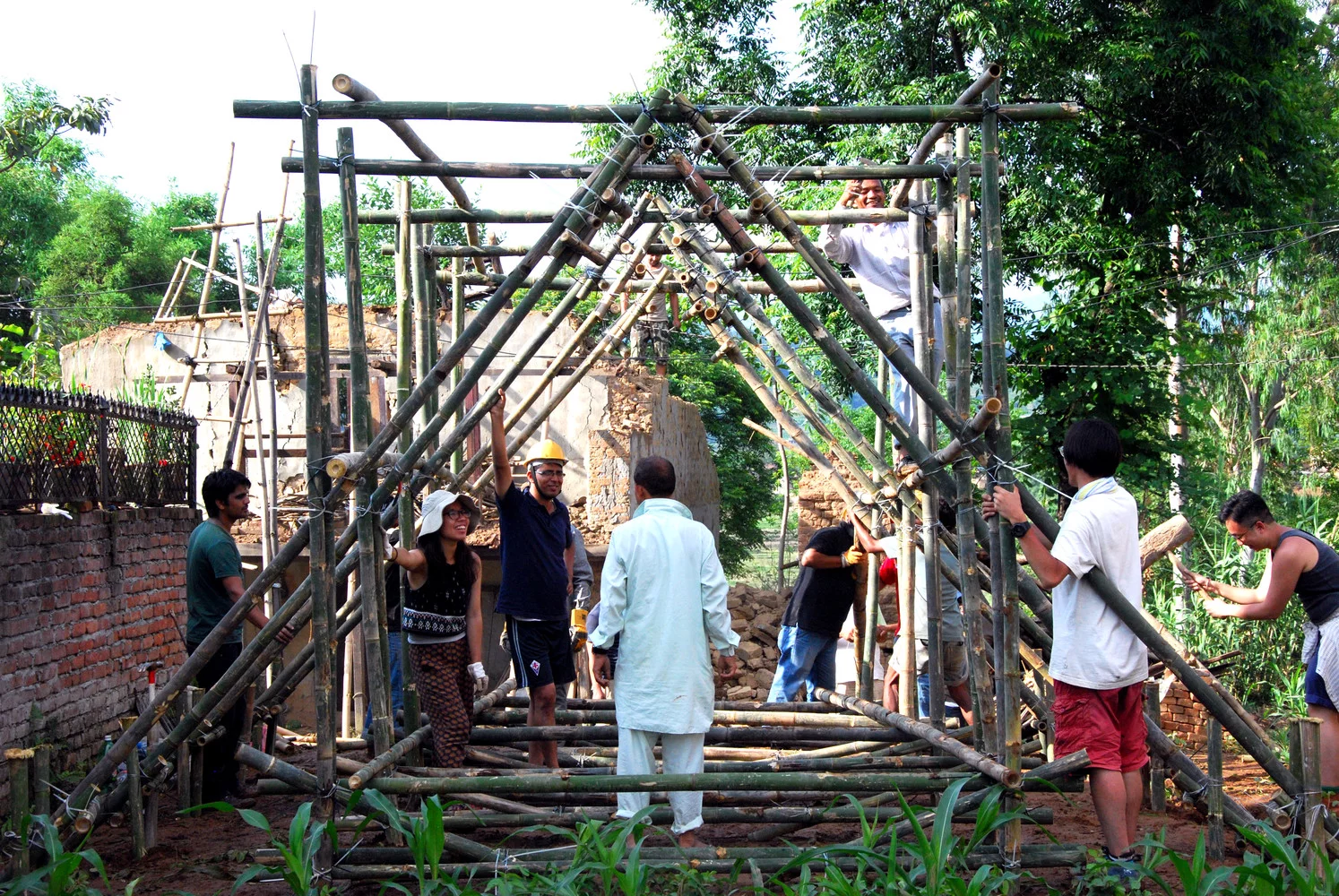

Measuring 18 sq m (193 sq ft) and comprising one large interior space, the prototype shelter has no amenities to speak of
4/14
Measuring 18 sq m (193 sq ft) and comprising one large interior space, the prototype shelter has no amenities to speak of

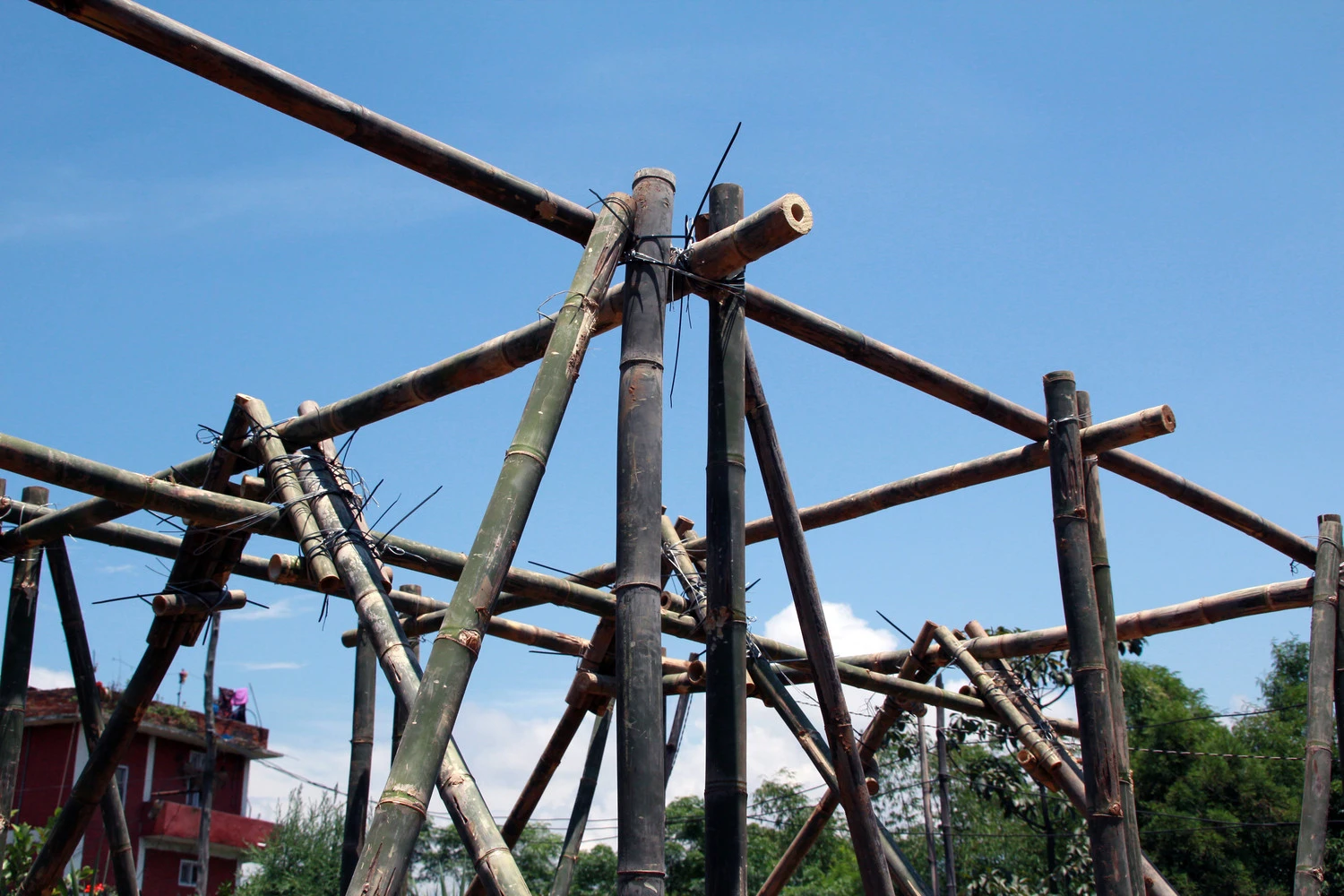

The prototype pictured cost around $500 to build
5/14
The prototype pictured cost around $500 to build

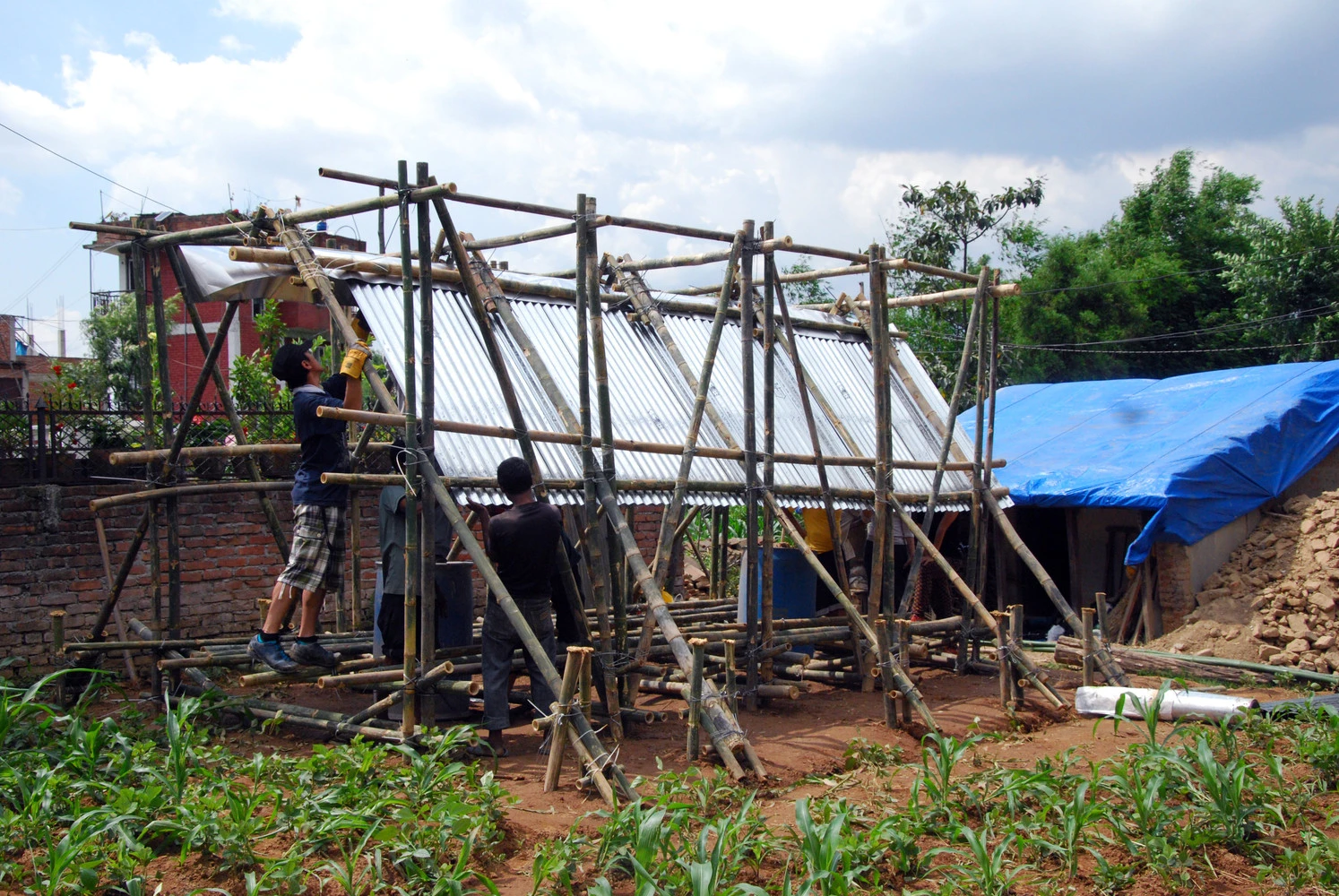

The roof is sloped to aid rainwater runoff
6/14
The roof is sloped to aid rainwater runoff

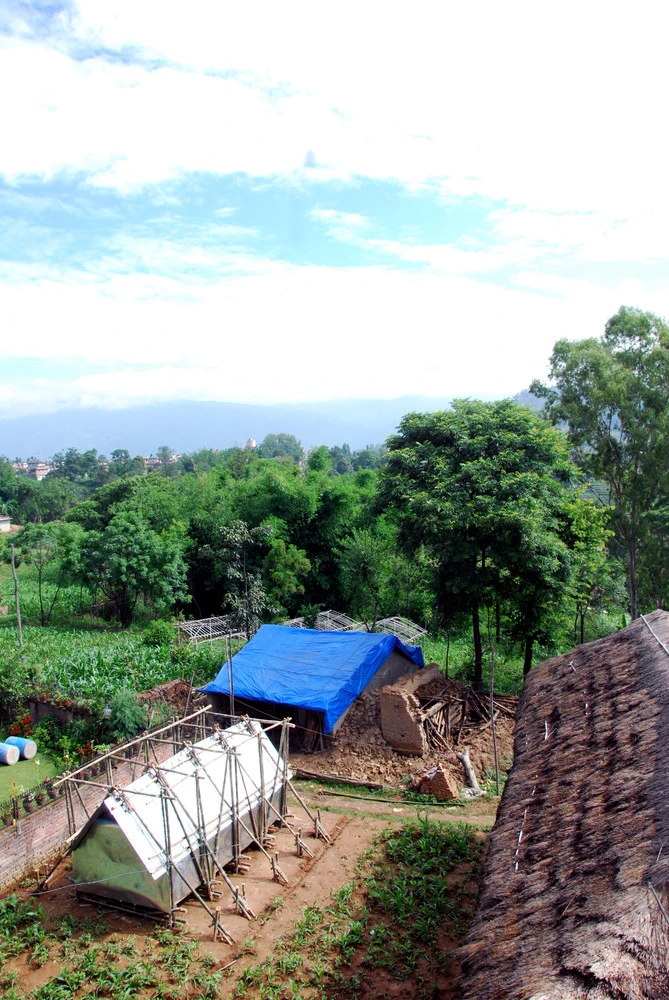

The prototype shelter took two days to build
7/14
The prototype shelter took two days to build

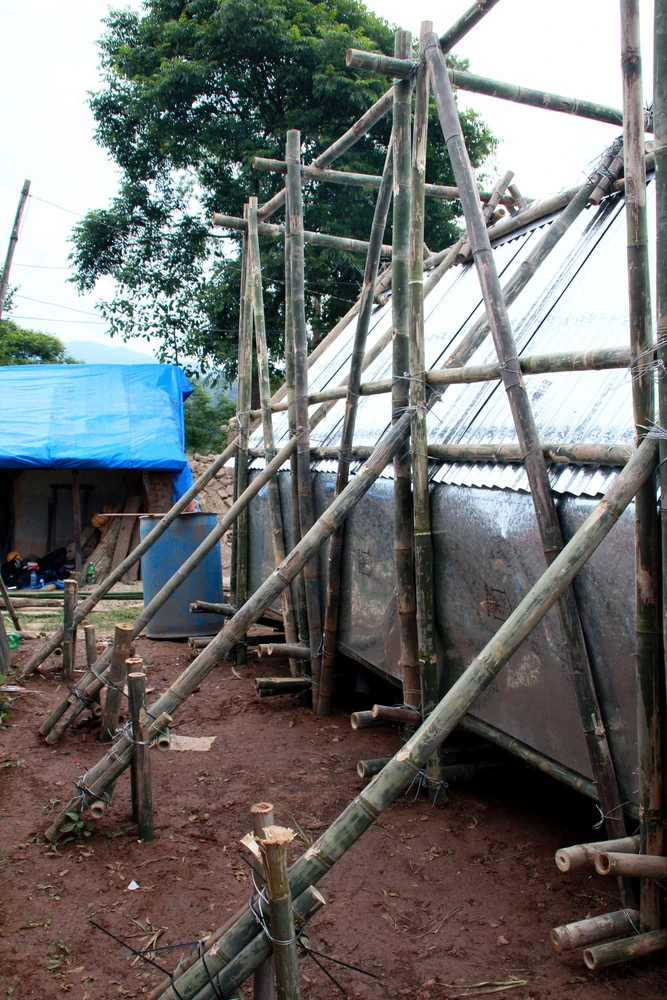

The design can be scaled up or down as required, and the idea is that locals can follow a build manual to create makeshift temporary buildings
8/14
The design can be scaled up or down as required, and the idea is that locals can follow a build manual to create makeshift temporary buildings

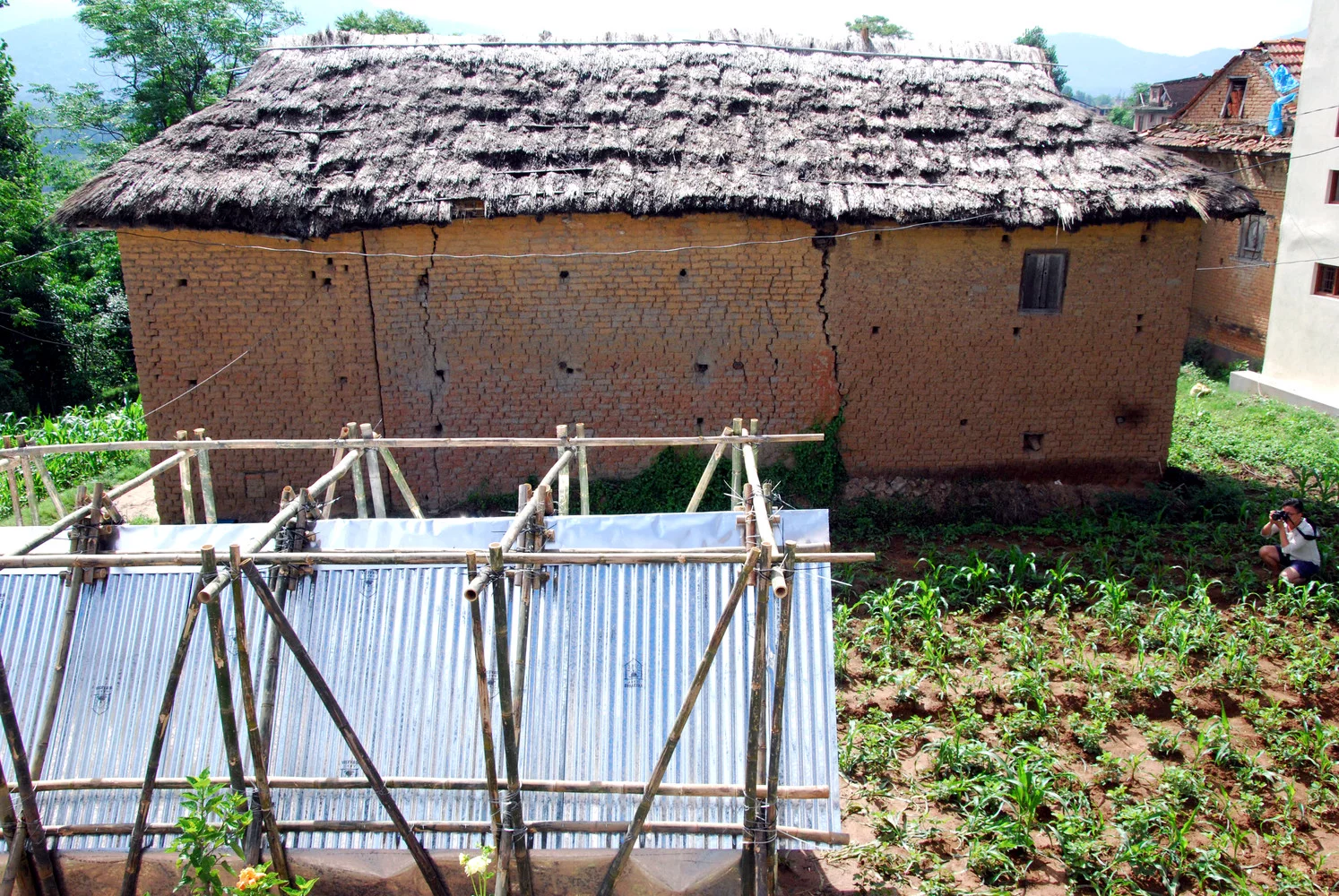

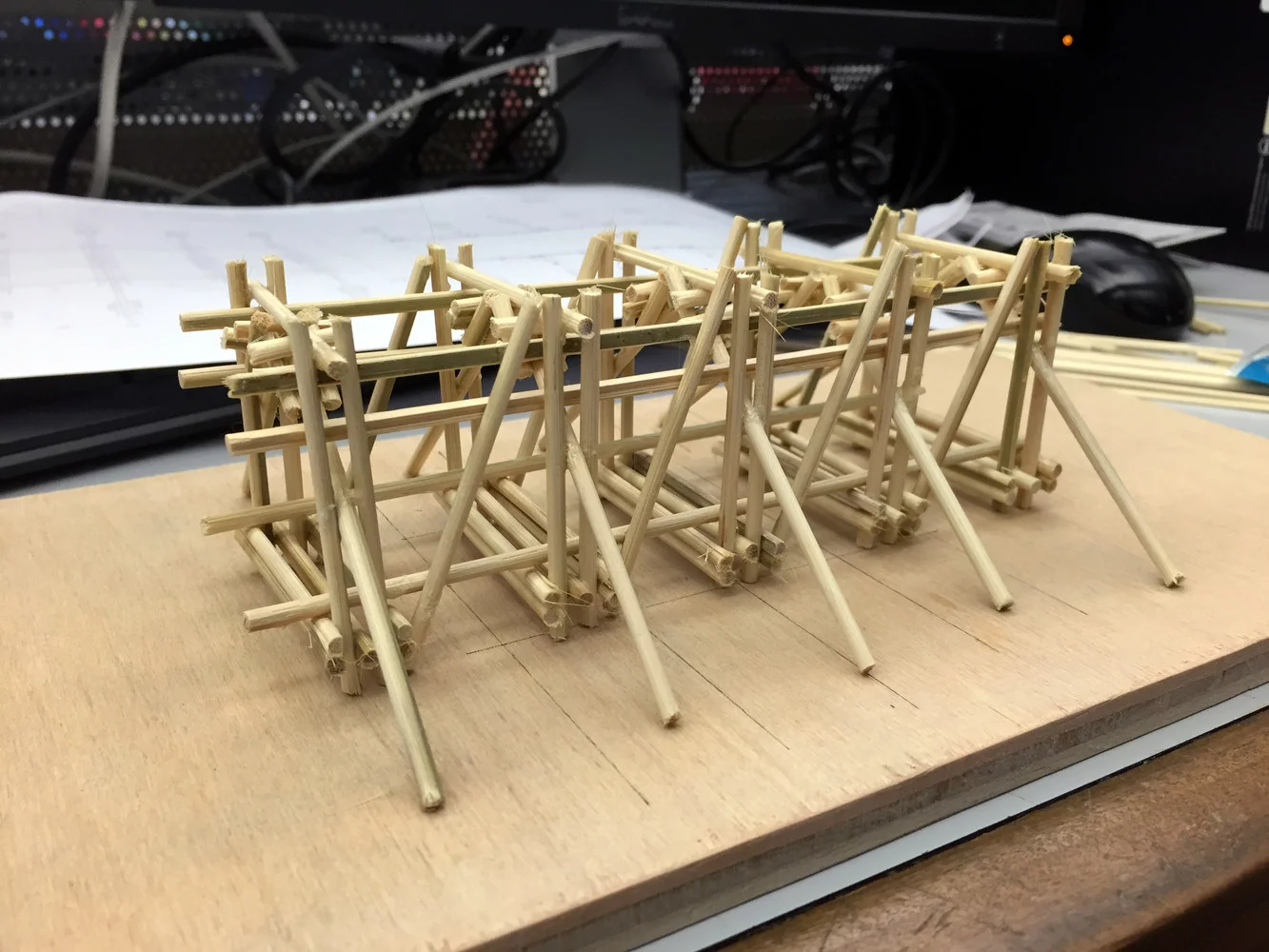

The Temporary Shelter in Nepal project came about in the wake of the earthquake that devastated the country earlier this year
9/14
The Temporary Shelter in Nepal project came about in the wake of the earthquake that devastated the country earlier this year

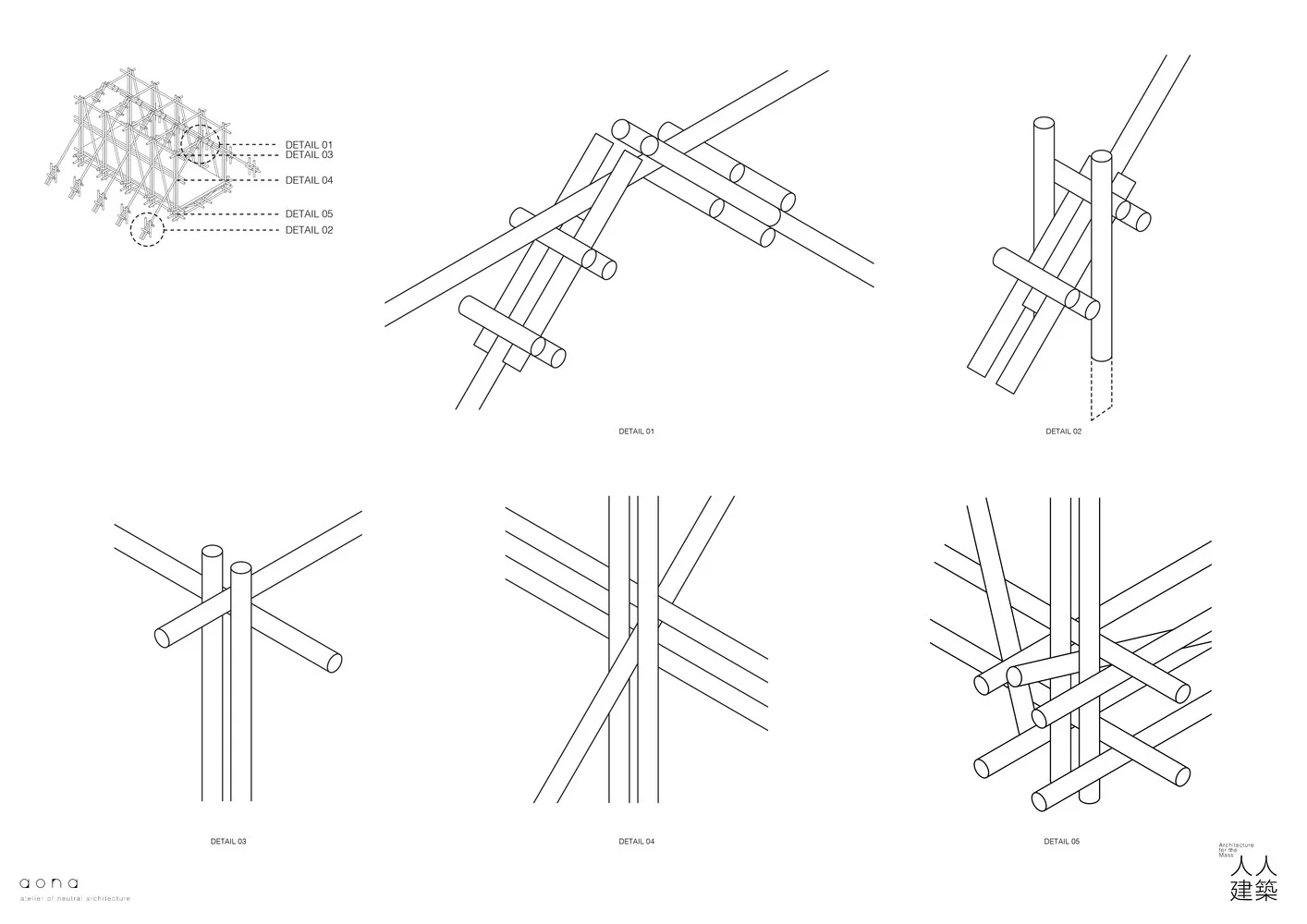

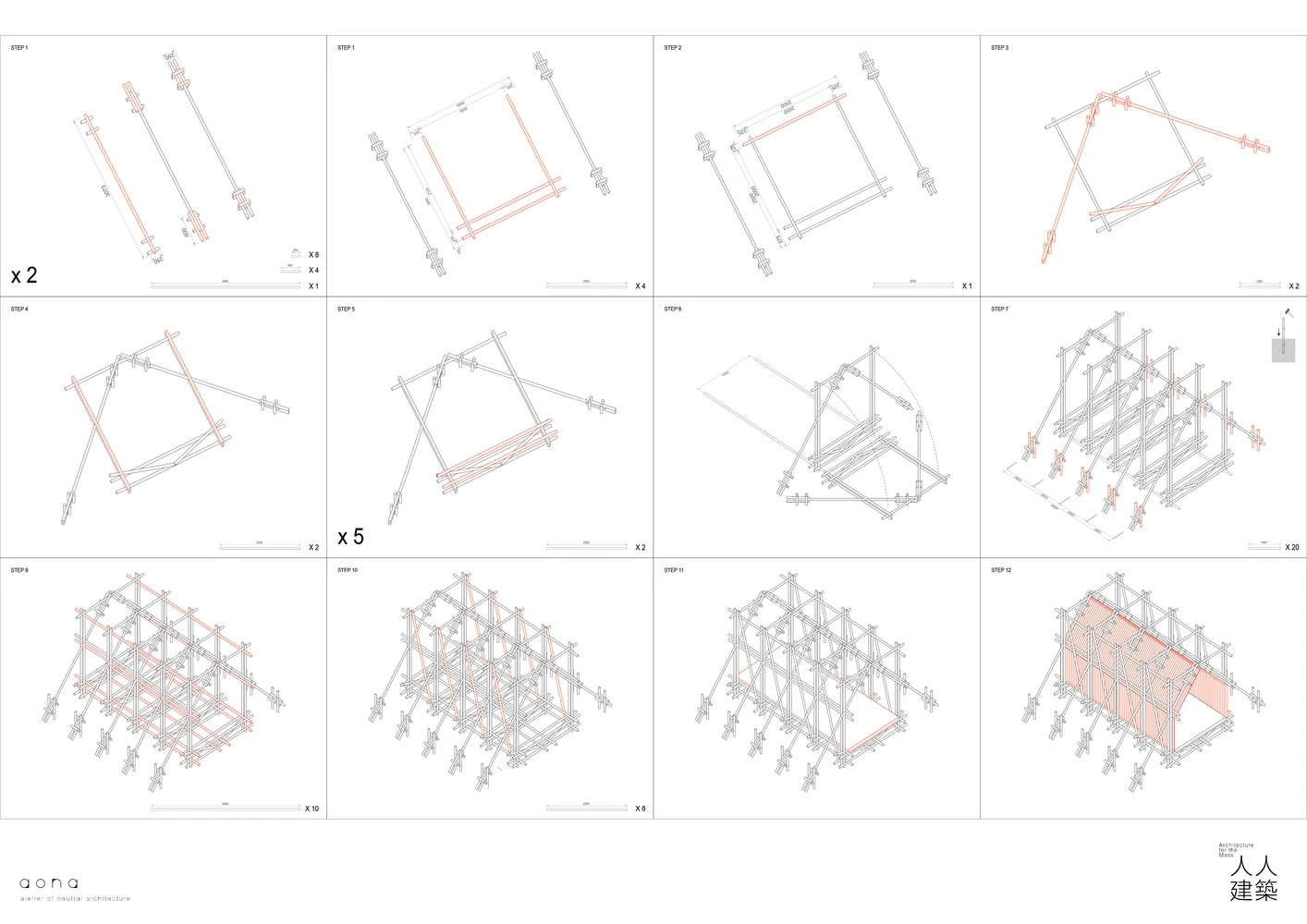

Architectural drawing of the shelter
10/14
Architectural drawing of the shelter
Architectural drawing of the shelter
11/14
Architectural drawing of the shelter
The prototype shelter took two days to build
12/14
The prototype shelter took two days to build

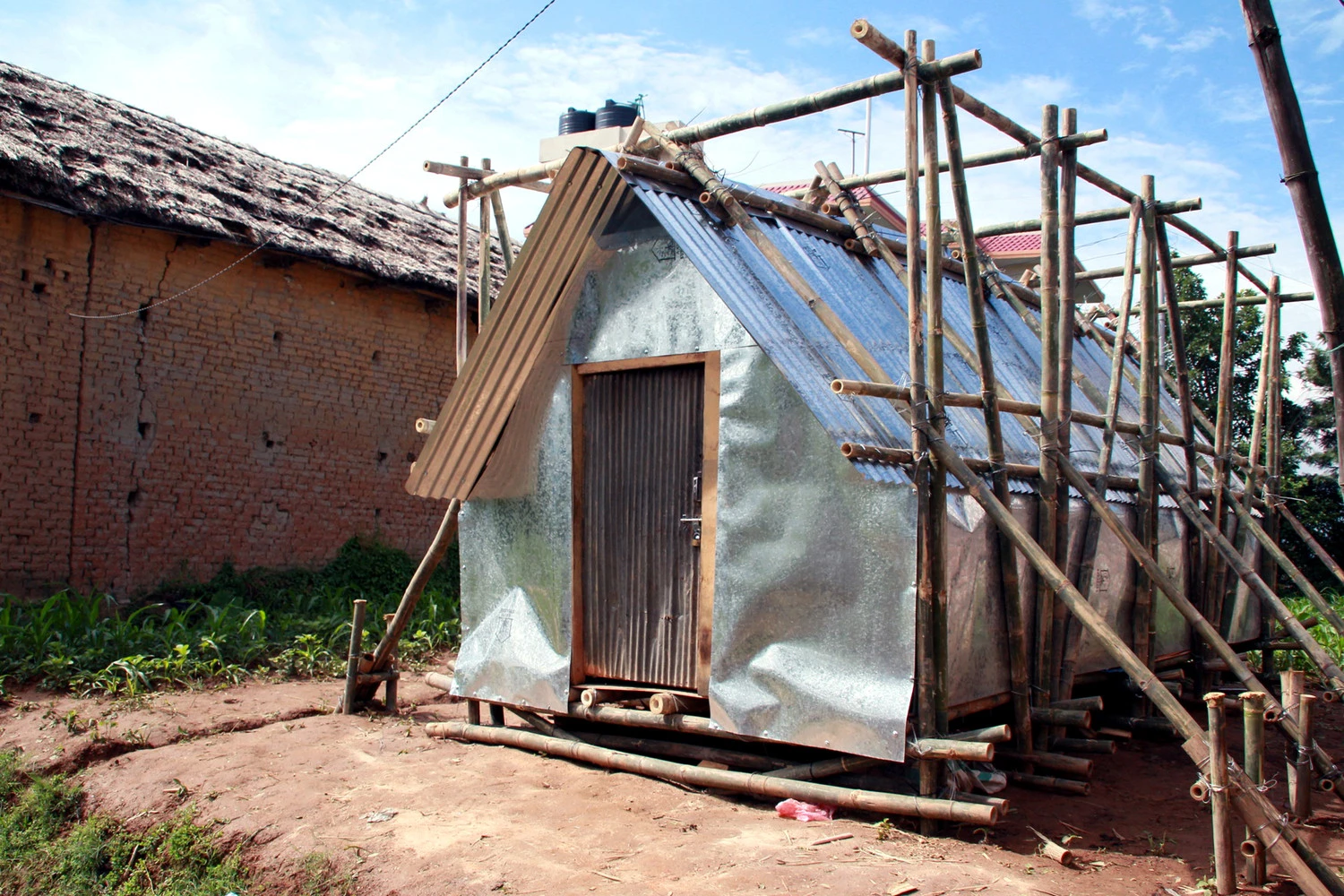

Lai and Suzuki designed a simple bamboo-based framework that could be erected efficiently with materials local to the villages of Nepal, by locals themselves
13/14
Lai and Suzuki designed a simple bamboo-based framework that could be erected efficiently with materials local to the villages of Nepal, by locals themselves

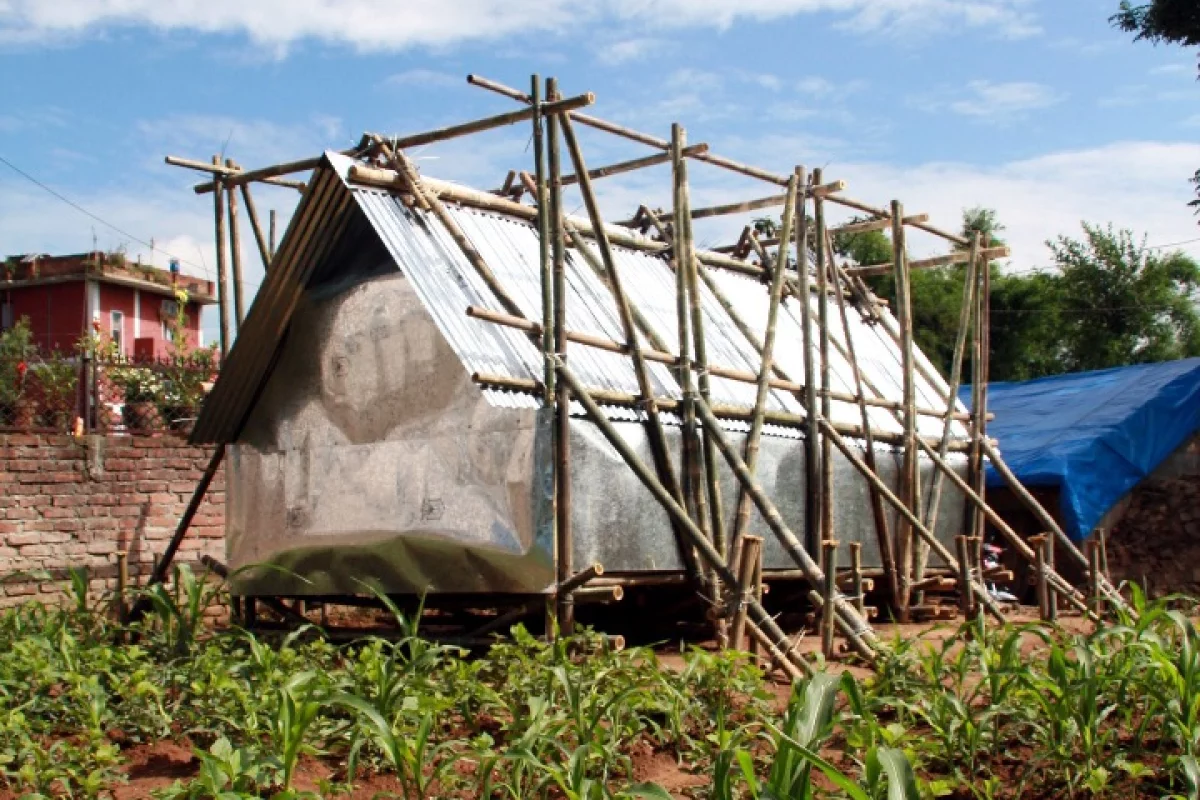

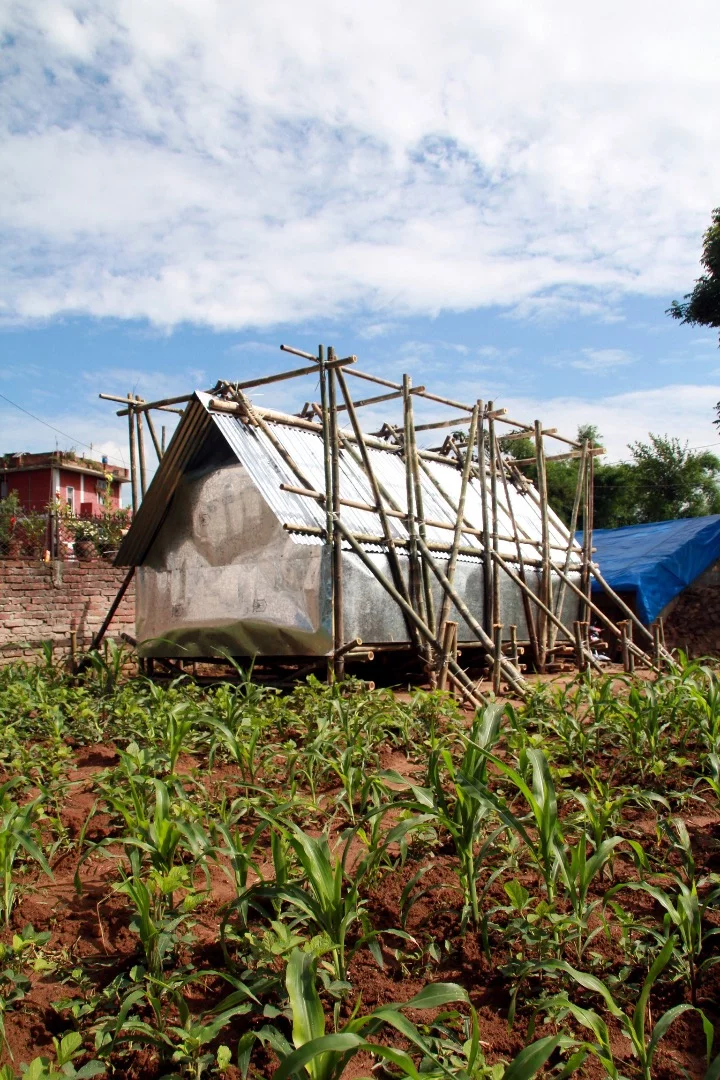

The recently-built Temporary Shelter in Nepal
14/14
The recently-built Temporary Shelter in Nepal
View gallery - 14 images

Efforts to design a safe and affordable home for the world's poorest and most vulnerable people have resulted in some impressive architectural innovation, including the Bamboo Micro House, S House, and Ikea's Better Shelter. The recently-built Temporary Shelter in Nepal is aimed at offering displaced Nepalese a basic but flexible shelter that can be built by a group of unskilled workers within three days.

The aptly-named Temporary Shelter in Nepal project came about in the wake of the earthquake that devastated the country earlier this year. Following the quake, Architects Charles Lai and Takehiko Suzuki created the architectural relief organization Architecture for the Mass and collaborated with Hong Kong-based charity One Village Focus Funds along the way.

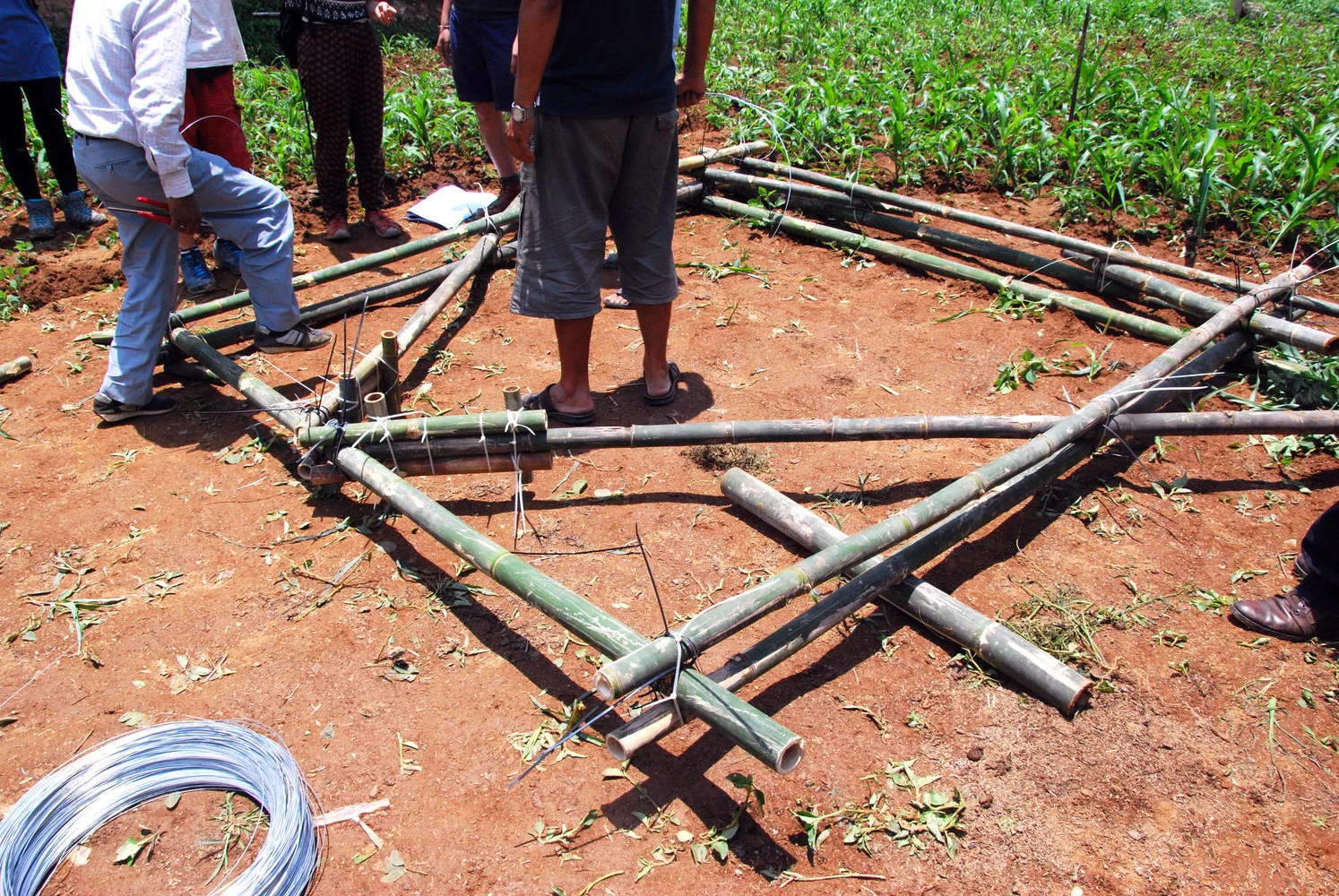

Asserting that one of the challenges facing Nepal's vulnerable is that supplies, including suitable shelters, often can't be delivered quickly due to poor transport infrastructure, Lai and Suzuki designed a simple bamboo-based framework that can serve as the basis for a temporary shelter and is easily replicated by unskilled locals.

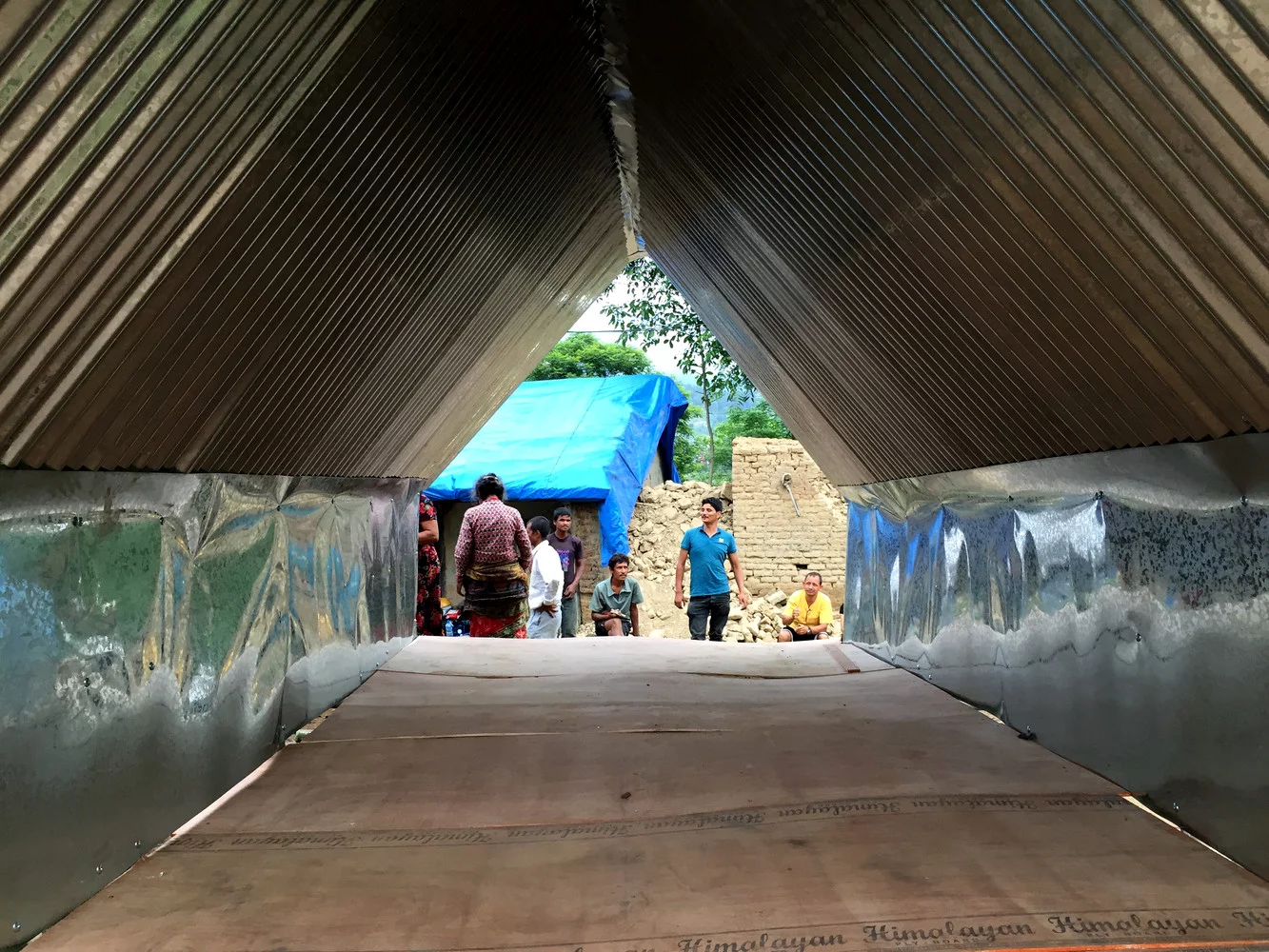

The prototype shelter took two days to build
The prototype shelter took two days to build

With a floorspace measuring 18 sq m (193 sq ft) and comprising one large interior space, the prototype shelter has no amenities to speak of. The roof is sloped to aid rainwater runoff, and the interior floor section is raised on a platform. The prototype cost around US$500 and took two days to build using timber and metal sheets salvaged from damaged houses. However, the crux of the project is not the prototype pictured, but rather the manual that Lai and Suzuki also created to aid locals in building their own shelter.

The pair report that following their instructions, which could be downloaded or distributed on paper, even unskilled workers should be able to erect their own shelter within two or three days using local bamboo and whatever suitable cladding can be salvaged. The design can be scaled up or down as required, and the idea is that locals can follow the design to create makeshift temporary buildings like basic shelters, nurseries, community centers, and clinics.

The video below shows the shelter being constructed.

Sources: One Village Focus Funds, Archtitecture for the Mass via Arch Daily
