Flying wing prototype takes wind-power to new heights

October 11, 2011
Flying wing prototype takes wind-power to new heights
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
View 11 Images

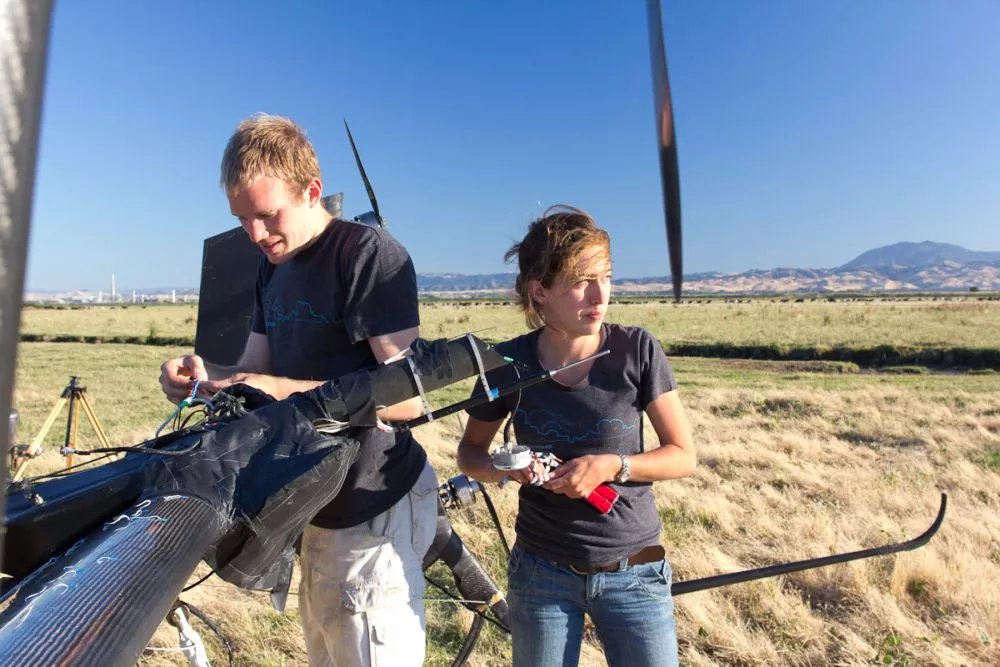

Wing 7 has been taken to a series of test flights this year, including demonstration of power generation and autonomous flight modes
1/11
Wing 7 has been taken to a series of test flights this year, including demonstration of power generation and autonomous flight modes

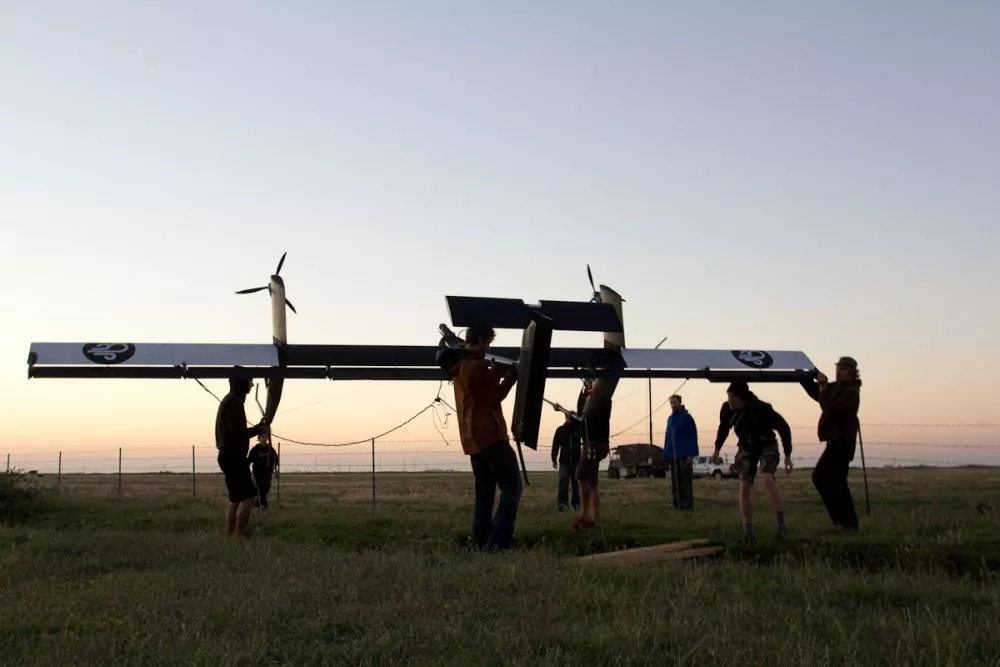

Wing 7 airborne wind turbine's prototype taken for a test flight
2/11
Wing 7 airborne wind turbine's prototype taken for a test flight

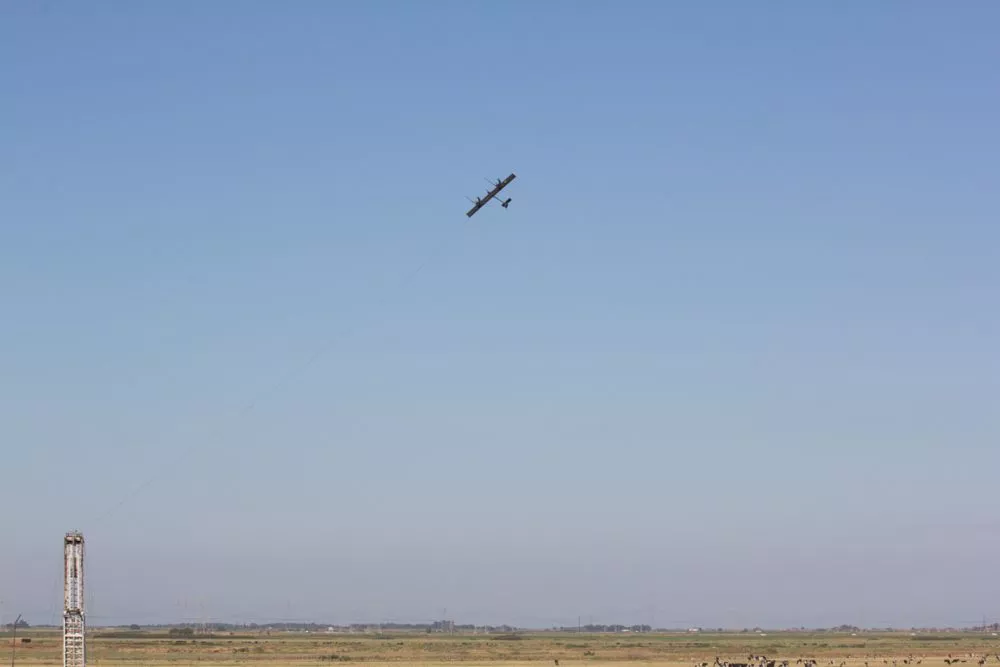

Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
3/11
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
Wing 7 has been taken to a series of test flights this year, including demonstration of power generation and autonomous flight modes
4/11
Wing 7 has been taken to a series of test flights this year, including demonstration of power generation and autonomous flight modes

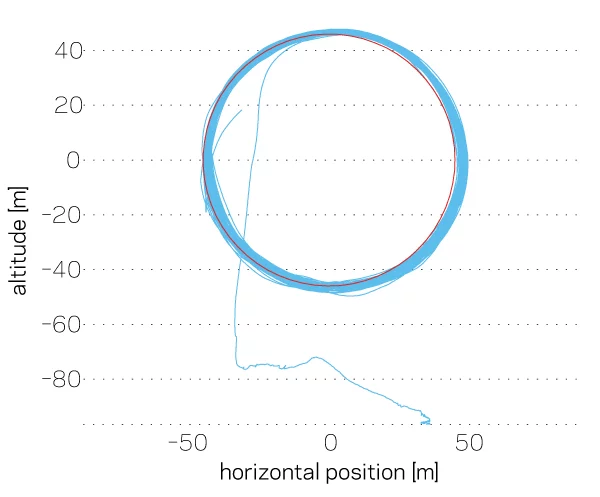

Wing 7's schematic trajectory
5/11
Wing 7's schematic trajectory

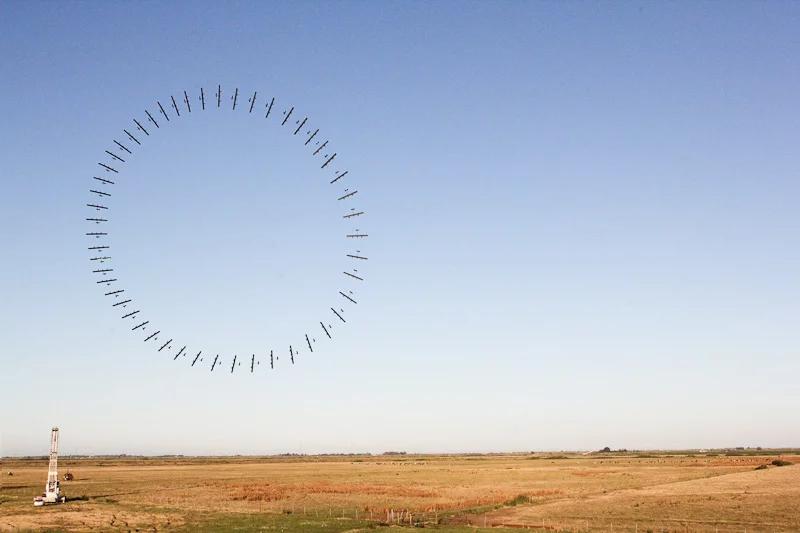

Wing 7 takes off vertically powered via the tether and after reaching the appropriate height, it flies horizontally in crosswind circles
6/11
Wing 7 takes off vertically powered via the tether and after reaching the appropriate height, it flies horizontally in crosswind circles

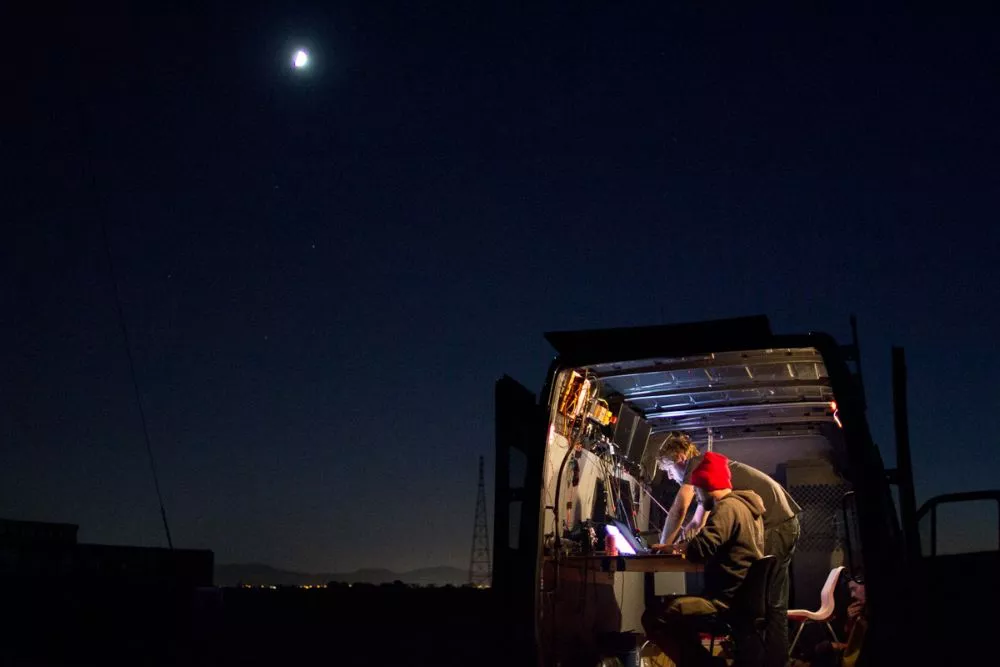

Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
7/11
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
8/11
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power

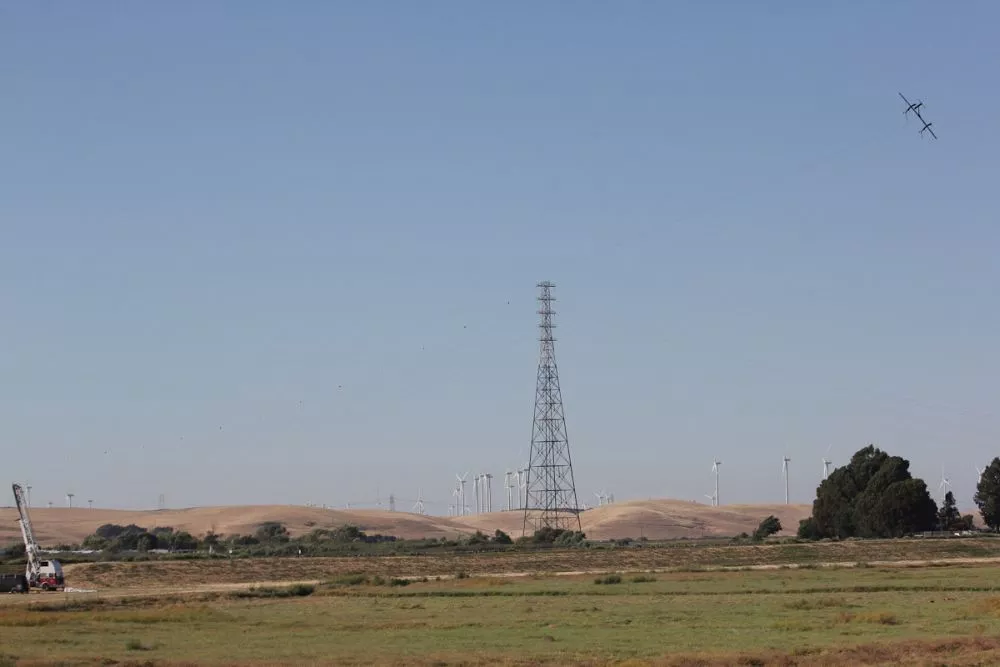

Tethered to the base station located on the ground, Wing 7 flying wind turbine ascends to a height of around 1,300 feet (400m) where it flies autonomously generating up to 20-kilowatt of power in a 20mph (35km/h) wind
9/11
Tethered to the base station located on the ground, Wing 7 flying wind turbine ascends to a height of around 1,300 feet (400m) where it flies autonomously generating up to 20-kilowatt of power in a 20mph (35km/h) wind

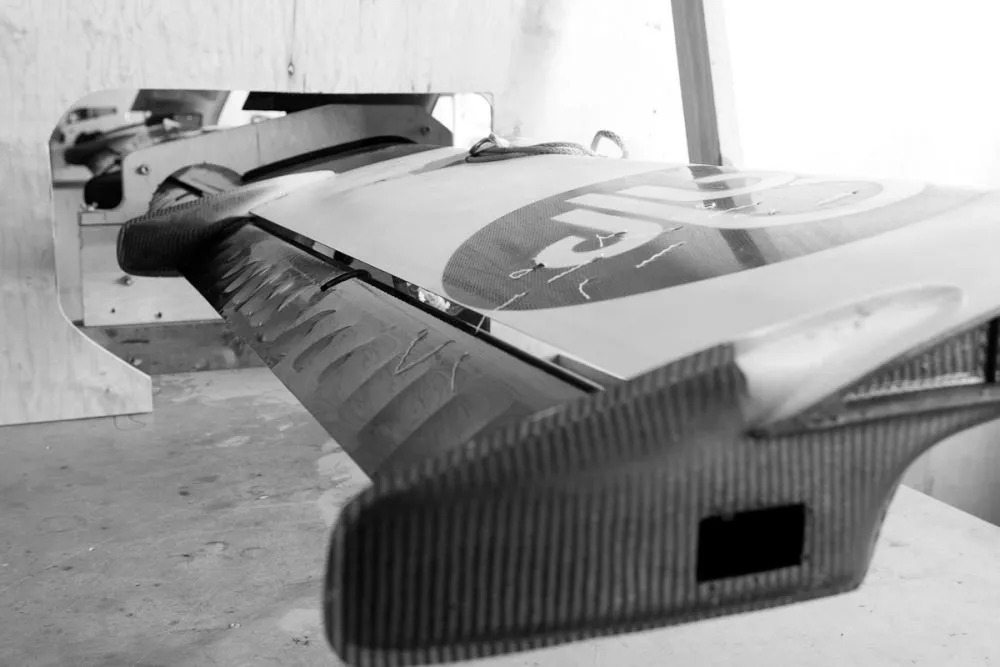

Wing 7 airborne wind turbine's prototype
10/11
Wing 7 airborne wind turbine's prototype

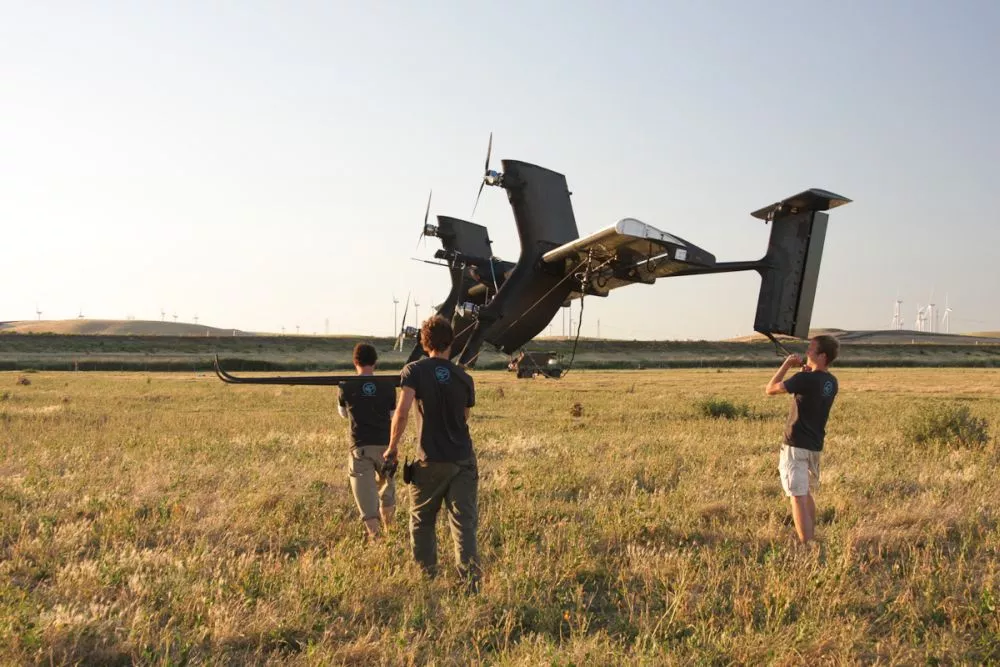

Featuring a carbon fiber wing, the flying wind turbine prototype has a wing span of 8 meters (26.2ft) and weighs in at 58.4kg (128.7lbs)
11/11
Featuring a carbon fiber wing, the flying wind turbine prototype has a wing span of 8 meters (26.2ft) and weighs in at 58.4kg (128.7lbs)
View gallery - 11 images

Wind can be an unpredictable and unstable source of power, and high in the sky where it is more stable, it's difficult to exploit. Airborne wind turbines could provide a solution to this problem, but although the idea has been around since the 19th century, it's never been exploited on a larger scale. California's Makani Power aims to change that with its innovative flying wing turbine design. Wing 7 is essentially a cross between a UAV and a wind turbine that's tethered to a ground station from which it ascends to a height of around 1,300 feet (400m) and flies autonomously, generating up to 20-kilowatt of power in a 20mph (35km/h) wind.

Makani Power's designers have used carbon fiber to construct the 8 meter (26.2ft) wide Wing 7 prototype, keeping the weight down to 58.4kg (128.7lbs). The flying wing can move both vertically and horizontally due to its uniquely designed tail and rotors. It takes off vertically and after reaching the appropriate height, it becomes a sophisticated kite with onboard avionics that enable it to fly horizontally in crosswind circles. The electricity generated by its rotors is then transmitted down the electrically-conductive tether for storage purpose.

The circular path taken by the flying wing is designed to mimic the tip of a wind turbine blade (its most efficient part) and sweeps a much larger section of the sky than a conventional wind tower. This, along with less material and lower distribution costs, adds up to a more efficient renewable energy solution according to Makani.

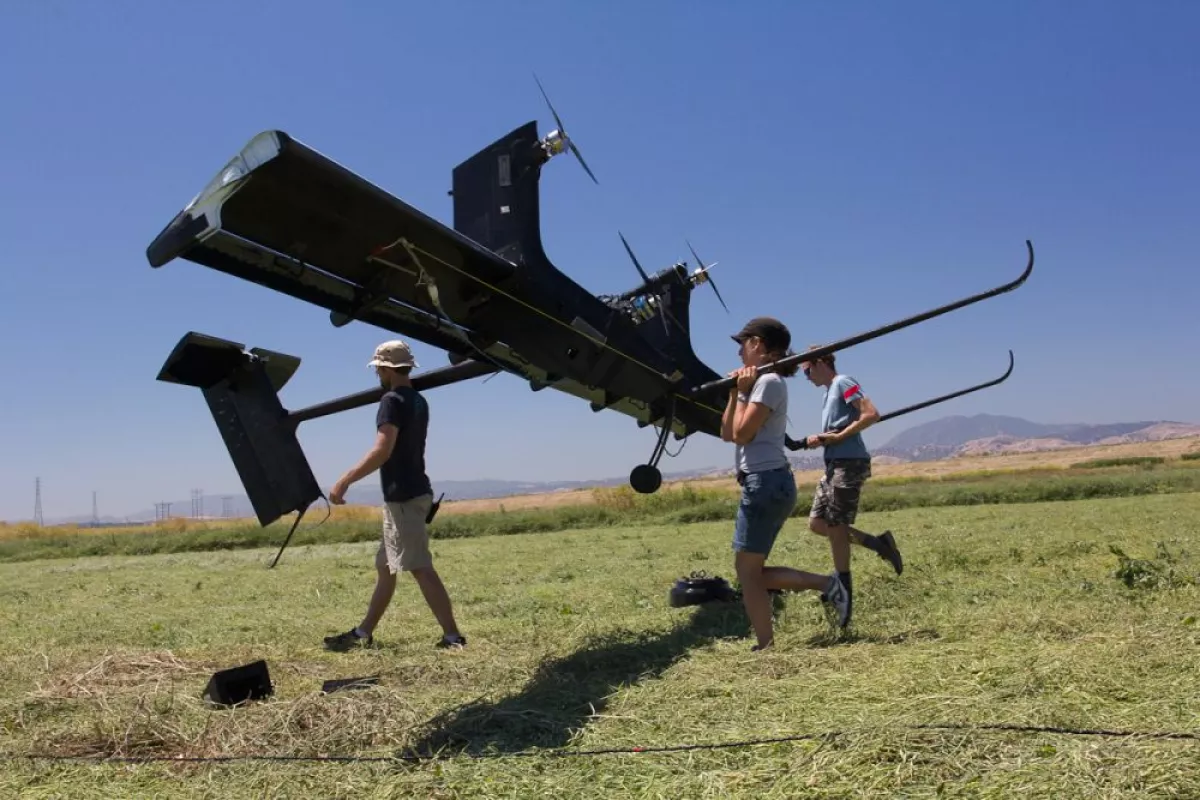

Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power
Tethered to the base station, Wing 7 flying wind turbine ascends to a height of 1,300 feet (400m) where it generates up to 20-kilowatt of power

Wing 7 is being tested in a series of flights this year and, with the backing of funding from the Department of Energy's Advanced Research Projects Agency-Energy (ARPA-E) and private investors including Google founders Larry Page and Sergey Brin, Makani Power hopes to develop a 1-megawat flying turbine - the Makani M1 - that's capable of operating at 1,800 ft (550m) altitude and bring it to market in 2015.

The video below presents a test flight made in July, that fully demonstrated Wing 7's power generation and autonomous flight modes:

Source: Makani Power via Popular Mechanics.

Makani Power, Autonomous Power Generation, July 8, 2011

View gallery - 11 images

Tags

EnvironmentRenewable EnergyWind PowerWind turbine
