World’s smallest hi-def camera head from Toshiba

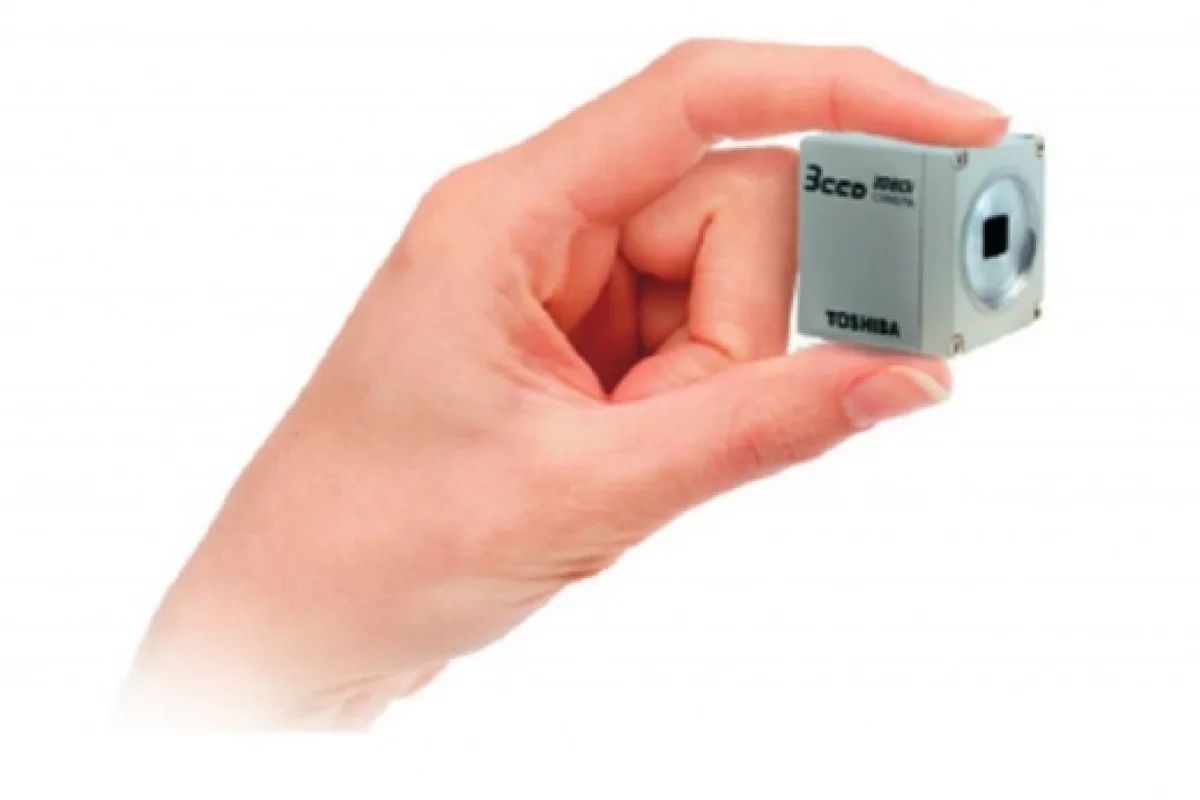

Toshiba's IK-HD1 3CCD HDTV Camera
Toshiba's IK-HD1 3CCD HDTV Camera
View 3 Images
Toshiba's IK-HD1 3CCD HDTV Camera
Toshiba's IK-HD1 3CCD HDTV Camera

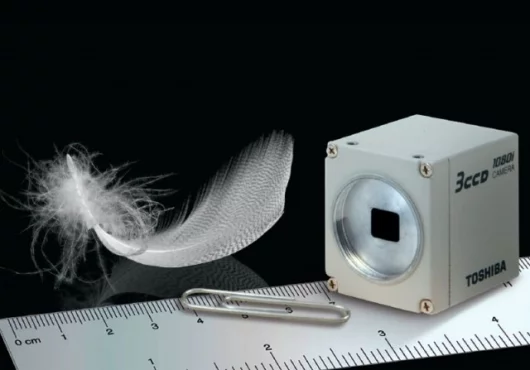

April 7, 2008 Toshiba Imaging has launched the world’s smallest HD camera head, measuring just 1.6 inches and weighing only 2.3 oz. It is envisaged that the mini IK-HD1 will be used for scientific imaging and diagnostics, specialty broadcasting, homeland security, and industrial video and inspection applications.

The ultra-compact control unit makes the IK-HD1 ideal for broadcasting and other imaging tasks where space is limited as it is no much bigger than an ice cube. The camera has 1080i output and Toshiba’s HD 3CCD prism block technology helps deliver sharp, clear, true color imagery. High-definition 1920 (H) x 1080 (V) resolution at 30 frames per second means the camera is an attractive option for reality TV and sports broadcasters and it has already been used for filming on New American Gladiators.

The camera comes standard with a C-mount lens flange and RS232C serial interface and multiple outputs for HD-SDI (SMPTE 292M), analog RGB, or Y/Pb/Pr. Accessories for the HDTV camera system includes a 4mm or 15mm lens and camera cables in 3-, 6-, 10- or 30-meter lengths.

Full specs available at the Toshiba site.
