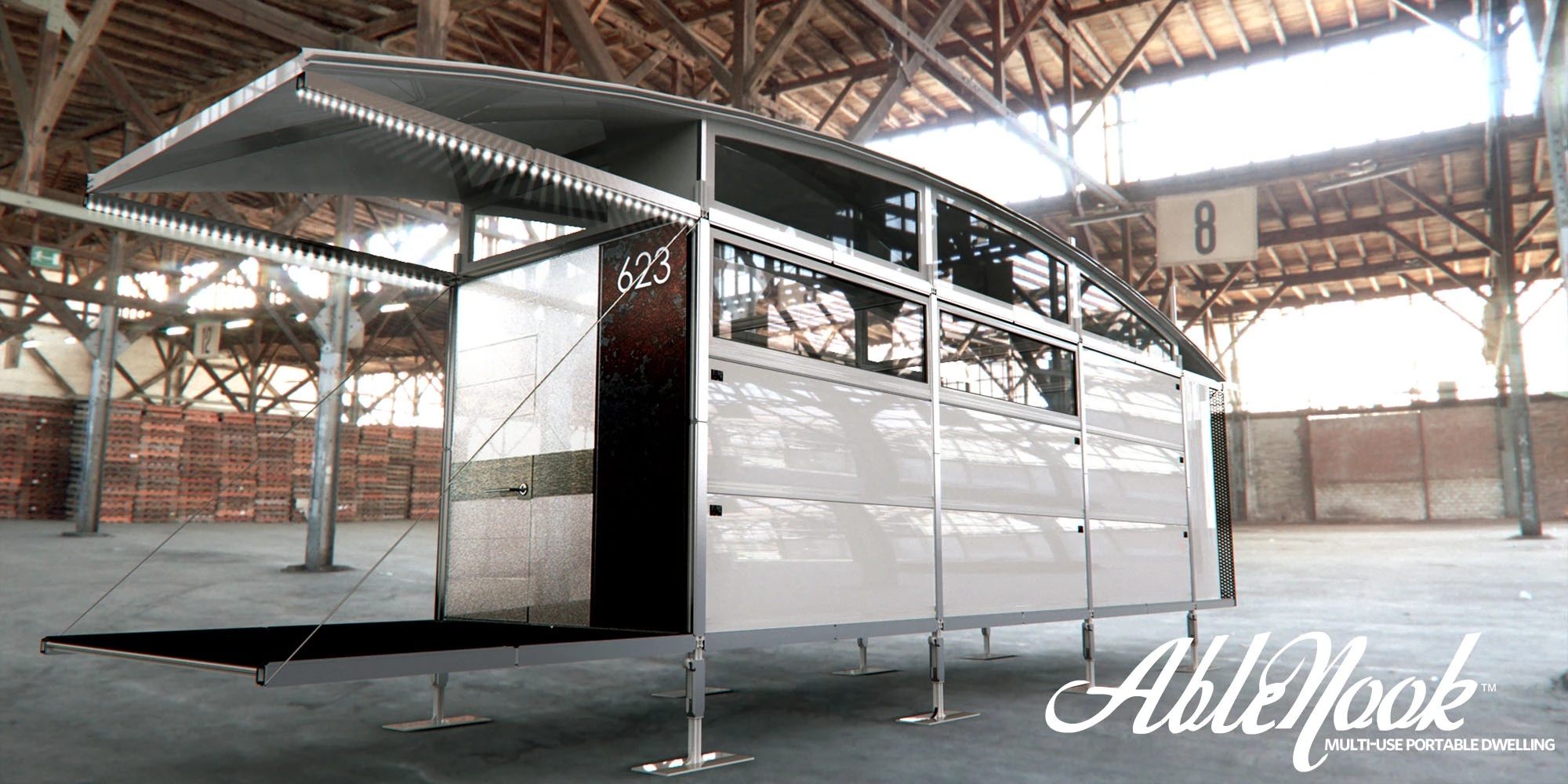

AbleNook is a flexible and mobile emergency housing system that would provide families with dignity and privacy during a natural disaster
1/19
AbleNook is a flexible and mobile emergency housing system that would provide families with dignity and privacy during a natural disaster

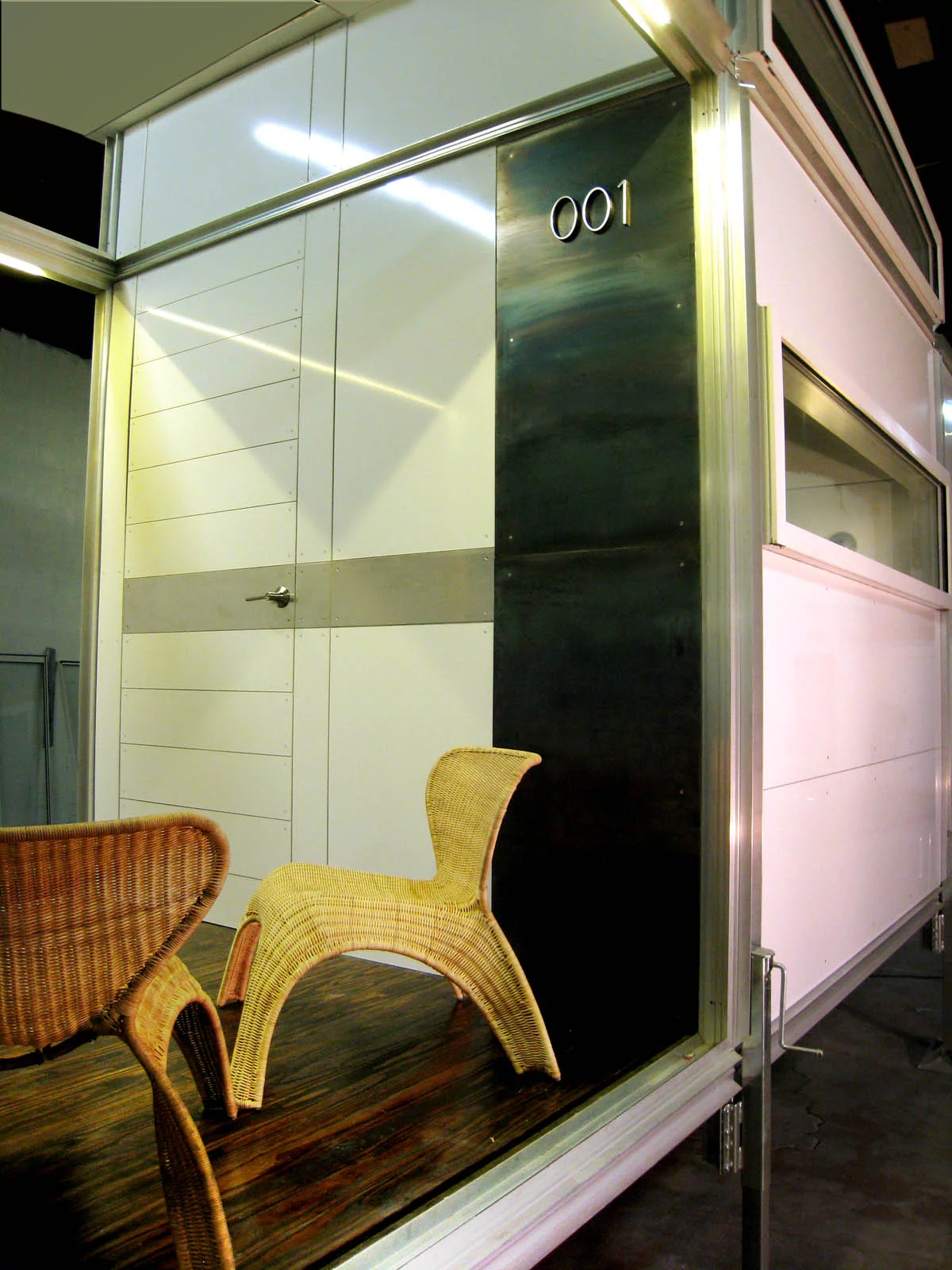

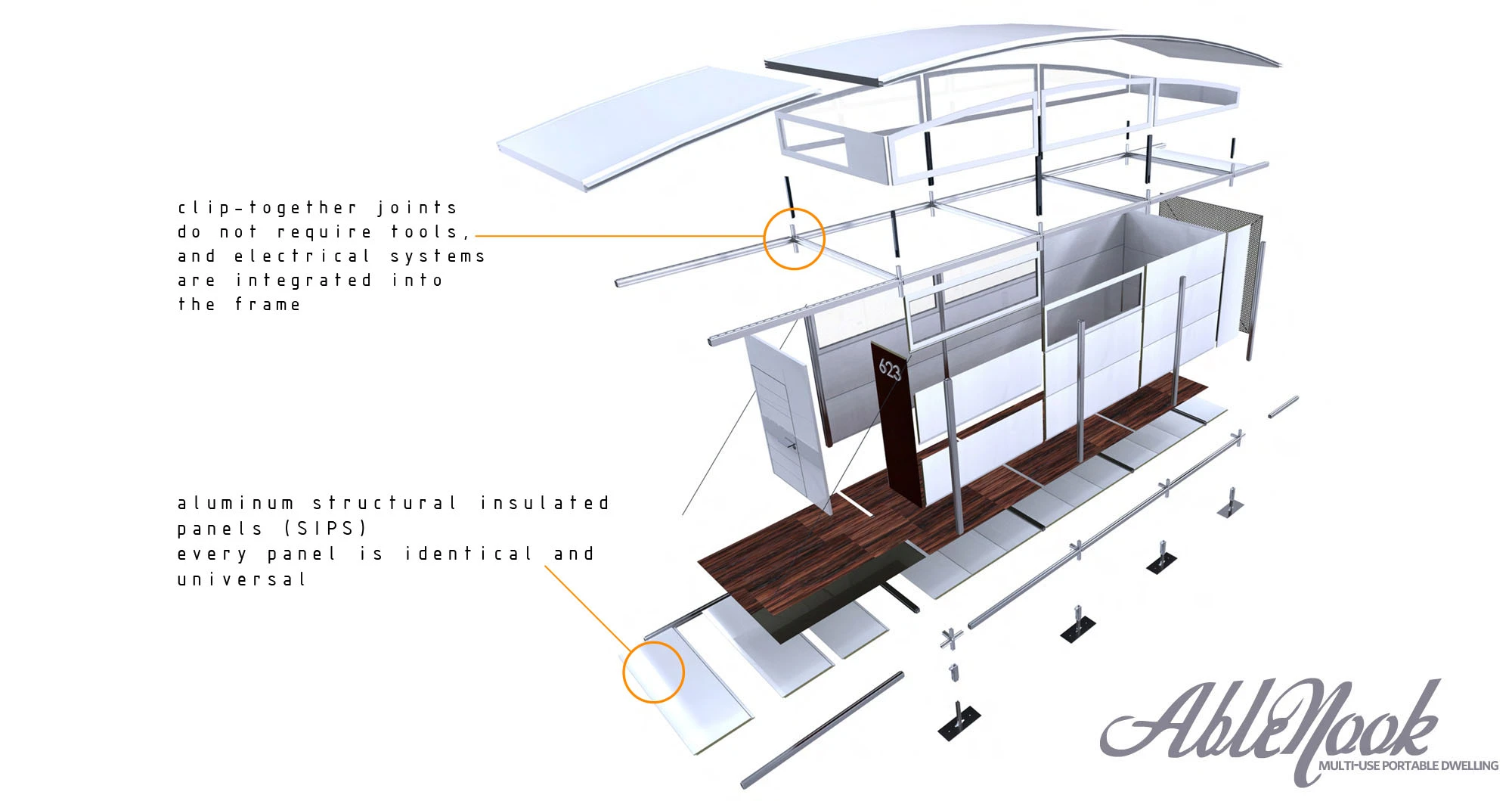

Each unit can be constructed by two people in as little as two hours
2/19
Each unit can be constructed by two people in as little as two hours

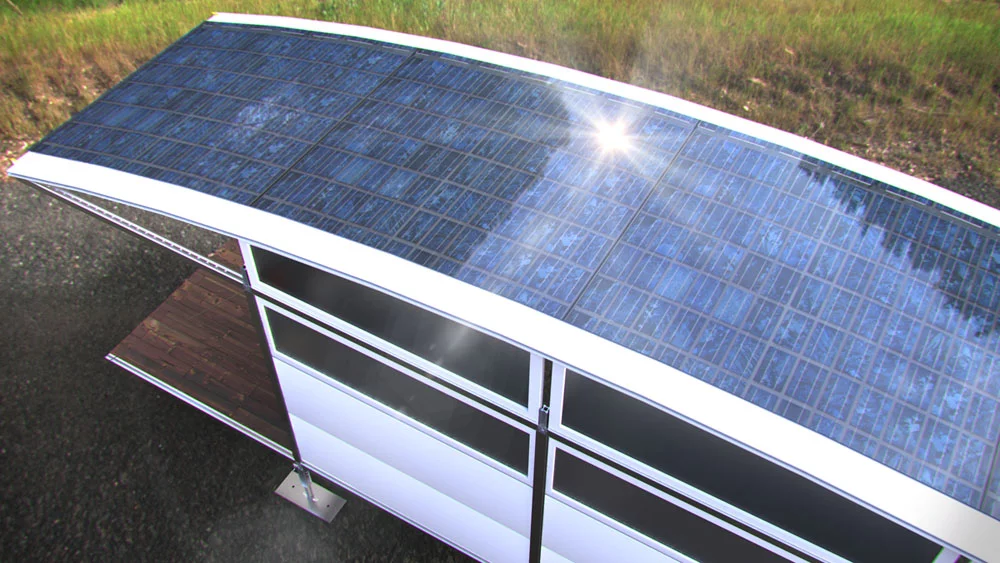

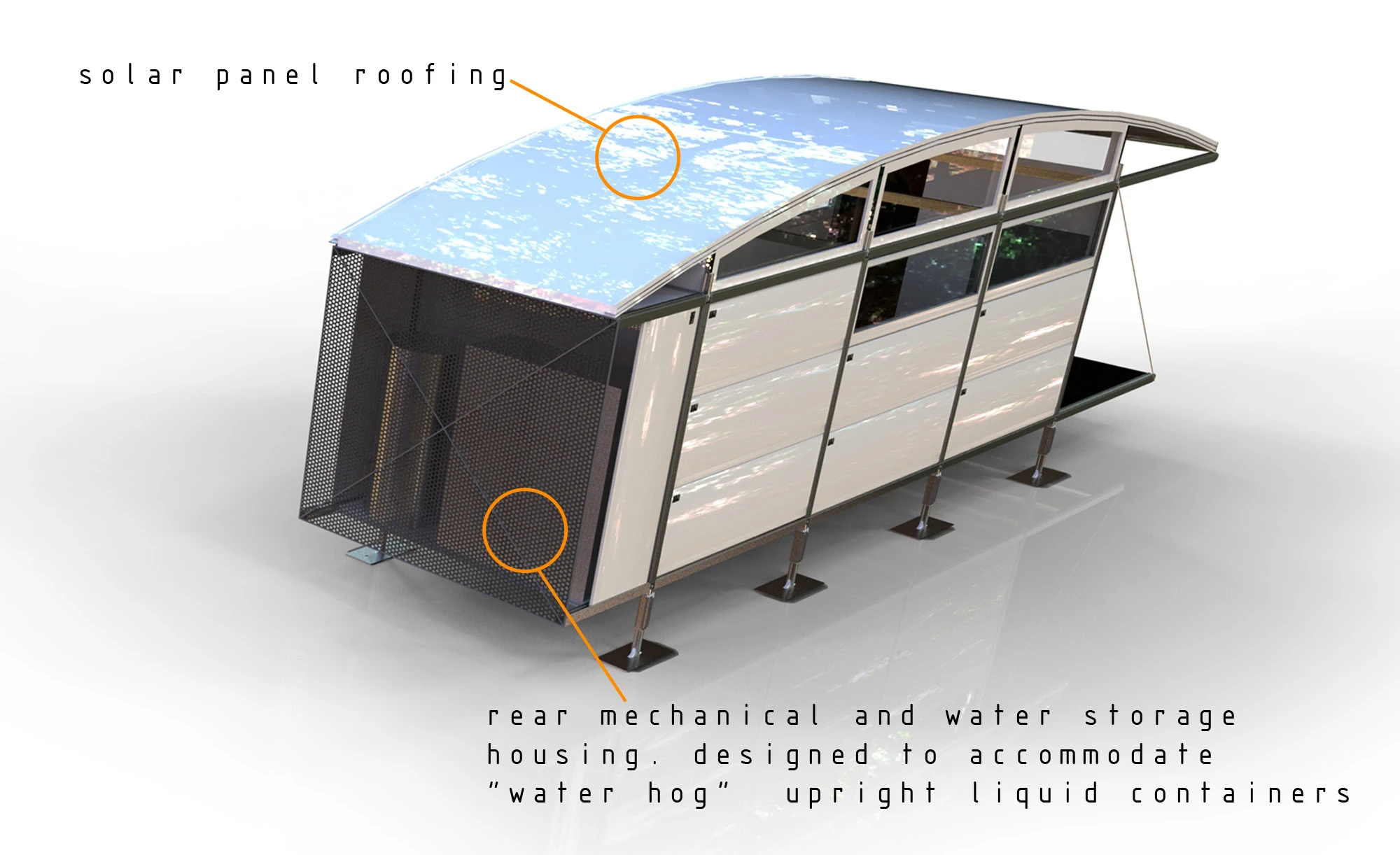

The structure features a large arched roof with integrated solar panels for an off-the-grid power supply
3/19
The structure features a large arched roof with integrated solar panels for an off-the-grid power supply

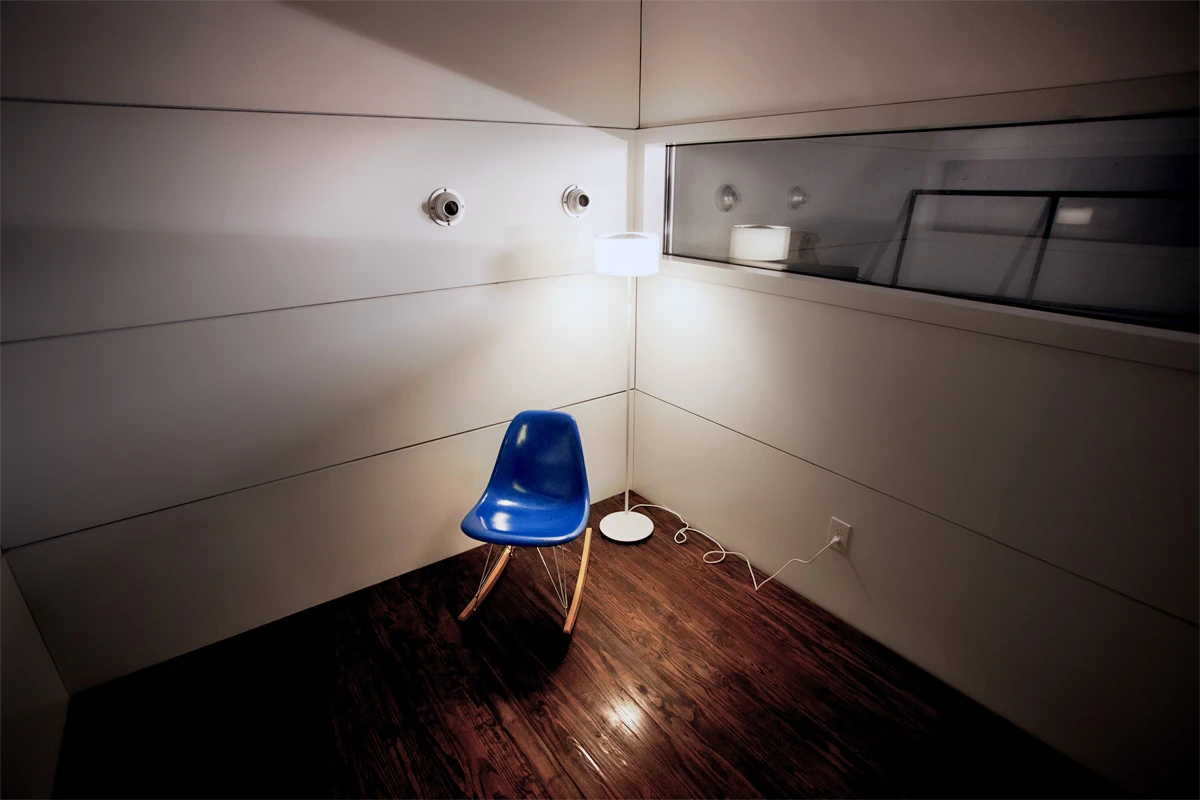

AbleNook interior
4/19
AbleNook interior

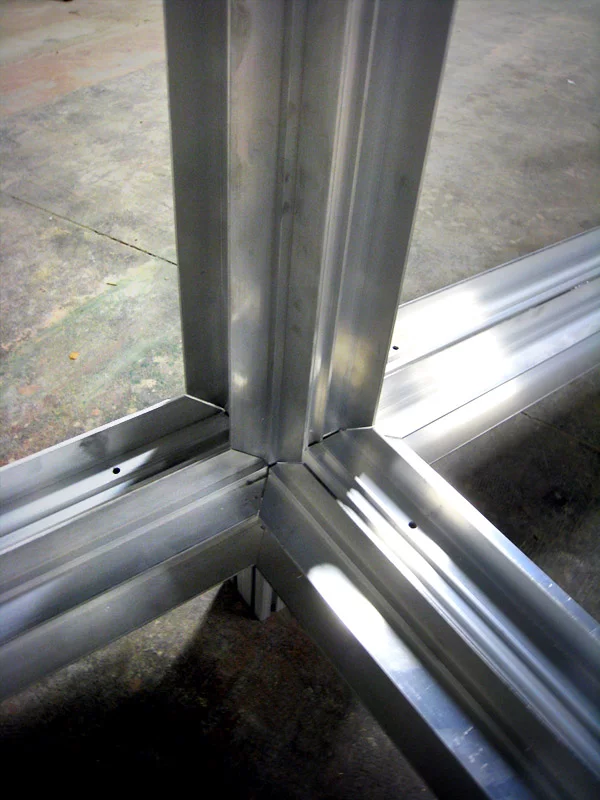

Comprising of a series of interlocking components, the single-room home does not require the use of power tools
5/19
Comprising of a series of interlocking components, the single-room home does not require the use of power tools

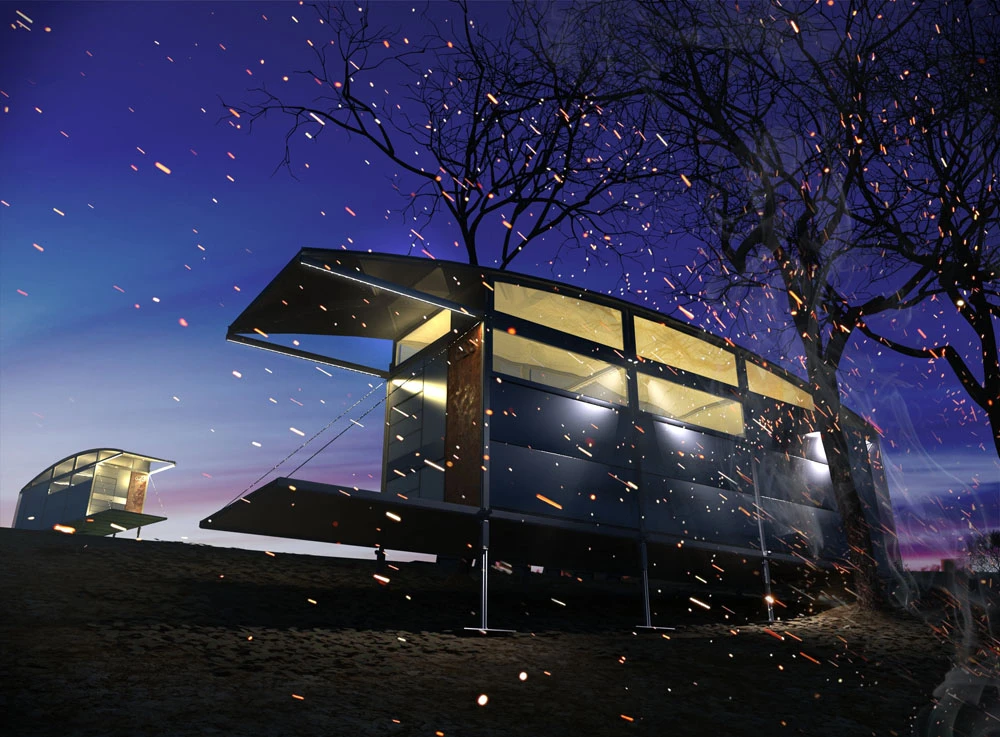

AbleNook could be a great idea for a backyard office or an affordable eco-retreat
6/19
AbleNook could be a great idea for a backyard office or an affordable eco-retreat

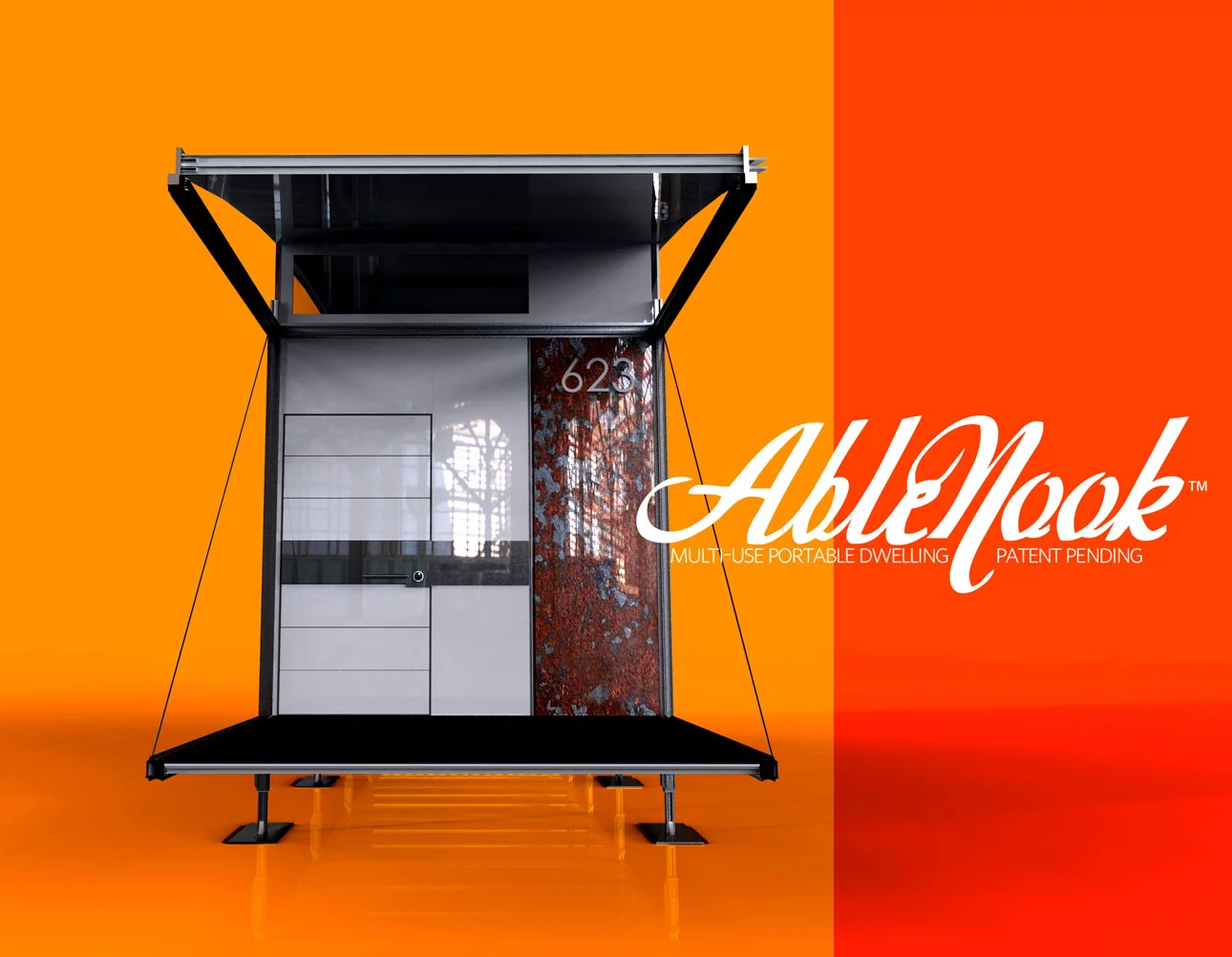

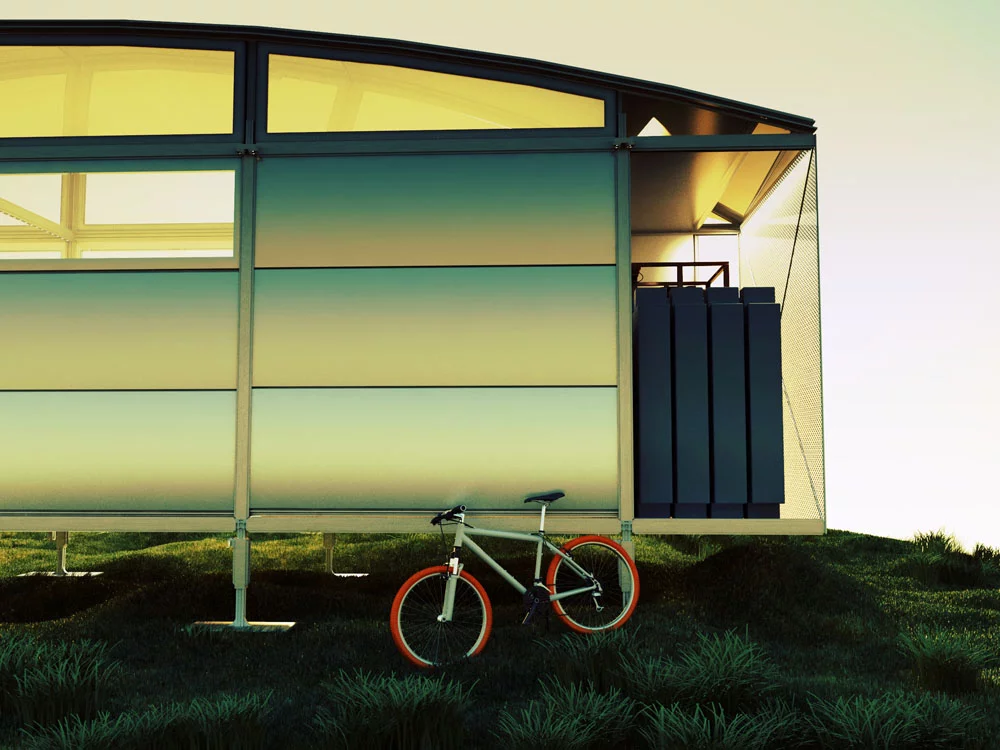

AbleNook is a portable prefabricated shelter that comes flat packed for efficient and economic transportation
7/19
AbleNook is a portable prefabricated shelter that comes flat packed for efficient and economic transportation

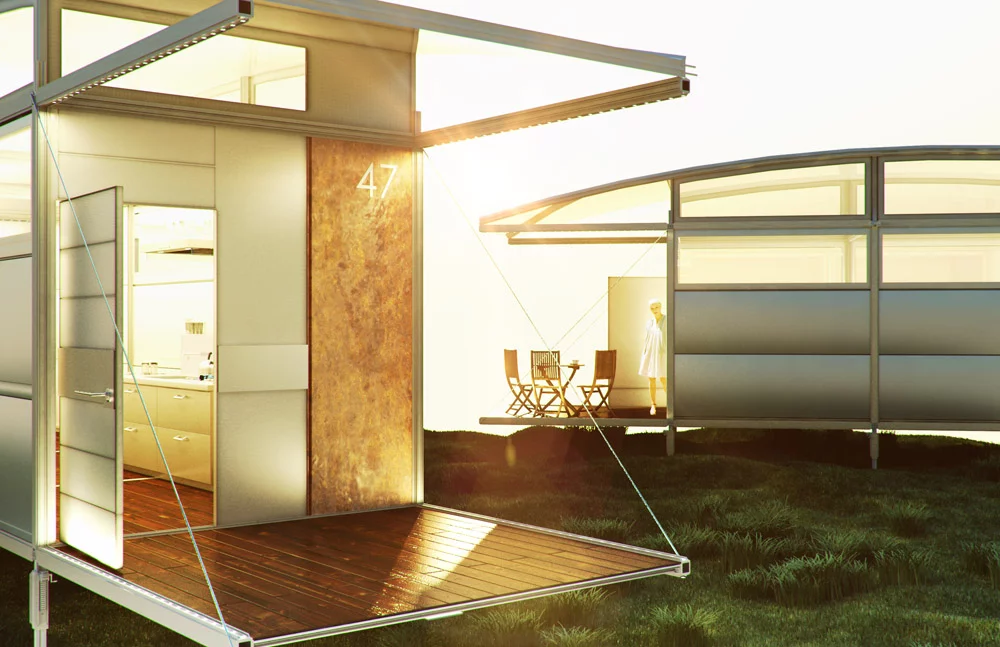

The outdoor area offers inhabitants the chance to enjoy some extra space without feeling trapped indoors
8/19
The outdoor area offers inhabitants the chance to enjoy some extra space without feeling trapped indoors

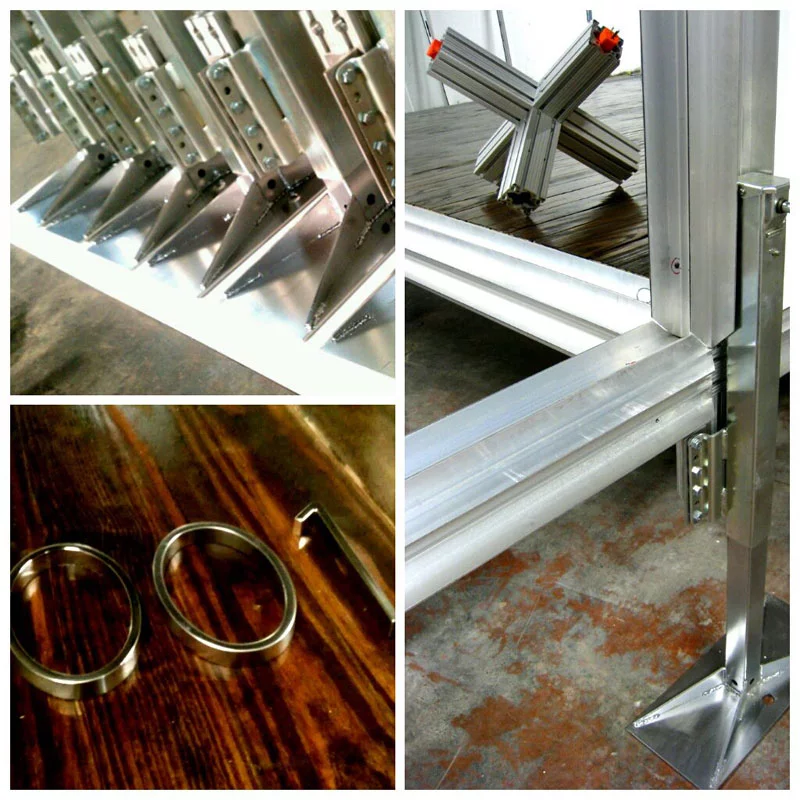

The aluminum framing slides together with structural insulated panels, which make up the floors, walls and ceiling
9/19
The aluminum framing slides together with structural insulated panels, which make up the floors, walls and ceiling
AbleNook is a portable prefabricated shelter that comes flat packed for efficient and economic transportation
10/19
AbleNook is a portable prefabricated shelter that comes flat packed for efficient and economic transportation
AbleNook could be a great idea for a backyard office or an affordable eco-retreat
11/19
AbleNook could be a great idea for a backyard office or an affordable eco-retreat

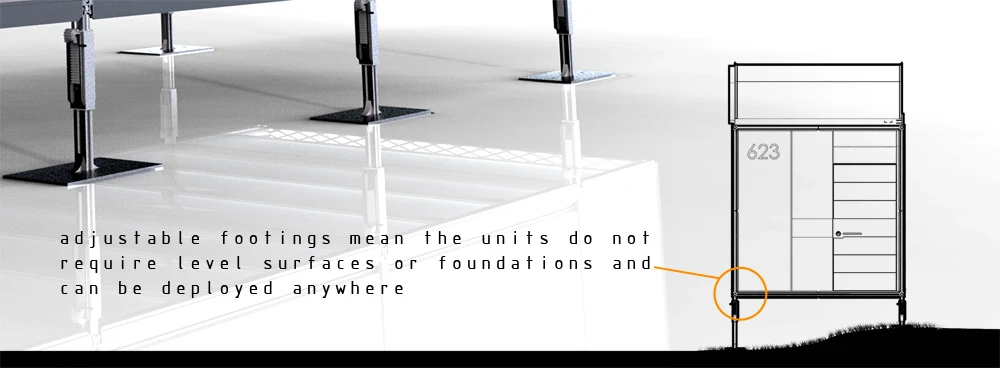

Four individual leg jacks which sit underneath the base of the structure are fully adjustable
12/19
Four individual leg jacks which sit underneath the base of the structure are fully adjustable

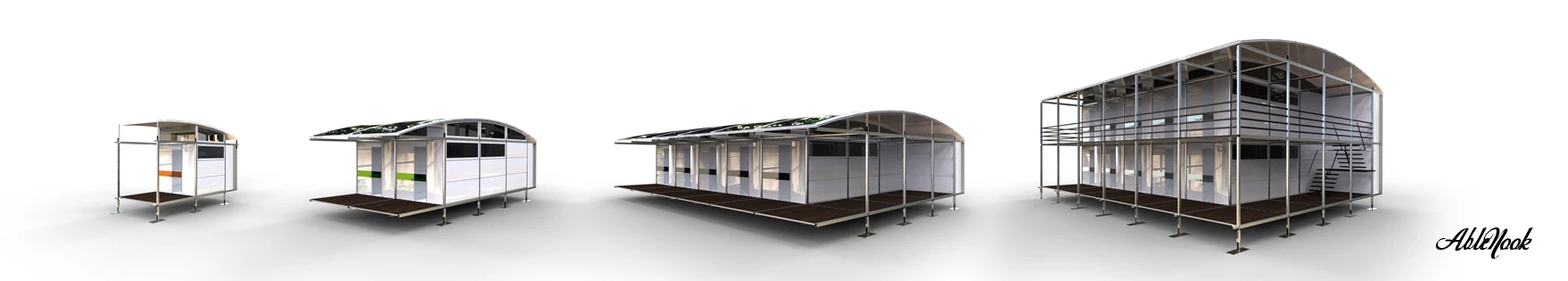

Multiple modules can easily be put together to create larger dwellings and separate interior zones
13/19
Multiple modules can easily be put together to create larger dwellings and separate interior zones
Each unit can be constructed by two people in as little as two hours
14/19
Each unit can be constructed by two people in as little as two hours

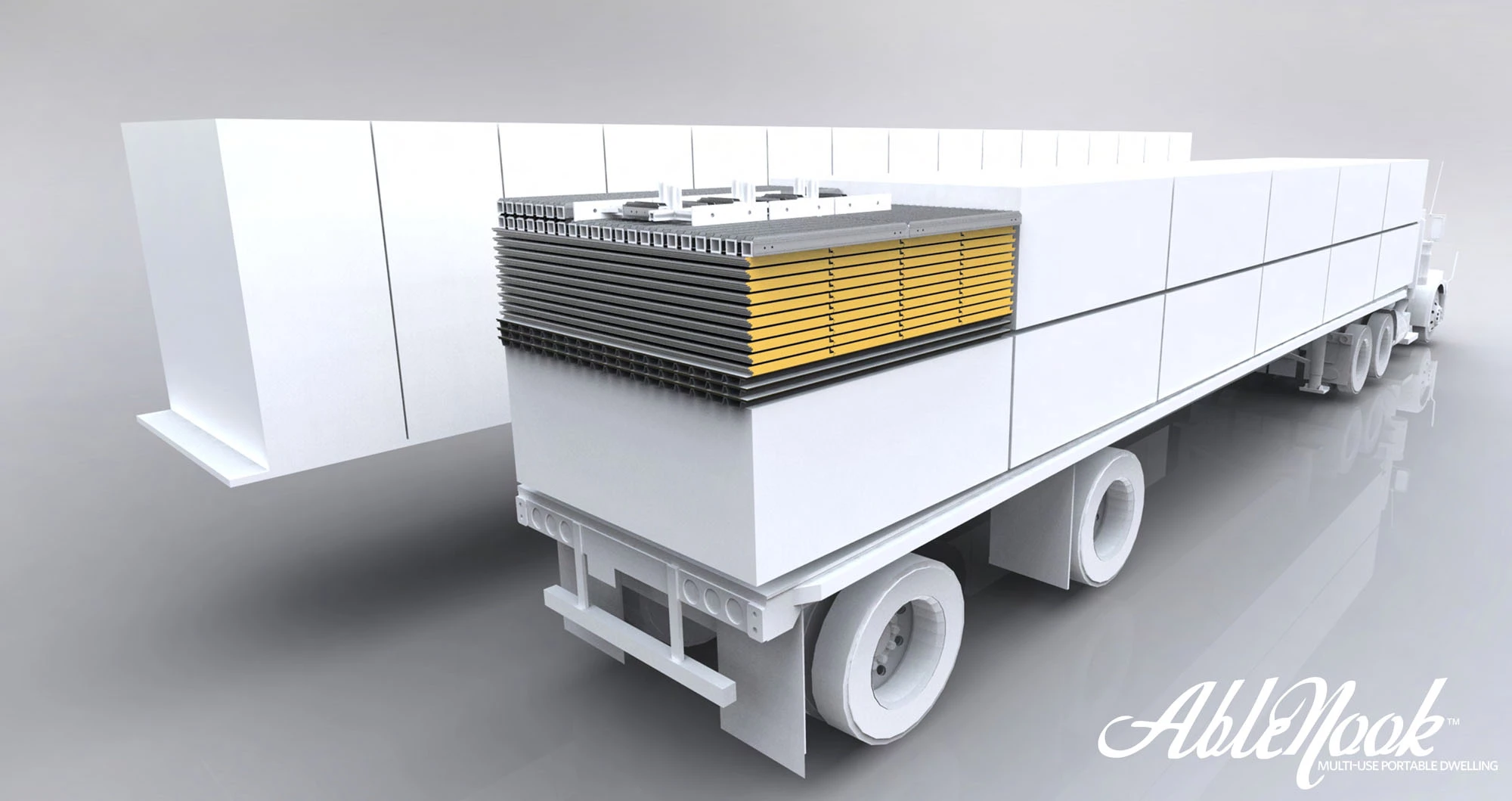

AbleNook comes flat packed for efficient and economic transportation
15/19
AbleNook comes flat packed for efficient and economic transportation

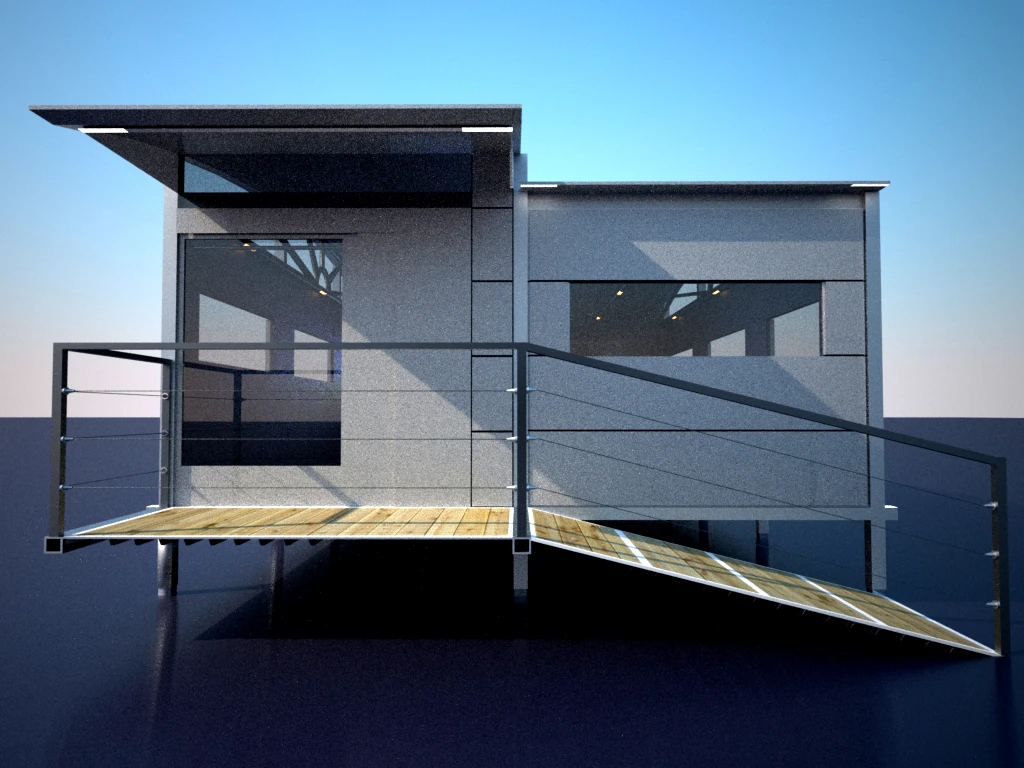

Multiple modules can easily be put together to create larger dwellings and separate interior zones
16/19
Multiple modules can easily be put together to create larger dwellings and separate interior zones
AbleNook is a portable prefabricated shelter that comes flat packed for efficient and economic transportation
17/19
AbleNook is a portable prefabricated shelter that comes flat packed for efficient and economic transportation

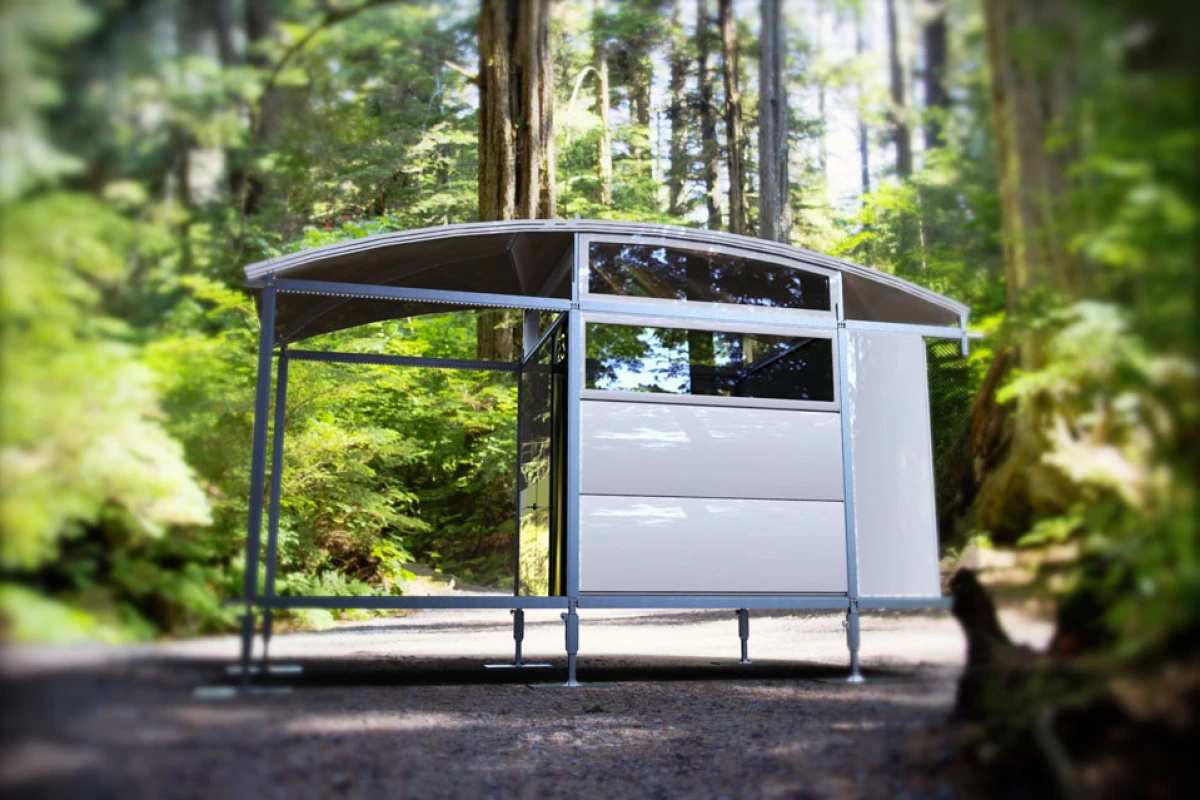

AbleNook is a new prefabricated living prototype that “snaps together” in a matter of hours
18/19
AbleNook is a new prefabricated living prototype that “snaps together” in a matter of hours

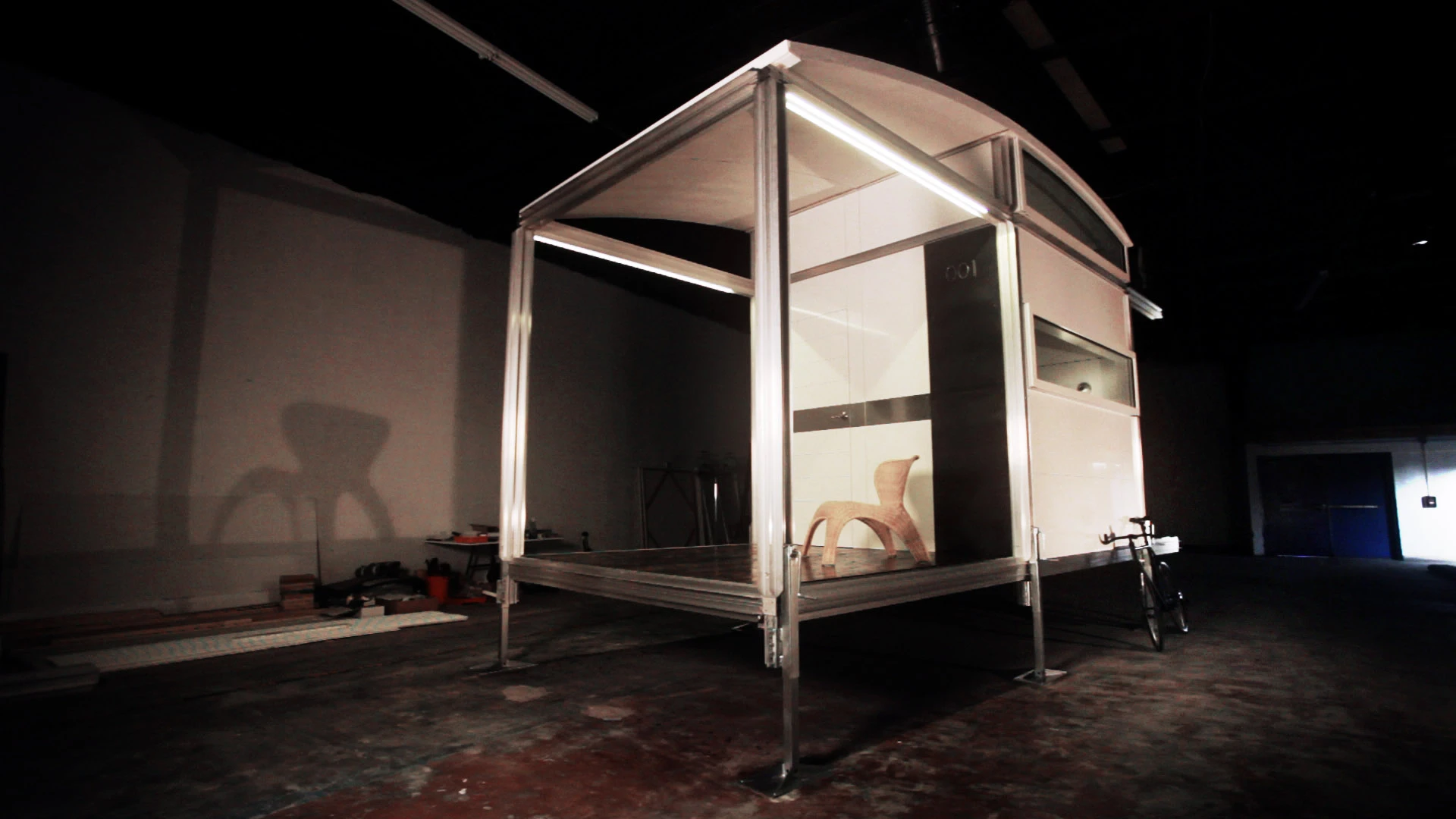

Comprising of a series of interlocking components, the single-room home can be assembled by almost anybody
19/19
Comprising of a series of interlocking components, the single-room home can be assembled by almost anybody

A few years back, young architects Sean Verdecia and Jason Ross put their heads together to come up with a cheap, flexible and mobile emergency housing system that would provide families with dignity and privacy during a natural disaster. The challenge, which was part of a research project for the University of South Florida, led the team to develop a new prefabricated living prototype that “snaps together” in a matter of hours.

“In the summer of 2009, in the heat of disheartening news articles and interviews from Hurricane Katrina survivors and more recently Hurricane Sandy victims, I decided to design a solution that would address the reoccurring problem of disaster relief,” Verdecia told Gizmag. “I requested assistance from a like minded friend of mine, Jason Ross, and we began a research project to design a solution to disaster relief.”

Dubbed AbleNook, the portable prefabricated shelter comes flat packed for efficient and economic transportation. Comprising of a series of interlocking components, the single-room home is designed to be assembled by almost anybody and does not require the use of power tools. And according to Verdecia each unit can be constructed by two people in as little as two hours.

A single AbleNook has an interior space of 64 square feet (6 square meters), however multiple modules can easily be put together to create larger dwellings and separate interior zones. “I love that there are no forced commitments to the size and shape of the AbleNook,” says Verdecia “You can add on or subtract as your lifestyle changes.”

Comprising of a series of interlocking components, the single-room home can be assembled by almost anybody
Comprising of a series of interlocking components, the single-room home can be assembled by almost anybody

The dwelling’s structural frame is made up from a series of extruded aluminum panels which feature electrical conduits so that the tenants can have easy access to power once the parts are locked into place. The aluminum framing slides together with structural insulated panels, which make up the floors, walls and ceiling. Four individual leg jacks which sit underneath the base of the structure are fully adjustable, allowing the AbleNook to find a home in a range of different environments or on uneven terrain. Furthermore the structure is robust enough to withstand a low level hurricane.

The structure has also been designed with sustainability in mind and features a large arched roof with integrated solar panels for an off-the-grid power supply. “We designed the units on a 4' by 8' module, so when raw materials are delivered to us, there is very little waste produced during fabrication,” explains Verdecia. “The extruded aluminum components are also waste free and any drop pieces can be recycled.”

The design also incorporates simple natural ventilation techniques to avoid the need for air conditioning units, while frosted glass windows allows enough daylight to enter without over heating the interior space. While the current unit does not feature bathroom or kitchen facilities, it does open out onto a protected terrace which could be perfect for a barbecue. The outdoor area also offers inhabitants the chance to enjoy some extra space without feeling trapped indoors.

Having completed a working prototype, the architects are now raising funds through Kickstarter with the hopes of launching the home into the market later this year.

“I plan to work with our backers of AbleNook to make it a widespread reality and to prevent history from repeating itself in natural disaster scenarios,” says Verdecia. “There are many ideas we want to explore which would make AbleNook even more of a nomadic, off-the-grid dwelling.”

Beyond just being used for disaster relief, we think the AbleNook could be a great idea for a backyard office or an affordable eco-retreat. Final prices are yet to be confirmed but the team hopes to price the disaster relief homes lower than the standard FEMA trailers of comparable size (approx. US$35,000) and the smaller residential version is predicted to start from US$16,000.
