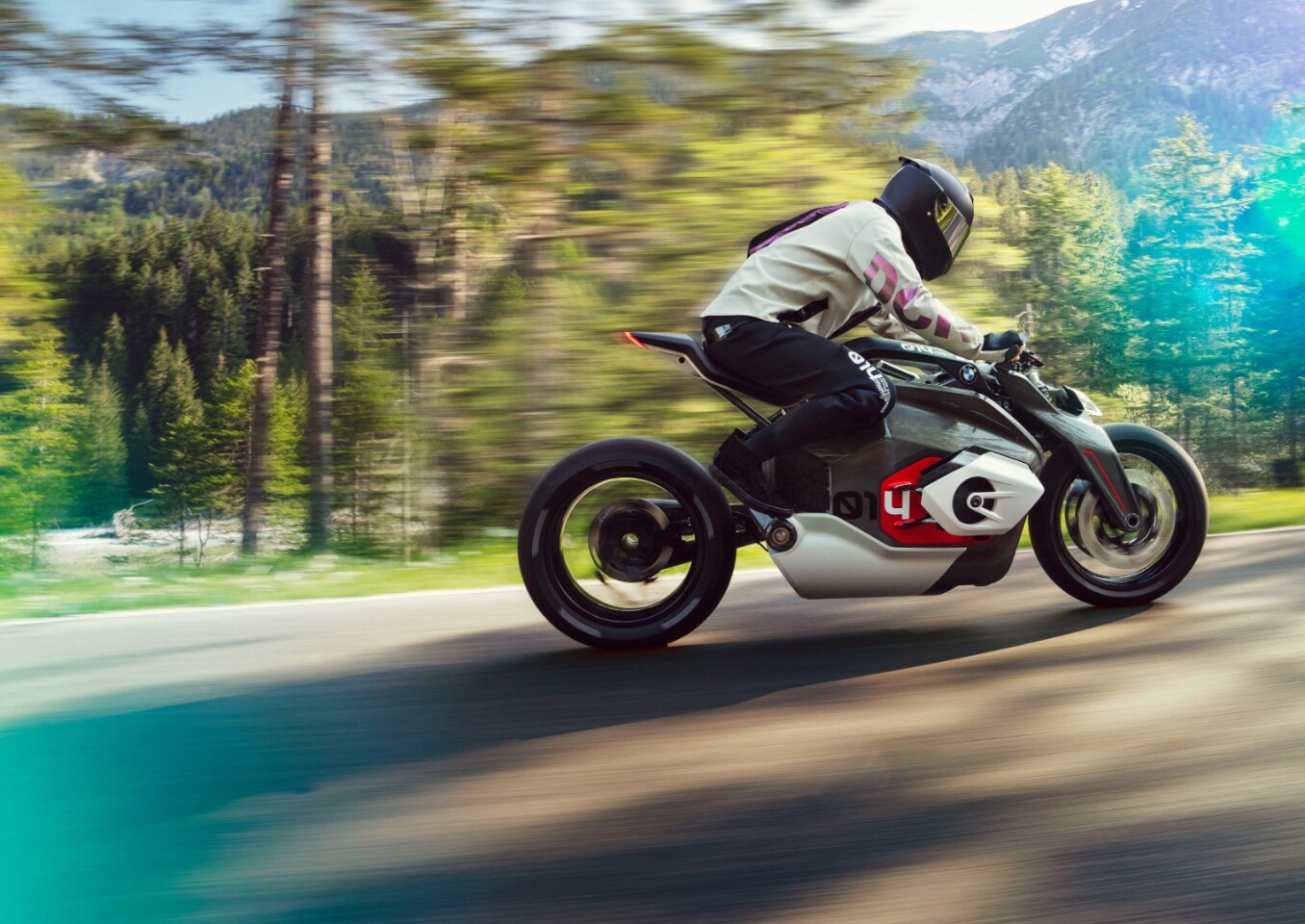

BMW's Vision DC Roadster: Vision DC Roadster on the move
9/23
BMW's Vision DC Roadster: Vision DC Roadster on the move
Electric performance with looks that recall BMW's heritage
10/23
Electric performance with looks that recall BMW's heritage
Cooling components on the sides of the battery are able to angle in...
11/23
Cooling components on the sides of the battery are able to angle in...
...and out.
12/23
...and out.
The Vision DC Roadster and the Vision M Next concepts, unveiled at #NextGen
13/23
The Vision DC Roadster and the Vision M Next concepts, unveiled at #NextGen
BMW's Vision DC Roadster: A vision of electric motorcycling that's shamelessly futuristic and daring
14/23
BMW's Vision DC Roadster: A vision of electric motorcycling that's shamelessly futuristic and daring
The BMW team with a mockup of the design
15/23
The BMW team with a mockup of the design
Working on the brake discs
16/23
Working on the brake discs
The unique wheel design
17/23
The unique wheel design
BMW team members assembling the front wheel
18/23
BMW team members assembling the front wheel

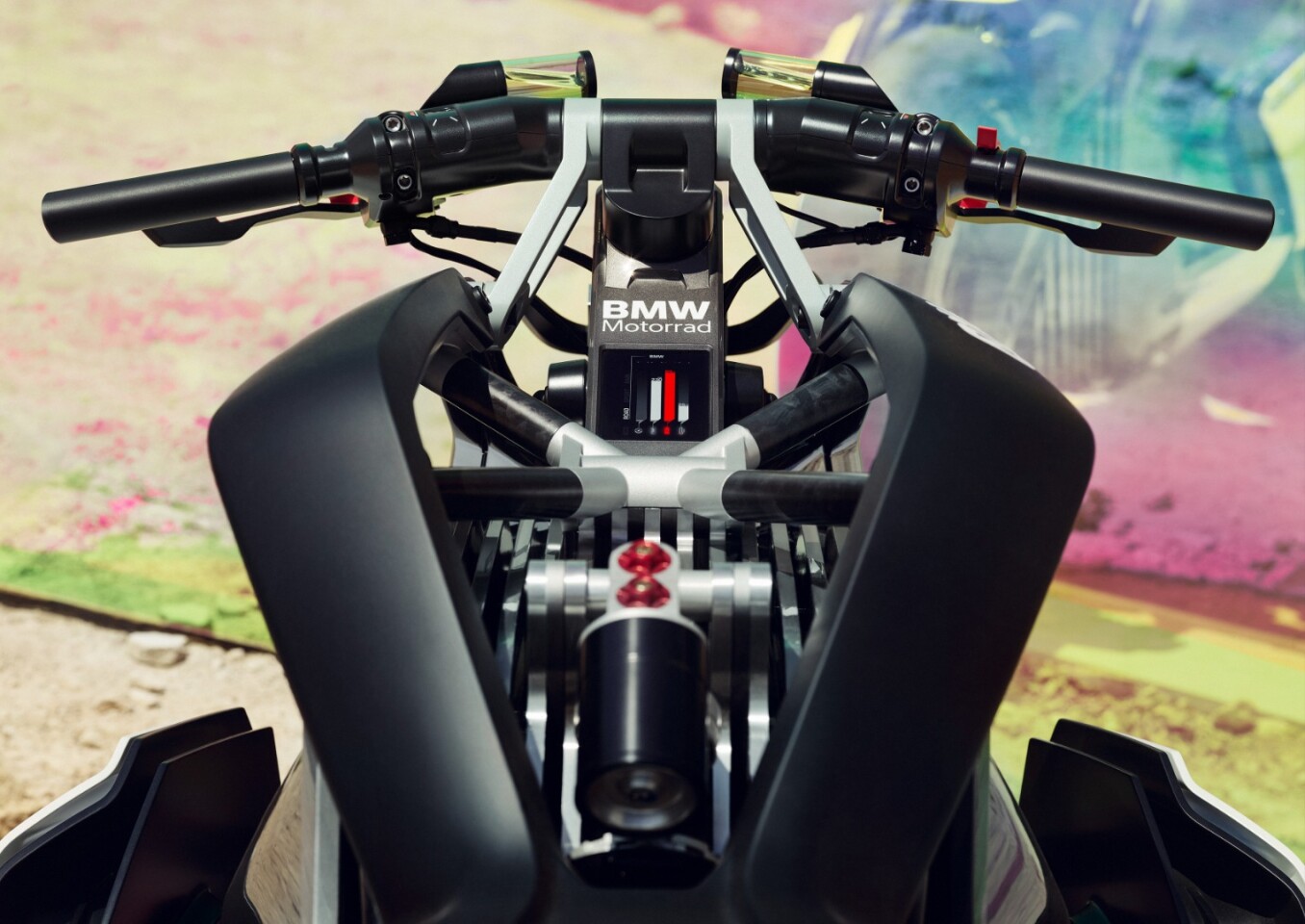

Handlebars and switchgear in development
19/23
Handlebars and switchgear in development
The single-piece upper bodywork comprising "tank" and seat unit
20/23
The single-piece upper bodywork comprising "tank" and seat unit

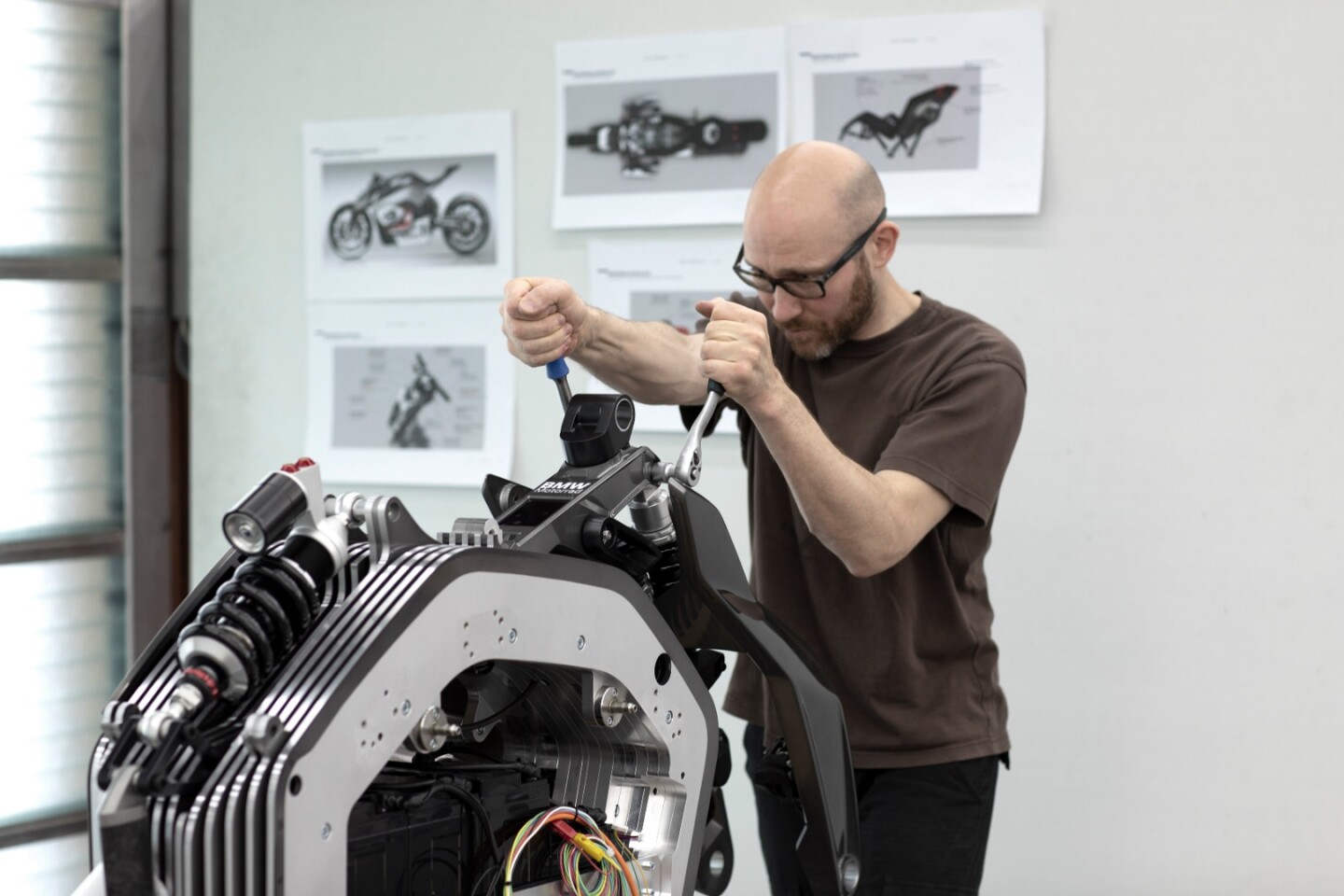

Assembling the bike
21/23
Assembling the bike
A good look at the cooling fins surrounding the battery
22/23
A good look at the cooling fins surrounding the battery
BMW's Vision DC Roadster: Take a look into that gaping, hollow space at the battery pack within
23/23
BMW's Vision DC Roadster: Take a look into that gaping, hollow space at the battery pack within
View gallery - 23 images

BMW has built a funky new concept to tackle perhaps one of the biggest challenges in electric motorcycle design: how to make a battery box look as cool as an engine. The Vision DC Roadster, rolled out at #NextGen, is a future-cool naked with a nod to BMW's Boxer heritage.

We can bang on all we like about the insane performance potential of electric motorcycles, but the truth is, nobody's going to change the world with bikes that don't look at least as cool as old-school combustion bikes. That's not an easy bar to reach; motorcycle design (outside the world of fully-faired sports and race bikes) has always been dictated by the shape of the engine at the heart of the bike.

All sorts of angles and cues can be taken from a nice donk; in earlier days, the cooling fins on air-cooled engines gave a nice starting point to work from. A nicely angled V-engine has launched a thousand choppers. Crankcases, clutch covers, pushrods, exhaust pipes - we've had more than a century to work out how to make these things look amazing.

BMW's Vision DC Roadster: No pretense of a tank
BMW's Vision DC Roadster: No pretense of a tank

Electric motors, on the other hand ... well, they're much smaller and simpler. The bulk of an electric motorcycle is the battery box, into which designers need to stuff the maximum possible number of lithium cells in order to get the best range they can from the machine. Cells come in two basic shapes right now: cylindrical 18650-style units like Tesla uses, and flat pouch shapes like Zero uses. And the easiest and most efficient way to store large numbers of both these shapes is in a big, fugly, heavy ol' rectangular box.

That's a pretty hideous shape to try to hide in the sensuous design of a motorcycle, particularly when it's the biggest part of the whole bike, and it replaces something that designers have spent 120 years making an achingly beautiful centerpiece.

So this is the challenge BMW is recognizing and taking on with the Vision DC Roadster. That, and finding some way to make the designs resonate with the brand's history. And it's chosen to do so by recalling the most famous BMW engine of them all: the boxer.

BMW's Vision DC Roadster: Cooling elements make a visual impression
BMW's Vision DC Roadster: Cooling elements make a visual impression

To get there, the team has wrapped the battery box in a sandwich-layered frame of longitudinal aluminum cooling fins, and poked two special extra cooling fans out on the sides to mimic the famous boxer cylinder heads that have poked out the sides of so many Beemers in the past. On the Vision DC Roadster, these heads tilt outwards when you switch the bike on – for no other purpose than to let you know the bike's ready to rock.

A compact electric motor wraps directly around the exposed rear drive shaft beneath the battery area, which goes out to the back wheel on a lovely looking single-sided swingarm. The "tank" and subframe form one long piece that lays over the top, with a beautiful open center that lets you look down on the cooling fins while placing the adjustment dials for the nicely hidden rear shock right where you could adjust them if you had prehensile privates.

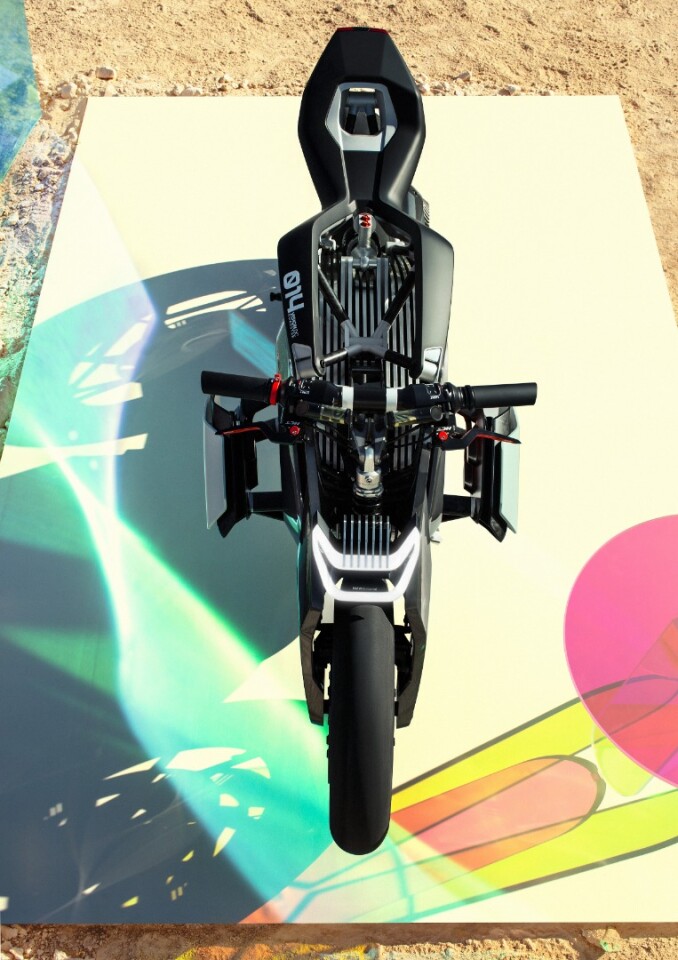

BMW's Vision DC Roadster: Top down view
BMW's Vision DC Roadster: Top down view

The front suspension is a luridly sexy carbon take on the Duolever forks we've seen on so many BMWs, with a single adjustable shock unit tucked away behind a vicious-looking U-shaped slash of a headlight that follows the "tank" line downward in an aggressive stance. There are fluorescent stripes on the sides of the specially-designed Metzeler 014 tires, and a nicely detailed, bevelled hub on the left side of the rear wheel, presumably echoing the design within that translates the torque 90 degrees from the shaft to the wheel.

It looks awesome. It really does. This is one of the better looking electric motorcycles we've ever seen – it's shamelessly futuristic and daring, with a design language that speaks to a fast, aggressive road riding experience. The dash, the handlebars, that scandalously open tank joined to the body with carbon structural rods ... Bravo! It even gets its own fancy riding suit, complete with an "asymmetrical rucksack" fixed to the jacket with magnets, of all things.

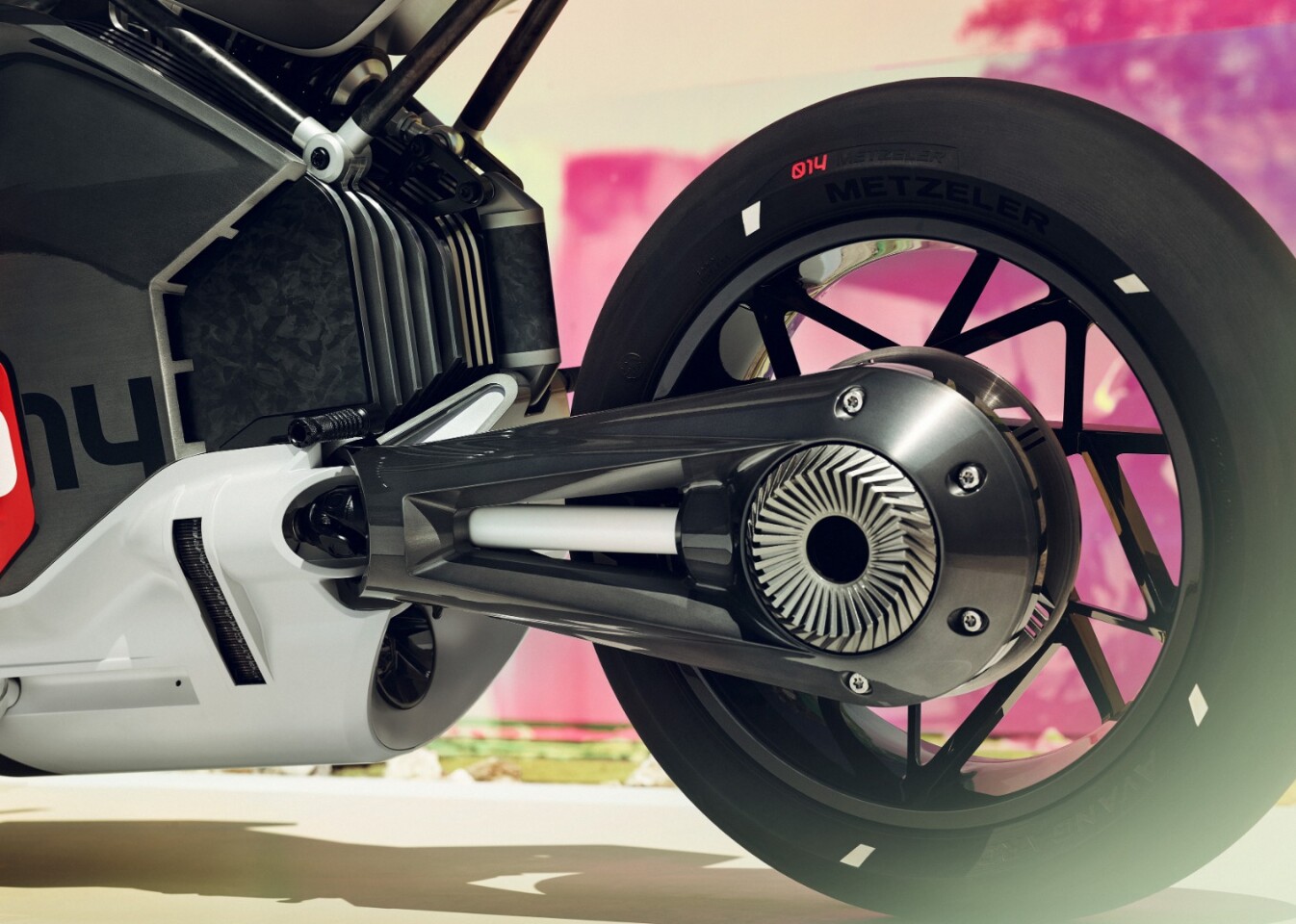

BMW's Vision DC Roadster: Electric motor wraps around a shaft sending drive to the rear wheel
BMW's Vision DC Roadster: Electric motor wraps around a shaft sending drive to the rear wheel

But there are no power or torque figures. There are likewise no figures on the battery size, or the vehicle's range. And some of the build pictures BMW has provided might give us an insight into why:

BMW's Vision DC Roadster: Take a look into that gaping, hollow space at the battery pack within
BMW's Vision DC Roadster: Take a look into that gaping, hollow space at the battery pack within

Take a look into that gaping, hollow space at the battery pack within: a small, rectangular box. It's tiny. We'd be surprised if the team managed to get even a 10 kWh capacity in there. In designing an electric motorcycle that doesn't have a whopping big battery box in the middle of it, from what we can see BMW has simply ignored the fact that e-motos need every bit of lithium they can get if they wish to be practical using today's battery tech.

So it seems the Vision DC Roadster isn't really an attempt to package a huge battery box in an attractive bike, it's an attempt to make a hot electric motorcycle without bothering to stick a usefully large battery in there at all. Granted, this is a concept, but the design looks great because BMW seems to be pretending the biggest problem in e-moto design simply doesn't exist.

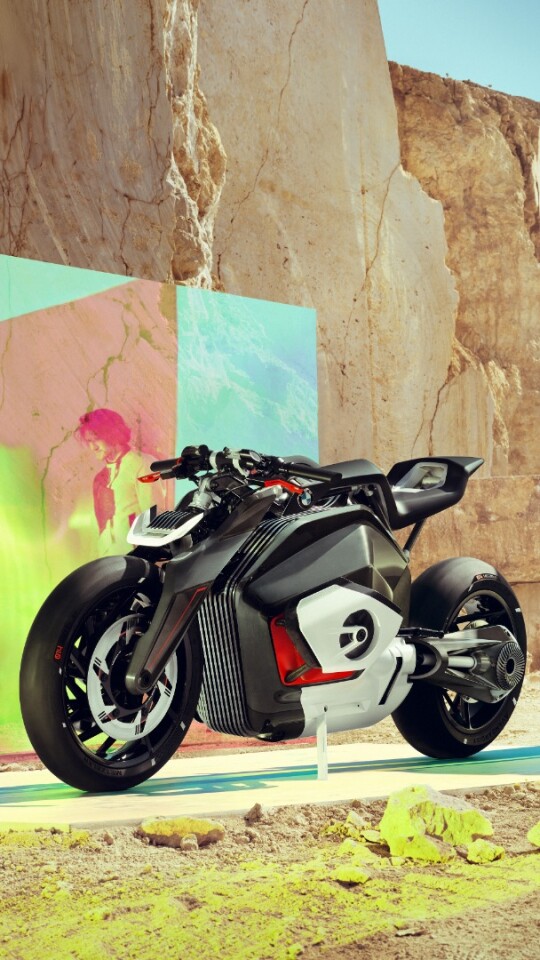

Electric performance with looks that recall BMW's heritage
Electric performance with looks that recall BMW's heritage

And true, maybe someday it won't, when the prophecies come true and somebody works out how to safely stuff 10 times more energy into a lithium battery than we can currently achieve, massively boosting energy density while staying stable in a real-world range of temperatures, offering high charge and discharge rates and generally revolutionizing the electric car, motorcycle and aircraft industries, while giving us mobile phone batteries that last for weeks like the Nokias of old used to.

But when that day comes around, everyone else will be able to make cool looking bikes with tiny battery packs too.

Check out the promo video below.

Source: BMW Motorrad
