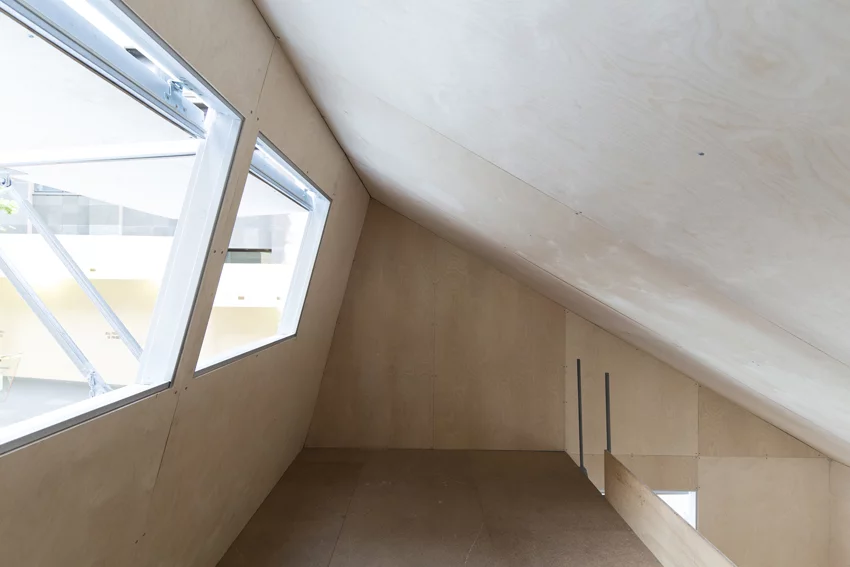

A mezzanine level provides sleeping space in the roof
3/22
A mezzanine level provides sleeping space in the roof
A single unit provides 37.5 sq m (404 sq ft) of floor space
4/22
A single unit provides 37.5 sq m (404 sq ft) of floor space
Carter Williamson's Shelter on show at last year's Sydney Architecture Festival
5/22
Carter Williamson's Shelter on show at last year's Sydney Architecture Festival
Inside the Shelter
6/22
Inside the Shelter
Shelter's shuttered windows provide natural ventilation
7/22
Shelter's shuttered windows provide natural ventilation
8/22
9/22
Carter Williamson's Shelter on show at last year's Sydney Architecture Festival
10/22
Carter Williamson's Shelter on show at last year's Sydney Architecture Festival
Shelter drawing attention at last year's Sydney Architecture Festival
11/22
Shelter drawing attention at last year's Sydney Architecture Festival

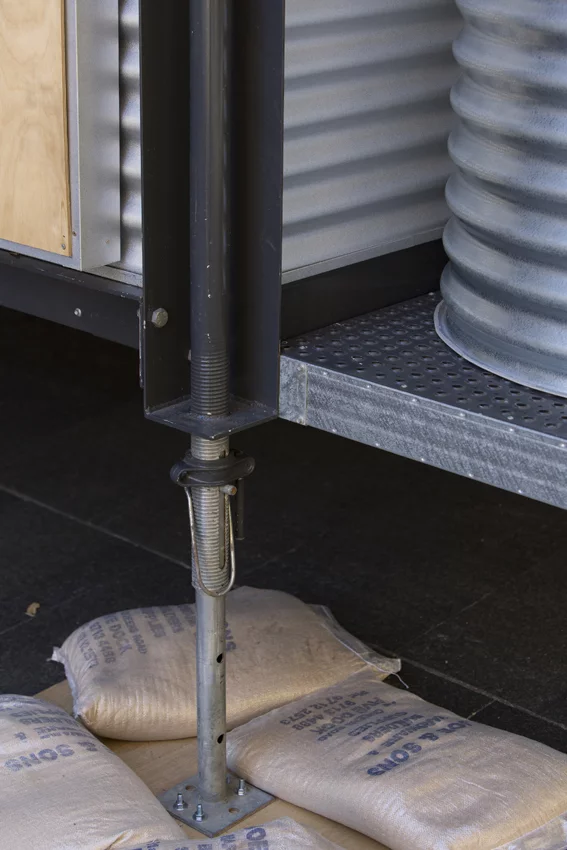

Shelter comes with adjustable legs for uneven terrain
12/22
Shelter comes with adjustable legs for uneven terrain
Access to the mezzanine is by ladder
13/22
Access to the mezzanine is by ladder

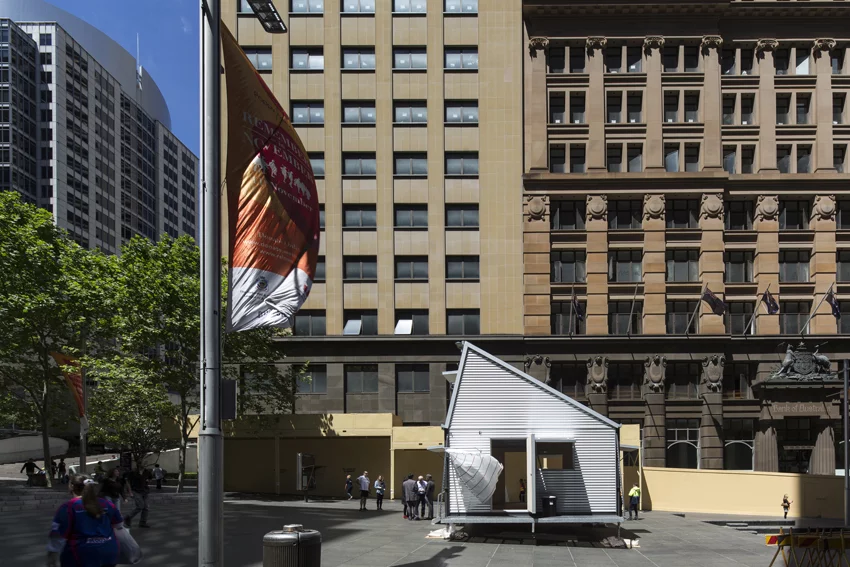

Shelter is also designed to be self-functioning off-grid, shipping with 1.5 kW of roof-mounted photovoltaic solar power as well as a solar hot water system
14/22
Shelter is also designed to be self-functioning off-grid, shipping with 1.5 kW of roof-mounted photovoltaic solar power as well as a solar hot water system

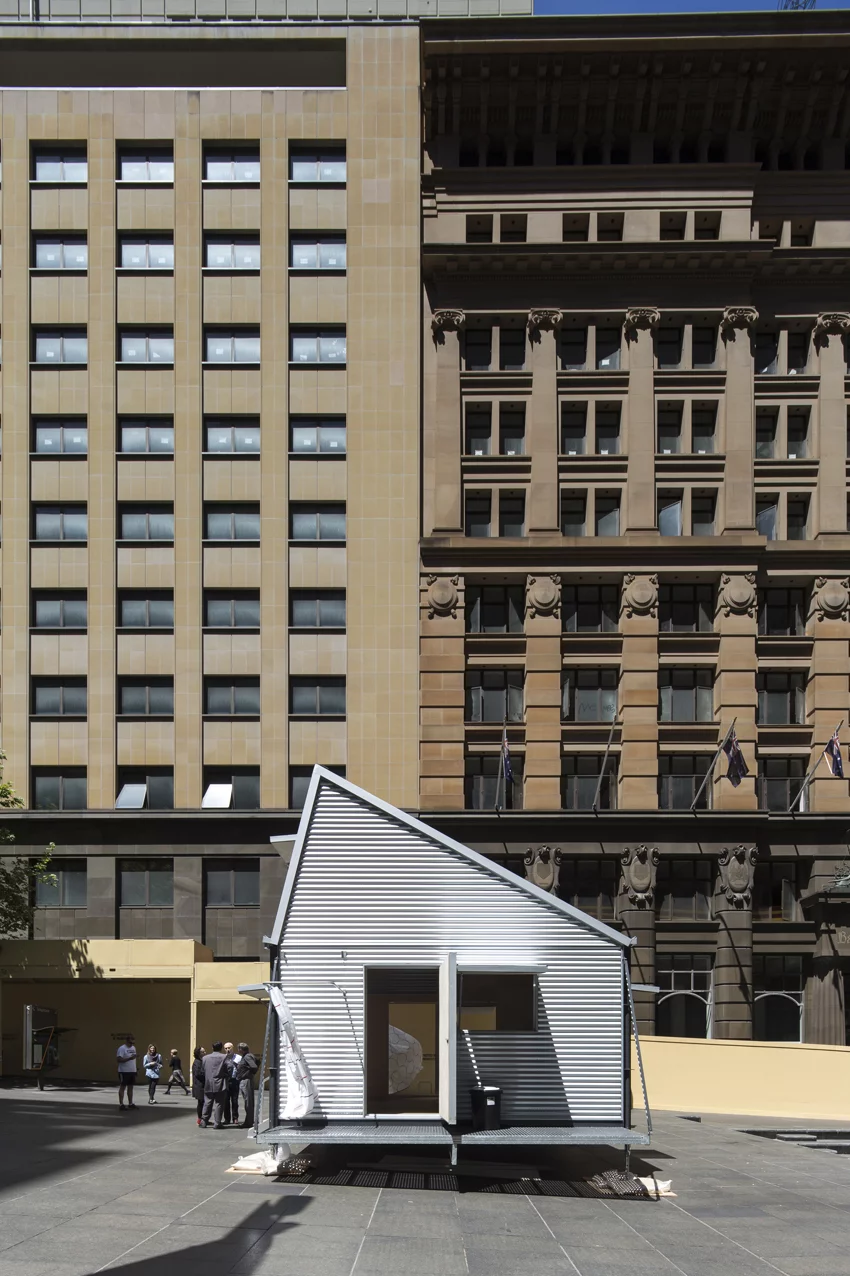

Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation
15/22
Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation

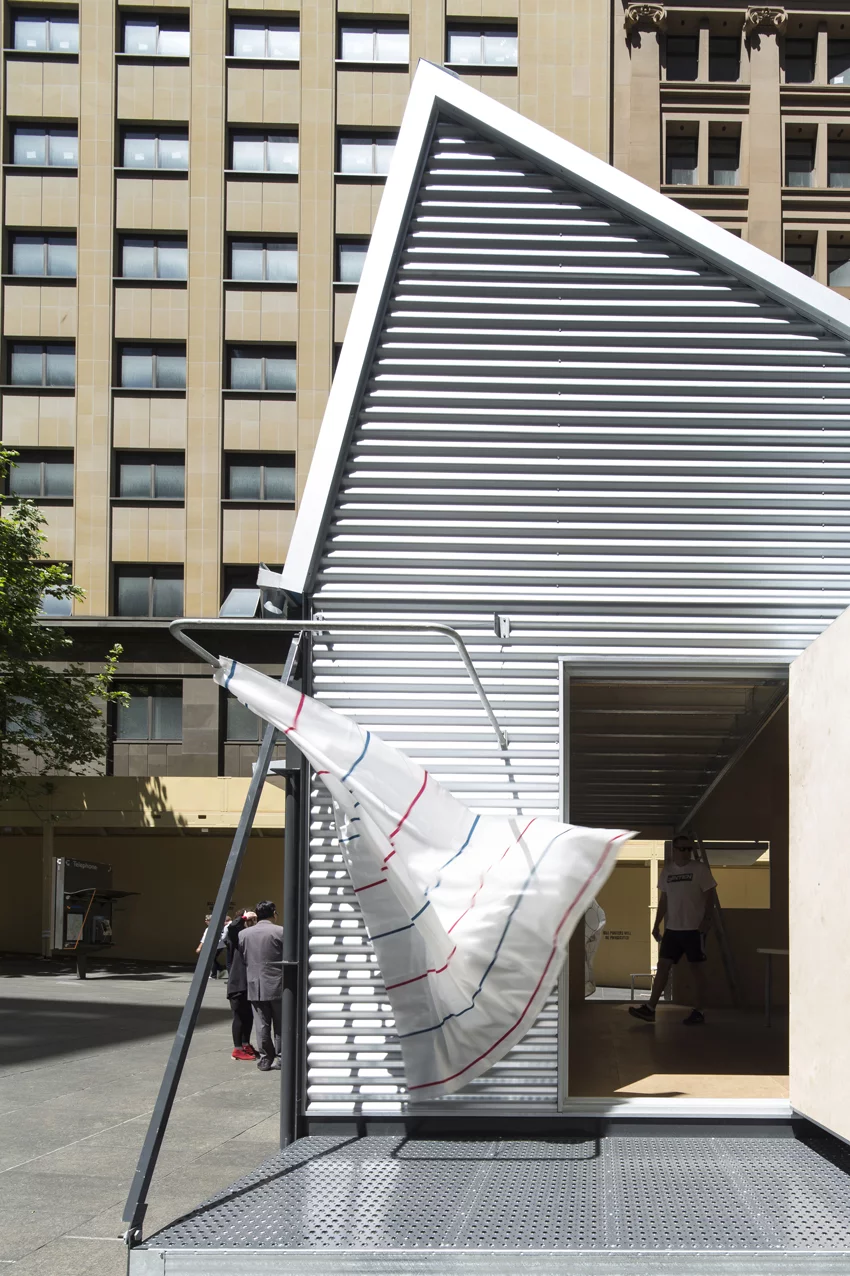

Shelter can be put up by two people in a day
16/22
Shelter can be put up by two people in a day
Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation
17/22
Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation
Shelter is also designed to be self-functioning off-grid, shipping with 1.5 kW of roof-mounted photovoltaic solar power as well as a solar hot water system
18/22
Shelter is also designed to be self-functioning off-grid, shipping with 1.5 kW of roof-mounted photovoltaic solar power as well as a solar hot water system
Shelter can be put up by two people in a day
19/22
Shelter can be put up by two people in a day
A single Shelter can house 8 to 10 people
20/22
A single Shelter can house 8 to 10 people
Shelter can be put up by two people in a day
21/22
Shelter can be put up by two people in a day
Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation
22/22
Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation

With its modestly named Shelter, architecture firm Carter Williamson has thrown its hat into the disaster response emergency housing ring. Tthe emphasis appears to be on flexibility, Shelter having been designed for easy transportation and rapid construction in a range of less-than-ideal circumstances. Most interesting is that the prefabricated Shelter is also designed to be built using scrap materials recovered from disaster zones.

To make transportation of the Shelters as easy as possible, Carter Williamson has opted for a prefabricated design than can ship flat packed. The design is based on notional units of 2.4 meters (8 feet): the interior height and width of a standard shipping container or haulage truck. However, intriguingly, the designers suggest that a Shelter could also be constructed from salvaged materials. This probably explains the use of corrugated metal, though how this process would work in practice (and to what extent new materials, like the flexible legs, would be needed) isn't entirely clear.

According to Carter Williamson, the 37.5 sq m (404 sq ft) Shelter can be put up by two people in a day. It ships with adjustable scaffolding props – the legs on which Shelter stands – with the idea that it can be erected upon uneven ground. When done with, the Shelter can be disassembled for reuse.

A single Shelter can house 8 to 10 people, with a mezzanine roof space used for sleeping quarters (or to provide a useful private space during the day). However, the Shelters are designed to be adaptable, and can be arranged end to end to create larger areas for mass catering, or as an an administrative nerve center.

Shelter is also designed to be self-functioning off-grid, shipping with 1.5 kW of roof-mounted photovoltaic solar power as well as a solar hot water system and a 950-liter water-collection tank. There's an optional outdoor decking area which adds compost toilet, shower, and gas-cooking facilities.

Carter Williamson hopes that a version of the Shelter, renamed Pavilion, could see uses diverse as holiday homes, remote science outposts or even permanent accommodation.

There are some outstanding questions. What's it made from, besides some sort of corrugated metal? What is the status of the Shelter? Has an end cost been worked out? And, perhaps most intriguingly, is there a method in mind for using recovered materials to make Shelter? We've posed Carter Williamson these questions and will let you know what we hear.

Source: Carter Williamson, via Arch Daily
