Magnetic fridge eliminates gases, drastically reduces energy use

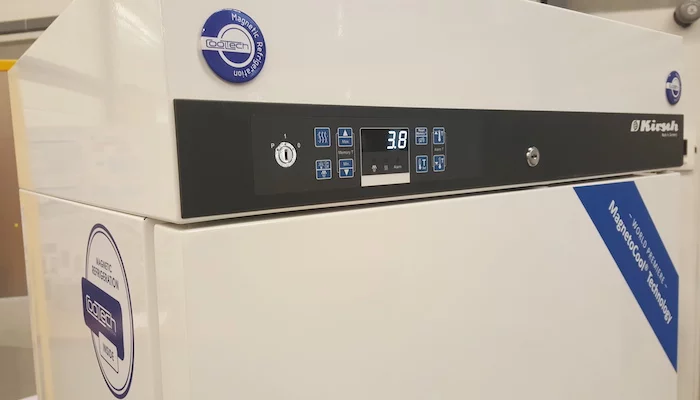

Cooltech has announced the first publicly available refrigerator using a magnetic cooling system, which is more efficient than standard fridges
Cooltech has announced the first publicly available refrigerator using a magnetic cooling system, which is more efficient than standard fridges
View 2 Images
Cooltech has announced the first publicly available refrigerator using a magnetic cooling system, which is more efficient than standard fridges
1/2
Cooltech has announced the first publicly available refrigerator using a magnetic cooling system, which is more efficient than standard fridges

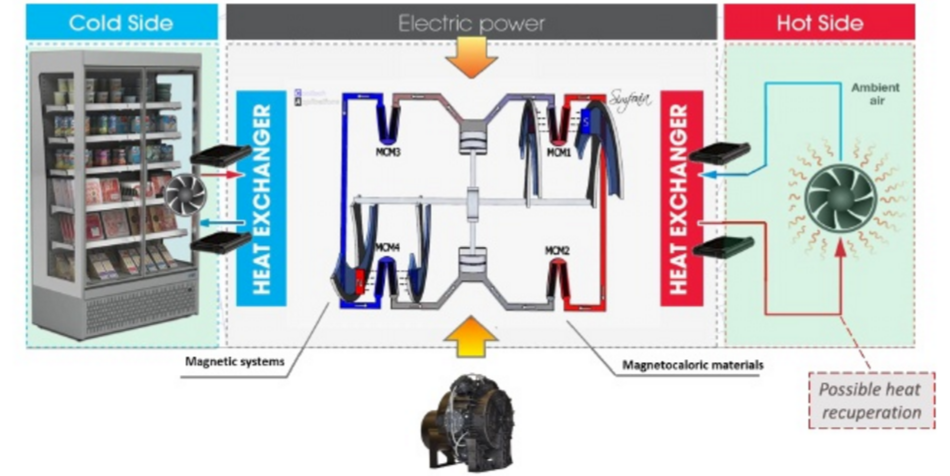

The system makes use of the magnetocaloric effect, where materials change temperature when exposed to a magnetic field, and a water coolant relays the resulting cool air to the interior of the unit
2/2
The system makes use of the magnetocaloric effect, where materials change temperature when exposed to a magnetic field, and a water coolant relays the resulting cool air to the interior of the unit

The days of the rackety, energy-gobbling refrigerator may be numbered with the advent of more efficient systems that cool with the use of magnets. The idea has been around almost as long as your standard gas-compression fridge, but it hasn't yet been viable for the household and commercial markets. Now, Cooltech Applications has launched the first magnetic refrigeration system (MRS) for commercial use.

The system is based on the magnetocaloric effect, which states that the temperature of a material can be changed by exposing it to a magnetic field. As magnetocaloric materials in the system are put through a cycle of magnetization and demagnetization, a water coolant is pumped through them, transferring the heat from the interior of the fridge to the outside air.

The system makes use of the magnetocaloric effect, where materials change temperature when exposed to a magnetic field, and a water coolant relays the resulting cool air to the interior of the unit
The system makes use of the magnetocaloric effect, where materials change temperature when exposed to a magnetic field, and a water coolant relays the resulting cool air to the interior of the unit

The basic structure of the system sounds similar to that of conventional refrigerators, which use chemical refrigerants and a compressor to keep your milk from spoiling. But that system comes at a high cost: even with recent advances in energy efficiency, they still guzzle a lot of electricity, and are running 24 hours a day. Not to mention they can be quite loud, and the gases used pose an environmental hazard.

According to Cooltech, the lack of a gas compression system means the MRS consumes only half the energy of a standard fridge, produces less noise and vibration, and requires less maintenance. And being known pollutants, these refrigerant gases are under constant scrutiny by environmental agencies and regulations, so from a commercial point of view, it makes sense to avoid the whole issue. Magnetic emissions are a potential concern, but the levels surrounding its devices are reportedly far lower than even an individual magnet you'd stick on the fridge.

The idea of magnetic cooling itself isn't entirely new, but this is the first time the technology has become available to the public. Previous machines were too big for common use, and nowhere near as effective as conventional refrigerators. GE managed to shrink the system down a few years ago, and was able to reduce the temperature of a fluid by 80° F (a total of 44.4° C) by having it pass by magnets arranged into 50 different cooling stages, but this prototype was still complex and bulky.

Cooltech's first commercial system, the MRS400, boasts 400 W of cooling power, keeping the internal temperature between 35.6° F and 41° F (2° C and 5° C), which is within the recommended levels for safe food storage. Its first applications will be in the commercial sector, for use in refrigerated retail display cases, wine cellars, and medical facilities. It's currently being beta-tested in three locations, using various configurations. Larger industrial systems, capable of 20 KW of cooling power, are also in development.

Source: Cooltech Applications

25 comments
Bob Stuart
What happens to the efficiency of a standard fridge if you expand the gas through an energy-recovering air motor instead of letting it heat up through turbulence using an orifice?
Tanstar
Since it can't get items below freezing, it's not useful for home use still.
Grainpaw
Is the magnetic system safe for someone with an implanted pacemaker/defibrillator?
Sergiuss
The low efficiency of current thermodynamic machines could make good use of heat loss they produce (Joule effect, for exemple), if this loss was harnessed by an cooling system by absortion, still oldest than compression refrigeration system. However, is required a non toxic chemical pair, as is the case of the pair ammonia / water.
windykites
I have often wondered where the heat comes from inside a fridge. If you put cold milk inside an insulated box, why should it warm up? Is the heat inside desperate to get in? I assume the magnets used are electro-magnets. It's a shame you can't use neodymium permanent magnets. No electricity required!
WilliamEdstrom
Magnetic emissions? You mean, like, radio? Or is it leaking scary magneto gasses that will give you cancer and a bad hair day? I need to know, my hair is important!
Chizzy
@BobStuart - Your gas escapes.
notarichman
i emailed them about using the system on a walk in cooler 4' x 4' x 8' tall. their reply was 'we don't make walk in coolers".
liui
Gschneidner and Pecharsky of Ames Laboratory developed gadolinium alloy using commercial grade gadolinium, thus making it commercially viable.
Daliya Robson
Can somone one measure the magnetic fields of this new fridge and if its high ask factory to treat it to prevent additional magnetic and electric and radio vibrations reaching the consumer.
