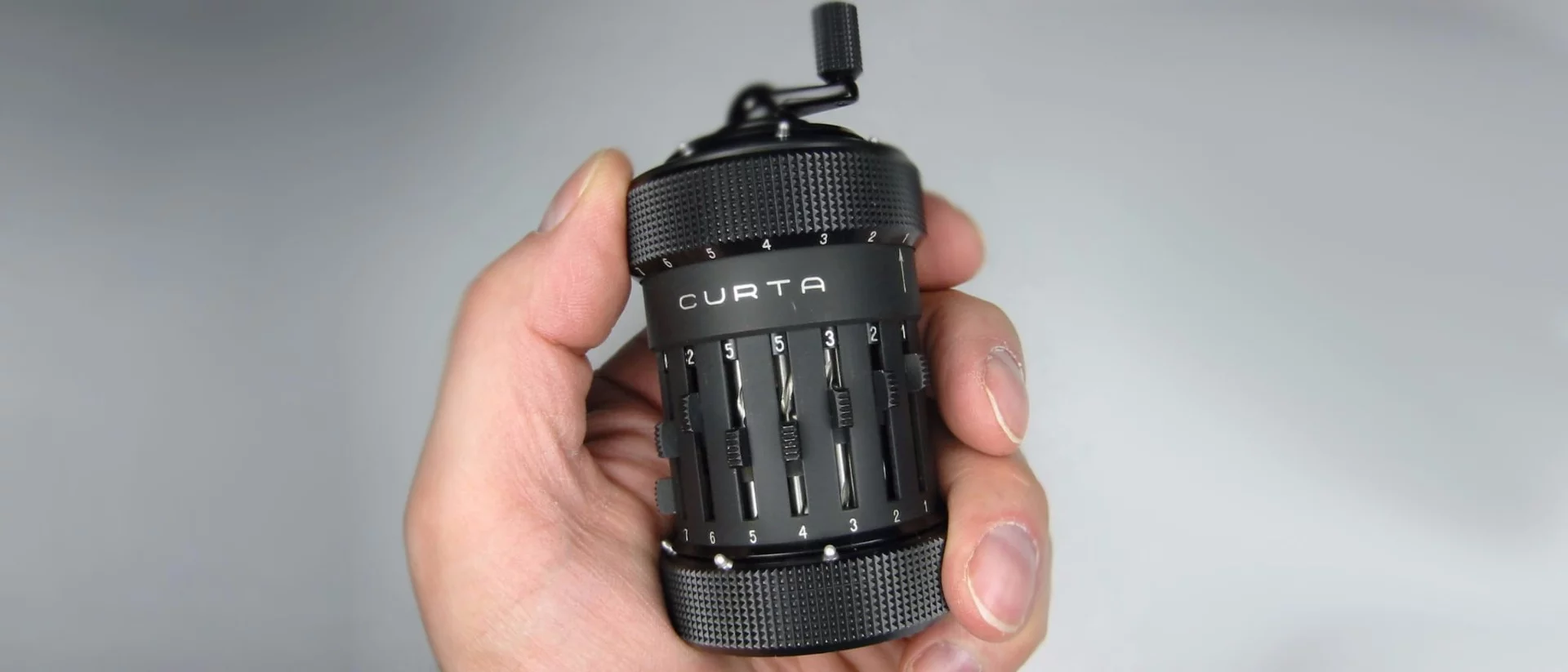

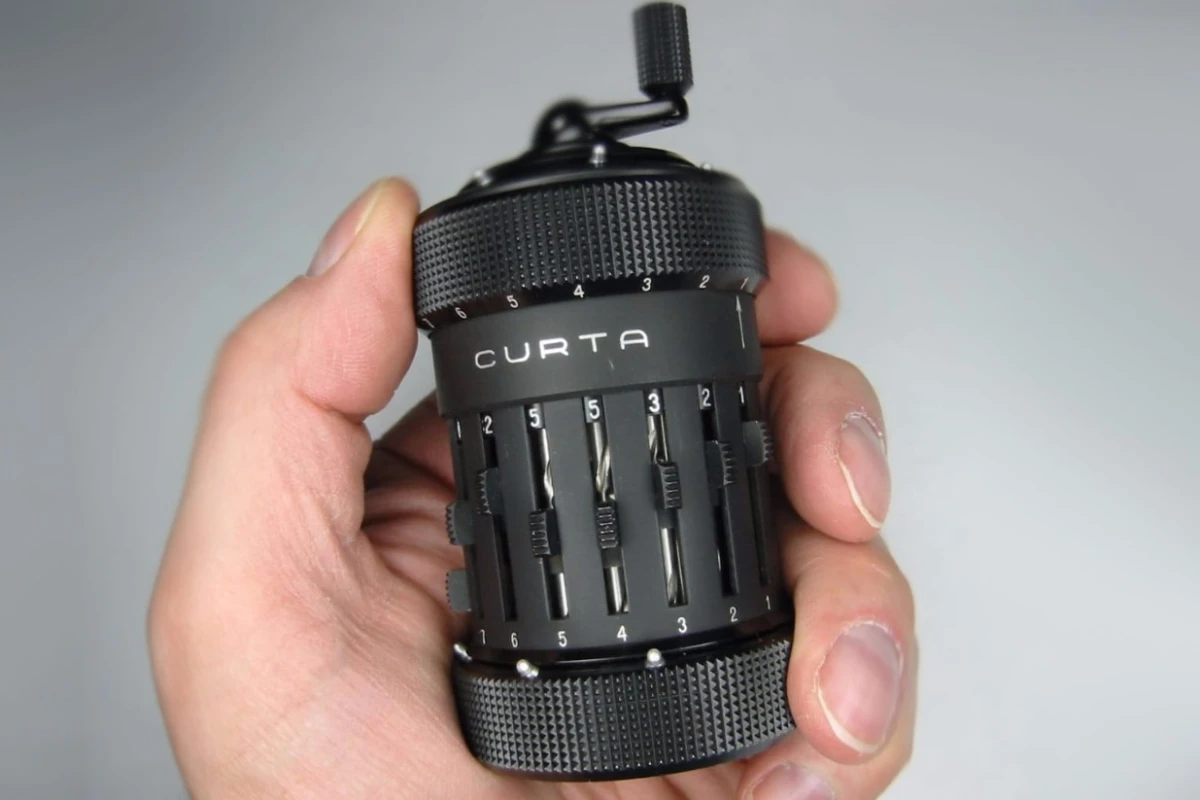

The Curta calculator was a favorite of engineers, pilots, and rally drivers
The Curta calculator was a favorite of engineers, pilots, and rally drivers
View 17 Images

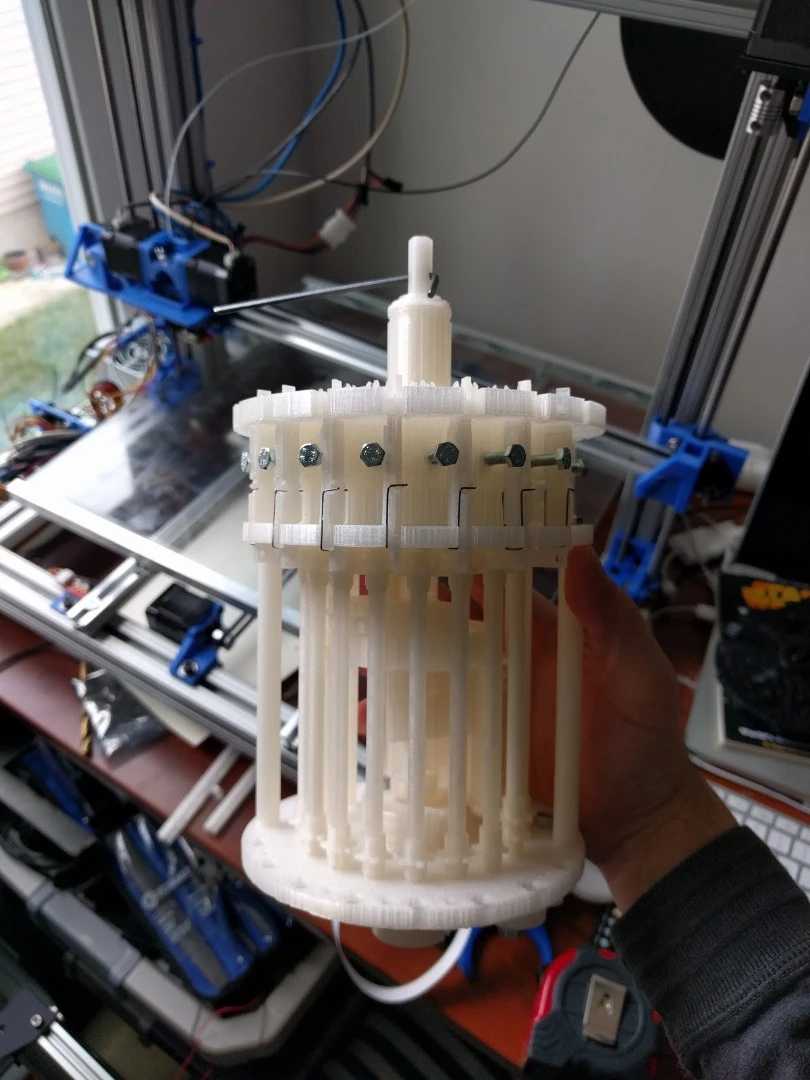

Wu had to make his Curta replica four times as big as the original due to the limitation of 3D printing parts
1/17
Wu had to make his Curta replica four times as big as the original due to the limitation of 3D printing parts
The 3D printed parts used in Marcus Wu's Curta replica
2/17
The 3D printed parts used in Marcus Wu's Curta replica
Wu's completed 3D-printed Curta replica
3/17
Wu's completed 3D-printed Curta replica

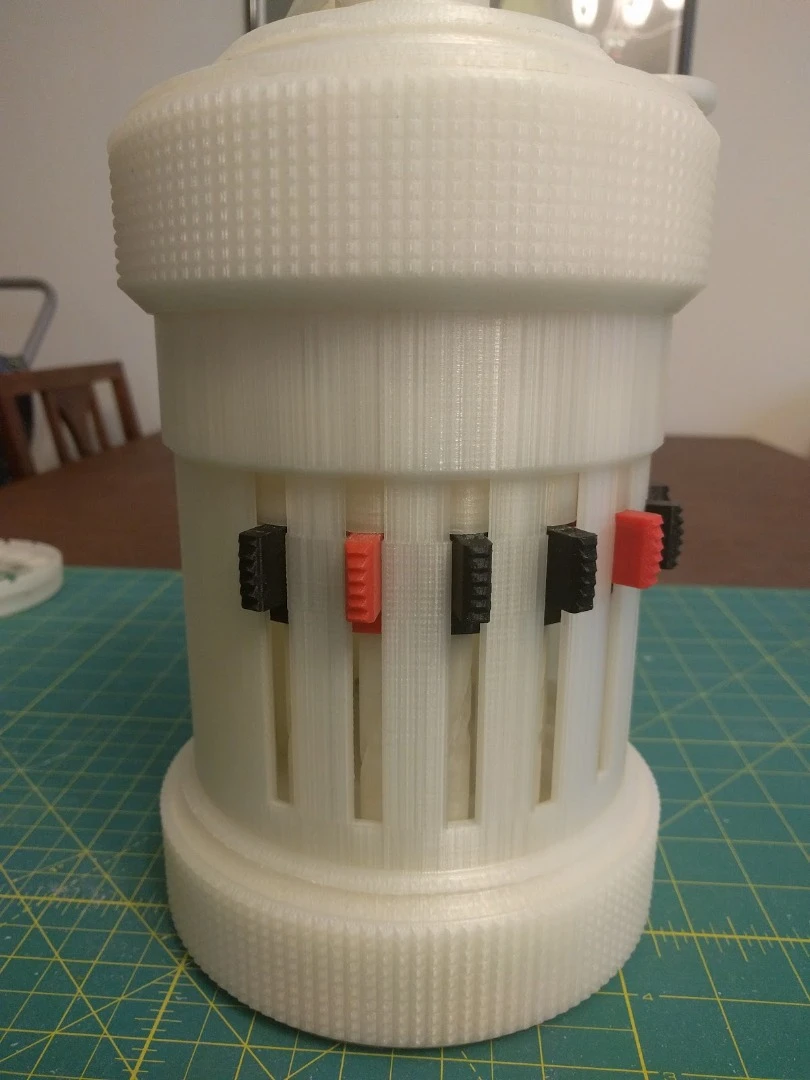

Detail of Wu's 3D-printed Curta replica
4/17
Detail of Wu's 3D-printed Curta replica
The Curta was sold mainly through mail order
5/17
The Curta was sold mainly through mail order
Using the Curta
6/17
Using the Curta
Diagram of the Curta calculator
7/17
Diagram of the Curta calculator
Curt Hertrstark, inventor of the Curta
8/17
Curt Hertrstark, inventor of the Curta
The first prototypes of the Curta calclator
9/17
The first prototypes of the Curta calclator
The inside of a Curta calculator
10/17
The inside of a Curta calculator
The Curta's step drum
11/17
The Curta's step drum
A Curta calculator disassembled by Rick Furr
12/17
A Curta calculator disassembled by Rick Furr
Examples of mechanical calculators
13/17
Examples of mechanical calculators
A Curta calculator case
14/17
A Curta calculator case
The oldest known type I and type II Curta calculators
15/17
The oldest known type I and type II Curta calculators
The Curta calculator had 605 parts
16/17
The Curta calculator had 605 parts

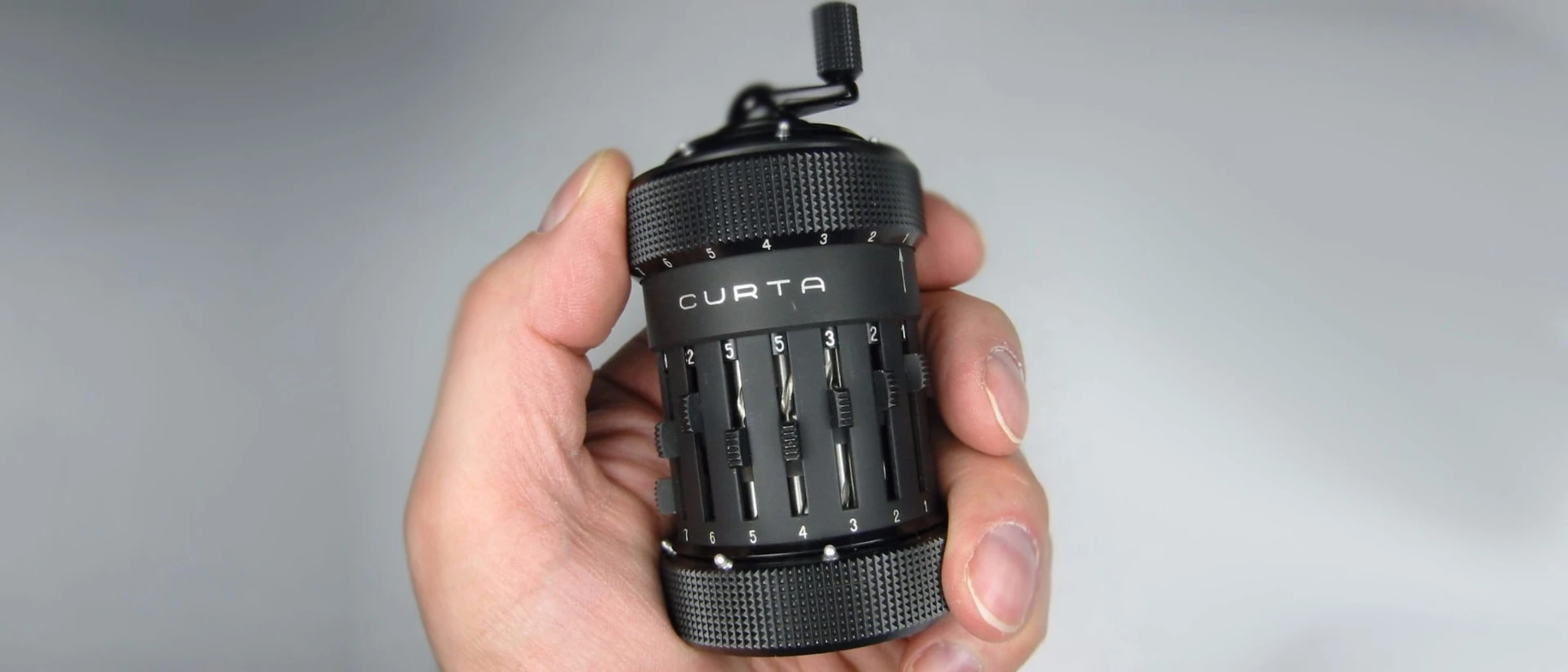

The Curta calculator was a favorite of engineers, pilots, and rally drivers
17/17
The Curta calculator was a favorite of engineers, pilots, and rally drivers
View gallery - 17 images

If you've ever spent time thumbing through back issues of magazines like Scientific American or New Scientist, you may have seen adverts for the Curta – a strange little device that resembles a pepper mill. It cost a shocking amount of money and was claimed to perform all sorts of arithmetic functions purely mechanically and with incredible precision. Rather than being a scam in the order of upmarket X-ray specs, the Curta lives up to the claims and the story behind its creation has its roots in a Nazi death camp.

For most people today, a calculator is just another phone app. It's one of those devices that we take for less than granted, yet for those of us of a certain age it was nothing less than a technological liberator when it arrived, freeing scientists, engineers, and anyone who routinely used math from hours or days of tedious calculations. Indeed, it's sobering to think of how many years everyone from Johannes Kepler to unknown bank tellers lost due to number crunching prior to its arrival.

Some relief from tedious manual number crunching came in the 17th century with the invention of logarithms followed by mechanical aids like the slide rule and the first adding machines. Unfortunately, they weren't that much of a help. Slide rules couldn't handle numbers to more than two or three decimal places and, for centuries, calculators were little more than curiosities that were about as practical as a toy automaton.

The Curta was sold mainly through mail order
The Curta was sold mainly through mail order

By the late 19th century, commercial desktop calculators began to appear, which were a definite improvement, but these crank-powered monsters were so expensive that only larger businesses could afford them. They were also about as portable as a fishing anchor, with even the "lightweight" machines clocking in at around 34 lb (15 kg). As the new century dawned, many improvements were added, like multi-key systems, a motorized mechanism, and the ability to automatically multiply and divide. But they were still huge and expensive, which limited their appeal.

Then along came Curt Herzstark, a young man who in the 1920s regularly traveled through the former Austrian Empire selling mechanical calculators to banks and other businesses. It was on these travels that he heard the same complaints from his customers.

"And again and again, wherever one went, competitors came with wonderful, big machines, which were ever more expensive and electric, but something was missing in the world market," said Herzstark in an extensive interview (PDF) conducted by the Charles Babbage Institute in 1987. "'I would like to have a machine that fits into my pocket and can calculate. I am a building foreman. I am an architect. I am a customs officer. I have to be able to pick something up. I cannot go 10 kilometers to use a calculator in the office. The slide rules are not useful for my purpose. Slide rules cannot add or subtract. And aside from that you can only read three values from the markings on them, not more. For an invoice I have to know exactly.' So, I continually found interest in a pocket calculating machine. Of course, the whole world seemed to be interested in solving this problem."

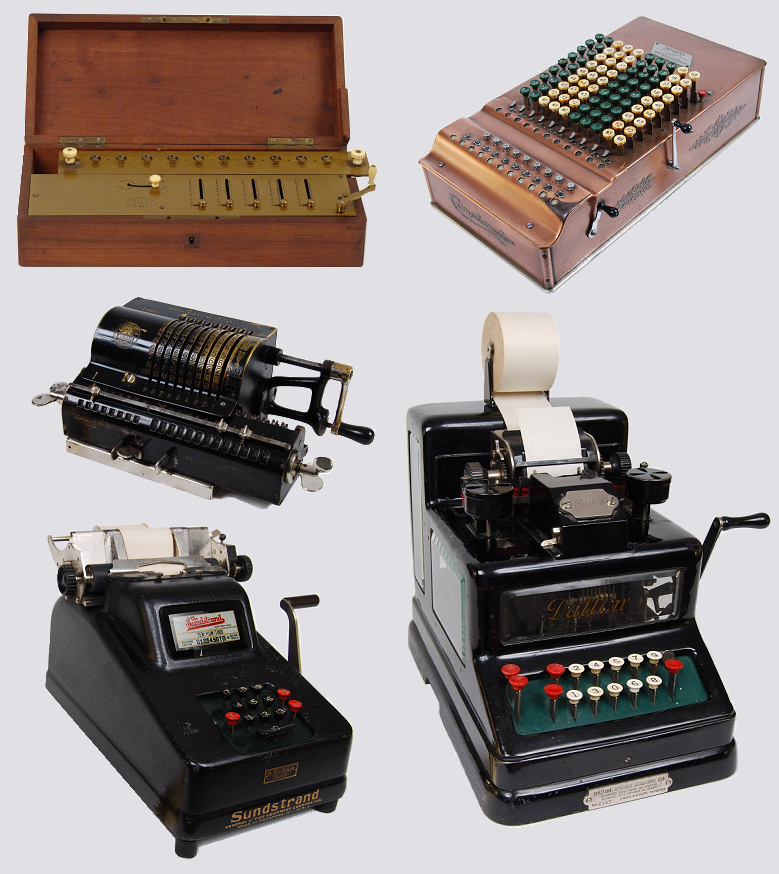

Examples of mechanical calculators
Examples of mechanical calculators

This would simply have been a keen observation by a perceptive salesman, except that Herzstark was the heir to the firm of Rechenmaschinefabrik der Austria Erstanden Compagnie in Vienna, which was one of the first Austrian calculator manufacturers and sold improved versions of American machines to the local market. Born in 1902, Herzstark was being groomed to one day take over the business started by his father and, in addition to sales, he had already received extensive training in how to design and build intricate mechanical devices. So it was no small wonder that customer complaints started him thinking along practical lines.

For the next 10 years, Herzstark mulled over the problem of how to radically reduce the size of calculators, but it was far from a simple task. There were handheld calculators of a sort on the market, but these were little more than cheap, crude toys that worked along the lines of an abacus and could do little more than add and subtract – if even that.

Real calculators were so large and heavy because they were enormously complex devices that had to be built out of solid metal parts if they were to work accurately without jamming. Also, it was common practice to have a complete set of number keys for each column of digits, so the user was faced with a solid slab of keys, including special ones for accounting numbers.

Curt Hertrstark, inventor of the Curta
Curt Hertrstark, inventor of the Curta

What's worse was that inside the device each digit of a number was set on a separate register with its own mechanism that had to be repeated up to eight to 10 times. Then to compound the problem, subtraction meant duplicating all these in reverse, plus a special mechanism to handle carrying the number when necessary. No wonder a handheld calculator seemed as unobtainable as easy-open blister packages.

Hertzstark's answer was to forget about the inside of his tiny calculator and concentrate on designing it from the outside in.

"I started to concentrate on possible solutions and at first, naturally, didn't get any further," said Hertzstark. "Later, I had an idea that I should look at everything backwards. I thought to myself, I'll pretend that I have already invented everything. What does this kind of machine really have to look like, so that someone could use it? It cannot be a cube, or a ruler; it has to be a cylinder so that it can be held in one hand. And if one can hold it in one hand, then if is miniaturized, you could adjust it with the other hand. And you could work either its sides or top and bottom. You can make the answer appear on top."

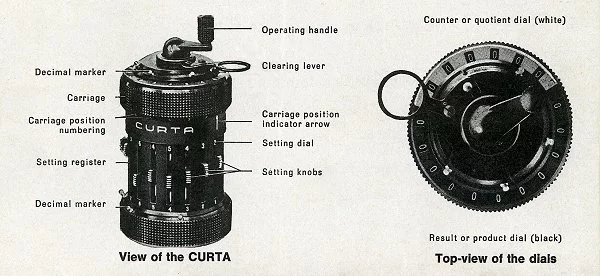

Diagram of the Curta calculator
Diagram of the Curta calculator

Then in 1937, Hertzstark had a breakthrough. Instead of making a machine that could add and subtract, make one that did nothing but add, but in such a way that it also subtracted.

"I can remember. I sat in a compartment alone and looked out and thought at that moment, 'Good Grief! One can get the result of a subtraction figuratively by adding the complementary number to it.' This has long been seen with the Burroughs machine which only added. When someone entered in something and it was wrong, one could correct it by adding a number, which when added to the wrong number yielded zeros and hence the unwanted number was out again. Then I thought that works exactly the same way as subtraction registers. So if I enlarge the second step register, the result can be achieved through pure addition ... that was that ... "

What Hertzstark did was apply what's called the method of complements to the problem. Without getting tangled up in the math, this method relies on the numbers you need to make different numbers add up to nine.

In other words, the complement of 9 is 0, 8 is 1, 7 is 2, and so on. The clever thing about complements is that you can use them to subtract by means of addition.

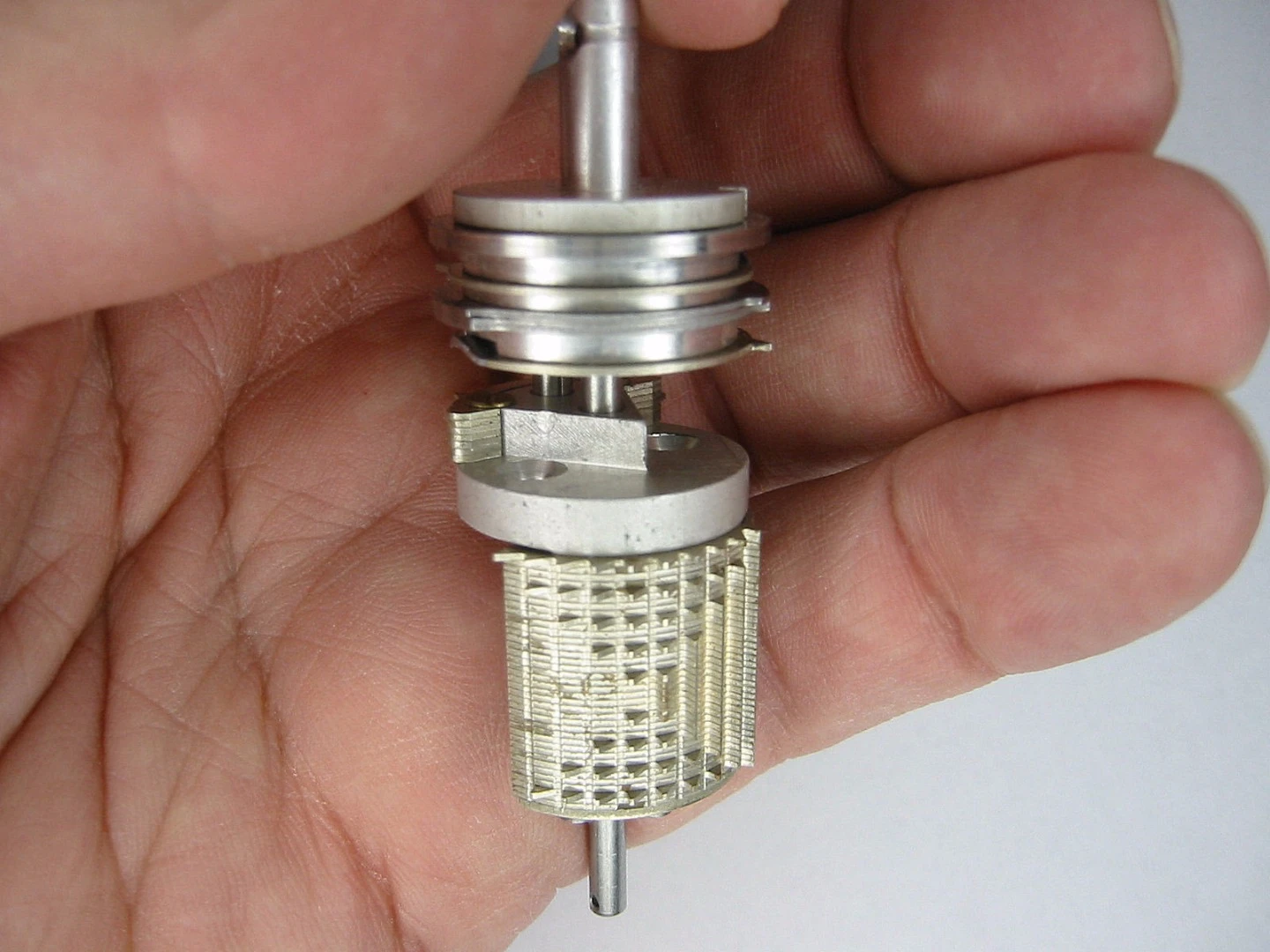

The Curta's step drum
The Curta's step drum

Take the problem of 872 - 218. To solve this without subtraction, convert the larger number into its complement, which is 127 (872 + 127 = 999). Now add 127 + 218, which equals 345. Find the complement of this and the final answer is 654. All these are simple operations for a mechanical calculator.

But the clever bit was when Hertzstark got rid of all the number registers and replaced them with a single unit called a step drum. This, as the name implies, is a drum made of metal cut in steps to correspond to different numbers. He then simplified things even further by adding a second drum on top of the first in reverse, so a simple shift in the mechanism changed it from addition to subtraction.

By 1938, Hertzstark had applied for patents for his new design and had made a couple of prototypes of the basic mechanism out of Bakelite plastic to demonstrate the principle. Unfortunately, that's as far as he got because in March 1938 the Anschluss took place and Nazi Germany's Wehrmacht marched over the border to annex Austria.

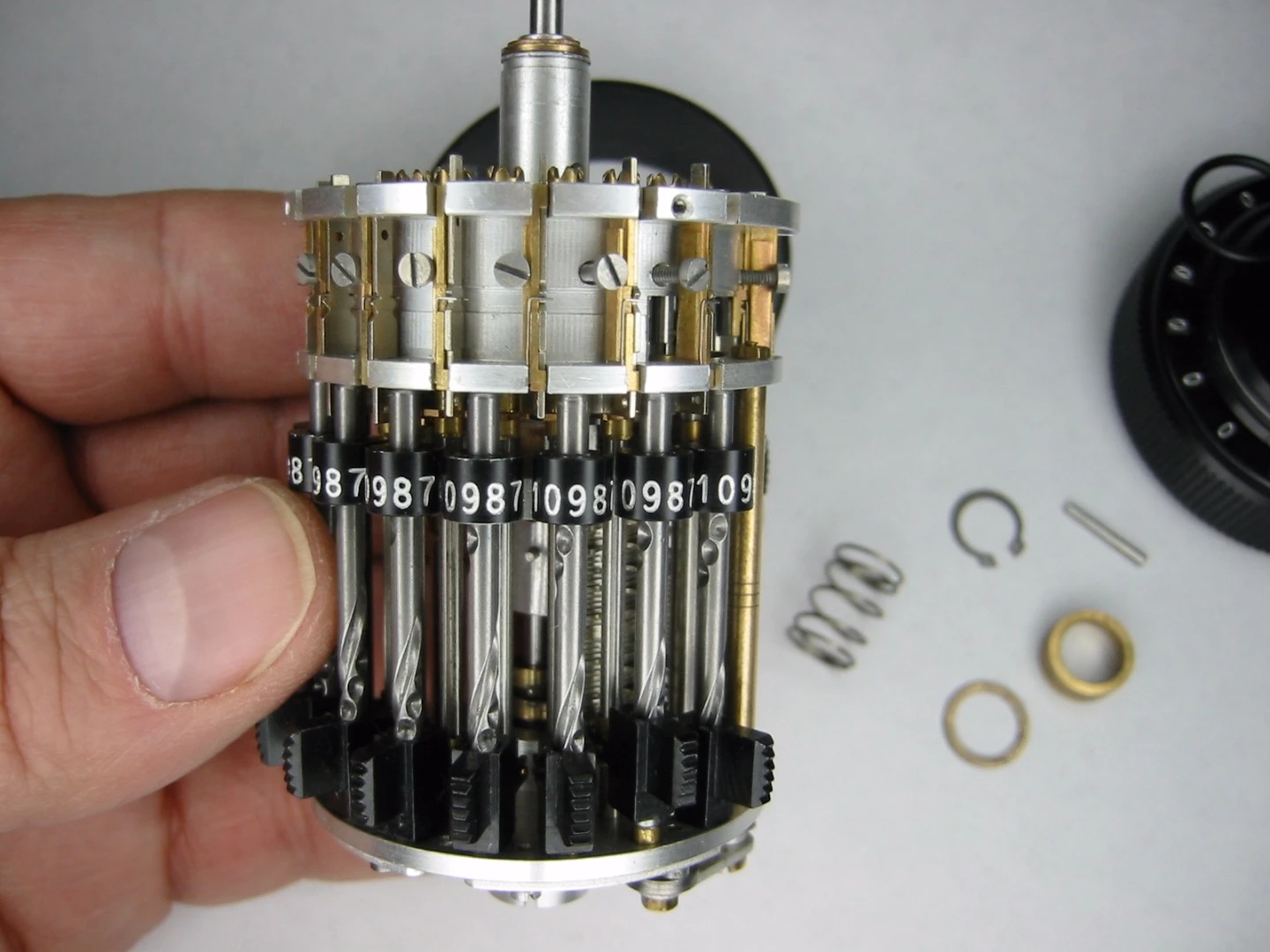

The inside of a Curta calculator
The inside of a Curta calculator

This was very bad for Curt Hertzstark because, though his mother was an Austrian Lutheran, his recently deceased father was Jewish and the Nazis forbade Jews from owning businesses. Though Hertzstark was supposed to inherit the family business, ownership was instead transferred to his mother and he was hired as manager.

When the Second World War broke out in 1939, the firm was commandeered by the army to build precision instruments and the calculator business was abandoned. This state of affairs continued until 1943 when Herzstark was arrested on trumped up charges and sentenced to the infamous Buchenwald concentration camp run by the Nazi SS – a fate shared by other Jewish and foreign engineers and technicians as the Nazis came to rely more and more on slave labor for projects like the manufacture of their V2 rockets.

It's impossible to overstate the danger that Herzstark found himself in. As a Jew, Buchenwald wasn't just an ordeal, it was a death sentence where he stood a good chance of being worked under brutal conditions until he died of hunger and exposure in a very short time – if he wasn't hanged for some minor or imagined infraction of the rules.

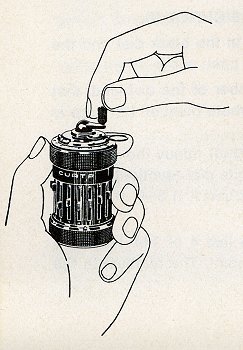

Using the Curta
Using the Curta

However, Hertzstark was luckier than most when he was put in charge of improving the efficiency of the camp's mechanics factory. It meant that he was spared the worst jobs, but he was still always one step away from execution, such as when he was recognized one day by an old friend, who was visiting on an inspection tour.

"The second time the factory owners came, the following took place: I was called on again and eight to 10 factory owners were there," said Hertzstark. "I praised the machines as before. There was one person who kept looking at me and I thought, 'You know this man.' And by the third or fourth lathe it happened that he walked by me, in front and in back of me and he said to me, 'Herzstark?' I said, 'Yes, Herzstark.' He said, 'Walther.' He was the arms manufacturer, Walther, who made the Walther pistols and Walther calculating machines. He recognized me and he laid a package of cigarettes on the lathe for me. Then I thought, now it is all over, as that was very strictly forbidden, no? But my guard, Hinkel, who had been with me for days, in other words, not the [SS] officer, he saw it and did not want to see it. I was allowed to put the cigarettes in my pocket."

But it was his new calculator that saved the engineer's life after the SS took an interest in it and what it could do.

"The head of the department, Mr. Munich said, 'See, Herzstark, I understand you've been working on a new thing, a small calculating machine. Do you know, I can give you a tip. We will allow you to make and draw everything. If it is really worth something, then we will give it to the Führer as a present after we win the war. Then, surely, you will be made an Aryan.' For me, that was the first time I thought to myself, my God, if you do this, you can extend your life. And then and there I started to draw the Curta the way I had imagined it."

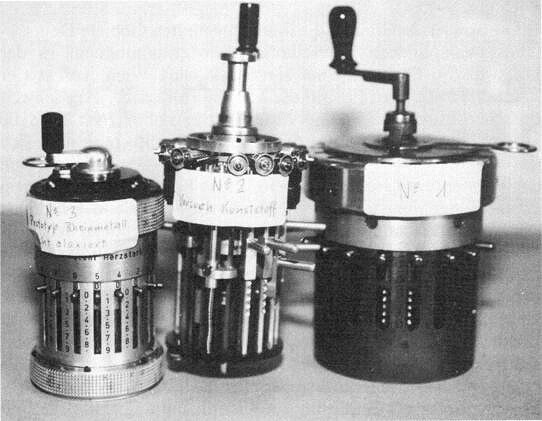

The first prototypes of the Curta calclator
The first prototypes of the Curta calclator

Herzstark didn't believe the promises of the SS, but it was at least a way of staying alive, so he spent the rest of the war making detailed pencil drawings of the Curta. After the Allied forces liberated the camp in 1945, Herzstark took his plans and applied for a job at the Rheinmettalwerk factory at the nearby city of Weimar. However, with the Red Army advancing from the east, he feared capture by the Soviets, so he only stayed long enough at the factory to build three prototypes of the completed Curta.

"The people who did the actual construction at Rheinmetall understood everything right away because my drawings were quite clear." said Hertzstark. "Everything was already calculated with tolerances and dimensions, and they were able to produce three models for me within eight weeks. The people said it was like scales falling from their eyes. The solution was clear and there was not anything more to think about. "

The work finished, Hertzstark dismantled the devices and hid them in his luggage as he fled back to Austria using cigarettes to bribe his way onto a coal train. His homecoming was bittersweet. On the one hand, the family home and factory were in the French-occupied zone of the capital, so there was no danger of being captured by the Communists, but the war had reduced the business to shambles.

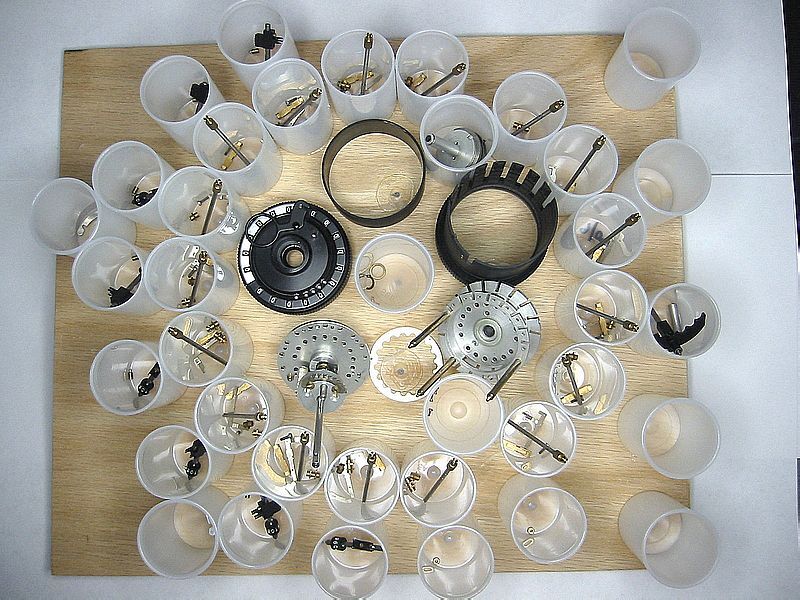

A Curta calculator disassembled by Rick Furr
A Curta calculator disassembled by Rick Furr

But he did have the plans and the prototypes of the Curta, which was a true marvel of design and construction – as much like a watch movement or the mechanism of a fine camera as it was a calculator. But could he find backers to manufacture it?

In 1945, that was a difficult question. At first glance, the Curta looks as much like a calculator as a pot of geraniums does a turboprop engine. Made of lightweight alloys, the Curta was a squat, palm-sized black cylinder with a crank on the top, which gave the device its distinct look and led to its being nicknamed the "pepper grinder" or "math grenade."

Despite its peculiar looks, the Curta was designed for easy operation that could be done with one hand if necessary. The device was held in the left hand and the carriages were worked by finger control while the right hand did all the other operations. It wasn't anywhere near as fast as a modern calculator, but it was comparable to larger mechanical machines, was more accurate than a slide rule, extremely rugged, and as portable as a pepper pot.

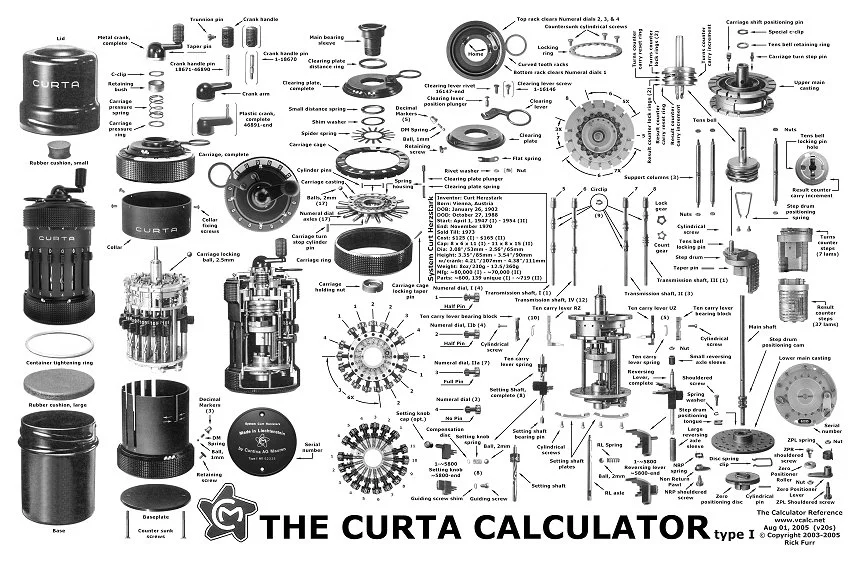

The Curta calculator had 605 parts
The Curta calculator had 605 parts

On the side of the Curta are a series of slides and number indicators to input numbers and a readout on the top to give answers to operations. To add, you turn the ring on the top to clear the registers, then input the first number using the slides. Turning the crank puts it into the memory, then the second number is put in and a second turn of the crank gives the answer.

Subtraction is equally easy. Put in the first number, crank, enter the second, then raise the handle to engage the subtraction function. Crank and there's the answer. To multiply, input the number and just keep turning the crank as a display on top of the Curta tells you how many times you've cranked. For large numbers, there's a carriage control to shift the multiplier to the next value. Division is a bit more complicated, but still better than pencil and paper. And all this without batteries and to 8 to eleven places.

In the late 1940s, Hertzstark had filed new patents and eventually found a backer in the Prince of Liechtenstein. The country, where Hertzstark resettled until his death in 1988, was looking to expand its economy and the Prince agreed to help set up a company to build and market the Curta, the Contina AG Mauren, with Hertzstark holding 30 percent of the stock.

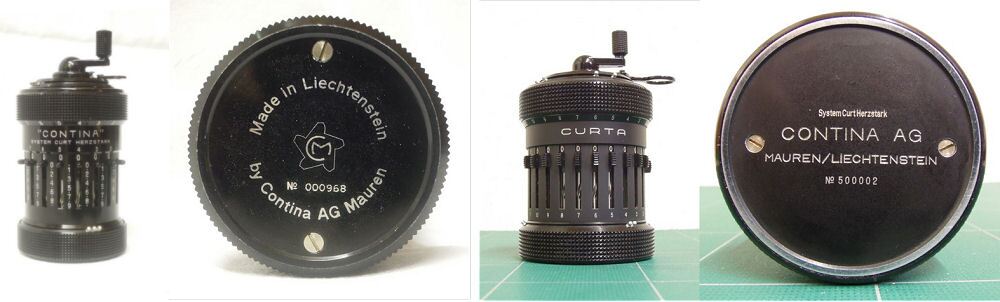

The oldest known type I and type II Curta calculators
The oldest known type I and type II Curta calculators

At first, things seemed to go smoothly, but as time went on, Hertzstark grew concerned about how the company was being run and financed. Eventually, the backers tried to squeeze Hertzstark out by withdrawing all stock and making him buy back his shares with money he didn't have. Lucky for him, the backers had previously tried to protect themselves from lawsuits by making Hertzstark keep the patents in his name, so he could threaten to take his invention with him unless the backers paid him the money they owed them, which they did.

Despite these dealings, the Curta hit the world market in 1949 selling for US$125 through mail order and in a handful of specialty shops. It was a lot of money in those days, but the Curta was still a hit with engineers, traveling accountants, pilots, and even rally drivers. In the end, 150,000 of them were built in two models over the course of 20 years. It also gained a reputation of toughness with the vast majority of returns for servicing being due to curious owners trying to take their Curtas apart, only to find that getting one back together again was a whole different matter.

The Curta soon developed a cult following, but by 1966 Contina was on its last legs and sold the rights to the Curta to the Swiss company Hilti. Production continued until 1972, but by then the introduction of the much cheaper electronic pocket calculator proved impossible to compete with and the little mechanical marvel was withdrawn from the market.

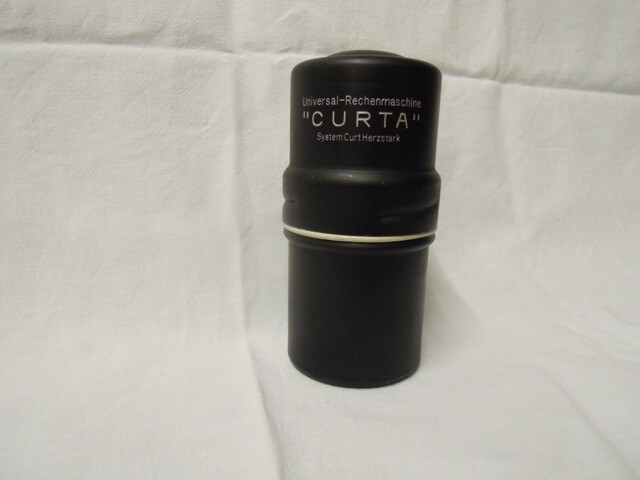

A Curta calculator case
A Curta calculator case

But perhaps that was a bit premature. Early electronic calculators weren't very reliable, couldn't handle many digits, and broke easily, so the Curta still had die-hard users. In later years, Hertzsark himself said his invention only reached one percent of its potential.

But despite being off the market for over 40 years, the surviving Curtas aren't gathering dust in museums and in the back of junk drawers. Secondhand Curtas sell for as much as US$1,900 apiece and the devices have developed a cult-like following as enthusiasts try to figure out how to disassemble and assemble the machines, create virtual Curtas to show off their mechanical intricacies in three dimensions, and develop Curta emulators to allow the public to try their hand at operating the miniature calculator.

One man has even taken things so far as to build his own Curta from scratch using that marvel of 21st century design, the 3D printer. Since 2015, software developer Marcus Wu has been designing and constructing his own Curta after being inspired by a YouTube video about how one works. Much of the work has revolved around studying the mechanism and individual parts as well as producing CAD files for 3D printing.

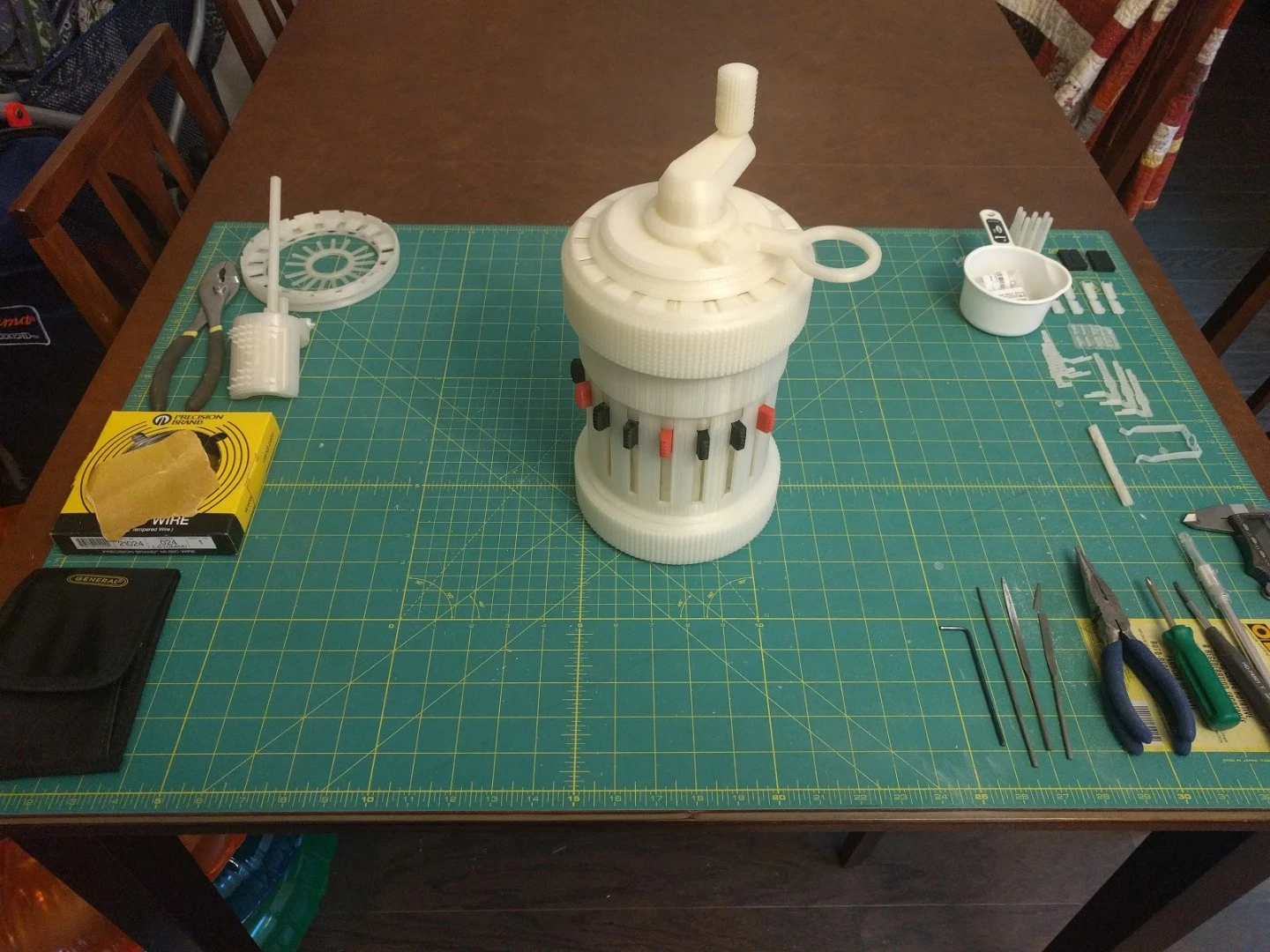

Wu's completed 3D-printed Curta replica
Wu's completed 3D-printed Curta replica

One of the things that Wu soon discovered was that for all the advancements in 3D printing, trying to fabricate a printed part out of thermoset plastic instead of aluminum and manganese alloys was well beyond the printer's resolution, so Wu had to scale things up a bit. In the end, Wu's Curta wasn't palmable, but was four times as large (about the size of a coffee can), and weighed about three pounds (1.4 kg).

"My 3D printer is nowhere near precise or accurate enough to print a 1:1 scale Curta," says Wu. "Instead, I will be printing at about 4:1 (possibly a little bit larger than that if I come across anything that I need to print larger). Despite scaling it up 400 percent, the tolerances between mating parts are much too small for most 3D printers – even for some very expensive professional printers."

In the end, Wu fabricated 240 printed parts with 100 non-printed ones for the device's springs, nuts, and ball bearings – still short of the Curta's 605 parts. Part of the reason was that Wu had to redesign many details so his printer could create parts he could assemble and had tolerances and clearances that would allow the mechanism to run smoothly.

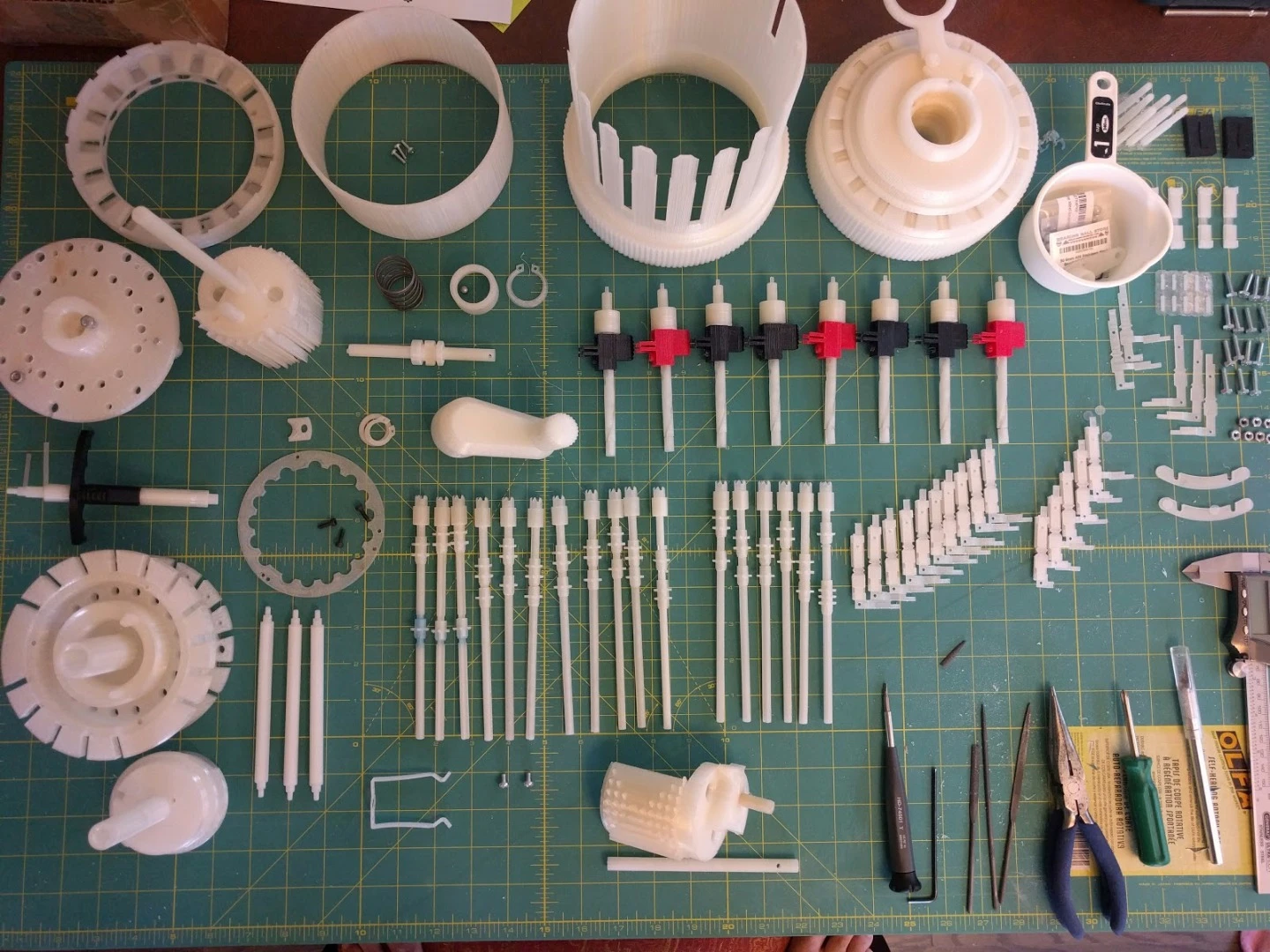

The 3D printed parts used in Marcus Wu's Curta replica
The 3D printed parts used in Marcus Wu's Curta replica

When finished, Wu's Curta replica will be painted the same matte black as the original and will serve as a reminder for today's engineers of another time when electronics were in their infancy, electronic computers hadn't been conceived, and the alternatives of the day were mechanical devices that required design and execution skills little appreciated today. It was a time when the calculating machine melded the mind of the engineer and the hands of a Swiss watchmaker. And if nothing else, it shows that out of one of the most horrible episodes in human history, a piece of great art can emerge.
