Dyson unveils next-generation air purifier

Dyson unveils next-generation ...

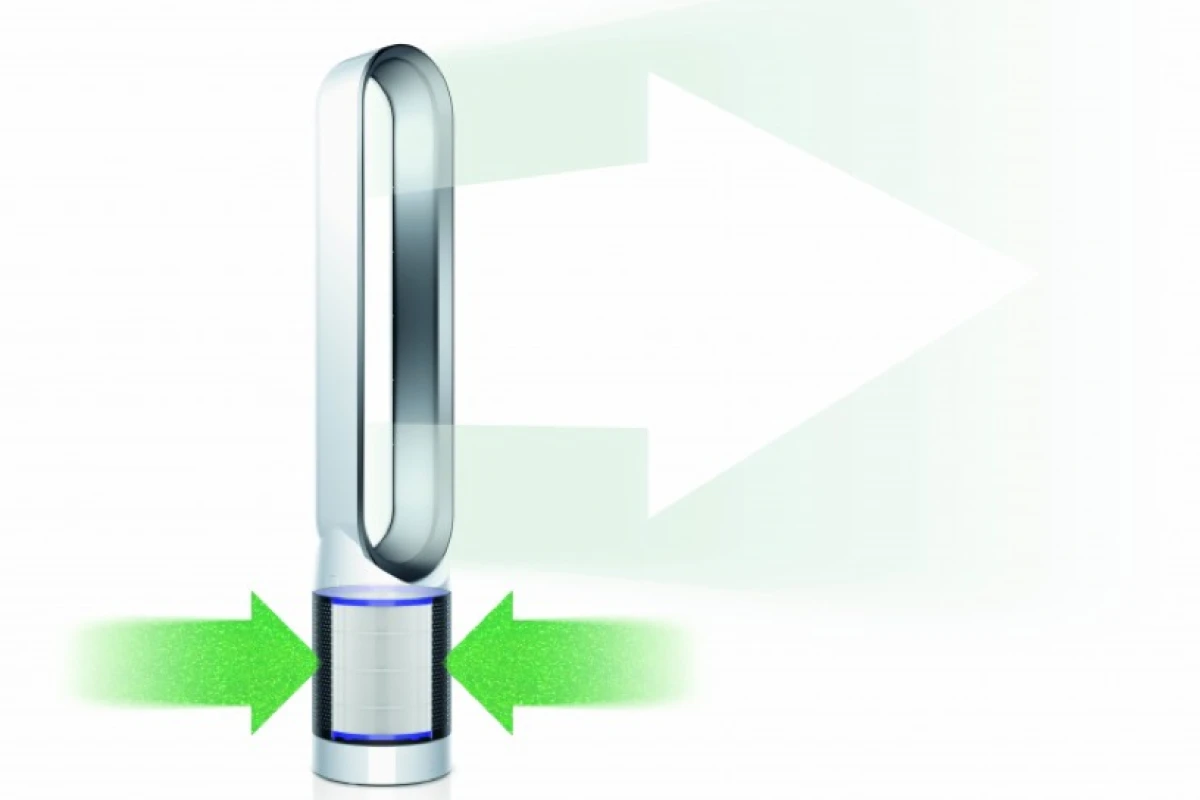

The Pure Cool has a 360-degree filter
The Pure Cool has a 360-degree filter
View 4 Images
The Pure Cool has a 360-degree filter
1/4
The Pure Cool has a 360-degree filter
The filter in the Pure Cool uses borosilicate glass
2/4
The filter in the Pure Cool uses borosilicate glass
The Pure Cool captures particles down to 0.1 microns
3/4
The Pure Cool captures particles down to 0.1 microns

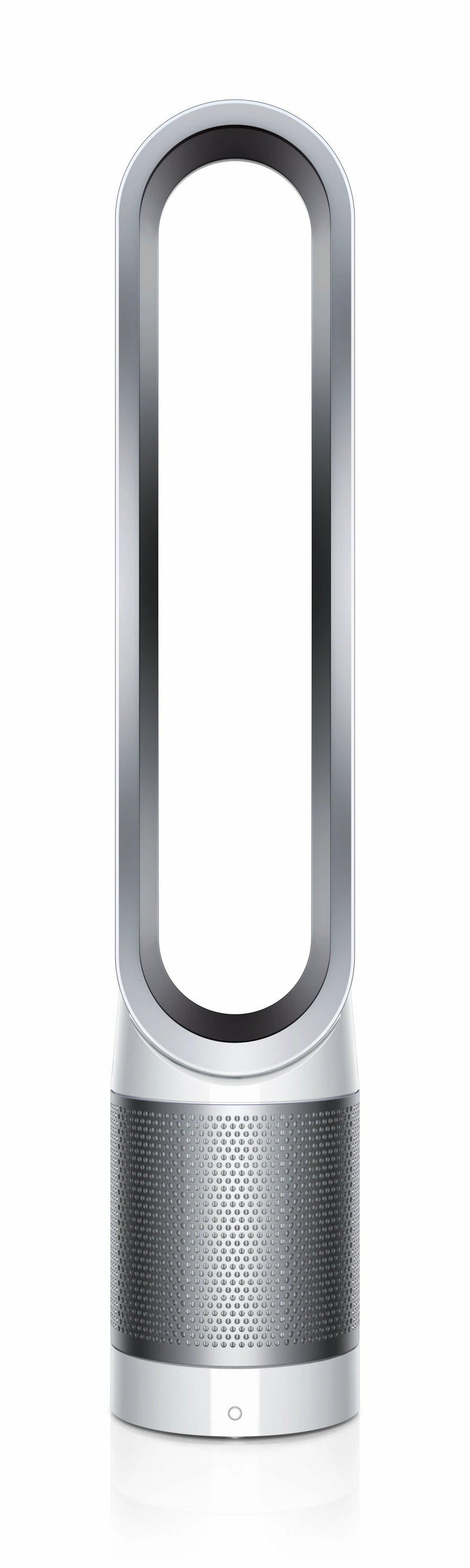

The Pure Cool is available in Japan and China
4/4
The Pure Cool is available in Japan and China

Not content with vacuums and fans, Dyson is expanding into the realm of air purification with its Pure Cool purifier fan, which was unveiled today. Building on the company's Air Multiplier technology, it's designed to capture ultrafine particles, which are a major component of air pollution. To learn more, Gizmag talked to Dyson engineer Robert Green.

According to Green, the Pure Cool is aimed initially at Asian markets, such as China, where air pollution is a major problem. We tend to think of air pollution as being either gases like carbon monoxide, or large, obvious solids, like soot, but it's the microscopic particles suspended in the atmosphere that are among the biggest hazards. That's because ultrafine particles can penetrate the lung's membranes and cause major damage to the cardiopulmonary system.

Green admits that the Pure Cool isn't the first air purifier on the market. In fact, purifiers are major sellers in Asia, but he claims that the Dyson purifier is one up because of the technology crossover from the company's other products.

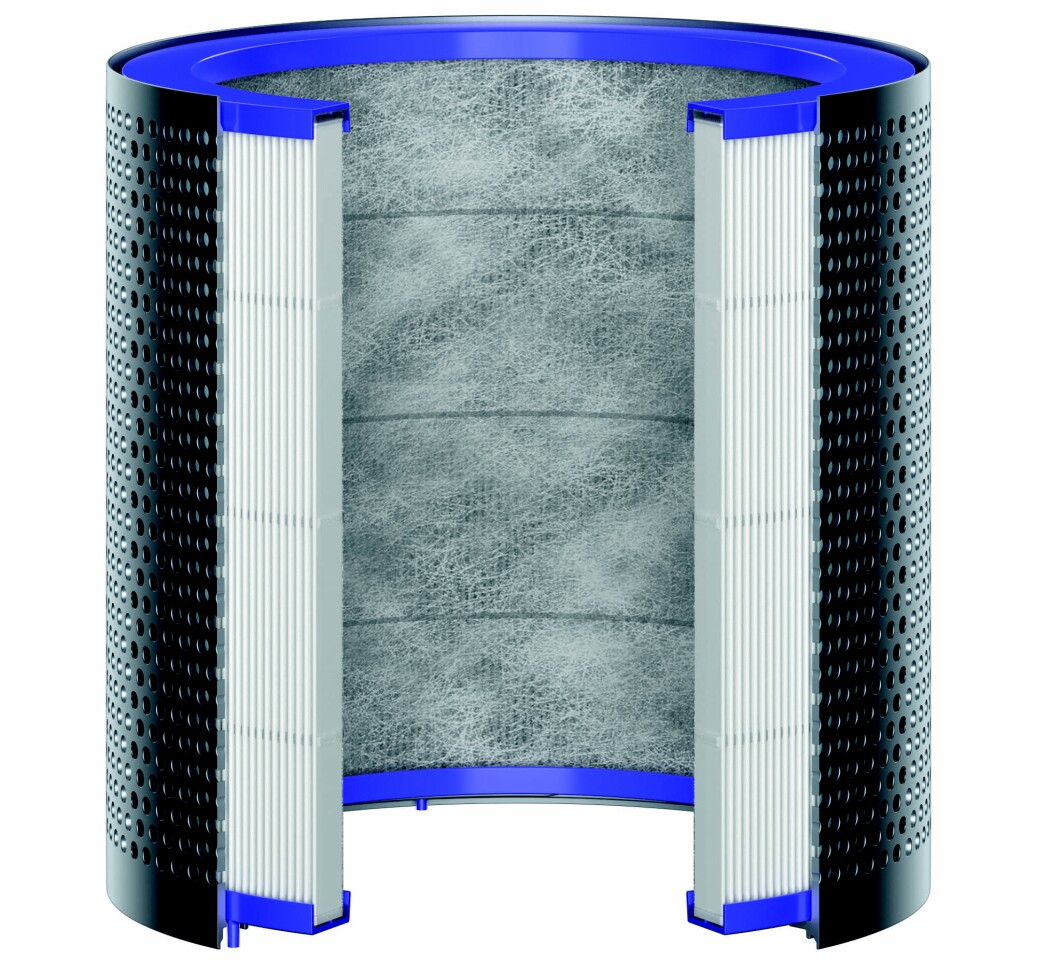

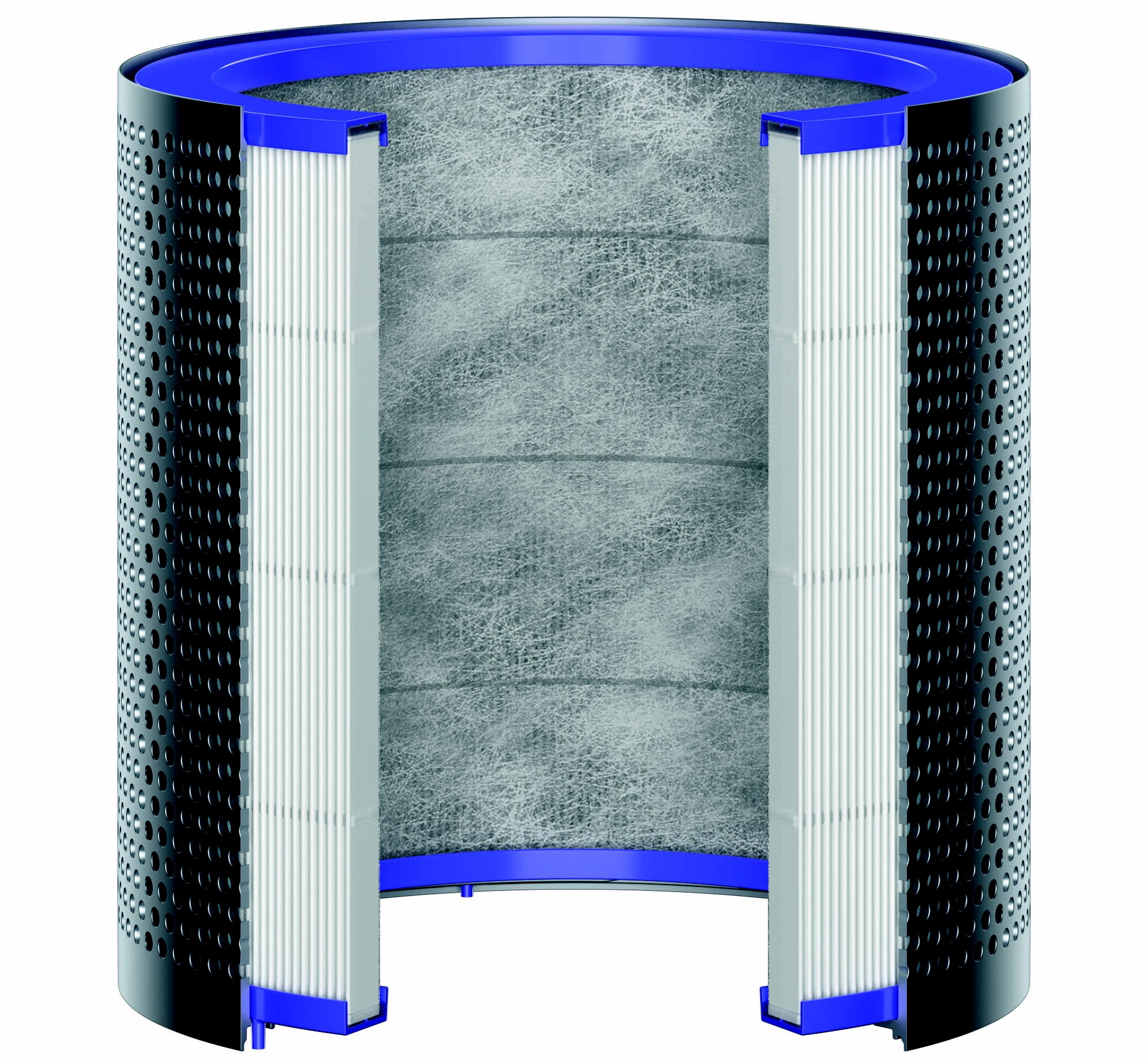

The filter in the Pure Cool uses borosilicate glass
The filter in the Pure Cool uses borosilicate glass

"The filtration system in an air purifier is not that dissimilar to the HEPA filters that you'll see in a vacuum cleaner," says Green. "So it was a logical step for us to take that technology from our vacuum cleaner and apply it to our Air Multiplier range to give us this purifier product."

The Dyson Pure Cool looks very similar to the company's bladeless fans, but it differs in that it includes a 360-degree glass HEPA filter to trap ultrafine particles. The filter is made of borosilicate microfibers set in a "bird's nest" design with a wrap-around configuration to provide a much larger surface area than previous filters of similar size.

Behind this borosilicate filter is an active carbon layer to remove odors, fumes, and vapors and, unlike other systems, this active layer is an integral part of the replaceable filter. Green says that this integrated design is a first and produces a more efficient filter that only needs replacing once every 12 months. He adds that Dyson has made this economically viable thanks to piggybacking on the company's vacuum cleaner manufacturing and supply infrastructure.

In a press release, Dyson says that the Pure Cool removes 99.95 percent of ultrafine particles as small as 0.1 microns and that is was put through a series of tests, including the smoke from 228 cigarettes, and still maintained performance.

In addition, the Pure Cool is capable of handling any size room, though larger spaces require longer filtration times. Green says that the current unit can filter a 13 sq m (140 sq ft) room in about 25 minutes.

The Dyson Pure Cool is available in Japan and China and will roll out in other markets later this year. No price has been set yet.
