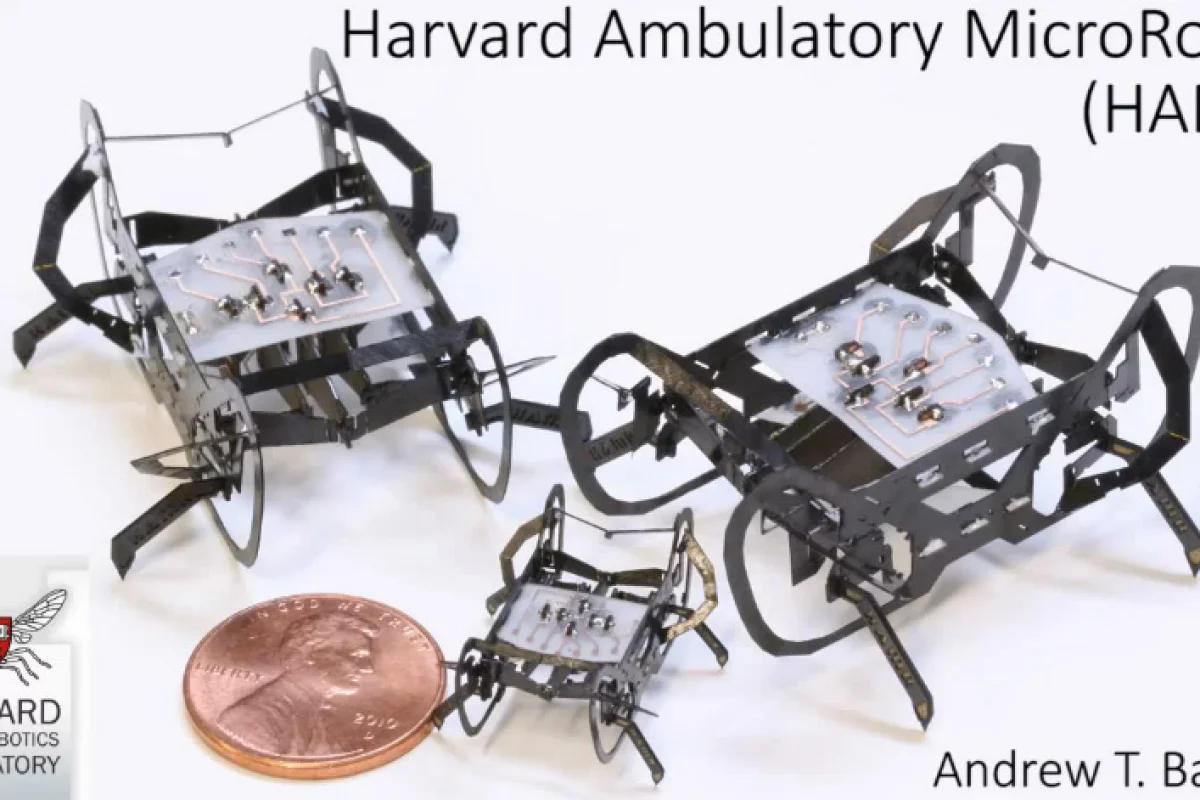

Harvard Microrobotics Lab's HAMR is an insect-sized robot capable of high speed legged locomotion
Harvard Microrobotics Lab's HAMR is an insect-sized robot capable of high speed legged locomotion
View 7 Images
The PC-MEMs manufacturing method, developed at Harvard Microrobotics Lab, was used to create this tiny model of the Wright brothers' bi-plane
1/7
The PC-MEMs manufacturing method, developed at Harvard Microrobotics Lab, was used to create this tiny model of the Wright brothers' bi-plane

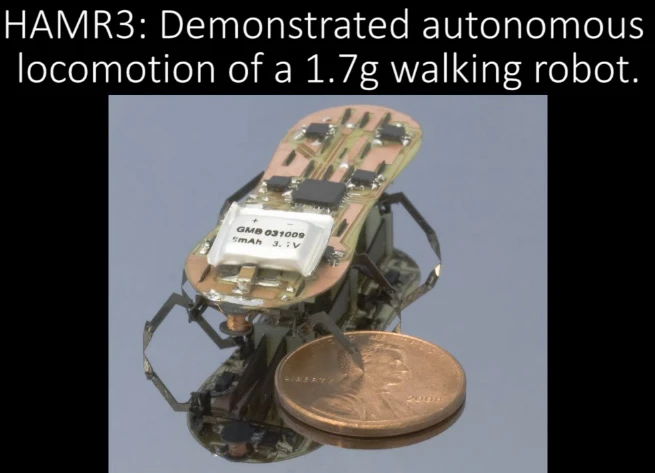

HAMR3 is a 1.7 gram six-legged microrobot that carries its own power source
2/7
HAMR3 is a 1.7 gram six-legged microrobot that carries its own power source

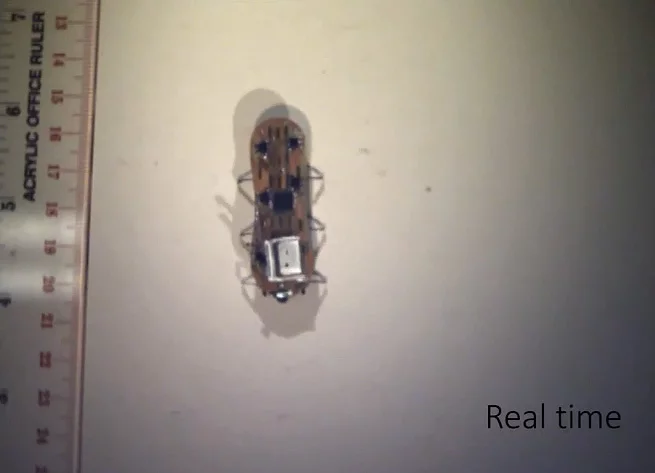

Unlike its tethered cousins, HAMR3 is autonomous thanks to its on board battery
3/7
Unlike its tethered cousins, HAMR3 is autonomous thanks to its on board battery
HAMR running at 8.4 body lengths per second is just a blur when observed in real time
4/7
HAMR running at 8.4 body lengths per second is just a blur when observed in real time

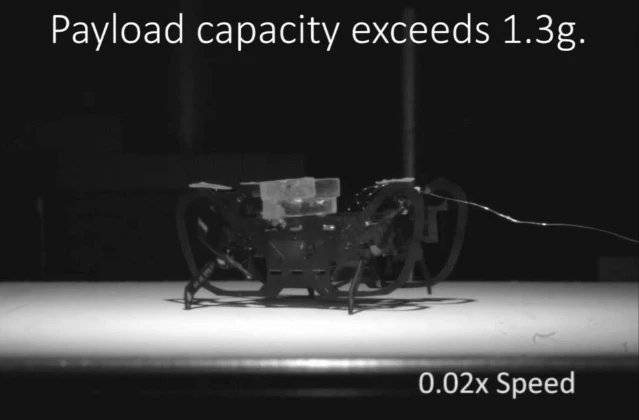

The HAMR running experiment can only be observed when the video is slowed to a fraction of real time
5/7
The HAMR running experiment can only be observed when the video is slowed to a fraction of real time

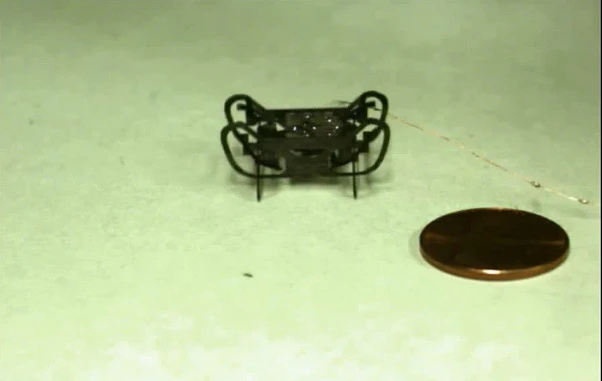

By simply reducing the design file, Harvard researchers managed to produce a version of HAMR weighing just 270 mg, about the size of a penny.
6/7
By simply reducing the design file, Harvard researchers managed to produce a version of HAMR weighing just 270 mg, about the size of a penny.

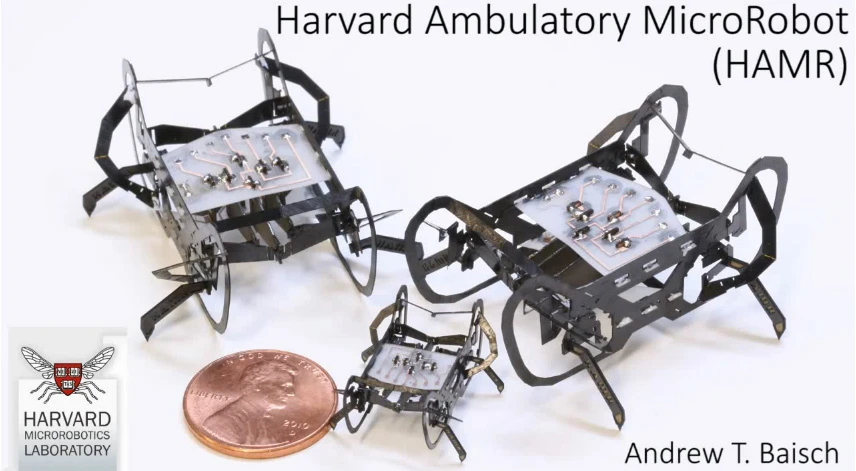

Harvard Microrobotics Lab's HAMR is an insect-sized robot capable of high speed legged locomotion
7/7
Harvard Microrobotics Lab's HAMR is an insect-sized robot capable of high speed legged locomotion
View gallery - 7 images

Though there's much work to be done before miniature robots move exactly like insects, Harvard Microrobotics Lab is making strides with its latest prototypes. It recently demonstrated the Harvard Ambulatory MicroRobot (HAMR), a 4.4 cm (1.7 in) quadruped that scurries around at up to 8.4 body lengths per second.

Andrew Baisch has been developing the robots over the last five years while earning his PhD under the principal investigator, Professor Rob Wood. Quick assembly of the prototypes was made possible by the lab's Printed Circuit Microelectromechanical Systems (PC-MEMS) manufacturing method, where materials are sandwiched together in 23 microscopic layers and laser cut into patterns. Flexible materials in the pattern serve as hinges, allowing panels to be folded into three dimensional shapes much like the pages in a children's pop-up book (though some components are still assembled by hand).

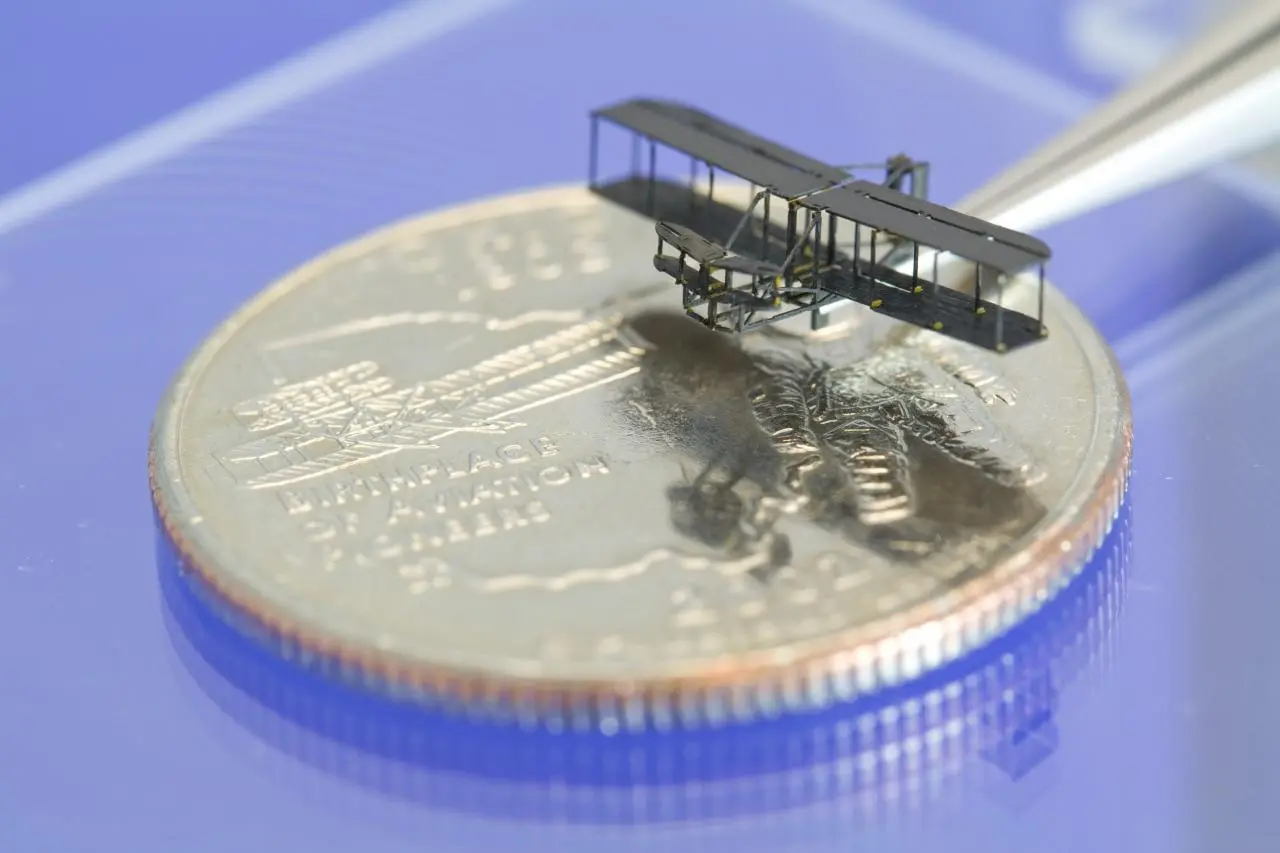

The PC-MEMs manufacturing method, developed at Harvard Microrobotics Lab, was used to create this tiny model of the Wright brothers' bi-plane
The PC-MEMs manufacturing method, developed at Harvard Microrobotics Lab, was used to create this tiny model of the Wright brothers' bi-plane

By simply scaling the design file, they managed to produce a version weighing just 270 mg that was about the size of a penny. The larger HAMR weighs 1.3 grams (0.045 oz), which is comparable to some insects. And, like an insect, HAMR can carry more than its own body weight. However, typical actuators like electric motors or hydraulics are much too large and heavy for it. Instead HAMR's legs wiggle back and forth at 70 Hz powered by six piezoelectric ceramic actuators controlled by two simple control inputs.

One of the main issues with the actuators is the high voltage they require, which tethers it to an external power source. However, the researchers have managed to build a self-contained prototype, HAMR3, with help from Christian Heimlich. It carries its own power, bumping the weight up to 1.7 g (0.059 oz), but it moves slower due to the battery's lower voltage.

Recent breakthroughs in 3D printed batteries on the micron scale could lead to even smaller autonomous microrobots, and may be necessary for the lab's winged Robobee to maintain its fly-weight. For the time being HAMR remains tethered, but it can turn left and right and is pretty fast.

You can see the HAMR's speed for yourself in the video below.

Source: Harvard Microrobotics Lab

The Harvard Ambulatory MicroRobot (HAMR)
