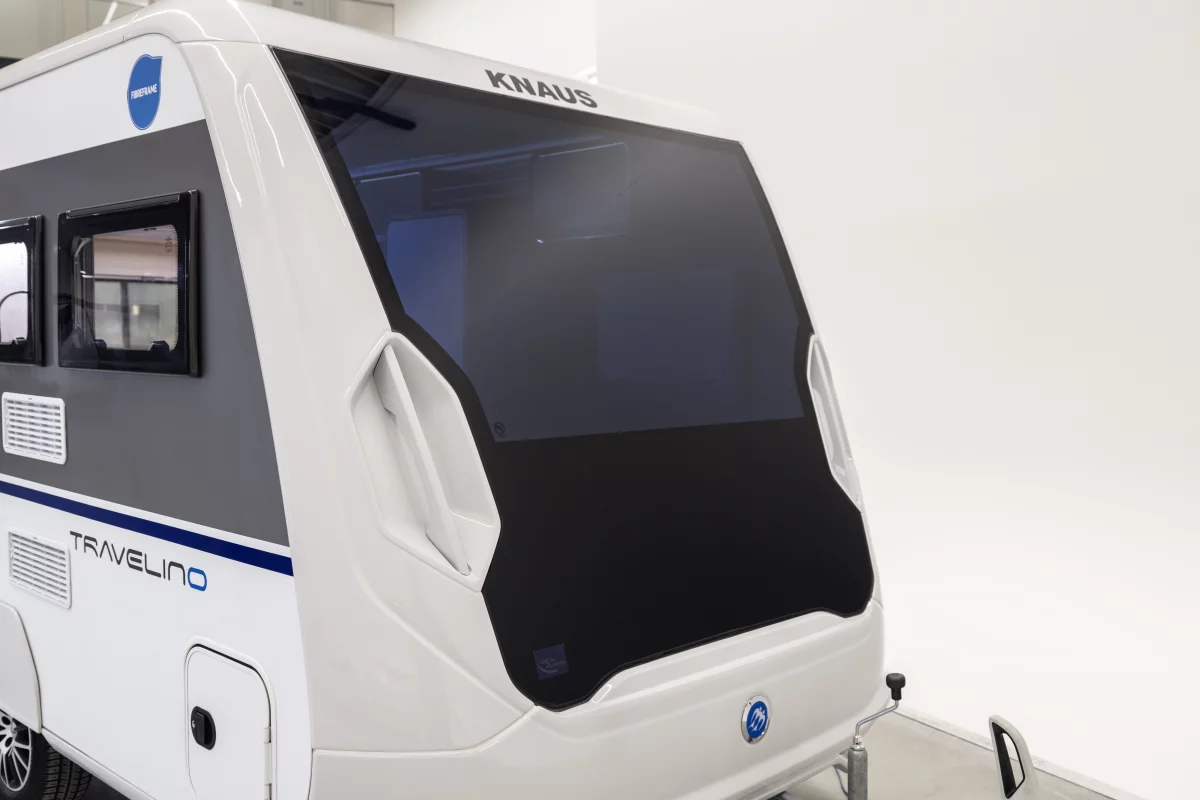

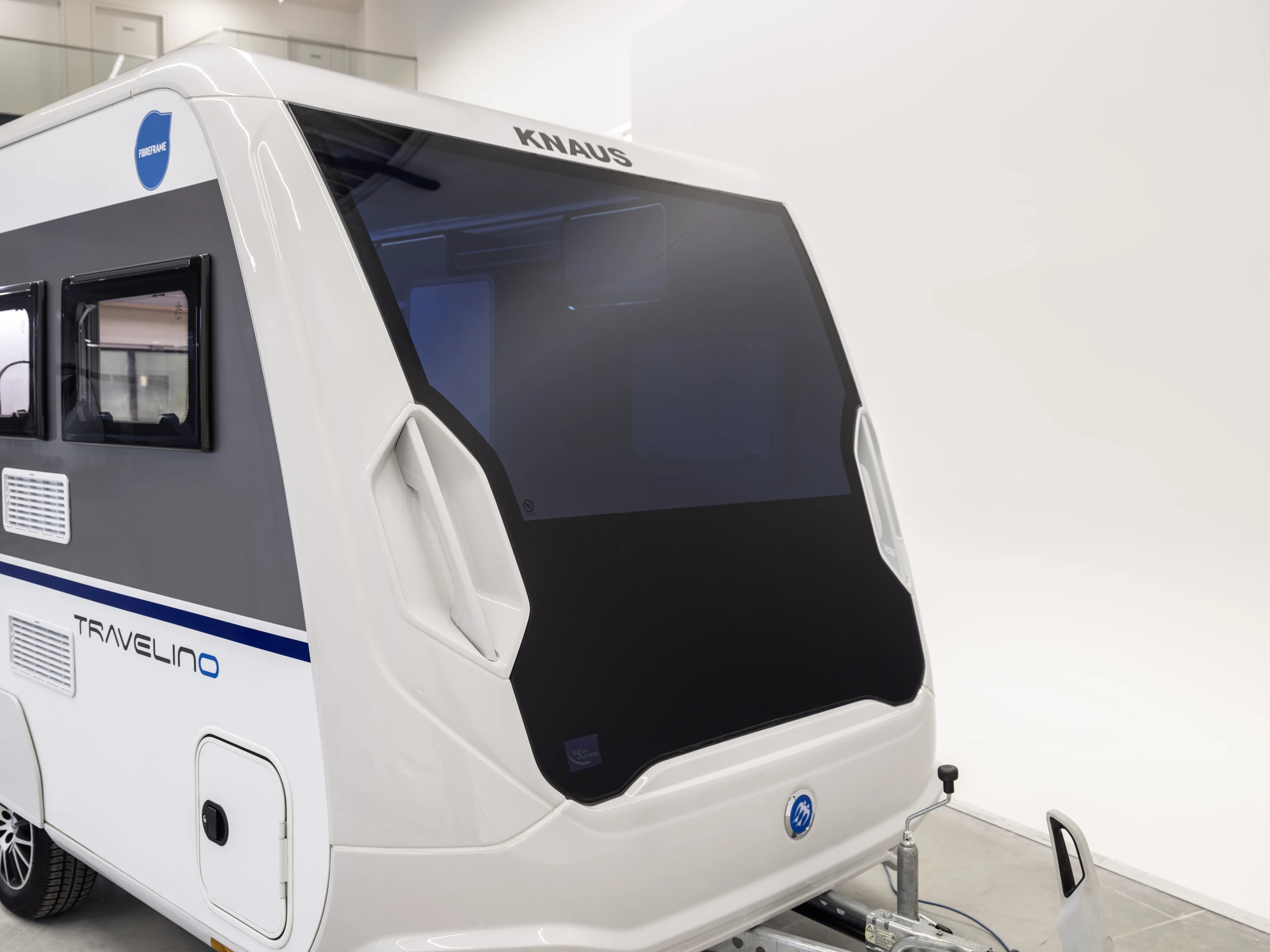

Campers can adjust the Travelino Skyview's window to "dark" when it's time to sleep
Campers can adjust the Travelino Skyview's window to "dark" when it's time to sleep
View 27 Images
The large electrochromic glass window adds a new innovation to the Travelino trailer
1/27
The large electrochromic glass window adds a new innovation to the Travelino trailer
Campers can adjust the Travelino Skyview's window to "dark" when it's time to sleep
2/27
Campers can adjust the Travelino Skyview's window to "dark" when it's time to sleep
The dimming glass can adjust on a sliding scale between dark and clear
3/27
The dimming glass can adjust on a sliding scale between dark and clear

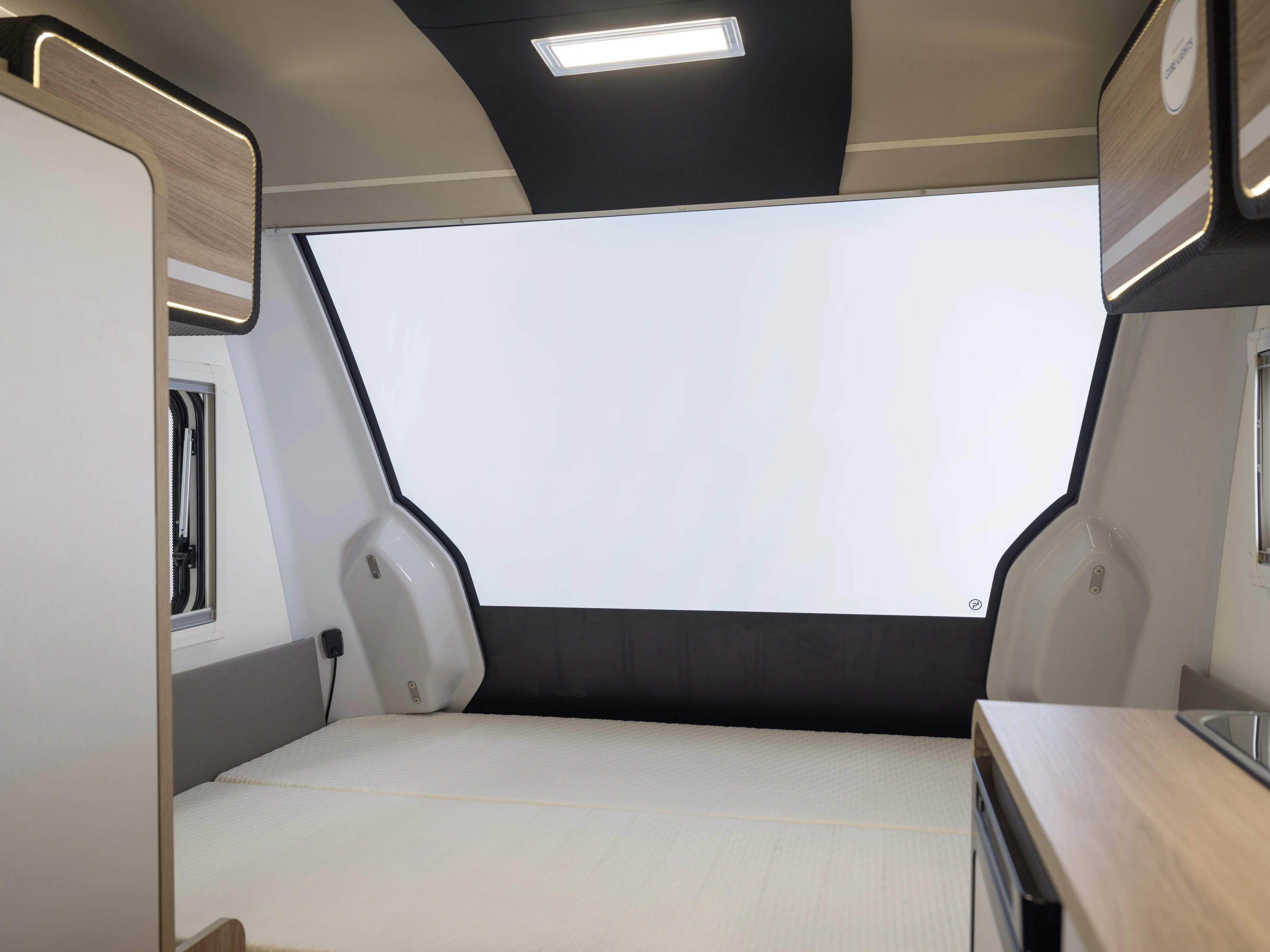

Lighten the Skyview glass for clearer views of the mountainside, ocean, wildlife ... or whatever else is outside the Travelino's walls
4/27
Lighten the Skyview glass for clearer views of the mountainside, ocean, wildlife ... or whatever else is outside the Travelino's walls

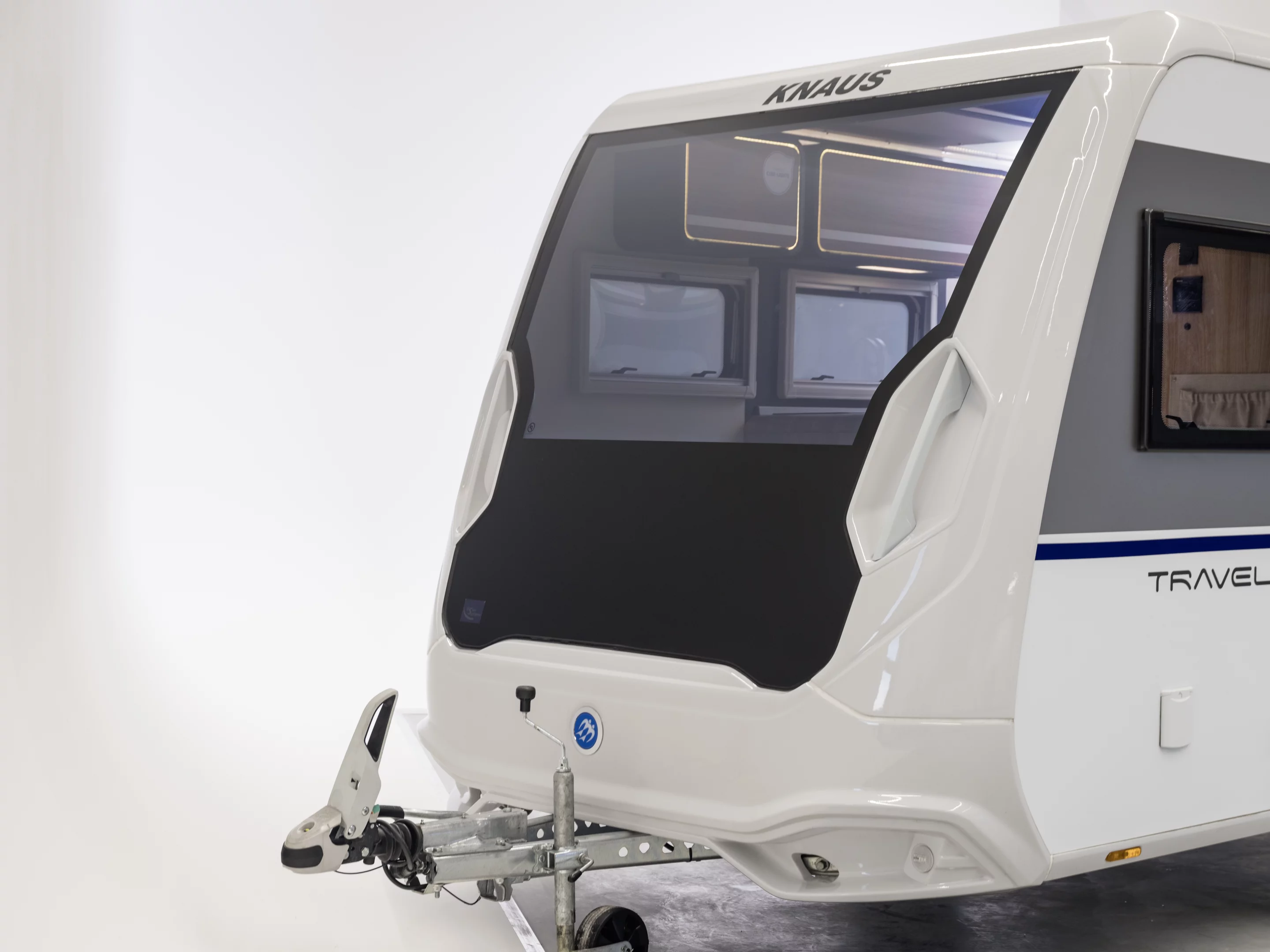

Knaus showed the Concept Travelino Skyview at this month's Caravan, Motor und Touristik (CMT) show in Stuttgart, Germany
5/27
Knaus showed the Concept Travelino Skyview at this month's Caravan, Motor und Touristik (CMT) show in Stuttgart, Germany

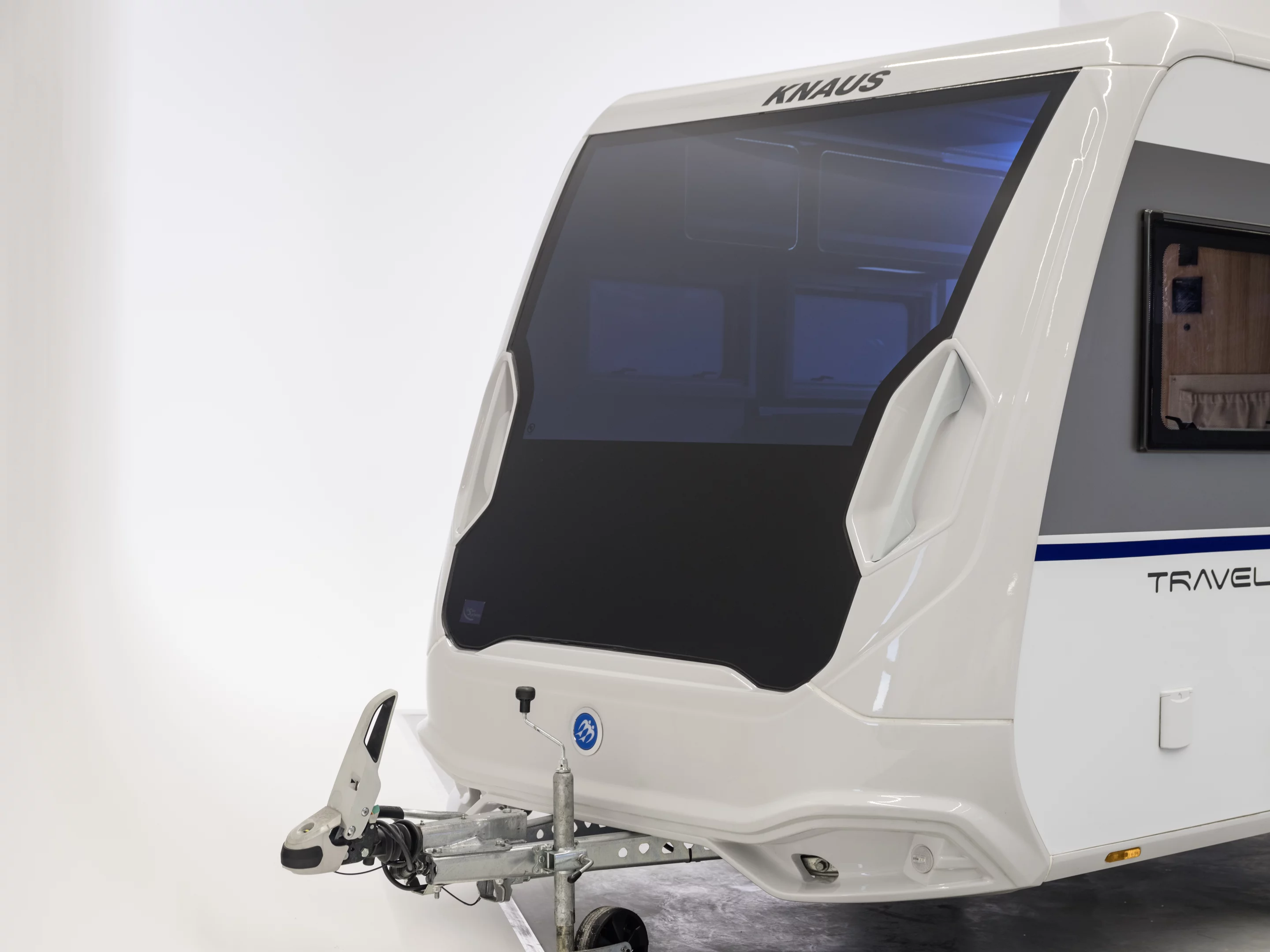

Knaus builds on its Travelino caravan with the Skyview concept
6/27
Knaus builds on its Travelino caravan with the Skyview concept

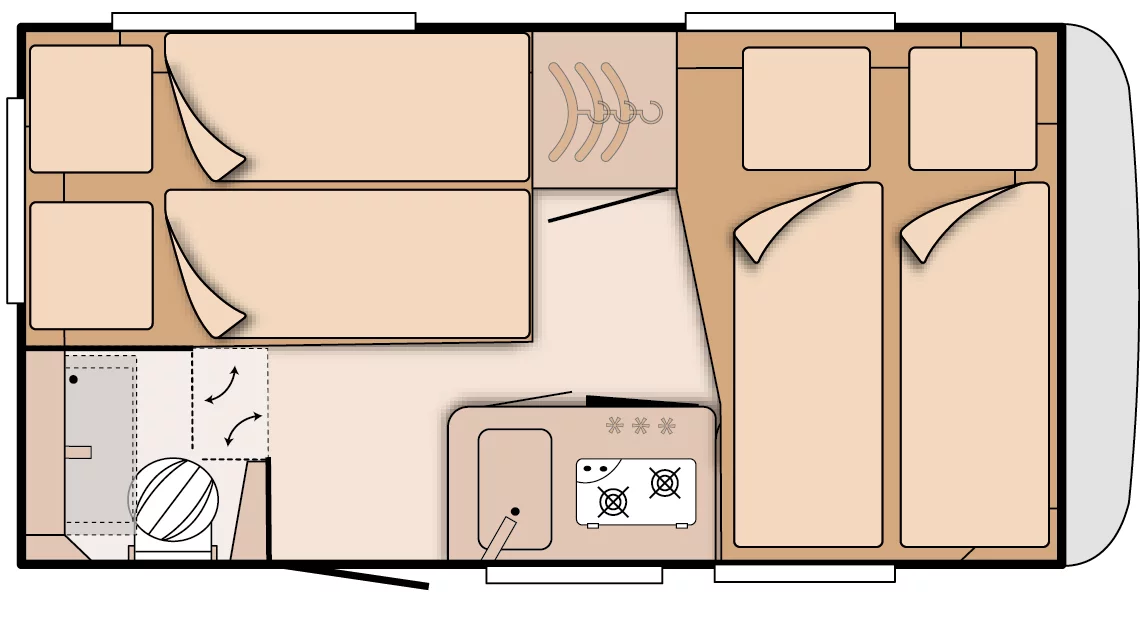

The Travelino is currently advertised in a 400 QL floor plan that sleeps four
7/27
The Travelino is currently advertised in a 400 QL floor plan that sleeps four

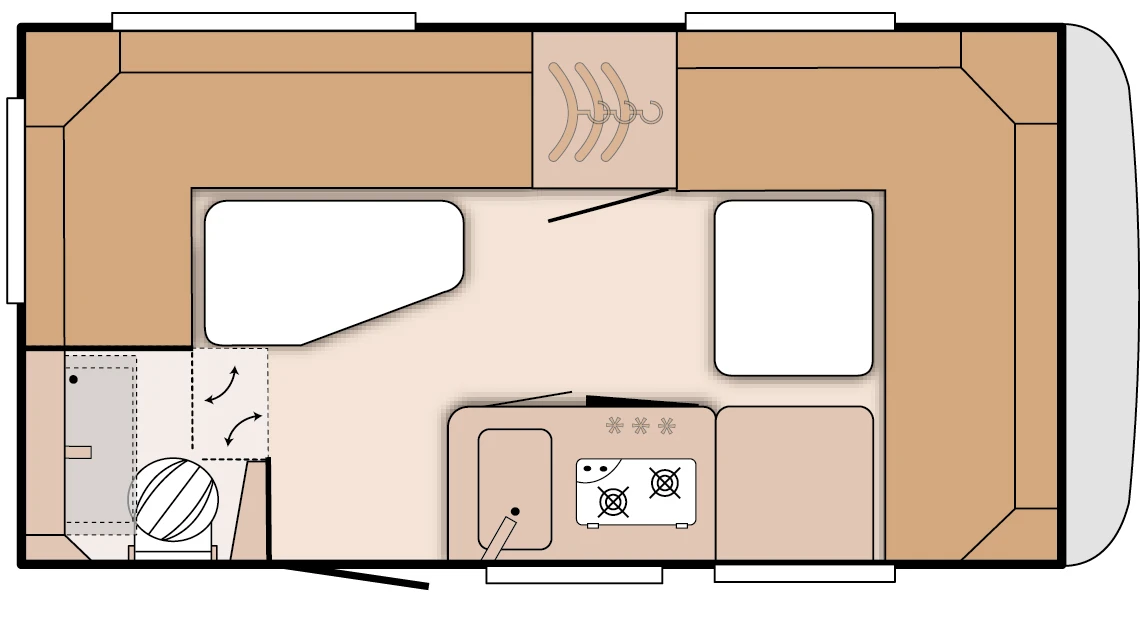

During the day, the beds can turn into seating areas
8/27
During the day, the beds can turn into seating areas

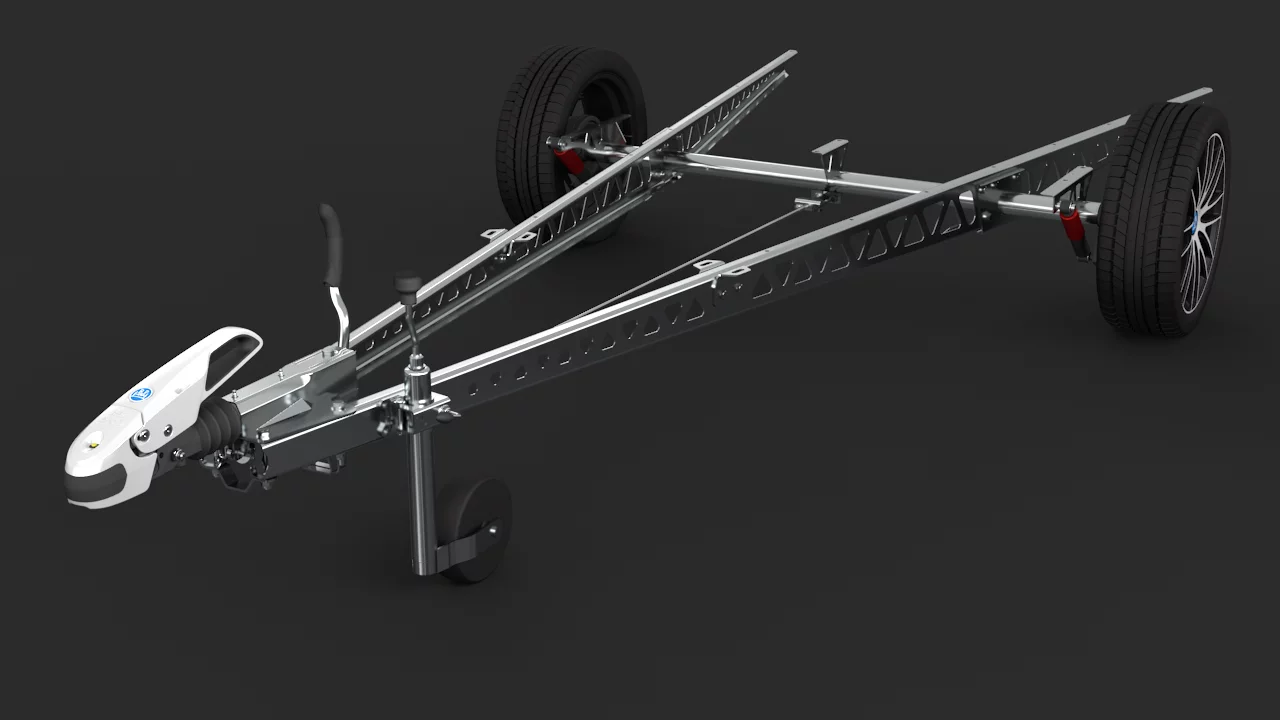

The A-frame style chassis helps in cutting weight off the Travelino
9/27
The A-frame style chassis helps in cutting weight off the Travelino
A pillar of the Travelino design is the self-supporting FibreFrame, which helps to free up interior possibilities
10/27
A pillar of the Travelino design is the self-supporting FibreFrame, which helps to free up interior possibilities
A pillar of the Travelino design is the self-supporting FibreFrame, which helps to free up interior possibilities
11/27
A pillar of the Travelino design is the self-supporting FibreFrame, which helps to free up interior possibilities

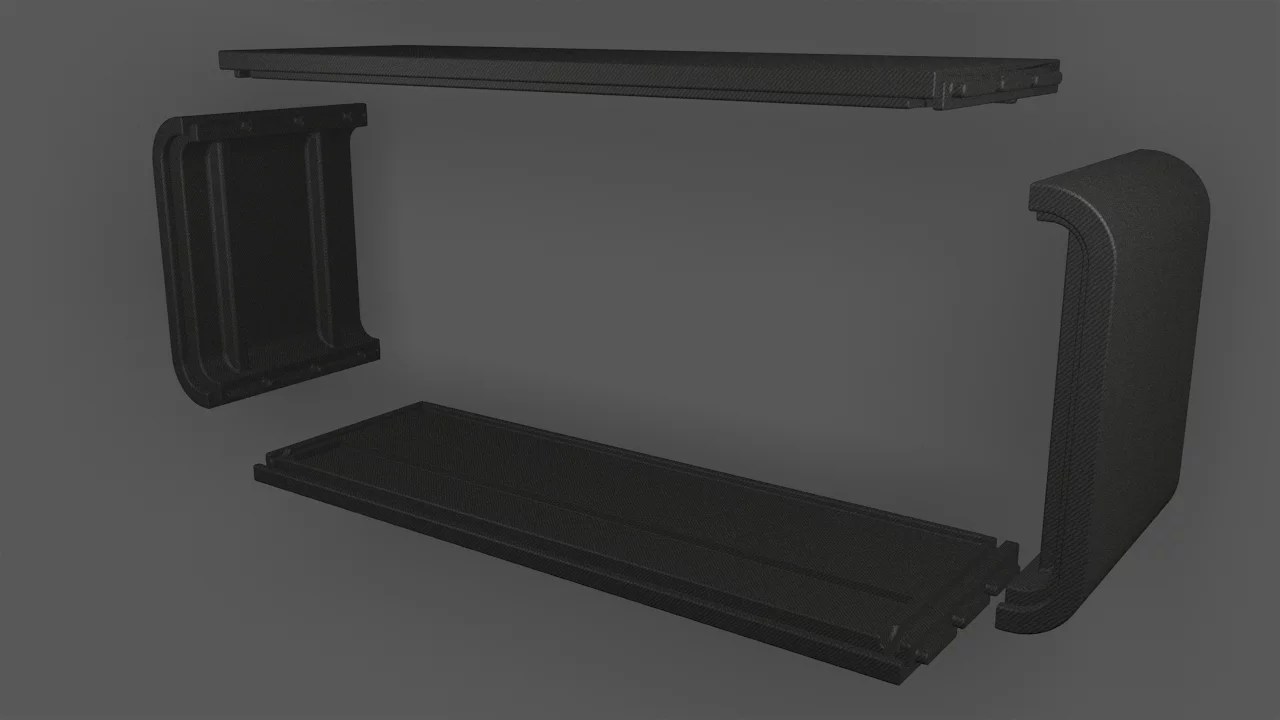

The expanded polypropylene (EPP) furniture construction is another weight saving measure in the Travelino's design
12/27
The expanded polypropylene (EPP) furniture construction is another weight saving measure in the Travelino's design

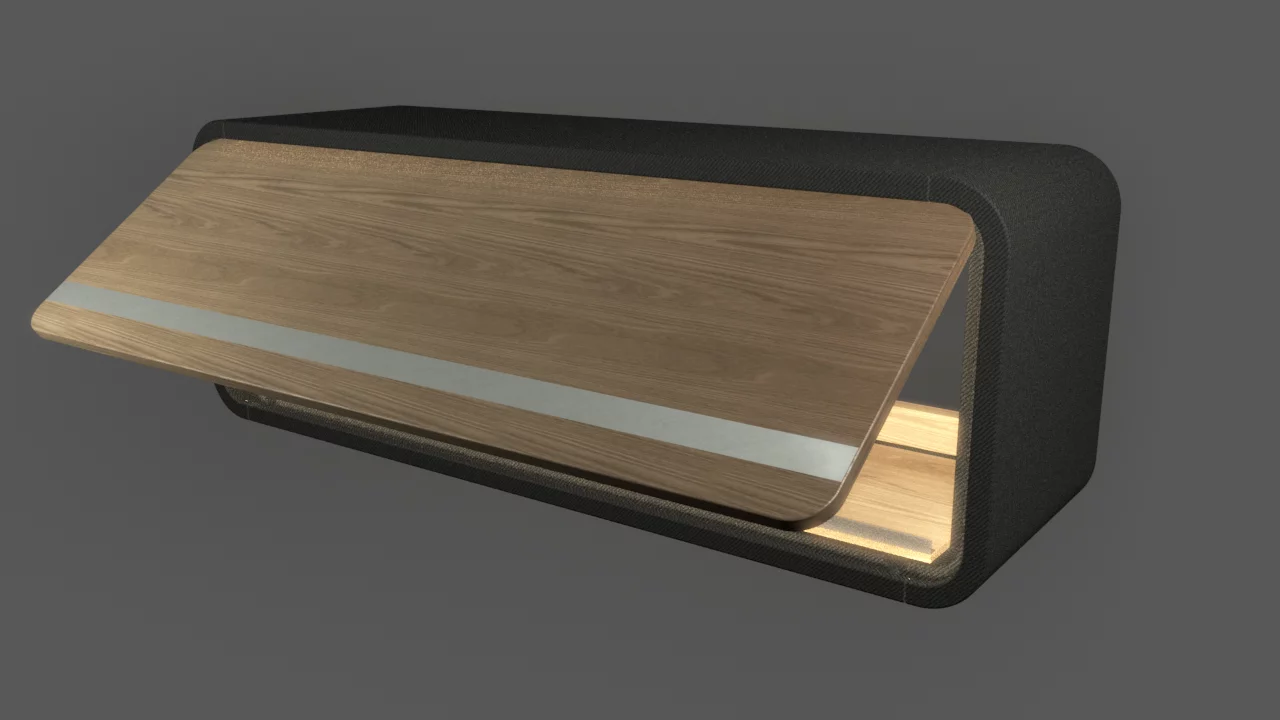

The EPP pieces are secured via an ultrasonic WoodWelding-based method that provides strength and stability
13/27
The EPP pieces are secured via an ultrasonic WoodWelding-based method that provides strength and stability

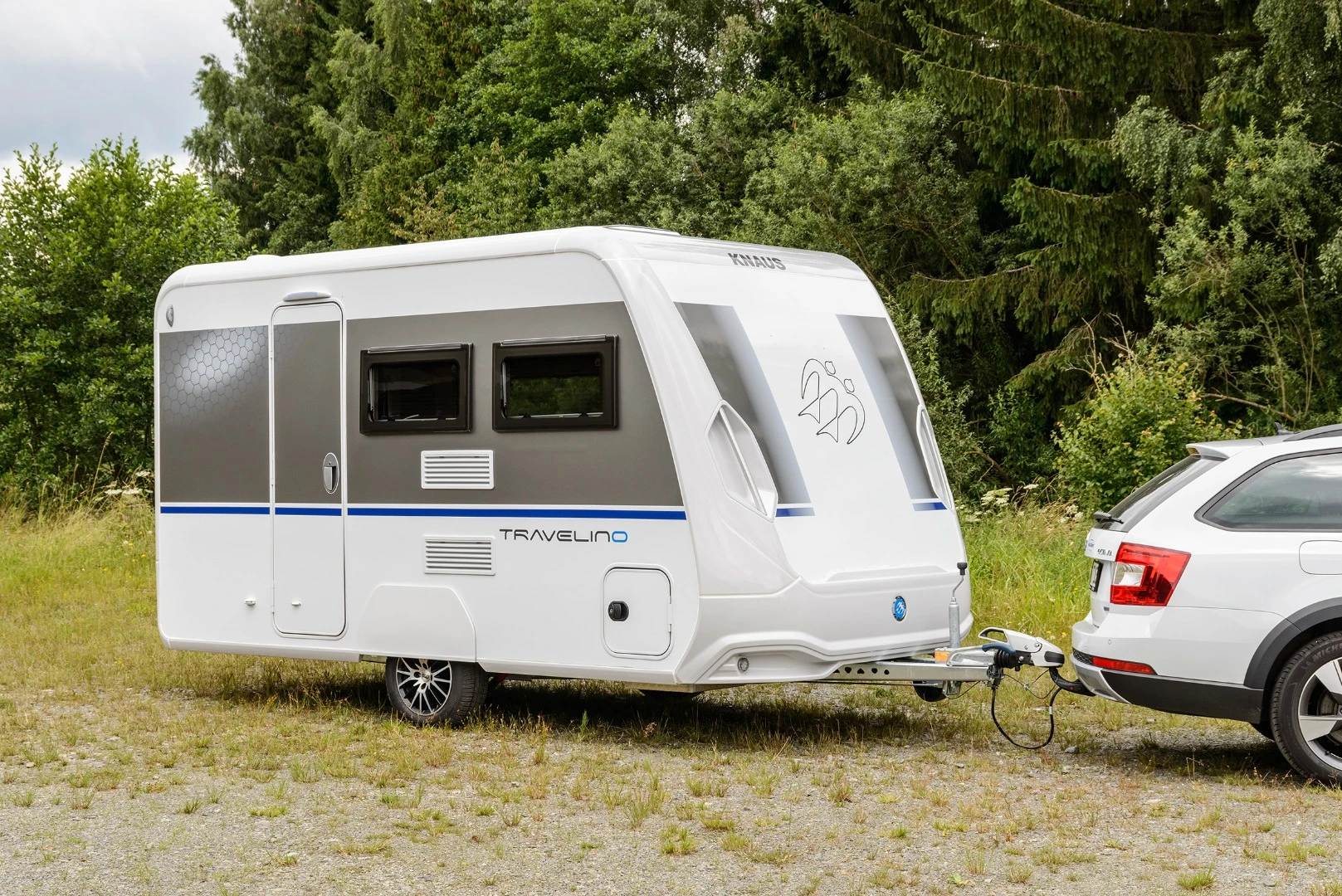

Knaus Travelino
14/27
Knaus Travelino
Inside the Knaus Travelino
15/27
Inside the Knaus Travelino

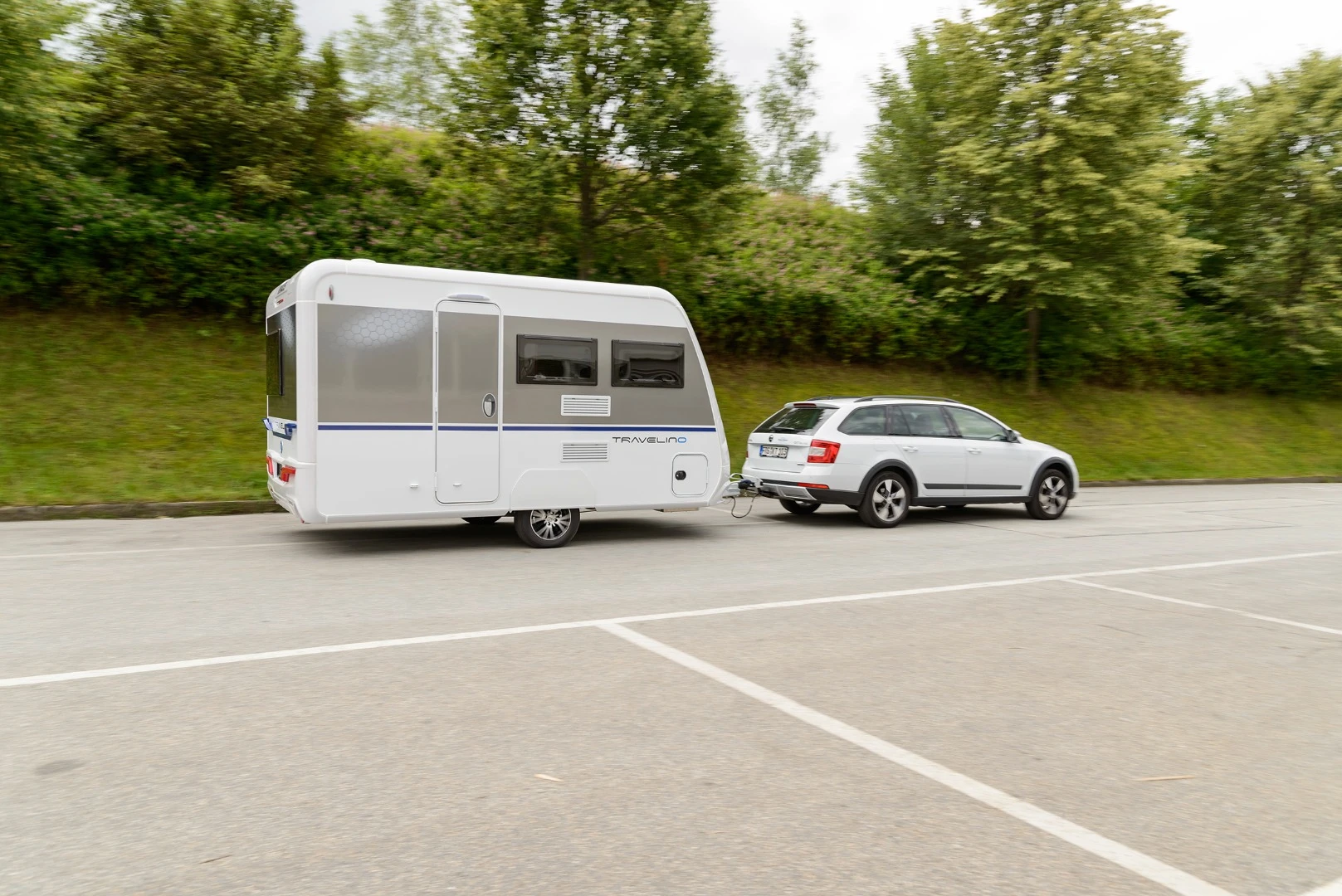

The Knaus Travelino serves as the basis for the new Skyview concept
16/27
The Knaus Travelino serves as the basis for the new Skyview concept

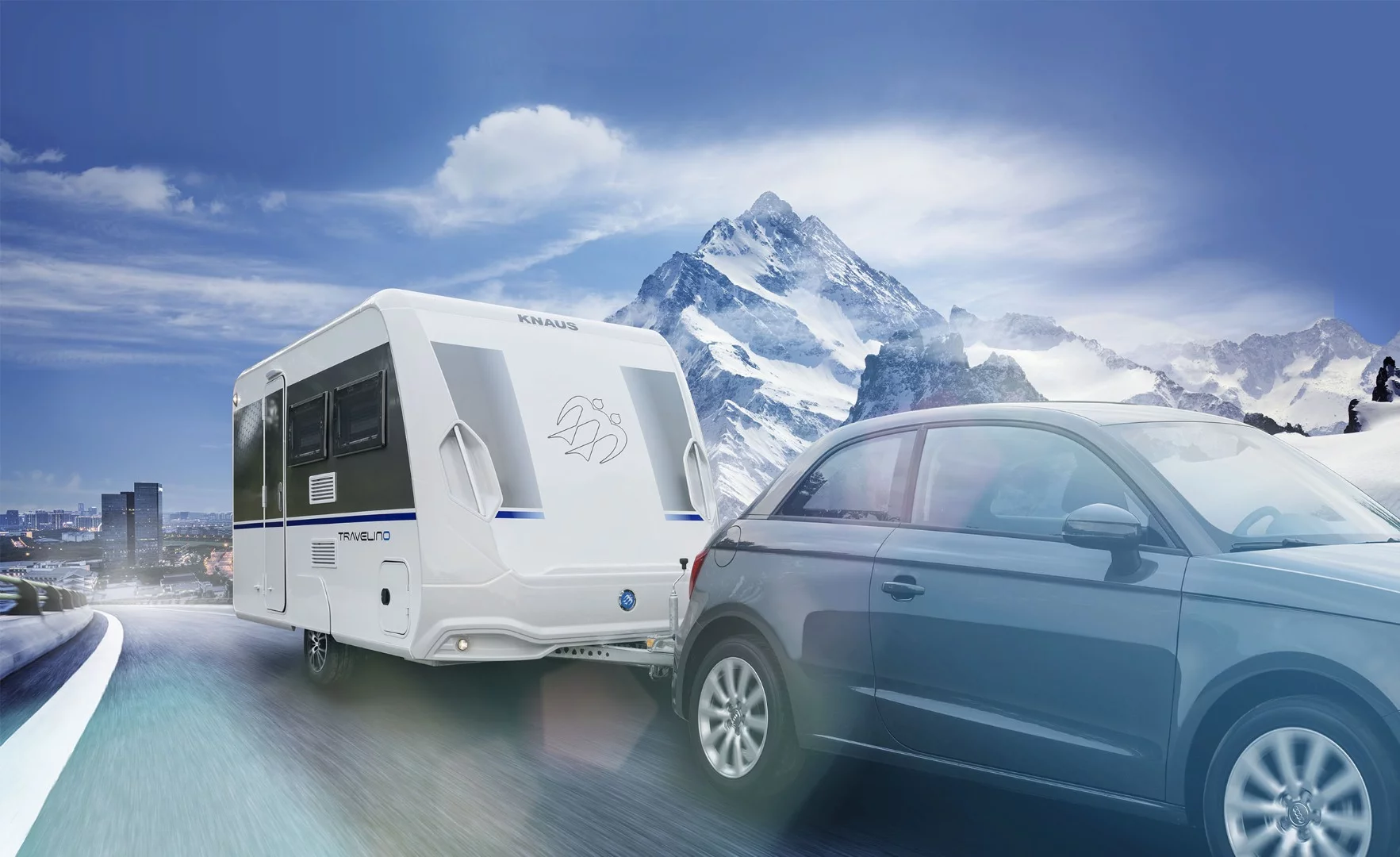

The production Knaus Travelino lacks the large front window, electrochromic or not
17/27
The production Knaus Travelino lacks the large front window, electrochromic or not

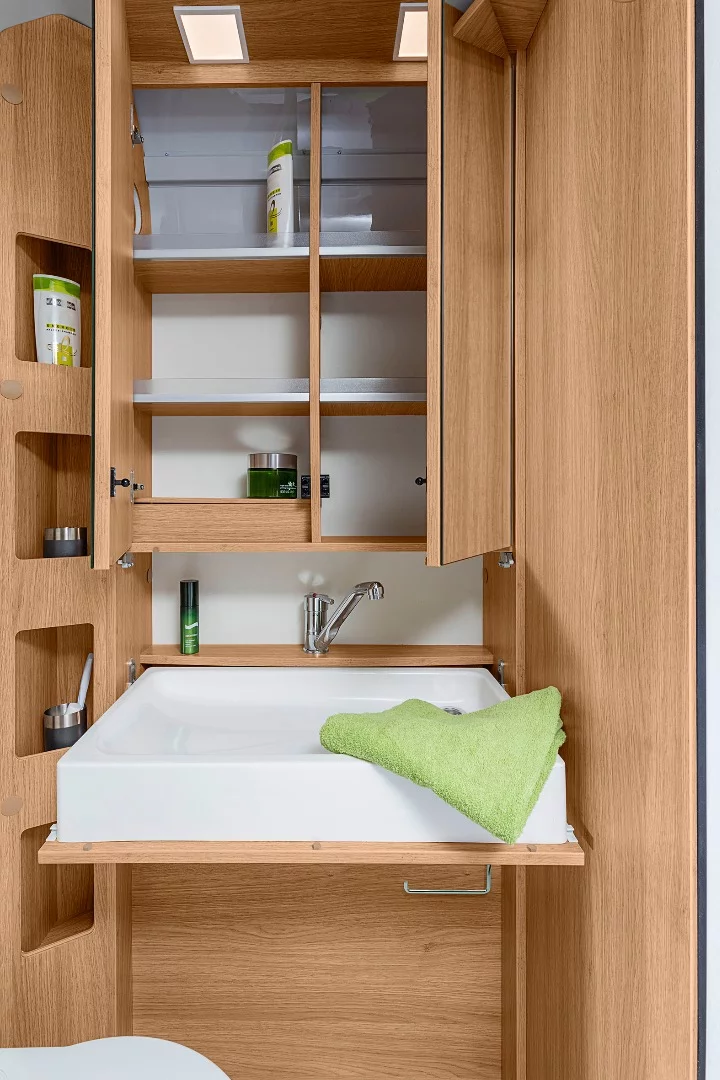

The fold-down bathroom sink
18/27
The fold-down bathroom sink

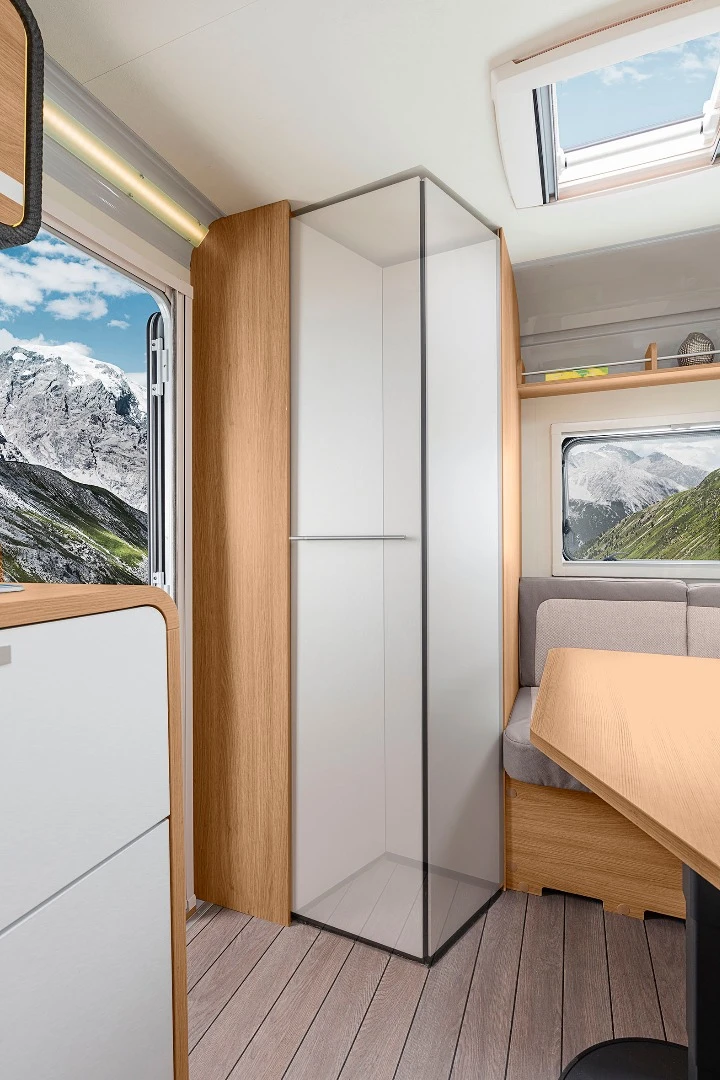

The two-panel bathroom door can expand out or contract in as needed
19/27
The two-panel bathroom door can expand out or contract in as needed

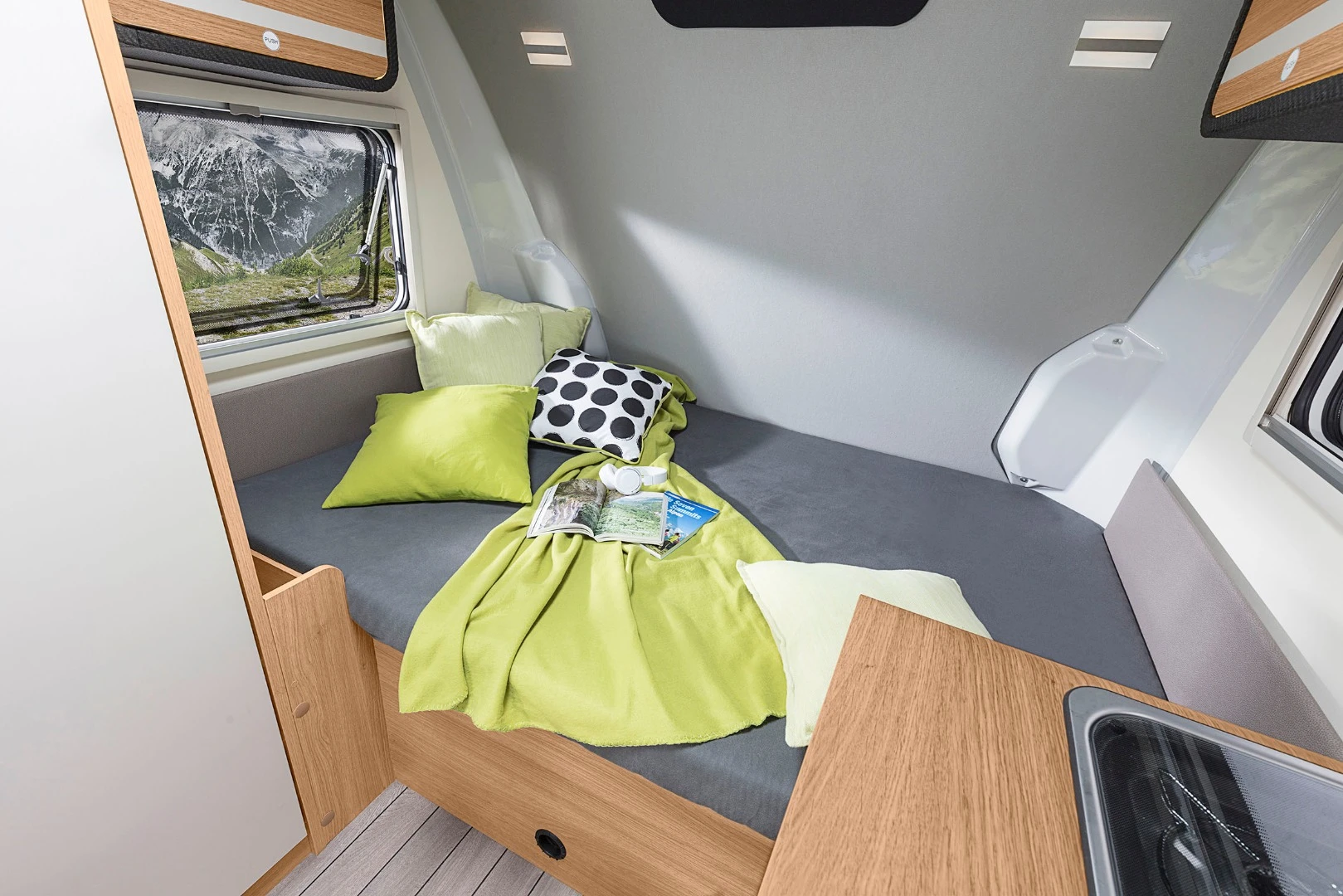

Ready for bed
20/27
Ready for bed
Escaping the city for the fresh mountain air
21/27
Escaping the city for the fresh mountain air

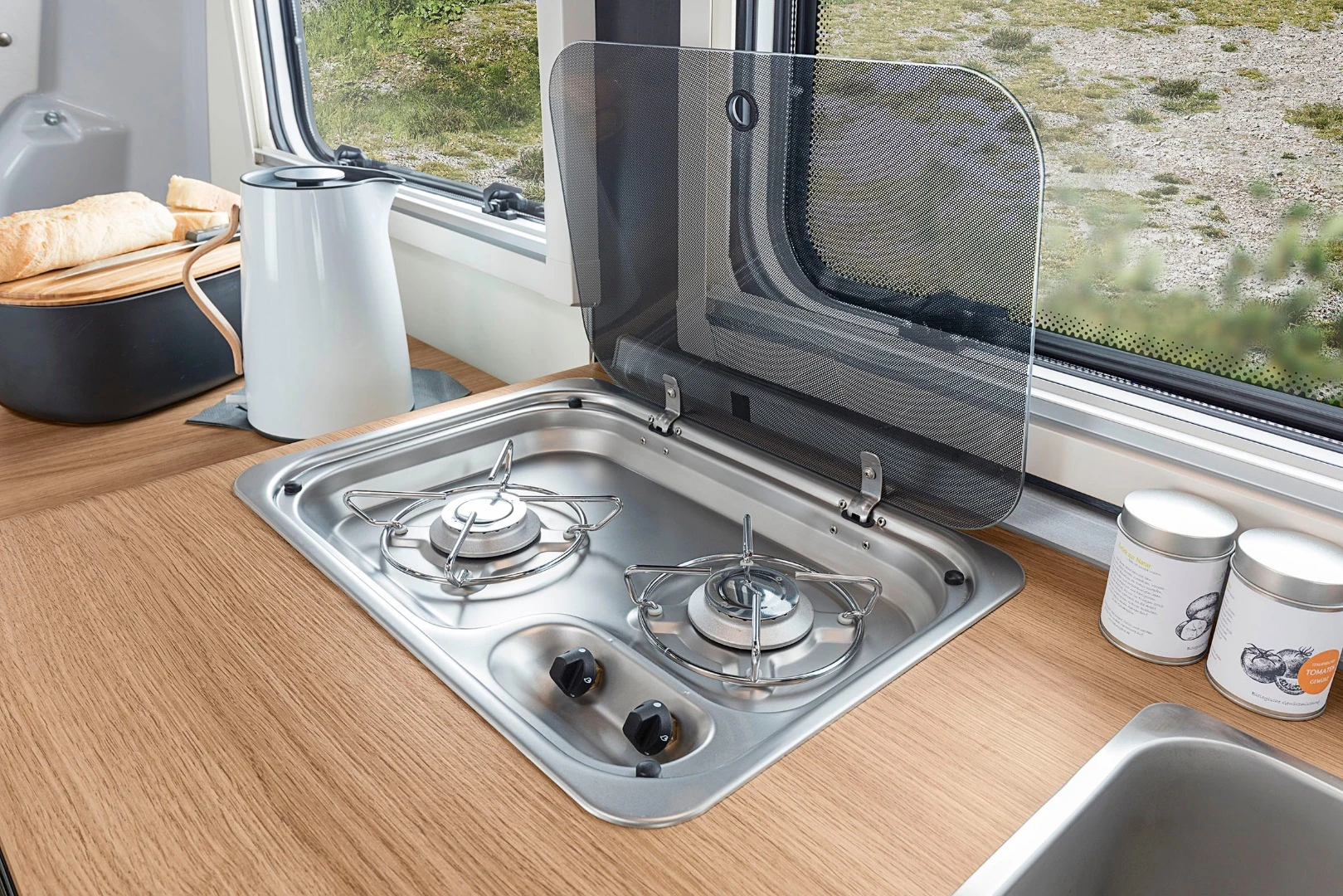

The Travelino kitchen has a dual-burner stove, sink and refrigerator
22/27
The Travelino kitchen has a dual-burner stove, sink and refrigerator

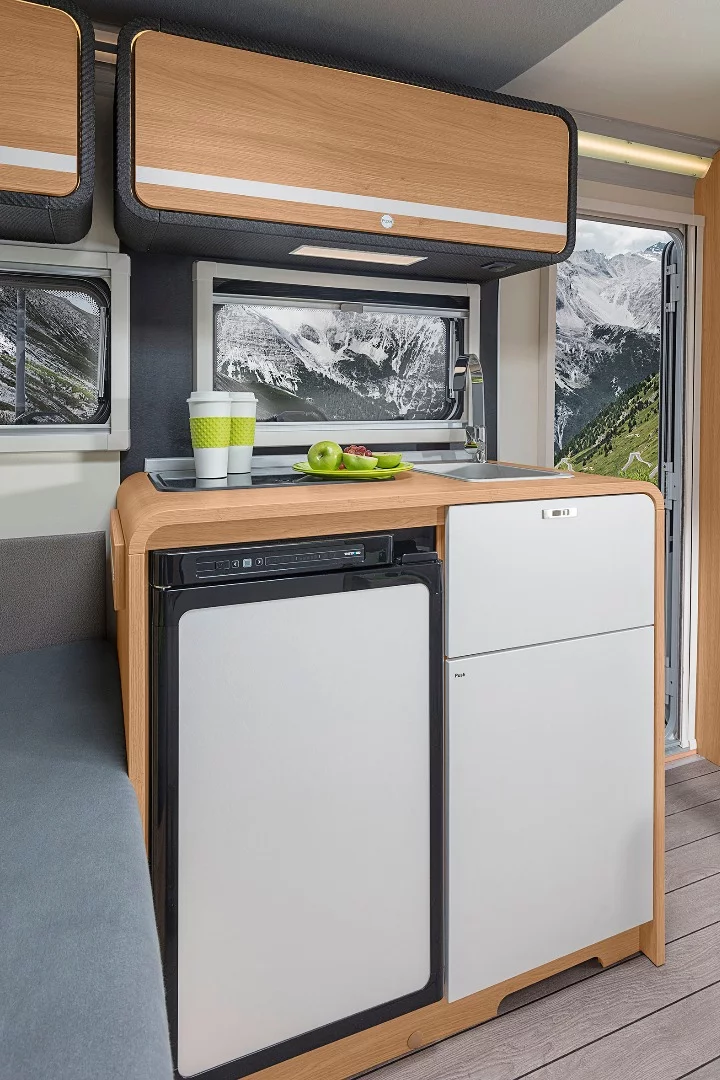

Knaus Travelino kitchen area
23/27
Knaus Travelino kitchen area

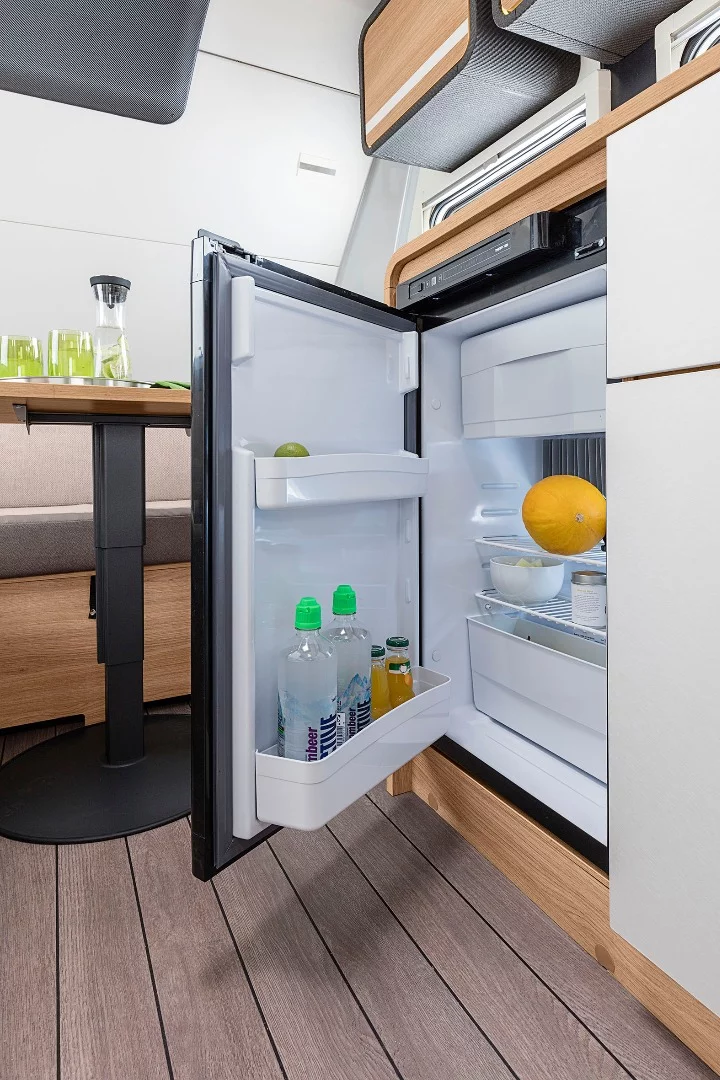

The Travelino has an 80-liter refrigerator
24/27
The Travelino has an 80-liter refrigerator

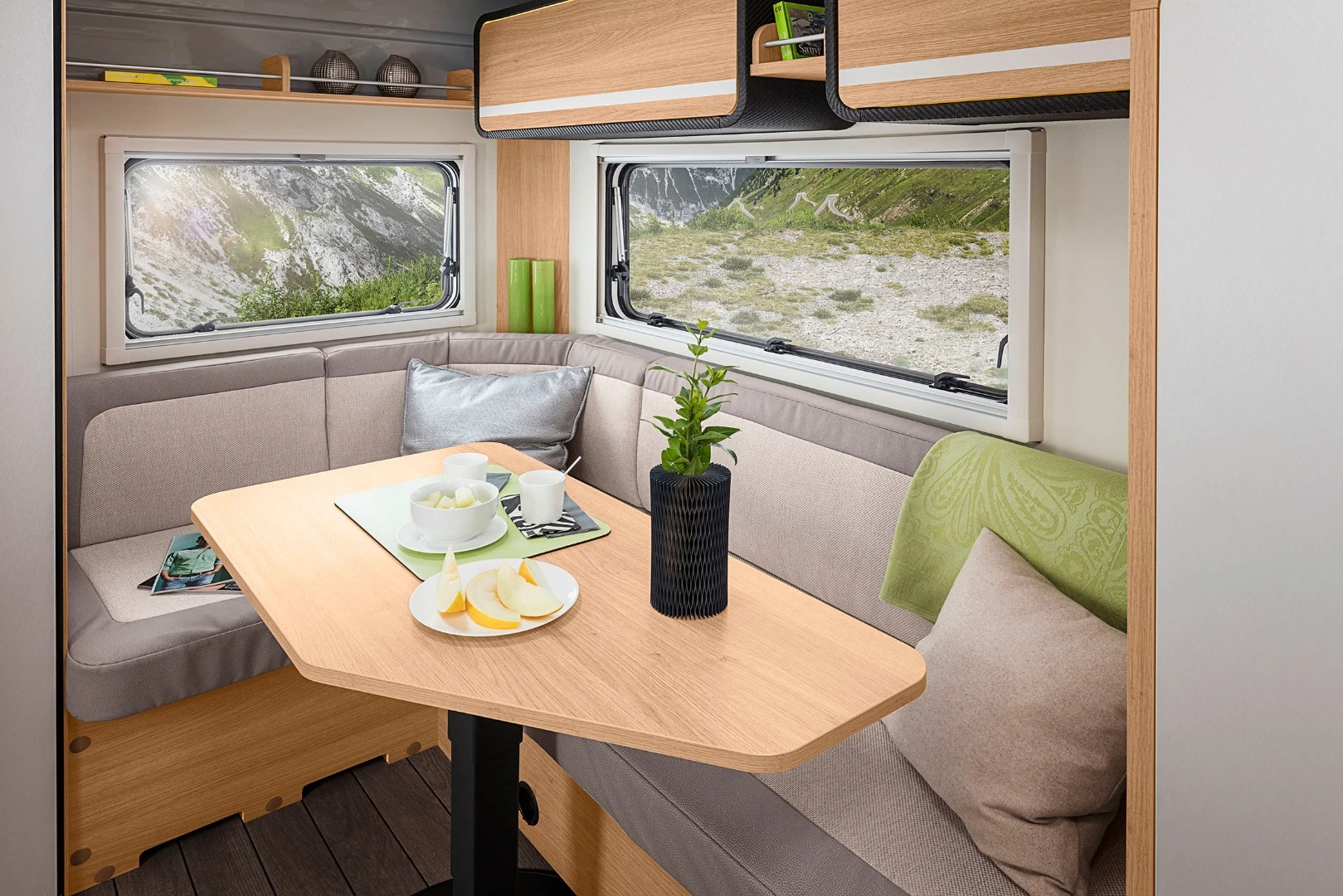

At the convertible table in the production Knaus Travelino
25/27
At the convertible table in the production Knaus Travelino

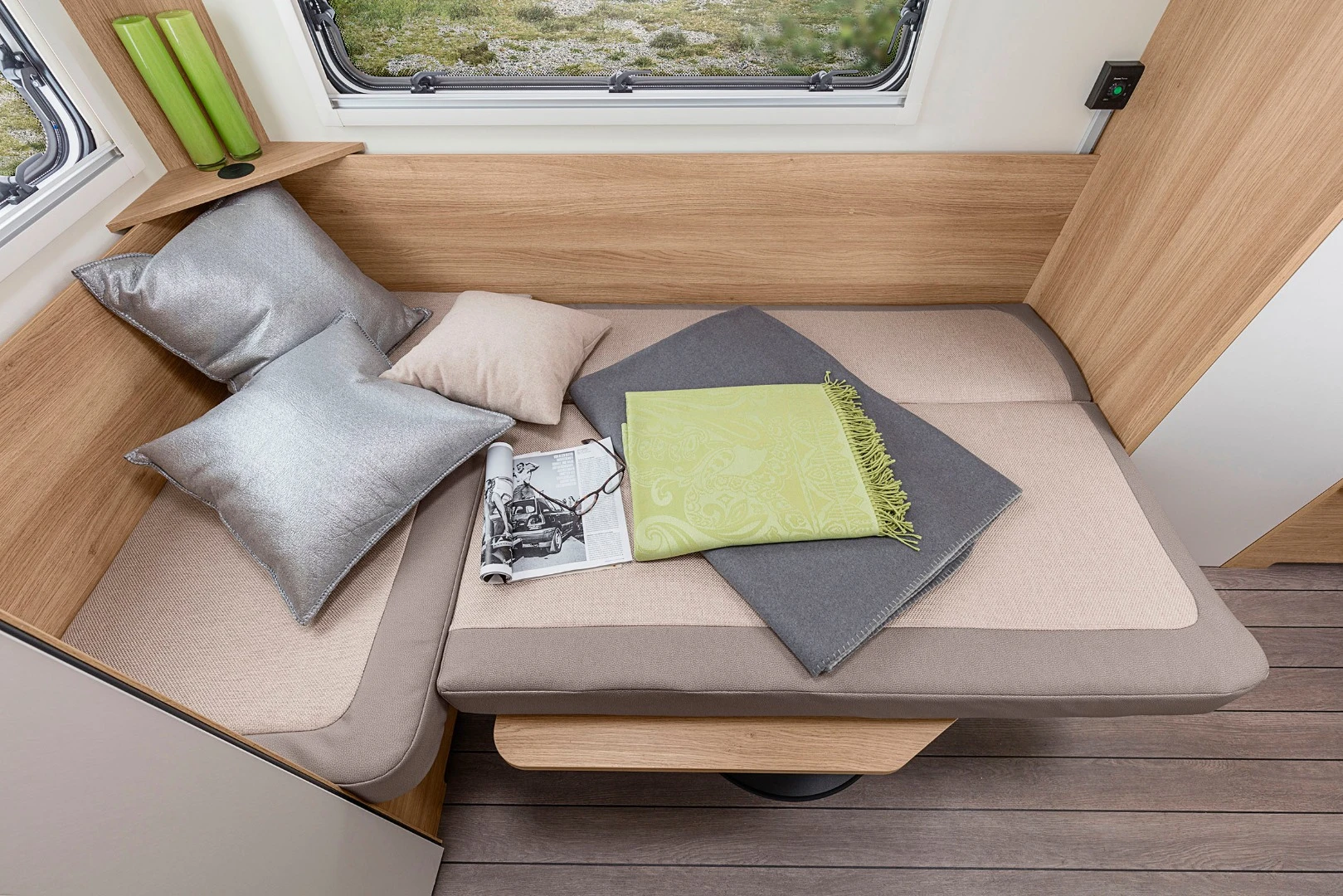

Knaus Travelino bed
26/27
Knaus Travelino bed

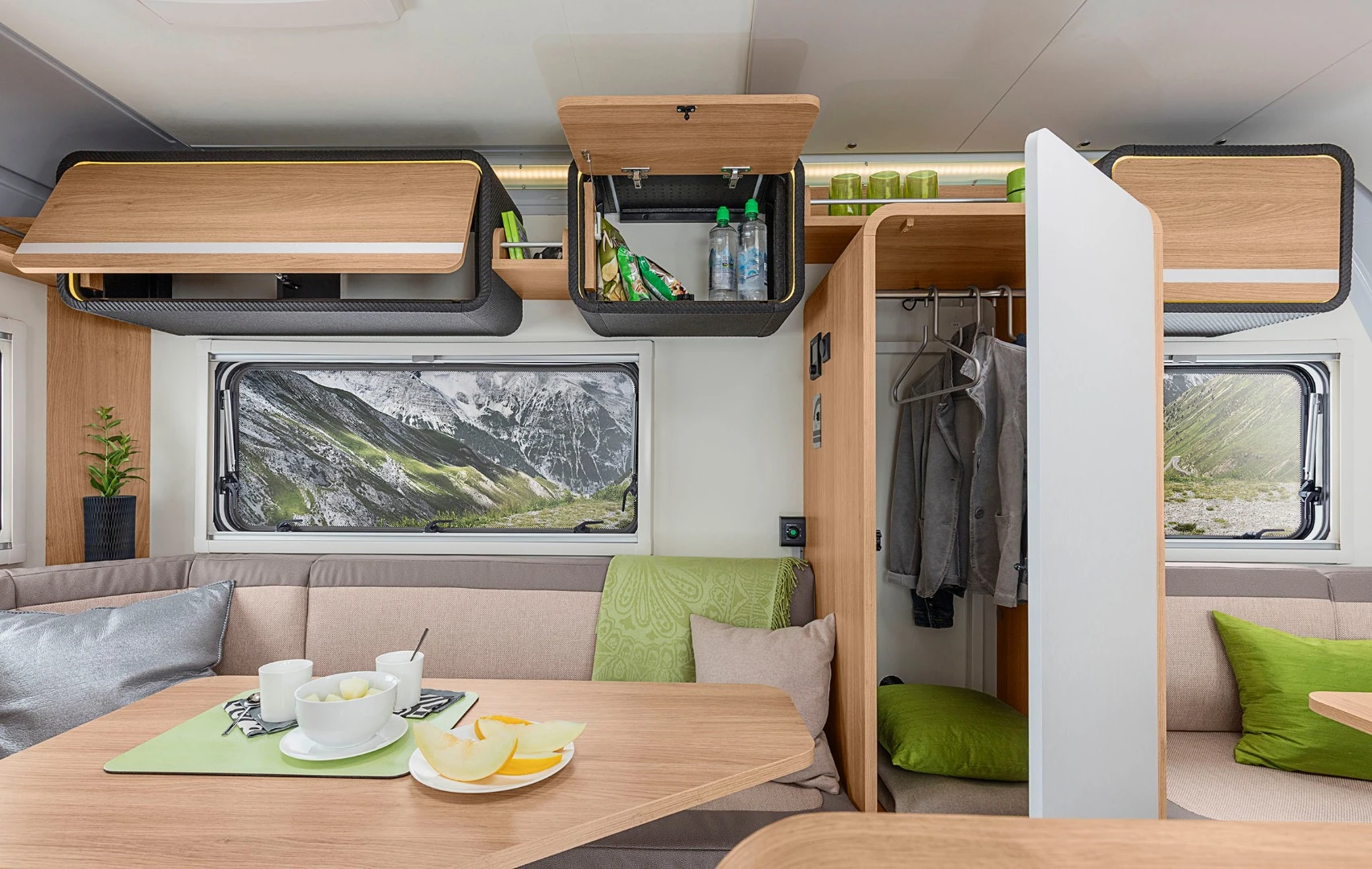

Inside the production Knaus Travelino
27/27
Inside the production Knaus Travelino

Just a few months after we looked at the multipurpose Deseo 400 TR camping trailer, one of our favorites of 2017, Knaus is back on the show circuit with the equally impressive Travelino Skyview Concept. This light, compact caravan slides a tint-adjustable picture window between campers and the great outdoors so they can enjoy a restful night of sleep behind dark glass before waking up to clear, clean views of the sun mountain-climbing up the craggy horizon.

The Travelino itself was a concept just a few years ago, showing how light construction techniques and innovative sliding and folding equipment could create a small caravan that lives much larger. Knaus eventually reworked the Travelino concept into a production model, packing it with enough innovation to call it a revolution in caravanning.

Knaus' revolution focuses on lightweight design through new materials and construction processes. That means the Travelino does away with wood and traditional caravan frame design and relies on a self-supporting FibreFrame; fiberglass walls, roof and structural elements; expanded polypropylene (EPP) furniture; and a weight-optimized micro-galvanized chassis with torsion rod spring axle.

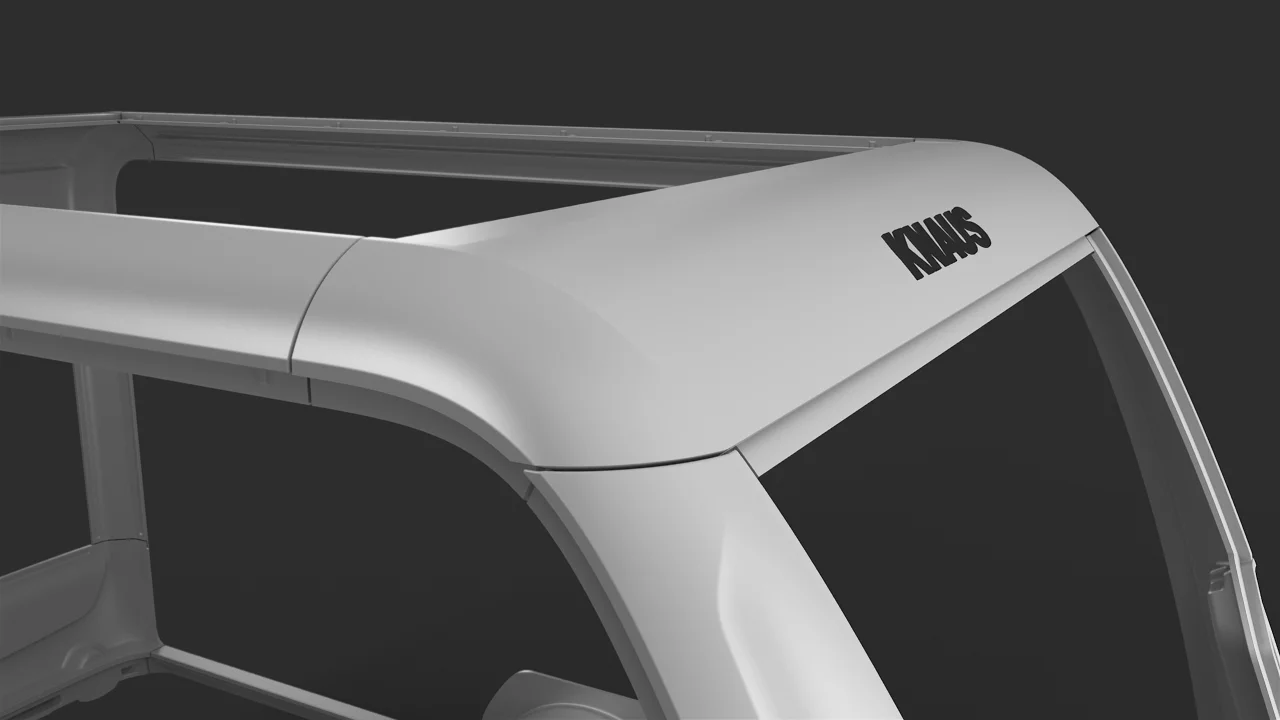

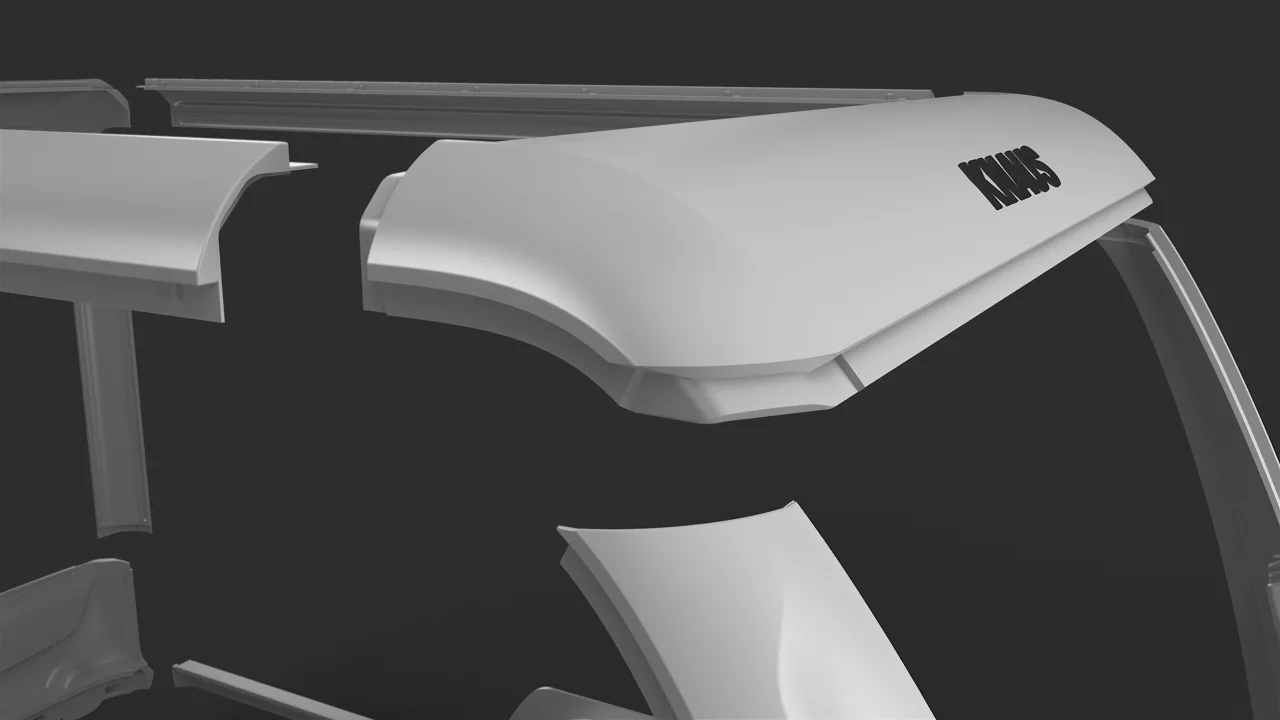

A pillar of the Travelino design is the self-supporting FibreFrame, which helps to free up interior possibilities
A pillar of the Travelino design is the self-supporting FibreFrame, which helps to free up interior possibilities

Knaus explains that the self-supporting nature of its FibreFrame frees up interior design possibilities as the furniture no longer has to contribute to the structural integrity of the greater caravan, paving the way for more varied and flexible interior layouts. Knaus also frames the lightweight construction techniques as a way of ensuring new mobility solutions – such as electric and hybrid vehicles – are able to effectively take over for larger, more powerful ICE-driven vehicles.

The Travelino was the first model to use these new materials and techniques when it was introduced in 2016, and the aforementioned Deseo followed as another chapter in the lightweight "revolution."

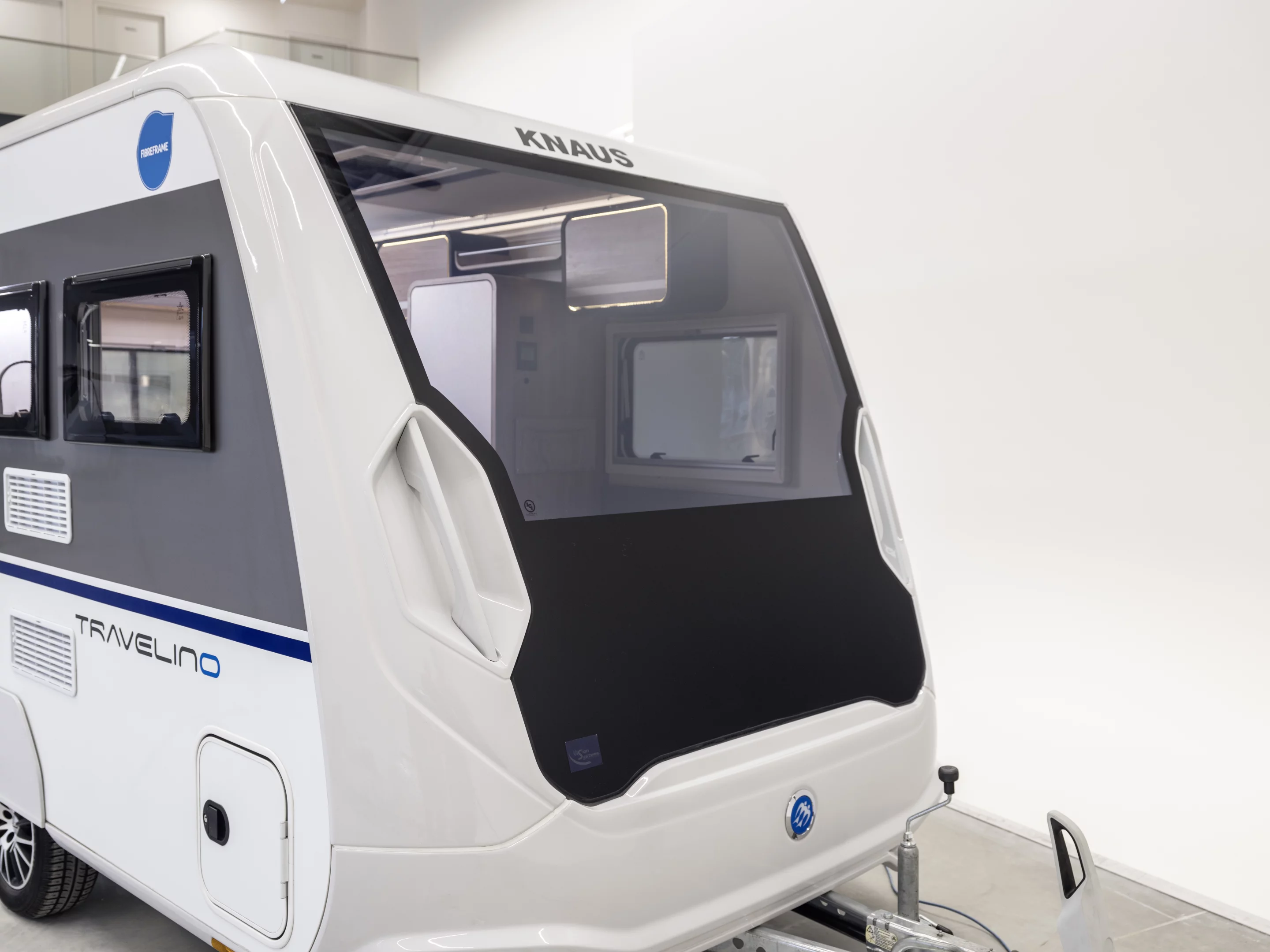

The large electrochromic glass window adds a new innovation to the Travelino trailer
The large electrochromic glass window adds a new innovation to the Travelino trailer

With the Concept Travelino Skyview, which was on display at the recent CMT show in Stuttgart, Knaus is exploring a new way of making the small Travelino feel even larger and more open. The concept caravan features a large "skyview" front window made with electrochromic glass with an infinitely adjustable tint.

Occupants use a simple button to adjust the glass, and the particles within it align to allow more or less light in. So the occupants can set it to the darkest setting when they want some privacy or sleep, turn it transparent when they want crystal-clear views of the outdoors, or set it somewhere in between to fine-tune the amount of light flowing in without completely blocking off the window with a shade or curtain.

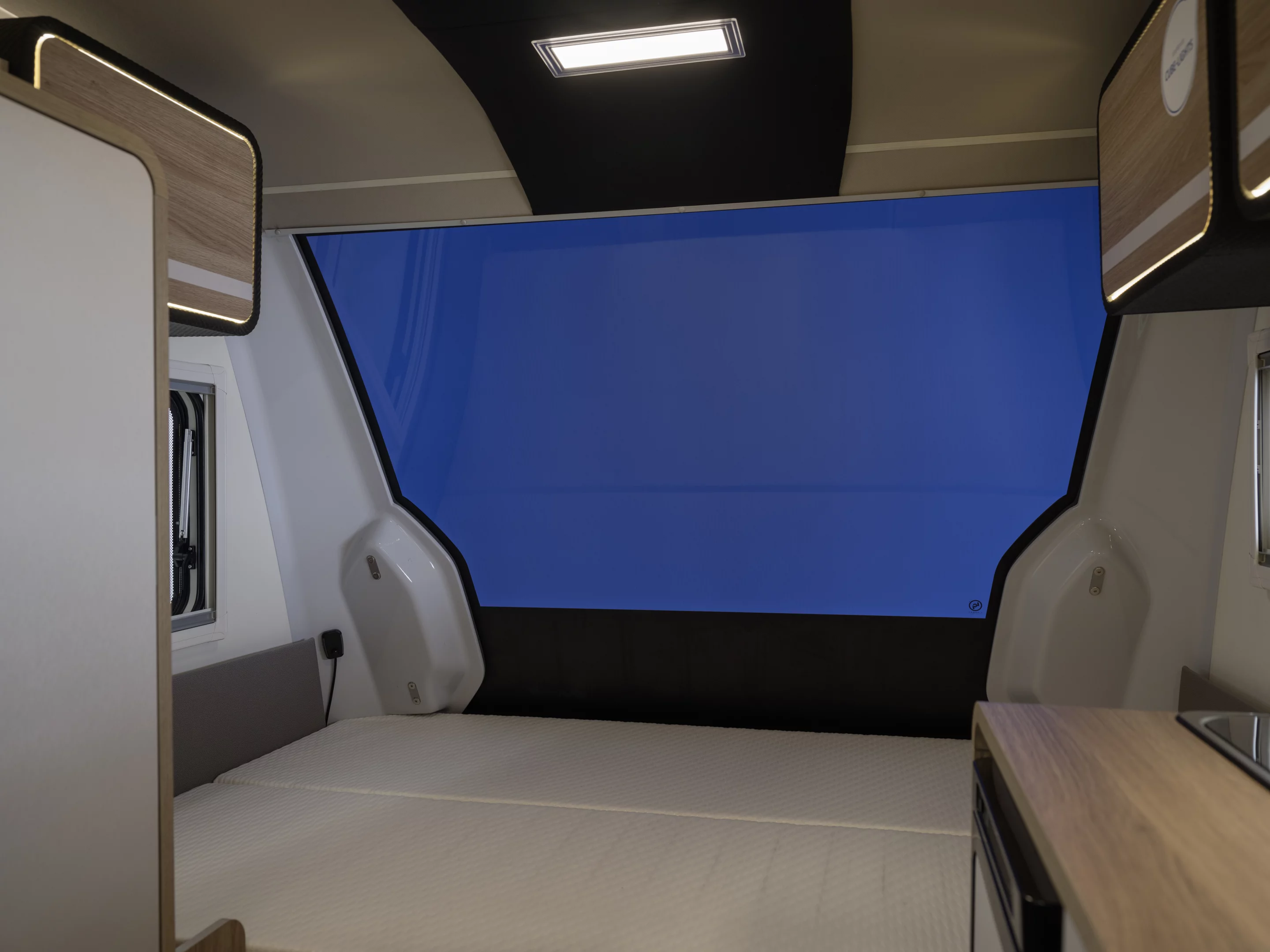

The dimming glass can adjust on a sliding scale between dark and clear
The dimming glass can adjust on a sliding scale between dark and clear

This type of "smart glass" window technology has been advancing and expanding in recent years in a variety of applications. In the automotive market, Mercedes-Benz has its Magic Sky Control roof technology, Continental has expanded switchable glass from the roof to the car windows, and just this month, Fisker showed a quad-zone tint-adjustable roof on its EMotion electric sedan.

Research Frontiers, the company whose SPD-SmartGlass technology underpins not only Knaus' Skyview window, but also Mercedes', Continental's and Fisker's efforts, says the window technology's advantages go beyond merely adjusting light levels, also acting as an effective thermal barrier. The darkened windows keep heat out to maintain a cooler interior while decreasing reliance on the air conditioning system. The company says the tinting can be controlled with a switch, dimmer dial, smartphone app, voice control or automatic light sensor-based adjustment system.

Knaus admits that the Skyview option is only a concept for now but suggests it could work on vehicles beyond the Travelino, perhaps an upmarket caravan or motorhome like the Boxdrive or Eurostar. The company previously played with the idea of adjustable glass on its forward-looking 2013 Caravisio concept, which featured rear doors said to adjust between clear and frosted at the touch of a smartphone app, the frosted glass serving as a projector screen.

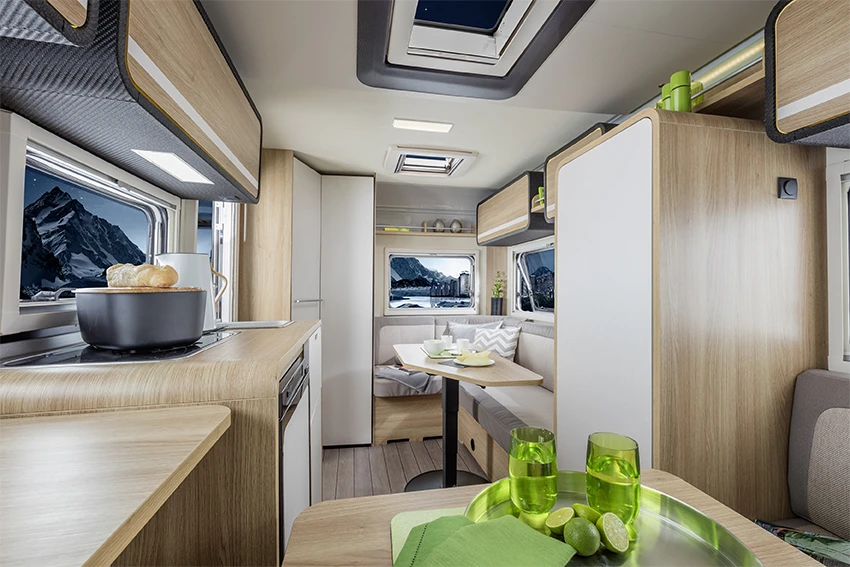

Inside the Knaus Travelino
Inside the Knaus Travelino

The production Travelino may not offer a large, fancy electrochromic window option just yet, but it does appear to be a cozy, versatile trailer option made for easy towing. The four-sleeper weighs as little as 1,650 lb (750 kg) and includes a kitchen with dual-burner stove, 80-liter fridge and sink, integrated LED interior lighting, a bathroom with toilet, and more. The bathroom takes inspiration from the original concept in using a multi-panel door and fold-away sink to contract when not in use, freeing more interior living space. The Travelino starts at 18,499 (approx. US$22,800).

See more photos of both the Concept Travelino Skyview and the production Travelino in our gallery.

Source: Knaus Tabbert
