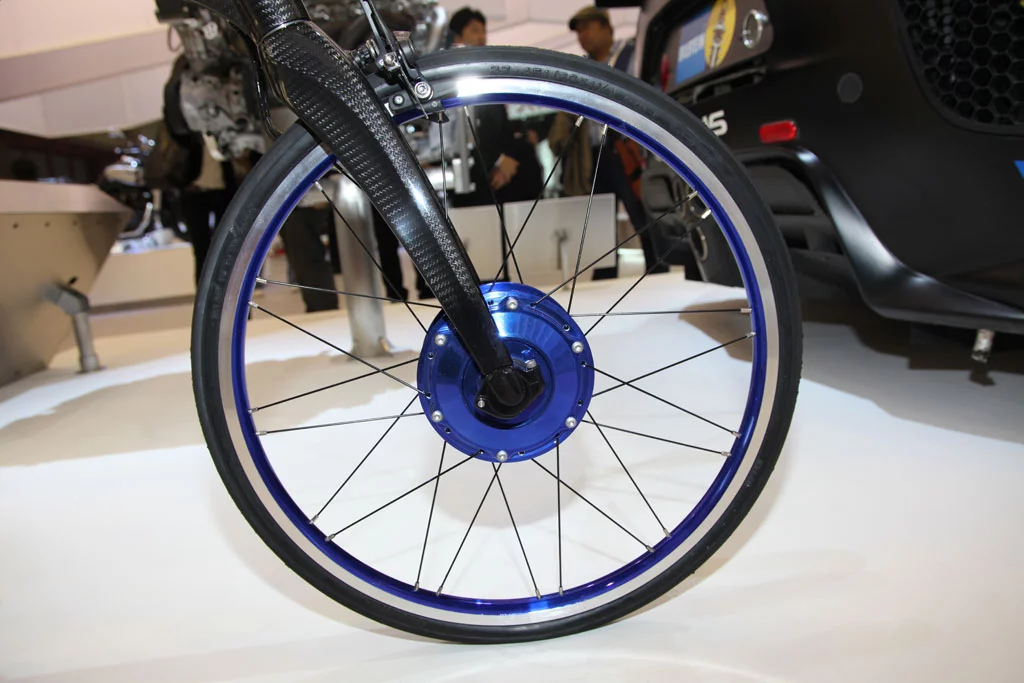

Lexus has announced details of the innovative Hybrid Bicycle Concept we first spied tucked away at last year's Tokyo Motor Show. Headed for a UK debut at the Great British Bike Ride this weekend, the full-carbon fiber frame hybrid (electric+human) concept includes a 240W electric motor at the front hub, eight-speed transmission, a 25.9V Lithium-ion battery and regenerative braking. Head on through for more images plus our video overview.

The bike weighs 17kg, uses a belt drive instead of a chain and its electric motor charges in around two hours. The 8-speed internal gear and shift levers are from Shimano, while the lightweight, composite frame shares DNA with Valentino Rossi's MotoGP-winning motorcycle. At this stage Lexus' foray into two-wheeled transport remains a concept, with no word on any plans for a production release. We can only hope.

Lexus HB Concept 2WD pedal-assist, carbon-fiber racing bike

Lexus Hybrid Bicycle Concept Specs:

  • Length (mm) 1,598
  • Width (mm) 425
  • Seat height (mm) 900
  • Wheelbase (mm) 1,080
  • Tyre size 20 x 1 3/8
  • Weight (kg) 17
  • Charge time Approx. 2hrs
  • Motor output (W) 240
  • Battery type Lithium-ion
  • Battery voltage 25.9V/4.0Ah
  • Gear system Shimano 8-speed internal gear
  • Shift lever Shimano dual control
  • Drive train Belt drive
