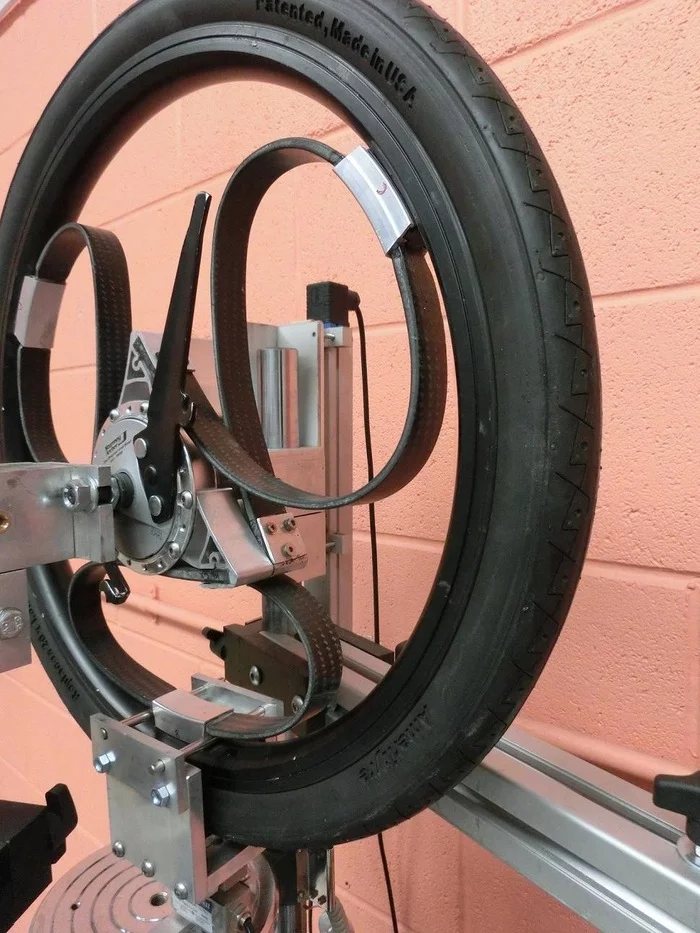

A test loopwheel under compression
4/6
A test loopwheel under compression
This illustration shows how the Loopwheel handles bumps compared to a conventional spoked wheel
5/6
This illustration shows how the Loopwheel handles bumps compared to a conventional spoked wheel
The Loopwheel reacts to a force from any direction
6/6
The Loopwheel reacts to a force from any direction
View gallery - 6 images

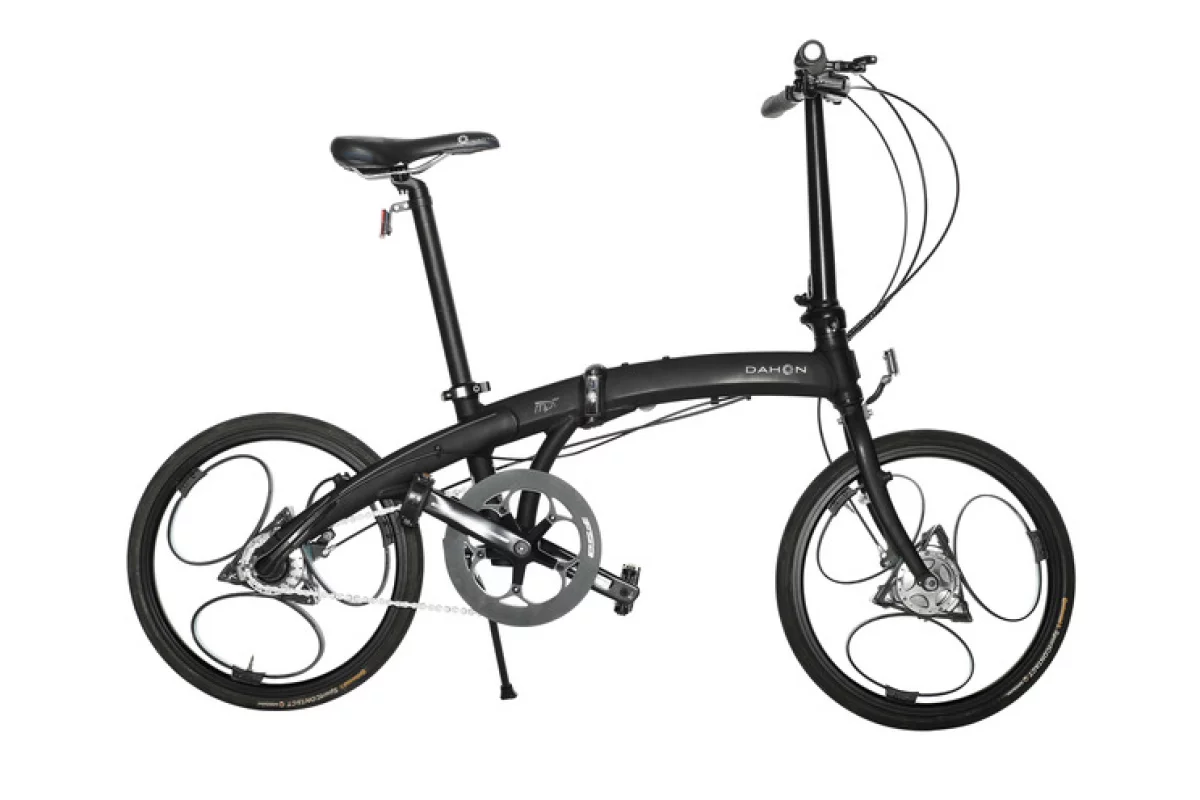

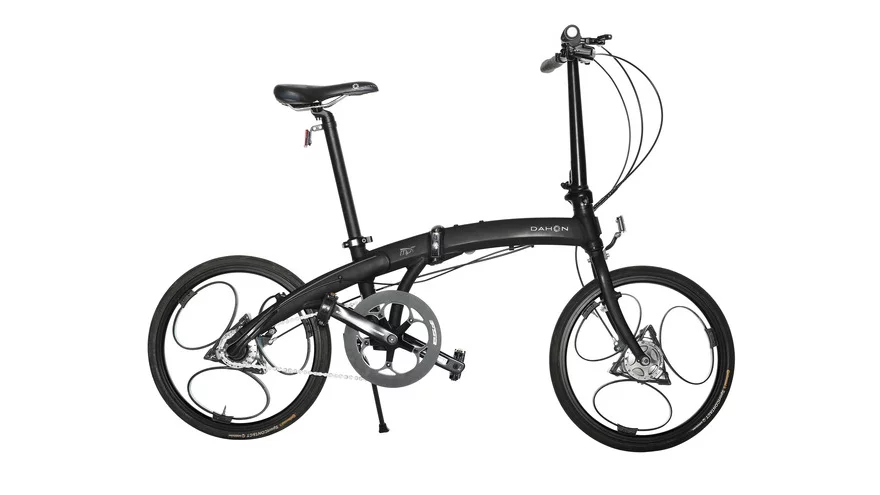

When you have plenty of bicycle to work with, such as is the case with a mountain bike, it’s not such a big deal to design it with front and rear suspension. When the bicycle in question is a diminutive folding city bike, however, it gets a bit trickier. That’s why UK industrial designer Sam Pearce has created Loopwheels. Instead of relying on a suspension fork and rear shock, it lets the bike’s 20-inch wheels absorb the bumps.

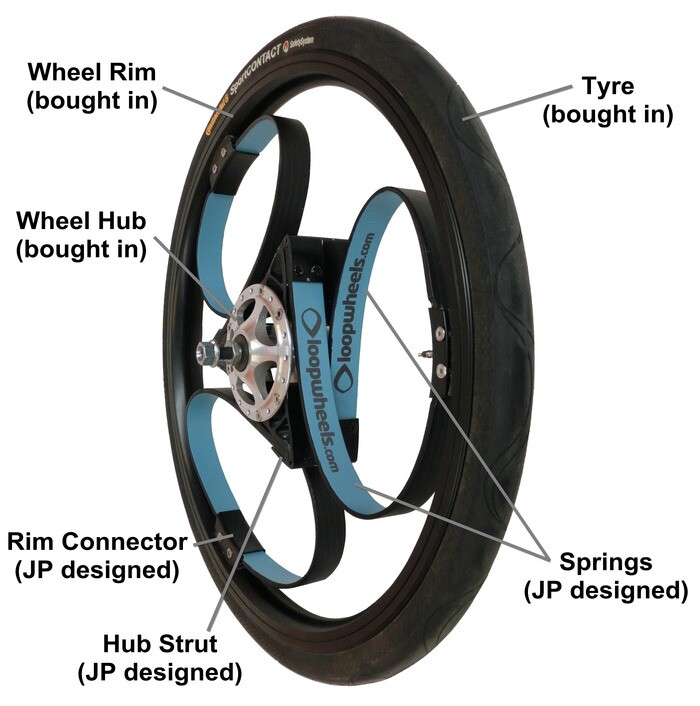

Each wheel incorporates a regular hub, with a hub brake and hub gearing. Instead of spokes, however, three looped carbon composite springs run from the hub to the rim. Whenever the wheel hits a bump in the road, the energy is absorbed by those springs.

This causes the hub to momentarily dip down within the wheel by up to 45 millimeters, so it’s actually a bit off-center until the springs flex back into their regular state. For this reason, the wheels will only work on bikes that already have sufficient space between the fork/frame and the tire – otherwise the bike would be hitting its own tires when the springs compressed.

Loopwheels come in front- and rear-specific versions, one of the key differences being that the springs in the front wheel are twice as compliant as those in the back. This is (presumably) to help keep the wheel that does the steering from being knocked and bounced around, plus it compensates for the fact that more of the rider’s weight tends to be centered over the rear wheel.

Each wheel reportedly weighs about 300 grams (10.5 oz) more than a comparable spoked wheel.

Instead of relying on a suspension fork and rear shock, the Loopwheel lets the bike’s 20-inch wheels absorb the bumps
Instead of relying on a suspension fork and rear shock, the Loopwheel lets the bike’s 20-inch wheels absorb the bumps

According to Pearce, one of the advantages of Loopwheels is the fact that unlike a suspension fork, they can absorb shocks delivered not just from underneath or above but also from the front (as might happen when running into a curb head-on). He also admits that many other inventors have come up with designs for wheels with tangential suspension over the past hundred years or so, although he believes that today’s modern materials will allow his to work where others have proved impractical.

Pearce is now raising production funds for his Loopwheels, on Kickstarter. A pledge of £195 (US$297) will get you a front wheel (which can be used with a conventional rear wheel), while £420 ($640) will get you a front and rear set – when and if the funding goal is met. A 26-inch model for mountain bikes is also in the works.

The wheels can be seen in use in the pitch video below.

Source: Kickstarter
