Recurring kidney stones can be an agonizing, debilitating problem, particularly if they can't be treated by orally-administered medication. There may be new hope on the horizon, however, in the form of a tiny magnetically-steerable stone-dissolving "robot."
Basically solid deposits of salt and other urine-related minerals, kidney stones aren't pleasant for anyone, as they can be very painful to pass through the urethra.
It's even worse for some people, though, in whose kidneys the stones regularly reoccur. Oral medications may or may not help dissolve the deposits, but even if they do work, they often take too long to do so. In cases where the stones are actually blocking the urinary tract, surgery is sometimes the only option.
It would be much better if the medication could be delivered straight to the kidney stones, instead of being dispersed throughout the digestive system and bloodstream. That's where the soft-bodied "robot strip" comes in.

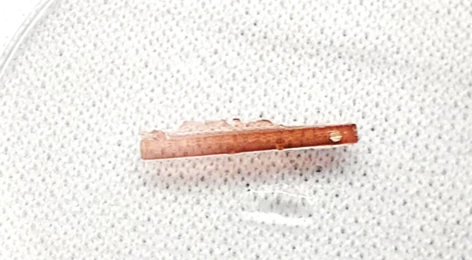

Developed by Dr. Veronika Magdanz and colleagues at Canada's University of Waterloo, it presently takes the form of a 1 x 1 x 12-mm filament made of a hydrogel/elastomer blend that is loaded with an enzyme known as urease, and which contains a micro-magnet at one end. The idea is that the device could be inserted into the bladder via a catheter.

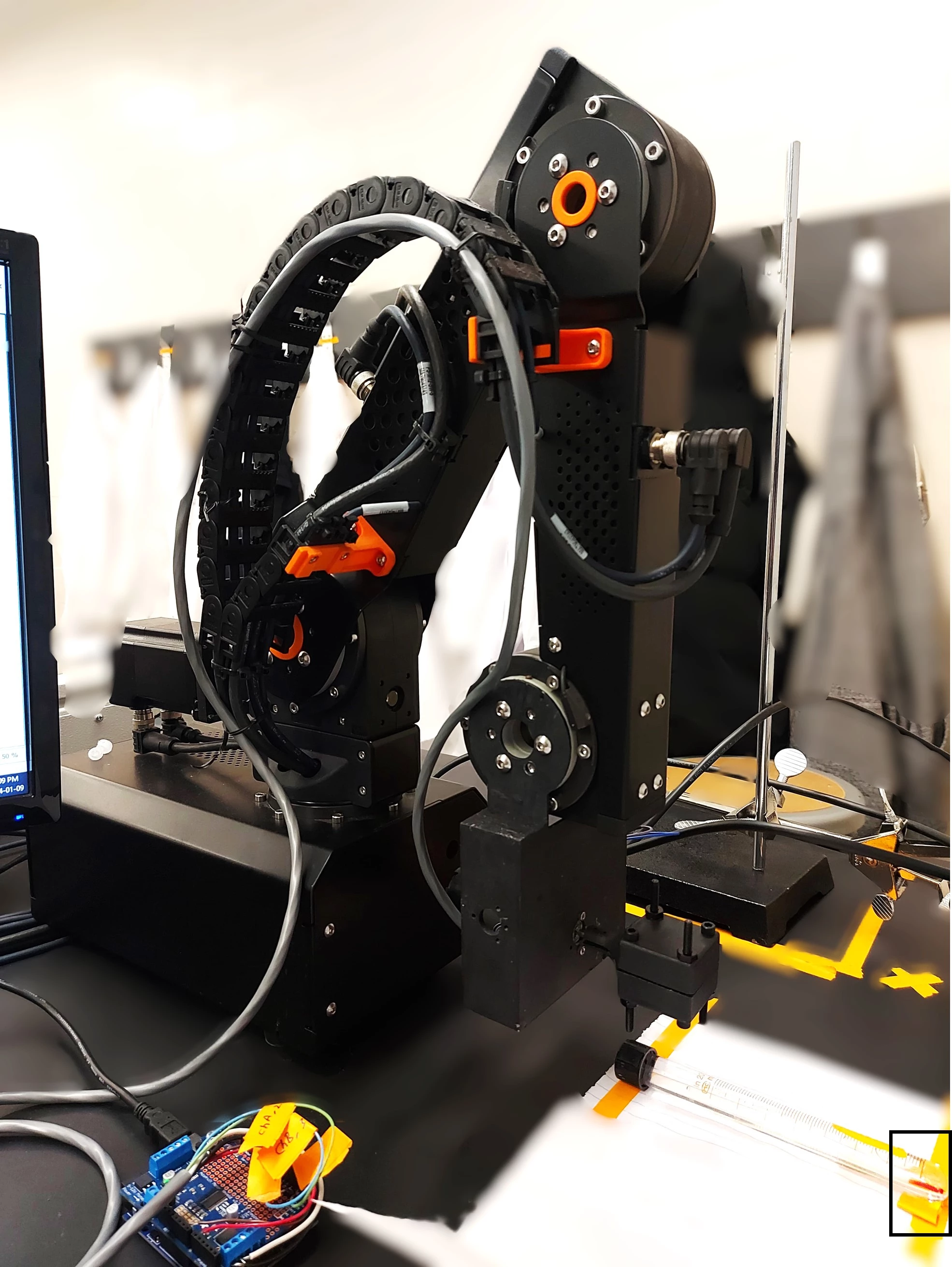

Once in the body, the filament can be imaged via ultrasound, and moved by an external robotic arm equipped with a rotating magnet at the end. As that magnet rotates, the filament likewise wiggles back and forth, making its way through the urinary tract by pushing off against its inner walls.
Upon reaching the kidney stone, the filament is stopped. It can then be held in place for several days via an external magnetic patch that's adhered to the skin.
As the filament sits, it releases its urease into the surrounding urine, increasing the liquid's pH. That decrease in acidity causes the stone to dissolve, until it can be passed with the urine relatively painlessly. The filament can ultimately be passed in the same manner.
In tests performed in a 3D-printed model of a human urinary tract filled with synthetic urine, one of the filaments was found to increase the pH of the liquid from 6 – typical of a kidney stone environment – up to 7. This caused kidney stones in the urine to decrease in weight by an average of 30% over a five-day period, which would allow them to be easily passed.
What's more, the increase in pH lasted for up to three months. Studies on large animals are now being planned.
"Our goal is to provide an effective alternative to existing treatment methods," says Magdanz. "We hope accelerated stone dissolution will relieve the pain faster and help patients pass stones quicker."
A paper on the research was recently published in the journal Advanced Healthcare Materials.
Source: University of Waterloo
