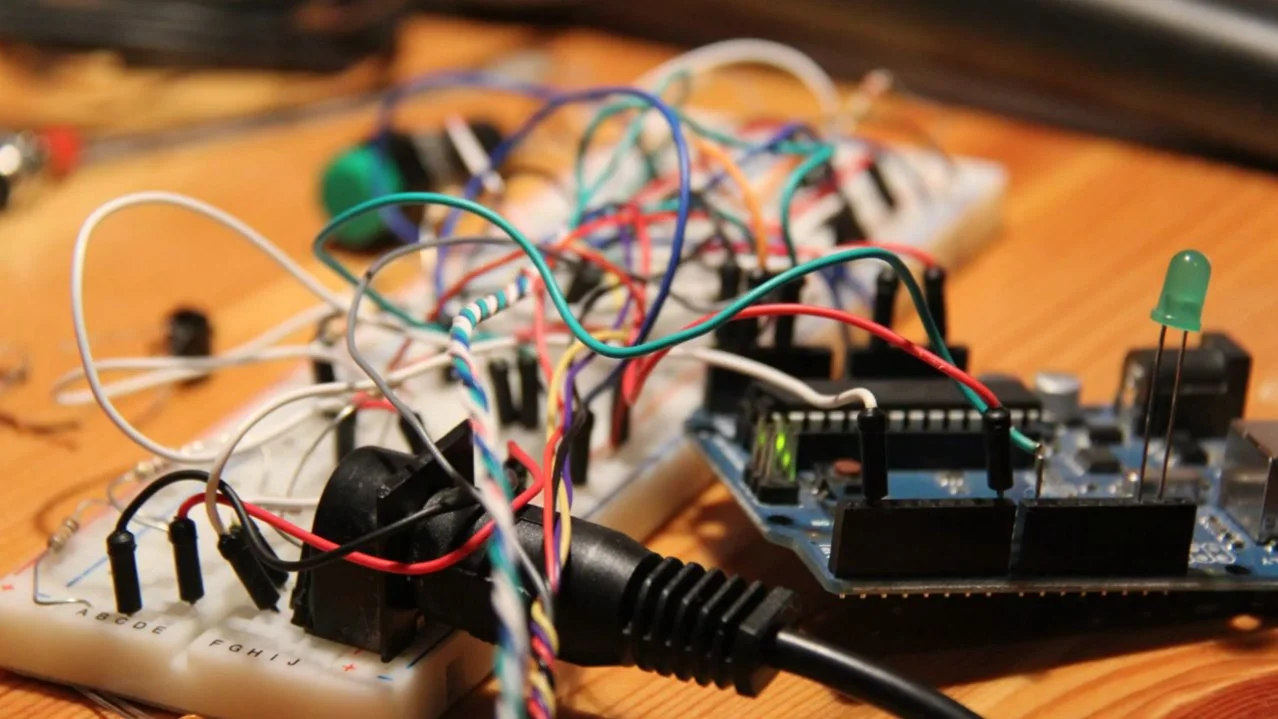

The custom circuitry initially worked out using a breadboard
1/7
The custom circuitry initially worked out using a breadboard

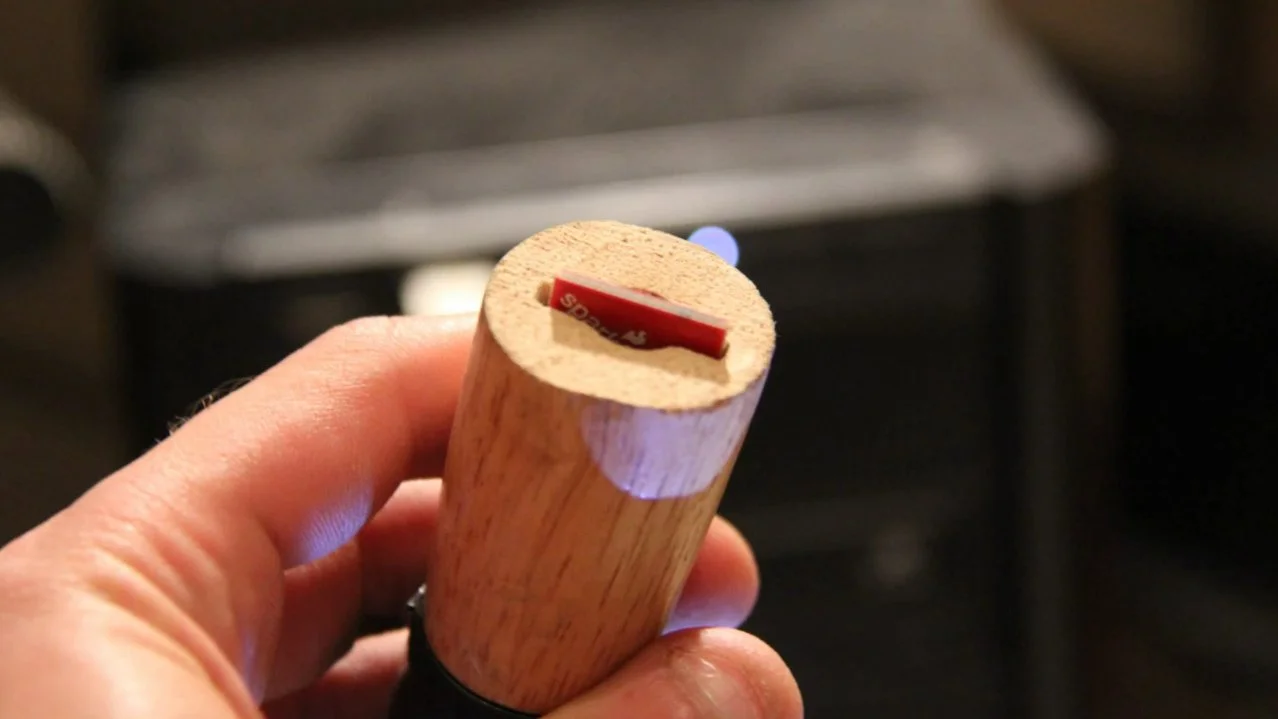

An accelerometer housed within the end of a garden rake
2/7
An accelerometer housed within the end of a garden rake
Israeli electronics tinkerer Maayan Migdal has made a working air drum kit using a pair of sandles, some garden rakes, an Arduino Uno board and some custom circuitry which feed through to a laptop via a standard MIDI interface
3/7
Israeli electronics tinkerer Maayan Migdal has made a working air drum kit using a pair of sandles, some garden rakes, an Arduino Uno board and some custom circuitry which feed through to a laptop via a standard MIDI interface

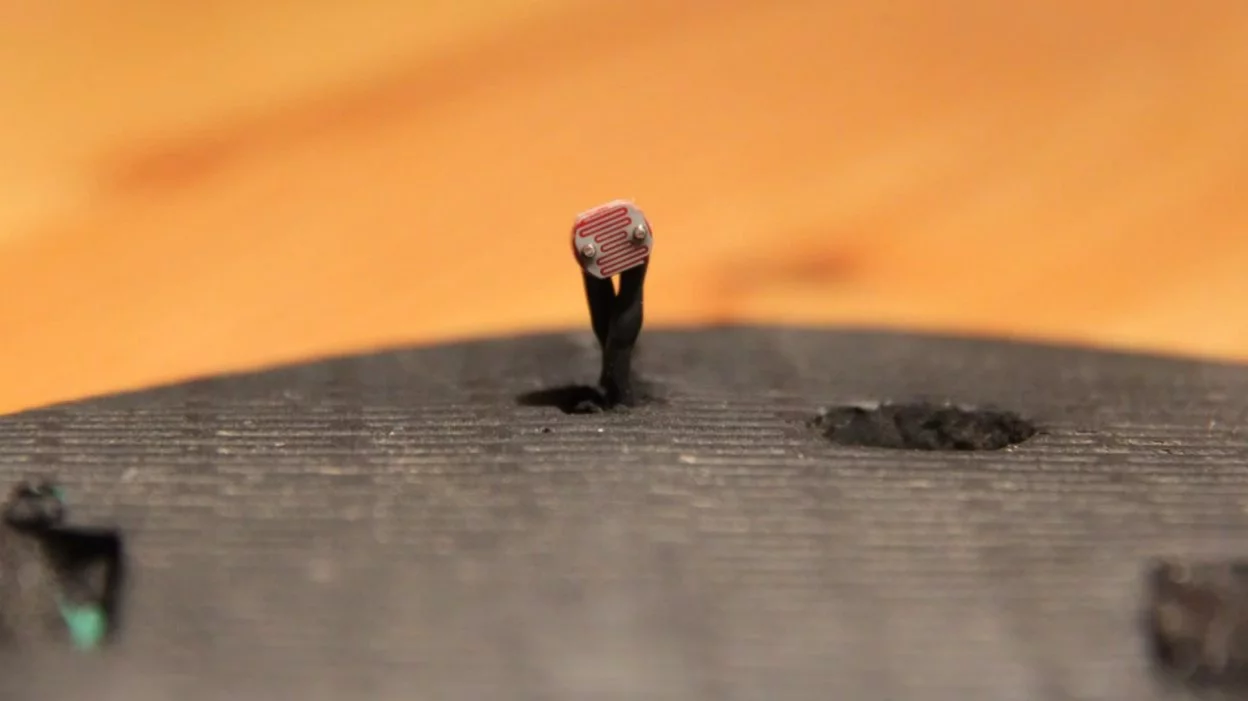

A light sensor is used to control the raising and lowering of the digital hi-hat
4/7
A light sensor is used to control the raising and lowering of the digital hi-hat

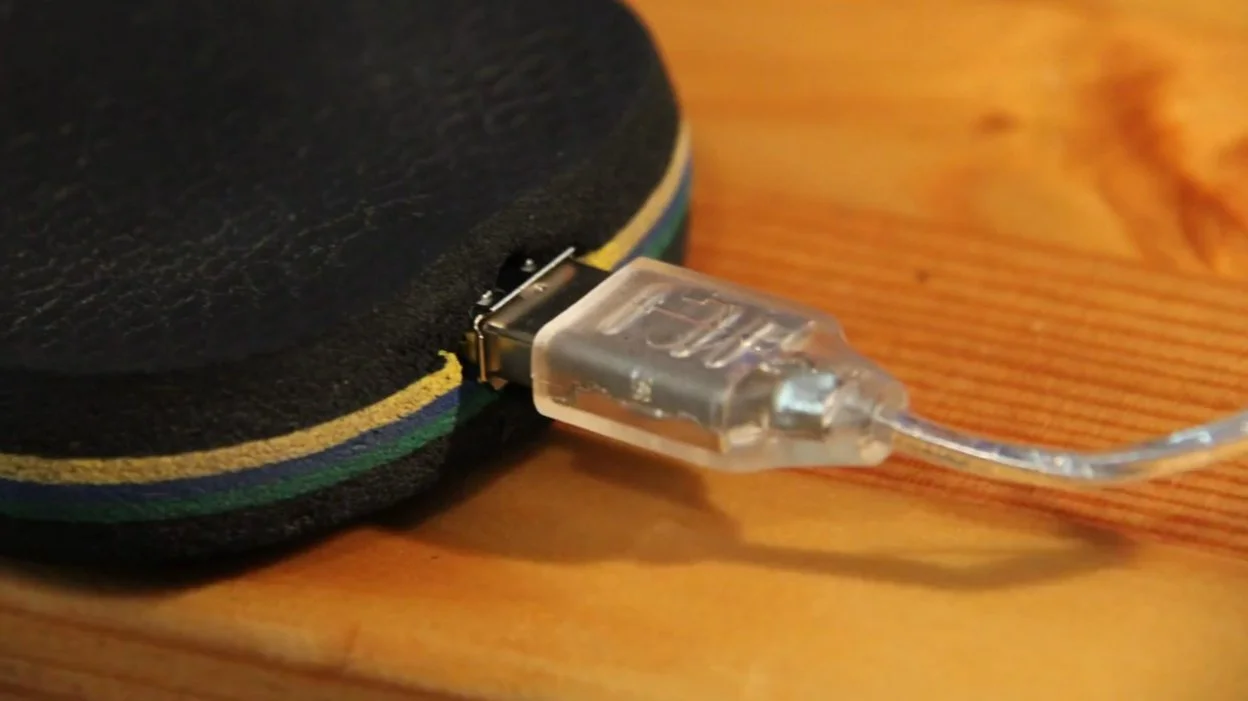

The inventor placed a USB port at the heel of each beach sandal
5/7
The inventor placed a USB port at the heel of each beach sandal

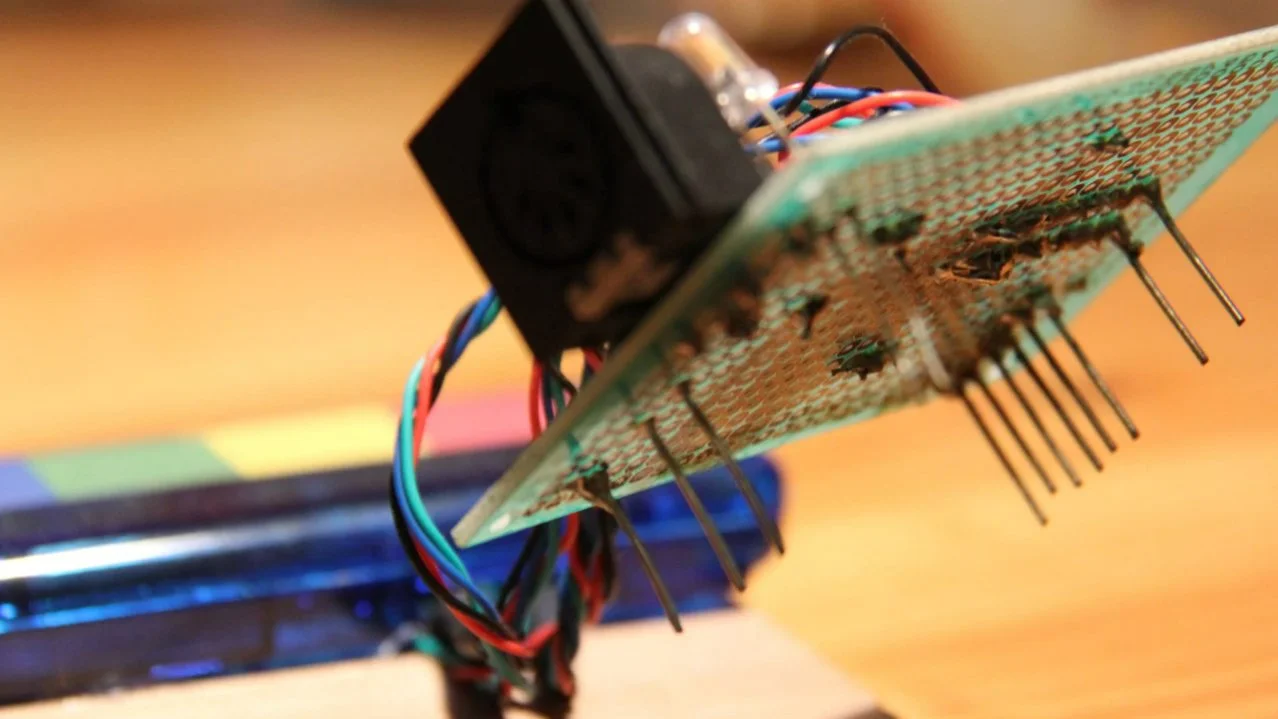

The circuitry jumps from the breadboard to circuit board
6/7
The circuitry jumps from the breadboard to circuit board

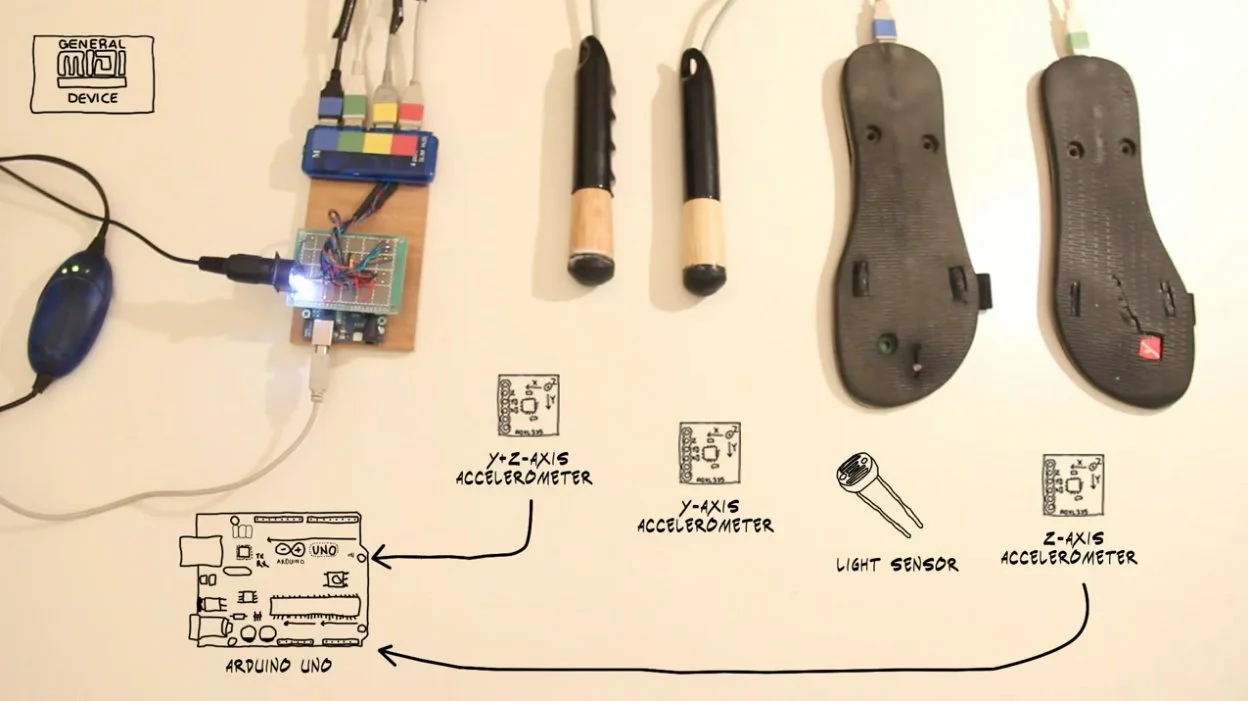

Diagram showing the various components of the MIDI Air Drum hack
7/7
Diagram showing the various components of the MIDI Air Drum hack

The ultimate air duo of keyboards and guitar has now taken a step closer to becoming a full band with the creation of the Air Drums by Israeli electronics tinkerer Maayan Migdal. His system is comprised of a couple of modified hand rakes, a pair of sandals, the ever-useful Arduino Uno and some custom circuitry which feeds through to a laptop via a standard MIDI interface.

The air drum sticks of Migdal's MIDI Air Drums started life as a pair of garden rakes. Each one has had the claw end lopped off and then attacked with a drill to make room for a USB port at the base and either one or two accelerometers at the other end. The left-hand stick represents a hi-hat and the right takes care of both snare and crash cymbal. He then took the drill to a pair of beach sandals for more USB and sensor connectivity - one sporting a light sensor to raise and lower the hi-hat and the other containing an accelerometer for the bass drum.

The virtual drum kit is then connected to a four-port USB hub wired up to an Arduino Uno microcontroller board, which in turn is fed to a MIDI interface for onward processing on a laptop. As you can see from the video demonstration below, in which the inventor also outlines the build process, the result is a fully functional air drum kit.

Of course, it's not going to challenge the versatility offered by Korg's Wavedrum Mini, but I know a bunch of dedicated air drummers who would love to get their hands on one.

Source: Hack A Day.

Arduino Air Drums
