Photography

Ricoh unveils Theta, the first mass-production camera for spherical panoramas

Ricoh unveils Theta, the first mass-production camera for spherical panoramas
Gizmag gets to grips with the Ricoh Theta at IFA 2013
Gizmag gets to grips with the Ricoh Theta at IFA 2013
View 35 Images
Ricoh introduces the Theta camera at IFA 2013
1/35
Ricoh introduces the Theta camera at IFA 2013

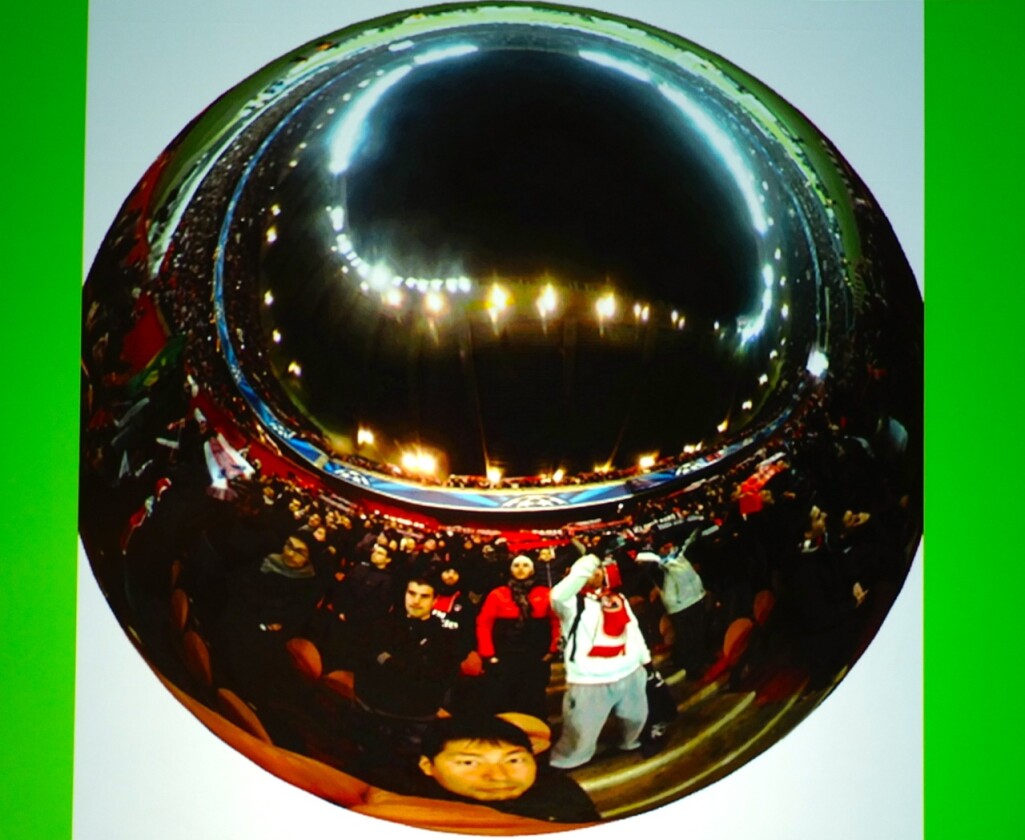

An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
2/35
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
3/35
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
Back and front device shot shows those two fish-eye lenses
4/35
Back and front device shot shows those two fish-eye lenses
5/35
6/35
Slide showing what Theta is capable of caturing
7/35
Slide showing what Theta is capable of caturing
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
8/35
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
A cropped panorama courtesy of Theta
9/35
A cropped panorama courtesy of Theta
View from a bike basket, as seen through Theta
10/35
View from a bike basket, as seen through Theta
An example of the kind of panorama you can expect to capture using Ricoh's Theta camera
11/35
An example of the kind of panorama you can expect to capture using Ricoh's Theta camera
Slide showing Ricoh's proprietary ultra-small twin-lens folded optical system
12/35
Slide showing Ricoh's proprietary ultra-small twin-lens folded optical system
Gizmag gets to grips with the Ricoh Theta at IFA 2013
13/35
Gizmag gets to grips with the Ricoh Theta at IFA 2013

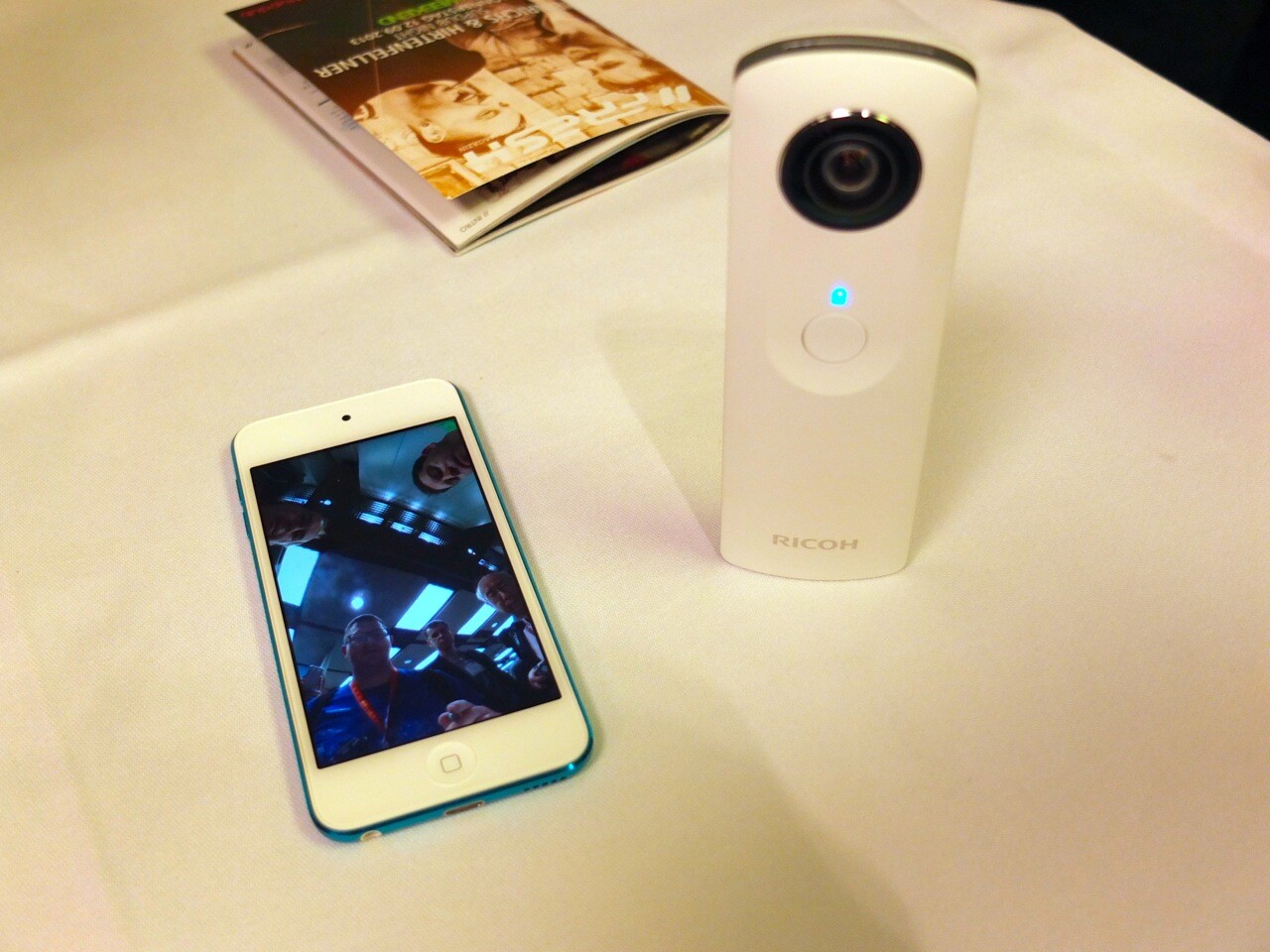

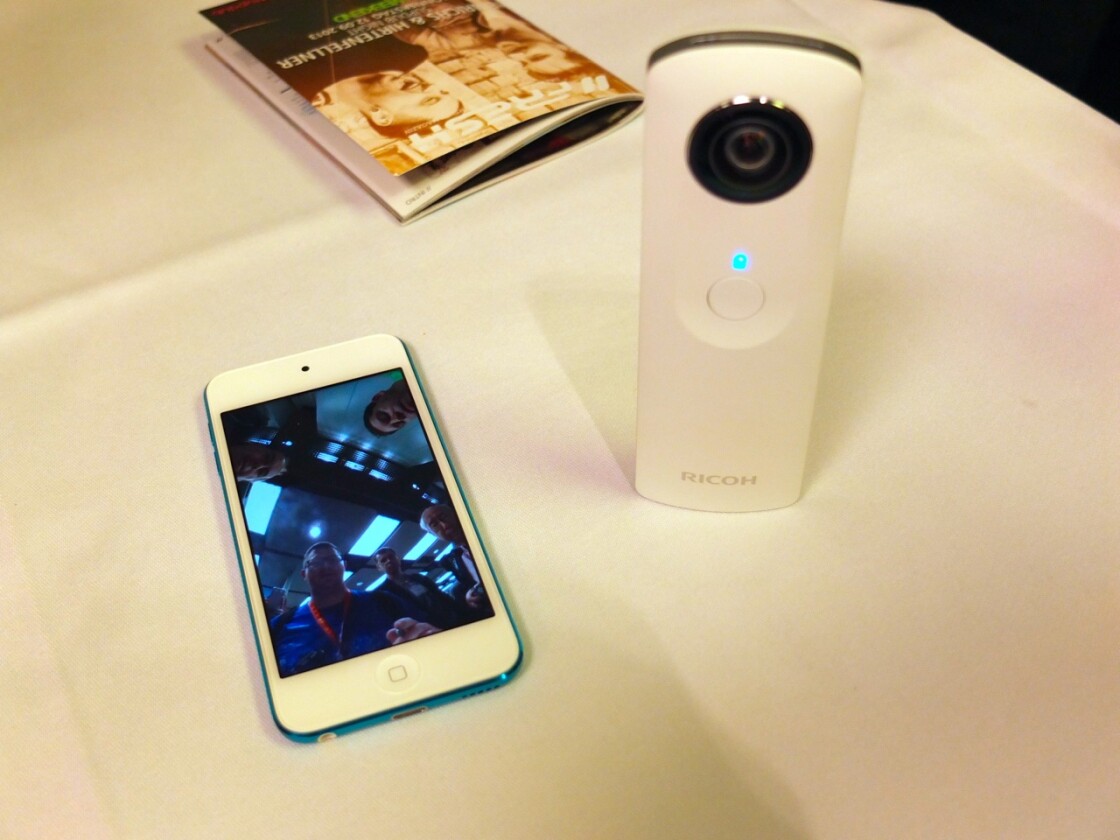

Theta being remotely operated using an app running on an iPhone
14/35
Theta being remotely operated using an app running on an iPhone
Lots of interested tech journalists looking in on Theta
15/35
Lots of interested tech journalists looking in on Theta
Theta syncs with smartphones via Wi-Fi and a dedicated free app
16/35
Theta syncs with smartphones via Wi-Fi and a dedicated free app
One of Theta's two fish-eye lenses, the other is to the rear
17/35
One of Theta's two fish-eye lenses, the other is to the rear
18/35
19/35
20/35
21/35
22/35
23/35
24/35
25/35
An example of the kind of image you can expect to capture using Ricoh's Theta camera
26/35
An example of the kind of image you can expect to capture using Ricoh's Theta camera
27/35
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
28/35
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
The unit's power button and wireless on/off switch are on the side
29/35
The unit's power button and wireless on/off switch are on the side
There's a micro-USB port and tripod mount hole to the bottom
30/35
There's a micro-USB port and tripod mount hole to the bottom
Back and front device shot shows those two fish-eye lenses
31/35
Back and front device shot shows those two fish-eye lenses
Theta is a slim, hand-held, pocket-friendly stick sporting two fish-eye lenses for all-round image capture
32/35
Theta is a slim, hand-held, pocket-friendly stick sporting two fish-eye lenses for all-round image capture
The unit's power button and wireless on/off switch are on the side
33/35
The unit's power button and wireless on/off switch are on the side
Theta can be remotely operated using an app running on a smartphone
34/35
Theta can be remotely operated using an app running on a smartphone
Top shot shows those two fish-eye lenses
35/35
Top shot shows those two fish-eye lenses
View gallery - 35 images

If an all-round view of the world is your kind of thing then Ricoh has got just the device for you. Called the Theta, it's a slim, hand-held, pocket-friendly stick sporting two fish-eye lenses, one at the front and one at the back. There's no need to aim, focus or point the camera, users just hold it at any angle and press the shutter button on the front. The one shot spherical image produced can then be viewed on a synced iPhone, uploaded to social networks or transferred to a computer.

Theta tips the scales at 95 g (3 oz) and measures 1.65 x 5 x 0.69 - 0.9 in (42 x 129 x 17.4 - 22.8 mm), which is a lot less bulky than the hammerhead concept model we spotted at CES back in January. It features something Ricoh is calling an ultra-small twin-lens folded optical system, where a prism at the center directs light to two image sensors. The unit's power button and wireless on/off switch are on the side, and there's a micro-USB port and tripod mount hole to the bottom. The device has a shooting distance of 10 cm from the front of the lens to infinity, benefits from auto exposure control, and has ISO100 - 1600 sensitivity.

Lots of interested tech journalists looking in on Theta
Lots of interested tech journalists looking in on Theta

The production model syncs with smartphones via Wi-Fi and a dedicated free app. At launch, Theta will be compatible with the iPhone 4S and 5 running iOS 6 or later (and presumably any upcoming version of Apple's smartphone that may or may not be announced shortly), but Ricoh hasn't forgotten the Android community, and has promised compatibility with Goolge's popular mobile platform by the close of 2013.

Using the Theta for iPhone app, users can edit the size and shape of the captured shot before uploading it to the product's website and then pushing it onto social networks. The device makes use of the iPhone's GPS technology to geo-tag images, if desired, and caters for remote shutter release, so you can position the camera in the ideal spot and then use the app on the iPhone to snap the scene.

It's not necessary to sync with a smartphone in order to use the device. Theta comes with 4 GB of built-in storage, enough for about 1,200 images (depending on shooting conditions). Captured scenes can be transferred to an iPhone at the next sync, or to a computer via USB. Theta's Li-ion battery is also charged via USB, and promises to last for up to 200 JPEG format images (with the Wi-Fi is switched on and the device synced with an iPhone) before needing to be topped up.

An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera
An example of the kind of spherical panorama you can expect to capture using Ricoh's Theta camera

The only thing we can't tell you at the moment is the actual resolution of the captured images. The company rep at Ricoh's IFA booth told us that Theta is designed for comfortable viewing on a mobile device, and that images are compressed before being transmitted to the phone.

Theta will be available for pre-order at Ricoh's online sales channels this month in France and Germany for €399 (tax included), the UK for £329 (tax also included) and the US for a pre-tax base price of US$399. A strap attachment is available separately.

Source: Ricoh

View gallery - 35 images
