S-Walker Board turns a balance board into a personal transportation device

S-Walker Board turns a balance board into a personal transportation device

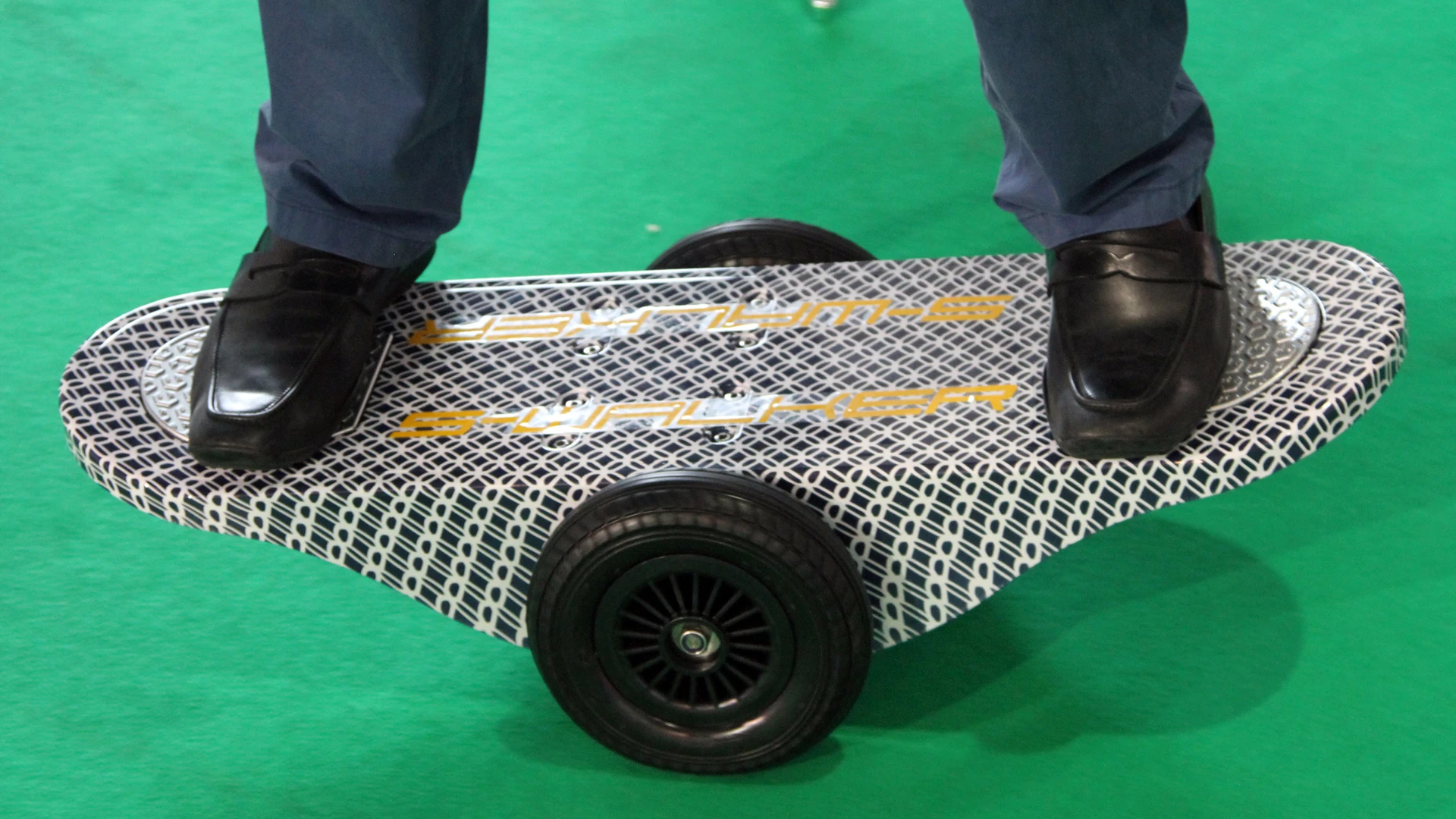

The S-Walker Board combines aspects of a Segway, a balance board and a skateboard
The S-Walker Board combines aspects of a Segway, a balance board and a skateboard
View 15 Images
The S-Walker Board bears more that a passing resemblance to a balance board
1/15
The S-Walker Board bears more that a passing resemblance to a balance board

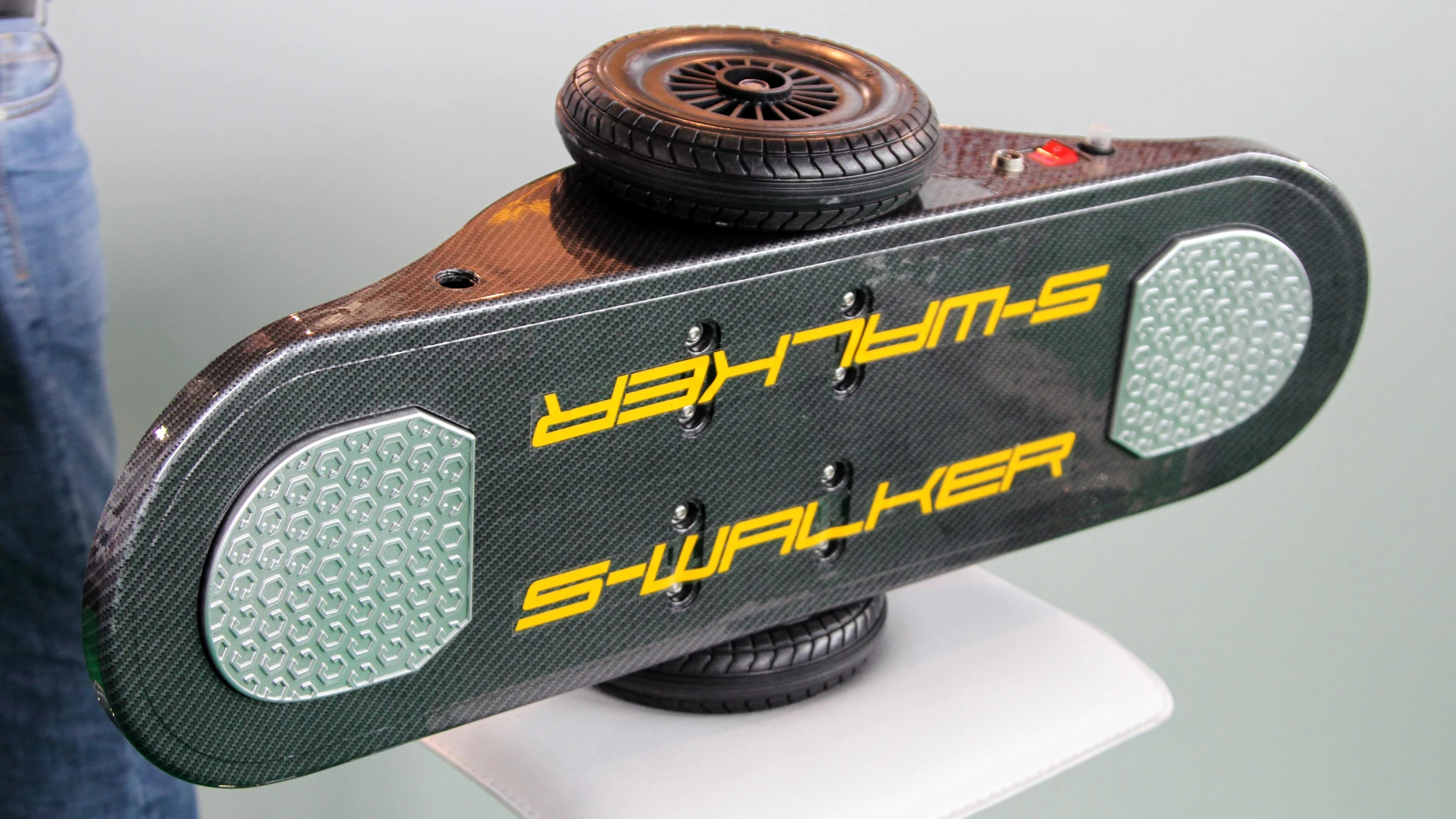

The S-Walker Board will take riders weighing up to 80 kg
2/15
The S-Walker Board will take riders weighing up to 80 kg

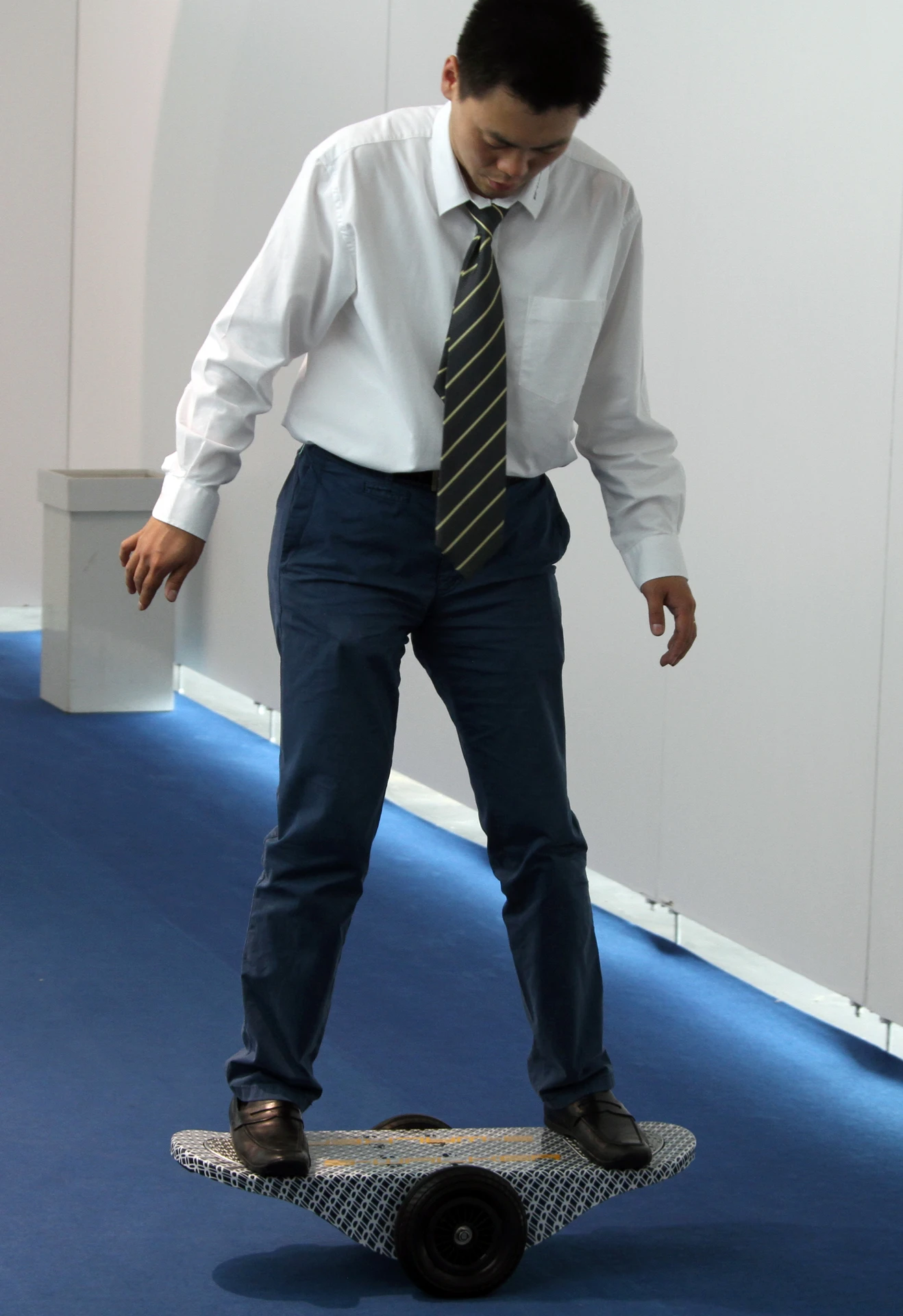

Cruising the halls on the S-Walker Board at IAA 2013
3/15
Cruising the halls on the S-Walker Board at IAA 2013
The underside of the S-Walker Board
4/15
The underside of the S-Walker Board
The underside of the S-Walker Board
5/15
The underside of the S-Walker Board
Getting ready to launch on the S-Walker Board
6/15
Getting ready to launch on the S-Walker Board

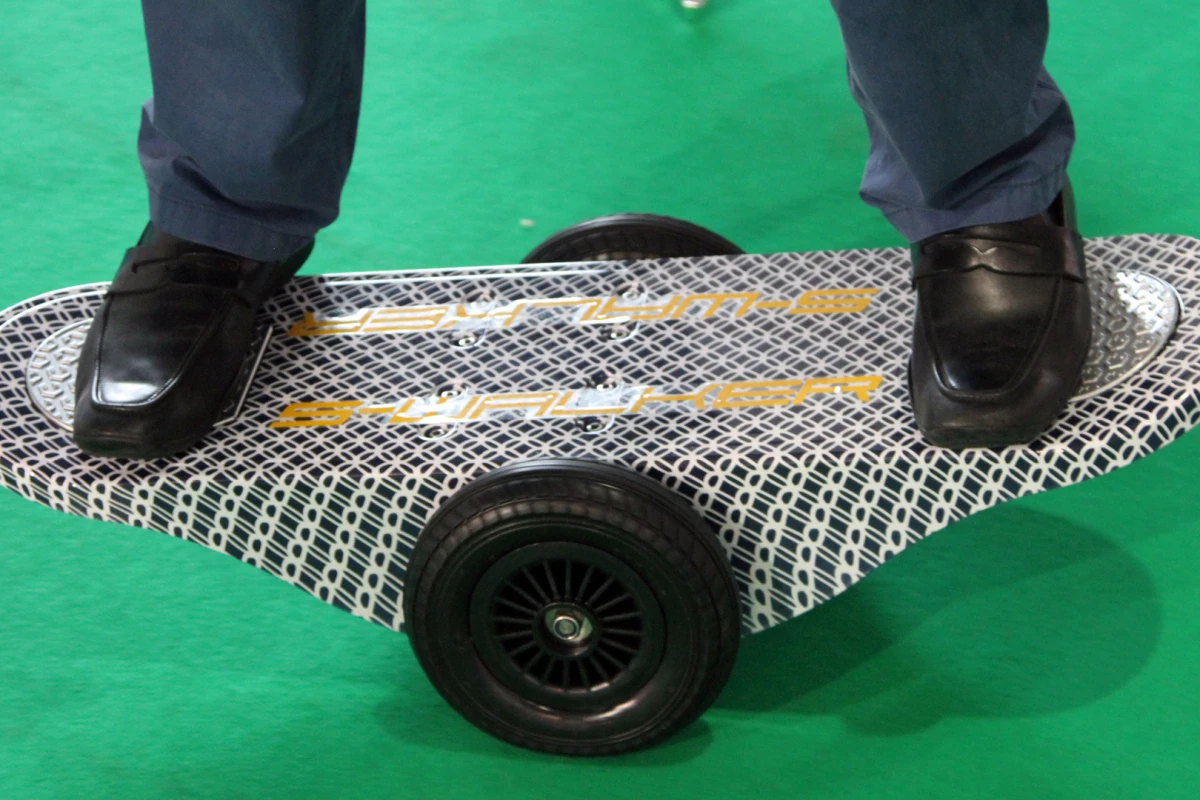

The S-Walker Board combines aspects of a Segway, a balance board and a skateboard
7/15
The S-Walker Board combines aspects of a Segway, a balance board and a skateboard

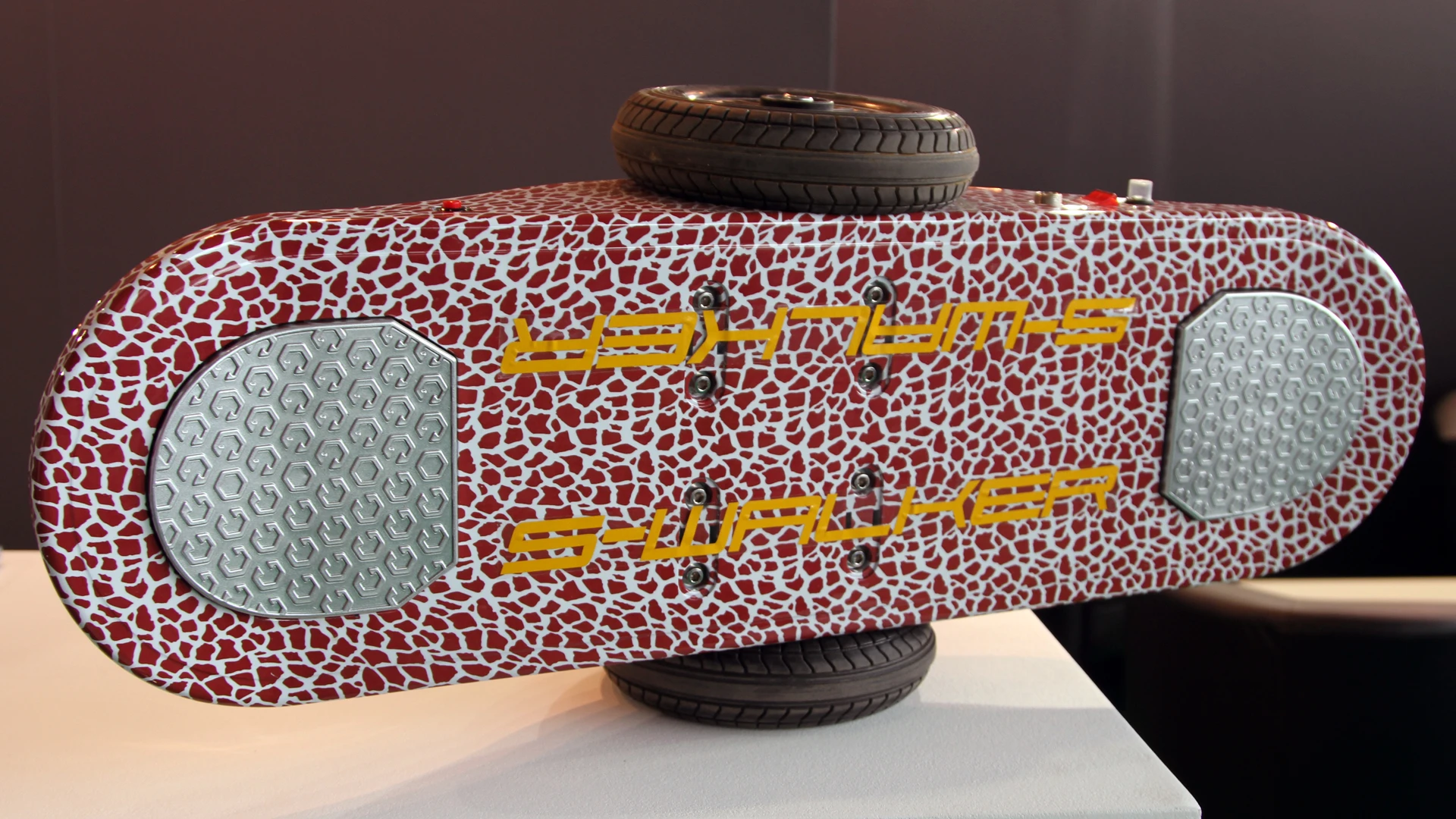

The S-Walker Board will be offered in a variety of colors
8/15
The S-Walker Board will be offered in a variety of colors
The screw holes will be covered in the production models
9/15
The screw holes will be covered in the production models

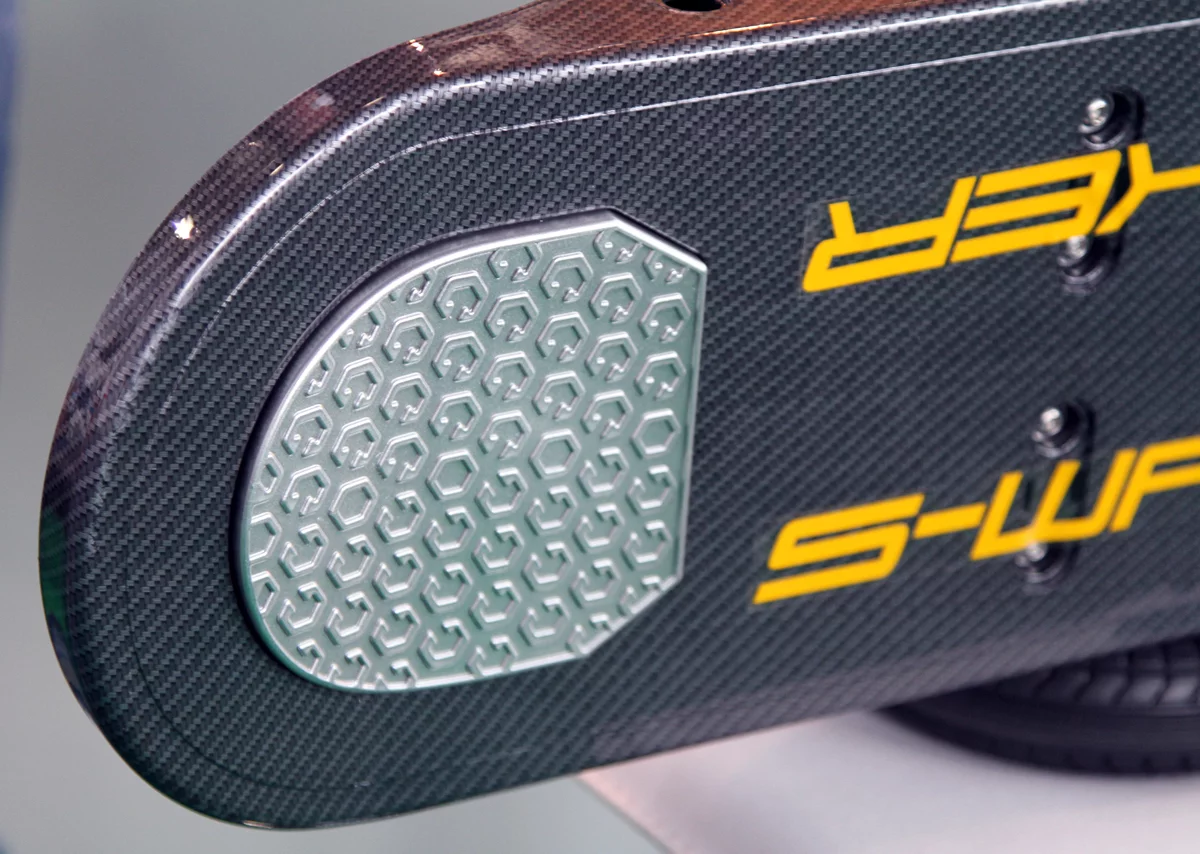

The grip pads form a contact to activate the motor when a rider puts their weight on them
10/15
The grip pads form a contact to activate the motor when a rider puts their weight on them
The front – or back – grip pad
11/15
The front – or back – grip pad
Plastic on the end of the deck protects from wear
12/15
Plastic on the end of the deck protects from wear
The S-Walker rides on tubeless polyurethane tires
13/15
The S-Walker rides on tubeless polyurethane tires
The fuse, on/off switch and recharge port are located on the side of the deck
14/15
The fuse, on/off switch and recharge port are located on the side of the deck
Getting started can be difficult
15/15
Getting started can be difficult
View gallery - 15 images

Although it’s the major automotive manufacturers and their no-expense-spared world premieres that dominate IAA, German company S-Walker is holding a somewhat smaller-scale world premiere for its S-Walker Board. Combining aspects of a Segway, a skateboard and a balance board, the two-wheeled electric vehicle is set to hit the streets in the not-too-distant future.

Akin to a balance board with wheels fixed at the center of the deck in place of a moving rocker, the S-Walker Board packs a gyroscope and, like the Segway, translates the forward or backward lean of the rider into movement of the wheels, so that the more you lean, the faster it goes. Weight needs to be placed on the two grip pads at either end of the board before it is activated, so it won’t go speeding off of its own accord. Steering is accomplished by pivoting the deck through shifting your body weight.

The wheels are driven by two 250 W motors powered by a rechargeable lead acid battery that can carry a rider weighing up to 80 kg (176 lb) for up to 20 km (12.4 miles), depending on terrain and usage. Recharging takes around one hour. Although the board can easily reach speeds of 6 km/h (3.7 mph), S-Walker CEO Reiner Lang says that experienced riders could reach speeds of up to 10 km/h (6.2 mph).

I had a quick go on the board and after some initial stationary speed wobbles – if such a thing exists – I was able to cruise around at low speed. However, I’d need to put in some practice to feel comfortable, particularly when stopping. Another interested bystander jumped on the board after me and got to grips with the device much faster, suggesting some people will pick it up in no time.

As you can see in the image gallery, the models on display at IAA had holes for the screws on the top of the deck, but Lang says these will be covered in the production units. S-Walker won’t be selling the board direct to consumers, but Lang and his S-Walker team are at IAA looking for distributors to release the vehicle worldwide. He says they have already had a lot of interest and are hopeful of a release in various markets within the next year. The company is aiming for a price to the end consumer of €699 (US$930).

Here's a very brief video of the board in action.
