"Reverse solar still" keeps its cool to wring drinking water from air

"Reverse solar still" keeps it...

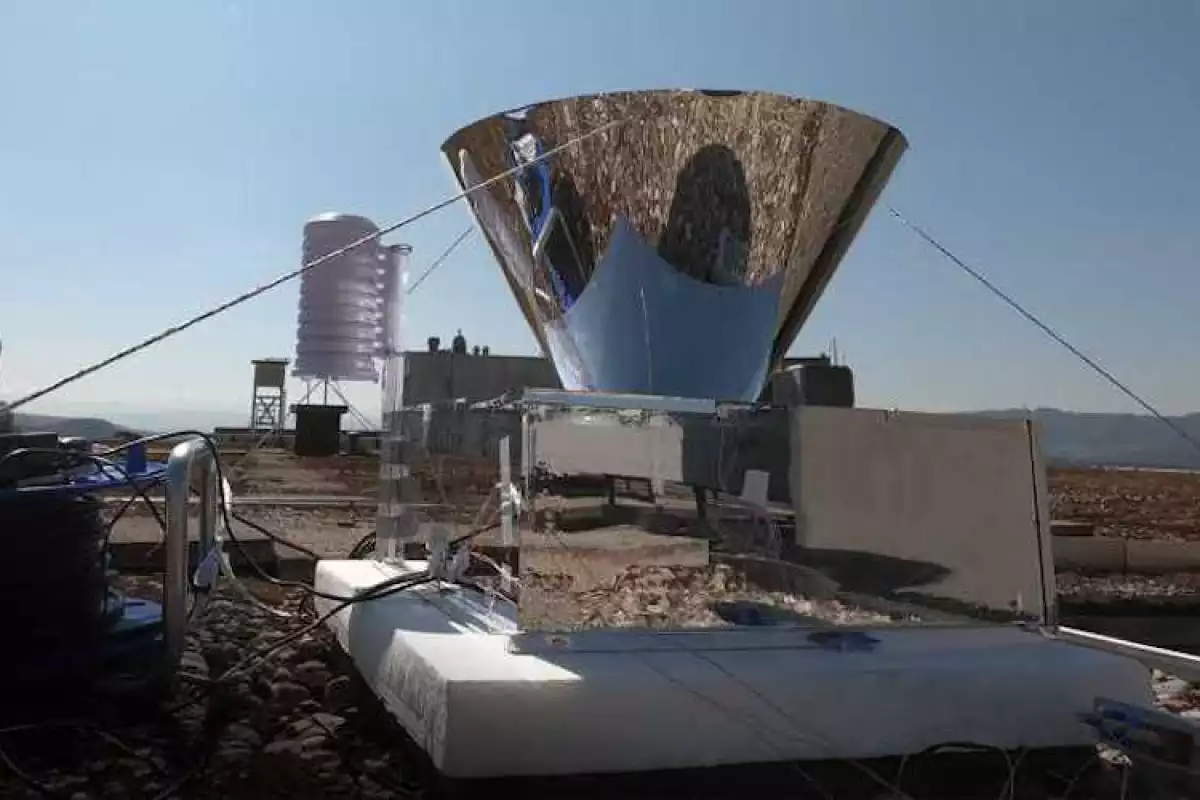

The pilot version of the condenser system, which cools the inside to help water condense and collect
The pilot version of the condenser system, which cools the inside to help water condense and collect
View 2 Images
The pilot version of the condenser system, which cools the inside to help water condense and collect
1/2
The pilot version of the condenser system, which cools the inside to help water condense and collect

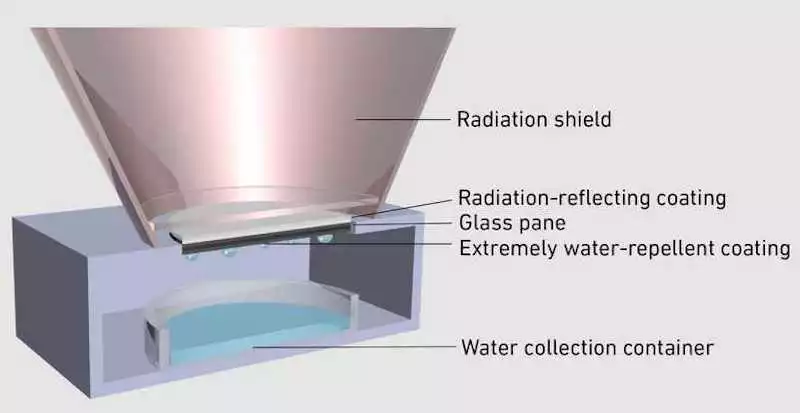

A diagram of the new water condenser design
2/2
A diagram of the new water condenser design

Engineers at ETH Zurich have designed a new device that can wring drinking water out of the air. The system works day and night, and doesn’t require any additional energy input, making it suited for use in remote or developing areas.

It’s a frustrating fact of life that water is literally all around us in the air, but it’s largely inaccessible. There are a range of methods of doing so – many use materials or micro-structures with high surface areas that trap water molecules, then release them when heated by sunlight – but many require external power for heating, while those that don’t often rely on temperature fluctuations over a day and night cycle, so can’t run 24 hours a day.

The ETH team’s new device aims to solve both of those problems. In a way it's the opposite of a solar still – it’s essentially a big box designed to cool itself down drastically compared to the outside environment, so that water vapor condenses more easily.

This process starts with the most prominent feature of the device – a big cone on the top. This acts as a radiation shield that deflects ambient heat in the air, as well as keeping sunlight off the upper surface of the box.

This surface has a few tricks of its own to help keep its cool. It’s made up of a pane of glass coated with layers of a specially designed polymer and silver, which allows it to firstly reflect sunlight away to prevent it from heating up. The heat that it does capture is instead emitted in a specific infrared wavelength so that it passes right through the atmosphere and “vents” straight into the cold of space.

A diagram of the new water condenser design
A diagram of the new water condenser design

The end result is a box that the team says can be as much as 15 °C (27 °F) cooler than the outside temperature. That creates ideal conditions for condensation, which gathers on a special surface on the ceiling inside the box. This surface is coated in a superhydrophobic material that repels the water, so that it forms into droplets and falls into a collection container underneath.

In their small test system, the researchers were able to collect 4.6 ml (0.2 oz) of water per day, using a 10-cm-wide (3.9-in) surface. If scaled up, the team says, this amounts to about 1.3 L (0.3 gal) per day per square meter (10.7 sq ft).

That’s not the biggest yield ever seen from a water harvester like this – that honor still belongs to a Johns Hopkins design that can wring out an astonishing 8.66 L (2.3 gal) per day per kilogram (2.2 lb) of material. But the yield of the new device is the same as other recent designs, except that they require power where this new one operates entirely passively. That means it could be left out wherever it’s needed to work, producing water 24/7 with little effort required.

“In contrast to other technologies, ours can really function without any additional energy, which is a key advantage,” says Iwan Hächler, an author of the study.

Next the team plans to investigate how well the design may be scaled up. The research was published in the journal Science Advances.

Source: ETH Zurich

4 comments
4 comments
-dphiBbydt
A 15 degree delta for a passive blackbody radiation device is pretty impressive.
paul314
So a few square meters per person for survival, a few hundred for typical consumption. That's a lot of rooftops.
TechGazer
If you need this system for personal use, your consumption need not be what is typical for people with abundant water available. I live offgrid, and my water consumption is a bit over 2 litres per day, easily met by collecting rainwater from my woodshed roof. So, in an arid area, a few square metres per person should be adequate. Add in a solar distiller for recycling your greywater for better efficiency.

It sounds like a useful device to me, for living in areas that need it.
Philippe Waterloos
I was wondering if this could work in Canada during the winter... Also is there plans available to create our own system like this one?
