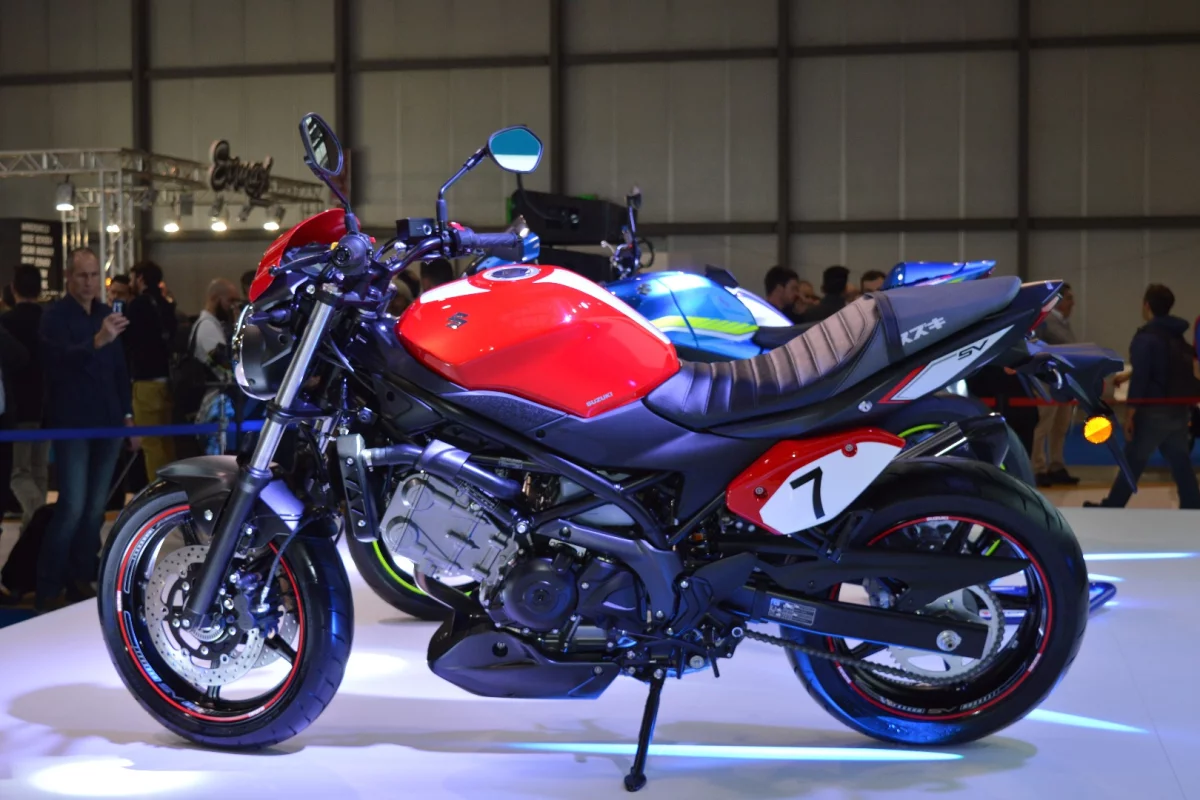

The fourth generation of the Suzuki SV650 returns to its roots with more power, less weight and the familiar sporty character
The fourth generation of the Suzuki SV650 returns to its roots with more power, less weight and the familiar sporty character
View 40 Images
The fourth generation of the Suzuki SV650 returns to its roots with more power, less weight and the familiar sporty character
1/40
The fourth generation of the Suzuki SV650 returns to its roots with more power, less weight and the familiar sporty character

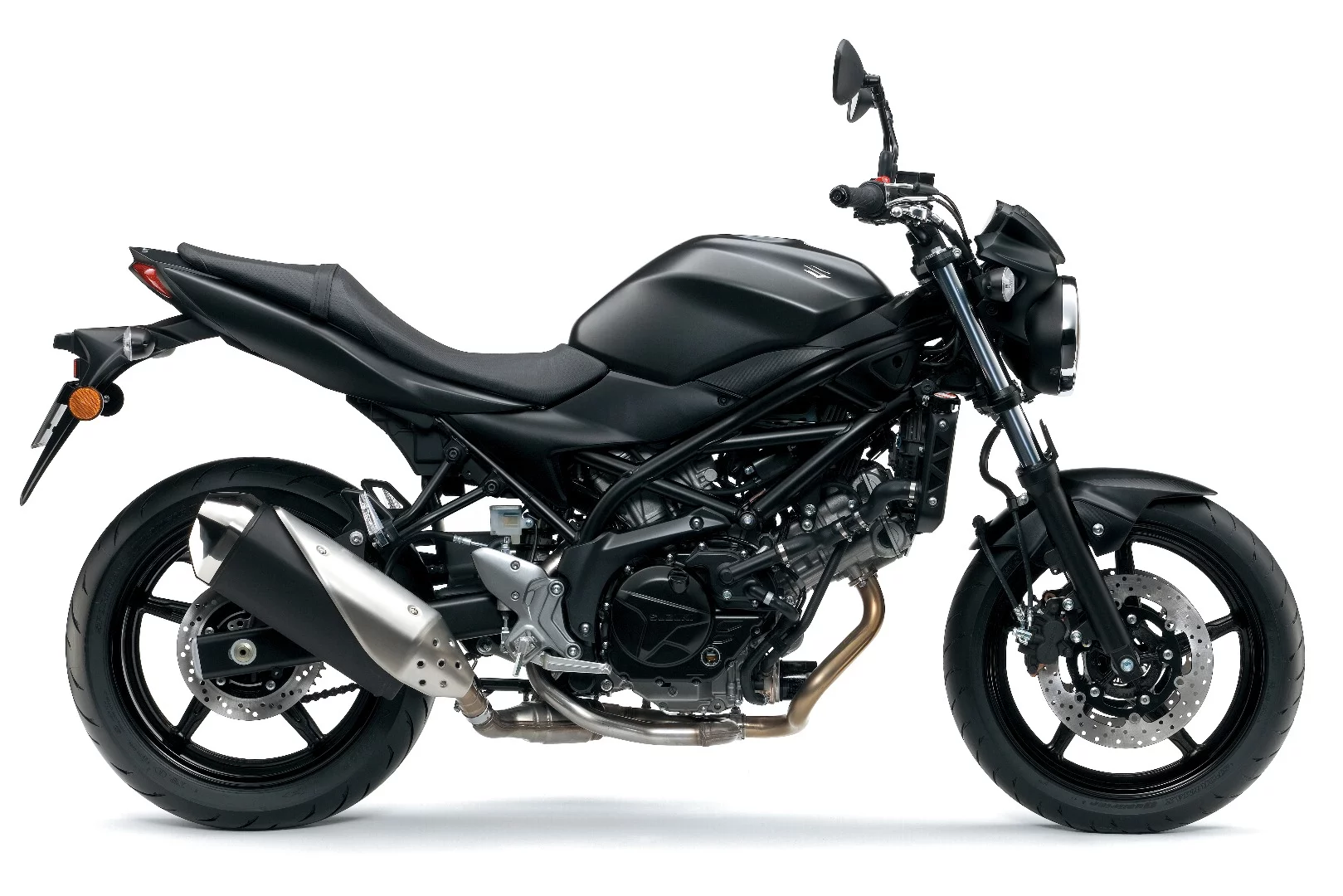

The Suzuki SV650 in Metallic Mat Black
2/40
The Suzuki SV650 in Metallic Mat Black
The Suzuki SV650 in Metallic Mat Black
3/40
The Suzuki SV650 in Metallic Mat Black

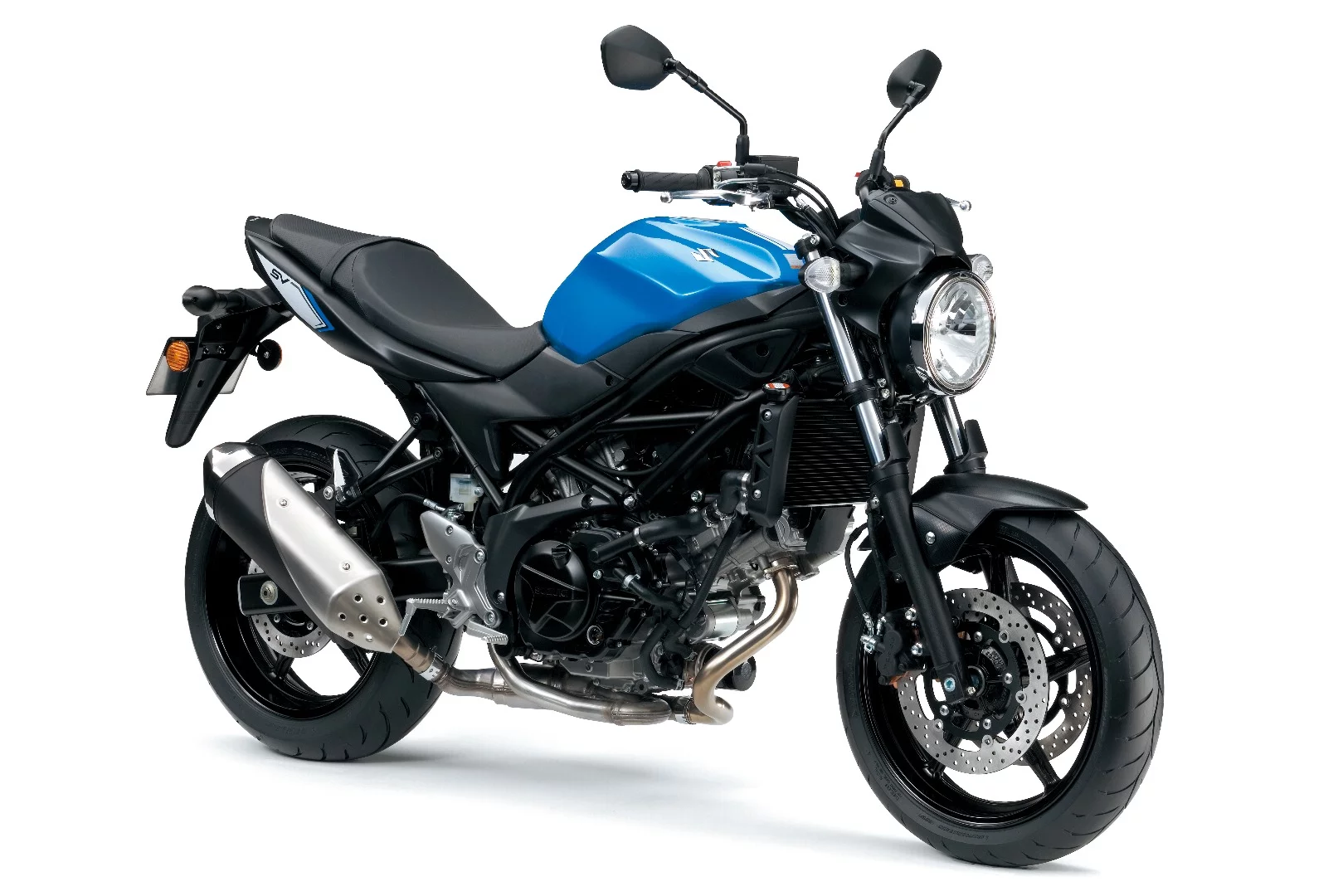

The Suzuki SV650 in Metallic Triton Blue
4/40
The Suzuki SV650 in Metallic Triton Blue
The Suzuki SV650 in Metallic Triton Blue
5/40
The Suzuki SV650 in Metallic Triton Blue

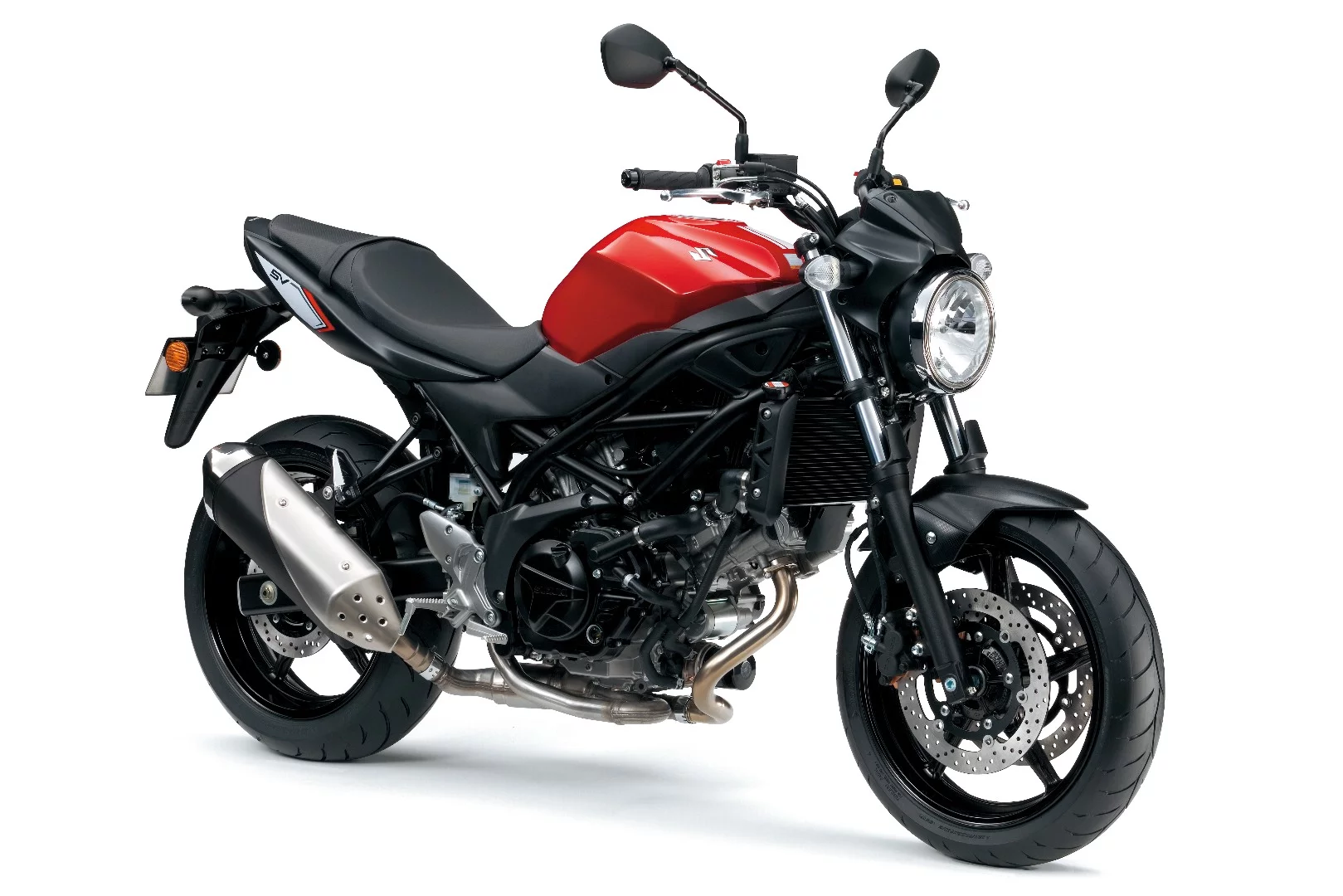

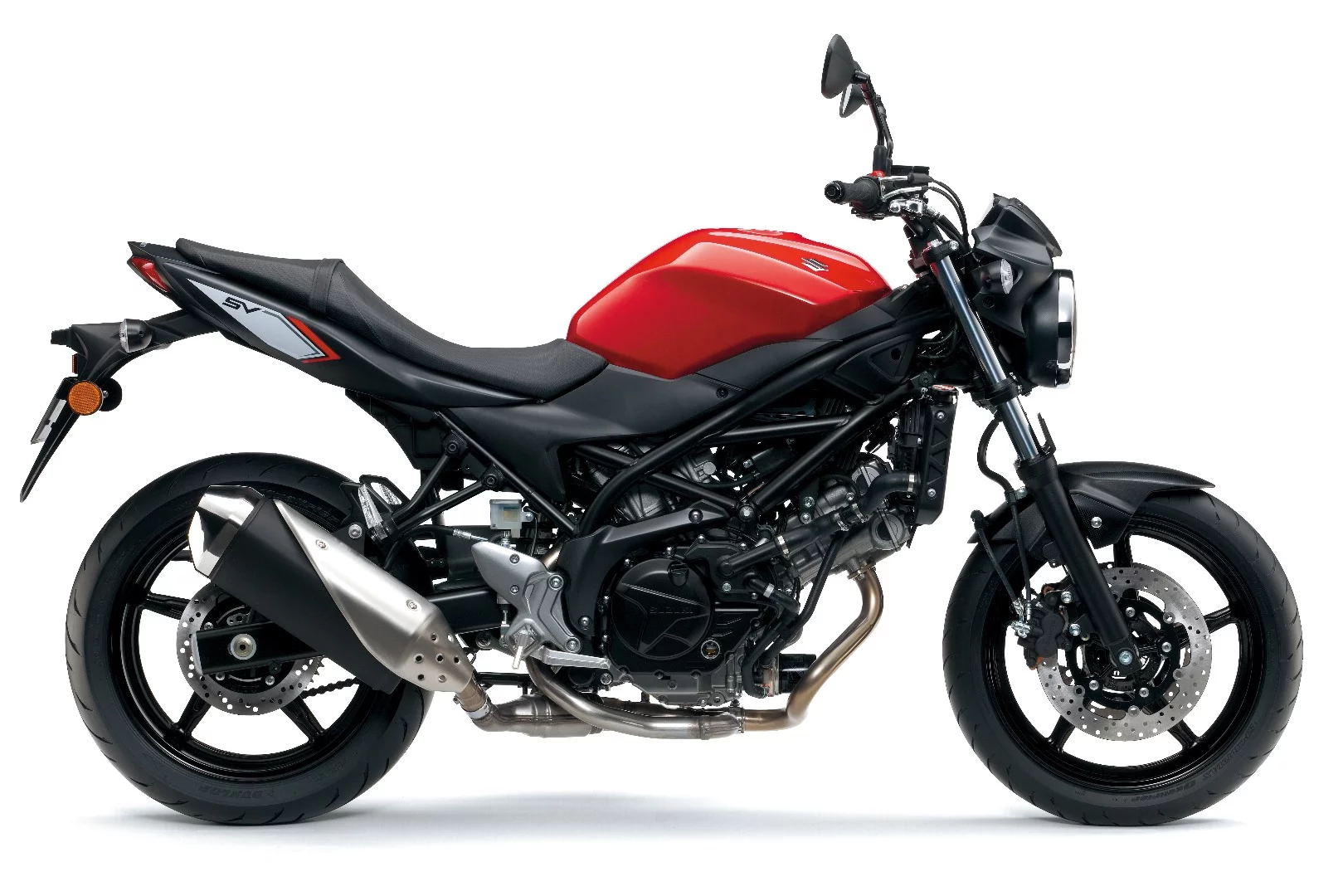

The Suzuki SV650 in Pearl Mira Red
6/40
The Suzuki SV650 in Pearl Mira Red
The Suzuki SV650 in Pearl Mira Red
7/40
The Suzuki SV650 in Pearl Mira Red
The Suzuki SV650 in Pearl Glacier White
8/40
The Suzuki SV650 in Pearl Glacier White
The Suzuki SV650 in Pearl Glacier White
9/40
The Suzuki SV650 in Pearl Glacier White

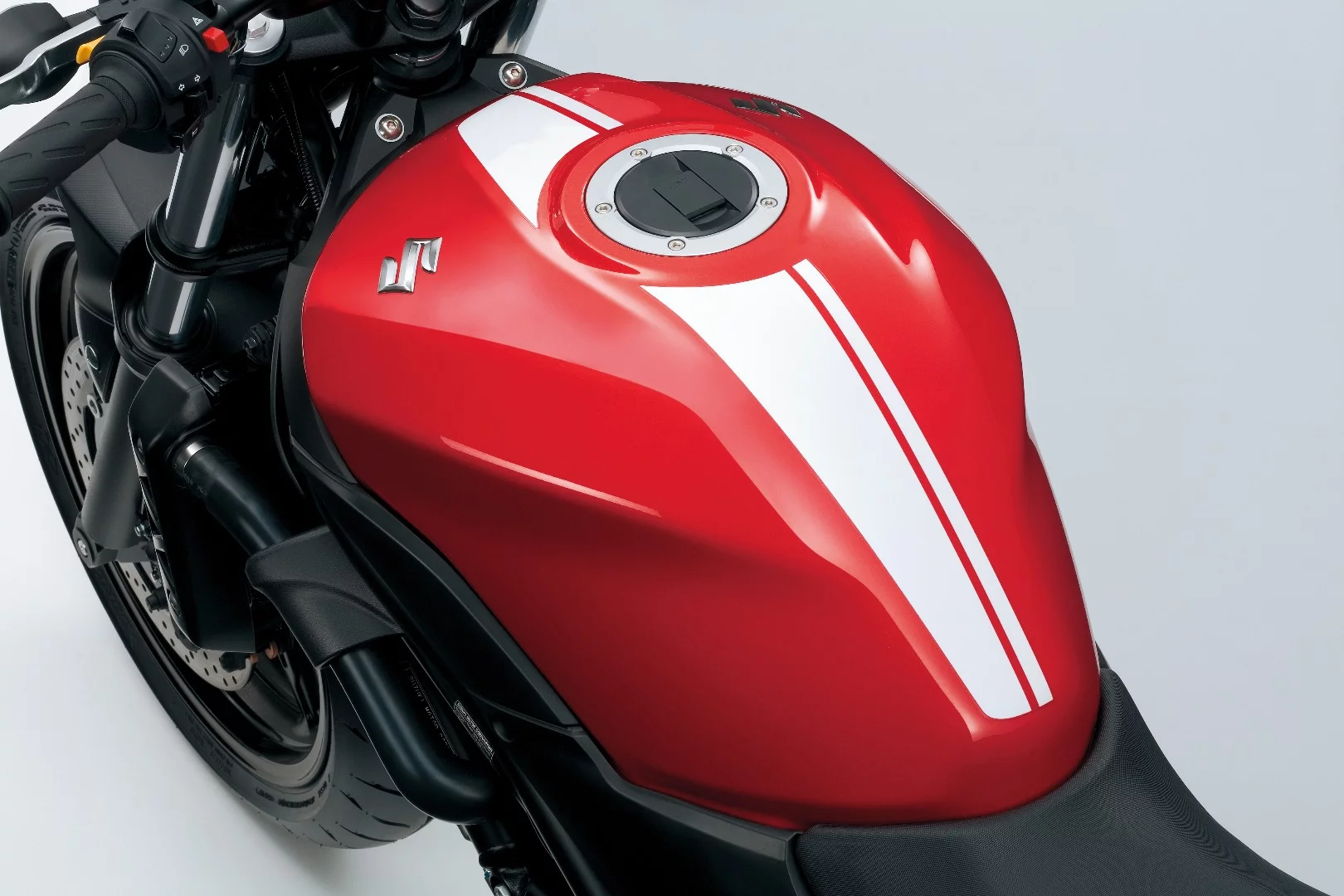

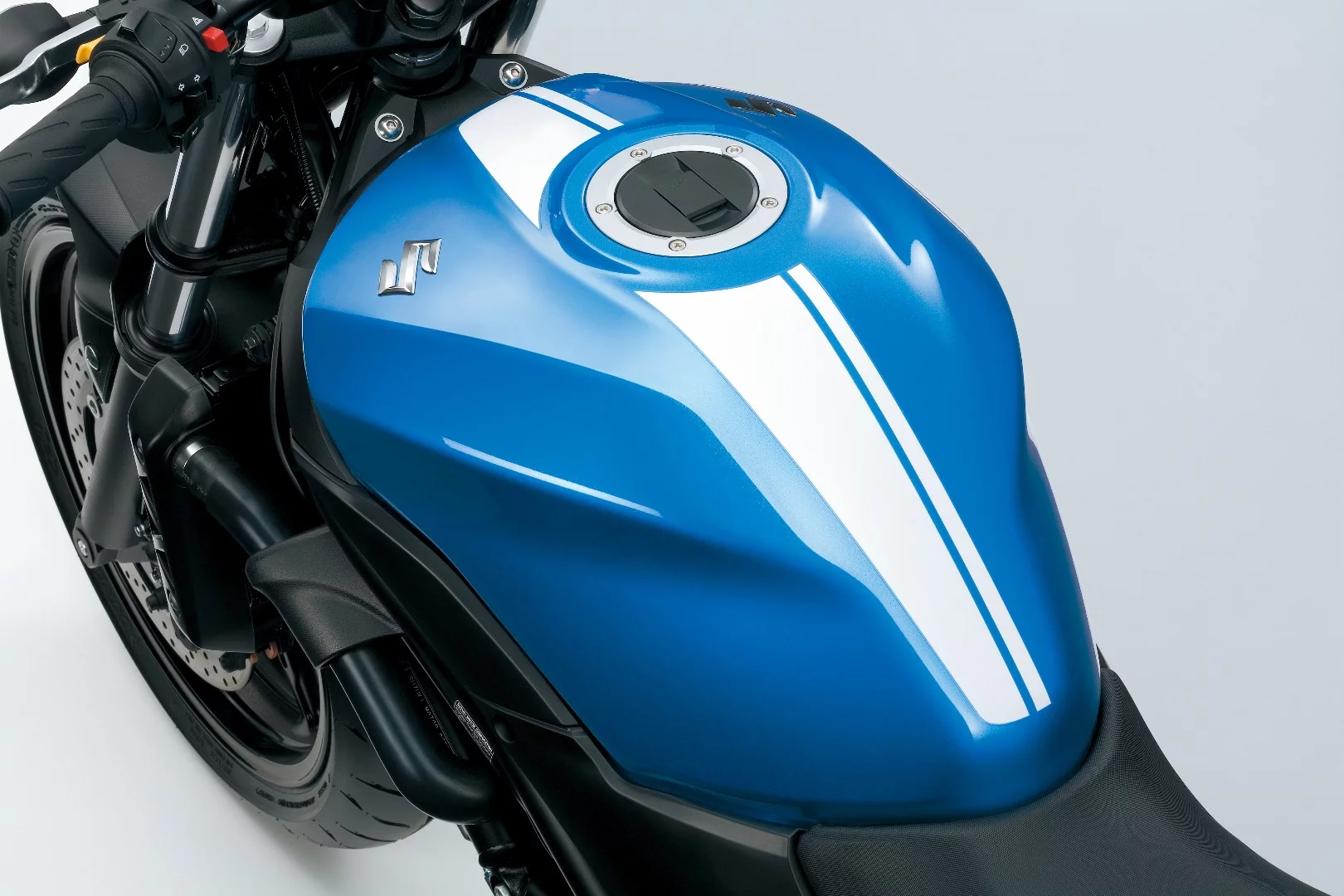

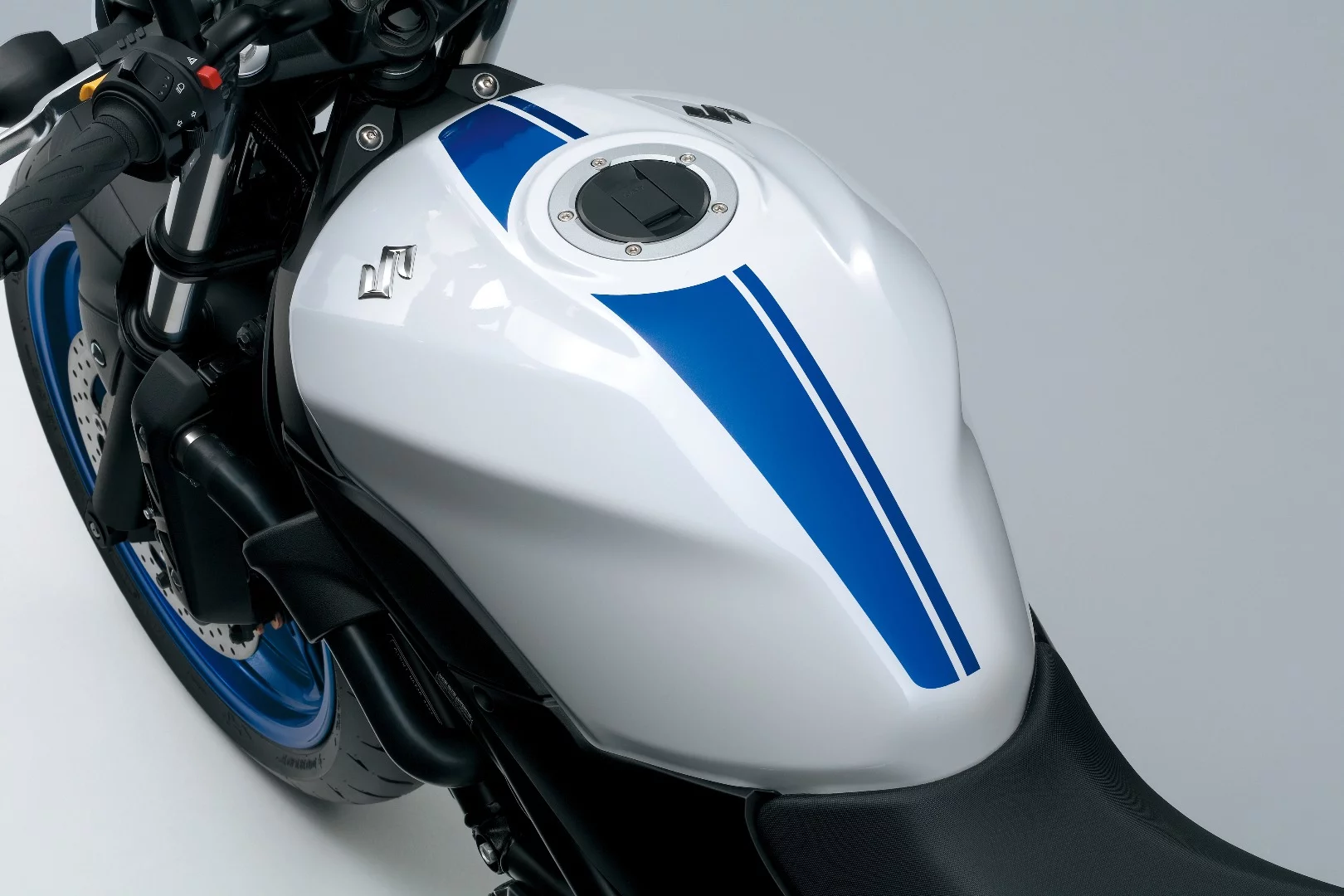

The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
10/40
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
11/40
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
12/40
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel
13/40
The Suzuki SV650 fuel tank is narrower, but retains the same 14.5 liter capacity (US-spec model). The Euro-spec tank holds 13.8 liters of fuel

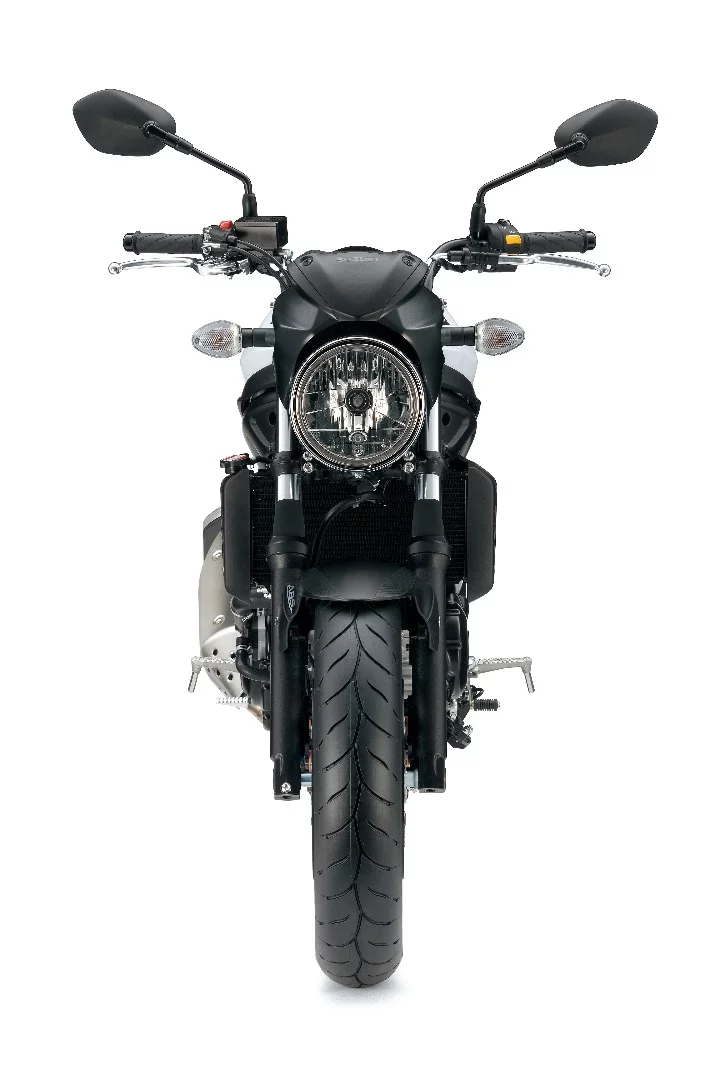

Slimmer silhouette, typical round headlight for the 2016 Suzuki SV650
14/40
Slimmer silhouette, typical round headlight for the 2016 Suzuki SV650

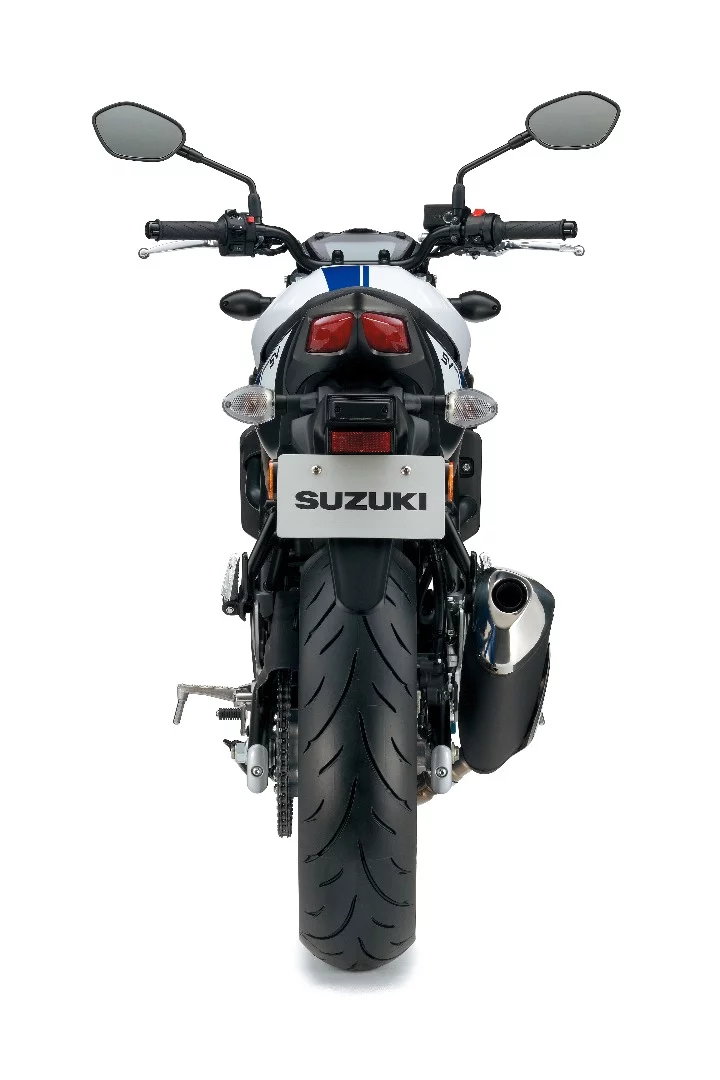

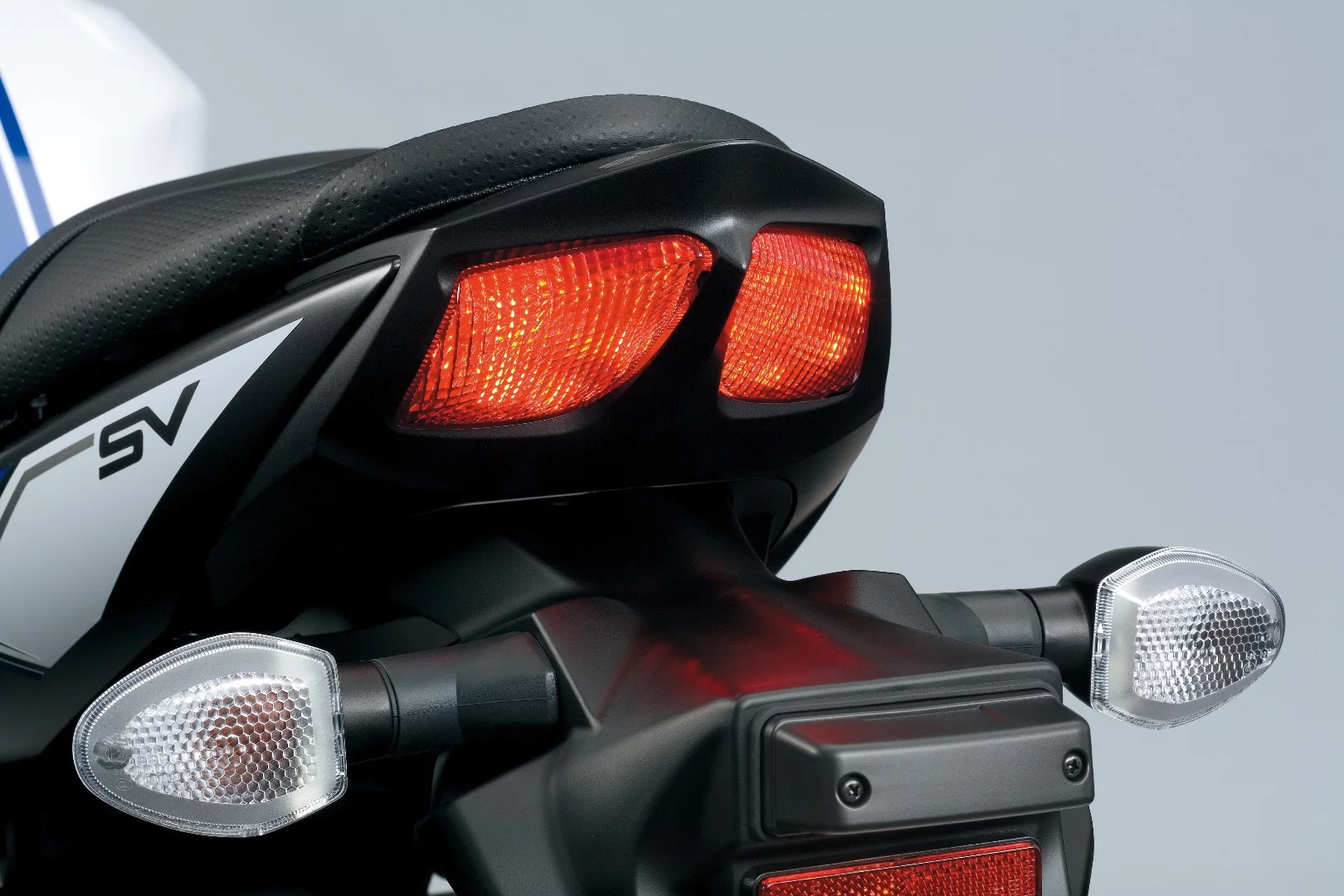

LED rear lights for the 2016 Suzuki SV650
15/40
LED rear lights for the 2016 Suzuki SV650

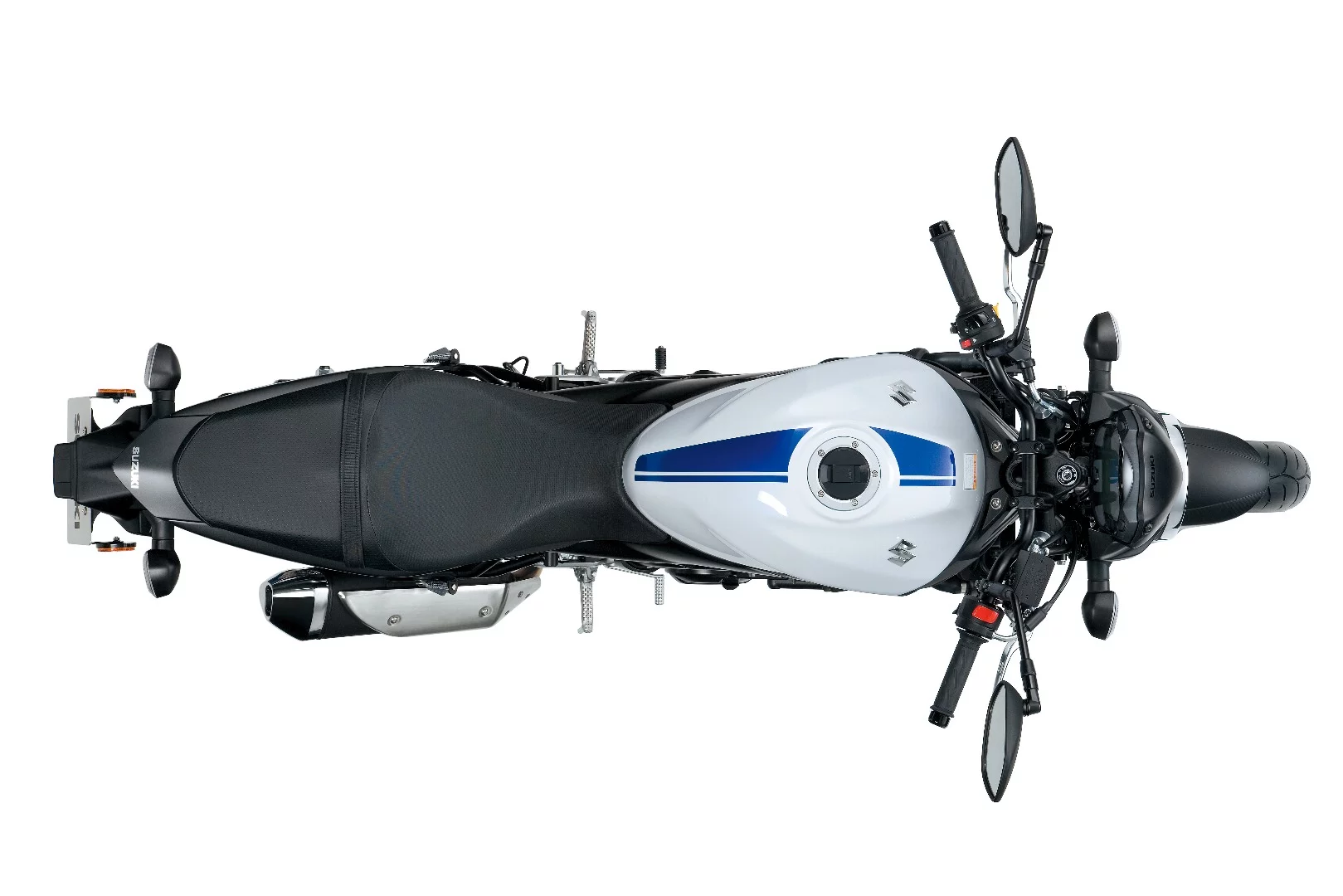

Slimmer silhouette for the 2016 Suzuki SV650
16/40
Slimmer silhouette for the 2016 Suzuki SV650
The new ABS control unit by Nissin is 830 g lighter in the 2016 Suzuki SV650
17/40
The new ABS control unit by Nissin is 830 g lighter in the 2016 Suzuki SV650

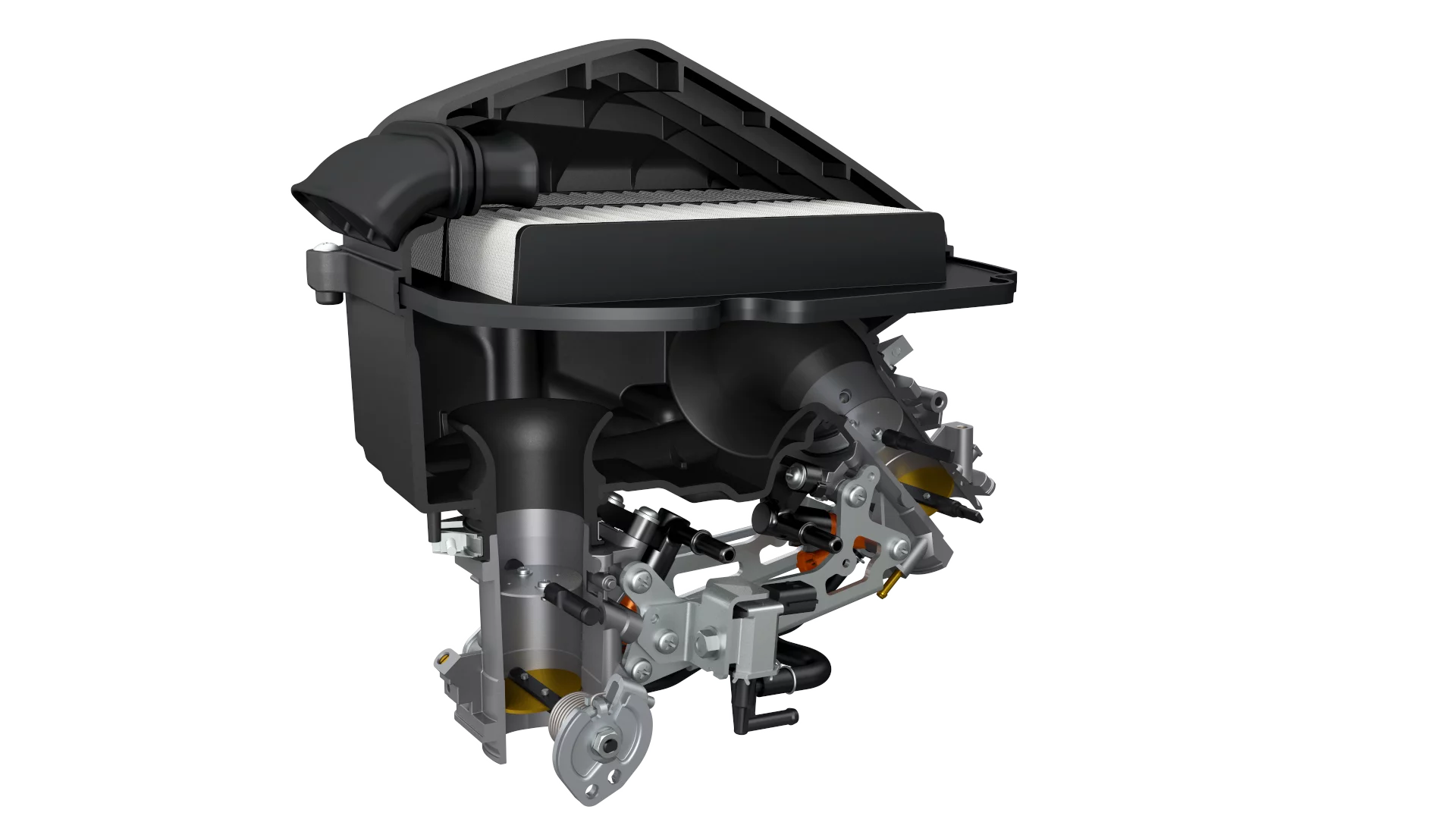

The air filter element of the 2016 Suzuki SV650 has been completely redesigned
18/40
The air filter element of the 2016 Suzuki SV650 has been completely redesigned

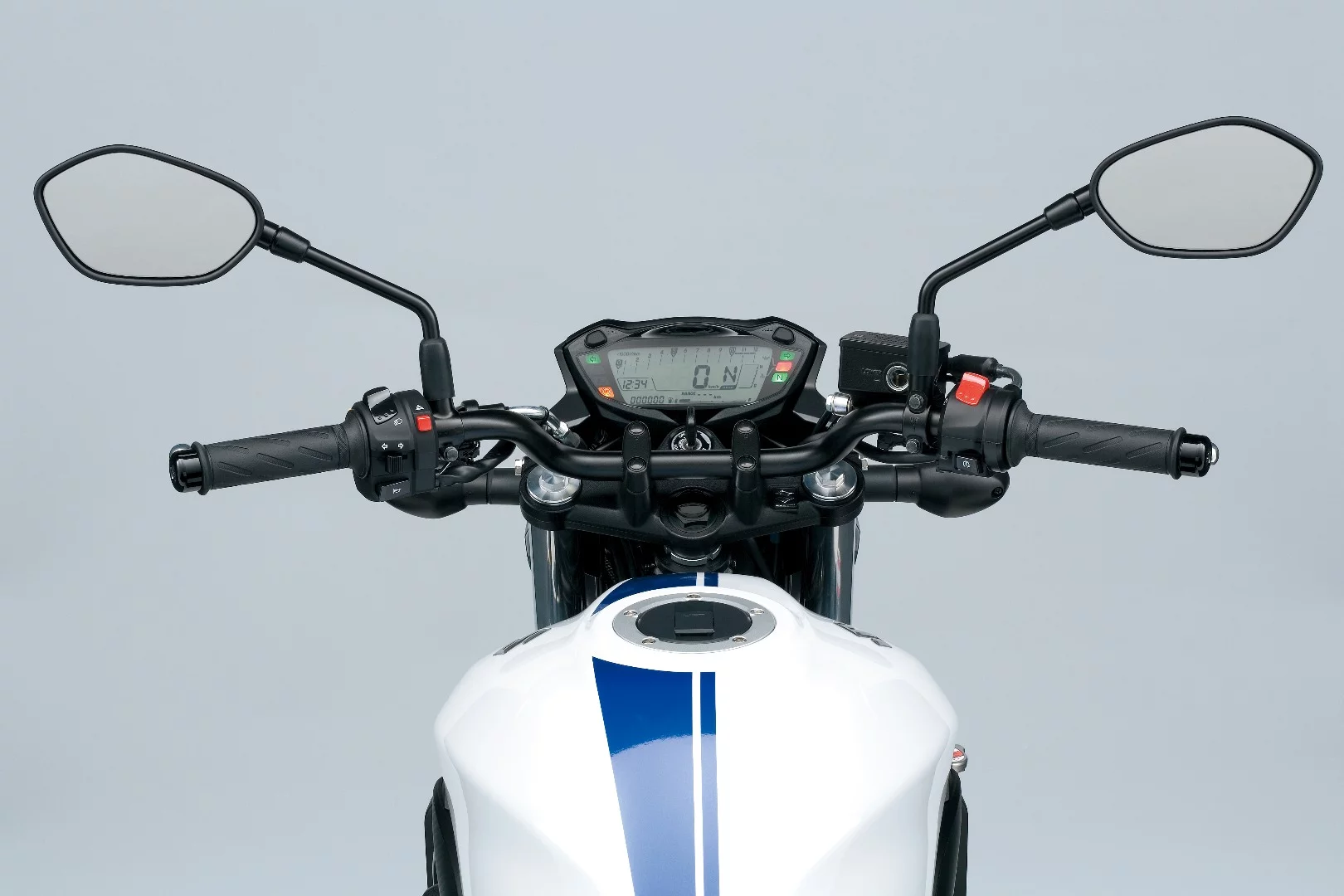

View from the riding position of the 2016 Suzuki SV650
19/40
View from the riding position of the 2016 Suzuki SV650

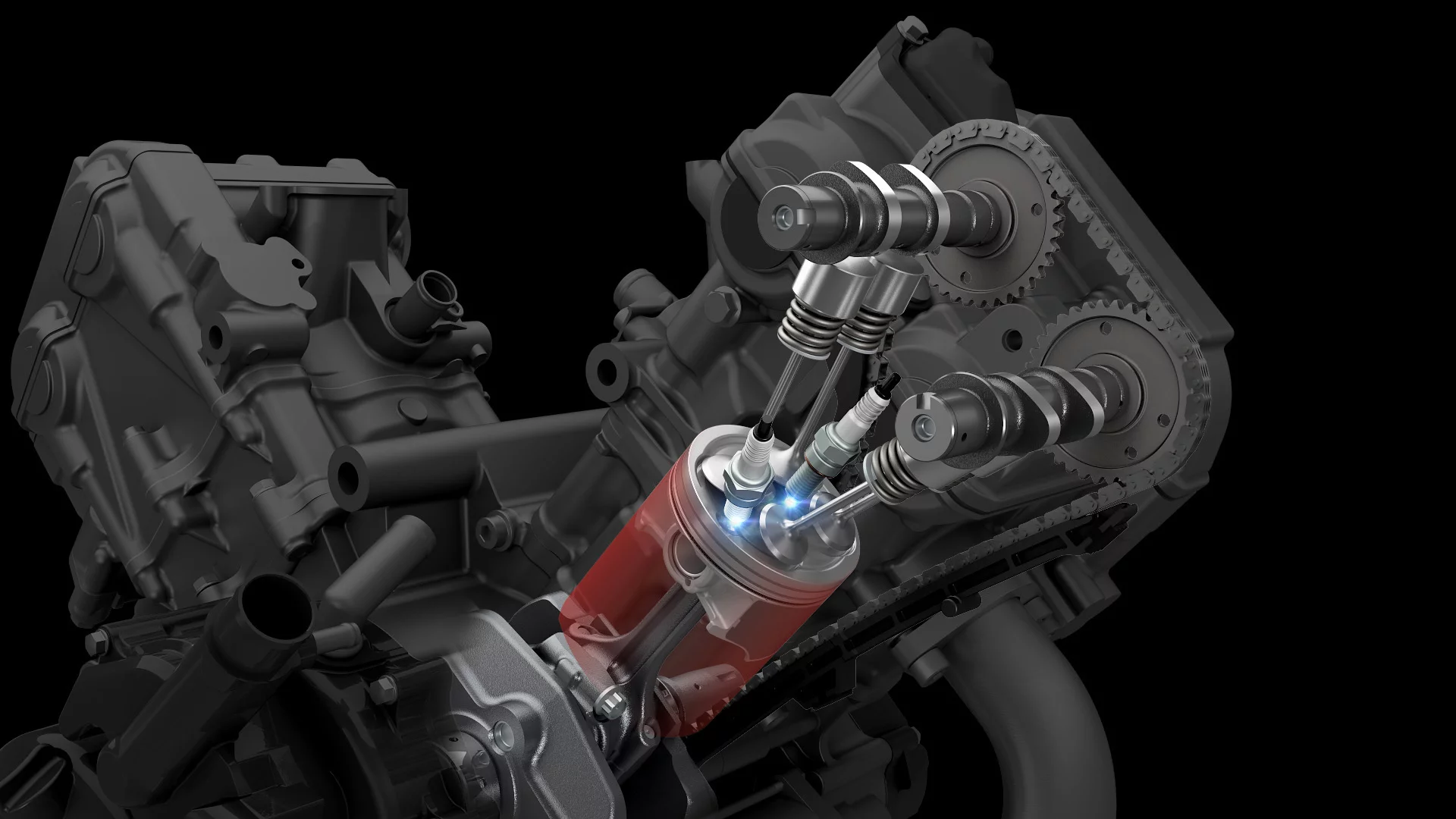

The 2016 Suzuki SV650 features dual spark technology
20/40
The 2016 Suzuki SV650 features dual spark technology

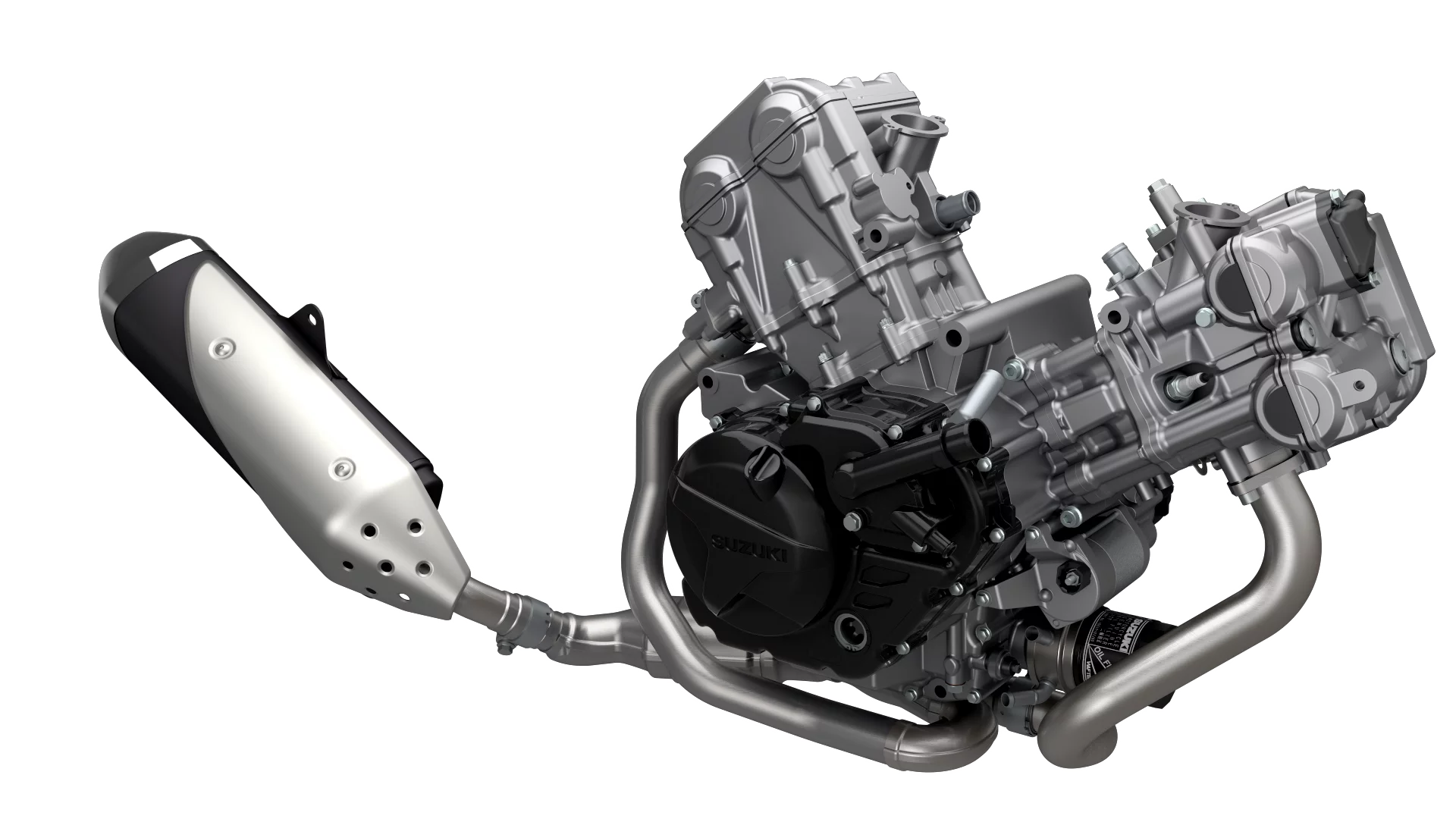

The 2016 Suzuki SV650 uses the same engine we've known since 1999, but it has gone through an extensive redesign and is coupled with a brand new exhaust system
21/40
The 2016 Suzuki SV650 uses the same engine we've known since 1999, but it has gone through an extensive redesign and is coupled with a brand new exhaust system
The 2016 Suzuki SV650 features a simple round headlight
22/40
The 2016 Suzuki SV650 features a simple round headlight

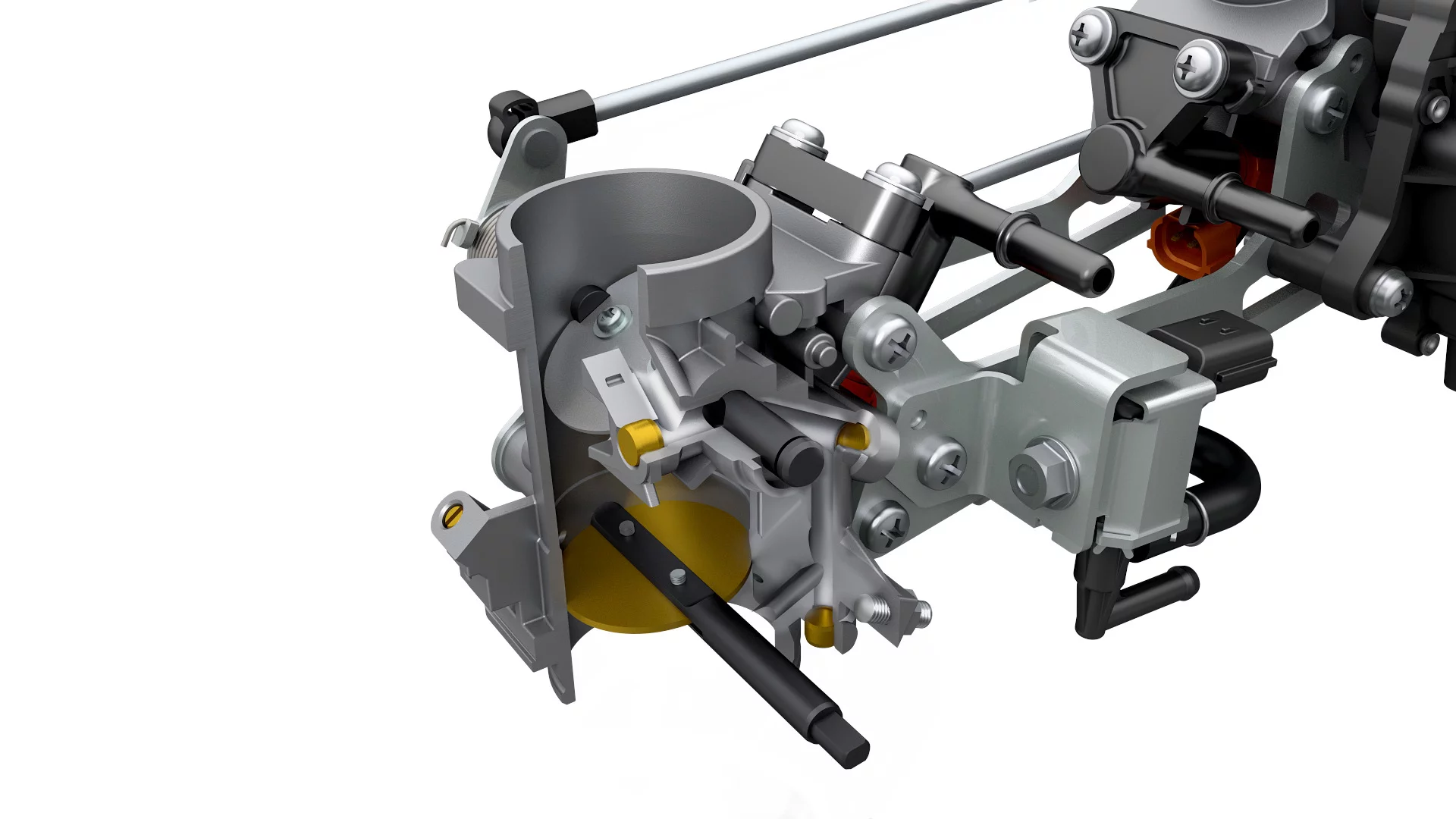

The 2016 Suzuki SV650 is fed via Suzuki's Dual Throttle Valve system, where a secondary valve is controlled by a servo mechanism to ensure linear power delivery
23/40
The 2016 Suzuki SV650 is fed via Suzuki's Dual Throttle Valve system, where a secondary valve is controlled by a servo mechanism to ensure linear power delivery
Completely new dashboard with adequate information, including basic trip computer functions such as consumption figures
24/40
Completely new dashboard with adequate information, including basic trip computer functions such as consumption figures
The new exhaust of the 2016 Suzuki SV650 is lighter, Euro 4 compliant and expected to deliver an unmistakable V-twin rumble
25/40
The new exhaust of the 2016 Suzuki SV650 is lighter, Euro 4 compliant and expected to deliver an unmistakable V-twin rumble

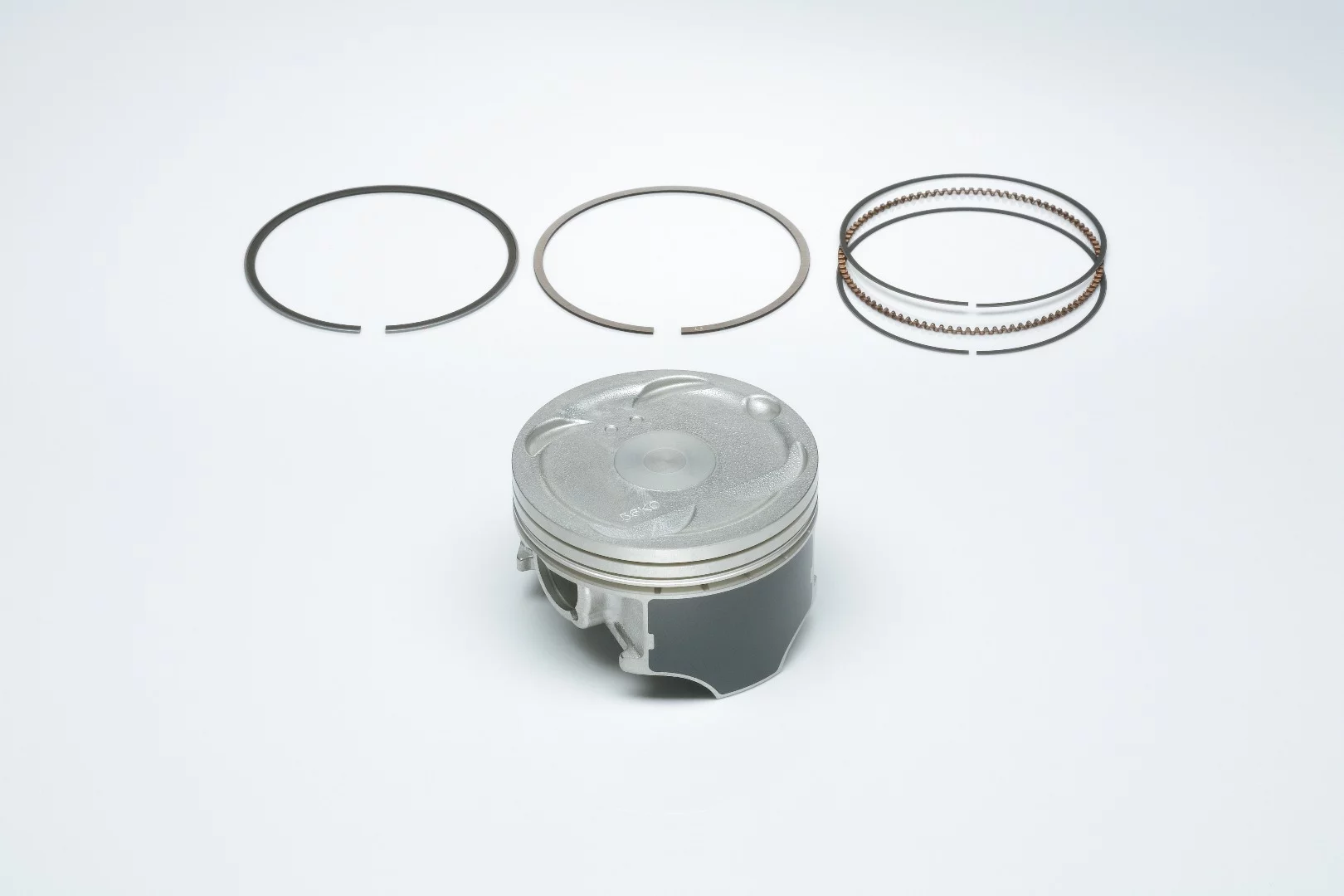

The new pistons of the Suzuki SV650 were engineered with use of Finite Element Method analysis for optimal rigidity and weight
26/40
The new pistons of the Suzuki SV650 were engineered with use of Finite Element Method analysis for optimal rigidity and weight

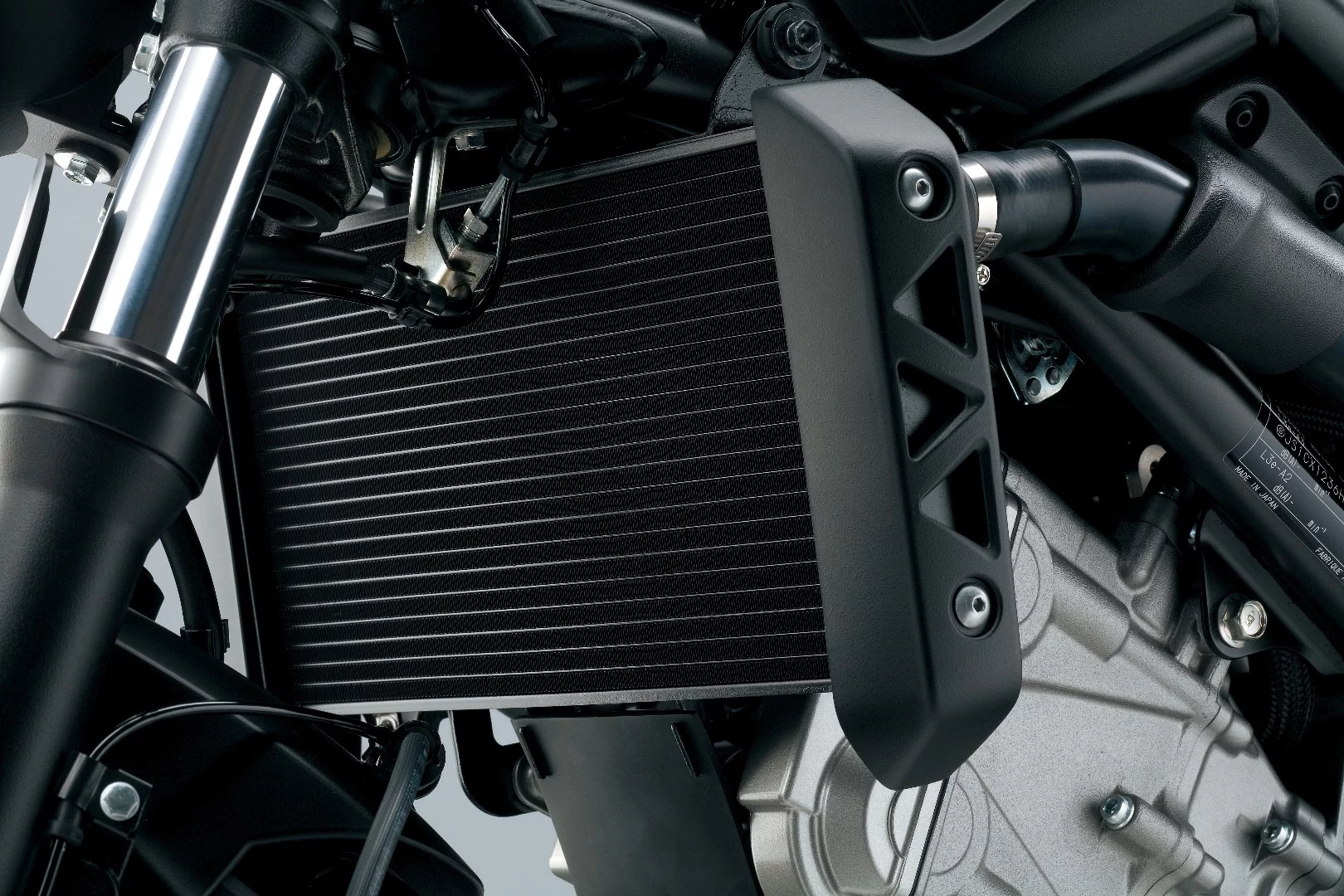

A new radiator is part of the revised cooling system that was necessary in order for the Suzuki SV650 to satisfy the new Euro 4 norms
27/40
A new radiator is part of the revised cooling system that was necessary in order for the Suzuki SV650 to satisfy the new Euro 4 norms
The Suzuki SV650 has a new double seat that is slimmer in the front part to facilitate ground access to for shorter riders
28/40
The Suzuki SV650 has a new double seat that is slimmer in the front part to facilitate ground access to for shorter riders
A new Easy Start System that debuted last year on the GSX-S1000 has been applied to the Suzuki SV650. Just press on the button just once and the starter motor will work for a given amount of time until the engine fires up
29/40
A new Easy Start System that debuted last year on the GSX-S1000 has been applied to the Suzuki SV650. Just press on the button just once and the starter motor will work for a given amount of time until the engine fires up
LED rear lights for the 2016 Suzuki SV650
30/40
LED rear lights for the 2016 Suzuki SV650

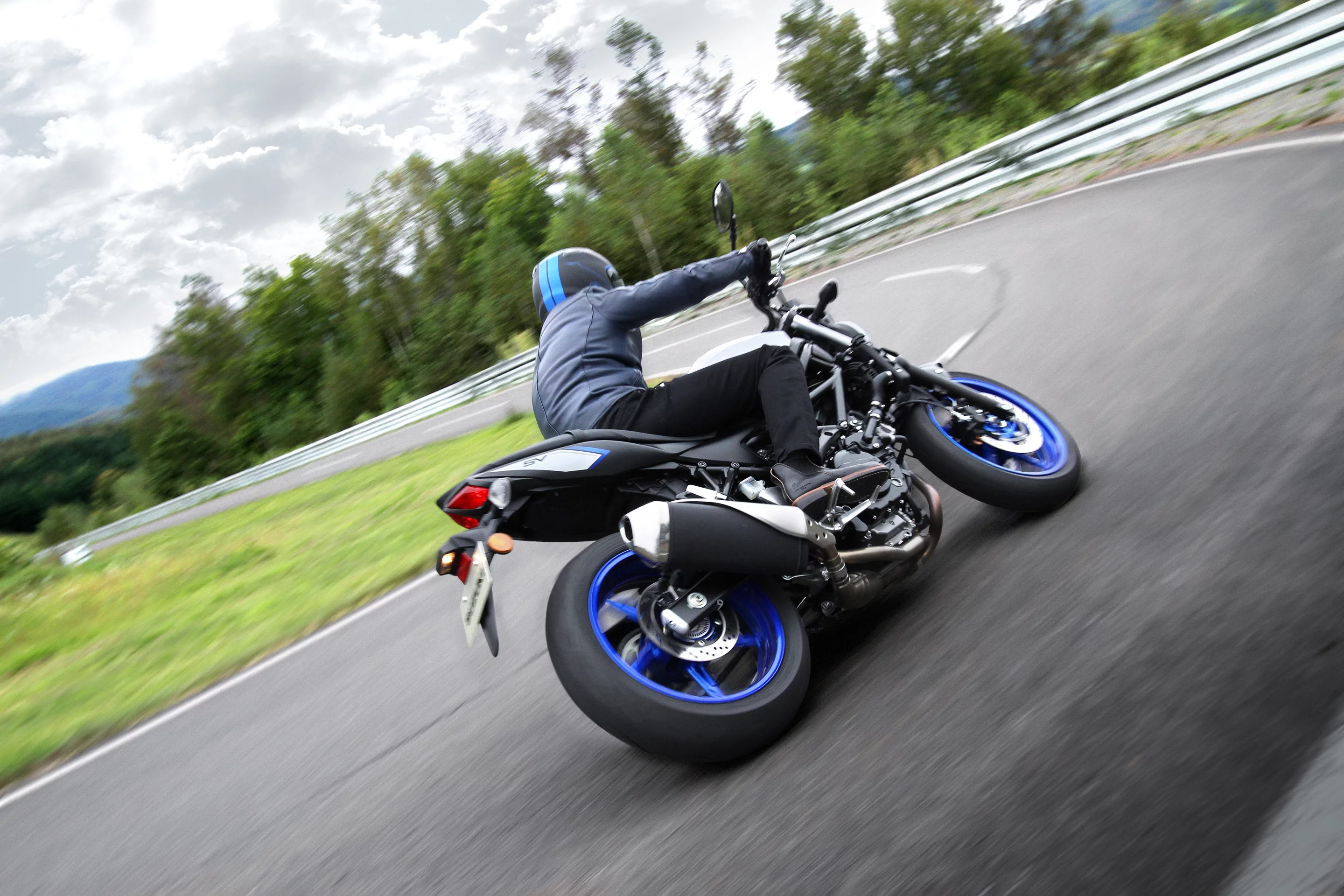

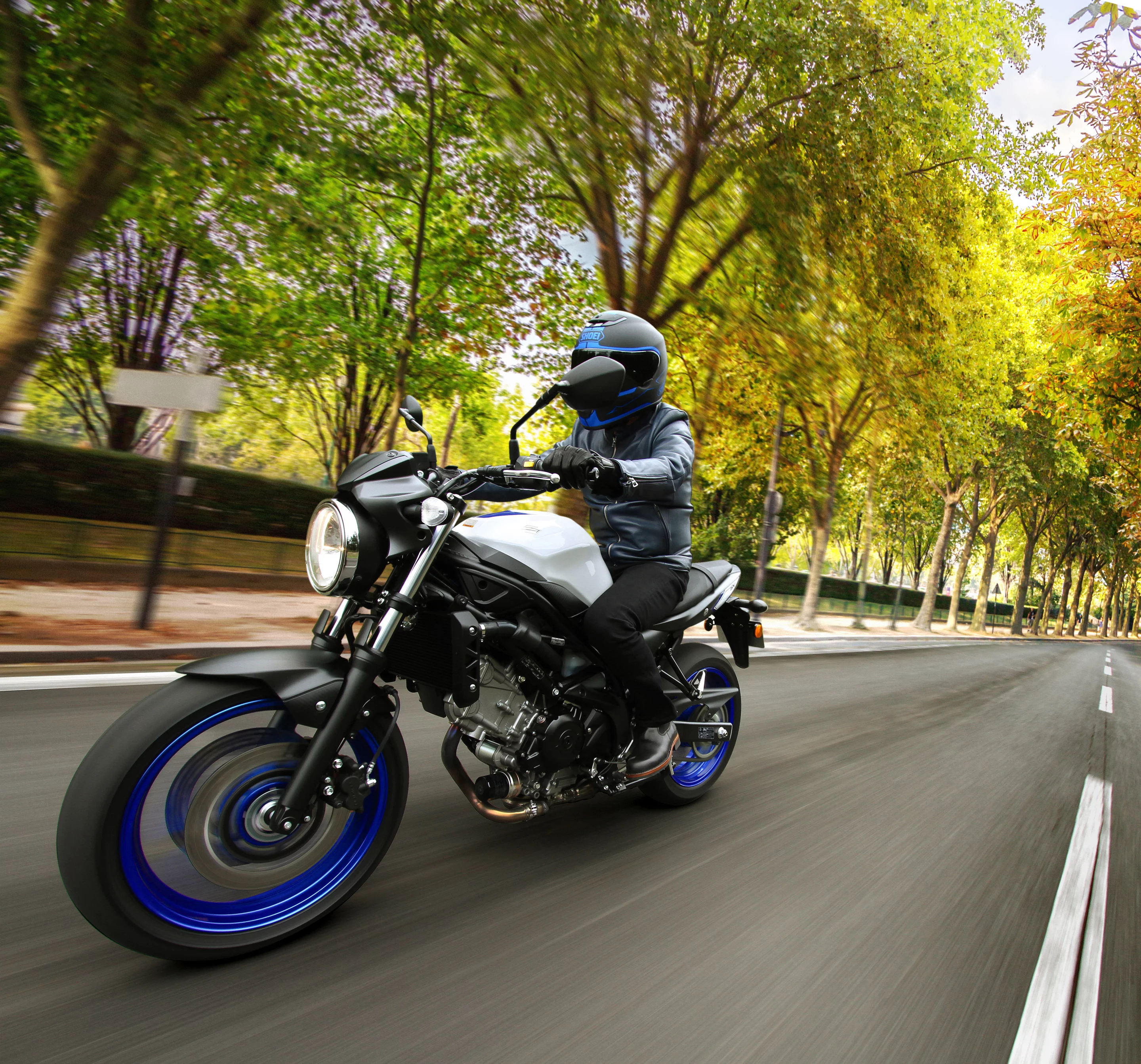

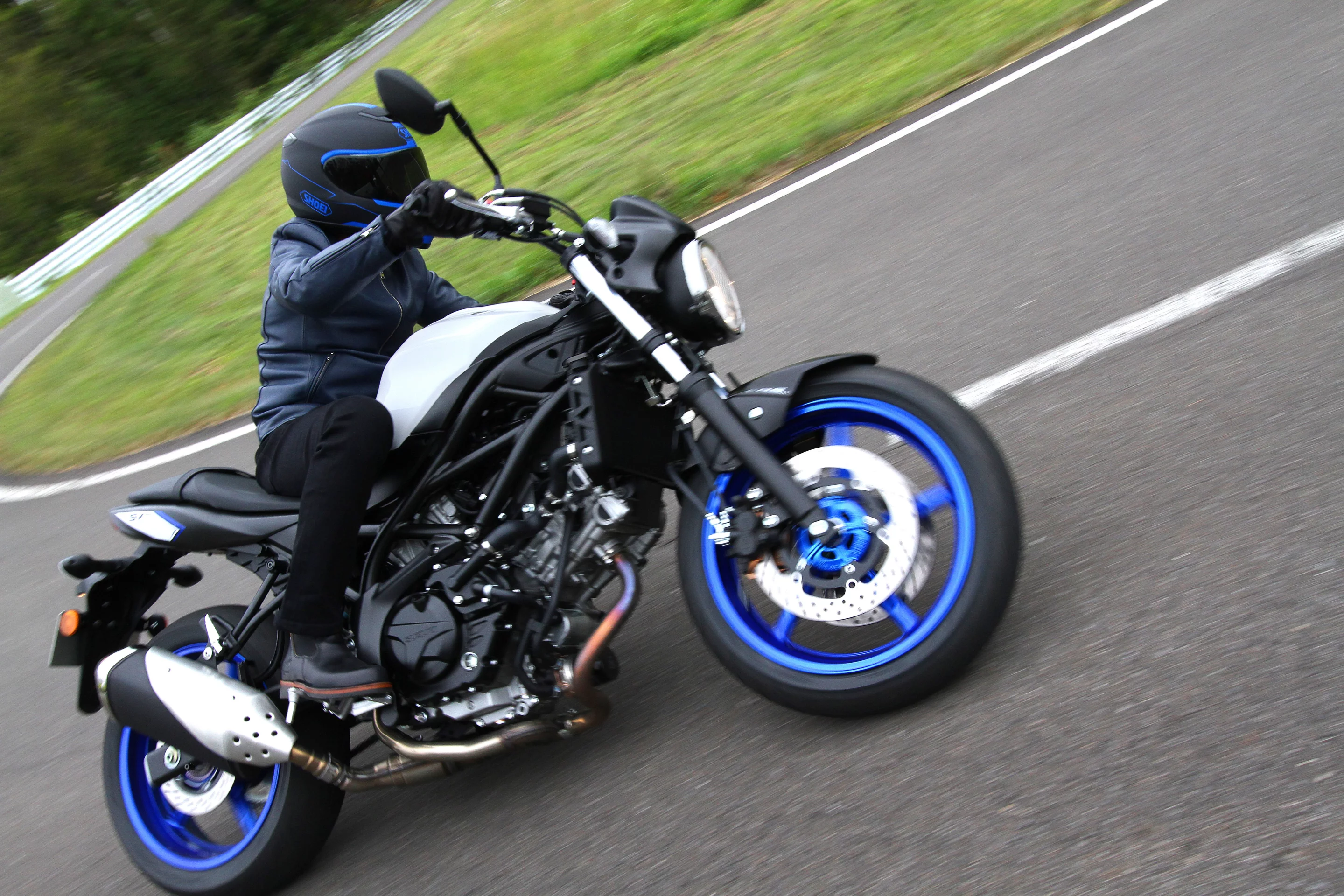

The Suzuki SV650 in action
31/40
The Suzuki SV650 in action
The Suzuki SV650 in action
32/40
The Suzuki SV650 in action
The Suzuki SV650 in action
33/40
The Suzuki SV650 in action
The Suzuki SV650 in action
34/40
The Suzuki SV650 in action
The Suzuki SV650 in action
35/40
The Suzuki SV650 in action
Two of the four available color options of the Suzuki SV650
36/40
Two of the four available color options of the Suzuki SV650
The Suzuki SV650 in action
37/40
The Suzuki SV650 in action
Suzuki presented at EICMA a special scrambler edition of the new SV650 adorned with a host of goodies from SW Motech
38/40
Suzuki presented at EICMA a special scrambler edition of the new SV650 adorned with a host of goodies from SW Motech
Another special edition in Suzuki's EICMA booth was an SV650 converted to Cafe Racer with several ergal parts from Gilles Tooling, such as clip-ons and rearsets
39/40
Another special edition in Suzuki's EICMA booth was an SV650 converted to Cafe Racer with several ergal parts from Gilles Tooling, such as clip-ons and rearsets
The 2016 Suzuki SV650 is built around a brand new steel truss frame, cleverly painted black to minimize the perception of volume
40/40
The 2016 Suzuki SV650 is built around a brand new steel truss frame, cleverly painted black to minimize the perception of volume
View gallery - 40 images

Suzuki has unveiled an updated version of its venerable middleweight roadster at EICMA 2015. Featuring a new frame and a redesigned V-twin engine for more power and lower fuel consumption, the new SV650 is slimmer, lighter and sports a fresh, clean design.

The SV650 has been around since 1999, being the first motorcycle to introduce the 645 cc V-twin engine that was later also used to power the hugely successful DL650 V-Strom adventure bike. The second generation SV was introduced in 2003, with brand new looks, a new aluminum frame and fuel injection as its most important updates. Six years later Suzuki renamed it as SFV650 Gladius and offered a new, modern design to complement a proven package that could tackle a wide variety of roles, ranging from friendly entry level motorcycle to club racing legend.

For its fourth generation, Suzuki returns to the model's roots by reinstating the SV name and redesigning it with clean, simple lines.

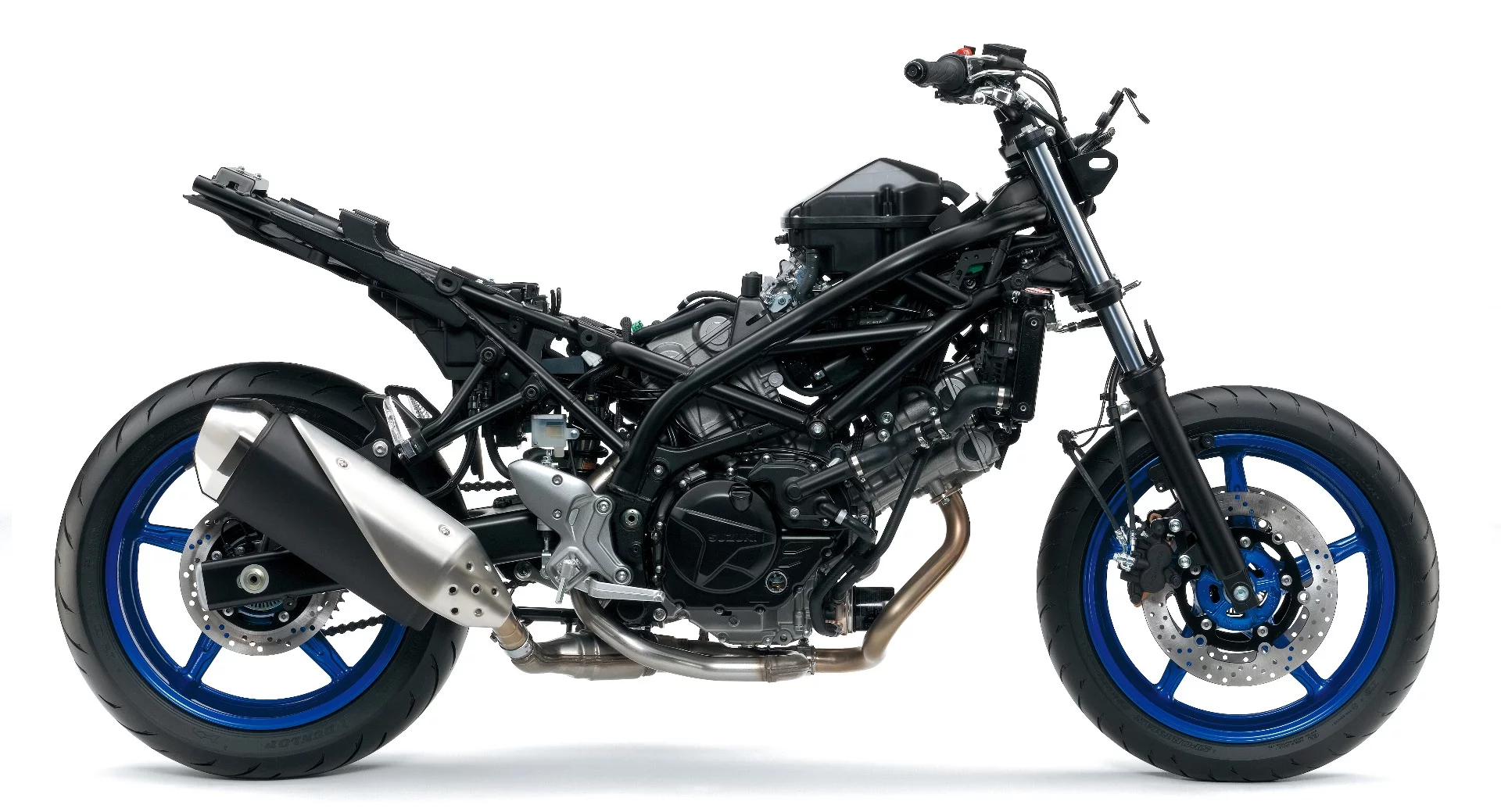

The 2016 Suzuki SV650 is built around a brand new steel truss frame, cleverly painted black to minimize the perception of volume
The 2016 Suzuki SV650 is built around a brand new steel truss frame, cleverly painted black to minimize the perception of volume

The host of updates to the 90-degree V-twin engine include new pistons and rings, cooling system and exhaust, resulting in a gain of 4 hp in peak power, up to 75 at 8,500 rpm. Torque hasn't changed in terms of maximum value, but the 64 Nm (47.2 lb-ft) are now produced higher than ever, at 8,100 rpm.

Suzuki opted to keep the SV relatively free from the typical electronic gadgetry that has infested modern motorcycles, so no ride-by-wire throttle action, traction control or selectable ignition maps. Instead, the new SV650 debuts a new practical system called Low RPM Assist. Working in tandem with the Idle Speed Control (that has been around since the previous SFV model), this system activates the moment the rider releases the clutch to launch the motorcycle by raising the engine revolutions just enough to avoid accidental stalling.

Another prominent feature of the new SV650 is its frame. Suzuki steered clear of the aluminum designs of the past, redesigning the previous model's steel truss to a slimmer silhouette.

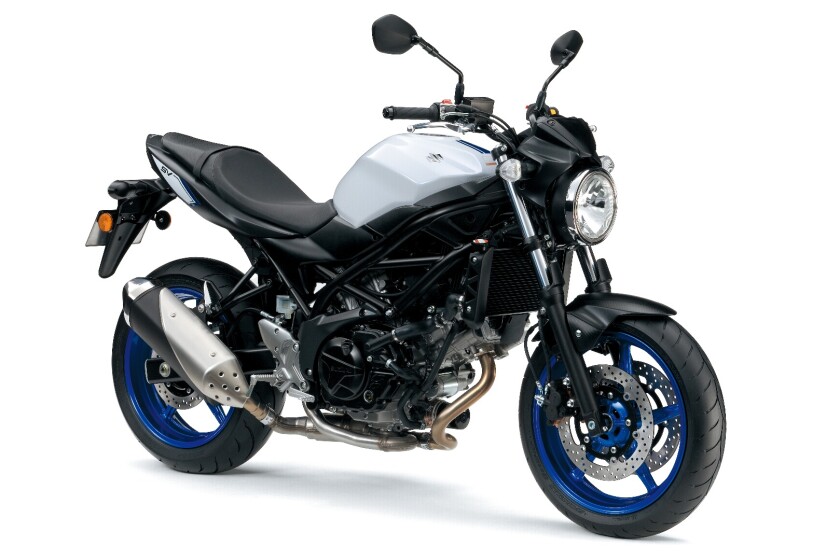

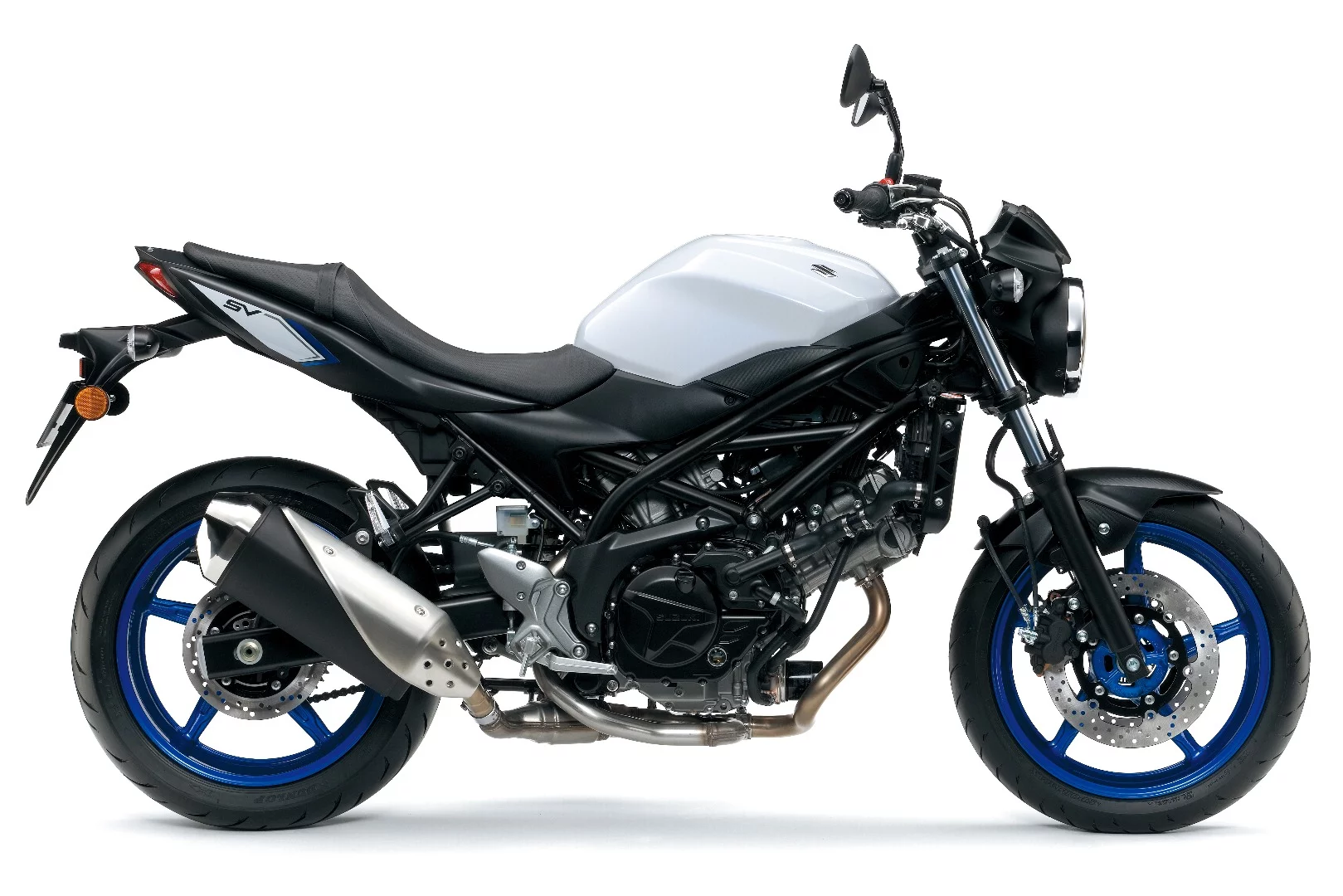

The Suzuki SV650 in Pearl Glacier White
The Suzuki SV650 in Pearl Glacier White

Suspension and brake systems haven't changed, with the exception of a new ABS control unit by Nissin that's 830 g (1.8 lb) lighter. In all the SV650 weighs in at 195 kg (430 lb) in the non-ABS version and 197 kg (434 lb) with the ABS.

The new SV650 is expected to hit showrooms in the second quarter of 2016 at an as yet undisclosed price tag. It will be tasked with competing against Yamaha's MT-07 (FZ-07) – a motorcycle that has met considerable success with the combination of strong performance at an affordable price.

See the SV650 in action in Suzuki's new promo video.

Source: Suzuki
