World-first wooden wind turbine starts spinning in Germany

By Darren Quick
November 14, 2012
World-first wooden wind turbine starts spinning in Germany

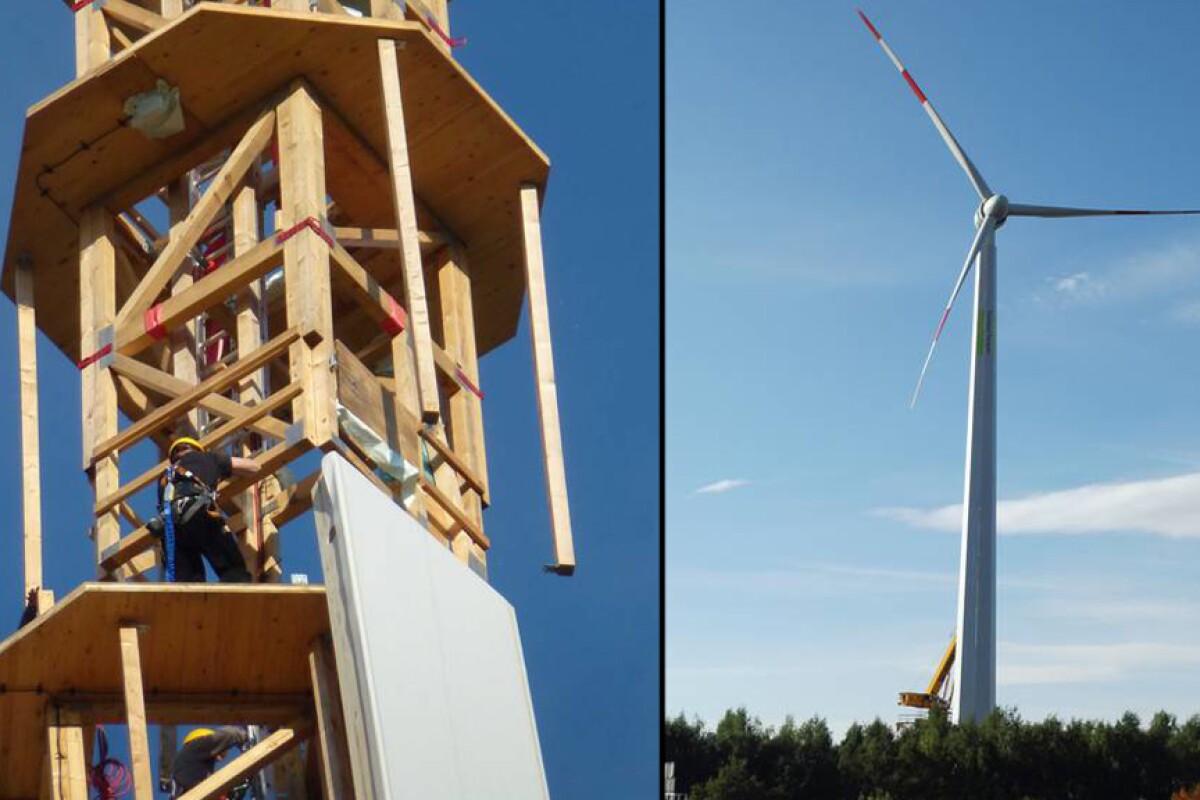

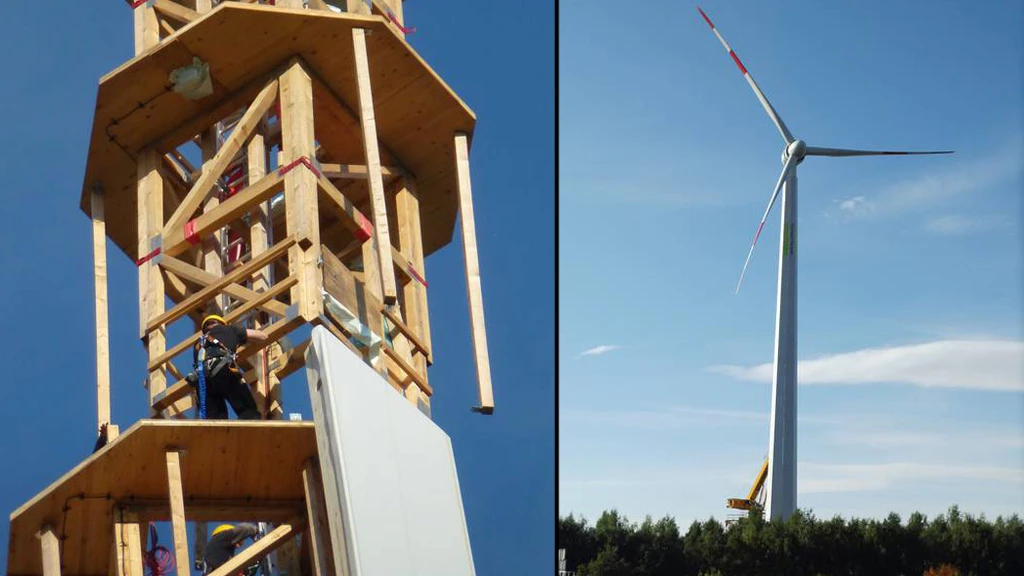

The prototype TimberTower constructed in Hannover, Germany
The prototype TimberTower constructed in Hannover, Germany
View 6 Images
The prototype TimberTower constructed in Hannover, Germany
1/6
The prototype TimberTower constructed in Hannover, Germany

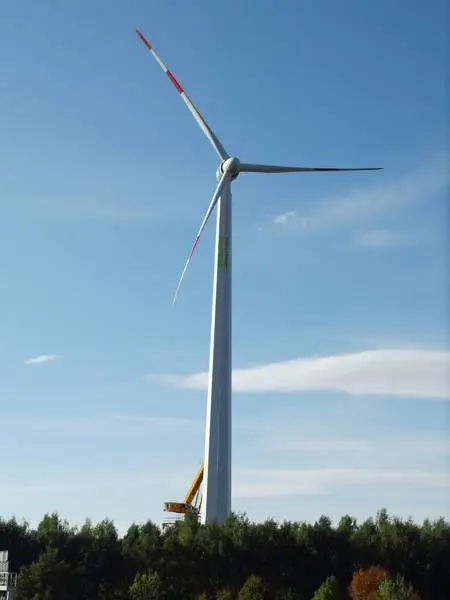

The prototype TimberTower stands 100 m (328 ft) tall
2/6
The prototype TimberTower stands 100 m (328 ft) tall

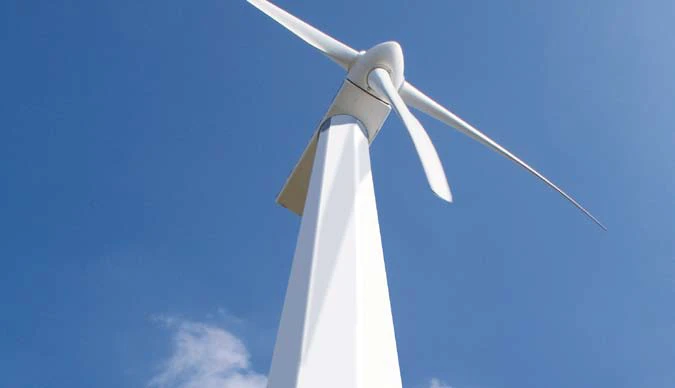

TimberTower's wooden wind turbine tower
3/6
TimberTower's wooden wind turbine tower

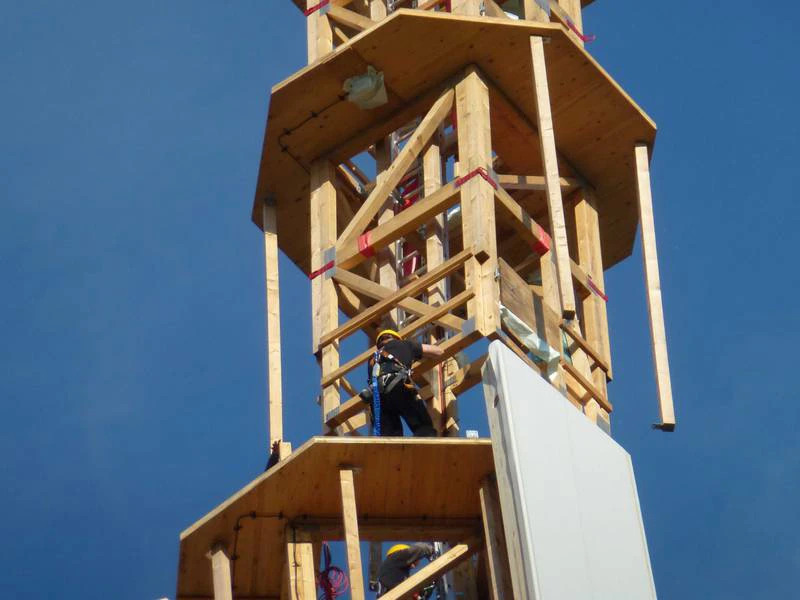

The TimberTower consists of a linked system of glued laminated timber panels that are built around a wood frame
4/6
The TimberTower consists of a linked system of glued laminated timber panels that are built around a wood frame
The TimberTower under construction
5/6
The TimberTower under construction

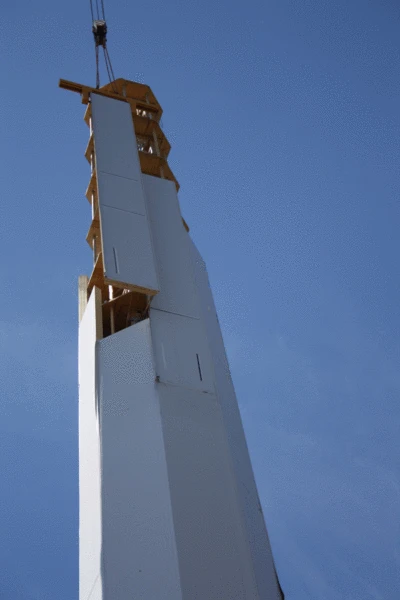

Glued laminated timber panels fit together to form a hollow tower
6/6
Glued laminated timber panels fit together to form a hollow tower
View gallery - 6 images

Getting a wind turbine to a decent height to allow it to reach stronger winds than those found closer to the ground generally means sitting them atop a tower. Despite the eco-credentials of wind turbines, these towers are usually constructed from steel, which is not only expensive, but requires large amounts of energy to process. In an effort to make wind turbines even greener, German company TimberTower has erected a wooden 1.5-MW wind turbine in Hannover, Germany.

The TimberTower starts as a linked system of glued laminated timber panels and surface components that are manufactured off-site and transported in 12 m (40 ft) containers for on-site assembly into a hollow octagonal tower. The finished prototype tower measures 100 m (328 ft) high, integrates a ladder and lift system, and is topped off with a Vensys 77 wind turbine. The turbine has a rotor diameter of 77 m (252.6 ft), weighs almost 100 tons (91 tonnes) and generates 1,500 kW of electricity.

TimberTower says the mass and diameter of the tower’s base is identical to that of a tubular steel tower and that all raw materials used in the tower come from FSC and PEFC certified suppliers. In addition to an octagonal cross section, the hollow body can also be constructed with a hexagonal or dodecagonal cross section. The company says the TimberTower system should support hub heights of up to 200 m (656 ft) and is currently in the process of developing a 140 m (459 ft) tower.

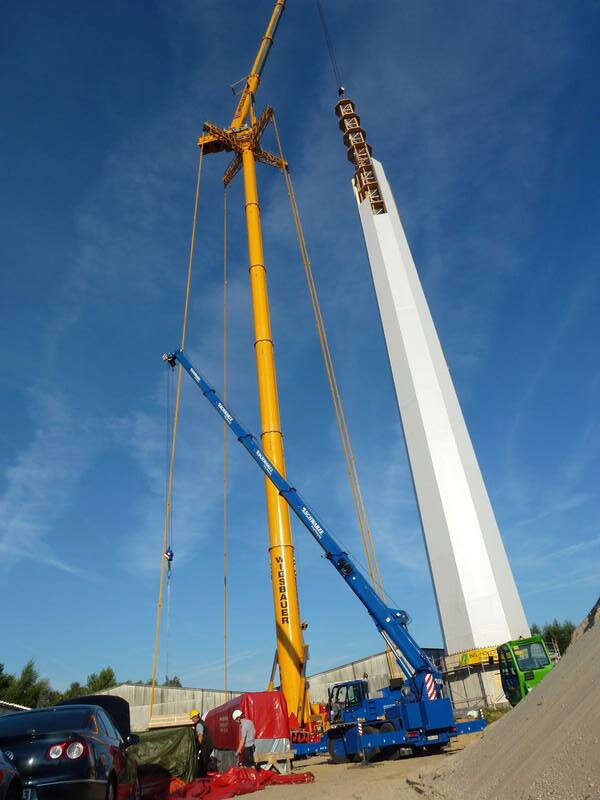

The TimberTower under construction
The TimberTower under construction

With a guaranteed minimum life span of 20 years, the TimberTower also meets current insurability, certification and fire protection regulations. The company claims one 100 m TimberTower saves about 300 tons (272 tonnes) of sheet steel and, thanks to a treatment process that consumes less energy, approximately 400 tons (363 tonnes) of CO2. And after it reaches the end of its working life, the wooden tower can be easily recycled.

With ground broken on the Hannover site in January, the prototype TimberTower was completed earlier this month. It is currently undergoing testing, but should be connected to the power grid by the end of the year.

Source: TimberTower via Designbuildsource

View gallery - 6 images

Tags

EnvironmentPrototypeWoodWind turbine
12 comments
Darren Quick
Darren Quick
Darren's love of technology started in primary school with a Nintendo Game & Watch Donkey Kong (still functioning) and a Commodore VIC 20 computer (not still functioning). In high school he upgraded to a 286 PC, and he's been following Moore's law ever since. This love of technology continues as Managing Editor of New Atlas.

Most Viewed

Load More
12 comments
bergamot69
Looks good to me- glue-laminated wood (gluelam for short) is a very strong and durable material, and a 20 year lifespan seems reasonable, especially as wind turbine technology is not yet mature, with ever more efficient models in the pipeline.
Its a shame they painted parts of it white and have not left the natural beauty of the wood to show- that might go some way towards gaining acceptance amongst the nimbies who oppose wind technology.
Siegfried Gust
Seems like a bunch of nonsense. 20 years life expectancy? What's the life expectancy on a steel tower? my guess is that it's at least 50 years if not more. Also, "And after it reaches the end of its working life, the wooden tower can be easily recycled."? What are you going to do with a bunch of 20 year old laminated wood? Composting it isn't recycling. Steel on the other hand can be recycled indefinitely.
Slowburn
re; bergamot69
Making the tower more attractive does not alter the base complainant that the wind turbines destroy the natural look of the land. Personally I like how the wind turbines look.
The problem with wind energy is conceptual. The problem perhaps was not caused by subsidies but certainly it was encouraged. A wind turbine is incapable of generating power on a continuous basis; wind is not that reliable. But with subsidies or merely must buy laws wind turbine producers have simply gone for more power and mechanical reliability instead of working to produce reliable on demand electrical power.
jerryd
Not the right way to do this. Far better is build 2 1/2 round sides and glue them together and forget all that interior labor/ parts.
This by making it as a tube would make it stronger. lighter and cheaper and less likely to have problems as the load is well distributed though out the shell.
You can't do the wood finish clear because of sun damage to the clear coating which won't last 2 yrs and less than 1 here in Fla.
I build wood/epoxy wind generators, boats and EV's among other things. Though on the wind gens wood is now limited to the tower as my blades need to be made from composites to be variable pitch without extra parts..
Gregg Eshelman
Check out otherpower.com
The site has several examples of homebuilt turbines with hand (and chainsaw) carved blades with rather complex shapes that have proved to be quite efficient. They've also made the alternators using coiled wire and super high strength permanent magnets.
An easier and faster way to make the blades would be to make one as a master pattern then build an extra long CopyCarver to mill more that're identical.
MQ
Hardly the first Wooden Wind turbine tower.... Possibly the first Utility Grade Wood-derived wind turbine tower.
Once the wood is laminated and glued, it is also hard to describe that as Sustainable, or wood. Laminating with plastic resins makes it well.. FRP (Fibre reinforced polymer / (plastic) ). It is also likely to be, Non recyclable, non sustainable and the claims of saving so-much CO2 are merely hot air, on a lifecycle analysis, over a fixed period, you may just find that the steel tower is more recyclable (certainly) and produces less CO2... As the steel tower (or other equivalent material) could have a longer life expectancy.... Have they compared the lifecycle cost, weight and CO2 of a GFRP, or CFRP tower.... (Im sure they have, but that doesn't grab the public imagination as much as wood.....
Wow this saves 30 Tonnes of steel, but how much wood does it use?? How many trees were "butchered" for this piece of art..... (I don't really care about the trees, they re-grow in 100 or 200 years...Would be good to se if they can make this last for the time taken to regrow useful timber bearing trees (not just pulp-wood)...)
Zappenfusen
Who built the crane? I want one.
Maneesh Nair
What precautions have been taken in the event of a lightning storm ?
sk8dad
"World's first?" Wait, what about all the old wind mills from hundreds of years ago? Aren't those all wooden?
kellory
In order for wind power to be both dependable, and sustainable, they would need to be installed around Congress and Washington DC. They could power the entire eastern coast.
