Lightweight tiny house built to withstand high winds

Lightweight tiny house built t...
Transcend Tiny Homes says that testing by a global facility have proven the Amsterdam 24 capable of withstanding winds of up to 156 mph
Transcend Tiny Homes says that testing by a global facility have proven the Amsterdam 24 capable of withstanding winds of up to 156 mph
View 17 Images

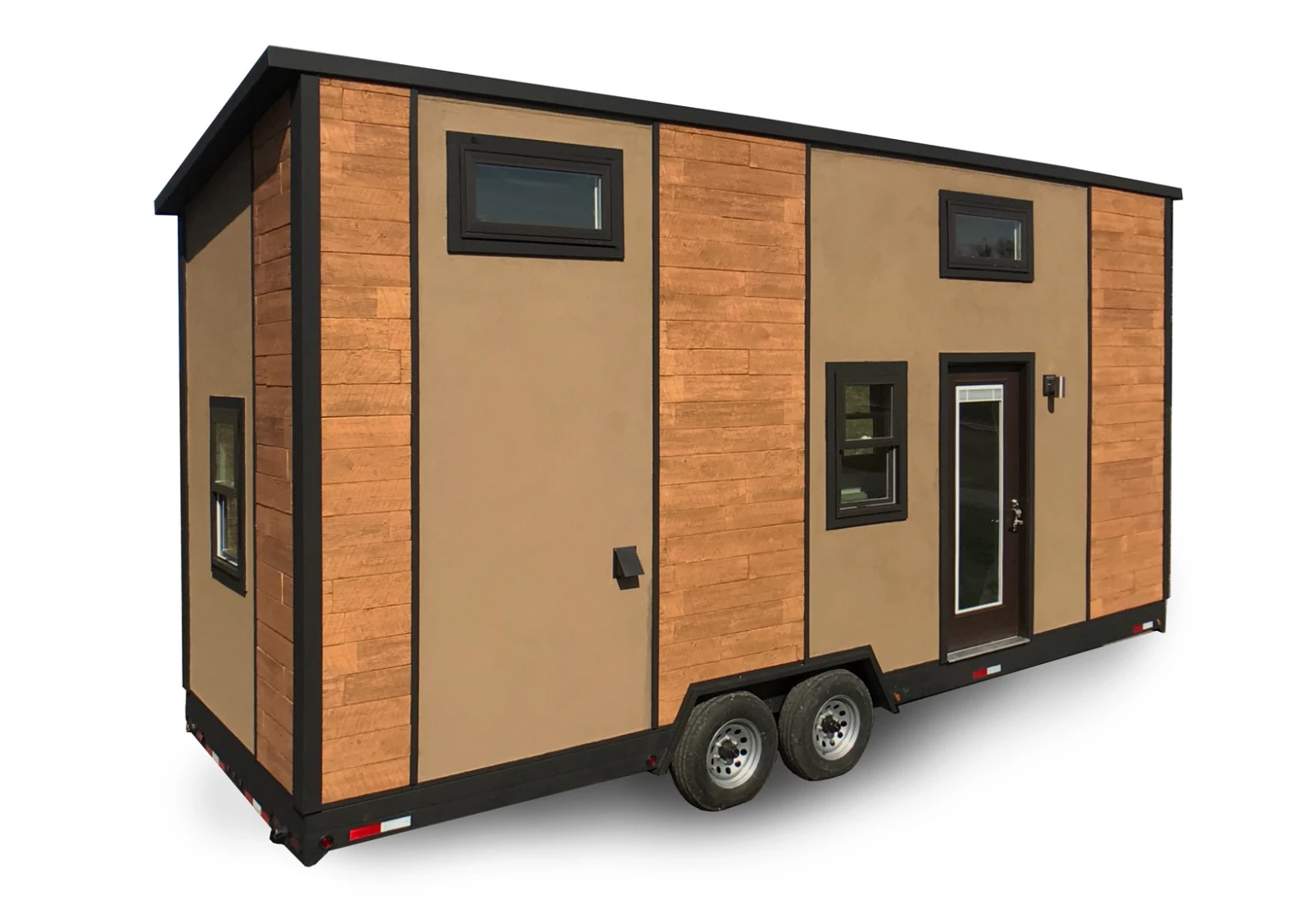

The Amsterdam 24 is based on a 24 ft (7.3 m)-long double-axle trailer
1/17
The Amsterdam 24 is based on a 24 ft (7.3 m)-long double-axle trailer
Transcend Tiny Homes says that testing by a global facility have proven the Amsterdam 24 capable of withstanding winds of up to 156 mph
2/17
Transcend Tiny Homes says that testing by a global facility have proven the Amsterdam 24 capable of withstanding winds of up to 156 mph
The Amsterdam 24 has a total floorspace of 292 sq ft (27 sq m)
3/17
The Amsterdam 24 has a total floorspace of 292 sq ft (27 sq m)

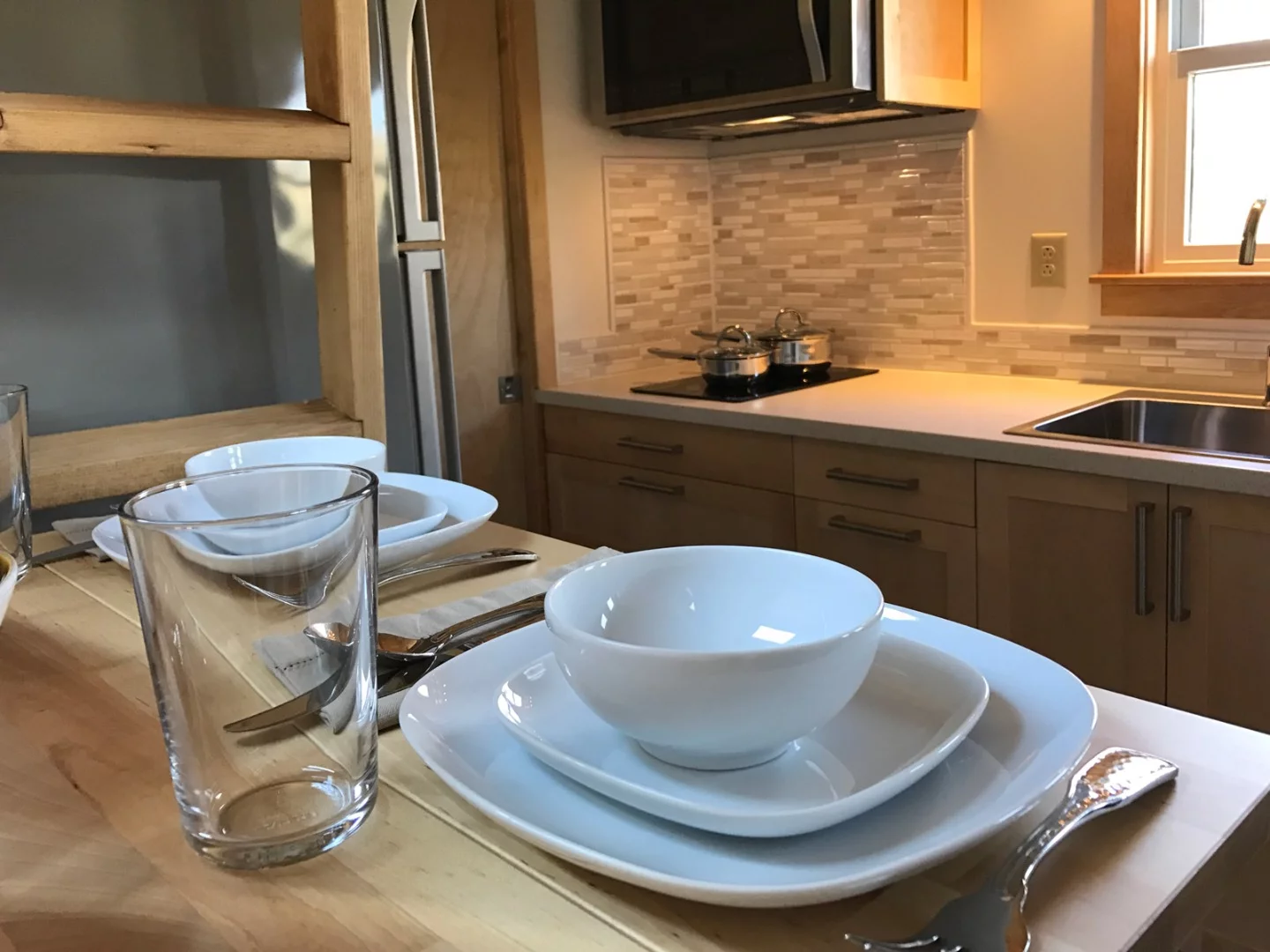

The Amsterdam 24's kitchen area
4/17
The Amsterdam 24's kitchen area
The Amsterdam 24's kitchen comes outfitted with appliances, including a fridge
5/17
The Amsterdam 24's kitchen comes outfitted with appliances, including a fridge
The Amsterdam 24's keyless entry system
6/17
The Amsterdam 24's keyless entry system
The Amsterdam 24's kitchen pantry
7/17
The Amsterdam 24's kitchen pantry
The Amsterdam 24's sole loft is reached by ladder
8/17
The Amsterdam 24's sole loft is reached by ladder

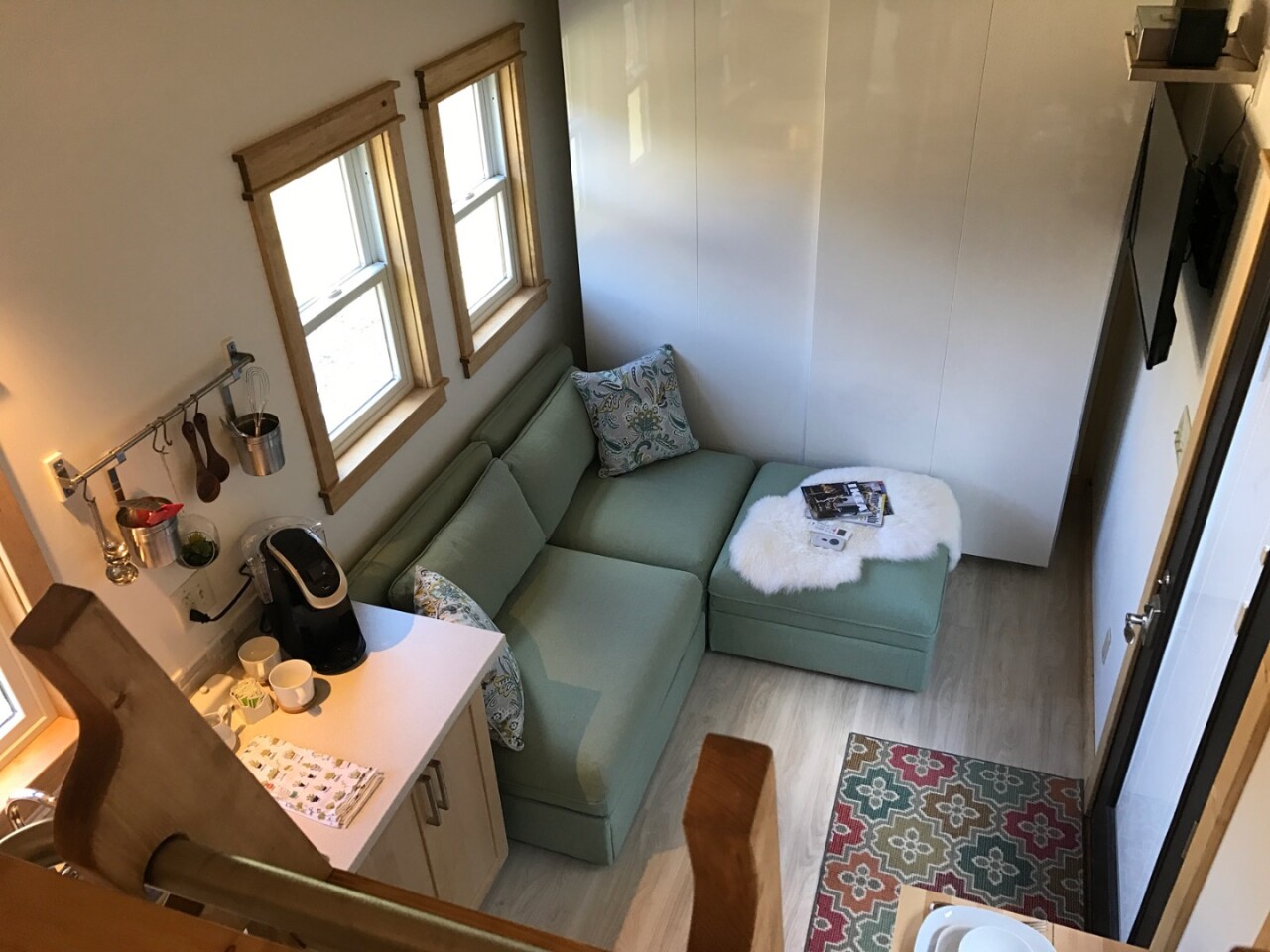

View of the Amsterdam 24's lounge area
9/17
View of the Amsterdam 24's lounge area
The Amsterdam 24 features a washer, dryer and a large shower
10/17
The Amsterdam 24 features a washer, dryer and a large shower
The Amsterdam 24's couch has under-seat storage
11/17
The Amsterdam 24's couch has under-seat storage

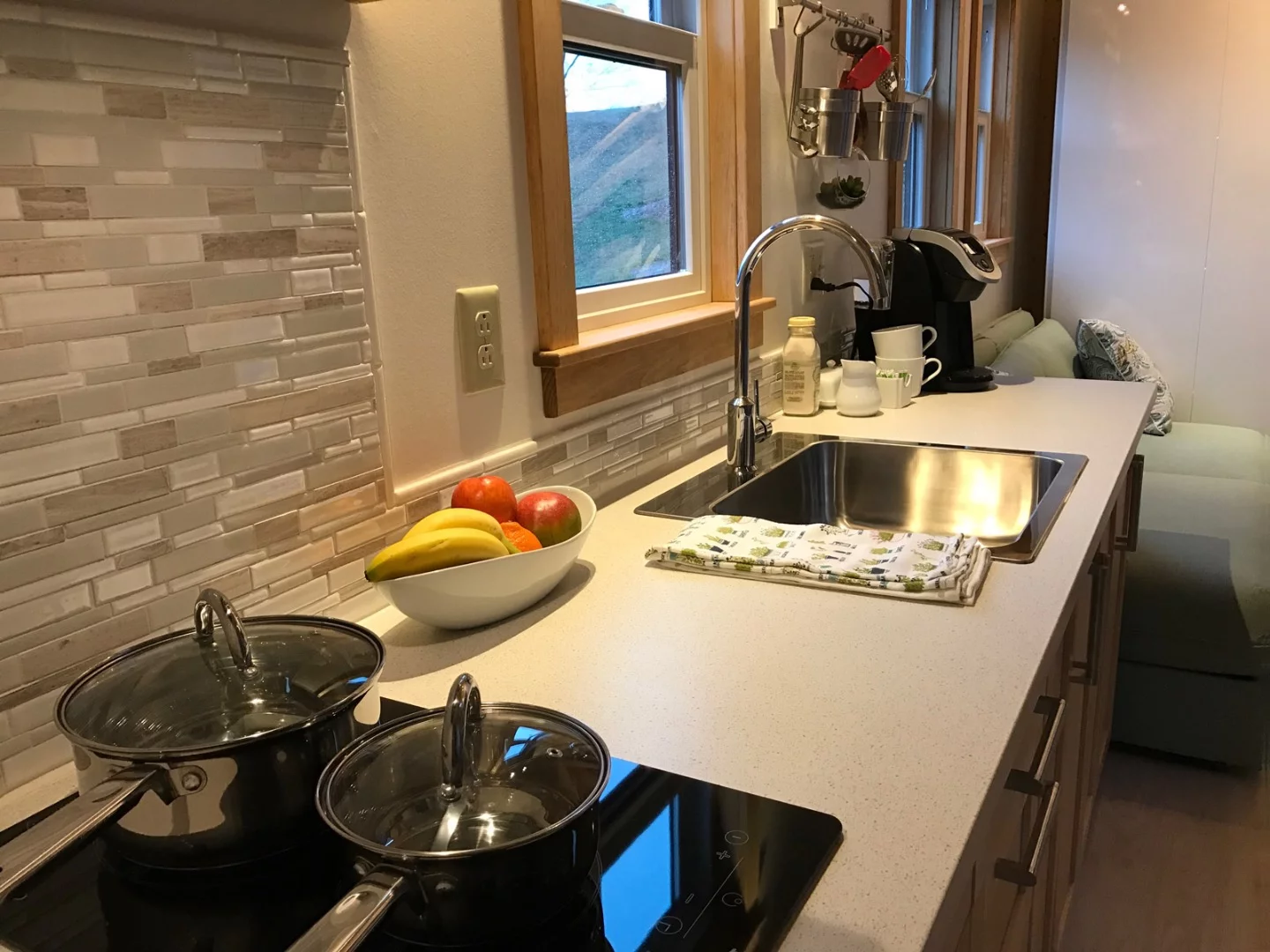

The Amsterdam 24's kitchenette
12/17
The Amsterdam 24's kitchenette
View towards the Amsterdam 24's lounge from the kitchenette
13/17
View towards the Amsterdam 24's lounge from the kitchenette
The Amsterdam 24's sole loft is reached by ladder
14/17
The Amsterdam 24's sole loft is reached by ladder

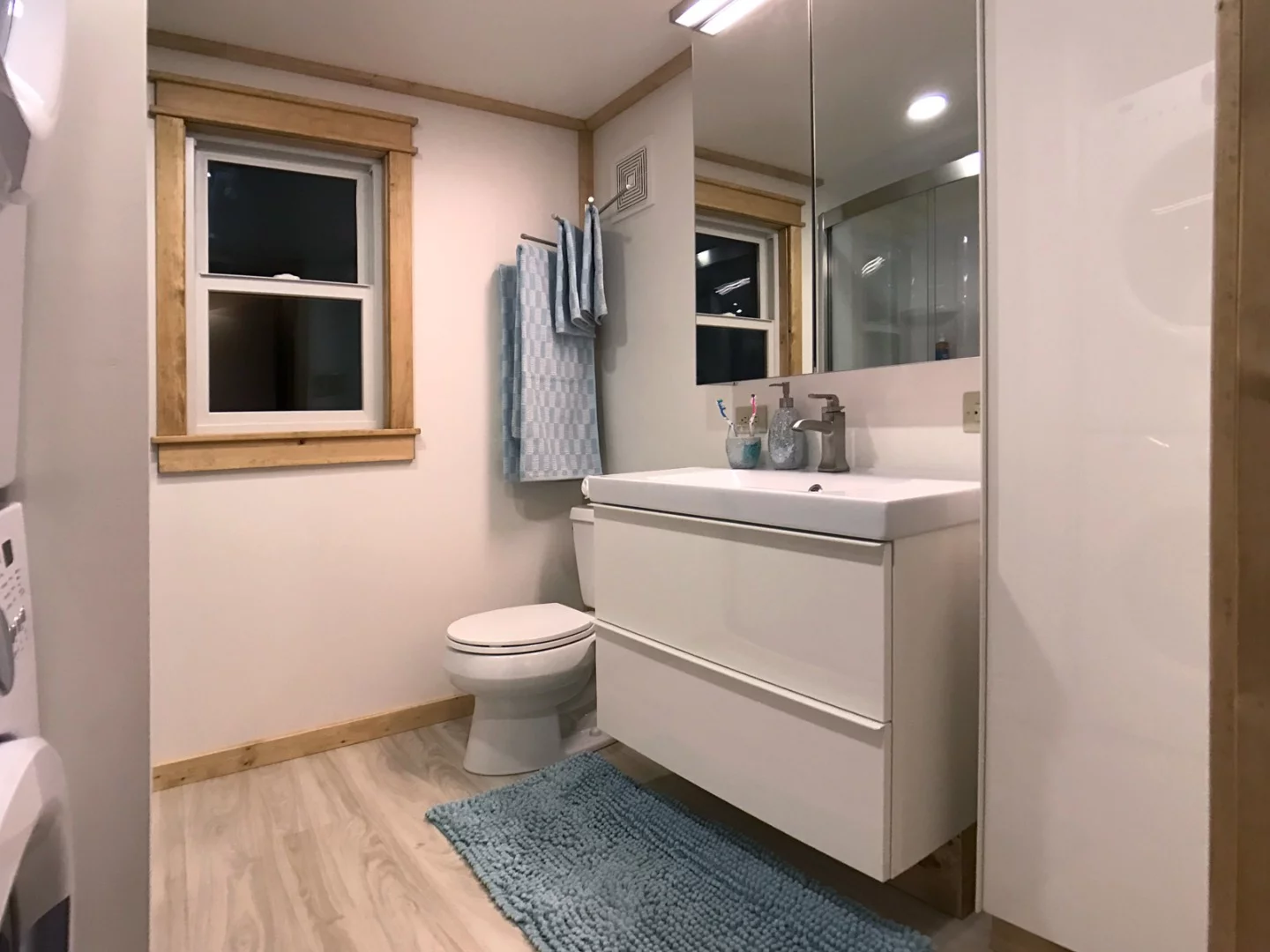

Inside the Amsterdam 24's bathroom
15/17
Inside the Amsterdam 24's bathroom
The Amsterdam 24's bathroom storage
16/17
The Amsterdam 24's bathroom storage
The Amsterdam 24 can be outfitted with a composting toilet
17/17
The Amsterdam 24 can be outfitted with a composting toilet

We don't see many tiny houses that can deal with extremes in weather. The Leaf House 3 is one exception, and Tennessee-based Transcend Tiny Homes' new Amsterdam 24 model is another. The towable dwelling is remarkably lightweight, offers plenty of storage space for its size, and is rated to withstand very high winds.

As its name suggests, the Amsterdam 24 is based on a 24 ft (7.3 m)-long double-axle trailer and has 292 sq ft (27 sq m) of floorspace. It has fiberglass composite walls, which are very light and help bring the total weight down to just 8,340 lb (3,782 kg). To put that into perspective, this similarly-proportioned model with a standard wood frame and walls weighs a much more typical 13,200 lb (5,987 kg).

"We laminate two skins of high strength phenolic resin based fiberglass on to a foam core," explains the firm regarding the makeup of the composite walls."A typical 8 x 10 ft (2.4 x 3 m) wall section takes 115,000 lb (52,163 kg) of pressure with a foaming gorilla type glue to fuse the layers into one of our wall panels. Think of the fiberglass skin as the exoskeleton of the shell."

The walls, windows and door of the Amsterdam 24 have been rated as capable of withstanding winds of up to 156 mph (251 km/h), which just about nudges it into a Category 5 hurricane rating.

"The hurricane testing was done by Intertek, a global testing facility," the company's Randall Marmet told us. "The test was for the engineered structural strength of the wall panels and how they are fastened together, along with windows and doors. All the tests proved that the wall panels could withstand the wind forces of a category 5, 156 mph hurricane with very little deflection."

The tiny house still needs to be secured to the ground to stop it from blowing over in a storm, plus there's flying debris to worry about, and we'd advise against riding out a hurricane in any tiny house. Still, it bodes well for the home's structural integrity.

View of the Amsterdam 24's lounge area
View of the Amsterdam 24's lounge area

The interior of the home is accessed with a keyless entry system and features a fairly typical tiny house floor plan. The ground floor has a lounge with a sofa bed and integrated storage, and the kitchenette includes a sink, refrigerator, stove, washer, dryer, and a small dining table. A door leads to a bathroom with sink, large shower, and toilet, and the sleeping loft is accessed by a movable ladder.

Storage space is always a concern with tiny houses and on this note, the Amsterdam 24 looks in good shape. There's a pull-out pantry, large kitchen cabinets, closet, and other storage areas around the home.

The home operates from an RV-style hookup as standard but Transcend is working to offer an off-grid package with solar power and composting toilet. It's also pretty airtight, which should make it energy-efficient, and ventilation comes from an energy recovery ventilator. Prices start at US$69,700.

Source: Transcend Tiny Homes
