Volvo adds hybrid power to SuperTruck concept

Volvo adds hybrid power to Sup...

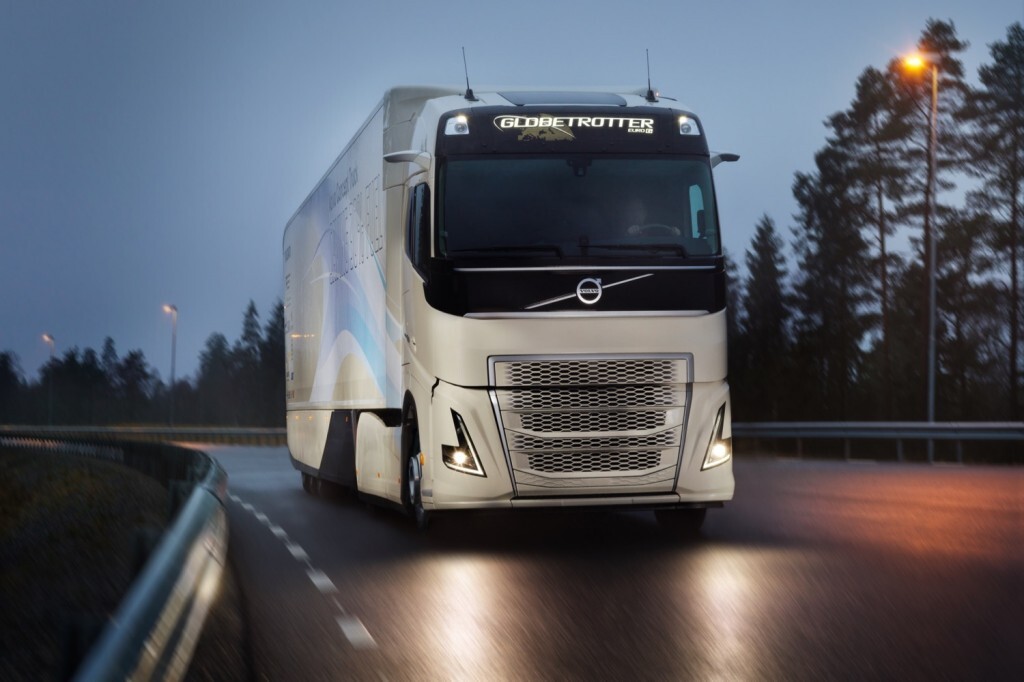

Volvo recently added a hybrid powertrain to its SuperTruck concept
Volvo recently added a hybrid powertrain to its SuperTruck concept
View 3 Images
Volvo recently added a hybrid powertrain to its SuperTruck concept
1/3
Volvo recently added a hybrid powertrain to its SuperTruck concept
The SuperTruck hybrid powertrain would reduce fuel consumption by 5 to 10 percent by allowing the diesel engine to shut off 30 percent of the time
2/3
The SuperTruck hybrid powertrain would reduce fuel consumption by 5 to 10 percent by allowing the diesel engine to shut off 30 percent of the time
Volvo's SuperTruck includes inproved aerodynamics, such as spoilers added to the back of the trailer
3/3
Volvo's SuperTruck includes inproved aerodynamics, such as spoilers added to the back of the trailer

Commercial trucks may not be as plentiful as cars in the US, making up just 7 percent of vehicles on the road, but they consume 25 percent of the fuel due largely to an average fuel economy of 6 mpg, according to the Union for Concerned Scientists. Volvo has sought to do something about this with its SuperTruck concept, which has now been fitted with a prototype hybrid powertrain that would reduce fuel consumption by 5 to 10 percent by allowing the diesel engine to shut off up to 30 percent of the time.

Volvo started its SuperTruck concept project in 2011, with testing beginning in 2015 ahead of an official unveiling last year. Prompted by a US Department of Energy challenge, the goal of the project is to find ways to improve freight efficiency by 50 percent, mostly by improving aerodynamics and reducing weight. Under the same DOE challenge, Freightliner has also been working on its own SuperTruck.

By adding the hybrid powertrain system, energy can be recovered when the truck is braking or driving downhill, which then allows the vehicle to go all-electric on level or low gradient roads for up to 6.2 miles (10 km). Combined with previous improvements to the body of the vehicle, both the fuel consumption and CO2 are reduced by about 30 percent.

The SuperTruck hybrid powertrain would reduce fuel consumption by 5 to 10 percent by allowing the diesel engine to shut off 30 percent of the time
The SuperTruck hybrid powertrain would reduce fuel consumption by 5 to 10 percent by allowing the diesel engine to shut off 30 percent of the time

Some of those prior improvements included using a chassis made almost entirely out of aluminum, which helped reduce the trucks overall weight by 3,200 lb (1,450 kg). To lower drag and turbulence, fairings were added that covered all the wheels except in the tractor's front, with spoilers added to the back of the trailer. Side-view mirrors were replaced with cameras. All of this has helped the SuperTruck improve its fuel efficiency by 70 percent compared to a baseline model (the 2009 Volvo VNL 670), while surpassing 12 miles per gallon in road tests.

Another new feature to the SuperTruck is Volvo's hybrid-specific I-See driver-assist system, which uses GPS data and digital mapping to analyze the approaching terrain. The software uses this info to choose the most efficient use of both the electric motor and engine in regards to the topography, while optimizing energy recovery.

Though the actual SuperTruck itself may never be put in service, some aspects could make it through to production models. In fact, aerodynamic elements can already be found on current models.

Source: Volvo Trucks
