3D printing project makes the Speccy portable

Dan Birch's ZX Specturm Next Laptop prototype
Dan Birch's ZX Specturm Next Laptop prototype
View 8 Images
Dan Birch's ZX Specturm Next Laptop prototype
1/8
Dan Birch's ZX Specturm Next Laptop prototype
Thanks to a USB hub and a Raspberry Pi Zero, the ZX Spectrum Next Laptop has three external USB ports to the right and an OS-packing SD card slot to the rear
2/8
Thanks to a USB hub and a Raspberry Pi Zero, the ZX Spectrum Next Laptop has three external USB ports to the right and an OS-packing SD card slot to the rear
Dan Birch's laptop case design
3/8
Dan Birch's laptop case design
Dan Birch's laptop case design
4/8
Dan Birch's laptop case design
The 8-inch, 4:3 aspect LCD screen used for the ZX Spectrum Next Laptop
5/8
The 8-inch, 4:3 aspect LCD screen used for the ZX Spectrum Next Laptop
The ZX Spectrum Next board has been joined by a four port USB hub, a Raspberry Pi Zero and an LCD driver board
6/8
The ZX Spectrum Next board has been joined by a four port USB hub, a Raspberry Pi Zero and an LCD driver board
The ZX Spectrum Next board sent out to Kickstarter backers by SpecNext  in December 2017
7/8
The ZX Spectrum Next board sent out to Kickstarter backers by SpecNext  in December 2017
Dan Birch initially installed the ZX Spectrum Next board inside a Spectrum +3 case
8/8
Dan Birch initially installed the ZX Spectrum Next board inside a Spectrum +3 case

SpecNext started shipping its updated ZX Spectrum board to Kickstarter backers in December last year, with full computer-in-a-keyboard models to follow. Rather than having to connect his Next to a TV, Dan Birch of Dorchester 3D opted to design a rather fantastic-looking Spectrum laptop that rocks its own screen, chiclet keyboard and stereo speakers.

Before 1980, home computers were something of a rarity, being priced well beyond the reach of many. UK tech entrepreneur Sir Clive Sinclair was among those who changed the landscape with the introduction of his inexpensive ZX series. Though users needed an audio cassette player to load in software and a TV to see what the system had to offer, everything else was contained in the computer's keyboard housing.

After a couple of monochrome video output models, Sinclair launched an 8-bit color output computer in 1982 called the Spectrum (affectionately known as the Speccy), with rubbery chiclet-style keyboard keys marked with programming keywords and a striking rainbow motif. There were a few variations on the Speccy theme over the years following, including models with a mechanical keyboard and built-in audio cassette player, before production ended in 1992.

Despite its demise, an enthusiastic ZX community has continued to create games, and last year a startup named SpecNext hit Kickstarter to fund the production of a modern update to the Speccy called the Next – which featured a Z80 processor that could power up to a mighty 7 MHz, up to 1.5 MB of internal RAM and an SD card slot for storage.

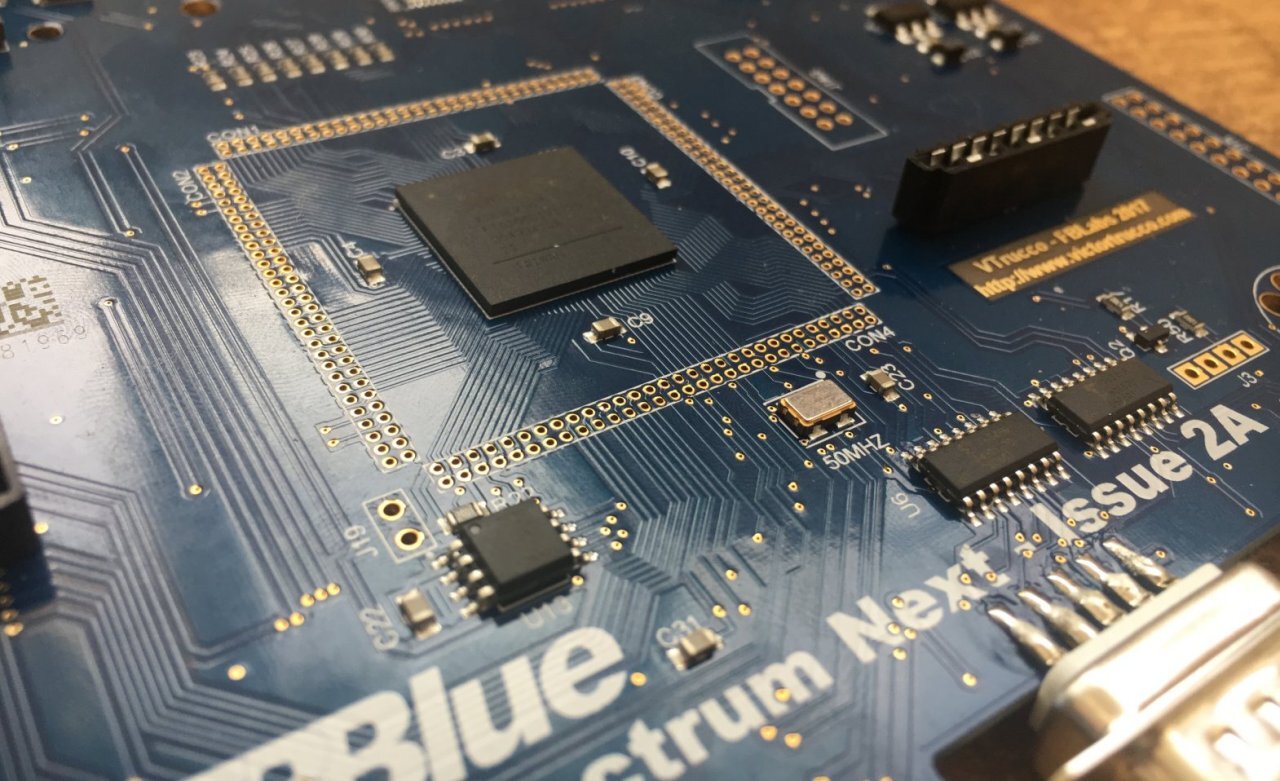

The ZX Spectrum Next board sent out to Kickstarter backers by SpecNext  in December 2017
The ZX Spectrum Next board sent out to Kickstarter backers by SpecNext  in December 2017

Though this latest take on the Sinclair computer-in-a-keyboard format can certainly be thrown in a backpack and taken over to a friend's house for 8-bit gaming fun, it still needs to be cabled up to a TV or monitor over old-school VGA or more modern HDMI. Indeed, maker Dan Birch initially opted to mount the Next inside a Spectrum +3 case last year, but he's now gone in an interesting new direction, making the whole setup much more portable by wrapping the Next in a rather nice 3D-printed clamshell housing that's also home to a chiclet keyboard and 8-inch display.

The 284 x 151 x 41 mm (11.1 x 5.9 x 1.6 in) ZX Spectrum Next Laptop sees the Next board joined by a Raspberry Pi Zero, a four port USB hub and an LCD driver board. Perhaps most impressive of all, an 8-inch LCD screen at 4:3 aspect has been installed in the upper part of the laptop housing (which also has stereo speakers), and connected to the keyboard base by hinges recovered from an old Dell laptop.

The lower half of the clamshell is home to a USB keyboard stripped from its casing and connected to the Next board via a PS/2 to USB adapter. And the Pi Zero's SD card slot has been extended to the rear of the laptop case so that the operating system can be updated without having to dismantle the laptop.

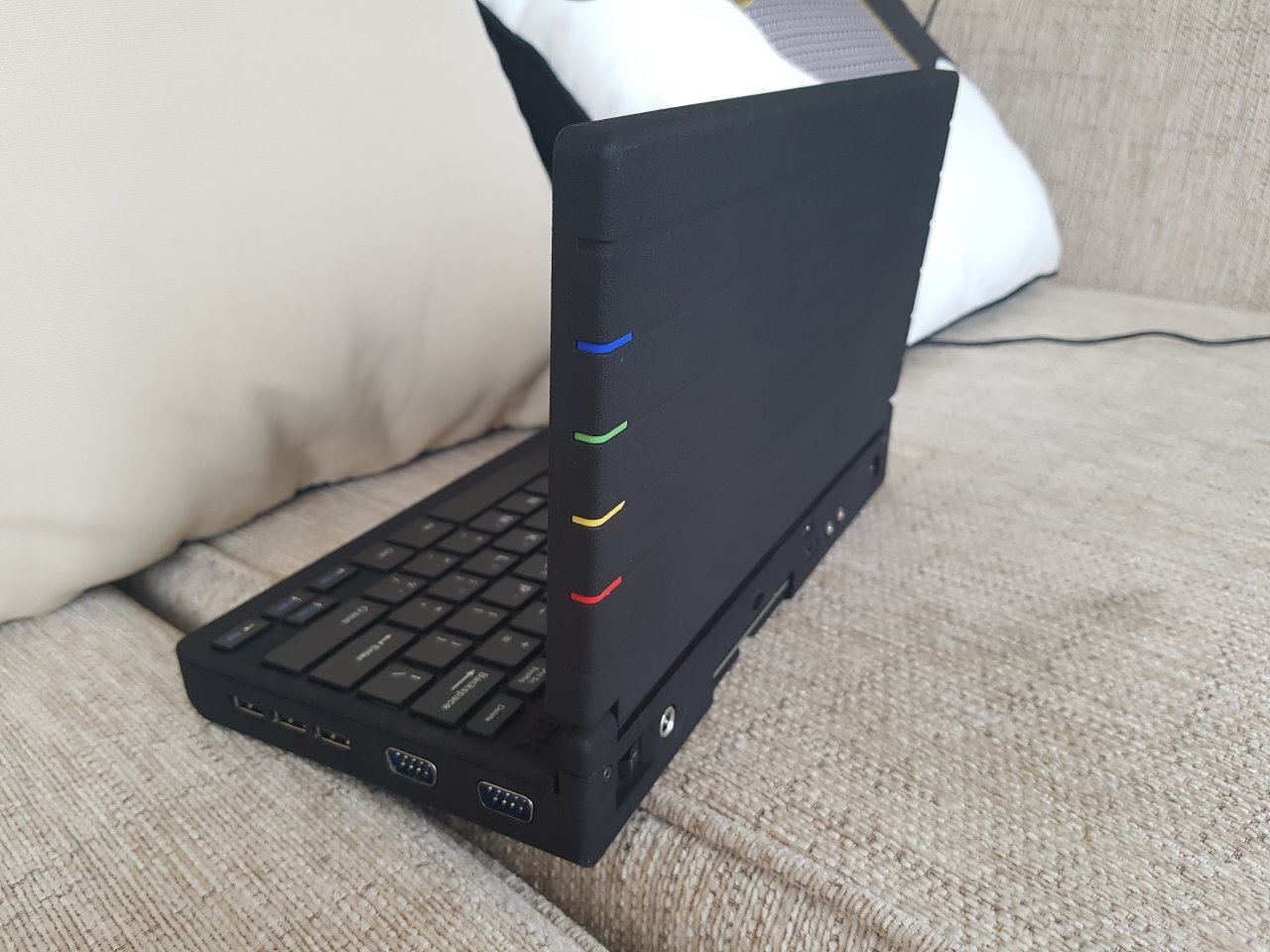

Thanks to a USB hub and a Raspberry Pi Zero, the ZX Spectrum Next Laptop has three external USB ports to the right and an OS-packing SD card slot to the rear
Thanks to a USB hub and a Raspberry Pi Zero, the ZX Spectrum Next Laptop has three external USB ports to the right and an OS-packing SD card slot to the rear

The professional-looking laptop housing was printed by Shapeways and everything assembled by Birch, who admits that sending the files off for SLA printing was quite an expensive option – at around £280 (US$390) – but the finished project is well worth the expense in our opinion.

Backers of the Next board on Kickstarter who want to 3D print the laptop at home will be able to grab the STL files from the source link below shortly. In the meantime, have a look at the demo video below for a gawp at the "prototype."

Source: Dorchester 3D

ZX Spectrum Next Laptop Prototype

2 comments
Tom Lee Mullins
I think that is really neat. It reminds me of the IBM PC110 laptop computer of years ago.
Riaanh
Very nice. Very well executed!
