Wi-Fi holography can be used to "spy" on entire rooms and buildings

Wi-Fi holography can be used to "spy" on entire rooms and buildings

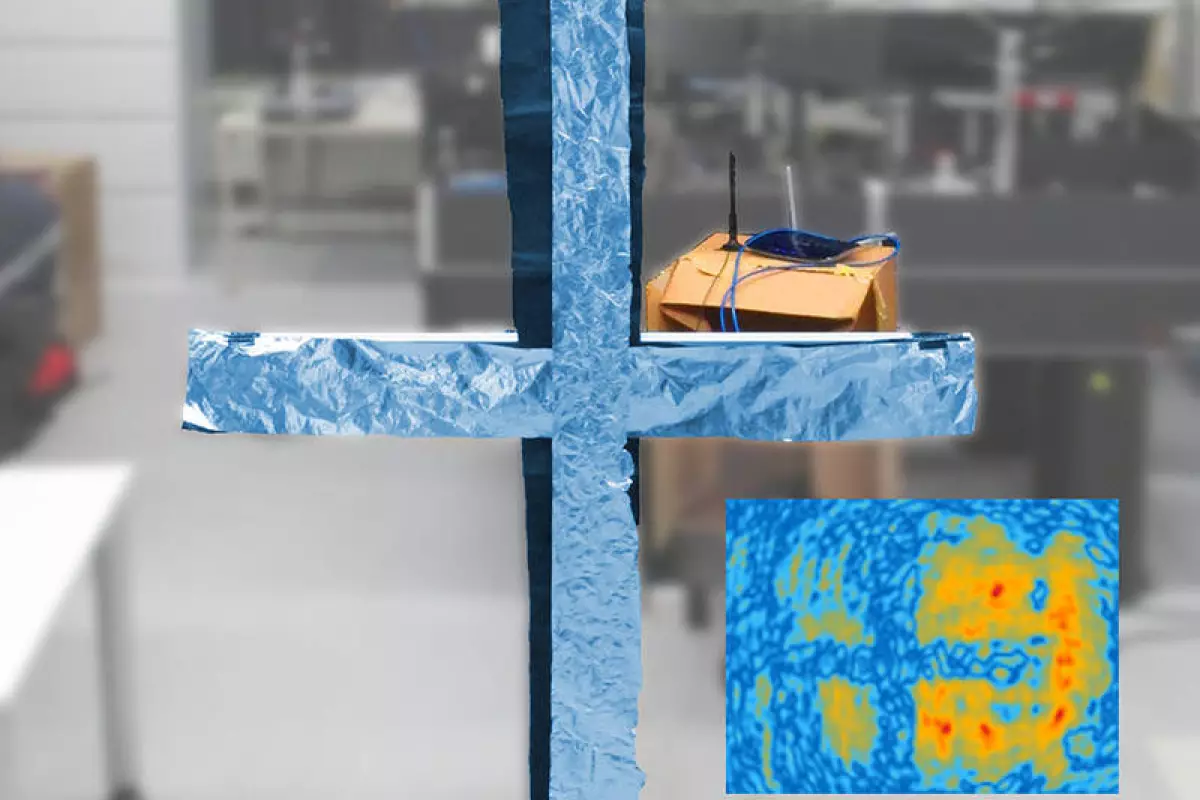

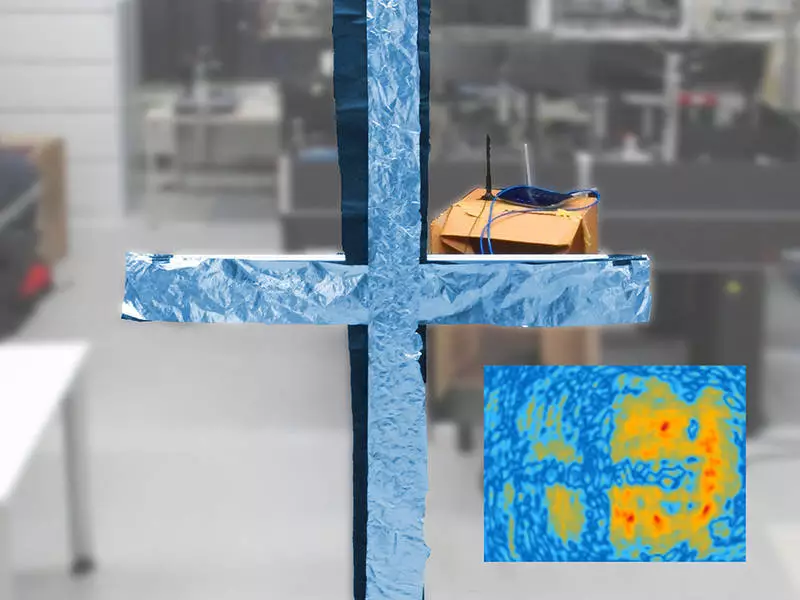

A cross made of aluminum foil between the viewer and the Wi-FI router can easily be reconstructed from the Wi-Fi hologram as can be seen in the inserted picture
A cross made of aluminum foil between the viewer and the Wi-FI router can easily be reconstructed from the Wi-Fi hologram as can be seen in the inserted picture
View 3 Images
A cross made of aluminum foil between the viewer and the Wi-FI router can easily be reconstructed from the Wi-Fi hologram as can be seen in the inserted picture
1/3
A cross made of aluminum foil between the viewer and the Wi-FI router can easily be reconstructed from the Wi-Fi hologram as can be seen in the inserted picture
Set-up of the Wi-Fi holography experiment
2/3
Set-up of the Wi-Fi holography experiment
Simulation of a warehouse using the Wi-Fi imaging system
3/3
Simulation of a warehouse using the Wi-Fi imaging system
View gallery - 3 images

We think of Wi-Fi as primarily bathing our homes and offices in a comfy, invisible blanket of data and internet access, but just as a blanket can take on the shapes of the bodies it covers, the microwave radiation sent out from a hotspot can be used to generate a three-dimensional image of the surrounding environment and the things and people in it.

Researchers at the Technical University of Munich have come up with a process that creates a holographic image of a space from the microwave radiation of a Wi-Fi signal bouncing off people and objects. The scientists say their method could be used in automated industrial settings, to track objects moving through a facility, for example.

"Using this technology, we can generate a three-dimensional image of the space around the Wi-Fi transmitter, as if our eyes could see microwave radiation," says Friedemann Reinhard, director of the Emmy Noether Research Group for Quantum Sensors at TU Munich.

We've seen similar approaches use Wi-Fi to see through walls, even distinguishing human figures on the other side and performing head counts of people in an open area. But the TU Munich scientists say they've gone a step further: using Wi-Fi and even cellular signals to image an entire space with holographic processing.

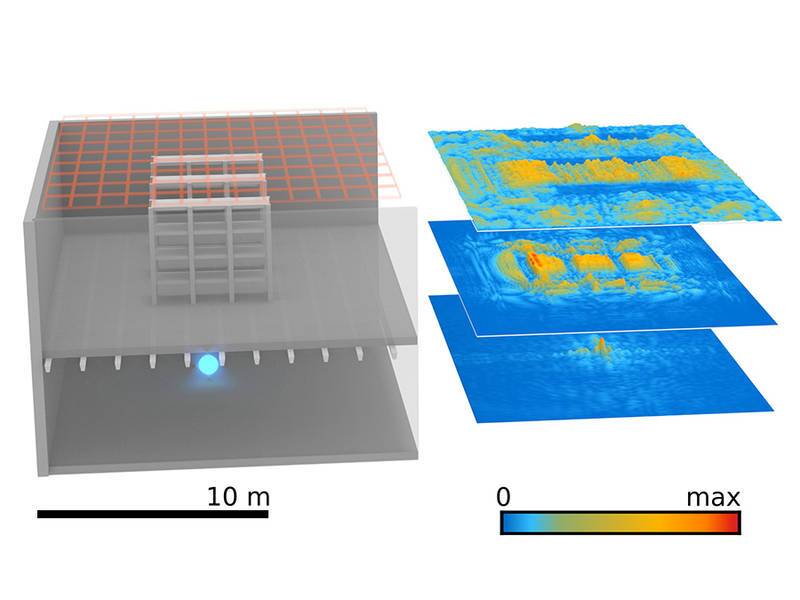

Simulation of a warehouse using the Wi-Fi imaging system
Simulation of a warehouse using the Wi-Fi imaging system

Reinhard concedesthat this new ability to use Wi-Fi to essentially spy on entire rooms andbuildings does raise questions of privacy.

"After all, to acertain degree even encrypted signals transmit an image of their surroundingsto the outside world," he says. "However, it is rather unlikely that thisprocess will be used (to look) into foreign bedrooms in the near future. Forthat, you would need to go around the building with a large antenna, whichwould hardly go unnoticed."

The holographicimaging system requires simply one fixed and one movable antenna, butresearcher Philipp Holl says a larger number of antennas could replace themovable antenna for higher-resolution images closer to that of video.

"Future Wi-Fifrequencies, like the proposed 60 gigahertz IEEE 802.11 standard will allowresolutions down to the millimeter range," Holl adds.

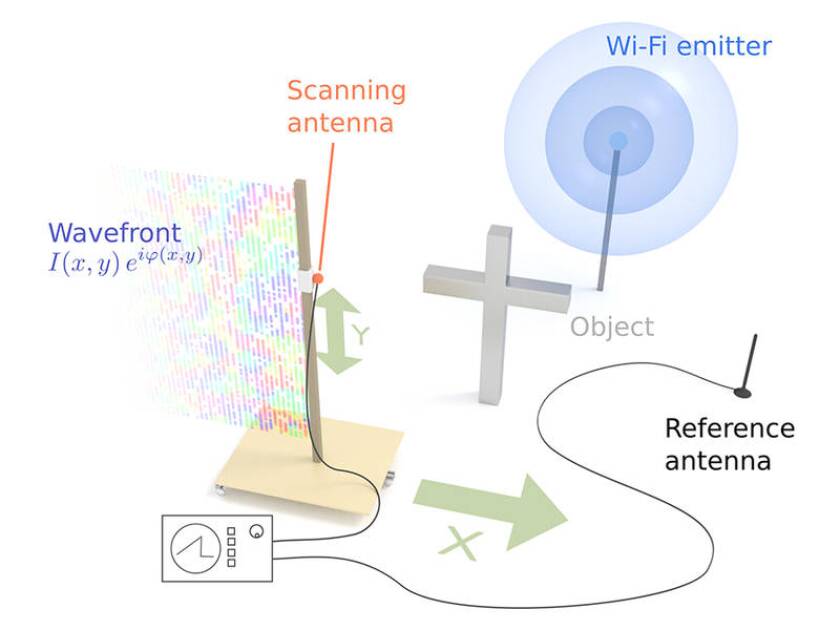

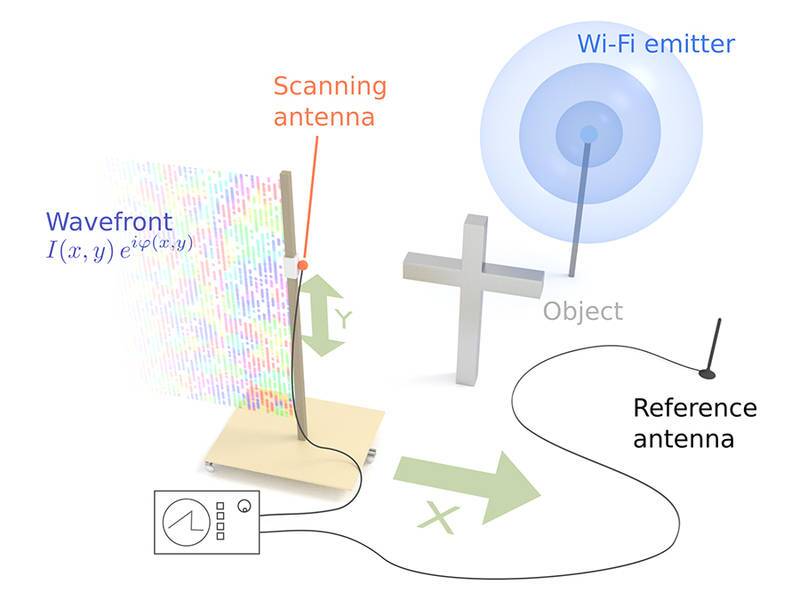

Set-up of the Wi-Fi holography experiment
Set-up of the Wi-Fi holography experiment

Potential futureapplications for this "Wi-Fi vision" include embedding microwave imagedata into camera images, allowing for easy tracking of lost items. Imaginetaking a photo of a room and being able to see in the image that a lost objectis hidden under a piece of furniture, for example.

The researchers also hope that the technology couldadvance to be useful in rescue operations to help reach victims buried by anavalanche or a collapsed building. They also hope to learn about materials thatare more translucent or transparent to microwaves to provide better privacyprotection or allow for better tracking of equipment in factory floors.

The research was published in the most recent issue of Physical Review Letters.

Source: TU Munich
