2014 EarthRoamer XV-LTS conquers the world, tailgates afterward

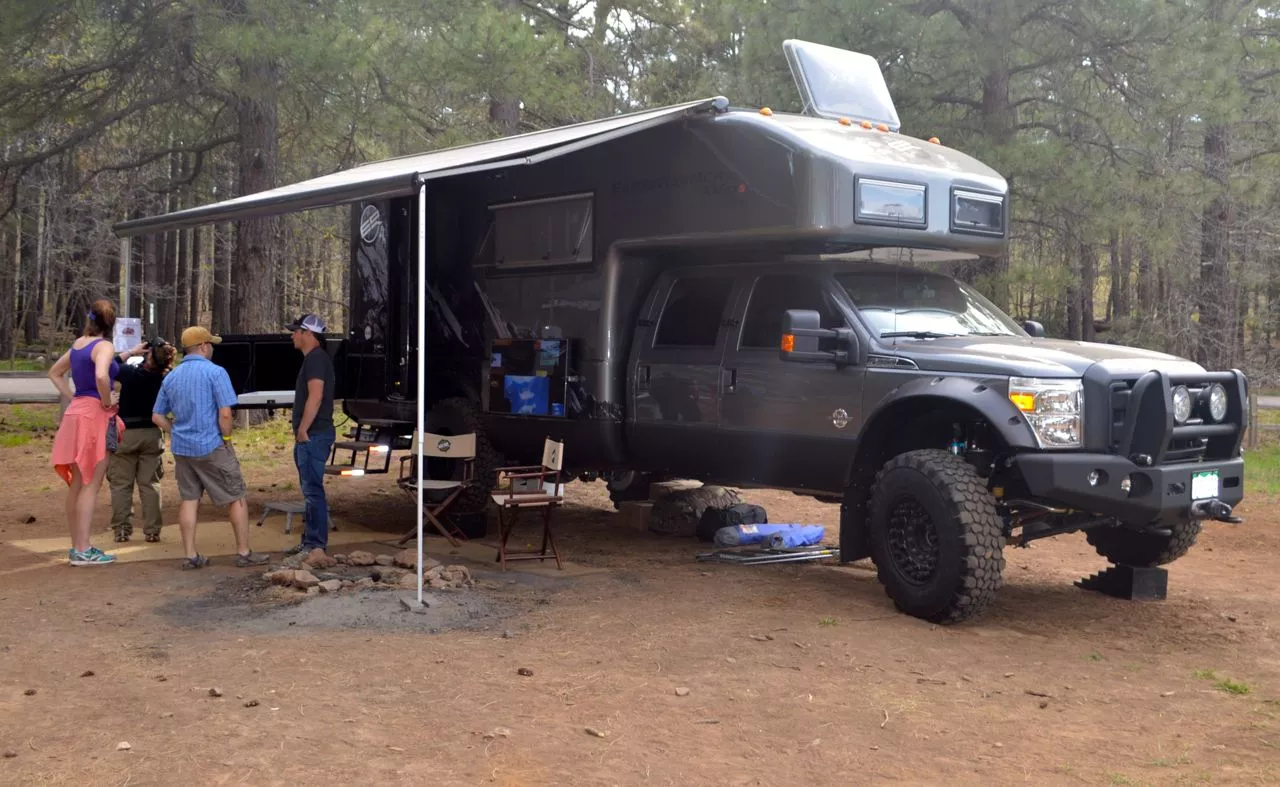

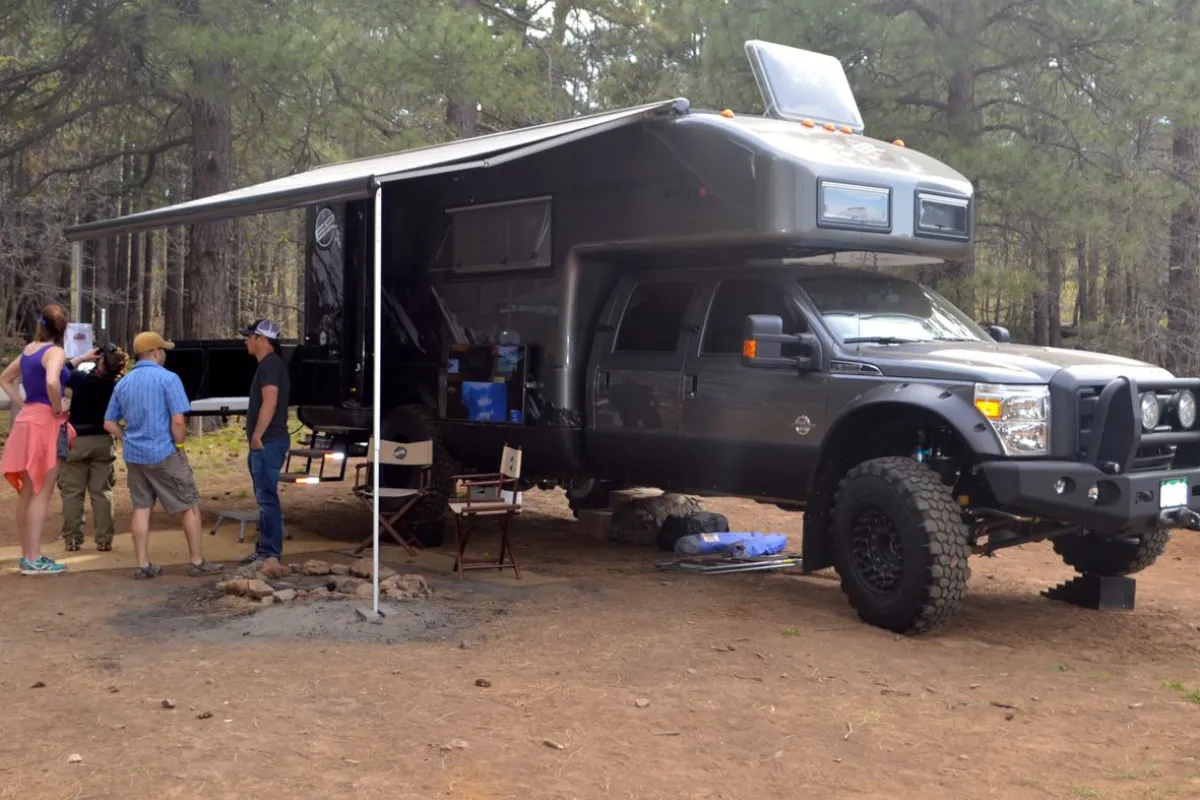

The 2014 EarthRoamer XV-LTS at Overland Expo
The 2014 EarthRoamer XV-LTS at Overland Expo
View 57 Images

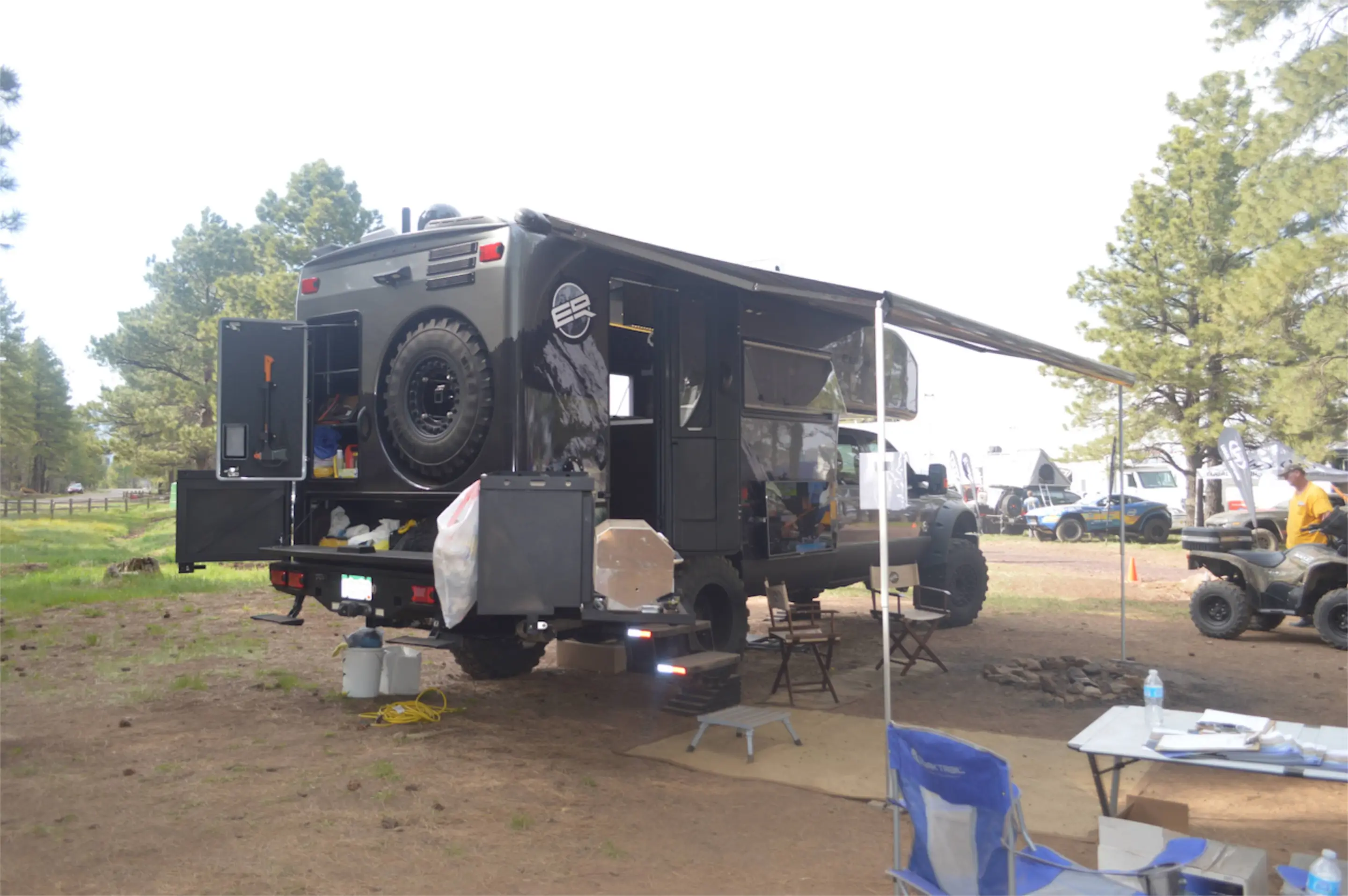

The EarthRoamer XV-LTS at Overland Expo 2014
1/57
The EarthRoamer XV-LTS at Overland Expo 2014

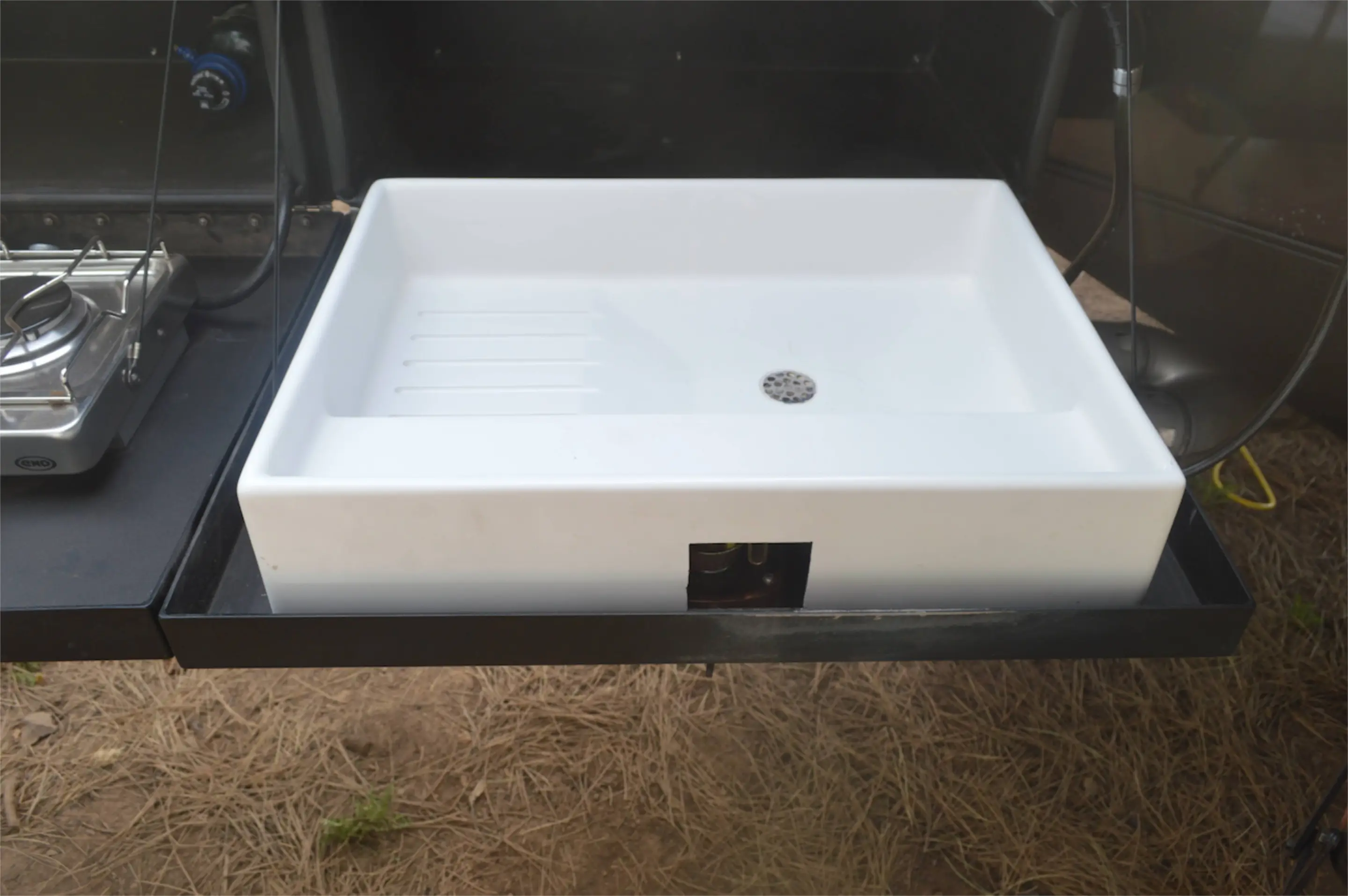

An external sink is part of the available outside kitchen
2/57
An external sink is part of the available outside kitchen

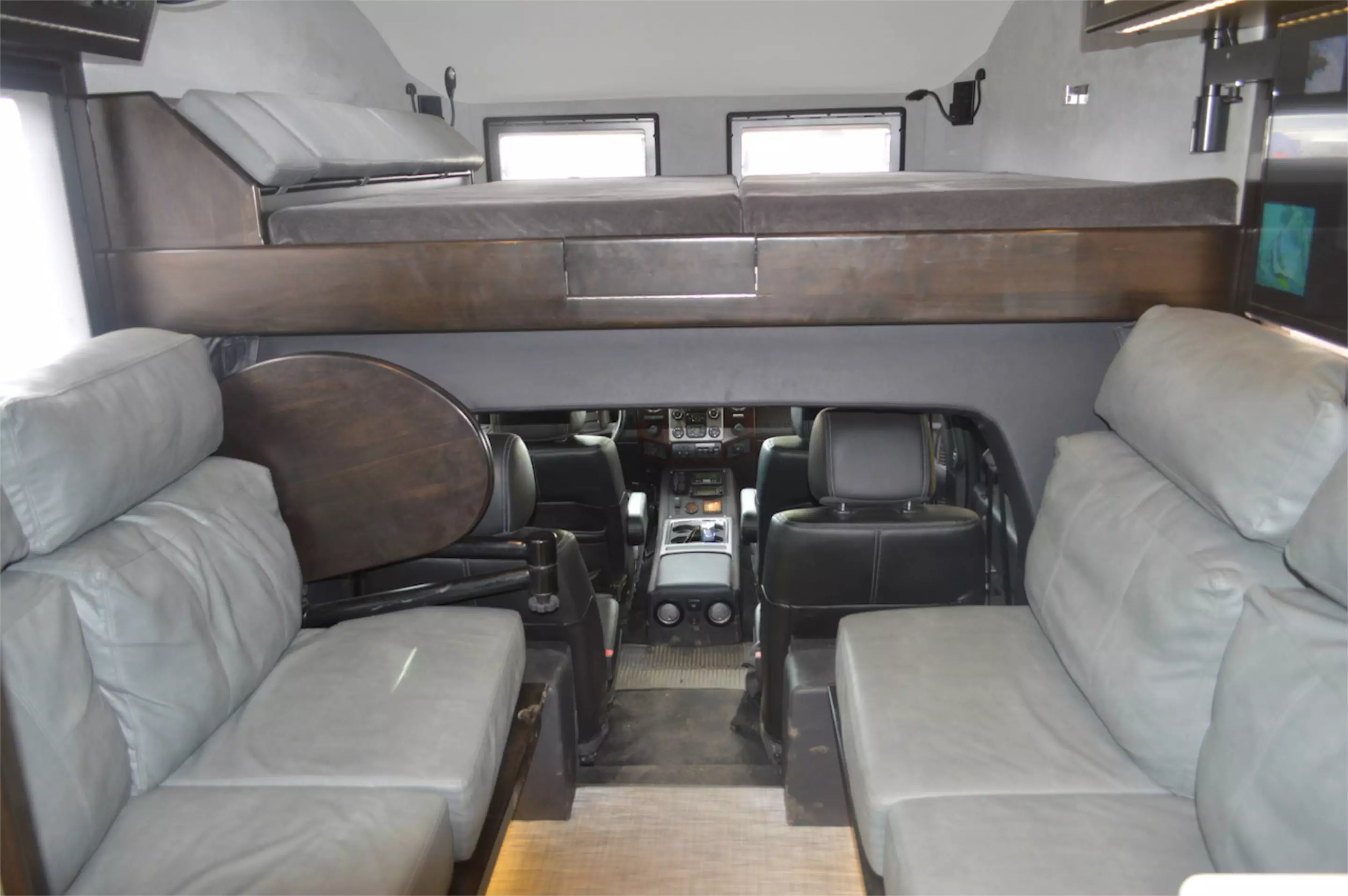

Electric-folding side couches and an upper bed provide sleeping space
3/57
Electric-folding side couches and an upper bed provide sleeping space

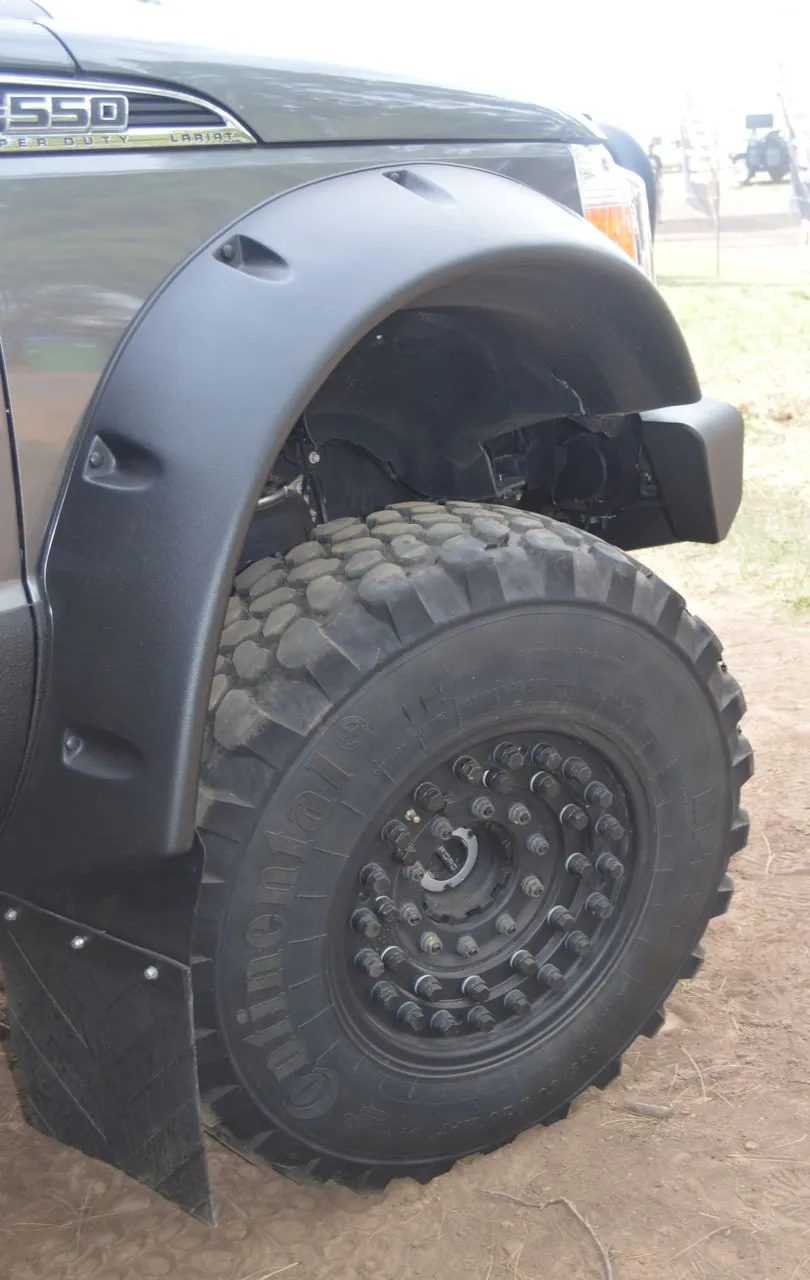

That knobby military tire and muscular fender flare appear hungry for travel
4/57
That knobby military tire and muscular fender flare appear hungry for travel

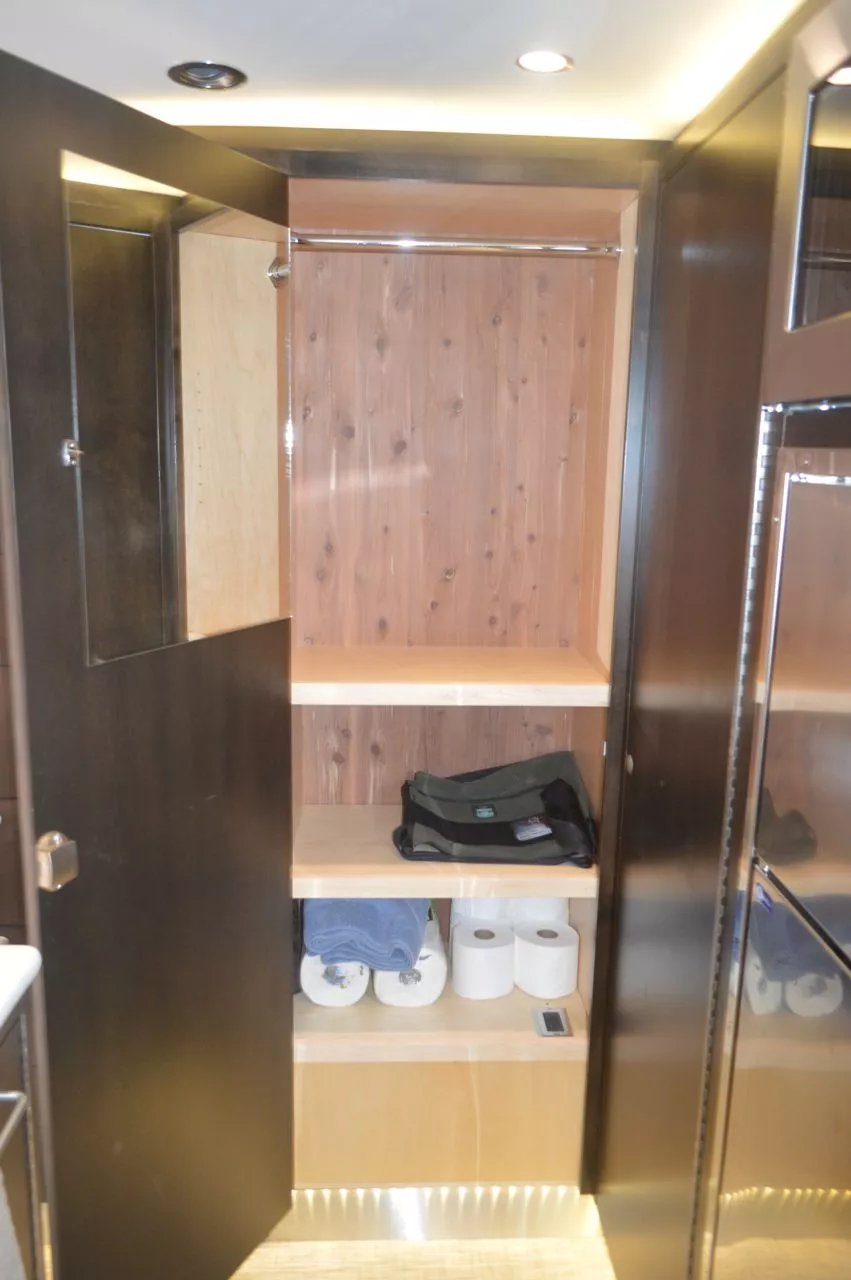

The EarthRoamer XV-LTS offers a variety of wood cabinet and closet space
5/57
The EarthRoamer XV-LTS offers a variety of wood cabinet and closet space

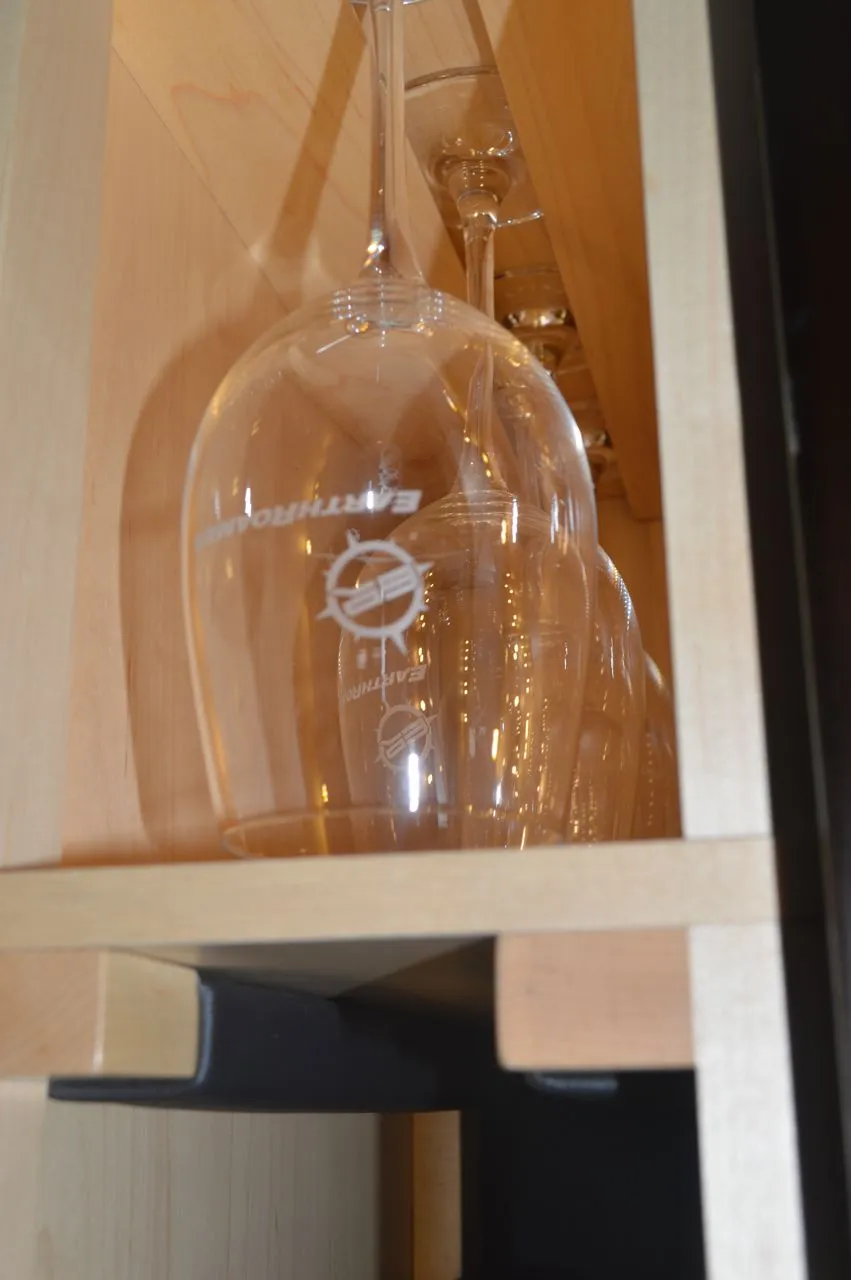

For half a million, why not throw in some engraved wine glasses?
6/57
For half a million, why not throw in some engraved wine glasses?

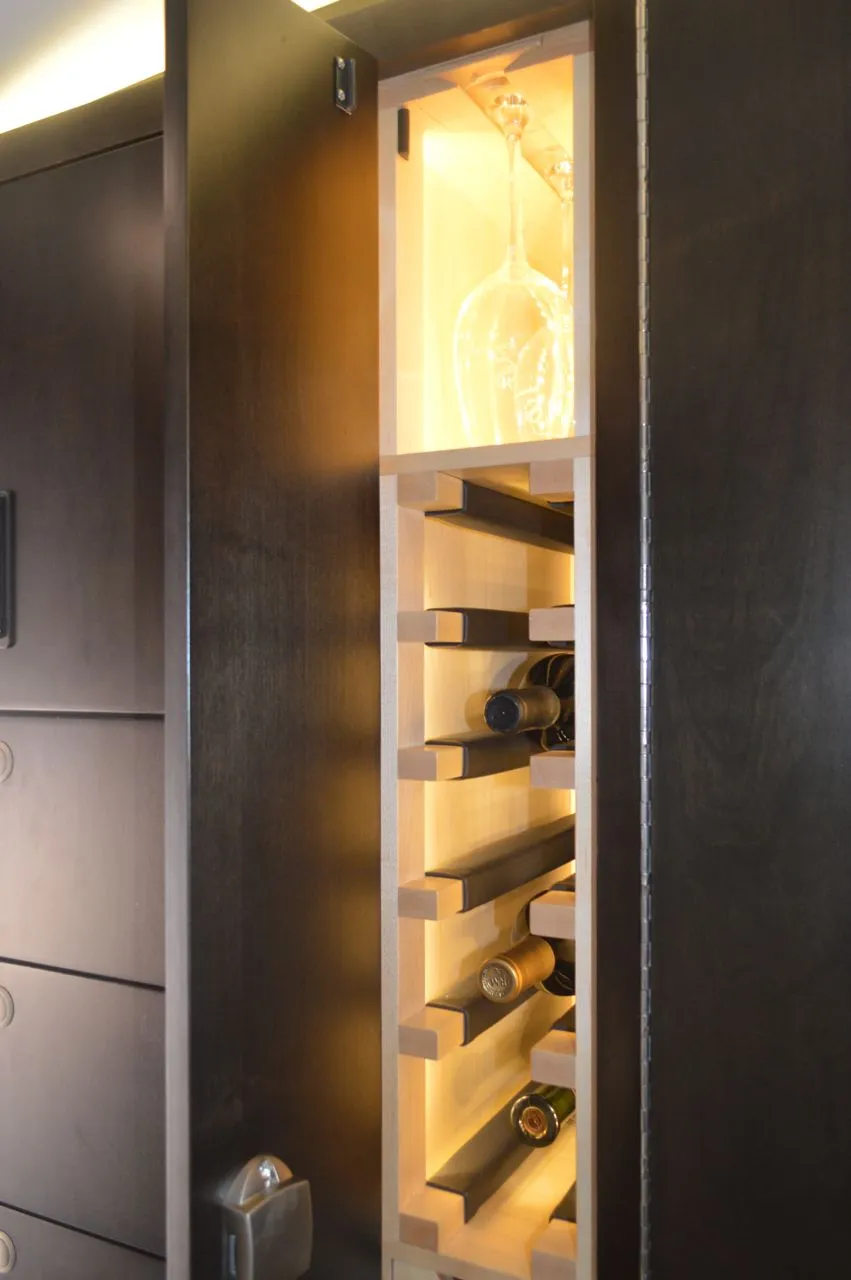

The available wine locker keeps a few bottles of red and white close at hand
7/57
The available wine locker keeps a few bottles of red and white close at hand

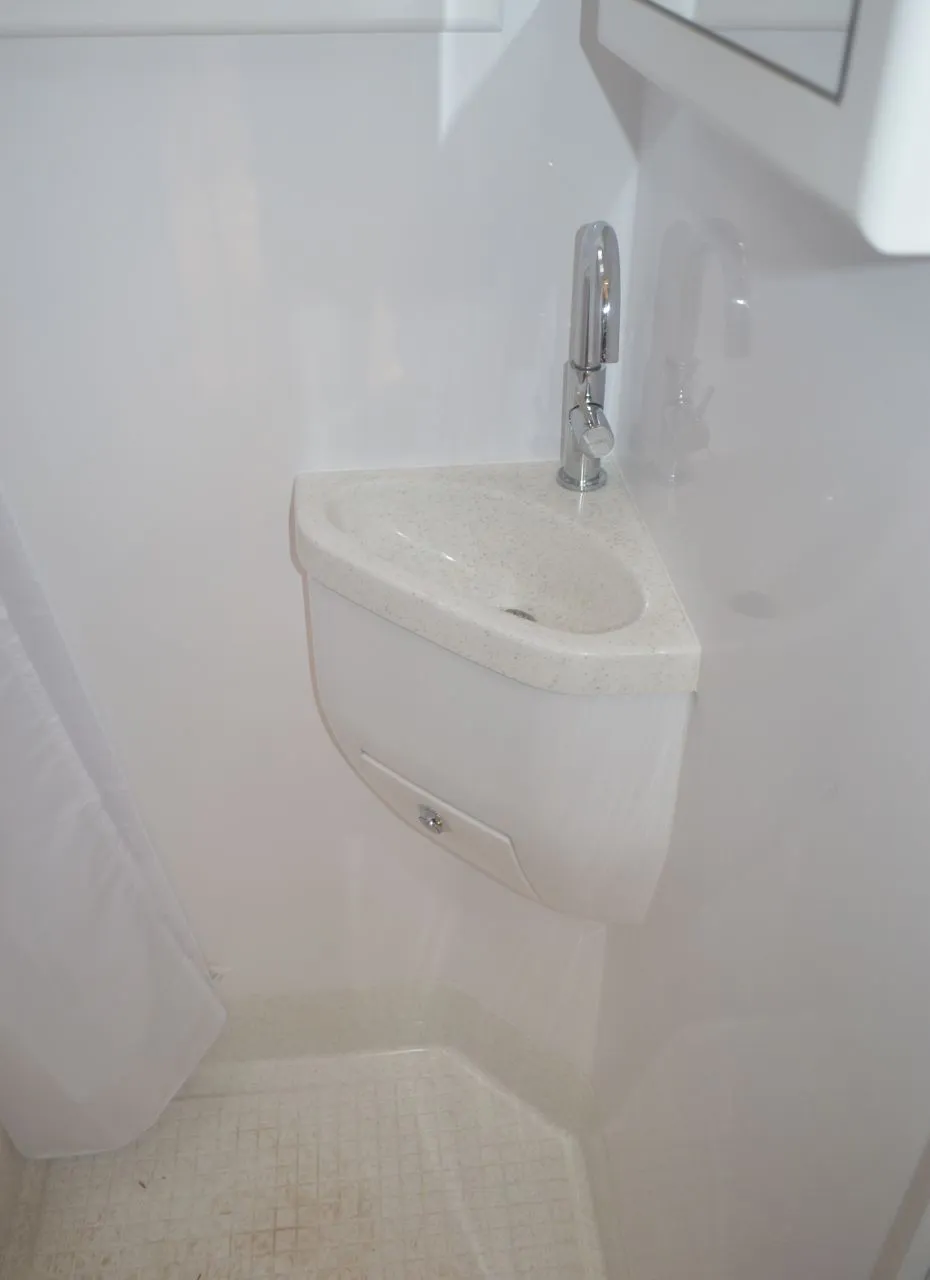

A peek inside the bathroom
8/57
A peek inside the bathroom

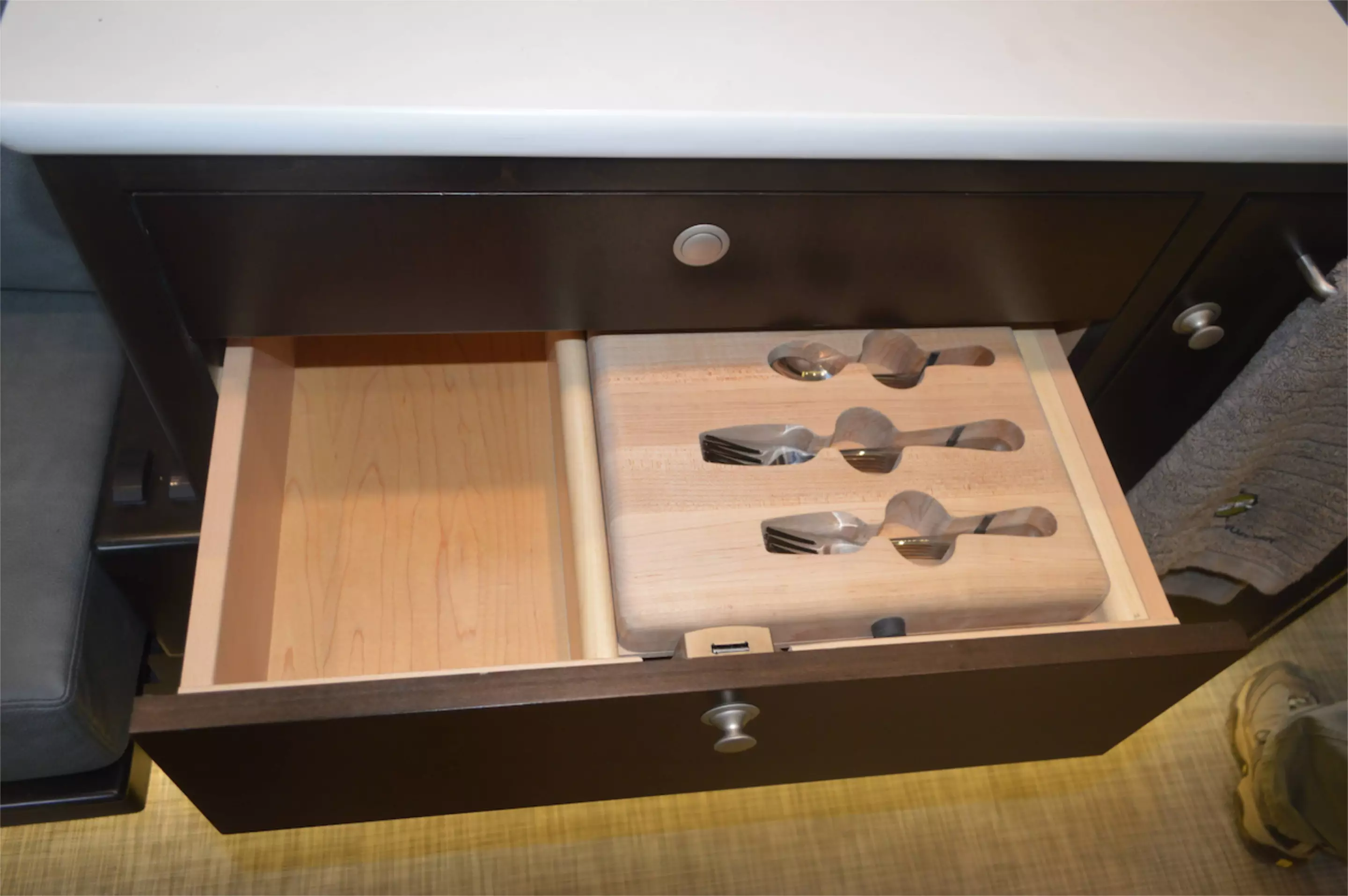

The 2014 XV-LTS on display had plenty of drawer space and organization
9/57
The 2014 XV-LTS on display had plenty of drawer space and organization

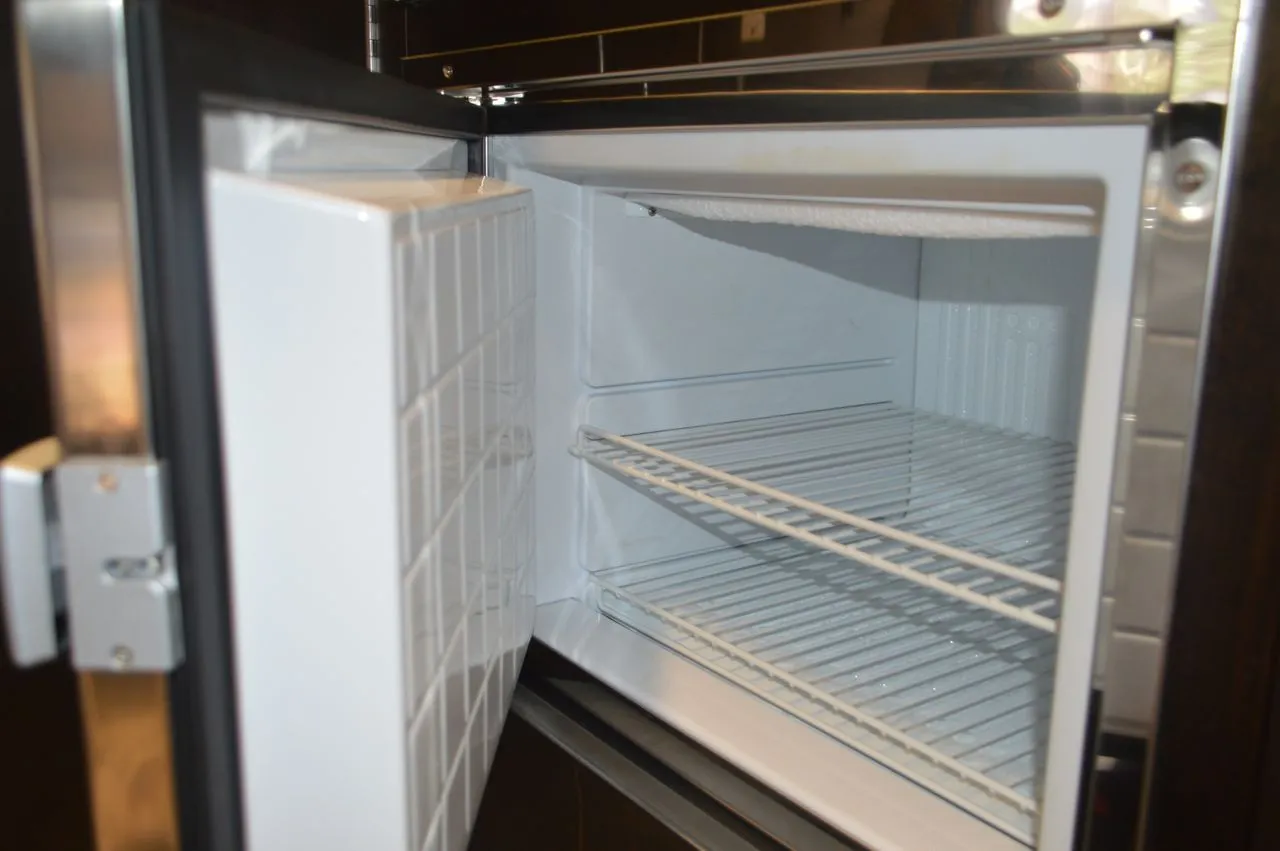

The EarthRoamer XV-LT includes a 12-volt DC compressor fridge/freezer
10/57
The EarthRoamer XV-LT includes a 12-volt DC compressor fridge/freezer

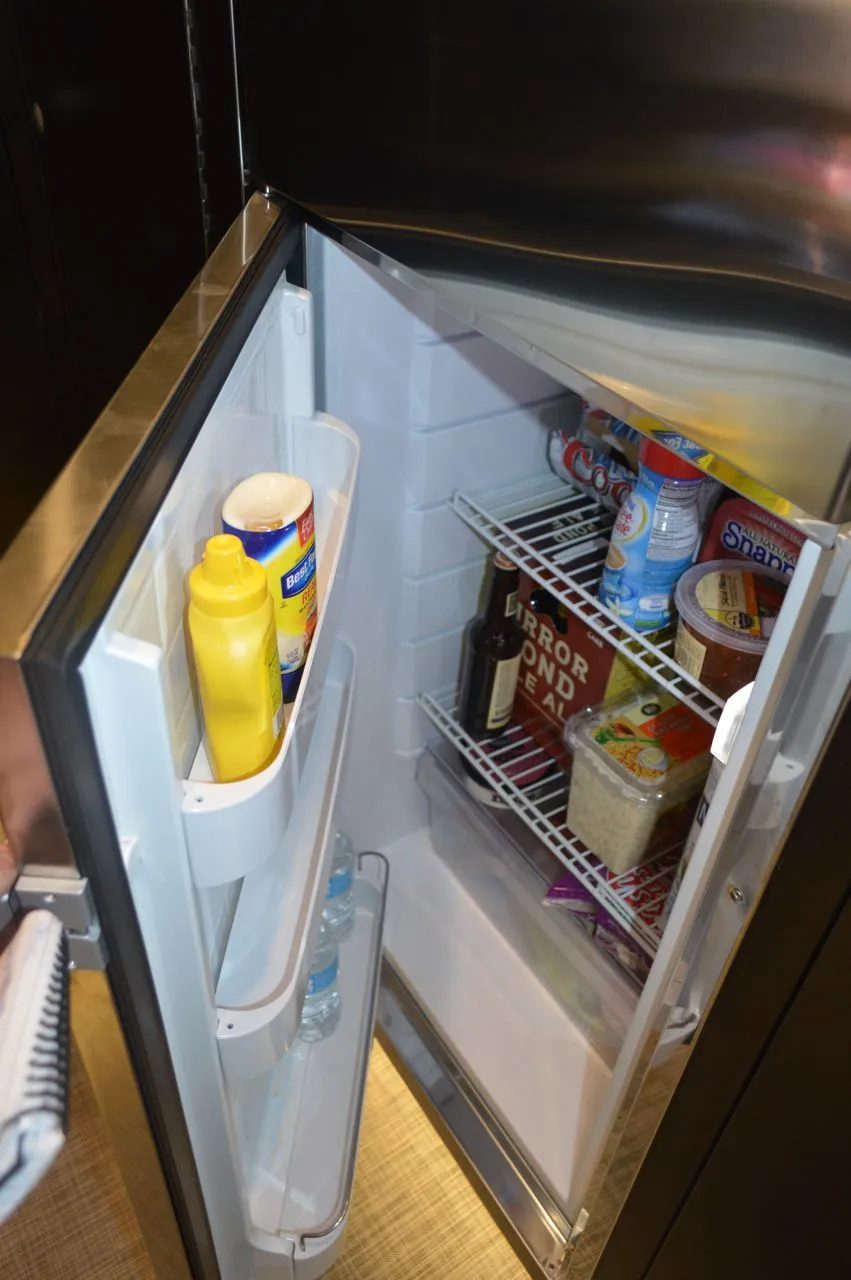

A well-stocked fridge prepared for a weekend of overlanding and expo-ing
11/57
A well-stocked fridge prepared for a weekend of overlanding and expo-ing

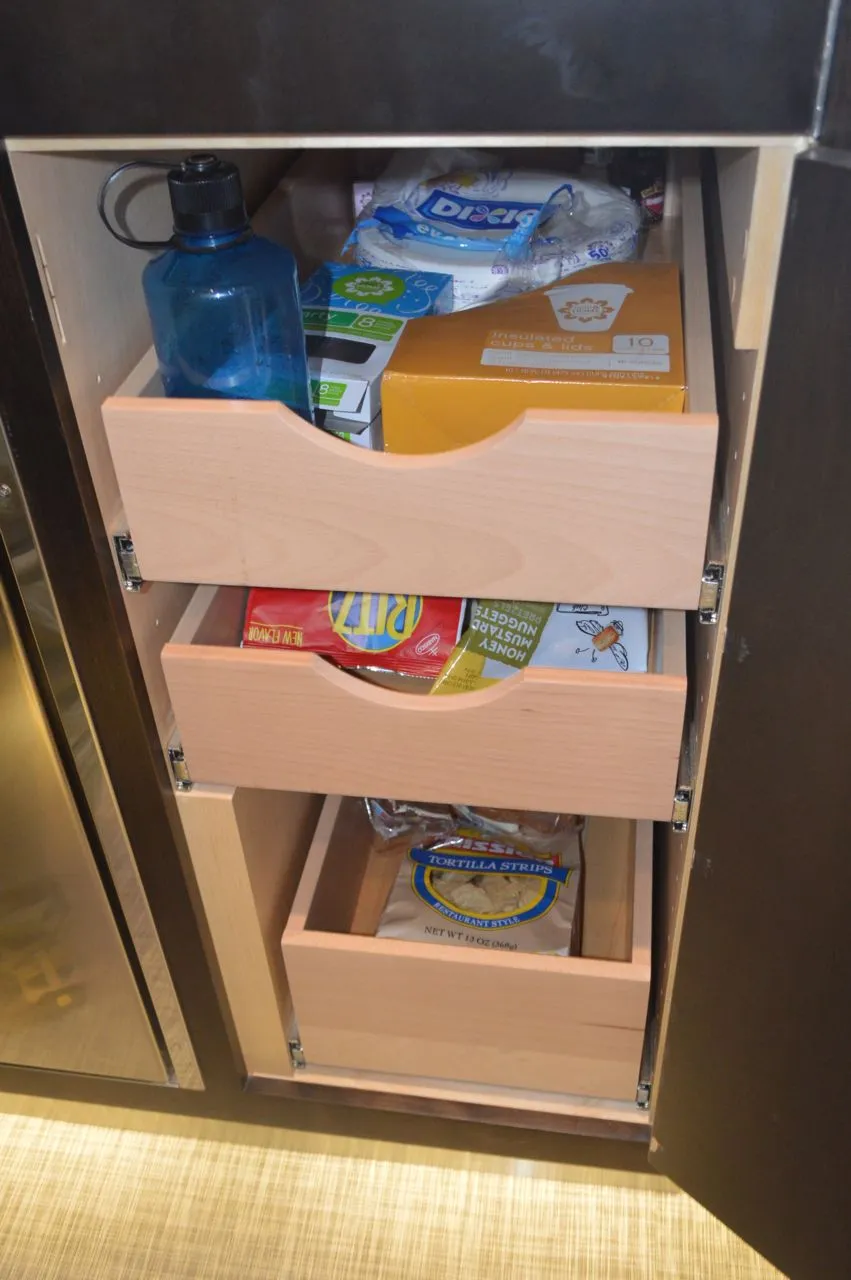

Slide-out pantry space
12/57
Slide-out pantry space

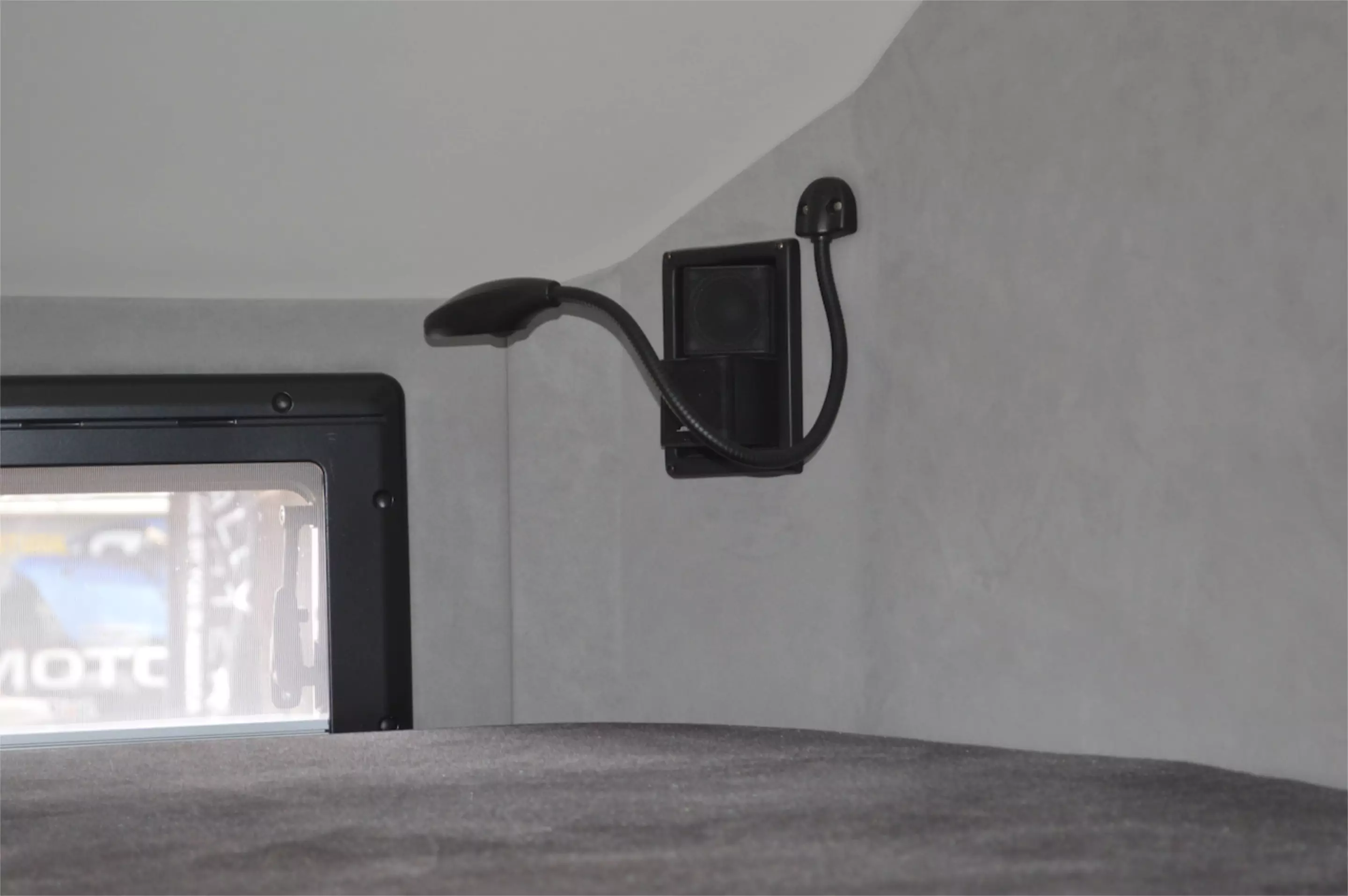

Lighting and Bose speakers mounted in the corner over the above-cab bed
13/57
Lighting and Bose speakers mounted in the corner over the above-cab bed

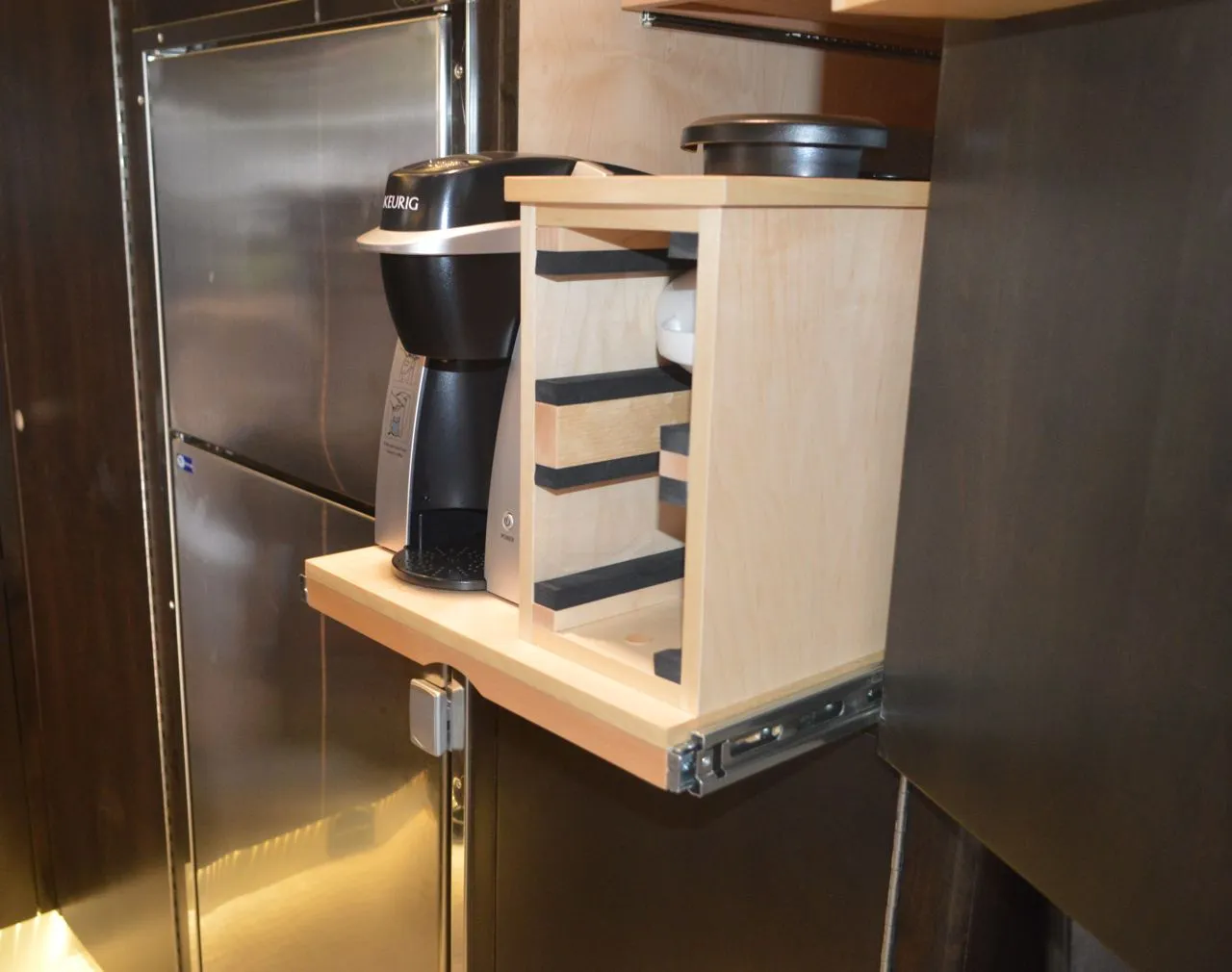

A slide-out Keurig makes for an easier cup of camp coffee
14/57
A slide-out Keurig makes for an easier cup of camp coffee

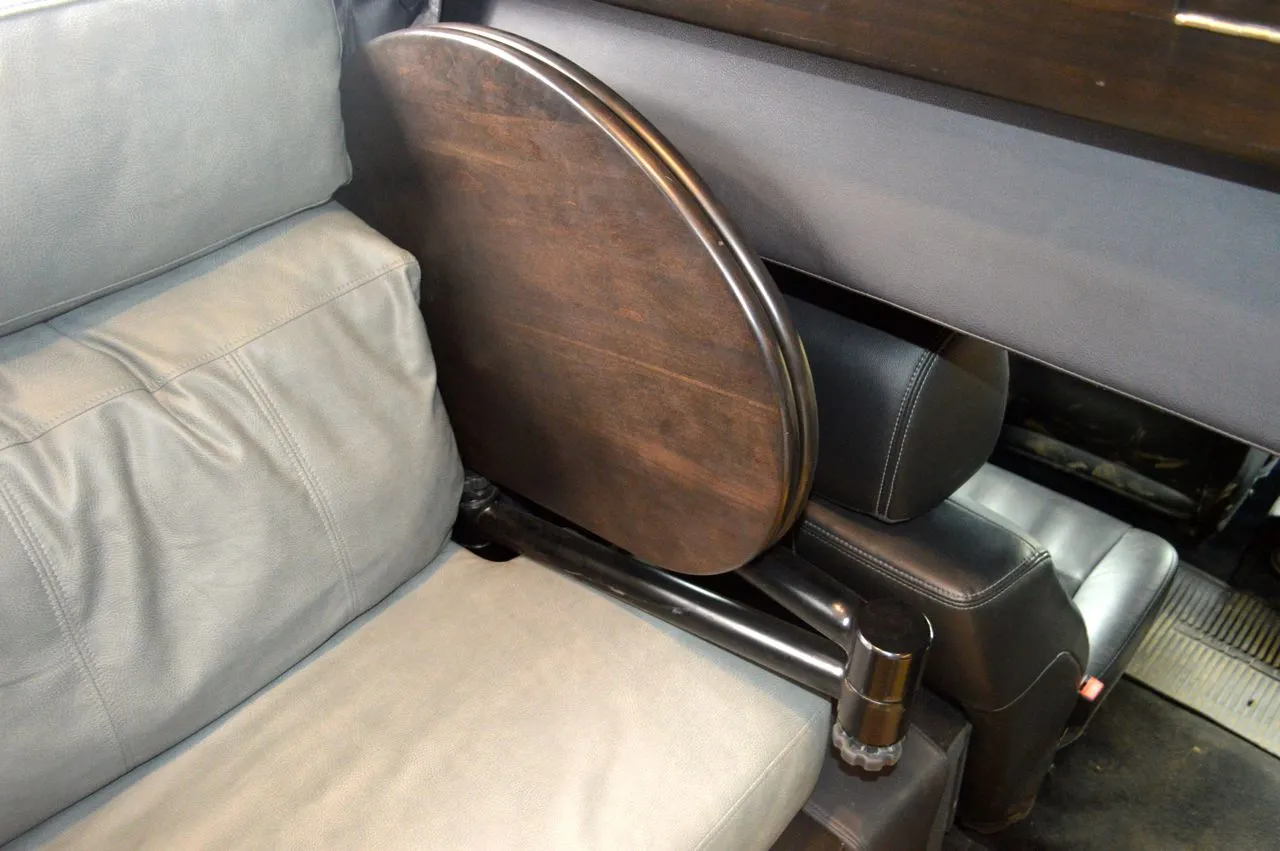

Fold-out tables provide eating/work/play space
15/57
Fold-out tables provide eating/work/play space
A look at the electronics
16/57
A look at the electronics

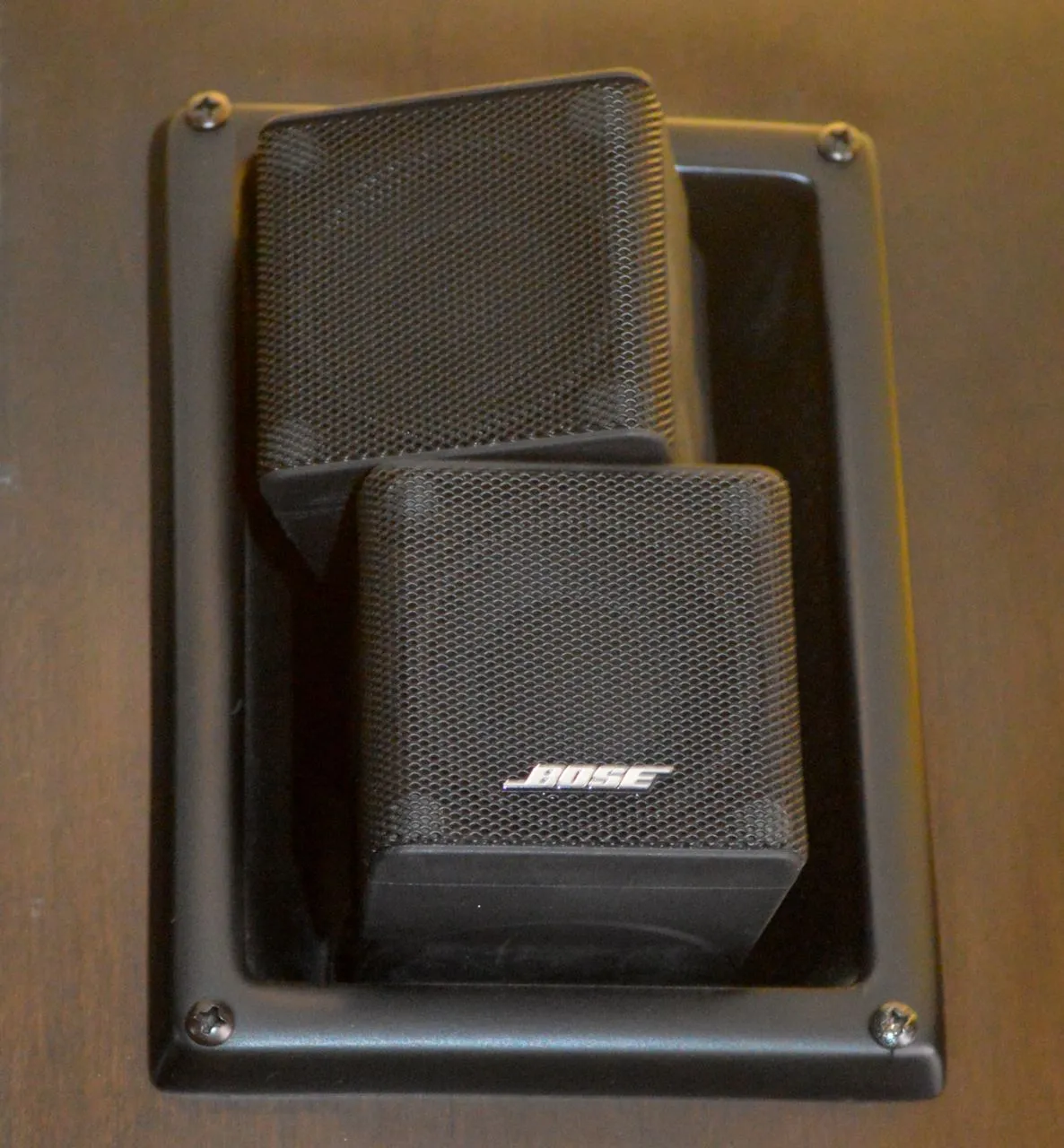

The EarthRoamer XV-LTS offers an optional Bose surround sound system
17/57
The EarthRoamer XV-LTS offers an optional Bose surround sound system

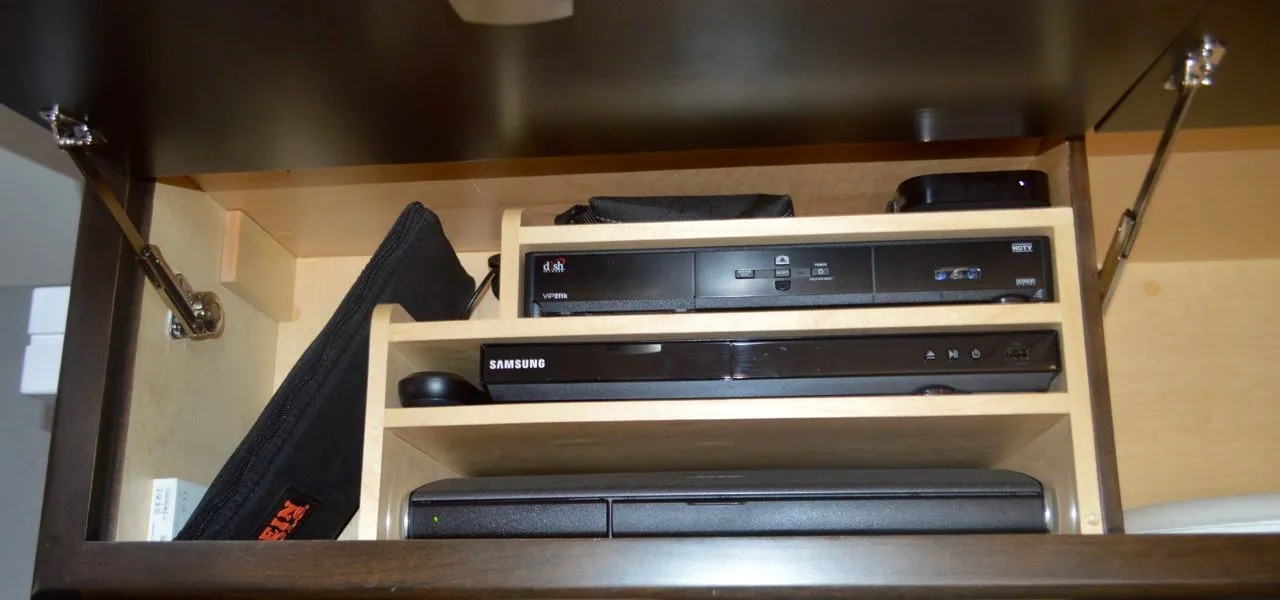

EarthRoamer offers a number of entertainment options
18/57
EarthRoamer offers a number of entertainment options

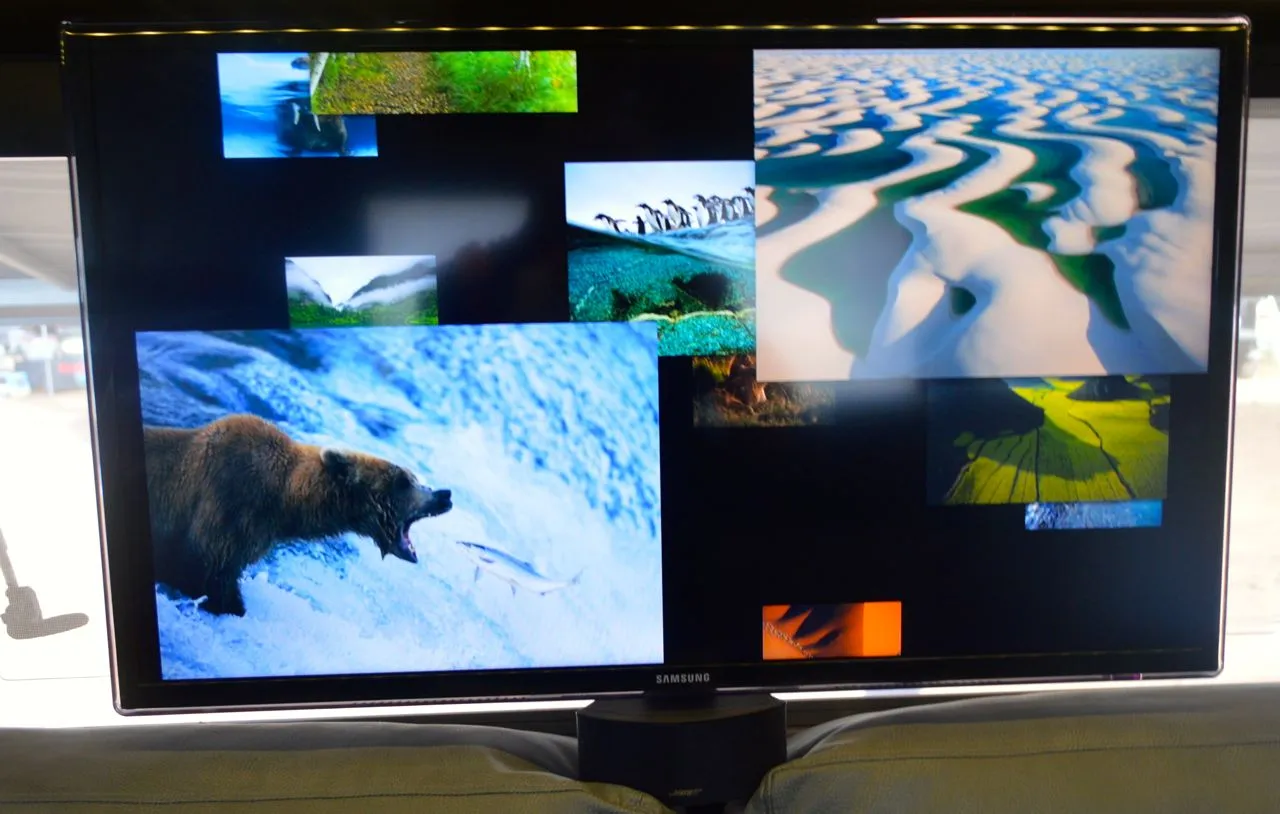

EarthRoamer offers a number of entertainment options, including satellite HD TV
19/57
EarthRoamer offers a number of entertainment options, including satellite HD TV

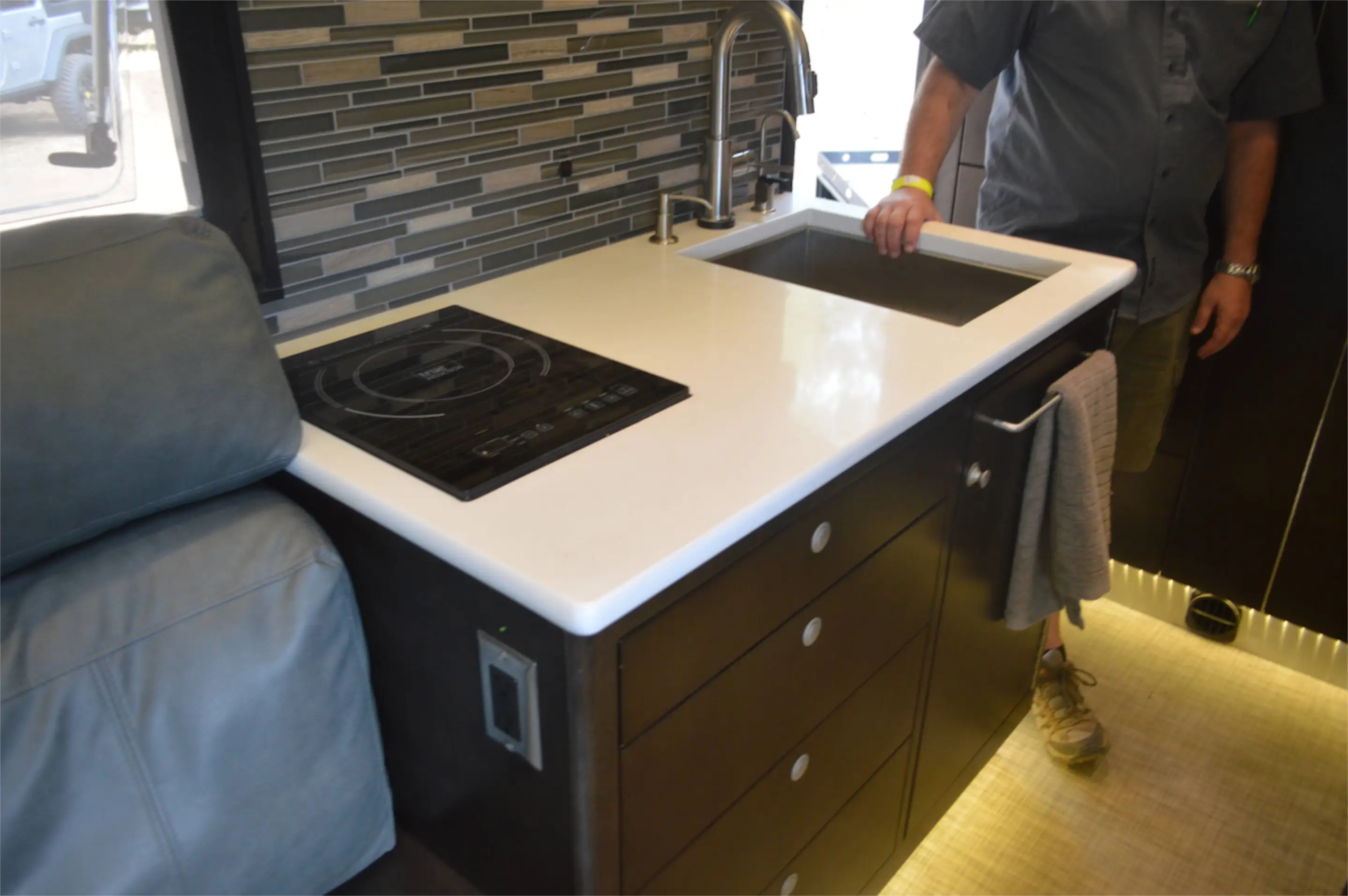

The indoor kitchen area includes a cooktop, sink and a number of drawers
20/57
The indoor kitchen area includes a cooktop, sink and a number of drawers

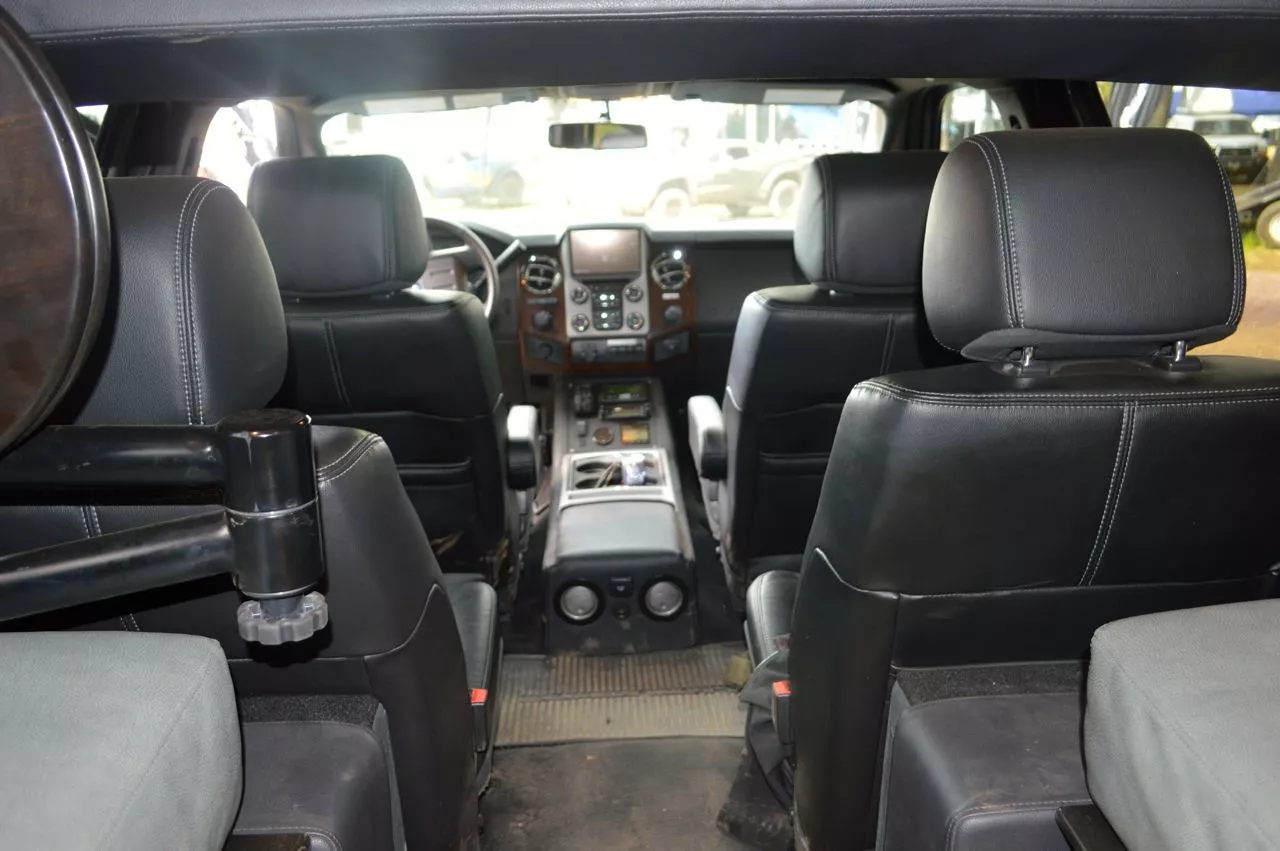

Pass-through to the four-person cab
21/57
Pass-through to the four-person cab
The EarthRoamer has a bed built over top the Ford cab
22/57
The EarthRoamer has a bed built over top the Ford cab

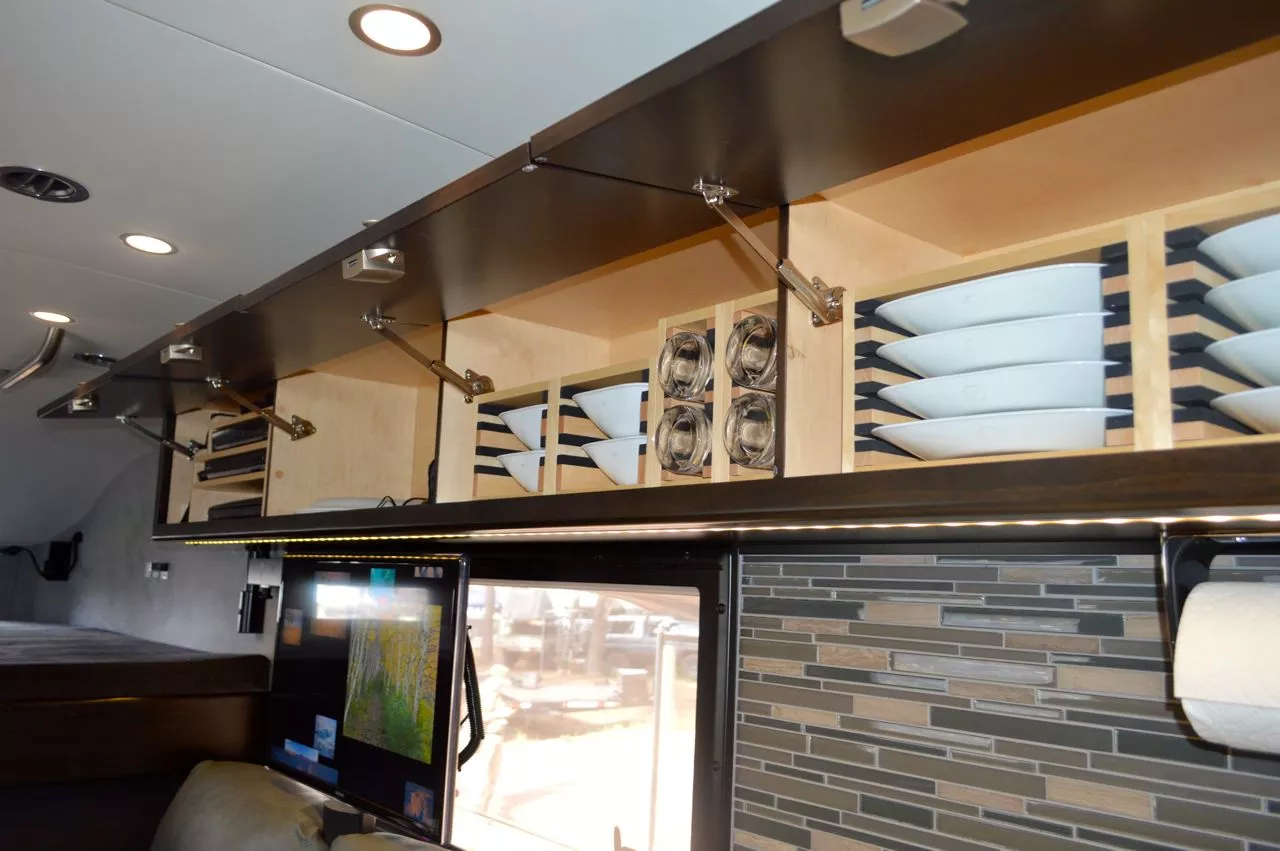

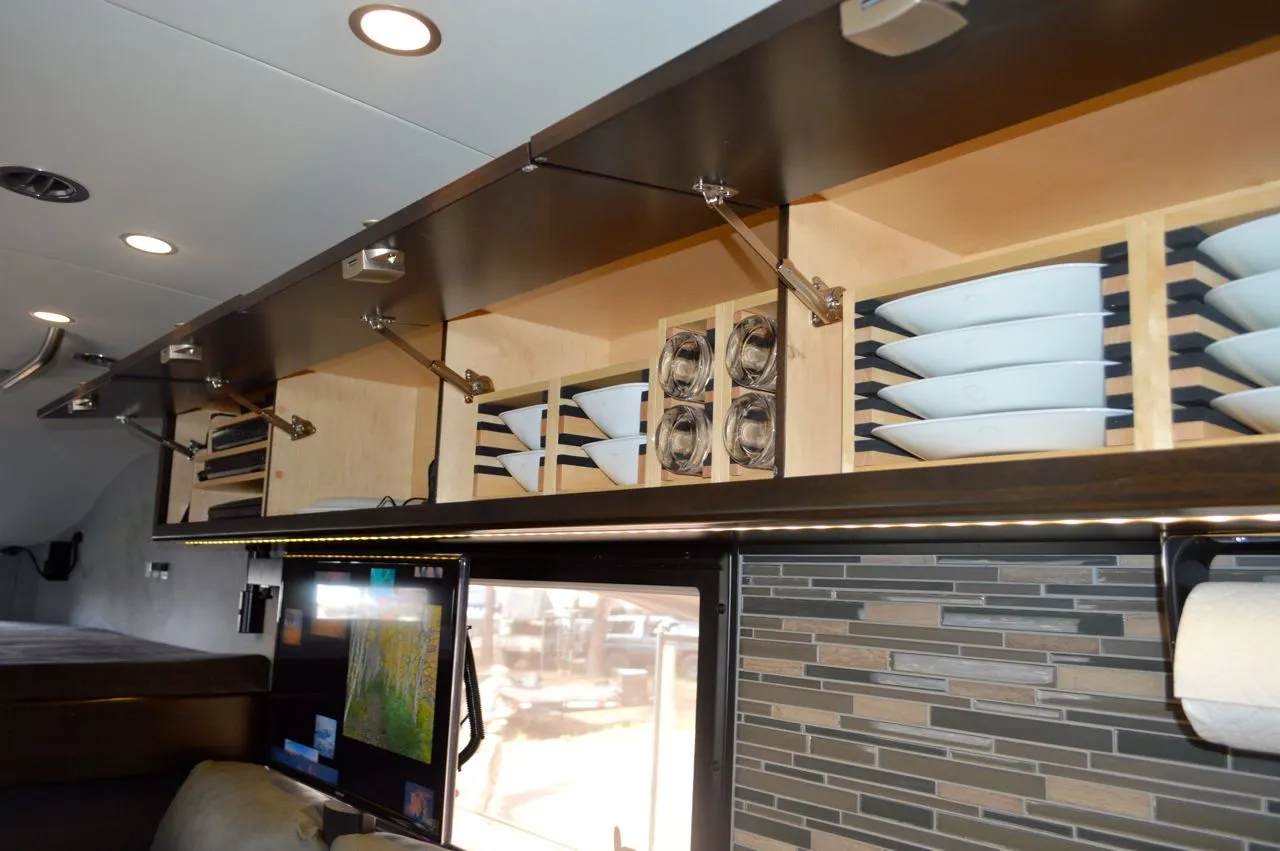

Upper cabinet space
23/57
Upper cabinet space

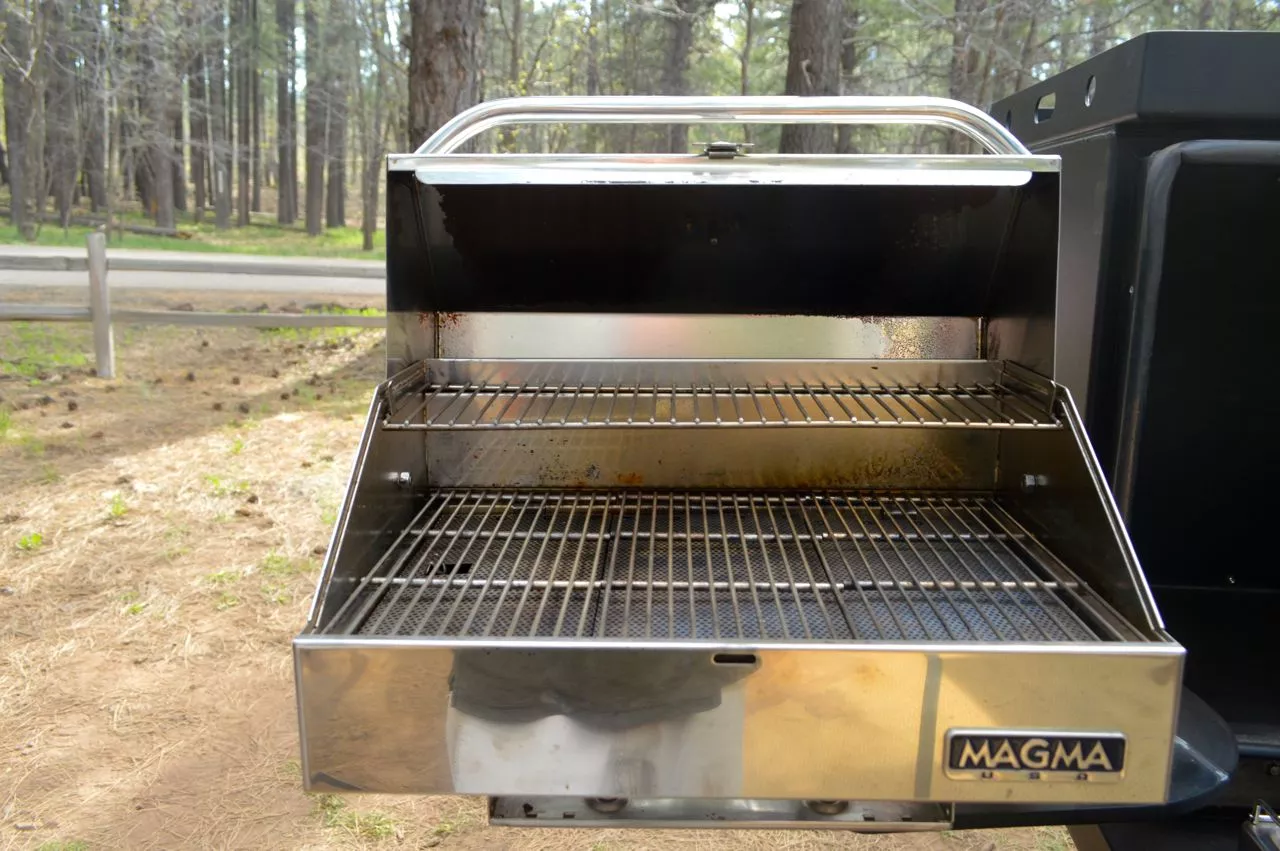

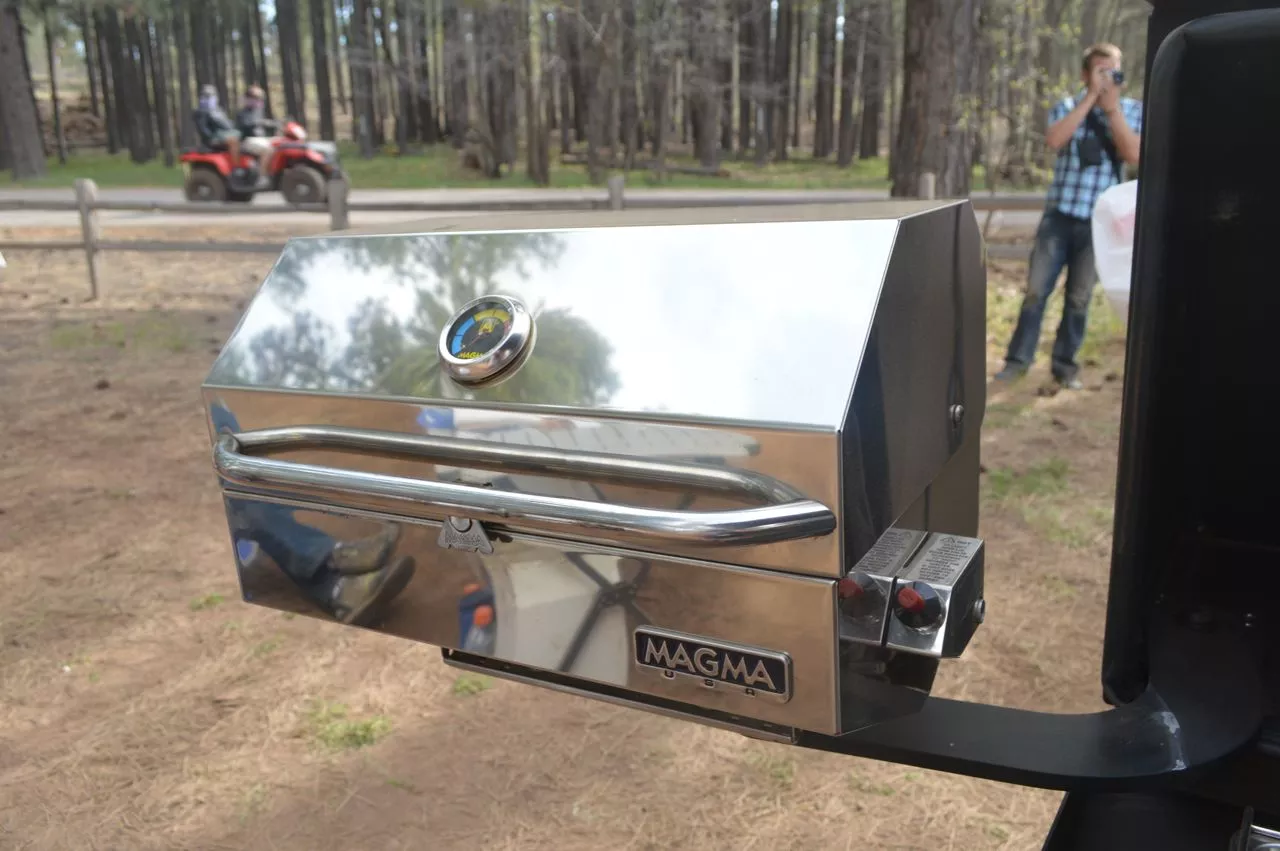

The integrated Magma grill on the display EarthRoamer XV-LTS adds another cooking option
24/57
The integrated Magma grill on the display EarthRoamer XV-LTS adds another cooking option

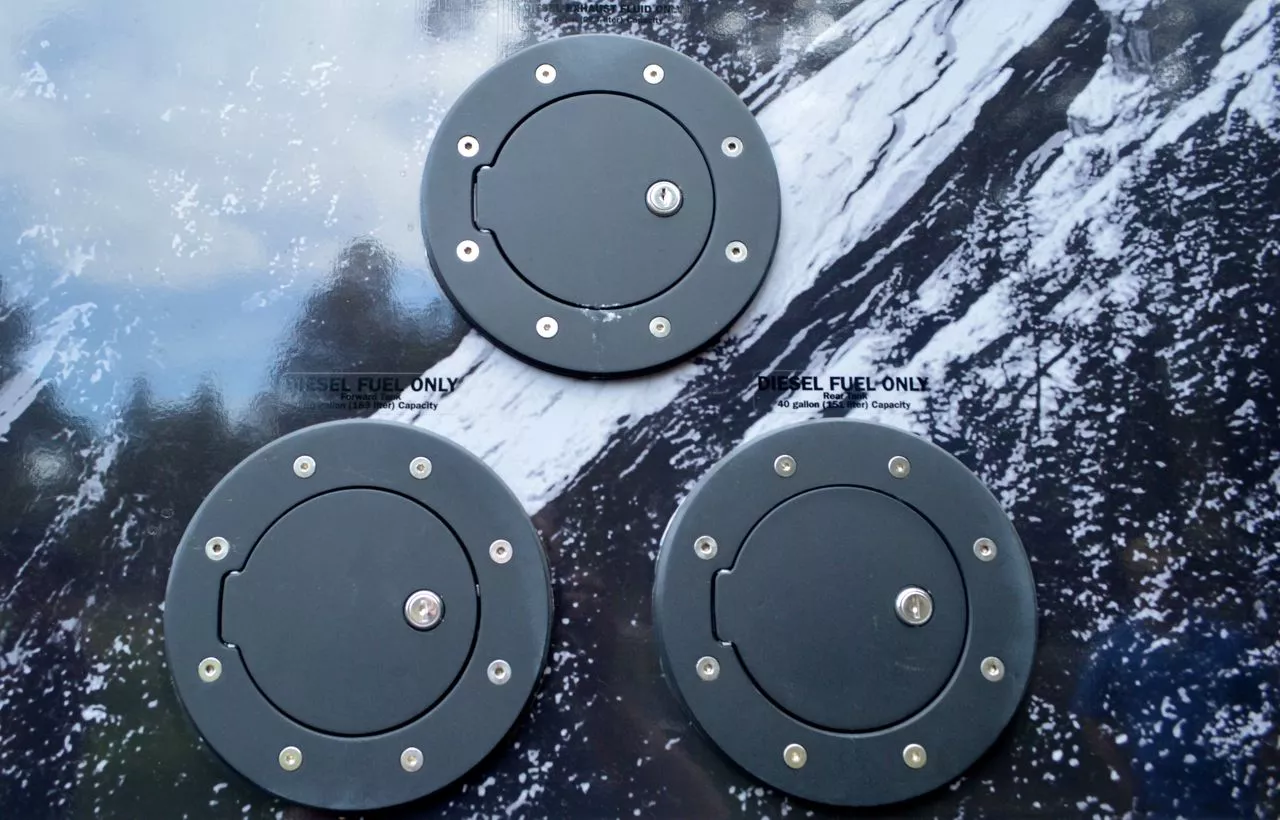

The EarthRoamer has 90 gallons worth of diesel fuel capacity
25/57
The EarthRoamer has 90 gallons worth of diesel fuel capacity

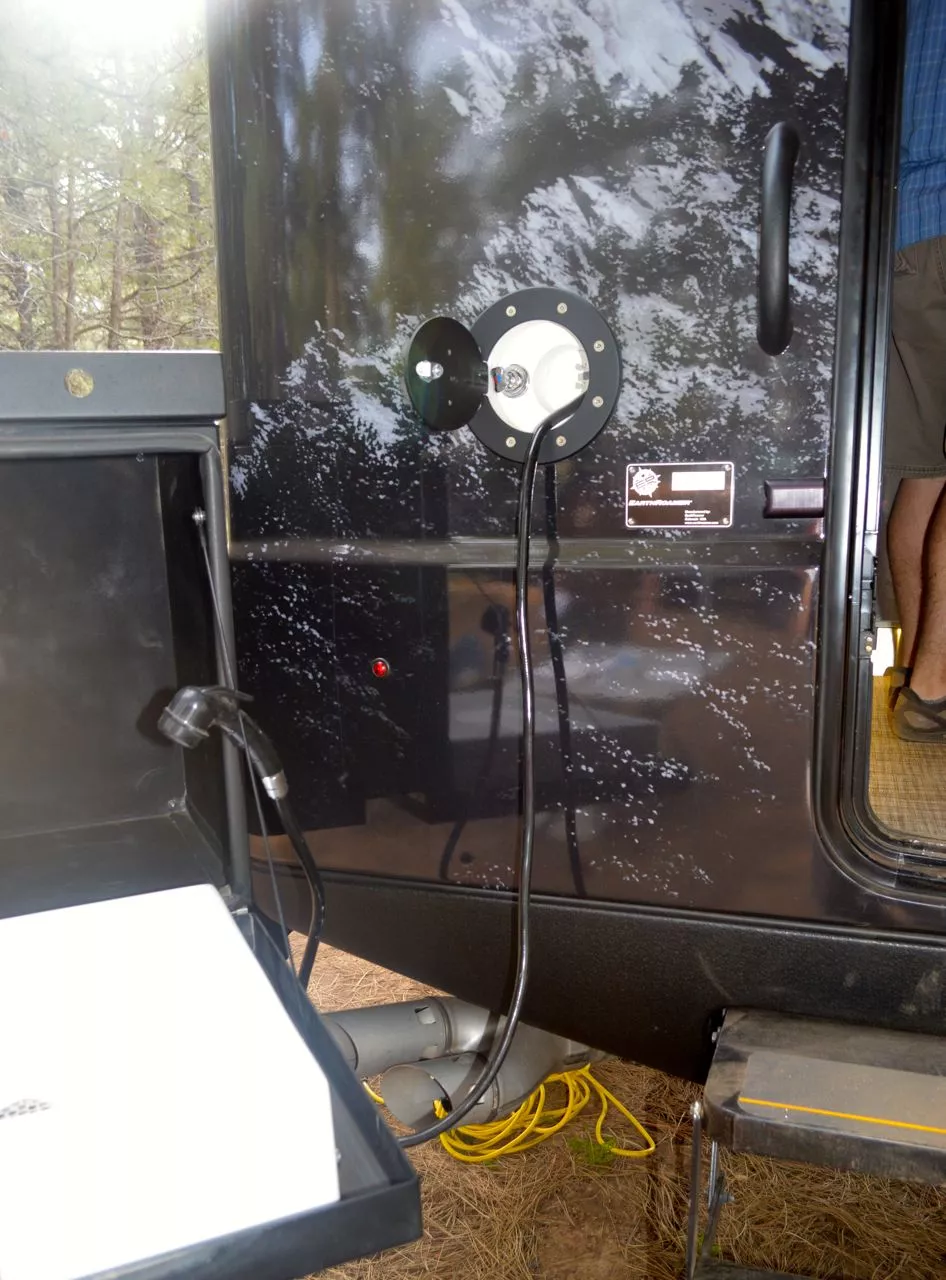

Outdoor shower/sink faucet
26/57
Outdoor shower/sink faucet

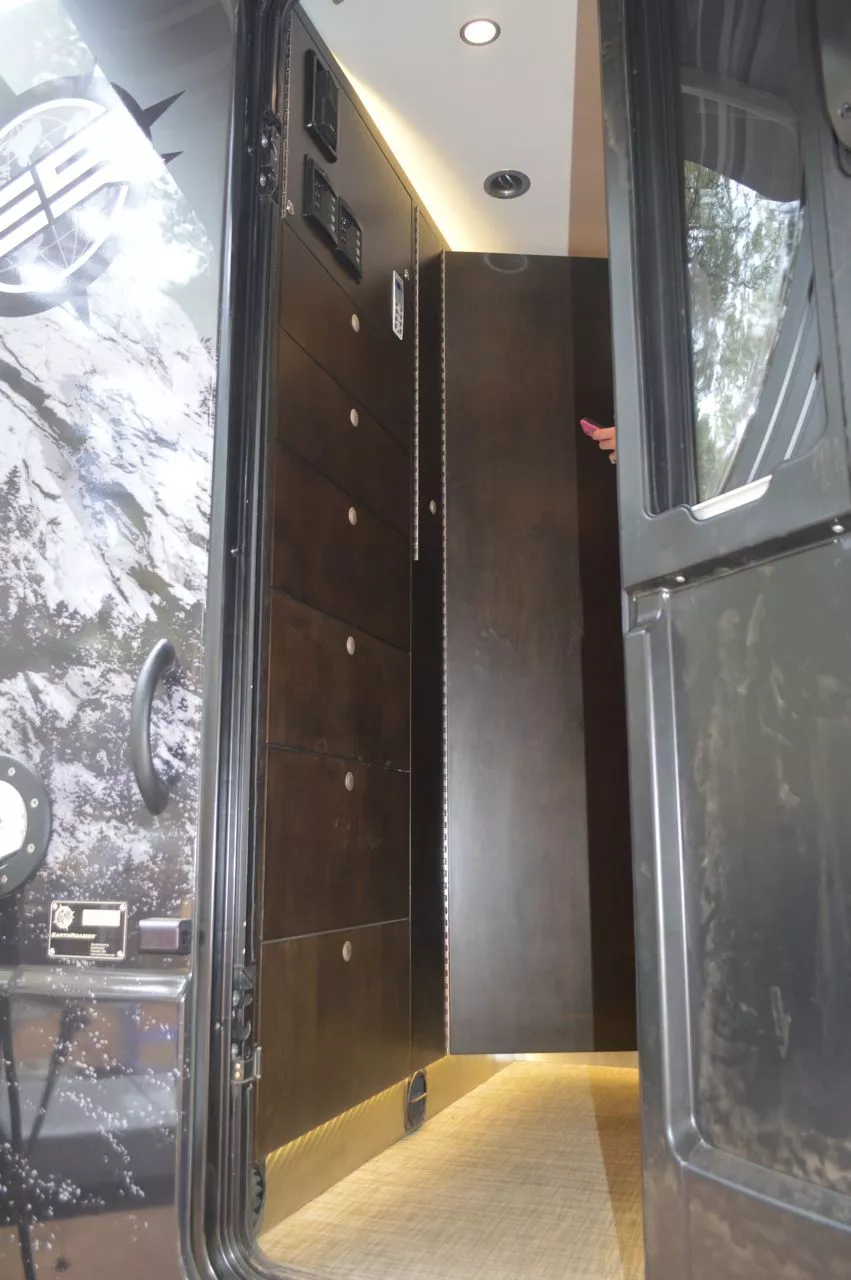

A peek through the doorway
27/57
A peek through the doorway

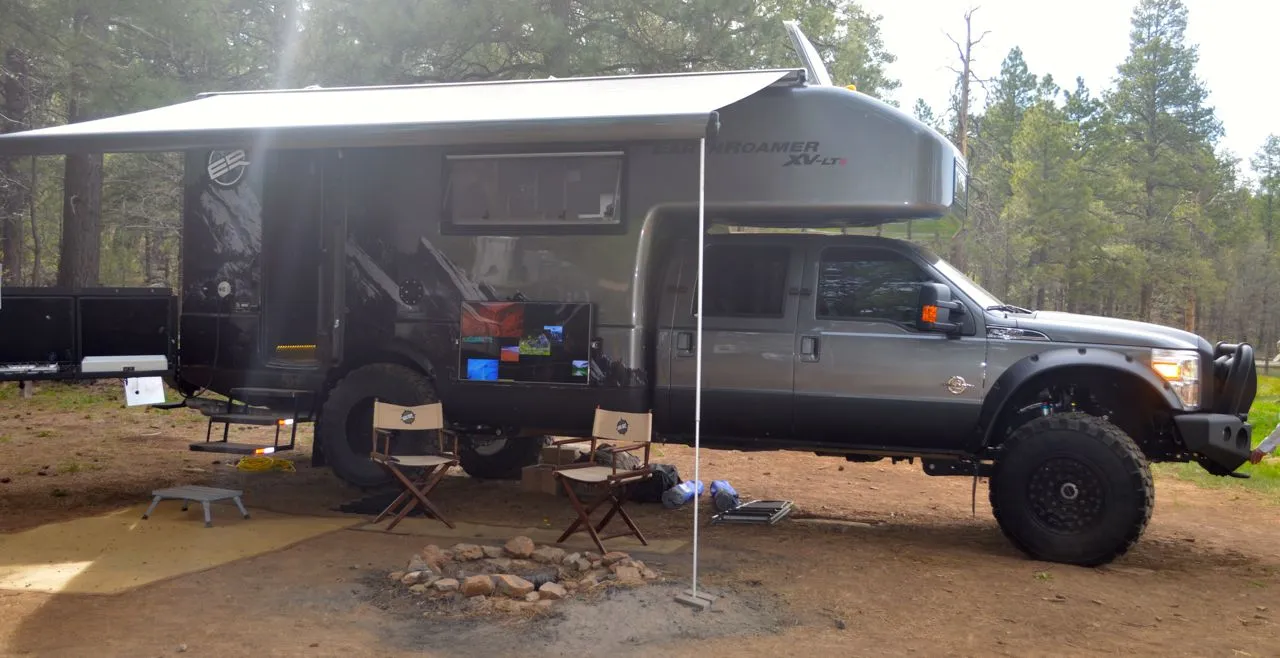

The $525K EarthRoamer XV-LTS at Overland Expo had a number of bells and whistles, including the external electric awning and TV
28/57
The $525K EarthRoamer XV-LTS at Overland Expo had a number of bells and whistles, including the external electric awning and TV

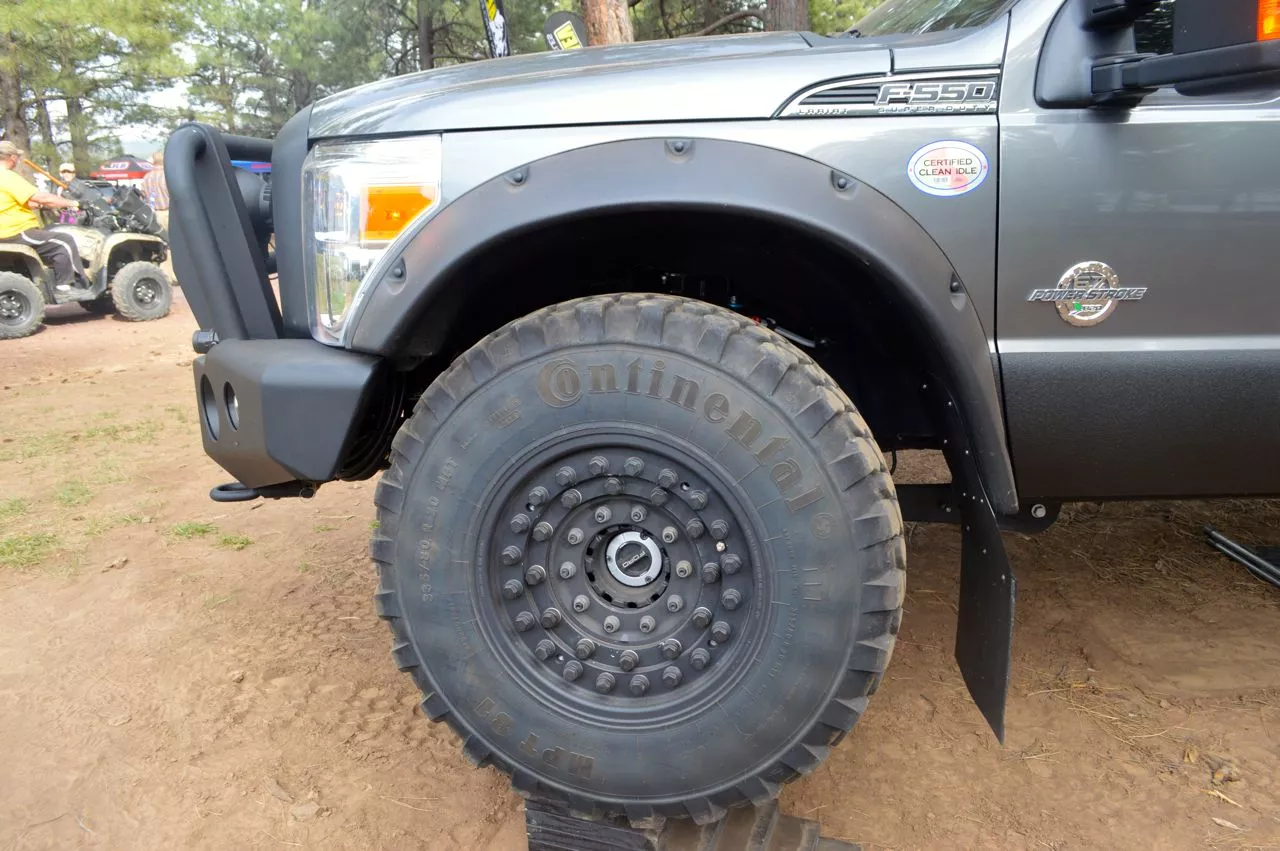

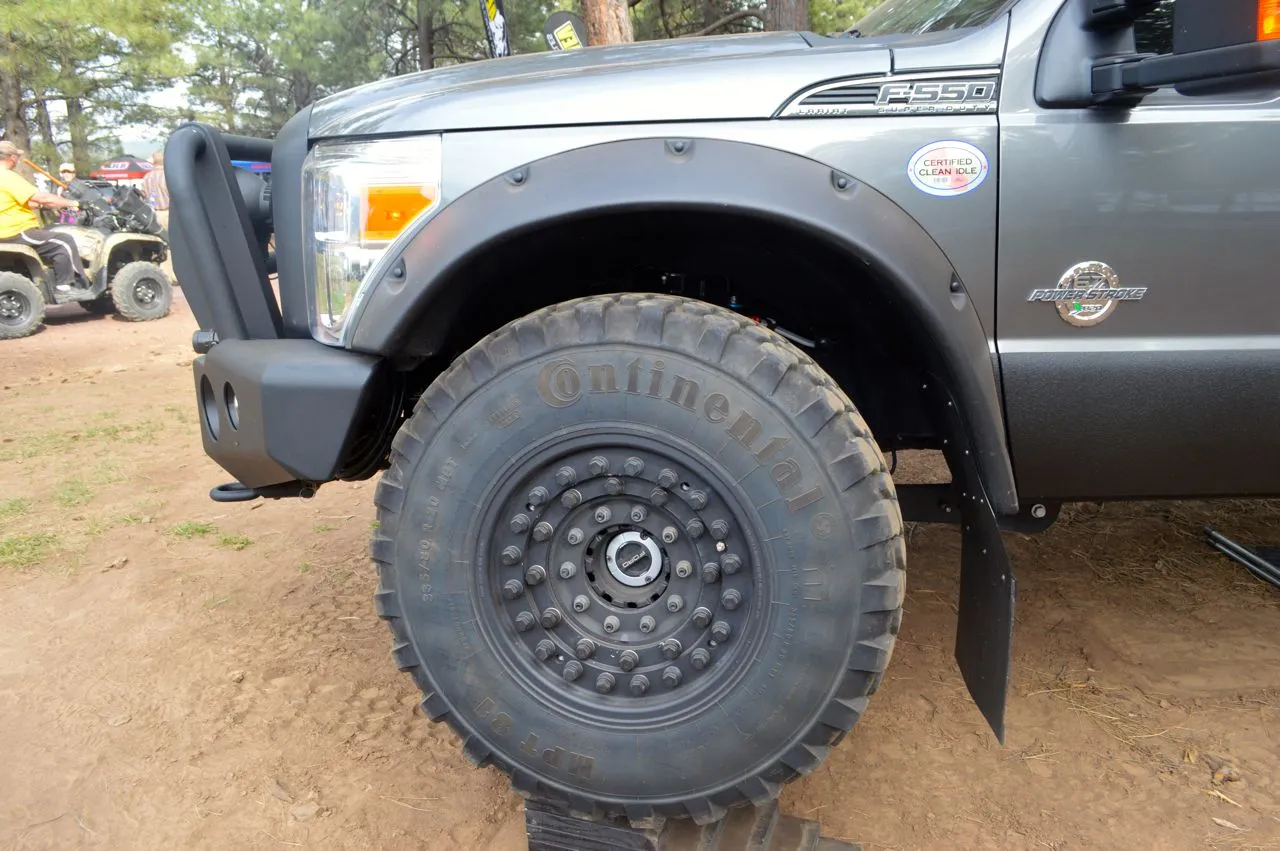

The 41-in Continental MPT-81 tires mounted to military headlock rims offer a minimum ground clearance of 12.4 in (31.5 cm)
29/57
The 41-in Continental MPT-81 tires mounted to military headlock rims offer a minimum ground clearance of 12.4 in (31.5 cm)
The EarthRoamer offers front and rear 16,500-lb winch options
30/57
The EarthRoamer offers front and rear 16,500-lb winch options

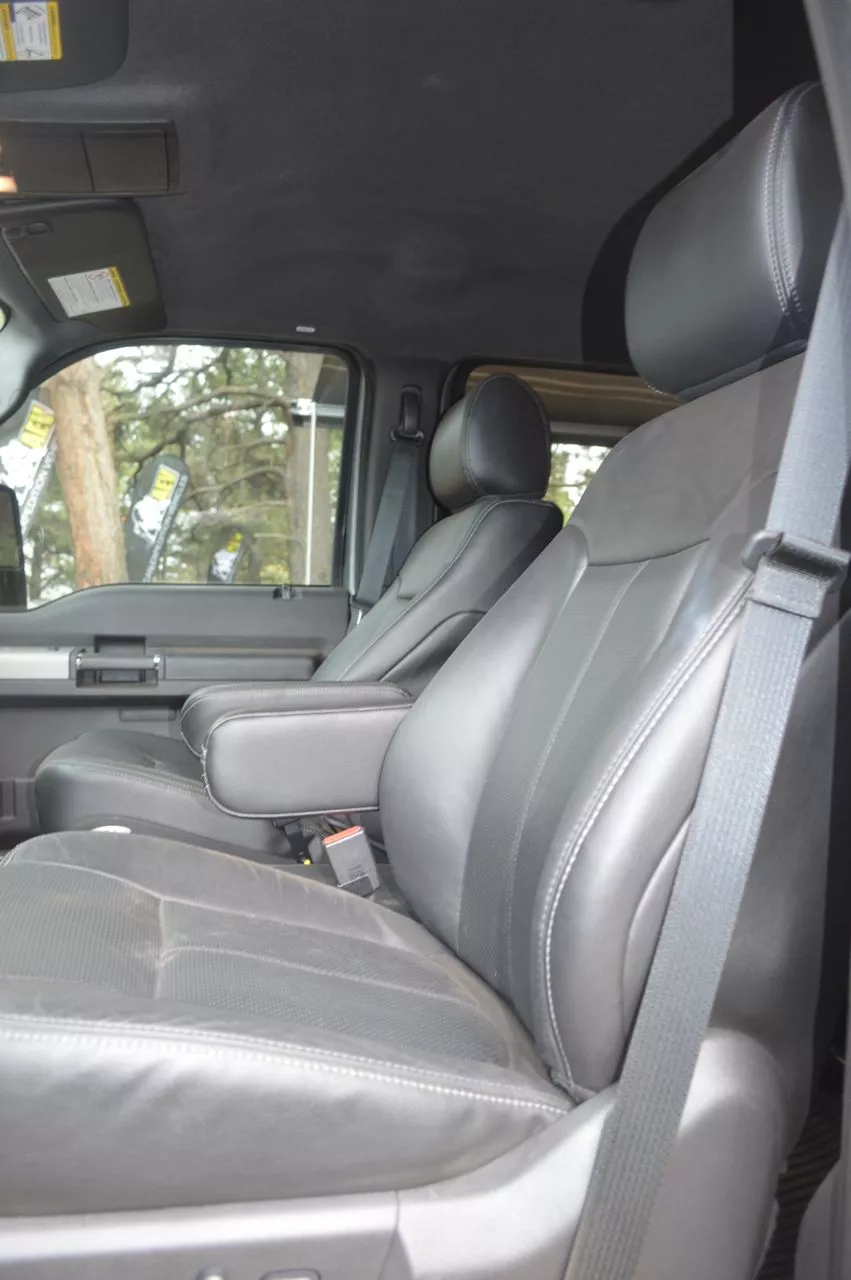

The Ford Super Duty Crew Cab with Lariat interior
31/57
The Ford Super Duty Crew Cab with Lariat interior

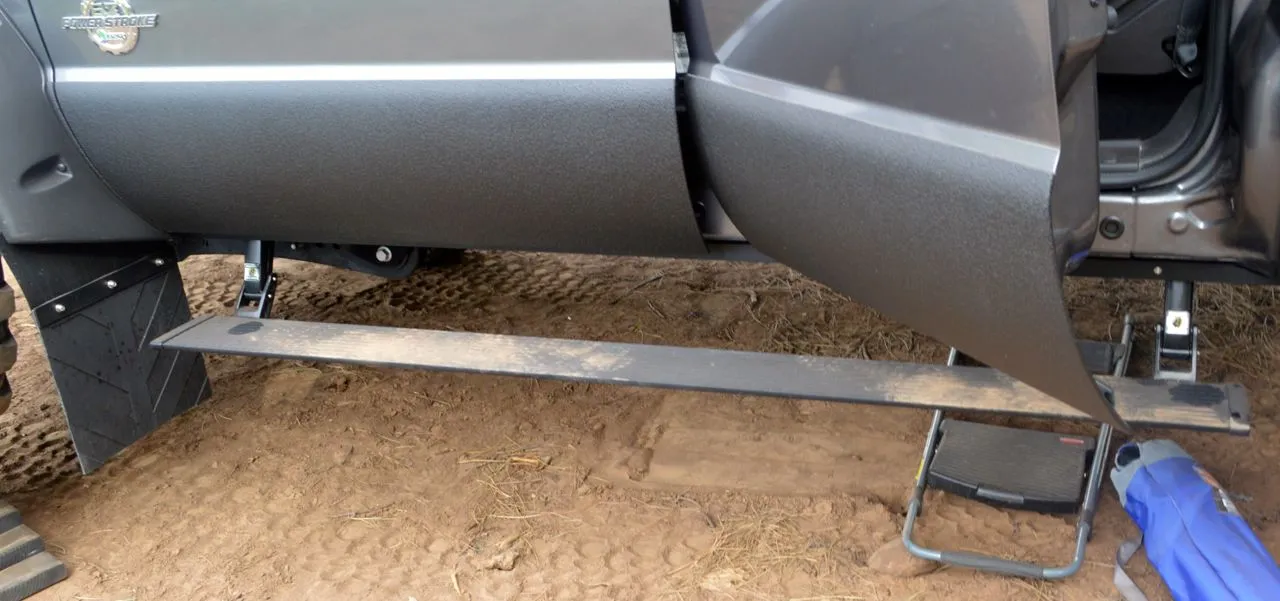

The electrically activated step offers easier cab access
32/57
The electrically activated step offers easier cab access

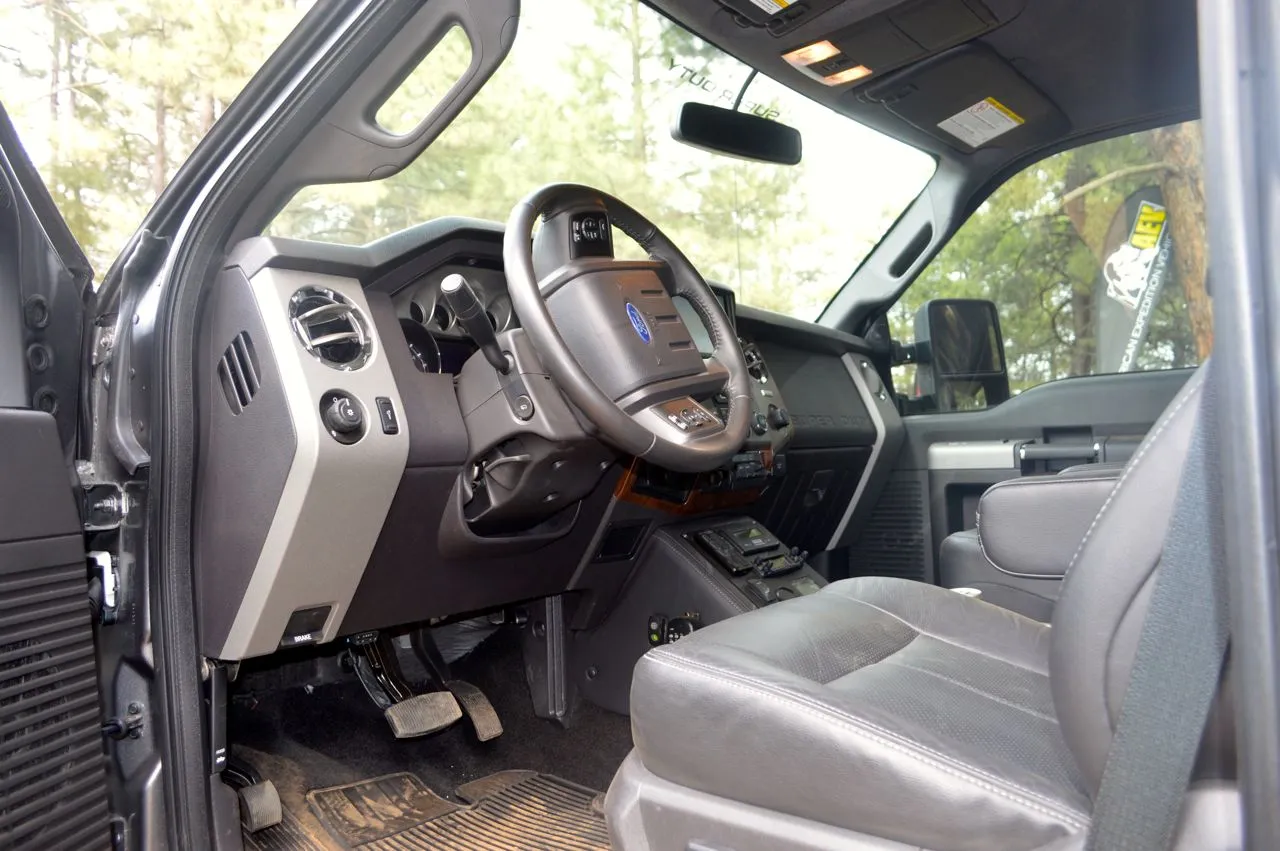

The EarthRoamer cab includes a pass-through for access to the camper while moving
33/57
The EarthRoamer cab includes a pass-through for access to the camper while moving

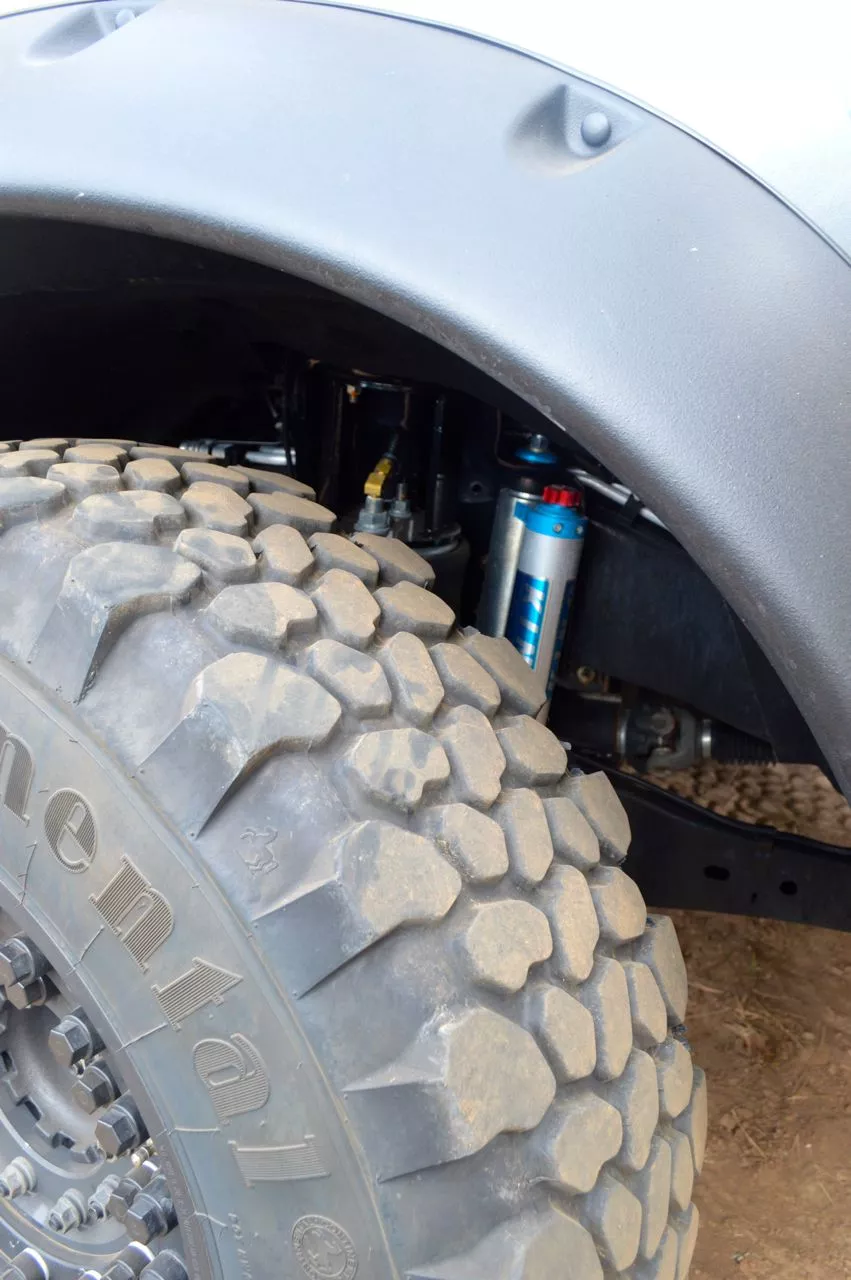

The XV-LT series has King Shocks engineered specifically for EarthRoamer and heavy duty front and rear anti-sway bars
34/57
The XV-LT series has King Shocks engineered specifically for EarthRoamer and heavy duty front and rear anti-sway bars

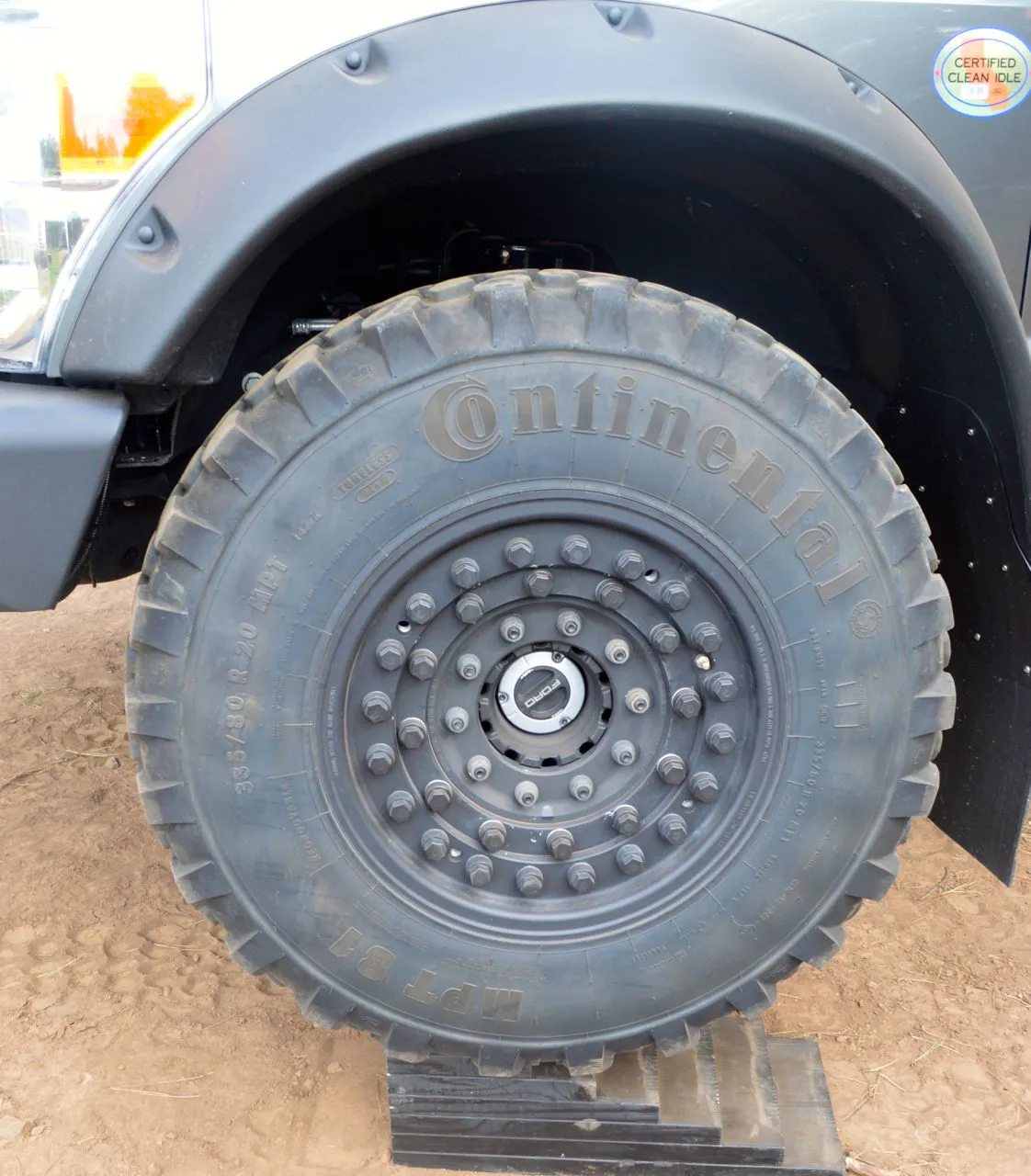

The EarthRoamer can be shod in 37- or 41-in tires
35/57
The EarthRoamer can be shod in 37- or 41-in tires

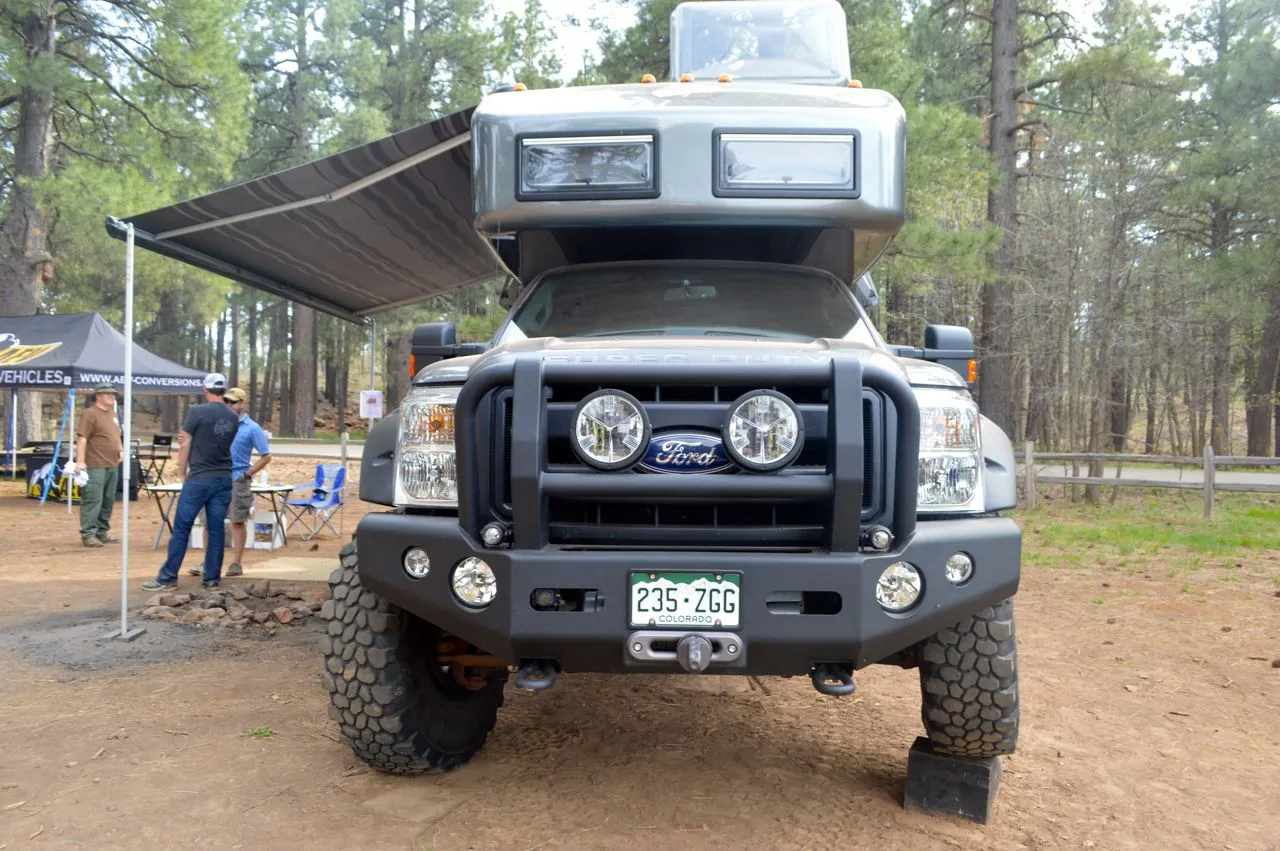

Ready to drive and conquer
36/57
Ready to drive and conquer

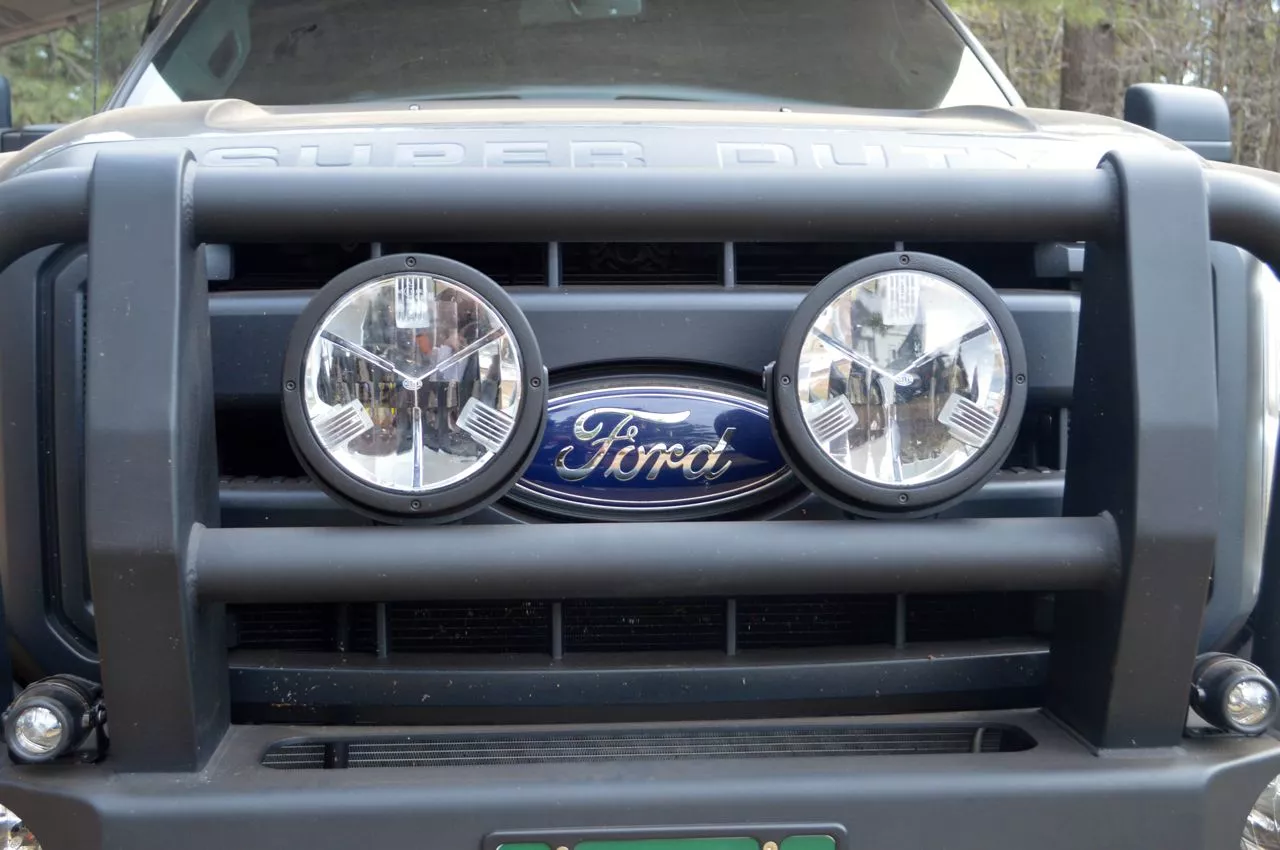

Off-road lighting mounted to the grille guard
37/57
Off-road lighting mounted to the grille guard

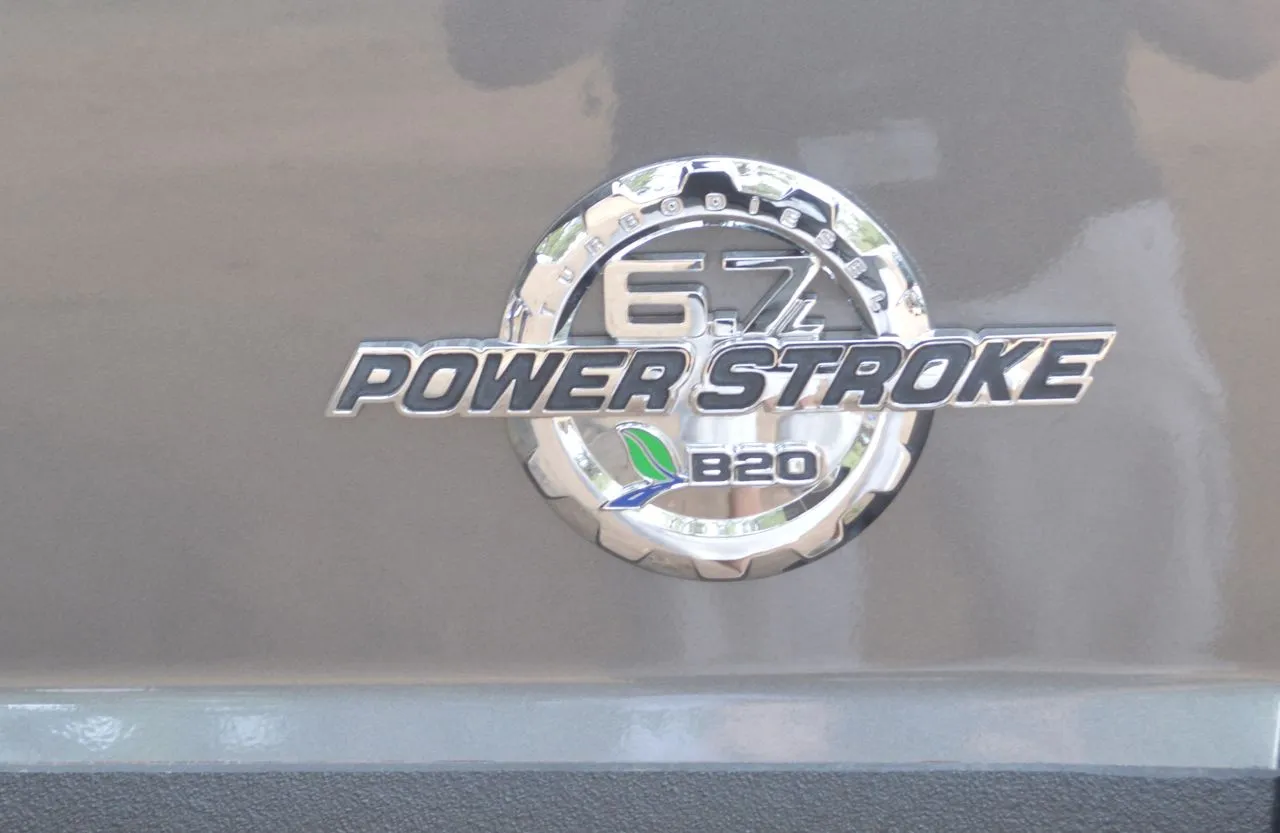

The EarthRoamer's drive and onboard dual alternator generator system is powered by Ford's 300-hp Power Stroke Turbo Diesel V8
38/57
The EarthRoamer's drive and onboard dual alternator generator system is powered by Ford's 300-hp Power Stroke Turbo Diesel V8

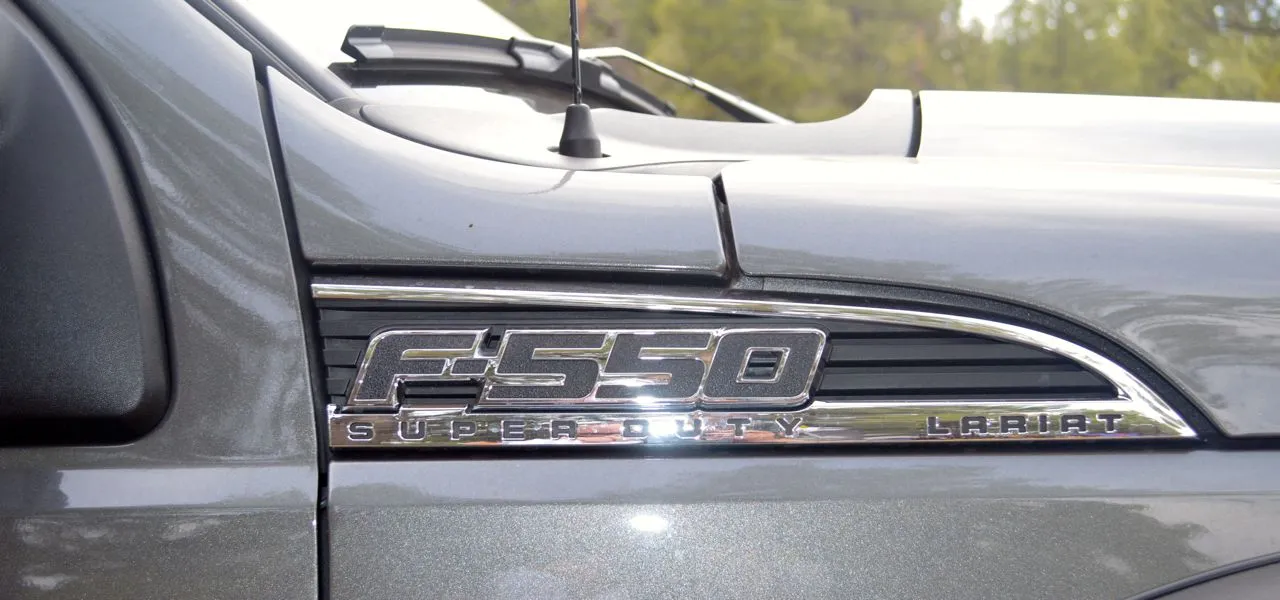

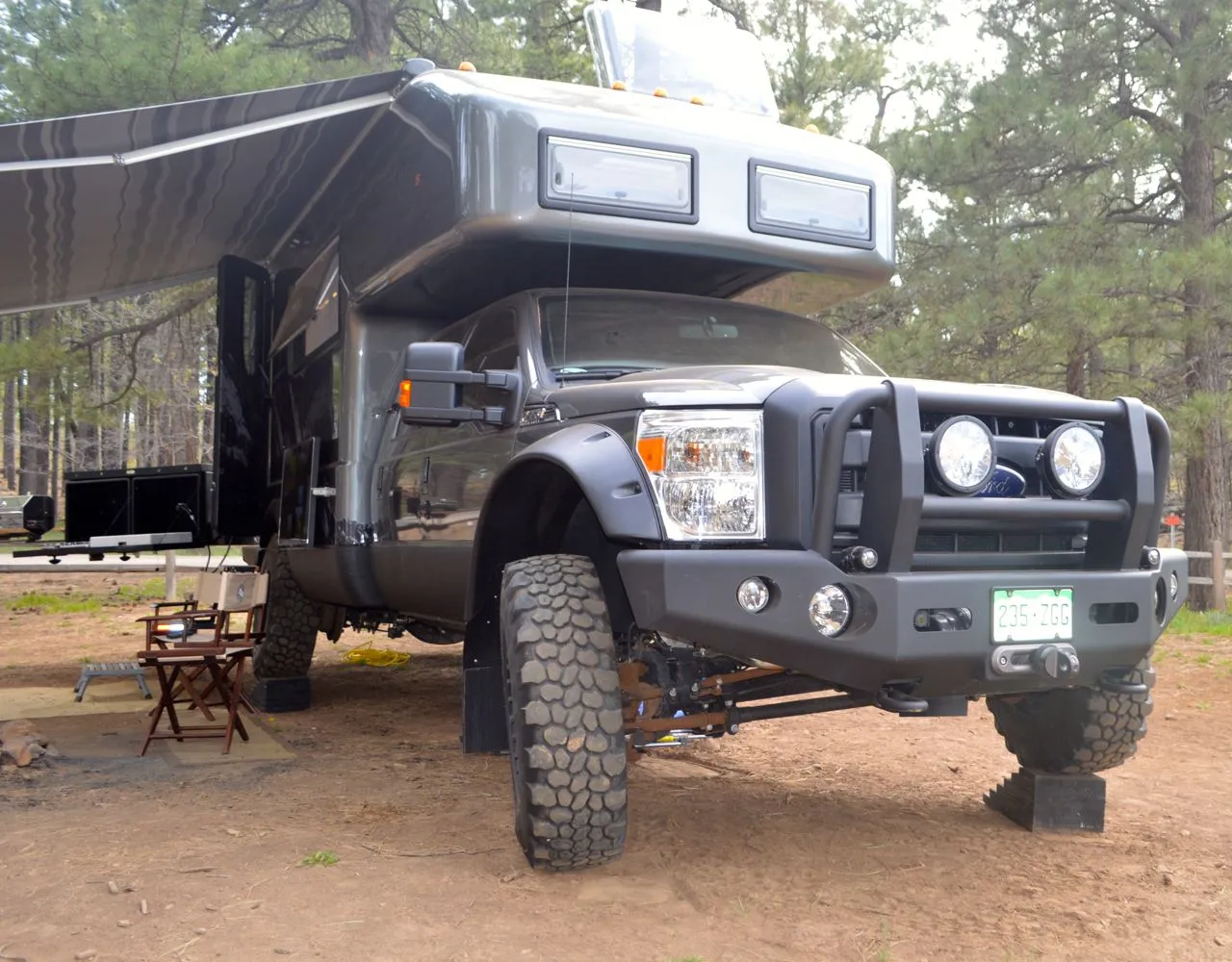

The EarthRoamer XV-LTS is built on a 300-hp, 4WD Ford F-550 platform
39/57
The EarthRoamer XV-LTS is built on a 300-hp, 4WD Ford F-550 platform
The EarthRoamer XV-LTS is built on a 300-hp, 4WD Ford F-550 platform
40/57
The EarthRoamer XV-LTS is built on a 300-hp, 4WD Ford F-550 platform

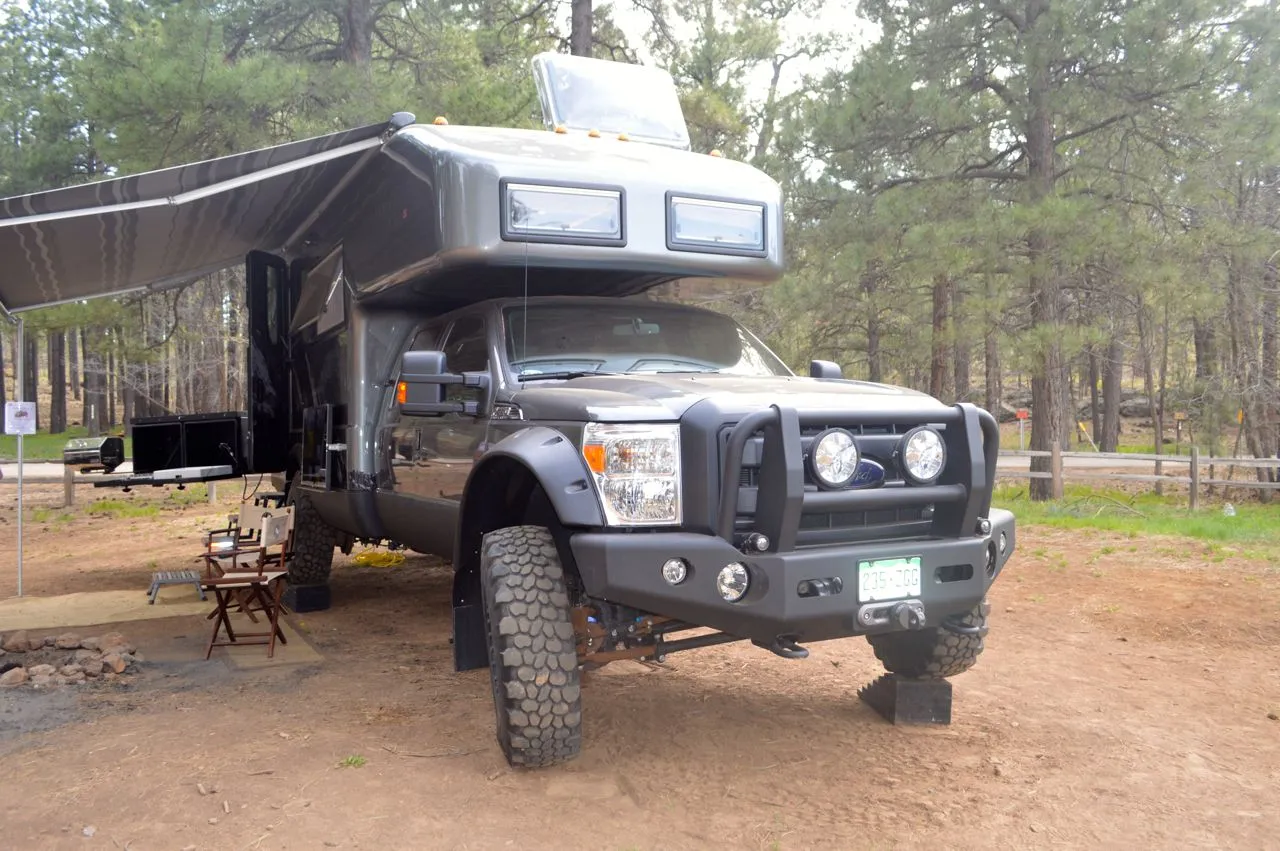

The XV-LTS is built to drive and live where lighter campers won't go
41/57
The XV-LTS is built to drive and live where lighter campers won't go

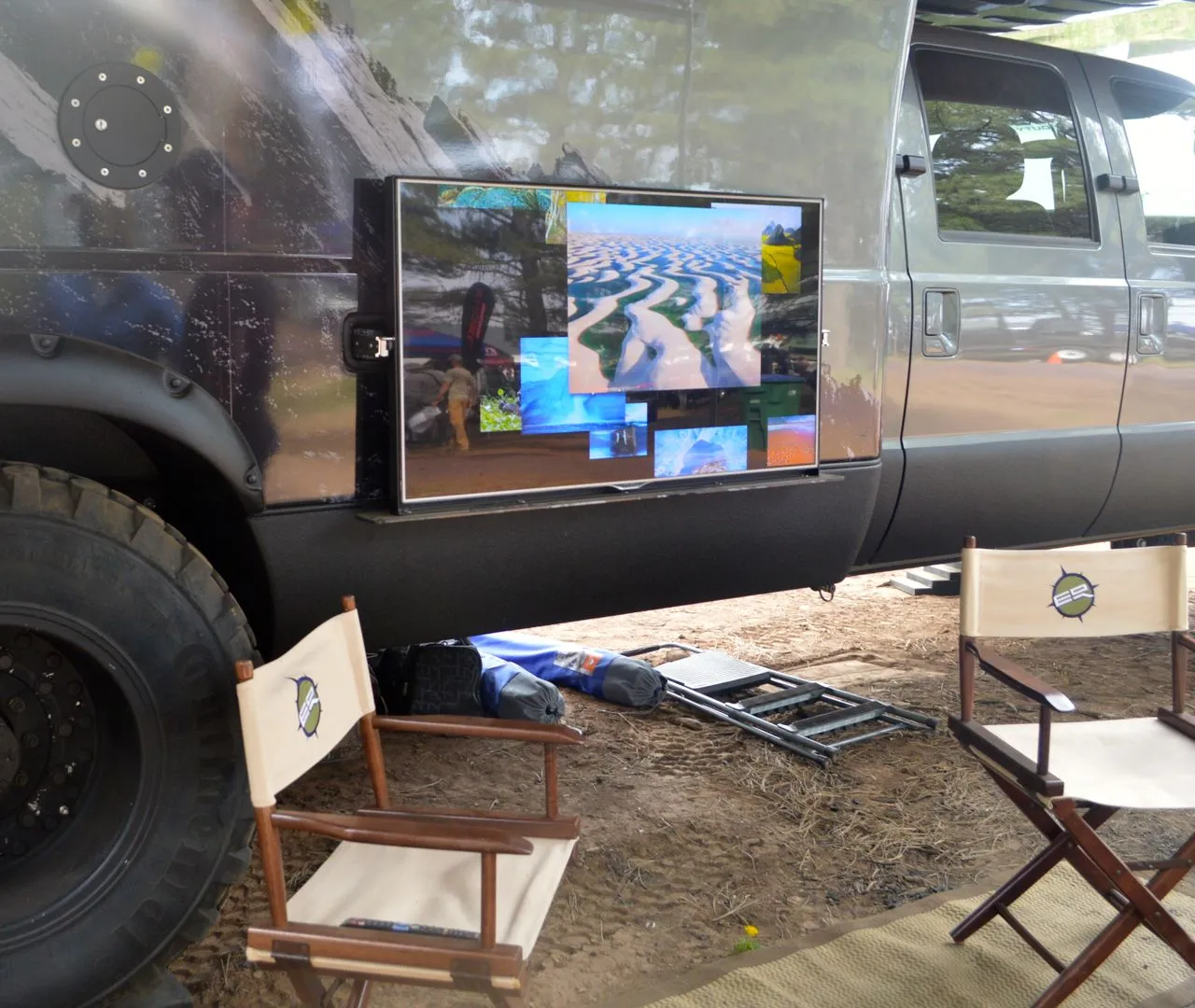

Part of the new tailgater package, the slide-out 46-in external satellite TV provides an outdoor entertainment option
42/57
Part of the new tailgater package, the slide-out 46-in external satellite TV provides an outdoor entertainment option

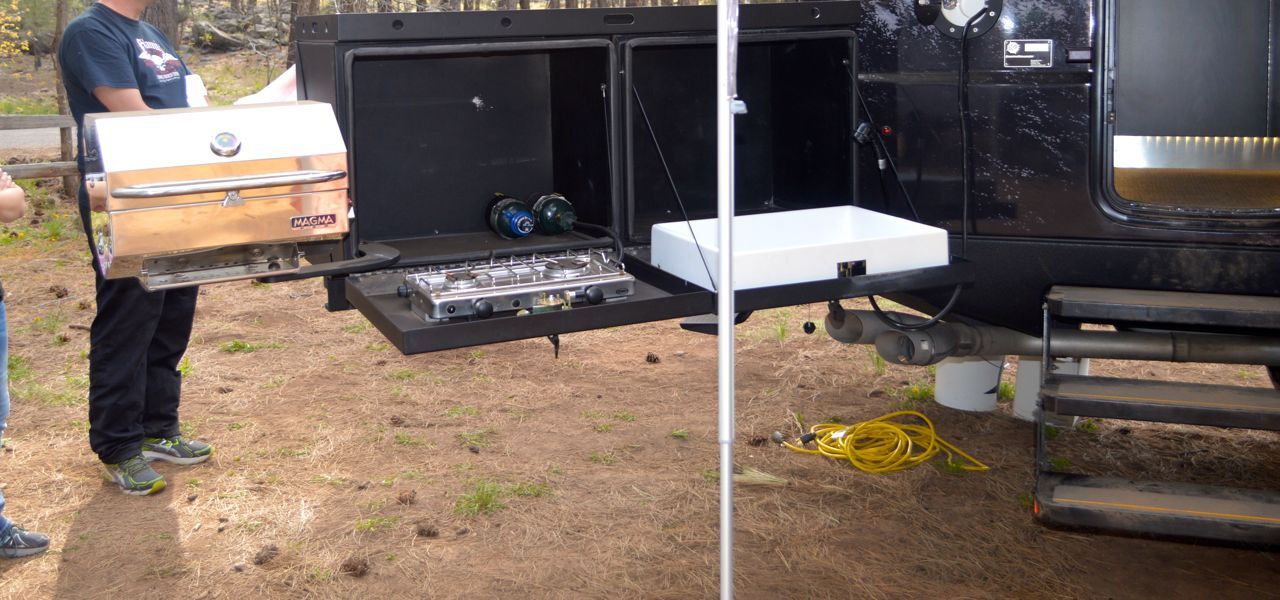

The tailgater option includes an external swing-out kitchen with grill, stove and sink
43/57
The tailgater option includes an external swing-out kitchen with grill, stove and sink
The tailgater option includes an external swing-out kitchen with grill, stove and sink
44/57
The tailgater option includes an external swing-out kitchen with grill, stove and sink

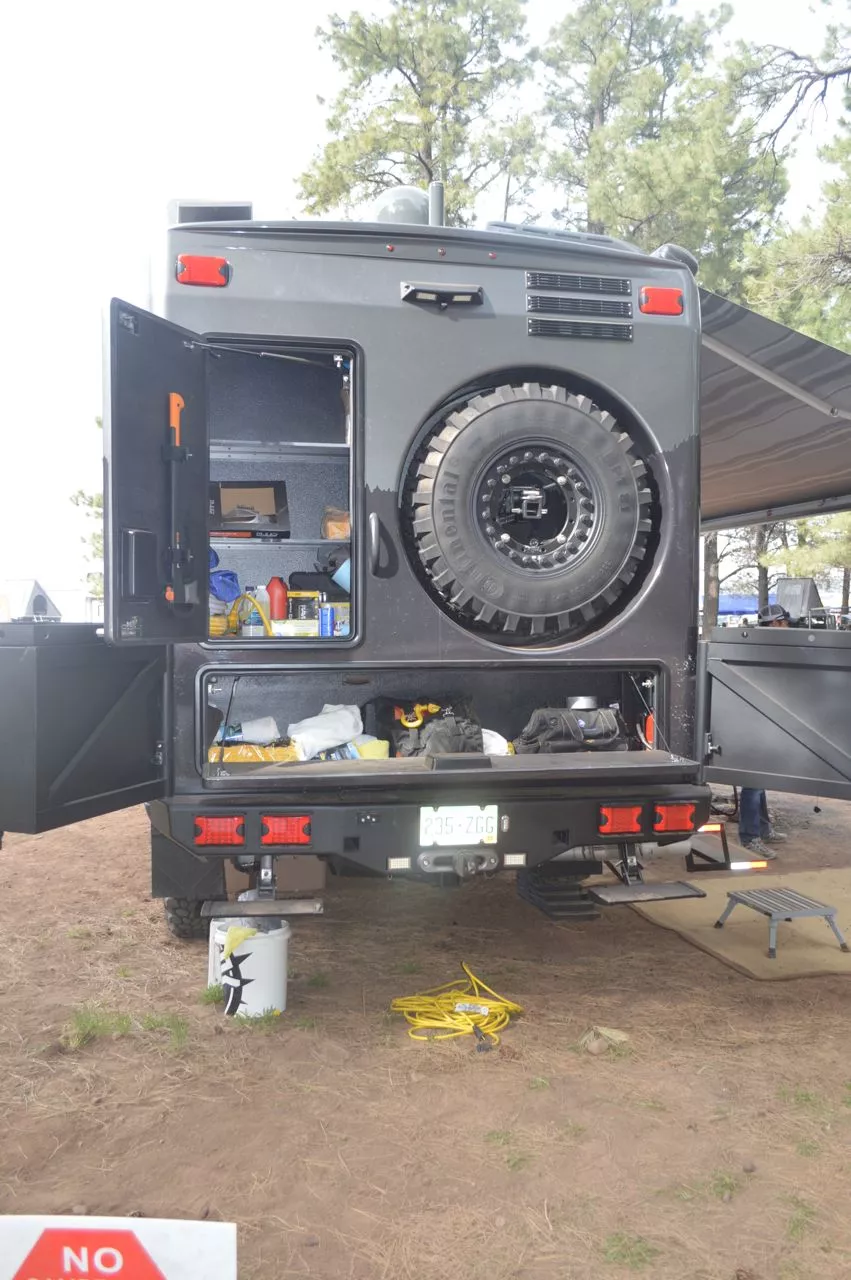

EarthRoamer says the 2014 frame was extended and rear bumper redesigned around the storage boxes and rear winch access
45/57
EarthRoamer says the 2014 frame was extended and rear bumper redesigned around the storage boxes and rear winch access

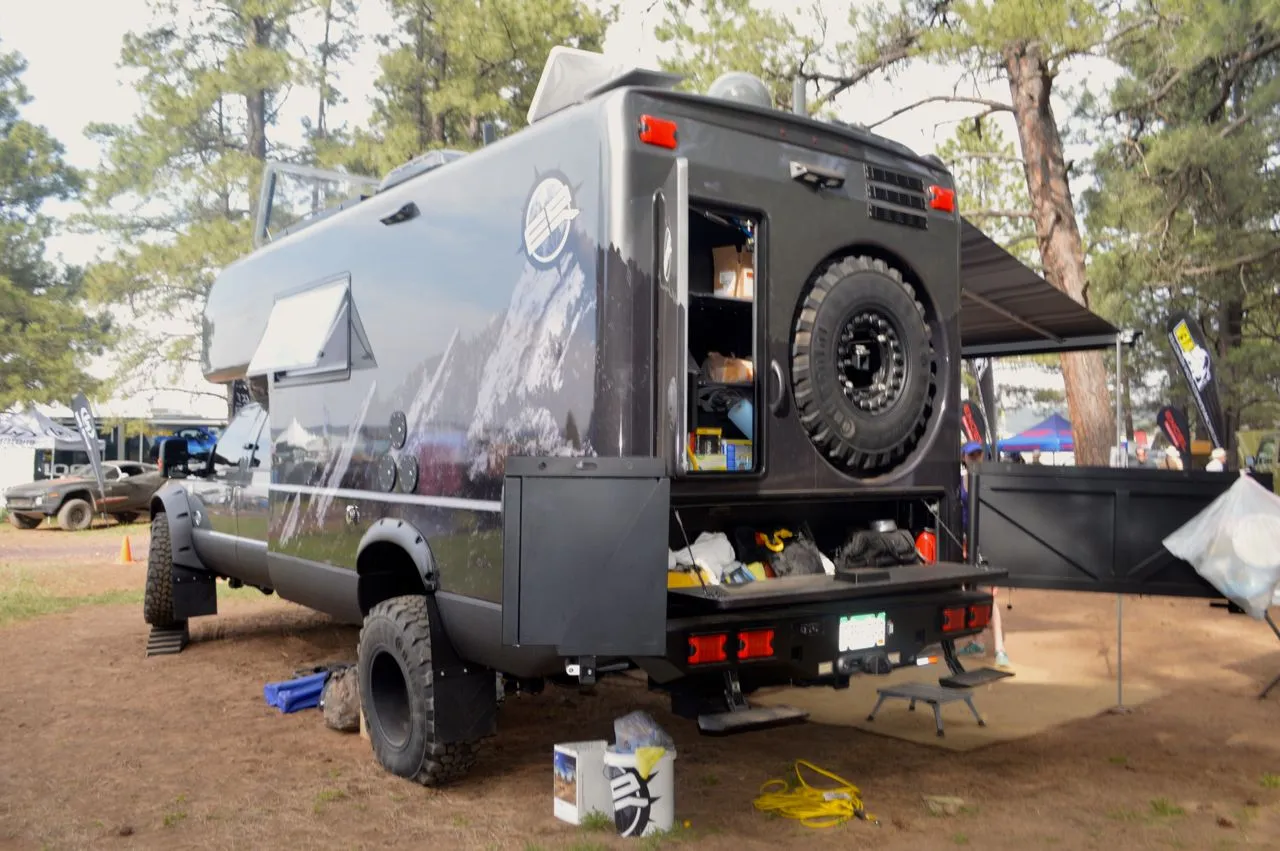

Spare tire and gear storage in the rear
46/57
Spare tire and gear storage in the rear
The 2014 EarthRoamer XV-LTS at Overland Expo
47/57
The 2014 EarthRoamer XV-LTS at Overland Expo

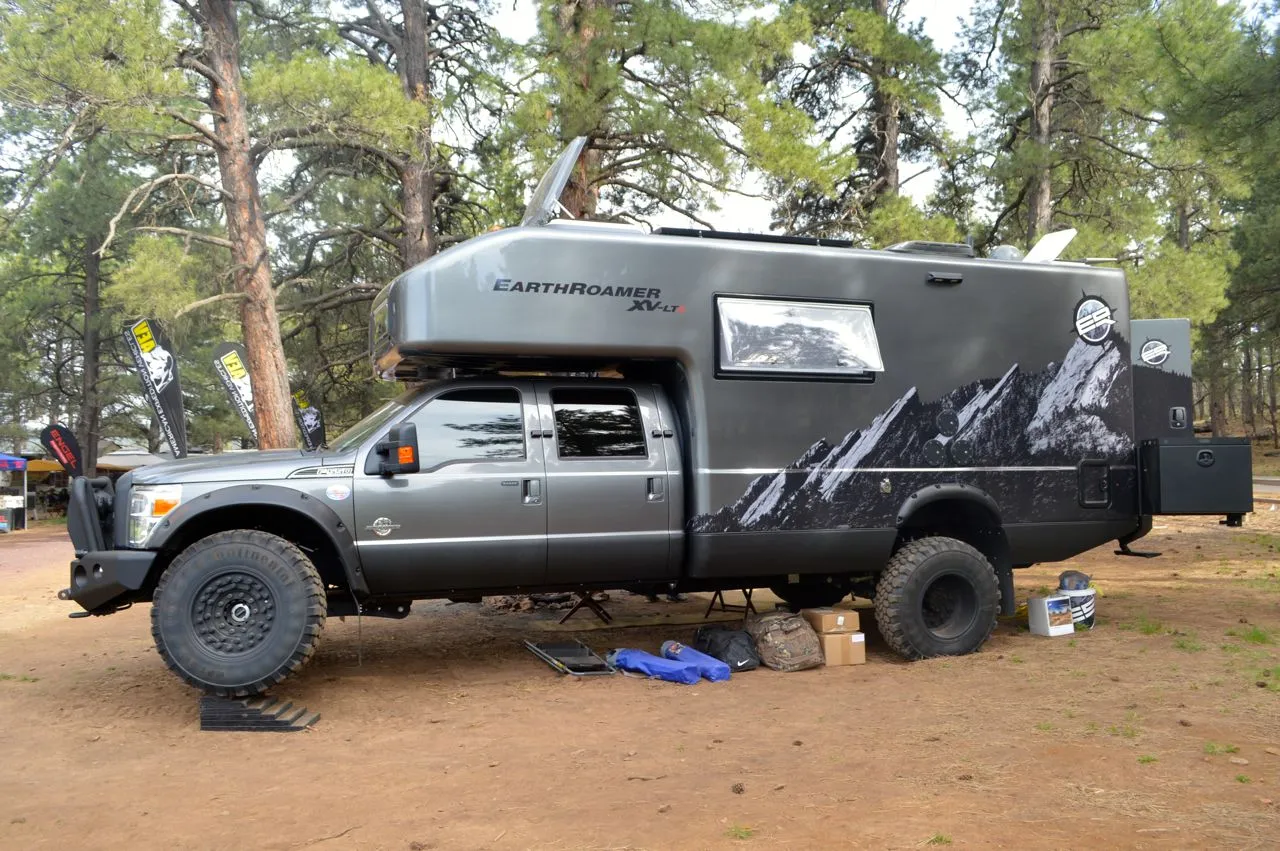

There were a few larger vehicles strewn about the expo, but the EarthRoamer XV-LTS owned its corner
48/57
There were a few larger vehicles strewn about the expo, but the EarthRoamer XV-LTS owned its corner

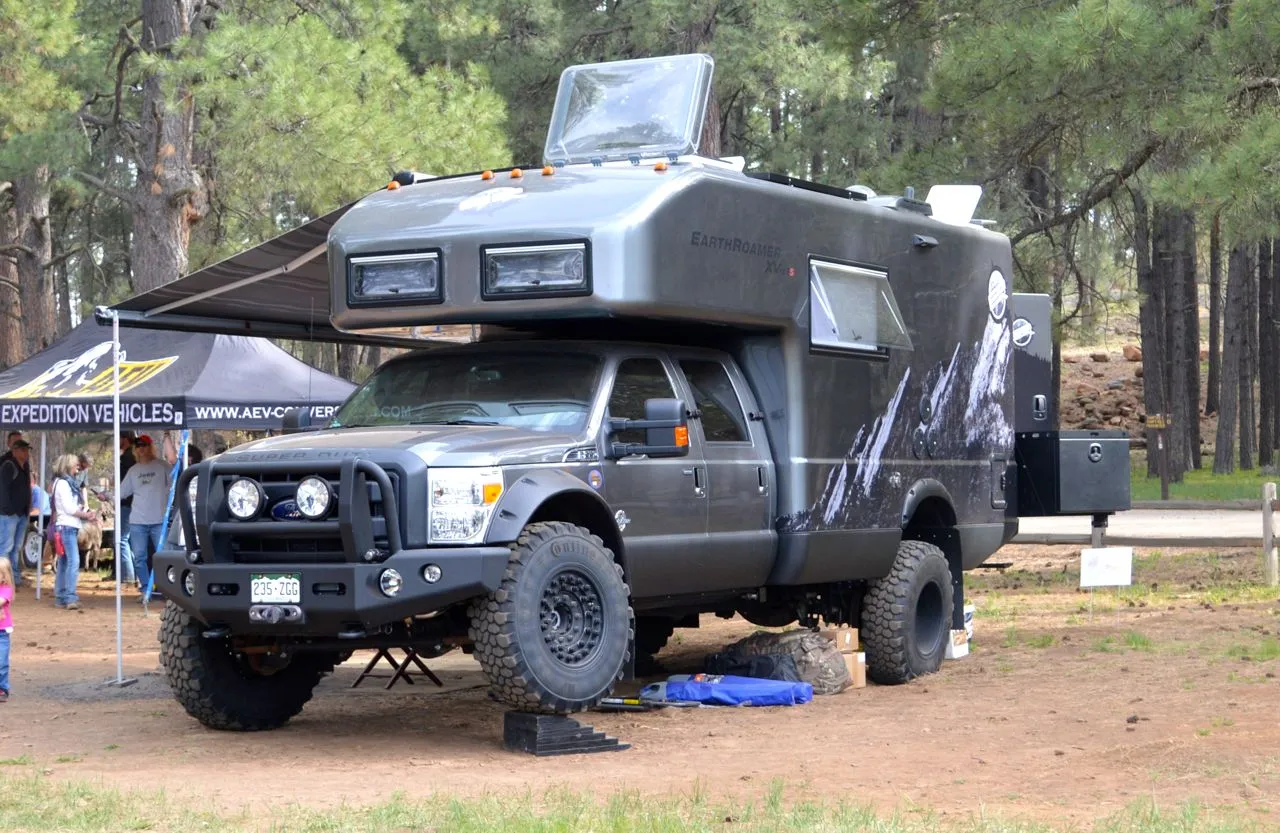

The EarthRoamer originally launched in 2003
49/57
The EarthRoamer originally launched in 2003

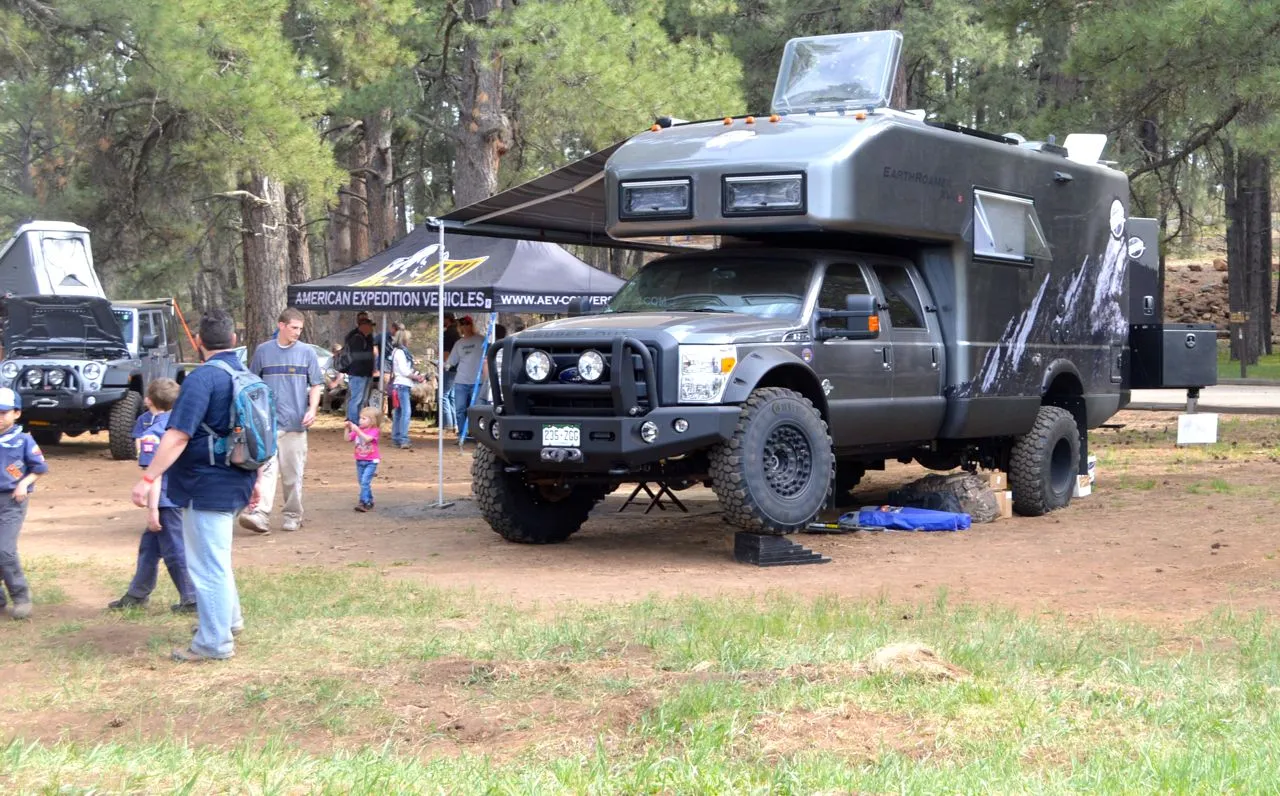

The EarthRoamer XV-LTS was a can't miss sight at the expo
50/57
The EarthRoamer XV-LTS was a can't miss sight at the expo

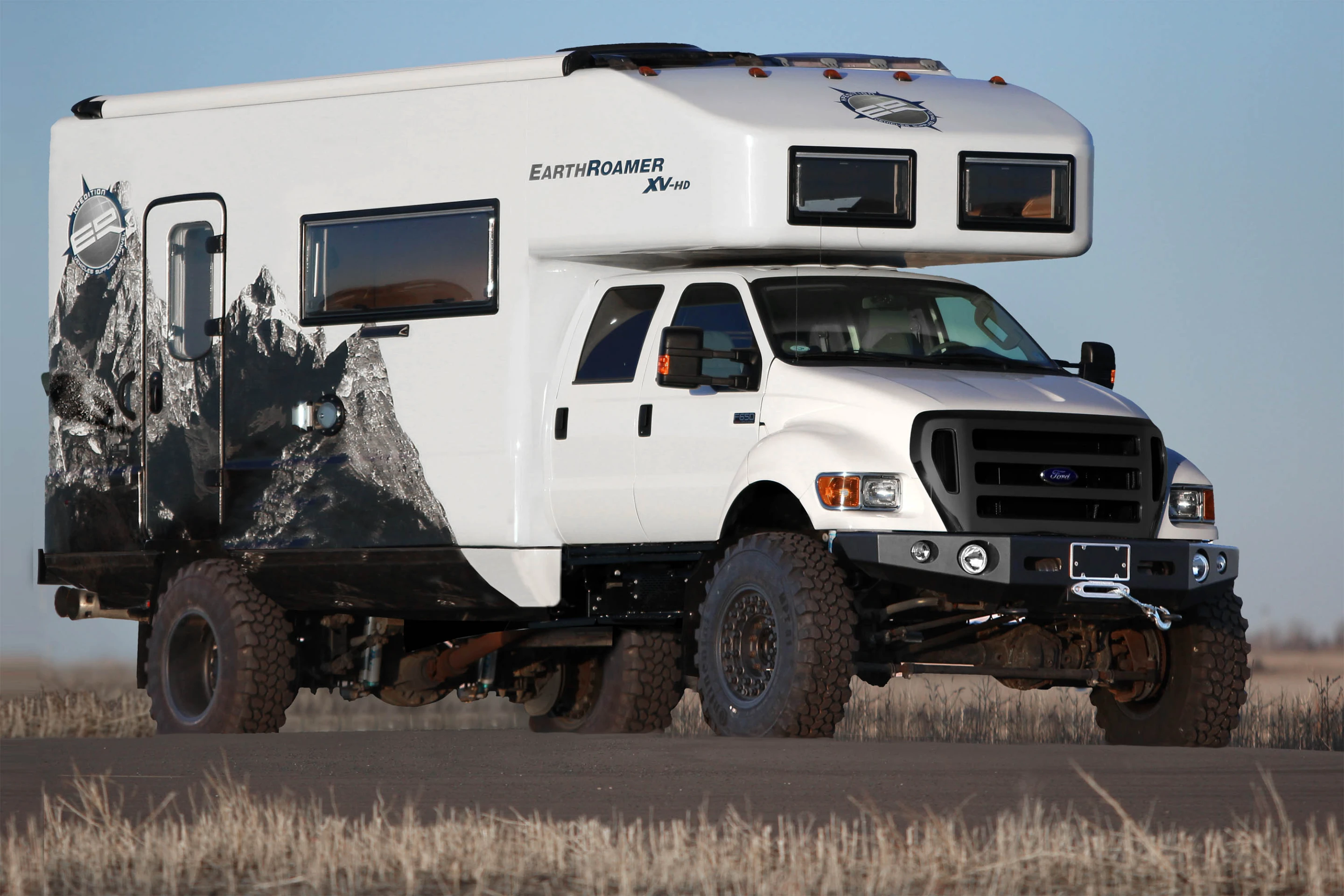

EarthRoamer is preparing the XV-HD for launch next year Photo: EarthRoamer
51/57
EarthRoamer is preparing the XV-HD for launch next year Photo: EarthRoamer

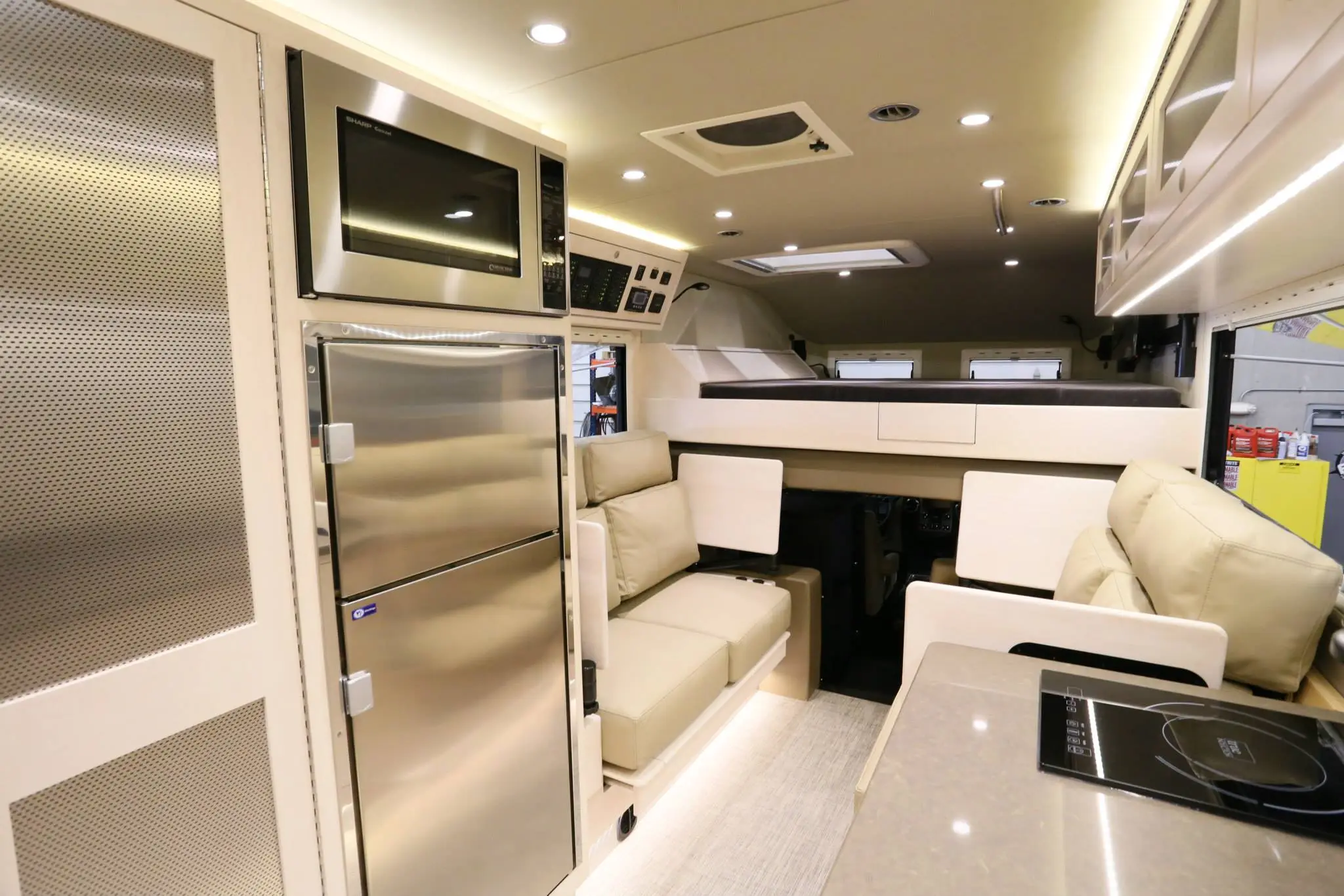

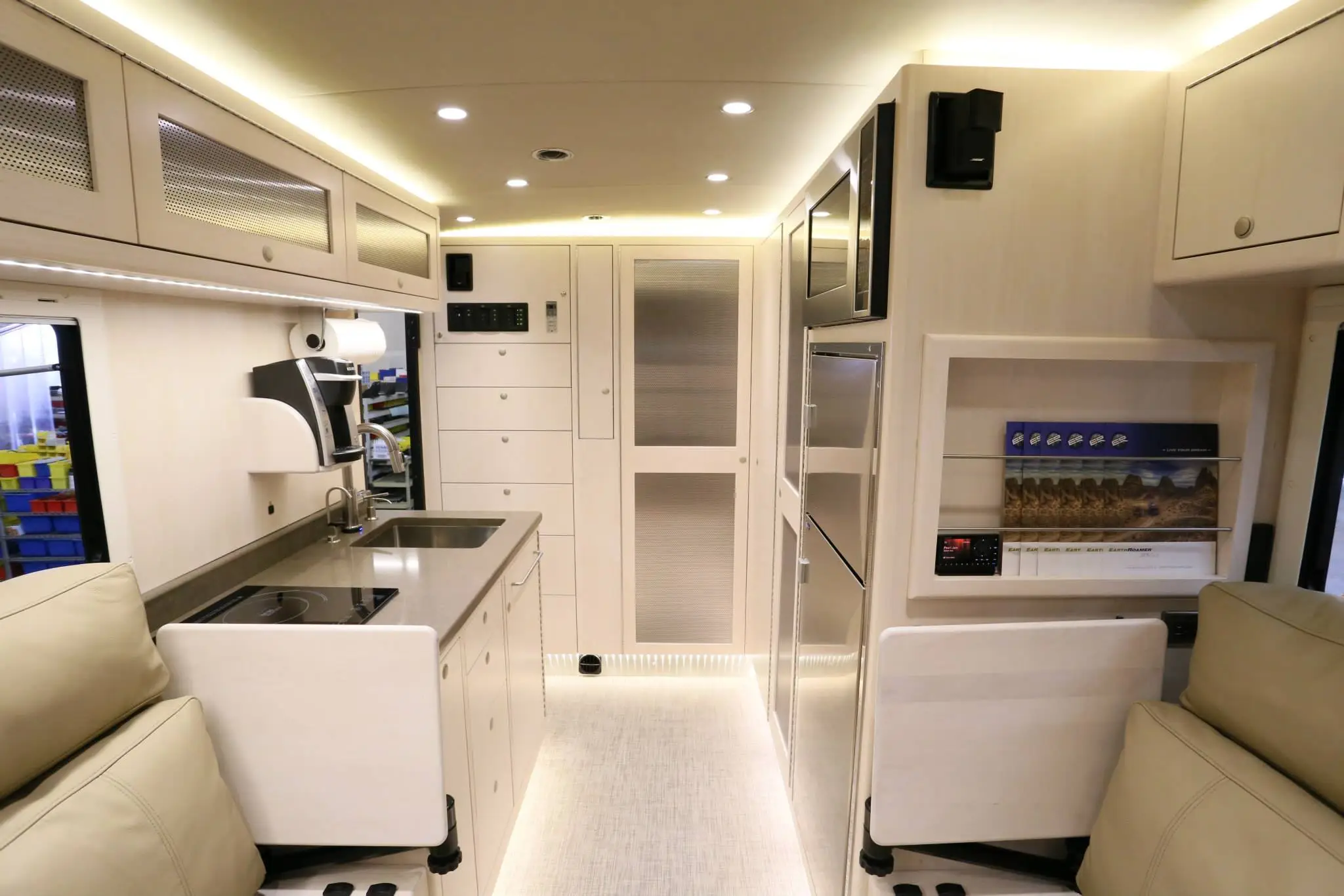

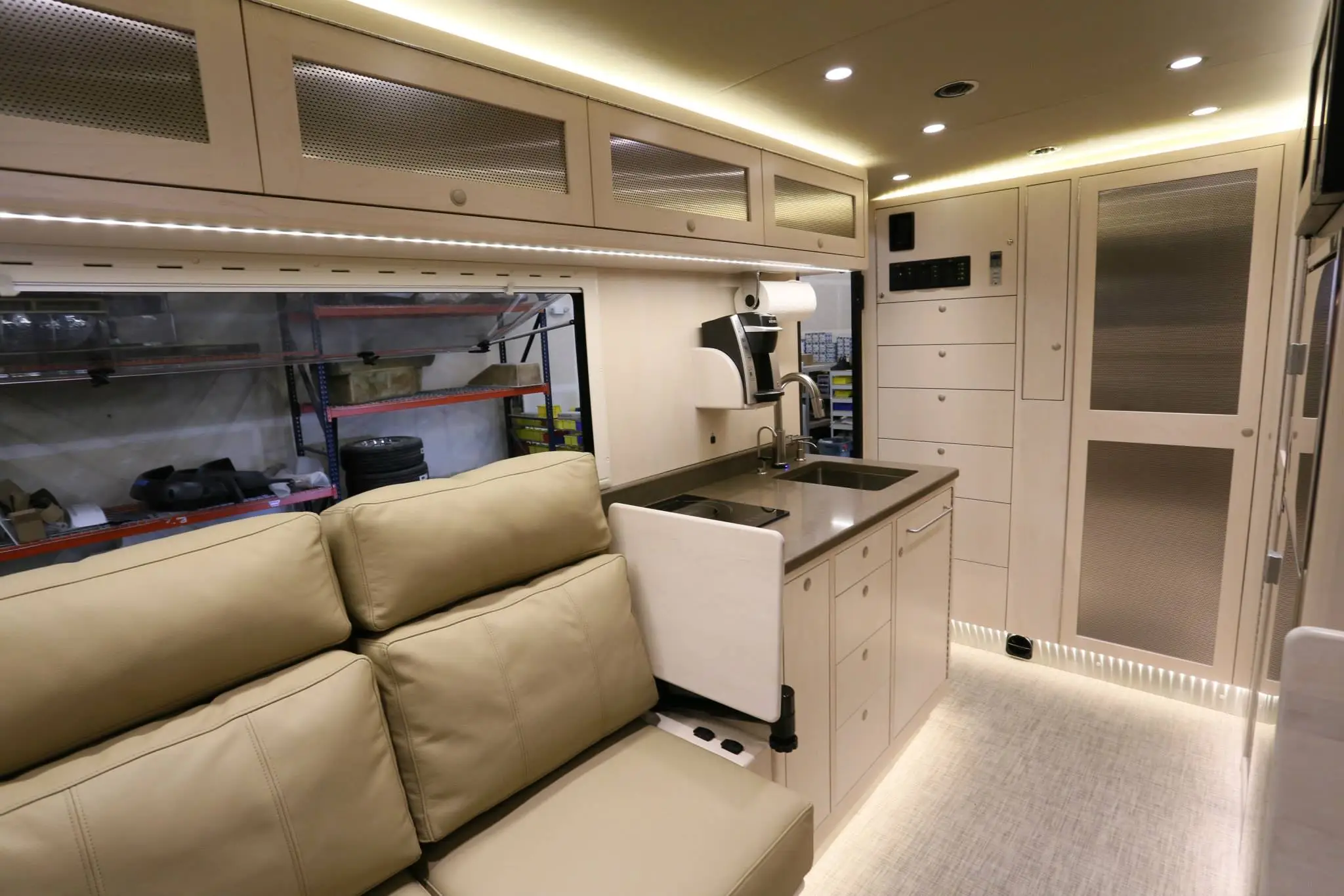

EarthRoamer XV-LTS interior Photo: EarthRoamer
52/57
EarthRoamer XV-LTS interior Photo: EarthRoamer

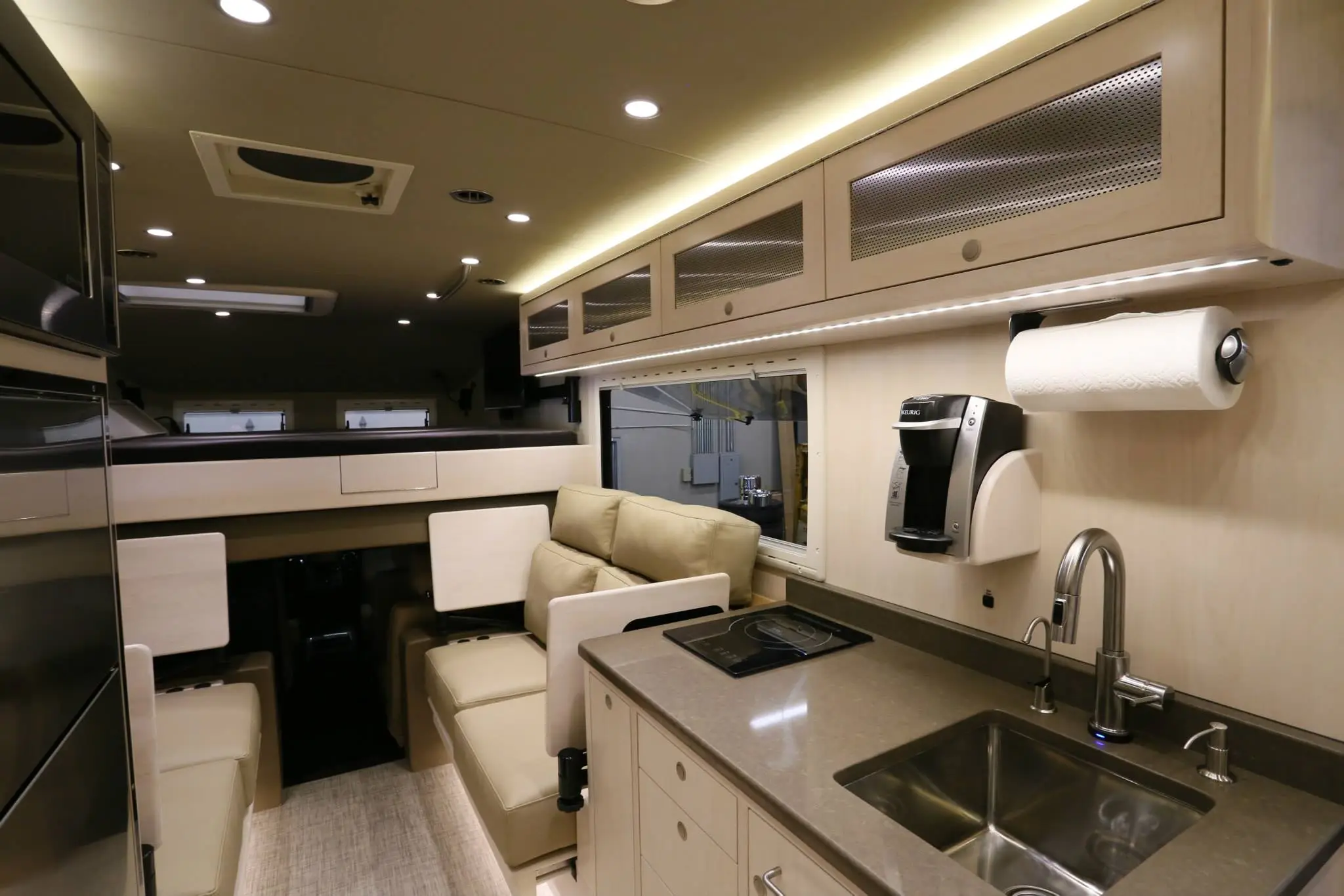

EarthRoamer XV-LTS interior Photo: EarthRoamer
53/57
EarthRoamer XV-LTS interior Photo: EarthRoamer

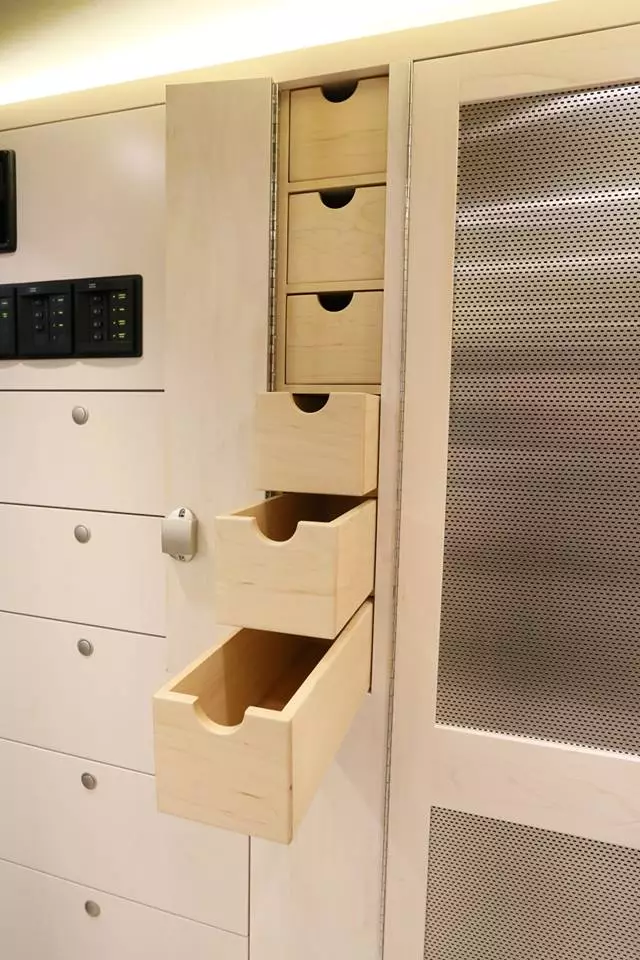

A look at the cabinet space inside the XV-LTS Photo: EarthRoamer
54/57
A look at the cabinet space inside the XV-LTS Photo: EarthRoamer
EarthRoamer XV-LTS interior Photo: EarthRoamer
55/57
EarthRoamer XV-LTS interior Photo: EarthRoamer
EarthRoamer XV-LTS interior Photo: EarthRoamer
56/57
EarthRoamer XV-LTS interior Photo: EarthRoamer
The owner swings the external TV horizontal and pushes it inside the body, then an electric system pulls it flush with the camper body
57/57
The owner swings the external TV horizontal and pushes it inside the body, then an electric system pulls it flush with the camper body

Don't call the EarthRoamer an RV – it's an XV (Xpedition Vehicle), and it's ready to take you to the most distant, rugged lands on the planet. The latest model packs the same four-season, go-anywhere build EarthRoamer has always been known for with a few added features, including a tailgater package with external kitchen and slide-out TV. Gizmag took a closer look inside and out at the recent Overland Expo.

Introduced in 2003, the EarthRoamer was carefully constructed to solve some of the traditional shortcomings of RVs, providing a burlier platform for truly limitless road and off-road travel. The Colorado-based company takes credit for coining the term "Xpedition Vehicle," representing a versatile, go-anywhere mobile shelter that's built to offer a luxurious camping experience without the need for the water, sewer and electrical hook-ups of an RV park.

EarthRoamer showed the latest XV-LTS design at last week's Overland Expo just outside Flagstaff, Arizona, and while the massive, Ford F-550-based rover actually wasn't the largest or most imposing vehicle at the show, it was certainly within the top 5 percent. The muscular overlander has a one-piece molded composite body planted on the bare, commercial-duty F-550 chassis. A 300-hp 6.7-liter Power Stroke V8 Turbo Diesel Engine with 660 lb-ft provides motivation to all four wheels, wrapped either in 37-in Michelin mud & snows or optional 41-in Continental military off-road tires.

EarthRoamer replaces the factory double rear wheels with a single pair, adds King off-road shocks and heavy duty anti-sway bars, and pushes the minimum ground clearance up to 10.4 in (26.4 cm). An optional air ride suspension system (required for the 41-in tire option) adds capabilities for adjusting the height of each wheel or axle independently, and an air compressor makes it easier to adjust tire pressures. While the XV-LTS is ready for rough off-road driving, EarthRoamer claims it's equally comfortable traveling on the pavement at highway speeds.

The EarthRoamer XV-LTS is built on a 300-hp, 4WD Ford F-550 platform
The EarthRoamer XV-LTS is built on a 300-hp, 4WD Ford F-550 platform

When company founder and photographer Bill Swails began designing the original EarthRoamer back in the late 90s, what he wanted was a vehicle that could bring him to remote lands to capture pristine, raw nature on film. Swails didn't want to give up the luxury of vehicle camping but needed something self-sustaining that didn't need to be tethered to the infrastructure or disturb the serenity with a rattling generator. To meet those types of mission objectives, EarthRoamer equips the XV-LT series with a 90-gallon (340.7-L) fresh water tank; a large solar array (660 to 1,100 watts) teamed with a 3.7-kW diesel generator powered by the Ford engine and an AGM battery bank; heat, air conditioning and hot water systems; and a 26-gallon (98.4-L) gray water tank.

When you first step inside the EarthRoamer XV-LTS, it's a bit of a shock to the senses, going from the "rough and ready" exterior to a downright elegant cabin. There's a living room with seating for six, a kitchen area, an above-cab king-size bed, and a bathroom with sink, 5-gallon cassette toilet and full-height shower. The acrylic windows and roof hatch provide plenty of light, ventilation and outdoor viewing, while integrated shades dim the interior for daytime napping.

Electric-folding side couches and an upper bed provide sleeping space
Electric-folding side couches and an upper bed provide sleeping space

The XV-LTS interior includes a variety of standard and optional equipment, such as leather couches that electrically recline into a bed, hardwood cabinetry, a stainless steel refrigerator and freezer unit, an electric induction or diesel cooktop, a convection microwave, a slide-out Keurig coffeemaker, a Bose surround sound system, and a wine cabinet with a set of "EarthRoamer"-etched glasses. We'd imagine it'd take all of 30 seconds to forget all about the barren, untamed wilds outside the door after getting comfortable inside.

If one were more interested in enjoying the wilds outside, a newly added tailgater package brings some of the XV-LTS' interior comfort to the other side of the door. It combines a swing-out grill and kitchen area with a 46-in flat-panel TV. That TV is available for when you want a little outside entertainment, then swings flat and slides into the camper body with a manual/electric system.

The tailgater option includes an external swing-out kitchen with grill, stove and sink
The tailgater option includes an external swing-out kitchen with grill, stove and sink

Other improvements for the 2014 model include increased 6-foot 8-in (203-cm) headroom, indirect LED ceiling lighting, a lengthened frame designed to accommodate the rear swing-out storage boxes, and new wood and interior design options. The options list includes 16,500-lb (7,484-kg) front and rear winches and Hella Rallye off-road lights.

EarthRoamer offers a number of different XV-LT configurations ranging from 22.6 to 27.5 feet (6.9 to 8.4 m) in length. The XV can use Regular, Super or Crew Ford cabs and standard, stretch or super stretch campers, offering cab seating for up to six people and sleeping space for four to six. Prices start at US$260,000 and rise to over $600,000.

As tends to be the case with show models, the XV-LTS we scoped out was one of EarthRoamer's higher-spec offerings, combining the XV-LTS (stretch) camper, a Crew Cab with Lariat interior and a variety of optional add-ons. The rep we spoke to quoted a price of $525,000.

EarthRoamer is preparing the XV-HD for launch next year Photo: EarthRoamer
EarthRoamer is preparing the XV-HD for launch next year Photo: EarthRoamer

If the EarthRoamer XV-LT doesn't seem big and brash enough for your adventures, EarthRoamer plans to offer something even bigger within the next year. It's currently working on the 363-hp Ford F-650-based XV-HD. It plans to begin production on that model in 2015, with estimated pricing starting at $750K.

You can take a complete tour of the 2014 XV-LTS in our photo gallery. Since it's a little hard to snap every angle of the interior with folks coming in and out, we've also included a few company photos of another XV-LTS interior.

Source: EarthRoamer
