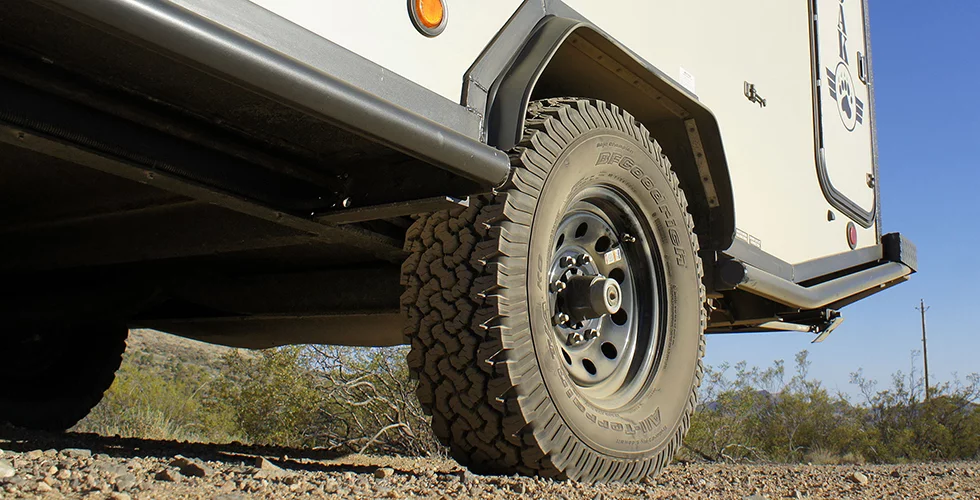

The ADAK trailer has all-terrain tires and eight-lug wheels
1/25
The ADAK trailer has all-terrain tires and eight-lug wheels

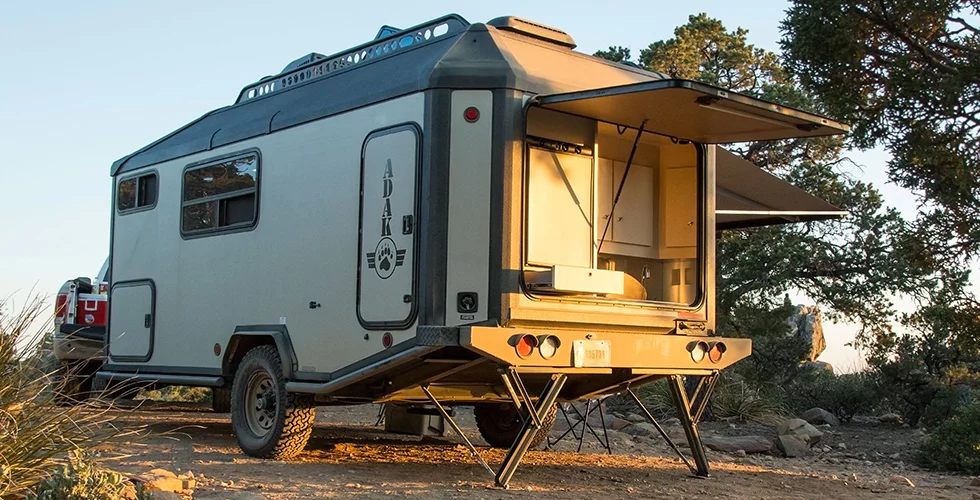

ADAK offers two galley options, including an outdoor tailgate galley
2/25
ADAK offers two galley options, including an outdoor tailgate galley

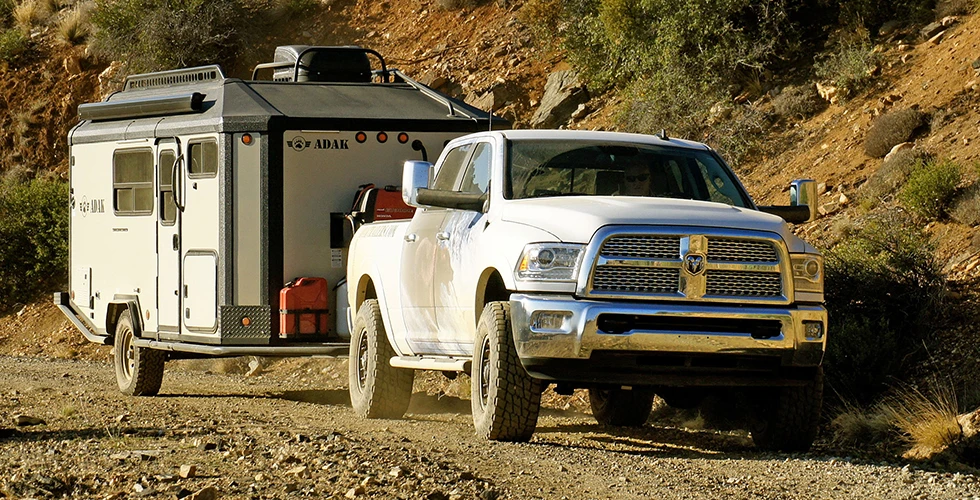

The ADAK Trailer is an all-terrain design built to travel anywhere
3/25
The ADAK Trailer is an all-terrain design built to travel anywhere
The ADAK Trailer has an aluminum chassis and bonded construction
4/25
The ADAK Trailer has an aluminum chassis and bonded construction

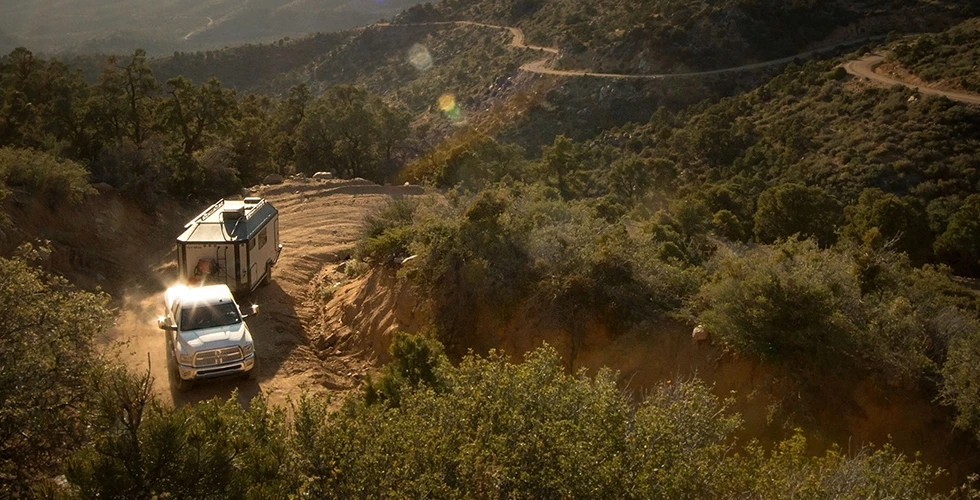

Getting out there with the ADAK Trailer
5/25
Getting out there with the ADAK Trailer

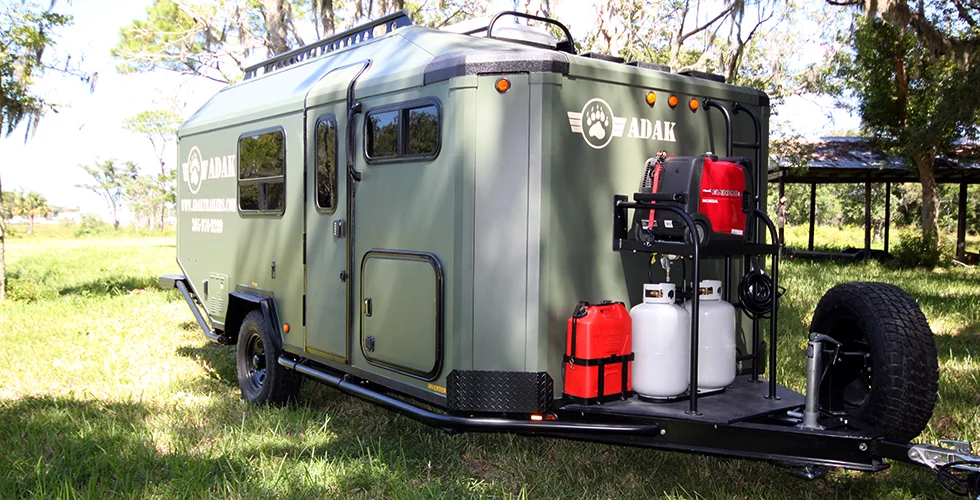

The ADAK Trailer
6/25
The ADAK Trailer
The olive drab ADAK Trailer has a distinctly military look
7/25
The olive drab ADAK Trailer has a distinctly military look

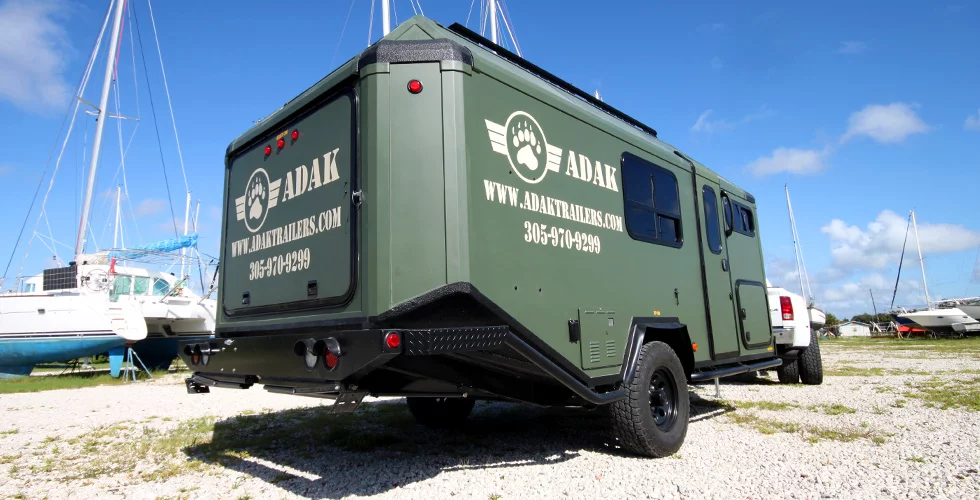

The ADAK Trailer starts at $49K
8/25
The ADAK Trailer starts at $49K

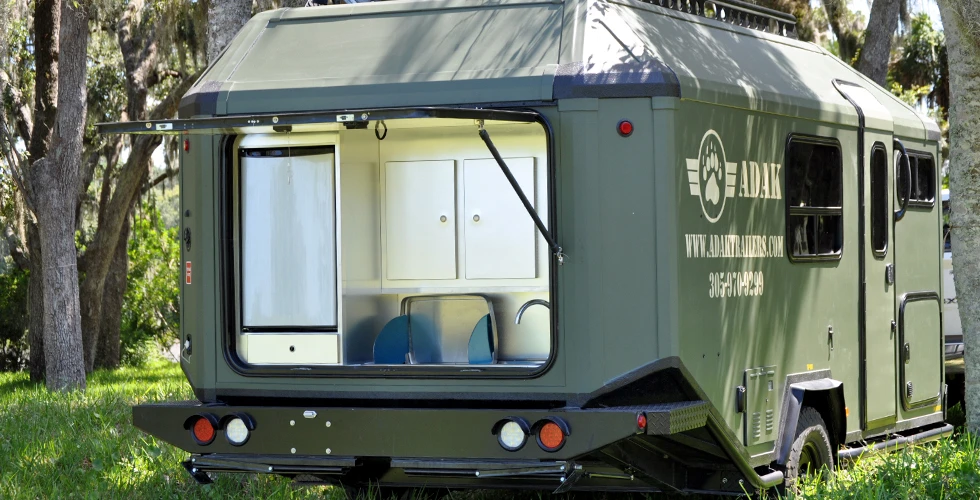

Pop open the tailgate and get cooking
9/25
Pop open the tailgate and get cooking

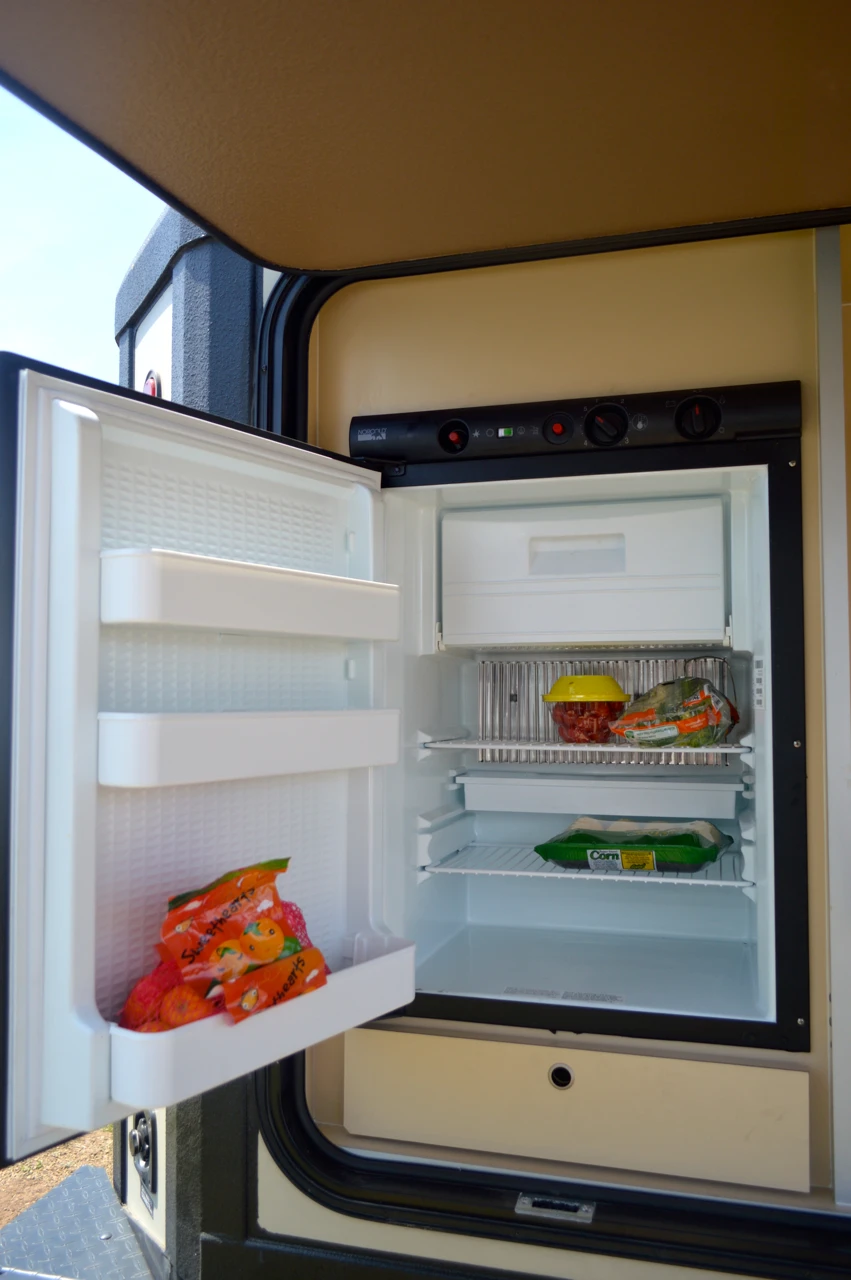

A look inside the refrigerator on the external galley (Photo: C.C. Weiss/Gizmag)
10/25
A look inside the refrigerator on the external galley (Photo: C.C. Weiss/Gizmag)

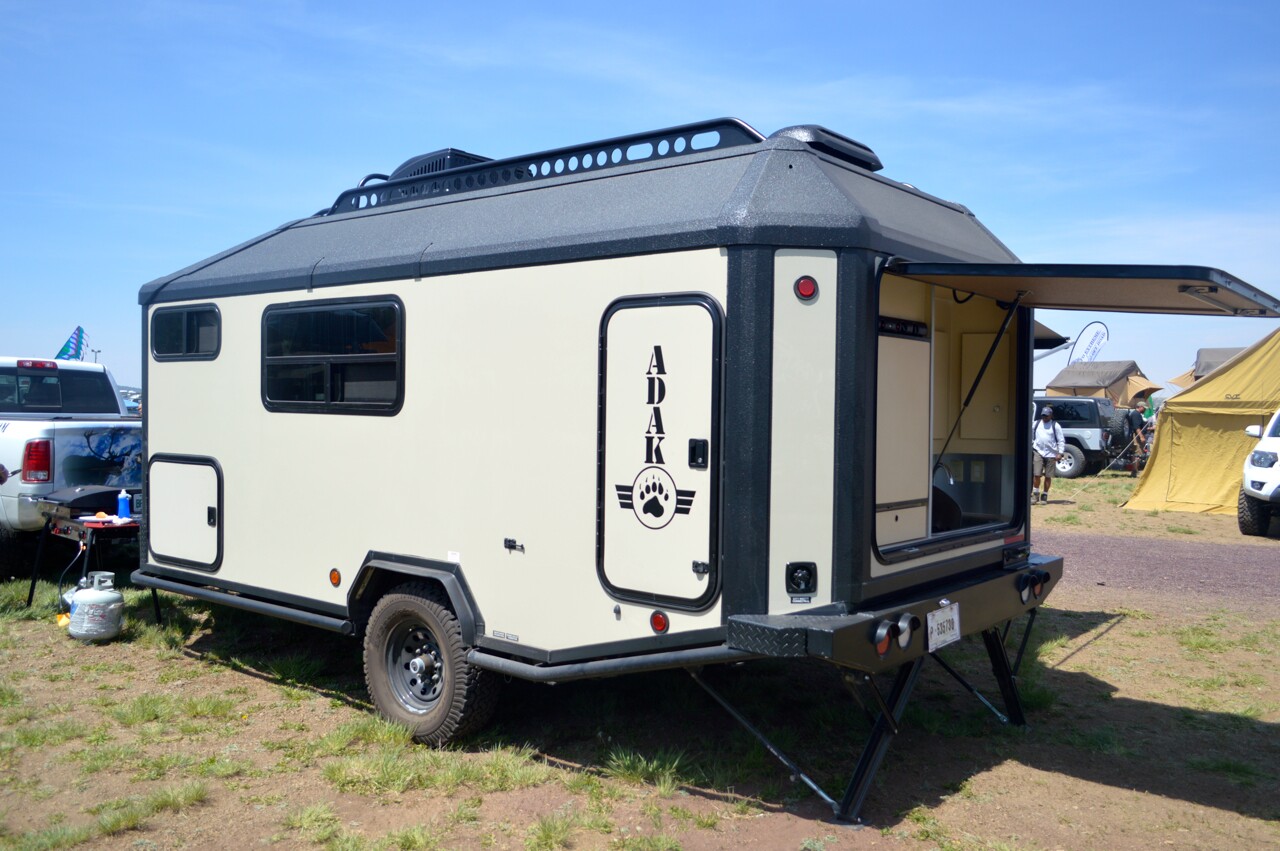

ADAK at Overland Expo 2014 (Photo: C.C. Weiss/Gizmag)
11/25
ADAK at Overland Expo 2014 (Photo: C.C. Weiss/Gizmag)

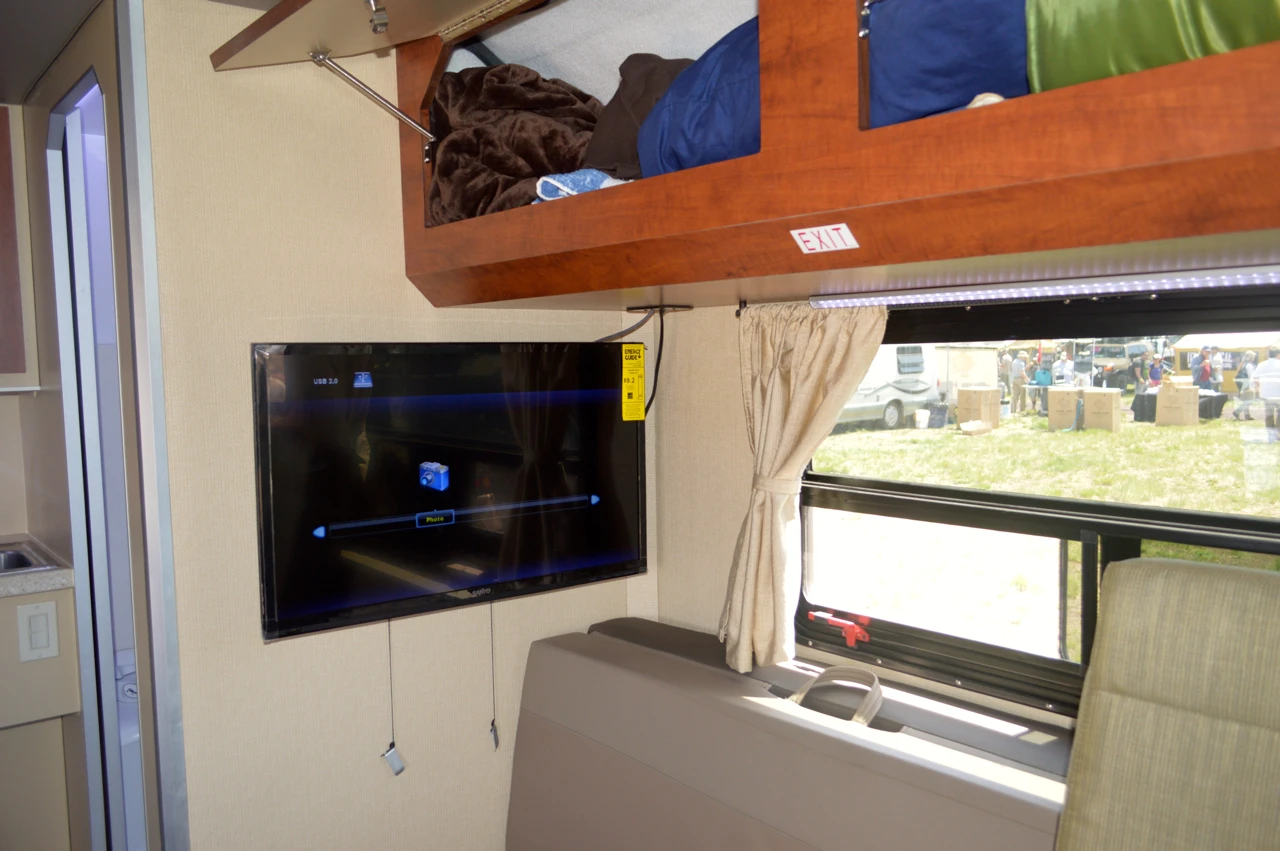

Among the ADAK options is an entertainment/TV package (Photo: C.C. Weiss/Gizmag)
12/25
Among the ADAK options is an entertainment/TV package (Photo: C.C. Weiss/Gizmag)
The dining area (Photo: C.C. Weiss/Gizmag)
13/25
The dining area (Photo: C.C. Weiss/Gizmag)
The kitchen area and bathroom are located at the back of the ADAK Trailer (Photo: C.C. Weiss/Gizmag)
14/25
The kitchen area and bathroom are located at the back of the ADAK Trailer (Photo: C.C. Weiss/Gizmag)
A look at the interior galley (Photo: C.C. Weiss/Gizmag)
15/25
A look at the interior galley (Photo: C.C. Weiss/Gizmag)

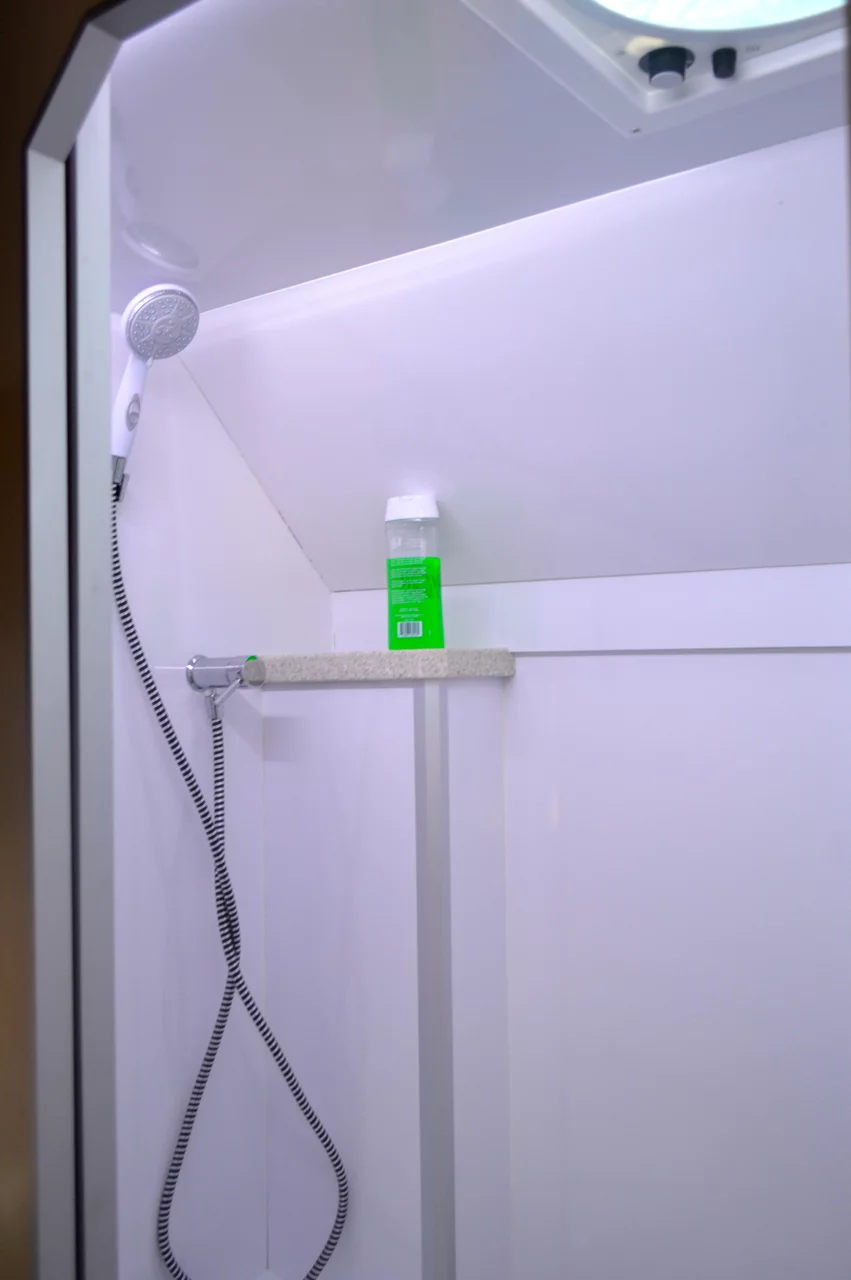

The ADAK includes a shower/toilet room (Photo: C.C. Weiss/Gizmag)
16/25
The ADAK includes a shower/toilet room (Photo: C.C. Weiss/Gizmag)

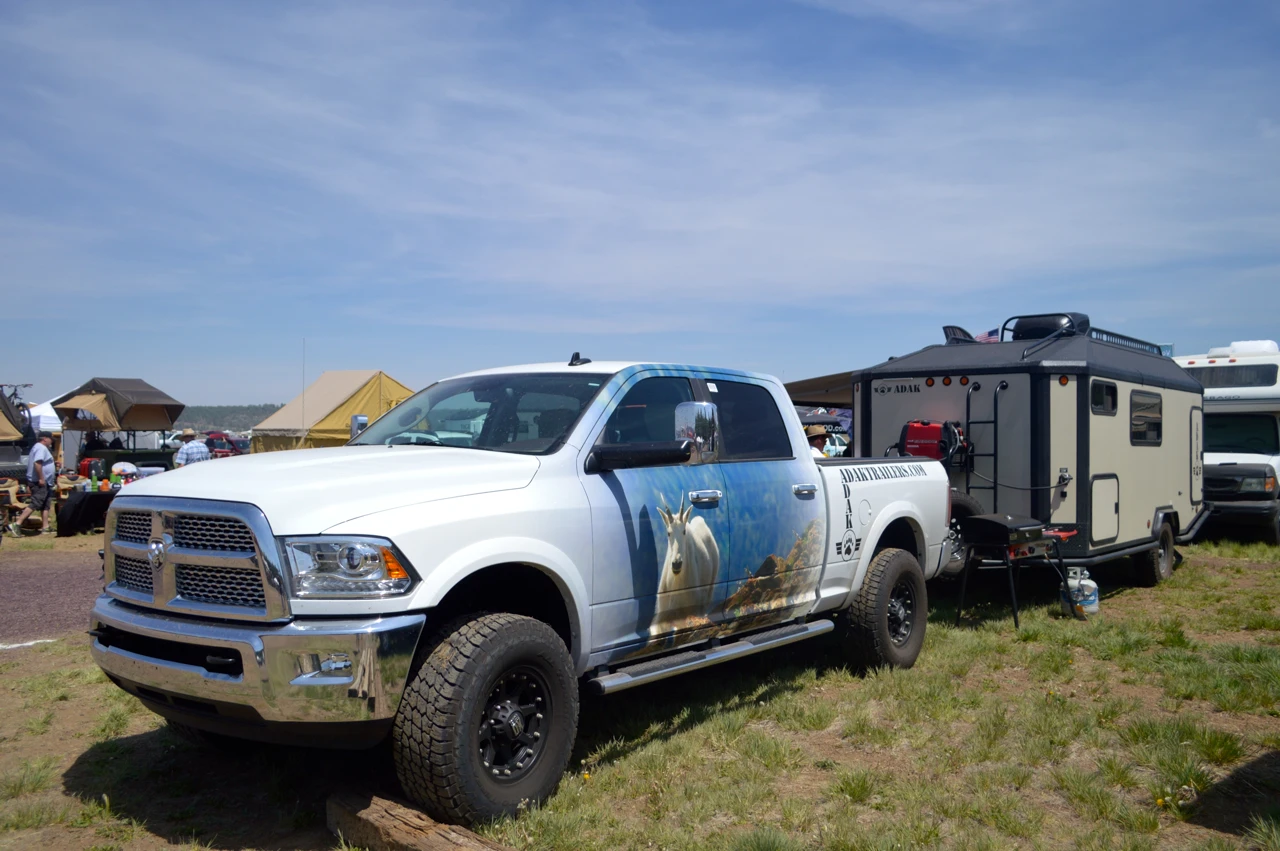

ADAK says the trailer is built to "to go whereever your tow vehicle has the guts to pull it" (Photo: C.C. Weiss/Gizmag)
17/25
ADAK says the trailer is built to "to go whereever your tow vehicle has the guts to pull it" (Photo: C.C. Weiss/Gizmag)

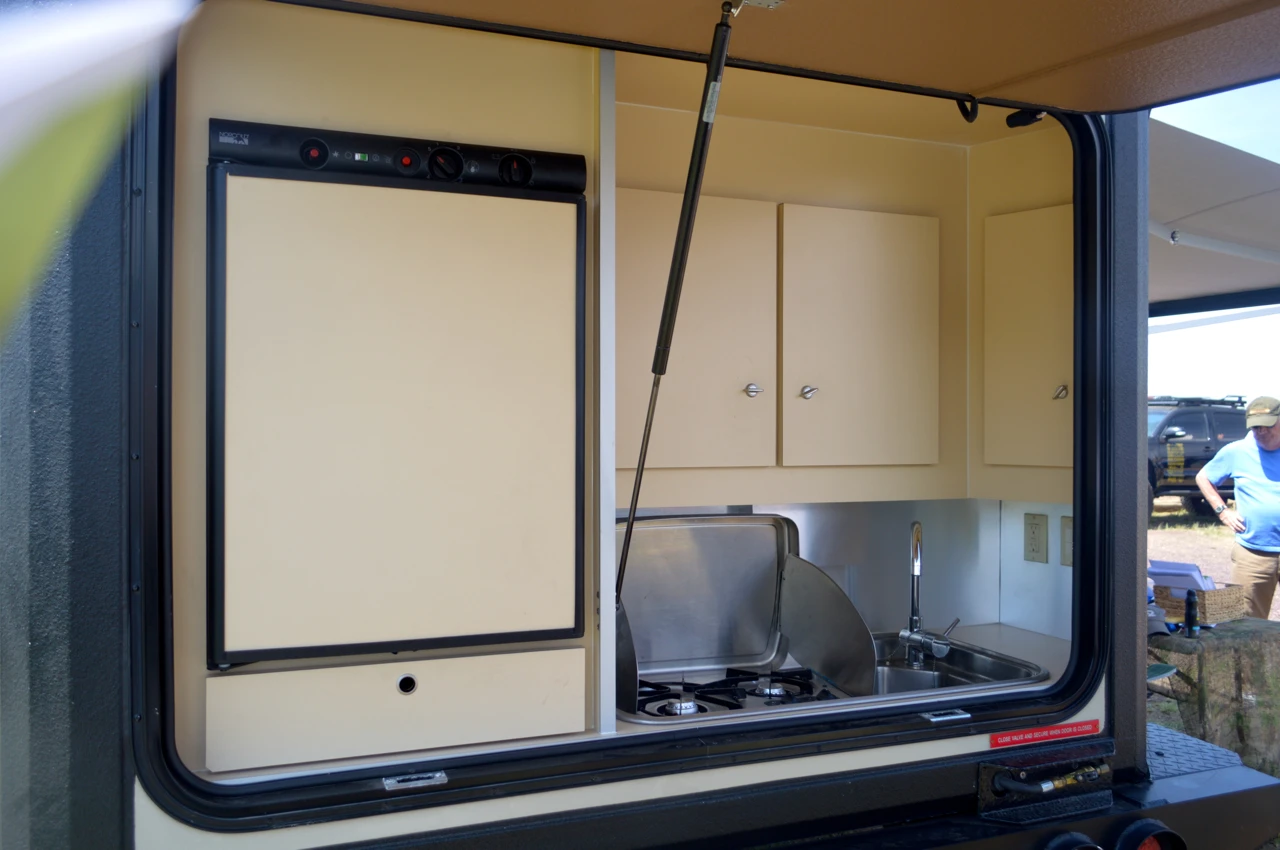

A peek inside the exterior galley (Photo: C.C. Weiss/Gizmag)
18/25
A peek inside the exterior galley (Photo: C.C. Weiss/Gizmag)
ADAK at Overland Expo 2014 (Photo: C.C. Weiss/Gizmag)
19/25
ADAK at Overland Expo 2014 (Photo: C.C. Weiss/Gizmag)

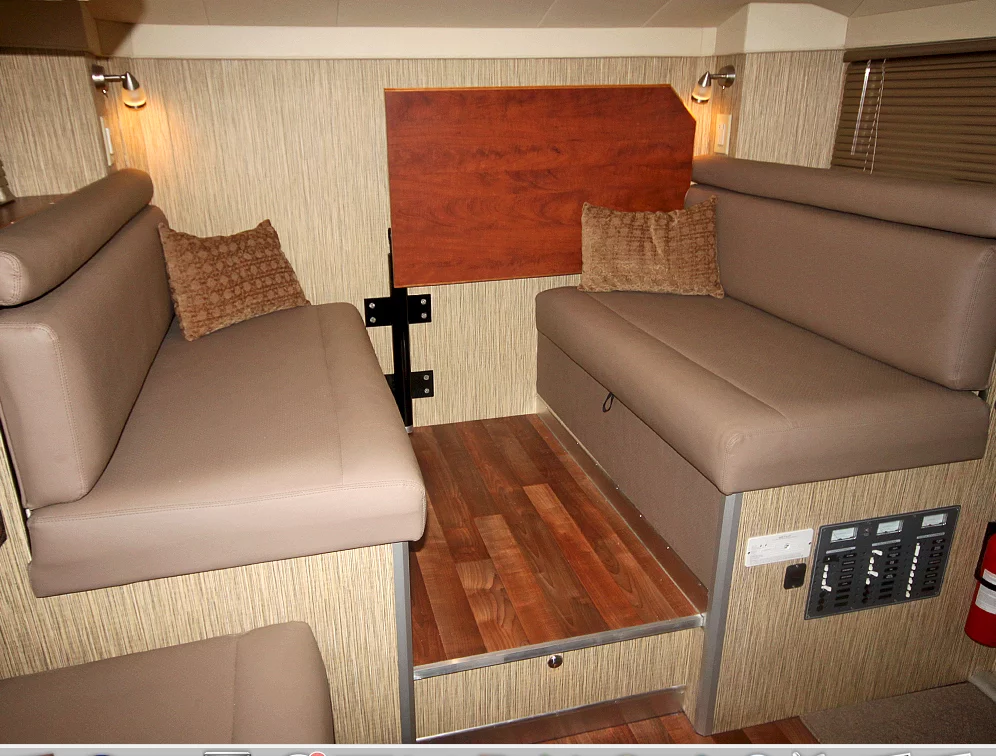

The table folds out of the way for bed conversion
20/25
The table folds out of the way for bed conversion

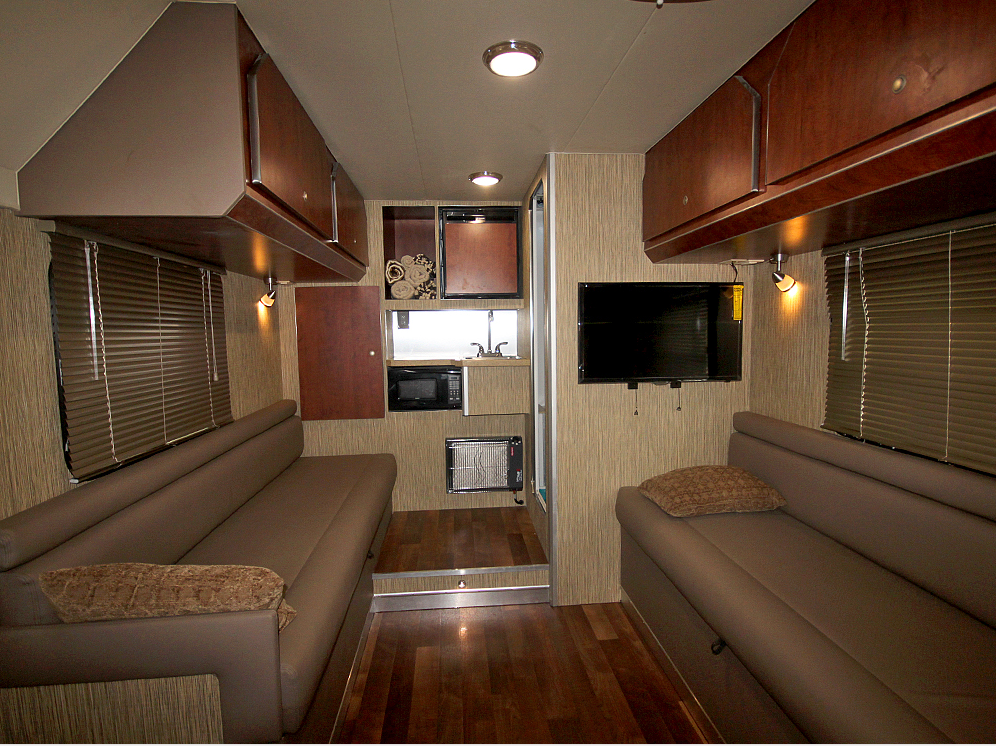

Inside the ADAK Trailer
21/25
Inside the ADAK Trailer
The couches pull out to serve as beds
22/25
The couches pull out to serve as beds
The dining area converted into a third bed
23/25
The dining area converted into a third bed
Inside the ADAK Trailer
24/25
Inside the ADAK Trailer
Inside the ADAK Trailer
25/25
Inside the ADAK Trailer

The search for the perfect mobile, off-grid living solution continues. Over the past year, we've already seen many such designs, from within the crisp halls of the Düsseldorf Caravan Salon, to their natural habitat at Overland Expo, to the occasional EcoTrek or Fieldsleeper International debut. Another fairly new design, the ADAK Trailer is what happens when a group of lifelong sportsmen huddled around the campfire get to talking about what's wrong with camper design. It combines ride-anywhere grit and comfy, spacious living.

"We are hunters, fisherman [sic], campers, and enjoy all things outdoors, especially when we can get off the beaten path and go where there are no crowds," ADAK describes itself. "So one night setting around the campfire commiserating about the things we forgot to bring with us, along with the fact we had to camp three miles from our hunting area because the road in was too rough to take our camping trailer, we decide(d) there had to be a better way."

The "better way" the group of friends and outdoor lovers was looking for was a comfortable, affordable and low-hassle mobile wilderness shelter that could brave the type of rough routes that would leave other campers hobbled and shredded. After trying tents, pickup campers, trailers and motorhomes, they found themselves chatting around the campfire, writing up a list of the improvements they'd like to see, and making the decision to actually pursue those improvements … even after sobering up the next morning. Those pursuits led to Florida-based ADAK Industries LLC, and then the ADAK Trailer.

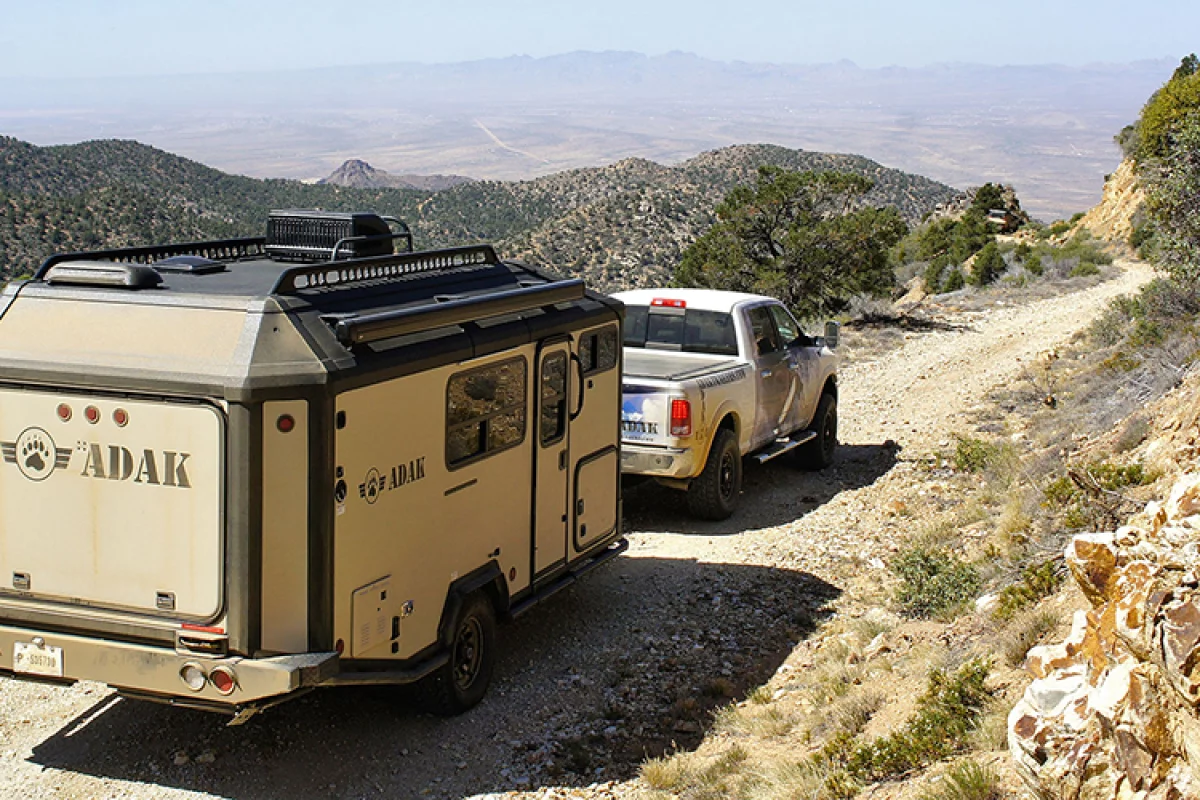

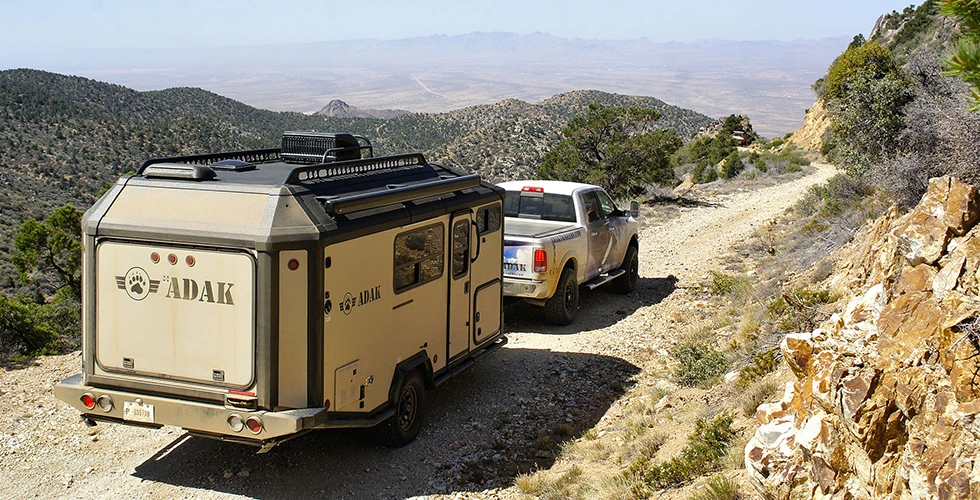

In designing a trailer, ADAK sought to create a blend of rugged on the outside, comfy on the inside. It all starts with an aluminum I-beam frame connected to its two all-terrain tire-shod wheels by a custom torsion-bar suspension. An FRP honeycomb floor is bolted and bonded to the aluminum chassis, creating what the company calls a "torque box effect for unsurpassed rigidness."

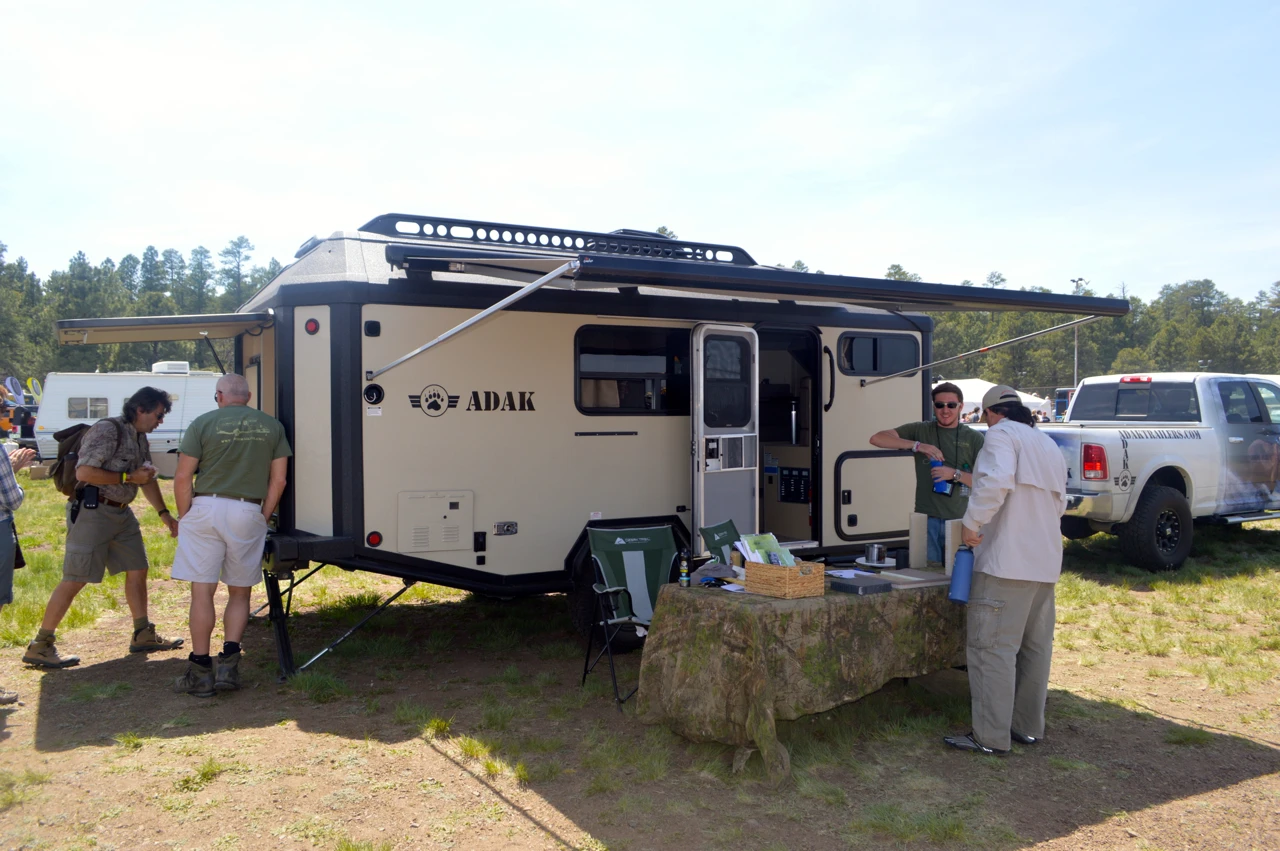

ADAK at Overland Expo 2014 (Photo: C.C. Weiss/Gizmag)
ADAK at Overland Expo 2014 (Photo: C.C. Weiss/Gizmag)

The bonded walls and roof are composed of a fiber-reinforced plastic (FRP) laminated honeycomb, selected for its combination of strength, rigidity and dead air-trapping insulation capabilities. The components and cabinetry are bonded to the main frame, with ADAK explaining that the bonding makes for a more rugged trailer structure that acts as a single piece, preventing the wear and leaking that can hamper bolted campers.

A key aspect of the trailer that ADAK was careful to point out when we looked at the model at Overland Expo 2014 was the snag-free underside. All the plumbing and wiring is routed through the structure of the trailer, and the use of a torsion axle in place of a wheel-to-wheel shaft eliminates any hanging components that could get caught on rough road or obstacles.

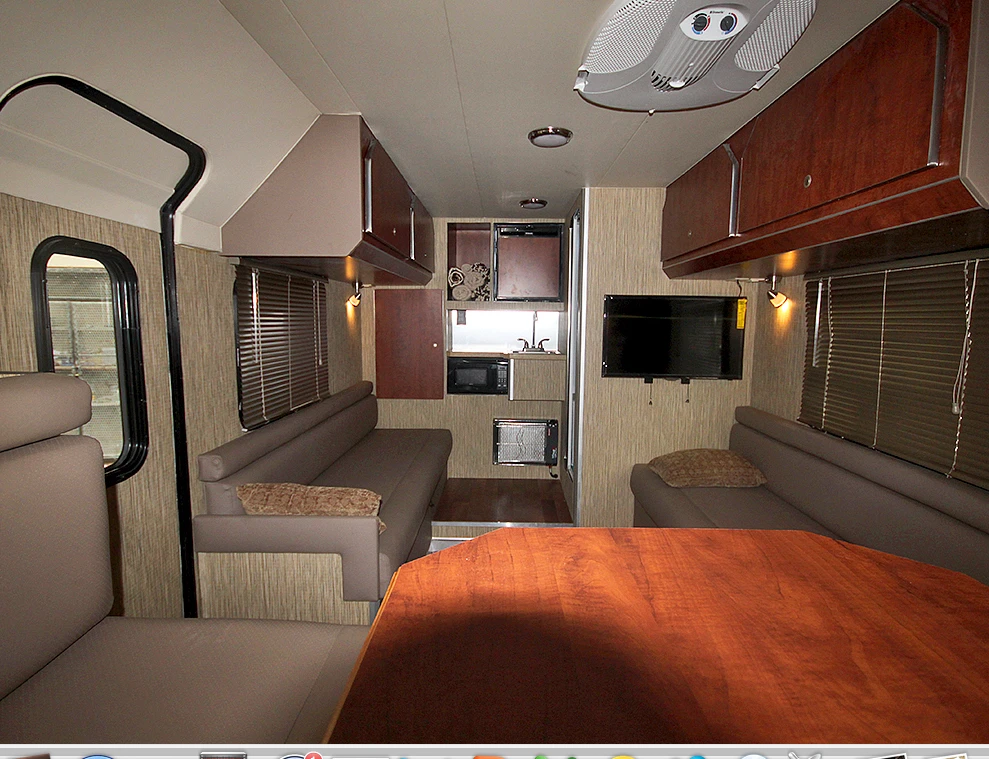

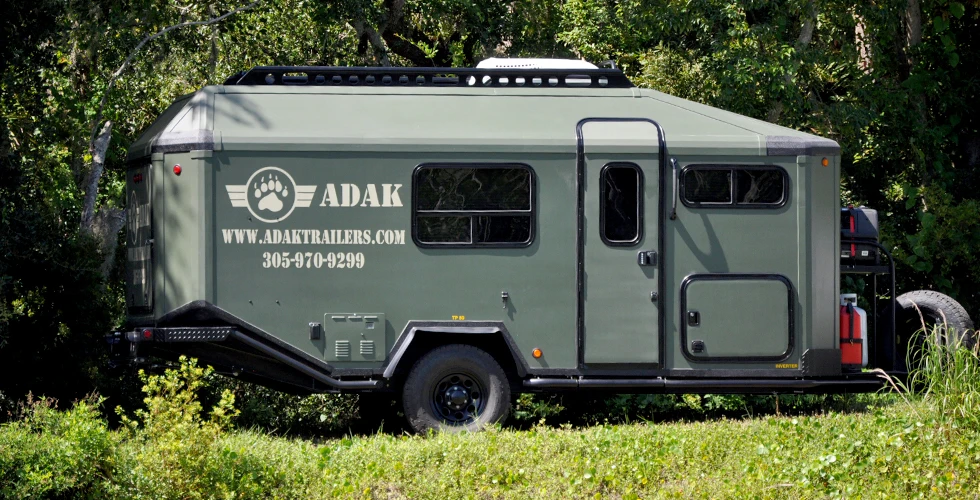

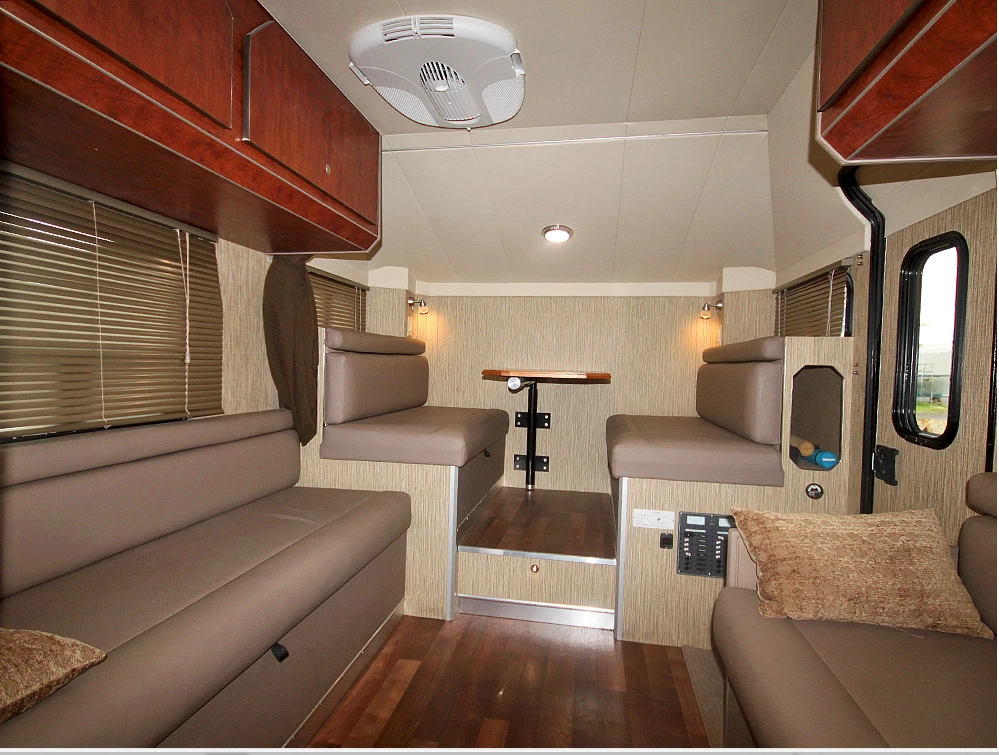

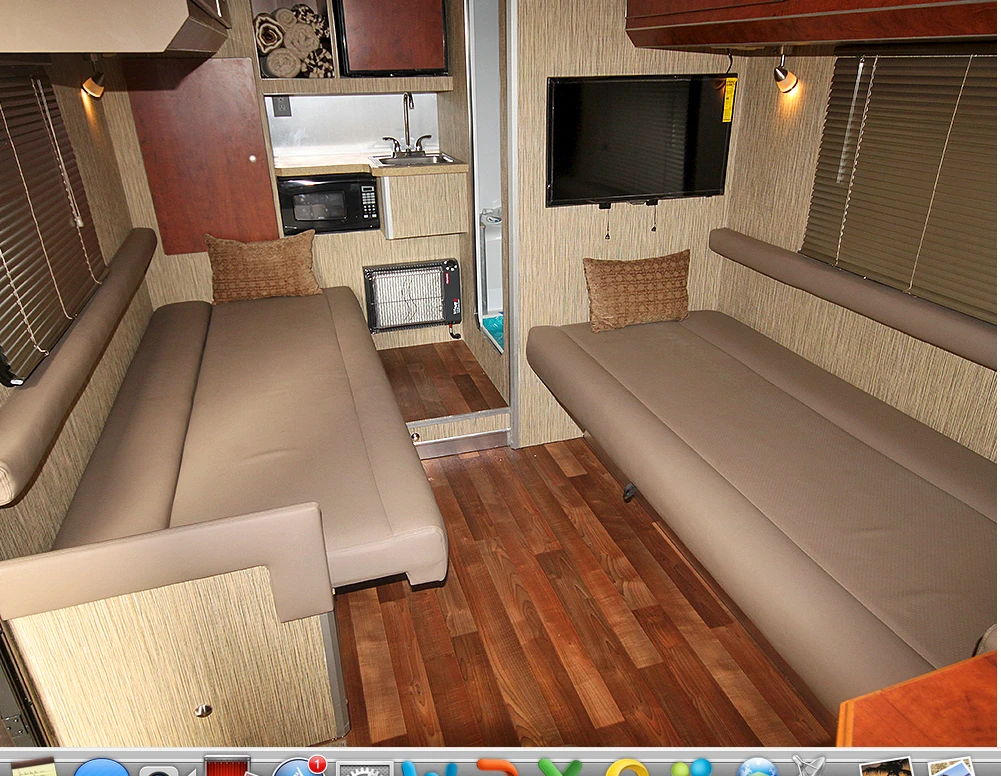

While the burly body of the ADAK Trailer has a military look, especially when painted in available olive drab, the interior has an entirely different feel. From the outside, the trailer looks like it will have little more than a convertible bed/living area inside, but ADAK was careful to optimize use of the 116-sq ft (10.8 sq m) of interior space (headroom: 6 ft 8 in/2 m), a fact that shines through in the offset sofas on either side. Each sofa pulls outward slightly to create a single-person bed.

Inside the ADAK Trailer
Inside the ADAK Trailer

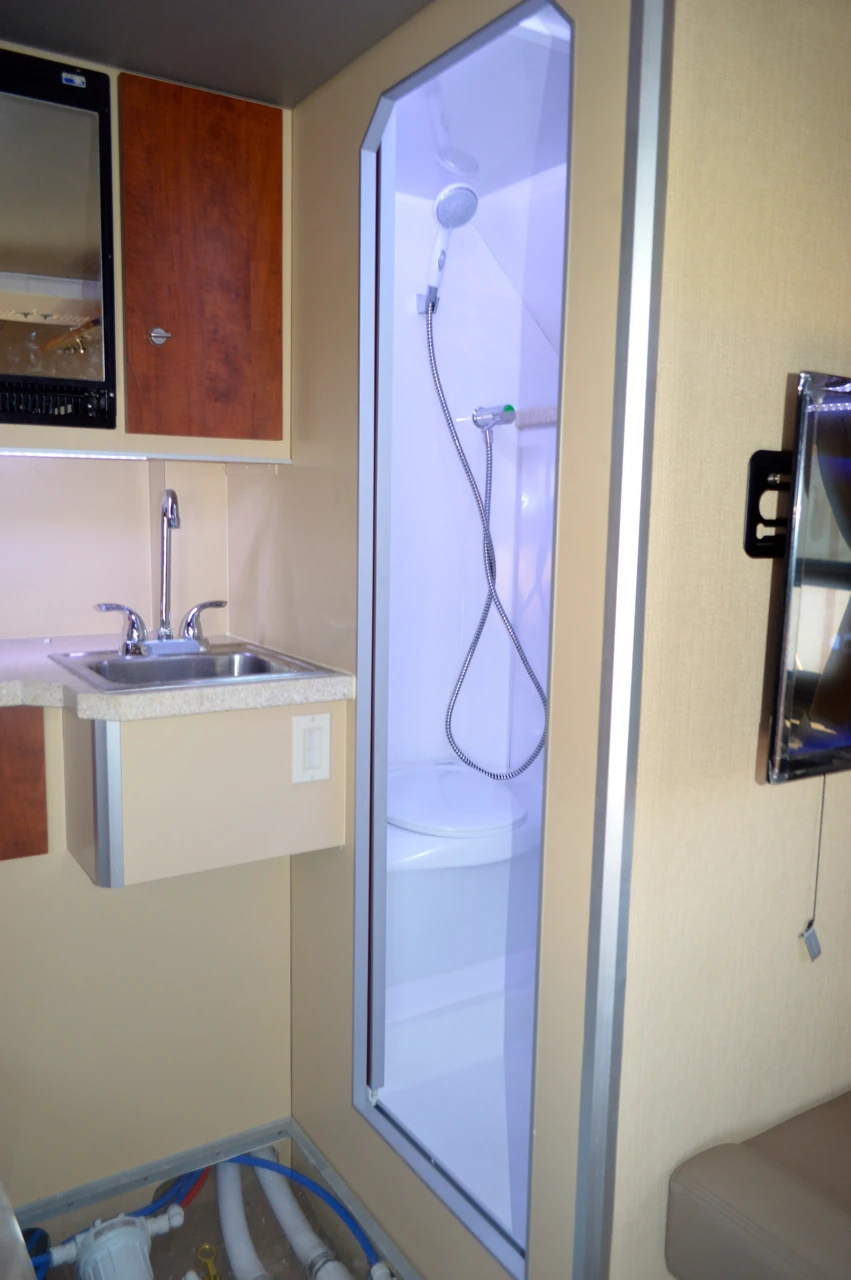

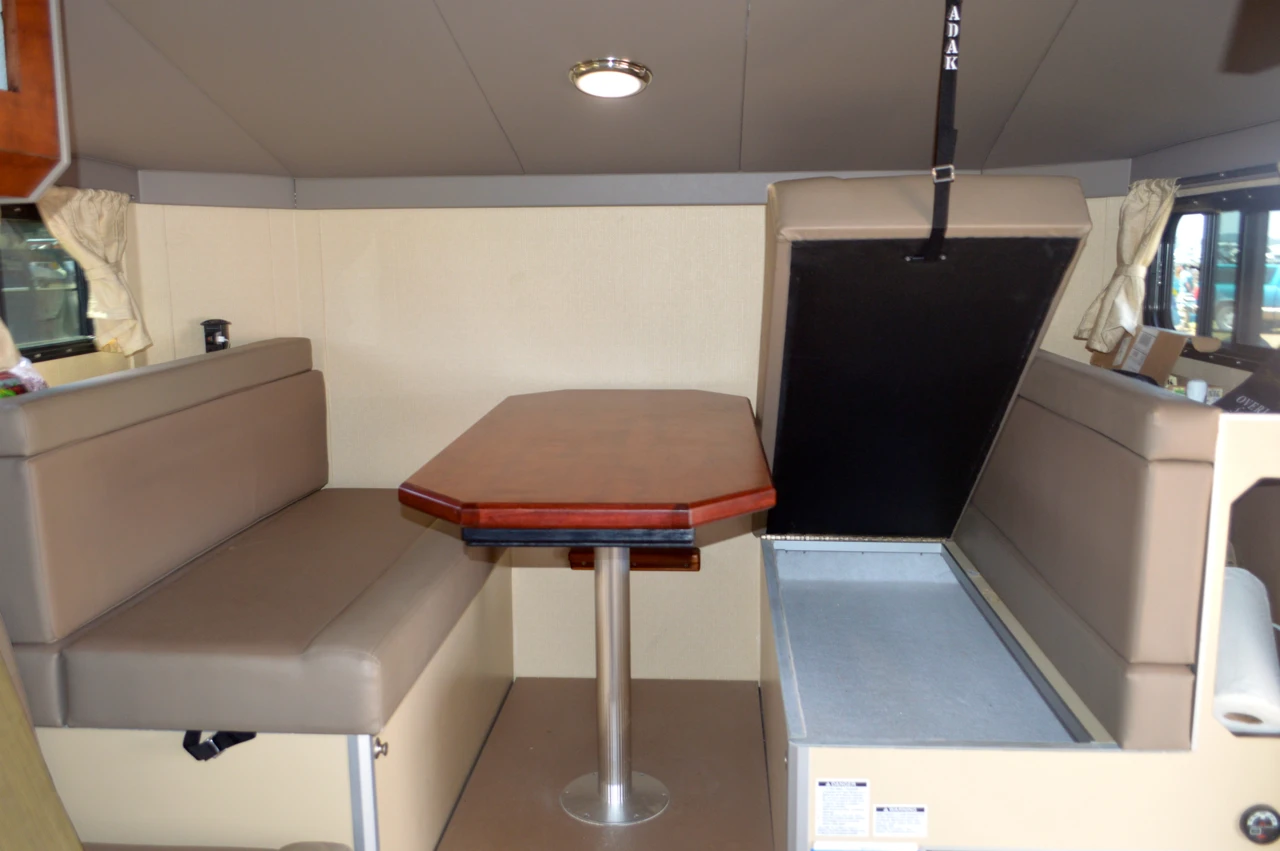

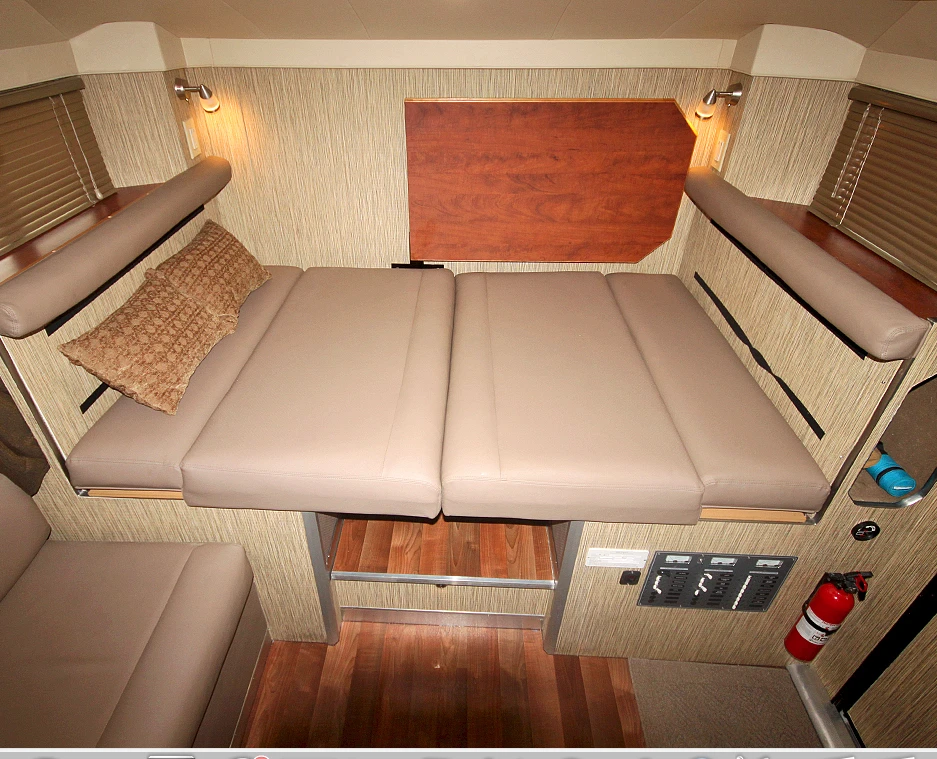

At the front end next to the entryway, there is a step-up dining area with bench seating and central table that transform into a third bed. At the opposite end of the interior, one finds storage space and a small bathroom with cassette toilet and shower. ADAK buyers can choose from the available interior and tailgate-style outdoor galleys, both with a sink and two-burner cooktop. The model pictured on ADAK's website comes to life with wood flooring and cabinetry.

The ADAK trailer comes standard with a 45-gal (170-L) fresh water tank, 12-volt pressurized water system, and tankless, on-demand hot water. ADAK describes the water system as a four-season design tested down to below-zero conditions. The standard electrical system has a 1,000-watt inverter, dual six-volt deep-cycle flooded batteries, and one exterior and four interior 120-volt outlets. A generator is available optionally.

ADAK launched its trailer last year after about two years in development. The trailer starts at US$49,000. In addition to the aforementioned standard equipment, the base trailer includes electric brakes, LED interior/exterior lighting, poly-urea coated exterior corners and flooring, and onboard storage. Available options like the galleys, entertainment package, furnace, air conditioner and interior refrigerator can add close to $24,000 in total. The model we photographed at the Overland Expo earlier this year was a fully optioned trailer priced around $72,000.

Source: ADAK Trailers
