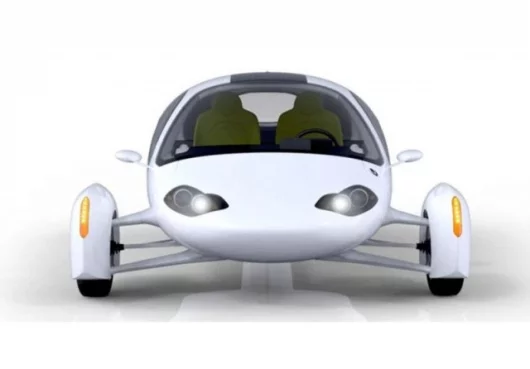

Aptera 2e
Aptera 2e
Aptera 2e - rear view
Aptera 2e - rear view
2009 Aptera 2e specs released
2009 Aptera 2e specs released
View gallery - 4 images

February 4, 2009 Aptera have displayed two prototypes at the Technology, Entertainment, Design (TED) conference held annually at Long Beach California and have revealed more specifications for the 2009 production 2e that we reported on just days ago. The big news is finally some specs for the powertrain. The 1500lb (680kg) curb weight Aptera 2e will have a 60 ft/lb (81 Nm) electric motor driving the front wheels through a 10:1 single speed gearbox with power provided at 336 volts by a 10 – 13 kw/hr Lithium iron phosphate battery pack.

Still no details on battery supplier, motor type or power output at this stage. Without knowing the motor type (the Aptera does have regeneration, so the motor is either a BLDC or AC Induction type) or the torque curve we can only calculate an educated guess based on the torque figure and gearbox ratio information provided. The 2e electric motor power output could be in the range of 100 hp (75kw) at over 13,000 rpm. While that might not sound like much, with such a lightweight chassis and super low 0.15 Cd drag coefficient much less power is required to equal the performance of a heavy conventional steel vehicle.

Full released specs:

  • 53" high x 91.0" wide x 173" long
  • 111" wheelbase
  • 80.5" front track
    • Other specs:
  • 0.15 Coefficient of drag
  • 5" ground clearance
  • 1500 lbs curb weight
    • Electric motor torque: 60FtLb torque
  • 110v 15A charge time: 8 hrs
  • Battery output: 10-13 Kw/hr battery pack
  • Battery voltage: 336V DC Nominal Traction Voltage
  • Transmission: Gearbox 10:1 ratio
  • Battery Type: Lithium Ion Phosphate
    • Chassis:
  • Front Suspension: Independent unequal length A-arm
  • Rear Suspension: Swing Arm
  • Steering: Manual Steering, tilt steering column
  • Brakes: Manual Brakes, dual circuit brake hydraulics, mechanical brake proportioning, 3-wheel disc
  • Wheels: 14-inch High Strength Stamped Steel wheels
  • Size: P165/65R14
    • Performance:
  • Range: Up to 100 miles per charge
  • Warranty:

  • Basic: 4/50,000
  • Powertrain: 4/50,000
  • Corrosion: 12/unlimited
  • Roadside: 4/50,000
  • Features: (S=standard, O=optional)

  • Push Button Start: S
  • Electronic shift PRNDL (shift controller): S
  • AM/FM/MP3/WMA with 5 speakers and MP3/Smart Phone Connectivity: S
  • DVD Navigation System: O
  • Power up/down windows with Driver side one-touch and anti-pinch: S
  • Power automatic door locks with anti-lockout feature: S
  • Center console armrest with two cup holders: S
  • Overhead mounted LED Dome Lights: S
  • Recycled Fabric-trimmed seats and door panels: S
  • Leatherette (recycled materials) trimmed steering wheel: S
  • Defroster-linked CFC-free automatic climate control with electric inverter compressor air conditioning: S
  • One 12V auxilliary power outlets and One 12V USB Outlet: S
  • Retractable passenger-assist grips at all doors: S
    • Exterior:
  • Dual color-keyed power outside mirros: S
  • Aerodynamic multi-reflector halogen headlamps: S
  • Washer-linked variable intermittent windshield wipers: S
  • Rear window defogger with timer: S
  • Rear Electronic rear hatch locking system (sic): S
  • Solar Energy-Reflecting glass: S
  • Smart Key System (Proximity locking/starting) Maintenance key & cylinder to prevent accidental lock out: S
    • Safety:
  • Remote keyless entry system with 2-stage unlocking, panic function and remote illuminated entry: S
  • Backup camera: O
  • Driver and front passenger Airbag System: S
  • Front and rear crumple zones and side-impact door beams: S
  • Engine immobilizer: S
  • Center high-mount stop lamp: S
  • Emergency Tire inflation system: S
  • 3-point front outboard seatbelts with adjustable shoulder anchors and driver-side Emergency Locking Retractor (ELR), front passenger Automatic/Emergency Locking Retractor (ALR/ELR): S
  • Driver and front passenger seatbelt with seat belt starter interlock: S
  • Direct Tire Pressure Monitor System (TPMS): S
  • Anti-theft system: O
  • Paul Evans

    Via Josh on Apteraforum.
