Porsche is bringing wireless EV charging to production

Porsche is bringing wireless EV charging to production
The Porsche wireless EV charging system is production-ready and will be available in 2026
The Porsche wireless EV charging system is production-ready and will be available in 2026
View 7 Images
The Porsche wireless EV charging system is production-ready and will be available in 2026
1/7
The Porsche wireless EV charging system is production-ready and will be available in 2026

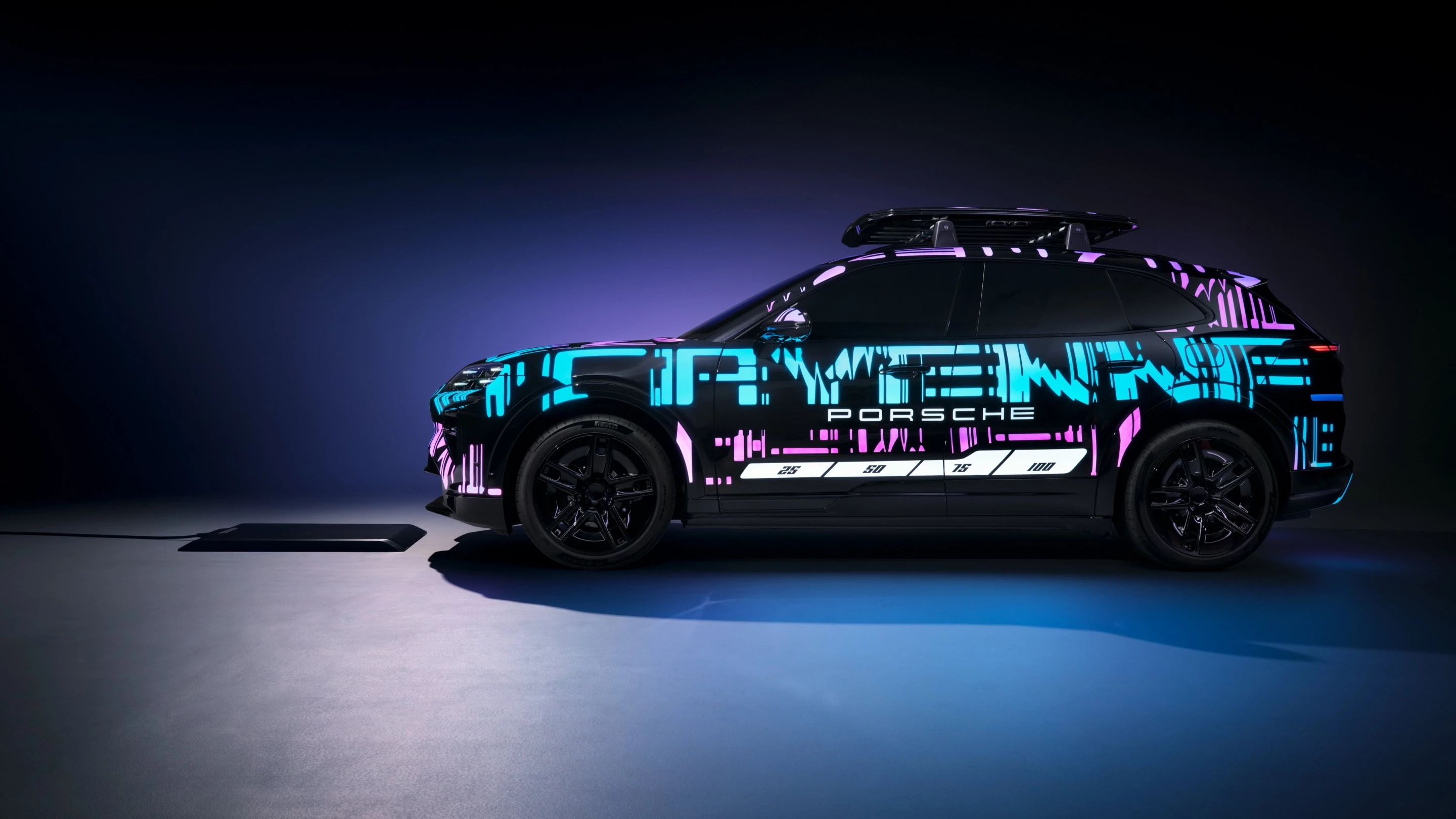

Using a prototype Cayenne Electric painted in bright fluorescent colors, Porsche demonstrates its new induction charging system
2/7
Using a prototype Cayenne Electric painted in bright fluorescent colors, Porsche demonstrates its new induction charging system

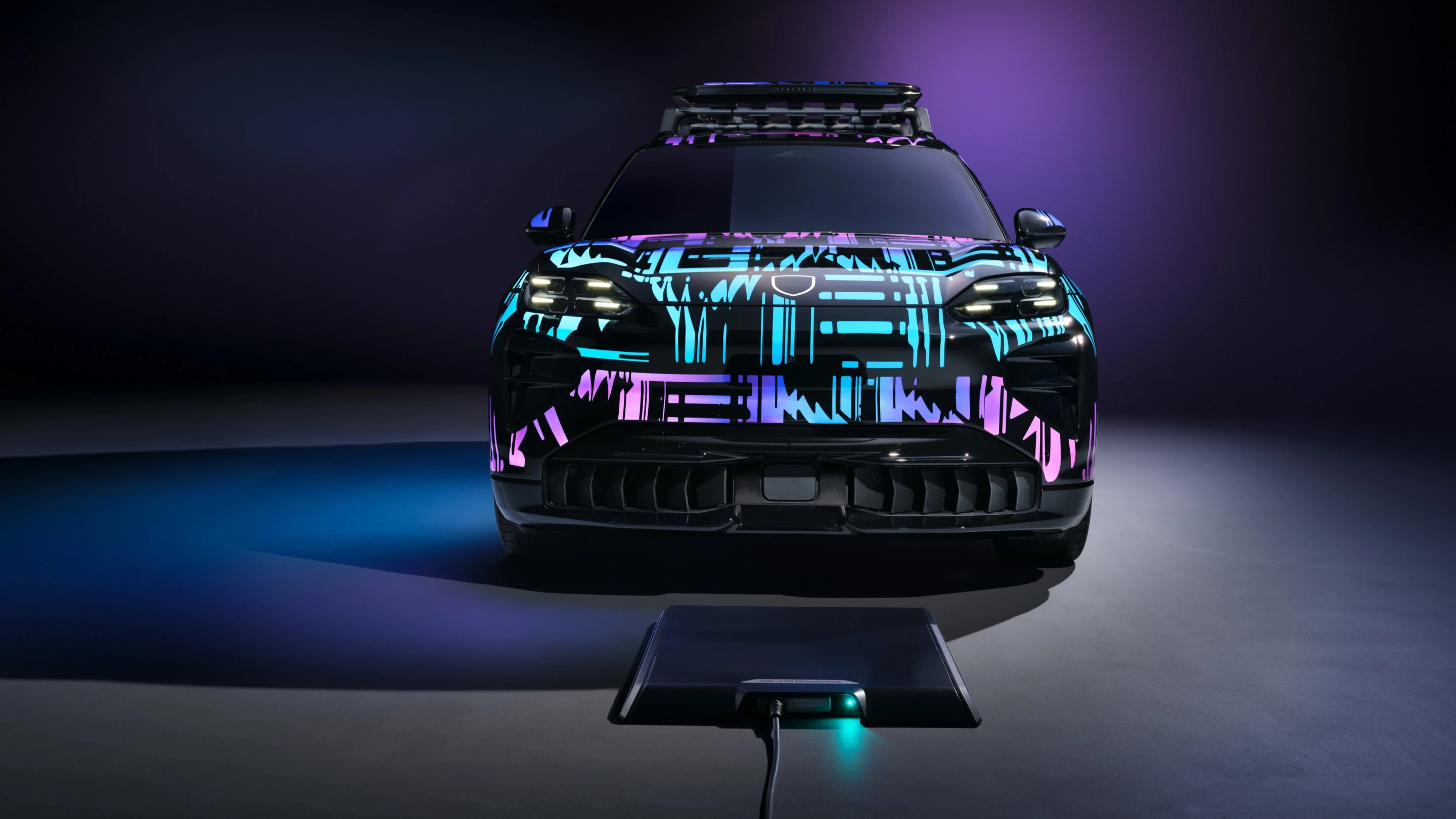

The all-in-one base plate design means minimal intrusion into the parking space
3/7
The all-in-one base plate design means minimal intrusion into the parking space

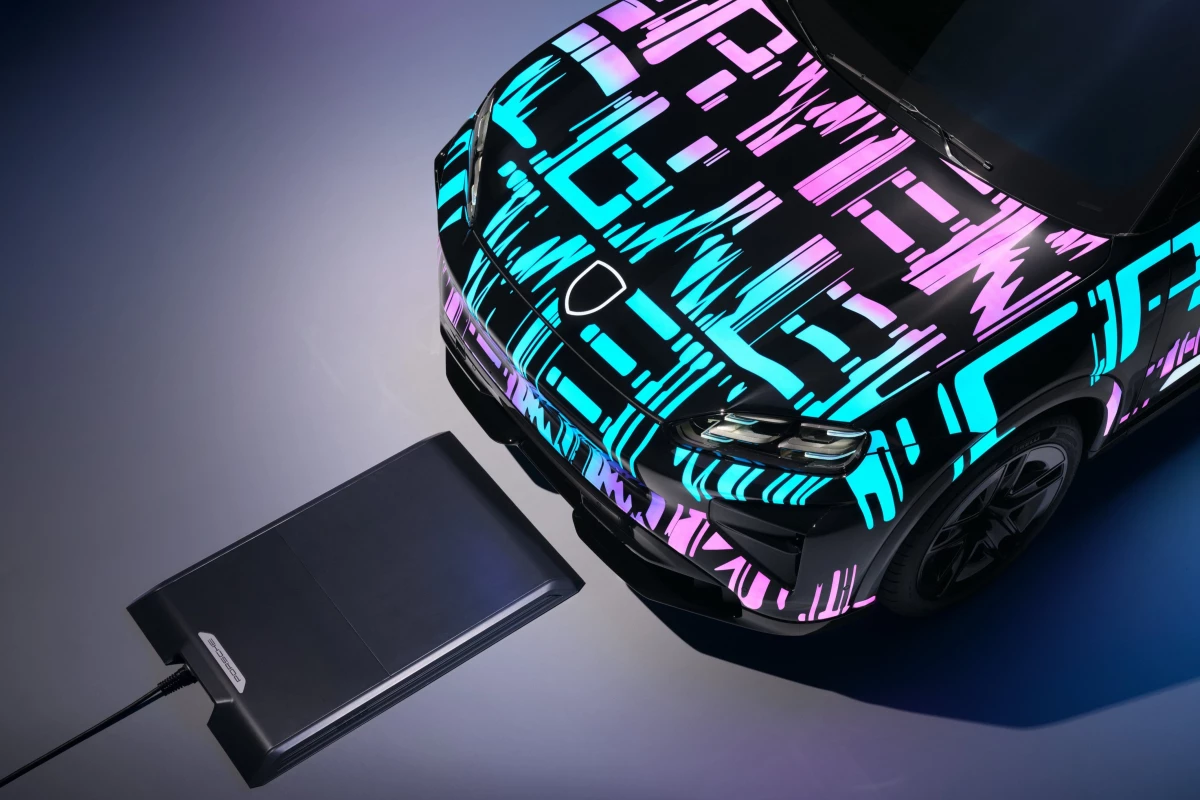

The One-Box base plate for Porsche's wireless EV charging system includes safety sensors to shut off charging if motion or interference is detected
4/7
The One-Box base plate for Porsche's wireless EV charging system includes safety sensors to shut off charging if motion or interference is detected

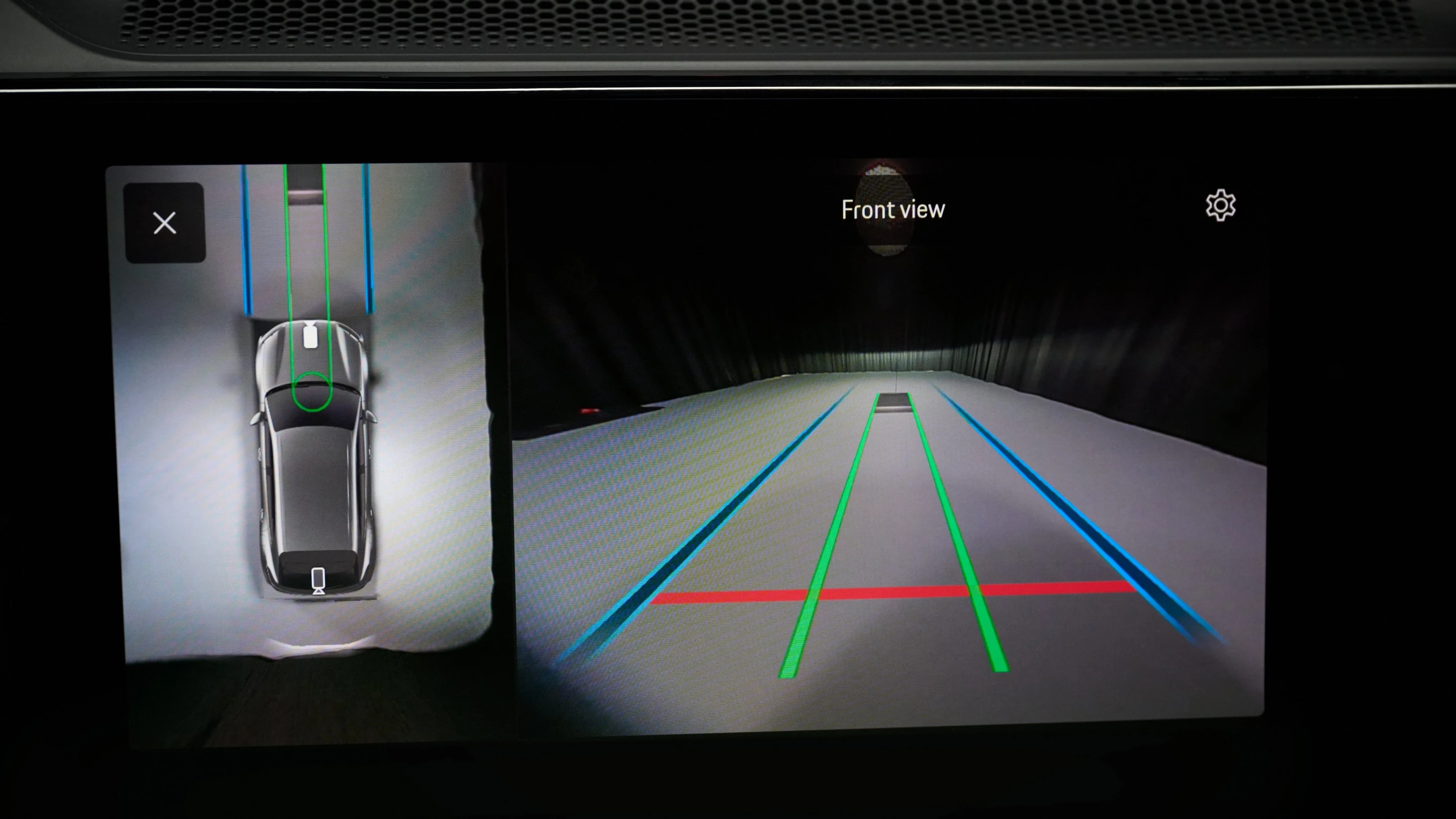

A surround-view camera system integrated with the wireless charging and the vehicle guides the driver to the optimal charging position over the plate
5/7
A surround-view camera system integrated with the wireless charging and the vehicle guides the driver to the optimal charging position over the plate

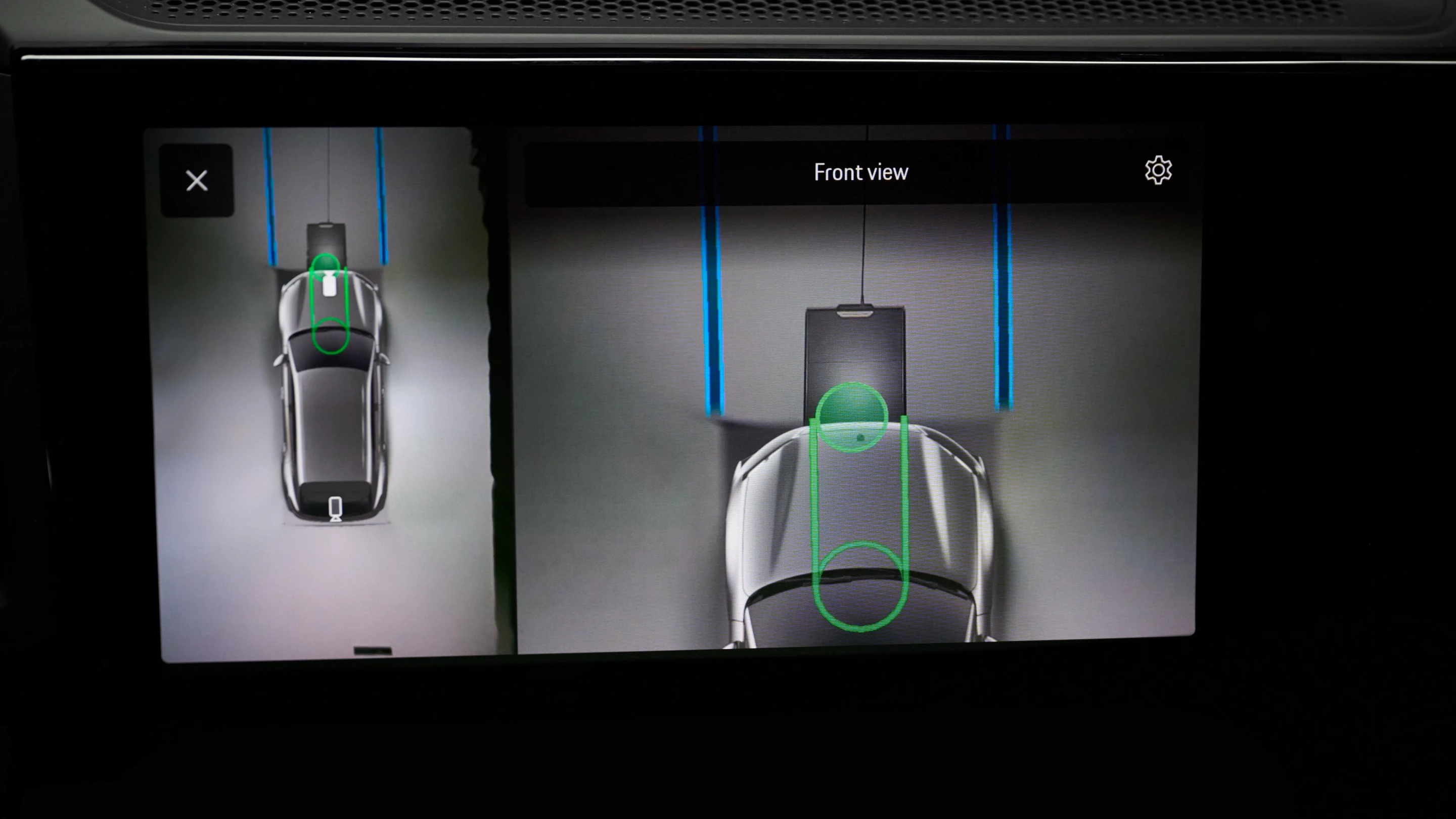

Once the vehicle is over the charging plate, Porsche's system prepares for charging
6/7
Once the vehicle is over the charging plate, Porsche's system prepares for charging

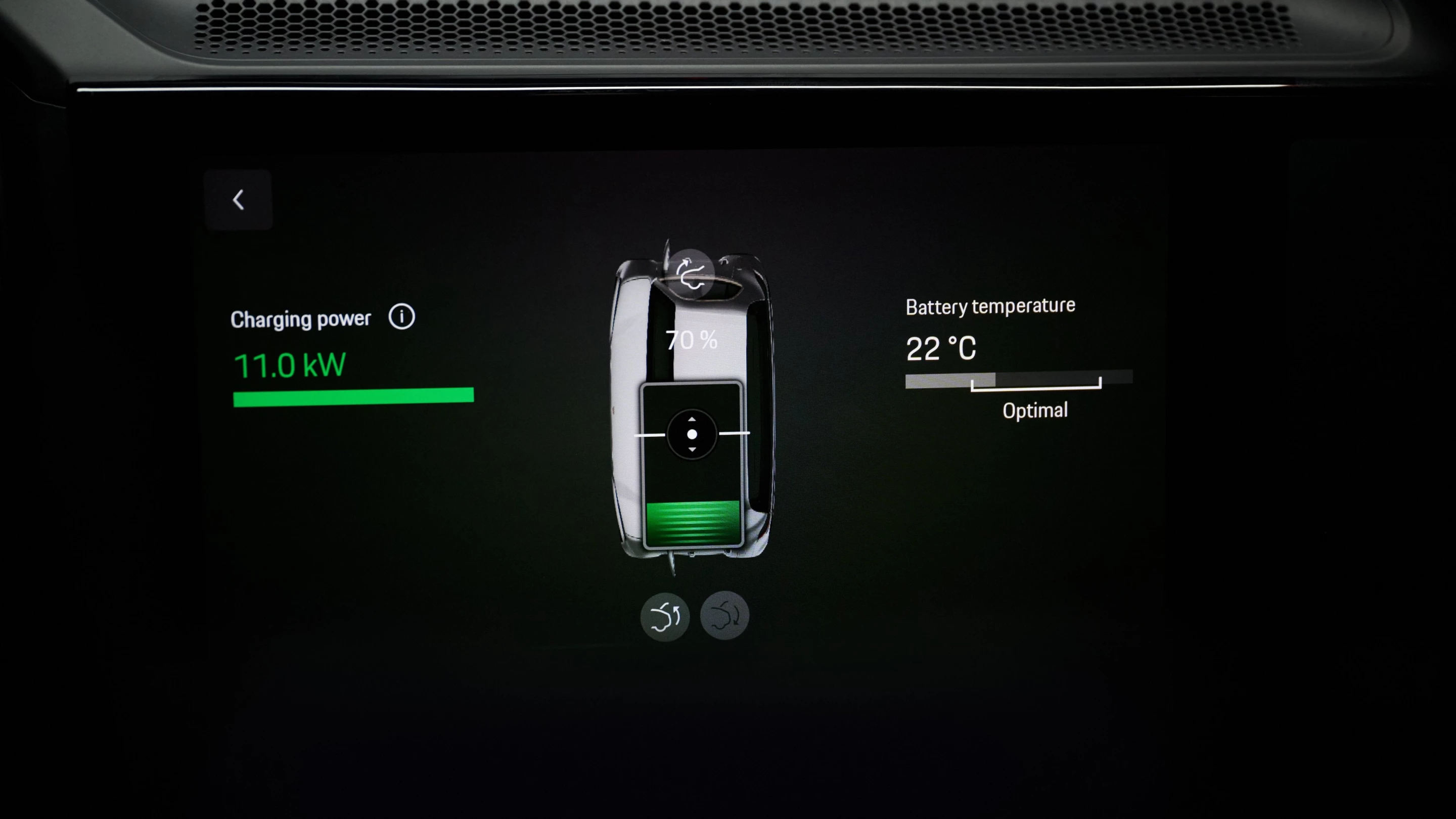

The My Porsche app can be used to monitor or control the charge just as with plug-in charging
7/7
The My Porsche app can be used to monitor or control the charge just as with plug-in charging
View gallery - 7 images

Porsche has brought a fluorescent-painted prototype to Internationale Automobil Ausstellung (IAA) Mobility to showcase inductive EV charging. The production-ready system will be an option on a new, all-electric version of the Porsche Cayenne.

The Cayenne Electric will debut later in 2025 as a 2026 model year offering. Its wireless charging system will be available sometime in 2026 to European markets before rolling out globally.

Porsche's series production system consists of a wireless charging receiver unit located underneath the vehicle between its front wheels, which pairs with an 11-kW charging system base plate that resides in a parking space. That space is usually inside the vehicle owner's garage.

The One-Box base unit is self-contained, requiring nothing but a power supply cable. No other mounting hardware is needed. The base plate also includes a motion detector and foreign object detection. So a wandering pet or items accidentally left on the charge plate will not be exposed to the electromagnetic field.

The Porsche Wireless Charging system on the vehicle and the One-Box start communicating once they are within close proximity to one another. As the Cayenne is pulled over the plate, a special surround-view camera system on the car's infotainment system will guide the driver to the optimal parking position for charging. Once the driver places the vehicle in park and sets the parking brake (usually automated with the transmission in park), the charging process begins. The vehicle lowers itself automatically to the optimal distance (about 6 inches / 15.2 cm) and begins charging.

The My Porsche app can be used to control and monitor the charging process, vehicle preconditioning, and so forth, just as with standard plug-in AC charging.

Porsche plans to add the inductive charging system to other electric vehicles in its lineup after the Cayenne EV's launch.

Source: Porsche

View gallery - 7 images
