Crate Cargo Cruiser ebike carries passengers and loads up to 120 miles

Crate Cargo Cruiser ebike carries passengers and loads up to 120 miles
The all-new Dost Crate cargo ebike debuted on Wednesday and arrives in December 2023
The all-new Dost Crate cargo ebike debuted on Wednesday and arrives in December 2023
View 11 Images

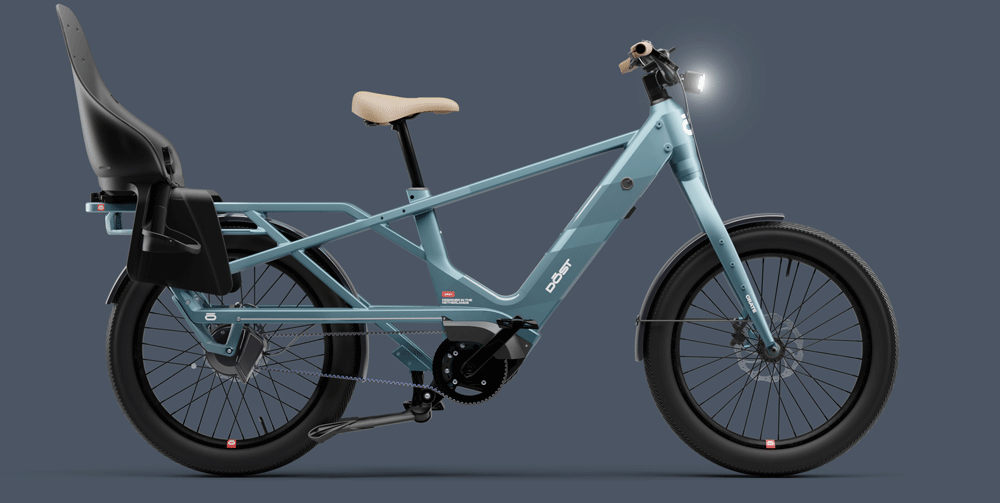

The all-new Dost Crate cargo ebike debuted on Wednesday and arrives in December 2023
1/11
The all-new Dost Crate cargo ebike debuted on Wednesday and arrives in December 2023
The available front rack bolts around the head tube
2/11
The available front rack bolts around the head tube
Dual-cushion rear seat
3/11
Dual-cushion rear seat
Riders can use the Dost Crate's sturdy rear frame to carry packages and goods directly or via attached seats, racks and panniers
4/11
Riders can use the Dost Crate's sturdy rear frame to carry packages and goods directly or via attached seats, racks and panniers
In-frame cargo accessory
5/11
In-frame cargo accessory
The Dost Crate electric cargo bike is designed to carry two toddlers or small children or even a second adult in back
6/11
The Dost Crate electric cargo bike is designed to carry two toddlers or small children or even a second adult in back

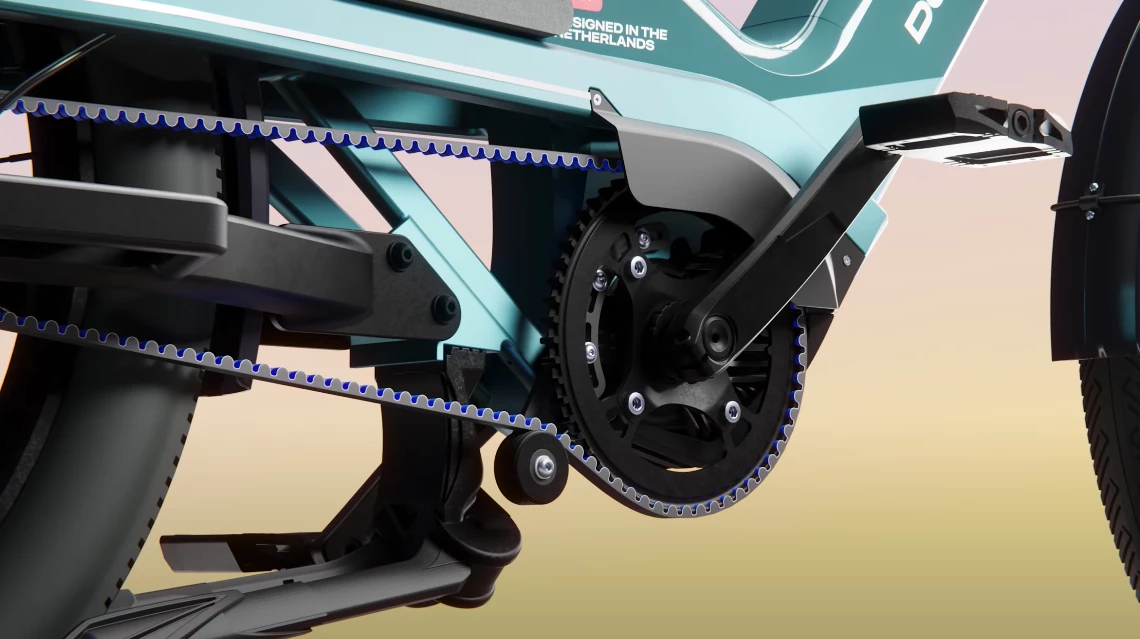

The Crate uses a combination of Bafang mid-drive, Enviolo CVT and Gates Belt Drive
7/11
The Crate uses a combination of Bafang mid-drive, Enviolo CVT and Gates Belt Drive

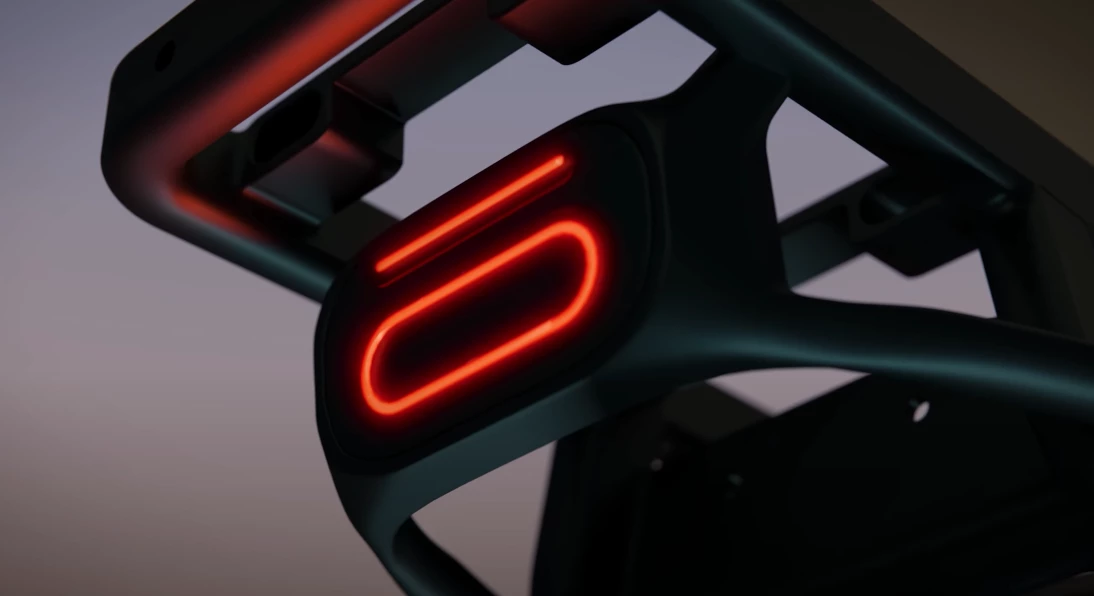

The Crate includes both a brake light and adjustable-beam headlight
8/11
The Crate includes both a brake light and adjustable-beam headlight
Riders control the electric drive via thumb shifters and monitor with a 3.2-in display
9/11
Riders control the electric drive via thumb shifters and monitor with a 3.2-in display
The Dost Crate comes in step-through (ST) and traditional frame styles and buyer's choice of "green mist" or "ocean blue" colors
10/11
The Dost Crate comes in step-through (ST) and traditional frame styles and buyer's choice of "green mist" or "ocean blue" colors
The Dost Crate offers a variety of cargo-carry solutions for both people and goods
11/11
The Dost Crate offers a variety of cargo-carry solutions for both people and goods
View gallery - 11 images

Canadian ebike maker Dost Bikes first hit the scene in 2019 with the plan of launching a family of long-range electric bikes with plenty of onboard power and performance. Four years later, it's growing that family with an ultra-capable electric cargo mule equipped to handle up to 440 lb (200 kg) of people and goods. The new Crate cargo ebike combines a compact cargo-ready frame with a high-torquing 750-W mid-drive, available dual-battery system, continuously variable transmission (CVT) and modular cargo carry system.

Dost is determined to replace as many car trips as it can, and it has put together a convincing cargo-hauling machine to help it do so. Similar to the Blix Packa Genie, Tern GSD and a number of other cargo bikes, Crate's rear cargo cage design eliminates the need for longer, clunkier framework and keeps overall bike size close to that of a regular city bike. The design also puts the rider in a familiar upright, centered position for easier commuting. The bike still manages to carry nearly seven times its weight while offering the potential to travel between 60 and 120 miles (96.5 and 193 km), depending upon the battery selected, weight being carried and riding conditions.

More specifically, Dost estimates the respective 60- and 120-mile single- and dual-battery top ranges based on a light load of 150 lb (68 kg) and ideal conditions that include flat, smooth terrain, no headwinds and low speeds. When fully loaded with 440 lb (200 kg), the Crate offers estimated ranges of 30 miles (48 km) for the single battery and 60 miles with the dual-battery system. A 'tweener range of 45/90 miles (72/145 km) relates to 275 lb (125 kg) worth of loaded weight in the same ideal riding conditions.

The Crate uses a combination of Bafang mid-drive, Enviolo CVT and Gates Belt Drive
The Crate uses a combination of Bafang mid-drive, Enviolo CVT and Gates Belt Drive

The Crate centers around a 750-W Bafang M600 mid-drive that churns out up to 92 lb-ft (125 Nm) of torque. Riders can select from five different torque-sensor-controlled pedal-assist modes or dial up motor output immediately and directly via a twist throttle cozied up next to the grip. The standard lithium battery is stored in the down tube, and the available range-extender mounts atop the down tube to increase total capacity to 1,200 Wh and 25 Ah.

The cargo-specific Enviolo Automatiq CVT seamlessly changes gears based on motor output. Those who prefer a more traditional shifting experience need only switch over to manual mode for full gear shifter functionality. Either way, rider + motor output transfers to the rear wheel via a smooth, quiet Gates Carbon belt drive. Four-piston Tektro front and rear disc brakes bring the bike to a stop.

The Crate's beefy square-tube 6061 aluminum frame is joined by a rigid 6061 fork in providing a sturdy, stable platform without packing on the weight of steel. Attachment points make it easy to pick and plug accessories from Dost's ecosystem of passenger seats, panniers, rear baskets, front racks and more. Dost says the bike can carry a rider and two young children or rider and one adult.

The Dost Crate offers a variety of cargo-carry solutions for both people and goods
The Dost Crate offers a variety of cargo-carry solutions for both people and goods

The Crate rides on 24-in wheels shod in 3-in-wide tires, a unique combination designed to lower center of gravity versus traditional 26-in+ wheels, deliver stability and integrated shock absorption from the beefy tires, and keep the ride and handling closer to that of a regular city bike versus smaller 20-in wheels common on other cargo ebikes. The combination also maintains an approachable standover height, and Dost offers a step-through frame option that makes it even easier to hop on.

Other Crate features include a distinctive red brake light, a 100-lux headlight with high and low beam settings, a heavy-duty wishbone kickstand, and a 3.2-in multi-color LCD cockpit display.

The Crate includes both a brake light and adjustable-beam headlight
The Crate includes both a brake light and adjustable-beam headlight

The Crate joins a recent market surge of long-range cargo ebikes that's also seen the debut of the Lectric Xpedition and Cake Åik. It's available for preorder now for a US$500 deposit. Prices start at $4,999 and rise steadily when the buyer gets to packing on options like the $699 dual-battery system and myriad cargo accessories. Shipping is scheduled to begin in December 2023 – in time for the holidays but a bit late for prime cycling season.

The 5.5-minute intro video gives a full rundown of the Crate's design and main features.

DŌST Crate - Cargo Cruiser EBike

Source: Dost Bikes via Electrek

View gallery - 11 images
